# Predictive Dynamic Window Approach Development with Artificial Neural Fuzzy Inference Improvement

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

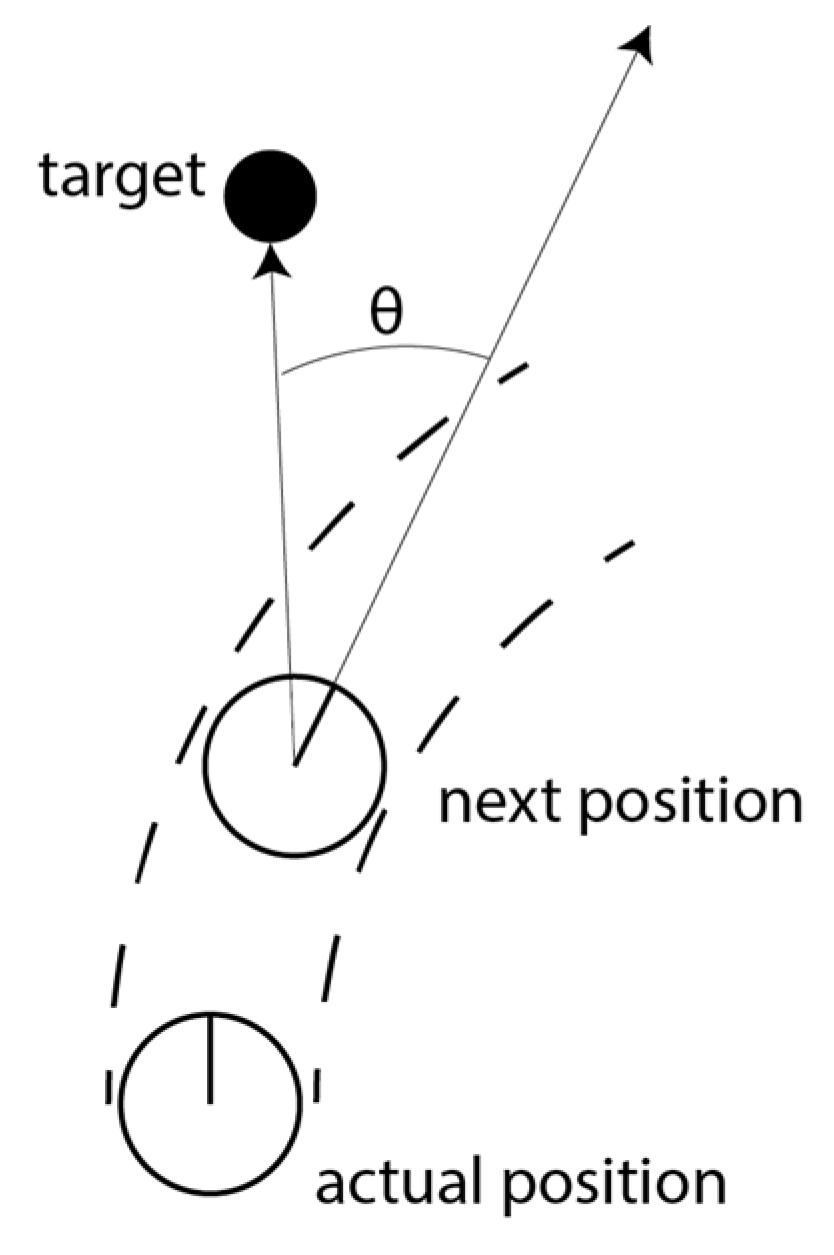

## 2. Materials and Methods

## 3. DWA Improvement

#### 3.1. Predictive DWA

#### 3.2. ANFIS Development

## 4. DWA Improves Results

#### 4.1. Map 1 Results

#### 4.2. Map 2

#### 4.3. Map 3

#### 4.4. Map 4

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Jin, X.; Su, T.; Kong, J.; Bai, Y.; Miao, B.; Dou, C. State-of-the-Art Mobile Intelligence: Enabling Robots to Move Like Humans by Estimating Mobility with Artificial Intelligence. Appl. Sci.
**2018**, 8, 379. [Google Scholar] [CrossRef] - Ortigoza, R.S.; Marcelino-Aranda, M.; Ortigoza, G.S.; Guzman, V.M.H.; Molina-Vilchis, M.H.; Saldana-Gonzalez, G.; Herrera-Lozada, J.C.; Olguin-Carbajal, M. Wheeled Mobile Robots: A review. IEEE Lat. Am. Trans.
**2012**, 10, 2209–2217. [Google Scholar] [CrossRef] - Bonin-Font, F.; Ortiz, A.; Oliver, G. Visual Navigation for Mobile Robots: A Survey. J. Intell. Robot. Syst.
**2008**, 53, 263–296. [Google Scholar] [CrossRef] - Fox, D.; Burgard, W.; Thrun, S. The dynamic window approach to collision avoidance. IEEE Robot. Autom. Mag.
**1997**, 4, 23–33. [Google Scholar] [CrossRef] - Borenstein, J.; Koren, Y. The vector field histogram-fast obstacle avoidance for mobile robots. IEEE Trans. Robot. Autom.
**1991**, 7, 278–288. [Google Scholar] [CrossRef] [Green Version] - Buniyamin, N.; Wan Ngah, W.A.j.; Mohamad, Z. PointsBug versus TangentBug algorithm, a performance comparison in unknown static environment. In Proceedings of the 2014 IEEE Sensors Applications Symposium (SAS), Queenstown, New Zealand, 18–20 Feberuary 2014; pp. 278–282. [Google Scholar]
- Ever, Y.K. Using simplified swarm optimization on path planning for intelligent mobile robot. Proced. Comput. Sci.
**2017**, 120, 83–90. [Google Scholar] [CrossRef] - Mei, Z.; Chen, Y.; Jiang, M.; Wu, H.; Cheng, L. Mobile robots path planning based on dynamic movement primitives library. In Proceedings of the 2017 36th Chinese Control Conference (CCC), Dalian, China, 26–28 July 2017; pp. 6906–6911. [Google Scholar]
- Teso-Fz-Betoño, D.; Zulueta, E.; Fernandez-Gamiz, U.; Aramendia, I.; Uriarte, I. A Free Navigation of an AGV to a Non-Static Target with Obstacle Avoidance. Electronics
**2019**, 8, 159. [Google Scholar] [CrossRef] - Lopez, F.G.; Abbenseth, J.; Henkel, C.; Dörr, S. A predictive online path planning and optimization approach for cooperative mobile service robot navigation in industrial applications. In Proceedings of the 2017 European Conference on Mobile Robots (ECMR), Paris, France, 6–8 September 2017. [Google Scholar]
- Pfeiffer, M.; Schaeuble, M.; Nieto, J.; Siegwart, R.; Cadena, C. From perception to decision: A data-driven approach to end-to-end motion planning for autonomous ground robots. In Proceedings of the 2017 IEEE International Conference on Robotics and Automation (ICRA), Singapore, Singapore, 29 May–3 June 2017. [Google Scholar]
- Yu, H.; Duan, J.; Taheri, S.; Cheng, H.; Qi, Z. A model predictive control approach combined unscented Kalman filter vehicle state estimation in intelligent vehicle trajectory tracking. Adv. Mech. Eng.
**2015**, 7, 168781401557836. [Google Scholar] [CrossRef] - Qingjia, C.; Rongjun, D.; Bing, Z.; Xiaojian, W. Path-tracking of an autonomous vehicle via model predictive control and nonlinear filtering. J. Autom. Eng.
**2018**, 232, 1237–1252. [Google Scholar] - Sathiya, V.; Chinnadurai, M. Evolutionary Algorithms-Based Multi-Objective Optimal Mobile Robot Trajectory Planning. Robotica
**2019**, 37, 1363–1382. [Google Scholar] [CrossRef] - Fan, X.; Luo, X.; Yi, S.; Yang, S.; Zhang, H. Optimal path planning for mobile robots based on intensified ant colony optimization algorithm. In Proceedings of the IEEE International Conference on Robotics, Intelligent Systems and Signal Processing, 2003, Changsha, Hunan, China, 8–13 October 2003. [Google Scholar]
- Dai, X.; Long, S.; Zhang, Z.; Gong, D. Mobile Robot Path Planning Based on Ant Colony Algorithm With A Heuristic Method. Front. Neurorobotics
**2019**, 13, 15. [Google Scholar] [CrossRef] [PubMed] - Yang, H.; Qi, J.; Miao, Y.; Sun, H.; Li, J. A New Robot Navigation Algorithm Based on a Double-Layer Ant Algorithm and Trajectory Optimization. IEEE Trans. Indust. Electron.
**2019**, 66, 8557–8566. [Google Scholar] [CrossRef] - Bellotto, N.; Hu, H. Multisensor-Based Human Detection and Tracking for Mobile Service Robots. IEEE Trans. Syst. Man Cybern. Part B (Cybernetics)
**2009**, 39, 167–181. [Google Scholar] [CrossRef] [PubMed] - Truong, X.; Yoong, V.N.; Ngo, T. Dynamic social zone for human safety in human-robot shared workspaces. In Proceedings of the 2014 11th International Conference on Ubiquitous Robots and Ambient Intelligence (URAI), Kuala Lumpur, Malaysia, 12–15 November 2014. [Google Scholar]
- Hong, Z.; Chun-Long, S.; Zi-Jun, Z.; Wei, A.; De-Qiang, Z.; Jing-Jing, W. A Modified Dynamic Window Approach to Obstacle Avoidance Combined with Fuzzy Logic. In Proceedings of the 2015 14th International Symposium on Distributed Computing and Applications for Business Engineering and Science (DCABES), Guiyang, China, 18–24 August 2015. [Google Scholar]
- Abubakr, O.A.; Jaradat, M.A.K.; Hafez, M.A. A reduced cascaded fuzzy logic controller for dynamic window weights optimization. In Proceedings of the 2018 11th International Symposium on Mechatronics and its Applications (ISMA), Sharjah, United Arab Emirates, 4–6 March 2018. [Google Scholar]
- Arras, K.O.; Persson, J.; Tomatis, N.; Siegwart, R. Real-time obstacle avoidance for polygonal robots with a reduced dynamic window. In Proceedings of the 2002 IEEE International Conference on Robotics and Automation (Cat. No.02CH37292), Washington, DC, USA, 11–15 May 2002. [Google Scholar]
- Salleh, M.A.M.; Talpur, N.; Hussain, K. Adaptive Neuro-Fuzzy Inference System: Overview, Strengths, Limitations, and Solutions. In Lecture Notes in Computer Science; Springer: Cham, Germany, 2017. [Google Scholar]
- Jang, J.-S.R. ANFIS: Adaptive-Network-based Fuzzy Inference System. IEEE Trans. Syst. Man Cybern.
**1993**, 23, 665–685. [Google Scholar] [CrossRef] - Zamani, H.A.; Rafiee-Taghanaki, S.; Karimi, M.; Arabloo, M.; Dadashi, A. Implementing ANFIS for prediction of reservoir oil solution gas-oil ratio. J. Nat. Gas Sci. Eng.
**2015**, 25, 325–334. [Google Scholar] [CrossRef] - Vakhshouri, B.; Nejadi, S. Comparison of Fuzzy Logic and ANFIS for Prediction of Compressive Strength of RMC. Neurocomputing
**2018**, 280, 13–22. [Google Scholar] [CrossRef] - Lu, J.; Kintak, U. Mobile robot navigation based on adaptive neuro-fuzzy inerence ssystem with virtual target strategy. In Proceedings of the 2017 International Conference on Wavelet Analysis and Pattern Recognition (ICWAPR), Ningbo, China, 9–12 July 2017. [Google Scholar]
- Singh, M.K.; Parhi, D.R.; Pothal, J.K. ANFIS Approach for Navigation of Mobile Robots. In Proceedings of the 2009 International Conference on Advances in Recent Technologies in Communication and Computing, Kerala, India, 27–28 October 2009. [Google Scholar]
- Imen, M.; Mansouri, M.; Shoorehdeli, M.A. Tracking control of mobile robot using ANFIS. In Proceedings of the 2011 IEEE International Conference on Mechatronics and Automation, Beijing, China, 7–10 August 2011. [Google Scholar]
- Pandey, A.; Kumar, S.; Pandey, K.K.; Parhi, D.R. Mobile robot navigation in unknown static environments using ANFIS controller. Perspec. Sci.
**2016**, 8, 421–423. [Google Scholar] [CrossRef] [Green Version] - Kim, Y.N.; Ko, D.W.; Suh, I.H. Confidence random tree-based algorithm for mobile robot path planning considering the path length and safety. Int. J. Advan. Robot. Syst.
**2019**, 16, 172988141983817. [Google Scholar] [CrossRef] - Žáčeková, E.; Prívara, S.; Váňa, Z.; Cigler, J. Building modeling: On selection of the model complexity for predictive control. Comput. Aided Chem. Eng.
**2013**, 32, 205–210. [Google Scholar] [CrossRef]

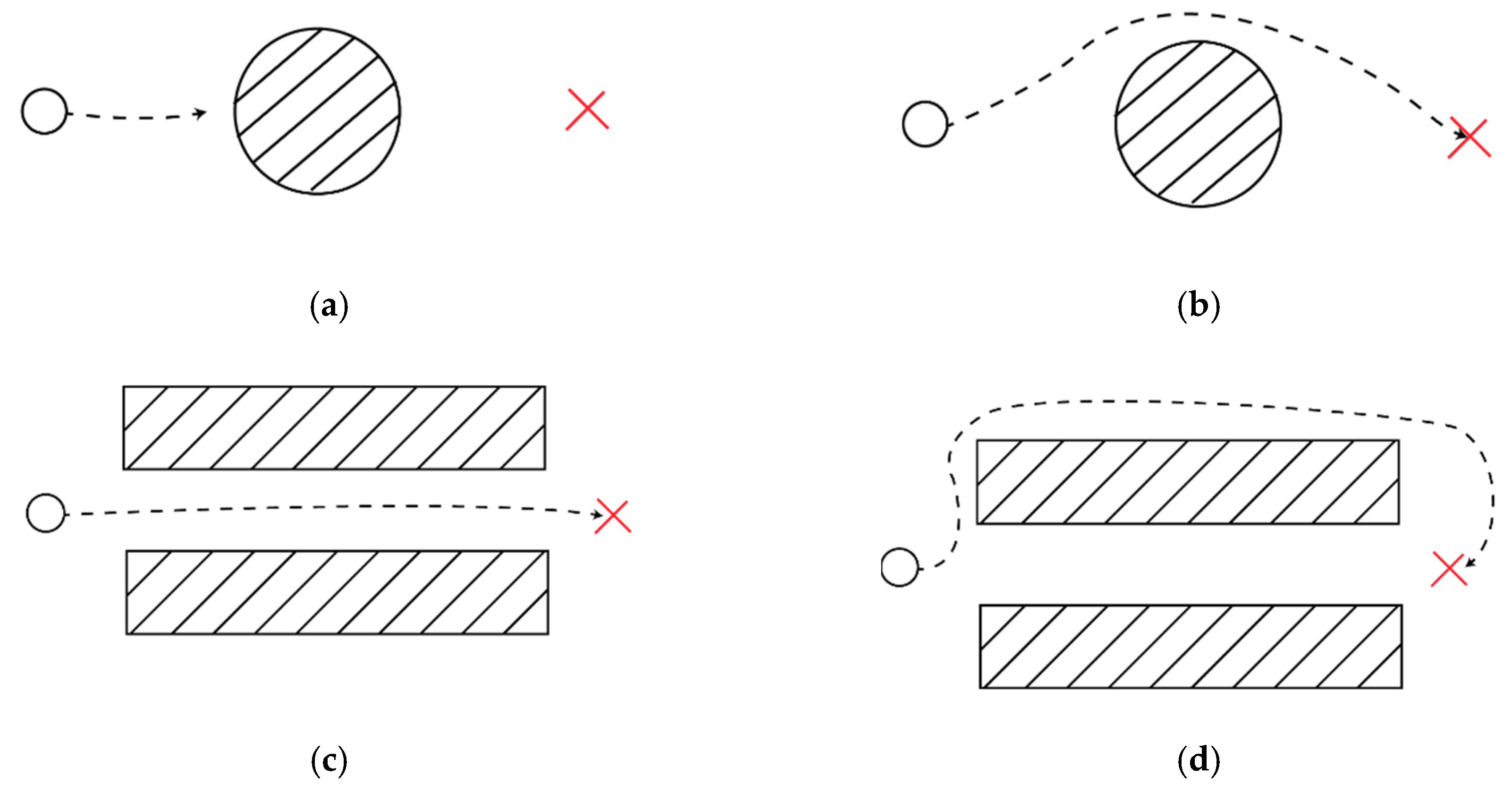

**Figure 2.**Examples of different dynamic window approach (DWA) situations with different ${\mathsf{\alpha}}_{\mathrm{D}}$, ${\mathsf{\beta}}_{\mathrm{D}}$, and ${\mathsf{\gamma}}_{\mathrm{D}}$, as follows: (

**a**,

**c**) ${\mathsf{\alpha}}_{\mathrm{D}}=0.8$, ${\mathsf{\beta}}_{\mathrm{D}}=0.1$ and ${\mathsf{\gamma}}_{\mathrm{D}}=0.1$; (

**b**,

**d**) ${\mathsf{\alpha}}_{\mathrm{D}}=0.1$, ${\mathsf{\beta}}_{\mathrm{D}}=0.8$ and ${\mathsf{\gamma}}_{\mathrm{D}}=0.1$.

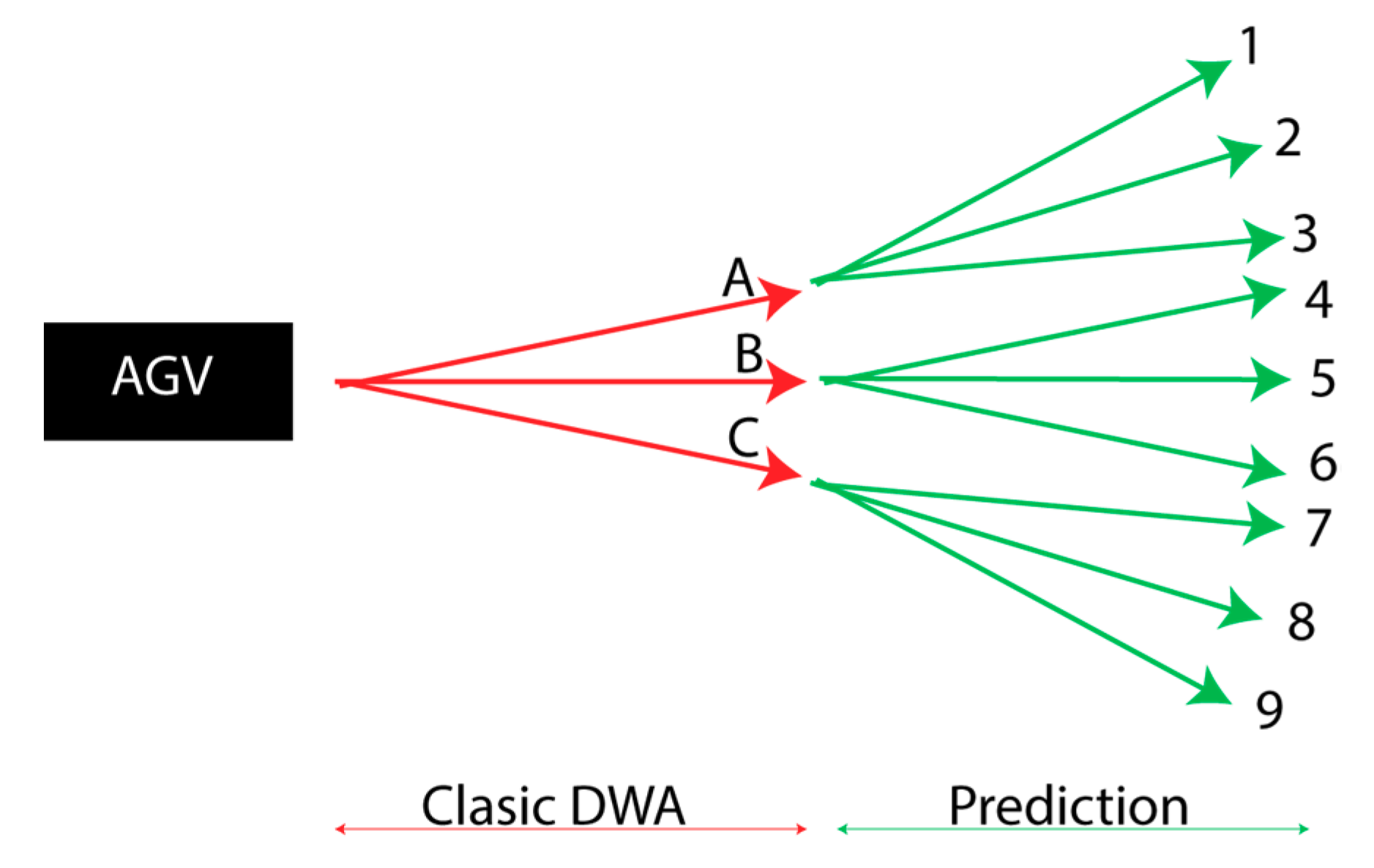

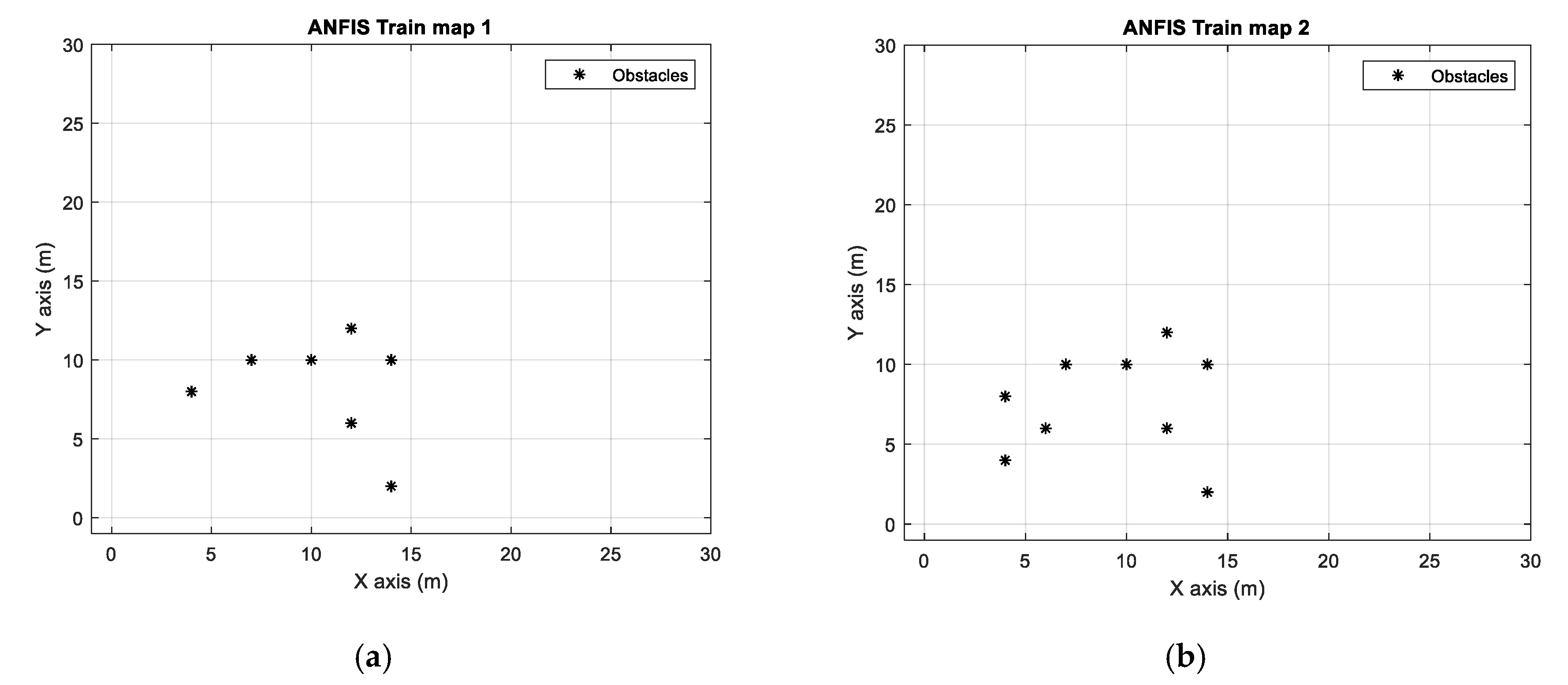

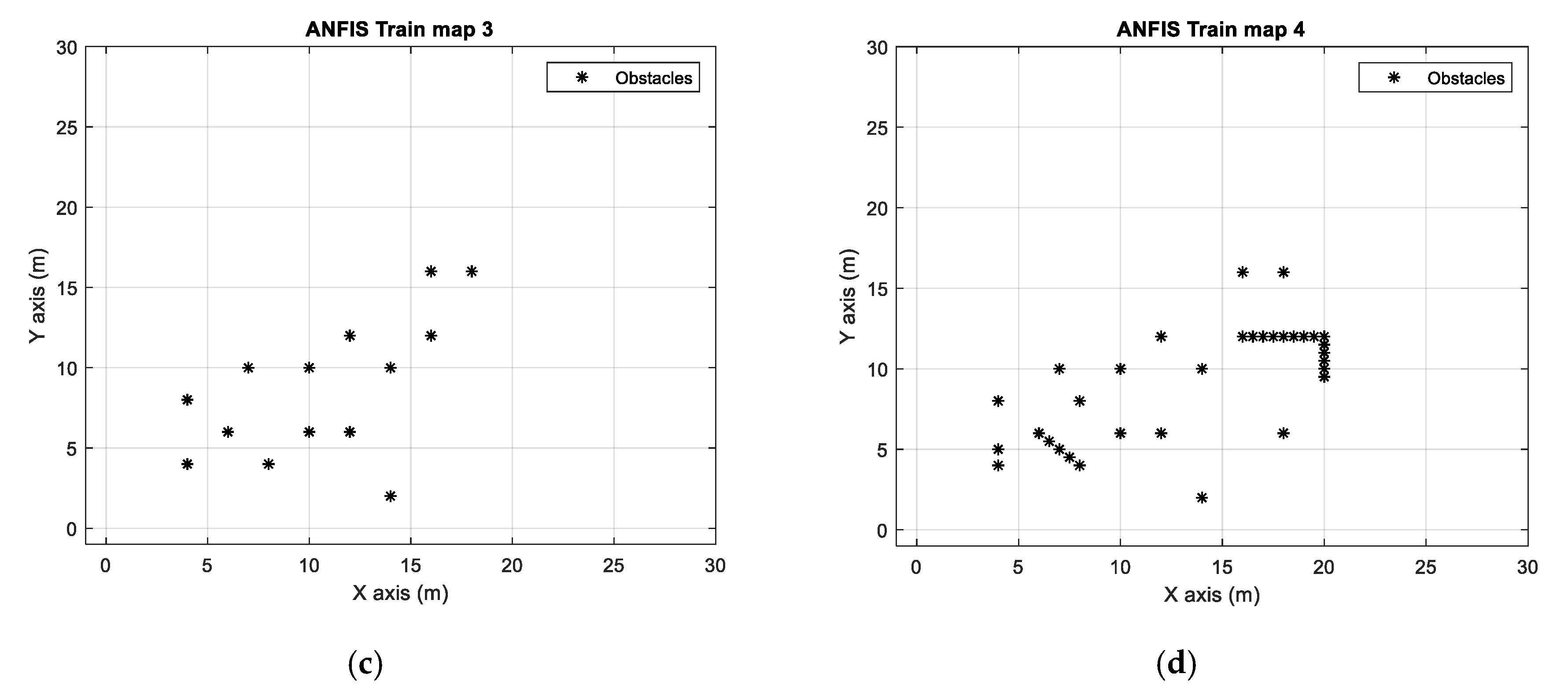

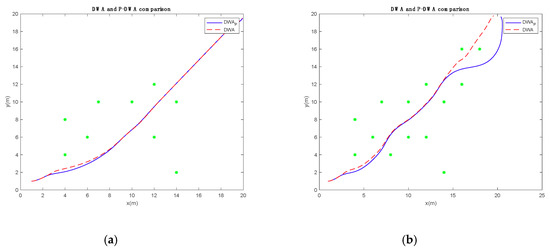

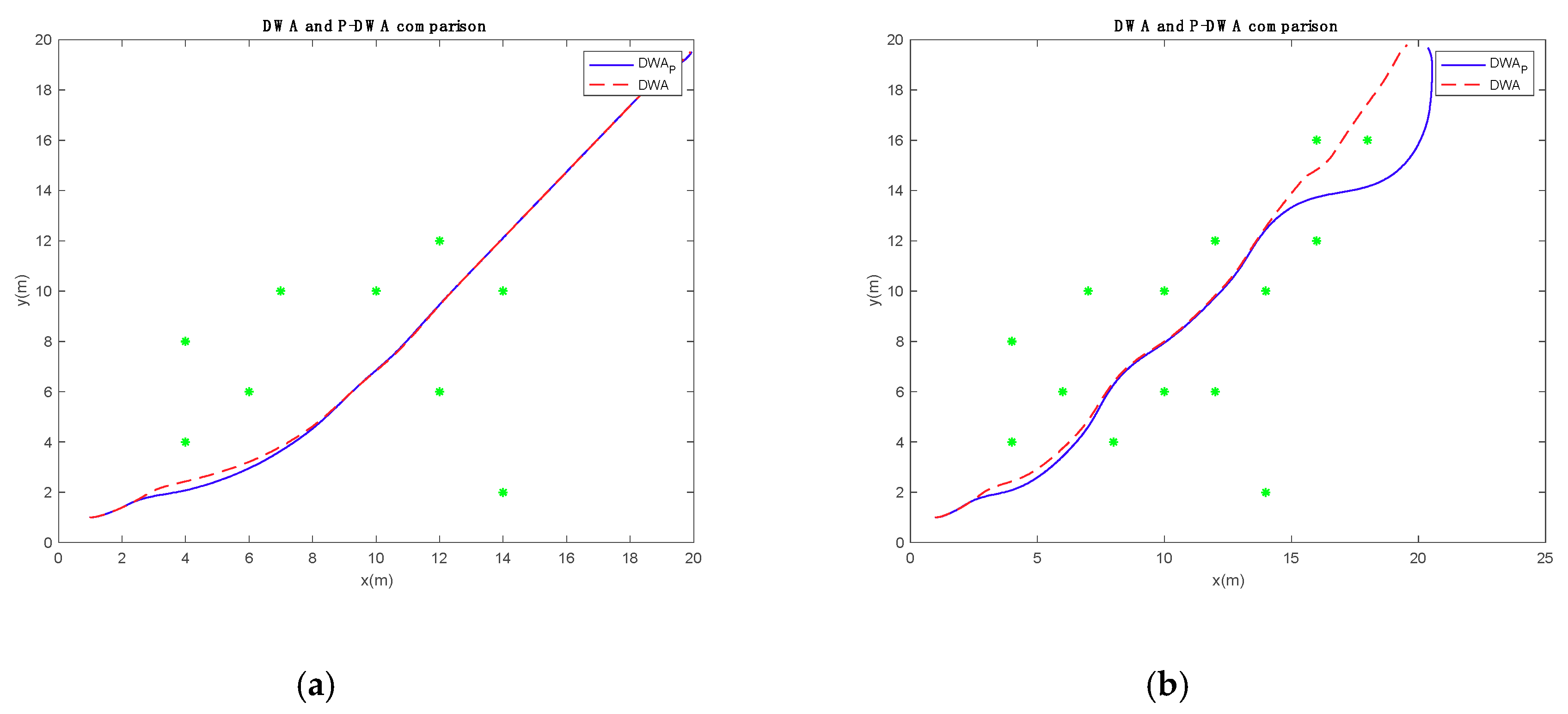

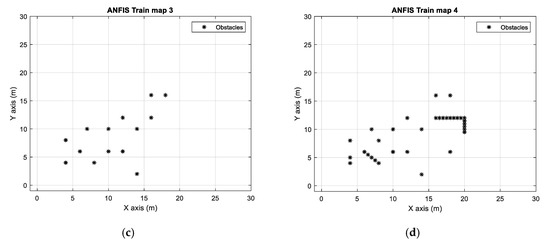

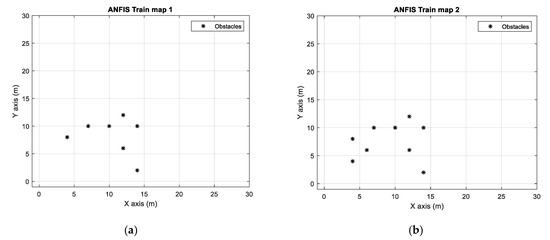

**Figure 5.**Artificial neuro-fuzzy inference system (ANFIS) scenarios for data acquisition, as follows: (

**a**) Map 1 with seven obstacles; (

**b**) map 2 with nine obstacles; (

**c**) map 3 with 14 obstacles; (

**d**) map 4 with 33 obstacles.

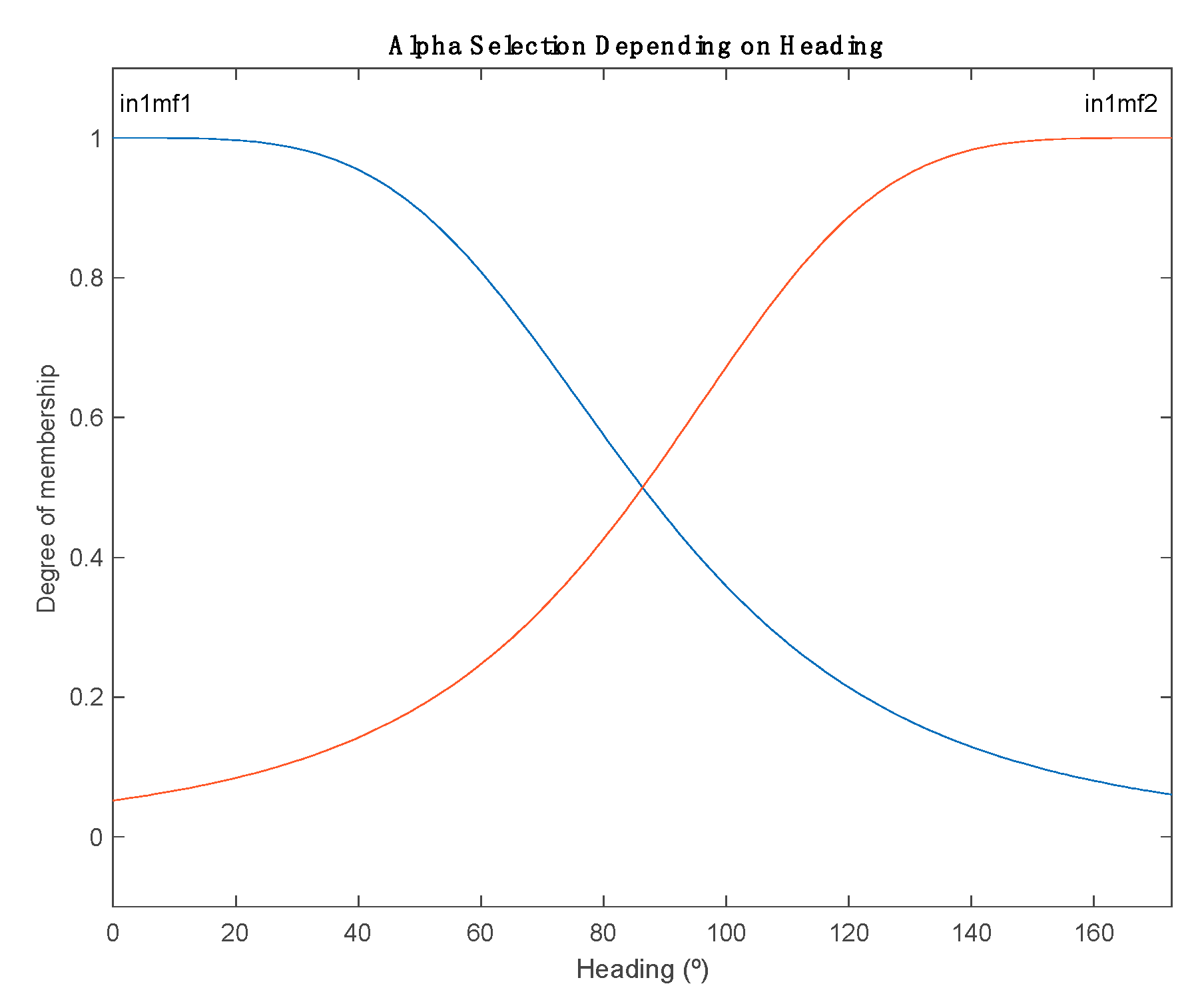

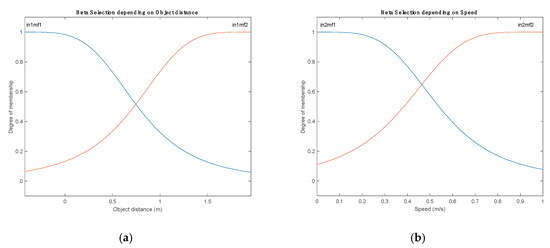

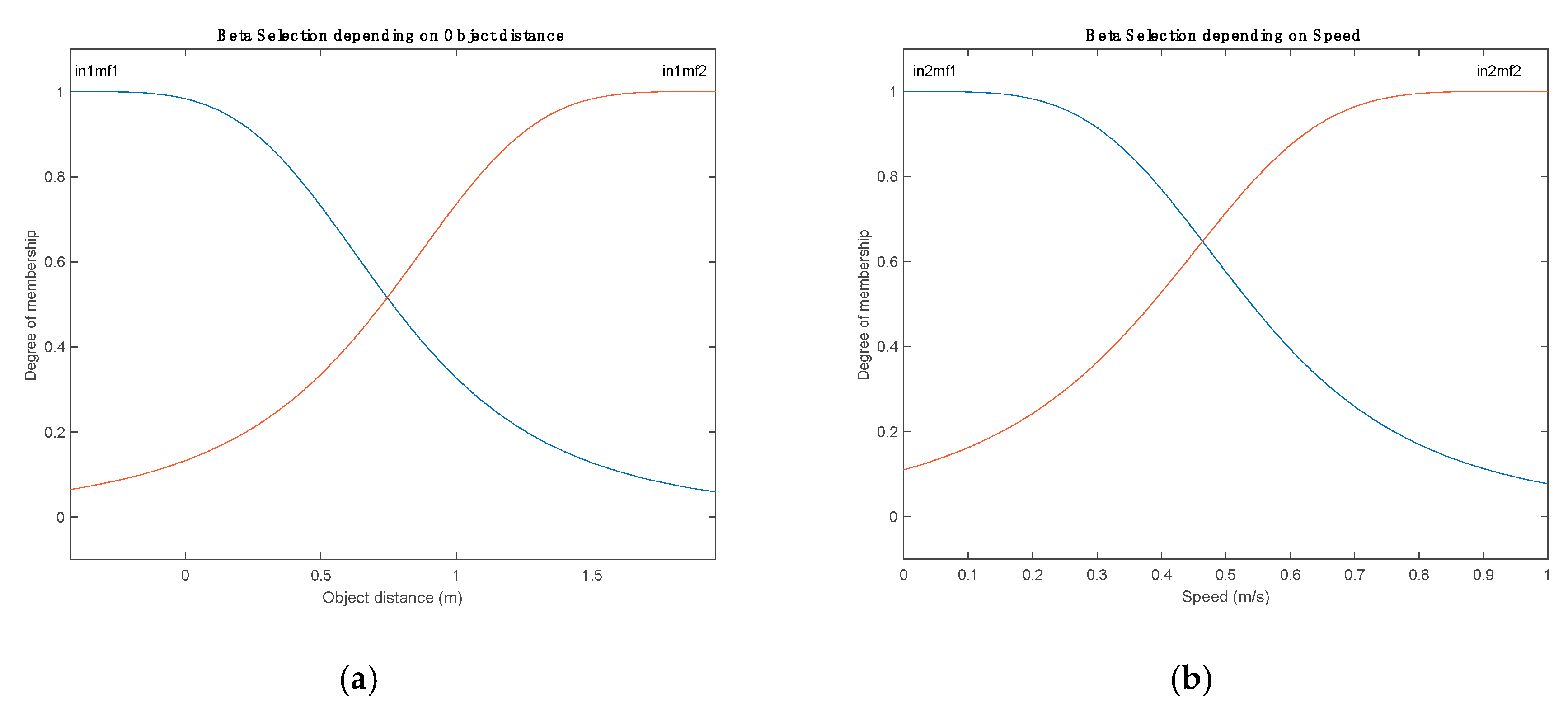

**Figure 7.**${\mathsf{\beta}}_{\mathrm{D}}$ selection depending on two different inputs, namely: (

**a**) Distance to the obstacle and (

**b**) AGV actual speed.

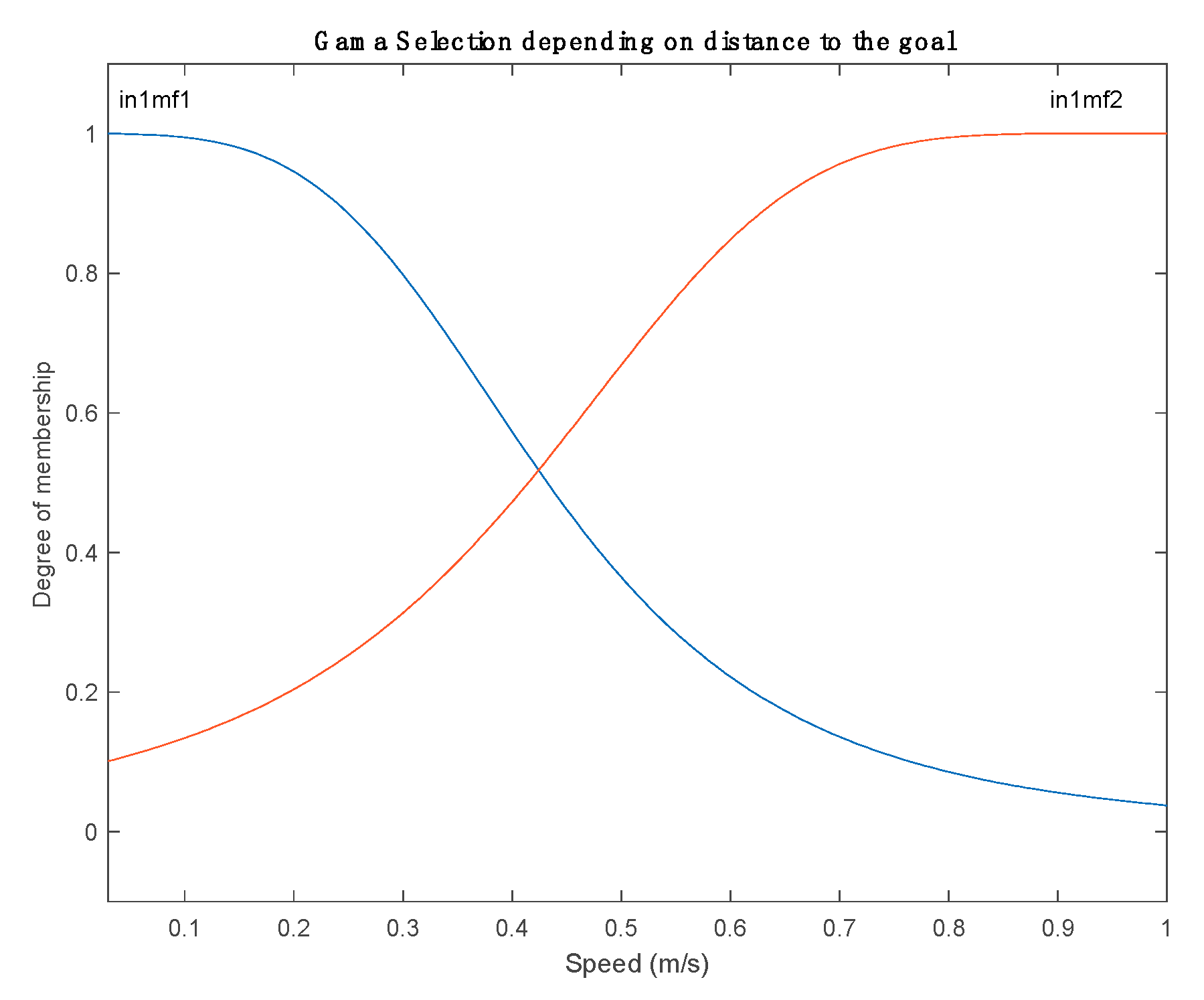

**Figure 8.**${\mathsf{\gamma}}_{\mathrm{D}}$ selection, depending on the distance to the goal position.

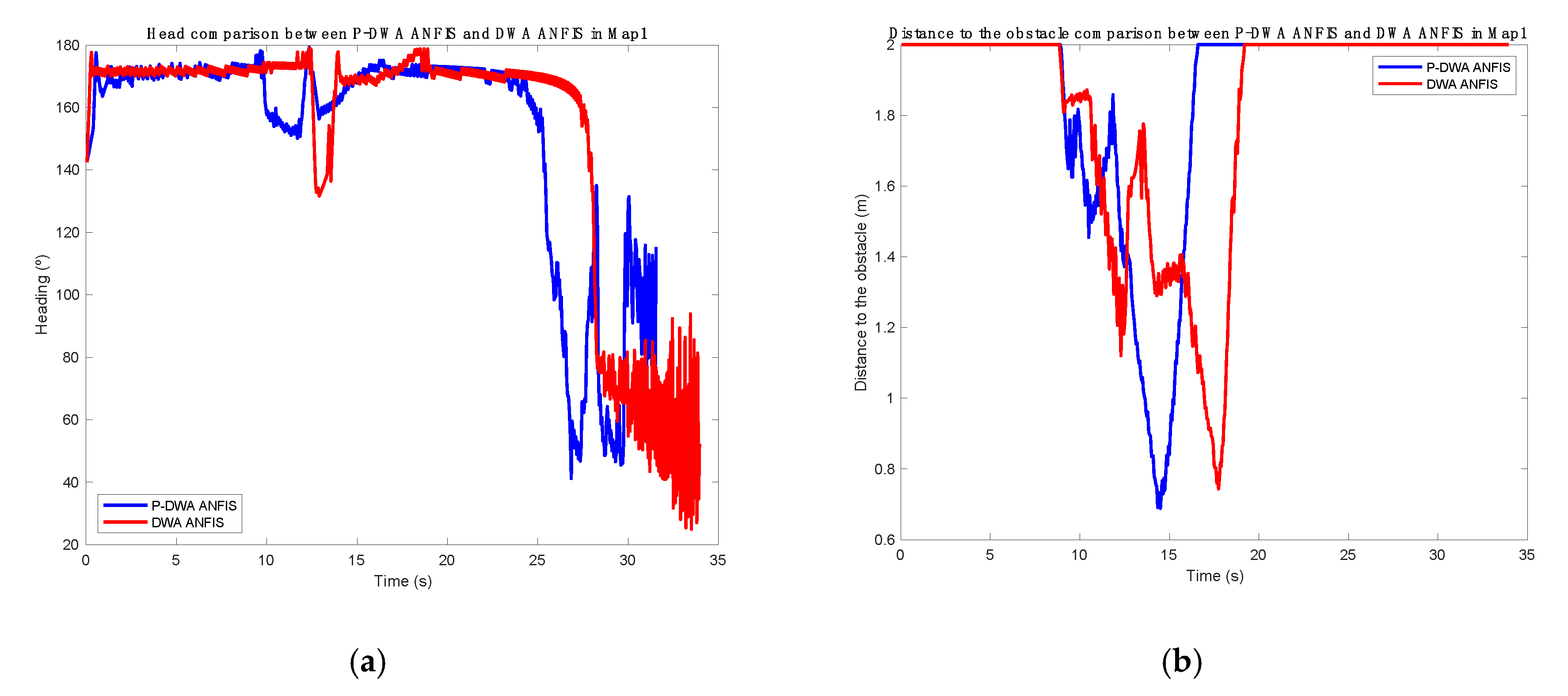

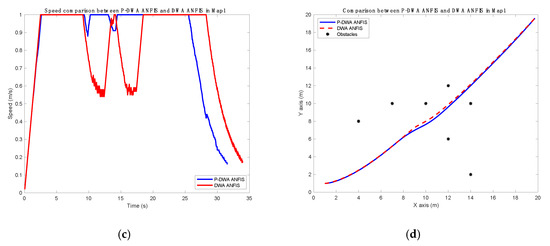

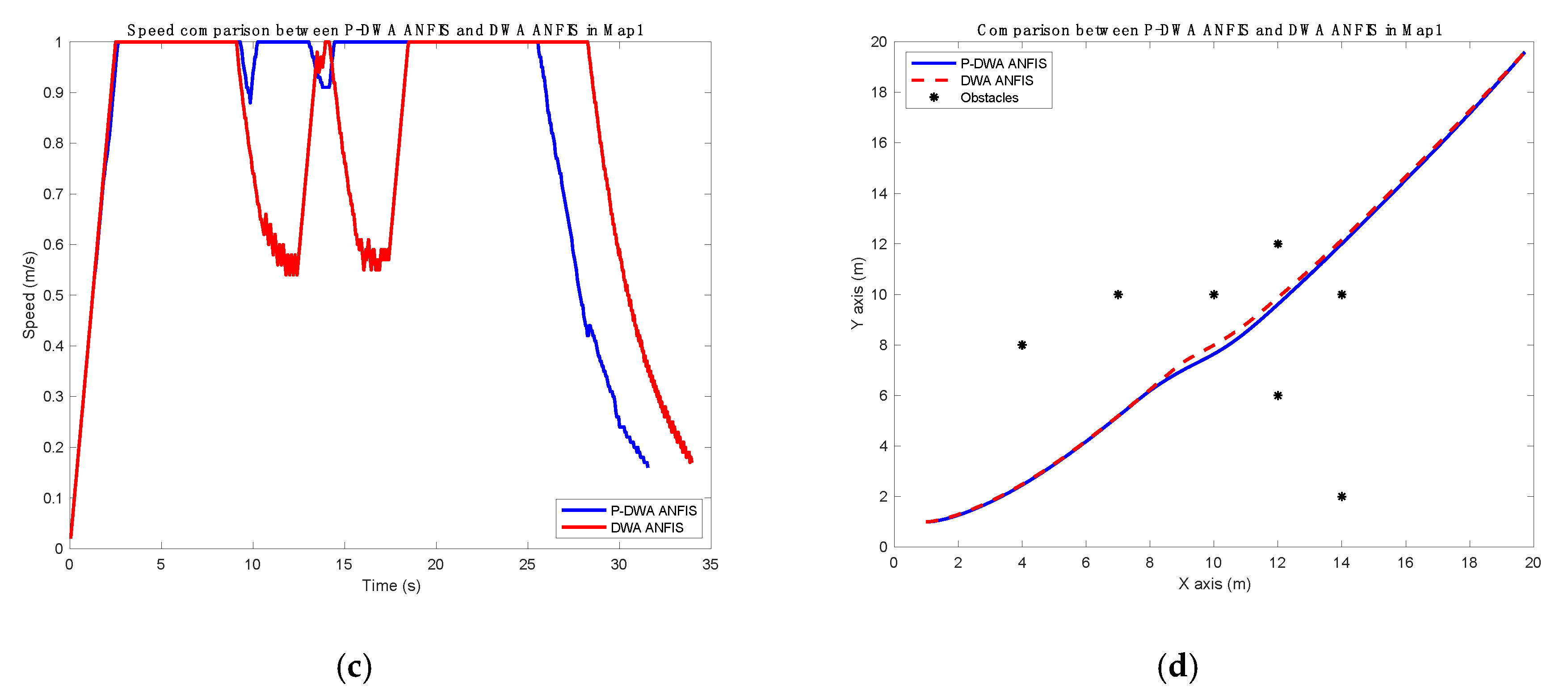

**Figure 9.**P-DWA ANFINS and DWA ANFIS values comparison during the execution, as follows: (

**a**) Heading comparison, (

**b**) distance to the obstacle comparison, (

**c**) speed comparison, and (

**d**) AGV trajectories with different algorithms.

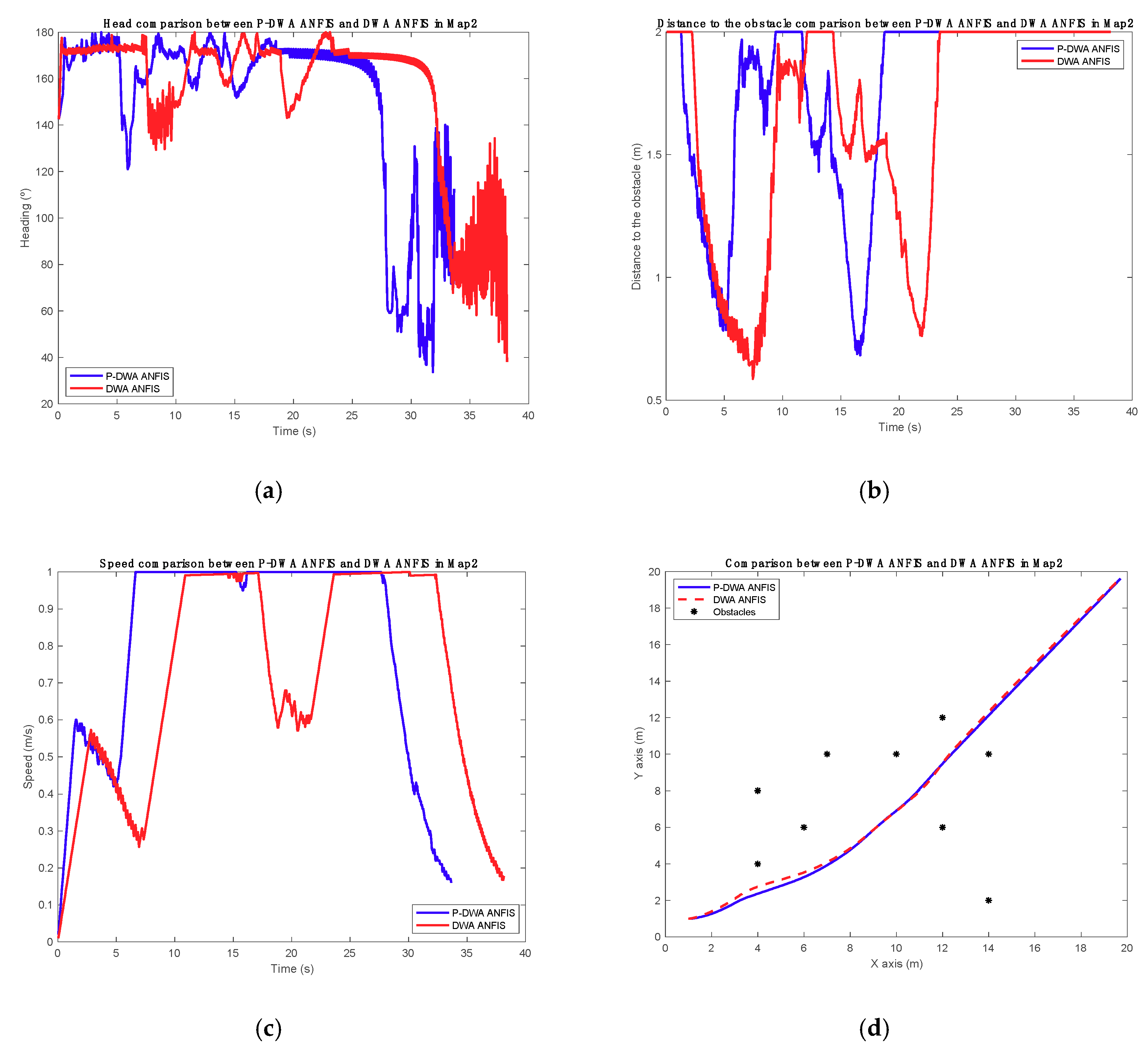

**Figure 10.**DWA ANFINS parameters change during the scenarios, as follows: (

**a**) ${\mathsf{\alpha}}_{\mathrm{D}}$ change during the execution, (

**b**) ${\mathsf{\beta}}_{\mathrm{D}}$ change during the execution, (

**c**) ${\mathsf{\gamma}}_{\mathrm{D}}$ change during the execution, and (

**d**) AGV trajectories with different configurations.

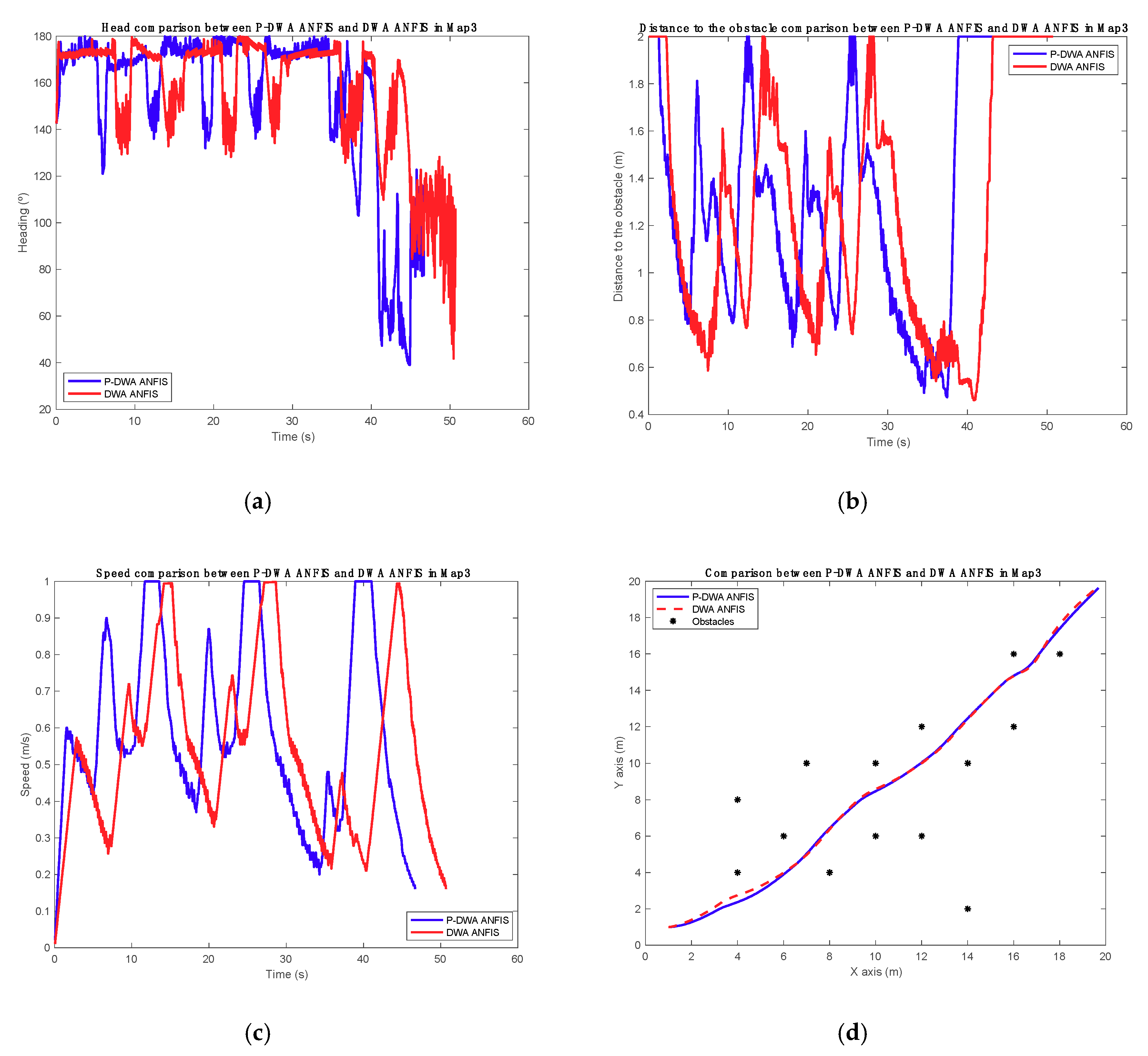

**Figure 11.**DWA ANFINS parameters change during the scenarios, as follows: (

**a**) ${\mathsf{\alpha}}_{\mathrm{D}}$ change during the execution, (

**b**) ${\mathsf{\beta}}_{\mathrm{D}}$ change during the execution, (

**c**) ${\mathsf{\gamma}}_{\mathrm{D}}$ change during the execution, and (

**d**) the AGV trajectories with different configurations.

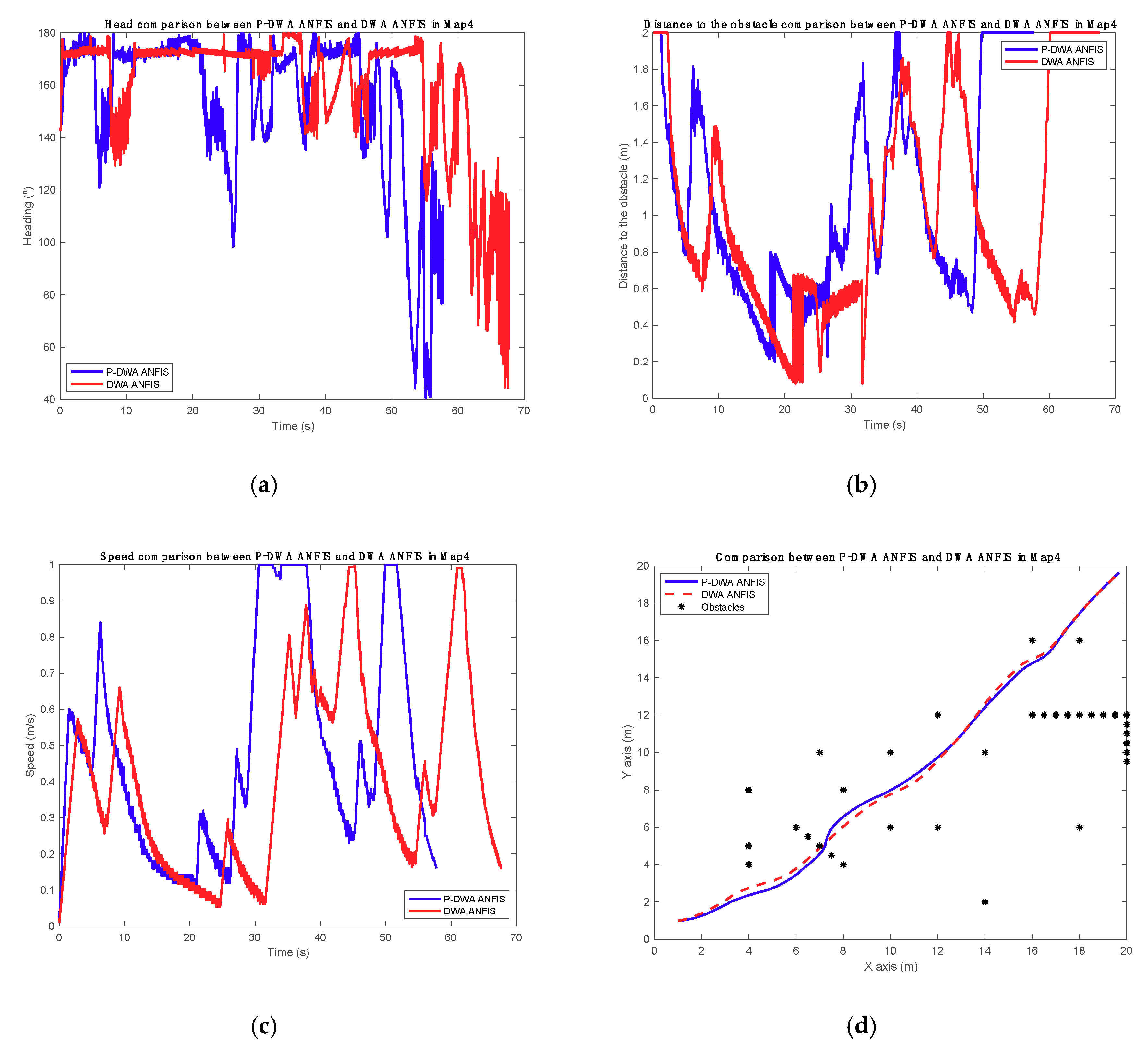

**Figure 12.**DWA ANFINS parameters change during the scenarios, as follows: (

**a**) ${\mathsf{\alpha}}_{\mathrm{D}}$ change during the execution, (

**b**) ${\mathsf{\beta}}_{\mathrm{D}}$ change during the execution, (

**c**) ${\mathsf{\gamma}}_{\mathrm{D}}$ change during the execution, and (

**d**) AGV trajectories with different configurations.

Algorithm | Reference | Advantages | Weakness |
---|---|---|---|

Dynamic window approach | [4] | Consider robot constraints to calculate an optimum path. | Use fixed weights and select one path per sample time. |

A vector field histogram | [5] | Places great emphasis on dealing with uncertainty from sensor and modeling errors. | Requires the kinematics and shape of the robot. |

TangentBug | [6] | Produces very short paths given purely local information. | Need ideal localization Heuristic function may cause navigation to become slower. |

PointsBug | [6] | Has better performance than TangentBug. | Require high accuracy localization based on output of trigonometric function. |

Swarm optimization | [7] | Allows searching for an optimum trajectory by using particles in search space. | Requires a constant computing to optimize a solution. |

Dynamic movements primitives | [8] | The complex movements are simplified by creating a set of primitive actions. | Requires updating all kernel weights and the quality of the path is compromised. |

Moving to a point with obstacle avoidance | [9] | Simple equations are used to avoid obstacles and it does not need the kinematics equations for motion calculation. | Use fixed weights in the main function. |

Model-based algorithms | [10,11,12,13] | The prediction step gives the chance to analyze the future and adjust the trajectory. | Require a perfect model of the plan to obtain a good prediction. |

Genetic Algorithms | [14] | Normally uses the robot kinematic and dynamic parameters to optimize the path. | Uses a high computational capacity to optimize the function. |

Ant colony optimization | [15] | Adopts a multiple agent to optimize the path resolution. | The probability distribution can change for each iteration and it is not optimized to real time, because of it requires uncertain time to converge. |

Ant algorithm with A* characteristic | [16] | A* accelerates the ant colony conversion and increases the smoothness of global path. | A premature convergence could happen, because of bad adjustment of the limits. |

Double Layer ant colony | [17] | Thanks to both executions the precision is increased. | The algorithms require a trajectory optimization to improve the path resolution. |

Predictive DWA with ANFIS (Developed in this article) | - | Improves Fuzzy logic controller by adopting ANFIS technique to adjust DWA weights and foresee the future implementing a prediction. | Require a perfect model of the plan to obtain a good prediction and adjustment of the prediction step. |

**Table 2.**Dynamic window approach (DWA) parameter and variable definition, as defined in the literature [4]. AGV—automated guided vehicle.

Description | Name | Units |
---|---|---|

Linear speed of vehicle | ${\mathrm{V}}_{\mathrm{agv}}$ | m/s |

Angular speed of vehicle | $\dot{\mathsf{\gamma}}$ | rad/s |

Alignment of the robot with the target direction | $\mathrm{heading}\left({\mathrm{V}}_{\mathrm{agv}},\dot{\mathsf{\gamma}}\right)$ | - |

Distance to obstacle | $\mathrm{dist}\left({\mathrm{V}}_{\mathrm{agv}},\dot{\mathsf{\gamma}}\right)$ | m |

Displacement speed | $\mathrm{vel}\left({\mathrm{V}}_{\mathrm{agv}},\dot{\mathsf{\gamma}}\right)$ | m/s |

Heading coefficient | ${\mathsf{\alpha}}_{\mathrm{D}}$ | rad^{−1} |

Ostacle distance coeffient | ${\mathsf{\beta}}_{\mathrm{D}}$ | m^{−1} |

Speed coefficient | ${\mathsf{\gamma}}_{\mathrm{D}}$ | s/m |

Fitness function | $\mathrm{G}\left({\mathrm{V}}_{\mathrm{agv}},\dot{\mathsf{\gamma}}\right)$ | - |

Normalization function | $\mathsf{\sigma}$ | - |

Description | DWA | P-DWA |
---|---|---|

Time to arrive at goal (s) | 34.2 | 32.95 |

Mean speed (m/s) | 0.79 | 0.82 |

Minimum distance to obstacle (m) | 0.67 | 0.69 |

${\mathsf{\alpha}}_{\mathrm{D}}$ | 0.5 | 0.5 |

${\mathsf{\beta}}_{\mathrm{D}}$ | 0.5 | 0.5 |

${\mathsf{\gamma}}_{\mathrm{D}}$ | 0.5 | 0.5 |

${\mathsf{\sigma}}_{\mathrm{D}}$ | 3 | 3 |

Sample time (s) | 0.05 | 0.05 |

Prediction Sample time (s) | - | 0.5 |

Description | DWA | P-DWA |
---|---|---|

Time to arrive at goal (s) | 41.25 | 34.9 |

Mean speed (m/s) | 0.65 | 0.83 |

Minimum distance to obstacle (m) | 0.44 | 0.65 |

${\mathsf{\alpha}}_{\mathrm{D}}$ | 0.5 | 0.5 |

${\mathsf{\beta}}_{\mathrm{D}}$ | 0.5 | 0.5 |

${\mathsf{\gamma}}_{\mathrm{D}}$ | 0.5 | 0.5 |

${\mathsf{\sigma}}_{\mathrm{D}}$ | 3 | 3 |

Sample time (s) | 0.05 | 0.05 |

Predictive window(s) | - | 0.5 |

Term | Definition |
---|---|

h | Heading value for each sample time |

H | Mean heading for each data acquisition |

v | Speed value for each sample time |

V | Mean Speed for each data acquisition |

d | Distance to the obstacle value for each sample time |

D | Mean Distance for each data acquisition |

ArriveGoal | The distance between the AGV and goal for each sample time |

X_{Goal} | X-position of the goal |

Y_{Goal} | Y-position of the goal |

X_{AGV} | X-position of the AGV |

Y_{AGV} | Y-position of the AGV |

n | Number of sample execution |

i | Number of sample time |

Fuzzy Type | Sugeno |
---|---|

And Method | Product of fuzzified input values |

Or Method | Probabilistic OR of fuzzified input values |

Defuzzy Method | Weighted average of all rule outputs |

Implication Method | Scales the consequent membership function by the antecedent result value |

Aggregation Method | Sum of the consequent fuzzy sets |

Description | P-DWA ANFIS | DWA ANFIS |
---|---|---|

Time to arrive at goal (s) | 31.55 | 33.95 |

Mean speed (m/s) | 0.86 | 0.8 |

Mean heading (°) | 151.55 | 150.96 |

Minimum distance to obstacle (m) | 0.69 | 0.74 |

Description | P-DWA ANFIS | DWA ANFIS |
---|---|---|

Time to arrive at goal (s) | 33.65 | 38.15 |

Mean speed (m/s) | 0.81 | 0.71 |

Mean heading (°) | 151.31 | 154.35 |

Minimum distance to obstacle (m) | 0.68 | 0.56 |

Description | P-DWA ANFIS | DWA ANFIS |
---|---|---|

Time to arrive at goal (s) | 46.7 | 50.7 |

Mean speed (m/s) | 0.59 | 0.54 |

Mean heading (°) | 153.47 | 156.20 |

Minimum distance to obstacle (m) | 0.47 | 0.46 |

Description | P-DWA ANFIS | DWA ANFIS |
---|---|---|

Time to arrive at goal (s) | 57.75 | 67.60 |

Mean speed (m/s) | 0.49 | 0.41 |

Mean heading (°) | 153.7 | 159.66 |

Minimum distance to obstacle (m) | 0.2 | 0.08 |
