Efficient Implementation of 2D and 3D Sparse Deconvolutional Neural Networks with a Uniform Architecture on FPGAs

College of Computer, National University of Defense Technology, Changsha 410073, China
*
Author to whom correspondence should be addressed.
Electronics 2019, 8(7), 803; https://doi.org/10.3390/electronics8070803
Received: 29 May 2019 / Revised: 6 July 2019 / Accepted: 9 July 2019 / Published: 18 July 2019
  |
PDF [1194 KB, uploaded 18 July 2019]
  |

Abstract

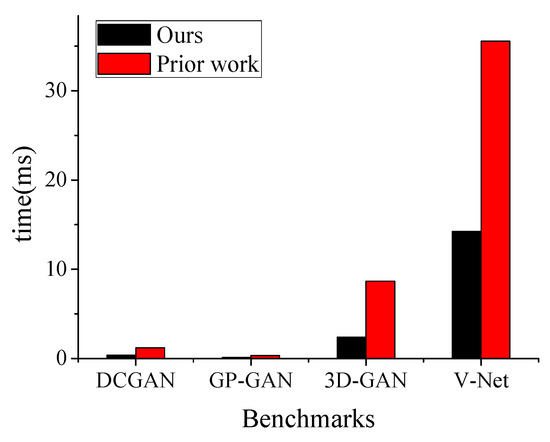

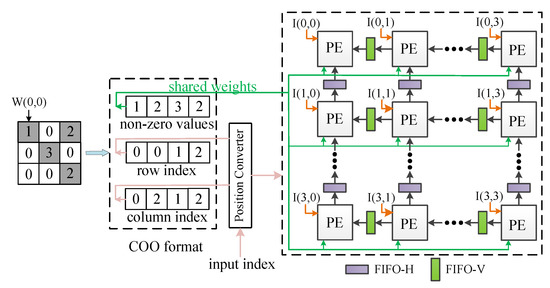

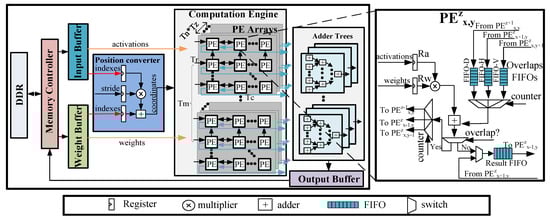

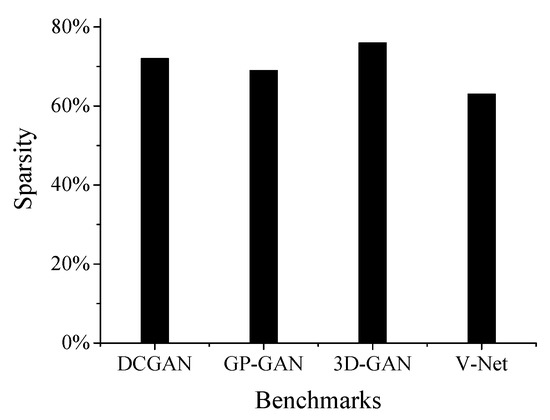

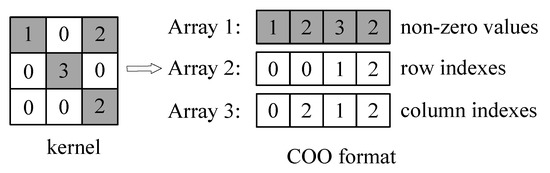

Three-dimensional (3D) deconvolution is widely used in many computer vision applications. However, most previous works have only focused on accelerating two-dimensional (2D) deconvolutional neural networks (DCNNs) on Field-Programmable Gate Arrays (FPGAs), while the acceleration of 3D DCNNs has not been well studied in depth as they have higher computational complexity and sparsity than 2D DCNNs. In this paper, we focus on the acceleration of both 2D and 3D sparse DCNNs on FPGAs by proposing efficient schemes for mapping 2D and 3D sparse DCNNs on a uniform architecture. Firstly, a pruning method is used to prune unimportant network connections and increase the sparsity of weights. After being pruned, the number of parameters of DCNNs is reduced significantly without accuracy loss. Secondly, the remaining non-zero weights are encoded in coordinate (COO) format, reducing the memory demands of parameters. Finally, to demonstrate the effectiveness of our work, we implement our accelerator design on the Xilinx VC709 evaluation platform for four real-life 2D and 3D DCNNs. After the first two steps, the storage required of DCNNs is reduced up to 3.9×. Results show that the performance of our method on the accelerator outperforms that of the our prior work by 2.5× to 3.6× in latency. View Full-Text
Keywords: DCNN; FPGA; pruning; sparsity; acceleration; 2D; 3D; uniform architecture DCNN; FPGA; pruning; sparsity; acceleration; 2D; 3D; uniform architecture
Figures

Figure 1
