# Simple Torque Control Method for Hybrid Stepper Motors Implemented in FPGA

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methods

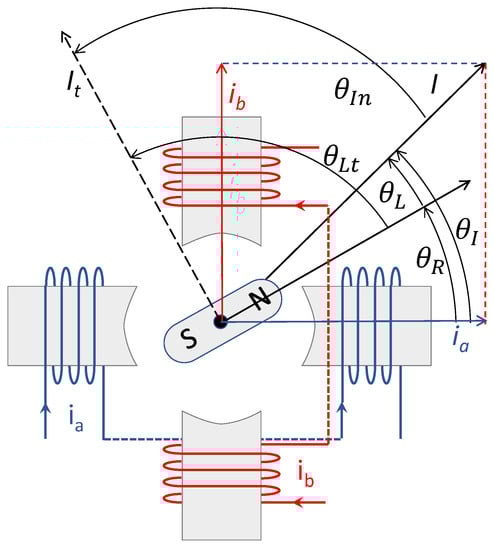

#### 2.1. Torque Generation and Step Movement

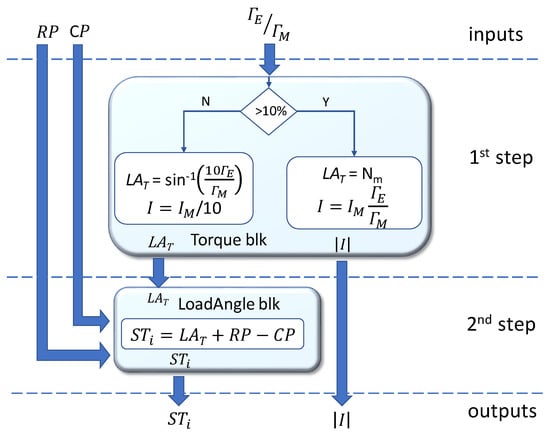

#### 2.2. Torque Modulation

## 3. Method Implementation

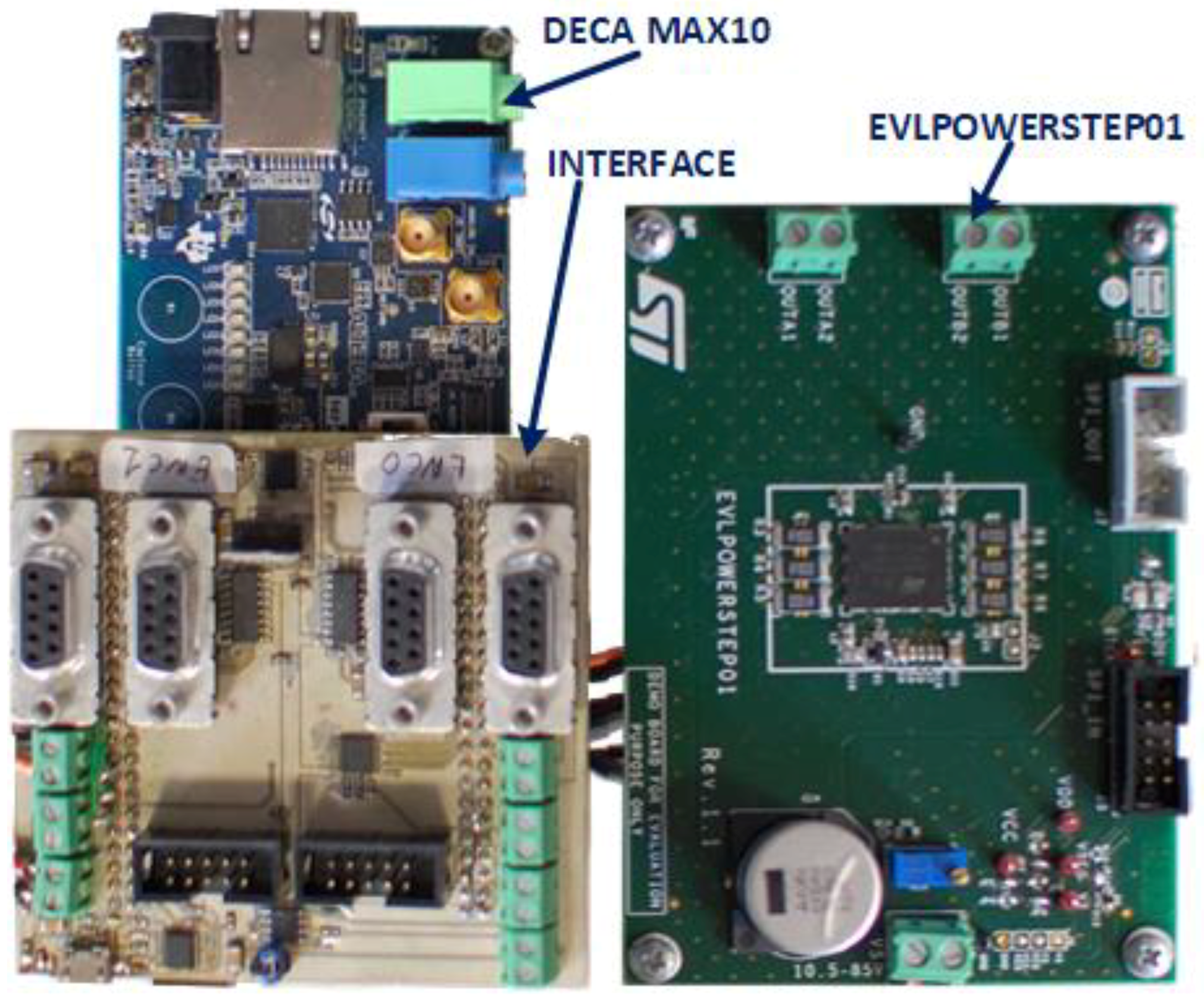

#### 3.1. The Electronics

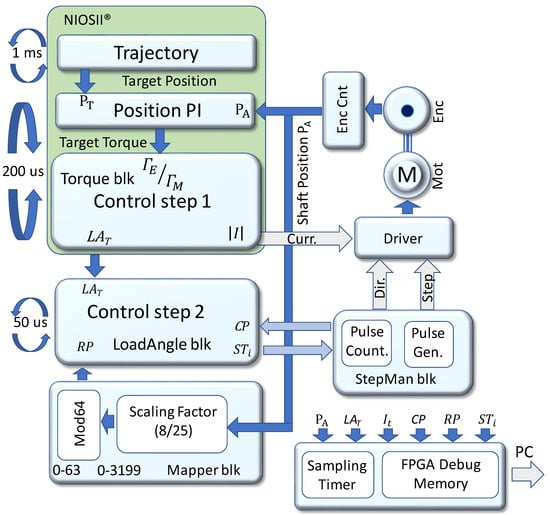

#### 3.2. FPGA Implementation

_{T}every 1 ms. P

_{T}feeds the PI controller [10] that compares P

_{T}to the actual position PA and outputs the target torque ${\Gamma}_{E}$. The torque is then processed in the Torque block, which applies the first step of the control procedure detailed in Figure 2, and generates the required current ${I}_{t}$ and the target load angle $L{A}_{T}$. $L{A}_{T}$ is delivered to the LoadAngle block, while ${I}_{t}$ is directly programmed to the driver through the SPI. Both the PI and the load angle calculation run every 200 μs.

#### 3.3. Debug Memory

_{A}, $L{A}_{T}$, ${I}_{t}$, CP, RP, and $S{T}_{i}$ parameters are simultaneously saved with a sampling rate set by the user from 1 μs to 100 ms. Up to 4096 values of each parameter can be saved without interfering with the algorithm. The memory can be downloaded to a host PC when the motor is stopped. Although this feature has no impact on the algorithm, it is essential for debugging and performance analysis.

#### 3.4. Timings and Resources

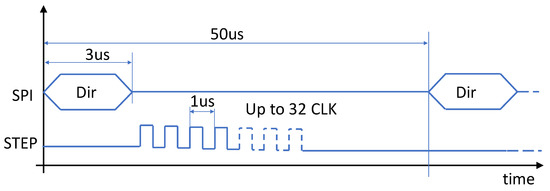

_{T}, every 1 ms, and executes in 1.0 μs on a Nios processor clocked at 100 MHz. The PI controller and the torque control run every 200 μs, and execute the calculations in 1.5 μs only. This result is obtained using a look-up table for the sin inversion necessary in control step 1 (see Table 2, second row) for low torque condition. The remaining tasks, performed in FPGA fabric, are simple mathematical calculations or logic operations that take a few clock cycles at most to execute. The LoadAngle block (step 2 in Figure 2) is evaluated every 50 μs. In this period, the StepMan block issues a SPI command and a step-clock burst to the driver (see Figure 5). The SPI transmission, 1 byte at 4 MHz, takes about 3 μs. PowerSTEP01 driver requires a step-clock period of 1 μs, so the maximum length of the burst is of 32 μs (every position in a 64 μ-steps electrical circle can be reached by, at maximum, 32 μ-steps towards the shorter path). The minimum temporal length of a torque control loop is thus 3 + 32 = 35 μs, which fits well in the 50 μs period used here.

## 4. Experiments

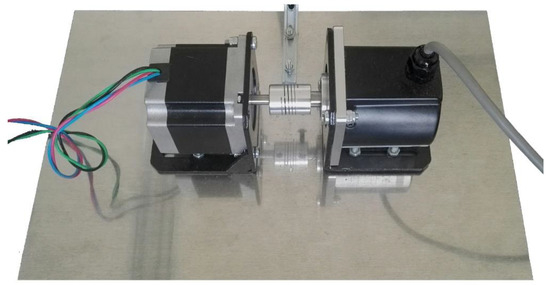

#### 4.1. Experimental Set-Ups

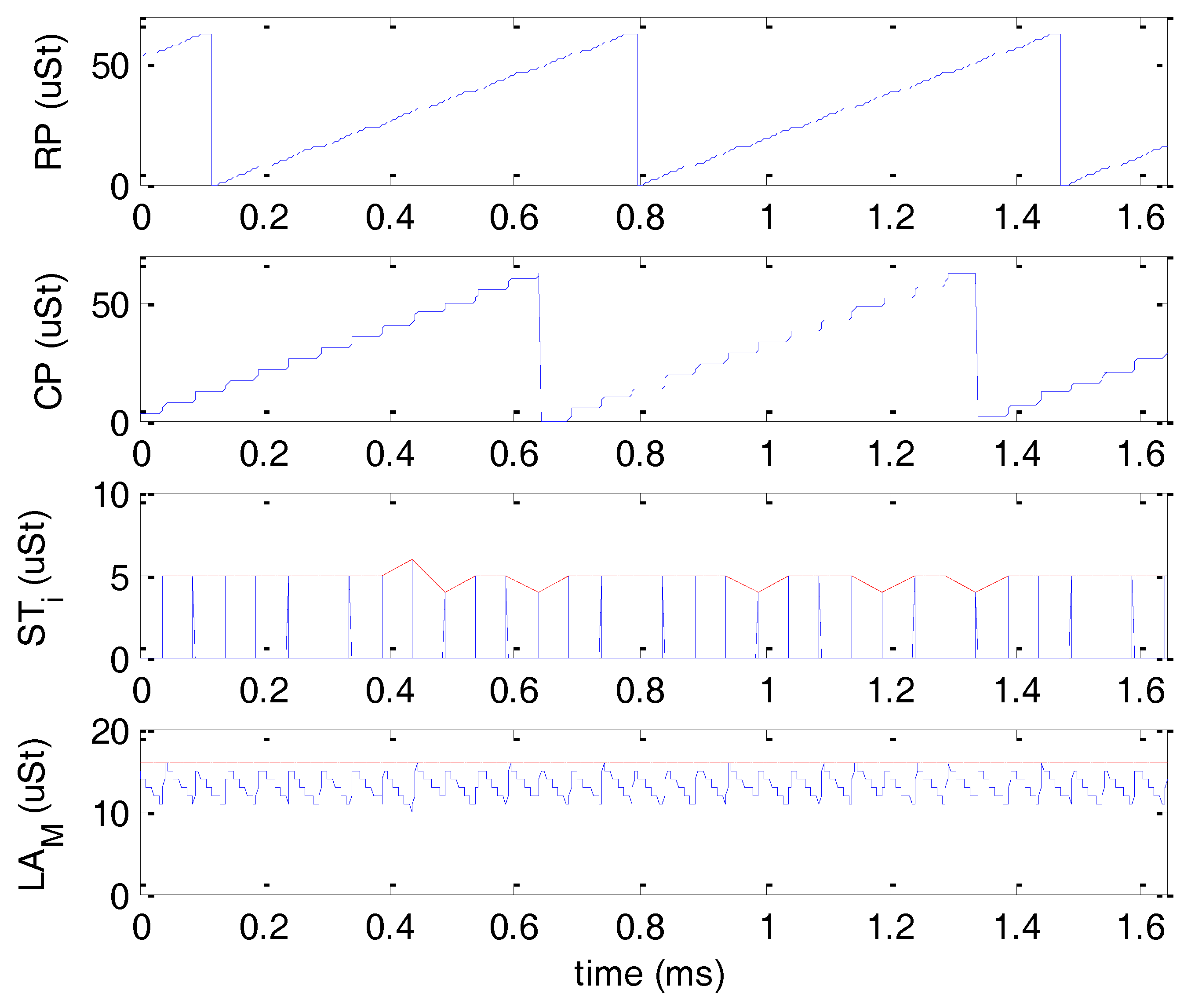

#### 4.2. Control Procedure Test

#### 4.3. Torque Load Disturbance Test

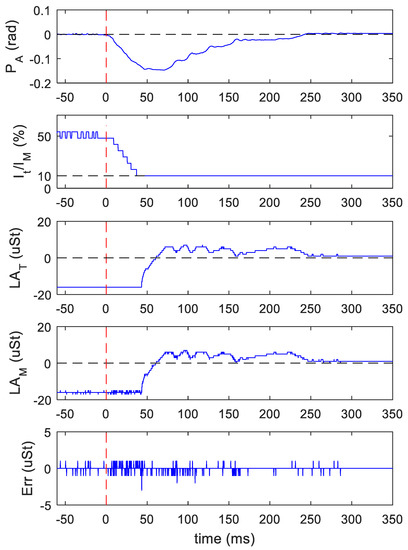

_{T}= 0 (see Figure 4). The debug memory was programmed to save a parameter set every 200 μs. In this test, the motor shaft was loaded with an external positive torque, which was released at time t = 0. Figure 8 reports the shaft position measured by the encoder, P

_{A}, the current ratio, It/I

_{M}, the target angle, $L{A}_{T}$, calculated by the motor control, and the measured load angle, $L{A}_{M}$, together with its error with respect to the target angle.

_{A}= 0 by imposing the maximum load angle $L{A}_{T}$ = −16 μ-steps and a current of about 50% of the nominal value. After the external torque was released (t > 0), the control system reacted by reducing the current to its minimum of 10% in about 40 ms, then further reduced the torque by lowering the load angle towards 0. Meanwhile, due to the sudden load change, the shaft rotated of about −1.5 rad out of position, so the PI responded by imposing a slight positive load angle (t > 60 ms), while maintaining the current at its minimum level. The shaft recovered the target position in about 250 ms and the load angle decreased to 0. The error between the target and measured load angles, shown in last row, is within ±1 μ-step, except for few outliers. The load angle error is the same with (t < 0), and without (t > 0) the presence of load. The position error calculated as mean ± standard deviation of the errors measured before torque release (t < 0) is 0.05 ± 1.3 mrad, while after a stable condition was reached at t > 250 ms, is 0.09 ± 1.4 mrad. The test shows that the control reacts to a strong load change recovering the original position and controlling the load angle with a high level of accuracy.

#### 4.4. Trajectory Test in Different Load Conditions

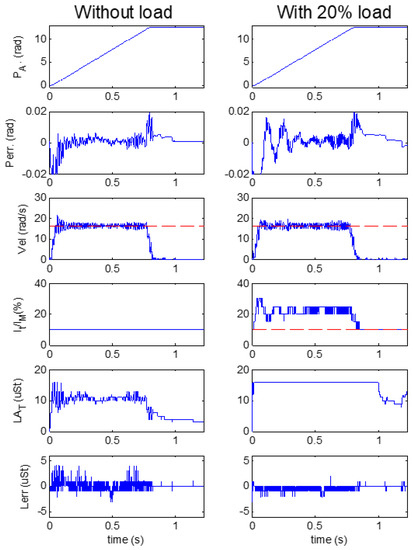

^{2}and a maximum velocity of 16.4 rad/s. The experiment was repeated with the motor free, i.e., no load except the encoder, and with the motor connected to a load. The load was realized with a weight suspended by wire wrapped around the shaft. In the movement, the motor raised up the weight generating a torque that corresponds to about 20% of the full motor capacity. Figure 9 reports the parameters acquired in the FPGA every 300 μs. Left and right columns report the measurements obtained without and with the load, respectively. The errors are expressed as mean ± standard deviation calculated on the samples population of the corresponding measurement.

_{A}is reported on the 1st row of Figure 9. The movement lasted 0.83 s; it featured a typical “S” shape, which is barely visible because of the high acceleration used. The position error Perr is shown in the 2nd row. In the experiment with no load, the error peaks up to ±0.2 rad in the high acceleration/deceleration regions, but it is as low as 1 ± 2 mrad in the constant velocity region. The motor reacts to the acceleration in presence of load with an oscillation error of ±0.02 rad, which damps down in 200 ms. In the remaining part of the constant velocity region, the error is the same as in the no-load condition. With load, after the movement, the controller recovers the right steady position a bit more slowly with respect to no-load condition.
