Article

A Proof-of-Concept of a Bio-Inspired Neuromorphic Hierarchical System Behaving as an Associative Memory for Multisensory Integration

Department of Electronic Engineering, Universitat Autónoma of Barcelona, 08193 Bellaterra, Spain
*
Author to whom correspondence should be addressed.
Electronics 2026, 15(7), 1385; https://doi.org/10.3390/electronics15071385
Submission received: 19 December 2025 / Revised: 20 March 2026 / Accepted: 23 March 2026 / Published: 26 March 2026
(This article belongs to the Special Issue Memristor Device and Memristive System)

Abstract

The brain’s primary sensory processing areas often present a topographical organization and are distributed following hierarchical architecture, permitting the integration of the information in higher levels of its hierarchy: a process referred to as multisensory integration. A system with such characteristics naturally computes in a parallel and distributed manner and is based in associations between the different symbols built from our perceptions of the environment. In this work, we take inspiration from the sensory processing areas of the brain and propose proof-of-concept of a multi-layered neuromorphic system with parallel and distributed computing capabilities by means of simulation. The proposed neuromorphic architecture is constituted by identical self-organizing modules which are trained with on-line unsupervised-friendly learning rules, such as the spike-timing-dependent plasticity (STDP). These self-organizing modules are constituted by oxide-based resistive random access memory (OxRAM) devices, which play the analog synaptic role. The different modules display a topographical organization according to the input dataset features they have been trained with and are organized following a hierarchical system. The system exhibits conceptual associative behavior between inputs with clustering capabilities, able to classify inputs which have never been seen before by the system, according to their similarity with the ones it has been trained with.

1. Introduction

Neuromorphic engineering aims to implement artificial neural systems that reproduce key computational principles and dynamics observed in the biological brain [1,2,3,4]. Many demonstrated neuromorphic systems have focused on pattern recognition tasks, such as character and image recognition [5,6,7,8,9], often relying on unsupervised learning mechanisms based on spike-timing-dependent plasticity (STDP) and deep neural network architectures with a large number of layers and synaptic connections [2,7,8,9,10,11,12]. While effective, these approaches typically result in complex hardware implementations with significant area and design overhead [13,14].
Beyond deep architectures, alternative bio-inspired models seek to emulate cortical processing using relatively compact spiking neural networks trained through biologically plausible learning rules [7,10,11,15,16]. However, reproducing the massive synaptic connectivity of the mammalian brain—on the order of 104 synapses per neuron—remains a major challenge for conventional CMOS technologies [17]. This limitation has motivated increasing interest in emerging nanoelectronic devices, particularly memristors, as candidates for electronic synapses in neuromorphic systems [18,19,20,21].
Memristive devices offer several advantages over purely CMOS-based implementations, including low power consumption, scalability, non-volatility, and analog conductance modulation that can be directly mapped onto synaptic weights. In this context, memristive crossbar arrays enable highly efficient matrix–vector multiplication by exploiting Ohm’s and Kirchhoff’s laws, leading to significant improvements in speed and energy efficiency compared to conventional CMOS accelerators [5,10,16,22]. Among the various memristive technologies, resistive random access memory (RRAM) has been extensively investigated for neuromorphic applications due to its capability to implement STDP-like learning rules [10,11,15,23]. Recent advances in oxide-based RRAM (OxRAM), including scaling to the 10 nm node, large-scale array demonstrations, and high endurance [24,25,26,27,28,29], further support its potential for future large-scale neuromorphic systems [30].
Despite these advances, most memristor-based neuromorphic studies have focused on deep architectures or flat associative memory structures. In contrast, the integration of self-organizing maps (SOMs) with memristive synapses has received comparatively limited attention, even though SOMs offer attractive properties such as unsupervised clustering, topological organization, and robustness. Moreover, existing works rarely explore the combination of SOM-based representations with associative learning mechanisms within a hierarchical framework.
In this work, we propose a biologically plausible neuromorphic architecture based on a neuromorphic self-organizing map (NSOM) module. Using an OxRAM synaptic model calibrated with experimental data, the proposed system forms a hierarchical multi-layer network trained exclusively through unsupervised and associative learning rules. The architecture is composed of identical NSOM modules and enables the natural classification and association of heterogeneous information sources, inspired by hierarchical processing principles observed in the brain.
The proposed architecture differs from prior work in the following aspects:
-
Unified topographical and hierarchical organization: it combines self-organizing topographical maps with a hierarchical modular structure within a single memristive framework.
-
Explicit associative binding layer: it introduces a dedicated associative layer that binds distributed representations originating from multiple input modalities.
-
Bidirectional multimodal recall with local learning: it enables bidirectional recall between modalities using exclusively local STDP-based learning rules, without relying on global optimization procedures.
-
Concept-level multisensory integration: it focuses on concept-level multisensory integration as an architectural principle, rather than on benchmark-driven classification performance or hardware acceleration metrics.
These features enable progressive abstraction through hierarchical self-organization, natural multisensory integration via associative binding, and bidirectional recall across modalities. By relying exclusively on local STDP-based learning, the architecture maintains simplicity, biological plausibility, and scalability without requiring global supervision or backpropagation. In summary, this work presents an architectural proof-of-concept demonstrating how self-organization combined with associative learning can emerge from simple, modular building blocs, highlighting a principled route toward hierarchical multisensory integration in memristive neuromorphic systems.

2. Symmetric and Linear Weight Updates Through Spike-Timing Dependent-Plasticity (STDP) in OXRAM Devices

One of the goals concerning the implementation of analog electronic synapses consists of inducing small changes in the synaptic weight of the device, i.e., in its conductivity. The linearity and symmetry of the synaptic weight update process is of great interest, since it contributes to the optimization of the training speed and learning performance of an artificial neural network [5,21]. However, its implementation in memristive devices remains a challenge due to the non-linearity of their conductance response [5,21,31,32].
The proposed hierarchical system will be demonstrated through simulation, so that a suitable model for describing the electrical behavior of memristors is required. In this work, a previously proposed model for memristive devices has been considered [33], calibrated with experimental data. For this purpose, OxRAM devices based on TiN/Ti-HfO2-W metal–insulator–metal (MIM) structures with 10nm oxide thickness and an area of 5 × 5 μm have been measured. The OxRAM model used in this work already accounts for several device non-idealities, including non-linear conductance updates and saturation effects. However, statistical cycle-to-cycle and device-to-device variability are not explicitly considered in this proof-of-concept study.
Details on the manufacturing process can be found in [34]. The employed samples display the resistive-switching behavior (Figure 1a), consisting of transitions from high (HRS) to low (LRS) resistance states and vice versa, which are identified as the SET and RESET processes, respectively. In Figure 1b some examples of pulsed G-V curves are depicted (gray dots), with the conductance G expressed in G0 units (G0 = 77.5 µS). The electrical characterization results indicate that the tested devices are suitable to function as a synapse in a neuromorphic crossbar-array, where the conductance of each of the OxRAM devices is identified as a synaptic weight [35]. Specifically, it was found that by means of pulse-programming, the synaptic weight can be controlled in an analog manner within a certain range, which is limited by the gmax and gmin values marked in Figure 1b. In [36], the experimental G-V characteristics were modeled to simulate the synaptic devices’ electrical behavior. An example of a modeled G-V curve is displayed in Figure 1b (blue and red lines). Moreover, a linear dependence of the conductance and the employed pulse amplitude was found between 0.65 V and 1 V. The devices can thus be operated within a linear regime, referred to as linear region (brown striped area in Figure 1b), where an analog synaptic weight with a linear dependence on the pulse amplitude can be programmed. The pulses waveform applied to the device terminals (Figure 2a,b) controls the voltage difference on the device (Figure 2c) and consequently can be defined to obtain linear STPD behavior (Figure 2d).

3. The Modules in a Hierarchical Neuromorphic Self-Organizing Map

A hierarchical computing system is an architecture where multiple layers arranged at different hierarchy levels are considered. The layers located at the bottom levels of the hierarchy are in charge of pre-processing the information given as the input to the whole system. The output of the first level of hierarchy is fed as the input of the layers in the following hierarchy level. The hierarchical organization is found in many biological structures, such as in the brain [37]. Multiple studies have shown that hierarchical biological neural networks present a spatial organization as to reduce their amount of wiring, by means of having fewer long connections and by locating neurons optimally to reduce the wiring between them [38]. Furthermore, hierarchical neural networks are capable of associating information by integrating data coming from multiple sources, giving rise to the development of complex or abstract data. In biology, this process is referred to as multisensory integration [39].
Multisensory integration encompasses primary sensory processing areas, such as the visual and auditory primary cortexes of the mammalian brain, which present topographical organization, and a higher-order processing region such as the association areas (parietal and temporal areas), which constitute the largest area of the cortex in primates. A diagram of the above multisensory integration system is depicted in Figure 3a where the information processed in the auditory, visual and somatosensory areas (all of them in the first or bottom level of the hierarchy) flows to the integration areas (second level of the hierarchy), and further to the frontal control areas (third or top level).
Our goal is to propose a hardware multi-layered hierarchical NSOM based on identical modules, emulating the multisensory integration hierarchical system of the biological brain. Each of these modules consists of a single synaptic layer arranged as a crossbar array, where each of the synapses is implemented with an OxRAM device (Figure 1), which connects an input neuron with an output neuron. The input neurons are meant to be connected to external sensors, and the information is coded by means of the location of each of the input neurons. The learning algorithm used for training the NSOM is based on the self-organizing map algorithm, which includes an integrate-and-fire-with-threshold-based model for neurons [40], which is an unsupervised learning algorithm with applications in many practical fields, especially in those which handle high-dimensional data, such as medicine, meteorology, oceanography or economics. The goal of the self-organizing map learning algorithm is to organize the output neuron layer according to the different features of the input dataset. Each of the output neurons learns a unique combination of synaptic weights that represents one of the features of the input dataset. After the neural network has been trained with some input dataset examples, the output neuron layer shows a topological organization, meaning that nearby output neurons represent (or are sensitive to) a similar input data feature, whereas distant output neurons are related to different features. The first version of the NSOM was proposed in [41], where the device-level variability impact of the employed OxRAM devices on the system performance was studied by means of simulation, and will be shortly described here, for completeness.
In particular, the NSOM example from Figure 4a will be used as one of the modules of the proposed hierarchical NSOM, consisting of three input neurons (red, green and blue circles), and a unidimensional output neuron layer (black circles). The input and output neuron layers are connected by OxRAM synaptic devices, which are located in each cross-point. Here, it is trained to map and classify colors, according to the RGB color components of the pixel of an image. Then, the input dataset consisted of the red (R), green (G) and blue (B) components of a color, which were related to the activation of the first, second or third input neuron, respectively (Figure 4a). Initially, the synapses have a random synaptic weight value. The input dataset is entered into the network by means of the activation of a particular single or group of input neurons. The activation of an input neuron means that it fires a voltage pulse (i.e., the pre-synaptic pulse in Figure 2a) towards the synaptic layer. The output neurons receive an amount of current according to the conductance values of each of its synapses, which are arranged in columns (Figure 4a). The received current updates the output neurons’ transmembrane potential, which increases until it reaches a predefined voltage threshold. The transmembrane potential also gives information on the intensity of the post-synaptic neuron response to a particular input, this being the response of the output neurons, referred to as its activation. If the voltage threshold is reached by an output neuron, it triggers a pulse towards its synapses (e.g., the post-synaptic pulse in Figure 2b), which overlaps temporarily with the pre-synaptic pulse, and causes a voltage drop at the involved synapses (Figure 2c). The synaptic weights are then updated according to the STDP function (Figure 2d). Finally, the output neuron communicates with its neighbor neurons, which also trigger a post-synaptic pulse, with a certain delay. Their synaptic weights are also updated, but the magnitude of the synaptic weight change is smaller, since the time delay between the pre- and post-synaptic pulses is larger. This process is repeated iteratively, and the output neurons and their neighbors start to respond to a specific input data feature.
The results of this training stage are shown in Figure 4b,c. In Figure 4b, the normalized synaptic weights of the crossbar array after the training stage were performed are represented in a gray scale. The normalization of the synaptic weights is used to simplify the simulation process and is based on the experimentally observed range of available conductance states of the above described OxRAM devices. The intensity of the response of the output neurons, which is related to the change in their transmembrane potential, is plotted in Figure 4c. Each of the three curves show the output neurons response when a single input neuron was active, meaning that one of the three RGB color components was being perceived by the system (red squares for the R, green circles for the G and blue triangles for the B). When the learning process is concluded, the output neuron layer of the NSOM appears topographically organized in clusters responding to similar cases of the input data set, i.e., there are groups of neurons located nearby that are sensitive to the same color component, whereas distant output neurons react to completely different colors. Each of the output neurons acts as a linear combiner of the three color components and depending on the state of the synapses to which it is connected after the training, they react more to a particular color. The results of [36,41] showed that the system in Figure 4a classified any other input case according to its similarity with the previously learnt RGB color components. This particular example of NSOM will be referred to as the RGB map and is the baseline of hierarchical NSOM that is proposed in this work. Moreover, because the learning algorithm is based on unsupervised learning-friendly rules such as the STDP, it is possible to concatenate multiple self-organizing synaptic crossbar arrays, where information can flow in a bidirectional manner. By means of adding computing self-organizing layers, the neuromorphic hierarchical computing system of Figure 3b can be built, as will be described in Section 5.

4. Extension of the NSOM: Data Encoding

The NSOM shown in Figure 4a is a simple academic case, in the sense that the input dataset is based on the presence or absence of the input dataset, which in this case were the RGB components of an image. NSOM can be used to process other types of input datasets, such as those made of quantitative data. In this case, the codification of the input data is not straight-forward. In the present work, we first introduce a solution to properly encode the input dataset when the variables under study cannot be represented in terms of the absence or presence of a feature, but rather by a discrete value within a range. An example of this type of feature is data related to the frequencies of sounds. In this subsection, an example of the proposed NSOM extension is provided. Our objective is to build a neuromorphic system capable of mapping the Spanish vowel sounds according to the values of their two formant frequencies. This is motivated by the evidence of topological organization found in the cochlea and in the primary auditory cortex of the human brain [42]. Therefore, this example of extended NSOM will be referred to as the auditory map.
In the case of the human voice, the formant frequencies are often measured as amplitude peaks in the frequency spectrum and give an estimate of the vocal tract resonances. Figure 5a shows a representation recorded from when the first author and author’s partner recorded vowel sounds, in terms of their formant frequencies values, in particular the first (F1) and second (F2) formant frequencies, for the three particular vowel phonemes \ε\, \i\ and \u\ (corresponding to the words “red”, “green” and “blue”, respectively). To determine these frequencies, a set of six instances per vowel was recorded, each of them with an approximate duration of 0.2 s, from which the formant frequencies were extracted. In this section, for simplicity, we will focus only on the first author’s voice, as a particular example. Figure 5b gives the average values of F1 and F2 for the vowel phoneme \ε\, as said by the first author. Since the objective consists of developing a NSOM where different sounds can be mapped or represented in terms of F1 and F2, a single synaptic layer relating to the input and output neuron layers of the network is considered. Note that, if all the three phonemes were considered, after the training stage of the NSOM, the output neuron layer is meant to be organized in clusters, where the neurons within the same group respond strongly to similar values of the input dataset features, which in this case are sound frequencies.
As to feed the input data to the network, instead of only using one input neuron for each feature as in the RGB map described in the previous subsection, we now consider multiple neurons for the representation of an input feature. We propose to divide the input neuron layer into as many groups as different features the input data set has. In this case, two groups of neurons are required: one for representing F1, and another for F2. We now assume that each group is constituted by an arbitrary number of input neurons, and that the input data (frequency with values between 0 Hz and 3000 Hz) is first divided into ranges (in this case, six frequency ranges), which are further coded in binary. Therefore, each of the input neurons within a group represents a particular range of frequencies; for instance, the first neuron within the F1 and F2 groups represent the range 0 Hz–500 Hz, whereas the last one represents the range 2500 Hz–3000 Hz. Hence, the input neurons layer is constituted by 12 neurons, representing six frequency ranges for F1 (the first six input neurons or rows, denoted as In1,x, where x is the range number) and for F2 (last six input neurons, denoted as In2,x). A scheme of the input neuron layer distribution is shown in Figure 6a, where a neuromorphic crossbar array with a size of 12 × 100 is depicted.
The presence of a phoneme is coded in terms of the activation of the input neurons representing the ranges where the F1 and F2 values of that phoneme are located. The input neurons’ activation is translated to the application of a certain voltage to that particular row in the synaptic crossbar array.
The system shown in Figure 6a is trained using the phonemes for the author’s voice as input dataset (\ε\ phoneme in Figure 5b, as example) and the learning algorithm used for the RGB map training. Figure 6b shows the synaptic crossbar array after the training stage has been performed, where the normalized synaptic weight is represented in the same gray scale as the one employed in Figure 4b. As can be seen in Figure 6b, the system has learned the three phonemes that have been shown during the training stage, i.e., only the connections relating to the output neurons with the input neurons coding the phonemes shown of Figure 5 have been established. A relatively large normalized synaptic weight (the lighter the color, the larger the synaptic weight) is observed for the input frequencies, whereas the synaptic devices from other rows present a very low synaptic weight (represented with darker colors in Figure 6b), since the system has never been introduced to other sounds with other combinations of F1 and F2. As occurred with the RGB map, the output neurons appear organized topographically, meaning that some groups of nearby neurons are sensitive to one of the presented phonemes, whereas distant neurons are sensitive to other F1 and F2 combinations. The topological organization can be observed in the output neurons’ response depicted in Figure 6c, where each curve corresponds to the change in the transmembrane potential of the output neurons when the three different phonemes are fed individually to the network after the training stage (red squares corresponds to \ε\, green circles corresponds to \i\ and blue triangles to \u\). Despite having a different type of input data, the simulated auditory map has the same behavior as the RGB map: the topographical organization of the output neuron layer permits us to classify the new input data according to its similarity with the data it has been trained with. Both NSOMs share the same structure, being identical modules, except for their size. In the following subsection, the two NSOMs are used to build a hierarchical system, whose task is to perform a multisensory integration process in a third synaptic layer.

5. Implementation of the Neuromorphic Hierarchical System

Our next step towards the implementation of a hierarchical NSOM consisted of training a third NSOM with the outputs of the RGB and auditory maps described in the previous sections. The latter maps are at the bottom level of the hierarchy (first level in Figure 3b) and are in charge of processing the input information coming from different data sources distributed in parallel. The third NSOM is at a higher level of the hierarchy (the second level in Figure 3b) and is in charge of associating the information coming from the RGB map with that coming from the auditory map. At this higher level of the hierarchy, association processes can take place. These processes give rise to symbolic learning: an approach based on the assumption that many aspects of intelligence can be achieved by the manipulation of symbols [42]. In the case of the example detailed in the present subsection, relationships between colors and sounds are meant to be learned by the system: the blue (B) component of an image and a sound, such as the word ‘blue’ in English [ˈblu]; the red (R) color component and the frequency components of the phoneme \ε\, such as the one in the word ‘red’ [ˈrɛd]; and the green (G) component with the \i\ phoneme within the word [ˈɡriːn]. Hence, the higher level of the hierarchy computes the symbols of ‘blue’, ‘green’ and ‘red’, which relate the colors with the sound of their names in a particular language. In this way, the hierarchical NSOM is not only able to classify information into a higher level of abstraction, e.g., identifying both the blue-colored pixels of an image and sounds as the symbol ‘blue’, but also learns that there is a relationship or connection between a particular color component and a set of sound frequencies, exhibiting associative behavior.
An example of such neuromorphic hierarchical system is depicted in Figure 7, consisting of three NSOMs: the RGB map (Figure 7a), the auditory map (Figure 7b) and the associative map (Figure 7c), the latter consisting of 200 input neurons and three output neurons. In the maps in the bottom level of the hierarchy, the input neurons are located at the top and bottom of the RGB and auditory maps, respectively, and the output neurons located at the right part of both maps. Both maps are assumed to be already trained, following the procedure explained in subsections III and IV, whereas no associative learning process has occurred yet. The inputs of the associative layer (Figure 7c) are the outputs of the RGB and auditory maps: in this case, when an output neuron of a NSOM reaches the threshold potential, it not only triggers a pulse towards its synapses located in the RGB or auditory maps, but also towards its other synapses, located in the associative layer. Therefore, the output neurons of the RGB and auditory maps are behaving as the input neurons of the associative map.
Specifically, Figure 7 shows that the associative layer has already some connections with the RGB map. In this scenario, a pure green color (G color component) is being perceived by the system (green arrow in Figure 7a). The activation of the input neuron G in the RGB map (Figure 7a) excites the output neurons of the RGB map. The output neuron showing the larger response triggers a pulse towards all of its synapses: three of them are in a row of the RGB map, and three of them are in a row of the associative layer. The green arrows in Figure 7c represent the current flowing from the RGB output neuron layer through the associative map. In this example, only one of the three synapses located in the same row of the associative map has a relatively large synaptic weight (represented with a light gray color). Then, most of the current flows through this synapse, and excites the associative output neuron #2. The associative output neurons response corresponding to this situation is displayed in Figure 7d.
On the one hand, there are a total of three connections between the associative layer and the RGB map that show a relatively large synaptic weight in Figure 7c. The corresponding synaptic weight updates have been performed following the training stage procedure of a regular NSOM (i.e., by means of computing the change in the transmembrane potential of the output neurons and of the STDP function for the synaptic weight update process). On the other hand, any connection with the auditory map has a significant synaptic weight. This is because no associative learning process has occurred yet.
To associate the data coming from the RGB and the auditory maps in the associative layer, the implementation of an associative learning process has to be considered. The simplest case of associative learning involves at least three neurons and two synapses, following the distribution depicted in the diagram of Figure 7e. An experimental demonstration of this simple case with two of our OxRAM devices can be found [43], where a Pavlov’s dog experiment was emulated. Initially, the associative output neuron responded only to one of the input sources, which is the unconditioned stimulus (in the present case, this stimulus comes from the RGB map). The other source input is the neutral stimulus (which comes from the auditory map). It was found that, by means of presenting both input data sources together with the proper pre- and post-synaptic pulse amplitudes, the associative output neuron could relate the two input data sources, so that it ended being reactive to both, if presented individually. In the present case, the auditory data would become a conditioned stimulus, if the association process has been successful. Although the system processes information coming from heterogeneous sensory sources, multisensory integration is not performed through explicit feature-level fusion. Instead, each modality is first mapped onto a distributed and topographically organized neural representation by a dedicated self-organizing map. Integration across modalities emerges at a higher hierarchical level through associative learning, where coincidence activations from different sensory maps are bound together via STDP.
Let the scenario depicted before in Figure 7 be the starting point of the associative learning process. Nothing is expected to happen if an output neuron of the auditory map (e.g., the one responding to phoneme \i\) fires a pulse towards the associative layer, since the involved synapses present a very low synaptic weight. However, if the phoneme \i\ (activation of auditory input neurons In1,1 and In2,5) is presented simultaneously with a color (e.g., green color), the associative output neuron #2 will fire a pulse towards the associative layer, causing a voltage drop at the involved synapses. Since the connections between the associative output neurons and the input neurons related to the auditory map present a low synaptic weight, the voltage drop will provoke a synaptic weight increment, given by the STDP function. In this case, the associative output neuron #2 will pair the ‘G’ color component (green) with the frequencies F1 and F2 corresponding to the \i\ phoneme (corresponding to the word “green”). Therefore, the system learns that there is a relationship between these two inputs, which corresponds to the concept of “green”. After the associative learning process has occurred, the associative output neurons can be excited by the individual presentation of any of the input data cases (a color component or a sound). If the two inputs related to the same concept are presented simultaneously, the associative output neuron response will be more intense, since the amount of current that it will receive will be larger.
Because the neurons of the proposed system can behave as both input and output neurons, the flow of the information within the system is bidirectional. This means that the following situations can now take place: (1) if a neuron corresponding to the green symbol within the higher level of hierarchy is activated (i.e., associative output neuron #2 in Figure 7c), the system will remember which color corresponds to the learnt green concept (Figure 7a), and how the vowel within the word “green” sounds. The recall process occurs by means of activating its relative neurons from the lower hierarchy levels. Another situation consists of the following: (2) if the word “green” is perceived (/i/ phoneme), the green color component (G) will be recalled. In other words, a spiking neuron from the auditory layer will provoke first the activation of the associative output neuron #2, and due to the synapses of the latter located in the associative map, an output neuron of the RGB map will also be exciting. Therefore, a single active input source (which is perceived) causes the activation of the input neuron related to other input sources (they are being recalled, not perceived), and this is due to their connections in the associative layer.

6. Addition of Other Data Sources Input

As mentioned above, many modules can be added to the system in any of the hierarchy levels, and associative relationships can be learnt in different areas of the associative layer. As to give an example, consider a new NSOM module located at the bottom level of the hierarchy, in charge of processing images (shapes), which are related to facial features. This NSOM is referred to as the people map. The input dataset used to train the auditory map has been extended and now consists of vowel sounds coming from two different people. Figure 5a shows the average formant frequencies obtained from recordings of the first author’s voice (person #1, depicted with circles), used in the previous example, and of her partner’s voice (person #2, depicted with triangles). Figure 5b shows the average F1 and F2 values for the \ε\ phoneme for the two voices. It can be seen in Figure 5c that the F1 value of the two people activates the same input neuron (In1,2), whereas the F2 activates a different input neuron (In2,4 and In2,5, for person #1 and person #2, respectively). The system is expected to be able to distinguish between the two people’s voices, despite showing similar F1 and F2 values. To do so, associations between the processed phonemes (coming from the auditory map) and the shapes related to the facial features (from the people map) must be established in an untrained region of the associative layer, referred to as the extended region. No association with the color information coming from the RGB map is taken into account for the extended region. The expected behavior of this extended region of the associative layer is represented in the diagram shown in Figure 8a, which represents the connections built between the auditory and the people maps, by means of the associative layer. The example of Figure 8a corresponds to the situation when the \ε\ phoneme from the person #1 voice and its facial features are the inputs of the system. Because the extended region is not going to be trained with the RGB data, no connection between the associative output neurons and the RGB map is expected to have a significant synaptic weight in this area.
Figure 8b shows the whole proposed system after the associative learning process has occurred. In here, the hierarchical layer is indicated with a green frame and has a size of 250 × 5. It includes the extended region (2 × 250), which is represented before and after the training. The system of Figure 8b also shows the people map (a 2 × 50 array), which is indicated with a blue frame. In this new scenario, the auditory array has been trained with the new input dataset, including the person #2 F1 and F2 values of the \ε\ phoneme. The activation of the auditory output neurons is plotted for the person #2 (depicted with triangles) and person #1 (shown with circles) \ε\ phonemes. The activation of the output neurons of the people map is also shown for both person #2 (triangles) and person #1 (circles) shapes.
Two different regions of the associative layer can be distinguished. The first one (250 × 3) relates the color components with sounds, and its output neurons (labeled as ‘1’, ‘2’ and ‘3’) are, on the one hand, sensitive to both types of data. On the other hand, since these associative output neurons do not respond to the people map information, any connection between them and the neurons of the people map presents a high synaptic weight. The second region is the so-called extended region (250 × 2), and its output neurons are intended to respond to both presentations of sound and of people-facial-features-related shapes. After the associative learning has occurred, the extended region (located at the bottom and right part of Figure 8b) has connections with large synaptic weights between these two pre-processing maps. Hence, significant currents flow through these synapses. Figure 8b also shows the principal current paths (red arrows) when the system is perceiving the person-#1-related shape and hearing the \ε\ phoneme given by the person-#1 voice. The phoneme \ε\ affects not only to this associative output neuron related to the “person #1” concept, but also to the associative output neuron “3”. Because the flow of information is bidirectional, the RGB map is also affected by the presentation of \ε\, yet no color component is being considered as an input in this new situation (any color is being perceived). Hence, the associative output neuron ‘3’ naturally recalls that the phoneme \ε\ is related to red (color component R). The person-#1-related shape only contributes directly to the activation of the associative output neuron related to the “person #1” concept by means of the new module (the people map), affecting only to the extended region of the associative map. Because of the contributions of \ε\ and the person-#1-related shape, the system can match the person-#1 voice with the corresponding shape, creating the “person #1” concept. Therefore, the system can perform multisensory integration and behave as an associative memory. Yet, not shown in the present work, if the input dataset features change over time, the system is expected to redistribute its synaptic weights as to properly represent them, permitting an on-line (in situ) unsupervised learning process. It has been shown that simulated neuromorphic systems based on OxRAM devices are able to process the input data in a parallel, distributed and hierarchical way. All these characteristics are of great interest when decision-making tasks are considered in applications where a parallel computation process is required, such as in control systems operating in real-time. The given examples are meant to provide proof-of-concept of the proposed architecture, and more studies focused on quantifying the performance of the system for different types of input data and system parameters (size of the system, electrical behavior of the synaptic devices and neurons, parasitic effects, etc.) have to be conducted.

7. Conclusions

In this work, a novel hierarchical neuromorphic architecture based on neuromorphic self-organizing map (NSOM) modules has been presented. The proposed system combines biologically plausible self-organization driven by STDP-based unsupervised learning with associative mechanisms operating across multiple hierarchical layers. Using an OxRAM device model calibrated on experimental data, the architecture has been evaluated through simulations as a proof-of-concept, demonstrating how classification and association of heterogeneous information can naturally emerge from modular crossbar-based building blocks.
The results show that the proposed architecture can form topologically organized representations at lower hierarchical levels and associate these representations at higher levels to encode abstract concepts, without external supervision. Rather than functioning as an associative memory in the conventional engineering sense, the system establishes relationships between distributed representations generated by preceding NSOM layers.
This work is intended as architectural and functional. Future research directions include the integration of the proposed architecture with physical OxRAM arrays, the analysis of circuit-level non-idealities and device variability, and the evaluation of system-level performance under realistic operating conditions. These steps will be essential to translate the proposed proof-of-concept architecture into practical neuromorphic hardware systems.

Author Contributions

M.P.: Conceptualization, measurements, analysis, software development and writing. J.M.-M.: Conceptualization, analysis and writing, R.R.: Conceptualization and analysis. M.N.: Analysis and writing. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by MCIN/AEI/10.13039/501100011033/FEDER, Union Europea (UE), under Grant PID2022-136949OB-C22 and Grant 2021 SGR00199.

Data Availability Statement

The original contributions presented in this study are included in the article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Jo, S.H.; Chang, T.; Ebong, I.; Bhadviya, B.B.; Mazumder, P.; Lu, W. Nanoscale memristor device as synapse in neuromorphic systems. Nano Lett. 2010, 10, 1297–1301. [Google Scholar] [CrossRef] [PubMed]
  2. Serrano-Gotarredona, T.; Masquelier, T.; Prodromakis, T.; Indiveri, G.; Linares-Barranco, B. STDP and STDP variations with memristors for spiking neuromorphic learning systems. Front. Neurosci. 2013, 7, 2. [Google Scholar] [CrossRef] [PubMed]
  3. Nadji-Tehrani, M.; Eslami, A. A Brain-Inspired Framework for Evolutionary Artificial General Intelligence. In IEEE Transactions on Neural Networks and Learning Systems; IEEE: Piscataway, NJ, USA, 2020; Volume 31, pp. 5257–5271. [Google Scholar] [CrossRef]
  4. Hofmann, M.; Mäder, P. Synaptic Scaling—An Artificial Neural Network Regularization Inspired by Nature. In IEEE Transactions on Neural Networks and Learning Systems; IEEE: Piscataway, NJ, USA, 2022; Volume 33, pp. 3094–3108. [Google Scholar] [CrossRef]
  5. Burr, G.W.; Shelby, R.M.; Sebastian, A.; Kim, S.; Kim, S.; Sidler, S.; Virwani, K.; Ishii, M.; Narayanan, P.; Fumarola, A.; et al. Neuromorphic computing using non-volatile memory. Adv. Phys. X 2017, 2, 89–124. [Google Scholar] [CrossRef]
  6. Ran, H.; Wen, S.; Li, Q.; Yang, Y.; Shi, K.; Feng, Y.; Zhou, P.; Huang, T. Memristor-Based Edge Computing of Blaze Block for Image Recognition. In IEEE Transactions on Neural Networks and Learning Systems; IEEE: Piscataway, NJ, USA, 2022; Volume 33, pp. 2121–2131. [Google Scholar] [CrossRef]
  7. Shooshtari, M.; Pahlavan, S.; Serrano Gotarredona, T.; Linares-Barranco, B. Spike-Timing-Dependent Plasticity and Synaptic Consolidation in Hfo2 Memristors for Adaptive Neuromorphic Computing. In Neuromorphic Computing and Engineering; IOP Publishing: Bristol, UK, 2025. [Google Scholar] [CrossRef]
  8. Yao, P.; Wu, H.; Gao, B.; Eryilmaz, S.B.; Huang, X.; Zhang, W.; Zhang, Q.; Deng, N.; Shi, L.; Wong, H.-S.P. Face classification using electronic synapses. Nat. Commun. 2017, 8, 15199. [Google Scholar] [CrossRef]
  9. Payvand, M.; Moro, F.; Nomura, K.; Dalgaty, T.; Vianello, E.; Nishi, Y.; Indiveri, G. Self-organization of an inhomogeneous memristive hardware for sequence learning. Nat. Commun. 2022, 13, 5793. [Google Scholar] [CrossRef] [PubMed]
  10. Shooshtari, M.; Serrano-Gotarredona, T.; Linares-Barranco, B. Review of Memristors for In-Memory Computing and Spiking Neural Networks. Adv. Intell. Syst. 2025, 8, e202500806. [Google Scholar] [CrossRef]
  11. Wang, R.; Shi, T.; Zhang, X.; Lu, J.; Zhu, J.; Wu, Z.; Liu, Q.; Liu, M. Implementing in-situ self-organizing maps with memristor crossbar arrays for data mining and optimization. Nat. Commun. 2022, 13, 2289. [Google Scholar] [CrossRef]
  12. Wu, Z.; Wang, Q.; Plaza, A.; Li, J.; Liu, J.; Wei, Z. Parallel implementation of sparse representation classifiers for hyperspectral imagery on GPUs. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2015, 8, 2912–2925. [Google Scholar] [CrossRef]
  13. Nurvitadhi, E.; Venkatesh, G.; Sim, J.; Marr, D.; Huang, R.; Ong Gee Hock, J.; Liew, Y.T.; Srivatsan, K.; Moss, D.; Subhaschandra, S.; et al. Can FPGAs beat GPUs in accelerating next-generation deep neural networks? In Proceedings of the 2017 ACM/SIGDA International Symposium on Field-Programmable Gate Arrays, New York, NY, USA, 22–24 February 2017; ACM: New York, NY, USA, 2017; pp. 5–14. [Google Scholar] [CrossRef]
  14. Kuzum, D.; Jeyasingh, R.G.; Lee, B.; Wong, H.S.P. Nanoelectronic programmable synapses based on phase change materials for brain-inspired computing. Nano Lett. 2011, 12, 2179–2186. [Google Scholar] [CrossRef]
  15. Prezioso, M.; Zhong, Y.; Gavrilov, D.; Merrikh-Bayat, F.; Hoskins, B.; Adam, G.; Likharev, K.; Strukov, D. Spiking neuromorphic networks with metal-oxide memristors. In Proceedings of the 2016 IEEE International Symposium on Circuits and Systems (ISCAS), Montreal, QC, Canada, 22–25 May 2016; IEEE: Piscataway, NJ, USA, 2016; pp. 177–180. [Google Scholar] [CrossRef]
  16. Srinivasa, N.; Cruz-Albrecht, J.M. Neuromorphic adaptive plastic scalable electronics: Analog learning systems. IEEE Pulsel 2012, 3, 51–56. [Google Scholar] [CrossRef]
  17. Krestinskaya, O.; James, A.P.; Chua, L.O. Neuromemristive Circuits for Edge Computing: A Review. In IEEE Transactions on Neural Networks and Learning Systems; IEEE: Piscataway, NJ, USA, 2020; Volume 31, pp. 4–23. [Google Scholar] [CrossRef]
  18. Park, S.; Sheri, A.; Kim, J.; Noh, J.; Jang, J.; Jeon, M.; Lee, B.; Lee, B.R.; Lee, B.H.; Hwang, H. Neuromorphic speech systems using advanced ReRAM-based synapse. In 2013 IEEE International Electron Devices Meeting; IEEE: Piscataway, NJ, USA, 2013; pp. 25–26. [Google Scholar] [CrossRef]
  19. Mannan, Z.I.; Adhikari, S.P.; Yang, C.; Budhathoki, R.K.; Kim, H.; Chua, L. Memristive Imitation of Synaptic Transmission and Plasticity. In IEEE Transactions on Neural Networks and Learning Systems; IEEE: Piscataway, NJ, USA, 2019; Volume 30, pp. 3458–3470. [Google Scholar] [CrossRef]
  20. Yu, S. Neuro-inspired computing with emerging nonvolatile memories. Proc. IEEE 2018, 106, 260–285. [Google Scholar] [CrossRef]
  21. Veluri, H.; Chand, U.; Li, Y.; Tang, B.; Thean, A.V.-Y. A Low-Power DNN Accelerator Enabled by a Novel Staircase RRAM Array. In IEEE Transactions on Neural Networks and Learning Systems; IEEE: Piscataway, NJ, USA, 2023; Volume 34, pp. 4416–4427. [Google Scholar] [CrossRef]
  22. Maestro-Izquierdo, M.; Gonzalez, M.B.; Campabadal, F. Mimicking the spike-timing dependent plasticity in HfO2-based memristors at multiple time scales. Microelectron. Eng. 2019, 215, 111014. [Google Scholar]
  23. Govoreanu, B.; Kar, G.S.; Chen, Y.Y.; Paraschiv, V.; Kubicek, S.; Fantini, A.; Radu, I.; Goux, L.; Clima, S.; Degraeve, R. 10 × 10nm2 Hf/HfOx crossbar resistive RAM with excellent performance, reliability and low-energy operation. In Proceedings of the 2011 International Electron Devices Meeting, Washington, DC, USA, 5–7 December 2011; IEEE: Piscataway, NJ, USA, 2011; pp. 31–36. [Google Scholar]
  24. Kawahara, A.; Azuma, R.; Ikeda, Y.; Kawai, K.; Katoh, Y.; Hayakawa, Y.; Tsuji, K.; Yoneda, S.; Himeno, A.; Shimakawa, K. An 8 Mb multi-layered cross-point ReRAM macro with 443 MB/s write throughput. IEEE J. Solid-State Circuits 2012, 48, 178–185. [Google Scholar]
  25. Liu, T.Y.; Yan, T.H.; Scheuerlein, R.; Chen, Y.; Lee, J.K.; Balakrishnan, G.; Yee, G.; Zhang, H.; Yap, A.; Ouyang, J. A 130.7mm2 2-Layer 32-Gb ReRAM Memory Device in 24-nm Technology. IEEE J. Solid-State Circuits 2013, 49, 140–153. [Google Scholar]
  26. Sheu, S.S.; Chang, M.F.; Lin, K.F.; Wu, C.W.; Chen, Y.S.; Chiu, P.F.; Kuo, C.-C.; Yang, Y.-S.; Chiang, P.-C.; Lin, W.-P.; et al. A 4Mb embedded SLC resistive-RAM macro with 7.2 ns read-write random-access time and 160ns MLC-access capability. In Proceedings of the 2011 IEEE International Solid-State Circuits Conference, Francisco, CA, USA, 20–24 February 2011; IEEE: Piscataway, NJ, USA, 2011; pp. 200–202. [Google Scholar]
  27. Fackenthal, R.; Kitagawa, M.; Otsuka, W.; Prall, K.; Mills, D.; Tsutsui, K.; Javanifard, J.; Tedrow, K.; Tsushima, T.; Shibahara, Y.; et al. 19.7 A 16Gb ReRAM with 200MB/s write and 1GB/s read in 27nm technology. In Proceedings of the 2014 IEEE International Solid-State Circuits Conference Digest of Technical Papers (ISSCC), San Francisco, CA, USA, 9–13 February 2014; IEEE: Piscataway, NJ, USA, 2014; pp. 338–339. [Google Scholar]
  28. Lee, M.J.; Lee, C.B.; Lee, D.; Lee, S.R.; Chang, M.; Hur, J.H.; Kim, Y.-B.; Kim, C.-J.; Seo, D.H.; Seo, S.; et al. A fast, high-endurance and scalable non-volatile memory device made from asymmetric Ta2O5−x/TaO2−x bilayer structures. Nat. Mater. 2011, 10, 625–630. [Google Scholar]
  29. International Roadmap for Devices and Systems 2018. Executive Summary. Available online: https://irds.ieee.org/editions/2018 (accessed on 1 May 2019).
  30. Alibart, F.; Zamanidoost, E.; Strukov, D.B. Pattern classification by memristive crossbar circuits using ex situ and in situ training. Nat. Commun. 2013, 4, 2072. [Google Scholar] [CrossRef]
  31. Beauchamp, M.S.; Argall, B.D.; Bodurka, J.; Duyn, J.H.; Martin, A. Unraveling multisensory integration: Patchy organization within human STS multisensory cortex. Nat. Neurosci. 2004, 7, 1190–1192. [Google Scholar] [CrossRef]
  32. Pedro, M.; Martin-Martinez, J.; Rodriguez, R.; Gonzalez, M.B.; Campabadal, F.; Nafria, M. A flexible characterization methodology of RRAM: Application to the modeling of the conductivity changes as synaptic weight updates. Solid-State Electron. 2019, 159, 57–62. [Google Scholar] [CrossRef]
  33. Poblador, S.; Gonzalez, M.B.; Campabadal, F. Investigation of the multilevel capability of TiN/Ti/HfO2/W resistive switching devices by sweep and pulse programming. Microelectron. Eng. 2018, 187, 148–153. [Google Scholar] [CrossRef]
  34. Pedro, M.; Martin-Martinez, J.; Gonzalez, M.B.; Rodriguez, R.; Campabadal, F.; Nafria, M.; Aymerich, X. Tuning the conductivity of resistive switching devices for electronic synapses. Microelectron. Eng. 2017, 178, 89–92. [Google Scholar] [CrossRef]
  35. Pedro, M.; Martin-Martinez, J.; Maestro-Izquierdo, M.; Rodriguez, R.; Nafria, M. Self-Organizing Neural Networks Based on OxRAM Devices under a Fully Unsupervised Training Scheme. Materials 2019, 12, 3482. [Google Scholar] [CrossRef]
  36. Meunier, D.; Lambiotte, R.; Fornito, A.; Ersche, K.; Bullmore, E.T. Hierarchical modularity in human brain functional networks. Front. Neuroinform. 2009, 3, 37. [Google Scholar] [CrossRef]
  37. Mengistu, H.; Huizinga, J.; Mouret, J.B.; Clune, J. The evolutionary origins of hierarchy. PLoS Comput. Biol. 2016, 12, e1004829. [Google Scholar] [CrossRef] [PubMed]
  38. Meredith, M.A.; Stein, B.E. Visual, auditory, and somatosensory convergence on cells in superior colliculus results in multisensory integration. J. Neurophysiol. 1986, 56, 640–662. [Google Scholar] [CrossRef] [PubMed]
  39. Kohonen, T. The self-organizing map. Proc. IEEE 1990, 78, 1464–1480. [Google Scholar] [CrossRef]
  40. Pedro, M.; Martin-Martinez, J.; Miranda, E.; Rodriguez, R.; Nafria, M.; Gonzalez, M.B.; Campabadal, F. Device variability tolerance of a RRAM-based Self-Organizing Neuromorphic system. In Proceedings of the 2018 IEEE International Reliability Physics Symposium (IRPS), Burlingame, CA, USA, 11–15 March 2018; IEEE: Piscataway, NJ, USA, 2018; pp. P-CR.4-1–P-CR.4-5. [Google Scholar] [CrossRef]
  41. Saenz, M.; Langers, D.R. Tonotopic mapping of human auditory cortex. Hear. Res. 2014, 307, 42–52. [Google Scholar] [CrossRef]
  42. Newell, A. Physical symbol systems. Cogn. Sci. 1980, 4, 135–183. [Google Scholar] [CrossRef]
  43. Pedro, M.; Martin-Martinez, J.; Rodriguez, R.; Gonzalez, M.B.; Campabadal, F.; Nafria, M. An unsupervised and probabilistic approach to Pavlov’s dog experiment with OxRAM devices. Microelectron. Eng. 2019, 215, 111024. [Google Scholar] [CrossRef]

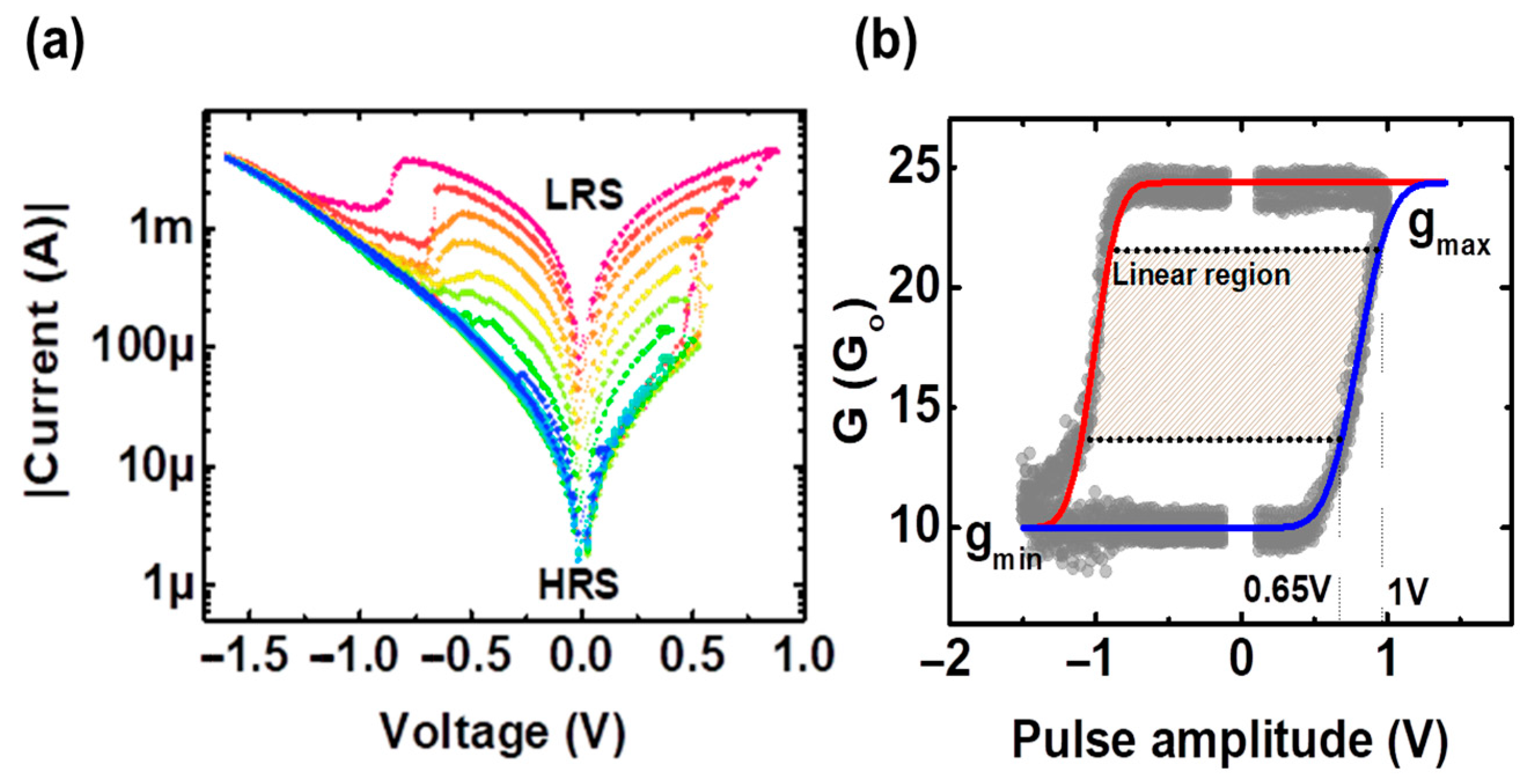

Figure 1. (a) Examples of experimental I-V curves of the employed OxRAM devices [36]. (b) Examples of pulsed G-V characteristics of the OxRAM devices (gray symbols). A linear relationship between the achieved conductance value (in G0 units, being G0 = 77.5 μS) and the pulse amplitude is observed (sub-hysteron area, shaded region). An example of a modeled G-V curve is depicted as a blue and a red line.
Figure 1. (a) Examples of experimental I-V curves of the employed OxRAM devices [36]. (b) Examples of pulsed G-V characteristics of the OxRAM devices (gray symbols). A linear relationship between the achieved conductance value (in G0 units, being G0 = 77.5 μS) and the pulse amplitude is observed (sub-hysteron area, shaded region). An example of a modeled G-V curve is depicted as a blue and a red line.
Electronics 15 01385 g001

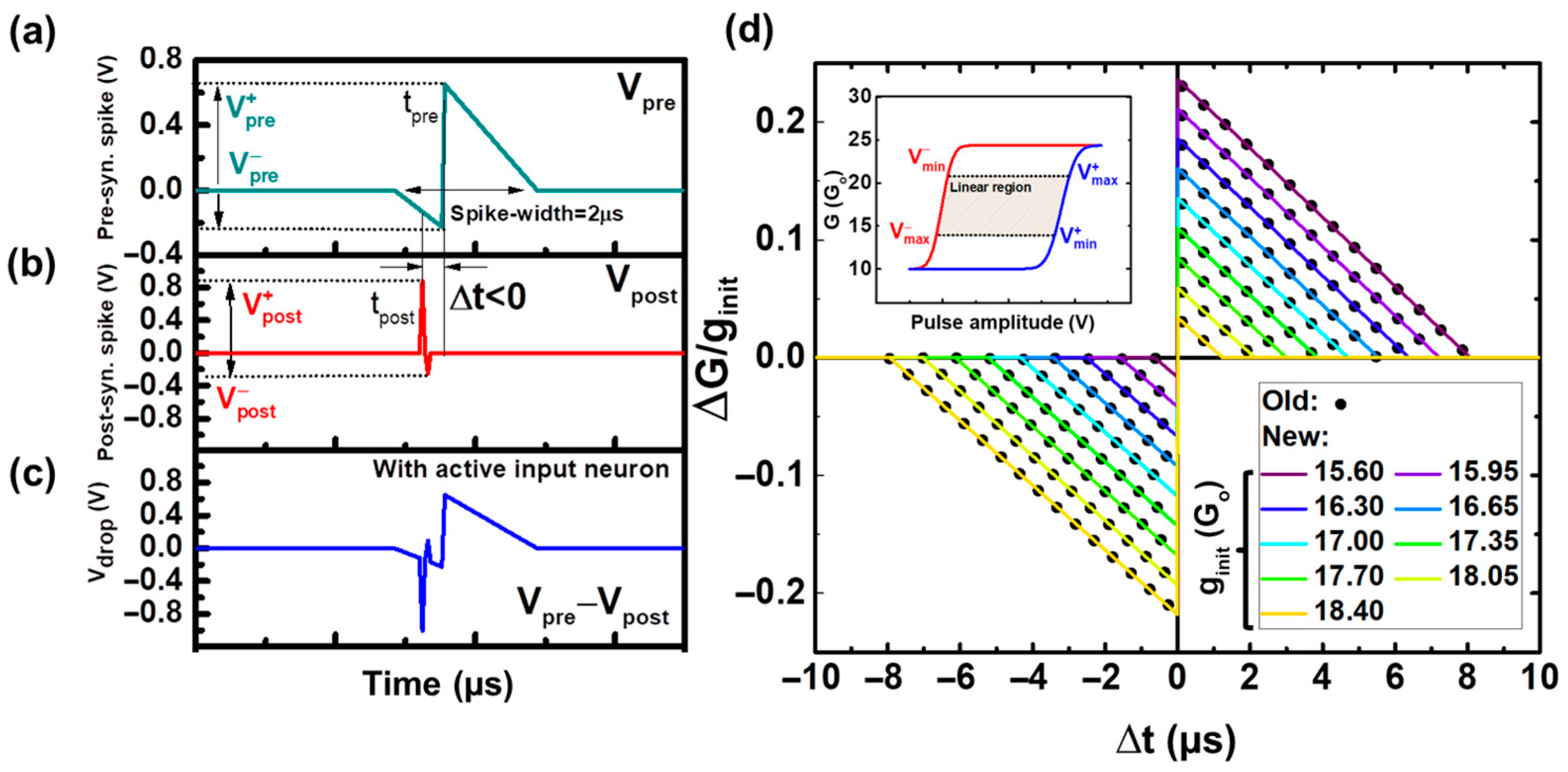

Figure 2. (a) Pre-synaptic voltage waveform. (b) Post-synaptic voltage waveform. (c) Equivalent voltage drop [36]. (d) STDP function of a simulated device considering the G-V characteristics shown in the inset, working on its linear regime for different ginit values. The function computed with the old method is depicted with black circles, whereas the data obtained with the new method is represented with colored lines according to the ginit (Go) value.
Figure 2. (a) Pre-synaptic voltage waveform. (b) Post-synaptic voltage waveform. (c) Equivalent voltage drop [36]. (d) STDP function of a simulated device considering the G-V characteristics shown in the inset, working on its linear regime for different ginit values. The function computed with the old method is depicted with black circles, whereas the data obtained with the new method is represented with colored lines according to the ginit (Go) value.
Electronics 15 01385 g002

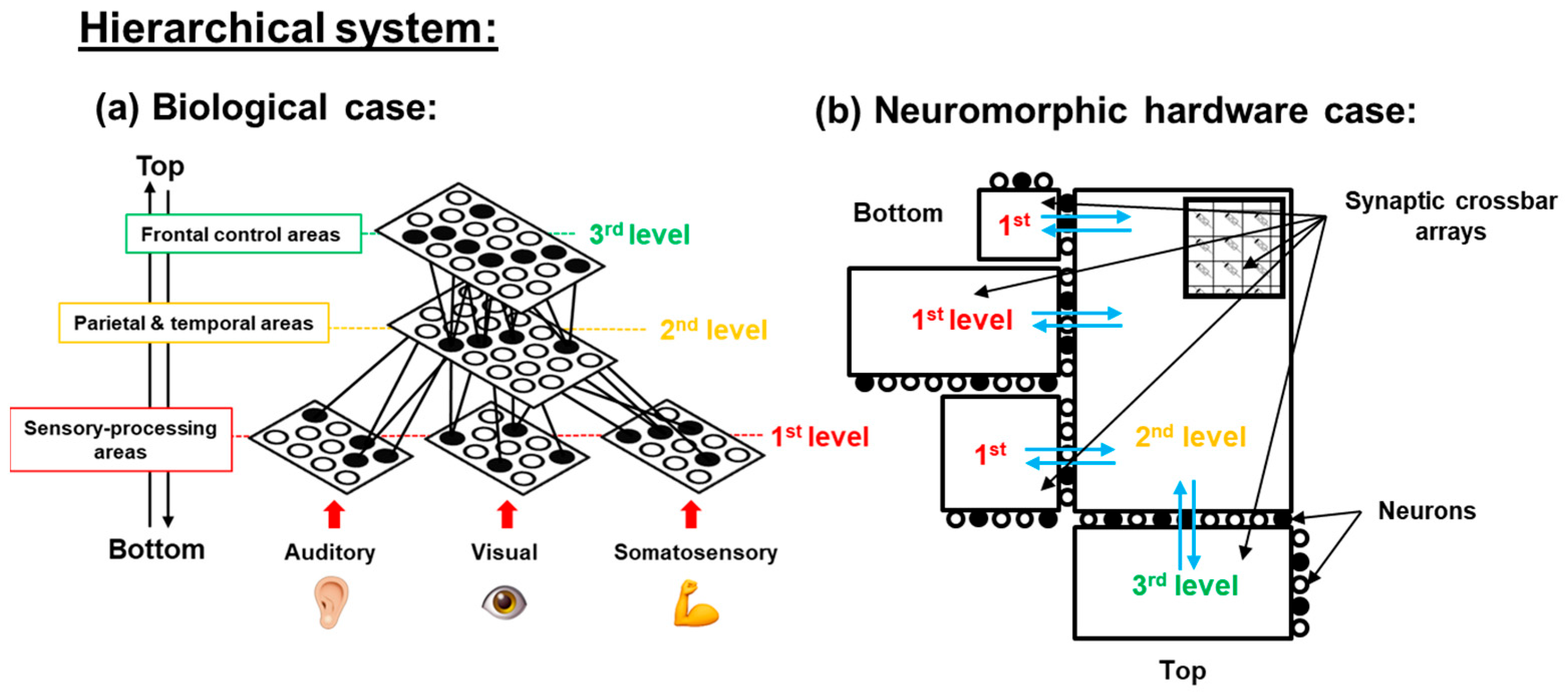

Figure 3. Examples of hierarchical computing systems (a) a biological case, found in the mammalian brain, where the multisensory integration process occurs, and (b) a neuromorphic hardware case, constituted by multiple layers made of synaptic crossbar arrays and neurons. In both systems, only some neurons are active at each time, representing a concept. Black dots represent active neurons, and white dots represent silent neurons.
Figure 3. Examples of hierarchical computing systems (a) a biological case, found in the mammalian brain, where the multisensory integration process occurs, and (b) a neuromorphic hardware case, constituted by multiple layers made of synaptic crossbar arrays and neurons. In both systems, only some neurons are active at each time, representing a concept. Black dots represent active neurons, and white dots represent silent neurons.
Electronics 15 01385 g003

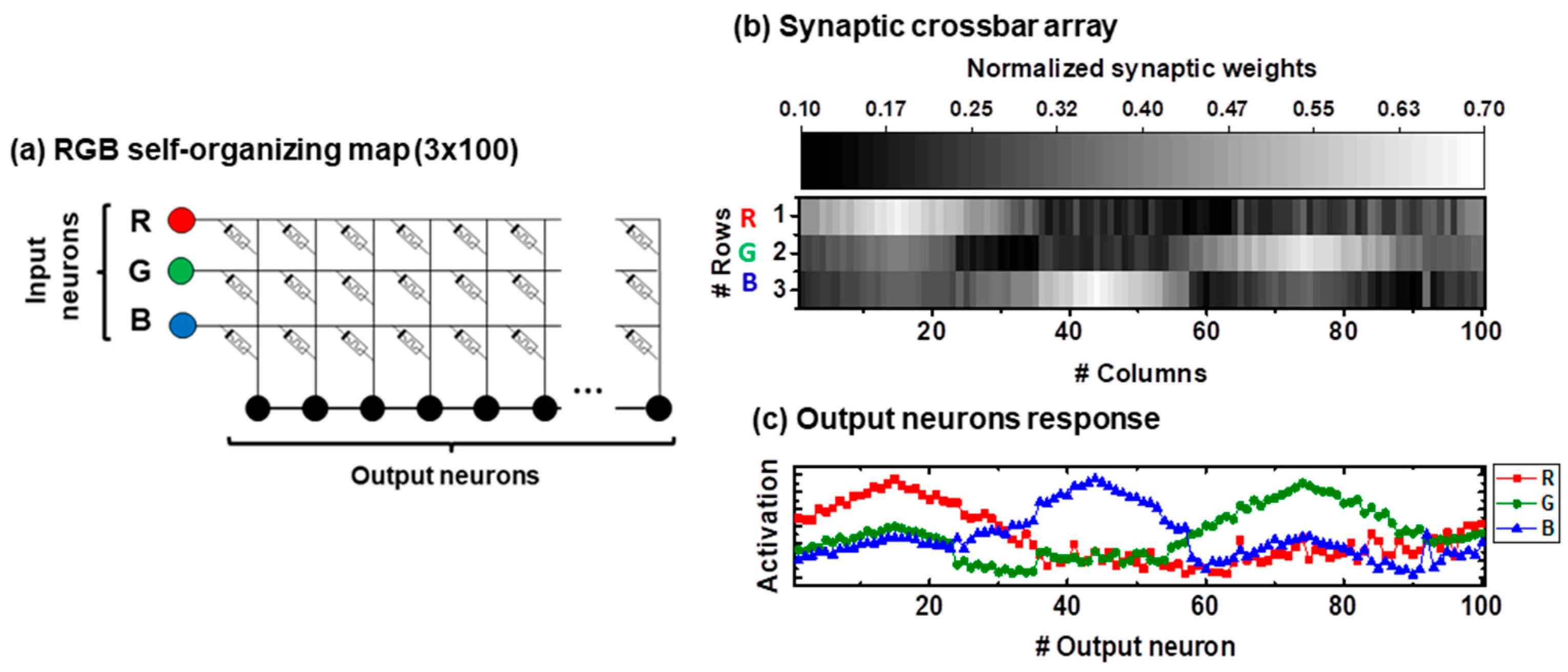

Figure 4. (a) Scheme of the neuromorphic self-organizing system processing the RGB colors. (b) Normalized synaptic weights of the crossbar array after the training stage, represented in a gray scale. The normalization is performed considering the maximum and minimum conductivities observed experimentally for the device on which the G-V model is based. However, the STDP forces the device to work under its linear regime, with a normalized synaptic weight between 0.1 and 0.7. (c) Activation level of the output neurons when each of the color components is entered individually, as a pure color, to the system after the training (R = 1, G = B = 0 in the case of a pure red color).
Figure 4. (a) Scheme of the neuromorphic self-organizing system processing the RGB colors. (b) Normalized synaptic weights of the crossbar array after the training stage, represented in a gray scale. The normalization is performed considering the maximum and minimum conductivities observed experimentally for the device on which the G-V model is based. However, the STDP forces the device to work under its linear regime, with a normalized synaptic weight between 0.1 and 0.7. (c) Activation level of the output neurons when each of the color components is entered individually, as a pure color, to the system after the training (R = 1, G = B = 0 in the case of a pure red color).
Electronics 15 01385 g004

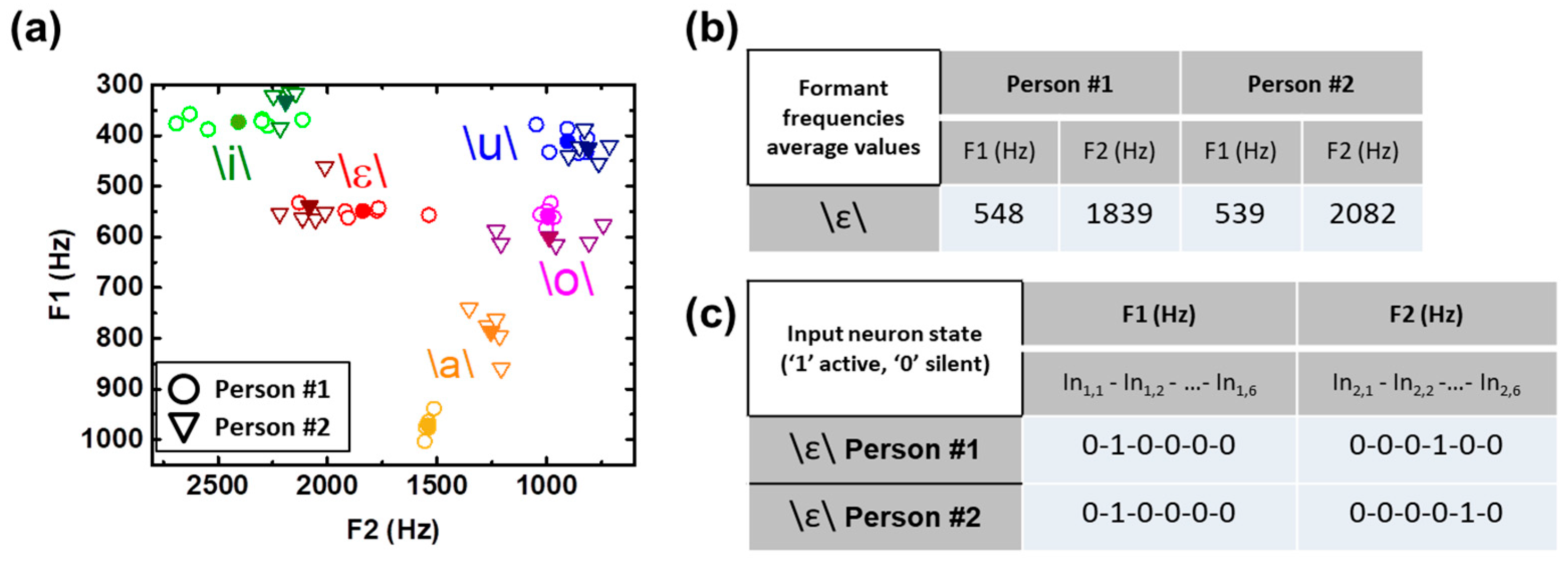

Figure 5. (a) Vowel phonemes represented in terms of their first (F1) and second (F2) average formant frequencies values, extracted from the recordings of person #1 (circles) and person #2 (triangle) voices. Each color represents a different phoneme (b) F1 and F2 average values for the \ε\ phoneme. (c) F1 and F2 values coded in terms of the auditory input neurons activation.
Figure 5. (a) Vowel phonemes represented in terms of their first (F1) and second (F2) average formant frequencies values, extracted from the recordings of person #1 (circles) and person #2 (triangle) voices. Each color represents a different phoneme (b) F1 and F2 average values for the \ε\ phoneme. (c) F1 and F2 values coded in terms of the auditory input neurons activation.
Electronics 15 01385 g005

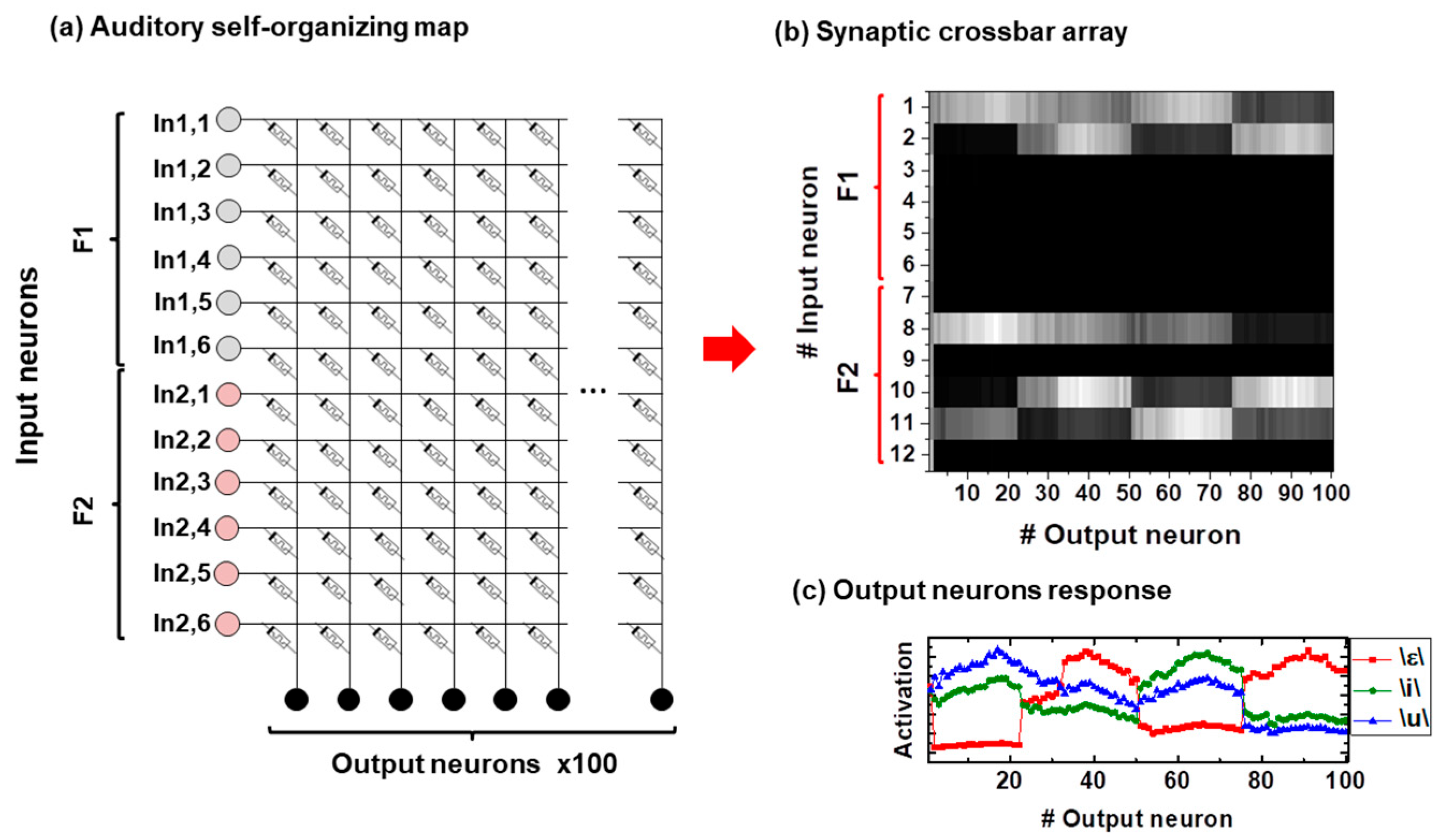

Figure 6. (a) Crossbar array where the input neurons are distributed in groups, which represent the different features of the input data set. In x, y is the notation given to the input neurons of this layer, where x refers to the characteristic encoded by a particular group of neurons (e.g., formant frequency 1), and y refers to a particular range of values of that characteristic (e.g., In1,1 is an input neuron in charge of encoding the first formant frequency value located within the first range). (b) Synaptic weights of the synaptic layer once trained, normalized and represented in a gray scale. (c) Activation of the output neurons due to the inputs \e\ (“red”, in red squares), \i\ (“green”, in green circles) and \u\ (“blue”, in blue triangles).
Figure 6. (a) Crossbar array where the input neurons are distributed in groups, which represent the different features of the input data set. In x, y is the notation given to the input neurons of this layer, where x refers to the characteristic encoded by a particular group of neurons (e.g., formant frequency 1), and y refers to a particular range of values of that characteristic (e.g., In1,1 is an input neuron in charge of encoding the first formant frequency value located within the first range). (b) Synaptic weights of the synaptic layer once trained, normalized and represented in a gray scale. (c) Activation of the output neurons due to the inputs \e\ (“red”, in red squares), \i\ (“green”, in green circles) and \u\ (“blue”, in blue triangles).
Electronics 15 01385 g006

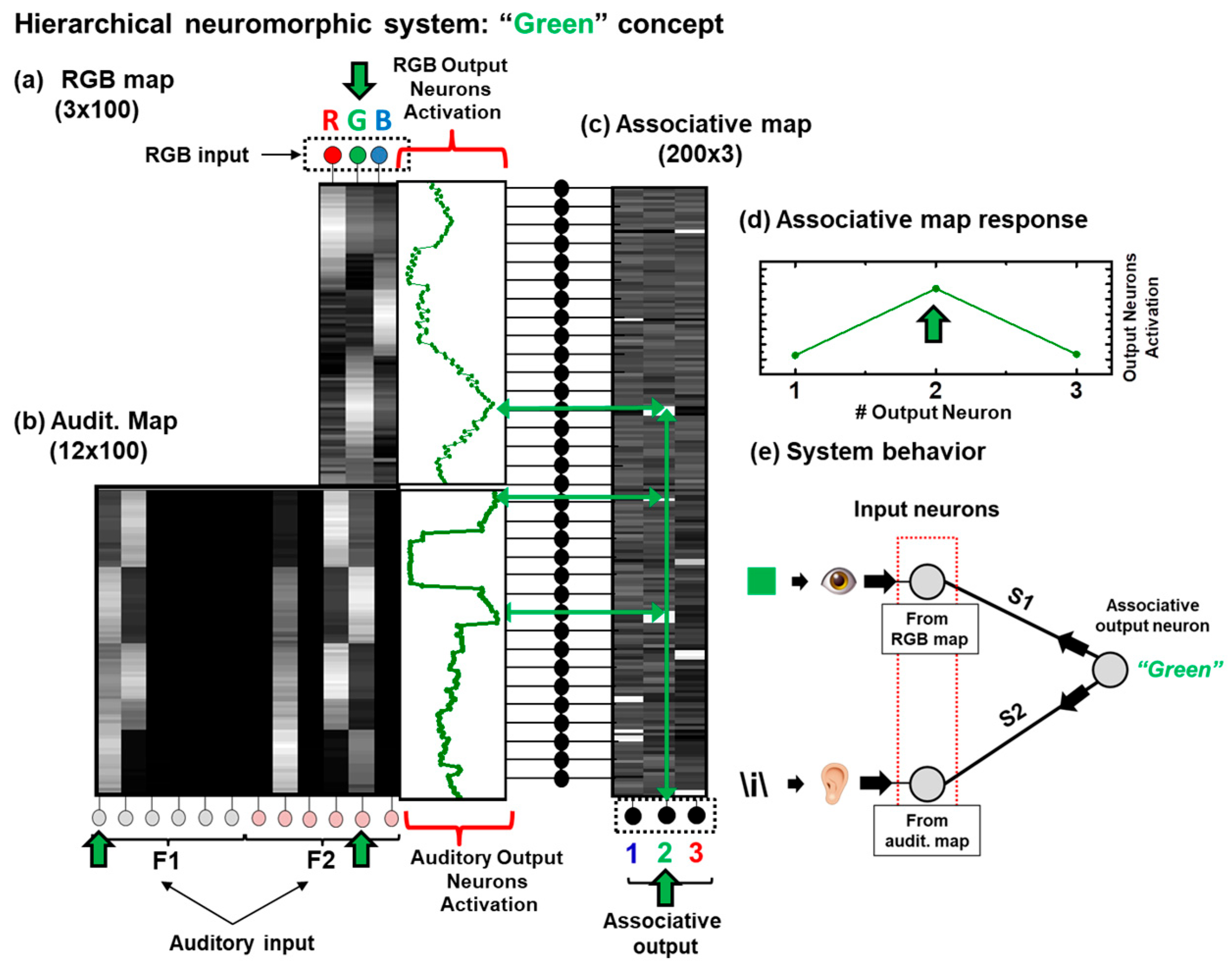

Figure 7. Trained hierarchical neuromorphic system computing the “green” concept. (a) RGB map has the input neuron “G” and the output neurons specialized to the G component activated. (b) The auditory map has the input and output neurons corresponding to the F1 and F2 values of the \i\ phoneme activated. (c) Trained associative layer. (d) Associative map output neurons response, where the associative output neuron #2 is the one who has learnt the “green” concept according to the output layer activation. (e) Diagram showing the behavior of the system, behaving as a bidirectional associative neuromorphic memory. If an associative output neuron is activated, it causes the activation of the neurons from the bottom hierarchy levels to which the associative neuron is connected (i.e., the synaptic weight presents a high value). The information flow is then bidirectional.
Figure 7. Trained hierarchical neuromorphic system computing the “green” concept. (a) RGB map has the input neuron “G” and the output neurons specialized to the G component activated. (b) The auditory map has the input and output neurons corresponding to the F1 and F2 values of the \i\ phoneme activated. (c) Trained associative layer. (d) Associative map output neurons response, where the associative output neuron #2 is the one who has learnt the “green” concept according to the output layer activation. (e) Diagram showing the behavior of the system, behaving as a bidirectional associative neuromorphic memory. If an associative output neuron is activated, it causes the activation of the neurons from the bottom hierarchy levels to which the associative neuron is connected (i.e., the synaptic weight presents a high value). The information flow is then bidirectional.
Electronics 15 01385 g007

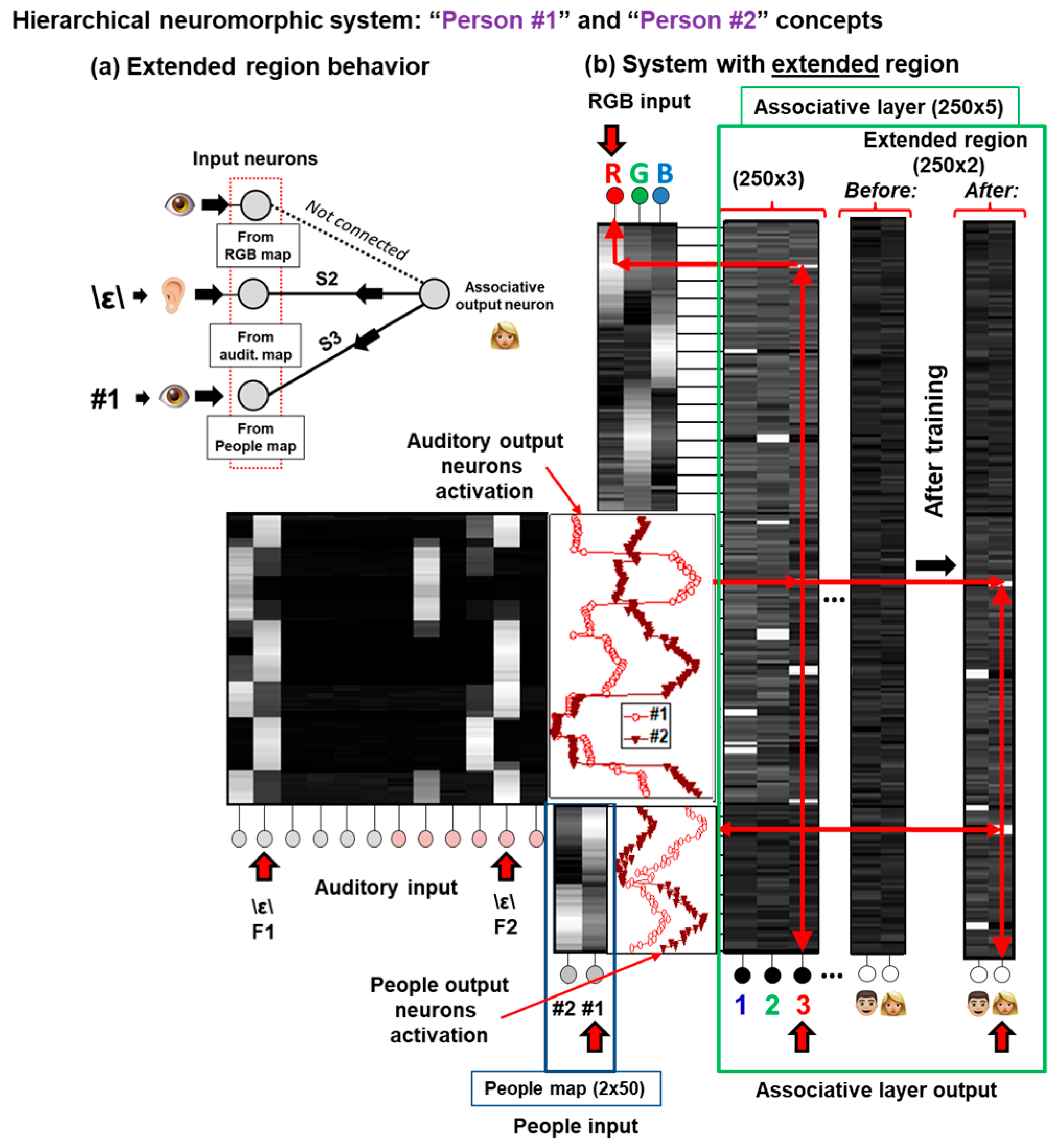

Figure 8. (a) Diagram of the expected behavior of the extended region of the hierarchical layer. (b) Proposed hierarchical system, where a new module related to people facial features has been included at the bottom level of the hierarchy. Hence, the hierarchical layer has been extended as to create the person #1 and person #2 symbols.
Figure 8. (a) Diagram of the expected behavior of the extended region of the hierarchical layer. (b) Proposed hierarchical system, where a new module related to people facial features has been included at the bottom level of the hierarchy. Hence, the hierarchical layer has been extended as to create the person #1 and person #2 symbols.
Electronics 15 01385 g008
