Research on Visual SLAM Algorithm Based on Improved LSD Line Feature Extraction Algorithm

Abstract

Visual SLAM algorithms rely on image sequences to achieve autonomous localization and mapping, where line features act as crucial structural information to enhance system robustness in weakly textured or structured environments. However, conventional line feature-based methods, such as the Line Segment Detector (LSD) algorithm, are prone to over-segmentation during line segment extraction, resulting in a large number of redundant short segments and fragmented line pieces. This phenomenon increases the false matching rate, which in turn degrades the accuracy of pose estimation and the overall stability of the Visual SLAM system. To address the above issues, we perform comparative experiments on multiple public datasets between the proposed improved line feature algorithm and classical counterparts from dimensions of time overhead, line feature number and detection accuracy. The results show that the proposed algorithm incurs a 20% increase in overall time for line feature extraction and matching, yet achieves a 14% higher proportion of long line segments, an 8% improvement in Average Precision (AP) and a 15% rise in Average Recall (AR). It is thus verified that the proposed method retains real-time performance while remarkably improving its line segment matching success rate, with its localization accuracy and system robustness maintained or even enhanced.

1. Introduction

In recent years, Simultaneous Localization and Mapping (SLAM) technology [1] has emerged as a research hotspot, widely applied across various sectors including industrial warehouse robots, commercial autonomous vehicles, drones, food delivery robots, and household cleaning robots [2,3,4,5]. The core mission of SLAM involves enabling robots to perceive their surroundings in unknown environments, determine their position and orientation, and construct detailed environmental maps [6]. Based on the types of external sensors used, SLAM can be categorized into laser SLAM and visual SLAM [7,8]. Visual SLAM offers advantages over laser SLAM such as lower costs, reduced power consumption, enhanced flexibility, and precise environmental description. Its integration with machine vision tasks further expands its application scope and development potential [9,10]. Visual SLAM has experienced three developmental stages, with the feature-based method being the mainstream for engineering applications—represented by the ORB-SLAM series [11,12,13], which realizes the whole process of SLAM tasks. However, visual SLAM still faces core challenges in practical deployment, such as low feature utilization in low-texture environments [14,15]. Additionally, another mainstream approach is to adopt multi-sensor fusion [16], and integrating line features into such systems has gradually become a research trend [17,18].

Traditional visual SLAM systems often rely on feature-point-based methods, such as ORB or FAST corner detectors [19,20,21,22,23,24]. However, despite their effectiveness in many scenarios, these algorithms still face challenges in low-texture environments requiring further research and improvement. In low-texture scenes such as white walls, glass corridors and empty warehouses, feature point-based methods suffer from sparse feature extraction and high false matching rate, which directly leads to the failure of robot pose estimation and map construction [25]. In artificial environments like indoor buildings, outdoor structures, and urban streets, linear features are significantly more abundant than point features. They remain insensitive to lighting variations while providing essential geometric structural information. Consequently, linear feature-based SLAM has become a key focus in visual SLAM research, addressing the positioning accuracy limitations of point feature-based systems in low-texture environments. The research of line feature-based SLAM mainly includes three core links: line feature extraction, line feature description and matching, and pose optimization with map construction [26]. Among them, line feature extraction is the foundation, and representative point-line fusion SLAM works such as PL-SLAM [27] have effectively improved positioning accuracy in low-texture environments.

Current line feature extraction algorithms are categorized into two groups: traditional methods such as LSD, EDLines, and FLD, and deep learning-based approaches including L-CNN, HAWP [28,29,30,31,32] and so on. Traditional line feature extraction algorithms have the advantages of low computational complexity and high real-time performance, making them suitable for embedded robot platforms [33], but they are sensitive to noise and weak edges [34]. In contrast, deep learning-based methods have stronger robustness to complex scenes, but suffer from high computational complexity and difficulty in meeting real-time requirements of SLAM systems [35,36].

The working principle of the Line Segment Detector (LSD) algorithm involves computing gradients on a grayscale image, aggregating pixels with similar gradient orientations via region growing to accumulate a “Line Support Region” (LSR), and subsequently applying a series of strict filtering and rigorous validation steps to finally generate the characteristic line segments with high accuracy. The LSD algorithm has rapidly become the industry standard for line feature detection in traditional computer vision due to its plug-and-play convenience, high precision, and outstanding computational efficiency [37,38]. It has been successfully integrated into mainstream vision libraries such as OpenCV and MATLAB, and remains widely used across various vision-related fields, including image processing, target detection, and visual SLAM, to this day.

Compared with other traditional line feature extraction algorithms, LSD has obvious advantages in both accuracy and speed when compared with FLD [39], which directly contributes to its wide application in practical engineering and academic research. In response to the defects of the original LSD algorithm, scholars in the field have proposed a series of improved algorithms such as MLSD [40], whose core goal is to reduce the problem of duplicate line detection. However, these improved methods only focus on solving a single defect of the LSD algorithm and fail to address its inherent comprehensive limitations [41].

However, the most significant issue with the LSD algorithm lies in its susceptibility to duplicate line detection and line segmentation problems, which will lead to the generation of a large number of redundant and fragmented line segments. These problems not only affect the quality of line feature extraction but also bring great interference to the subsequent feature matching and pose estimation of visual SLAM systems. Therefore, optimizing the traditional LSD algorithm to improve its robustness and feature extraction quality while ensuring its real-time performance has important theoretical significance and practical engineering value for the development and application of line feature-based SLAM systems.

This paper chooses to improve the LSD algorithm to solve the above-mentioned core problems, and the main improvement points include the following:

• An adaptive length suppression strategy is adopted to effectively filter and eliminate invalid short lines that are irrelevant to the structural features of the scene, thereby improving the quality and effectiveness of line features and reducing the interference of redundant information.
• The angle and endpoint search grouping strategy is used to accurately identify and filter candidate line segment groups that meet the fusion criteria, laying a solid foundation for subsequent line segment fusion and ensuring the rationality of the grouping results.
• The similarity evaluation index of line segments is introduced, and the line segment fusion is carried out according to the predefined fusion rules, which effectively solves the problems of line segmentation and duplicate line detection, and enhances the structural consistency of line features.

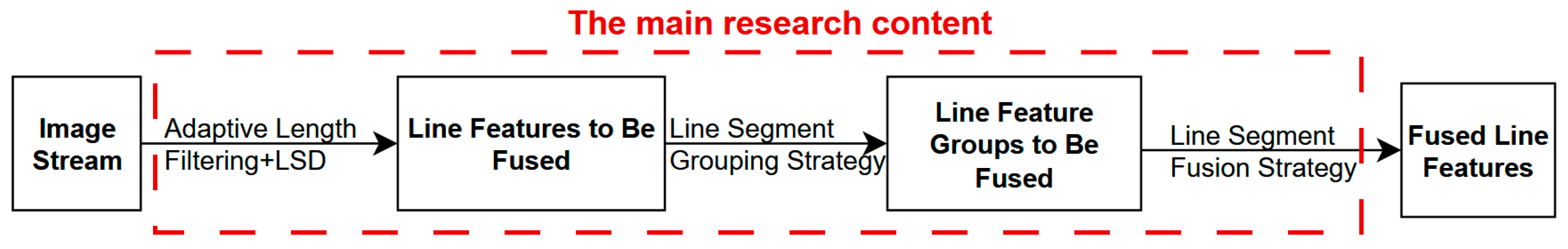

The technical route of the full text is shown in Figure 1:

2. Adaptive Length Suppression Strategy

Different from the simple line detection, the purpose of extracting line features in SLAM system is to use the line features to construct constraints for pose estimation. Only a certain number of line features are needed to construct constraints, so the line features have higher accuracy and quality requirements.

Longer line segments typically originate from regions of images with continuous strong gradients, making them more reliable and stable, and thus contributing more significantly to the accuracy and robustness of pose estimation [25]. In contrast, shorter line features usually come from areas with blurred textures, exhibiting smaller gradient variations. This results in a higher number of unstable detected lines that are difficult to reliably track [42]. Based on this, this paper proposes an adaptive-length filtering algorithm.

2.1. Core Formula for Dynamic Threshold

In line feature length filtering algorithms, the threshold is usually set as the product of a scaling factor and a fixed value. While this approach is straightforward, it lacks robustness and fails to account for the continuity between image streams. This paper proposes a novel minimum line feature length threshold (minLength), which filters out line features shorter than this threshold in the filtering algorithm. The formula for calculating this threshold is shown in Equation (1):

$$minLength=\left(1-{\displaystyle \frac{|mean-std|}{mean}}\right)\times mean\times \alpha$$

(1)

The parameters in Equation (1) are defined as follows:

mean: the mean value of line feature length in the current processed data, reflecting the overall length level of line features.

std: the standard deviation of line feature length in the current data, indicating the dispersion of line feature lengths.

α: the inter-frame quantity difference factor, a core parameter for dynamic threshold adjustment, ranges from (0, 1.2] to quantify how adjacent frame segment variations affect the threshold.

The dynamic threshold combines the statistical characteristics of line feature length and the characteristics of inter-frame change, and can be adjusted adaptively to ensure the rationality and adaptability of the threshold.

2.2. Calculation of the Impact Factor for the Difference in Frame Count

Conventional threshold-based methods isolate individual images for screening without considering the image stream as a continuous whole. This paper proposes an inter-frame quantity difference factor α, which dynamically adjusts α values based on the difference in linear feature counts detected between adjacent frames. This adjustment subsequently optimizes the minimum length (minLength), effectively preventing both excessive and insufficient linear features caused by inappropriate threshold selection. The specific methodology is outlined below.

Define the basic statistical variables: let the number of line features in the k − 2 frame after preliminary screening be $N_{k-2}$, and the number of line features in the k − 1 frame after preliminary screening be $N_{k-1}$. The inter-frame line segment difference $\Delta N$ is calculated to describe the absolute change in line segment count between adjacent frames, as shown in Equation (2):

$$\Delta N=N_{k-1}-N_{k-2}$$

(2)

To eliminate the interference of the absolute quantity of line segments on the degree of change, the change rate r is introduced, and the calculation formula is shown in Equation (3):

$$r={\displaystyle \frac{\Delta N}{N_{k-2}}}$$

(3)

Based on the value of r, the value of α is calculated according to the following Formula (4). This formula, similar to the mechanism of negative feedback, ensures that the number of detected line $\mathit{minLength}$ segments remains relatively stable. Subsequently, the calculated data is substituted into Formula (1) for final computation.

$$\alpha =\left\{\begin{array}{ll}1-0.2\times (1+r),& r<-0.1\\ 1,& -0.1\le r\le 0.1\\ 1+0.1\times (r-0.1),& r>0.1\end{array}\right.$$

(4)

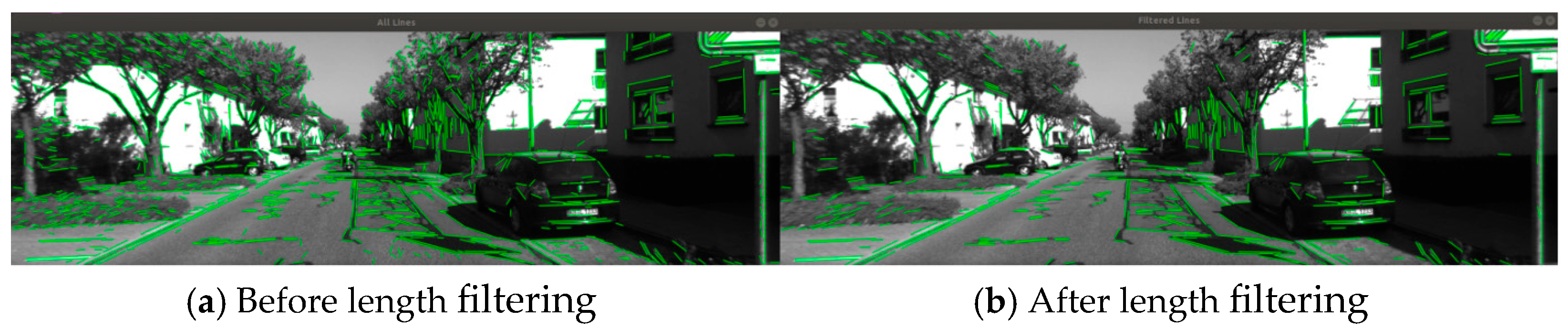

The final step involves extracting line feature lengths using the determined minimum threshold. The effects before and after applying the adaptive length filtering are shown in Figure 2. The figure shows that most unstable short-line features are significantly reduced after filtering, while long-line features remain intact.

Using 60 px as the threshold for long lines, we compared two length filtering methods with Kitti dataset data, yielding the results shown in

Table 1. Comparison of Algorithm Performance.

	Before Length Filtering	After Length Filtering
Per-frame processing time (s)	0.0194832	0.0254832
Number of segments	1286	362
Long-term proportion	0.324101	0.467314
Standard deviation (time, s)	0.0021	0.0035
Standard deviation (segments)	45	28
Standard deviation (long-term proportion)	0.022	0.015

.

After filtering, the proportion of long lines increased by approximately 14.3% compared to the pre-processing stage. Meanwhile, the reduction in algorithm extraction speed remained within an acceptable range, with the filtered segments primarily consisting of short lines that could interfere with final computational accuracy. Although the number of valid samples decreased, the model’s computational accuracy improved significantly. The subsequent computational workload was further reduced by eliminating invalid data, thereby optimizing both the efficiency and reliability of line feature processing.

3. Segmentation Policy

In the LSD algorithm, linear features are segmented into multiple sub-segments during extraction, which fails to restore the true features. Based on this, this paper designs a line segment grouping strategy and performs fusion according to similarity, thereby solving the line segment segmentation problem in LSD.

The line features extracted by the LSD algorithm typically contain over 10³ features. Therefore, grouping these features is essential before merging them. Line segments with similar directions and spatial positions are more likely to be merged. This paper proposes a combined strategy of angle grouping and endpoint grouping.

3.1. Angle Grouping Strategy

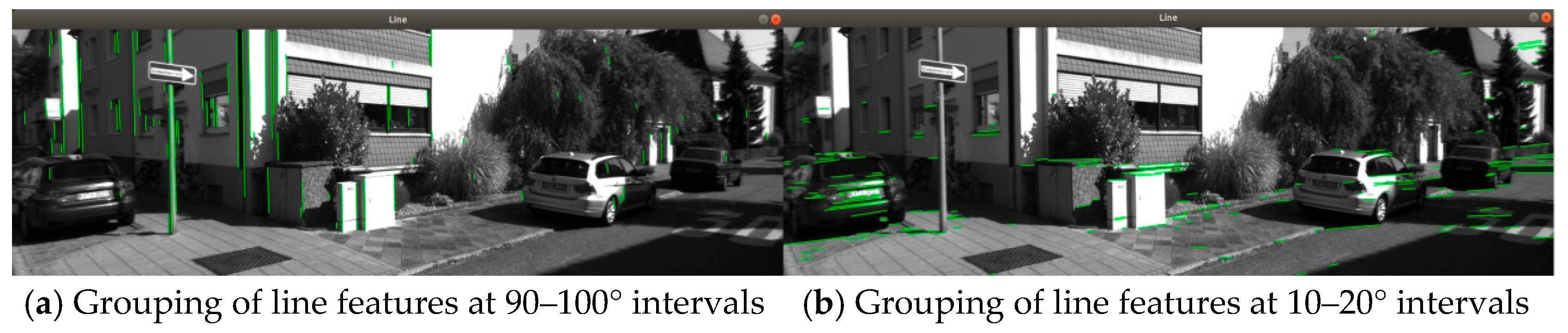

The strategy groups all line segments into 18 clusters at 10° intervals. As shown in Figure 3, these are the 10–20° and 90–100° segment groups. This angular grouping significantly reduces the search space for line feature fusion, thereby substantially lowering the computational complexity and operational scale of the subsequent endpoint distance clustering strategy.

3.2. Endpoint Distance Grouping Policy

After grouping feature line segments by angle, the endpoint distance is used to perform secondary grouping within each segment group. First, for all segments in the current angle group, the “minimum endpoint distance” between any two segments is calculated—the smallest of four distances between the endpoints of Segment 1 and Segment 2. If this distance falls below a predefined threshold, the two segments are considered “positionally adjacent”. Their association relationship is then recorded in an adjacency list, and all mutually connected (direct or indirect) segments are merged into a final group using depth-first search (DFS). This process yields all subgroups within the angle group, as shown in Figure 4. After endpoint secondary grouping, the line features are divided into multiple groups, each represented by a distinct color. Upon completion of secondary grouping, the number of segments in each group typically converges to a range of 2 to 3, a distribution pattern that significantly reduces the complexity of subsequent segment fusion operations.

4. Line Segment Merging Strategy

4.1. Similarity Design of Line Segment Combination

In conventional line segment fusion algorithms, a core segment is typically selected as the “baseline” within a segment group. This core segment serves as the fusion benchmark, with all other non-core segments in the group being fused sequentially. However, the algorithm overlooks the possibility of multiple segments being fusible within the group and fails to account for variations in fusion order, which ultimately impacts the final fusion outcome.

Based on this, the paper proposes the concept of baseline groups, where the maximum line segment length is defined as maxLength, and the selection interval for baseline groups is set at 0.8 maxLength to maxLength. The line segments within a baseline group are independent and do not undergo fusion with each other. Subsequently, the line segments from non-baseline groups are sequentially compared and fused with those in the baseline group.

In the fusion sequence, this paper introduces the concept of similarity. The line segments with high similarity to the baseline are prioritized for fusion, rather than simply sorting them by length, to ensure the accuracy of the fusion.

The similarity is calculated based on three parameters, the length, angle, and positional relationship of the line segments, as shown in Equation (5):

$$S(L_1,L_2)={\omega }_1·S_d+{\omega }_2·S_p+{\omega }_3·S_l$$

(5)

The empirical values of similarity ${\omega }_1=0.4, {\omega }_2=0.35, {\omega }_3=0.2$, where $S(L_1,L_2)$ represents the similarity between L₁ and L₂. $S_d$ is the directional similarity, $S_p$ is the positional similarity, and $S_l$ is the length similarity.

The formulas for calculating the three similarity levels are as follows:

• Directional Similarity S_d Calculation

  $$\mathrm{Calculate} \mathrm{the} \mathrm{direction} \mathrm{vector} \mathrm{of} \mathrm{a} \mathrm{line} \mathrm{segment}: {\overrightarrow{v}}_1=(x_{1s} - x_{1e},y_{1s} - y_{1e}), {\overrightarrow{v}}_2=(x_{2s} - x_{2e},y_{2s} - y_{2e})$$

  $$\mathrm{Calculate} \mathrm{the} \cos \mathrm{ine} \mathrm{of} \mathrm{the} \mathrm{direction}: \mathit{cos}\theta ={\displaystyle \frac{{\overrightarrow{v}}_1·{\overrightarrow{v}}_2}{\left|{\overrightarrow{v}}_1\right|·\left|{\overrightarrow{v}}_2\right|}}$$

  $$\mathrm{Angle} \mathrm{using} \mathrm{vector} \mathrm{dot} \mathrm{product}: { S}_d=\mathit{max}\left(\mathit{cos}\theta ,0\right)$$
• Position Similarity S_p Calculation

Calculate the minimum spatial $D_{\mathit{min}}{D}_{\mathit{th}}$ distance between two line segments (the shortest distance between the endpoints of one line segment and the other, or the minimum of the perpendicular distances between them). Set the distance threshold to 10% of the average length of the line segments.

$$\mathrm{Position} \mathrm{similarity}:{ S}_p=\mathit{max}\left(1-{\displaystyle \frac{D_{min}}{D_{th}}},0\right)$$

(6)

3.

Length similarity S_l

$$\mathrm{Calculate}\mathrm{line}\mathrm{segment}\mathrm{length}\text{:}{L}_1=\left|{\overrightarrow{v}}_1\right|,L_2=\left|{\overrightarrow{v}}_2\right|$$

$$\mathrm{Length} \mathrm{similarity}:S_{l }=1-{\displaystyle \frac{|L_1-L_2|}{\mathit{max}(L_1,L_2)}}$$

(7)

4.2. Line Segment Merging Algorithm

After determining the baseline groups and sequence for fusion, the formal fusion process is then initiated. Define the angles of line segments $L_1$ and $L_2$ as ${\theta }_1$ and ${\theta }_2$, respectively, with their midpoints being $(x_1,y_1)$ and $(x_2,y_2)$, respectively. The calculation is then performed as follows:

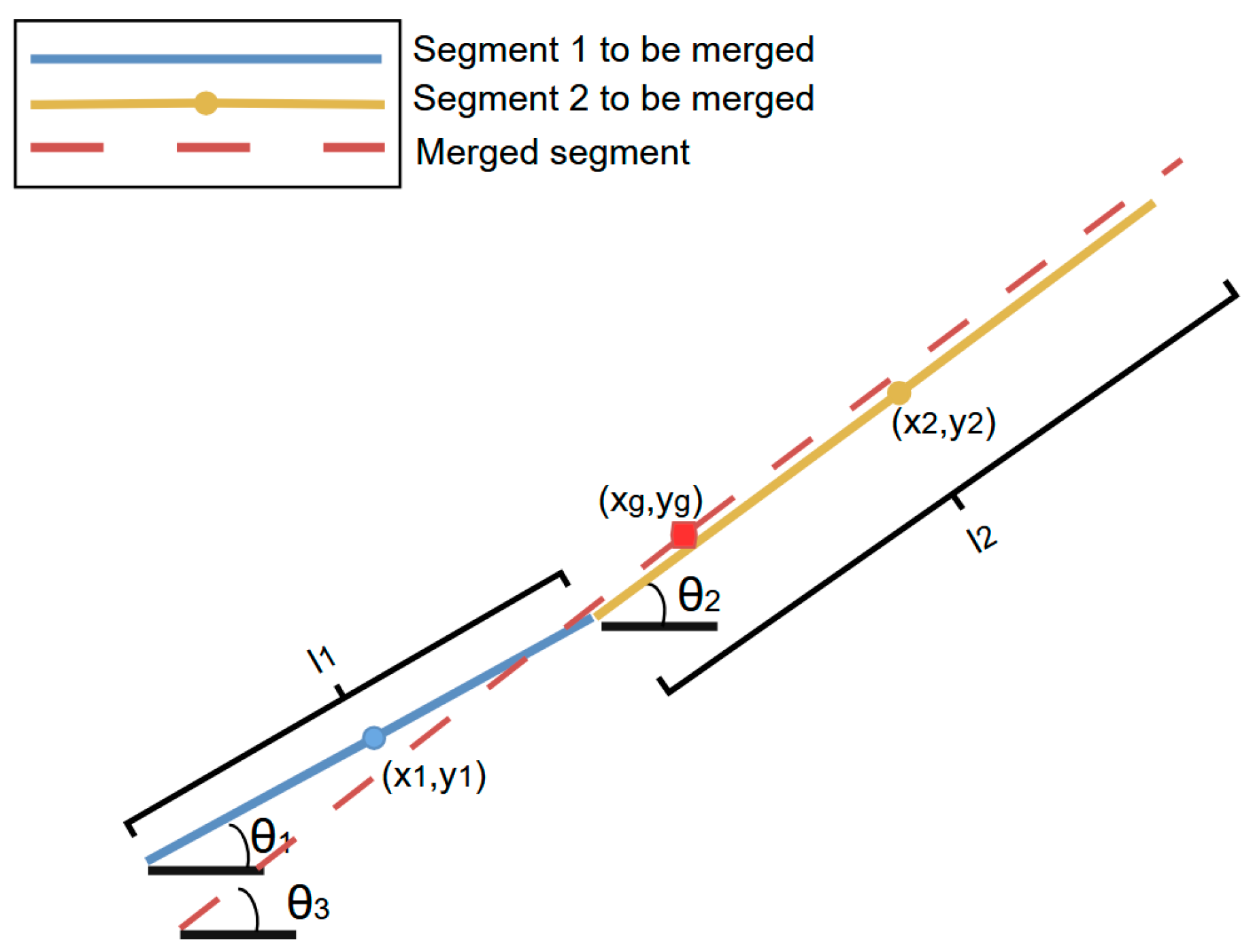

Step 1: As shown in Figure 5, the weighted average of the center points of the merged line segments (calculated based on their lengths) determines the new point G ($x_G$, $y_G$), through which the combined line passes. The specific formula is as follows:

$$x_G={\displaystyle \frac{l_1·x_1+l_2·x_2}{2(l_1+l_2)}},\hspace{1em}{y}_G={\displaystyle \frac{l_1·y_1+l_2·y_2}{2(l_1+l_2)}}$$

(8)

Step 2: As shown in Figure 5, the direction ${\theta }_G$ of the merged line segment is the weighted average of the directional angles of $l_1$ and $l_2$, with the specific formula as follows:

$${\theta }_G={\displaystyle \frac{l_1·{\theta }_1+l_2·{\theta }_2}{l_1+l_2}}$$

(9)

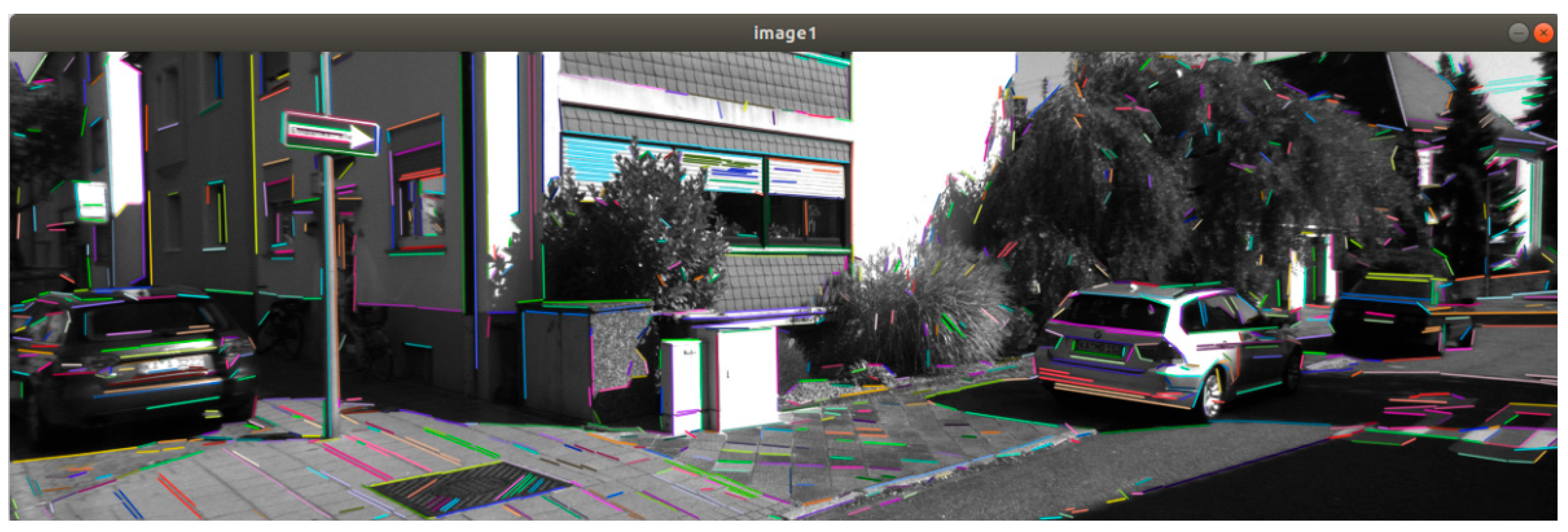

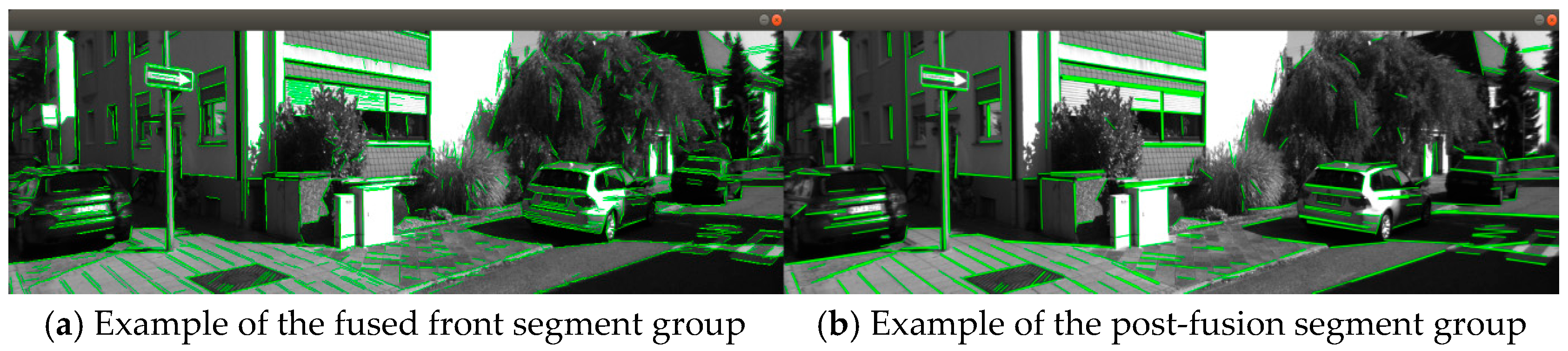

As shown in Figure 6, the line segment segmentation problem of LSD has been significantly improved after line segment fusion.

5. Simulation and Experimental Results

To validate the improved line segment feature algorithm, the proposed method was compared with conventional line segment detection techniques such as LSD and EDLines. The laboratory platform configuration includes an Intel^®Core–i9-14900HX processor (2.20 GHz) and 16 GB of RAM.

5.1. Linear Feature Detection Experiment 1

The experiment uses the first 100 frames of the left grayscale camera stream from Sequence 01 of the Kitti dataset as the test data. Modified LSD_Advance and LSD algorithms, along with the EDLines algorithm, were evaluated based on four metrics: time required for line feature extraction, proportion of long lines, total extracted line segments, the number of line feature correspondences that match the ground truth, and overall processing time of the entire front-end algorithm.

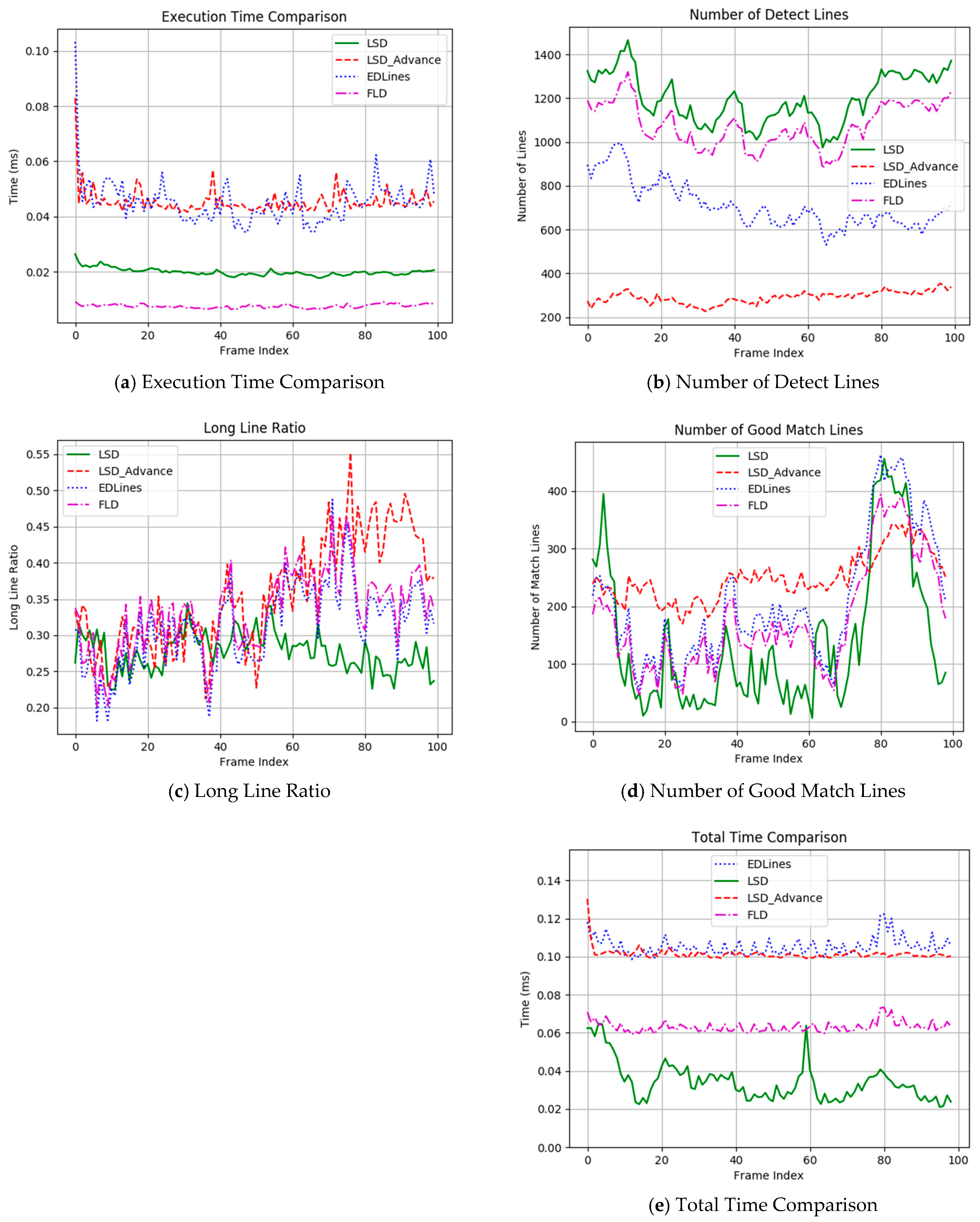

Through comparative analysis of the aforementioned experimental datasets, Figure 7a demonstrates that LSD_Advance and EDLines exhibit higher computational costs than the LSD algorithm. However, Figure 7b,c reveal that LSD_Advance extracts fewer line segments but with a higher proportion of longer ones. When the subsequent matching algorithm is integrated, Figure 7d shows significantly more stable and high-quality matched line segments. Figure 7e further confirms that its full-process algorithm from detection to matching achieves slightly better runtime than EDLines.

5.2. Line Feature Detection Experiment 2

The popular YorkUrban line segment dataset was selected for the line segment extraction algorithm test. This dataset consists of 45 indoor images and 57 outdoor images, with a resolution of 640 × 480. To comprehensively evaluate the performance of the improved algorithm, the following metrics were adopted: average precision (AP), average recall (AR), F-score, and average frame processing time (T, in milliseconds) [43]. Based on the number of correctly detected line segments (true positives, TP), the number of incorrectly detected line segments (false positives, FP), and the number of line segments present in the image but undetected by the algorithm (false negatives, FN), the precision, recall, and F-score were defined as follows [44]:

$$Precision={\displaystyle \frac{TP}{TP+FP}}$$

(10)

$$Recall={\displaystyle \frac{TP}{TP+FN}}$$

(11)

$$F-score={\displaystyle \frac{2\times Precision\times Recall}{Precision+Recall}}$$

(12)

For each ground truth line segment $L_{gt}$, find the set {$L_p$} from the detected line segments that satisfy the following conditions:

$${ d}_p(L_{gt},L_p\mid {\theta }_{gt})\le {\lambda }_{dist}$$

(13)

$${\mathrm{d}}_{\mathrm{a}}({\theta }_{gt},{\theta }_p)\le {\lambda }_{ang}$$

(14)

In the equations: ${\lambda }_{dist }\mathrm{a}\mathrm{n}\mathrm{d}{ \lambda }_{ang }$ are the distance threshold and angle threshold, respectively. ${\theta }_{gt }$, ${\theta }_p$ are the angles of $L_{gt }\mathrm{a}\mathrm{n}\mathrm{d}{ L}_p$. Equation (13) is the perpendicular distance between the centers of $L_{gt }\mathrm{a}\mathrm{n}\mathrm{d}{ L}_p \mathrm{a}\mathrm{l}\mathrm{o}\mathrm{n}\mathrm{g} \mathrm{t}\mathrm{h}\mathrm{e} \mathrm{d}\mathrm{i}\mathrm{r}\mathrm{e}\mathrm{c}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n} \mathrm{o}\mathrm{f}{ \theta }_{gt}$. Equation (14) is the angular difference between them.

If the overlap ratio between {$L_p$} and $L_{gt}$ is greater than the overlap threshold ${\mathsf{\lambda }}_{\mathrm{o}\mathrm{v}\mathrm{e}\mathrm{r}\mathrm{l}\mathrm{a}\mathrm{p}}$, then ${\mathrm{L}}_{\mathrm{p}}$ is considered to match ${\mathrm{L}}_{\mathrm{g}\mathrm{t}}$ in terms of geometric features.

It is common to set

${\lambda }_{dist}$ = 1, ${\lambda }_{ang}$ = 5, ${\mathsf{\lambda }}_{\mathrm{o}\mathrm{v}\mathrm{e}\mathrm{r}\mathrm{l}\mathrm{a}\mathrm{p}}$ = 0.75.

$${\displaystyle \frac{{\mathrm{L}}_{\mathrm{g}\mathrm{t}}\cap \left\{{\mathrm{L}}_{\mathrm{p}}\right\}}{{\mathrm{L}}_{\mathrm{g}\mathrm{t}}}}\ge {\mathsf{\lambda }}_{\mathrm{o}\mathrm{v}\mathrm{e}\mathrm{r}\mathrm{l}\mathrm{a}\mathrm{p}}$$

(15)

As shown in

Table 2. LSD, ED Lines, and LSD_Advance.

Method	AP	AR	F-Score	T
LSD	0.2418	0.4324	0.3352	21.2
FLD	0.2126	0.5580	0.3645	32.7
EDLines	0.2784	0.5328	0.3581	53.2
LSD_Advance	0.3278	0.5836	0.3712	54.8

, the proposed LSD_Advance method achieves the best overall performance. It ranks first in all three accuracy metrics: Average Precision (AP = 0.3278), Average Recall (AR = 0.5836), and the combined F-score (0.3712). This indicates a superior balance between detection correctness and completeness compared to LSD, FLD, and EDLines. While LSD_Advance is slower than the original LSD (T = 21.2), its computational time (T = 54.8) is comparable to EDLines (T = 53.2). The significant improvement in detection quality justifies this moderate increase in processing time, establishing a favorable trade-off for applications where accuracy is prioritized.

Six representative scene sequences were selected, respectively, from six different typical scenarios of the EuRoC dataset. In the experiments, three key evaluation indicators were calculated to comprehensively measure the performance of each algorithm, including the average time consumption per frame (reflecting real-time efficiency), the number of line features detected (reflecting feature richness), and the matching rate with the ground truth (reflecting detection accuracy).

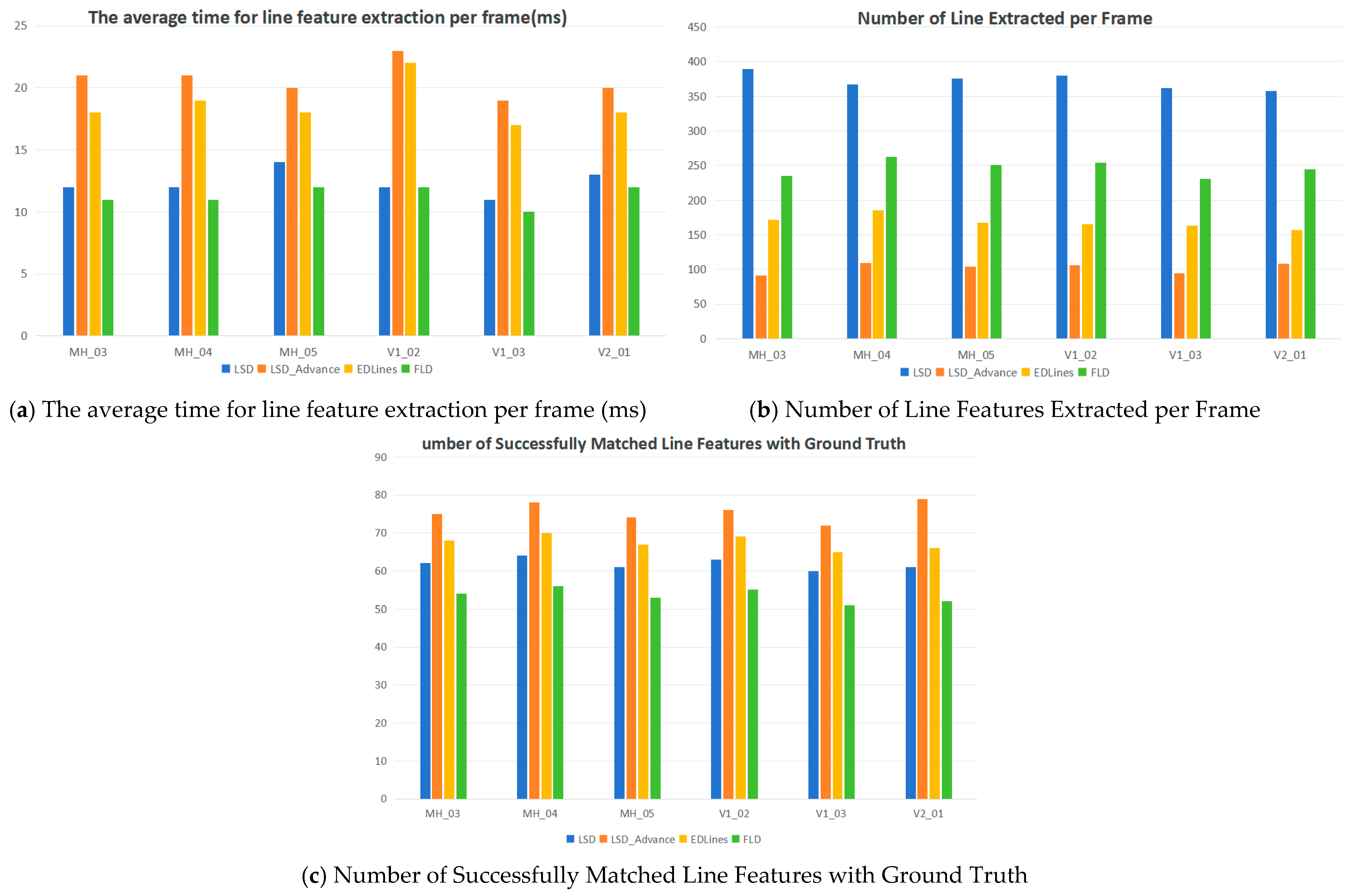

As shown in Figure 8a, the LSD_Advance line feature detection algorithm has a longer average time consumption compared with other classical line feature extraction algorithms. However, it is still within a practically acceptable range, which can meet the real-time requirements of most feature-based visual SLAM systems. Specifically, LSD_Advance consumes the most time due to the additional line segment grouping and merging operations involved in its implementation. These two optimization steps effectively solve the line segment segmentation and duplicate detection problems of the original LSD algorithm, achieving a balance between computational efficiency and feature quality.

Combined with the results presented in Figure 8b,c, through adaptive short line filtering and intelligent line segment merging, the improved EDLines algorithm extracts relatively fewer line features compared with other classical algorithms. This is because the short line filtering step eliminates invalid and redundant short line segments, improving feature quality while reducing useless features. Nevertheless, its matching rate with the ground truth provided by the EuRoC dataset has been improved by approximately 13.4% in contrast to the original EDLines algorithm, which demonstrates that the proposed optimized strategies can effectively enhance the accuracy and structural consistency of line feature extraction, providing reliable support for subsequent visual SLAM stages.

6. Conclusions

To address the inherent limitations of the traditional LSD (Line Segment Detector) line feature extraction algorithm—such as the tendency to generate excessive redundant short segments, poor robustness to complex structured or low-texture scenarios, and insufficient consistency in extracted line segment structures—this study proposes three innovative and targeted optimization strategies: adaptive line segment length suppression, adaptive segment grouping based on spatial adjacency and directional similarity, and an intelligent segment merging mechanism with weighted direction fusion. These targeted improvements are designed to mitigate the key drawbacks of the original LSD algorithm, thereby significantly enhancing the quality, completeness, and structural consistency of line segment extraction while reducing the interference of invalid or redundant features.

To fully verify the effectiveness and superiority of the proposed LSD_Advance algorithm, comprehensive experimental validation was conducted on three widely recognized and publicly available benchmark datasets, namely YorkUrban, Kitti and EuRoC which cover diverse scene types including urban buildings, road environments, and low-texture regions—scenarios where traditional line feature extraction algorithms often struggle. The experimental results clearly demonstrate the superior performance of the improved LSD_Advance algorithm compared to the original LSD method and other state-of-the-art line segment extraction approaches.

Specifically, quantitative evaluation indicators show that LSD_Advance achieves a 14.3% significant increase in the long-segment ratio (a critical indicator reflecting the completeness of structural line features), and effectively raises the F-score—an integrated metric balancing precision and recall—from 0.3352 to 0.3712. This notable improvement in F-score fully reflects that the proposed algorithm achieves a better trade-off between precision (reducing false positive line segments) and recall (retaining more valid structural line segments), which is crucial for subsequent visual SLAM feature matching and pose estimation.

Although the per-frame processing time of the algorithm rises moderately from the original 19.5 ms to 25.5 ms due to the addition of the three optimization strategies, this slight increase in computational cost is well compensated by the significant improvements in feature quality. Specifically, the effective reduction in redundant line segments streamlines the subsequent key stages of visual SLAM, including feature matching, bundle adjustment, and loop closure detection, ultimately contributing to an overall 12.39% reduction in the feature mismatch rate and a notable improvement in the overall robustness and stability of the visual SLAM system.

In summary, the proposed LSD_Advance approach successfully maintains real-time efficiency (meeting the basic real-time requirements of most feature-based visual SLAM systems) while delivering more structurally consistent, complete, and reliable line features. These advantages make it a suitable and effective component for feature-based visual SLAM systems operating in complex structured environments, low-texture scenes, or other challenging scenarios where high-quality line feature extraction is essential for system performance.
