Article

Transparent All-Oxide Hybrid NiO:N/TiO2 Heterostructure for Optoelectronic Applications

by
Chrysa Aivalioti
1,2,
Alexandros Papadakis
3,
Emmanouil Manidakis
1,2,
Maria Kayambaki
2,
Maria Androulidaki
2,
Katerina Tsagaraki
2,
Nikolaos T. Pelekanos
1,2,
Constantinos Stoumpos
1,
Mircea Modreanu
4,
Gabriel Crăciun
5,
Cosmin Romanitan
5 and
Elias Aperathitis
2,*
1
Department of Materials Science and Technology, University of Crete, P.O. Box 2208, 71003 Heraklion, Crete, Greece
2
Microelectronics Research Group, Institute of Electronic Structure and Laser, Foundation for Research and Technology (FORTH-Hellas), P.O. Box 1385, 70013 Heraklion, Crete, Greece
3
Physics Department, University of Crete, P.O. Box 2208, 71003 Heraklion, Crete, Greece
4
Tyndall National Institute, University College Cork, Lee Maltings, Dyke Parade, T12 R5CP Cork, Ireland
5
National Institute for Research and Development in Microtechnologies—IMT, 077190 Bucharest, Romania
*
Author to whom correspondence should be addressed.
Electronics 2021, 10(9), 988; https://doi.org/10.3390/electronics10090988
Submission received: 1 April 2021 / Revised: 15 April 2021 / Accepted: 18 April 2021 / Published: 21 April 2021

Abstract

:
Nickel oxide (NiO) is a p-type oxide and nitrogen is one of the dopants used for modifying its properties. Until now, nitrogen-doped NiO has shown inferior optical and electrical properties than those of pure NiO. In this work, we present nitrogen-doped NiO (NiO:N) thin films with enhanced properties compared to those of the undoped NiO thin film. The NiO:N films were grown at room temperature by sputtering using a plasma containing 50% Ar and 50% (O2 + N2) gases. The undoped NiO film was oxygen-rich, single-phase cubic NiO, having a transmittance of less than 20%. Upon doping with nitrogen, the films became more transparent (around 65%), had a wide direct band gap (up to 3.67 eV) and showed clear evidence of indirect band gap, 2.50–2.72 eV, depending on %(O2-N2) in plasma. The changes in the properties of the films such as structural disorder, energy band gap, Urbach states and resistivity were correlated with the incorporation of nitrogen in their structure. The optimum NiO:N film was used to form a diode with spin-coated, mesoporous on top of a compact, TiO2 film. The hybrid NiO:N/TiO2 heterojunction was transparent showing good output characteristics, as deduced using both I-V and Cheung’s methods, which were further improved upon thermal treatment. Transparent NiO:N films can be realized for all-oxide flexible optoelectronic devices.

1. Introduction

Nickel oxide (NiO) is considered the prototype p-type oxide semiconductor [1,2] and combined with the reported values of its energy band gap in the range of 3.6–4.0 eV it is the most widely used p-type transparent conductive oxide. Due to its chemical stability and non-toxicity, NiO has found numerous applications in photo-bio-catalysis [3,4,5], sensing [6,7], microbatteries [8] and transparent optoelectronics such as smart windows [9], ultra-violet (UV) photodetectors [10] and photovoltaics (PVs). In the case of PVs, NiO has been used in conventional PVs and ultra-violet UV-PVs, in addition to perovskite PVs, in which it is used as a hole transport layer [11,12,13,14]. If NiO is to be used for applications in which it can be applied as a coating or single layer, relatively low-cost chemical methods are generally employed for its fabrication, like sol-gel and spray pyrolysis. However, when p/n junctions and well-defined and controllable geometries are required for oxide-based optoelectronic applications, then dry (solid-state) methods are used as the physical vapor deposition technique of sputtering. In addition, the formation of the oxide on unintentionally heated substrates is pursued if applications in the emerging and challenging field of flexible, foldable and stretchable optoelectronics (PVs, wearables, etc.) are sought. Low-temperature depositions (<200 °C) promote the growth of semi-transparent and non-stoichiometric NiO [15,16,17,18]. Ab initio calculations, based on combinatorial modeling approaches for predicting details of the electronic band structure of NiO and thus values for its band gap and charge transport properties even down to the nanoscale [1,19,20], generally yield underestimated values when compared to experimentally extracted values. Regardless of the method of fabrication, the growth-induced gap states, such as intermediate sub-gap states, Urbach tails and non-stoichiometry, play an important role in the optical and electrical properties of the material. Stoichiometric NiO is an insulator and the p-type conductivity arises due to intrinsic defects such as interstitial oxygen (IO) and/or nickel vacancies (VNi), especially when grown in oxygen-rich deposition conditions where non-stoichiometric growth of NiO is promoted. According to the proposed reaction [16,21]: 2Ni2+ + 1/2O2→2Ni3+ + IO + 2VNi, two Ni2+ ions react with oxygen and produce interstitial oxygen, two VNi ionized defects and two Ni3+ ions, contributing thus to extra holes to the system. However, the holes are strongly localized, giving rise to rather low hole mobilities (<0.1 cm2/Vs) and, because the VNi transition levels are not shallow enough, the concentration of free-holes is rather low (<1015 cm−3) [1,12,22]. Nevertheless, NiO has been investigated as a p-type layer in p/n junctions for all-oxide optoelectronic applications, where the n-type layer for forming the heterostructure has been TiO2 [23,24], ZnO [25], Ga2O3 [26], SnO2 [27], etc. Due to the versatile and technological importance of NiO material, design concepts have been proposed, such as the substitutional cation and/or anion doping of NiO, to modify its properties depending on the application. Thus, doping of NiO with single dopants such as Al [28], Li [29], Cu [30], Nb [31], N [32] or co-doping like Li-Al [33], Li-Mg [34] and Cu-N [35], has been reported. As in the case where low-temperature depositions are performed, it is generally agreed that different dopants can lead to different structural distortions which in turn have significant effects on the electronic structure, defect levels and, consequently, on the properties of the material [36].
Almost ten years ago, in an attempt to predict band gap modulation via theoretical calculations [19], it was revealed that the wide band gap of NiO could be narrowed by nitrogen doping (NiO:N). Since then, NiO:N thin films have been made by wet methods [37,38,39] or dry methods (rf or dc sputtering [32,40], and the main properties of these undoped and N-doped NiO films are tabulated in Table 1. It is seen that in most cases heated substrates are used, and the introduction of nitrogen into the NiO structure has resulted in films with reduced transmittance and resistivity compared to undoped NiO films. Furthermore, in most reports listed in Table 1, both undoped and N-doped NiO were treated as materials having direct and indirect band gaps. In this work, we fabricated NiO:N thin films by rf sputtering on unintentionally heated substrates, examined their physical properties and applied the transparent p-NiO:N on n-type TiO2 layers. The n-TiO2 layers were those used as electron transfer layers for perovskite solar cells (mesoporous TiO2 on top of a compact TiO2) made by the spin-coating technique. The formed hybrid NiO:N/TiO2 heterostructures were tested for their output characteristics just after formation and after thermal treatment. Nitrogen-doped NiO films were found to be highly transparent, rendering NiO:N films as potential candidates for transparent electronic and photonic applications. Potential improvements and modifications of the fabrication procedure of the hybrid NiO:N/TiO2 heterojunction are also addressed.

2. Materials and Methods

2.1. Thin Films Deposition

2.1.1. NiO Films Preparation

Nitrogen-doped NiO films, and an undoped NiO film as a reference, were fabricated by RF sputtering (Nordiko NS2500) using a 6 in. diameter nickel (Ni) target (purity 99.99%) in plasma containing Ar-O2-N2 and Ar-O2 gases, respectively (purities: Ar 99.999%, O2 99.95% and N2 99.999%). All films were deposited on unintentionally heated Si (100) wafer pieces and fused silica glass substrates which were mounted 10 cm above the sputtering target. The glass substrates were ultrasonically cleaned in acetone and isopropanol, rinsed with deionized water and dried in the flow of nitrogen gas, whereas the Si substrates were dipped in 10% HF solution for 30 s to remove the native oxide from the surface before placing them into the sputtering chamber. Before depositions, the target was pre-sputtered for at least 20 min (Ar plasma, 5 mTorr, 300 W RF power) to remove any contaminants from the target surface and to enable equilibrium conditions to be reached. During deposition the RF power was set at 300 W and the total pressure was kept at 5 mTorr while the percentage of gases in plasma were adjusted by the ratio of their flow rates through a set of mass flow controllers. The plasma gases for the reference undoped NiO film (P0) were Ar:O2 = 50:50. The nitrogen-containing films (P1, P2, P3) were made in plasma containing 50% Ar, as the reference NiO film P0, but O2 was gradually substituted by N2 keeping the sum of their flow rates percentage equal to 50 (%O2 + %N2 = 50%) as follows: film P1: 50% Ar + (40% O2 + 10% N2), film P2: 50% Ar + (25% O2 + 25% N2) and film P3: 50% Ar + (10% O2 + 40% N2). Furthermore, to verify the effect of Ar gas on the films’ properties, an additional film was grown in plasma containing lesser Ar concentration than that of films P1–P3 and consequently more %(O2 + N2) gases, namely film P4: 6% Ar + 47% O2 + 47% N2. The deposition parameters of the films, and their thicknesses, as measured by a Veeco Dektak 150 profilometer, are listed in Table 2.

2.1.2. TiO2 Films Preparation

Compact and mesoporous TiO2 films were fabricated by spin coating following the standard procedure used when these layers are to be used as electron transfer layers for perovskite PVs. According to the perovskite solar cell technology, a thin compact TiO2 layer is used so to eliminate the contact of the perovskite layer with the Sn2O3:F (FTO) layer of the FTO-covered glass, which is used as the substrate. Above this, the mesoporous TiO2 is used to increase the effective area of the perovskite-TiO2 interface. More precisely, commercially available FTO-coated glass was used as substrate (FTO and glass were 600 nm and 2 mm thick, respectively) which was cleaned employing a standard procedure: sonicated for 10 min in deionized water solution followed by an extra sonication step in acetone and then in isopropanol for 10 min, rinsed with acetone and dried in N2-gas flow. After the cleaning process and properly masking part of the FTO layer by vacuum tape mask, the TiO2-containing solution was spin-coated (2000 rpm, 30 s) on the FTO substrates. The solution was 50 μL of HCl (37%), 2.3 mL of ethanol and 150 μL of titanium isopropoxide, which was stirred for several hours. In this way, a compact TiO2 (c-TiO2) film, having a thickness of around 60 nm, was formed, which was followed by thermal treatment at 500 °C for 15 min in ambient air. After the annealing of the c-TiO2 layer, the substrates were plasma treated in oxygen and then a commercially available TiO2 mesoporous paste diluted in ethanol was spin-coated (6000 rpm, 30 s) on top of the c-TiO2/FTO/glass substrate. The mesoporous TiO2 (m-TiO2) layer formed was around 200 nm thick, and was afterward annealed at 500 °C for 15 min in air. The formed m-TiO2/c-TiO2/FTO/glass substrates were used for depositing the NiO layers.

2.2. Fabrication of NiO:N/TiO2Heterojunction

After preparing the m-TiO2/c-TiO2 layers as described above, the m-TiO2/c-TiO2/FTO/glass substrates were placed in the sputtering chamber. When the base-pressure was better than 10−6 Torr, the deposition conditions of NiO:N film P2 were applied (plasma containing flow rates percentage of Ar:O2:N2 = 50/25/25). The reason for choosing these plasma conditions is explained in the following sections. The device was completed by sputtering deposition of 150 nm thickness and 1 mm diameter Au as the ohmic contact on the NiO:N and FTO layers, using the appropriate shadow mask, which defined the junction area of the diode. A schematic representation of the fabricated NiO:N/TiO2 heterodiodes can be seen in Figure 1. The diodes were characterized just after fabrication and after thermal treatment (TT)in a glass tube furnace (Elite Thermal Systems Ltd) at 300 °C for 15 min in flowing N2.

2.3. Thin Films and Device Characterization

Because the sputtering deposition of NiO films were performed on substrates that were not intentionally heated, a specially designed photolithography mask was used having the required patterns for the characterization of the films on an area of 1× 1inch. Thus, all structural, optical and electrical properties of the sputtered films deposited on a single patterned square (1× 1inch) glass substrate could be obtained. In this way, any possible non-uniformities and properties discrepancies between films from different deposition runs but the same deposition conditions were eliminated. The crystallographic phases and crystallinity of the films were studied by the X-ray diffraction (XRD) method. The measurements were performed using a Bruker D8 ADVANCE XRD system employing a Cu KR source with Cu Kα1 radiation (λ = 1.5406 Å) and a power source of 40 kV and 40 mA. The films were scanned at grazing incidence (1.6°) and the collection angle extended from 20–90° with a rate of 0.02°/s. The broadening and angle position of the most prominent peak in terms of diffraction intensity was used to determine the crystallite size and lattice strain in the films. The crystallite size was estimated from the Scherrer formula: D = kλ/βhklcosθ, where k is the shape factor 0.94, λ is the wavelength of incident radiation 1.5406 Å, hkl represents the Muller indices of the diffracted plane, βhkl is the full width at half maximum (FWHM) and θ is the Bragg angle of the peak. The lattice strain, which is also responsible for shifting the position of the diffraction peak, was determined using the formula: εL = βhklcotθ/4 [41]. Field-emission scanning electron microscope (FE-SEM) images were obtained using a Jeol JSM-7000 F electron microscope equipped with an energy-dispersive X-ray (EDX) spectroscopy system (Oxford Instrument-INCA) for element analysis on the films. The optical properties of the films were examined by recording the normal incidence transmittance (T) and near-normal incidence reflectance (R) in the UV-Vis-NIR spectrum by employing a Perkin Elmer Lambda 950 system. The optical band gap of the films was estimated through the relation [42,43]:
T = ( 1 R ) 2 e a d 1 R 2 e 2 a d
where d is the thickness of the films and α is the absorption coefficient. Equation (1) takes into account multiple reflections in the film but assumes the same reflectance at the air/film and film/substrate interfaces and zero-absorbance for the substrate. By solving Equation (1) for the absorption coefficient α as a function of the measured quantities T, R and d, Equation (2) can be obtained:
α = 1 d ln ( ( 1 R ) 2 + ( 1 R ) 4 + 4 T 2 R 2 2 T )
By applying the Tauc plot in ((αhv)n-vs-hv), where h is the Planck constant, v is the frequency and n = 2 for direct allowed transitions, n = 1/2 for indirect allowed transitions, n = 2/3 for direct not allowed transitions and n = 1/3 for indirect not allowed transitions [42], the corresponding energy band gap could be extracted. The resistivity of the films was determined by employing the conventional four-probe Van der Pauw technique on films deposited on a glass substrate which had cross patterns and Au ohmic contacts (150 nm thick) deposited by electron gun evaporation. For selected films, ac-modulated Hall effect measurements were performed in an attempt to determine the type and concentration of carriers. The current–voltage (I–V) characteristics of the heterodiodes were recorded using the Agilent 4200-SCS unit.

3. Results and Discussion

3.1. Thin Films Properties

3.1.1. Properties of NiO and NiO:NThin Films

NiO Thin Films

Undoped NiO was deposited as reference film at 300 W RF-power in 5 mTorr total pressure consisting of 50% Ar and 50% O2 gases (50% Ar + 50% O2). Under these oxygen-rich deposition conditions, NiO was oxygen-rich, atomic percentage (at.%) O/Ni~1.72 as revealed by EDX measurements, and previous experiments showed that it exhibits p-type behavior [7]. The XRD pattern of the NiO film deposited on Si substrate is shown in Figure 2. The XRD pattern yielded one main diffraction peak at around 42.6° and a second one with much smaller intensity at around 62°, which were identified as diffraction peaks arising from (200) and (220) crystallographic planes of the cubic NiO phase, respectively (Joint Committee of Powder Diffraction Standards (JCPDS)card No: 78-0429). The polycrystalline undoped O-rich NiO films had a (200) crystallite size of 5.2 nm, as deduced from the Scherrer equation. The disorder in the structure, caused by the low-temperature growth-induced defects such as excess O and Ni vacancies, created tensile stress shifting the diffraction peaks to lower angles compared to the crystal NiO of the JCPDS card. The lattice strain was calculated to be εL = 1.78 × 10−2. The predominant growth of sputtered NiO films in the (200) direction is generally observed for films deposited both on heated [15,16] and unheated substrates [16]. The surface morphology of undoped NiO film P0 is seen in the SEM image of Figure 2b. The grains of the as-prepared NiO film were up to 40 nm wide. Furthermore, the disorder in the as-prepared NiO structure created scattering centers for the incident photons giving films with very low visible transparency (<10%) and a direct optical energy gap of around 3.15 eV. The transmittance and reflectance of the NiO film are shown in Figure 2c. It is seen that the structural defects of the as-prepared NiO film created states in the band gap resulting in a decrease in transmittance and a very slow rate of increase in absorption coefficient (also shown in Figure 2c) as photons with increasing energy are impinging on the film surface. It has been reported that Ni+2 vacancies create Ni+3 and in association with the stress and the defects of the structure (interstitial oxygen, boundaries of small grains-crystallites) can be responsible for the low visible transmittance [17,18,40,44] and the relatively low energy band gap (3.15 eV) of undoped NiO [17]. The optical properties of undoped NiO are discussed in more detail in conjunction with the properties of the nitrogen-containing NiO films in the next section.

NiO:N Thin Films

Nitrogen was introduced into the structure of NiO film P0 by performing depositions in plasma containing 50% Ar and 50% (O2 + N2) gases as described in the Materials and Methods section. All nitrogen-doped and undoped NiO grown films, with their deposition conditions and properties, are tabulated in Table 2. Because the nitrogen atoms are lighter than the oxygen atoms, by gradually substituting O2 by N2 gas while keeping the %Ar in plasma constant, the deposition rate was reduced from 1.06 nm/min for films grown in N2-free plasma (undoped NiO film P0) to 0.96 nm/min for 40% N2 in plasma (NiO:N films P1 to P3 in Table 2). The deposition rate was further reduced to 0.64 nm/min when the deposition was performed in plasma containing only 6% Ar and 94% (O2 + N2)–NiO:N film P4, as a result of the reduced sputtering yield caused by the heavier but fewer, in this case, inert argon atoms in plasma when compared to the O2 and N2 ones. An attempt was made to quantify the amount of nitrogen in NiO by EDX measurements. Although it was found that the atomic percentage (at.%) of nitrogen in the films increased as N2 gas increased in plasma during deposition, the at.% of N was less than 1.5, regardless of the acceleration voltage for electrons in the EDX set-up (5 kV or 15 kV). Taking into account that EDX cannot accurately give the at.% of light atoms such as nitrogen and that values of at.% around or less than 1% are the limit of detection above the noise signal, the existence of nitrogen in the NiO structure determined by EDX was used only as a qualitative indicator. As noted below, the presence of nitrogen in the Ni-O structure was evidenced by the different properties of undoped NiO and nitrogen-containing NiO films. It is worth noting, however, that the at.% ratio of O/Ni of nitrogen-containing NiO films was about 5.2% smaller than that of undoped NiO (1.63 and 1.72, respectively). The introduction of nitrogen in the structure of NiO films during growth did not affect its crystallographic cubic phase, as seen in Figure 3a in which the XRD patterns of NiO:N films P1–P4 are presented. The films remained single-phase NiO films with no evidence of any other nickel oxide or nitride phases (Ni2O3, NixNy, etc.). As tabulated in Table 2, upon nitrogen doping the (200) diffraction peak shifted to higher angles (approaching that of crystal NiO at 43.28°, JCPDS card No: 78-0429), the crystallite size increased by almost a factor of 2 and the lattice strain was reduced by 35% when compared to the respective properties of the undoped NiO. These changes were more profound for film P2 which was grown in plasma containing 50% Ar and 50% of O2 + N2 with equal flow rates (O2:N2 = 25:25). However, although the introduction of nitrogen in undoped NiO (film P0) improved its structural properties, these properties did not remain unaffected for film P4 of Table 2, which was made in Ar-deficient plasma containing only 6% Ar and 94% (O2 + N2). It is apparent that under these reactive sputtering conditions the quality and quantity of plasma species lowered the optimum structural quality of P2 film because more strain was introduced in the structure.
As seen in Table 2, the introduction of nitrogen in the structure of NiO shifted the diffraction peaks to higher angles, increased the crystallite size and reduced the lattice strain of undoped NiO. This indicated that the disordered undoped NiO structure became less disordered by the introduction of nitrogen in the lattice by reducing-filling of Ni vacancies (Ni+3) and/or substitution of excess oxygen by nitrogen. The typical surface morphology of nitrogen-containing NiO films is presented in Figure 3b where the SEM images of NiO:N P2 and P4 films are seen. No apparent differences could be observed between the surface morphology of nitrogen-containing P1–P3 films. The differences in the surface appearance of film P4 with that of film P2 of Figure 3b are attributed to the Ar-deficient conditions used for depositing P4 film. However, when compared to the surface morphology of undoped NiO (film P0) in Figure 2b, the nitrogen-containing films have a rougher surface with a bigger grain size.
The optical properties of NiO:N followed the structural improvements concerning defects and strain when compared to undoped NiO as mentioned above and the films were more transparent. The transmittance and absorption coefficient, and the deduced direct energy gap, of nitrogen-doped NiO P1–P4 films are plotted in Figure 4a,b, respectively. The highest transmittance was observed for films deposited having equal O2 and N2 flow rates regardless of the amount of Ar in plasma (films P2 and P4 having 50% and 6% Ar gas in plasma, respectively). These films (P2 and P4) had visible transmittance of 45–65%, whereas for all other films the optical transmittance was 30–40%. The reflectance of NiO:N films, not shown here, was smaller than the reflectance of the undoped NiO films (less than 20%) throughout the UV-Vis-NIR spectrum range (250–2500 nm). These results were reproducible and independent of thickness, at least for the range of thicknesses examined in this work. The increase in transmittance of N-doped NiO films when compared to the undoped NiO films could be related to the decrease in Ni vacancies (Ni+2) and subsequently fewer Ni+3 ions. Although the majority of NiO dopants until now have been cations, such as Li+, Zn2+ and Al3+, it is generally agreed that a disordered structure, Ni vacancies and the presence of Ni+3 ions have been associated with the low transmittance of NiO. It is anticipated that doping with nitrogen, being an anion, replaces oxygen and/or fills Ni vacancies partially improving NiO stoichiometry, which is in agreement with the observed reduction of at.% of the O/Ni ratio upon introducing nitrogen in the Ni-O structure. The less-disordered structure and the decrease in the tensile strain of NiO upon nitrogen doping resulted in more transparent films with a larger energy gap. These observations are not in accordance with theoretical predictions [19] and published experimental work [32,37,38,39,40] for nitrogen-doped NiO, which are presented in Table 1. This is attributed to the quality and stoichiometry of the undoped NiO fabricated by sputtering in this work, such as the preferential growth of crystallites in the (200) direction instead of the (111) generally observed and the high ratio of at.% O/N~1.72. Loss of transparency and reduction of the energy band gap of NiO upon doping with nitrogen has been reported for films grown preferentially in the (111) direction [38,40], having poor crystallinity [39] or being amorphous [37], or having a ratio of at.% O/N = 1.14 [32].
NiO is considered a direct band gap semiconductor associated with transitions from the top of the valence band to the bottom of the conduction band. The direct band gap is generally determined from spectrophotometric measurements such as UV-Vis-NIR transmittance and reflectance by applying Equation (2) and the Tauc plot of ((αhv)n-vs-hv) for n = 2. In this way, the direct band gap of NiO has been reported ranging from 3.6 eV to 4 eV. However, there have been reports in which the optical band gap of NiO has been determined to be 3.45 eV [45] or 2.75–2.83 eV [27] by applying the above Tauc plot for n = 1/2, which is used for determining the indirect band gap of a semiconductor or having both direct (3.6 eV) and indirect (3.2 eV) band gaps [30]. For the N-doped NiO films of this work, the Tauc plots for both direct and indirect determination of energy band gaps were applied and the results are seen in Figure 4b,c, respectively. The extracted optical band gaps are tabulated in Table 2. For comparison reasons the Tauc plot for the indirect band gap determination of the reference undoped NiO film is also included, although it cannot be defined in a straightforward manner as for the NiO:N films. It can be seen that the increase in visible transmittance upon N-doping is associated with an increase in the direct band gap of NiO from 3.48 eV to 3.64 eV. This observation, as in the case of the increase in the visible transmittance with doping, which was mentioned above, is anticipated to be related to the observation that the undoped NiO of this work was highly disordered. Such a disordered structure is expected to distort the edges of the parabolic bands and the states in the band gap [46,47]. Nitrogen seems to fill nickel vacancies and, because the films become less O-rich upon doping, as mentioned previously, the defects are reduced, giving rise to an increase in the energy band gap. By applying the Tauc plot for indirect band gap determination, Figure 4c, it was revealed that there was a clear indication of an indirect band gap for the N-doped NiO films ranging from 2.65 eV to 2.87 eV depending on the amount of nitrogen in plasma during deposition or equivalently on the amount of nitrogen in the films’ structure. On the other hand, no clear indications of the existence of an indirect band gap for the undoped NiO film P0 were seen in Figure 4c. Furthermore, the values of absorption coefficient seen in Figure 4a are α > 105 cm−1 for very short wavelengths (λ < 400 nm), suggesting absorption of photons and transitions between the extended states of both valence and conduction bands (direct allowed transitions) [47]. For longer wavelengths (λ > 400 nm), however, the absorption coefficient has values α < 105 cm−1, which implies transitions obeying exponential behavior with photon energy. It is generally agreed that structural distortions in correlated materials like NiO especially due to doping can significantly affect the electronic structure and defect levels [36]. The non-stoichiometric and disordered NiO, and the NiO:N films of this work, were investigated for the states and their width near the edge of the band gap, namely the Urbach tail states width, the Urbach energy.
These shallow states near the edge of valence and/or conduction bands are localized, and have been reported for amorphous, polycrystalline oxide and non-oxide materials, such as TiO2 [48,49], ZnO [50,51], Co3O4 [51], Zn-P-V-Mo-O [52], AlN [53], CdSSe [54], metal-organic frameworks (MOFs) [55], perovskites [56,57] and NiO [25,44,51,58]. These states can extend hundreds of meV above the maximum valence band edge, and are proportional to structural distortion and vary inversely to the band gap energy. The Urbach tails width can be calculated through the absorption coefficient of the material, α, and the relation [46]: α = Cexp(E/EU), where E is the photon energy, C is a constant and EU is the Urbach energy. By plotting ln(α)-vs-E a straight line is obtained, whose inverse slope can give an estimation of the Urbach tail. Figure 4d shows the lnα-vs-E plots of NiO and NiO:N films (P0–P4), through which the Urbach tail width was determined, as listed in Table 2. It can be seen that for the undoped NiO, being defective and disordered, the gap states extended almost 2.7 eV deep in the band gap. It is anticipated that by introducing nitrogen in NiO, most of these defects in the band gap were compensated, leaving states extending up to around 600 meV above the valence band edge. The band gap energies are seen to be inversely proportional to Urbach’s tail widths. The NiO:N films P2 and P4 deposited in plasma, having equal flow rates for O2 and N2 (25:25 and 47:47, respectively), have the narrowest width of Urbach tail states (592 and 598 meV). Urbach tail states have been observed for doped and undoped NiO. Sr-doped NiO has been reported [44] to exhibit increasing width of Urbach states with Sr doping, from 558 meV for the undoped NiO to 892 meV for NiO:Sr. Dependence of Urbach tail width on NiO thickness has been reported, ranging from 600 meV to 1.7 eV for 420 nm and 700 nm thick NiO, respectively, which was reduced to 500 meV upon annealing [25]. It is not known whether the indirect band gap observed for the NiO:N films in this investigation are related to the Urbach tails but it is noticeable that for these films the difference between the values of direct Egap and Urbach energy EU for each film is almost equal to that of indirect Egap. More experiments are needed to verify the relation between Urbach tails, band gap states and photon- and/or phonon-assisted transitions for nitrogen-containing NiO films [59]. The resistance of these films was high enough to allow any reliable Hall measurements to be performed. The defective and disordered undoped NiO had resistance, measured between the opposite contact pads of Hall pattern, of a few tens of kΩ. Upon doping with nitrogen, as shown above, the film became less defective and more stoichiometric, leading to an increase in resistance to a few hundreds of kΩ. This observation supports the conclusion that the increase in the energy band gap of NiO:N in this investigation is not associated with an increase in holes’ concentration due to the Moss–Burstein effect, according to which an increase in carrier concentration results in an increase in the energy band gap [60]. Deterioration of the electrical properties and improvement of optical properties have been reported for NiO:Cu films when co-doped with nitrogen [35]. It is the first time to our knowledge in which the introduction of nitrogen in NiO films is reported to improve its optical transmittance, paving the way for applying NiO:N films in transparent and flexible optoelectronic applications such as perovskite solar cells and UV detectors.

3.1.2. Properties of TiO2Thin Film

The n-type TiO2 thin films used for forming the heterojunction with the transparent NiO:N film was a two-layer TiO2 thin film, namely a mesoporous TiO2 layer (m-TiO2) on top of a compact TiO2 layer (c-TiO2), both by spin-coating on FTO/glass substrate, as described in the Materials and Methods section. The XRD pattern, the transmittance and reflectance, and the surface morphology of the m-TiO2/c-TiO2/FTO/glass configuration are seen in Figure 5a–c, respectively. As seen in Figure 5a, the XRD pattern of TiO2 layers was dominated by the peaks arising from the underneath FTO layer, whose crystallite size, as deduced for the peak at 37.8° using the Scherrer formula, was 21.7 nm. The diffraction peaks originating from TiO2 had a very small intensity and were ascribed to the anatase phase (JCPDS card No: 01-071-1167) and the rutile phase (JCPDS card No: 01-076-0319). The transmittance and reflectance of m-TiO2/c-TiO2/FTO/glass, and those of FTO/glass, are seen in Figure 5b. TiO2 did not affect the optical properties of the FTO/glass. The visible transmittance and reflectance of the m-TiO2/c-TiO2/FTO/glass were 75–85% and 15–25%, respectively. The surface of the m-TiO2 was rough, Figure 5c, with root mean square (RMS) roughness of 20 nm, as deduced from atomic force microscopy measurements (see Supporting Information file Figure S1).

3.2. Characterization of the p-NiO:N/n-TiO2Diode

The m-TiO2/c-TiO2/FTO/glass was used as a substrate on which the N-doped NiO film P2 was sputtered in plasma containing flow rates ratio (%) Ar:O2:N2 = 50:25:25. As shown previously (Table 2), film P2 was chosen to form the heterojunction because it had the optimum structural and optical properties, such as less lattice strain, higher visible transmittance, wider band gap and the narrowest Urbach width, compared to all other films examined. The width of Urbach states was the second most-important criterion following transmittance because these states can appear as states at the NiO:N–TiO2 interface, affecting the rectifying output characteristics of the diode [61]. The transmittance and reflectance of the fabricated NiO:N/TiO2 diode is seen in Figure 6, with those of TiO2 for comparison reasons. The visible transmittance of the diode is seen to be 40–50%. Similar transmittance values have been reported for sputtered NiO/TiO2 [62] or NiO/ZnO [63] diodes. The visible reflectance was around 20%, whereas the near-IR reflectance was around 75% and the respective transmittance was less than 10%. The high value of near-IR reflectance of the configuration of the layers indicates potential use for chromogenic applications [64,65]. In addition, the strong cut-off of ultraviolet (UV) wavelength photons indicates strong absorption of UV light for the all-oxide layers, thus making the diode a strong candidate for transparent optoelectronic applications. It is worth mentioning that XRD measurements were performed on the diode but the diffraction peaks were very noisy and could not be identified as arising from any of the layers of the diode due to the very rough surface of the spin-coated TiO2 layers seen in Figure 5b. The dark current–voltage (I–V) characteristics of the Au/NiO:N/m-TiO2/c-TiO2/FTO/glass diode are seen in Figure 6b, just after fabrication and after thermal treatment (300 °C, 15 min, N2). The heat treatment temperature of 300 °C was chosen to be high enough to be able to change the properties of the device but low enough not to cause any metal contact degradation of the diode. Rectification behavior can be seen for the as-prepared diode, whereas heat treatment improved its characteristics. The rectification ratio (forward current to reverse current) at ±1.5 V was 29 and 25 before and after heat treatment, respectively. The characteristics of the diode, such as saturation current (IS), barrier height (Φb), ideality factor (n) and series resistance (RS), were obtained following thermionic emission theory from the I–V curve [66] and by applying Cheung’s method [67]. Assuming thermionic emission over the barrier of a diode and for V > 3 kT/q, the standard diode equation is [66]:
I = I s   exp ( qV nkT )
where T is the temperature in Kelvin (K), q is the electron charge and k is the Boltzmann constant. The above equation can be written as ln(I) = ln(IS) + (q/nkT)V, from which by plotting ln(I)-vs-V, n and IS can be deduced from the slope and the intercept of line with the ln(I) axis, respectively. The barrier height, Φb was determined from:
IS = AA*T2exp(−qΦb/kT)
where A is the diode area and A* is the Richardson constant (120 (A/cm2K2) [27,68]). The series resistance RS of the diode was extracted from the I–V curve for V > 2 V [69], independently from Equation (3) and thermionic emission theory.
For extracting the diode characteristics using Cheung’s approach [67], which takes into account the effect of RS, Equation (3) is written as:
I = I s   exp ( q ( V IR S ) nkT )
From Equation (4), the quantity dV d ( ln I ) = nkT q + I · R s can be derived, from which by plotting dV d ( ln I ) -vs-I, the slope gives RS and the intercept gives n. By defining H = V − nkT q ln ( I AA * T 2 ) , the equation H = nΦb + RSI can be derived, from which the graph of H-vs-I can give RS and Φb from the slope and the intercept, respectively. The results for the characteristics of the NiO:N/m-TiO2/c-TiO2/FTO diode just after fabrication and after thermal treatment, obtained from the I–V curves of Figure 6b by applying Equations (3) and (4) for thermionic emission theory and Cheung’s method, respectively, are tabulated in Table 3.
The diode formed between NiO:N and m-TiO2/c-TiO2 showed reasonable, good parameters, and both methods used for analyzing the characteristics of the diode revealed that annealing improved the diode’s output characteristics. The saturation current density, JS, and the barrier height which is inversely proportional to JS, have similar values to those reported in the literature for NiO-containing diodes [25,27,63]. The ideality factor, n, is a parameter indicating whether the diode obeys the thermionic emission model where n should be 1 < n < 2. Because the diode has n > 2 implies that the transport mechanism is not dominated by thermionic emission but through recombination at defects/states at the interface, tunneling through the interfacial layer or space charge current transport [27]. Because n generally decreases with thermal treatment, the fact that the diode’s n seen in Table 3 does not change drastically with thermal treatment implies that higher temperatures are required [70]. All of the above diode parameters that are improved with annealing could be related to improved crystallinity of NiO:N and reduction of structural defects and consequently reduced NiO:N/TiO2 interface states. It should be recalled that the NiO:N/TiO2 diode was a hybrid diode because NiO:N was sputter-deposited on unheated substrates whereas the spin-coated formed TiO2 layers had undergone annealing at 500 °C. Experiments are in progress to clarify the relation between thermal treatment and reduction of defects and states/traps at the NiO–TiO2 interface. The diode’s series resistance, RS, is less than 1kΩ just after fabrication but it is increased after annealing, probably due to the increased resistance of NiO:N after annealing. More experiments are needed to identify the origin of the diode’s behavior with thermal treatment. Finally, it is the first time that Cheung’s method has been applied for analyzing a NiO/TiO2 diode and the different results observed between the two methods, used for extracting the diode’s parameters as seen in Table 3, have been also observed for NiO/ITO [27] and for epitaxially grown AlGaAs diodes [71]. The differences might be attributed to the fact that Cheung’s model takes into account the series resistance of the diode (Equation (4)) and is applied to the whole range of forward voltages, whereas the I–V method is applied for voltages where the linear part of the I–V curve starts, i.e., V > 3 kT/q = 0.78 V [27]. Improvement of diode characteristics can be accomplished by further optimizing the fabrication procedure, such as TiO2 surface treatment before the NiO deposition. More experiments are needed for evaluating the diode’s behavior, if this type of diode is to be used for flexible and/or transparent optoelectronic applications, such as tandem perovskite solar cells and UV photovoltaics.

4. Conclusions

A transparent hybrid heterodiode was fabricated by employing sputtered NiO:N and spin-coated TiO2 as p-type and n-type layers, respectively. The reference undoped NiO was fabricated by sputtering a Ni target on room temperature substrates in plasma containing 50% Ar and 50% O2. The nitrogen-containing films (less than 1.5 at.% of nitrogen) were fabricated in 50% Ar and 50% (O2 + N2) gases by gradually substituting O2 with nitrogen in plasma (0–40% N2). Upon nitrogen doping, the O-rich undoped NiO film became less disordered and more transparent. The direct and possible indirect band gaps of NiO:N, in addition to the subgap states, the Urbach tail states, were correlated with the amount of nitrogen in plasma during deposition. The optimum NiO:N film, fabricated in plasma containing equal amounts of O2 and N2 gases (50%Ar/25%O2/25%N2) had the highest transmittance (49.1%), widest band gap (3.67 eV direct and 2.72 eV indirect gaps) and the narrowest Urbach width (592 meV) compared to the other films of this investigation. The optimum NiO:N film was used to form a heterojunction on spin-coated mesoporous TiO2 on top of compact-TiO2/FTO/glass. The NiO:N/m-TiO2/c-TiO2/FTO/glass heterostructure showed rectification properties, which were analyzed by employing the I–V and Cheung methods. Most of the output characteristics of the diode were improved upon thermal treatment and the changes were associated with changes in material properties and the NiO:N/m–TiO2 interface with annealing. The nitrogen-doped NiO fabricated in this work on room temperature substrates can be used for realizing transparent and flexible devices for wearable and optoelectronic applications.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/electronics10090988/s1. Figure S1: AFM measurements results of glass/FTO/c-TiO2/m-TiO2 (500C).

Author Contributions

Conceptualization, E.A.; methodology, E.A.; validation, C.A., G.C., C.R.; formal analysis, C.A., A.P., G.C., C.R.; investigation, C.A., A.P., E.M., M.K., M.A., K.T., G.C., C.R.; resources, E.M., C.S.; data curation, C.A., A.P.; writing—original draft preparation, E.A.; writing—review and editing, N.T.P., C.S., M.M., E.A.; supervision, E.A., N.T.P.; funding acquisition, E.A., N.T.P. All authors have read and agreed to the published version of the manuscript.

Funding

This work was partially supported by the projects “Materials and Processes for Energy and Environment Applications-AENAO” (MIS 5002556) and “NANOTANDEM” (MIS 5029191) co-financed by Greece and EU (European Regional Development Fund).

Data Availability Statement

Data is contained within the article or Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Osorio-Guillén, J.; Lany, S.; Zunger, A. Nonstoichiometry and hole doping in NiO. AIP Conf. Proc. 2010, 1199, 128–129. [Google Scholar] [CrossRef] [Green Version]
  2. Karsthof, R.; Grundmann, M.; Anton, A.M.; Kremer, F. Polaronic interacceptor hopping transport in intrinsically doped nickel oxide. Phys. Rev. B 2019, 99, 235201. [Google Scholar] [CrossRef] [Green Version]
  3. Zou, Z.G.; Ye, J.H.; Sayama, K.; Arakawa, H. Direct splitting of water under visible light irradiation with an oxide semiconductor photocatalyst. Nature 2001, 414, 625–627. [Google Scholar] [CrossRef]
  4. Charisiadis, A.; Glymenaki, E.; Planchat, A.; Margiola, S.; Lavergne-Bril, A.-C.; Nikoloudakis, E.; Nikolaou, V.; Charalambidis, G.; Coutsolelos, A.G.; Odobel, F. Photoelectrochemical properties of dyads composed of porphyrin/ruthenium catalyst grafted on metal oxide semiconductors. Dye. Pigment. 2021, 185, 108908. [Google Scholar] [CrossRef]
  5. Rosado, P.C.; Meyrelles, R.; Macatrão, A.M.; Justino, M.C.; Gomes, A.G.; Montemor, M.F.; Alves, M.M.; Justino, G.C.; Ribeiro, A.P.C.; Shimizu, K. Immobilization of His-tagged proteins on NiO foams for recyclable enzymatic reactors. Appl. Sur. Sci. 2021, 537, 147848. [Google Scholar] [CrossRef]
  6. Dey, S.; Nag, S.; Santra, S.; Ray, S.K.; Guha, P.K. Voltage-controlled NiO/ZnO p–n heterojunction diode: A new approach towards selective VOC sensing. Microsyst. Nanoeng. 2020, 6, 35. [Google Scholar] [CrossRef]
  7. Gagaoudakis, E.; Michail, G.; Kampylafka, V.; Tsagaraki, K.; Aperathitis, E.; Moschovis, K.; Binas, V.; Kiriakidis, G. Room Temperature p-Type NiO Nanostructure Thin Film Sensor for Hydrogen and Methane Detection. Sens. Lett. 2017, 15, 663–667. [Google Scholar] [CrossRef]
  8. Zhang, J.; Yu, A. Nanostructured transition metal oxides as advanced anodes for lithium-ion batteries. Sci. Bull. 2015, 60, 823–838. [Google Scholar] [CrossRef] [Green Version]
  9. Wang, Z.; Wang, X.; Cong, S.; Geng, F.; Zhao, Z. Fusing electrochromic technology with other advanced technologies: A new roadmap for future development. Mat. Sci. Eng. R 2020, 140, 100524. [Google Scholar] [CrossRef]
  10. Patel, M.; Kim, H.-S.; Park, H.-H.; Kim, J. Active Adoption of Void Formation in Metal-Oxide for All Transparent Super-Performing Photodetectors. Sci. Rep. 2016, 6, 25461. [Google Scholar] [CrossRef] [Green Version]
  11. Karsthof, R.; von Wenckstern, H.; Zúniga-Pérez, J.; Deparis, C.; Grundmann, M. Nickel Oxide–Based Heterostructures with Large Band Offsets. Phys. Status Solidi B 2020, 257, 1900639. [Google Scholar] [CrossRef]
  12. Grundmann, M.; Klüpfel, F.; Karsthof, R.; Schlupp, P.; Schein, F.-L.; Splith, D.; Yang, C.; Bitter, S.; von Wenckstern, H. Oxide bipolar electronics: Materials, devices and circuits. J. Phys. D Appl. Phys. 2016, 49, 213001. [Google Scholar] [CrossRef]
  13. Tirado, J.; Vásquez-Montoya, M.; Roldán-Carmona, C.; Ralaiarisoa, M.; Koch, N.; Nazeeruddin, M.K.; Jaramillo, F. Air-Stable n–i–p Planar Perovskite Solar Cells Using Nickel Oxide Nanocrystals as Sole Hole-Transporting Material. ACS Appl. Energy Mater. 2019, 2, 4890–4899. [Google Scholar] [CrossRef]
  14. Elseman, A.M.; Sajid, S.; Shalan, A.E.; Mohamed, S.A.; Rashad, M.M. Recent progress concerning inorganic hole transport layers for efficient perovskite solar cells. Appl. Phys. A 2019, 125, 476. [Google Scholar] [CrossRef]
  15. Predanocy, M.; Hotovy, I.; Caplovicová, M. Structural optical and electrical properties of sputtered NiO thin films for gas detection. Appl. Surf. Sci. 2017, 395, 208–213. [Google Scholar] [CrossRef]
  16. Yang, J.-L.; Lai, Y.-S.; Chen, J.S. Effect of heat treatment on the properties of non-stoichiometric p-type nickel oxide films deposited by reactive sputtering. Thin Solid Film 2005, 488, 242–246. [Google Scholar] [CrossRef]
  17. Hwang, J.D.; Ho, T.H. Effects of oxygen content on the structural, optical, and electrical properties of NiO films fabricated by radio-frequency magnetron sputtering. Mat. Sci. Semicond. Process. 2017, 71, 396–400. [Google Scholar] [CrossRef]
  18. Nandy, S.; Saha, B.; Mitra, M.K.; Chattopadhyay, K.K. Effect of oxygen partial pressure on the electrical and optical properties of highly (200) oriented p-type Ni1–xO films by DC sputtering. J. Mater. Sci. 2007, 42, 5766–5772. [Google Scholar] [CrossRef]
  19. Nolan, M.; Long, R.; English, N.J.; Mooney, D.A. Hybrid density functional theory description of N- and C-doping of NiO. J. Chem. Phys. 2011, 134, 224703. [Google Scholar] [CrossRef] [Green Version]
  20. Zhang, L.; Staar, P.; Kozhevnikov, A.; Wang, Y.-P.; Trinastic, J.; Schulthess, T. DFT + DMFT calculations of the complex band and tunneling behavior for the transition metal monoxides MnO, FeO, CoO, and NiO. Phys. Rev. B 2019, 100, 035104. [Google Scholar] [CrossRef] [Green Version]
  21. Kim, D.S.; Lee, H.C. Nickel vacancy behavior in the electrical conductance of non-stoichiometric nickel oxide film. J. Appl. Phys. 2012, 112, 034504. [Google Scholar] [CrossRef]
  22. Zhang, K.H.L.; Xi, K.; Blamire, M.G.; Egdell, R.G. P-type transparent conducting oxides. J. Phys. Condens. Matter 2016, 28, 383002. [Google Scholar] [CrossRef] [PubMed]
  23. Uddin, M.T.; Nicolas, Y.; Olivier, C.; Jaegermann, W.; Rockstroh, N.; Junge, H.; Toupance, T. “Band alignment investigations of heterostructures NiO/TiO2 nanomaterials used as efficient heterojunction earth-abundant metal oxide photocatalysts for hydrogen production. Phys. Chem. Chem. Phys. 2017, 19, 19279–19288. [Google Scholar] [CrossRef] [PubMed]
  24. Nguyen, T.T.; Patel, M.; Kim, J. All-inorganic metal oxide transparent solar cells. Sol. Energy Mater. Sol. Cells 2020, 217, 110708. [Google Scholar] [CrossRef]
  25. Klochko, N.P.; Kopach, V.R.; Tyukhov, I.I.; Zhadan, D.O.; Klepikova, K.S.; Khrypunova, G.S.; Petrushenko, S.I.; Lyubov, V.M.; Kirichenko, M.V.; Dukarov, S.V.; et al. Metal oxide heterojunction (NiO/ZnO) prepared by low temperature solution growth for UV-photodetector and semi-transparent solar cell. Sol. Energy 2018, 164, 149–159. [Google Scholar] [CrossRef]
  26. Gong, H.H.; Chen, X.H.; Xu, Y.; Ren, F.-F.; Gu, S.L.; Ye, J.D. A 1.86-kV double-layered NiO/β-Ga2O3 vertical p–n heterojunction diode. Appl. Phys. Lett. 2020, 117, 022104. [Google Scholar] [CrossRef]
  27. Wu, C.-C.; Yang, C.-F. Effect of annealing temperature on the characteristics of the modified spray deposited Li-doped NiO films and their applications in transparent heterojunction diode. Sol. Energy Mater. Sol. Cells 2015, 132, 492–498. [Google Scholar] [CrossRef]
  28. Nandy, S.; Maiti, U.N.; Ghosh, C.K.; Chattopadhyay, K.K. Enhanced p-type conductivity and band gap narrowing in heavily Al doped NiO thin films deposited by RF magnetron sputtering. J. Phys. Condens. Matter 2009, 21, 115804. [Google Scholar] [CrossRef]
  29. Adler, D.; Feinleib, J. Electrical and Optical Properties of Narrow-Band Materials. Phys. Rev. B 1970, 2, 3112–3134. [Google Scholar] [CrossRef]
  30. Park, S.G.; Lee, K.H.; Lee, J.-H.; Bang, G.; Kim, J.; Park, H.J.; Oh, M.S.; Lee, S.; Kim, Y.-H.; Kim, Y.-M.; et al. Improved polaronic transport under a strong Mott–Hubbard interaction in Cu substituted NiO. Inorg. Chem. Front. 2020, 7, 853–858. [Google Scholar] [CrossRef]
  31. Popescu, I.; Skoufa, Z.; Heracleous, E.; Lemonidou, A.; Marcu, I.-C. A study by electrical conductivity measurements of the semiconductive and redox properties of Nb-doped NiO catalysts in correlation with the oxidative dehydrogenation of ethane. Phys. Chem. Chem. Phys. 2015, 17, 8138–8147. [Google Scholar] [CrossRef] [PubMed]
  32. Keraudy, J.; Ferrec, A.; Richard-Plouet, M.; Hamon, J.; Goullet, A.; Jouan, P.-Y. Nitrogen doping on NiO by reactive magnetron sputtering: A new pathway to dynamically tune the optical and electrical properties. Appl. Surf. Sci. 2017, 409, 77–84. [Google Scholar] [CrossRef]
  33. Tangwancharoen, S.; Thongbai, P.; Yamwong, T.; Maensiri, S. Dielectric and electrical properties of giant dielectric (Li, Al)-doped NiO ceramics. Mat. Chem. Phys. 2009, 115, 585–589. [Google Scholar] [CrossRef]
  34. Dong, D.; Wang, W.; Barnabe, A.; Presmanes, L.; Rougier, A.; Dong, G.; Zhang, F.; Yu, H.; He, Y.; Dia, X. Enhanced electrochromism in short wavelengths for NiO:(Li, Mg) films in full inorganic device ITO/NiO:(Li, Mg)/Ta2O5/WO3/ITO. Electrochim. Acta 2018, 263, 277–285. [Google Scholar] [CrossRef] [Green Version]
  35. Wen, C.-K.; Xin, Y.-Q.; Chen, S.-C.; Chuang, T.-H.; Chen, P.-J.; Sun, H. Comparison of microstructural and optoelectronic properties of NiO:Cu thin films deposited by ion-beam assisted rf sputtering in different gas atmospheres. Thin Solid Film. 2019, 677, 103–108. [Google Scholar] [CrossRef]
  36. Wrobel, F.; Park, H.; Sohn, C.; Hsiao, H.-W.; Zuo, J.-M.; Shin, H.; Lee, H.N.; Ganesh, P.; Benali, A.P.; Kent, R.C.; et al. Doped NiO: The mottness of a charge transfer insulator. Phys. Rev. B 2020, 101, 195128. [Google Scholar] [CrossRef]
  37. Ganesh, V.; Haritha, L.; Anisc, M.; Shkira, M.; Yahia, I.S.; Singh, A.; AlFaify, S. Structural, morphological, optical and third order nonlinear optical response of spin-coated NiO thin films: An effect of N doping. Solid State Sci. 2018, 86, 98–106. [Google Scholar] [CrossRef]
  38. Sriram, S.; Thayumanavan, A.; Ravichandran, K. Influence of nitrogen doping on properties of NiO films. Surf. Eng. 2016, 32, 207–211. [Google Scholar] [CrossRef]
  39. Zhou, P.; Li, B.; Fang, Z.; Zhou, W.; Zhang, M.; Hu, W.; Chen, T.; Xiao, Z.; Yang, S. Nitrogen-Doped Nickel Oxide as Hole Transport Layer for High-Efficiency Inverted Planar Perovskite Solar Cells. Sol. RRL 2019, 3, 1900164. [Google Scholar] [CrossRef]
  40. Tian, Y.; Gong, L.; Qi, X.; Yang, Y.; Zhao, X. Effect of Substrate Temperature on the Optical and Electrical Properties of Nitrogen-Doped NiO Thin Films. Coatings 2019, 9, 634. [Google Scholar] [CrossRef] [Green Version]
  41. Aftab, M.; Butt, M.Z.; Ali, D.; Bashir, F.; Aftab, Z.H. Impact of copper doping in NiO thin films on their structure, morphology, and antibacterial activity against Escherichia Coli. Ceram. Int. 2020, 46, 5037–5049. [Google Scholar] [CrossRef]
  42. Pankove, J. Optical Processes in Semiconductors; Dover Publications: Mineola, NY, USA, 1971; Chapter 4; p. 87. [Google Scholar]
  43. Jafar, M.M.A.G. Comprehensive formulations for the total normal-incidence optical reflectance and transmittance of thin films laid on thick substrates. Eur. Int. J. Sci. Technol. 2013, 2, 214–274. Available online: www.cekinfo.org.uk/EIJST (accessed on 28 August 2016).
  44. Siddique, M.N.; Ahmed, A.; Tripathi, P. Enhanced optical properties of pure and Sr doped NiO nanostructures: A comprehensive study. Optik 2019, 185, 599–608. [Google Scholar] [CrossRef]
  45. Lin, C.-W.; Chung, W.-C.; Zhang, Z.-D.; Hsu, M.-C. P-channel transparent thin-film transistor using physical-vapor-deposited NiO layer. Jpn. J. Appl. Phys. 2018, 57, 01AE01. [Google Scholar] [CrossRef] [Green Version]
  46. Davis, E.A.; Mott, N.F. Conduction in non-crystalline systems V. Conductivity, optical absorption and photoconductivity in amorphous semiconductors. Philos. Mag. 1970, 22, 0903–0922. [Google Scholar] [CrossRef]
  47. Chopra, K.L.; Bahlt, S.K. Exponential tail of the optical absorption edge of amorphous semiconductors. Thin Solid Film. 1972, I1, 377–388. [Google Scholar] [CrossRef]
  48. Choudhury, B.; Choudhury, A. Oxygen defect dependent variation of band gap, Urbach energy and luminescence property of anatase, anatase–rutile mixed phase and of rutile phases of TiO2 nanoparticles. Phys. E 2014, 56, 364–371. [Google Scholar] [CrossRef]
  49. Akshay, V.R.; Arun, B.; Mandal, G.; Vasundhara, M. Visible range optical absorption, Urbach energy estimation and paramagnetic response in Cr-doped TiO2 nanocrystals derived by a sol–gel method. Phys. Chem. Chem. Phys. 2019, 21, 12991–13004. [Google Scholar] [CrossRef]
  50. Klochko, N.P.; Klepikova, K.S.; Kopach, V.R.; Khrypunov, G.S.; Myagchenko, Y.O.; Melnychuk, E.E.; Lyubov, V.M.; Kopach, A.V. On Controlling the Hydrophobicity of Nanostructured Zinc-Oxide Layers Grown by Pulsed Electrodeposition. Semiconductors 2016, 50, 352–363. [Google Scholar] [CrossRef]
  51. Anyaegbunam, F.N.C.; Augustine, C. A Study of Optical Band Gap and Associated Urbach Energy Tail of Chemically Deposited Metal Oxides Binary Thin Films. Dig. J. Nanomater. Biostruct. 2018, 13, 847–856. [Google Scholar]
  52. Biswas, D.; Das, A.S.; Mondal, R.; Banerjee, A.; Dutta, A.; Kabi, S.; Roy, D.; Singh, L.S. Structural properties and electrical conductivity mechanisms of semiconducting quaternary nanocomposites: Effect of two transition metal oxides. J. Phys. Chem. 2020, 144, 109505. [Google Scholar] [CrossRef]
  53. Sharma, N.; Prabakar, K.; Ilango, S.; Dash, S.; Tyagi, A.K. Optical band-gap and associated Urbach energy tails in defected AlN thin films grown by ion beam sputter deposition: Effect of assisted ion energy. Adv. Mat. Proc. 2017, 2, 342–346. [Google Scholar] [CrossRef] [Green Version]
  54. Hassanien, A.S.; Akl, A.A. Effect of Se addition on optical and electrical properties of chalcogenideCdSSe thin films. Superlattices Microstruct. 2016, 89, 153–169. [Google Scholar] [CrossRef]
  55. Kozlova, S.G.; Ryzhikov, M.R.; Shayapov, V.R.; Samsonenko, D.G. Effect of spin–phonon interactions on Urbach tails in flexible [M2(bdc)2(dabco)]. Phys. Chem. Chem. Phys. 2020, 22, 15242–15247. [Google Scholar] [CrossRef]
  56. De Wolf, S.; Holovsky, J.; Moon, S.J.; Lopper, P.; Niesen, B.; Ledinsky, M.; Haug, F.J.; Yum, J.H.; Ballif, C. Organometallic Halide Perovskites: Sharp Optical Absorption Edge and Its Relation to Photovoltaic Performance. J. Phys. Chem. Lett. 2014, 5, 1035–1039. [Google Scholar] [CrossRef]
  57. Ishikawa, R.; Kato, T.; Anzo, R.; Nagatake, M.; Nishimura, T.; Tsuboi, N.; Miyajima, S. Widegap CH3NH3PbBr3 solar cells for optical wireless power transmission application. Appl. Phys. Lett. 2020, 117, 013902. [Google Scholar] [CrossRef]
  58. Al Boukhari, J.; Zeidan, L.; Khalaf, A.; Awad, R. Synthesis, characterization, optical and magnetic properties of pure and Mn, Fe and Zn doped NiO nanoparticles. Chem. Phys. 2019, 516, 116–124. [Google Scholar] [CrossRef]
  59. Maiti, S.; van der Laan, M.; Poonia, D.; Schall, P.; Kinge, S.; Siebbeles, L.D.A. Emergence of new materials for exploiting highly efficient carrier multiplication in photovoltaics. Chem. Phys. Rev. 2020, 1, 011302. [Google Scholar] [CrossRef]
  60. Aperathitis, E.; Bender, M.; Cimalla, V.; Ecke, G.; Modreanu, M. Properties of rf-sputtered indium–tin-oxynitride thin films. J. Appl. Phys. 2003, 94, 1258–1266. [Google Scholar] [CrossRef]
  61. Gong, H.; Chen, X.; Xu, Y.; Chen, Y.; Ren, F.; Liu, B.; Gu, S.; Zhang, R.; Ye, J. Band Alignment and Interface Recombination inNiO/β-Ga2O3 Type-II p-n Heterojunctions. IEEE Trans. Electron. Devices 2020, 67, 3341–3347. [Google Scholar] [CrossRef]
  62. Abbas, S.; Kim, J. All-metal oxide transparent photodetector for broad responses. Sens. Actuators A 2020, 303, 111835. [Google Scholar] [CrossRef]
  63. Egbo, K.O.; Kong, M.; Liu, C.P.; Yu, K.M. Room temperature sputtered Cu doped NiO1+δ: P-type conductivity, stability of electrical properties and p-n heterojunction. J. Alloys Compd. 2020, 835, 155269. [Google Scholar] [CrossRef]
  64. Lin, F.; Gillaspie, D.T.; Dillon, A.C.; Richards, R.M.; Engtrakul, C. Nitrogen-doped nickel oxide thin films for enhanced electrochromic applications. Thin Solid Film 2013, 527, 26–30. [Google Scholar] [CrossRef]
  65. Gagaoudakis, E.; Aperathitis, E.; Michail, G.; Kiriakidis, G.; Binas, V. Sputtered VO2 coatings on commercial glass substrates for smart glazing applications. Sol. Energy Mater. Sol. Cells 2021, 220, 110845. [Google Scholar] [CrossRef]
  66. Sze, S.M. Physics of Semiconductor Devices, 2nd ed.; John Wiley and Sons Ltd: Hoboken, NJ, USA, 1981; ISBN 978-0471098379. [Google Scholar]
  67. Cheung, S.K.; Cheung, N.W. Extraction of Schottky diode parameters from forward current-voltage characteristics. Appl. Phys. Lett. 1986, 49, 85–87. [Google Scholar] [CrossRef]
  68. Robinson, G.Y. Schottky Diodes and Ohmic Contacts for the III-V Semiconductors. In Physics and Chemistry of III—V Compound Semiconductor Interfaces; Wilmsen, C.W., Ed.; Springer: Boston, MA, USA, 1985. [Google Scholar] [CrossRef]
  69. Schroder, D.K. Semiconductor Material and Device Characterization, 3rd ed.; John Wiley Sons: Hoboken, NJ, USA, 2006; ISBN 978-0-471-73906-7. [Google Scholar]
  70. Al-Ahmadi, N.A.; Ebrahim, F.A.; Al-Jawhari, H.A.; Mari, R.H.; Henini, M. Impact of doping on the performance of p-type Be-doped Al0.29Ga0.71As Schottky diodes. Mod. Electron. Mater. 2017, 3, 66–71. [Google Scholar] [CrossRef]
  71. Hasan, M.R.; Xie, T.; Barron, S.C.; Liu, G.; Nguyen, N.V.; Motayed, A.; Rao, M.V.; Debnath, R. Self-powered p-NiO/n-ZnO heterojunction ultraviolet photodetectors fabricated on plastic substrates. APL Mater. 2015, 3, 106101. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Schematic representation of the fabricated NiO:N/TiO2 heterodiode (NiO:N/m-TiO2/c-TiO2/FTO/glass). Thicknesses are not to scale.
Figure 1. Schematic representation of the fabricated NiO:N/TiO2 heterodiode (NiO:N/m-TiO2/c-TiO2/FTO/glass). Thicknesses are not to scale.
Electronics 10 00988 g001

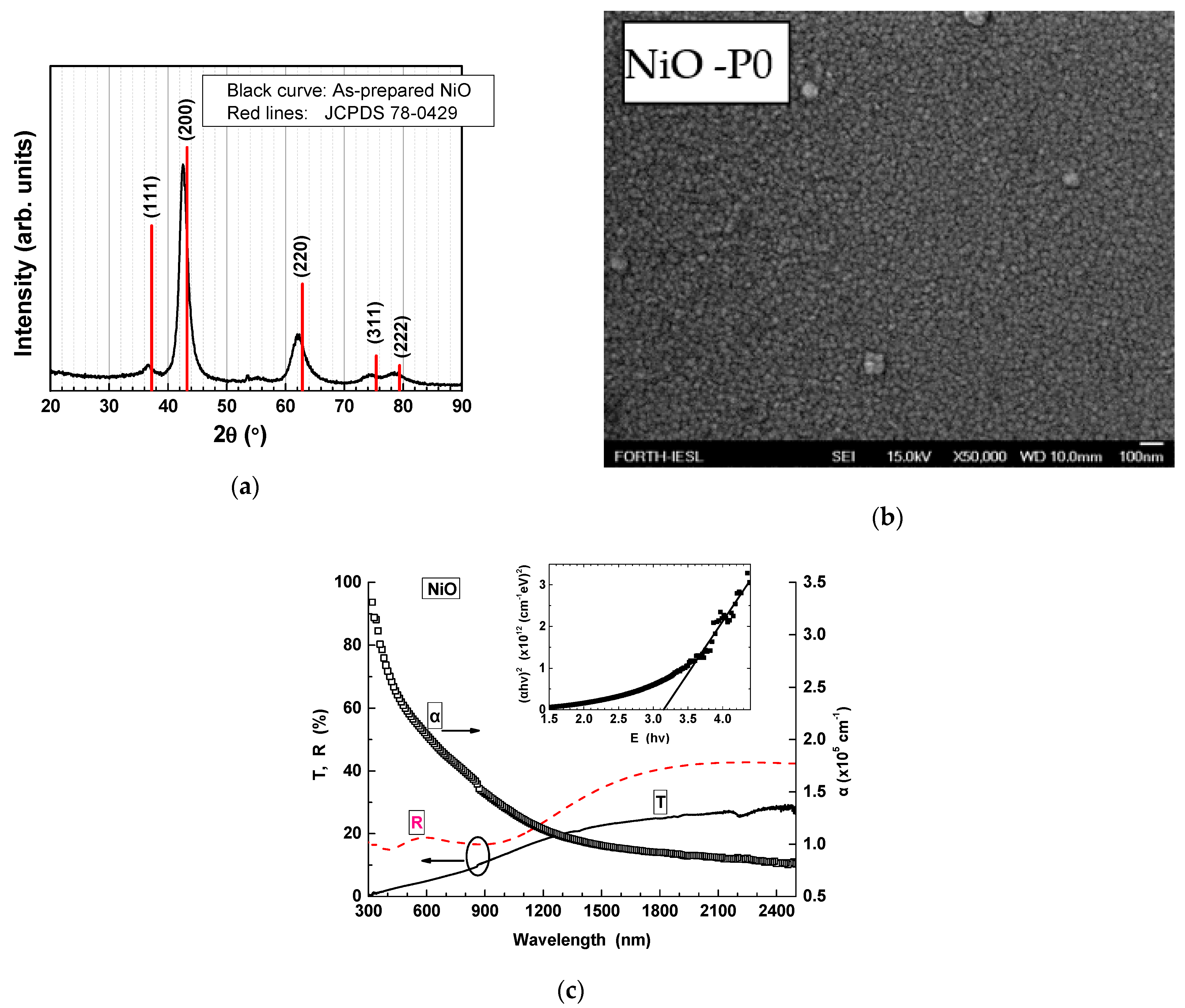

Figure 2. (a) XRD pattern, (b) SEM image and (c) UV-Vis-NIR transmittance, reflectance and absorption coefficient curves of NiO film (P0). The inset in (c) shows the (αhv)2-vs-E plot for deducing direct Egap.
Figure 2. (a) XRD pattern, (b) SEM image and (c) UV-Vis-NIR transmittance, reflectance and absorption coefficient curves of NiO film (P0). The inset in (c) shows the (αhv)2-vs-E plot for deducing direct Egap.
Electronics 10 00988 g002
Figure 3. (a) XRD patterns of N-doped NiO films made in 50% Ar gas in plasma and varying %(O2-N2) gases and (b) SEM images of N-doped NiO films in Ar-rich plasma (50% Ar, film P2) and Ar-deficient plasma (6% Ar, film P4). All films were deposited on Si substrates.
Figure 3. (a) XRD patterns of N-doped NiO films made in 50% Ar gas in plasma and varying %(O2-N2) gases and (b) SEM images of N-doped NiO films in Ar-rich plasma (50% Ar, film P2) and Ar-deficient plasma (6% Ar, film P4). All films were deposited on Si substrates.
Electronics 10 00988 g003
Figure 4. Optical properties of N-doped NiO films P1-P4 fabricated under different plasma conditions: (a) UV-Vis-NIR transmittance and absorption coefficient curves, (bd) direct band gap, indirect band gap and Urbach tail states energy width determinations, respectively.
Figure 4. Optical properties of N-doped NiO films P1-P4 fabricated under different plasma conditions: (a) UV-Vis-NIR transmittance and absorption coefficient curves, (bd) direct band gap, indirect band gap and Urbach tail states energy width determinations, respectively.
Electronics 10 00988 g004
Figure 5. (a) XRD patterns and (b) UV-Vis-NIR transmittance and reflectance curves of m-TiO2/c-TiO2/FTO/glass and FTO/glass and (c) SEM surface image of m-TiO2/c-TiO2/FTO/glass.
Figure 5. (a) XRD patterns and (b) UV-Vis-NIR transmittance and reflectance curves of m-TiO2/c-TiO2/FTO/glass and FTO/glass and (c) SEM surface image of m-TiO2/c-TiO2/FTO/glass.
Electronics 10 00988 g005
Figure 6. (a) UV-Vis-NIR transmittance and reflectance curves of NiO:N/m-TiO2/c-TiO2/FTO/glass diode and m-TiO2/c-TiO2/FTO/glass configurations and (b) dark I-V curves of NiO:N/m-TiO2/c-TiO2/FTO diode just after fabrication and after thermal treatment (TT) at 300 °C for 15 min in N2.
Figure 6. (a) UV-Vis-NIR transmittance and reflectance curves of NiO:N/m-TiO2/c-TiO2/FTO/glass diode and m-TiO2/c-TiO2/FTO/glass configurations and (b) dark I-V curves of NiO:N/m-TiO2/c-TiO2/FTO diode just after fabrication and after thermal treatment (TT) at 300 °C for 15 min in N2.
Electronics 10 00988 g006
Table 1. Literature reports on NiO:N thin films properties: Depos. Techn. = deposition technique, Tsub = substrate’s temperature, d = thickness, TT = thermal treatment, TVIS = visible transmittance, Egap = energy band gap, RF MS = radio frequency magnetron sputtering, DC MS = direct current magnetron sputtering, RF S = radio frequency sputtering.
Table 1. Literature reports on NiO:N thin films properties: Depos. Techn. = deposition technique, Tsub = substrate’s temperature, d = thickness, TT = thermal treatment, TVIS = visible transmittance, Egap = energy band gap, RF MS = radio frequency magnetron sputtering, DC MS = direct current magnetron sputtering, RF S = radio frequency sputtering.
Depos. Techn.Tsub (°C)D
(nm)
TTOptical Properties
TVIS/Egap Direct (Egap Indirect)
Resistivity or ResistanceRef.
Chemical solution28010-NiO-7.1 MΩcm[39]
NiO:N 80–82%/-4.8 MΩcm
Sol-gel120200450 °C
1 h
NiO ~70%/4 eV (3.5 eV)-[37]
NiO:N50–70%/3.8 eV (3.25 eV)-
Spray techn.350720–900 NiO ~40–60%/3.5 eV (3.41 eV)3.8 kΩcm[38]
NiO:N30–50%/3.45 eV1.7 kΩcm
RF MS100–400300-NiO~90%/3.53 eV28.3 Ω[40]
NiO:N90%/3.5 eV28 Ω
DC MSRT300 NiO: ~30–40%/3.6 eV-[32]
NiO:N<40%/3.3 eV (2.3 eV)-
RF SRT~150 NiO~7%/3.15 eV23 kΩThis work
NiO:N45–70%/3.67 eV (2.72 eV)>100 kΩ
Table 2. Details of sputtering conditions and properties of undoped and N-doped NiO films. D = thickness, D.R. = Deposition Rate, 2θ = 2 Theta (degree) position of (200) diffraction peak, D = crystallite size, εL = lattice strain, T = transmittance, Egap = energy gap, EU = Urbach energy.
Table 2. Details of sputtering conditions and properties of undoped and N-doped NiO films. D = thickness, D.R. = Deposition Rate, 2θ = 2 Theta (degree) position of (200) diffraction peak, D = crystallite size, εL = lattice strain, T = transmittance, Egap = energy gap, EU = Urbach energy.
FilmsDeposition ParametersStructural PropertiesOptical Properties
Flow Rates (%)d (nm)D. R. (nm/min)2θ (Degree)D (nm)εL (×10−2)T (%) (@550 nm)Direct Egap (eV)Indirect Egap (eV)EU (meV)
ArO2N2
NiOP0505001441.0642.585.241.784.23.15-2734
NiO:NP15040101281.5242.656.151.2051.73.652.56933
P25025251331.0542.719.141.1549.13.672.72592
P35010401590.9442.706.691.3229.33.592.50830
P4647471420.6442.647.161.3951.23.652.74598
Table 3. NiO:N/m-TiO2/c-TiO2/FTO diode characteristics before and after thermal treatment (TT): saturation current density (JS), barrier height (Φb), ideality factor (n) and series resistance (RS), after applying I–V and Cheung’s methods.
Table 3. NiO:N/m-TiO2/c-TiO2/FTO diode characteristics before and after thermal treatment (TT): saturation current density (JS), barrier height (Φb), ideality factor (n) and series resistance (RS), after applying I–V and Cheung’s methods.
JS (A)RS (Ohm)nΦb (eV)
Before TTAfter TTBefore TTAfter TTBefore TTAfter TTBefore TTAfter TT
I–V method5.0 × 10−92.8 × 10−108.5 × 1021.4 × 1044.64.40.910.99
Cheung’s method1.5 × 10−61.9 × 10−77.2 × 1023.0 × 1037.68.40.770.82
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Aivalioti, C.; Papadakis, A.; Manidakis, E.; Kayambaki, M.; Androulidaki, M.; Tsagaraki, K.; Pelekanos, N.T.; Stoumpos, C.; Modreanu, M.; Crăciun, G.; et al. Transparent All-Oxide Hybrid NiO:N/TiO2 Heterostructure for Optoelectronic Applications. Electronics 2021, 10, 988. https://doi.org/10.3390/electronics10090988

AMA Style

Aivalioti C, Papadakis A, Manidakis E, Kayambaki M, Androulidaki M, Tsagaraki K, Pelekanos NT, Stoumpos C, Modreanu M, Crăciun G, et al. Transparent All-Oxide Hybrid NiO:N/TiO2 Heterostructure for Optoelectronic Applications. Electronics. 2021; 10(9):988. https://doi.org/10.3390/electronics10090988

Chicago/Turabian Style

Aivalioti, Chrysa, Alexandros Papadakis, Emmanouil Manidakis, Maria Kayambaki, Maria Androulidaki, Katerina Tsagaraki, Nikolaos T. Pelekanos, Constantinos Stoumpos, Mircea Modreanu, Gabriel Crăciun, and et al. 2021. "Transparent All-Oxide Hybrid NiO:N/TiO2 Heterostructure for Optoelectronic Applications" Electronics 10, no. 9: 988. https://doi.org/10.3390/electronics10090988

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
