State of the Art of Urban Smart Vertical Farming Automation System: Advanced Topologies, Issues and Recommendations

Institute of IR 4.0, Universiti Kebangsaan Malaysia (UKM), Bangi 43600, Selangor, Malaysia
Industrial Engineering and Automotive, Campus de la Dehesa de la Villa, Nebrija University, Calle Pirineos, 55, 28040 Madrid, Spain
Author to whom correspondence should be addressed.
Electronics 2021, 10(12), 1422;
Received: 11 May 2021 / Revised: 25 May 2021 / Accepted: 26 May 2021 / Published: 13 June 2021
(This article belongs to the Section Systems & Control Engineering)


The global economy is now under threat due to the ongoing domestic and international lockdown for COVID-19. Many have already lost their jobs, and businesses have been unstable in the Corona era. Apart from educational institutions, banks, privately owned institutions, and agriculture, there are signs of economic recession in almost all sectors. The roles of modern technology, the Internet of things, and artificial intelligence are undeniable in helping the world achieve economic prosperity in the post-COVID-19 economic downturn. Food production must increase by 60% by 2050 to meet global food security demands in the face of uncertainty such as the COVID-19 pandemic and a growing population. Given COVID 19’s intensity and isolation, improving food production and distribution systems is critical to combating hunger and addressing the double burden of malnutrition. As the world’s population is growing day by day, according to an estimation world’s population reaches 9.6 billion by 2050, so there is a growing need to modify the agriculture methods, technologies so that maximum crops can be attained and human effort can be reduced. The urban smart vertical farming (USVF) is a solution to secure food production, which can be introduced at any adaptive reuse, retrofit, or new buildings in vertical manners. This paper aims to provide a comprehensive review of the concept of USVF using various techniques to enhance productivity as well as its types, topologies, technologies, control systems, social acceptance, and benefits. This review has focused on numerous issues, challenges, and recommendations in the development of the system, vertical farming management, and modern technologies approach.

1. Introduction

In the 21st century, urbanization will be faster, and the population will reach 6.3 billion by 2050. 67.2% or 6.5 billion of these, are expected to live in urban areas [1]. To feed this growing, increasingly urbanized population, the United Nations estimates food demand needs to rise by 70% [2,3]. Rapid changes in urban built-up areas and skylines in providing buildings and infrastructures to cater to the city center’s larger population have altered the urban climate into unhealthy living conditions. This situation threatens the demand for the basic needs of urban dwellers for a livable urban living environment. Furthermore, a larger urban population also demands a fresh and good quality food supply [4]. Urban smart vertical farming (USVF) is one of the potential solutions to help societies meet this elevated demand without additional farmland [5,6,7]. Figure 1 shows the statistical data about the use of vertical farming (VF) market in the world 2019 and 2025 respectively. In recent years, the global VF market has been increasing steadily as population sizes grow and urban living becomes more common in urban cities. The VF industry reached some $4.4 billion in 2019, but the market size is estimated to rise to $15.7 billion by 2025. The opportunity to utilize vertical space and reduce the need for additional land and building activities adds to vertical agriculture’s attractiveness in large cities. Due to the popularity of organic food, VF demand is expected to increase on a large scale [8].
Agriculture is humanity’s oldest and most important economic activity, providing us with essential food, fiber, feed, and fuel [9,10]. As the world’s population continues to rise while land resources remain constant, there is an increasing need to improve agricultural productivity, which can be achieved by a smart agriculture implementation approach [11,12,13]. Each crop is unique and has its requirement for growth. The basic requirements for the crops grown are suitable temperature, humidity and soil moisture contents [14,15]. So it becomes a repetitive process for farmers to provide an ideal environment for the crop chosen.
Nowadays, automation plays a vital role in every field of life. Some examples are manufacturing, transportation, agriculture, utilities, defense, facility operation [16,17]. The benefits of automation can be applied in water and wastewater, oil and gas, electric power and telecommunication systems. Automation is generally used in many fields because it reduces human effort, is easy to handle, and is more effective and efficient. By the name of agriculture, farm automation can automate most of the agriculture fields’ processes, such as controlling watering systems or flow control and moisture control [18,19]. Similarly, it can build a robot/drone for spraying pesticides and plowing [20]. Harvesting machinery is also used for such purposes: a user-friendly farm automation system, easy user control for a layman, control water, plant health condition, and crop production [21].
In terms of human health, the World Health Organization estimates that more than half of the world’s farms still use untreated animal waste as fertilizer, which attracts flies and may contain weed seeds or diseases that can be transmitted to plants. VF has the ability to produce crops throughout the year, with greater control over food safety and biosecurity, while also lowering inputs such as water, pesticides, herbicides, and fertilizers [7]. Food protection is a major concern of our day, as there have been several incidents of events around the world resulting in food recalls due to bacterial infectious diseases, resulting in billion-dollar losses. After the crop has been picked, the washing of field-grown items poses a further risk of infection from various bacteria and pathogens. This stage, on the other hand, has the potential to contaminate the entire manufacturing process [22]. While the whole world is badly affected by COVID-19, the terrible clutches of natural disasters still plague many people worldwide. All scientists’ projections show that the number and severity of climate-related disasters are increasing due to climate change, which is cutting off the COVID virus infection and public health response in the wake of the epidemic. The compound risk arising from the perfect combination of corona and natural disasters has an unprecedented impact on economics. Multiple reports (e.g., global warming of 1.5 °C) have already indicated that one of the features of the 21st century will be deforestation, biodiversity loss, climate chaos, and global epidemics; COVID-19 might be the latest manifestation of this, which has pointed to the horrible meaning of ‘global economy crisis emergency’. Since COVID-19 will have a long-term impact, now is the time to prepare to introduce USVF.
USVF should become an opportunity for urban dwellers to producing their food, despite the limited agricultural land in the city center. Integration of any available potential spaces inside and outside the building by adaptive reuse and retrofit as part of the urban farming (UF) technology should be taken seriously and fully utilized. The design should consider less human intervention in operation due to the hectic life of urbanites. An application of the Internet of things (IoT) can be incorporated into monitoring and controlling in the USVF system [23,24]. Thus, the UF technology can have bigger involvement and contribution of urban dwellers. Besides producing their foods, it contributes to the improvement in a healthy living environment and on urban microclimate. UF offers an once-in-a-lifetime chance to grow food on already built soil, maximize domestic food production, and reduce food travel distances.
This study will include an in-depth examination of the philosophy of USVF as a means of enhancing efficiency, including its forms, topologies, technologies, control structures, social acceptance, and benefits. This review concentrated on a variety of issues, challenges, and recommendations related to the system’s growth, vertical farming management, and modern technology approach. The importance of USVF how it plays a vital role in the economy serve as the starting point for this review. As the world’s population is growing day by day, there is a need to modify those orthodox agriculture methods to fulfill the increasing demand for food. This modification can be done by automating the agriculture farm. This idea of agriculture farm automation wants to control water consumption, the moisture level of soil and water flow, topologies, technologies, control systems, social acceptance and enables an agricultural business to be more productive, efficient and profitable.

2. Types, General Structure and Materials of Vertical Farming

Vertical farming (VF) is a practical technology through which large quantities of food crops and medicinal plants can be produced in a very small space only with the help of advanced technology [25].

2.1. Types of Vertical Farm

VF is practiced in about 13 different ways in the modern world and each way is so technologically advanced that it is enough to revolutionize agriculture [26]. The following section represents a few types of VF utilized for smart UF that are rapidly evolving, diversifying, and improving in the future of agriculture [7].

2.1.1. Hydroponics

Hydroponics is a system that can be called a key part of VF [26,27]. Very slowly, this system has gained popularity. Hydroponics is an approach to developing vegetation barring soil. Instead of having their roots supported and nourished by soil, the plant is often irrigated and supported with the aid of an inert developing medium like cocopeat and is fed through nutrient-rich water that is indispensable to maintain plant growth. Hydroponic structures use 60–70% much less water than regular conventional agriculture [28,29]. In this method, the plant roots are immersed in the mixture of essential nutrients of the plant instead of the soil, in which case the nutrients have to be mixed in the right proportions. Figure 2 shows the structure of the hydroponics VF in Sweden [30]. Hydroponic VF provides many advantages over traditional agriculture, including more productive use of water and soil, and a substantial reduction in transport costs is carried out in urban areas. However, this paradigm must be intelligently incorporated into current urban infrastructure in order to become economically sustainable.
Hydroponics has the potential to consume more electricity than most greenhouse generation processes. Although hydroponics consume more energy than conventionally grown vegetables and herbs, they consume fewer scarce resources such as water, nutrients, arable land, and pesticides. Hydroponics provides an incentive to grow crops in urban areas, thus creating employment and strengthening the local food supply [31,32]. Operating costs can be reduced by using LEDs with increasing performance, sensor devices that modulate light to the optimum level needed by the plants, combining indoor farms with green energy sources such as solar and geo-thermal, and energy-efficient architectures [33].

2.1.2. Aquaponics

The technology of aquaponics is very similar to that of hydroponics but convenient, in which both plants and fish can be grown in the aquatic environment [34]. In this case, the aquatic ecosystem gets a different dimension that produces plants without soil and shallow water. Aquaponics integrates fish production into the hydroponic developing scheme. More precisely, it makes use of fish waste as a nutrient supply for the plants after treatment, running as a closed-loop ecosystem for indoor farming [28]. Figure 3 shows a schematic diagram of the aquaponics VF [7]. Aquaponic systems offer many advantages, such as faster growth rate, maturity and yields of crops, improved food security and food sovereignty, decreased growing area, reduced water stress in hot weather, and no need for continuous maintenance.

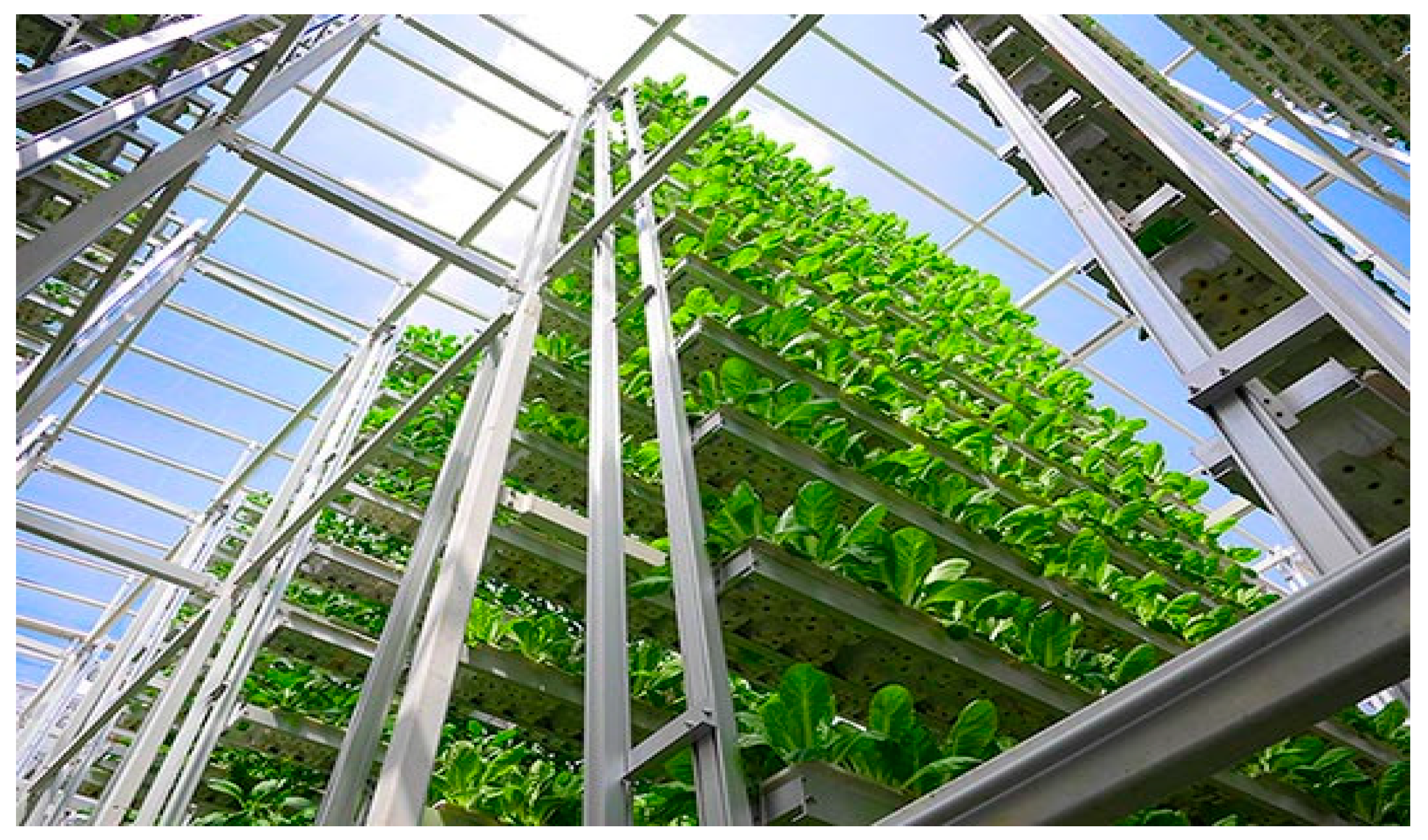

2.1.3. Skygreen

In this way, VF was introduced by a company called Skygreen in Singapore, which brought about a groundbreaking revolution in the field of vertical agriculture [7]. The VF system from Skygreens is made up of rotating tiers of forming troughs connected by an A-shape aluminum frame. The troughs spin around the aluminum frame to ensure that the vegetation receives consistent amounts of daylight, drainage, and nutrients as they pass through the structure’s unique features. This is the first ultra-low-carbon hydraulic firm, in which the plants produced on the running shelf continue to rotate throughout the day. In this way, all the plants can get water and light equally [26]. Figure 4 shows a diagram of Skygreen VF technology in Singapore [29]. Skygreen VF technology provides numerous advantages, including the use of green urban technologies to grow healthy, fresh, and tasty vegetables with the least amount of soil, water, and electricity.

2.1.4. Skyfarm

London-based buzzers stark harbor, with their partners’ help, built a wind-powered VF tower, which they exhibited at the 2014 world agriculture festival [7]. The doctrines of aquaponics and hydroponics were used to some extent in this process. In addition to these processes, there are other methods, such as bowery, zip grows, cubic farming, modular farms, vertical crop, plant shaper, AeroFarms [35]. Another Skyfarm proposed for downtown Toronto, Canada, is a 59-floor vertical, and the tower embraces the hydroponic technique for developing food, the use of a location totaling about 743,224 m2 (8,000,000 ft2). It is estimated that the Skyfarm will produce the equal of a thousand-acre rural farm, feeding about 35,000–50,000 humans per year [7]. Figure 5 shows a concept of vertical Skyfarm technology in London [17]. Vertical Skyfarm technology has a number of advantages, including the ability to produce fresh fruit and vegetables indoors in a city while avoiding the use of fossil fuels for ploughing, planting, and harvesting. Vertical Skyfarms, on the other hand, would reduce air pollution and climate-change-causing carbon dioxide emissions while still creating healthier environments for humans and other species.

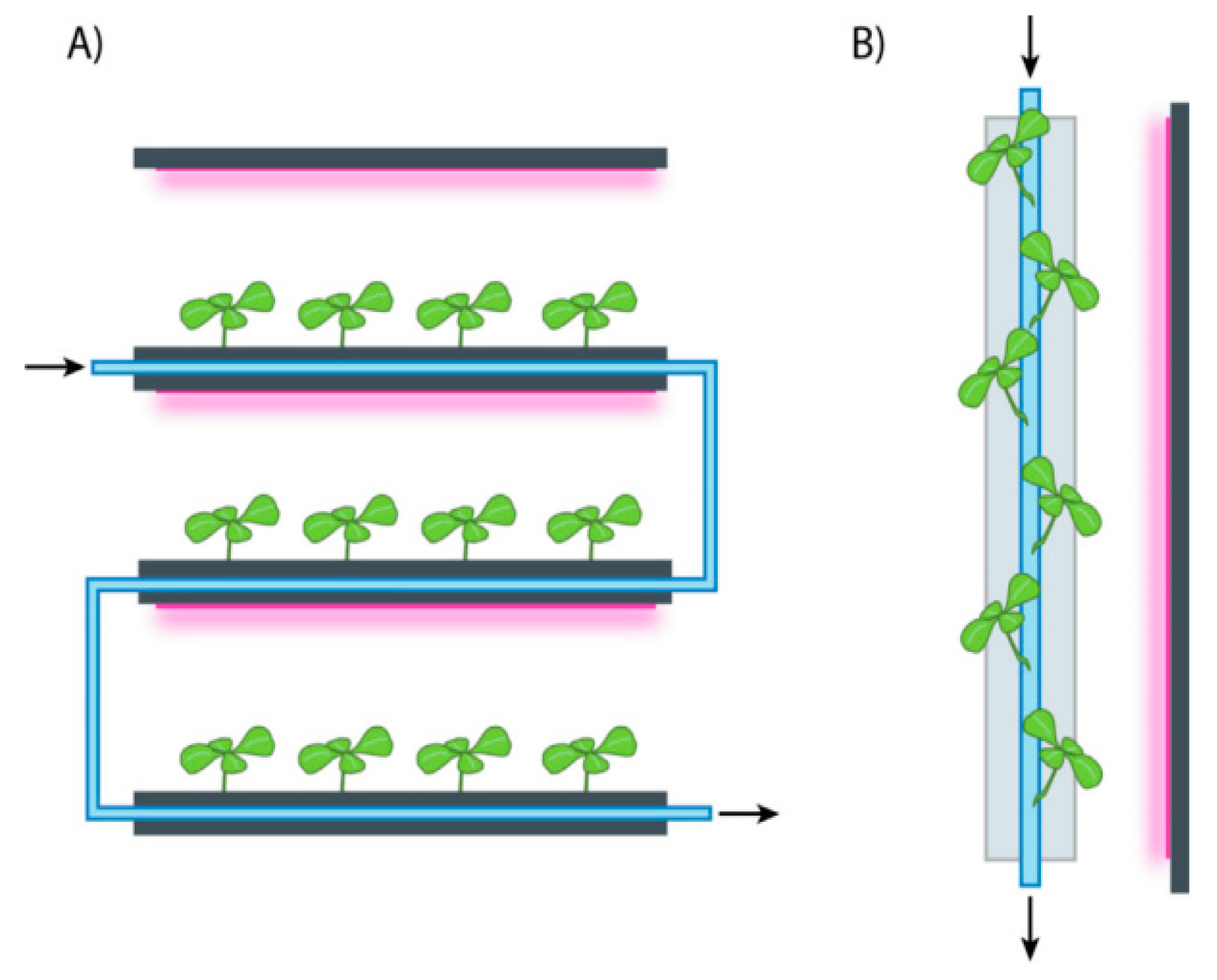

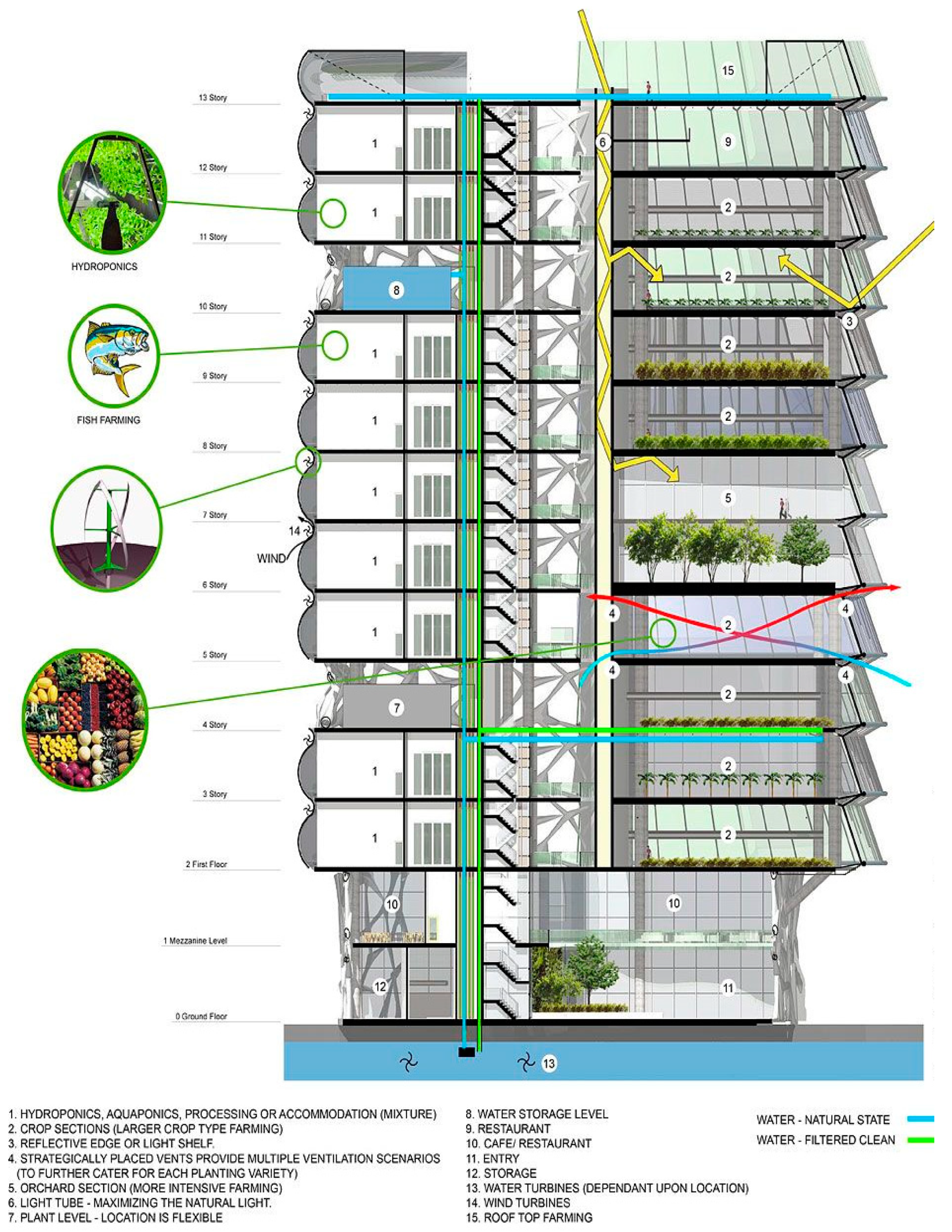

2.2. General Structure of Vertical Farm

VF is a type of high-quality UF yield production that comprises bringing manifests in controlled conditions and utilizing soilless development techniques in multi-story structures inside the urban framework [36,37,38,39,40]. The work in [37,40] reported a technique to deal with tending to the future pattern of reducing farming assets, evolving atmosphere, and different elements, including VF’s idea. The authors in [38,39] suggested a VF has the efficiency for food production lasting through the year in an air-conditioned competence, reducing carrying expenses, with more prominent control of sanitation and biosecurity, and generously diminished contributions regarding water gracefully, pesticides, herbicides, and composts. In [40], the authors suggested the validity of VF atmosphere reasons which plant development inside the building structures includes less encapsulated energy and deliveries less contamination than some horticultural practices on normal land. The study in [41,42] proposed utilizing high rises buildings to develop food called Skyfarms or yield production factories. The work in [43,44] showed a method is to use a solitary tall glasshouse plan with numerous racks of yields stacked vertically. It is a method of farming initially but different from the other traditional methods. It is an expansion of the greenhouse aquaculture cultivating model and addresses issues identifying with the utilization of soils, for example, the prerequisite for herbicides, pesticides, and manures. Figure 6 shows the structure inner of the USVF.

2.3. Material and Components of Vertical Farm

Commercial urban agriculture can be made more sustainable because it can reduce irrigation water waste by 40–60% and increase yields by 3–4 times when hydroponically nutrient-rich water is stored and reused in automatic and climate-controlled buildings [45,46]. Although the use of this technology in indoor VF will be more costly due to the use of artificial materials, the cost will be higher due to the use of local materials. However, in [47], the authors indicated it is also possible to make commercial UF sustainable and profitable by using smart technologies.

2.3.1. Soil

Soil plays a vital element in VF topology in terms of its measurements, quality for each tree. In [48,49], the authors proposed building integrated farming that comprises adjusting soil-less development methods, such as hydroponics. It utilizes on top of such that abuses collaborations between the building and the farming performances. The study reported in [50] presented low-tech alternatives such as rooftop open-air on-soil farming. The work in [51] addressed a hydroponic agriculture system to manage adequate products to optimize the use of soil that water requires 10.71 m2 each day. However, in [51,52], the authors proposed in VF using hydroponics method where no utilizes of soil which widely used in advanced greenhouses worldwide.

2.3.2. Lighting

Lighting plays an important role in making food for a crop in VF [53]. In the VF system, since the trees are one on top of the other, sunlight cannot reach the trees in the middle of the day. However, to solve this problem, the trees should be kept in a place where they get enough sunlight at the beginning of the day and artificial light all time. The conventional light-emitting diode (LED) technologies produce 28% efficiency. However, making an indoor agriculture system cost-effective LED requires more efficiency, at least around 50–60% [54,55]. The work in [55] proposed two techniques LED or high-pressure sodium, to overcome such lighting issues to grow better crops in VF. In [56], the authors indicated the application of LED as greenhouse lighting, and it becomes popular in VF in terms of its lower energy requirements, long lifetime, low cost.
Plants require blue light with a wavelength of 610–720 nm and red light with a wavelength of 400–520 nm. The study in [57], evaluated the use of LEDs in place of natural light to illuminate the plant. The findings indicated that the LED light would assist plants in growing with the used of 3:1 ratio of red and blue LED light to produce a reddish purple color. The perfect color combination for plants and vegetables has been determined to be blue and red. This composition is ideal for promoting rapid plant growth. The combination of 23% blue and 77% red produces optimal plant growth performance [58].

2.3.3. Solar PV

Solar PV is a farming method but different from the other traditional methods such as rooftop VF. It is gaining more popularity in terms of enormous used solar which is available in the urban area [59]. Usually, the crop growth boosts up in the VF by photosynthetic active radiation, and it is not enough Solar power must be collected by a collection of mirrors from the city’s structures to reduce the need for supplemental artificial light [60]. As a result, VF is looking for alternatives by looking at solar PV as a source of energy.

2.3.4. Water

In agriculture such as VF, water is used to produce fresh crops. The use of agricultural water makes it possible to produce crops, vegetables. The study in [61] addressed a VF technology that requires 70% less water and the amount of water required is also recyclable. Historically, users of traditional agricultural systems were expected to manually check the water level in their water tanks. Moreover, uncontrolled water use leads to wastage of water, which ultimately causes water scarcity to terminate. In [25], the author indicated that showers and washing hand water could be used by filtered other than rainwater in the smart VF system, which may help optimize water use. In [61,62], the authors indicated through the geoponics method, water utilizes less than 70% in VF, while the hydroponics technique still using 70% water. Water automation systems can be used in VF technologies to reduce human effort and error. Additionally, users can use an Android program to turn on and off the water pump. This is an effective and cost-effective method of minimizing water waste and human labor. Additionally, [62] addressed an integrated device built on an Android application that controls and tests the water pump and water level in smart farming (SF).

3. Technologies in Smart Vertical Farming

VF is a state-of-the-art technology that has given an open scope to modern farming in a rural environment and range [25,63]. The aim of this study, sincerity towards USVF and the use of technology, have invented this new type of agricultural thinking. The agriculture industry could be further developed by employing new technologies in the era of modernization.

3.1. Sensors Technology in USVF

The agriculture field in the world is progressing day by day. For six decades, automation played a vital role in industries to increase their productivity and decrease their expenses. In the last two decades, agriculture has begun to follow a parallel pattern, using GPS and sensor-based devices [21,64,65]. Agriculture sensors are the sensors used in smart VF. These sensors provide farmers with data that enables them to track and optimize crops in response to changing environmental circumstances [66]. These sensors are integrated into weather stations, drones, and robots used in the agriculture industry [67]. To realize VF, technology makes extensive use of sensors and actuators (dubbed smart equipment) that communicate with other devices autonomously. This section provides a detailed discussion about sensor types and uses in VF applications. Figure 7 shows the block diagram of simple sensors and smart sensors.

3.2. Sensors and Actuators Type in Smart Vertical Farm

SF is the key to developing sustainable agriculture. As a result, USVF is a cutting-edge agricultural technology that significantly increases the yield obtained from traditional agriculture. The USVF is moving toward becoming a quickly developing farming system in the future. Additionally, the SF system entails integrating information and communication technology into agricultural machines, vehicles, and sensors. A sensor is a system that detects and transmits an impulse in response to a physical stimulus such as heat, illumination, sound, vibration, magnetism, or a specific motion. By the name of VF automation system using different types of sensors, it can automate most of VF processes, such as we can control watering system or flow control, the moisture level of soil, crops health [68]. However, existing agriculture technology faces challenges in growing crops due to various issues, such as unstable environmental situation, limitation of more food, safety, reliability, cost, life cycle, and overall management [69,70,71]. Therefore, advanced USVF technology sensors generally used to reduce human effort, easy to handle, more effective and more efficient. Figure 8 shows the sensors and actuators types which utilize in SF. Sensors and actuators are used in SF to provide autonomous services. Sensors are directly connected to environmental parameters to capture data of interest, such as shifts in natural light and information about the increasing environment, such as temperature and ph. a The actuators are by implication connected to the parameter. The actuator regulates the operation of the control equipment, which includes a ventilation fan, an air cooler, a refrigerator, a pressure pump, a humidifier, and a lamp. The effect of the actuator’s interaction with a number of environmental parameters influences the actuator’s ability to maintain an optimum condition by regulating the machinery [72].

Soil Sensor in Agriculture

Currently, sensor technology plays an important role in USVF. Soil sensors have become more compact, durable, fast, reliable, energy-efficient, wireless, and intelligent [73,74]. Figure 9 shows a block diagram of soil and plant sensors in USVF.

Texture Sensor

In agriculture, the texture sensor is used to determine the soil surface, bulk density (compaction), and variability in soil depth (depth of topsoil, depth to hardpan). The study in [75] reported various technical types of equipment available for on-farm used to measure soil electrical conductivity and soil texture. In [76], the authors indicated most soil texture sensors provide only indirect data on soil status and soil electrical conductivity.

Sensor for Organic Matter

Organic matter is the portion of soil that is composed of plant and animal residues at different stages of decomposition, soil organism cells and tissues, and substances synthesized by soil species. The work in [77] suggested that soil organic matter sensors could be used to track a variety of beneficial effects on the physical and chemical properties of the soil, as well as the soil’s capacity to provide regulatory ecosystem services. The existence of soil organic matter sensors, in particular, is regarded as important for soil functions and consistency. The study in [78], soil organic matter sensors track soil functioning, including changes in soil composition, accumulation, water preservation, soil fertility, pollutant absorption and retention, buffering capability, and nutrient cycling with storage. In [79], the authors state that soil organic matter sensors used to select sustainable soil to produce urban VF crops.

Moisture Sensor

The device used to measure soil moisture or any other media is known as a moisture sensor [80]. Mostly, the humidity sensor and the moisture sensor are the same, but they are different in the sense that humidity sensor measures water content in the atmosphere or our surroundings, but moisture sensor measures the water content in a specific medium such as soil, sponges [81]. Therefore, it is perfect for build an automatic watering system or monitor the soil moisture of smart VF. For measuring moisture of content, there are two methods as shown in Figure 10.
The indirect method is a technique used to measure soil moisture. In this technique, we estimate the soil moisture by a calibrated relationship by some other measurable variables such as current and resistance [82]. These methods are less accurate than the direct method but are less time-consuming. Their suitability depends on several parameters such as cost, accuracy, installation durability [83]. This volumetric method measures the volume of the water content in the soil. It can be used to measure the soil saturation (i.e., the fraction of the total volume of the soil which is filled with the soil aqueous solution). It can be used to determine the relationship of moisture at depth to the moisture at the unit surface area. This method is also comparable with other parameters such as precipitation, deep drainage, and transpiration.

pH Sensor

A pH sensor is an electronic device that utilizes to measure acidity, power of hydrogen value, and alkalinity of substances. The use of pH sensors plays a vital role in the industry, agriculture, manufacturing, pharmaceutical, etc. [21,84,85]. In [84,86], the authors indicated using a pH sensor to find the nutrient level of agriculture soil that connects to the Arduino microcontroller, reducing fertilizers used in smart agriculture. The authors also addressed pH sensors to collect and monitor real data from different soil of SF, which save to cloud server. However, the unnecessary growth of the plant in the agriculture farm does not grow well for crops. Therefore, to overcome such a problem, pH sensor plays a vital role in SF.

Sensor of Electrical Conductivity

The electrical conductivity sensor is largely used in SF to measure the soil solute concentration [87,88]. However, there are still some limitations to use it properly in the SF. In [88], the authors addressed the soil contains some water and salt that harmful to grow up crops, which can measure using an electrical conductivity sensor based on Faraday’s law. The study in [89] showed an electrical conductivity sensor used to overcome soil limitations, such as measuring soil pore water, reducing cost and saving working time.

Temperature Sensor

Usually, temperature sensors are used to measure soil temperature in the farm plant [90,91]. The work in [90] indicated the importance of plant growth based on temperature control processes such as photosynthesis, transpiration, absorption. In [92], the authors proposed an aeroponic system in agriculture, which indicated plant growth and development through temperature. Therefore, the temperature sensor plays an important role to measure soil temperature, which increases the efficiency of plant growth and more crops.

Electromagnetic Sensor

Electromagnetic sensors calculate the potential of soil particles to conduct or produce electrical charge using electric circuits [73,93]. As these sensors are used, the soil is now an electromagnetic loop, and any changes in local conditions have an instant impact on the output captured by a data acquisition system. In [93], the authors indicated electromagnetic sensors for soil measure have become smaller, more rugged, faster, more accurate, more energy-efficient, wireless, and smarter.

3.3. Smartphone Sensor Technologies in Smart Farming

Telecommunications advances are allowing the rapid and more reliable delivery of sensed data on a global scale. A sensor is a device that detects and reacts to an electrical signal. Traditional phone sensing systems need additional infrastructure, which is unaffordable to the majority of consumers. Smartphones have advanced at a breakneck pace in recent years, and they have evolved into an integral part of everyday life. The sensors embedded in them allow a variety of mobile application, which are assisting and transforming our way of life. Mobile sensors technology can enhance UF by improving connectivity, increasing the flow of information, ensuring traceability for large buyers, and creating economic opportunities [94,95]. This section illustrates concepts of mobile sensors technology in SF that are currently using in the smartphone and comparison among several research outcomes.
Sensors are a tool that measures a physical amount and converts to a signal which can be read and utilized by other devices. Most of the mobile sensors are equipped on smartphones. Numerous forms of sensors are available nowadays, and several common smartphones include accelerometers, GPS, illumination sensors, temperature sensors, gyroscope, and barometer. These sensors evolved into a high-quality database for tracking many facets of a user’s everyday activities. Three types of sensors are installed in smartphones: motion sensors, ambient sensors, and location sensors [94]. The following Table 1 summarizes and illustrates a set of popular sensors found in today’s mainstream smartphones. The first category, motion sensors such as accelerometers, gyroscopes, gravity sensors, and rotational vector sensors, provides acceleration force and rotational force measurements. Environmental sensors, on the other hand, provide observations of the ambient environment. This includes measuring the ambient air temperature with a thermometer and the atmospheric pressure with a barometer, as well as lighting with a photometer. Place sensors, on the other hand, provide information about the physical location of the system. Magnetometers, GPS, and orientation sensors are examples of location sensors [94].

3.3.1. Accelerometer Sensor

Accelerometer sensors are largely used in the SF to predict and assist with necessary maintenance [96,97]. The study reported in [96] presented accelerometer sensor plays an important role in monitoring the conventional use of equipment in the SF. In [98], the authors indicated accelerometer sensors detect running components or motor’s health conditions through motion, speed, vibration inconsistencies. Therefore, users can easily track the component health condition using an android application in SF.

3.3.2. Gyroscope Sensor

A gyroscope is a system that uses the theory of conservation of angular momentum to determine or retain orientation. Nowadays, gyroscope sensors are used in a variety of areas, including science fiction and mobile devices [94,99]. In [94], the authors indicated a gyroscope sensors application to detect conventional equipment rotation in SF using an android phone. However, the drawback of this gyroscope sensors application in smart VF difficult to implement in terms of requiring a complex mathematical model to conducts a signal.

3.3.3. Light Sensor

The term “smart agriculture techniques” refers to the practice of using a sensor system to regulate the amount of light available [100,101]. The light sensor is a semiconductor chip that detects the presence or absence of light and darkness. Photoresistors, photodiodes, and phototransistors are all examples of light sensors. The study in [100] proposed artificial lighting as a suitable option to confirm most of the time availability of light for the healthy plant in smart agriculture. However, the drawback of artificial lighting in the SF fault finds out and unnecessary light in the daytime. Therefore, to detect the fault and On/OFF artificial light system in the smart farm using an android phone application which reduces the human effort and optimize cost [102].

3.3.4. Magnetometer Sensor

Basically, magnetometer sensors are used in SF to measure the direction of the workers, such as walk forwards, walk backward, run, harvest fruit. The advantages of using the sensors by mobile phone which help farmers with decision-making, enabling them to have a deeper, richer knowledge about their farms [94].

3.3.5. Proximity Sensor

The proximity sensors utilize to monitor crop flow during collection data in VF [94]. In [71], the authors usually indicated crop plant temperature control from a heat source measured by a proximity sensor in SF. The study in [94,103] reported proximity sensors are utilized to measure grain yield in the agriculture farm, which helps to reduce human effort, measure accurate crop, save time, and can work in harsh environmental conditions. However, proximity sensors’ drawbacks can detect only the metallic target, and the operation range also limited.

3.3.6. Humidity Sensor

Nowadays, the demand for humidity sensors is gaining popularity in SF [104,105]. The work in [105] addressed humidity sensors play an important role in SF, such as tracking the water level of plants, environmental monitoring, which suitable time for proper crop selection. The authors also indicated the humidity sensors are steady and flexible at measure bio-interface. Nevertheless, challenges still occur for the awareness of capable and wide-scale manufacture of adjustable humidity sensors for bio-interface applications. In [106], the authors indicated humidity sensors increase their demand in agriculture farming by controlling the humidity created by porous materials, namely metal-organic structure due to their large porosity and tunable shape. However, the drawback of this metal-organic structure is its response time is high and displays a narrow sensing range.

3.3.7. Carbon-Based Sensor

The carbon-based sensor has many benefits as opposed to other types of sensors. The carbon-based structures used in sensor applications are carbon nanotube (CNT), nanodiamond (ND), fullerene (FLN) and graphene (GPN). Due to their superior electrical, thermal, mechanical, and chemical properties, nanodiamonds, fullerenes, graphenes, nanotubes, and hybrid structures have been widely used. Carbon nanostructures, as described in [107], exhibit a high degree of selectivity, especially when functionalized. Carbon nanostructures have grown in popularity as gas sensor applications due to their promising structure, which enables gas detection and quantification. The high surface-to-volume ratio and hollow composition make this material suitable for gas adsorption and desorption. The identification and quantification of polluting gases, especially hydrogen sulfide (H2S), carbon monoxide (CO), carbon dioxide (CO2), nitrogen oxide (NOx), ammonia (NH3), and methane, is one of the primary applications of carbonaceous materials as gas sensors (CH4). The special properties of nanomaterials, such as their compact scale, large surface area, and reactivity, make them ideal for use in agriculture. CNTs (carbon nanotubes) are primarily used in agriculture for germination rate, initial crop production, pesticides, and biosensor diagnostic tools and evaluation [108]. Nanotechnology is important in the purification of water. Carbon nanotubes can be used to purify wastewater [109,110]. Adsorption and degradation/detoxification are the primary strategies for removing contaminants from samples using carbon nanotubes. Additionally, not only is it necessary to remove toxins from various environmental compartments, but it is also necessary to control pollution levels. Carbon-based nanomaterials can be used to create novel, highly effective biochemical sensors for the detection of chemical compounds at extremely low concentrations in a variety of environments. In [111], the authors stated that carbon-based nanomaterials will account for 40% of all nanotechnology contributions to agriculture, both as additives and active parts. The bulk of these implementations are currently in their infancy, and this section will highlight some interesting methods.

3.4. Sensors Technology in Farming to Monitoring of the Healthy Growth of Crops

The proper growth of plants is important to enhance the quality of the crop in the smart VF. The economic and benefit depend on the proper healthy growth of the plant. However, there are some essential elements that are required for the growth of plants, such as crop life, nutrients, crops health condition, and micronutrients [112,113]. Therefore, monitoring the health condition of each plant of agriculture farming is essential [114]. Therefore, different types of sensors utilize to overcome such issues in smart VF. Table 2 shows the summary of the method used for crop health growth monitoring using a different type of camera model sensors in SF. This list consists of various types, brands, model numbers and application in SF. The sensor application in SF includes counting faster crop damage accuracy, monitoring and detecting defect crop growth, and diagnosing the nitrogen of crop and tracking leaf damage from the insect.
In [115,128] authors proposed Canon PowerShot SX20 and Canon PowerShot SX30 sensors in farming applications because of cheap, easy to manage, and potential versatility to count faster crop damage accuracy. The study in [116,122] reported a Canon EOS REBEL T2i and Sony DSC-W80 sensors in agriculture application used to monitor and detect crop growth. However, these sensors’ drawback is that image quality is still inferior and not performing well in low light. On the other hand, its advantage performs well in a suitable lighting atmosphere and low cost. In [117,121], the authors reported visible spectrum cameras and 8 MP camera sensors to measure the early stages of crops grown in SF applications. The merit of such sensors might work in various lighting environments with strong controlling efficiency and robustness. Therefore, it is suitable for VF applications. The study reported in [119,124] proposed high-resolution and Raspberry Pi camera sensors in agriculture applications to diagnose the nitrogen of crops and track leaf damage from insects. It is suitable in VF terms of its longevity, fast counting capability, and continuous act without damage. The study in [120,123] addressed E450 Olympus and floral reflectance sensors in agriculture application to observation insects on each leaf and plant growth. The sensors gain popularity in terms of simple to use, deliver robust real data in a short time, and strong controlling capability. In [125,137], the authors reported an inverted microscope and plant village sensors in SF application to automatically monitor health conditions in plants, which is easy to implement, no need complex mathematical model. The authors in [138,139,140] reported DFK 23GM021, Hyper HAD CCD, and Logitech digital webcam sensors in agriculture application to monitor selecting crops in a greenhouse environment and various weeds automatically. However, those sensors’ limitation is the accuracy required to be enhanced in terms of data delivery time, efficiency, and cost. Therefore, to overcome these issues optimization techniques can be utilized.
The study in [126,141] reported 0.9R-G and JAI AD-130GE sensors in agriculture application for proper identification of crops cherries and sweet pepper automatically in the USVF. However, the challenges are its complexity, cost, and overall efficiency still very poor. In [127,142,143], the authors proposed a camcube 3.0, UniflyM216, and MV-VDM033SM/SC sensors in agriculture application to harvest the crops such as apple, carrot automatically by a robot in SF. The approach has high efficiency, low cost, and high precision for the overall system compared to conventional methods. However, the main limitations are its monitoring accuracy, such as nighttime, tracking the exact position of crops. In [129,131,132], the authors proposed Monochrome CCD, SONY NEX5N, and SONY DSC-W530 sensors in agriculture applications to detect crop growth such as tomato, potatoes. Therefore, the main advantages of such sensors in USVF overall efficiency, large accuracy, low error, and easy maintenance. In [133,144,145], the authors proposed an unmanned aerial vehicle (UAV) with geolocation, a UAV platform equipped, quadrotor UAV-RGB, senseFly eBee with RGB and CIR sensors in agriculture application to detect height, biomass automatically of crop plants. Therefore, the main advantage of such sensors in SF is that they are stable, perform well, have small defects, are easy to adapt to new technology, and they have a simple operation.
Figure 11 shows the smartphone applications in agriculture and the camera model sensors used in VF. The smartphone application for farming, such as data gathering, farming calculator and news and weather information was included to monitor and enhance the quality of the crop in the smart VF. The added camera model sensor technology in farming used to monitor the healthy growth of crops such as E450 Olympus and Canon PowerShot SX20 counts faster crop damage accuracy and observes insects on each leaf.

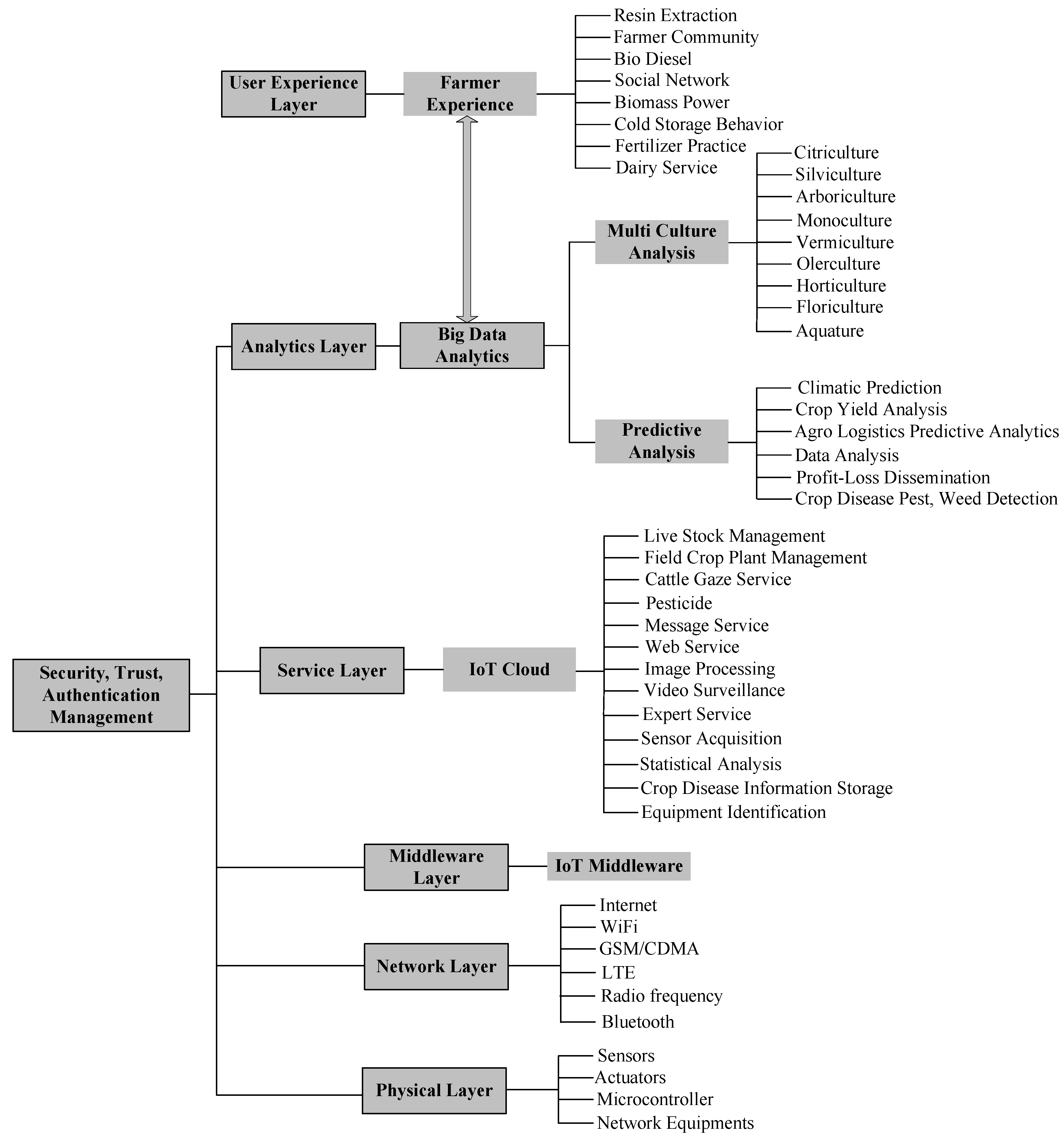

4. IoT Framework on Smart Farming

With the development of technology and knowledge-science, human thought-consciousness is developing. As a result, everything is changing. The revolutionary development of life and human thought in the world over the last few decades is far more exemplary than the changes in the previous few centuries. The transformation of the agricultural sector, like all other sectors, is much more pronounced. Information-driven advances, when all is said in done, are rapidly progressing with the improvement of the IoT and may turn into a significant piece of things to come of farming [146,147,148]. All modern methods are now being followed to ensure more production on less land to meet the needs of the age, for example, IoT technology in USVF. In [149,150,151], the authors proposed an IoT a very modern technology in SF in which farmers can find out problems of yield, such as lacking water, crop productivity, yield weakness, and also provide quick solutions to such issues. In the study [152,153], authors reported a producing efficient yield controlling the atmosphere situation, soil preparation, crop monitoring by IoT. The study also indicated IoT delivers real-time sensing data which aids in efficient crop production.
Figure 12 shows details IoT based SF structure. The IoT-based SF framework consists of six interconnected sub-systems: a physical layer, network layer, middleware layer, service layer, analytics layer, and user experience layer [154,155,156]. The physical layer of SF is consists of various types of components such as sensors, actuators, controllers, switches, network gateways, routers, etc. The controller is an essential part of this layer which plays an important role in SF to connect network-related functionalities as well as other operations of sensors and actuators. The main feature of the network layer is capable of transferring root-level data from sensors which use different purpose in VF. The network layer is a vital technical layer for smart cultivating, which is important for sending specific information, network connectivity to the application layer. The network layer incorporates various types of wired and remote interfaces for associating the weeding machine, food harvester, and for correspondence of machines and sensors with cloud frameworks. However, the challenge of the network layer in SF where IoT generated a huge amount of data is not only the reason for storage or maintenance but also the reduction of network efficiency [157,158]. The middleware layer assumes an essential function to boost IoT security in SF. In [159,160], the authors indicated an IoT-based middleware acts as device controlling, setting management, sensation, platform ability, and surveillance relevant tasks. Middleware remains in the middle of the utilization layer and network layer which are capable of handling information and gives a combination for connection between these layers. However, the middleware layer includes safe and sensitive data storage, and data transfer over wireless is extremely difficult in IoT deployments. IoT cloud support service layer assumes a vital part in giving distributed storage, Software-as-a-Service (SaaS) to farming issues. Sensor information procurement, materials recognition, crop health condition data monitoring, factual investigation administrations are cleared to encourage the detecting, activating, and infection recognition operation [21,68,161]. The analytics layer’s aim is to ensure big data processing for crop production investigation yield efficiency based on environment condition. Another sensor-based IoT system for the analytics layer was presented in [162], which ensures crop implement fragmentation, compression, and a reassembly mechanism. However, the main drawback of the analytics layer in SF since its direct use on IoT devices is not viewed as sensible [149,163,164]. The user experience layer is developed to aid the purpose of farmer yield productivity, such as crop growth condition, efficiency, soil quality, and environmental situation. IoT plays a vital role to monitor, control, and deliver to farmers an overall situation of VF yield condition by different sensors. However, the main challenges still most of the IoT sensors power by the battery. Therefore, to overcome these issues, energy harvesting technology can be utilized to replace batteries.

4.1. IoT Impact on Smart Vertical Farming Applications

The current world is the world of information technology. Information technology services are essential to improve lives and build a sustainable world. That is why information technology-based SF can bring new possibilities for improving the livelihood of rural and urban people. Providing timely, up-to-date information, marketing, storage technology through the IoT, mobile, according to the needs of the farmers, will play an important role in ensuring food security and improving the fortunes of the farmers [165,166,167]. One of the features of the IoT is that it can adapt to the environment and collect information from the environment leading to the application of a variety of such technologies in agriculture. The study in [168] indicated IoT had enhanced the conventional approach of SF, for example, nanotechnology which enables the creation of small cheap and sensors for IoT application. The block diagram of agricultural trends in Figure 13 illustrates basic, low-cost technology relationships through VF, precision agriculture, automatic irrigation scheduling, plant growth optimization, farmland tracking, greenhouse monitoring, and crop farming process management [162,169]. The diagram of SF demonstrates the agriculture patterns accessible and low cost-effective interfaces via secured and faultless network across separate greenhouse, farmer, and field perceptions. Rural IoT systems that incorporate wireless devices allow real-time crop and animal monitoring. According to the figure, two sensor kits have been performed (Libelium Shrewd Agribusiness Xtreme IoT Vertical Unit and Edit/Plant Checking Sensor Pack), which measure soil moisture, leaf wetness, temperature, humidity, performance, and circulation. However, the MooMonitor sensor tracks the animal’s health, reproduction, nutrition, rumination, and rest. Agriculture servers, gateways, and databases all play a key role in maintaining agriculture information and delivering rural resources on-demand to registered users. There are many applications, protocols, and templates in the farming sector as a whole. Among the trends of IoT, agriculture researches are focused on network platform, network design, software, stability, and challenges. IoT-based SF technology uses wireless devices to monitor and send real-time data through sensors presented in [170,171].

4.2. IoT Potential for Smart Vertical Farming

USVF is an approach that uses information and communication technology to determine the exact amount of nutrients and materials needed to achieve maximum yields while maintaining crop and soil health and then apply them. It aims to make agriculture more sustainable, profitable, and environmentally friendly by reducing unnecessary expenses [172,173]. Usually, there are various amounts of IoT-based structures and applications that are widely used in USVF. Furthermore, IoT is the main controlling and monitoring gateway of smart VF. IoT aided farming exploration is to consolidate network stages and the engineering of the comparing platforms, applications, security problems, and difficulties, among others [149,150,157]. IoT is widely used in USVF. In fact, IoT is the main controlling and monitoring gateway of smart VF. IoT is a system where some devices can be connected through the Internet without human assistance and make decisions by analyzing the necessary data through intercommunication.
Many activities can be done without human intervention, from monitoring and analyzing weather data using IoT to setting the right time to plant crop seedlings, determine soil moisture, provide irrigation, determine the right amount of nutrients, apply fertilizers, and harvest crops. Figure 14 shows illustrate the major components of IoT-based SF [162]. The study in [174] presented user control yield through different sensors to monitor plants’ health conditions after enabling IoT. In [175], the authors reported the concept of an SF to reduce conventional intercession, which measures various atmosphere parameters through IoT and sensors concept as indicated by plants prerequisites. In [176], the authors proposed an SF management system based on IoT. The study in [177] has addressed IoT-based SF where the user is able to know about crop statistical information, crop selection, weather situation, and predict the future harvest. In the work [178], the author indicated IoT brings massive improvement such as low-cost yield, optimize water use, sustain high yield, high-quality crop production in SF by examining many issues and challenges.

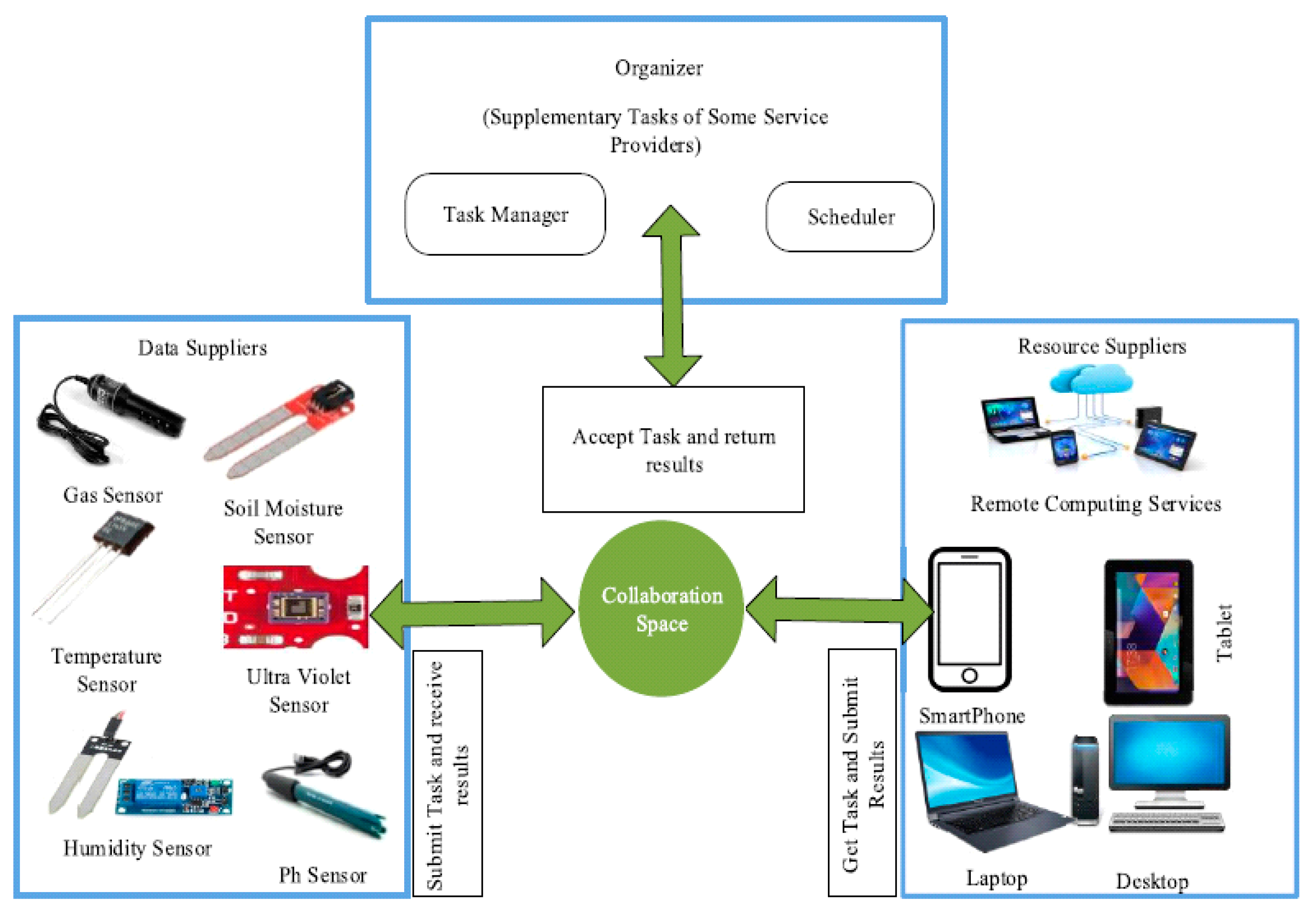

4.3. IoT Based Smart Farming Sensor Systems

IoT is basically a data analytics technology that makes our activities easier and more dynamic through data collection, analysis and application. The use of sensor technology will increase manifold in the coming years. At the same time, technologies like IoT, machine learning and artificial intelligence (AI) will gain popularity, which will change our way of life [179,180]. With the upward thrust of new digital technologies in the agriculture domain, there has been exceptional growth in the quantity of data that is being gathered by way of far-flung sensors, satellites and many others for exclusive functions. The role of AI in VF includes processes like monitoring the light condition, plant health, humidity, temperature, etc. The significant data that is being gathered ought to only serve fruitfully when the farmer is capable of obtaining a higher perception of various things involved with the farm. Therefore, to make sense out of it, this data is operated underneath a range of AI algorithms via which farmers can collect an applicable understanding of a variety of processes in general. By 2050, the planet is projected to need 50% more food than it currently produces. In this scenario, farmers will benefit from AI-enabled technologies by presenting higher yields and more sustainable resource use [181]. The work in [179] addressed an IoT technology with exceptional characters and capabilities to analyze and monitor data from sensors from remote areas such as optical, mechanical, and location used in the SF. IoT is one of the very high technology concepts in which devices are smarter, intelligent, low cost, long life, simple maintainers as well as sending informative data were presented in [182,183]. In [184], the authors indicated SF has the ability to deliver sustainability and beneficial production, which is founded on inventive technology, such as IoT. Sensor-based SF frameworks to offer an attractive solution for the farmer were presented in [185]. The work in [186] proposed IoT advancements can diminish the expense of labor cost, reduce the human effort and enhance the scale of sensor-based farming system by information assortment from sensors. Table 3 presents the primary applications and advantages of each IoT innovation in SF. IoT sensors technology presents the course of action of various components of an IoT and shows an ideal situation for SF. IoT, known as potential technology in VF in terms of various sensors uses, dynamic, quick decision-making, was present in [187,188]. In [189], the authors indicated IoT sensors topology had kept a huge contribution in SF in quick produce and profit with a short time. Figure 15 shows how SF collects data from various sensors such as moisture sensors, humidity sensors, temperature sensors, gas sensors, and pH sensors utilizing IoT devices. These ubiquitous SF topologies enhance data analysis and storage capacity, which able to connect with a different communication protocol such as a smartphone and computers.

4.4. IoT Supported Hardware Utilized in Smart Farming

Numerous IoT-enabled hardware systems are available for use in agricultural realms. The following section denotes various hardware controller boards that are utilized for SF. A number of various IoT supported hardware platforms exist to be used within the agricultural domains. Table 4 categorizes current and legacy platforms based on main criteria [104,156,190,191].
Communication protocols are needed for IoT systems because they modify network connectivity and device coupling. Protocols for communication allow devices to share data over a network. The protocols define the formats for data transmission, data encoding, interface addressing systems, and packet routing from source to destination. Protocols also perform additional tasks such as sequence management, flow control, and packet retransmission. Table 5 compares multiple wireless networking systems based on a variety of criteria [156,192].
Many factors can affect the growth of plants, especially the environment. SF is a big way for better production within a short time as well as reduces human stress. Sensors are used in precision agriculture to collect data that enables farmers to easily track, manage, and optimize crops and adapt to evolving environmental factors through the implementation of smart technology such as IoT devices. Table 6 shows the list of sensor module that can be used in SF.
Agriculture operates somewhat differently today than it did a few decades before, primarily due to technical advancements such as sensors, processors, robots, and information technology. Agriculture now routinely makes use of emerging technology, including robotics, temperature and moisture sensors, aerial photography, and GPS. These advanced technologies, precision agriculture, and robotic systems allow businesses to operate more profitably, efficiently, safely, and sustainably. The primary objective of the Internet of things is to create a vast network by integrating various sensor devices such as GPS, remote sensing (RS), radio-frequency identification (RFID), laser scanners, and networks in order to comprehend the knowledge exchange of global things. IoT can refer to millions of networked embedded smart devices capable of accumulating data about themselves, their world, and other connected smart devices and linking this data to other devices and systems through the ubiquitous Internet [195].
Ambient daylight, ambient temperature, soil moisture, and humidity are all controllable parameters of vertical farming. In addition to the vertical columns, the ambient parameters must be controlled for each stack, necessitating the use of a separate collection of sensors for each vertical stack. These sensors produce a large amount of data, necessitating the use of an effective data management system. Numerous automation techniques are used to maximize resource use, including the integration of actuation by automated irrigation systems, as well as wireless monitoring via IoT in the VF, which is capable of managing sensor data effectively, identifying duplicate sensor readings, and visualizing it through web-based applications.

4.5. Secure Cloud on Smart Vertical Farming System

The growth of a country’s population and massive industrial development, mainly in urban areas, lead to a variety of urbanization problems, including housing, food demands, schooling, health, and poverty. A new farming technique that utilizes minimal land area while producing a large crop with a secure aspect is highly desired. In [196], the authors addressed a two-factor authentication (2FA) scheme to bolster the system’s security measures. Since the electronic device mounted on the indoor farming hydroponic system communicates over the Internet, the 2FA technique is used. Due to the fact that this hydroponic system would be installed inside the user’s house, this electronic gadget will be wired to the user’s home’s network or WIFI. This linking of the computer to the Internet necessitates proper network protection to mitigate the possibility of data leakage and sabotage. The 2FA framework will be applied in this system through access codes generated by the gateway (NodeMCU) and a mobile application for access verification. Figure 16 illustrates the total security scheme’s flowchart using a 2FA mechanism. It starts with the device module’s controller demanding permission to send and receive data over the network via the ThingsSentral-based web module. ThingsSentral (TS) is a cloud-based IoT device network founded by Universiti Kebangsaan Malaysia. By supplying the user, program, and portal access code to the TS web service, the controller initiates the first authentication order. If the codes are valid, TS will send another authentication order. The second authentication process generates a request for verification and notification to the customer with a phone app that they must authenticate a request before the farming module can continue operating. The user will authenticate the order if approved, at which point TS will allow the remainder of the procedure before the controller explicitly stops it. If the customer fails to authenticate, the whole system is aborted, and the hydroponics module controller is informed of the request’s denial.

5. Social Acceptance of Urban Farming

The study in [197] addressed as far as a social responsibility of USVF contributes more in terms of reducing pollution, produce clean air and fresh food without using artificial fertilizer. The authors in [198] indicated USVF totally brings new technology to produce more food using less water, without soil which falls a very good impact on society. In [199], the authors reviewed 386 urban tenants in Berlin based on yield farming space capacity in an urban area, cost, human effort, and overall food production efficiency. While over 80% of the occupants favored VF on the rooftop of the building in terms of sufficient light facility, clean air, low pollution, environmental and financial benefits, fresh food, easy to monitor, simple maintenance, etc. Moreover, the greater part of the respondents was eager to purchase agricultural items. The study also reported in [199] presented a lack of food insecurity produced from VF of urban dwellers because of air contamination levels in urban areas. The work in [200] analyzed 18 rooftop farming leaves and soil conditions compared with the natural crop leaf and soil in Korea. The authors in [201] demonstrated the effect of rising temperatures on air quality at an outdoor rooftop farm atop a seven-story building in Brooklyn through an on-site observation attempt. In [202], the authors measured the pollution level, crop production costs, and monitoring capability in rooftop vegetable farms. Therefore, a USVF is required to overcome the problem such as air pollution, huge cost, sufficient food production, various type of crop production all season.

Advantages of Urban Smart Vertical Farming

Due to rapid urbanization, USVF has been introduced to achieve food security in an urban area. VF can be conceivably gainful in expanding crop production and adding to maintainable UF. Notable benefits of rising food inside the urban area can be helpful ecologically, socially, and monetarily. VF can also offer solutions for expanding food safety worldwide [203]. In [203], the authors indicated several advantages in USVF such as raise aesthetic beauty, energy generation, urban growth, organic food, preparation for the future, conservation of resources, VF flexibility, growing higher quality produce, and halting mass extinction. Besides, the study in [204] addressed that USVF has the benefit of absorbing polluted carbon-di-oxide from the air and increasing the level of pure oxygen in the air, environmentally friendly, helps to control air pollution and noise pollution. As a result, it has a fair weight to maintain air quality. The advantages of USFV protect large houses in the city from direct sunlight and helps to keep them cool, helps in air filtration by absorbing dust. On the other hand, the work in [205] addressed benefits of these USVF include protection from weather-related problems, utilize technologies and devices, helps in air filtration by absorbing dust, year-round production, huge food production within a small area of land.
In [206], the authors described a VF plant structure that delivers a controlled environment, the efficiency of farms would generally be autonomous of weather and secure from a weather-related problem. The work in [22] addressed VF can produce foods year-round. The study in [22] also presented some crops such as different vegetables, strawberries can produce all seasons of the year which provides benefit in terms of crops could be sold in the same infrastructures, they will not need to be transported between production and sale. Therefore, USVF provides less spoilage, reduces cost, infestation, and energy required than conventional farming encounters. The advantages of VF reduce the unemployment rate and make a new job opportunity for urban people who have less education and low experience. The study reported in [113] also presented a USVF with much flexibility for crop production, such as water protection, healthy food, cash income, not being labor-intensive, manageability, marketability, affordability, and sustainability urban growth. The authors also indicated VF utilize for drip and hydroponics crop production, which can save 50% lesser water than typical planting and can hold water. The study in [44] also reported delivering vegetables via VF is simply manageable and farmers do not need much focus on soil and plant during growing.
Bringing back vegetation in any approach definitely improves the quality of the urban environment, which is the main goal of urban VF. Urban agriculture via SF is also expected to provide environmental benefits to urban dwellers. The improvements in urban thermal performance and air quality reduce air temperature and energy usage for cooling loads. Despite providing food security for urbanites, this SF system also able to promote a conducive and liveable living urban environment. VF can manage by family workers such as old people, women, young persons because of clean, safe, less dust, ease to marketability with high profit. All these benefits indicated a significant impact on the application of UF in the city context. USVF is to provide efficient and effective extension services based on the needs of all classes of growers so that they can make the best use of their resources and contribute to sustainable agricultural and socio-economic development.

6. Issues and Challenges

VF technology plays an essential role in reducing future food demand, which is one of the world’s biggest problems today. However, existing VF technology faces few challenges due to various issues, such as high starting cost, low yield variability, energy reliance and utilization, producing heat by artificial lighting was presented in [41,71,73,74]. In [73,74], the authors reported VF technology would be gradually becoming a non-profit industry if not focus on addressing the current issues such as energy use, pollution, economy. As a result, current farming is heading for a crisis due to the evils of climate change and the lack of significant response to the use of more materials. As a result of high production costs and the adverse effects of harmful chemicals used in agriculture on the environment, smart technology’s high-material grain production technologies do not seem to be viable enough to meet the needs of a growing population. Future crop production is considered to be very risky due to the prevalence of diseases and inorganic impacts in the changing climate.
Other than that, equipment location, space, and environmental issues have to be taken seriously depending on VF’s design to maximize crop production. Additionally, shape considerations such as the form and dimensions of the increasing installation, as well as the spacing between plants, are a source of difficulty for VF. Leafy greens and herbs, for example, the needless vertical spacing between tiers of a vertical rack than flowers or fruit plants. Additionally, lighting systems should be evaluated for their heat management characteristics and configured to mitigate the warmth generated by VF in order to minimize any possible adverse effect on development, while allowing for adequate air circulation and ventilation. It is crucial to keep in mind that, while food developed using VF techniques may be safer to eat than food grown conventionally, hazards may still exist during the growing phase. Dirt and microorganisms from employees, environmental hazards in the nutrient medium, water cleanliness and protection, and post-farm handling activities such as sorting, trimming, and transportation are all examples of such risks. Thus, food safety management methods such as hazard analysis critical control point analysis, as well as food safety assessment and testing, are critical in VF, just as they are in traditional agriculture.

7. Conclusions and Recommendations

USVF is a current improvement that shows promise for the future. They will be open to the insistent and additional combination of current technologies and in turn use growing convenience and reduce the effort for humans. This review considers the diverse ways of how a USVF may be monitored, controlled, and built using the IoT, AI, and sensors. The continuous flow of real data accrued from various sensors or systems deployed in a USVF is analyzed, and suitable actions must be engaged. Although numerous trends exist, only a few are being utilized, and they suffer from certain drawbacks. Thus, the utilization of smart technology shows better performance compared with the existing techniques.
The aim of this study is to recognize SF by conducting a comprehensive analysis of the state-of-the-art of IoT in USVF and identifying the most commonly used hardware, platforms, network protocols, and technologies, as well as their applicability to the proposed solution. AI and image processing techniques have become more prevalent in recent work to develop intelligent farming management. According to the listed IoT applications for SF, the most prevalent application is crop monitoring. Significant advancements in technical applications have made it possible to integrate and link multiple sensors in networks quickly. The microcontroller has been instrumental in the rapid growth of IoT projects, especially in the field of precision agriculture.
Based on the literature survey, many past research works are summarized along with the various sensor types, technology, and techniques that are suitable for the research. This paper reviews the USVF sensors categories, IoT technology, and hardware components suitable for monitoring and controlling water level, crop health condition, moisture of soil, production of yield and environment. The paper has also focused on a comprehensive explanation of USVF technologies, monitor and control operation, smart automation, structure, materials, social acceptance, benefit, issues, and various trends and applications. Finally, the study is suggested constructing a pervasive automation system USVF that reduces human intervention to a minimum.
The review has proposed some significant and selective suggestions for the further technological developments of USVF based on summarizing, synthesize and viewpoint from the reviewed literature. Some possible improvements have been addressed in this review below:
  • Focusing on food production via USVF activities than using other conventional methods in the city, as mentioned in [7,25,203], USVF produces crops throughout the year, with greater control over food safety. This will reduce dependency on imported vegetables.
  • Enhance the user control panel for non-technical users who use SF. As a result, it is preferable to develop a user-friendly interface for powerful applications in a control panel and based on user experience.
  • Appropriate IoT architecture must be built to address the issue of partitioned land cultivation, which is a concern in several countries around the world. Adequate strategy and preparations should be implemented in advance to address this problem.
  • By combining big data analytics and cloud-based computing, a decision support framework can be developed to improve and forecast futuristic yield estimation in crop productivity, quality prediction, crop risk prevention, and irregular growth.
  • Remote-controlled field crop planting systems must be built in such a way that automated planting machines can plate farmers more efficiently in the field. Cloud monitoring and remote multi-device visualization have advanced to the point where operators/owners can track real-time manipulation.
  • Having a real-time livestock tracking system that enables cloud services to improve the farmer’s economic position intuitively. One basic limitation of the majority of IoT systems was their inability to conduct rapid data processing over a wide range of sensor data sources.
  • Use big data analytics to address disease management problems across many crops and to create a consolidated farming machinery control system suitable for large-scale agriculture.
  • Develop a predictive method for determining the pollination time.
  • Develop cost management strategies for large-scale agricultural industries dependent on big data analytics.
  • Provide an easy-to-use climatic knowledge analytic service for farmers.
  • Analyze the profit margins of agri-products using big data modeling and a supply chain management framework.
  • Analytics can provide farmers with prior knowledge of the potential rot time of agricultural products, thereby reducing loss and increasing benefit in terms of value.
  • Develop a smart cell phone application to boost the physical farming situation.
  • Develop a web-based scheduling system for pesticide sprays based on crop type, rate, and time.
  • Create a warning system, as most systems use warnings to inform the operator/farmer of critical events.
  • Establish irrigation schedules based on sensor data and current weather forecasts. Irrigation is often applied using sensor data to predict the required amount of water and electricity accurately. Irrigation schemes, for example, often make use of real-time weather forecasts to minimize water and energy consumption and prevent excessive irrigation.
  • Device security is a critical issue. Develop a two-factor authentication scheme to bolster the protection of the affordable indoor hydroponic system.
  • Additional research should be conducted on plants’ tolerance for elevated EC and/or pH. Knowing how resistant plants are too extreme pH levels enables device designers to create solutions that handle hydroponic systems efficiently.
  • Drone based pesticide sprayer can be made for an automatic spray of pesticides and fertilizers to get better quality of crops with increased quantity. It could help the farmers to spray pesticides evenly throughout their agricultural lands.
  • For a smart storage house, we can install humidity and temperature sensors that can automatically turn the exhaust fan ON when certain humidity or temperature reaches the temperature danger zone for food. For food, this danger temperature zone is between 41 and 135 degrees for height.
  • For water and food control for cattle, we can use conveyor belts to automatically supply food to cattle.
  • Increase in monetary income for urban dwellers that uses the smart urban farming system to grow vegetables and sells unconsumed vegetables.
  • We can install a biogas plant in the farmhouse to meet all the electric requirements and to fully use the waste materials of cattle.
  • We can also install a circuit to automatically get the power meter reading and electricity bills on our cell phone and hence get up to date about the power consumption of USVF.
  • Atmospheric pollutants due to being in an urban environment have a negative effect on the plants, therefore by providing sufficient water to plants (this aids in pollution removal and temperature reduction), we utilize long-lived and low-maintenance trees.
  • fsUtilize carbon-based nanomaterials can be used as gas sensors to combat air pollution, which has a detrimental effect on plant health, by detecting and quantifying polluting gases, primarily hydrogen sulfide (H2S) and carbon monoxide (CO) based in [107,108].
