# Privacy-Preserving Deep Neural Network Methods: Computational and Perceptual Methods—An Overview

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Computational Methods

- Setup: generates the public key $mpk$ and the master secret key $msk$.
- KeyDrive: outputs the function secret key $s{k}_{f}$ for the function f using $msk$.
- Encrypt: encrypts the sample message x using $mpk$.
- Decrypt: computes $f(x)$, using $mpk$, $s{k}_{f}$, and the ciphertext of x generated in Encrypt step.

#### 2.1. CryptoNets

#### 2.2. CryptoDL

#### 2.3. CryptoNN

- The authority: generates the secret key $msk$, the public key $mpk$, and the function secret key $s{k}_{f}$ (KeyDrive step).
- The client: preprocesses and encrypts the data—input (x) and labels (y)—using $mpk$ and sends them to the server (Encrypt step). The labels must first be coded using the one-hot method, and then mapped to a random vector number r whose components are ${r}_{i}$.
- The server: trains and tests the NN model using the data received from the client(s). Having the data and the first hidden layer in the feed-forward process, and the labels and the output layer in the back-propagation process, the server gets from the authority the $s{k}_{f}$ corresponding to the specific function and then decrypts the result of the function (Decrypt step). The server can continue the feed-forward and back-propagation processes normally. The output of the network is ${p}_{i}$, which is the probability that the data x belongs to the class i.

#### 2.4. Comparison

## 3. Perceptual Methods

#### 3.1. Tanaka’s Scheme

#### 3.2. Pixel-Based Image Encryption

- Same encryption key: all training and test images are encrypted using the same encryption key K.
- Different encryption keys: different keys are independently assigned to training and test images.

#### 3.3. GAN-Based Image Transformation Scheme

#### 3.4. Model-Based Image Transformation Scheme

#### 3.5. Comparison

## 4. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Hussain, H. A Review of Artificial Intelligence Techniques in Image Steganography Domain. J. Eng. Sci. Technol.
**2017**, 12, 1835–1845. [Google Scholar] - Liu, J.; Ke, Y.; Zhang, Z.; Lei, Y.; Li, J.; Zhang, M.; Yang, X. Recent Advances of Image Steganography with Generative Adversarial Networks. IEEE Access
**2020**, 8, 60575–60597. [Google Scholar] [CrossRef] - Fu, Z.; Wang, F.; Cheng, X. The secure steganography for hiding images via GAN. EURASIP J. Image Video Process.
**2020**, 2020. [Google Scholar] [CrossRef] - So, J. Deep Learning-Based Cryptanalysis of Lightweight Block Ciphers. Secur. Commun. Netw.
**2020**, 2020, 1–11. [Google Scholar] [CrossRef] - Xiao, Y.; Hao, Q.; Yao, D.D. Neural Cryptanalysis: Metrics, Methodology, and Applications in CPS Ciphers. In Proceedings of the 2019 IEEE Conference on Dependable and Secure Computing (DSC), Hangzhou, China, 18–20 November 2019; pp. 1–8. [Google Scholar] [CrossRef][Green Version]
- Volna, E.; Kotyrba, M.; Kocian, V.; Janosek, M. Cryptography Based on Neural Network. ECMS
**2012**, 386–391. [Google Scholar] [CrossRef][Green Version] - Acar, A.; Aksu, H.; Uluagac, A.S.; Conti, M. A Survey on Homomorphic Encryption Schemes: Theory and Implementation. arXiv
**2017**, arXiv:1704.03578. [Google Scholar] [CrossRef] - Boneh, D.; Sahai, A.; Waters, B. Functional Encryption: Definitions and Challenges. In Theory of Cryptography; Ishai, Y., Ed.; Springer: Berlin/Heidelberg, Germany, 2011; pp. 253–273. [Google Scholar]
- Tanuwidjaja, H.C.; Choi, R.; Baek, S.; Kim, K. Privacy-Preserving Deep Learning on Machine Learning as a Service—A Comprehensive Survey. IEEE Access
**2020**, 8, 167425–167447. [Google Scholar] [CrossRef] - Bost, R.; Popa, R.; Tu, S.; Goldwasser, S. Machine Learning Classification over Encrypted Data. NDSS
**2015**, 4325. [Google Scholar] [CrossRef][Green Version] - Dowlin, N.; Gilad-Bachrach, R.; Laine, K.; Lauter, K.; Naehrig, M.; Wernsing, J. CryptoNets: Applying Neural Networks to Encrypted Data with High Throughput and Accuracy. In Proceedings of the 33rd International Conference on Machine Learning, New York, NY, USA, 19–24 June 2016; pp. 201–210. [Google Scholar]
- Hesamifard, E.; Takabi, H.; Ghasemi, M. CryptoDL: Deep Neural Networks over Encrypted Data. arXiv
**2017**, arXiv:1711.05189. [Google Scholar] - Xu, R.; Joshi, J.B.D.; Li, C. CryptoNN: Training Neural Networks over Encrypted Data. arXiv
**2019**, arXiv:1904.07303. [Google Scholar] - Maekawa, T.; Kawamura, A.; Kinoshita, Y.; Kiya, H. Privacy-Preserving SVM Computing in the Encrypted Domain. In Proceedings of the 2018 Asia-Pacific Signal and Information Processing Association Annual Summit and Conference (APSIPA ASC), Honolulu, HI, USA, 12–15 November 2018; pp. 897–902. [Google Scholar]
- Kawamura, A.; Kinoshita, Y.; Nakachi, T.; Shiota, S.; Kiya, H. A Privacy-Preserving Machine Learning Scheme Using EtC Images. IEICE Trans. Fundam. Electron. Commun. Comput. Sci.
**2020**, E103.A, 1571–1578. [Google Scholar] [CrossRef] - Tanaka, M. Learnable Image Encryption. In Proceedings of the 2018 IEEE International Conference on Consumer Electronics-Taiwan (ICCE-TW), Taichung, Taiwan, 19–21 May 2018; pp. 1–2. [Google Scholar] [CrossRef][Green Version]
- Sirichotedumrong, W.; Kiya, H. Visual Security Evaluation of Learnable Image Encryption Methods against Ciphertext-only Attacks. In Proceedings of the 2020 Asia-Pacific Signal and Information Processing Association Annual Summit and Conference (APSIPA ASC), Auckland, New Zealand, 7–10 December 2020; pp. 1304–1309. [Google Scholar]
- AprilPyone, M.; Sirichotedumrong, W.; Kiya, H. Adversarial Test on Learnable Image Encryption. In Proceedings of the 2019 IEEE 8th Global Conference on Consumer Electronics (GCCE), Osaka, Japan, 15–18 October 2019; pp. 667–669. [Google Scholar] [CrossRef][Green Version]
- Sirichotedumrong, W.; Maekawa, T.; Kinoshita, Y.; Kiya, H. Privacy-Preserving Deep Neural Networks with Pixel-Based Image Encryption Considering Data Augmentation in the Encrypted Domain. In Proceedings of the 2019 IEEE International Conference on Image Processing (ICIP), Taipei, Taiwan, 22–25 September 2019; pp. 674–678. [Google Scholar] [CrossRef][Green Version]
- Sirichotedumrong, W.; Kinoshita, Y.; Kiya, H. Pixel-Based Image Encryption Without Key Management for Privacy-Preserving Deep Neural Networks. IEEE Access
**2019**, 7, 177844–177855. [Google Scholar] [CrossRef] - Sirichotedumrong, W.; Kiya, H. A GAN-Based Image Transformation Scheme for Privacy-Preserving Deep Neural Networks. In Proceedings of the 2020 28th European Signal Processing Conference (EUSIPCO), Amsterdam, The Netherlands, 18–21 January 2021; pp. 745–749. [Google Scholar] [CrossRef]
- Ito, H.; Kinoshita, Y.; Kiya, H. A Framework for Transformation Network Training in Coordination with Semi-trusted Cloud Provider for Privacy-Preserving Deep Neural Networks. In Proceedings of the 2020 Asia-Pacific Signal and Information Processing Association Annual Summit and Conference (APSIPA ASC), Auckland, New Zealand, 7–10 December 2020; pp. 1420–1424. [Google Scholar]
- Ito, H.; Kinoshita, Y.; Kiya, H. Image Transformation Network for Privacy-Preserving Deep Neural Networks and Its Security Evaluation. arXiv
**2020**, arXiv:2008.03143. [Google Scholar] - Madono, K.; Tanaka, M.; Onishi, M.; Ogawa, T. Block-wise Scrambled Image Recognition Using Adaptation Network. arXiv
**2020**, arXiv:2001.07761. [Google Scholar] - Sirichotedumrong, W.; Kinoshita, Y.; Kiya, H. On the Security of Pixel-Based Image Encryption for Privacy-Preserving Deep Neural Networks. In Proceedings of the 2019 IEEE 8th Global Conference on Consumer Electronics (GCCE), Osaka, Japan, 15–18 October 2019; pp. 121–124. [Google Scholar] [CrossRef][Green Version]

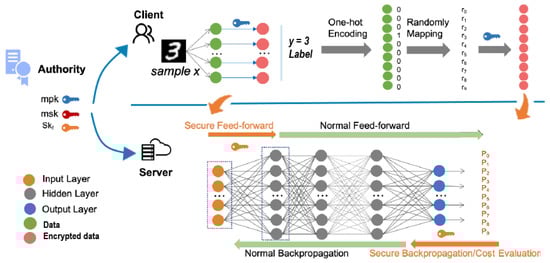

**Figure 1.**CryptoNN framework, reproduced from [13].

**Figure 2.**Tanaka’s block-based encryption scheme. © 2019 IEEE. Reprinted, with permission, from [18].

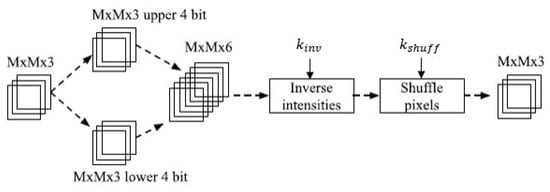

**Figure 3.**Pixel-based image encryption. © 2019 IEEE. Reprinted, with permission, from [19].

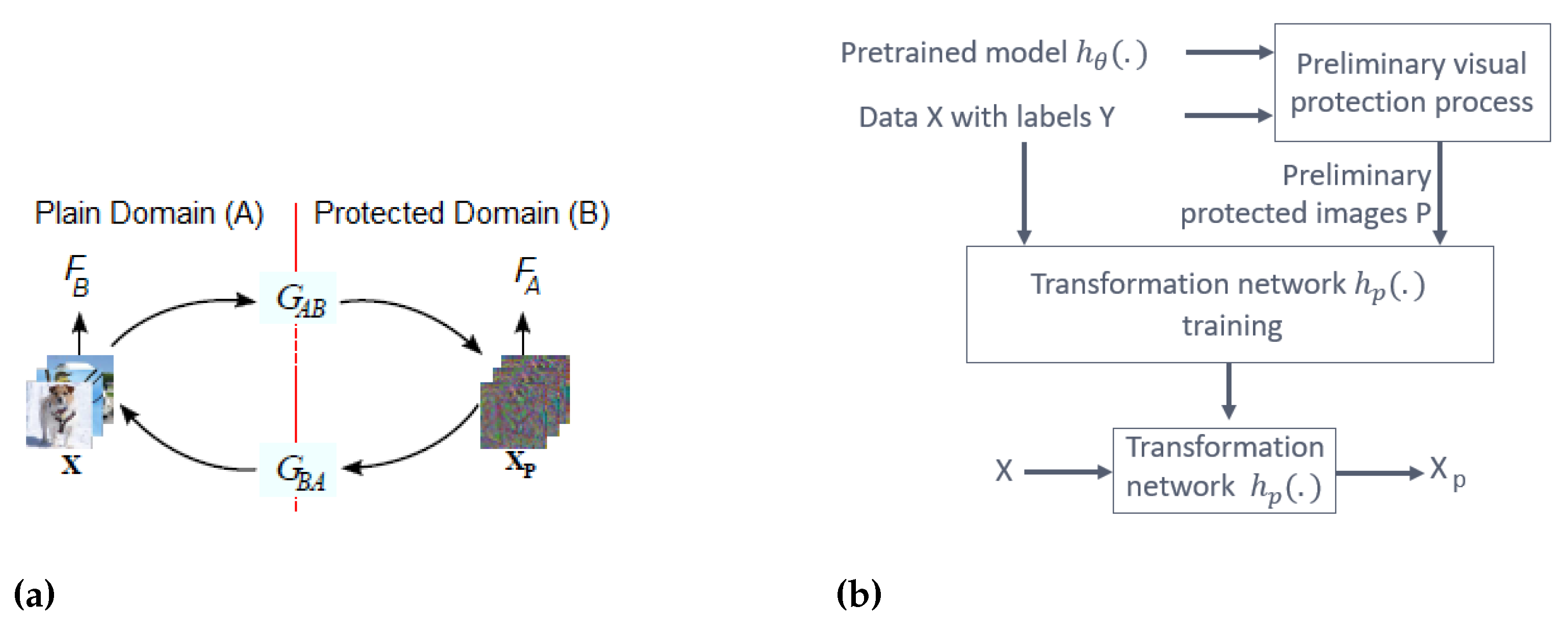

**Figure 4.**(

**a**) Cycle-GAN architecture. (

**b**) Training process of ${h}_{p}(.)$ in the TN-GAN-based method. © 2021 IEEE. Reprinted, with permission, from [21].

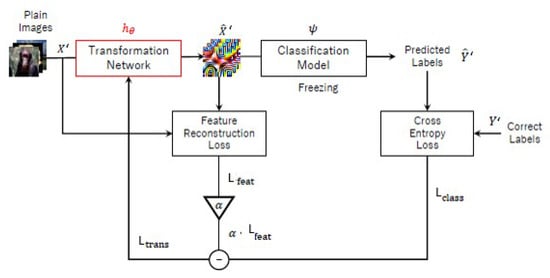

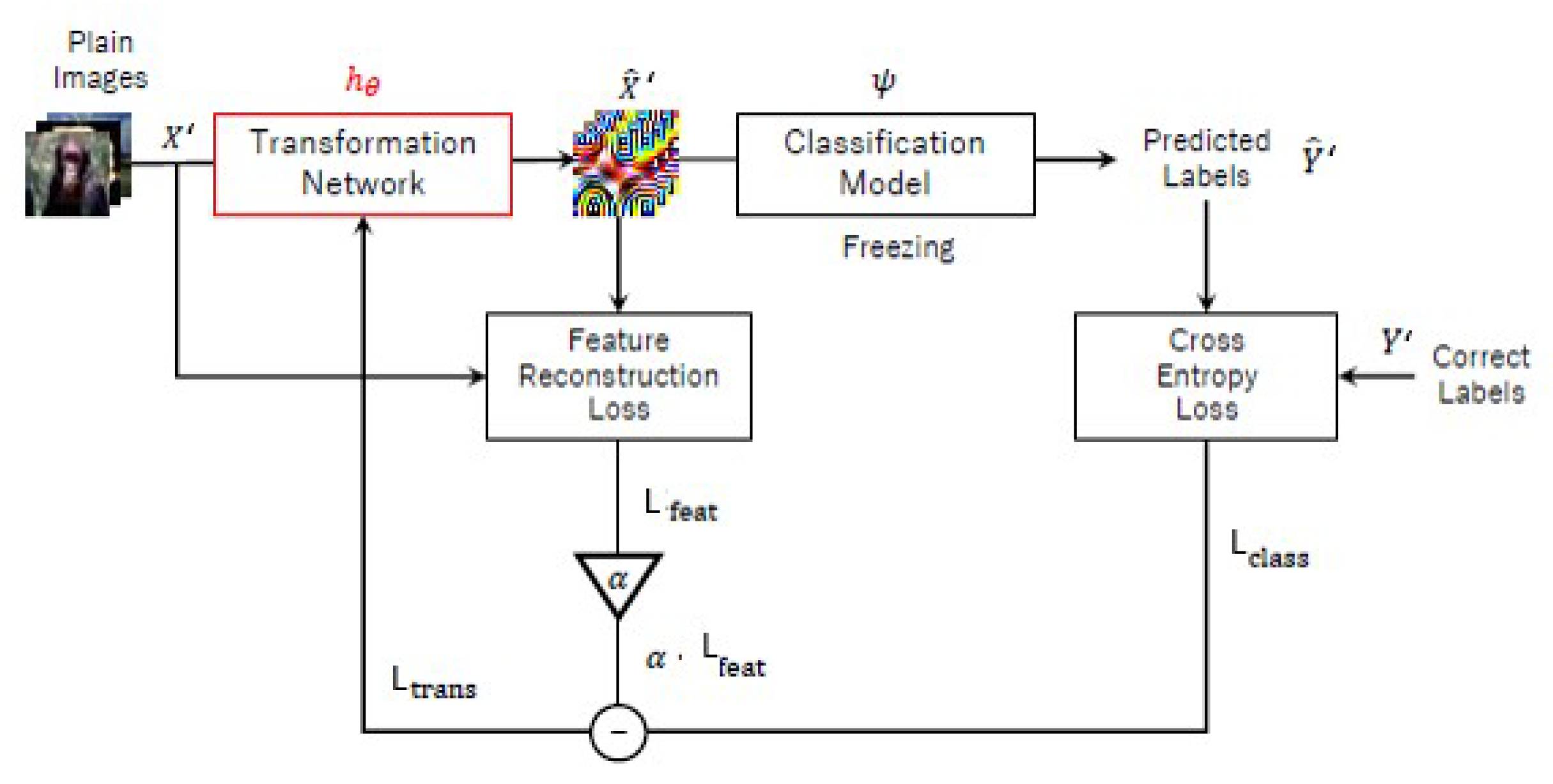

**Figure 5.**Training process of the transformation network in the TN-model-based method. © 2020 IEEE. Reprinted, with permission, from [23].
