# Broadband Microstrip Antenna for 5G Wireless Systems Operating at 28 GHz

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Characteristics of the 5G System

- From 694 to 790 MHz (700 MHz band);
- From 3400 to 3800 MHz (3.6 GHz band);
- From 27.50 to 28.35 GHz (28 GHz band).

## 3. Frequency Range for Local Multipoint Distribution Service

## 4. Analysis of Current Antenna Solutions Operating in 5G Systems at a 28 GHz Frequency

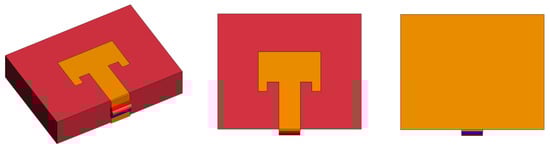

## 5. Broadband Microstrip Antenna Designed for Use in 5G Systems

- Determine operational frequency;
- Determine operational bandwidth;
- Choose a substrate;
- Choose substrate height;
- Determine the dimensions of the patch;
- Determine the power supply;
- Determine the electrical parameters and characteristics of the antenna;
- Optimize the antenna to obtain the best possible parameters in the given frequency range.

_{r}, and the relative permittivity, ε

_{r}, of the dielectric layer of the copper laminate, which are the foundation of the new antenna [24].

_{r}= 28.00 GHz. Choosing the thickness of the substrate is one of the most important stages in the antenna design process, as the thickness of the substrate directly affects the efficiency and bandwidth of the microstrip antenna. One of the assumptions for this antenna is to obtain the widest bandwidth possible. As the thickness of the substrate increases, the antenna’s bandwidth increases, while its efficiency decreases. The upper value of the substrate thickness was determined from the following relationship [14,15]:

_{r}= 2.2, and tanδ = 9.0 × 10

^{−4}. In the next calculation step, the width of the radiating element should be determined from the following relationship [16,17]:

_{reff}, of the substrate must first be calculated. It is defined by the following relationship [18,19]:

_{reff}, the effective length of the patch Le should be determined from the following relationship [20,21]:

_{C}= 50 Ω, we start the determination of auxiliary variables a and b as:

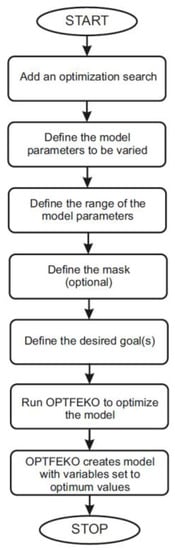

## 6. Optimization Process and Discussion of Simulation Results

Specify maximum number of runs by the solver:The optimization process ends when the FEKO solver has been run a certain number of times during the optimization process. In the case of PSO and GA methods, if a full swarm or generation is not generated within the allowed number of assigned runs, optimization may be completed before the indicated number of runs by the solver. If the optimization process is terminated prematurely, due to a reduction in the number of runs by the solver, the software will provide the optimal solutions found up to that point, as well as information about the optimization process.

Optimization convergence accuracy (standard deviation):This option allows adjustment of accuracy levels required for the optimization process. Three options for selecting the accuracy level are available, i.e., high, normal, and low. The selected accuracy level of the optimization process modifies the conditions in which the search algorithm will converge, and the effect depends on the selected method.

_{s}, W

_{e}, L

_{s}, and L

_{e}), the length and width of the radiator (L

_{p}and W

_{p}), the length and width of the power line (L

_{f}and W

_{f}) and the length and width of the patch inset (Y

_{0}and X

_{0}) were changed. Other structural elements, such as thickness and permittivity of the substrate, were not changed [28,29,30,31].

- Impedance goal (input impedance, input admittance, reflection coefficient (S
_{11}), transmission coefficient, VSWR, return losses, current); - Near-field goal (E field – electric field, H field – magnetic field, directional component, coordinate system);
- Far-field goal (E field, antenna gain, directivity, RCS – Radar Cross Section);
- S-parameter goal (coupling coefficient, reflection coefficient, transmission coefficient, VSWR, return losses);
- SAR (Specific Absorption Rate) goal;
- Power goal (efficiency, active power, power loss);
- Transmission/reflection coefficients goal (reflection, transmission, co-polarization, and cross-polarization);
- Receiving antenna power goal (efficiency, active power, and power loss).

_{11}, which was calculated during the calculation of the S parameter in the multiport model. The voltage standing waveform factor for the observed input impedance is considered in relation to the indicated reference impedance.

#### 6.1. Q Factor

#### 6.2. Reflection Coefficient

_{11}parameter was obtained by powering the antenna using the edge port. The antenna has an operating bandwidth of 5.57 GHz, which gives a relative operating bandwidth of 19.89%. The bandwidth determined from the results of computer simulations is slightly smaller than the theoretical bandwidth determined on the basis of Relation (13), due to the inset feed used as a power supply. Nevertheless, this method of supplying power to a microstrip antenna provides us with better impedance matching (lower reflection factor value) for a resonance frequency.

#### 6.3. Voltage Standing Wave Ratio

#### 6.4. Input Impedance

#### 6.5. Antenna Gain

#### 6.6. Current Distribution in the Antenna

#### 6.7. Radiation Characteristics

## 7. Comparison of the Proposed Antenna with Other Antennas

_{11}parameter of the proposed antenna may not be the lowest as compared with the S

_{11}values obtained for the antennas presented in [18,20,32], but it is relatively low.

_{11}≤ −10 dB (VSWR ≤ 2) 5.57 GHz, and is centered exactly at 28 GHz, while in [20] the operating band is 2. 63 GHz and is also centered exactly at 28 GHz, in [18] the operating band is 2.85 GHz and is also centered at about 28.1 GHz (shift of about 100 MHz), and in [32] the operating band is 1.07 GHz and is also centered exactly at 28 GHz.

## 8. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Andrews, J.G.; Buzzi, S.; Choi, W.; Hanly, S.V.; Lozano, A.E.; Soong, A.C.K.; Zhang, J.C. What Will 5G Be? IEEE J. Sel. Areas Commun.
**2014**, 32, 1065–1082. [Google Scholar] [CrossRef] - Roh, W.; Seol, J.-Y.; Park, J.; Lee, B.; Lee, J.; Kim, Y.; Cho, J.; Cheun, K.; Aryanfar, F. Millimeter-wave beamforming as an enabling technology for 5G cellular communications: Theoretical feasibility and prototype results. IEEE Commun. Mag.
**2014**, 52, 106–113. [Google Scholar] [CrossRef] - Rappaport, T.S.; Sun, S.; Mayzus, R.; Zhao, H.; Azar, Y.; Wang, K.; Wong, G.N.; Schulz, J.K.; Samimi, M.; Gutierrez, F. Millimeter Wave Mobile Communications for 5G Cellular: It Will Work! IEEE Access
**2013**, 1, 335–349. [Google Scholar] [CrossRef] - Schoeman, M.; Marchand, R.; Van Tonder, J.; Jakobus, U.; Aguilar, A.; Longtin, K.; Vogel, M.; Alwajeeh, T. New Features in Feko/WinProp 2019. In Proceedings of the 2020 International Applied Computational Electromagnetics Society Symposium (ACES), Monterey, CA, USA, 27–31 July 2020; pp. 1–2. [Google Scholar]
- Imai, T.; Kitao, K.; Tran, N.; Omaki, N.; Okumura, Y.; Sasaki, M.; Yamada, W. Development of high frequency band over 6 GHz for 5G mobile communication systems. In Proceedings of the 2015 9th European Conference on Antennas and Propagation (EuCAP), Lisbon, Portugal, 13–17 April 2015; pp. 1–4. [Google Scholar]
- Arya, A.K.; Kim, S.J.; Kim, S. A dual-band antenna for lte-r and 5g lower frequency operations. Prog. Electromagn. Res. Lett.
**2020**, 88, 113–119. [Google Scholar] [CrossRef] [Green Version] - Zou, Y.; Pan, J. Broadband and High-gain Antenna based on Novel Frequency Selective Surfaces for 5G Application. In Proceedings of the 2019 IEEE 4th Advanced Information Technology, Electronic and Automation Control Conference (IAEAC), Chengdu, China, 20–22 December 2019; Volume 1, pp. 2488–2491. [Google Scholar]
- Taghian, F.; Abdipour, A.; Mohammadi, A.; Roodaki, P.M.; Mohammadi, A. Design and nonlinear analysis of a dual-band Doherty power amplifier for ISM and LMDS applications. In Proceedings of the 2011 IEEE Applied Electromagnetics Conference (AEMC), Kolkata, India, 18–22 December 2011; pp. 1–4. [Google Scholar]
- Resende, U.C.; Moreira, F.J.S.; Bergmann, J.R. Analysis of omnidirectional antennas with radome operating in LMDS band for signals of digital TV. In Proceedings of the 2009 SBMO/IEEE MTT-S International Microwave and Optoelectronics Conference (IMOC), Belem, Brazil, 3–6 November 2009; pp. 83–86. [Google Scholar]
- Son, L.T.; Ekman, T.; Orten, P. Performance of the multi-carrier LMDS system at the 28 GHz radio frequency band. In Proceedings of the 2006 First Mobile Computing and Wireless Communication International Conference, Amman, Jordan, 17–20 September 2006; pp. 150–155. [Google Scholar]
- Lee, H.; Kim, T.; Lim, Y. Wide-band microstrip patch antenna design for LMDS band. In Proceedings of the 2000 5th International Symposium on Antennas, Propagation, and EM Theory. ISAPE 2000 (IEEE Cat. No.00EX417), Beijing, China, 15–18 August 2000; pp. 709–712. [Google Scholar]
- Chin, K.-S.; Chang, H.-T.; Liu, J.-A. Design of LTCC Wideband Patch Antenna for LMDS Band Applications. IEEE Antennas Wirel. Propag. Lett.
**2010**, 9, 1111–1114. [Google Scholar] [CrossRef] - Chen, K.-S.; Chu, C.-Y. A propagation study of the 28 ghz lmds system performance with m-qam modulations under rain fading. Prog. Electromagn. Res.
**2007**, 68, 35–51. [Google Scholar] [CrossRef] [Green Version] - Sridevi, S.; Mahendran, K. Design of Millimeter Wave Microstrip Patch Antenna for MIMO Communication. Int. Res. J. Eng. Technol.
**2017**, 4, 1513–1518. [Google Scholar] - Johari, S.; Jalil, M.A.; Ibrahim, S.I.; Mohammad, M.N.; Hassan, N. 28 GHz Microstrip Patch Antennas for Future 5G. J. Eng. Sci. Res.
**2018**, 2, 1–6. [Google Scholar] - Mungur, D.; Duraikannan, S. Microstrip Patch Antenna at 28 GHz for 5G Applications. J. Sci. Technol. Eng. Manag. Adv. Res. Innov.
**2018**, 1, 5–7. [Google Scholar] - Ahmed, Z.; McEvoy, P.; Ammann, M.J. Comparison of Grid Array and Microstrip Patch Array Antennas at 28 GHz. In Proceedings of the 2018 IEEE MTT-S International Microwave Workshop Series on 5G Hardware and System Technologies (IMWS-5G), Dublin, Ireland, 30–31 August 2018; pp. 1–3. [Google Scholar] [CrossRef] [Green Version]
- Teresa, P.M.; Umamaheswari, G. Compact Slotted Microstrip Antenna for 5G Applications Operating at 28 GHz. IETE J. Res.
**2020**, 1–8. [Google Scholar] [CrossRef] - Darboe, O.; Bernard, D.; Konditi, O.; Manene, F. A 28GHz rectangular microstrip patch antenna for 5G applications. Int. J. Appl. Eng. Res.
**2019**, 12, 854–857. [Google Scholar] - Kaeib, A.F.; Shebani, N.M.; Zarek, A.R. Design and Analysis of a Slotted Microstrip Antenna for 5G Communication Networks at 28 GHz. In Proceedings of the 2019 19th International Conference on Sciences and Techniques of Automatic Control and Computer Engineering (STA); Institute of Electrical and Electronics Engineers (IEEE), Sousse, Tunisia, 24–26 March 2019; pp. 648–653. [Google Scholar]
- Kiran, T.; Mounisha, N.; Mythily, C.; Akhil, D.; Phani Kumar, T.V.B. Design of microstrip patch antenna for 5G applications. IOSR J. Electron. Commun. Eng. (IOSR-JECE)
**2018**, 13, 14–17. [Google Scholar] - Khraisat, Y.S.H. Increasing Microstrip Patch Antenna Bandwidth by Inserting Ground Slots. J. Electromagn. Anal. Appl.
**2018**, 10, 1–11. [Google Scholar] [CrossRef] [Green Version] - Yang, S.J.; Su, H.F.; Wu, Y.; Zhang, X.Y. Dual-polarized Low-profile Wideband Filtering Antenna for 5G Applications. In Proceedings of the 2019 Photonics & Electromagnetics Research Symposium-Fall (PIERS-Fall); Institute of Electrical and Electronics Engineers (IEEE), Xiamen, China, 17–20 December 2019; pp. 295–299. [Google Scholar]
- Derneryd, A. A theoretical investigation of the rectangular microstrip antenna element. IRE Trans. Antennas Propag.
**1978**, 26, 532–535. [Google Scholar] [CrossRef] - Muhammad, S.; Shehu, Y.; Ya’u, I.; Abubakar, A.S. Design of Single Feed Dual-Band Millimeter Wave Antenna for Future 5G Wireless Applications. Sci. World J.
**2019**, 14, 84–87. [Google Scholar] - Desai, A.; Bui, C.D.; Patel, J.; Upadhyaya, T.; Byun, G.; Khang, N.T. Compact Wideband Four Element Optically Transparent MIMO Antenna for mm-wave 5G Applications. IEEE Access
**2020**, 8, 1. [Google Scholar] [CrossRef] - Arya, A.K.; Kim, S.J.; Park, S.; Kim, D.-H.; Hassan, R.S.; Ko, K.; Kim, S. shark-fin antenna for railway communications in lte-r, lte, and lower 5G frequency bands. Prog. Electromagn. Res.
**2020**, 167, 83–94. [Google Scholar] [CrossRef] - Chayono, R.; Futter, P.; Castany, J.S. Characteristic mode analysis of smart phone antenna using HW FEKO. In Proceedings of the 2016 International Symposium on Antennas and Propagation (ISAP), Okinawa, Japan, 24–28 October 2016; pp. 230–231. [Google Scholar]
- Jakobus, U.; Aguilar, A.; Attardo, E.; Schoeman, M.; Van Tonder, J.; Longtin, K. Review of selected new features in FEKO 2018. In Proceedings of the 2018 International Applied Computational Electromagnetics Society Symposium (ACES), Institute of Electrical and Electronics Engineers (IEEE), Denver, CO, USA, 25–29 March 2018; pp. 1–2. [Google Scholar]
- Almajali, E.; McNamara, D.; Lee, D. Using electromagnetic simulation code FEKO as a numerical laboratory in antenna engineering. In Proceedings of the 2010 14th International Symposium on Antenna Technology and Applied Electromagnetics & the American Electromagnetics Conference, Ottawa, ON, Canada, 5–8 July 2010; pp. 1–4. [Google Scholar]
- Pozar, D.M.; Schaubert, D.H. Microstrip Antennas: The Analysis and Design of Microstrip Antennas and Arrays; IEEE Press: New York, NY, USA, 1995. [Google Scholar]
- Goyal, R.K.; Modani, U.S. A Compact Microstrip Patch Antenna at 28 GHz for 5G wireless Applications. In Proceedings of the 2018 3rd International Conference and Workshops on Recent Advances and Innovations in Engineering (ICRAIE), Jaipur, India, 22–25 November 2018; pp. 1–2. [Google Scholar]
- James, J.R.; Hall, P.S. Handbook of Microstrip Antenna; Institution of Engineering & Technology: London, UK, 1989. [Google Scholar]
- Kara, M. Closed-form expressions for the resonant frequency of rectangular microstrip antenna elements with thick substrates. Microw. Opt. Technol. Lett.
**1996**, 12, 131–136. [Google Scholar] [CrossRef] - Qing, X.; Chen, Z.N. Comments on “Comments on ‘Measuring the Impedance of Balanced Antennas by an S-Parameter Method’”. IEEE Antennas Propag. Mag.
**2010**, 52, 171–172. [Google Scholar] [CrossRef] - Kang, J.-S.; Kim, J.-H.; Park, J.-I. Comparison of antenna parameters of R-/S-band standard gain antennas. In Proceedings of the 2015 International Workshop on Antenna Technology (iWAT), Seoul, South Korea, 4–6 March 2015; pp. 369–371. [Google Scholar]
- De Silva, S.; Belostotski, L.; Okoniewski, M. Modeling and measuring of antenna array s-parameters and radiation efficiency. In Proceedings of the 2017 IEEE International Symposium on Antennas and Propagation & USNC/URSI National Radio Science Meeting, San Diego, CA, USA, 9–14 July 2017; pp. 2293–2294. [Google Scholar] [CrossRef]

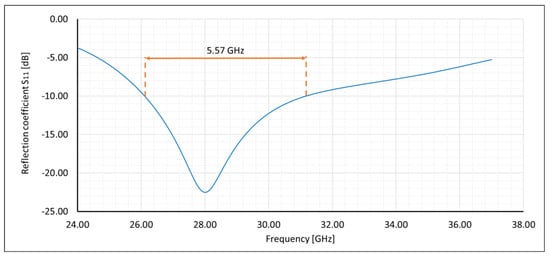

**Figure 5.**The reflection coefficient as a function of frequency for the proposed antenna working in the fifth generation (5G) system.

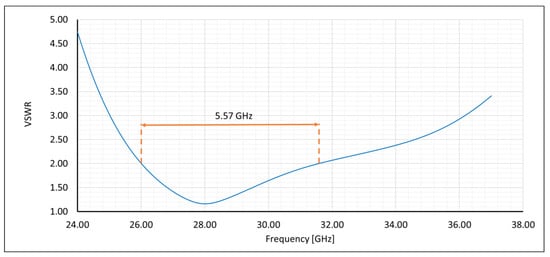

**Figure 6.**The chart of the voltage standing wave ratio as a function of frequency for the proposed antenna working in the 5G system.

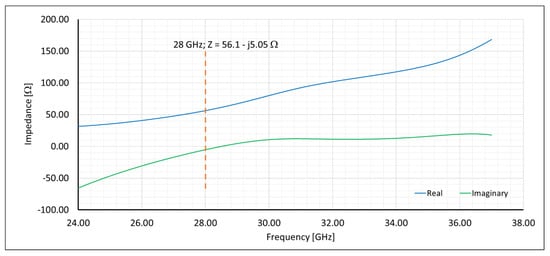

**Figure 7.**The chart of the complex input impedance as a function of frequency for the proposed antenna working in the 5G system (real part, blue line and imaginary part, green line).

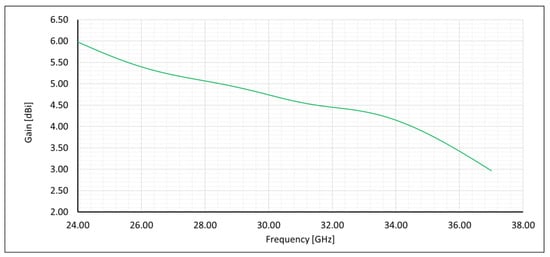

**Figure 8.**The chart of antenna gain as a function of frequency for the proposed antenna working in the 5G system.

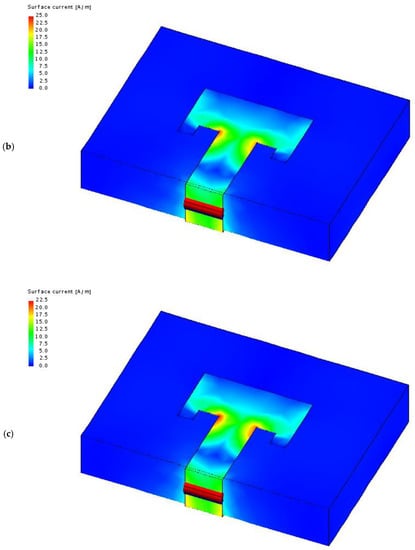

**Figure 9.**Surface current distribution for the proposed 5G antenna at different frequencies. (

**a**) 27.51 GHz; (

**b**) 28.0 GHz; (

**c**) 28.35 GHz.

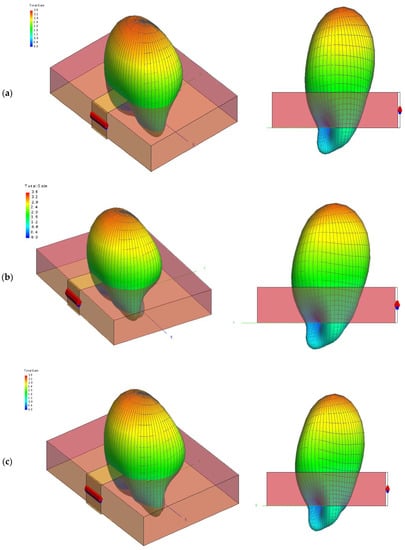

**Figure 10.**The three-dimensional (3D) view of radiation pattern for the proposed 5G antenna model at different frequencies. (

**a**) 27.51 GHz; (

**b**) 28.0 GHz; (

**c**) 28.35 GHz.

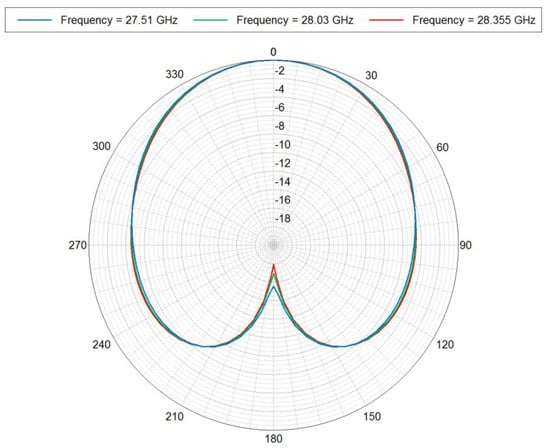

**Figure 11.**The normalized radiation patterns for the proposed antenna model operating in the 5G system for 27.51 GHz (blue line), 28.0 GHz (green line), and 28.35 GHz (red line) in polar coordinates for vertical polarization.

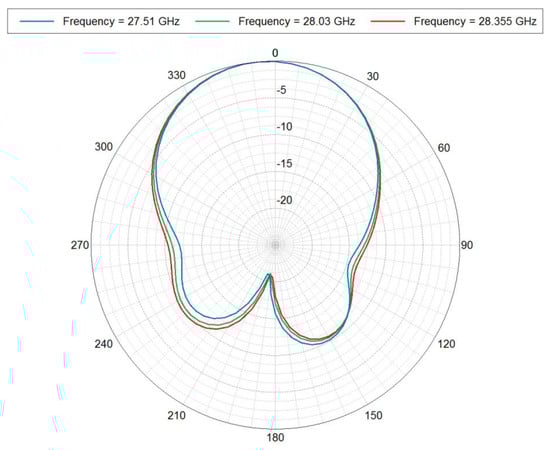

**Figure 12.**The normalized radiation patterns for the proposed antenna model operating in the 5G system for 27.51 GHz (blue line), 28.0 GHz (green line), and 28.35 GHz (red line) in polar coordinates for horizontal polarization.

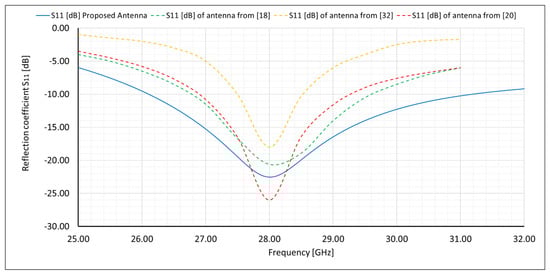

**Figure 13.**The reflection coefficient as a function of frequency for the proposed antenna and antennas from other works.

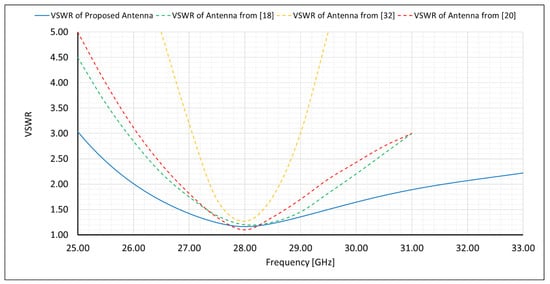

**Figure 14.**The voltage standing wave ratio (VSWR) as a function of frequency for the proposed antenna, and antennas from other works.

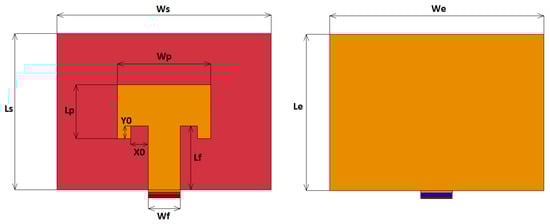

Antenna Component | Symbol | Dimensions (mm) |
---|---|---|
