In Vitro Skin Models for Skin Sensitisation: Challenges and Future Directions

Abstract

Allergic contact dermatitis is one of the most common adverse events associated with cosmetic use. Accordingly, assessment of skin sensitisation hazard is required for safety evaluation of cosmetic ingredients. The transition to the use of alternative methods for testing has made skin sensitisation an intense field in the past decades. The first alternative methods have been in place for almost a decade, but none as stand-alone replacement for the reference murine Local Lymph Node Assay (LLNA). While strategies to combine data from several methods are being evaluated and refined, individual methods face technical limitations. These include issues related to their applicability to highly lipophilic substances and the lack of reliable potency estimation, which remain important obstacles to their widespread adoption as replacement for animal methods. The unique characteristics of in vitro skin models represented an attractive alternative, potentially overcoming these limitations and offering a more physiologically relevant environment for the assessment of the response in keratinocytes and dendritic cells. In this review, we recapitulate how reconstructed human skin models have been used as platforms for skin sensitisation testing, including the latest approaches using organ-on-a-chip and microfluidic technologies, aimed to develop next-generation organotypic skin models with increased complexity and monitoring capabilities.

1. Introduction

The skin is a barrier organ that is repeatedly exposed to a wide range of chemicals and inducing as a result an adverse outcome such as allergic contact dermatitis (ACD) in sensitized individuals. ACD is a T cell-mediated hypersensitivity reaction specific towards foreign low molecular weight chemical substances that can freely penetrate the skin, resulting in erythema and/or eczema [1,2]. The development of ACD is characterized by two temporally different stages: first the sensitisation or induction phase, characterized by the generation of allergen-specific immunological memory after the initial exposure, and second the elicitation of clinical allergy after a subsequent exposure to the allergen [3,4]. In European countries, approximately 20% of the population experiences contact sensitization [5], being a significant proportion caused by ingredients found in cosmetic products such as fragrances, preservatives and dyes [6,7,8].

Skin sensitisation is a term used in regulatory fields to identify the human being health hazards associated with ACD. It is a key factor that affects the cosmetic industry due to its implications in consumer health and safety, product manufacturing and regulatory fulfilment [9,10,11,12]. For this reason, the EU regulation on cosmetics requires the assessment of skin sensitisation hazard for every cosmetic ingredient. The European In Vitro Toxicology Testing Market Size was valued at €6494.59 million in 2024. Despite this growing market, it is estimated that approximately 32,000 animals are still used annually in Europe for sensitisation testing, representing a total cost of around €9.45 million per year [13,14].

Traditionally, sensitisation tests were performed using in vivo methods, being the Local Lymph Node Assay (LLNA) in mice a reference method [15] that provided valuable and quantitative information for the classification of chemicals. However, the use of animal testing has become progressively controversial. In the European Union (EU), regulatory measures such as EU Cosmetics Regulation 1223/2009 banned the use of animal testing for cosmetic ingredients and finished products, thus forcing the use of alternative non-animal testing strategies. In addition to the EU, which has been a leader in the replacement of animal testing, there is a worldwide trend towards reducing or eliminating the testing of cosmetics on animals. Key global markets have adopted regulatory approaches in this direction, some of them have completely banned the use of animals while others are implementing the use and acceptance of alternative methods following the Replacement, Reduction, and Refinement principle (3Rs). This change in paradigm played a key role in the field of toxicology to move from the traditional use of animal testing for health hazard prediction to the development of approaches based on alternative non-animal methods (NAMs). Skin sensitisation has been an intense field over the last two decades, with joint efforts from governments, academia, and industry in basic research, the development of NAMs, and international acceptance through formal validation procedures [16,17,18]. As a result, several NAMs have been adopted by the Organisation for Economic Co-operation and Development (OECD) within the framework of the Adverse Outcome Pathway (AOP) for skin sensitisation [19]. This conceptual model describes the sensitisation process as a sequence of well-defined Key Events (KEs), each of which is addressed by validated NAMs. These tests provide valuable mechanistic information, however none of them alone can fully predict the sensitisation potential of a substance. This limitation arises from the scientific challenge of replicating the complex crosstalk between skin and immunological cells, which is crucial for a complete understanding of sensitization. For this reason, researchers and the cosmetic industry are making a great effort to overcome these limitations and improve current methods to provide in vitro models that better recapitulate human skin physiology. As in vitro models with unique characteristics, three-dimensional (3D) reconstructed human skin models have been explored for many years as potential tools for skin sensitisation testing. Research has focused on identifying appropriate cellular markers and endpoints to assess the response of keratinocytes or dendritic cells to sensitisers. However, only recently the first RHE-based test method, EpiSensA, has been officially adopted by the OECD and incorporated into the test guideline No.442D [20].

In summary, the necessity to ensure consumer safety while complying with strict bans on animal testing has triggered substantial advancements in skin sensitisation testing within the cosmetic industry. The shift from conventional in vivo assays to integrated strategies incorporating in chemico methods, in vitro cell-based assays, and organotypic human skin models represent a significant step toward more ethical, reproducible, and physiologically relevant approaches. These innovative methodologies not only align with current regulatory frameworks but also enhance the reliability of sensitisation risk assessment. Despite these advances, a persistent gap remains in fully capturing the intricate immune responses of the skin in vitro, a critical aspect for comprehensive hazard and potency assessment. This review offers a comprehensive overview of advances in skin sensitisation testing employing skin models, encompassing standardized methods based on RHE and approaches that utilize skin models to evaluate keratinocyte or dendritic cell responses and critically, explores how recent developments in organ-on-a-chip technologies, in silico models, or omics technologies are also covered, as they aim to achieve greater biological significance, physiological relevance, and enhanced real-time monitoring capabilities to better mimic skin immunocompetence.

2. Skin Sensitisation, the Adverse Outcome Pathway and Alternative Test Methods

2.1. Skin Sensitisation

The skin is the largest organ of the human body, accounting for approximately 15% of total body weight and it performs a broad variety of complex functions. Thanks to its structure composed by three layers (epidermis, dermis and hypodermis) it acts as a mechanical barrier regulating the passage of ions and molecules, limiting water loss and avoiding the entrance of potentially harmful elements from the environment, such as microorganisms or damaging substances [21,22]. In addition to this well-known barrier function role, the skin is an active immune organ. Along with keratinocytes and fibroblasts, which are the most abundant cells found in the epidermis and dermis, respectively, the skin also contains resident antigen presenting cells (APC), such as Langerhans cells (LCs) and dendritic cells (DCs). These APC are responsible for capturing and processing foreign antigens and their subsequent presentation to naive T-cells in local lymph nodes, which initiate and regulate the adaptive immune response [23].

Contact sensitisers are low-molecular weight molecules that behave as haptens. They are not immunogenic by themselves but become immunoreactive after binding to self-proteins. Most sensitisers contain reactive electrophilic groups that can form covalent bonds with nucleophilic residues on skin proteins (such as cysteine or lysine side chains) [24]. Some contact sensitisers need abiotic activation (for example, by air oxidation) or metabolic transformation by host enzymes to become immunogenic. These molecules are called pre-haptens and pro-haptens, respectively [25,26]. Repeated topical exposure to sensitisers can trigger an inflammatory response in the skin known as ACD, which has two phases, induction (or afferent) and elicitation (or efferent) phase. The induction phase refers to the first time an allergen contacts the sensitive individual. During this phase, the hapten penetrates the epidermis and it binds to self-proteins. DCs capture and process hapten-protein complexes in the skin and then migrate to the regional lymph nodes, where they present the antigen via the Major Histocompatibility Complex (MHC) to naive T-cells, leading to the proliferation and differentiation of hapten-specific T cells. The elicitation phase starts upon re-exposure to the allergen, which leads to the recruitment and activation of hapten-specific memory T cells, leading to the symptoms of ACD characterized by inflammation, erythema and itching [2].

2.2. The Adverse Outcome Pathway and Alternative Methods

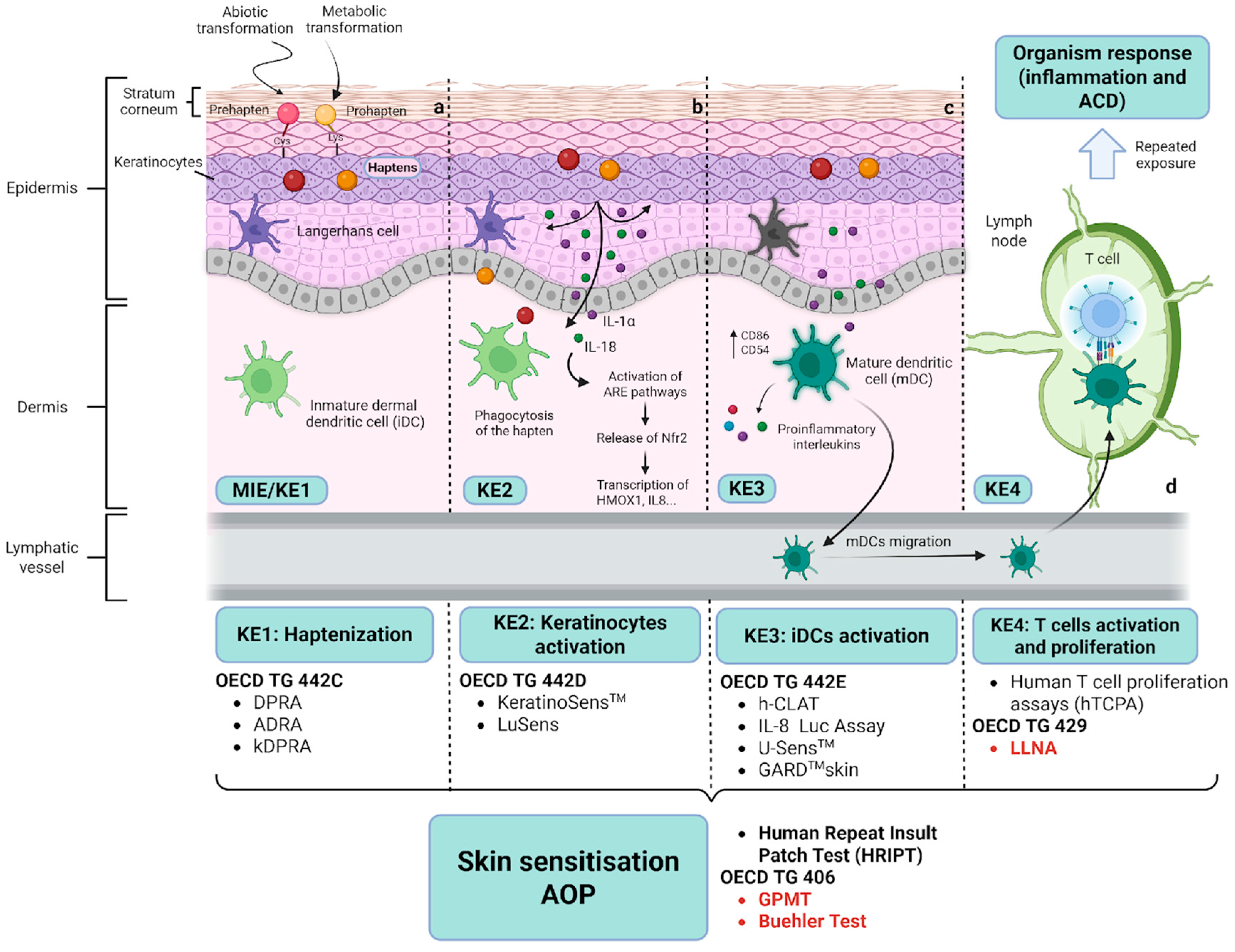

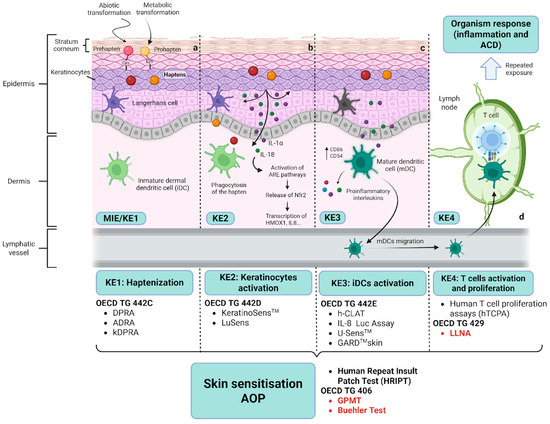

Alternative methods have been developed within the framework of the Adverse Outcome Pathway for skin sensitisation, initiated by covalent binding to proteins (AOP, OECD, 2014) (Figure 1). AOPs were initially developed as conceptual frameworks to represent existing knowledge about the linkage between a particular molecular initiating event (MIE) and a final adverse outcome at the organism or population levels, to aid in ecotoxicology risk assessment [27]. The AOP for skin sensitisation represents the process in 11 sequential steps from the initial penetration of the stratum corneum of the skin to the final adverse outcome manifested as ADC, with four steps in the induction phase defined as key events (KE) (Figure 1).

The first key event (KE1) represents the Molecular Initiating Event (MIE), which is the binding of haptens to self-proteins. As shown in Figure 1, several methods are used to assess this KE1, which are the Amino acid Derivative Reactivity Assay (ADRA), Direct Peptide Reactivity Assay (DPRA) and its modified version named kinetics DPRA (kDPRA). Briefly, these methods are in chemico assays that evaluate the ability of specific chemicals to react with synthetic peptides that mimic the nucleophilic groups of shelf proteins [28]. Consequently, keratinocytes are activated and release proinflammatory molecules such as interleukin 18 (IL-18) and interleukin 1α (IL-1α), which is considered the second key event (KE2). The production of these interleukins may be mediated by the activation of several pathways, including inflammasomes, multiprotein platforms that drive the caspase-dependent maturation and secretion of IL-1β and IL-18. Inflammasomes assembly can be initiated by a variety of damage-associated molecular patterns, extracellular ATP, and other cellular damage associated signals, like reactive oxygen species [2,29].

KE2 also comprises changes in gene expression patterns that are linked to specific cell signalling pathways related to cyto-protective responses to oxidative and electrophilic stress, such as the antioxidant/electrophile response element (ARE)-dependent pathways. One of these pathways is the Nfr2/Keap1 pathway. In homeostatic situations, transcription factor Nfr2 is sequestered in the cytoplasm by Keap1 (Kelch-like ECH-associated protein 1), avoiding its function through ubiquitination and degradation in the proteasome. The exposure to haptens promotes their binding to the cysteines of Keap1 causing conformational changes in Keap1 that result in the release of Nfr2. Nfr2 travels to the nucleus and facilitates the transcription of antioxidant response element (ARE)-dependent genes, mostly detoxification enzymes like hemo-oxygenase 1 (HMOX1). While Nrf2 signaling occurs in many cell types, the regulatory assays for KE2 primarily focus on keratinocytes. In vitro methods, such as KeratinoSens and LuSens have been developed and achieved regulatory acceptance for assessing KE2 [30].

In response to cytokines secreted by keratinocytes and the uptake of hapten-protein complexes, APCs like DCs and LCs become activated and maturate. This process represents the KE3. As a result of this activation, APCs secrete proinflammatory molecules and upregulate specific markers (CD54, CD86). Several in vitro methods have been developed to address this activation, which are mainly based on the detection of expression changes on specific transcripts, surface markers (i.e., CD54, CD86), and chemokines and cytokines after the exposure of DCs to potential sensitisers. The OECD validated methods to address DCs activation include the Human Cell Line Activation Test (h-CLAT), the Interleukin-8 Reporter Gene Assay (IL-8 Luc assay) and the Genomic Allergen Rapid Detection (GARD) [31]. Straightaway, activated DCs migrate to lymph nodes, where they present the protein-hapten complexes to naive T cells via MHC molecules, leading to their clonal expansion and proliferation. This process is defined as KE4. The only validated method to assess this KE is the LLNA, which measures the proliferation of T lymphocytes in draining lymph nodes after topical application of the chemical in murine models [32]. It represents a refinement and reduction compared to the previous guinea pig methods (GPMT and Buehler test), which measure the elicitation phase of skin sensitisation (Figure 1). Despite ethical issues related to the use of animals, the LLNA remains the benchmark method for potency prediction. The assay provides quantitative, dose–response data, which allows the classification of substances into different potency categories under regulatory systems such as the Globally Harmonized System (GHS) and the Classification, Labelling and Packaging regulation (CLP) [32], which is critical for risk assessment and regulatory labelling. Non-animal alternatives, such as DPRA, h-CLAT, KeratinoSens, or the other methods described above, often target only a single KE in the AOP and cannot provide reliable potency predictions alone [33]. Integrated Approaches to Testing and Assessment (IATA) and Defined Approaches (DAs) that combine the information of different NAMs along with in silico data are promising but still need to be optimized for standalone potency assessment [34]. Because of that, the LLNA became the reference method, especially for comparing and validating newly developed NAMs.

An important challenge in the regulatory acceptance of NAMs is the inconsistency in results when the same method is applied, or in other words, inter-laboratory variability. Although significant progress has been made in recent years in developing non-animal alternatives for skin sensitization testing, many of this NAMs display variable reproducibility under routine conditions, which limits widespread application and regulatory confidence. In general, reproducibility of NAMs directly depends on the biological complexity of the endpoint assessed. NAMs that evaluate early events in the AOP, such as peptide reactivity (KE1) and keratinocyte activation (KE2), usually demonstrate lower variability, as they are based on chemical reactions or luciferases reporter activity (i.e., DPRA, KeratinoSens™), which provide straightforward and objective measurements [35,36]. On the contrary, more complex assays such as those based on DC activation (KE3) (h-CLAT, U-SENS™, etc.) are more prone to variability due to their biological complexity and more subjective nature of the readouts. For instance, the h-CLAT method is based on the measurement of expression changes of the surface markers CD86 and CD54 by flow cytometry using the THP-1 monocytic cell line. The use of these cells is inherently related to variability as their biological responsiveness to substances can vary with culture conditions, passage number, batch of reagents, etc. [31,37]. Moreover, flow cytometry is highly dependent to operator variability, on gating strategies, threshold interpretation and instrumental calibration, among other factors, all contributing to interlaboratory inconsistencies [38]. To reduce this variability, regulatory and scientific communities are focused on implementing mitigation strategies to reduce inconsistencies and improve the reliability of NAMs. Some of these strategies are focused on minimizing technical discrepancies across laboratories by the harmonization of standard operating procedures, and use of reference chemicals from controlled sources. Moreover, in assays requiring flow cytometry, the use of automated templates for the acquisition of data and gating has been shown to decrease analyst-dependent variability. These strategies are guided by frameworks such as the OECD’s Guidance Document 34, which outlines reproducibility, transferability, and predictive capacity as fundamental validation criteria [39]. Following such guidelines is especially important for more complex assays like h-CLAT, where minimizing variability is essential for regulatory acceptance and broader implementation in safety assessment profiles.

Additionally, in skin sensitization testing exists an important gap related to the limited ability of some NAMs to accurately identify pro- and pre-haptens, as these substances require an enzymatic or metabolic transformation to become sensitizers. Most validated NAMs are designed to directly detect classical haptens, as they lack oxidative and metabolic activation capabilities [36,40]. In consequence, the predictive relevance of these assays is reduced as they may yield false-negative results when testing this pro- and pre-haptens. Several strategies are being explored to overcome this issue. One approach involves the incorporation of metabolic systems into current NAMs. An example is the addition of S9 liver fractions, recombinant enzymes, or microsomes to existing methods to replicate biotransformation [41,42]. In this line, another explored methodology is the incorporation of metabolically competent cell lines or the use of 3D skin equivalents that express phase I/II biotransformation enzymes [43]. For the specific case of pre-haptens, the addition of a controlled pre-oxidation step prior testing, usually by exposure to air or UV-radiation, seems to effectively generate their active reactive species [44]. Finally, strategies that combine in silico metabolic data with in vitro assays are being used to better predict these activation-dependent sensitizers [45]. Nonetheless, despite significant progress is being made in this field, few of these approaches have achieved formal OECD validation or regulatory acceptance. Therefore, the detection of pro- and pre-haptens remains an unresolved challenge in the application of non-animal alternatives for skin sensitization testing.

3. Regulatory Landscape and Advancements in Skin Sensitization Testing for Cosmetics

The established relation between ACD and cosmetic product use, with thousands of substances identified as potential skin sensitizers, has made skin sensitization a critical endpoint in cosmetic ingredient safety assessment [9,10,11,12]. Consequently, regulatory frameworks worldwide establish requirements for testing, risk assessment procedures, ingredient labelling, and concentration limits for sensitizing chemicals. These legislations, however, vary considerably across countries and regions [46,47]. While the European Union (EU) enforces a full ban on animal testing for cosmetics, other countries have adopted partial bans or allow testing under specific conditions. For example, the USA has no federal ban, although several states have prohibited the sale of animal-tested cosmetics. Japan supports the incorporation of alternative testing methods, and China officially eliminated animal testing for most cosmetics in May 2021, with some exceptions. In Brazil, several states have banned animal testing despite its allowance at the federal level. In contrast, a growing number of countries have implemented complete bans on animal testing for cosmetics, including the United Kingdom, India, Israel, Norway, New Zealand, Taiwan, South Korea, Switzerland, Guatemala, Australia, Mexico, Colombia, Iceland, Turkey, and Canada.

Within the EU, chemicals are regulated under the CLP regulation [48], and the Registration, Evaluation, Authorisation and Restriction of Chemicals Regulation [49], REACH). For cosmetic-specific chemicals, the Cosmetics Regulations [50,51,52] impose strict controls via annexed lists of prohibited, restricted, and approved substances. To ensure cosmetic ingredient safety, hazard assessments must evaluate skin sensitization potential, potency, ingredient concentrations, and predicted human exposure levels. As animal testing for cosmetics is prohibited under the EU Cosmetics Regulation, alternative in vitro or in silico methods are essential. However, animal data generated under other regulatory frameworks like REACH remain acceptable in certain instances. This regulatory overlap can create a conflict, as REACH obligations for worker safety may still necessitate animal testing if no alternatives exist [53].

Historically, laboratory animals played a significant role in evaluating skin sensitization, with classical methods such as the GPMT and the Buehler Test [54] examining both induction and elicitation phases, and the LLNA [32] focusing on the induction response. The LLNA, which measures T lymphocyte proliferation in draining lymph nodes, has been the benchmark for assessing KE4 of the AOP for decades and was the first method to provide relative potency comparisons using the EC3 value. This value provides information about the concentration of chemicals required to induce a T-cell stimulation index of three compared to controls [55,56]. Although animal methods are not illegal and can be used for justified reasons when alternatives are unavailable, in vitro or in chemico methods are prioritized due to animal welfare concerns. The necessity of reducing animal use led to the design and adoption of in chemico and in vitro alternative test methods addressing the first three key events (KE1, KE2, KE3) of the AOP. Efforts continue to expand and refine these NAMs, with the ultimate goal of replacing the LLNA. Given the complexity of sensitization mechanisms and the limitations of individual NAMs, research has increasingly focused on integrating approaches that combine data from multiple key events to enhance predictive accuracy, particularly for determining sensitizing potency. It has been officially accepted three DAs under OECD Guideline [34] that form part of IATA for skin sensitization. These DAs combine data from the DPRA, KeratinoSens, and h-CLAT to provide information equivalent or superior to LLNA for hazard identification [57,58]. Furthermore, the Integrated Testing Strategy (ITS) [59,60] and the kDPRA [61] have been accepted by the OECD for discriminating GHS potency classes 1A and 1B.

Beyond categorical classification, continuous quantitative data are crucial for determining the highest non-sensitizing dose, which is used to derive a Point of Departure (PoD) for quantitative risk assessment (QRA) [62]. KeratinoSens, h-CLAT, and kDPRA can yield such continuous quantitative data, and various models have been proposed for integrating them [63,64,65]. New methodologies like the GARDskin dose–response approach also show promise in quantitatively assessing sensitizing potency by measuring the GARDskin Genomic Prediction Signature [66] and determining the cDV₀ value, which correlates with LLNA EC3 and human PoDs, supporting its utility for QRA [67]. This test is currently under consideration within the OECD Test Guideline Program. Recent recommendations advocate for data integration strategies that incorporate all available data, including animal data, non-animal data, and in silico data, along with read-across predictions from similar chemicals, to build systematic models for comprehensive decision-making [68]. However, for new ingredients, the data used to train these models often come from NAMs with limitations in their applicability domains, such as challenges in testing hydrophobic ingredients, pre-pro haptens, and complex substances like natural extracts and fragrances [69]. These limitations can significantly constrain reliable risk assessment for new cosmetic products.

Among NAMs, three-dimensional reconstructed human epidermis (RHE) models are particularly noteworthy for their ability to replicate human skin physiology and address solubility restrictions. These models have been explored for skin sensitization testing, evaluating responses in keratinocytes or dendritic cells using various systems and markers. Notably, the EpiSensA, the first RHE-based method, was recently adopted by the OECD and incorporated into Test Guideline KE2 [30]. Subsequent sections will review work performed using skin models to assess skin sensitization responses in both keratinocytes and dendritic cells.

4. In Vitro Skin Models for Skin Sensitisation Testing

4.1. In Vitro Skin Models: Unique Tools for Dermatology Applications

Skin models are organotypic 3D cultures where isolated primary keratinocytes grow and fully differentiate when lifted to the air-liquid interface. They reconstitute the viable basal, spinosum and granular layers, and the non-viable apical multi-layered stratum corneum, closely resembling the native epidermis [70]. Basic skin models are broadly divided into two main types: reconstructed human epidermis (RHE), formed only by keratinocytes grown over organic or artificial supports, and reconstructed human skin (RHS), that have an additional dermal equivalent with fibroblasts embedded generally in a collagen or fibrin matrix. The similarity of skin models to native epidermis in histology, differentiation markers and lipid composition [71,72], and the unique feature of a stratum corneum in contact with the air that allows topical application of substances in a similar way to the in vivo situation, made skin models attractive in vitro tools for cutaneous pharmacology and toxicology applications [73,74,75,76,77,78]. To this end, the first highly standardized commercial RHE models EPISKIN [78], SkinEthics [79] and EpiDerm [80] were produced in the 1990s, and several other RHE and RHS models have been produced throughout the following years [73].

For regulatory toxicology applications, the primary focus of commercial RHE models were initially dermal absorption, phototoxicity and irritation testing [81,82]. RHE models have been successfully applied to build validated methods adopted by the OECD as replacement methods for skin corrosion, irritation and phototoxicity [83,84,85]. The establishment of methods using RHE for these tests was facilitated by the good performance of a single readout of cytotoxicity measured with the methyl thiazole tetrazolium (MTT) reduction assay. For skin sensitisation, the search for suitable cells, markers and prediction models to develop in vitro methods took longer. Although most of this research was done with conventional cultures using a variety of cells and cell lines, skin models have also been incorporated through these years as platforms with unique features to model keratinocyte and dendritic cell responses to contact sensitisers.

4.2. RHE-Based Approaches to Evaluate Keratinocyte Response to Sensitisers (KE2)

4.2.1. Markers for the Keratinocyte Response

Studies in murine models of contact hypersensitivity have shown that contact sensitisers and irritants trigger different patterns of cytokine mRNA expression shortly after skin exposure [86], suggesting that the expression of cytokines could be used to identify contact sensitisers [87]. Thus, the analysis of cytokine mRNA or protein expression was the first approach used by researchers to investigate markers in keratinocyte response to sensitisers. For instance, Corsini et al. used the EPISKIN RHE model to demonstrate the selective expression of IL-12 in response to the contact sensitiser dinitrochlorobenzene (DNCB) [88]. This response was not observed after exposure to the irritants sodium lauryl sulphate and benzalkonium chloride. Similarly, Coquette et al. showed that changes in the ratio of IL-8 to IL-1A production enable discrimination among five sensitisers from three irritants using the RHE model SkinEthic [89]. Despite these promising initial results, similar attempts using either RHE models, monolayers of primary keratinocytes, or established cell lines during the same period failed to identify reliable cytokine markers for distinguishing contact sensitisers (reviewed in [90,91]).

In the following years, the urgent demand and increased investment in alternative skin sensitisation testing methods led to the identification of new markers and approaches. The first reliable marker used in keratinocytes to discriminate contact sensitisers was the ubiquitous Keap1/Nrf2 electrophile-sensing pathway [92]. Natsch and Emter found that this pathway was selectively triggered by cysteine-reactive contact sensitisers [93]. Eventually, this finding led to the development of the Keratinosens assay, the first OECD-adopted method for KE2 [94]. This test was based on a stable luciferase reporter introduced into the HaCaT cell line; however, it was not directly transferable to commercial RHE models. Another approach emerged from microarray technology, which allowed global transcriptomic profiling. Studies investigating genome-wide gene expression changes in both DCs [95,96] and keratinocytes [97,98] confirmed Keap1/Nrf2 as a primary pathway activated by sensitisers. This research also demonstrated its potential as a toxicogenomic approach for the development of cell-based test methods. Keratinocyte-derived IL-18 played a key role in allergen-induced LC mobilization in mice [99]. This, along with other approaches, has contributed to the development of RHE models designed to assess the keratinocyte response in skin sensitisation.

4.2.2. The RHE Methods for Keratinocyte Response

A total of five RHE-based methods developed in the past decade were subjected to the formal validation process (

Table A1. Summary of RHE models subjected to the formal validation process.

	EE Potency Assay	RHE-IL-18	SensCeeTox	Episens A	Sens-IS
Test developer	VUMC (The Netherlands)	Università degli Studi di Mano (Italy)	CeeTox (USA)	Kao Corporation (Japan)	ImmunoSearch (France)
RHE models used	EpiCS® (CellSystems) SkinEthic™ (L’Oréal)	In-house RHE (VUMC-EE), EpiCS® (CellSystems), EpiDerm™ (MatTek), SkinEthic™ (L’oreal)	SkinEthic™ (L’Oréal); EpiDerm™ (MatTek)	LabCyte EPI-MODEL 24 (J-Tec)	EpiSkin™ (L’oreal) SkinEthic™ (L’oreal)
Pre-submission (TSAR ID) *	to ECVAM in 2011 (TM2011-12)	To EVCAM in 2012 (TM2012-05)	to ECVAM in 2011 (TM2011-02)	to JaCVAM in 2018 (TM2018-01)	to ECVAM in 2011 (TM2011-11)
Formal validation	NO	NO	NO	Peer-review completed in 2023	Peer-review completed in 2024
OEDC adoption	NO	NO	NO	Test Guideline 442D (june 2024) Test No 442D, 2024	NO
Exposure time	24 h	24 h	24 h	6 h	15 min (6 h incubation)
Read out	1. Cytotoxicity (MTT)	1. IL-18 release by keratinocytes 2. Cytotoxicity (MTT)	1. Glutathione (GSH) Depletion. 2. Gene expression of 7 genes controlled by the Nrf2/Keap1/ARE or AhR/ARNT/XRE signaling pathways: NADPH-quinone oxidoreductase 1 (NQO1) Aldoketoreductase 1C2 (AKR1C2) Interleukin 8 (IL-8) Cytochrome P450 1A1 (CYP1A1) Aldehyde dehydrogenase 3A1 (ALDH3A) Heme-oxygenase 1 (HMOX1) Glutamate cysteine ligase catalytic subunit C (GCLC). 3. Cytotoxicity (LDH)	1. Gene Expression Analysis activating transcription factor 3 (ATF3); glutamate-cysteine ligase, modifier subunit (GCLM); DnaJ (Hsp40) homolog, subfamily B, member 4 (DNAJB4); and interleukin-8 (IL-8) 2. Cytotoxicity	1. Gene Expression Analysis of 64 genes biomarkers in 3 groups: skin irritation (23), antioxidant pathways: ARE genes (17) SENS-IS genes (21) and housekeeping (3) Which vehicles are used in Episens A assay
Hazard prediction	NO	Several prediction models based on thresholds for IL-18 secretion and viability	Proprietary algorithm with data from GSH depletion, viability and marker gene expression	Positive if any marker gene expressed above individual thresholds values	Positive if expression of 7 or more marker genes in REDOX or SENS-IS panels above threshold value
Potency prediction Approach	Concentration for 50% reduction in viability (EC50) interpolated in a regression curve of reference substances	Concentration for 50% reduction in viability (EC50) or stimulation of IL-18 secretion (SI2) interpolated in a regression curve of reference substances.	Proprietary algorithm with data from GSH depletion, viability and gene expression (In Vitro Toxicity Index)	Cut-off value of the lowest positive concentration determines GHS potency categories	Lowest positive concentration determines potency according to LLNA categories
References	[101,102,203]	[104,105,106,204,205,206]	[109,207]	[112,113,114,126,127,208,209,210]	[118,122,125,128,129,130,133,134,137,138,211]

* TSAR: Tracking System for Alternative methods towards Regulatory acceptance (https://tsar.jrc.ec.europa.eu/)

). Some of them had been adapted from methods initially developed in conventional cell cultures to be used on RHE models, while others were created from the start using RHE models.

Epidermal Equivalent (EE) potency and RHE/IL-18 assays were developed within the EU-funded Sens-it-iv research program [100,101]. The EE potency assay [102] originated from an RHE-based method developed for ranking the potency of irritant substances. This method employed the MTT assay as a measure of cytotoxicity to estimate the concentration for a 50% reduction in cell viability (EC50) from dose–response curves. Based on an existing correlation between the irritant and sensitiser potencies, EE potency was intended to rank the potency of substances already classified as sensitisers. Also within the Sens-it-iv program, Corsini et al. developed an assay l using the NCTC2544 keratinocyte cell line to discriminate contact sensitisers based on the increase in intracellular production of the cytokine IL-18 [103]. Evaluation of secreted rather than intracellular IL-18 in a small subset of substances topically applied to Episkin RHE model also showed good results. The RHE/IL-18 assay was then developed, combining the hazard prediction capability of IL-18 determination with the potency estimation of the EE potency assay into a single method [104]. Several prediction models for hazard and potency estimation have been published for the RHE/IL-18 method [105,106]. Studies on the transferability to external laboratories were published for EE potency [101] and the RHE/IL-18 assay [104]. However, these methods did not progress from the initial pre-submission step of the validation process (Table A1). The reasons for the failure to succeed are difficult to ascertain without a validation study report, where the reproducibility and predictive capacity of the method are systematically analysed. Problems for meeting the acceptance criteria and a low sensitivity have been reported as causes preventing successful validation of the RHE/IL18 method [107]. In relation with the sensitivity of the system, differences in basal IL18 expression between RHE models were reported, that impacted the calculated IL18 stimulation index [106]. Also, the poor correlation of cytotoxicity with the relative potency of a sensitiser substance [108] makes its use as the only marker for potency estimation insufficiently reliable.

SensCeeTox method was initially developed using the HaCaT cell line as a two-test platform for the combined assessment of KE1 and KE2 [109]. In this assay, glutathione depletion was evaluated separately as a measure of KE1, and the keratinocyte response was assessed by RT-PCR analysis of gene expression changes in a selected panel of 11 genes under the control of the Keap1/Nrf2, ARNT/AhR, and Nrf1/MTF pathways. Levels of glutathione depletion, gene expression, and cytotoxicity were combined in a proprietary prediction model to provide an In Vitro Toxicity Index for hazard and potency determination. This method was later transferred to the EpiDerm and SkinEthic RHE models, and initial results in the RHE models relative to the HaCaT cell line were published [110]. SensCeeTox was the first RHE method submitted to ECVAM to start the validation process in 2011, but it did not progress from the initial pre-submission step (Table A1). Similarly to the RHE/IL18 assay, the lack of a validation study report for SensCeeTox makes it difficult to draw conclusions of the causes of failure to progress in the validation process. The results of an inter-laboratory study with a small substance panel were published [111]. This study showed a high frequency of discrepant results between the two participant laboratories, pointing to reproducibility problems, although the discordant results were always within one potency category.

EpiSensA (Kao Corporation, Tokyo, Japan) was initially developed using the EpiDerm RHE model [112] and later refined to its final version using the LabCyte EPI-MODEL 24 [113]. In this assay, expression levels were measured by RT-PCR in a panel of four targets and one control gene. For hazard prediction, the test substance induced fold changes in target genes over vehicle control were calculated, and a positive result was obtained when any of the markers exceeded individually selected cut-off values [113]. Potency classification according to the GHS categories 1A or 1B can be determined using a predefined concentration cut-off, corresponding to the lowest concentration of test substance that yields a positive result. Different cut-offs were initially set for each gene marker [113] and later changed to a single cut-off for all markers [114]. The validation study for EpiSensA was coordinated by JACVAM [115,116], peer-reviewed by an international review panel [117], and the method has recently been adopted by the OECD and included in the test guideline for KE2 [30].

The SENS-IS assay was developed on the Episkin RHE model [118]. In this assay, gene expression levels were measured by RT-PCR in three separate gene panels, REDOX (17 genes), SENS-IS (21 genes), and IRRITATION (23 genes), along with three housekeeping genes. Genes in the REDOX panel were Nrf2/Keap1-dependent with ARE sequences in their promoter regions. The SENS-IS panel comprised non-ARE-containing genes with various functions, including inflammation, regulation of DCs activation and migration, and stress response. The IRRITATION panel contained genes related to inflammation and cell death. For hazard prediction, expression levels over vehicle control were calculated. A positive result was determined if 7 or more genes in the REDOX or SENS-IS panels showed expression above the defined cut-off value. In this assay, doses of 0.1%, 1%, 10%, 50%, and 100%, were used, matching the cut-off values in LLNA for extreme, strong, moderate and weak potency categories, and the same potency categories were assigned for test substances based on the lowest concentration that gives a valid positive result.

The validation study of SENS-IS was conducted by ImmunoSearch, a company specializing in innovative non-animal in vitro testing and human-reconstituted 3D tissue technology [119]. The SENS-IS progression to peer review was delayed until 2020 due to EURL-ECVAM’s requests for additional validation data, partly because the assay was patented. The peer-review process was suspended in 2022 by the EURL ECVAM ESAC due to concerns about the quality of data [120]. To move the process on, ImmunoSearch assembled an independent peer-review panel that completed the process in June 2024 [119]. A draft test guideline was then published by the OECD [121].

4.2.3. Performance of EpiSensA and SENS-IS

The results of EpiSensA and SENS-IS on over 100 substances have been documented in the validation study reports as well as in several published works (

Table A2. Summary of immune competent skin models for KE3 assessment.

Immune Cells Incorporated	Differentiation Conditions	Skin Equivalent	Immune Cell Incorporation	Exposure to Sensitisers	Read-Out	Ref
CD34-derived Langerhans cells	CD34+ hematopoietic progenitor cells differentiated to LCs after 6 days in the presence of 200 ng/mL GM-CSF and 2.5 ng/mL TNF-a.	RHE-LCs	a) Co-seeding CD34-derived Langerhans cells with keratinocytes onto the Episkin™ support. b) CD34+ hematopoietic progenitor cells, not exposed to GM-CSF and TNF-a, co-seeded with keratinocytes and melanocytes onto dermal equivalents.	No	Immunohistology staining, migration of CD1a+, Lag+ cells	[147]
CD34-derived Langerhans cells	Differentiated into DCs for 7 days in a medium with 2000 U/mL GM-CSF, 20 U/mL TNF-a, 20 ng/mL SCF.	RHE-LCs	CD34-derived LCs and keratinocytes were co-seeded onto the Episkin™ support.	24 h topical application or solar simulated radiation. Cytokines: TNF-a and IL-1b. Sensitisers: dinitrofluorobenzene (DNFB), oxazolone, p-phenylenediamine (pPD), NiSO4, eugenol, benzocaine. Irritants: sodium lauryl sulphate, benzalkonium chloride, eugenol.	Immunohistology staining: loss of dendricity. IL-1b, CD86 mRNA expression by RT-PCR	[212]
Monocyte derived DCs (MoDCs)	MoDCs were derived from peripheral blood CD14+ cells cultured for 6 days in the presence of, 250 U/mL IL-4 and 50 ng/mL GM-CSF.	RHS-DCs	Layer of agarose–fibronectin gel containing immature MoDCs placed between a bottom fibroblast containing layer and a top keratinocyte layer	24 h topical application sensitisers: dinitrochlorobenzene (DNCB). Irritant: sodium dodecyl sulphate (SDS).	CD86 and HLA-DR expression by flow cytometry. IL-1α, IL-6 and IL-8 secretion by ELISA.	[152]
Monocytes	CD14+ cells differentiated into dendritic cells when incorporated into this 3D skin model	RHS-DCs	For the RHS construct, keratinocytes and freshly isolated CD14+ cells were seeded on a fibrin-based dermal compartment populated by fibroblasts.	24 h topical application f Sensitisers: Formaldehyde and Manganese (II) Chloride Tetrahydrate (MnCl2·4H2O). Irritant: sodium dodecyl sulphate (SDS)	Immunohistology staining: Migration of CD1a+, Langerin+ cells.	[213]
DCs	Commercial normal human dendritic cells	RHS-DCs	RHS constructs were generated by preparing a collagen vitrigel membrane (VG-KDF-Skin) populated with fibroblasts, followed by normal human dendritic cells in collagen and then keratinocytes seeded on top	1 h topical application Sensitisers: Cobalt chloride (CoCl2), 2,4-dinitrofluorobenzene (DNFB), Formaldehyde (HCHO) and glutaraldehyde (GA), m-amino-phenol (m-AP), cinnamaldehyde (CA), DNCB, α-hexyl cinnamic aldehyde (HCA), isoeugenol (IE). Non-sensitisers: dimethyl sulfoxide (DMSO), isopropanol (IP), lactic acid (LA), sodium dodecyl sulphate (SDS), Tween 80	IL-1α and IL-4 release by ELISA	[153]
MUTZ-3-LCs	cells were differentiated into MUTZ-3-LCs for 7 days in the presence of 100 ng/mL GM-CSF, 10 ng/mL TGF-b and 2.5 ng/mL TNF-a.	RHS-LCs	For RHS generation keratinocytes and MUTZ-3-LCs were seeded on top of a dermal equivalent based on fibroblasts seeded onto a collagen matrix.	No	Immunohistology staining, Langerin+ cells.	[214]
MUTZ-3-LCs	MUTZ-3-LCs were derived in the presence of 100 ng/mL GM-CSF, 10 ng/mL, TGF-b, and 2.5 ng/mL TNF-a for 7 days.	RHS-LCs	full-thickness skin equivalent was made by co-culture MUTZ-3--LC with keratinocytes onto fibroblast-populated collagen gels.	16 h topical application: sensitisers: NiSO4, resorcinol	Immunohistology staining, migration of CD1a+, Langerin+ cells. IL-1b, CCR7 mRNA expression by RT-PCR.	[155]
MUTZ-3-LCs	MUTZ-3 cells were differentiated into MUTZ-3-LCs for 7 days by treatment with 100 ng/mL GM-CSF, 10 ng/mL TGF-b1 and 2.5 ng/mL TNF-a	RHS-LCs	SE containing MUTZ-3-LC was achieved by co-seeding CFSE labelled MUTZ-3-LC with Keratinocytes onto fibroblast-populated collagen gels.	16 h Topical exposure Sensitisers: nickel sulphate, resorcinol, cinnamaldehyde Irritants: Triton X-100, SDS, Tween 80	Immunohistology staining and flow cytometry: migration of CD1a+, Langerin+ cells. CD68 mRNA expression by RT-PCR	[156]
MUTZ-3-LCs	Not indicated	Co-culture MUTZ-3-LCs with RHEs	Dermal equivalent with a lattice of collagen and fibroblasts overlaid by a stratified epidermis. RealSkin was used either as a stand-alone assay or co-cultured with MUTZ-3-LCs	48 h topical exposure: Sensitisers: isoeugenol, and a stron p-phenylenediamine (PPD). Irritant: salicylic acid	Release of 27 cytokines panel using multiplex bead-based immunoassay. Transwell chemotactic assay to CCL19.	[215]
MUTZ-3-LCs and MoLCsMUTZ-3-LCs	MUTZ-3 cells were differentiated into MUTZ-3-LCs for 10 days by treatment with 10 ng/mL TGF-b1, 100 ng/mL GM-CSF, 2.5 ng/mL TNF-a. MoLCs were obtained after 7 days of monocyte cultivation with 100 ng/mlGM-CSF, 20 ng/mL interleukin IL-4 and 20 ng/mL TGF-b1 MUTZ-3 cells were differentiated into MUTZ-3-LCs for 7 days by treatment with 100 ng/mL GM-CSF, 10 ng/mL TGF-b1 and 2.5 ng/mL TNF-a	RHS-LCs	Full-thickness skin equivalents prepared by seeding normal human keratinocytes and MUTZ-LCs or MoLCs, respectively, onto the dermal compartment populated with fibroblast on collagen I gel.	24 h topical application: Sensitisers: 2,4-dinitrochlorobenzene (DNCB), isoeugenol. Irritant: sodium dodecyl sulphate (SDS)16 h Topical exposure: Sensitisers: cinnamaldehyde, resorcinol or nickel (II) sulphate hexahydrate (NiSO4)	Immunohistology staining and flow cytometry: migration CD1a+, Langerin+ cells. IL-6-, IL-8- and IL-18 releases quantified by ELISA ATF3, CD83, CXCR4, IL-1b, PD-L1 mRNA expression by RT-PCR	[216]
MUTZ-3-LCsMUTZ-3-LCs and MoLCs	MUTZ-3 cells were differentiated into MUTZ-3-LCs for 7 days by treatment with 100 ng/mL GM-CSF, 10 ng/mL TGF-b1 and 2.5 ng/mL TNF-a.	RHS-LCs RHS-LCs/and MoLCs	RHS-LCs were constructed by preparing a fibroblast populated collagen I hydrogel and coculture Keratinocytes and CFSE-labelled MUTZ-LCs on top of the hydrogel.	24 h topical application: Sensitisers: TiO2, CaO3Ti, C12H28O4Ti, TiALH, nickel sulphate.	Immunohistology staining CD1a+, Langerin+ cells. CXCL12 vs. CCL5-dependent migration of MUTZ-3—LCs. Increase in CD83/CD86 expression by flow cytometry. CXCL8 release quantified by ELISA. IL-1b, CCR7, IL-10 mRNA expression by RT-PCR	[217]
THP-1 MUTZ-3-LCs	THP-1 in RPMI 10% FBS. (Non-differentiated)	Co-culture of THP-1 with RHE	THP-1 cells were seeded in the basolateral compartment underneath the RHE models (OS-REp, SkinEthic™ RHE).	24 h topical application. Sensitisers: eugenol, coumarin Irritant: Lactic acid.	Increase in CD86, CD54, CD40 and HLA-DR expression by flow cytometry	[218]
THP1-DCsTHP-1	THP1 cells were differentiated to DCs for 5 days by treatment with 1500 IU/mL rhGM-CSF and 1500 IU/mL rhIL-4. THP-1 in RPMI 10% FBS.	RHS-DCs	RHS-DCs were constructed by seeding Keratinocytes with THP-1-derived iDCs onto dermis models based on a solid and porous collagen matrix and primary human foreskin fibroblasts.	24 h topical application: Sensitisers: 1-chloro-2,4-dinitrobenzene (DNCB), nickel sulphate (NiSO4).	Increase in CD86, CD54, expression by flow cytometry IkBa degradation and phosphorylation of p38 MAPK by Western blot. IL-6, IL-8, IL-1b, TNFa and protein secretion by ELISA mRNA expression by RT-PCR	[219]
THP1-DCs and MUTZ-3-LCs	THP-1 cells were differentiated to DCs for 5 days by treatment with 1500 IU/mL rhGM-CSF and 1500 IU/mL rhIL-4. MUTZ-3 cells were differentiated to LCs for 9 days by treatment with 1000 U/mL rhGM-CSF, 400 U/mL TGF-b and 100 U/mL TNF-a.	RHS-DCs/LCs	RHS-DCs were constructed by seeding Keratinocytes with MUTZ-3_LCs and THP-1-DCs onto the dermis models. After that freshly detached keratinocytes were seeded on top of the MUTZ-3-LCs +THP1-DCs models. RHS-DCs were constructed by seeding Keratinocytes with THP-1-DCs onto dermis models based on a solid and porous collagen matrix and primary human foreskin fibroblasts.	6–24 h topical application Sensitisers: DNCB, NiSO4	Immunohistology staining, migration CD1a+ cells. IkBa degradation, and phosphorylation of p38 MAPK by Western blot CD86, CD83, CD54, CXCR4, CCR7, IL-6, IL-8, TNFa, IL-1a IL-1b and IL-12p40 mRNA expression by qPCR. Increase in CD86, CD54, expression by flow cytometry IkBa degradation and phosphorylation of p38 MAPK by Western blot. mRNA expression by RT-PCR IL-6, IL-8, IL-1b, TNFa and protein secretion by ELISA	[220]

). Compared with previously validated NAMs, their overall performance for hazard prediction was similar. However, some published works indicated that their particular characteristics could be advantageous for testing specific sets of substances that are problematic with NAMs based on conventional culture systems. For instance, the performance of EpiSensA for hazard prediction was shown to be better compared to the established methods DPRA, Keratinosens, and hCLAT in a subset of highly lipophilic substances and for detecting pre-/pro-haptens [113,114]. SENS-IS was the only RHE model included in phases 2 [122] and 3 [123] of the Long Range Science Strategy, carried out by Cosmetics Europe for the evaluation of NAMs [124,125]. In the extended substance panel analysed in phase 3 of the study, SENS-IS correctly predicted all pre-/pro-haptens, and contrary to several of the NAMs, its performance was independent of the lipophilicity of the substances [123]. Further studies have demonstrated the applicability of these RHE methods to specific substance groups. For instance, EpiSensA has been used with methacrylates [126,127], while SENS-IS has shown utility for polysiloxanes [128], botanical extracts, and polymers [129,130]. These works supported the wide applicability provided by the use of RHE models. This capacity includes the possibility of testing substances in their intended vehicles or finished formulations. An example has been described using SENS-IS [131], showing how this test method was able to capture vehicle effects and the impact of irritants in the mixture, both known to influence the potency of skin sensitisers.

The ability to provide a measure of relative potency has also been a major challenge for NAMs, still unmet for any single established method except for kDPRA, which was approved to distinguish GHS class 1A substances [28]. The prediction model for classification according to the GHS categories 1A and 1B was analyzed in the peer-review stage of the validation process of EpiSensA, and the conclusion was that the predictive capacity was insufficient due to a substantial rate of underprediction, particularly for class 1A substances [132]. Thus, EpiSensA was approved only for hazard prediction, and the current OECD test guideline for EpiSensA does not include potency determination [20].

The SENS-IS protocol was designed to provide potency categories (extreme, strong, moderate, and weak) according to the LLNA classification [133]. This method showed an impressive initial performance for potency categorization [133]. Subsequent investigations have demonstrated robust correlations with reference data based on the weight of evidence classification in a large dataset of fragrance ingredients [134] and with human reference data in the CE database [122]. The approval of SENS-IS as the first alternative method for potency classification is still pending.

4.2.4. EpiSensA and SENS-IS in the NAM Battery for Skin Sensitisation

Over the past years, considerable efforts have been devoted to the design of strategies such as DA or ITS. These strategies aim to combine the information provided by several NAMs, along with other sources of information, as physicochemical characteristics or QSAR models [59]. One of the main drivers for this work has been the need to provide potency estimations to perform risk assessment [135].

Most DAs and ITSs developed so far have not incorporated EpisSensA or SENS-IS. However, several established DAs have been developed using the new RHE methods. EpiSensA has been combined with the QSAR models, TIMES-SS, and OECD QSAR Toolbox to improve potency predictions, showing similar performance to the three OECD-adopted DAs, but with a higher rate of conclusive predictions [114]. This strategy has been extended through the application of read-across approaches [136].

SENS-IS was integrated into a testing strategy as the KE2 method, alongside DPRA (KE1) and hCLAT (KE3) [137]. A Sequential Testing Strategy with SENS-IS as the first method, followed by hCLAT and KeratinoSens was compared with the 2o3 DA on a panel of 25 cosmetic ingredients [138]. This STS was then used to test a panel of botanical extracts [129]. In the near future, EpiSensA and SENS-IS are expected to be gradually incorporated alongside other NAMs in DA/ITS to evaluate their contribution to hazard and potency prediction. Furthermore, they are expected to play a role in the ongoing work to assess their applicability to risk assessment following the NGRA framework [64], although their presence in such assessments has been largely exploratory to date [139,140].

One of the major limitations of EpiSensA and SENS-IS may be their dependence on the availability of a single commercial RHE model. The use of these methods with a different RHE model is foreseen in the OECD test guidelines, assuming that their performance in the new model is demonstrated in a panel of specified performance standards. Recently, SENS-IS was tested in the novel commercial RHE model Skin+™ (Sterlab, Vallauris, France), showing good concordance with the original results in the panel of reference substances [141].

As an alternative to commercial RHE models, some investigations have explored the performance of RHE models based on keratinocyte cell lines. They are under investigation as more scalable, cost-effective alternatives to primary-cell-based models. The N/TERT keratinocyte cell lines [142] have shown a strong differentiation capacity in a RHE [143]. Alloul-Ramdhani et al. [144] compared the response to the contact sensitiser DNCB between RHEs made with the N/TERT cell line and their in-house RHE (Leiden epidermal model) [145]. Both models showed a similar upregulation of Nrf2-dependent genes. Recently, a new assay for skin sensitisation testing has been proposed based on RHE generated with a patented subclone of the Ker-CT cell line transfected with a stable Keap1/Nrf2 reporter that expresses embryonic secreted alkaline phosphatase [146]. In an initial panel of 10 substances, the results obtained with this method were comparable to KeratinoSens assay. Further testing will show the potential of this new method.

4.3. Immunocompetent Skin Models for KE3

Prior to the extensive development of current NAMs, when Langerhans cells were considered the prime candidates for reliable cell-based in vitro methods to discriminate contact sensitisers, the first immunocompetent skin model was developed by L’Oréal researchers in 1997 [147,148]. In this model, LCs were differentiated in vitro from blood cord-derived CD34+ hematopoietic progenitor cells, co-cultured with primary keratinocytes and melanocytes over a de-epidermized acellular dermis. The keratinocytes formed a RHE with melanocytes in the basal layer and regularly spaced LCs situated suprabasally [147]. Unlike human skin explants, where LCs spontaneously migrated out of the epidermis after short-term culture [149], the LCs notably remained resident for a minimum of four weeks. The same group transferred the model to the Episkin RHE model in later years [150] and studied the response of the LCs to several topically applied contact sensitisers and irritants. Resembling the in vivo response, contact sensitisers, but not irritants, elicited changes in cell morphology and induced overexpression of IL-1β and CD86 mRNAs. This system was sensitive enough to detect weak sensitisers, unlike previous results in conventional DC cultures. However, a significant proportion of donor-derived LCs did not produce a response, a phenomenon already described [151]. Donor variability, together with the limited availability of CD34+ precursors and the complexity of the system, significantly limited the potential of this model for establishing a standardized test method.

In the following years, interest remained in assessing the response of LCs or DCs in the context of their interactions with keratinocytes and fibroblasts [16]. These interactions are crucial for mimicking the immunocompetence of skin, especially for modelling KE2 and KE3 in the AOP for skin sensitisation. Beyond basic in vitro co-culture systems, several laboratories have explored diverse skin model approaches for sensitisation testing, integrating monocyte-derived dendritic cells or cell lines within various system architectures—from LCs or DCs embedded in epidermal/dermal compartments to RHE models placed atop dendritic cell line cultures—and employing a variety of cell response markers, making each model unique (Table A2).

Examples of systems that used monocyte-derived DCs are the works by Chau et al. [152] and Uchino et al. [153]. Both systems shared a similar design, including a dedicated, separate layer of DCs placed in the middle of the epidermal compartment and a fibroblast-populated dermal compartment. Using their model, Uchino et al. tested a small panel of contact sensitisers and irritants, measuring IL-1A, IL-4, and IL-8 secreted into the culture medium. Surprisingly, the cytokine that provided the best discrimination was the Th2-type cytokine IL-4. Production of Th2-type cytokines, including IL-4, has been consistently demonstrated in the draining lymph nodes after the induction of skin sensitisation in mice [154]. However, IL-4 has not been described as one of the cytokines involved in the early response to contact sensitisers in the skin and is not a cytokine normally produced by LCs or DCs [3]. Unfortunately, Uchino et al. could not conclusively demonstrate that the incorporated DCs were the source of IL-4 produced in response to the contact sensitisers.

The MUTZ-3 cell line has been frequently used as an alternative to primary cell-derived LCs (Table A2). Gibbs et al., at the VUCM (The Netherlands), reported the first human RHS model containing LCs derived from a cell line. They incorporated MUTZ-3-derived LCs into their established full-thickness RHS model, composed of a dermal compartment consisting of a collagen gel populated with primary human fibroblasts, and an epidermal compartment made of primary human keratinocytes and melanocytes [155]. After topical exposure to contact sensitisers, MUTZ-3 LCs migrated from the epidermis to the dermal compartment. Interestingly, they later demonstrated that this sensitiser-induced migration was dependent on CXCL12 produced by dermal fibroblasts, while irritant-induced migration relied on CCL5, replicating observations from human skin explants [156]. Although this model was not further developed as a standardized test method, it was more recently used to show an irritant-type migration evoked by titanium salts.

A more simplified model utilizing MUTZ-3-derived LCs was developed by Lee et al. Their system involved placing a RealSkin human skin equivalent model (Episkin) over a culture plate containing MUTZ-3 LCs. They investigated the response of the system to topical application of two sensitisers (isoeugenol and p-Phenylenediamine) and one irritant (salicylic acid), measuring a comprehensive panel of secreted cytokines. A support vector machine analysis revealed that the system containing MUTZ-3-LCs, unlike the RHS model alone, allowed for the discrimination of the two sensitisers and even distinguished between their different potencies. Nevertheless, the group subsequently continued their work using a simplified co-culture system instead of the RHS model [45].

Similarly to the examples mentioned, none of the existing skin models for evaluating the response of LCs or DCs to contact sensitisers have been standardized for testing purposes. The high complexity of immunocompetent skin models, along with the lack of clear added value over recently validated KE3 methods based on submerged cell cultures, has probably discouraged further efforts in this direction. However, the ongoing goal of creating in vitro models that more closely replicate the in vivo counterparts in structure, cell composition, and function will persist. Furthermore, the evolution of knowledge and technology, such as advances in organotypic cultures, rapid prototyping, and microfluidic chip fabrication for organ-on-a-chip, will open additional possibilities. Altogether, these advances will eventually enable the standardization and cost-effective production of complex models that could provide a more precise estimation of the in vivo response to contact sensitisers.

5. Emerging Technologies to Improve Predictability in Skin Sensitisation

Emerging technologies for evaluating skin sensitisation offer innovative alternatives to conventional animal testing. Significant advances include skin-on-a-chip (SoC) technology, omics approaches and in silico methods, each of which provides unique insights into the mechanisms of skin sensitisation and improves predictive accuracy.

Despite considerable progress, no standalone in vitro assay has yet succeeded in covering all four KEs of the AOP, particularly KE4, which involves the activation of T-cells. Among the emerging tools, only SoC models currently offer the potential to integrate the complete sensitisation cascade. Their ability to incorporate immune components and mimic dynamic physiological processes uniquely positions them to simulate all four KEs in a single system, making them a promising platform for comprehensive, mechanistically driven safety assessments.

5.1. Skin-on-a-Chip (SoC)

In recent years, organ-on-a-chip technology has emerged as a promising alternative to animal testing, aligning with the ethical and scientific goals of the 3Rs. Among these platforms, SoC systems have been specifically developed to replicate not only the structural complexity of human skin but also its dynamic physiological processes, such as nutrient and signal molecule exchange, and even aspects of the immune response, crucial for evaluating mechanisms like skin sensitisation [21,157,158]. Advanced SoC models typically incorporate multiple skin layers—including the epidermis, dermis, and occasionally a vascularized component [159,160] to mimic systemic drug delivery and immune cell migration. These layers are often separated by porous membranes that support interlayer communication while preserving tissue integrity [161]. This multi-layered architecture enables more accurate modelling of physiological and pathological processes, improving the system’s ability to mimic native human skin. The inclusion of a vascular compartment further enhances the relevance of these models by allowing dynamic perfusion and immune cell trafficking under controlled conditions.

A key advancement in SoC technology is the incorporation of immune cells components, such as dendritic cells or T-lymphocytes, which are essential for studying skin sensitisation pathways. For instance, Ramadan et al. developed 3D co-culture system that integrates immortalized human keratinocytes (HaCaT) with U937 cells, representing the epidermal barrier and dendritic cells, respectively [162]. This model, implemented within a microfluidic environment, promotes dynamic perfusion that enhances cell viability and tight junction integrity, as evidenced by increased trans-epithelial electrical resistance (TEER) values. The research aims to create an innovative in vitro microphysiological model, including immunology, to understand the mechanisms underlying skin sensitisation. Recent efforts have expanded immune relevance by incorporating dynamic immune perfusion and more physiologically structured environments. For instance, Michielon et al. introduced an environmentally controlled, endothelialised SoC model enabling the perfusion of monocyte-like MUTZ-3 cells under flow; exposure to NiSO₄ led to significant upregulation of CD83 and CD86, consistent with dendritic cell activation and KE3 [163]. Similar models have demonstrated the ability to replicate immune cell migration and inflammatory responses by dynamic immune responses, providing insights into conditions like atopic dermatitis and psoriasis [164].

Further expanding on immune resolution, research by Hindle et al. demonstrates the power of microfluidic SoC systems to study dynamic immune responses at single-cell resolution [160]. By integrating a vascular microchannel within a full-thickness skin construct, the model allows for immune cell delivery and migration that closely mirrors physiological immune trafficking. Upon keratinocyte-driven inflammation, monocytes migrate from the vascular channel into the dermal and epidermal layers. Single-cell transcriptomics revealed differentiation trajectories of monocytes into mature dermal macrophages, effectively simulating in vivo immune responses. Although originally designed for inflammatory skin diseases such as psoriasis, the model offers a powerful framework for studying KE4, especially through real-time immune cell monitoring.

To more accurately simulate systemic exposure scenarios, Rhee et al. engineered a perfused full-thickness skin construct with endothelialised microchannels [165]. This platform successfully maintained skin barrier integrity and supported continuous perfusion for over a week, enabling topical drug application and real-time monitoring of permeation and metabolic response. Its architecture indicates a high potential for assessing sensitiser-induced alterations in barrier function and systemic kinetics across multiple KEs of the AOP.

Taking a step further, some platforms have begun integrating multiple tissue types to simulate systemic interactions relevant for skin sensitisation. L’Oréal, in collaboration with HμREL, has developed a pioneering device known as the Allergy Test-on-a-Chip, which aims to replicate human cutaneous allergic reactions more accurately [166]. The system comprises two compartments: one simulating a lymph node and the other representing skin tissue. These are connected by a network of microchannels that maintain a chemical gradient. This gradient enables the observation of immune cell migration, including DCs and T-lymphocytes, from the ‘lymph node’ to the ‘skin’, thereby simulating the immune process that occurs during an allergic response. This configuration enables the model to replicate not only allergen exposure, but also the elicitation phase. Consequently, it offers a highly relevant tool with which to assess skin sensitisation in non-animal cosmetic studies [167]. By mimicking inter-tissue signalling between skin and a lymph node analogue, the model effectively bridges local and systemic immune dynamics, making it a functional precursor to multi-organ skin-on-chip platforms.

Building on this concept, recent SoC systems have pushed integration further by incorporating metabolic competence and inter-organ crosstalk. These advancements aim to capture systemic physiological interactions and improve mechanistic resolution in sensitisation pathways. For example, Chong et al. developed a multi-organ chip integrating immune-competent skin tissue and hepatic metabolism and combined it with machine learning analysis. Their system predicted systemic sensitisation with 100% sensitivity, demonstrating the potential of integrated SoC models for evaluating ADME–tox interactions and downstream immune effects—particularly relevant for KE4 [168]. Similarly, Tao et al. introduced Chip2, a dual-organ platform combining HepaRG liver organoids and EpiDerm skin equivalents. Transcriptomic analysis following genistein exposure revealed perturbations in oxidative stress, immune signalling, and metabolic pathways [169]. While not explicitly developed for sensitisation testing, the study highlights the value of high-resolution molecular readouts and multi-organ integration in capturing route-specific toxicokinetic and toxicodynamic responses.

In addition to increasing biological complexity and mechanistic resolution, SoC platforms offer several practical advantages that enhance their applicability for hazard assessment. The microfluidic design SoC devices and their ability to replicate key inflammatory processes, such as immune cell recruitment and cytokine release, make them ideal for rapidly identifying potential irritants in cosmetics and pharmaceuticals [170,171]. This, along with precise monitoring of skin barrier integrity through TEER measurements and dye permeation assays, offers valuable insights into allergic reactions and the evaluation of anti-inflammatory compounds [172]. A distinctive strength of SoC platforms lies in their capacity for real-time, dynamic monitoring, which enables the capture of transient immune events, cytokine fluctuations, and tissue responses under physiologically relevant conditions. To further enhance immune resolution, analytical tools such as single-cell cytokine profiling have been proposed. For instance, Linder et al. developed a microfluidic assay that tracks cytokine secretion dynamics at the single-cell level, distinguishing sequential from simultaneous release patterns [173]. Although not yet applied directly to skin sensitisation, this technique offers a powerful complement for capturing immune dynamics relevant to KE3–KE4, potentially improving mechanistic understanding and potency prediction.

Together, these examples illustrate the evolution of SoC systems from proof-of-concept to applied testing platforms, demonstrating increasing sophistication through immune integration, dynamic monitoring, and mechanistic resolution. Yet, despite their growing potential, SoC technologies still face challenges in fully recapitulating the complexity of human skin, particularly in terms of immune system diversity and sensory neuron integration [174].

From a technical standpoint, most SoC platforms rely on specialised microfabrication techniques, dynamic perfusion systems, and expert handling. These requirements result in higher direct and operational costs compared to conventional static RhE models. While SoC systems often offer improved epidermal architecture, keratinocyte differentiation, and barrier function—especially under flow conditions—these benefits frequently come at the expense of scalability and reproducibility [163]. Currently, many SoC devices are developed in low-throughput, academic settings and are not yet compatible with standardised formats such as 96-well plates, limiting their integration into automated or high-throughput pipelines. Reproducibility remains a key concern, with results often affected by variability in scaffold composition, perfusion parameters, immune cell sources, and device architecture. Some recent efforts have explored simplified, gravity-driven microfluidic systems that may help reduce this complexity and offer more scalable, cost-effective solutions [175]. Although promising results have been reported—such as enhanced barrier integrity [176] or dynamic cytokine responses under microfluidic flow [177], many findings remain context-dependent and have yet to be broadly validated across platforms or laboratories [161].

From a regulatory perspective, SoC platforms are still in the early stages of qualification. While initiatives such as the FDA’s ISTAND program [178] and the Modernization Act 2.0 have opened the door to microphysiological systems in nonclinical safety testing, no SoC model has yet undergone full OECD guideline validation for regulatory use in skin sensitisation testing [179]. European regulatory frameworks continue to rely on validated in vitro and in chemico methods (e.g., OECD TG 497), and SoC systems remain excluded from official guidance. Nonetheless, fit-for-purpose qualification strategies may allow SoC technologies to contribute to IATA as part of a weight-of-evidence framework [180,181]. Efforts by global organisations such as EUROoCS [182] and the NIH/NCATS “Tissue Chip for Drug Screening” [183] continue to promote the development, harmonisation, and validation of SoC systems for regulatory use. These efforts are expected to play a central role in advancing microphysiological platforms from academic prototypes to regulatory tools [180].

Nevertheless, continued advancements in tissue engineering, immunointegration, and high-throughput analysis are steadily improving the physiological relevance and predictive capabilities of these platforms. As these challenges are progressively addressed, SoC systems are poised to become essential tools in the next generation of animal-free safety and efficacy assessments.

5.2. Integration of Omics Approaches for Mechanistic and Predictive Insight

Recent advancements in omics technologies—such as genomics, proteomics, and metabolomics—have significantly enhanced comprehensive characterization of biological responses at the molecular level, providing detailed information on the pathways involved in skin sensitisation. These approaches provide detailed insights into the cellular pathways involved in skin sensitisation and enable the identification of specific biomarkers, thereby contributing to a deeper understanding of inter-individual variability in allergen responses. The integration of omics data with physicochemical parameters has allowed the development of highly predictive multivariate models. These models, which often combine results from validated in vitro assays such as the DPRA, h-CLAT, and KeratinoSens, have achieved predictive accuracies of up to 92% in human skin sensitisation studies [68]. Notably, these integrated approaches have outperformed both individual in vitro assays and the aforementioned traditional in vivo LLNA. Moreover, omics-based analyses have played a pivotal role in identifying key events within AOPs, thereby reinforcing the mechanistic underpinnings of alternative testing strategies. This not only enhances the scientific credibility of non-animal methods but also supports their regulatory acceptance and applicability in risk assessment frameworks [184].

Building on this foundation, the integration of omics data with in vitro models, particularly RHEs, has enhanced the mechanistic depth and predictive accuracy of skin sensitisation assays. When combined with omics readouts, RHE models allow for the detection of subtle gene and protein expression changes that may not be captured by classical endpoints such as viability or cytokine release. For example, transcriptomic profiling of RHEs and keratinocytes exposed to the sensitiser DNCB has shown upregulation of inflammatory mediators such as IL-6, IL-8, and IL-1β, along with activation of stress-related pathways thereby contributing to the mechanistic understanding of KE2 [185]. Similarly, proteomic studies have complemented these findings by identifying proteins capable of distinguishing ACD from irritant contact dermatitis (ICD) [186].

A robust example of multi-omics integration is provided by Qiao et al., who applied both transcriptomic (RNA-seq) and proteomic (TMT-based) analyses to an RHE model of atopic dermatitis under inflammatory stimulation [187]. Their study revealed over 2000 differentially expressed genes and nearly 900 proteins, with key overlaps related to epidermal barrier formation, immune signalling, and oxidative stress. Network analysis identified hub molecules such as STAT3, FLG, and ITGB1. This convergence of omics layers enabled the identification of novel KE2–KE3 biomarkers, supporting improved mechanistic understanding and KE-specific risk stratification in sensitisation models.

Metabolomics further extends this molecular coverage. High-resolution magic angle spinning nuclear magnetic resonance (HR-MAS NMR) has been successfully applied to RHEs to assess intracellular metabolic changes following sensitiser exposure [188,189]. These studies demonstrated early alterations in lipid and amino acid metabolism, providing real-time metabolic fingerprints relevant to KE1 and KE2. This metabolomic signature-based approach has potential for identifying specific metabolic biomarkers of sensitisation and distinguishing them from irritant responses. Together, these studies demonstrate how the convergence of multiple omics layers—transcriptomic, proteomic, and metabolomic—within RHE-based systems enables a more comprehensive and mechanistically grounded assessment of skin sensitisation.

Omics applications are now expanding to more complex systems, such as SoC systems, enabling systemic and immune-resolved assessments. In this context, Tao et al. applied transcriptomic profiling within a dual-organ SoC integrating skin and liver tissues, uncovering gene expression changes related to xenobiotic metabolism and oxidative stress [169]. Similarly, Hindle et al. employed single-cell RNA sequencing in a vascularised SoC model to trace monocyte-to-macrophage differentiation, providing dynamic insight into immune activation events linked to KE4 [160]. These studies exemplify how high-resolution omics can enhance the interpretability of SoC models and strengthen AOP-based mechanistic frameworks.

Functional omics tools such as microfluidic single-cell cytokine profiling also offer high-resolution insight into immune dynamics during KE3–KE4. Linder et al., showed that this approach can distinguish sequential versus simultaneous cytokine release at the single-cell level, supporting refined potency prediction and immune profiling when integrated into RHE–omics systems [173].

These mechanistic insights are increasingly being translated into functional and predictive tools. For instance, functional gene expression assays such as EpiSensA, built on RHE platforms, have achieved high predictive accuracy (up to 82.4%) and reproducibility, especially when enhanced with omics-based biomarker panels [114,190]. These omics-augmented RHE assays have proven useful not only for hazard identification but also for potency classification, supporting KE3-related mechanistic predictions.

Altogether, the integration of omics within both conventional and microphysiological models provides a powerful strategy for refining predictive performance, enhancing mechanistic interpretation, and supporting the development of next-generation non-animal testing frameworks.

5.3. In Silico Methods

While skin-on-a-chip platforms and omics data offer unprecedented physiological and mechanistic insight, the integration of computational models adds another essential layer of efficiency, scalability, and predictive power to non-animal skin sensitisation testing strategies. In silico tools complement experimental systems by enabling rapid screening of large chemical libraries, help bridge data gaps and support regulatory decisions with reproducible and standardized outputs. These models utilize computational algorithms to simulate biological responses, offering a rapid, ethical and cost-effective alternative to traditional animal-based methods. Machine learning algorithms and Quantitative Structure–Activity Relationship (QSAR) models are among the most widely used in silico approaches [191,192]. By analysing large datasets—including those from historical in vivo tests like the LLNA and GPMT—these models identify correlations between chemical structure and sensitisation potential. Several have demonstrated classification accuracies above 88%, surpassing traditional methods in some cases [191]. Platforms like the OECD QSAR Toolbox, which uses read-across and mechanistic alerts, have achieved up to 77% accuracy [68], reinforcing their relevance for regulatory purposes.

A practical example of how in silico and in vitro approaches can be synergistically integrated is provided by Souza et al. [193]. In this study, multiple QSAR tools (OECD QSAR Toolbox, ToxTree, VEGA) predicted the sensitisation potential of 4-octylphenol, which was then experimentally validated using RHE models and other cellular systems. Cytokine responses in RHE—including increased IL-6, IL-8, and IL-18—confirmed the KE2-related immune activation predicted computationally, while elevated IL-1α levels supported the classification of irritancy. This study illustrates how RHE-based endpoints can validate in silico predictions and highlights the utility of hybrid strategies for informing hazard identification across early key events of the AOP. Beyond validation of individual compounds, other approaches aim to systematically integrate gene expression data from RHE with computational modelling pipelines. One notable example is provided by Mizumachi et al., who developed EpiSensA, a transcriptomics-based assay using reconstructed human epidermis [114]. This assay was evaluated in conjunction with predictive tools such as TIMES-SS and the OECD QSAR Toolbox. By aligning in vitro gene expression signatures with in silico predictions, the study demonstrated improved accuracy in both hazard identification and potency classification. This integration also highlights how omics data—particularly transcriptomic signatures from RHE models—can serve as high-content inputs for training machine learning algorithms, enabling more robust and mechanistically anchored in silico predictions aligned with key events of the AOP.

Among these, the SkinSensPred platform illustrates the potential of integrating computational models with laboratory-derived data to enhance predictive performance. Using a transfer learning algorithm, SkinSensPred incorporates information from in chemico and in vitro assays—aligned with AOPs—and has shown improved accuracy in both hazard identification and potency classification compared to earlier ITS models [194,195]. The tool is compliant with OECD recommendations and supports regulatory decision-making. However, like other machine learning-based systems, its performance may be influenced by the diversity and quality of training datasets, particularly for less well-represented chemical groups such as agrochemicals [196].

Beyond individual models, machine learning approaches are increasingly employed to develop robust predictive frameworks for skin sensitisation. One such example is the Skin Doctor tool developed by [197], which combines random forest and support vector machine classifiers trained on large LLNA datasets. The model achieved accuracies up to 76% and AUC values of 0.83 and notably incorporates a clearly defined applicability domain and reliability indicators for each prediction, enhancing its practical usability in regulatory contexts.

Similarly, the HuSSPred model introduced by [198] represents a significant step forward by basing its predictions on human data from the Human Predictive Patch Test. Using Bayesian-optimized QSAR models, HuSSPred demonstrated strong performance across multiple metrics, with correct classification rates ranging from 55% to 88% and high positive predictive values (up to 97%). Its open-access platform offers a user-friendly, ethical alternative for assessing human skin sensitisation potential, further aligning with the 3Rs principles and regulatory needs. A particularly promising approach to improving prediction reliability involves the integration of multiple models through the Dempster–Shafer Theory of evidence. As presented by [191] this method merges predictions from diverse QSAR models trained on assays such as GPMT, LLNA, DPRA, KeratinoSens™ and h-CLAT, resulting in a combined correct classification rate of 88%. The study explored various evidence fusion strategies, with the custom-defined Q3 rule yielding the best balance of performance and coverage (0.893). In addition, the use of Shapley Additive Explanations enhanced interpretability by identifying key molecular features contributing to sensitisation outcomes. This evidence-based framework was ultimately packaged into the HSkinSensDS tool, providing both high predictive power and accessibility for end users.

In silico models play a crucial role in advancing non-animal approaches to skin sensitisation testing by offering fast, cost-effective, and reliable predictions. Tools such as SkinSensPred, Skin Doctor and HuSSPred demonstrate how machine learning and QSAR methods can effectively complement experimental data, while evidence integration strategies like the Dempster–Shafer Theory further enhance prediction robustness.

While these emerging technologies represent a major step forward, challenges remain in terms of validation, standardization, and regulatory acceptance. Successfully integrating these tools into routine safety assessment will require continued interdisciplinary collaboration and refinement to ensure both scientific credibility and practical applicability.

5.4. Future Directions and Integration Pathways

Over the next decade, skin sensitisation assessment is poised to evolve into fully integrated, multi-modal strategies that combine omics technologies, in silico modelling, and advanced microphysiological systems. Building on current RHE and SoC platforms, future models are expected to incorporate greater immune and metabolic complexity—including dynamic vascularisation, real-time biosensing, and neuronal integration—enabling the concurrent monitoring of immune responses, pain-related biomarkers, and barrier perturbation under physiologically relevant conditions.

At the same time, multi-omics approaches will continue to refine the mechanistic understanding of sensitisation by identifying novel biomarkers, particularly for underrepresented key events such as T-cell activation. These high-dimensional datasets will increasingly rely on AI- and machine learning–based tools to support pattern recognition, improve reproducibility across laboratories, and enhance the transferability of predictive models.

In parallel, in silico platforms are expected to mature into interactive decision-support systems that integrate regulatory, toxicological, and mechanistic layers. These tools will not only guide experimental design and prioritise testing but also strengthen justification in IATA through transparent weight-of-evidence reasoning [34].

Realising this vision will depend on sustained progress in standardisation, scalability, and regulatory qualification. Institutional initiatives such as the FDA’s ISTAND program [178] and EU-funded projects like PARC [199] and ONTOX [200] underscore a growing commitment to next-generation testing strategies (NGTS). Interoperability across RHE, SoC, omics, and computational platforms will be essential—not only to improve mechanistic insight and model concordance, but also to support personalised, ethical, and regulatory-aligned risk assessment in the field of skin sensitisation.

6. Conclusions

In the European Union, the risk assessment of cosmetic ingredients used exclusively in cosmetics must be evaluated without using data from animal testing, as the testing and marketing bans introduced in the Cosmetic Regulation were definitively implemented in 2013, regardless of the availability of alternative methods. The impact on the cosmetic industry is reflected by the fact that no new ingredients of exclusive use in cosmetics have been introduced since then [201]. At the same time, this law provided an important stimulus for accelerating the development of alternative methods, a tendency that is undoubtedly irreversible. Accordingly, regulations worldwide have been increasingly adapting to favour the acceptance of NAM data, incorporating bans on animal testing in most cases [46].

Skin sensitisation has been a paradigmatic example in the development of alternative methods, which have nevertheless faced significant challenges. Limitations in the capacity of established NAMs to determine potency and their applicability to poorly water-soluble substances have been and remain major obstacles. This is evident from the accumulated experience in the use of NAM data for regulatory requirements in risk assessment [202]. Many efforts to overcome these challenges have focused on designing DAs or ITSs that combine information from several NAMs and other sources to maximize predictive capacity and obtain potency estimations. In parallel, new methods have been developed and validated, such as new RHE methods that showed unparalleled capabilities for testing lipophilic substances. Furthermore, due to their capacity to provide an estimation of potency, they could lead to the design of new integrated strategies that need fewer NAM data. An example of this possibility is the similar performance shown by the combination of EpiSensA with QSARs compared to the ITS included in the OECD test guideline for Defined Approaches [136]. Although SENS-IS has not yet been definitively adopted by the OECD, this method has shown unprecedented stand-alone performance in potency prediction. These emerging RHE methods could make a substantial contribution towards the non-animal risk assessment of cosmetic ingredients. The development of immunocompetent in vitro skin models, which integrate immune cells like LCs or DCs into RHE to more closely mimic in vivo skin physiology and immune responses, represents a crucial and ongoing area of research in non-animal sensitisation testing, despite the challenges in standardization encountered by early models. In all cases, obtaining a model construction process that provides an epidermal structure of good quality, maintaining a high reproducibility, is an essential requisite to build a test method. Such a degree of standardization has been demonstrated to date only by commercial and a few in-house skin models, and represents an important challenge for incorporating additional cell types and for building models using alternative platforms like microfluidic devices. For skin sensitisation testing, an improvement in barrier function could be particularly relevant, leading to a similar epidermal bioavailability of topically applied substances compared to in vivo human skin. That, together with a similar keratinocyte cell distribution and similar metabolic activities for activation but also for detoxification, could lead to better estimations of relative potency.

Despite facing important challenges, the continued evolution of organ-on-a-chip and other engineering technologies is poised to further revolutionize the field of in vitro skin models. While still in an incipient stage within the field of organotypic skin models, these approaches are expected to advance steadily. They have great potential to assist the development of more complex skin models by combining the ability to incorporate time-resolved monitoring systems with the possibility of cost-effective, high-throughput fabrication, thus offering even more sophisticated tools for non-animal risk assessment.
