Thermodynamics and Electrochemistry of the Interaction of Sphalerite with Iron (II)-Bearing Compounds in Relation to Flotation

by
Kyaw Zay Ya
1,*,
Boris Goryachev
1,
Arkadiy Adigamov
1,
Karina Nurgalieva
2 and
Igor Narozhnyy
3
1
Department of Mathematics, National University of Science and Technology “MISiS”, Leninsky Avenue, 4, 119991 Moscow, Russia
2
Department of Development and Operation of Oil and Gas Fields, Saint-Petersburg Mining University, 21st Line, 2, 199106 St. Petersburg, Russia
3
Mining Oil and Gas Departmen, RUDN University, Miklukho-Maklaya, 6, 117198 Moscow, Russia
*
Author to whom correspondence should be addressed.
Resources 2022, 11(12), 108; https://doi.org/10.3390/resources11120108
Submission received: 17 September 2022 / Revised: 15 November 2022 / Accepted: 18 November 2022 / Published: 28 November 2022
(This article belongs to the Special Issue Resource Provision of the Sustainable Development under Global Shocks: 2022 Viewpoint)
Browse Figures
Versions Notes

Abstract

:
The flotation recovery of sphalerite depends on the inorganic reagents concentrations in the liquid phase of suspension and pH. This paper presents the results of studies of the interactions of iron (II) containing ions with the sphalerite surface in water solutions at different pH levels. The thermodynamic and electrochemical studies were carried out to analyze possible interactions of sphalerite with iron (II) sulfate in a water environment and relate them to sphalerite flotation with potassium butyl xanthate and sodium dibutyl dithiophosphate. The results of the thermodynamic calculations revealed the possibility of interaction of the sphalerite surface with iron (II) hydrolysis products. The effect of the hydroxide ions concentration on precipitation of iron (II) hydroxides was examined. The findings showed that at pH = 8 there were no precipitates observed in water solutions of FeSO4. Increasing pH of the solutions from 8 to 12 resulted in the formation of iron (II) hydroxides. The potentiometric studies revealed that in slightly alkaline solutions the Fe2+ and FeOH+ cations are potential-determining. In conclusion, the flotation tests with thiol collectors show the activation effect of iron (II) sulphate on sphalerite at low dosage and pH 12. This is evident by a higher flotation recovery of sphalerite at these conditions.

1. Introduction

The growth in the consumption of natural resources causes an intensification of the mineral deposits development [1], which leads to a decrease in the mineral resource base [2]. To provide resources for sustainable development, mining enterprises develop deposits with a low content of a useful component [3] with ores of complex material composition [4] located in difficult mining and geological conditions or near protected objects [5,6]. The depletion of reserves is associated with an increased pressure on the environment in regions with a high concentration of the mining industry [7,8].
The current situation requires the simultaneous solution of the following issues: reduction of industrial formations [9,10] and increasing the extraction of a valuable components [11], which will ensure the sustainable development of the mining industry. The transition to sustainable and intensive development of the economy is a priority task that can be achieved by reducing the loss of natural resources while minimizing the total environmental impact [12]. The issue of the resource provision of sustainable development is especially acute in the era of global shocks [13,14].
A promising vector for increasing the mineral resource base is the development of innovative technologies for deep processing of resources [15,16,17] and the improvement of flotation technology. The industrial experience of flotation of sulfide copper-zinc, lead-zinc and polymetallic ores shows that the improvement of flotation technology is essential for increasing concentrate grade and metals recovery [18]. Typically, this is achieved by the optimisation of flotation circuits, the installation of modern equipment and optimization of the reagent schemes of flotation [19,20]. One of the directions in the development of reagent schemes of flotation is the study of the effect of collecting agent on the mineral surface under bulk or selective flotation conditions [21,22,23,24,25].
It is widely accepted that inorganic compounds are used as activators, depressors and pH-agents in flotation [18,20,26,27,28,29,30]. Although inorganic agents have been used in industrial flotation practice for decades to improve the selectivity of the flotation process, their interaction with sulfide minerals is still undiscovered or controversial. In the field there are a number of works in which the effect of copper and zinc sulfates on sphalerite flotation has been theoretically and experimentally studied [18,20,26,31,32,33]. Meanwhile, iron sulfate can be used as a modifying agent for sphalerite and pyrite [34,35]. However, there is a lack of research relating to iron sulfate action on sphalerite. Therefore, further studies are required to analyse the interaction of sphalerite with iron (II)-bearing compounds.

2. Materials and Methods

2.1. Procedure of Experimental Studies of Precipitates Formation in Alkaline Solutions

A chemical reactor with the volume of 0.07 l was used in the research. The reactor was filled with distilled water, and then the lime was added to adjust the pH. After that, either iron (II) sulfate or zinc sulfate were dosed in the solution. The amount of sulfates added was calculated based on their dosages during the flotation of sphalerite samples. Further studies involved mixing the solution, pH and oxidation-reduction potential (ORP) measuring, and monitoring whether precipitation was formed.

2.2. A Technique to Measure the Electrochemical Potential of Sphalerite Electrode

Mineral electrode was manufactured to study the interactions of sphalerite with working solutions of iron (II) sulfate. The electrode was made from a pure monolith sample of sphalerite. The sphalerite electrode coupled with a silver-chloride reference electrode was connected to a digital ionmeter and immersed into the working solutions, which were placed in an electrochemical cell. The measured electrochemical potentials were converted to hydrogen scale values. The lime was used to adjust the pH of 8, 10 and 12 of the working solutions.

2.3. Procedure of Sphalerite Flotation

A mechanical flotation cell with the volume of 0.1 L was used in the flotation experiments. Prior to flotation, the sphalerite sample (5 g) was crushed and sieved to the required fineness of −74 + 44 μm.
Potassium butyl xanthate (PBX) and sodium dibutyl dithiophosphate (SDTP) were used as collecting agents, and methyl isobutyl carbinol (MIBC) was used as frother. Iron (II) sulfate was used as the modifying agent, and calcium hydroxide was dosed as the pH-agent.
The ground quartz (25 g) was introduced into the flotation suspension before the frother was added to obtain the required solid content. The flotation time was 5 min, and then the products of flotation were dried and weighed. The initial pH of the working solution was 8, 10 and 12.

3. Results and Discussion

3.1. Thermodynamics of the Interaction of Sphalerite with Iron (II)-Bearing Ions

The study considered the possibility of the interaction of water-soluble compounds of iron (II) with the sphalerite surface in water under conditions that the layer of iron (II) sulfide is the main product formed on the surface of sphalerite particles. It follows from previous research [8,19,21,22,36] in which the activation of sphalerite with copper (II) cations was studied.
The reactions of interaction of sphalerite with cations (Fe2+, FeOH+), molecules (Fe(OH)20), and high hydroxocomplexes (Fe(OH)3−, Fe(OH)42−) are given below:
ZnS + Fe2+ → FeS + (Zn2+ … Zn(OH)42−),
ZnS + FeOH+ → FeS + (Zn2+ … Zn(OH)42−)
ZnS + Fe(OH)20 → FeS + (Zn2+ … Zn(OH)42−)
ZnS + Fe(OH)3− → FeS + (Zn2+ … Zn(OH)42−)
ZnS + Fe(OH)42− → FeS + (Zn2+ … Zn(OH)42−)
the products of Reactions (1)–(5), with exception of iron sulfide, are water-soluble zinc compounds that are in balance with the zinc hydroxide precipitates.
Table 1 presents the reactions, which are characterized by negative values of Gibbs thermodynamic potential, and hence, proceed.
The calculations show that only the reactions listed in the Table 1 are characterized with negative values of ΔG. Therefore Fe2+, Fe(OH)3−, Fe(OH)42− present in solutions react with the sphalerite surface. Recent studies [8,21] confirmed that copper (II) sulfide is formed on the sphalerite surface due to its activation with copper sulfate. Similarly, it can be proposed that iron (II) sulfide is formed on the sphalerite surface when using iron sulfate solutions.
It is widely accepted [23,24] that the concentration of Fe3+/Fe2+ depends on the pH and oxidation-reduction potential (ORP) of the liquid phase in which cations exist. Moreover, these factors affect the composition of surface compounds formed on the mineral. Furthermore, a significant concentration of Fe3+ is typically observed in strongly acid solutions with high oxidation potentials. These observations are consistent with the thermodynamic stability diagrams that were introduced by Garrels and Christ [26,37,38,39].
The studies revealed that Fe(OH)2 is formed under experimental conditions. This follows from the white-green colouring of precipitates which can be attributed to iron (II) hydroxide formation. That is why thermodynamic calculations were made for Fe2+. In sulfide copper-zinc flotation circuits pH = 8–10 is typically observed. Further studies confirmed, with minor exception, that the introduction of iron sulfate into the solution at pH = 10 leads to the formation of precipitates of Fe(OH)2 sphalerite. That is why the analysis began with a pH = 10 case.
It is a common knowledge that thermodynamic equilibrium for a given chemical reaction is expressed as follows:
ΔG = RTlnKsp − RTlnK,
where ΔG is the change in the Gibbs free energy for the reaction; R is the universal gas constant; T is the absolute temperature; Ksp is the solubility product constant; and K is the equilibrium constant.
According to Equation (6), if Ksp < K then the chemical reaction is irreversible and proceeds spontaneously (ΔG < 0), otherwise it is irreversible and non-spontaneous. At Ksp = K (ΔG = 0) the reaction is characterized by an equilibrium state.
It follows from Table 1 that under standard conditions at pH = 10, Reaction (A) proceeds spontaneously as ΔG = −6.22 kcal. The value of the equilibrium constant is K6 = 3.61·104. The values of Fe(OH)2 and Zn2+ concentrations in equilibrium with the hydroxide precipitates are 5.891·10−6 and 1.7·10−10 mol/L. However, substituting R = 0.001987 kcal, T = 298.15° and the above values into Equation (6) gives ΔG = +5.42 kcal. A positive value of the change in the Gibbs energy shows that Reaction (A) could not proceed spontaneously. Apart this, further thermodynamic calculations showed that the Reactions (B)–(G) listed in Table 1 are irreversible and proceed spontaneously at pH = 10.
To sum up, thermodynamic analysis indicates that the dosing of iron sulfate into an alkaline suspension leads to an equilibrium in which iron (II) compounds dissolved in water exist in equilibrium with iron (II) hydroxides. In addition, there is a probability of Reactions (1)–(5) characterizing the interactions of sphalerite with Fe2+, Fe(OH)3−, and Fe(OH)4, (Table 1, (A)–(G)). According to thermodynamic calculations, if precipitation of iron and zinc hydroxides is formed in a sphalerite suspension at pH = 10, then the Reactions (B)–(G) proceed, giving the reasons for the interaction of Fe(OH)3− or Fe(OH)4− with sphalerite.

3.2. Experimental Study of Precipiates Formation during the Hydrolysis of Iron and Zinc Sulfates in Alkaline Solutions

The results of thermodynamics studies show that there is a high probability of interaction of Fe(OH)3− and Fe(OH)42− with the sphalerite surface. The presence of Fe(OH)3− and Fe(OH)42− in significant concentrations of alkaline solutions can lead to the formation of iron (II) hydroxide precipitates.
To testify the possibility of the precipitation of iron (II) and zinc hydroxides in the working solution, further experimental studies were carried out. Zinc and iron (II) sulfates were introduced into water solutions with varying pH. The alkalinity of solutions was adjusted with lime.
The findings showed that the precipitation of iron (II) hydroxide was not observed when the iron (II) sulfate solution was introduced into the lime solutions with pH = 8. However, increasing the alkalinity of lime solutions up to pH = 10 led to the formation of iron (II) hydroxides, which occurred at the concentration of iron (II) sulfate reached at its consumption of 100–800 g/t of sphalerite.
Moreover, there was a decrease of pH due to introducing iron (II) sulfate into the lime solutions. For initial pH = 8 (pH = 7.5 ± 0.23) a significant reduction of pH of the working solutions was observed at low concentration of FeSO4 (9.40·10−6 mol/L). At initial pH = 10 (pH = 9.7 ± 0.08) a considerable decrease of pH to 8.43 was achieved at higher concentration of iron sulfate (9.40·10−5 mol/L), which was relevant to 200 g/t of FeSO4 consumption. The maximum decrease of pH (from 9.70 to 6.13) was observed at 800 g/t.
The findings revealed the effect of the concentration of iron (II) sulfate on the reduction in pH at the initial pH = 8, although no precipitation was found. It follows from the studies that iron (II) cations interact with hydroxyl ions with the formation of FeOH+.
At initial pH = 10 the precipitates were formed indicating the reduction of the pH by 3.0–3.5 and the formation of Fe(OH)2 as a result of the interaction of Fe2+ and FeOH+ with hydroxyl ions.
Furthermore, the effect of the iron (II) sulfate concentration on the oxidation-reduction potential (ORP) of solutions was observed. In general, increasing the concentration of iron sulfate led to a decrease in ORP. In particular, a decrease in the pH of working solutions from 9.7 to 7.5–6.13 as a result of an increase in iron sulfate dose resulted in the decline of mean oxidation-reduction potential from 90 ± 27 mV (without FeSO4) to 21 mV (C(FeSO4) = 3.76·10−4 mol/L).
It is common knowledge that iron (II) compounds appear to have reducing properties, which is usually expressed as a change in the oxidation-reduction potential of the solution [22]. Hence, the platinum electrode can be used as an effective indicator of Fe2+ and FeOH+ cations. Moreover, low values of the platinum electrode potential indicate high residual concentrations of iron (II) ions in the solution, even with the formation of iron (II) hydroxide.
The replacement of iron (II) sulfate with zinc sulfate showed a slight decrease in the pH after introducing ZnSO4 into the working solutions with pH = 10. It follows from the studies that precipitates of Zn(OH)2 were formed. The maximum decline of pH (ΔpH = 1.8) was observed at a zinc sulfate consumption rate of 800 g/t.
Apparently, the first stage in the interaction of iron (II) sulfate with water was the hydrolysis reactions. Moreover, the interactions of chemical compounds with hydroxyl ions take place in alkaline solutions. At comparable initial concentrations of both iron (II) sulfate and zinc sulfate, the differences in pH of the working solutions can be explained with a significant difference in Fe(OH)2 and Zn(OH)2 solubility products, which are 1.0·10−15 and 1.7·10−18, respectively [22]. Hence, the formation of iron (II) hydroxide precipitates requires more hydroxyl ions compared to the formation of zinc hydroxides. This explains the significant decrease in pH when using iron (II) sulfates and a slight decline in pH associated with the dosages of zinc sulfate.
The findings (Table 2) showed that precipitation of iron (II) and zinc hydroxides occurred in working solutions with initial pH = 10. Therefore, thermodynamic calculations of Gibbs free energy for the Reactions (1)–(5) were carried out at pH = 10 using equilibrium concentrations of ions appearing in the reactions. This made it possible to estimate a thermodynamic probability of whether these reactions proceed both under standard conditions and at pH = 10.
Meanwhile, the increase of solution alkalinity up to pH = 12 revealed differences in the influence of iron (II) and zinc sulfate on the formation of precipitates. The precipitates of iron (II) hydroxide were formed at the same initial concentrations of FeSO4 as at pH = 10. However, zinc hydroxides were formed only at high consumption of ZnSO4. The observations also revealed a slight reduction (0.3–0.4) in pH in strong alkaline solutions.
The fundamental difference appeared in working solutions with the coexistence of precipitates. At pH = 10 an increase in the concentration of iron (II) sulfate (C(FeSO4) > 9.4·10−5 mol/L) led to a decline in the oxidation-reduction potential. This indicates that if water-soluble iron (II) compounds exists in the liquid phase during flotation of sphalerite then the liquid phase of the suspension exhibits reduction properties. On the contrary, increasing the initial concentration of zinc sulfate resulted in the growth of the oxidation-reduction potential, which indicates an increase in the oxidation properties of zinc sulfate solutions. The maximum observed growth was of 60 mV.
Apart from pH = 10, in strong alkaline solutions (pH = 12) the oxidation-reduction potential was relatively stable and no effect of concentration on its values was observed.
The evidence from the studies of the formation of iron (II) and zinc hydroxides precipitation under conditions typical for sphalerite froth flotation showed that flotation can proceed with and without precipitation, which are determined with reagents consumption and pH.

3.3. Electrochemistry of the Sphalerite Electrode in Iron (II) Sulfate Solutions at Different pH Values

Figure 1 shows the effect of pH on the potential of a sphalerite electrode immersed in an iron (II) sulfate solution and ORP. The X-axis indicates the equilibrium pH values that were established after mixing. The observations found that although the initial pH values of solutions were 8, 10 and 12, a slight decrease in pH values was observed after the introduction of iron (II) sulfate into lime solution.
Moreover, pH affected the potential of a sphalerite electrode and ORP. At initial pH = 8 a linear dependency was observed between the potential of a sphalerite electrode and ORP on the one hand, and pH on the other hand. In general, increasing pH resulted in the growth of potentials. However, the increase in equilibrium pH values can be due to the steady increase in concentration of potential-determining ions (Fe2+, FeOH+) in iron (II) sulfate solutions, since the initial pH values were constant. Similar trends were also observed in solutions with pH = 10 and 12.
Despite the hydration of iron (II) cations at pH = 8, precipitation was not observed (Table 2). Therefore, the total equilibrium concentration of iron (II) was equal to the initial concentration of the iron (II) sulfate solution. This made it possible to calculate the concentrations of all the variations of iron (II) compounds (ions, molecules) and to estimate the effect of those on ORP and the sphalerite electrode potential. The calculations of the equilibrium concentrations of Fe2+, FeOH+, Fe(OH)3−, Fe(OH)4− were based on “FeSO4–H2O” system analysis, which is given in details in [23].
Figure 2 demonstrates experimental data for sphalerite electrode potentials and ORP of iron (II) sulfate solutions in which the electrodes were immersed at pH = 8 as a function of the negative common logarithm of concentrations of either Fe2+ or FeOH+ (pFe2+ or pFeOH+).
The findings showed the linearity of the experimental data, which can be approximated as follows:
Eh = 0.0637 + 0.0494pFe2+, r = 0.993,
Eh = −0.1531 + 0.0685pFeOH+, r = 0.99
E(ZnS) = −0.344 + 0.0695pFe2+, r = 0.952
E(ZnS) = −0.6516 + 0.0969pFeOH+, r = 0.954
This proves that Fe2+ and FeOH+ are potential-determining cations, the concentration of which affects the ORP and the potential of the sphalerite electrode. In this case, expressions (7) and (8) show the reducing properties of considered solutions, and approximations (9) and (10) indicate a possible replacement reaction of Zn2+ in the sphalerite surface layer for Fe2+ or FeOH+ into solution, leading to the formation of FeS. Further flotation tests of sphalerite samples using thiol collectors confirmed the previous conclusions.

3.4. Flotation of Sphalerite Treated with Iron Sulphate Solutions by Thiol Collectors

The flotation tests of sphalerite, the effects of copper, zinc and iron ions on flotation recovery, preparation of sphalerite samples and related procedures are given in details in [29,30]. In the present paper, specific attention is paid to flotation of sphalerite in the absence or in the presence of iron (II) hydroxides precipitates, which can be associated with pH 8 or 12, respectively. Figure 3 shows the results of sphalerite flotation with potassium buthyl xanthate and sodium dibuthyl dithiophosphate. The sphalerite suspension was conditioned with iron (II) sulfate solutions of a particular concentration before dosing the collector.
The findings revealed the effect of iron (II) sulfate on the flotation recovery of sphalerite by PBX and SDTP in alkaline suspensions. At pH = 8 the dosage of iron (II) sulfate resulted in the depression of sphalerite flotation for both collectors. However, increasing the pH up to 12 resulted in an activation of the sphalerite and in the growth of flotation recovery of sphalerite in the froth product. A significant increase in sphalerite recovery was observed at low dosages of iron (II) sulfate.
In summary, the study revealed different effects of iron (II) sulfate on the flotation recovery of sphalerite under weak and strong alkaline conditions. Apparently, the reasons for that are the different mechanisms of interactions of sphalerite particles with iron (II)-bearing compounds which are dissolved in the liquid phase, and hence the differences in surface composition affecting flotation recovery.

4. Conclusions

  • The results of thermodynamic calculations revealed the possibility of interaction of the sphalerite surface with the products of iron (II) hydrolysis. The iron (II) sulfide was considered as the most probable product which was formed on the sphalerite surface.
  • The effect of the concentration of hydroxide ions on the precipitation of iron (II) hydroxides was experimentally studied. At the initial pH = 8 and at all the studied concentrations of iron (II) sulfate in the working solutions, the precipitation process was not observed. However, an increase in the pH of the solutions up to 8 and 12 led to the formation of iron (II) hydroxides.
  • The potentiometric studies established that the Fe2+ and FeOH+ cations are potential-determining in weak alkaline solutions.
  • In conclusion, the flotation tests demonstrated the effect of the dose of iron (II) sulfate and pH on the flotation recovery of sphalerite with thiol collectors. Interestingly, an activation effect of iron sulfate on sphalerite flotation was observed at pH = 12. This resulted in an increase in the flotation recovery of sphalerite at low dosages of iron sulfate in suspension.

Author Contributions

Conceptualization, methodology, K.Z.Y. and B.G.; formal analysis, I.N.; data curation, writing—original draft preparation, and visualization, A.A.; investigation, A.A. and K.N.; resources, K.Z.Y. and I.N.; writing—review and editing, K.N. and I.N.; supervision and project administration, B.G. and A.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Acknowledgments

This paper has been supported by the RUDN University Strategic Academic Leadership Program.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pavolová, H.; Čulková, K.; Šimková, Z.; Seňová, A.; Kudelas, D. Contribution of Mining Industry in Chosen EU Countries to the Sustainability Issues. Sustainability 2022, 14, 4177. [Google Scholar] [CrossRef]
  2. Tomazinakis, S.; Valakas, G.; Gaki, A.; Damigos, D.; Adam, K. The Importance and Challenges of Sustainable Development for the Raw Materials Sector: The Views of Key Stakeholders in Three ESEE Countries. Sustainability 2022, 14, 3933. [Google Scholar] [CrossRef]
  3. Mambwe, P.; Shengo, M.; Kidyanyama, T.; Muchez, P.; Chabu, M. Geometallurgy of Cobalt Black Ores in the Katanga Copperbelt (Ruashi Cu-Co Deposit): A New Proposal for Enhancing Cobalt Recovery. Minerals 2022, 12, 295. [Google Scholar] [CrossRef]
  4. Litvinenko, V. Advancement of geomechanics and geodynamics at the mineral ore mining and un-derground space development. Geomech. Geodyn. Rock Masses 2018, 1, 3–16. [Google Scholar]
  5. Rybak, J.; Khayrutdinov, M.M.; Kuziev, D.A.; Kongar-Syuryun, C.B.; Babyr, N.V. Prediction of the geomechanical state of the rock mass when mining salt deposits with stowing. J. Min. Inst. 2022, 253, 61–70. [Google Scholar] [CrossRef]
  6. Hau, L.V. Determination of Parameters of the Underground Inclined Coal Seam Mining in Quang Ninh Basin Under Protected Objects on the Surface. J. Min. Inst. 2017, 226, 412–419. [Google Scholar] [CrossRef]
  7. Khayrutdinov, M.M.; Kongar-Syuryun, C.B.; Khayrutdinov, A.M.; Tyulyaeva, Y.S. Improving safety when extracting water-soluble ores by optimizing the parameters of the backfill mass. Bezop. Tr. V Promyshlennosti 2021, 2021, 53–59. [Google Scholar] [CrossRef]
  8. Earl, C.; Hussain, I.H.; Cook, S.; Cheeseman, C.R. Environmental Sustainability and Supply Resilience of Cobalt. Sustainability 2022, 14, 4124. [Google Scholar] [CrossRef]
  9. Kongar-Syuryun, C.; Tyulyaeva, Y.; Khairutdinov, A.; Kowalik, T. Industrial waste in concrete mixtures for construction of underground structures and minerals extraction. IOP Conf. Ser. Mater. Sci. Eng. 2020, 869, 032004. [Google Scholar] [CrossRef]
  10. Tcvetkov, P. Climate Policy Imbalance in the Energy Sector: Time to Focus on the Value of CO2 Utilization. Energies 2021, 14, 411. [Google Scholar] [CrossRef]
  11. Dvoynikov, M.V.; Budovskaya, M.E. Development of a hydrocarbon completion system for wells with low bottomhole temperatures for conditions of oil and gas fields in Eastern Siberia. J. Min. Inst. 2022, 253, 12–22. [Google Scholar] [CrossRef]
  12. Khayrutdinov, A.; Paleev, I.; Artemov, S. Replacement of traditional components of the backfill mixture with man-made waste. IOP Conf. Ser. Earth Environ. Sci. 2021, 942, 012005. [Google Scholar] [CrossRef]
  13. Buslaev, G.; Tsvetkov, P.; Lavrik, A.; Kunshin, A.; Loseva, E.; Sidorov, D. Ensuring the Sustainability of Arctic Industrial Facilities under Conditions of Global Climate Change. Resources 2021, 10, 128. [Google Scholar] [CrossRef]
  14. Herbut, A.; Khairutdinov, M.M.; Kongar-Syuryun, C.; Rybak, J. The surface wave attenuation as the effect of vibratory compaction of building embankments. IOP Conf. Ser. Earth Environ. Sci. 2019, 362, 012131. [Google Scholar] [CrossRef] [Green Version]
  15. Mardashov, D.V. Development of blocking compositions with a bridging agent for oil well killing in conditions of abnormally low formation pressure and carbonate reservoir rocks. J. Min. Inst. 2021, 251, 667–677. [Google Scholar] [CrossRef]
  16. Raupov, I.R.; Burkhanov, R.N.; Lutfullin, A.A.; Maksyutin, A.V.; Lebedev, A.B.; Safiullina, E.U. Experience in the Application of Hydrocarbon Optical Studies in Oil Field Development. Energies 2022, 15, 3626. [Google Scholar] [CrossRef]
  17. Mardashov, D.V.; Limanov, M.N. Improving the efficiency of oil well killing at the fields of the volga-ural oil and gas province with abnormally low reservoir pressure. Bull. Tomsk. Polytech. Univ. Geo Assets Eng. 2022, 333, 185–194. [Google Scholar] [CrossRef]
  18. Abramov, A.A. Tekhnologiya Obogashcheniya rud Tsvetnykh Metallov; Nedra: Moscow, Russia, 1983; p. 271. [Google Scholar]
  19. Herrera-Urbina, R.; Hanson, J.S.; Harris, G.H.; Fuerstenau, D.W. Principles and practice of sulphide mineral flotation. In Sulphide Deposits—Their Origin and Processing; Springer: Dordrecht, The Netherlands, 1990; pp. 87–101. [Google Scholar] [CrossRef]
  20. Napier-Munn, T.; Wills, B.A. Wills’ Mineral Processing Technology; Butterworth-Heinemann Elsevier Ltd.: Oxford, UK, 2005; pp. 246–266. [Google Scholar] [CrossRef]
  21. Sehlotho, N.; Sindane, Z.; Bryson, M.; Lindvelt, L. Flowsheet development for selective Cu-Pb-Zn recovery at Rosh Pinah concentrator. Miner. Eng. 2018, 122, 10–16. [Google Scholar] [CrossRef]
  22. Nagaraj, D.R.; Ravishankar, S.A. Flotation reagents—A critical overview from an industry perspective. In Froth Flotation: A Century of Innovation; Fuerstenau, M.C., Jameson, G.J., Yoon, R., Eds.; Society of Mining, Metallurgy, and Exploration, Inc. (SME): Littleton, CO, USA, 2007; pp. 375–413. [Google Scholar]
  23. Marion, C.; Jordens, A.; Li, R.; Rudolph, M.; Waters, K. An evaluation of hydroxamate collectors for malachite flotation. Sep. Purif. Technol. 2017, 183, 258–269. [Google Scholar] [CrossRef]
  24. Goryachev, B.E.; Nikolaev, A.A. Principles of kinetic “ion” modeling of adsorptive collector layer at the surface of nonferrous heavy metal sulfides. J. Min. Sci. 2013, 49, 499–506. [Google Scholar] [CrossRef]
  25. Zuev, B.Y. Methodology of modeling nonlinear geomechanical processes in blocky and layered rock masses on models made of equivalent materials. J. Min. Inst. 2021, 250, 542–552. [Google Scholar] [CrossRef]
  26. Chandra, A.P.; Gerson, A.R. A review of the fundamental studies of the copper activation mechanisms for selective flotation of the sulfide minerals, sphalerite and pyrite. Adv. Colloid Interface Sci. 2009, 145, 97–110. [Google Scholar] [CrossRef] [PubMed]
  27. Nikolaev, A.A.; Thu, S.; Goryachev, B.E. Upon bubble-mineral attachment kinetics with Sphalerite under the conditions of application of Thiol collectors and mixtures of these collectors. Obogashchenie Rud 2016, 5, 14–18. [Google Scholar] [CrossRef]
  28. Liu, J.; Wang, Y.; Luo, D.; Zeng, Y. Use of ZnSO4 and SDD mixture as sphalerite depressant in copper flotation. Miner. Eng. 2018, 121, 31–38. [Google Scholar] [CrossRef]
  29. Yang, B.; Tong, X.; Lan, Z.; Cui, Y.; Xie, X. Influence of the interaction between sphalerite and pyrite on the copper activation of sphalerite. Minerals 2018, 8, 16. [Google Scholar] [CrossRef] [Green Version]
  30. Abramov, A.A. Fundamentals for Optimization of Cyanide Processes in Flotation. Eur. J. Miner. Process. Environ. Prot. 2004, 4, 15–29. Available online: https://www.911metallurgist.com/blog/wp-content/uploads/2015/12/Fundamentals-for-optimization-of-cyanide-processes-in-flotation.pdf (accessed on 15 November 2022).
  31. Gerson, A.R.; Lange, A.G.; Prince, K.E.; Smart, R.S.C. The mechanism of copper activation of sphalerite. Appl. Surf. Sci. 1999, 137, 207–223. [Google Scholar] [CrossRef]
  32. El-Shall, H.E.; Elgillani, D.A.; Abdel-Khalek, N.A. Role of zinc sulfate in depression of lead-activated sphalerite. Int. J. Miner. Process. 2000, 58, 67–75. [Google Scholar] [CrossRef]
  33. Finkelstein, N.; Allison, S. The chemistry of activation, deactivation and depression in the flotation of zinc sulfide: A review. Flotation 1976, 1, 414–457. [Google Scholar]
  34. Goryachev, B.E.; Linoo, N.; Nikolaev, A.A.; Polyakova, Y.N. Peculiarities of influence of copper, zinc and iron cations on flotability of pyrite of one of copper-zinc ural deposits. Tsvetnye Met. 2015, 1, 12–17. [Google Scholar]
  35. Strizhnev, K.V.; Gumerov, R.R.; Alekseev, Y.V.; Sagirova, L.R.; Suleimanov, A.G.; Zuevskly, I.A. Destructed guar gel effect on the mechanism of formation of calcite deposits in the high-pressure conduits of southern section of the priobskoye field. Neft. Khozyaystvo Oil Ind. 2019, 12, 56–58. [Google Scholar]
  36. Kotova, O.B.; Ustyugov, V.A.; Sun, S.; Ponaryadov, A.V. Mullite production: Phase transformations of kaolinite, thermodynamics of the process. J. Min. Inst. 2022, 254, 129–135. [Google Scholar] [CrossRef]
  37. Lyashenko, V.I.; Golik, V.I.; Klyuev, R.V. Evaluation of efficiency and environmental impact (on subsoil and groundwater) of underground block leaching (UBL) of metals from ores. Min. Sci. Technol. (Russ. Fed.) 2022, 7, 5–17. [Google Scholar] [CrossRef]
  38. Sultanbekov, R.; Islamov, S.; Mardashov, D.; Beloglazov, I.; Hemmingsen, T. Research of the influence of marine residual fuel composition on sedimentation due to incompatibility. J. Mar. Sci. Eng. 2021, 9, 1067. [Google Scholar] [CrossRef]
  39. Sultanbekov, R.; Beloglazov, I.; Islamov, S.; Ong, M.C. Exploring of the incompatibility of marine residual fuel: A case study using machine learning methods. Energies 2021, 14, 8422. [Google Scholar] [CrossRef]
Resources 11 00108 g001 550

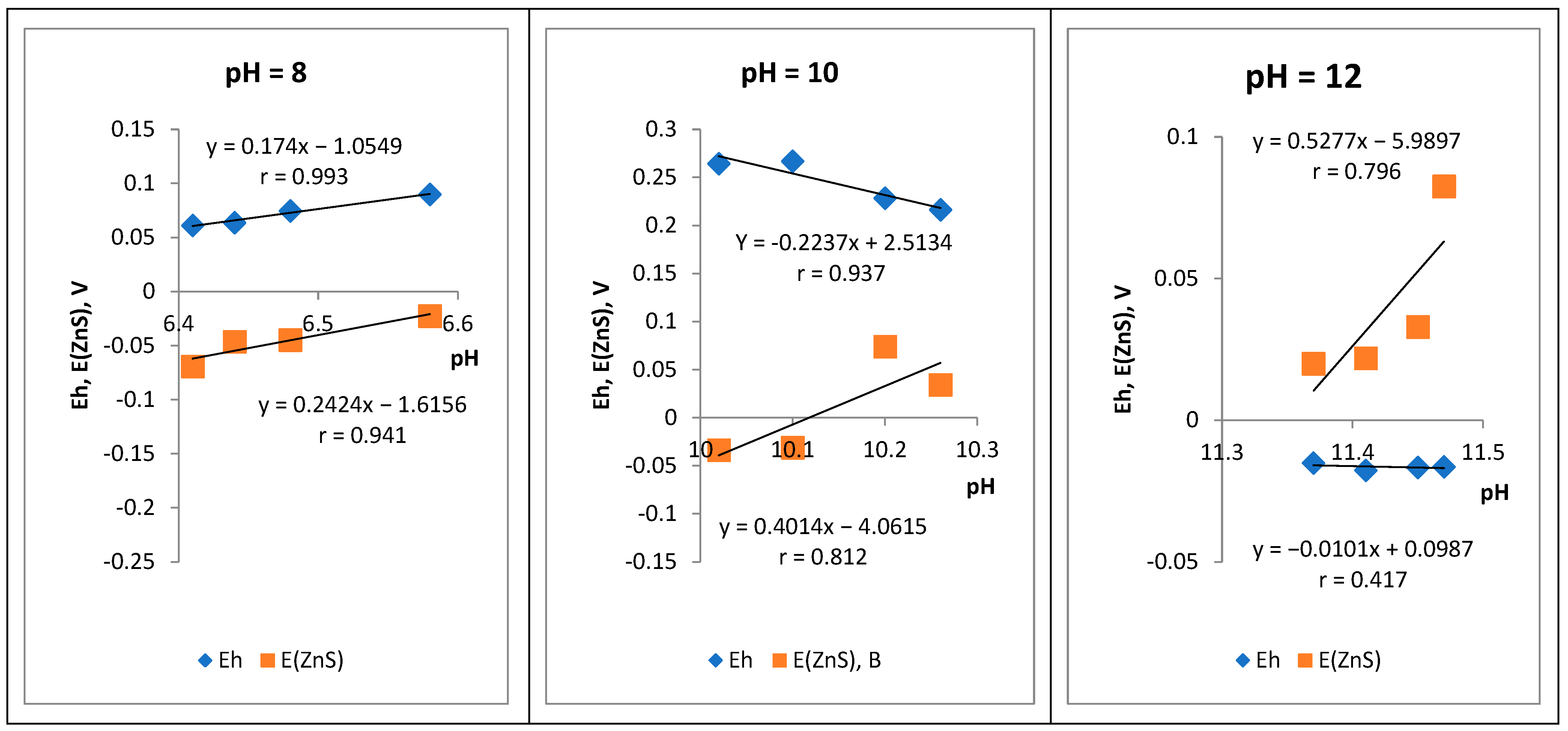

Figure 1. Effects of pH on the potential of a sphalerite electrode immersed in an iron (II) sulfate solution and ORP.
Figure 1. Effects of pH on the potential of a sphalerite electrode immersed in an iron (II) sulfate solution and ORP.
Resources 11 00108 g001
Resources 11 00108 g002 550

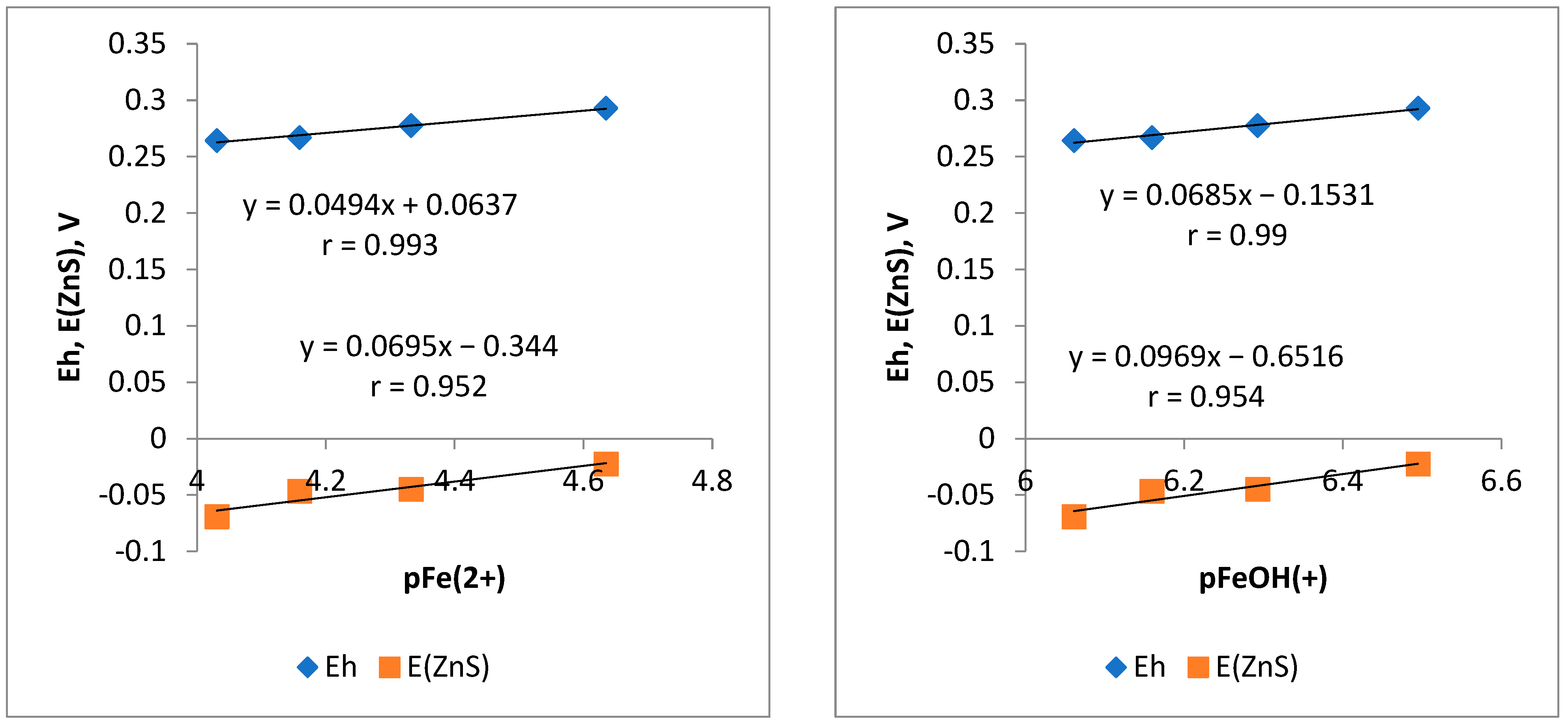

Figure 2. Sphalerite electrode potentials and ORP of iron (II) sulfate solutions in which the electrode was immersed (pH = 8) as a function of the negative common logarithm of concentrations of either Fe2+ or FeOH+ (pFe2+ or pFeOH+).
Figure 2. Sphalerite electrode potentials and ORP of iron (II) sulfate solutions in which the electrode was immersed (pH = 8) as a function of the negative common logarithm of concentrations of either Fe2+ or FeOH+ (pFe2+ or pFeOH+).
Resources 11 00108 g002
Resources 11 00108 g003 550
Figure 3. The flotation recovery of sphalerite (−74 + 44 μm) with potassium buthyl xanthate and sodium dibuthyl dithiophosphate (dosage 100 g/t, pH = 8) as a function of Fe2+ and FeOH+ concentration.
Figure 3. The flotation recovery of sphalerite (−74 + 44 μm) with potassium buthyl xanthate and sodium dibuthyl dithiophosphate (dosage 100 g/t, pH = 8) as a function of Fe2+ and FeOH+ concentration.
Resources 11 00108 g003
Table
Table 1. Reactions of interaction of water-soluble iron (II) compounds with the sphalerite surface.
Table 1. Reactions of interaction of water-soluble iron (II) compounds with the sphalerite surface.
ReactionsΔG0, kcallgKpΔG, (pH = 10) kcal
NoEquation
AZnS + Fe2+ + 2OH− = FeS + Zn(OH)20−6.224.5581+5.42
BZnS + Fe(OH)3− = FeS + Zn2+ + 3OH−−0.470.3507−17.44
CZnS + Fe(OH)3− = FeS + ZnOH+ + 2OH−−6.404.6884−17.36
DZnS + Fe(OH)3− = FeS + Zn(OH)20 + OH−−15.8911.6475−17.45
EZnS + Fe(OH)42− = FeS + Zn2+ + 4OH−−2.481.8181−17.93
FZnS + Fe(OH)42− = FeS + ZnOH+ + 3OH−−8.406.1590−17.85
GZnS + Fe(OH)42− = FeS + Zn(OH)20 + 2OH−−17.8913.1181−17.93
Table
Table 2. The results of the precipitation of iron (II) and zinc hydroxides.
Table 2. The results of the precipitation of iron (II) and zinc hydroxides.
pH
of the Working Solutions		Consumption of Iron (II) Sulfate or Zinc Sulfate, g/tInitial Concentration of FeSO4/ZnSO4,
mol/L		pH of Working Solution after MixingOxidation-Reduction Potential (ORP) of Working Solution, mVThe Presence of Precipitates Fe(OH)2/
Zn(OH)2
(+),(−) *
CaO/
FeSO4		CaO/
ZnSO4		CaO/
FeSO4		CaO/
ZnSO4
8007.767.30264244
209.40·10−6/8.87·10−67.76/7.17.30/7.25264/61.2244/243(−)/(+)
1004.70·10−5/
4.44·10−5		7.70/6.437.35/7.18264/68.3224.1/246.5(−)/(+)
2009.40·10−5/
8.87·10−5		7.65/6.427.4/7.22206/60.3256.7/240.3(−)/(+)
4001.88·10−4/
1.77·10−4		7.32/6.367.57/7.2178/48.8245.1/152.4(−)/(+)
8003.76·10−4/
3.55·10−4		7.16/6.317.54/7.23114/52.1193.4/232.1(−)/(+)
10009.869.6579100
209.40·10−6/8.87·10−69.61/
9.61		9.68/
9.32		81/84108/116(−)/(+)
1004.70·10−5/
4.44·10−5		9.88/
9.98		9.82/
9.37		84/94104/119(+)/(+)
2009.40·10−5/
8.87·10−5		9.67/
7.53		9.78/
8.43		66/49108/146(+)/(+)
4001.88·10−4/
1.77·10−4		9.64/
6.19		9.81/
8.14		151/57105/157(+)/(+)
8003.76·10−4/
3.55·10−4		9.70/
6.13		9.83/
8.01		72/21105/161(+)/(+)
120011.6511.85153
209.40·10−6/8.87·10−611.77/
11.77		11.86/
11.84		−3/−43/3(−)/(−)
1004.70·10−5/
4.44·10−5		11.83/
11.57		11.87/
11.83		−6/63/4(+)/(−)
2009.40·10−5/
8.87·10−5		11.79/
11.67		11.88/
11.81		−2/13/5(+)/(−)
4001.88·10−4/
1.77·10−4		11.86/
11.69		11.87/
11.75		−5/−13/7(+)/(+)
8003.76·10−4/
3.55·10−4		11.85/
11.48		11.86/
11.60		−6/−114/13(+)/(+)
* (−)—precipitation; (+)—no precipitation.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ya, K.Z.; Goryachev, B.; Adigamov, A.; Nurgalieva, K.; Narozhnyy, I. Thermodynamics and Electrochemistry of the Interaction of Sphalerite with Iron (II)-Bearing Compounds in Relation to Flotation. Resources 2022, 11, 108. https://doi.org/10.3390/resources11120108

AMA Style

Ya KZ, Goryachev B, Adigamov A, Nurgalieva K, Narozhnyy I. Thermodynamics and Electrochemistry of the Interaction of Sphalerite with Iron (II)-Bearing Compounds in Relation to Flotation. Resources. 2022; 11(12):108. https://doi.org/10.3390/resources11120108

Chicago/Turabian Style

Ya, Kyaw Zay, Boris Goryachev, Arkadiy Adigamov, Karina Nurgalieva, and Igor Narozhnyy. 2022. "Thermodynamics and Electrochemistry of the Interaction of Sphalerite with Iron (II)-Bearing Compounds in Relation to Flotation" Resources 11, no. 12: 108. https://doi.org/10.3390/resources11120108

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
