0.6-V 1.65-μW Second-Order G_{m}-C Bandpass Filter for Multi-Frequency Bioimpedance Analysis Based on a Bootstrapped Bulk-Driven Voltage Buffer

^{1}

^{2}

^{*}

## Abstract

**:**

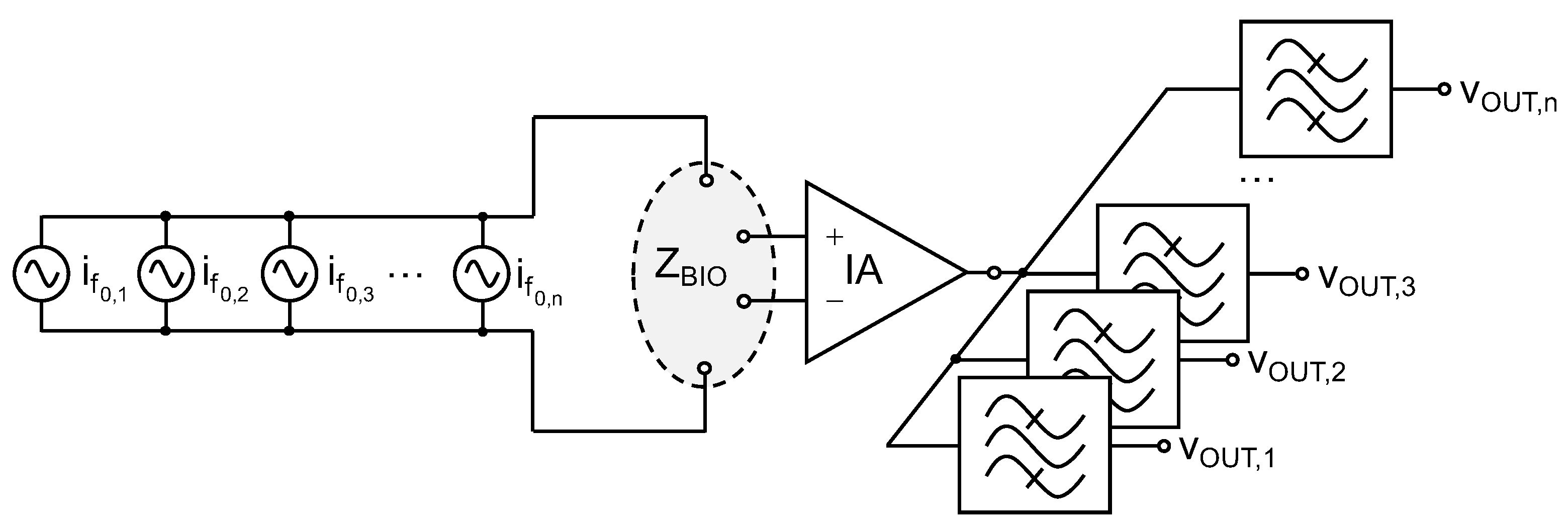

## 1. Introduction

## 2. Boostrapped Bulk-Driven Voltage Follower

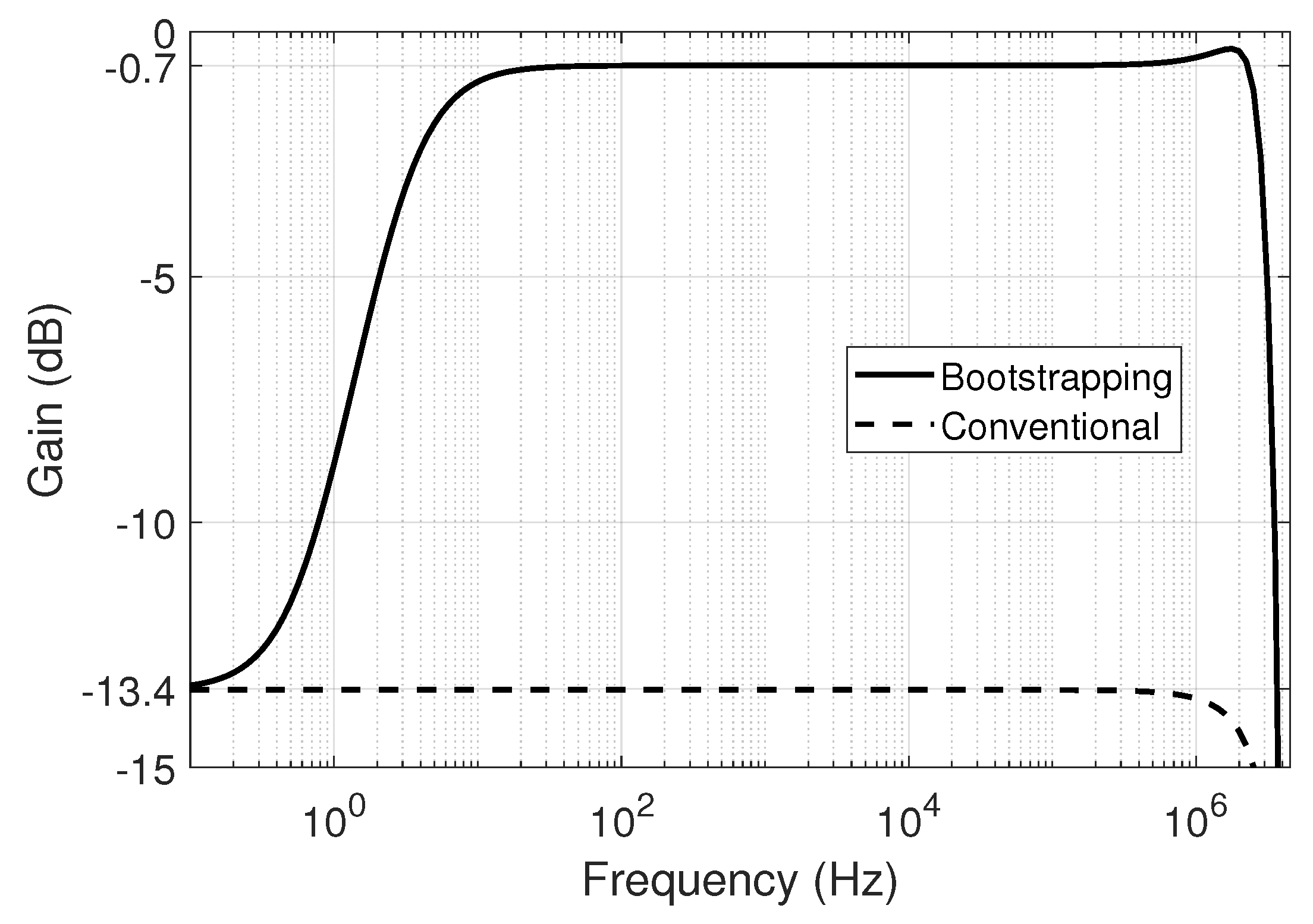

#### 2.1. Bulk Driven Buffer: Simulation and Analytical Results

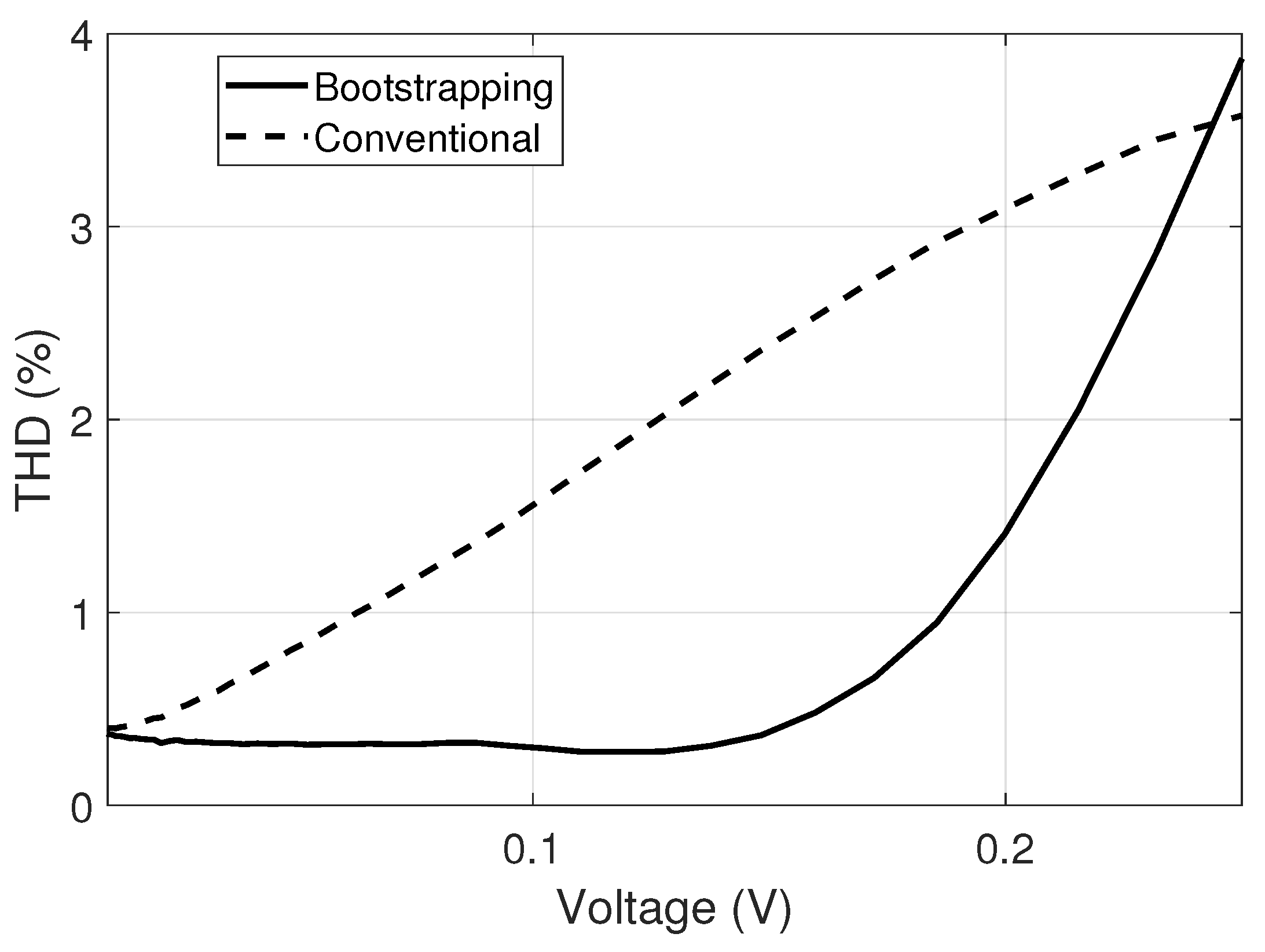

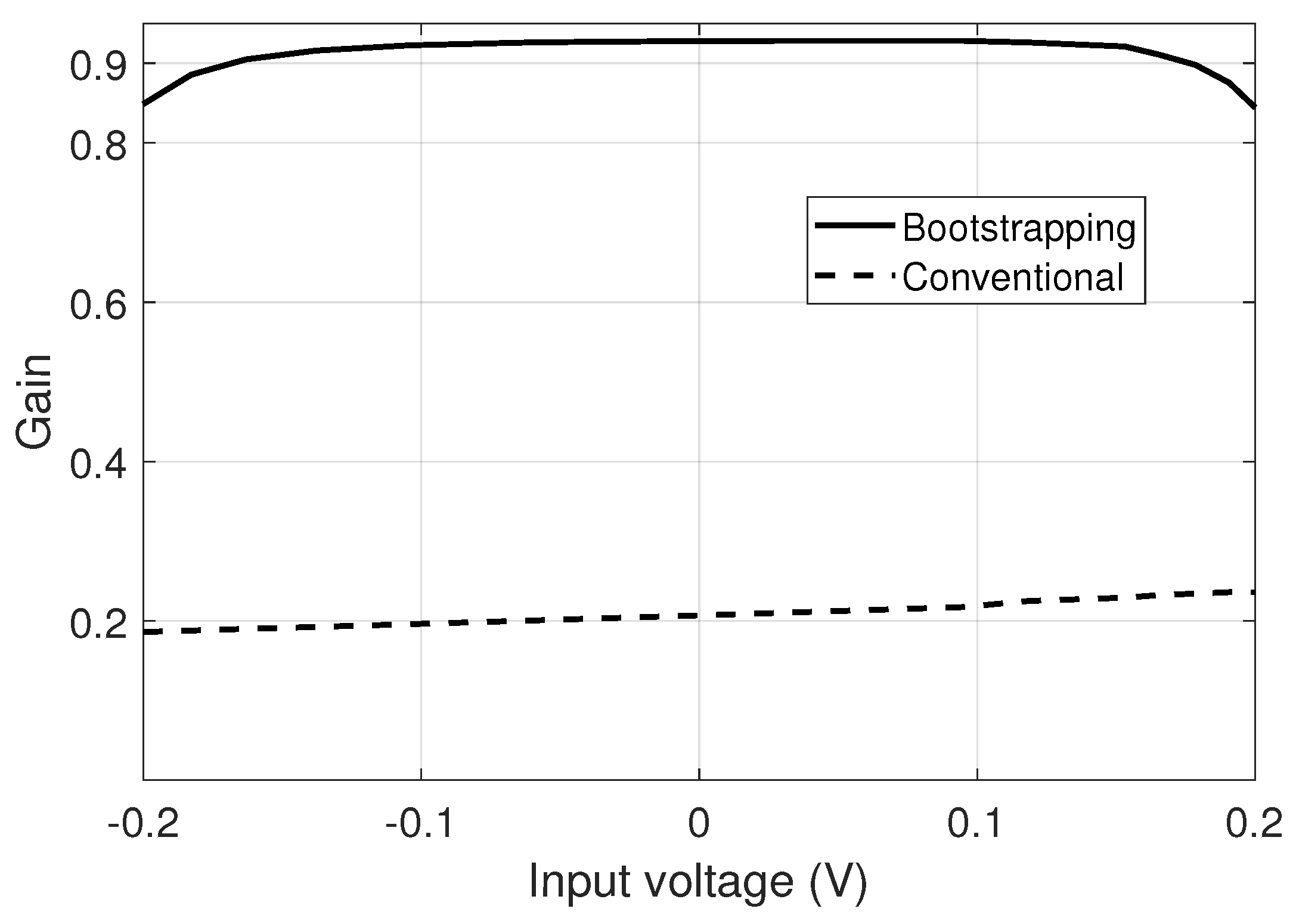

#### 2.2. Analytical and Simulated Results

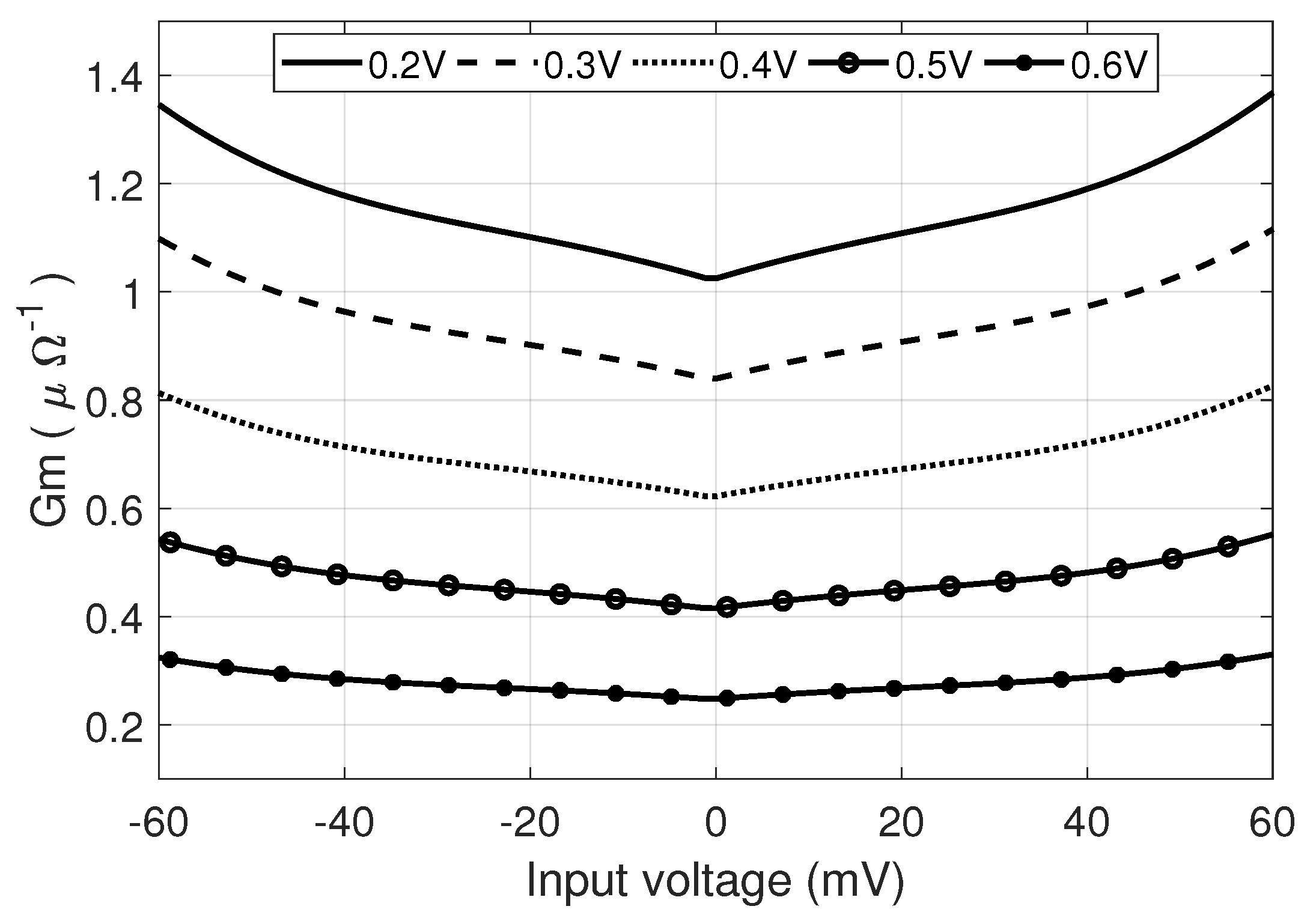

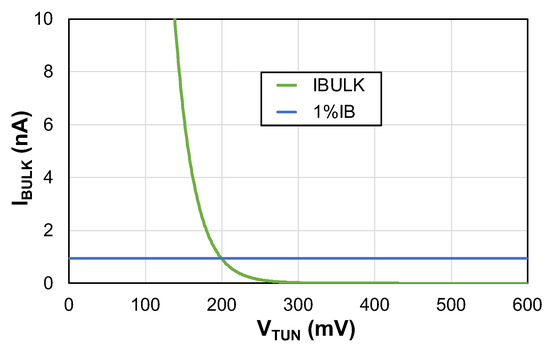

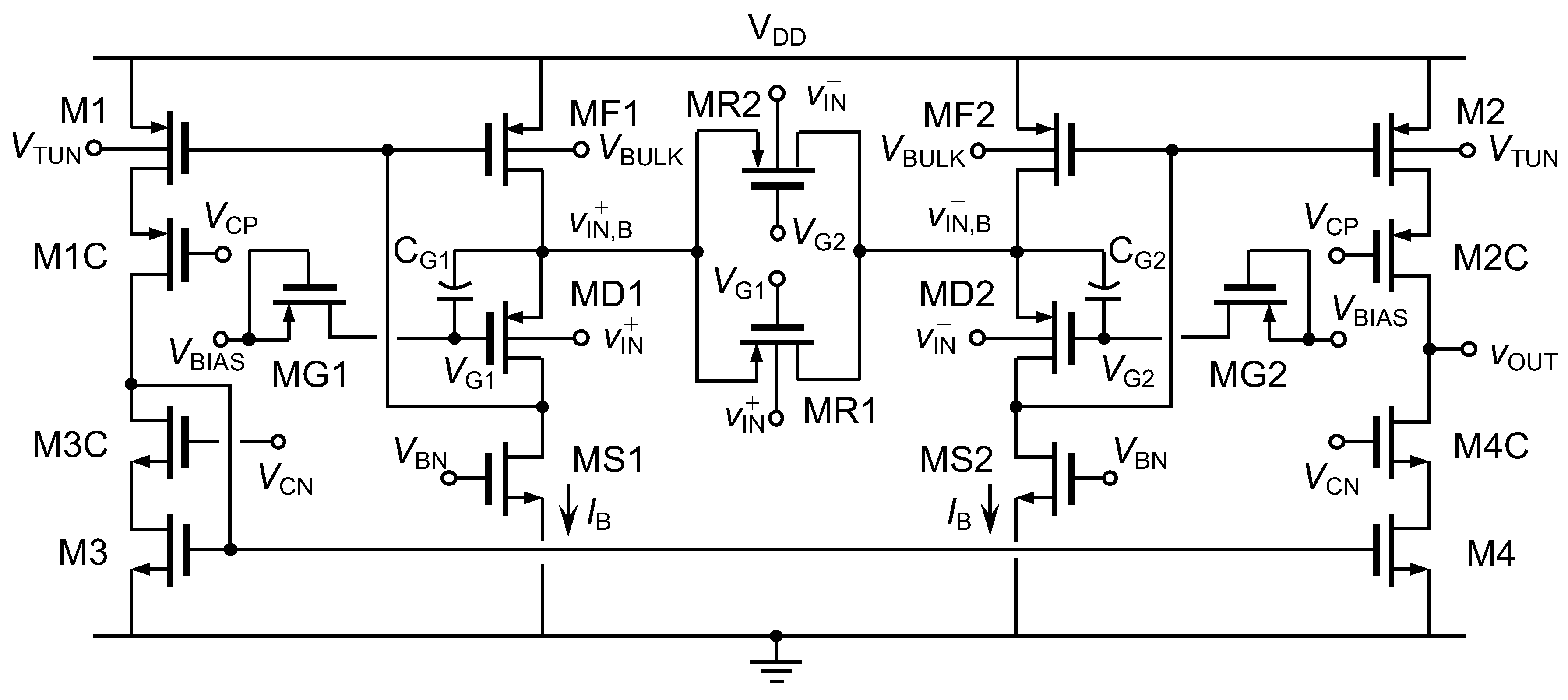

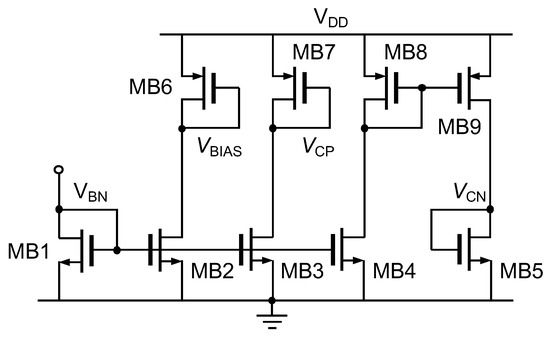

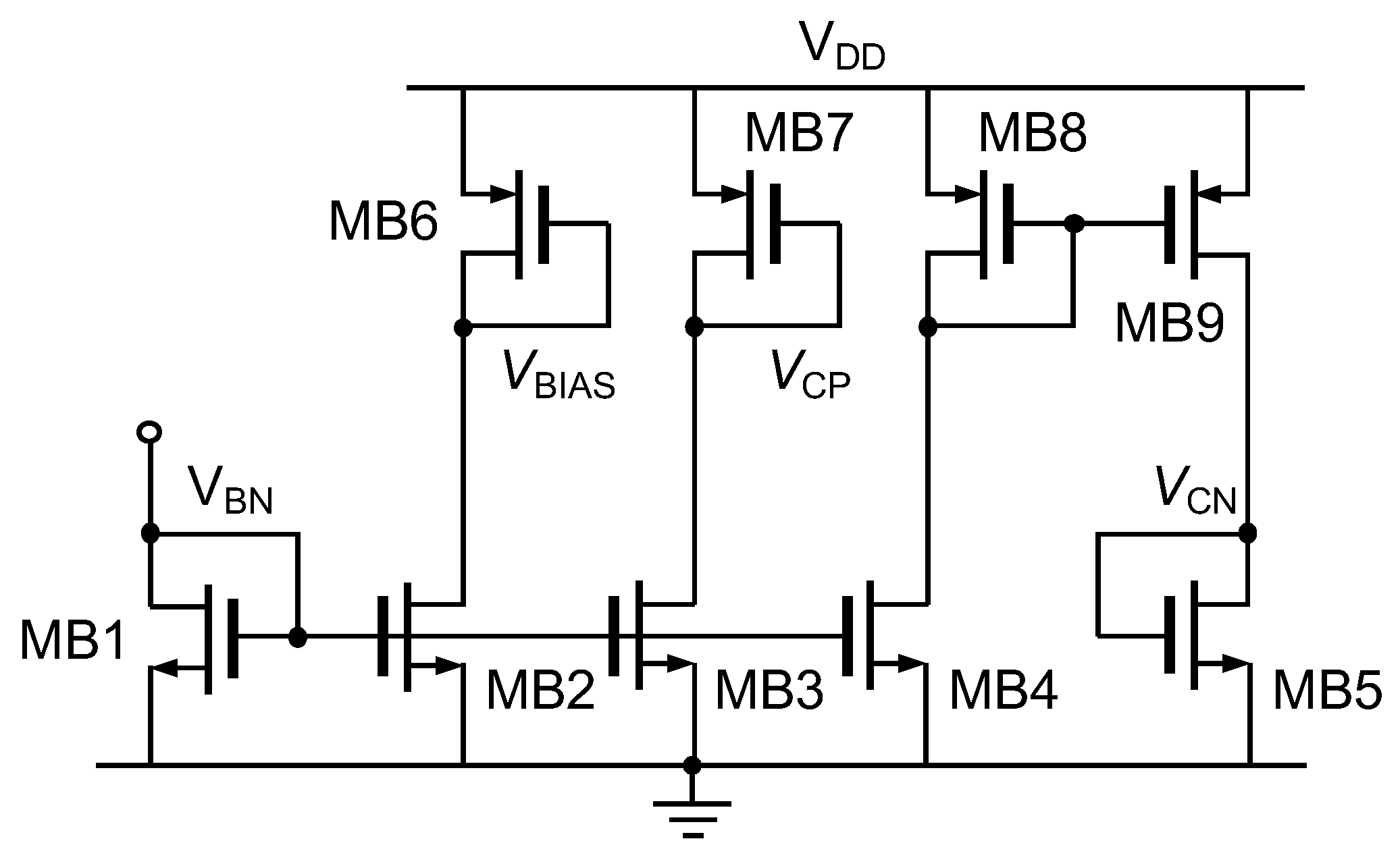

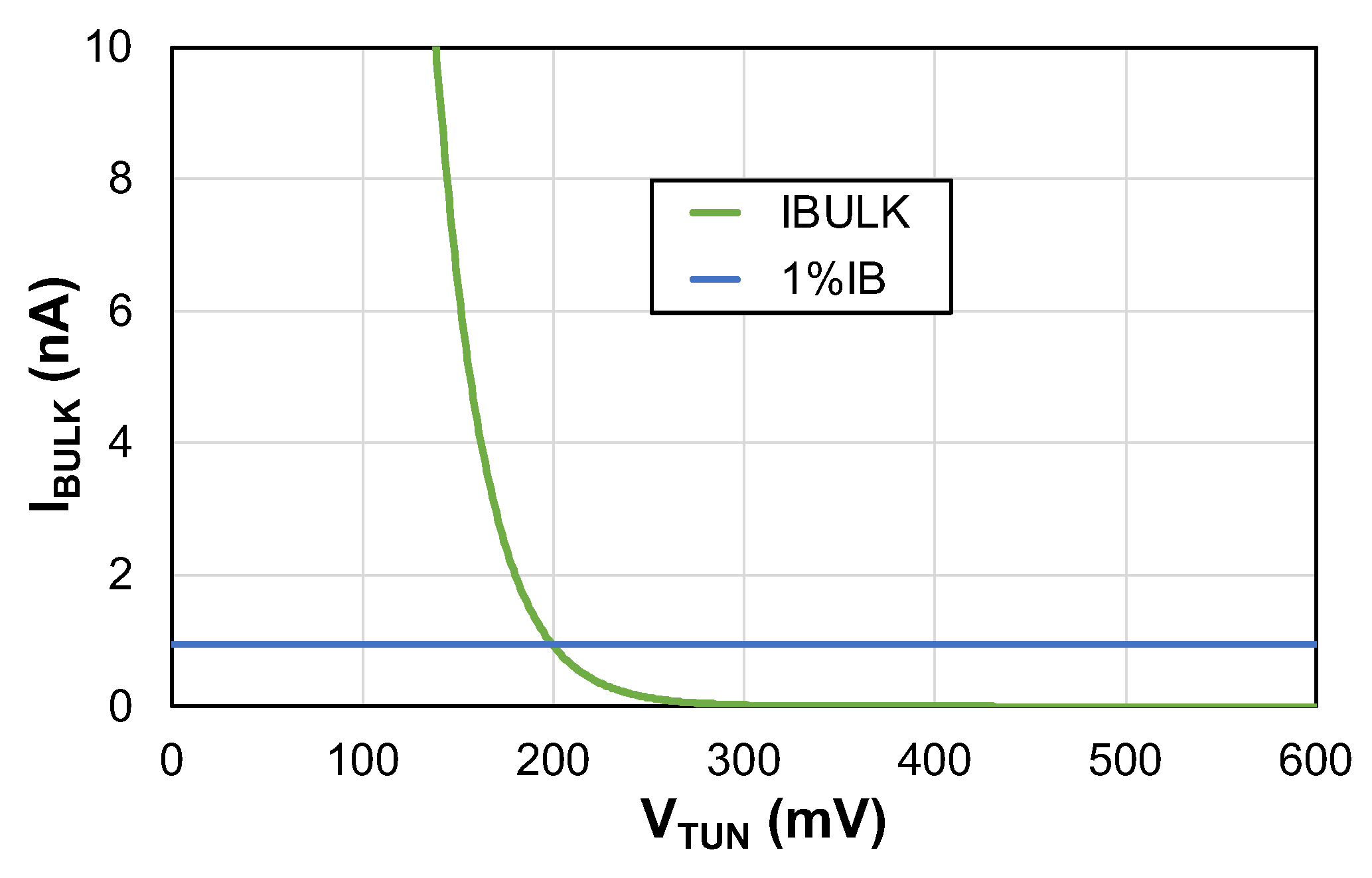

## 3. Proposed Linearized Transconductor

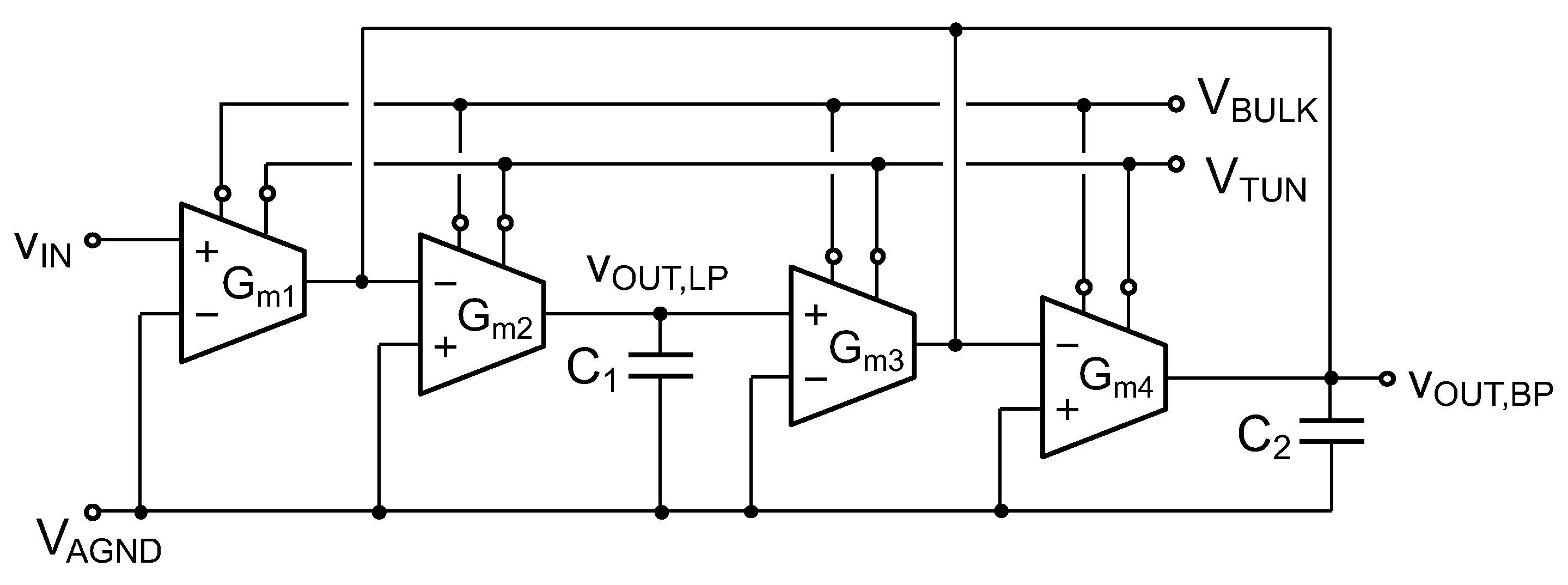

## 4. Second-Order ${\mathit{G}}_{\mathit{m}}$-C Bandpass Filter

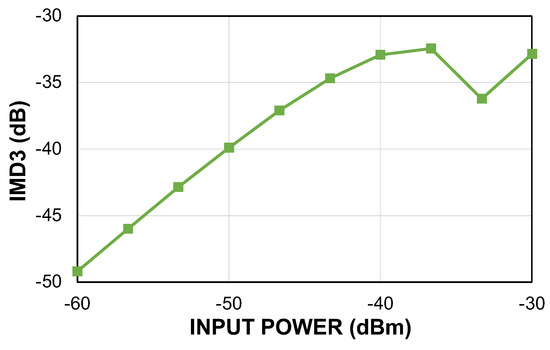

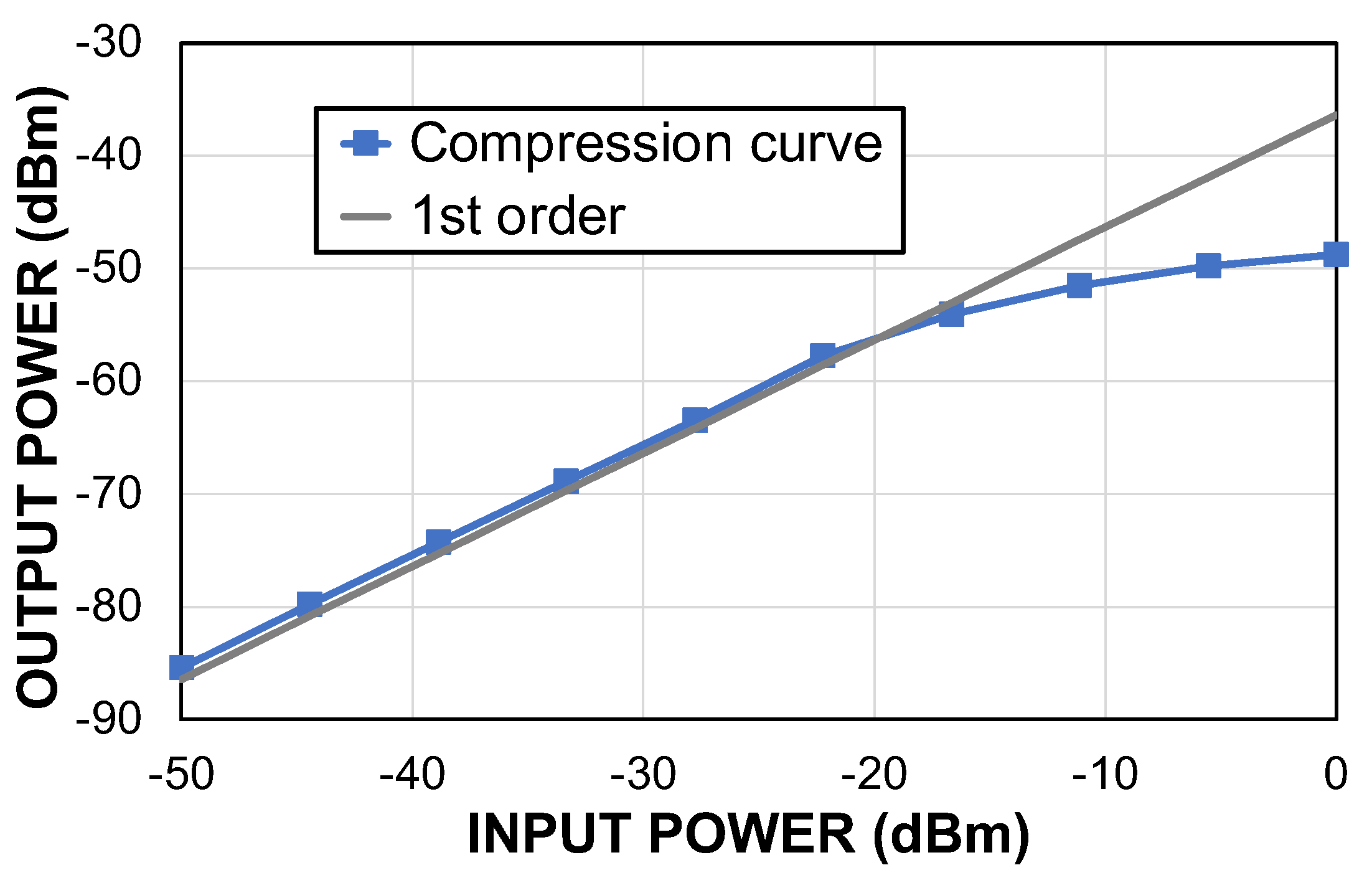

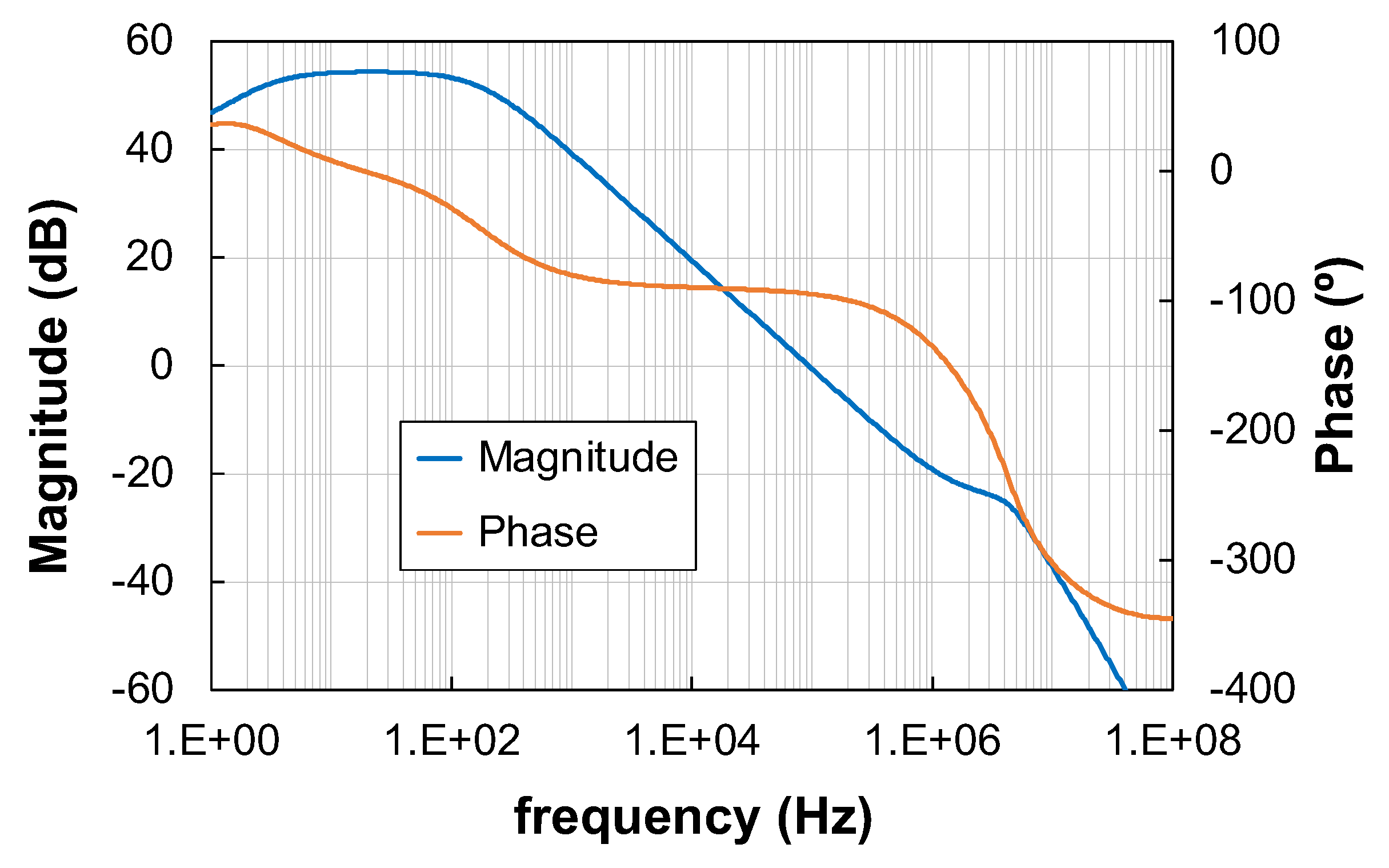

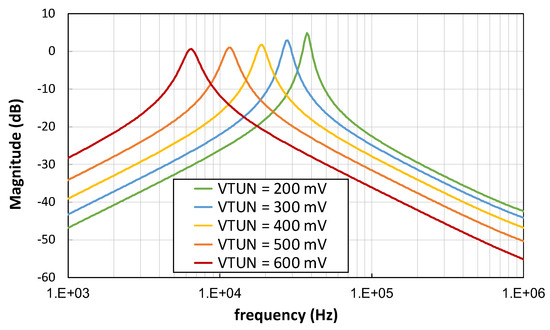

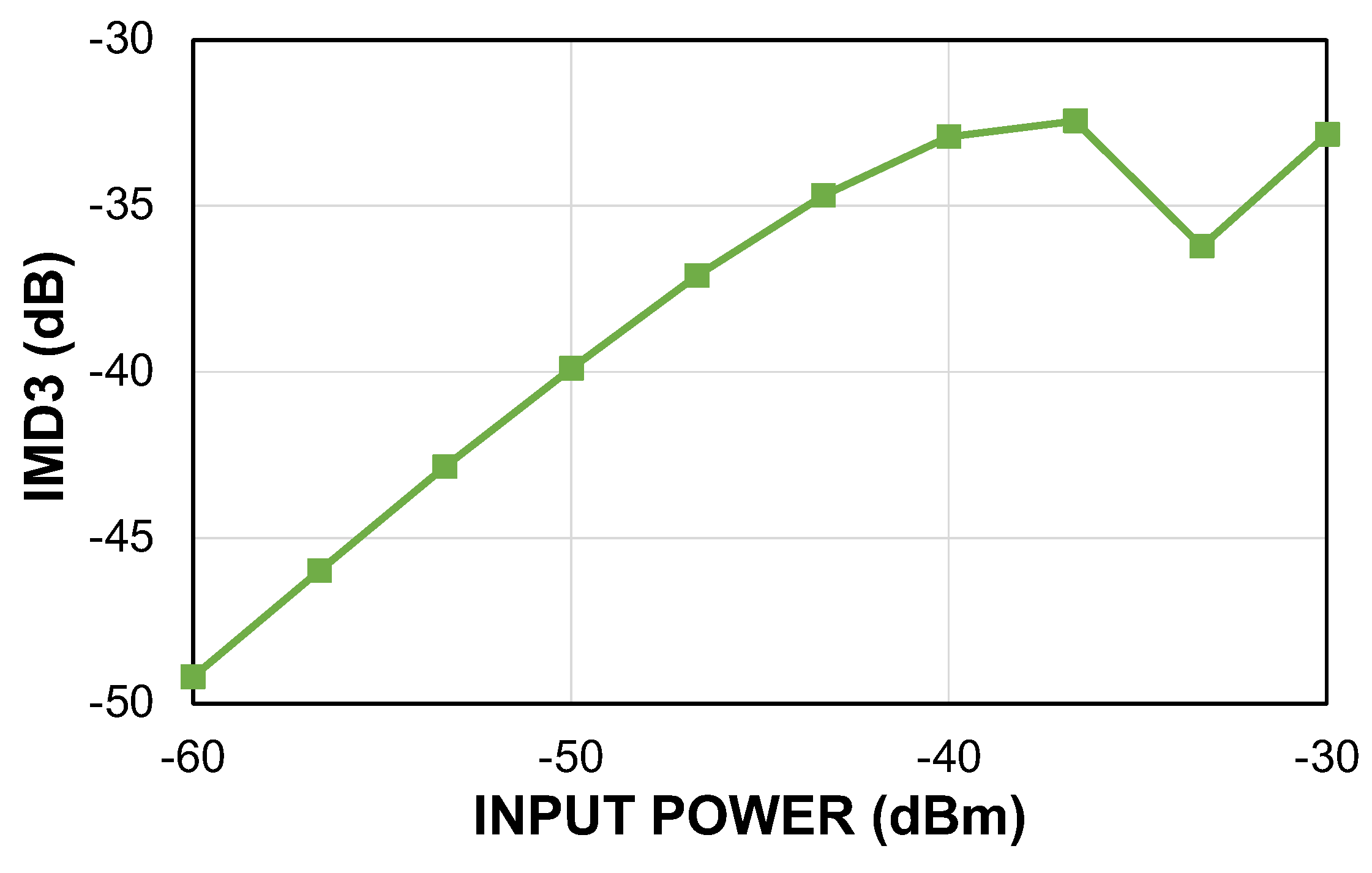

## 5. Simulated Results

## 6. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Grimnes, S.; Martinsen, O.G. Bioimpedance and Bioelectricity Basics, 3rd ed.; Academic Press: Cambridge, MA, USA, 2015. [Google Scholar]
- Corbacho, I.; Carrillo, J.M.; Ausín, J.L.; Domínguez, M.A.; Pérez-Aloe, R.; Duque-Carrillo, J.F. Wide-bandwidth electronically programmable CMOS instrumentation amplifier for bioimpedance spectroscopy. IEEE Access
**2022**, 10, 95604–95612. [Google Scholar] [CrossRef] - Kusche, R.; Klimach, P.; Ryschka, M. A multichannel real-time bioimpedance measurement device for pulse wave analysis. IEEE Trans. Biomed. Circuits Syst.
**2018**, 12, 614–622. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Anand, G.; Yu, Y.; Lowe, A.; Kalra, A. Bioimpedance analysis as a tool for hemodynamic monitoring: Overview, methods and challenges. Physiol. Meas.
**2021**, 42, 03TR01. [Google Scholar] - Rodriguez-Villegas, E.; Yufera, A.; Rueda, A. A 1.25-V micropower G
_{m}-C Filter Based FGMOS Transistors Oper. Weak Inversion. IEEE J. Solid-State Circuits**2004**, 39, 100–111. [Google Scholar] [CrossRef] - Graham, D.W.; Hasler, P.E.; Chawla, R.; Smith, P.D. A low-power programmable bandpass filter section for higher order filter applications. IEEE Trans. Circuits Syst. I Regul. Pap.
**2007**, 54, 1165–1176. [Google Scholar] [CrossRef] - Corbishley, P.; Rodriguez-Villegas, E. A nanopower bandpass filter for detection of an acoustic signal in a wearable breathing detector. IEEE Trans. Biomed. Circuits Syst.
**2007**, 1, 163–171. [Google Scholar] [CrossRef] - Lo, T.Y.; Hung, C.C. A wide tuning range G
_{m}-C continuous-time analog filter. IEEE Trans. Circuits Syst. I Regul. Pap.**2007**, 54, 713–722. [Google Scholar] [CrossRef] - Rumberg, B.; Graham, D.W. A low-power and high-precision programmable analog filter bank. IEEE Trans. Circuits Syst. II Express Briefs
**2012**, 59, 234–238. [Google Scholar] [CrossRef] - Kulej, T.; Khateb, F. 0.4-V bulk-driven differential-difference amplifier. Microelectron. J.
**2015**, 46, 362–369. [Google Scholar] [CrossRef] - Veerendranath, P.; Vasantha, M.; Kumar, Y.N.; Bonizzoni, E. A novel low power G
_{m}-C continuous-time analog filter with wide tuning range. In Proceedings of the 2018 31st International Conference on VLSI Design and 2018 17th International Conference on Embedded Systems (VLSID), Pune, India, 6–10 January 2018; pp. 214–219. [Google Scholar] - Della Sala, R.; Monsurrò, P.; Scotti, G.; Trifiletti, A. Area-Efficient Low-Power Bandpass Gm-C Filter for Epileptic Seizure Detection in 130 nm CMOS. In Proceedings of the 2019 26th IEEE International Conference on Electronics, Circuits and Systems (ICECS), Genoa, Italy, 27–29 November 2019; pp. 298–301. [Google Scholar]
- Ballo, A.; Grasso, A.D.; Pennisi, S.; Venezia, C. High-Frequency Low-Current Second-Order Bandpass Active Filter Topology and Its Design in 28-nm FD-SOI CMOS. J. Low Power Electron. Appl.
**2020**, 10, 27. [Google Scholar] [CrossRef] - Long, G.B.; Ericson, M.N.; Britton, C.L.; Roehrs, B.D.; Farquhar, E.D.; Frank, S.S.; Yen, A.; Blalock, B.J. A sub-threshold low-power integrated bandpass filter for highly-integrated spectrum analyzers. In Proceedings of the 2020 27th IEEE International Conference on Electronics, Circuits and Systems (ICECS), Glasgow, UK, 23–25 November 2020; pp. 1–4. [Google Scholar]
- Corbacho, I.; Carrillo, J.M.; Ausín, J.L.; Domínguez, M.A.; Duque-Carrillo, J.F. 0.8-V CMOS Gm-C bandpass filter for electrical bioimpedance spectroscopy. In Proceedings of the 2021 28th IEEE International Conference on Electronics, Circuits and Systems (ICECS), Dubai, United Arab Emirates, 28 November–1 December 2021; pp. 1–4.
- Vela, L.M.; Kwon, H.; Rutkove, S.B.; Sanchez, B. Standalone IoT bioimpedance device supporting real-time online data access. IEEE Internet Things J.
**2019**, 6, 9545–9554. [Google Scholar] [CrossRef] - Cotrim, E.D.C.; Ferreira, L.H.d.C. An ultra-low-power CMOS symmetrical OTA for low-frequency G
_{m}-C applications. Analog Integr. Circuits Signal Process.**2012**, 71, 275–282. [Google Scholar] [CrossRef] - Colletta, G.D.; Ferreira, L.H.C.; Pimenta, T.C. A 0.25-V 22-nS symmetrical bulk-driven OTA for low-frequency G
_{m}-C applications in 130-nm digital CMOS process. Analog Integr. Circuits Signal Process.**2014**, 81, 377–383. [Google Scholar] [CrossRef] - Khateb, F.; Kulej, T.; Akbari, M.; Steffan, P. 0.3-V Bulk-Driven Nanopower OTA-C Integrator in 0.18 μm CMOS. Circuits Syst. Signal Process.
**2019**, 38, 1333–1341. [Google Scholar] [CrossRef] - Ballo, A.; Grasso, A.D.; Pennisi, S. Active load with cross-coupled bulk for high-gain high-CMRR nanometer CMOS differential stages. Int. J. Circuit Theory Appl.
**2019**, 47, 1700–1704. [Google Scholar] [CrossRef] - Kulej, T.; Khateb, F.; Kumngern, M. 0.3-V Nanopower Biopotential Low-Pass Filter. IEEE Access
**2020**, 8, 119586–119593. [Google Scholar] [CrossRef] - Khateb, F.; Kulej, T.; Akbari, M.; Kumngern, M. 0.5-V high linear and wide tunable OTA for biomedical applications. IEEE Access
**2021**, 9, 103784–103794. [Google Scholar] [CrossRef] - Khateb, F.; Prommee, P.; Kulej, T. MIOTA-based filters for noise and motion artifact reductions in biosignal acquisition. IEEE Access
**2022**, 10, 14325–14338. [Google Scholar] [CrossRef] - Kulej, T.; Khateb, F.; Arbet, D.; Stopjakova, V. A 0.3-V High Linear Rail-to-Rail Bulk-Driven OTA in 0.13 μm CMOS. IEEE Trans. Circuits Syst. II Express Briefs
**2022**, 69, 2046–2050. [Google Scholar] [CrossRef] - Khateb, F.; Kulej, T.; Akbari, M.; Tang, K.T. A 0.5-V Multiple-Input Bulk-Driven OTA in 0.18-μm CMOS. IEEE Trans. Very Large Scale Integr. VLSI Syst.
**2022**, 30, 1739–1747. [Google Scholar] [CrossRef] - Zhao, X.; Fang, H.; Ling, T.; Xu, J. Transconductance improvement technique for bulk-driven OTA in nanometre CMOS process. Electron. Lett.
**2015**, 51, 1758–1759. [Google Scholar] [CrossRef] - Wang, Y.; Zhao, X.; Zhang, Q.; Lv, X. Adjustably transconductance enhanced bulk-driven OTA with the CMOS technologies scaling. Electron. Lett.
**2018**, 44, 917–918. [Google Scholar] [CrossRef] - Lopez-Martin, A.; Garde, M.P.; Algueta-Miguel, J.M.; Beloso-Legarra, J.; Carvajal, R.G.; Ramirez-Angulo, J. Energy Efficient Amplifiers Based on Quasi Floating Gate Techniques. Appl. Sci.
**2021**, 7, 3271. [Google Scholar] [CrossRef] - Horowitz, P.; Hill, W. The Art of Electronics, 3rd ed.; Cambridge University Press: Cambridge, UK, 2015. [Google Scholar]
- Cinco-Izquierdo, O.J.; de la Cruz-Blas, C.A.; Sanz-Pascual, M.T. High-linearity tunable low-G
_{m}transconductor based on bootstrapping. IEEE Trans. Circuits Syst. II Express Briefs**2022**, 69, 259–263. [Google Scholar] - Ochoa, A. Feedback in Analog Circuits, 1st ed.; Springer: Berlin/Heidelberg, Germany, 2016. [Google Scholar]
- Krummenacher, F.; Joehl, N. A 4-MHz CMOS continuous-time filter with on-chip automatic tuning. IEEE J. Solid-State Circuits
**1988**, 23, 750–758. [Google Scholar] [CrossRef]

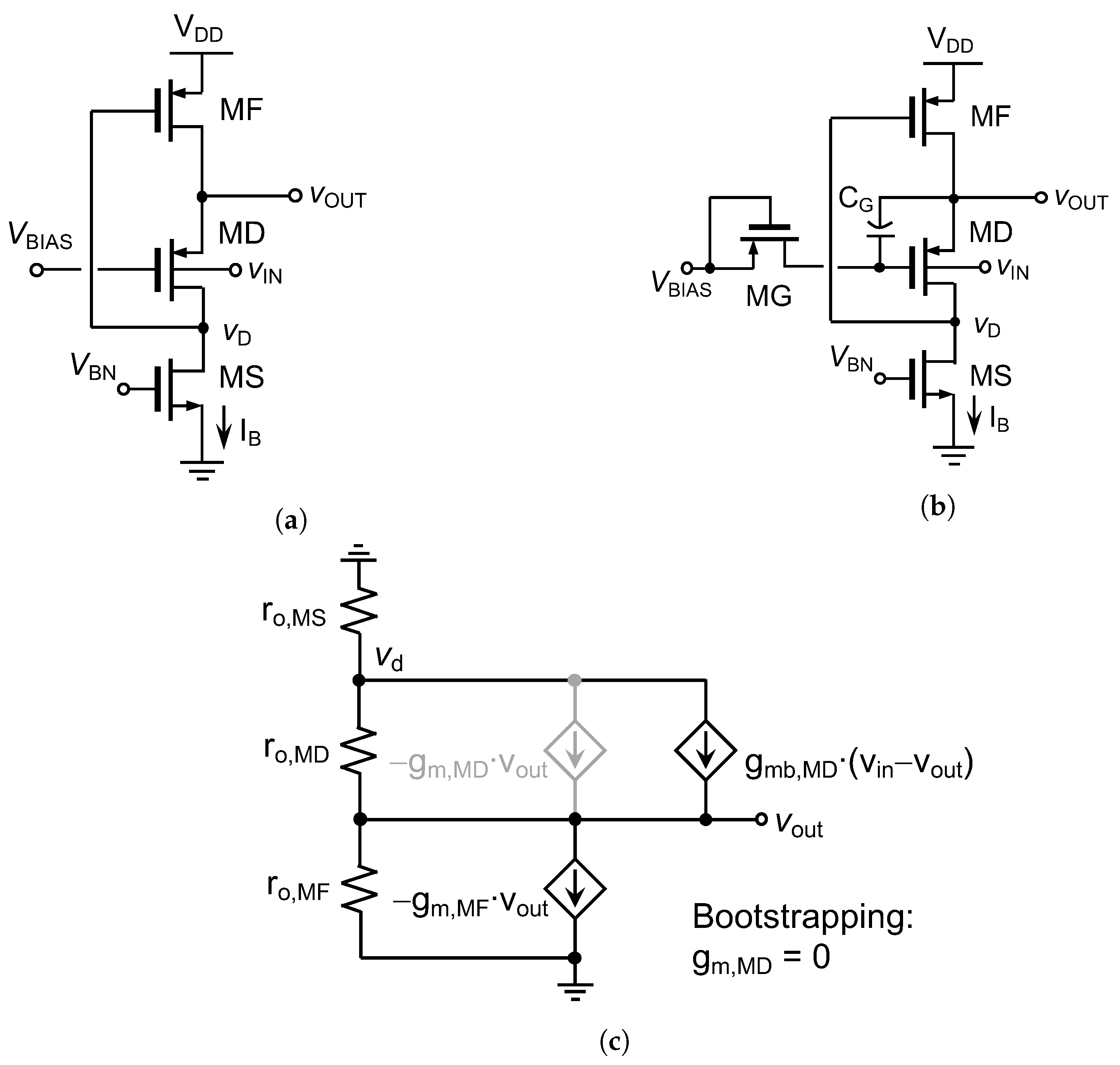

**Figure 2.**Bulk-driven FVF cell: (

**a**) conventional approach; (

**b**) proposed bootstrapped version; and (

**c**) small–signal circuit (${g}_{m,MD}=0$ for the bootstrapped case).

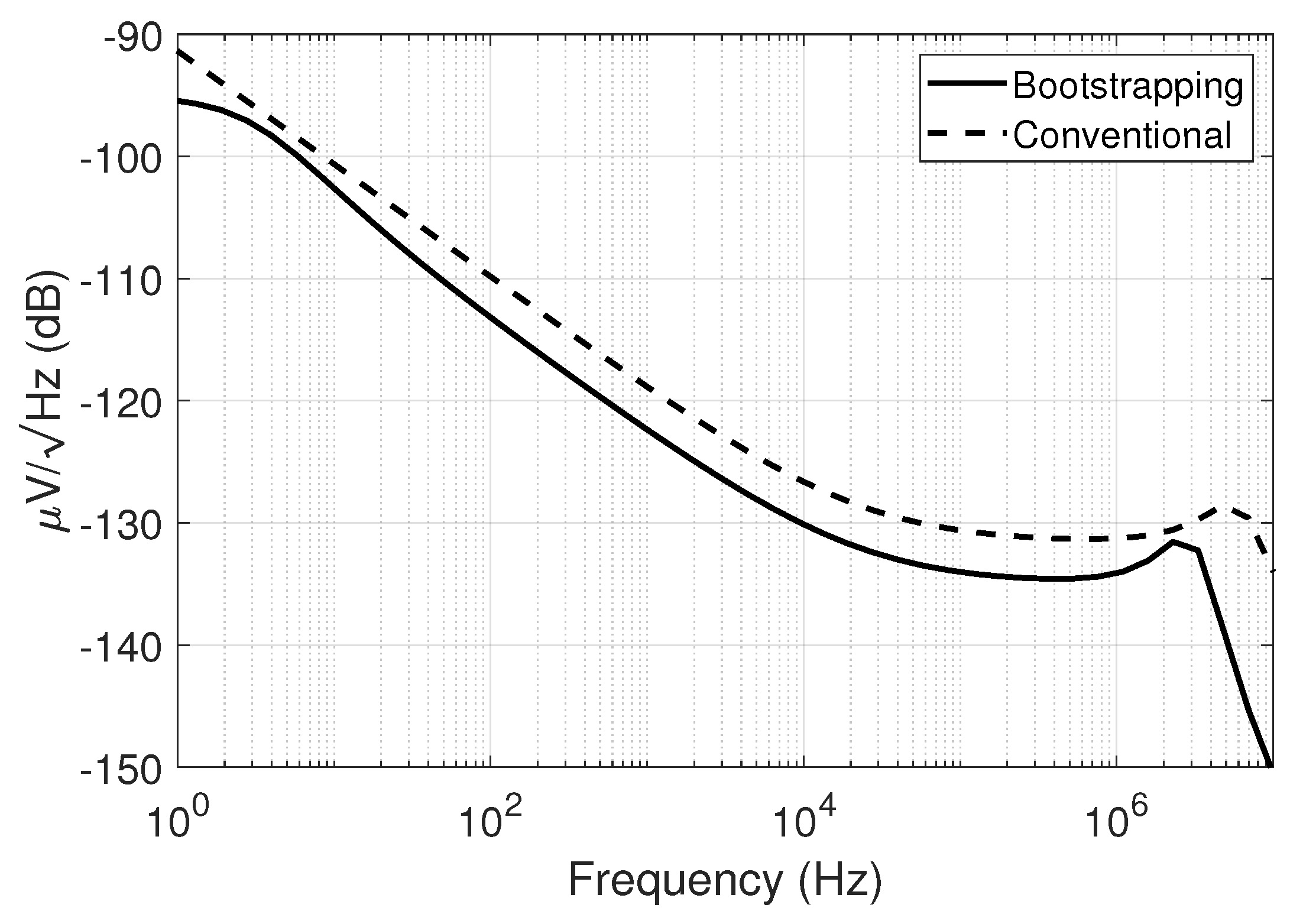

**Figure 6.**Noise comparison. The input power spectral density is represented in dB on the y-axis to illustrate more clearly the tendencies.

Conventional | Bootstrapped | |
---|---|---|

Gain | $\frac{{g}_{mb,MD}}{{g}_{m,MD}+{g}_{mb,MD}}$ | ≈1 |

${R}_{out}$ | $\frac{1}{{g}_{m,MF}\xb7({g}_{m,MD}+{g}_{mb,MD})\xb7({r}_{o,MD}\Vert {r}_{o,MS})}$ | $\frac{1}{{g}_{m,MF}\xb7{g}_{mb,MD}\xb7({r}_{o,MD}\Vert {r}_{o,MS})}$ |

${R}_{D,MD}$ | $\frac{1}{{g}_{m,MF}}$ | $\frac{1}{{g}_{m,MF}}$ |

${R}_{S,MD}$ | $\frac{1}{{g}_{m,MD}+{g}_{mb,MD}}$ | $\frac{1}{{g}_{mb,MD}}$ |

Open loop gain | ${g}_{mb,MD}\xb7{r}_{o,MD}$ | ${g}_{mb,MD}\xb7{r}_{o,MD}$ |

Loop gain | $({g}_{m,MD}+{g}_{mb,MD})\xb7{r}_{o,MD}$ | ${g}_{mb,MD}\xb7{r}_{o,MD}$ |

**Table 2.**Aspect ratios ($\mathsf{\mu}$m/$\mathsf{\mu}$m) for the main transistors of the transconductor in Figure 7.

Device | W/L | Device | W/L |
---|---|---|---|

MD1, MD2 | 20/1 | M1, M2, M3, M4 | 1/1 |

MF1, MF2 | 1/1 | M1C, M2C | 30/0.5 |

MS1, MS2 | 4/1 | M3C, M4C | 10/0.5 |

MG1, MG2 | 0.24/0.34 | MR1, MR2 | 1/0.5 |

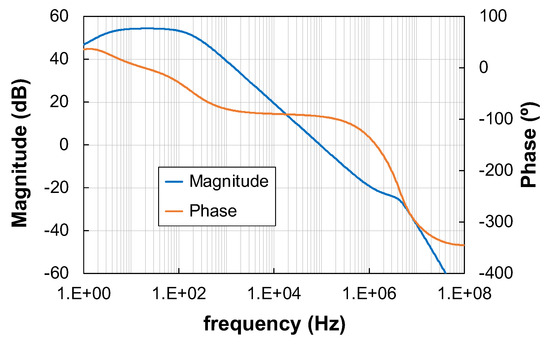

**Table 3.**Simulated performance of the linearized transconductor and comparison with other similar solutions previously reported.

Parameter | [17] ALOG’12 | [18] ALOG’14 | [22] Access’21 | [24] TCAS-II’22 | This Work |
---|---|---|---|---|---|

Technology ($\mathsf{\mu}$m) | 0.35 | 0.13 | 0.18 | 0.13 | 0.18 |

Results | Measured | Measured | Simulated | Measured | Simulated |

${V}_{DD}$ (V) | 0.8 | 0.25 | 0.5 | 0.3 | 0.6 |

Power (nW) | 40 | 10 | 0.278–535 | 708 | 361.2 |

${G}_{m}$ (nA/V) | 66 | 22 | 0.34–383 | 4070 | 248.3–1024.9 |

Open-loop gain (dB) | 61 | NA | 31.2 | 15 | 54.2 |

BW (kHz) | 0.195 | NA | 2.67×10${}^{-3}$ | 6 | 99.5 |

SR${}^{+}$/SR${}^{-}$ (V/ms) | 0.12 | 94600 | NA | NA | 3.15/1.56 |

THD (dB) | −48.2 @ 600 mV${}_{pp}$ | −45.5 @ 100 mV${}_{pp}$ | −46.0 @ 480 mV${}_{pp}$ | −54.4 @ 100 mV${}_{pp}$ | −52.6 @ 200 mV${}_{pp}$ |

$Fo{M}_{T}$ (kHz·pF/nW) | 12.2 | NA | 19.2-11.5 | 84.7 | 27.5 |

**Table 4.**Simulated performance of the proposed ${G}_{m}$-C filter and comparison with similar BPF solutions.

Parameter | [7] TBCAS’07 | [9] TCAS-II’12 | [10] ${}^{*}$ MEJ’15 | [14] ICECS’20 | [15] ${}^{*}$ ICECS’21 | [23]${}^{*}$ Access’21 | This Work ${}^{*}$ |
---|---|---|---|---|---|---|---|

Technology ($\mathsf{\mu}$m) | 0.35 | 0.35 | 0.05 | 0.13 | 0.18 | 0.18 | 0.18 |

${V}_{DD}$ (V) | 1 | 3.3 | 0.4 | 1.2 | 0.8 | 0.5 | 0.6 |

Power ($\mathsf{\mu}$W) | 44.3 | 75.4 | 31.8 | 256.0 | 24.0 | 0.06 | 1.65 |

Filter order | 6 | 2 | 2 | 8 | 2 | 3 | 2 |

${f}_{0}$ (kHz) | 0.67 | 20 | 10 | 100 | 72.7 | 0.25 | 19.1 |

${f}_{0}^{min}-{f}_{0}^{max}$ (Hz) | ∼100–20 k | 20–20 k | 1–30 k | 2–100 k | 72.7 k | 250 | 6.5–37.5 k |

Q | N.A | 3 | 1 | 4.8/5.2 | 5 | N.A. | 5.9 |

${v}_{IN,max}$ (m${V}_{pp}$) | 40 | 245 ${}^{\u2021}$ | 178 ${}^{\u2020}$ | 140 ${}^{\u2021}$ | 800 | N.A. | 110 ${}^{\u2020}$ |

In-band noise ($\mathsf{\mu}$V) | 70.8 | 58.7 | 53.0 | 100 | 266.6 | 240.0 | 190.5 |

DR (dB) | 49.0 | 63.5 | 68.4 | 49.0 | 60.5 | 60.4 | 47.4 |

$Fo{M}_{BPF}\times {10}^{-13}$ (SI) | 3.4 | 979.6 | 93.1 | 64.0 | 21.9 | 0.377 | 5.5 |

^{†}@ −40 dB THD,

^{‡}@ 1-dB compression point.

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Carrillo, J.M.; de la Cruz-Blas, C.A.
0.6-V 1.65-μW Second-Order *G _{m}-C* Bandpass Filter for Multi-Frequency Bioimpedance Analysis Based on a Bootstrapped Bulk-Driven Voltage Buffer.

*J. Low Power Electron. Appl.*

**2022**,

*12*, 62. https://doi.org/10.3390/jlpea12040062

**AMA Style**

Carrillo JM, de la Cruz-Blas CA.
0.6-V 1.65-μW Second-Order *G _{m}-C* Bandpass Filter for Multi-Frequency Bioimpedance Analysis Based on a Bootstrapped Bulk-Driven Voltage Buffer.

*Journal of Low Power Electronics and Applications*. 2022; 12(4):62. https://doi.org/10.3390/jlpea12040062

**Chicago/Turabian Style**

Carrillo, Juan M., and Carlos A. de la Cruz-Blas.
2022. "0.6-V 1.65-μW Second-Order *G _{m}-C* Bandpass Filter for Multi-Frequency Bioimpedance Analysis Based on a Bootstrapped Bulk-Driven Voltage Buffer"

*Journal of Low Power Electronics and Applications*12, no. 4: 62. https://doi.org/10.3390/jlpea12040062
