Biotechnology of Microorganisms from Coal Environments: From Environmental Remediation to Energy Production

Simple Summary

Despite the wide perception that coal environments are extreme habitats, they harbor resident microbial communities. Coal-associated habitats, such as coal mine areas/drainages, spoil heaps, and coalbeds, are defined as complex ecosystems with indigenous microbial groups and native microecological networks. Resident microorganisms possess rich functional potentials and profoundly shape a range of biotechnological processes in the coal industry, from production to remediation.

Abstract

It was generally believed that coal sources are not favorable as live-in habitats for microorganisms due to their recalcitrant chemical nature and negligible decomposition. However, accumulating evidence has revealed the presence of diverse microbial groups in coal environments and their significant metabolic role in coal biogeochemical dynamics and ecosystem functioning. The high oxygen content, organic fractions, and lignin-like structures of lower-rank coals may provide effective means for microbial attack, still representing a greatly unexplored frontier in microbiology. Coal degradation/conversion technology by native bacterial and fungal species has great potential in agricultural development, chemical industry production, and environmental rehabilitation. Furthermore, native microalgal species can offer a sustainable energy source and an excellent bioremediation strategy applicable to coal spill/seam waters. Additionally, the measures of the fate of the microbial community would serve as an indicator of restoration progress on post-coal-mining sites. This review puts forward a comprehensive vision of coal biodegradation and bioprocessing by microorganisms native to coal environments for determining their biotechnological potential and possible applications.

1. Introduction

Coal is a combustible fossil fuel utilized for different needs, including electricity generation, heating, steel manufacturing, as sources of liquid and gaseous fuels, and precursors in the production of various chemicals/materials [1]. Being a heterogeneous and complex geopolymer, coal and a diverse range of its extracts/derivatives may be subject to microbial attack. Ultimately, the various known microbial metabolic pathways are associated with the wide array of organic substrates, carbon and oxygen content, aromaticity, and relative moisture in coal. Moreover, some natural coals serve as a reservoir of microbial strains able to degrade lignin, having a molecular structure similar to those of coal components [2]. Coals are categorized into several ranks based on depositional, physicochemical, and coalification characteristics that eventually reflect coal microbiology. Coal extraction via surface or underground mining, coal processing/preparation, and energy generation may shape the microbial community structure and functional potential [3].

To date, the available literature body on coal microbiology has generally focused on investigating the physiology and ecology of various microbial community structures/diversity and their activities in coal biodesulfurization processes as well as biogenic coalbed methane production. However, coal environments appear to accommodate diverse microbial catalysis with rich functional potentials to convert coal substrates into value-added products and remediate post-mining sites and industrial deposits.

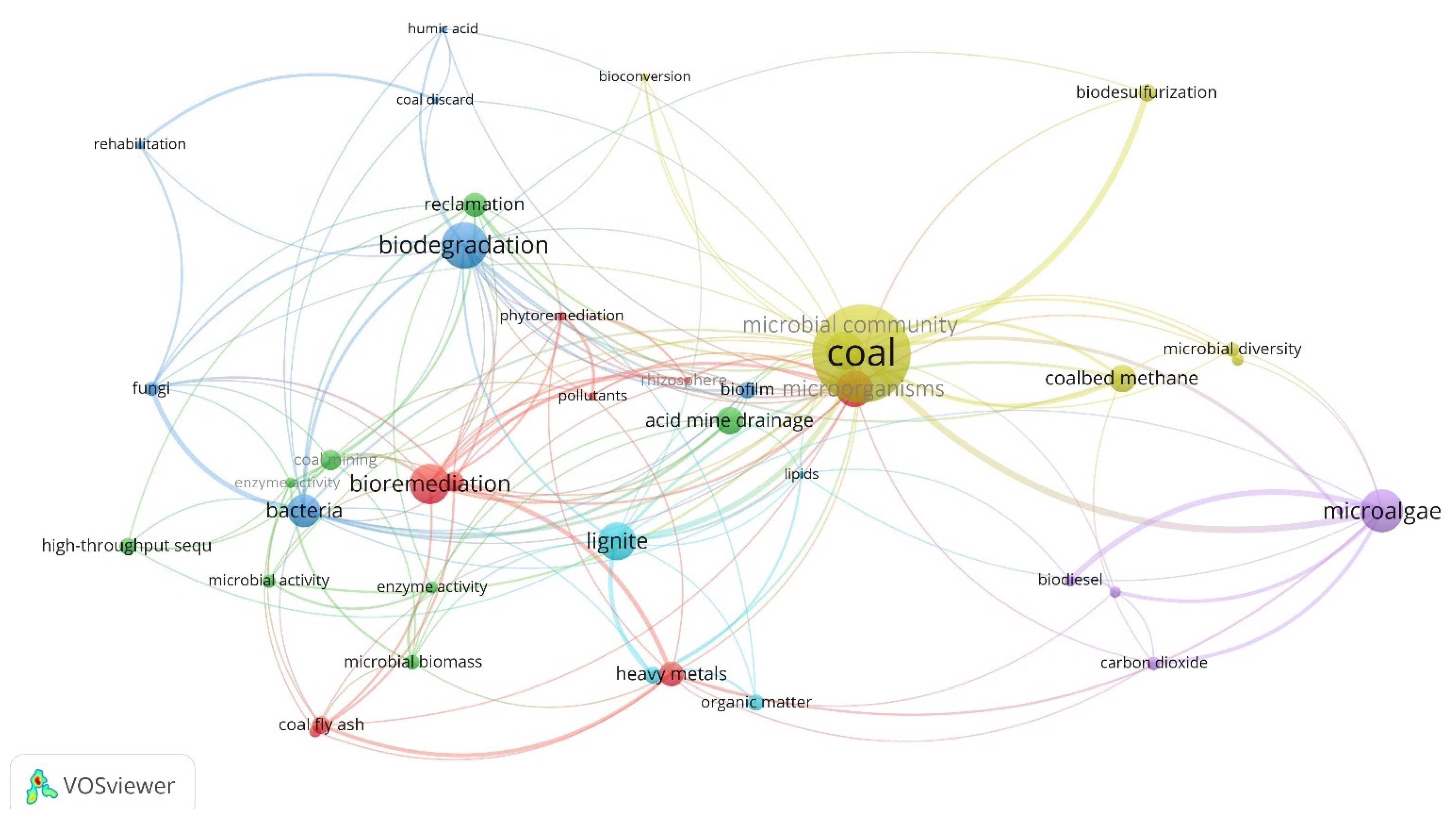

In order to evaluate current research trends and identify the most actively studied topics on coal microbiology, we performed a bibliometric analysis based on keyword co-occurrence. The results were visualized using the VOSviewer software, showing sophisticated interconnections of the topics related to coal microbiology (Figure 1). As one can see from the figure, the major accents currently lay primarily on biotechnological (such as biodegradation, bioremediation, and reclamation) and somewhat less on ecological (microbial community, biofilm, etc.) aspects. One of our goals was to bring these two aspects closer to each other, or rather to emphasize their intrinsic community.

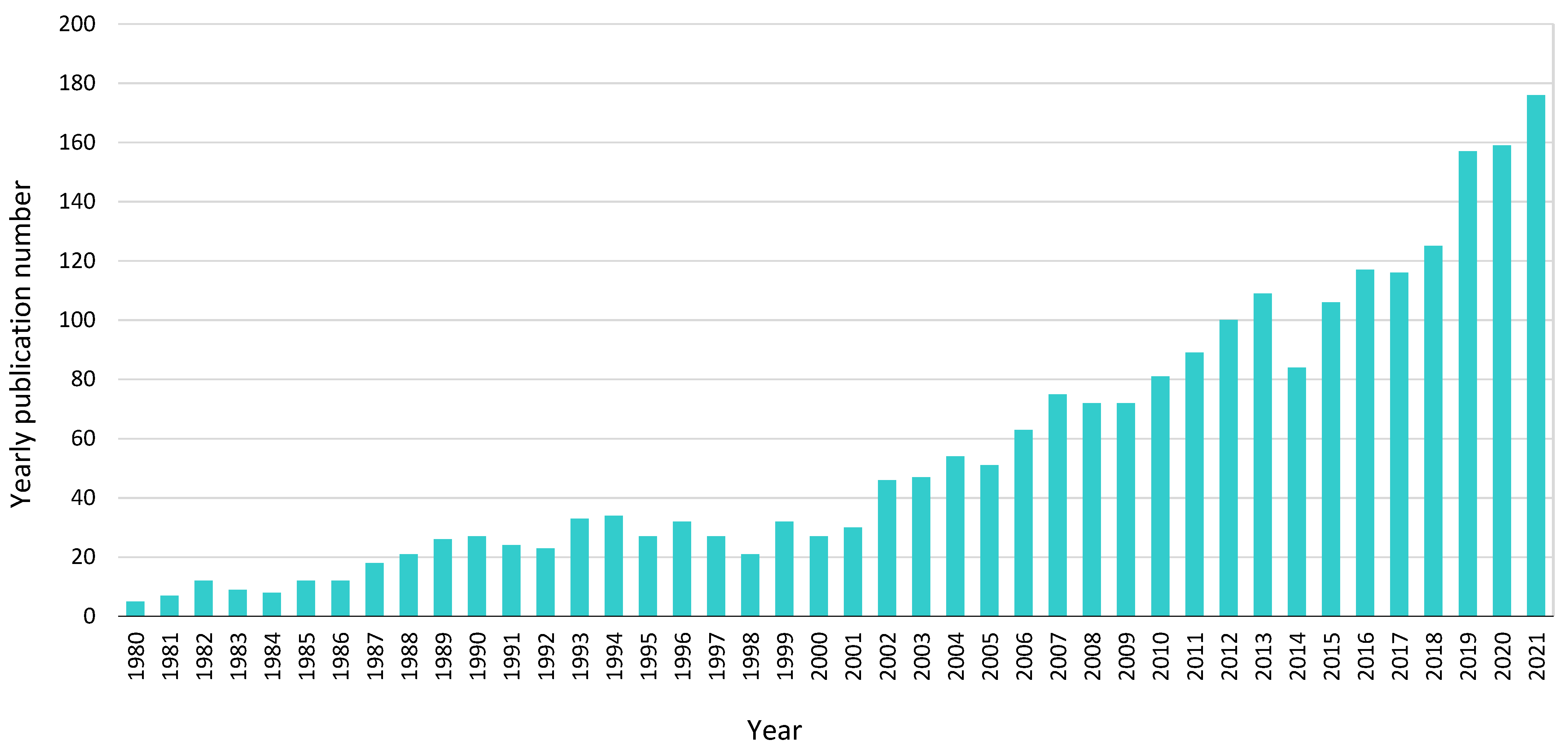

The second aspect was the study of the general trend of research by indicating the change in the number of articles involving microbes (microorganisms) in coal (low-rank coal, lignite) over time (Figure 2). Here, the yearly number of publications was counted, which was obtained from the Scopus platform from 1980 to 2021. As can be seen, there has been an upward trend in the number of publications over the years.

Initially, many microbial strains were directly isolated from those environments, which may not be associated solely with coal sources; however, for achieving effective and sustained exploitation and remediation of coal, the relatedness of microbial isolates to the coal sources may be critical. It is intuitively clear that indigenous microbial communities are optimally adapted to their environment in the presence of coal, implying their higher coal degradation efficiency compared with that of exogenous microbial communities. Native strains of microorganisms are already widely documented and are able to grow in culture media with coal as the sole carbon source and solubilize this material, generating humified organic matter [4,5].

Investigation of the microbial communities and main functional genes in coal environments has provided strong evidence that coal sources could be a “seed bank” of various microorganisms with very different functional potentials [6].

In the present comprehensive review based on a systematic literature search, we aimed to take a deep look at the overall functional structure and metabolic potentials of key microorganisms (bacteria, fungi, and microalgae) native to coal environments in the production of value-added compounds and remediation of coal-impacted sites. However, the microbial potentials driving coal biodesulfurization and coalbed methane generation are beyond the scope of this review due to the numerous excellent works published recently [7,8,9].

2. Coal Environments as Natural Habitats for Microbial Communities

During surface coal mining, soils/rocks are removed and deposited as “spoil heaps”, which are exposed to runoff, infiltration, acidification, and even spontaneous self-combustion. Spoil heaps vary significantly in their composition and chemistry due to their heterogeneous nature consisting of a mixture of coal seam materials, grained sandstones, clays, and shales. The oxidation of reduced sulfide minerals in coal, brought to the surface during mining processes, leads to acid production, which contributes to acid mine drainage (AMD) [3]. These surface coal-mining-associated environments (spoil heaps and AMD) may provide a suitable habitat for microbial colonization and biological activity due to their complex geomorphology, structural heterogeneity, and variable nutrient contents [10]. AMD-related microbiota inhabit various micro-environments, including water, AMD bed sediments, and macroscopic microbial growths, such as streamers, mats, and slimes [11]. On the other hand, subsurface coal seams and coal beds present an oligotrophic environment for syntrophic assemblages of bacteria and archaea, offering moisture, warmth, and fossilized organic material [12]. Coal-mine-affected soils, along with the spatial distribution of the contamination level and pollution load, can also provide habitats for different microbial communities [13].

The diversity and abundance of microorganisms in coal-affected environments can be a useful bioindicator of post-mining restoration and may complement more traditional agroecological approaches (

Table 1. The use of traditional techniques and the development of novel approaches have advanced the knowledge of the microbial community composition and structure residing in coal-associated environments *.

Coal Environment	Location	Study Type	Microbial Community Analysis	Microbial Community Structure	Significance	Ref.
Sediment from a brown coal basin	Sokolov brown coal basin, Czech Republic	Screening for microbial markers in sediment exposed during open-cast brown coal mining	PLFA, TLFA, and direct and cultivable microbial counts	Fungi of the genera Penicillium, Verticillium, Cladosporium, and Aspergillus, and heterotrophic bacteria of the genera Nocardiopsis, Kocuria, Paenibacillus, Rothia, Clavibacter, Bacillus, Brevibacillus, Arthrobacter, Micrococcus, Microbacterium, Acinetobacter, and Pseudomonas were isolated and characterized	Relatively high content of viable biomass and spectrum of saprotrophic fungi and heterotrophic bacteria showed that the sediment was a microbially rich geological medium in which microorganisms could survive/thrive for a long time.	[18]
Brown coal mine deposit area	Sokolov brown coal basin, Czech Republic	Assessment of the development of bacterial communities throughout the succession in the mining area	PLFA, microarray, and 16S rRNA gene-based analysis	Bacterial community composition of the 6-year-old site with no vegetation cover greatly differed from those of the older sites, especially with higher contents of Gammaproteobacteria, Cyanobacteria, and some Alphaproteobacteria.	Bacterial communities were especially vital during primary succession in its initial and late phases, when they dominated over soil fungi.	[19]
Stockpiles of opencast coal mines	Coal-rich Emalahleni area, South Africa	Investigation of the microbial community and enzyme activities as soil quality indicators in stockpiles of coal mines	PCR-DGGE analyses and enzyme activity determination	The bacterial OTUs spanned two phyla (Firmicutes and Proteobacteria) and four genera viz Bacillus, Pseudomonas, Azomonas, and Lysinibacillus. All fungal OTUs belonged to Ascomycota. Overall, the microbial community from stockpiles was impaired compared with that of the unmined site	Differences in microbial diversity and enzyme activities suggested that the soil’s biological components were highly sensitive to soil disturbance	[20]
Coal-mining-disturbed overburden	Overburden unit, USA	Assessment of the microbiological changes that occur during the maturation of surface-mining-disturbed overburden	16S rRNA gene-based analysis	Recently disturbed overburden contained an abundance of sulfur-oxidizing Limnobacter spp., but overburden-associated microbial communities were developed with increasing time post-disturbance	Over time, the biogeochemical weathering of disturbed overburden led to the development of microbial communities and geochemical conditions	[21]
Coal seam	Coal industry area, China	Exploration of the effects of soil extraction on microbial communities in coal seams	16S rRNA and mcrA gene-based analysis	Soil extraction from the shallow soil layer far away from the coal mine increased the bacterial α-diversity of the coal samples and changed the bacterial community composition	Provided basic microbial information for the subsurface microbial invasion of coal seams and helped to increase our understanding of the source of microorganisms in coal seams	[22]
Subsurface coal seams	Sydney, Surat, and Gunnedah coals, Australia	Examination of the succession and spatial partitioning of microbial ecology in coal seam environments	16S rRNA gene-based analysis	Proteobacteria formed a larger attached proportion (p < 0.0005), whereas Firmicutes made up a larger planktonic proportion (p < 0.0001). Bacteroidetes, Actinobacteria, and Euryarchaeota had significantly higher relative abundances in the planktonic fractions (p < 0.183, p < 0.011, and p < 0.0002, respectively)	Demonstrated that coal seam microbial communities undergo spatial niche partitioning during periods of succession	[12]
Spoil heaps after coal mining	Sokolov coal mining district, Czech Republic	Description of the changes in the topsoil properties of the coal mine deposit with a focus on the microbial biomass activity	PLFA and enzyme assays	Succession age affected the total and bacterial PLFA contents, followed by the soil layer and season, while for the fungal biomass content-related properties, the season was the most important	There was a general trend of increasing soil microbial biomass and the activity of enzymes in the soil during the initial phases of primary succession on spoil heaps	[23]
Coal-mining-affected soils	Subsided land due to underground coal mining, China	Exploration of the effects of different fertilizers on coal mining-affected soils and the bacterial community	16S rDNA gene-based analysis	The relative abundances of Proteobacteria, Bacteroidetes, and Verrucomicrobia increased, but the relative abundances of Chloroflexi and Nitrospirae decreased when an organic fertilizer was added	Soil reclamation via fertilization can contribute to soil recovery and bacterial community restoration over time	[24]
Coal mine sludge	Coal mine wastewater treatment plants, China	Investigation of the microbial composition and structure of industrial coal mine sludge	16S rRNA gene-based analysis	The most abundant phylum of wastewater was Proteobacteria, ranging from 63.64% to 96.10%, followed by Bacteroidetes (7.26%), Firmicutes (5.12%), Nitrospira (2.02%), Acidobacteria (1.31%), Actinobacteria (1.30%), and Planctomycetes (0.95%)	Most of the core genera were closely related to aromatic hydrocarbon degradation and denitrification processes, which may be helpful for wastewater management and control	[25]
Coal-mine-disturbed soils	Open-cut coal mine, Australia	Using microbial diversity to investigate the impacts of soil disturbance during open-cut mining	16S rRNA gene-based analysis	Greater species richness and evenness were revealed in rehabilitated soils as compared with non-mined soils, regardless of rehabilitation age.	Effects of inorganic fertilizer dwindled with increasing plot age, and the microbial community composition in rehabilitation sites became more equable to that in non-mined sites	[26]
Reclaimed coal mine soils	Surface coal mines, USA	Description of microbial community recovery over time in reclaimed soils	PLFA	Initial effects of surface mining resulted in total microbial biomass and diversity reductions. The total concentration of PLFA biomarkers increased after 5–14 years in soils established under plant communities	Most important phase of microbial community recovery may occur between 5 and 14 years after reclamation	[27]
Coal seam groundwater	Coal seam aquifer, Japan	The first inventory of coal seam microorganisms, along with the environmental and geochemical parameters involved	16S rRNA gene-based analysis	Bacterial genera Acetobacterium and Syntrophus, which have a symbiotic association with methanogens, were dominant; the archaeal hydrogenotrophic genus Methanoculleus and the methylotrophic genus Methanolobus were dominant	Presence of methanogens in the coal seam was suggested by methanogenic archaea and acetogenic/H2-generating bacteria in association with methanogens	[28]
Acid coal mine drainage	Constructed wetland system adjacent to coal mine, USA	Bacterial diversity analysis of constructed wetland that received acid drainage from an abandoned underground coal mine	16S rRNA gene-based analysis and RFLP	Approximately 40% and 35% of 16S rRNA RFLP patterns were consistent with Acidithiobacillus ferrooxidans and A. thiooxidans, respectively. Three sequences were identified as being closely associated with heterotrophic iron-oxidizing species	Dominance of the acidithiobacilli was consistent with the chemical characteristics of this site (continuous supply of reduced iron and sulfur components but with a limited amount of organic compounds)	[29]
Acid coal mine drainage	Constructed wetland system adjacent to coal mine, USA	Characterization of the microbial population present in a wetland that receives acid coal mine drainage	16S rRNA gene-based analysis	The dominant microbial species in an acid-receiving, oxic wetland were iron and sulfur oxidizers—Acidithiobacillus thiooxidans and A. ferrooxidans.	Presence of iron and sulfur oxidizers in the iron precipitate samples was consistent with the biological oxidation of iron and sulfur compounds	[30]
Interbedded coal deposit	Terrestrial core with lignite/coaly layers, New Zealand	Multidisciplinary (microbiological and geochemical) investigation of the coal deposit	16S rRNA gene-based analysis	Similar cell numbers (mean 1.2 × 106 cm−3), high viability (4–32%), intact phospholipids (biomarkers for living Bacteria), and activity (sulfate reduction and DNA replication) occurred heterogeneously throughout the core	Prokaryotic populations and activity changed with lithology, depth, and substrates (formate, acetate, and oxalate)	[31]
Acid coal mine drainage	Closed coal mine, China	Investigation of mineralogical and bacterial diversity of a river affected by acid mine drainage	16S rRNA gene-based analysis	Proteobacteria and Firmicutes were the dominant phyla, and an apparent variation in Firmicutes species was observed in the creek affected by acid coal mine drainage	Variation in Firmicutes could be a biological index to diagnose the natural attenuation of acid coal mine drainage	[32]
Coal-bearing sediments	Marine subsurface sediments, Japan	Study of piezophilic microbial communities, which may include some spore formers buried in the deep and old coal-bearing sediment	16S rRNA gene-based analysis	The members of spore-forming bacteria within Firmicutes and Actinobacteria were predominantly detected in all enrichment cultures from ~1.5 to 2.4 km-deep sediment samples, followed by members of Proteobacteria, Acidobacteria, and Bacteroidetes. In addition, piezophilic bacteria closely related to Virgibacillus pantothenticus and Bacillus subtilis were isolated	Results underline that the deeply buried microorganisms are still alive and revivable. The continued use of cultivation-dependent approaches may lead to the discovery of other piezophilic bacteria and provide a direct means to learn more about their adaptation strategies	[33]
Coal mine drainage	Flooded coal mine shaft, Russia	Molecular analysis of the microbial community of the water from a flooded coal mine shaft	16S rRNA gene-based analysis	Most bacteria were proteobacteria of gamma classes (39.12%) and epsilon (18.65%). Among the Gammaproteobacteria, members of the genera Thiovirga (18.52%), Thiothrix (9.52%), and Thiomicrorhabdus (2.25%) were revealed	Presence of sulfur-oxidizing bacteria as the dominant group indicates that this process is responsible for the production of organic matter	[34]
Coal mine spoils	Opencast coal mine area, India	Investigation of the soil/spoil physicochemical and bacterial properties in an opencast coal mine	16S rRNA gene-based analysis	The study suggests the presence of all the bacterial entities, such as Arthrobacter, Sinomonas, Paraburkholderia, and Bacillus, to be potential biomarkers of mine spoils	Among the isolated bacterial population, Arthrobacter and Sinomonas were the most dominant entities used as important ecological indicators	[15]
Soils around coal-fire vents	Coal-fire vents, China	Investigation of bacterial and archaeal diversity in surface soils of coal-fire gas vents	RFLP and 16S rRNA gene-based analysis	The bacterial community was mainly composed of Firmicutes, Proteobacteria, Acidobacteria, Bacteroidetes, Planctomycetes, Actinobacteria, and unidentified groups. Archaeal phylotypes were the species of the phyla Crenarchaeota (97.9%) and Thaumarchaeota (2.1%)	Microbial communities were diverse and could contain a large number of novel cultivable species with the potential to assimilate materials by heterotrophic metabolism at high temperatures	[35]
Coal mining waste	Coal fire area, Russia	Study of the soil microbial community associated with the zone of underground coal combustion	16S rRNA gene-based analysis	The community was dominated by aerobic bacteria capable of growing autotrophically and obtaining energy via the oxidation of the main components of coal gases, hydrogen, and carbon monoxide	Expanded knowledge of microbial diversity, evolution, and mechanisms of adaptation to extreme coal environmental conditions	[36]
Sediment-exposed reject coal	Wetland impacted by rejected coal, USA	Recovering the novel bacterial diversity from a forested wetland impacted by rejected coal	16S rDNA gene-based analysis	Bacterial isolates were composed of Acidiphilium sp., Acidobacterium capsulatum, Ferromicrobium acidophilium, and Leptospirillum ferrooxidans. The archaeal community consisted mainly of the genus Thermoplasma and sequences of a novel type	Libraries also exhibited novel 16S rDNA types not retrieved from other habitats, indicating that significant diversity remains to be detected	[37]
Soils reclaimed after coal mining	Dave Johnson Coal Mine, USA	Study of the microbial community composition influenced by undisturbed and reclaimed soil	RFLP	Both undisturbed and reclaimed soil bacterial communities were found to be dominated by Actinobacteria; undisturbed and reclaimed soils contained Actinobacteridae and Rubrobacteridae predominate, respectively	Knowledge of diversity patterns within different soil matrices may greatly aid in determining ecological function and developing diagnostic measures of soil health	[38]
Coal mine drainage	Meitanba mine, China	Investigation of the bacterial diversity of modified (sulfur and ferrous sulfate) coal mine drainage samples	ARDRA	The compositions of the microbial community structure of the sulfur and ferrous sulfate coal samples (Acidithiobacillus spp. (98.42%), Pseudomonas spp. (1.54%), and Legionella spp. (0%)) were different from those of the control samples	Results showed that iron could play an essential role in the microbial community structure of coal mine drainage	[39]
Coal discard	Coal discard sites located within grassland, South Africa	Comparison of assessment parameters indicative of microbial community function and structure in rehabilitated asbestos- and coal-discard sites	PLFA and enzymatic assays	Viable microbial biomass was determined as 6080–29,851 and 8128–47,242 pmol g−1 dry weight for the coal and asbestos discard sites, respectively. The ranges for dehydrogenase activity in coal sites and asbestos were 24.3–339.5 μg INF g−1 2 h−1 and 44.5–544.6 μg INF g−1 2 h−1, respectively	Established minimum and maximum values for microbial community properties applicable to rehabilitated discard sites originating from both asbestos and coal mining	[17]
Brown coal colliery spoil	Sokolov coal mining district, Czech Republic	Study on the importance of culturability in heterotrophic bacterial population succession on a spoil of brown coal colliery substrate	Viable bacterial biomass, culturable to total cell ratio, and colony-forming curve	Four hundred and seventeen isolates were analyzed and assigned to 35 genera (23 G+ and 12 G−) and 81 species/biotypes (51 G+ and 30 G−). The most abundant genera were Pseudomonas (22% of total species), Arthrobacter (10 %), Bacillus (9%), and Paenibacillus (6%)	Heterotrophic bacterial population in the surface layer of brown colliery spoil changed with the length of time after deposition	[40]
Acid coal mine drainage waters	Streams in southeastern Ohio, USA	Investigation of the relationship of the Al, Fe, Mn, and Zn concentrations in Klebsormidium- dominant algal mats, water, and sediments	Compound microscope determination	The algal samples were primarily Composed of K. rivulare, with this taxon comprising 95–100% of the algal biomass. Other taxa found were the two unicellular algae Euglena mutabilis and Chlamydomonas sp., and the filamentous Microspora sp.	Klebsormidium-dominated algal mats may be a good indicator of the Fe concentration in water, but not of the contents of Al, Zn, or Mn	[41,42]
Acidic effluents	Abandoned mines in Northern Portugal	Study of two acidophilic algae as ecological indicators of acid mine drainage sites	Optical microscopy based on morphological features	Acidophilic algal colonization was dominated by Euglena mutabilis and Klebsormidium sp.	Spatial distribution of E. mutabilis can be used to qualitatively assess water quality improvements	[43]
Open-cast lignite mining lakes	Lusatia region, Germany	Determination of the taxonomically diverse algal flora of lignite mining lakes	Phytoplankton standard methods	The planktonic algal flora was generally dominated by flagellates belonging to Chlamydomonas, Ochromonas, Chromulina, Cyathomonas, Lepocinclis, and Euglena mutabilis	Many of the taxa were potentially heterotrophic or phagotrophic, enabling these organisms to augment scarce C and P supplies	[44]
Acidic lignite pit lakes	Lausitz lignite mining district, Germany	Microcosm experiments on acidity removal through controlled eutrophication	Laboratory microcosm experiments	Gradual adaptation and changes in the phytoplankton population were shown in a lake already contaminated by acid mine drainage	Ochromonas sp. and Chlamydomonas sp. were shown to tolerate a wide range of physical and chemical conditions and were present consistently in the lake	[45]
Reclaimed coal mine spoils	Brown coal mining district, Czech Republic, and lignite mining district, Germany	Comparison of soil algal communities in two contrasting chronosequences on reclaimed spoils after coal mining	Direct light and epifluorescence microscopy and “growth slide” method	A total of 122 species of algae were found in both areas. Green algae prevailed in both areas, but in the brown coal area, cyanobacteria and diatoms were also quite diverse. The total abundance of algae ranged mostly from 104–107 cells/g dry soil, and was one order higher in the brown coal area than in the lignite area	Sludge and compost fertilization resulted in the rapid formation of visible algal crusts dominated by Klebsormidium crenulatum	[46]
Acid mine drainage	Abandoned undergroundcoal mine, USA	Identification of the dominant algae in photosynthetic assemblages observed in acid mine drainage	Microscopic analyses	A diverse range of unicellular microalgae, such as Chlorella, Cylindrocystis, Botryococcus, and Navicula, and several filamentous forms identified as Microspora, Cladophora, and Binuclearia, were recorded	The observed high algal diversity may be related to the long duration of acid mine drainage flow at the site, which has led to the development of adapted algal communities	[47]

* OTU, operational taxonomic units; PCR-DGGE, PCR-denaturing gradient gel electrophoresis; PLFA, phospholipid fatty acid analysis; RFLP, restriction fragment length polymorphism; TLFA, total fatty acid profiles.

). For instance, bacteria belonging to the Gammaproteobacteria group may be an accurate bioindicator of potential coal biodegradation [14]. In addition, the presence of bacterial entities, such as Arthrobacter spp., Sinomonas spp., and Bacillus spp., can be a potential biomarker of coal mine spoils [15].

The status of microbial prevalence and community succession in coal environments may be estimated by various methods, such as direct counts, cultivable microbial counts, phospholipid fatty acid analysis (PLFA), total fatty acid profiles (TFAP), and measurements of enzyme activity, CO₂ uptake, and/or O₂ consumption [16]. Since the fatty acid composition of microorganisms alters in response to their environment, ratios of specific biomarkers can be employed to assess microbial communities’ physiological and biochemical statuses [17]. Moreover, enzymes have been considered sensitive biomarkers of soil quality in degraded lands and applied to indicate the changes in soil management under different agronomic practices.

Advanced next-generation sequencing methodologies based on metagenomic analyses and 16S or 18S rRNA genes have been used to survey coal mining-associated environments. Through the application of these multiple high-throughput technologies, microbial communities can be characterized in terms of function and structure, and these characteristic profiles can be monitored over time.

3. Coal Materials as Substrates for Microorganisms

Coal is a heterogeneous and carbonaceous material with mineral inclusions that microorganisms may be able to attack, degrade, or utilize several different constituents of. In principle, microorganisms can function either in the general breakdown of the coal molecule or in the selective removal of particular components [48,49]. The treatment of low-rank coals with aerobic coal-solubilizing microorganisms produces heterogeneous hydrocarbons and organics of different molecular weights and polarities, with a relatively high oxygen content [50]. Their structural and chemical nature renders low-rank coals more susceptible to microbial modifications, which can be attributed to [51]: (1) higher oxygen content compared with that of higher rank coals, thus providing “biological doorways” for degradation, (2) increased water solubility, which results in improved bioavailability, and (3) structural resemblance to lignin, which allows degradation by lignin-degrading microorganisms.

Several approaches for microbial coal modification have been proposed [52]. Microorganisms may attack coal by focusing on carbonaceous matter and/or interspersed inorganic materials. One approach is depolymerizing the coal polymer, breaking various key links—this could provide the basis for liquefaction. A second approach would be reducing the oxygen content through reducing C=O to CH₂ or decarboxylation to CO₂—this could improve the calorific value. A third would be the removal of sulfur, nitrogen, or metals from the coal before firing, which would reduce unwanted emissions.

The pilot observations reported in the 1980s initiated intensive research, leading to a deeper understanding of the parameters and strategies of coal degradation [4]. To date, many studies have stated three principal mechanisms of coal biodegradation/bioconversion: solubilization, depolymerization, and utilization [53,54,55]. However, a number of other terms are often used interchangeably to describe different stages in coal biodegradation/bioconversion, such as solubilization, liquefaction, depolymerization, utilization, decolorization, etc.

Coal solubilization represents a nonenzymatic dissolution and occurs at an alkaline pH in the presence of alkaline substances, chelators, and surfactants, yielding black liquid. Coal depolymerization is mediated by enzymes that function at pH levels below 6. Lignin-degrading oxidoreductases and certain hydrolases cleave linkages that maintain the 3D structure of coal and release substances with lower molecular masses [56]. Coal utilization consists of its biodegradation by various bacteria and fungi, which use components of the mobile part of lignite as carbon sources.

In general, microbial coal transformation is summarized and denoted as the ABCDE system (A = alkali, oxidative; B = biocatalysts; C = chelators; D = detergents; and E = esterases) [2,53]. In most bacteria and actinomycetes, alkaline action and chelation play the primary role, while enzymes play the most crucial role in fungi. Several microorganisms with distinctive physiological characteristics were found to exploit either one or a combination of these mechanisms.

A.

alkaline substances (ammonia, biogenic amines, peptides, and their derivatives) and chelators are involved in the microbial solubilization (liquefaction) of coal. These non-enzymatic substances are produced by fungi and bacteria using the organic acids of the medium and increase oxidation by neutralizing the carboxylic acids present in coal, ultimately resulting in coal solubilization.

B.

coal depolymerization and solubilization can be achieved through catalytic metabolism, especially with lignin-degrading enzymes, because the structure of low-rank coal is very similar to that of lignin. These enzymes play a critical role in humic acid depolymerization by breaking the covalent bonds within the coal macromolecule. These enzymes can be divided into oxidative (lignin peroxidase, manganese peroxidase, and laccase) and non-oxidative (esterases). Numerous microorganisms (Penicillium sp., Trichoderma sp., Bacillus sp., Mycobacterium sp., Acinetobacter sp., Enterobacter sp., Rhodococcus sp.) have been documented to secrete ligninolytic enzymes on culture medium containing coal. Saprotrophic fungi and, in particular, ligninolytic microorganisms may act as biocatalysts for coal transformation [4].

C.

chelating agents (e.g., oxalic acid, salicylic acid, and triethylamine) secreted by fungi can react with the metal ions (calcium, iron, and magnesium) in coal and depolymerize its molecular structure, resulting in the generation of small water-soluble molecules.

D.

detergents (surfactants) enhance coal solubilization/dissolution by promoting the absorption of biological enzymes on the coal’s surface and by reducing surface tension. In addition, surfactants can also shift the reaction sites of certain enzymes, which may lead to higher coal biodegradation rates.

E.

like oxidases, non-oxidative esterases also play a large role in coal degradation. These enzymes are mainly produced by Gram-negative and Gram-positive soil bacteria and can hydrolyze coal polymers by the cleavage of ester or ether bonds.

Biological degradation/conversion of coal sources offers an alternative clean strategy for exploiting massive coal discards/dumps. Several non-fuel options for low-rank coal utilization have been prospected, such as the extraction of soil amendments/conditioning agents, organic moieties, and chemical feedstock for the subsequent generation of alternative fuels.

3.1. Peculiarities of Coal Degradation by Bacteria

A variety of bacterial species have been studied for their coal biosolubilization abilities, as they dissolve coal as an energy source for growth. Short-term cultivation, a faster conversion rate, and easier operation enable bacteria to achieve maximal coal degradation under standard temperature and pressure conditions [5,53,57]. Many recent studies suggest that indigenous bacterial isolates from coal environments (coal residues, coal-mining soils, and coal tailing water) have greater coal-solubilizing ability than exogenous microbial communities (

Table 2. Biodegradation of various coal sources through native consortia of bacteria: understanding the mechanisms, rates, and characterization of coal biodegradation is fundamental in the context of coal utilization/processing. This table considers only studies published since 2002 *.

Bacteria				Coal			Biodegradation					Ref.
Strains	Source of Isolation	Criteria of Selection	Study Type	Type	Origin	Composition (Proximate/Ultimate), %	Mechanism	Rate	Product/Process Characterization	Remarks	Significance
Bacillus mycoides CSB25, Microbacterium sp. CSB3, Acinetobacter sp. CSB13, and Enterobacter aerogenes CSB10	Coal residues, coal sediment, and rhizosphere	Ability to grow in a medium with powdered coal	LRC solubilization in a solid matrix (1), and LRC biotransformation and HS production in vitro in a liquid medium (2)	Lignite	El Cerrejón opencast mine, Colombia	Humidity—28.44, A—11.12, V—47.79, FC—41.09, Q—4781 Kcal Kg−1. C—46.04, H—3.26, O—42.95, N—1.38, and S—0.13	BS	LRC biotransformation ranged from 25 to 37%, and HS production ranged from 127–3100 mg L−1	E4/E6 ratio values were 5.2 for the bio-HA and 4.8 for the chem-HA. In addition, bio-HA showed higher contents of N, C, H, and a lower content of O. IR spectra of bio-HA showed similar qualitative characteristics to those of chem-HA	Supramolecular structure of both HAs had a moderately high molecular weight caused by molecules with high aromatic condensation	Isolates can be used to exploit the LRC and produce HS	[58]
Bacillus mycoides, Microbacterium sp., and Acinetobacter baumannii	Coal residues, coal sediment, and rhizosphere	Selected based on [58]	Characterization of HAs obtained through the bacterial transformation of LRC	Lignite	El Cerrejón coal mine, Colombia	M—28.44, A—11.12, V—47.79, Q—4781 kcal kg−1, FC—41.09, and S—0.13	BS	N/A	FTIR, GC-MS, and other analyses revealed that Bio-HA had a lower degree of aromaticity, more of a hydrophilic tendency, lower O content, was enriched with nitrogenated functional groups, and aliphatic polar chains	Bio-HA generated by strains exhibited high structural similarity to each other; however, some differences were evident in the types of metabolites	Concept of supramolecular structures of the HA from LRC was established	[59]
Pseudomonas sp., Bacillus sp., Trichoderma sp., and Phanerochaete sp.	Soil associated with coal mines, water, and coal	Positive screening tests (indicated as growth on coal agar plates)	Biosolubilization measurement by determining coal weight loss	High volatile C to B bituminous coal	Coal mines (Salt Range at Dulmial Village, Tehsil Choa Saidan Shah, District Chakwal) of Pakistan	A—24.02, S—5.71%, and Q—9043 Btu/lb.	BS and BL	Pseudomonas sp.—25.93%, Bacillus sp.—36.36%, Trichoderma sp.—50%, and Phanerochaete sp.—66.67% in 30 days	UV-vis revealed an increase in the absorbance pattern; FTIR indicated alterations in the structure of coal	Presence of microorganisms and surface erosion of coal residues suggested their ability to survive in coal for a more extended period	Excellent potential for coal solubilization in coal methanogenesis	[60]
Bacillus sp. Y7	Weathered lignite minerals	Ability to form a brown halo of solubilized lignite	Biosolubilization of lignite on solid and liquid media	Lignite	Huolingele Minerals Administration Coalmine, China	C—41.30, H—2.70, O—17.95, N—1.04, and S—0.37	BS	More than 36.77% solubilized in 12 days	Bio-HA was similar to HA extracted by chemical processes from lignite, but had higher N/O and H/C atomic ratios than HA	Lignite solubilization correlated with an increase in pH	Conversion of LRC into value-added products, such as humic acid	[61]
Bacterial communities with Bacillus licheniformis-related bacteria	Leonardite sample	Isolation from the leonardite with a major source of humic acid	Coal biodegradation study showing alkali production and enzyme reactions	Leonardite	Coal mines in the Provinces of Xinjiang, Inner Mongolia, Shanxi, and Yunnan, China	pH between 2.0 and 7.5, and A between 4.58 and 40.25	BS	50% degradation of the leonardite within 21 days	FTIR revealed that the contents of C, O, and aliphatic carbon were similar in Bio-HA and C-HA	Production of Bio-HA had hormone-like bioactivity	Dissolution of leonardite to produce humic acid	[62]
Microbial community with the most abundant Nitrobacter genus	Surface soil containing small coal pieces	Samples contained microorganisms that had been in contact with coal	Biotransformation study of coal linked to nitrification	Sub-bituminous coal	Lithgow State Coal Mine, Australia	N/A	BT	Carbon fixed into nitrifying biomass constituted ~0.042% of the carbon in coal added to the culture	Hydrocarbons derived from coal were below the detectable limits, but apparently sufficient to sustain the microbial community	Interaction between nitrification and coal biodegradation processes was shown	Products of coal can feed fermentative and methanogenic processes	[63]
Autochthonous lignite microflora (Firmicutes, Actinobacteria, Proteobacteria, and Bacteroidetes)	Lignite samples	Stimulation of autochthonous microflora in lignite	Biodegradation study under conditions of acidic molasses fermentation	Lignite	Jóźwin IIB opencast mine, Poland	N/A	DC	Lignin contents in the substrate lignite and after biodegradation were equal at 75.0% and 76.1%, respectively	The lignin:cellulose ratio increased from 11 to 13 in lignite after its decay, indicating more intense cellulose biodegradation. The products of cellulose degradation were α- and β-glucose	Phenols, ketones, and certain organic compounds increased during biodegradation	Synergistic interactions between molasses-fermenting and lignite-degrading bacteria are set	[64]
Streptomyces fulvissimus K59	Brown coal samples	Ability to grow on coal	Screening of microorganisms to solubilize lignite and study the coal decomposition potential	Brown coal	Tur’ow Mine, Poland	N—0.40, C—55.50, H—6.36, and S—8.53	BL	Resultant concentration of biosolubilized lignite was 15 times higher as compared with that of crude coal	Pretreatment (nitric acid) caused increased N release (2–3%) with a simultaneous decrease in the C/N ratio (19–33) and a reduction in the S content (0.5 g/kg)	Plackett–Burman screening verified that biosolubilization was dependent on pretreatment, coal concentration, and C source	Allows for the recovery of complex aromatic compounds from LRC	[65]
Fusarium oxysporum 1101	Surface water in the area of a lignite mine	Based on preliminary studies	Study on the effect of substrate concentration on biosolubilization	Lignite	Lignite mine in Bełchatów, Poland	N/A	BL	3 times higher solubilization when the culture medium was supplemented with 5% of lignite than in the medium with 10%	FTIR showed that the relative intensity of the peaks reflected the concentration of functional groups in the solubilization products	Low-molecular-weight products were efficiently released and then polymerized for 8 days, and the content of condensed aromatics decreased	May be an alternative to chemical methods for obtaining HA and other value-added products	[66]
Bacillus sp. RKB 7	Coal mining soil	Ability to grow in a medium containing coal	Bacterial culture studies to evaluate the nature of coal-derived substances	Lignites	Oi-Karagay and Lenger coal beds, Kazakhstan	Oi-Karagay lignite: W—7.81, A—11.2, V—36.7, and Q—15,700. Lenger lignite: W—10, A—21.2, V—43, and Q—7300	BS/BC	24% of lignite (5% w/v) was solubilized under pH 8.2 within 14 days	UV-vis and elemental analysis indicated that the solubilization products had a lower degree of aromaticity and molecular weight	FTIR analysis revealed various functional groups in the obtained biosolubilization products	Can contribute to a deeper understanding of microbe–mineral interactions in coal environments	[67]
Bacillus sp. RKB 2	Coal mining soil	High ability to grow in a modified mineral medium with lignite	Study on lignite biosolubilization and characterization of its products	Lignite	Oi-Karagay coal deposit, Kazakhstan	W—7.8, A—12.0, V—35.8, C—74.1, H—4.7, S—0.1, O—19.7, and N—1.4	BS	Almost 26% of crude lignite (5% w/v) within 12 days	FTIR showed the diverse nature of the bacteria-induced humic substances. LC-MS was consistent with the types of compounds that were indicated by FTIR	Protein-like and fatty acid substances were one of the factors that triggered lignite biosolubilization	May be helpful in coalbeds for in situ bioutilization of low-rank coal	[68]
Pseudomonas mendocina B6-1	Coal samples	Indigenous to the coal	Experimental study on the demineralization of coal with the bacterial strain	Coals rich in inertinite group of macerals	Rajmahal Gondwana basin, India	M—2.39, A—29.89, V—34.11, and FC—31.30	DM	Reduction in the ash content (>5%) was achieved, and variable degrees of removal of Mn, Na, and Fe were noticed	Atomic absorption spectrophotometer revealed that As, Cd, Cu, Ni, Zn, Cr, Co, and Pb were removed	Elements such as Ni, Zn, Cr, and Cu maintained a robust negative correlation with the ash removal percentage	Could be an important tool for the beneficiation of coal to obtain clean fuel	[69]
Pseudomonas mendocina B6-1	Coal samples	Based on [69]	Demineralization of coal with the bacterial strain and characterization of its signatures	Coals rich in inertinite group of macerals	Rajmahal Gondwana basin, India	Referred to [69]	DM	Decrease in H (av. 3.3%), O (av. 18.96%), S (av. 13.23%), M (av. 11.61%), and A (av. 4.48%)	XRD revealed the reduction of the pyrite phase, and FTIR indicated shifting of the absorption peaks compared with the control	There was a shifting of most absorption peaks of the clay minerals, which was due to bacterial action	Coal beneficiation with bacteria to remove its environmentally sensitive elements	[70]
Pseudomonas stutzeri BHU	Formation water of a coalbed	Ability to grow in mineral salt medium with coal	Study on the coal-induced biosurfactant production	Lignite, bituminous, and anthracite	N/A	N/A	BS	When the three types of coal were used, lignite was maximally solubilized after 7 days	Hemolytic test, bacterial growth inhibition, and FTIR analysis showed the rhamnolipid nature of the biosurfactant	P. stutzeri produced more biosurfactant with lignite than bituminous or anthracite	May be useful in coalbeds for the in situ biotransformation of coal into methane	[71]
Chelatococcus strains	Formation water of a coalbed	Capable of growing on coal agar medium	Characterization of isolates to solubilize coal as a sole source of C for their growth	LRC	N/A	N/A	BS	Increase in absorbance at 450 nm and browning of the culture supernatant was observed	In a preliminary characterization, isolates provide emulsifiers (surfactants) to other bacteria that carry out coal degradation	Isolates showed higher growth in the medium with 5% coal compared with the medium without coal	Advantageous to convert sedimentary rocks into valuable products	[72]
Microbial consortia	Coal tailing water mixed with fresh cow dung	Based on a literature review	Investigation of reject coal conversion into humic substances	LRC	Jamshedpur, India	A—78	BD	N/A	FTIR spectra results showed a predominance of OH, COOH, and COO groups in HA-like compounds	Isolates were able to change and modify the macromolecular structure of reject coal	Beneficiation of rejected coal and production of value-added products	[73]
Cupriavidus necator SLA2, Pseudomonas putida SLA 32, and Alcaligenes sp. SLB16	Sludge enriched with coal	Ability to degrade aromatic compounds	Screening of microorganisms based on their coal-degrading activities	LRC	Untreated Indonesian coal provided by the Korea Institute of Energy Research, South Korea	M—17.36, V—43.19, A—6.75, and FC—32.88	BS	1.84% after 96 h for C. necator SLA2	Laccase-like activity was found in the strains when tested for RBBR dye degradation, which represented the aromatic structures present in coal	Strains were also able to increase the pH of the culture media as a response to the acidic nature of coal	Potential for the development of the biological treatment process of coal	[5]
Citrobacter sp. ECCN 19b, Bacillus sp. ECCN 41b, Escherichia sp. ECCN 25b, and Bacillus sp. ECCN 26b	Slurries of coal tailings and grass root zone on coal discard dumps	Screened for coal degradation ability in a coal medium	Study on the isolation and characterization of novel coal-degrading bacterial strains	Bituminous coal discard (1) and leonardite (2)	Emalahleni coal fields (1) and No. 2 Seam (2), South Africa	(1): M—8, A—35, V—39, FC—18, S—0.2.(2): M—4, A—40, V—49, FC—7, and S—0.2	BD	Citrobacter sp. ECCN 19b was able to grow and proliferate on both coals; A600: ~1.1 (1) and ~1.2 (2) in 20 days	Shift in pH and associated media coloration with the formation of HS, which FTIR confirmed	Preferential metabolism of alkanes from coal provided bacterial growth	Potential for the transformation of coal discard to HS	[57]

* A, ash; BC, bioconversion; BD, biodegradation; Bio-HA, (micro)biologically extracted humic acid; BL, bioliquefaction; BS, biosolubilization; BT, biotransformation; C, carbon; Chem-HA, chemically extracted humic acid; DC, decomposition; DM, demineralization; FC, fixed carbon; FTIR, Fourier-transform infrared spectroscopy; GC-MS, gas chromatography–mass spectrometry; H, hydrogen; HA, humic acid; HS, humic substances; LRC, low-rank coals; M, moisture; N, nitrogen; O, oxygen; Q, calorific value; UV-Vis, Ultraviolet–visible spectroscopy; V, volatile matter.

).

The biodegradation of coal may occur faster when the substrate is oxidized; therefore, many studies often employ either brown coal (lignite) or leonardite with different proximate/ultimate compositions. As mentioned above, depending on the type of mechanism involved in the studies, coal biodegradation can be described in many ways, such as biotransformation, biosolubilization, bioconversion, demineralization, decomposition, and bioliquefaction. The rates and extent of coal biodegradation depend upon several factors, including the rank and origin of the coal, type of microbial strains, mode of coal treatment/processing, etc.

Coal biodegradation by microbial isolates is being intensively studied to develop effective rehabilitation and revegetation strategies for coal mining areas and discard dump sites (Figure 3). Such isolates, so-called “microbial cocktails” [51] native to coal environments, can presumably be the best tools for obtaining released humified organic matter from coal for subsequent agricultural applications.

3.2. Coal Degradation by Fungi

Primarily, coal degradation by fungal species differs from that by bacteria in terms of the nature of the released organics. Indeed, while the bacterial degradation of coal results in the generation of a mixed pool of organics, including aromatics and aliphatics, the fungal degradation machinery involves mainly polyaromatic hydrocarbons, single-ring aromatics, aromatic nitrogen compounds, and a minor fraction of aliphatics [74]. The elucidated operative mechanisms behind coal solubilization and depolymerization by fungi include both enzymatic (hydrolases; peroxidases, viz., manganese peroxidase and lignin peroxidase; and phenol oxidases, viz., laccases) and non-enzymatic (alkaline metabolites, surfactants, and chelators) agents [75].

A variety of coal-native fungal species have been reported, which efficiently modify the coal matrix and liberate fractions with different molecular weights (

Table 3. Biodegradation of various coal sources through native strains of fungi: understanding the mechanisms, rates, and characterization of coal biodegradation is fundamental in the context of coal utilization/processing. This table considers only studies published since 2002 *.

Fungi				Coal			Biodegradation					Ref.
Strains	Source of Isolation	Criteria of Selection	Study Type	Type	Origin	Composition (Proximate/Ultimate), %	Mechanism	Rate	Product/Process Characterization	Remarks	Significance
Hypocrea lixii AH	Decaying wood from mine environment	Selected based on [77]	Characterization of newly isolated lignite liquefying fungus and liquefaction products	Lignite	Fushun coal mine, China	C—74.43, H—5.26, N—1.31, S—0.49, and O—18.51	BL	As the lignite density was lower than 1.3 kg/L, its bioliquefaction reached 44.86% by weight	UV-Vis showed that the main components of bio-liquefied lignite (black liquid) were phenol derivatives, ketones, and aldehydes	GC-MS revealed 16 high-concentration compounds in black liquid, of which 11 belonged to aromatic acids or ethers	Advantageous to understand the nature of bioliquefied lignite products	[78]
Hypocrea lixii AH	Decaying wood from mine environment	Selected based on [78]	Quantitative measurement of coal biosolubilization	LRC	West Open Coal Mine, China	C—76.7, H—5.4, N—1.3, S—0.6, and O—16.0	BS	Highest correlation coefficient (0.995) between UV-Vis and coal bio-solubilization ratios at 513 nm	IR and UV-Vis results showed that Bio-HA and C-HA contained conjugated double bonds and aromatic ring structures	Modified UV-Vis method was developed for accurate measurement	May help the conversion kinetics by monitoring biosolubilization ratios	[79]
Fungal isolates (unidentified)	Soil sample from coal mine, decaying wood, and decaying leaves	Black liquid production corresponding to the fungus’ capability to solubilize lignite	The biosolubilzsation by estimating the liquid formation time and the weight loss of the lignite	Lignite	Fushun coal mine, China	C—76.7, H—5.4, N—1.3, S—0.6, and O—16.0	BL/BS	Nitric acid pretreatment caused 31.83% (by weight) within 11 days	Products contained aromatic acids and chain hydrocarbons, and had organic function groups of hydroxyl, cyclane, carbonyl, ether linkages, and aromatic rings	Chemical analysis indicated that side chains of lignite were important structures in the biosolubilization mechanism.	Promising coal processing technology for converting solid coal to liquid oil	[77]
Pleurotus djamor, Pleurotus citrinopileatus, and Agpergillus sp.	Lignite sample and rotten wood	Ability to depolymerize LRC in minimal nutrient medium	Investigation of the optimization of LRC biodepolymerization	Lignite, bituminous, and sub-bituminous coal	Neyveli, Madhuband, and Meghalya coal mines, India	Neyveli lignite: M—8.7, MM—6.1, V—46.6, FC—38.6, C—62.0, H—5.3, S—1.4, N—0.9, and O—30.4	BDP	Pleurotus djamor was the most efficient strain to depolymerize Neyveli lignite in comparison with the other organisms	N/A	Addition of carbon sources (sucrose, raffinose, and fructose) resulted in higher depolymerization of lignite	Coal biodepolymerization can be an alternative process for the utilization of LRC	[80]
Trichoderma atroviride	Lignite sample	Ability to synthesize extracellular enzymes to degrade lignite structure	Evidence for the involvement of hydrolytic and oxidative enzymes in biosolubilization	Lignite	Bergheim mine, Germany	Lithotype A	BS	Carboxylic esters and the phenolic ether bonds were cleaved by T. atroviride (esterases and oxidative enzymes)	Enzymes to degrade different bonds in coal were recorded with 14C-alkyl iodide	Lignite induced the synthesis of a specific enzyme, but no direct solubilization was involved	Direct evidence to link lignite structure degradation to enzymatic attack	[81]
Penicillium decumbens P6	Coal mine soil	Ability to form black droplets of lignite on plate culture	Solid-state and liquid fermentation studies to degrade coal	Lignite	Huolingele Minerals Administration Coalmine, China	C—40.32, H—4.82, S—1.25, N—4.69, and O—31.12	BD/BS	Degradation in 36 h (plate colony) and in 48 h (cell-free filtrate)	IR spectrometry and elemental analysis indicated that solubilized products displayed minor alterations to original lignite	Fulvic acid amount was high, and the molecular distribution of humic acids changed distinctively	Effective lignite degradation to produce fulvic acid	[82,83]
Penicillium decumbens P6	Coal mine soil	Based on the possible role of esterase from P6 isolate in depolymerizing lignite	Study to prove the roles of esterase in the enzymatic attack on lignite	Lignite	Huolingele Minerals Administration Coalmine, China	Referred to [84]	BDP	Contribution of esterase to depolymerization was about 40% in the crude supernatant	Compared with C-HA, Bio-HA had a lower percentage of aromatic carbon and ester groups, but a higher percentage of aliphatic carbon	Bio-HA promoted the growth of asparagus lettuce	Potential of esterase application in the conversion of lignite into highly bioactive compounds	[85]
Rhizopus oryzae AD-1	LRC sample	Isolation from coal environment and a greater capability of coal biosolubilization	The study on solubilization extension and optimization for LRC degradation	LRC	Deep coal mine in Qasam Khel, Pakistan	C—35.34, H—2.57, N—0.73, S—0.41, O—17.58, A—43.37, and Q—18,473 kJ/kg	BS/BDP	22.3% biosolubilization in the case of 0.1 mm-coal on day 5, and 36.8% at day 9 without any chemical pre-treatment	Decarboxylation, Deamination, and breaking down the side chain of the coal aromatic rings to produce a variety of aliphatic, cyclic, nitrogenous, and aromatics compounds	Coal degradation showed a substantial release of organics at 1.5% glucose and 0.5% coal loading ratio within 11 days	Can serve as a biological beneficiation of coal for alternative substances	[86]
Hypocrea lixii TZ1	Oxidized lignite sample	Ability to utilize coal as carbon and energy sources and solubilize solid coal particles	Biological characteristics of the fungal strain and its role in lignite bioconversion	Oxidized lignite	Fushunxi colliery, China	N/A	BC	About 23.3%	Chemical composition of lignite varied significantly when treated by strain TZ1	Complicated chemical bonds (carboxyl and hydroxyl groups) of lignite were broken by metabolites secreted by TZ1	Could play an important role in the degradation of Chinese lignite	[87]
Penicillium chrysogenum MW1	Core sample of sub-bituminous coal	Indigenous to the coal environment	Optimization studies on structural biodegradation of lignite	LRC	Thar coalfield, Pakistan	Huminite—77.3, liptinite—8.4, inertinite—2.6, and minerals—11.7	BD	Organics released with 0.1% glucose concentration and 1% coal after 7 days	Analytical investigations revealed the release of complex organics (polyaromatic hydrocarbons)	With increasing rank of coal, aromatic condensation increased, contributing to the unruly nature of higher-rank coals	Can help in exploiting the chemical feedstock status of coal	[88]
Penicillium chrysogenum MW1	Core sample of sub-bituminous coal	Indigenous to the coal environment	Coal bio-pretreatment study to make coal a suitable substrate for biological beneficiation	LRCs	Coal areas in Sindh Province, Pakistan	80 vol.% content of huminite/vitrinite	BD	After 7 days of incubation, coal particles were trapped in fungal mycelia, releasing organics	EEMS indicated the release of complex organic functionalities, and GC-MS analysis confirmed the presence of single ring aromatics, PAHs, aromatic nitrogen compounds, and aliphatics	MW1 liberated complex organic compounds from coal matrix	Can help in taking advantage of LRC reserves by converting them into alternative fuels	[74]
Penicillium sp. P6	Coal–soil mixture	Selected based on [82]	Characterization of lignite bio-HA and water-soluble HA	Lignite	Huolingele Minerals Administration Coalmine, China	Lignite HA: C—56.1, H—3.7, N—1.5, O—38.0, S—0.6, and A—0.1	BD	Contents of HA increased from 38.6% to 55.1% and water-soluble HA from 4.0% to 28.2%	Size-exclusion chromatography and elemental analysis revealed that the N content of Bio-HA increased by 47.36% compared with that of C-HA	After biotransformation, the molecular mass of the HA decreased, while the oxygen and nitrogen content increased	Products of lignite biodegradation had better bioactivity	[84]
Penicillium sp. P6	Coal–soil mixture	Based on [84]	Evaluation of the factors responsible for the increased level of N in HAs	Lignite	Huolingele Minerals Administration Coalmine, China	Lignite HA: C—56.1, H—3.7, N—1.5, O—38.0, S—0.6, and A—0.1	BD	Bio-HA in the lignite increased from 38.6% to 53.2%, depending on the ammonium sulfate concentration	CP/MAS analysis showed that the N incorporated in HA during biotransformation was in the form of free or ionized NH2-groups in amino acids and sugars	Amount of N incorporated in Bio-HA was related to that present in the medium	High-N-content Bio-HA has potential applications in agriculture	[89]
Hypocrea lixii WF8	Decaying wood around coal mines	Capable of using lignite as the sole energy source on the selective media	Biodepolymerization studies on obtaining lignite extracts (E1-E5)	Lignite	Shengli coal mine, China.	M—13.74, A—7.51, V—46.40, Q—12.68 kJ/g. C—70.84, H—5.05, and N—0.88	BDP	Maximal rate was ~35% for E1	Phenoxy moiety in E1 after biodepolimerization was significantly reduced (FTIR), while 3-phenylbutan-2-ol and 2-methyl-7-phenyl-1H-indole were produced (GC-MS)	E1 was recognized to be rich in HAs soluble in alkaline solution, but precipitable in acid solution	Understanding the role of ligninolytic enzymes in lignite extracts	[90]
Trichoderma atroviride CBS 349	Opencast coal mining area	Screened for its coal-liquefying properties	Biosolubilization study in a new type of bioreactor for solid-substrate fermentation	Lignite	From Rheinbraun AG, Germany	Lithotype A	FE	Over 40 days, 140 g of 1.5 kg of lignite held in a 25 L bioreactor was solubilized	The solubilized fraction consisted of approx. 70% HA and 30% FA-like compounds	Airmix II bioreactor (solid substrate fermentation) was effective for lignite solubilization	Devised bioreactor for lignite fermentation to produce HA and FA	[91]
Aspergillus fumigatus MTCC 4334	Soil samples collected from lignite mines	Capability to utilize the complex organic matter of lignite in Czepek dox medium	Investigations of lignite biosolubilization into HA by a few fungal species	Lignite	Neyveli lignite, India	M—16.7, A—11.6, V—38.7, FC—33.0.C—48.5, H—5.27, N—0.54, S—0.45, and O—28.54	BS	22.3% w/w solubilization after 45 days	Initial pH of the medium decreased with an increase in solubilization, possibly due to the production of acidic metabolites	Solubilization became constant when the lignite surface area was clogged/blocked by the cell debris	Offers an environmentally friendly and cost-effective process for HA production	[92]
Fusarium oxysporum LOCK 1134	Brown coal	Ability to convert solid brown coal into dark liquid droplets	Heterologous expression of laccase and its brown coal solubilization assessment	Brown coal	Bełchatów brown coal mine, Poland	C—46.23, H—5.38, O—32.40, N—0.30, S—0.84, A—14.8, and Q—18.0 Mj/kg.	BS	Amount of Bio-HA reached 1474 mg/g in culture supernatant	Elemental analysis suggested that isolate metabolized the C from coal—the amount of C decreased from 44 to 32%	F. oxysporum laccase was expressed in Pichia pastoris, which contributed to HA and FA release from liquefied coal	Obtained HA may have stimulating effects on crop growth	[93]
Neosartorya fischeri	Plant rhizosphere from coal dumps	Occurrence in the root zone in a coal environment	Biodegradation of hard coal in a flask and in a perfusion fixed-bed bioreactor	Hard coal	Witbank coal-producing area, South Africa	N/A	BD	Mycelia engulfment within 3 days on untreated hard coal	FTIR and GC-MS indicated oxidation of the coal surface and nitration of the condensed aromatic structures of the coal macromolecule	Biodegradation may also progress by the insertion of nitrogen groups into the condensed coal aromatic structure	May enable the development of sustainable technologies in coal mine rehabilitation	[94]
Neosartorya fischeri ECCN 84	Waste coal dumps	Based on [94]	Study on fungal colonization and enzyme-mediated metabolism of waste coal	LRC	Coal mines in Emalahleni (Witbank), South Africa	C—10.3 ± 2.0 mg kg−1, A—55.5 ± 0.3%, and Q—8–10 MJ kg−1	ED	Colonization of coal by the strain was associated with the formation of compact spherical pellets for 20 days	XRS of pellets showed a time-dependent decline in the weight percentage of elemental carbon and an increase in elemental oxygen	Proliferation of peroxisomes in hyphae attached to coal and increased extracellular laccase activity occurred	Supports a role of oxidative enzyme action in the biodegradation of coal	[95]

* A, ash; BC, bioconversion; BD, biodegradation; BDP, biodepolimerization; Bio-HA, (micro)biologically extracted humic acid; BL, bioliquefaction; BS, biosolubilization; C, carbon; ED, enzymatic degradation; FC, fixed carbon; FE, fermentation; FTIR, Fourier-transform infrared spectroscopy; GC-MS, gas chromatography–mass spectrometry; H, hydrogen; HA, humic acid; HS, humic substances; LRC, low-rank coals; M, moisture; N, nitrogen; O, oxygen; Q, calorific value; UV-Vis, Ultraviolet–visible spectroscopy; V, volatile matter.

). The indigenous fungal species are preferable to exogenous species because they are more likely to fit into complex coal environments and are well-adapted climatically. In most studies, the fungal strains playing a crucial role in effective coal degradation were isolated from decaying wood around coal mines, coal–soil mixtures, coal mining sites, and purely coal environments.

One of the prospects that can be derived from the data summarized in Table 3 is the use of fungal strains in coal degradation for agricultural sustainability and environmental safety. The application of coal treated with fungal strains has been extensively reported by Gokcay et al. and in other studies devoted to chemical feedstock processing and the production of humic substances for soil conditioning [76].

4. Bioremediation of Contaminated Sites by Native Microorganisms

Coal remains the largest fuel source for power generation worldwide, comprising around 40% of global energy production [96]. Mining activities produce a high volume of mine discards and tailings, causing soil erosion, heavy metal contamination, and acid mine drainage. Furthermore, land degradation due to coal mining alters biogeochemical and hydrological cycles, posing severe environmental and health risks in vast mining operations areas [97].

Land devastation in coal mining sites is well documented and emphasizes the need to invest focused effort in developing sound rehabilitation technologies [98,99]. Various traditional chemical approaches have been proposed to restore contaminated mining soils. However, their effectiveness and cost-efficiency are still debatable [100,101,102]. Bioremediation and bioreclamation are increasingly being considered as the primary choice for contaminated site recovery worldwide due to economic, environmental, and safety reasons [4,103].

While the exact biochemical and molecular mechanisms involved in coal biodegradation under ambient conditions remain to be better elucidated, there certainly appears to be a contribution of microbial solubilization [104], oxidation [105], and liquefaction [5,93] that demonstrate the potential to use microorganisms in effective rehabilitation strategies.

4.1. Bioremediation of Coal Mining Areas by Microorganisms

Several microbial cultures have been isolated from coal sources (slurries and disposal of coal tailings), screened for coal biodegradation competence, and characterized. Hamidović et al. [97] isolated and identified autochthonous lignite mine spoil bacteria and evaluated their potential in the bioremediation of mine-overburdened soil. The findings of that study also illustrated the soil fertility potential of recovered native species Bacillus simplex and Bacillus cereus. In a study by David et al. [5], 45 bacterial strains were isolated from the coal sludge, and four strains belonging to Cupriavidus sp., Pseudomonas sp., and Alcaligenes sp., were further evaluated for their coal-degrading activity. The observed ability of these strains in coal depolymerization may be attributed to the aggressive degradation of aromatic compounds (phenol, toluene, benzaldehyde, benzoic acid, and indole), since these compounds have been widely used as models for coal degradation.

The colonization and oxidative metabolism of discarded coal by fungal strains (Fusarium oxysporum, Paecilomyces farinosus, Lentinula edodes Trametes versicolor, and Phanerochaete chrysosporium) isolated from coal environments are also well-documented [106,107]. Another fungal organism, Neosartorya fischeri, could rapidly colonize and use various complex organics, highlighting its biotechnological potential for application in rehabilitating recalcitrant substrates [95,108].

Apart from using individual microbial isolates, consortia-based remediation could be an attractive alternative for enhancing the rehabilitation of mining sites. Like crude oil and petroleum, coal is a complex hydrocarbon material that usually requires cooperation between species or assemblages of microbial populations to be degraded [109,110]. Specific microbial taxa within a complex consortium demonstrate a different level of substrate specificity proliferating on particular coal fractions. Detman et al. reported that the formation of microbial consortia and their synergistic interactions dramatically enhance lignite degradation [64]. According to Maka et al., mixed cultures of Bacillus strains sufficiently degraded crude lignite within two weeks [111]. In a study by Olawale et al. [57], the most successful coal-degrading consortia contained either Serratia sp. ECCN 24b or Exiguobacterium sp. ECCN 21b, or both, and reduced the coal substrates’ masses by ~10% and ~30%, respectively. Indeed, in another study by Mohanty et al., species of the Exiguobacterium were able to actively utilize n-alkanes (C9–C26) [112], while Serratia spp. were identified by Benedek et al. as hydrocarbon degraders [113]. The biocatalytic efficacy of microbial consortia has been especially noticeable in studies on the bioconversion of coal to methane [114].

4.2. Bioremediation Potential of Arbuscular Mycorrhizal Fungi

Bioremediation strategies for soils affected by coal mining activities primarily aim to establish pioneer vegetation, because plant root systems stabilize degraded soils by controlling soil erosion and restoring soil fertility. The introduction of plant cover to mining areas can be facilitated by beneficial soil microorganisms, including plant-growth-promoting (PGP) bacteria and arbuscular mycorrhizal fungi (AMF). These essential microbial “biocatalysts” provide mutualistic support to sustain plant growth in degraded lands by enhancing the ability of plants to resist predominant conditions and by increasing plant performance through the biotransformation of pollutants to less toxic forms [49,115]. AMF, due to their vast mycelial network, can colonize plants and effectively extract nutrients and water from soil [116]. In addition, AMF enhance the root microbial community structure and contribute to the capture of macro- and micronutrients by plants [117]. Very recent studies by Sekhohola-Dlamini et al. and Widhayasa et al. showed that the period of post-coal-mining reclamation, vegetation, and soil physicochemical properties are profoundly determined by the soil AMF [117,118].

Another beneficial aspect of AMF in ecosystems is the facilitation of carbon conservation in coalfield soils. For example, in a study by Wang et al. [119], increased AMF inoculation significantly enhanced carbon sequestration, respiration, and photosynthesis in many plant species (wild cherry, cerasus humilis, shiny leaf yellow horn, and apricot). In the same study, the AMF promoted plant growth, significantly increasing the leaf area, chlorophyll content, and Q₁₀ value.

Taheri et al. [120] tested the potential for AMF to mediate plant adaptation to mine soil conditions and found that the plants (common grass and forb) with fungal communities (dominated by Paraglomus occultum, but also harbored an undescribed Entropospora species and Glomus mosseae derived from mine soil) grew larger, regardless of the soil type in which they were grown. The authors suggest that microbial communities collected from harsh environments can be the best group to draw upon for the fungal inoculation of nursery plants destined to be planted in reclaimed areas. A field experiment was conducted by Bi et al. [121] to study the ecological effects of AMF (Funneliformis mosseae and Rhizophagus intraradices) on the growth of Amygdalus pedunculata Pall. and their root development in coal-mine-subsided areas. The results showed that AMF increased the quantity of microorganisms in the rhizosphere as well as soil quality compared with the non-inoculated treatment.

Salim et al. observed that the AMF population shows a tendency to increase along with the increasing revegetation age classes. In one of their studies, the eight-year revegetation age classes had the highest average number of spores [122]. Another study by the same research group [123] showed that the increase in revegetation age led to an increase in the number of AMF populations, with Glomus sp. and Acaulospora sp. being the dominant AMF representatives in every land revegetation age.

The combined inoculation of AMF (Glomus mosseae) and phosphate solubilizing bacteria (Pantoesstewarti) significantly enhanced the soil quality and ecological efficiency of the coal mining waste, and also improved the plant biomass of Medicago sativa L. [124]. These results imply that bacteria and AMF together play an essential role in phytate mineralization and subsequent transfer to the host plant.

Of particular interest are the approaches involving biofertilizers (Rhizobium sp., Azotobacter sp.), effluent treatment plant sludge, and mycorrhizal fungi (Glomus sp. and Gigaspora sp. isolated from plants growing near mine spoil dumpsites) along with suitable plant species. Inoculating such biofertilizers allowed Juwarkar et al. to reduce heavy metals and improve the rhizosphere microbiological characteristics for plant growth [125].

Fungcoal, exploiting fungi–plant mutualism, was developed in South Africa as a viable and alternative strategy for rehabilitating coal discard dumps and opencast spoils [126]. In short, Fungcoal is composed of mutualistic networks between (a) C4 grasses (Eragrostis tef, Cynodon dactylon, and Pennisetum clandestinum, (b) AMF inoculates (Paraglomus occultum, Glomus clarum, Glomus mossea, and Gigaspora gigantea), and (c) coal-degrading fungi (Neosartorya fischeri ECCN 84 and/or Aspergillus ECCN 84). Fungcoal was created as a strategy to address numerous issues, including (1) biodegradation of carbon pollutants, (2) biogeneration of technosol with humified organic matter, (3) promotion of mutualism between plants and microbes, and (4) activation of relevant rhizosphere microbes, etc. [117]. Based on in situ studies, the authors postulated that soil fertility can be improved de novo through a microbial consortium, so-called ‘humifiers’, and that combinations of specific biocatalysts act synergistically in maintaining soil dynamics.

Mutualistic interaction between plant roots and nonmycorrhizal fungi can also aid in the growth of plants. For example, in a study conducted by Igbinigie et al. [127], a phyto-bioconversion of hard coal involving plants and free-living fungi (Aspergillus spp., Ulocladium sp., Alternaria sp., and Penicillium sp.) occurring in the rhizosphere facilitated the growth of Cynodon dactylon (Bermuda grass) in the coal dump.

4.3. Rhizosphere Microbial Community as a Bioindicator of Soil Restoration in Coal Mining Sites

The community structure and composition of soil microorganisms undergo considerable taxonomic and functional changes during remediation and restoration in disturbed coal mining ecosystems. In the last two decades, the interaction between the rhizosphere microbial communities and their host plants in mining-affected environments and their responses to various factors have received considerable scientific attention. The microbiological nature of the rhizosphere presents essential information regarding the screening and management of plant species for degraded land revegetation. The studies summarized in

Table 4. Culture-dependent and independent approaches used to study the active microbial community for soil development and biogeochemical cycling to ensure the sustainability of established plants in mining areas *.

Coal Area	Plant/Rhizosphere	Study Type	Microbial Community Analysis	Results	Significance	Ref.
Coal mining ecosystem	Tree species rhizosphere	Inventory of rhizosphere microbial processes of most of the inhabitant tree species of coal mining ecosystems	Microbial biomass carbon, soil enzyme activities, and basal soil respiration	Among the tree species studied, Aegle marmelos recorded the highest values for MBC (590 mg kg−1) and BSR/AMBC (0.498 mg CO2-C mg biomass−1 day−1)	Tree species had diverse effects on their rhizosphere, which could determine their survival and performance. Tree species could be recommended for re-vegetation	[128]
Coal mining area	Tetraena mongolica rhizosphere	Investigation of the effect of soil bacterial diversity near T. mongolica and its response to open-pit mining	Microbial community analysis via 16S rRNA profiling	Relative abundance of Actinobacteria, Proteobacteria, and Gemmatimonadetes increased, while the abundance of Acidobacteria, Planctomycetes, Bacteroidetes, and Chloroflexi decreased	Organic pollutant-degrading bacteria, such as Sphingomonas, Gemmatimonas, Nocardioides, and Gaiella, were enriched in the soil, and the carbon–nitrogen cycle was changed	[129]
Opencast mine	Brushland, forestland, grassland, and unreclaimed land	Determination of the diversity and structure of soil bacterial communities under different vegetation restorations	Microbial community analysis via 16S rRNA profiling	Vegetation restoration on the reconstructed soil in the mining area could significantly improve the OTUs, abundance (ACE and Chao1), and diversity (Shannon and Simpson) indices of the bacterial community, and the dominant phyla were Proteobacteria, Actinobacteria, and Acidobacteria	Since the brushland soil had better biochemical properties and higher bacterial richness and diversity, it was recommended as the optimum vegetation restoration type for soil reclamation in this area.	[130]
Coal gangue soil	Shallow (10 cm), middle (50 cm), and deep (100 cm) rhizospheres	Exploration of C. korshinskii in the restoration of coal gangue soil and the impact of the rhizosphere on soil micro-ecology ten years after planting	High-throughput sequencing and microbial diversity analysis using metabolome and ionomics technology	Microbial abundance increased by 8.5%, 25.0%, and 15.2% in the shallow, middle, and deep levels, respectively. S, Fe, Mn, lipids, organic acids, and oxygen compound metabolites drove Acidthiobacillus, Sulfurifustis, Deferrobacterium, Pseudomonas, and Sphingomonas to become dominant strains	Rhizosphere of C. korshinskii promoted the accumulation of remediation bacteria and accelerated the transformation and utilization of heavy metals and the process of soil remediation	[131]
Coal-discard rehabilitation sites	Discard sites vegetated with a grass seed mixture	Evaluation of the relationship between the microbial community structure, vegetation cover, and topsoil covers	PLFA	Positive association was observed between microbial biomass and the vegetation cover, organic carbon, ammonium, nitrate, and phosphorus contents	When analyzing environmental variables, including topsoil covers, the microbial community structure may be a valuable tool to assess the state of coal discard dumps under rehabilitation	[132]
Coal mine spoil heaps	Vegetation plots with various plant species	Investigation of the relationships between the plant species composition and the associated microbial properties during the process of vegetation	PLFA	Total microbial biomass in soils from the older vegetation plots was significantly higher than that in soils from the younger plots; the microbial communities consisted primarily of bacteria with the dominance of Gram-negative bacteria over Gram-positive	A strong correlation was revealed between vegetation and microbial community structure on hard coal spoil heaps	[133]
Coal mining area	Grassland, brushland, coniferous forest, and broadleaf forest	Understanding of soil microbial community functions and adaptability in mining areas	Microbial community analysis via 16S rRNA and ITS rRNA profiling	Different vegetation reconstruction modes did not affect the bacterial functional communities, but shaped different functional groups of fungi. The grassland soil was dominated by saprotrophic fungi, while symbiotrophic fungi dominated the coniferous and broadleaf forests	Findings improve the understanding of microbial ecology in reclaimed mine soil and provide a reference for the ecological restoration of fragile mining ecosystems	[134]
Coal mine spoils	Vegetated by Medicago sativa, Trifolium repens, and Lolium perenne	Investigation of the response of microbial communities to land reclamation	PCR-based 454 pyrosequencing	Gramineae and leguminosae herbage broadly enhanced soil geochemical characteristics and microbial diversity, representing an ideal solution for soil rehabilitation	Positive impacts of reclamation on soil microbial diversity were achieved; the most critical phase of microbial community recovery occurred between 15 and 20 years	[135]
Coal mining subsidence area	Transplanted tree species	Study of the diversity and dynamics of soil AMF in coal mining subsidence areas before and after artificially planting trees	MiSeq high-throughput sequencing	Seven genera of AMF (trees’ rhizosphere) were identified with the following abundances: Glomus (59.83–92.57%), Scutellospora (0.59–7.1%), Diversispora (0.59–32.73%), and others (0–0.05%). The morphological/molecular diversities in the undisturbed area were significantly higher than those in post-mining naturally restoring area	Subsidence showed positive effects on soil quality, and the trees improved the soil characteristics and increased the soil AMF diversity	[136]
Coal gangue	Cajanus cajan (pigeon pea) root system	Evaluation of the reclamation base of coal gangue and the analysis of the microbial diversity of the soil of reclaimed plants	MiSeq high-throughput sequencing	Dominant microflora were changed in the soil after cultivating C. cajan. Before cultivation, Sulfobacteria and Acidobacteria were dominant; after cultivation, Actinobacteria, Acidimicubia, Thermoleophilia, and Anaerolineae were dominant	Study proposes a reference for interactions among microorganisms in reclaimed soils for the restoration of waste coal gangue hills	[137]
Coal discard sites	Grass seed mixture	Determination of whether microbial enumeration techniques could differentiate discard sites of varying rehabilitation ages	Signature lipid biomarkers (PLFAs) and enzymatic assays	Sites with relatively higher vegetation cover and organic carbon content were positively associated with enzymatic activities and microbial biomass. Although the discard sites had different rehabilitation ages, no statistically significant differences existed	Characterization of microbial community function and structure holds potential for evaluating rehabilitation progress on mine discard sites	[138]
Coal gangue landfill	Soybean and maize rotation systems	Study of the microbial carbon metabolism function of the plant rhizosphere and non-rhizosphere soil	Biolog-EcoPlate technology	Microbial activity in the rhizosphere of plants was higher compared with that in non-rhizosphere soil, and the functional diversity of the rhizosphere microbial community was higher than those of the non-rhizosphere microbial community	Due to the changes in environmental factors in the plant growing seasons, rhizosphere and non-rhizosphere microbial composition may vary	[139]
Coal mine spoil	Succession planting (Acacia holosericea, A. simsii, and A. harpophylla)	Investigation of the functional diversity of the soil microbial community of a revegetated coal mine spoil exposed to the agronomic practices	Biolog-EcoPlate technology	Higher metabolic activity and functional diversity of the bacterial community in the succession planting treatment as compared with other treatments	Succession planting should be used as an important component in mine site revegetation programs	[140]
Coal mine spoil	Tree species (A. Auriculiformis, Albizia lebbeck, Cassia siamea, Delonix regia, and Dalbergia sissoo)	Evaluation of the effect of the tree species on the rhizosphere soil properties and identification of the key rhizosphere soil indicators that influence tree biomass	Standard protocols for the determination of total soil carbon, labile carbon, and microbial biomass carbon	Tree carbon density was significantly higher for D. sissoo (43.7 kg C/tree), followed by A. auriculiformis (39.58 kg C/tree), D. regia (36.3), and C. siamea (34.79). Total carbon was lower in all rhizosphere soils, except for C. siamea	Integrated carbon accumulation index and rhizosphere N could be considered indicators for carbon sequestration in reclaimed mine spoils	[141]
Coal mining soils	Brachiaria decumbens	Evaluation of the response of rhizobacterial communities associated with B. decumbens under the reclamation of coal mining soils amended with biochar	Ion torrent DNA sequencing	Application of biochar influenced the relative abundances of functional groups in the rhizosphere, including the Sphingomonadacea, Rhodospirillaceae, and Hyphomicrobiaceae families belonging to the Proteobacteria	Differences observed in the rhizobacterial community structure and abundance were related to the biochar amendment and its effect over time	[142]
Coal mining subsidence land	Sesamum indicum, Glycine max, Medicago sativa, Sorghum sudanense, and Zea mays	Investigation of the relationship between soil microbes and vegetation species in a reclamation area on coal mining subsidence land	Microbial community analysis via 16S rDNA	Significant growth-related dynamic changes in the microbial community structure were mainly associated with the Proteobacteria, Actinobacteria, and Firmicutes, which accounted for 29.69%, 13.93%, and 12.51% of the total bacterial sequences, respectively	Vegetation can improve the soil nutrient, enzyme activities, and microorganisms in the surface soil of the reclamation area and remit subsidence area with soil alkalinization	[143]
Spoil from the brown coal mine area	Tussilago farfara	Characterization of the rhizosphere’s effect on the bacterial community of Tussilago farfara colonizing the mine spoil	PLFA and NLFA	Plant roots significantly increased microbial diversity and biomass after cultivation. The rhizosphere of Tussilago farfara had Bradyrhizobium japonicum, Rhizobium radiobacter (bacterial nitrogen fixators), and arbuscular mycorrhizal fungi	Roots affected the microbial community and had a larger size and higher growth than the control	[144]

* NLFA, neutral lipid fraction analysis; PLFA, phospholipid fatty acid analysis.

illustrate the idea that assessing microbial diversity in coal mine-affected soils may be a sensitive indicator of ecological stress and the restoration processes. The accompanying comprehensive analyses conducted by the authors reveal the dynamic nature and complexity of the soil microbial composition in the field of vegetation restoration in mining areas (Table 4).

4.4. Bioremediation of Heavy Metals and Selenium in Coal Mining Areas

Heavy metal pollution by industrial sources and anthropogenic activities poses severe threats to the environment and public health because of its high toxicity, non-biodegradability, and bioaccumulation. Coal mining is a prominent global geogenic and anthropogenic source of heavy metal pollution through acid mine drainages (AMD) [145,146]. The AMD from abandoned coal mines is a serious problem faced by many countries and may remain hazardous for decades or even centuries after mine closure, persistently shaping unfavorable environmental scenarios. To date, research on the impact, assessment, and management of AMD has received extensive attention worldwide, focusing on sustainable remediation strategies. Significant efforts have been devoted to reducing heavy metal loads and enhancing microbial activities [147]. Among the biotic approaches, autochthonous microorganisms are one of the best options for the decommissioning of AMD stressors [148,149].

Sulfate-reducing bacteria (SRB), including Desulfosporosinus, Desulfitobacterium, and some members of Firmicutes and Actinobacteria, attenuating toxic metal/metalloid concentrations, have been repeatedly isolated from mining sites [150,151]. AMD treatment by SRB reduces sulfates to hydrogen sulfide, which binds with metals, thus removing them from the solution. In addition, SRB generate alkalinity, contributing to the neutralization of AMD acidity [152]. In a study by Luptakova et al., a mixed SRB culture of Desulfovibrio and Desulfotomaculum effectively removed Cu²⁺ from model solutions after 5–6 days using one batch reactor [153]. Dong et al. showed that SRB combined with coal gangue achieved high treatment efficiency in repairing AMD, i.e., it achieved the highest removal percentages of chemical oxygen, SO₄²⁻, Fe²⁺, and Mn²⁺ [154]. SRB isolated by Ma et al. [155] from loess polluted by coal AMD exhibited almost 100% immobilization of Fe²⁺, Cd²⁺, and Zn²⁺ by hydrogen sulfide precipitation after 18 days.

The bioremediation potential of indigenous heavy metal-tolerant bacteria isolated from a rat-hole coal mine environment was well documented by Shylla et al. [156]. In their study, three isolates (Serratia marcescens KH-CC, Bacillus siamensis KH-12A, and Bacillus altitudinis KH-16F) out of twelve exhibited a high maximum tolerable concentration (MTC) against Pb (1400 ppm), Mn (830 ppm), and Fe (500 ppm). Serratia marcescens exhibited the highest Mn and Pb remediation, with 72.5 and 83% removal capacities, respectively. Ka-ot et al. [157] discovered that two bacterial isolates, Bacillus subtilis subsp. inaquosorum SK22 and Bacillus cereus SK44, isolated from rat-hole coal mines showed resistance to 100 mg/L of Fe and 1 mg/L of both Cd and Cr compared with the control strains of Bacillus subtilis MTCC 441 and Bacillus cereus MTCC 430. The same authors, in another study [158], aimed to profile the native bacterial isolates from a rat-hole coal mine for their bioprospection as bioremediating agents, and found that the minimum inhibitory concentration and maximum bactericidal concentration of Cd²⁺, Fe²⁺, and Cr⁶⁺ against Enterobacter huaxiensis KHED8 were 4000, 4096, and 256 mg/L, respectively. Furthermore, E. huaxiensis KHED8 was able to remove 89%, 90%, and 82.45% of Fe²⁺, Cd²⁺, and Cr⁶⁺, respectively. Previously, Zheng et al. [159] identified a total of 23 highly sensitive genera (Actinobacteria, Acidobacteria, Candidate division WS3, Chloroflexi, Gemmatimonadetes, Proteobacteria, and Thermotogae) and 16 highly resistant genera (Bacteroidetes and Proteobacteria) to Cd²⁺ and Hg²⁺ in coal-mine-affected agricultural soil.

Some bacterial populations can thrive under coal-overburdened strata’s mineral-depleted and highly toxic heavy metal conditions. Singh et al. [160] enumerated the bacterial diversity of active opencast coal mining sites stratum-wise and found that the bacterial isolates belonging to Firmicutes, Actinobacteria, and Proteobacteria exhibited high tolerance (5 to 12 mM) to heavy metals (Ni²⁺, Cu²⁺, Cr⁶⁺, As³⁺, and Cd²⁺) and could be promising agents for the bioremediation of contaminated sites. Enterobacter spp., Klebsiella spp., and Acinetobacter gyllenbergii were selected by Gandhi et al. [161] based on their high level of heavy metal resistance (Cd²⁺, Pb²⁺, Fe²⁺, Mn²⁺, and Cu²⁺) and their biochemical characterization. Interestingly, a high degree of metal resistance was associated with multiple-antibiotic resistance of these isolates.

Micromycetes can also precipitate metals as insoluble oxalates, participating in metal removal from geochemical cycling. Thermophilic/thermotolerant micromycete cultures of Aspergillus spp. Isolated from coal seam spoil are capable of binding Cu²⁺ as low-solubility crystalline moolooite [162]. The Ni²⁺ and Cd²⁺ resistance of fungi from coal mining environments has also been described elsewhere [163].

As mentioned, microbial consortia can exhibit excellent sequestration of various multi-component toxic heavy metal mixtures in AMD. Such consortia of bacteria indigenous to coal AMD that tolerate elevated concentrations of heavy metal mixtures can be specifically designed in order to develop targeted bioremediation strategies for alleviating heavy metal toxicity in situ [164]. For example, the study by Oyetibo et al. revealed that a consortium of seven autochthonous bacterial taxa (ϒ-Proteobacteria: groups of Acinetobacter pittii, Enterobacteriaceae, Pseudomonas citronellolis, and unclassified FWNZ species, and Bacilli: groups of Sporosarcina koreensis, Bacillus cereus group, and Exiguobacterium aurantiacum) exhibited excellent urease activities (≥253 μmol urea min⁻¹) with subsequent stemming of acidic pH to >8.2 and sequestration of toxic metals (~100% efficiency) as precipitates (15.6 ± 0.92 mg ml⁻¹). Bacterial ureases hydrolyze urea into ammonia and carbamate, which subsequently release ammonia and carbonic acid that can stem acidic and toxic metal impacts [165]. Naghavi et al. reported that Acidithiobacillus ferrooxidans isolated from coal mining, when added to Cu²⁺ coal mining samples, showed synergistic effects toward natural ferrous oxidizing microorganisms, manifested as up to a 46.7% increase in Cu²⁺ extraction [166].

A number of bacterial communities with good heavy metal tolerance and bioremediation potential in extreme environments have been discovered and characterized through high-throughput sequencing technology. According to Liu et al., metal-tolerant Proteobacteria and Actinobacteria are predominant at the phylum level in mining area soils [167]. The study by Ma et al. [168] indicated that acidic coal gangue was relatively rich with SRB, containing six genera: Desulfosporosinus, Desulfovibrio, Desulfotomaculum, Desulfobulbus, Desulfitobacterium, and Desulfurella.

Oxidation states influence the solubility and bioavailability of another important pollutant, selenium. One Se⁶⁺-reducing bacterium, Enterobacter hormaechei, and four Se⁴⁺-reducing bacteria, Klebsiella pneumoniae, Pseudomonas fluorescens, Stenotrophomonas maltophilia, and Enterobacter amnigenus, were isolated by Siddique et al. [169] from coal mine tailings pond sediment. The results suggested that E. hormaechei could remove up to 96% of the added Se⁶⁺ (0.92 mg L⁻¹) from the effluents, with potential application in removing Se from industrial effluents.

Bacillus paramycoides SP3, a native strain to the leachate of coal-mine-overburden rocks, was isolated by Borah et al. [170] and investigated for its potential to produce Se nanoparticles by the biogenic reduction of selenite, one of the most toxic forms of selenium. B. paramycoides SP3 exhibited extremely high selenite tolerance (1000 mM). It reduced 10 mM selenite under 72 h to produce spherical monodisperse Se nanoparticles with an average size of 149.1 ± 29 nm, indicating that this strain could be utilized for the eco-friendly removal of selenite from contaminated sites with the concomitant biosynthesis of Se nanoparticles.

4.5. Bioremediation of Salt-Affected Soils

Soil salinization is one of the immense environmental stresses and global issues, deleteriously affecting the growth and yield of crops and thereby threatening food security. High salt concentrations in soil trigger extensive alterations in the physiology of agriculturally important plants, ultimately leading to their death. The rehabilitation and remediation of salt-affected soils have already been addressed with different technologies, including salt leaching and applying various amendments such, as gypsum and sulfuric acid [171,172].

Soil enrichment with different sources of humified organic matter and humic substances could help to alleviate the negative effect of salt accumulation on salt-sensitive crops [173]. Low-rank coal has been considered to be a superior amendment for soil quality and productivity. Low-rank coals can themselves serve as a nutritional medium for different soil microorganisms, stimulating their growth and development, and, through various metabolic mechanisms, result in a high yield of humic substances [174]. Among the microorganisms that can transform/solubilize coal to generate humified organic matter are different species of bacteria isolated from coal samples, including Pseudomonas sp., Streptomyces sp., Rhodococcus sp., Bacillus sp., and Escherichia sp. [175,176]. Cubillos-Hinojosa et al. reported that soil amendment with 1% coal and coal-solubilizing bacteria promoted short-term biological activity (increase in soil respiration and hydrolytic enzyme activity) associated with coal biotransformation and increased the soil cation exchange capacity [177]. Incorporating coal as a source of humic substances together with coal-solubilizing bacteria in saline–sodic soils under field conditions significantly and positively affected the chemical and biological soil properties [178]. This was reflected in decreases in the electrical conductivity, sodium adsorption ratio, and exchangeable sodium percentage, as well as in increases in microbiological activity and soil respiration [177,179]. For this reason, coal discards containing native microorganisms could be well used as an organic amendment for managing disturbed lands with the presence of salt-affected soils. However, evidence supporting the inherent chemical heterogeneity and functional diversity of coal as an amendment for salt-affected soils is scarce, and there are still uncertainties regarding the chemical mechanisms of coal as a slow-release fertilizer. Furthermore, depending on its origin and rank, coal may itself contain elevated levels of organically bound chlorides and inorganic constituents, implying a substantial risk of soil contamination [180].

5. Agricultural Applications of Microorganisms Native to Coal Environments

Green agriculture requires applying effective organo-mineral amendments that contain macro- and microelements and plant-growth biostimulants, which are a source of biologically active compounds. Today, low-rank coals (lignite and leonardite), as a source of humic acid, have attracted considerable interest in agriculture and environment conservation. Humic acids, as a key source of soil organic amendment, can be easily extracted and mobilized from soils through native strains of microorganisms [181]. Many of them are known as plant-growth-promoting bacteria (bio-inoculants) and represent a vital part of the healthy soil microbiome [182].

5.1. Production of Humic Substances through Coal Biodegradation

Humic substances are the most complex and biologically active organic matter compounds in the soil/sediments. They improve the microbial community structure and activity, regulate the availability of higher macro- and micronutrients for plant growth, and help maintain soil physicochemical properties. Furthermore, humic substances can play a considerable role in increasing plant resistance against common diseases and hostile environmental conditions.

Humic substances of low-rank coals or run-of-mine coals have properties very similar to those of soils’ humic substances. Typically, such coals contain between 25% and 85% humic acids, as compared with 1–5% in many soils/sediments [183]. This implies a novel and robust way to produce humic acids products from coal discards. It has long been observed that coal is susceptible to microbial attack, and a great number of studies have been published on this subject (Table 2 and Table 3). Among these studies, many investigated humified organics as products of coal biodegradation. However, limited evidence exists concerning the targeted production of humic acid and fulvic acid-like substances.

Microbial consortia from coal- and diesel-contaminated soil slurries appear to be more efficient as biocatalysts in degrading coal than individual strains. Such associations of bacterial strains can grow on humic acid and fulvic acid as the sole carbon source [57]. In the study by Olawale et al., the most effective coal-degrading consortia contained native strains, either Serratia ECCN 24b or Exiguobacterium ECCN 21b, or both, and these decreased the coal substrate mass by ~30% and ~10%, respectively.

Commercial coal-derived humic substances used for crop cultivation could be considered as suitable substrates for isolating microbial strains capable of stimulating plant growth. For example, bacterial and fungal genera (i.e., Bacillus and Aspergillus) isolated from raw humic substances resulted in a significant increase in lettuce biomass in hydroponic cultivations and enhanced resistance to NaCl-related abiotic stresses [184].

Coal-degrading fungi from coal-polluted sites possess the potential for bioconversion of coal to value-added products, including humic substances. Based on the accumulation of humic acid, which is a marker of successful biosolubilization, Mucor circinelloides (118.9 mg/L) and Aspergillus tubingensis (43.9 mg/L) were the most active fungi in a study reported by Nsa et al. [185]. On the other hand, Cunninghamella bertholletiae (67.03 mg/L), Simplicillium subtropicum (45.95 mg/L), Penicillium daleae (42.70 mg/L), and Trichoderma koningiopsis (42.43 mg/L) produced high amounts of fulvic acid, indicating the occurrence of depolymerization. Penicillium ortum MJ51 was isolated by Li et al. from lignite, and they used its cell-free filtrates to extract HA from lignite [186].

The results of the recent study by Valero et al. [187] provided further evidence that low-rank coals, alone or inoculated with native bacteria (Bacillus mycoides, Acinetobacter baumannii, and Microbacterium sp.), serve as a valuable amendment to improve soil reclamation processes after mining activities.

5.2. Coal Microorganisms with Plant-Growth-Promoting Characteristics

Plant-growth-promoting (PGP) bacteria have already gained worldwide recognition within sustainable agriculture and soil remediation: they are responsible for a broad scope of biotic activities as they positively influence plant growth, hormone balance, immunity pathways, and plant stress resistance, and improve soil nutrient availability. PGP bacteria solubilize inorganic phosphorus compounds by producing organic acids and acid phosphatases and, in return, gain root-borne carbon compounds essential for bacterial growth [188]. Therefore, coal gangue and coal discard contain phosphorus and other essential macronutrients in a form available for plant growth and development [189].

Coal-solubilizing/degrading bacteria isolated from coal slurry from discard dumps often display characteristics typical of PGP bacteria. To bring more clarity to this issue, Titilawo et al. [190] sought to establish the genetic relatedness of coal-degrading rhizosphere bacteria (Bacillus, Escherichia, Citrobacter, Serratia, Exiguobacterium, and Microbacterium) from coal discard dumps to sequences of PGP bacteria from the NCBI GenBank database. Analyses of indole and ammonium production revealed that these bacteria may have PGP characteristics.

The strains Pseudomonas sp. NU36 and Acinetobacter sp. NU25 from dump soils were characterized by Upadhyay et al. using the BIOLOG identification system that showed their high plant growth promotion effect (arising from indole-3-acetic acid (IAA) production, siderophore production, and the potential to solubilize inorganic phosphate) combined with excellent stress tolerance characteristics (high temperatures, drought, salt stress, pH, and heavy metal toxicity) [191]. Several other studies also indicated the stress tolerance characteristics of PGP bacteria. For example, Barman et al., in their recent study [192], isolated and characterized 10 bacterial strains from the coal dumping area; among them, Bacillus toyonensis DD1, B. mycoides DD2, B. velezensis DD9, and B. flexus DD10 strains demonstrated tolerance to two or more heavy metals. Additionally, these PGP bacteria could solubilize phosphate, produce IAA, produce siderophore, and show ACC deaminase activity.

An alternative to the recovery of degraded coal mining areas is revegetation with fast-growing species of legumes, which promote nutrient cycling, increase incorporation of carbon in the soil, and minimize erosion. In addition, legumes associate with symbiotic rhizobia (N-fixing bacteria), who promote increased deposition of nitrogen, reduce the soil C/N ratio, and increase soil organic matter (humus), favoring the mineralization and cycling of nutrients [193]. In a study conducted by Moura et al. [194] to evaluate the effectiveness of indigenous rhizobia isolated from coal mining areas in nodulation and their capacity to promote the growth of leguminous trees, the isolates were able to nodulate bracatinga (Mimosa) plants, ensuring shoot dry matter increases of 165%, and also favored nodulation and the growth of Marica.

Xia et al. determined whether culturable PGP isolates could be isolated from the surface of switchgrass (Panicum virgatum L.) from coal fields and investigated the subsequent effects of these isolates on switchgrass growth and development. A total of 307 bacterial isolates were cultured and identified into 76 strains, 36 species, and 5 phyla. Approximately 58% of bacterial strains, when reintroduced into surface-sterilized switchgrass seeds, were observed to increase the lamina length relative to the uninoculated controls [195].

The genus Delftia has been widely accepted as a group of PGP bacteria, although originally isolated as a free-living bacterium [196]. A new facultative chemolithoautotrophic heavy-metal-resistant Delftia sp. strain SR4 was isolated by Roy and Roy [197] from an open cast coal mine. It exhibited many PGP characteristics upon 48 h of incubation, including the production of IAA (23 µg mL⁻¹), siderophore (55% siderophore units), ammonia (6 µmol mL⁻¹), and HCN (30 ppm). Furthermore, this strain showed encouraging results on the growth of Brassica juncea, designating Delftia sp. as a versatile strain for multiple ecosystem functions.

Actinomycete strains (Streptomyces sp. and Amycolatopsis sp.) isolated from the rhizosphere of birch (Betula pendula) inhabiting a coal mine dump seemed to be effective in producing siderophores and antibacterial compounds, and displayed somewhat increased survival in the presence of heavy metals [198].

Plants may harbor endophytic fungi that are functionally important for their health. In a study performed by Xia et al. [199], the diversity and specificity of culturable endophytic fungal communities (the most abundant class, order, and species were Sordariomycetes, Hypocreales, and Fusarium spp., respectively) were explored in switchgrass (Panicum virgatum L.) growing on a reclaimed coal-mining site for around 20 years. The isolated fungi were able to enhance the heights of the shoots by about 86%, the fresh shoot weights by 69%, and the dry shoot weights by 62% after being recultivated back into the plants, demonstrating their functional features.

As already described in Chapter 4.2, arbuscular mycorrhizal fungi (AMF) are common endophytic fungi that exhibit potentially symbiotic associations with terrestrial plants. For example, inoculation with AMF Funneliformis mosseae significantly promoted the survival rate of sea buckthorn over 50 months while also increasing plant height after 14 (53.9%), 26 (24.2%), and 50 (16.2%) months compared with the uninoculated treatment [200]. The application of AMF (inocula of Glomus intraradices BEG140, G. claroideum BEG96, and G. mosseae BEG95 adapted to adverse soil conditions) together with PGP bacteria (Sinorhizobium spp. And Azotobacter spp.) to coal mine spoil banks could increase the growth of reed canary grass and high-biomass hemp, and compensate for reduced doses of organic amendments [201].

In spite of various technological advancements and extensive experience in employing different PGP bacteria, it is still challenging to establish an integrated bioprocess using native coal PGP bacteria on a commercial scale. Indigenous microorganisms with plant-growth-promoting characteristics should be recognized as key “bioengineers” when developing the rhizosphere in disturbed soils, as they are better adapted to local conditions and contribute to the growth of selective plants.

6. Coal Microalgae Hold Great Biotechnological Potential in Coal Utilization and Processing

Microalgae are known as bioremediation and feedstock production agents: they offer several advantages related to their high productivity, cost-efficiency, simple cultivation conditions, high stress resistance, and easy product recovery [202]. The isolation of indigenous microalgae strains and communities adapted to the coal environment is essential in both research and commercial applications for environmental sustainability and economic feasibility (Figure 4). Aquatic environments in post-coal-mining sites possess ideal conditions for the growth and productivity of microalgae. Abandoned coal mines are usually vast barren land with unlimited sunlight and carbon dioxide (CO₂), which are the ultimate requirements for microalgal cultivation to yield great biomass [203]. Different microalgae strains could be isolated from various local coal environments, ranging from freshwater bodies to effluents generated from mining activities [204].

The main benefit of employing microalgae is associated with the bioremediation of coal-contaminated wastewater [205]. Coal mining/processing is a water-intensive industry that requires a systematic approach to treating and recycling coal effluents/drainages. For example, a typical 1000 MW coal-fired power station produces half a billion liters of metal-contaminated effluent yearly [206]. Successful wastewater treatment for the removal/biotransformation of different pollutants from coal mining areas remains challenging. However, it is worth noting that indigenous microalgae can be used as a convenient bioindicator to assess aquatic ecosystems affected by coal mining activities [207,208,209].

6.1. Phycoremediation

Phycoremediation is the process of employing macro and microalgae for the remediation of wastewater and effluents. This type of treatment has many advantages (self-renewing capacity, low cost, and sustainable nature) over conventional ones, which are energy-consuming, very costly, and generate a high amount of sludge [210]. Over the last few decades, algae-based systems have shown promising prospects for removing various heavy metals from AMD. Algae function as “hyper-accumulators” (when an active mechanism is involved) and “hyper-adsorbents” (through passive mechanisms), with a pronounced selectivity for different elements [211,212]. Microalgal species such as Spirulina sp., Chlorella, Chlamydomonas, Scenedesmus, Cladophora, and Oscillatoria are widely employed for heavy metal removal [212,213,214,215]. A cyanobacterium, Nostoc sp. KX814344, isolated by Warjri et al. [216] from a coal mine water sample showed the ability to grow at 15 ppm Cr⁴⁺, which is the highest Cr concentration observed in the area. In their study, Cr biosorption by Nostoc sp. was optimum at pH 6.0, and the biomass reached 3 μg mL⁻¹. In a study by Goswami et al. [217], a cyanobacterium Nostoc muscorum isolated from a coal mining pit exhibited the ability to remove 66% of Zn²⁺ and 71% of Cu²⁺ within a 24 h contact time; metal binding on the cell surface was found to be the primary mode of uptake, followed by internalization.

Extremophilic indigenous coal microalgae, such as Klebsormidium, Euglena, Mougeotia, and Chlamydomonas, were repeatedly isolated from coal-generated AMD, where they were continuously exposed to very harsh chemical or physical conditions, including low pH and the presence of heavy metals [218,219,220]. In addition, the data reported by Freitas et al. [221] showed that the aquatic environment impacted by AMD could be also inhabited by Microspora, Eunotia, Euglena, Mougeotia, and Frustulia, accumulating huge concentrations of metals in their biomass.

Different technologies may be applied for AMD detoxification using native algae communities. For example, the oxidation pond systems containing cyanobacterial mats employed by Phillips et al. [222] showed a removal rate of up to 2.59 g Mn day⁻¹ m⁻². Bench-scale biological treatment test cells (blue–green algae, predominantly Oscillatoria spp./microbial mat consortium) utilized by Sheoran and Bhandari [223] were revealed to be a cost-effective treatment technique for removing SO₄ and precipitating metals from AMD. Microcosm systems developed by Sheoran et al. using Eunotia exigua and Chlamydomonas sp. efficiently reduced the Fe content and SO₄ level from 14 mg L⁻¹ to 0.2 mg L⁻¹ and from 344 mg L⁻¹ to 124 mg L⁻¹, respectively [45]. Finally, Microspora quadrata, a green filamentous algae from streams heavily contaminated by coal-generated AMD, was shown to simultaneously accumulate Pb²⁺ and Fe²⁺ ions [224].

Regarding the mechanisms of bioaccumulation, there are interesting studies conducted by Molwantwa et al. and later by Boshoff et al., where they described the pivotal role of extracellular polysaccharides. [225,226].

6.2. Cultivation of Microalgae with Flue Gas from Coal-Fired Power Plants

Global warming has profound implications for all aspects of ecosystems and human life. The trend of atmospheric carbon dioxide (CO₂) emissions has been increasing over the years, and its concentration reached an average of 400 ppm, while the safe level is considered to be 350 ppm [227]. The energy power sectors are responsible for ca. 42% of CO₂ emissions; thus, a transition toward renewable energy and alternative fuels is among the contemporary approaches to reducing CO₂ emissions [228].

The photosynthetic process is an attractive, sustainable pathway for the biological fixation of CO₂ by converting it into biomass as a low-carbon emission source, thus contributing to greenhouse gas reduction. Consequently, microalgae, as a globally dominant photosynthetic group, have received growing attention regarding their rapid conversion rate of CO₂, high biomass productivity, and flexibility in the cultivation environment. It was estimated that 1 kg of dry algal biomass utilizes ~1.83 kg of CO₂, meaning that microalgae fix waste CO₂ ten times more efficiently than terrestrial plants [229,230]. The algal biomass can be converted into many valuable products, such as biofuel, nutritional food, and fertilizers [231].

Intensive studies focused on microalgae have been primarily conducted to develop an effective system for CO₂ mitigation on the one hand and to increase downstream production at laboratory and industrial scales on the other. However, considerable importance should be also attached to the upstream process, such as employing and optimizing native microalgae species to expedite the acclimatization period and alleviate the in situ biological CO₂ fixation. A significant effort toward this goal was recently made by Yahya et al. [232], who screened native microalgae species in a coal-fired power plant’s surroundings for carbon fixation ability and identified three dominant species (Nannochloropsis sp., Tetraselmis sp., and Isochrysis sp.). Among them, Isochrysis sp. was elected as the superior carbon fixer, with a fixation rate of 0.35 g CO₂ L⁻¹ day⁻¹ under actual coal-fired flue gas exposure using a customized lab-scale photobioreactor. This finding was of great importance in exploring the biotechnological potential of microalgae for carbon emission mitigation from coal-based power plants.

In 2007, De Morais et al. [233] isolated Scenedesmus obliquus and Chlorella kessleri from the wastewater of a power plant and investigated their growth characteristics under different concentrations of CO₂. The results demonstrated a high growth rate (µ_max) of 0.267 day for C. kessleri, with a maximum biomass productivity (P_max) of 0.087 g L⁻¹ day⁻¹ when cultivated with 6% and 12% CO₂ and the highest maximum dry weight biomass value of 1.14 g L⁻¹ with 12% CO₂ for S. obliquus. Later, in a study by Radmann et al. [234], Synechococcus nidulans and Chlorella vulgaris were isolated from waste treatment ponds and compared with Scenedesmus obliquus and Spirulina sp. for CO₂ biofixation: the results indicated that C. vulgaris possessed similar fixation performance to Spirulina sp., with a maximum daily fixation of 13.43%, when growing in reservoirs for CO₂ biofixation from coal combustion gas.

Direct exposure to unfiltered flue gas from coal combustion is apparently challenging for microalgal communities, since they can be subjected to very high amounts of SO_x and NO_x compounds as well as heavy metals. However, mixed (“biodiverse”) microalgal communities, containing different algal genera each preadapted to high carbonate contents, can be designed and adapted to tolerate growth in as much as 100% flue gas [235]. In some cases, coal combustion wastes could even provide microalgae with minerals, which substitute the nutrients needed for their growth. Vaz et al. [236] found that Chlorella fusca LEB 111 and Spirulina sp. LEB 18 did not show significant differences in their maximum biomass concentration (ranged between 0.64 g L⁻¹ and 0.58 g L⁻¹) when cultivated in a natural lagoon or in a waste pond at a thermoelectric power plant, implying no significant difference in the growth support capacity between a “natural” growth medium and an “industrial” one.

Carefully designed and scaled photobioreactors for growing microalgae can possess high economic value. For instance, a novel photobioreactor (total volume of 30 m³) filled with Spirulina platensis developed by Chen et al. [237] allowed CO₂ utilization at an annual rate of 2234 kg of CO₂.

6.3. Lipid Production by Native Microalgae

Apart from the bioremediation aspects, microalgal biomass is advantageous for high-value-added product generation. Lipids extracted from the algae biomass can act as precursors to produce biodiesel. Ikenaga et al. examined the co-liquefaction of Chlorella, Spirulina, and Littorale with brown coal in 1-methylnaphthalene under a hydrogen atmosphere at 300–400 °C [238]. They used Fe(CO)₅-S (at a high S/Fe ratio) and Ru₃(CO)₁₂ as catalysts and observed a high oil yield. In another study, biofuel production by Chlamydomonas PW95 (isolated from coal-bed methane production water) was assessed by Corredor et al. [239] using an optimal combination of culture conditions. The combination of 30 °C and 0.5 mM nitrate resulted in maximum daily biomass accumulation reaching 5.30 × 10⁶ cells/mL, high biofuel productivity (16 mg/L/d), and desirable fatty acid profiles, represented by saturated and unsaturated C16 and C18 chains. Their study may serve as a model to elicit physiological responses of microalgae to diverse culture conditions mimicking those of outdoor biofuel production.

An interesting autoflocculating microalgal strain, Scenedesmus sp. NC1, was isolated by Kumar et al. [240] from coal mine effluent wastewater. Its lipid characterization exhibited a complex profile (18.55% monounsaturated, 22.74% polyunsaturated, and 35.15% saturated fatty acids), designating this strain as a prospective candidate for biodiesel production. Moreover, due to its significant bioflocculation potential, Scenedesmus sp. NC1 can be used for better harvesting other non-flocculating microorganisms.

Abandoned coal areas can be an alternative place for the cultivation of microalgae for lipid production. Such algae samples were collected by Kumar et al. from wastewater accumulated in different coal mining areas and identified as Spirogyra sp. and Oscillatoria sp. [203]. Lipid content estimation revealed that the lipid content from algae grown in mine water was 16.3% higher than that of algae grown in river and pond water. In some cases, a double benefit could be achieved using microalgae, in which valuable biomass is produced while remediating residues for heavy metals. This was demonstrated by Chlamydomonas acidophila LAFIC-004 (from coal mining drainage), which is capable of growing in acidic and heavy-metal-rich mining residues [241].

6.4. Co-Firing of Microalgae with Coal for Power Generation

Environmental and health concerns regarding coal combustion have recently facilitated biomass utilization as a partial substitute for fossil fuels to yield high-quality coal with the desired characteristics [242]. Here, the term biomass refers to organic matter (wood, herbaceous, and aquatic biomass) generated as a result of photosynthesis and organic wastes originating from industrial, municipal, and animal materials [243]. The combustion of microalgae with fossil fuels positively affects the environment and economics of power generation. In addition, microalgae have a number of benefits, including a higher growth rate, elevated level of photosynthesis, high CO₂ fixation efficiency, and lower requirements for environmental conditions [244].

Several studies have been conducted on the co-firing of microalgae and coal, where microalgal species have been obtained/isolated from different sources. Scenedesmus sp. has been reported as a promising feedstock for carbon-neutral solutions, as it offsets the CO₂ emitted through combustion [245]. Moreover, this microalgae strain has been observed to offer higher values, i.e., 77.5 wt.% of volatile matter, 21.4 wt.% of calorific value, and low ash content (7.3 wt.%) [246]. Scenedesmus biomass blended with discarded ultra-fine coal has shown a prominent synergistic effect, upgrading the ignition temperature and the rate of combustion [247].

Coal–Scenedesmus blends, under the commercial name Coalgae^® 5–20% (coal and microalgae ratio at mass basis) composite, have exhibited improved combustion behavior and evolved greenhouse gases [248]. In addition, a decrease in the emissions of CO₂, NOx, and SO₂ from coal to Coalgae^® 5–20% was observed.

The following possible synergistic effects explained the co-pyrolysis of coal and Scenedesmus sp.: the results revealed the occurrence of three pyrolysis stages with temperature ranges of 200–400 °C, 430–650 °C, and >750 °C, and activation energies of 131–138, 72–78, and 864.5–1235 kJ/mol, respectively [249]. According to the coal pyrolysis models, three main components in microalgae (glycine, medium-chain triglyceride, and starch) were studied by Wu et al. [250]. Glycine demonstrated positive synergistic effects under a 25% mass ratio, with a higher volatile yield than the calculated value.

Subagyono et al. [251] reported the synergistic effect of mixing microalgae Botryococcus braunii and Victorian brown coal in co-pyrolysis reactions, dividing this process into three stages: the evaporation of water and volatile compounds (<±150 °C), active co-pyrolysis (±150–545 °C), and, finally, decomposition (±545–800 °C). The microalgae strains Stigonematales, Nannochloropsis, Tetraselmis, and Chlorella have also been employed to produce co-combustion biomass with unique combustion performance and better thermochemical properties [252,253,254]. Stigonematales sp. microalgae blended with coal provided an outstanding contribution to elevating volatile matter and dropping the ash content: microalgae-coal with 75%, 50%, and 25% had calorific values of 14.07 MJ/kg, 19.88 MJ/kg, and 26.42 MJ/kg, respectively [255].

An open pond microalgal culture system integrated with a coal-fired power plant seems to be a prospective setup in which the produced biomass is co-fired in the coal plant’s boiler. Geostri et al. [228] investigated the smart integration of a 500 ha microalgae Tetraselmis suecica-culturing facility with a large-scale coal power plant (758.6 MWe), though the produced algal biomass contributed to only around 1% of the boiler’s heat input. A fraction of the CO₂ contained in the coal plant flue gases was used for the algal cultivation and a fraction of the low-temperature flue gas heat available was used for the biomass drying; finally, the target biomass was co-combusted in the coal plant.

7. Limitations

All of the above-referenced studies should facilitate an understanding of the basic concepts of coal microbiology and the applications of native microorganisms in enhancing agricultural production and environmental protection through sustainable approaches. However, there are a number of important issues that should be borne in mind when considering the various microbial groups in coal ecosystems:

• Since every coal environment is unique in terms of nature and geology, it is difficult to formulate a set of general principles that could enhance the bio-utilization of coal universally. Furthermore, every coal source, which behaves as a part of a geomicrobial reactor, may have unique characteristics; therefore, the selection criteria of respective microbial species should be considered carefully;
• More efforts should be made to promote better characterization of the native microorganisms, their metabolic capacities, and/or exact metabolic pathways. An understanding of the detailed mechanisms of coal biodegradation/bioconversion and their exploitation at the molecular level may be required for sustainable agricultural and environmental systems. Studies examining the metabolic and physiological characteristics of microorganisms associated with coal environments have the potential to address fundamental questions about the primary functional drivers, a key area of investigation in coal biotechnology;
• Exploiting indigenous “microbial cocktails” native to coal may help to achieve optimized coal bioprocessing/utilization; however, this may be quite selective to a given coal environment;
• The traditional culture-dependent techniques, despite their advantages, might have limitations in capturing and studying large variates/amounts of microorganisms from coal environments; it is thus imperative to evolve more advanced techniques to discover novel microorganisms possessing unique metabolic characteristics;
• The underlying mechanisms of the functional roles of bacteria, fungi, and plants in coal-associated sites (abandoned mines, surface coal mines, and post-coal mining activities) and affecting environmental factors are yet to be fully explored;
• Although recent evidence has implicated the vast potential of microalgae in coal environments, a further understanding of their ecology, adaptation mechanisms, and efficient application of these organisms could be crucial for successful bioenergy production and environmental protection.

8. Future Trends

• Until now, fundamental research on coal biodegradation and bioutilization has focused mainly on the laboratory-scale screening of various methodologies and exogenous microorganisms; however, the implementation and optimization of these processes using indigenous microorganisms in full-scale outdoor systems remain attractive;
• Many research outcomes are too preliminary to predict the details of a commercialized process. Some consideration must be given to upgrading the technology to bring these processes to regulatory issues and policy that may exert a strong influence in the future;
• Because coal bioutilization is a complex and intricate process, efficient organisms and processes will be critical for economic competitiveness. The modern techniques of recombinant DNA technology and protein science may serve as enhanced tools for the manipulation of indigenous microorganisms;
• Furthermore, exogenous coal-solubilizing bacteria may become part of the indigenous microbial consortia that colonize coal environments, though they may be able to naturally thrive and subsequently solubilize coal in this ecological niche.

9. Conclusions

The relationships of the microbial species with the coal environment are one of the critical factors for achieving increased coal degradation and utilization, as they appear to be relatively favorable microbial substrates. The heterogeneous and aromatically condensed structure of coal cannot be regarded as completely understood in terms of its bioavailability and bio-efficiency due to the complexity of coal–microbial interactions. The subsequent application of various microorganisms to benefit coal largely depends on their metabolic and functional characteristics. Therefore, establishing highly adaptive and selective microbial groups may help to determine rate-limiting steps and enhance the prospects of coal bioutilization. Furthermore, despite the lengthy research history and promising reports regarding the efficiency of indigenous microorganisms, there is still no precise prescription for successful technological innovation in a practical large-scale application.
