Determination and Review of Physical and Mechanical Properties of Raw and Treated Coconut Fibers for Their Recycling in Construction Materials

by
Huyen Bui
1,2,
Nassim Sebaibi
1,
Mohamed Boutouil
1 and
Daniel Levacher
3,*
1
Laboratoire ESITC—ESITC Caen, ComUE Normandie Université, 14160 Epron, France
2
Faculty of Civil Engineering, Thuyloi University, 175 Tay Son Street, Dong Da District, Ha Noi 116705, Vietnam
3
M2C UMR 6143 CNRS, Unicaen, ComUE Normandie Université, 24 rue des Tilleuls, 14000 Caen, France
*
Author to whom correspondence should be addressed.
Fibers 2020, 8(6), 37; https://doi.org/10.3390/fib8060037
Submission received: 5 April 2020 / Revised: 25 April 2020 / Accepted: 22 May 2020 / Published: 12 June 2020
(This article belongs to the Special Issue Cementitious Composites Reinforced with Recycled and Natural Fibers: Experimental Results and Numerical Modelling 2019)
Browse Figures
Versions Notes

Abstract

:
In order to reduce the dependency on conventional materials and negative environmental impacts, one of the main responsibilities of the construction field is to find new eco-friendly resources to replace the traditional materials partially. Natural fibers were known as potential candidates for the reinforcement of structures in civil engineering by virtue of their advantages. Among the different kinds of vegetable fibers, coconut fiber has been exploited in a limited way over the past few years. This paper aims at evaluating the different properties of local coconut fibers (Vietnam). Several laboratory tests provide geometrical, physical, mechanical properties and durability properties that are compared with literature results obtained from similar natural fibers. The local coconut fibers tested demonstrated properties suitable for reinforced mortars. With adequate control of their preparation, they could be reused in the manufacture of mortars in the construction.

1. Introduction

The usage of green materials in construction activities has become very interesting in recent years due to its advantages in different sectors. Many studies have shown the possible uses of natural fiber, such as the partial replacement of cement and aggregate, as well as fiber reinforcement [1,2,3,4,5,6]. Coconut fiber was known as one of main fifteen plant and animal fibers in the world [7]. This fiber has a high concentration of lignin among vegetable fibers, up to nearly 50%, which makes it stronger [8]. Coconut fiber is extracted from the tissues surrounding the envelope of the coconut palm, which is grown on 10 million ha of land throughout the tropics. According to the Food and Agriculture Organization of the United Nations FAO [9], five countries ranked at the top positions in the world for producing coconut fiber are India, Sri Lanka, Thailand, Vietnam, and Philippines. These countries produce more than 90 percent of the global coconut fiber production. Coconut fiber is commonly utilized in ropes, mattresses, brushes, geotextiles and automobile seats. In contrast, the applications of this fiber in civil engineering are very few and do not commensurate with its potential. In the future, more research and investigation are needed to show coconut fiber as a possible reinforcement in the construction field.
The properties of natural fibers for their applications in civil engineering remain a topic of interest for a wide range of studies. Natural fibers are considered as the prospective material to be used as reinforcement materials in composite products. A detailed literature review on the properties of coconut fiber and its comparison with other natural fibers is reported in present study. Mechanical properties of vegetable fibers depend on factors such as their physical, chemical, morphological and geometrical characteristics. Munawar et al. [10] have investigated relationships between the density, diameter and mechanical properties of seven non-wood plant fiber bundles (including abaca leaf fiber, pineapple leaf fiber, sansevieria fiber, sisal fiber, coconut fiber, kenaf fiber and bast fiber). The results show that the density and mechanical properties of the fiber decreased with increasing fiber bundle diameter. In addition, only coconut fiber exhibits an almost circular shape on the cross-section, while the cross-sectional shape of other fibers varies widely. Sengupta et al. [11] analyzed the main physical properties of coconut fiber and indicated that there is a dissymmetrical nature with a big coefficient of variation in the distribution of length, diameter, density, breaking toughness and extension, specific work of rupture and flexural rigidity of untreated fibers. They recommended the usage of long fibers (25.4 mm or 1 inch) to manufacture the traditional ropes and coarse floor covering. Single or with other fibers, medium length fibers (12.7 mm or ½ inch) will better suit to produce finer textile materials with improved characteristics. Contrarily, short fibers (3.8 mm) may be engaged in making not only flexible or semi-rigid composites but also geo-fiber for stabilization of soil. According to Tran et al. [12], the density of coconut fiber decreases from 1.3 to 0.9 g/cm3 while the fiber porosity increases from 22% to 31% with the increase in the fiber length from 0.05 to 4.0 mm. This phenomenon can be explained by considering the structural characteristic of coconut fiber. Enclosed porosity, which is included in the measured volume of solid material of coconut fiber, is increased with the increase in fiber length. This result shows that the length of fiber has direct effects on its density. The results from a number of studies [10,12,13,14,15,16,17] confirm that coconut fiber is not very strong and stiff. However, its high strain to failure value may lead to an increase in the toughness of composites while using it as reinforcement for the composites.
Weak bonding between fibers and the matrix and their relatively significant moisture absorption are considered as the main drawbacks of natural fibers in composite products [18]. Thus, to modify the surface properties of fibers for improving their adhesion with the matrix, treatment of fibers is highly considered. Some techniques, including physical and chemical methods to treat fibers before using them in composites, are presented in several papers [15,19,20,21]. The researches related to the effects of treated fibers on the properties of fiber-reinforced composites are also available in different papers [13,22,23,24,25]. The influence of treatment methods on the physical and mechanical properties of coconut fibers were also reported in [20], which stated that softening treatment of raw fibers using a solution of Na2S, Na2CO3, and NaOH decreases the flexural rigidity value of raw fiber by three fourths without any degradation of desired characteristics.
In terms of thermal conductivity of plant fibers, some studies [2,26,27,28,29] introduced the potential use of plant fibers as thermal insulation materials in construction which can reduce environmental impacts in comparison with currently used synthetic thermal insulation materials. Manohar [26] reported that experimental thermal conductivities of coconut fibers at mean temperature (15.6 °C) in accordance with ASTM C518 lie between 0.04869 and 0.05624 W/m.K for densities varying from 90 and 40 kg/m3. Researchers then even suggested creating composites with two or more types of fibrous plants for thermal insulation materials. Khedari et al. [30] mixed durian peels and coconut fibers (ratio of 90:10 coconut fibers and durian peel by dry weight) to manufacture particleboards with low thermal conductivity (in the range of 0.054–0.1854 W/m.K) depending on the board density. This result shows viable options to apply plant fibers in building insulation (wall and ceiling).
Regarding the durability of fiber, Sivakumar Babu et al. [31] reported that coconut fibers lasted only for 2–3 years without any treatment. Hejazi et al. [32] indicated that coconut fiber retained 80% of its tensile strength after six months of embedment in clay. Arifuzzaman Khan et al. [21] conducted a series of experiments indicating that all the treatments using sodium chlorite, sodium hydroxide, and acrylamide monomer could cause changes in the physical and chemical properties. These treatments improve the thermal stability of coconut fiber by causing lower weight loss and shifting of degradation peak to a higher temperature. When exposed to 180 °C, within 5 h, the drop of approximately 36.4%, 24.6%, and 23.2% in the tensile strength was observed for the fibers treated with sodium chloride, sodium hydroxide and acrylamide monomer chlorite, respectively. Thermogravimetric analysis (TGA) was performed to determine the weight loss of some fiber components, along with deterioration products [15]. From the TGA results, it can be seen that the residual mass of heat untreated coconut fibers is lower as compared to the treated coconut fibers in the temperature range of up to 900 °C, which included the thermo-oxidative effect and evaporation of low molecular weight components in lignocellulose fibers. Hemicellulose is the most sensitive reactive constituent and its thermal degradation is easier than cellulose and lignin, according to Stevulova et al. [33].
These coconut fibers could play an important role in reinforcing the building materials or improving/modifying their certain properties. Mechanical, thermal and acoustic properties are highly dependent on the characteristics of the fiber itself. As reported by various authors in the literature, the determination of the characteristics of coconut fibers poses a problem due to the great variability of these. This variability depends on several factors, such as the origin of the coconuts and the storage and processing methods used to obtain these fibers. Each study, like that of the incorporation of coconut fibers in mortars, requires an appropriate determination of the properties of the fibers used, i.e., the potential deposit of fibers at its disposal. The present paper aims at providing further knowledge on the determination of coconut fibers properties in manufacturing reinforced mortars by incorporating different amounts of this type of fibers. The purpose of this present study is the assessment of geometrical, physical and mechanical to thermal properties and durability properties of local coconut fibers (Vietnam). Once determined, these properties are compared with those observed in the literature. This comparative study makes it possible to situate the level of performance of these fibers with respect to other natural fibers, in particular coconut fibers, and to consider using them as reinforcement in mortars. If the fibers tested are suitable for the manufacture of reinforced mortars, it seems necessary to control their preparation. This approach could, therefore, constitute an alternative solution to waste management and contribute to the development of reinforced mortars improving comfort performance in buildings.

2. Material and Methods

2.1. Preparation of Fibers

The fibers used in the present study were obtained from mature coconut husk extraction at Ben Tre province, Vietnam, one of the most famous places for growing coconut and for coconut products.
Without any treatment, these fibers are considered as raw or natural fibers. Two simple treatment methods for fibers are applied (i) boiling of fiber (ii) alkaline treatment of fiber, physical and eco-friendly treatment and chemical treatment, respectively.

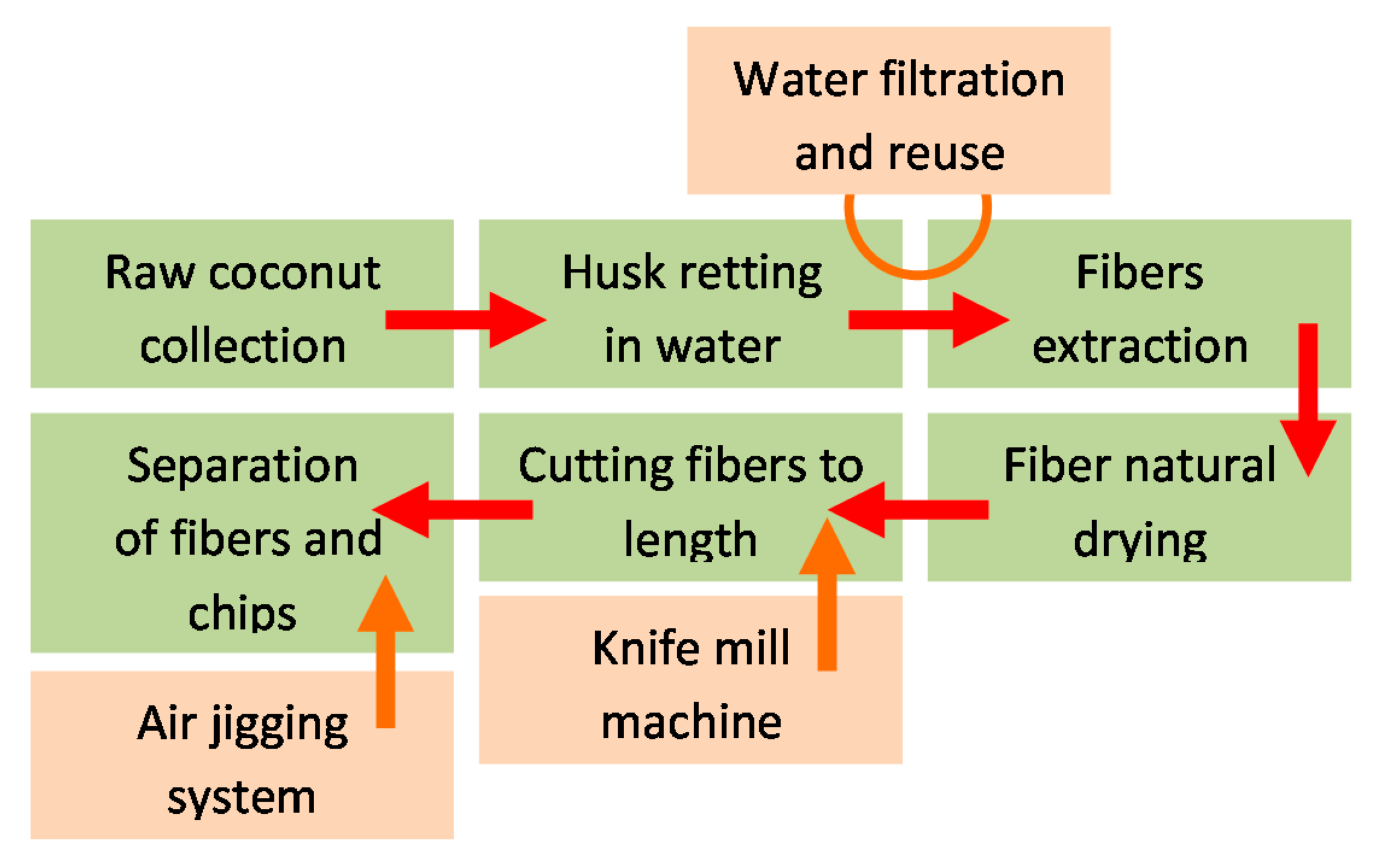

The process of treatment is shown in Figure 1. The properties of untreated and treated fibers were evaluated and the resulting data were compared.

2.2. Testing Methods for the Determination of Fiber Properties

2.2.1. Microscope Image

The coconut fiber’s microstructure was examined using the digital microscope model Keyence VHX 6000 (Keyence France SAS, Bois-Colombes, France). The microscope is operated under the power voltage of 240 VAC and frequency of 60 Hz. This device combines observation of captured images and measurement functions while providing a screen interface that makes visualization easier. Hence, the digital microscope made it possible to observe cross-section and external surface of coconut fibers.

2.2.2. Absolute Density

Besides the mechanical properties, the density of the fiber is a crucial parameter to determine the fiber’s potential for lightweight material when using as reinforcement in a composite [18]. The determination of the absolute density of the fibers was conducted using a helium pycnometer, namely AccuPyc II 1340 (Micromeritics France SA, Verneuil-en-Halatte, France). Ten samples were tested for each kind of fiber (mass of fiber 0.5 g/test at ambient conditions). Volume was then measured by means of the pycnometer at the same temperature. The final density was the average of the ten values.

2.2.3. Water Absorption

Natural fibers are hydrophilic materials that absorb water used for manufacturing elements or composites [34]. For the water absorption test of fiber, the recommendation of RILEM TC 236-BBM (RILEM Association, Paris, France) [35] was used as a protocol of this test. The measurement of water absorption is based on the difference in the mass of dry fibers and fibers undergoing immersion at different times. Initially, a bundle of fibers weighing 2 g was placed in a ventilated oven at 60 °C until the change in mass of the sample is less than 0.1% within 24 h. The fiber bundles were placed in a permeable bag that was then immersed in distilled water to reach its absorption. After the immersion time of 1, 15, 240 and 2280 min, a centrifuge having speed of 500 rpm was used for 30 s to remove the excess water from these fiber bundles. Absorption capacity was calculated by using the following equation:
water   absorption = impregnated   mass − dry   mass dry   mass × 100 %

2.2.4. Thermal Conductivity

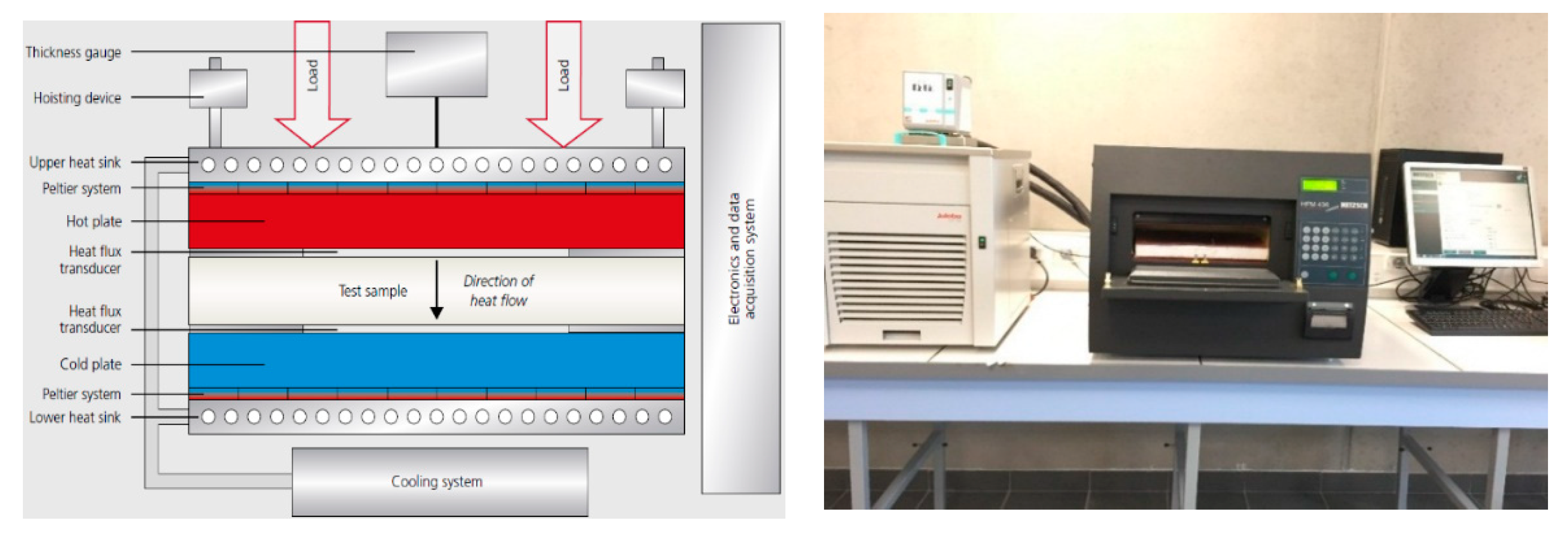

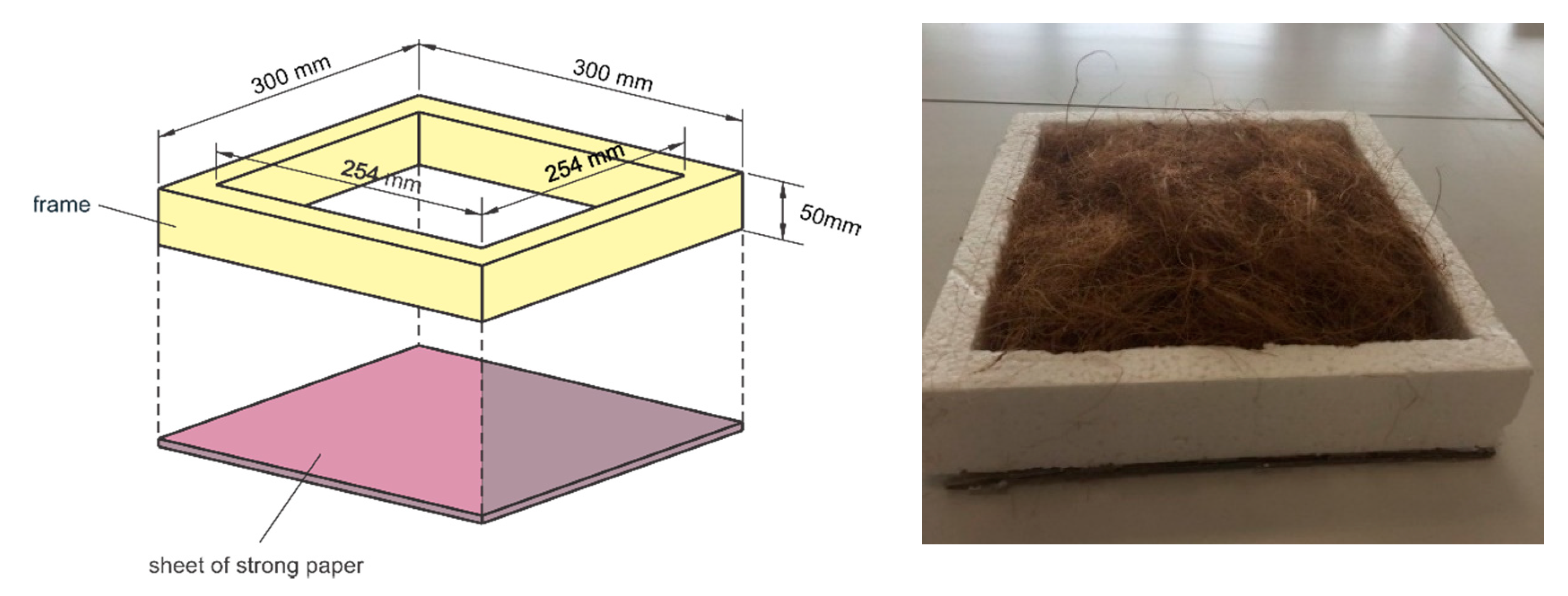

Thermal conductivity λ, defined by the steady-state heat flow moving through a unit area of a homogeneous material, 1 m thick, induced by a 1 K difference of temperature on its faces, is one of the most interesting characteristics for thermal insulation materials [36]. According to ASTM C518, the thermal conductivity of coconut fiber was measured by using heat flow meters (HFM 436 Lambda, from NETZSCH-Gerätebau GmbH, Selb, Germany) kept at 20.5 °C, as shown in Figure 2. A polystyrene frame with a very thin bottom face contains the fibers (see Figure 3). The thermal conductivity tests were carried out at a mean temperature of 30 °C with the density of specimens varying from 30 to 120 kg/m3 by an increment of 10 kg/m3.

2.2.5. Direct Tensile Test

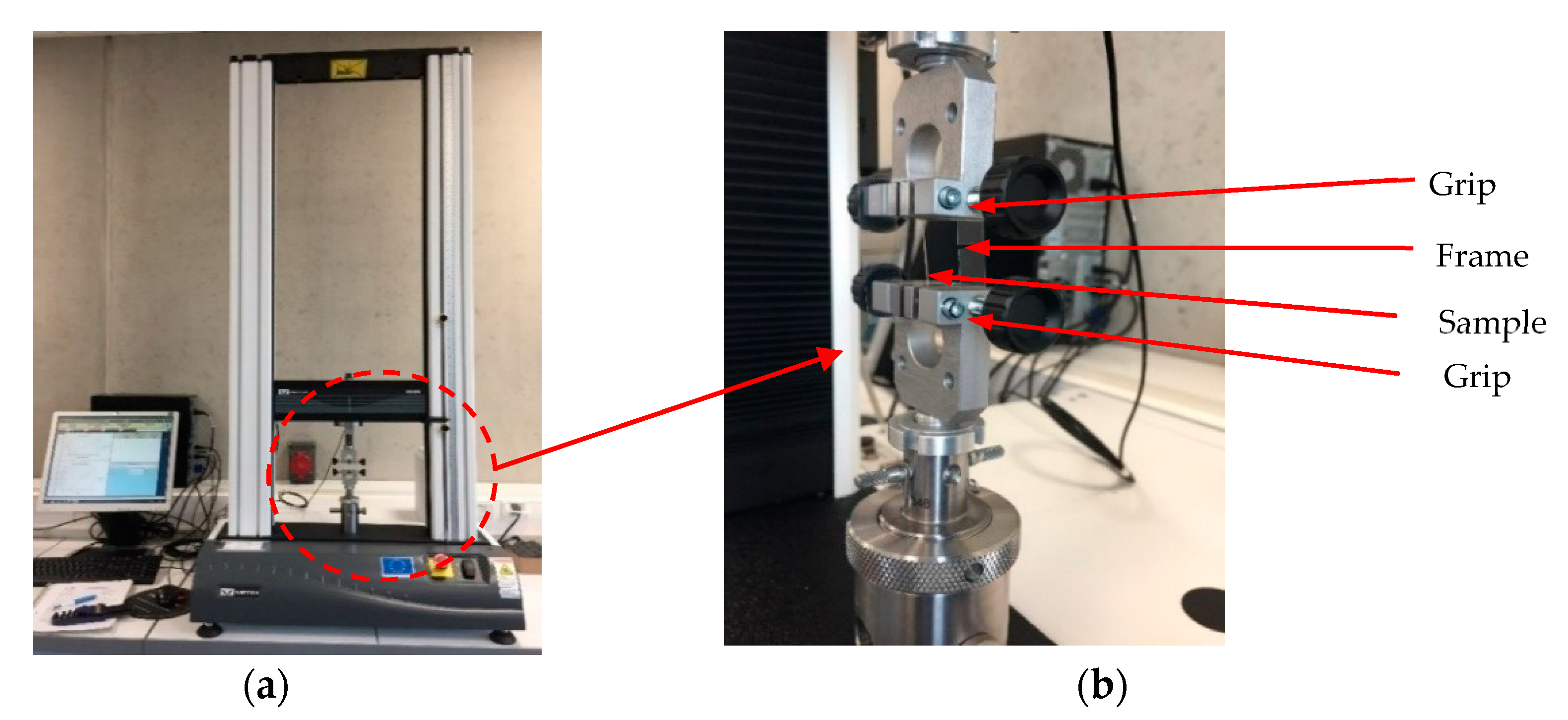

The single fiber tensile test was conducted using an INSTRON 3369 universal testing machine (INSTRON®, 825 University Ave Norwood, Norwood, MA 02062-2643, USA), as shown in Figure 4, in accordance with ASTM C1557. In order to prepare specimens for the test, transparency paper frames having dimension 4 cm × 4 cm were used to fix fiber in the middle by means of adhesive tape and cut both sides of them very carefully at mid-gauge before the test as shown in Figure 5. The fiber was tested with a free length of 2 cm using the displacement control at a rate of 0.5 mm/min and two clamps having a 10 N maximum load. Finally, 16 specimens were performed for each type of fiber. Extreme values were removed and replaced by other specimens tested.
The ultimate tensile strength of the fiber is calculated as follows:
σ = F m a x A
where σ is the ultimate tensile strength in MPa, Fmax is the maximum force at failure in N, and A is the fiber cross-section area at fracture plane in mm2.

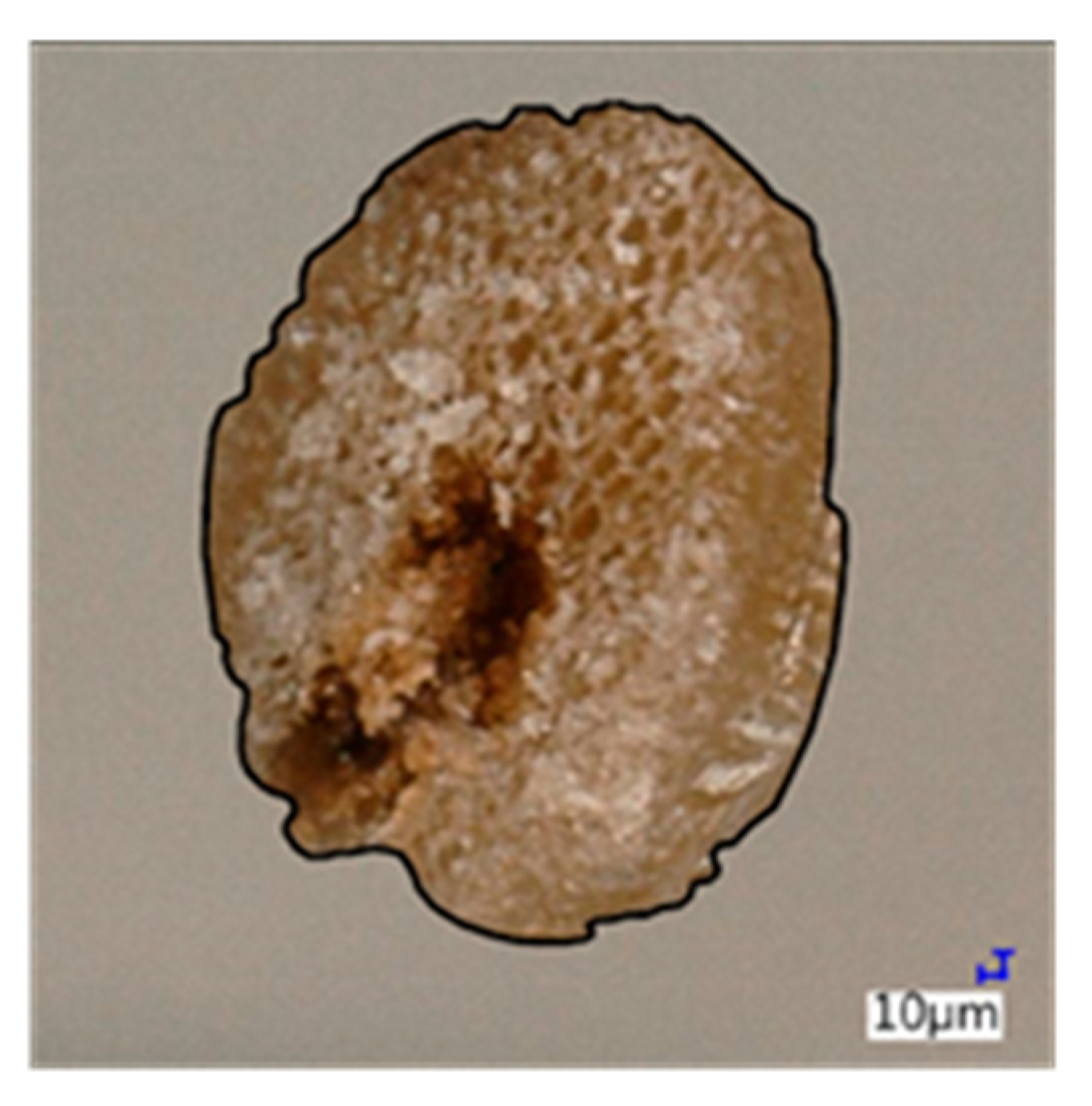

In order to measure the cross-section of each fiber after the tensile test, a borderline is drawn to define the cross-section area of fiber, and then the surface area is determined as illustrated in Figure 6.
The tensile strain of fiber is calculated as follows:
ε = Δ l l × 100
where Δl is the elongation of the gauge length in m and l is the initial gauge length, 20 mm.

2.2.6. Durability

The durability of fibers was taken into account not only during the preparation of composites but also during their period of application [18]. In present study, two types of durability were considered: thermal and chemical stability.

2.2.7. Thermal Stability

Thermal analysis provides additional benefits to understand the degradation mechanism and the enhancement of the thermal stability of material [33]. Thermal gravimetric analysis (TGA) and differential thermal analysis (DTA) diagrams of fiber with and without treatment were conducted on the STA 449 F5 Jupiter Simultaneous Thermal Analyzer device under nitrogen atmosphere. A starting temperature of 25 °C was used with a heating rate of 20 °C per minute and a final temperature of 900 °C.
For the preparation of the test, fibers were cut into small pieces of 0.5 mm in length. The mass of each sample ranged from 10 to 15 mg and was placed into the platinum crucible.

2.2.8. Chemical Stability

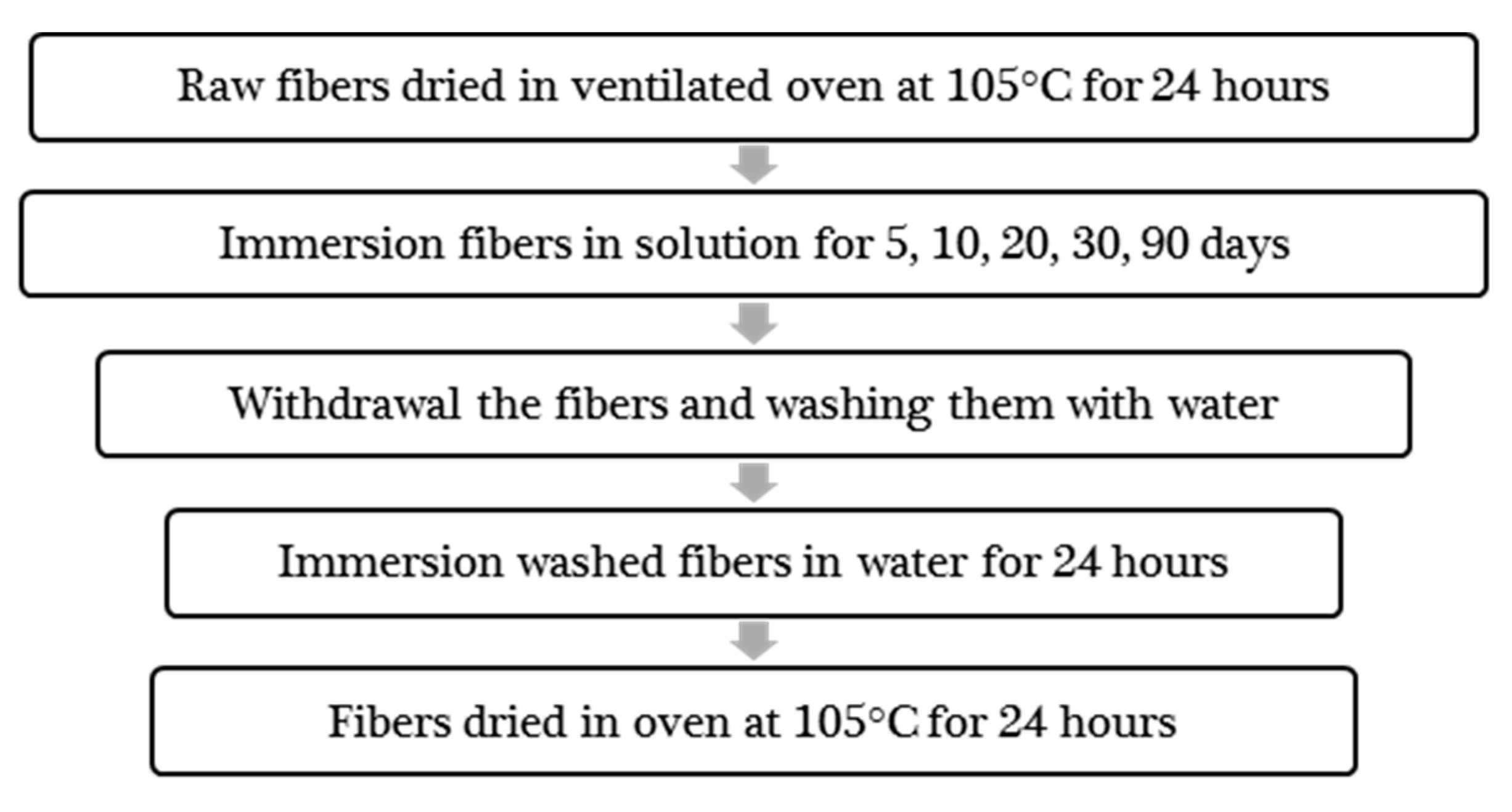

The most suitable test method for chemical stability is to expose the fibers to chemicals [37]. After the exposure, the degradation of the fiber could be tested by determining the change in the mass of the fiber.
Cementitious composite gives an alkaline environment due to the production of calcium hydroxide by the hydration of Portland cement. Also, the typical deterioration of cementitious composite happens under the attack of chloride and sulphate ions from the salt water, de-icing salts, soil and groundwater [38]. In the present study, in order to determine the chemical stability of coconut fiber, sodium hydroxide NaOH 10% and calcium hydroxide Ca(OH)2 saturated solution were prepared. The procedure of the exposure of fiber is given in Figure 7.
The retention of mass was calculated by the following equation:
Mass   retention   % = ( 1 − initial   mass −   mass   after   immersion initial   mass ) × 100 %

3. Results and Discussion

3.1. Geometrical Properties

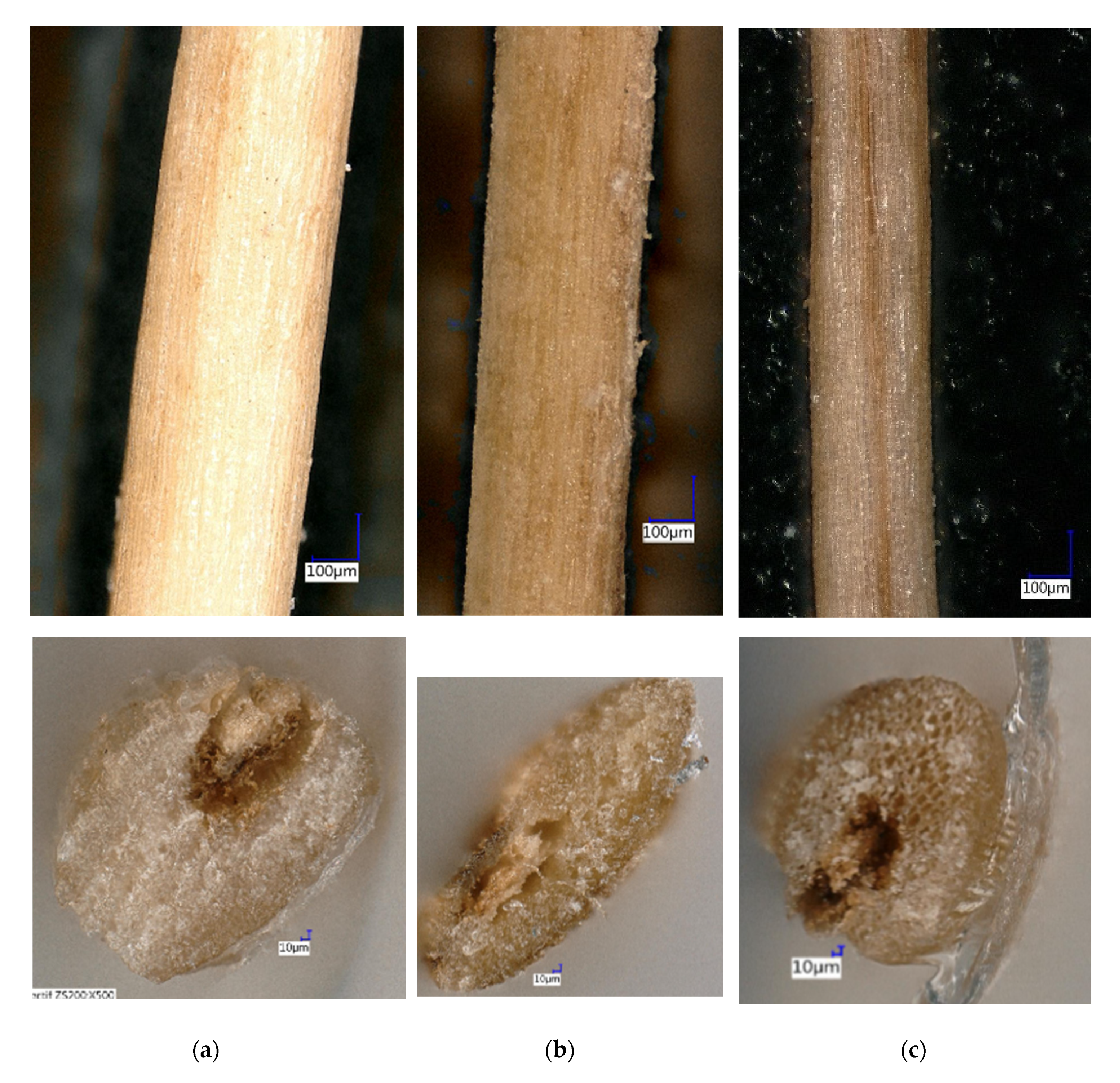

Figure 8 shows the surface and cross-section of coconut fibers tested using the digital microscope. As illustrated, the diameter of fiber was decreased by approximately 10% and 30% due to alkali and boiled treatment methods, respectively. In addition, the images depict that the process of treatment of fibers causes morphological changes with an increase in voids and a rougher surface because of the removal of most of the pectin, ash and other impurities. Most fibers do not have a circular cross-section, so a heterogeneous distribution of loading occurs that makes predicting the mechanical properties of fibers, as well as composites incorporating fibers, become difficult.

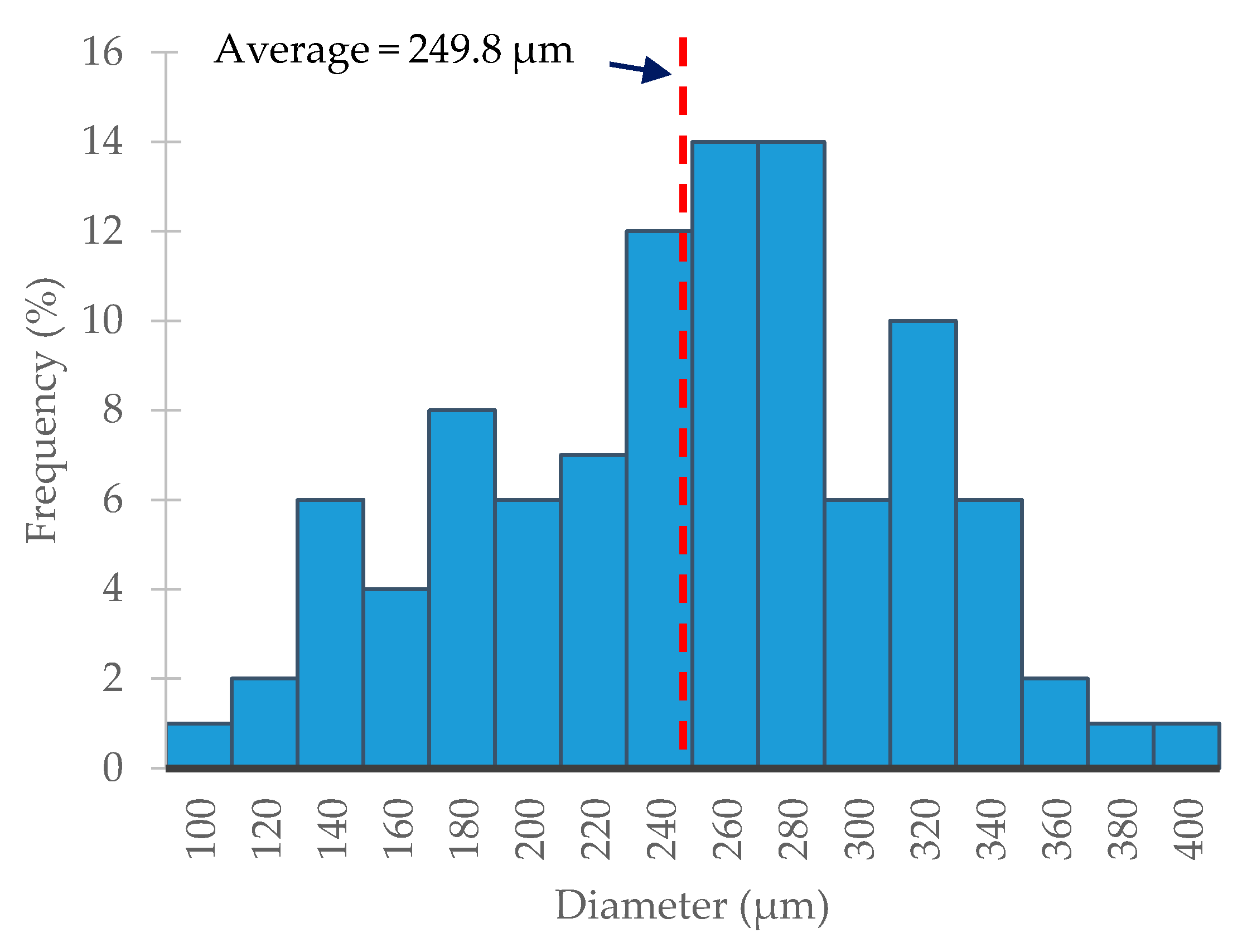

A survey of the diameter of three hundred raw fibers by means of image analysis method indicates that average diameter in two directions at right angle ranges from 0.090 to 0.39 mm. Diameters ranged from 0.20 to 0.35 mm represent about 70% of the total, as shown in Figure 9. In comparison with previous studies, raw coconut fiber in the present study was found to be smaller in diameter than the raw fibers from Mexico (0.51 mm) [39], Taiwan (0.43 mm) [40] or Malaysia (0.32 mm) [14].

3.2. Physical Properties

Experimentally, the absolute density of the coconut fibers tested in the present study is reported in Table 1. This result is in line with the observations already made in [13,41,42,43]. This value is less in comparison with commonly used fibers like steel fiber (7.80 g/cm3), carbon fiber (1.75 g/cm3) [44], or glass fiber (2.55 g/cm3) [45]. This is the reason behind the suggestion of coconut fiber being used in the production of the structural lightweight composite [46,47].
No significant difference is observed between the absolute density of alkali-treated fibers and boiled fibers, but the absolute density of raw fibers is lower than that of treated ones. The absolute density of the fibers is significantly increased when treated with alkali or by the boiling method. Treatment dissolves pectin and impurities, due to which the volume is reduced and a gain in absolute density is observed. According to some researches [2,48], the content of ash in fibers has been reduced by approximately 70% after treatment.

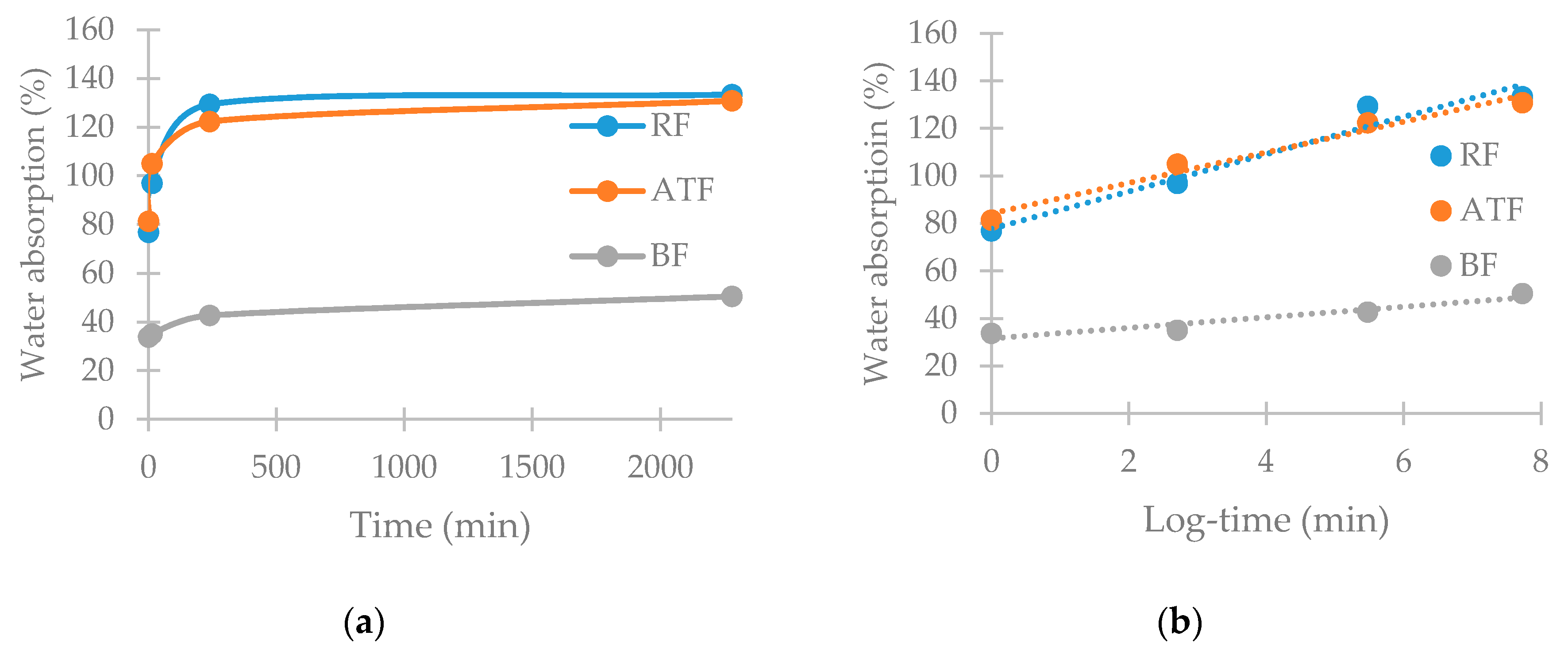

Graphs of water absorption versus time are presented in Figure 10. Both of two applied treatments led to a decrease in the absorption capacity of coconut fibers. As shown in Figure 10, the fibers absorb water rapidly in the initial step until a saturation level is achieved. The water absorption of fibers reaches rapidly about 100% for raw fibers and alkali-treated fibers and approximately 35% for boiled fibers within a short amount of time. However, from the four-hour immersion, these curves rise gradually to reach a constant value at the end of the process. From these observations, the water absorption of fibers is considered as sufficiently stable at 48 h and the values obtained are 133%, 130%, and 50% for raw, alkali-treated and boiled fibers, respectively. Fibers become fully saturated after the two-day-immersion period.
Considering the observation time, the water absorption of coconut fibers resembles a logarithmic law as follows:
W ( t ) = K 1 ×   log ( t ) + IRA
where IRA is the initial rate of the absorption (after an immersion of 1 min) and K1 corresponds to the slope of the function W(t) exposed in logarithmic time. These values are listed in Table 2.
One of the main reasons behind the change in absorption capacity of the fiber is hemicelluloses. Another reason is the critical role of crystalline cellulose and lignin in the water absorption process. Moisture causes the cell wall of lignocellulose fiber to swell until it reaches its saturation [49].
The water absorption of boiled fibers was observed to be half that of the raw and alkali-treated fibers. It seems that alkaline treatment was less effective on the absorption capacity of fiber than physical treatment. In addition, the alkali-treated fiber structure was observed to be denser after treatment. The reduction in the absorption capacity of boiled fiber could be explained according to Ferreira et al. [49]. After several wetting and drying cycles, boiling with the addition of water during the boiling process, packing and a tightening of the fiber cell are increased. In addition, the lumen is decreased due to the treatment process, which results in a reduction in the fiber’s water absorption capacity. From the observation of cross-section of the coconut fiber (see Figure 8c) there is a lumen in the middle and irregular multi-voids around, which indicates its higher water absorption than some others.
Pretreatments could result in a surface morphology modification (such as surface geometry, surface roughness, dirt removal) and microstructure change from pores to macro pores [50]. Rawangkul et al. [51] observed a reduction in the volume of the void by using Mercury Intrusion Porosimetry (MIP) measurements on boiled coconut fibers. The total volume of mercury intruding up to the maximum pressure was 4.16 and 2.52 cm3/g for 0.5 h boiled fiber and 1 h boiled fiber, respectively. At the same time, they observed a reduction in the surface areas. The surface area of 0.5 h boiled fiber was higher than that of 1 h boiled coir. In addition, the reduction in porosity can be qualitatively observed by images given in Figure 8.
Table 3 recaps the water absorption capacity of some plant fibers. The capacity of fiber to absorb water diminishes the durability of fiber-reinforced composites. Water absorption results in volume changes that can lead to the appearance of cracks in composites [52]. The water absorption capacity is a crucial drawback of plant fibers for their application in construction materials. Limiting water absorption is thus often desirable to enhance the durability of composites. Coating fibers to avoid water absorption and alkaline environment was suggested by Pacheco-Torgal et al. [52] as a valuable way to upgrade the durability of fiber-reinforced concrete.

3.3. Thermal Conductivity

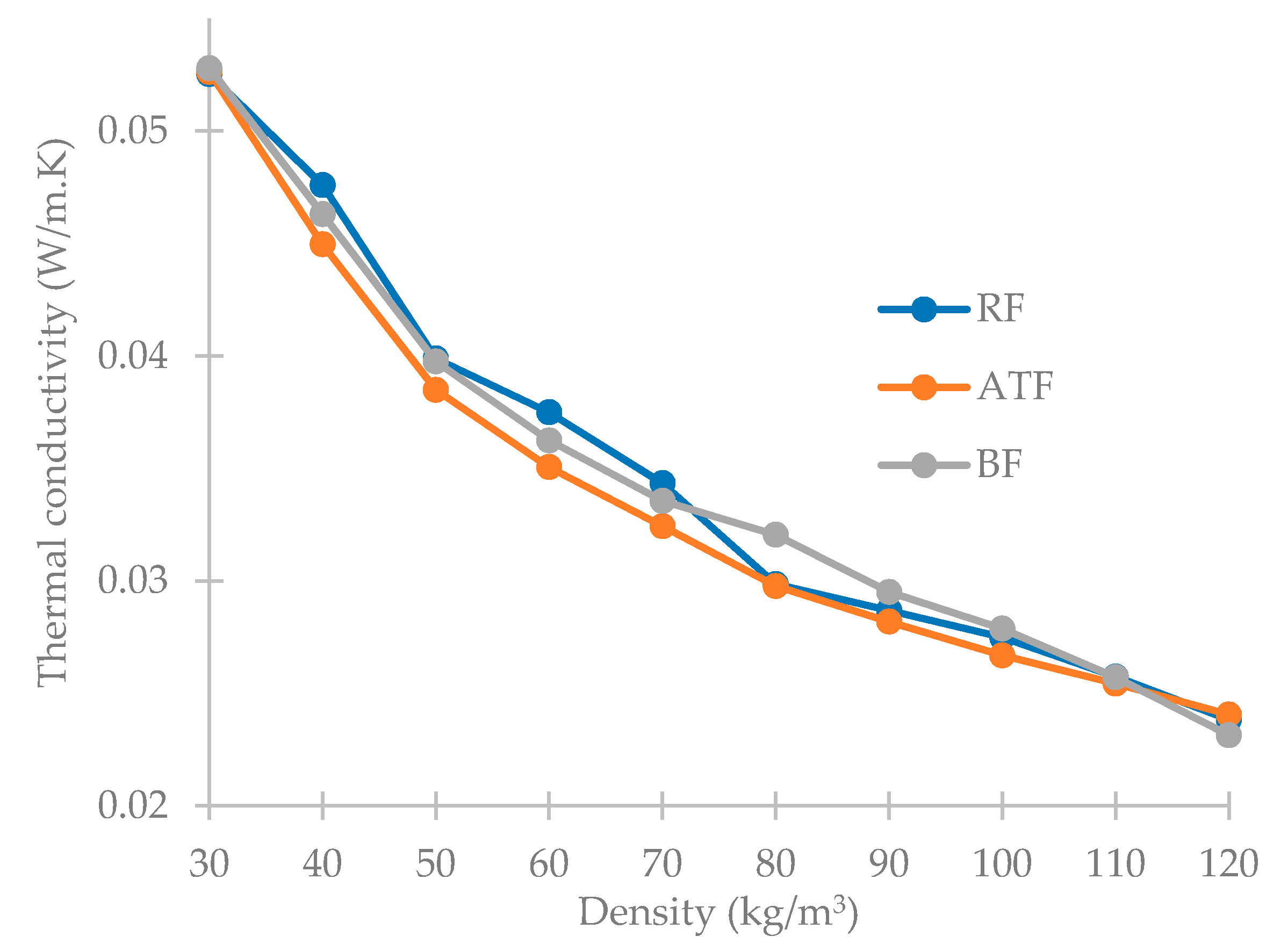

The thermal conductivities of fibers tested are given in Figure 11. It is clear from the figure that there is no significant difference in thermal conductivities for the three kinds of fibers considered. That means the treatment processes do not influence the thermal conductivity of fiber. The thermal conductivities of fibers decreased from nearly 0.052 to approximately 0.024 W/m.K with the increase in density from 30 to 120 kg/m3. Conductivities observed for each type of fiber are smaller than 0.1 W/m.K, and according to Asdrubali et al. [57], materials with a thermal conductivity lower than 0.1 W/m.K are considered as thermal insulators. Thus, coconut fiber is an excellent candidate for building insulation materials.
Thermal conductivity depends on the component of fibers, as indicated in the study by Guillou et al. [58]. Based on three main constituents of natural fibers (cellulose, hemicellulose and lignin), they developed a model to predict the thermal conductivity of individual material with the value of 0.291 and 0.2668 W/m.K for individual kenaf and hemp fiber, respectively. Also, thew heterogeneities of the natural fibers induce difficulty in the measurement of the fibers’ thermal properties.

3.4. Mechanical Properties

Tensile strengths and tensile strains of single raw and treated fibers are given in Table 4. The results indicate that the physical treatment decreased the tensile strength by approximately 17%, while the chemical treatment decreased the tensile strength by 11% in comparison with raw fiber. It is evident that the tensile strength of coconut fibers was deteriorated with boiled and alkali treatments. Raw fiber is stronger and less brittle as compared to treated coconut fiber. A similar downward trend was also observed when Gu [59] treated coconut fibers with the NaOH solution. The chemical treatment and several wetting cycles in physical treatment provide more Na+ and OH- ions. These ions react with the cellulose in the fiber. In addition, the several wetting cycles in the physical treatment method result in the partial removal of lignin, pectin, and fatty acid, which is the detrimental factor to the fiber strength. The cellulose in natural fiber is mainly responsible for the mechanical properties of the fiber [60]. In order to compensate for the loss of strength of fibers, the use of resin can improve the strength of composite-incorporating fibers [61].
In contrast, an increase of 18% and 51% in the tensile strain at the failure was observed for chemically and physically treated fibers, respectively. The treated fibers became ductile because of the removal of the impurities [59].
Compared with other natural fibers, the coconut fiber has a significantly higher strain at failure. Table 5 shows the tensile properties of different raw fibers in the present study and others in previous works.

3.5. Thermogravimetric Analysis

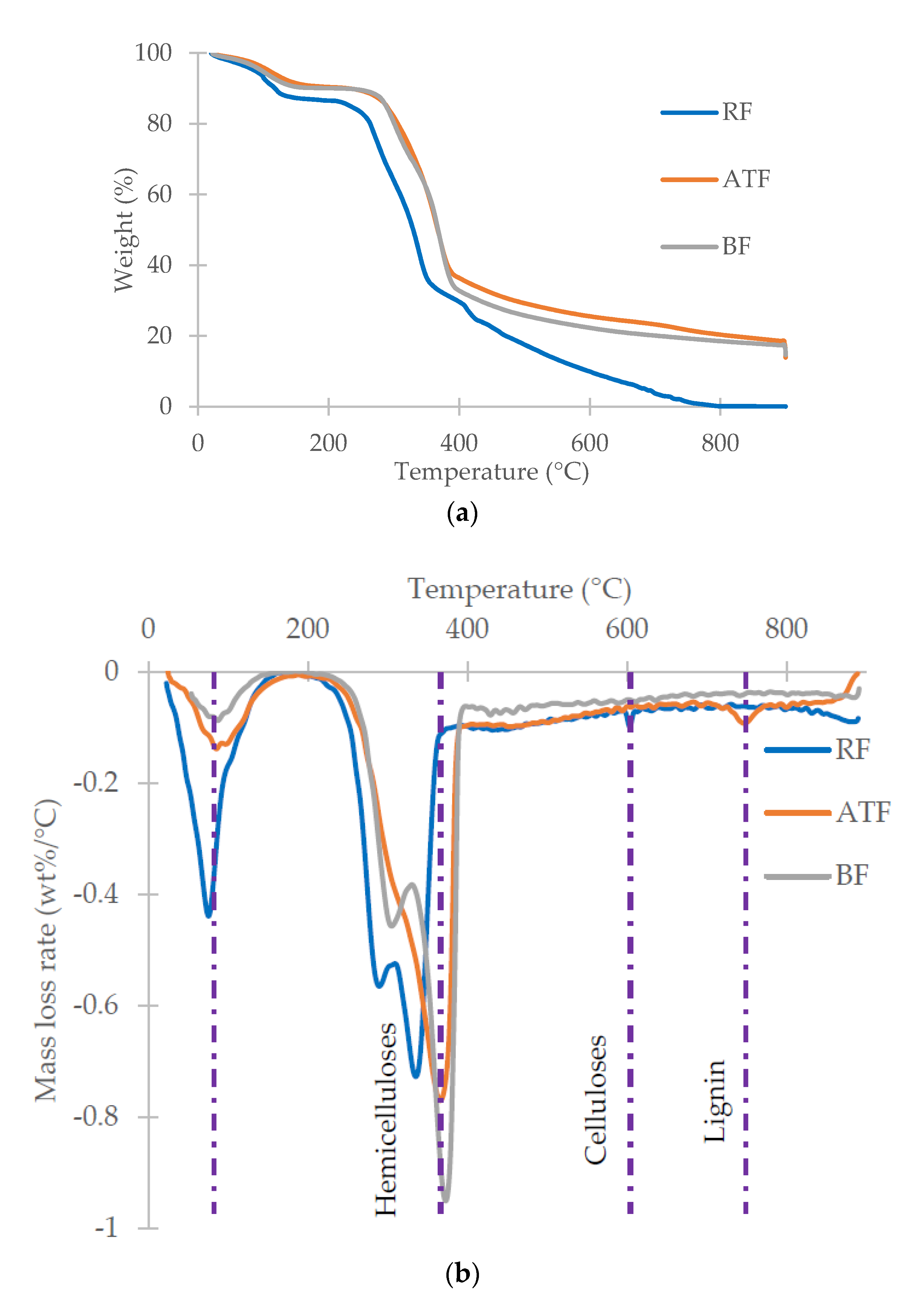

Thermogravimetric analysis (TGA) and differential thermal analysis (DTA) diagrams are presented in Figure 12 and the results are summarized in Table 6.
It can be seen that the thermal behavior of coconut fiber is similar to that of other plant fibers, such as sisal [64,65] or hemp [33]. Nearly the same trends were found among the pyrolysis behavior of the three types of fibers.
There are four main stages of mass loss in the pyrolysis process. The first stage is in the temperature range between ambient temperature and 140 °C. The fibers start their decomposition easily with the mass loss of approximately 8% for treated fibers and 12% for fibers without treatment. This loss of mass would correspond mainly to the dehydration of the fiber whose water content is approximately 7–10% and the removal of volatile compounds.
The second stage of mass loss corresponds to hemicellulose degradation and occurs at 140 °C. This phenomenon can be explained by the fact that hemicellulose contains a series of saccharides like xylose, mannose, glucose, and galactose, which are very easy to remove and deteriorate to volatiles evolving at low temperatures [66].
The next stage, which happens between 250 and 400 °C, corresponds to cellulose degradation. Due to the firm and good order structure, the thermal stability of cellulose is higher.
Lignin is full of aromatic rings with various branches, which leads to its degradation occurring at last and ends at 900 °C. At 900 °C, the residual masses for raw, alkali-treated, and boiled fiber, are 0.05%, 13.94%, and 14.64%, respectively. It can be concluded that the treatment application has a significant effect on the thermal degradation behavior of coconut fibers. For natural coconut fiber, there is a temperature range between 150 and 615 °C, where the loss is the most significant (from 10% to 90%). In comparison, thermal diagrams of treated fibers have a higher temperature range than that of raw fibers. Among the three types of fiber, alkali-treated fibers are the most difficult ones to decompose even if the boiled fibers behave similarly. Its decomposition happens slowly under the whole temperature range, i.e., from ambient temperature to 900 °C. For both types of treated fiber, the mass loss rates are the highest, at about 350–400 °C, where the rate of boiled fiber peaks at 0.95 wt%/°C and that of alkali-treated and raw fiber are maximum at 0.75 wt%/°C. From the temperature of 400 °C, the degradation process of three types of fiber continues slowly and gets a stable value at around 0.1 wt%/°C. The small mass loss of cellulose and lignin under temperature development could be correlated with a reduction in water absorption capacity of the treated fibers as well as an increase in chemical stability that makes them less hydrophilic.

3.6. Chemical Durability

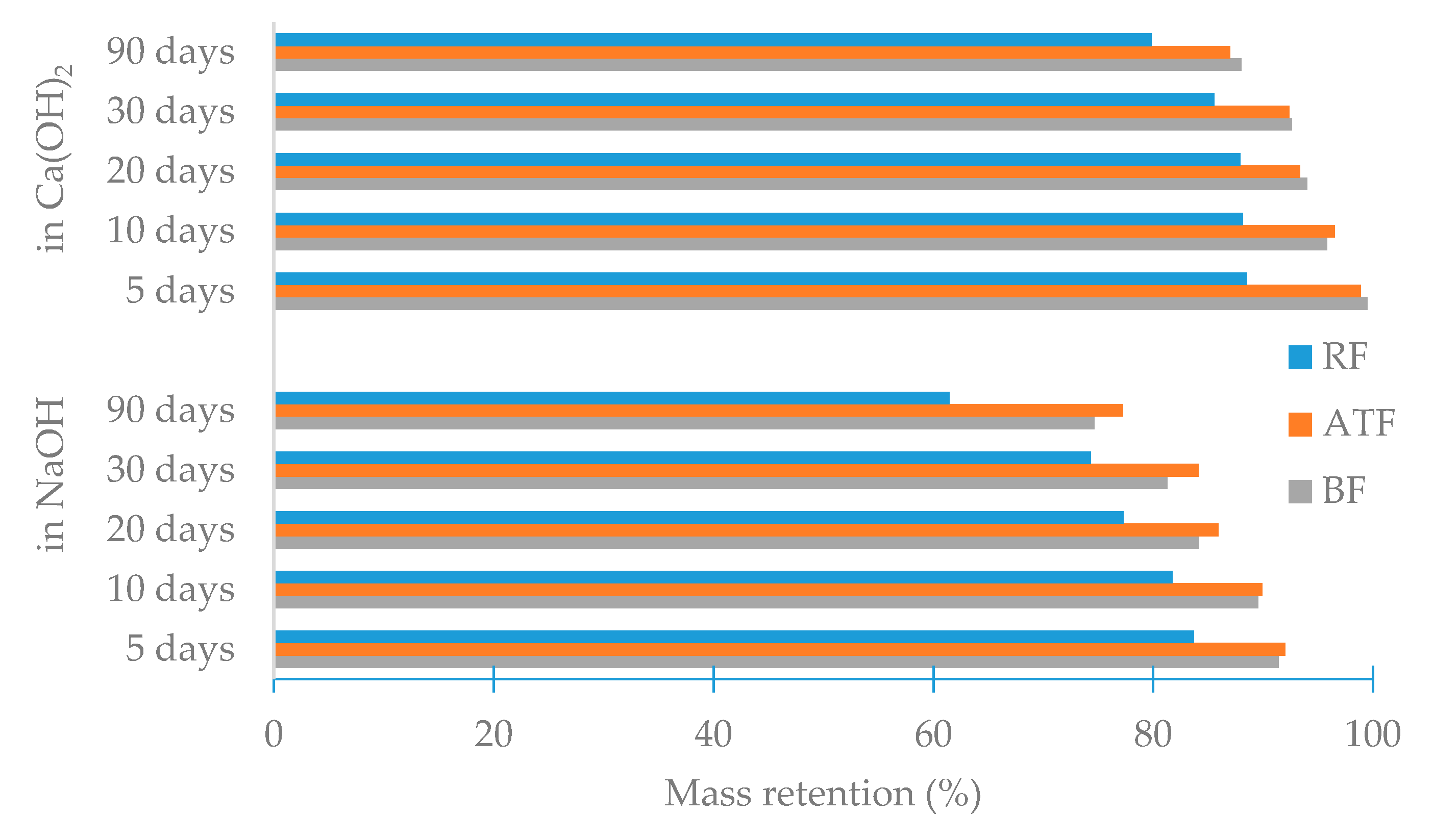

Figure 13 shows the mass retention of fibers immersed in different solutions. From the histograms, the calcium hydroxide solution indicates a lower mass loss than the sodium hydroxide solution. While the maximum weight loss is observed as approximately 37% for raw fiber in sodium hydroxide solution after the immersion time of 90 days, this number is only around 25% for both other types. This could be due to the presence of numerous pores, which allows the aqueous solution to permeate into and break down the silicon linkage [38]. On the other hand, by virtue of the process of treatment, the chemical degradation of the treated fiber is slower than that of the fiber without treatment. The retentiveness of the mass of the fiber with treatment in sodium hydroxide solution NaOH at the end of 90 days is approximately 75% in comparison to 63% for the raw fiber in the same immersion situation. Similarly, the weight of the raw fiber decreases by 20% at the end of the calcium hydroxide solution Ca(OH)2 immersion period. On the other hand, those of the treated fibers decrease only by 12%. This happens because pectin, ash and other impurities, which are easier to degrade than three main components of fiber, had been removed due to the treatment process.

4. Conclusions

The knowledge of the properties of coconut fiber is necessarily required to use it as reinforcement in composite materials. Two treatment approaches were considered: physical and chemical methods. The experimental results obtained put forward the following conclusion:
The treatment process removes a part of the fiber surface, resulting in a rougher fiber surface and increased absolute density as well as the decreased diameter of fiber by roughly 10% and 30% for alkaline and boiled treatment, respectively.
Water absorption capacities of alkali-treated and raw fiber were found to be almost the same, but there was a remarkable reduction in water absorption capacity of boiled fiber.
The experiments to determine the thermal conductivity of the bundles of fiber have shown that both treatment methods do not affect the thermal conductivity values. For all types of fiber, the thermal conductivity was decreased from 0.052 to 0.024 W/m.K with the increase in density of the fiber bundles from 30 to 120 kg/m3.
Both treatment processes decreased the tensile strength of the fiber. This happens due to a reduction in lignin, pectin, fatty acid and cellulose due to the treatment process. By contrast, tensile strains at failure of fibers were increased significantly by 18% and 51% after chemical and physical treatment, respectively. This implies that the ductility of fibers has increased after treatment.
The same trend of thermal behavior of all the types of fibers was found in TGA and DTA tests. However, the higher thermal stability of treated fibers was observed in comparison to raw fiber by virtue of the partial removal of impurities. The residue of treated fibers left at 900 °C is higher than that of raw fibers.
Similarly, higher chemical durability with the application of both treatments was explained by exposing the fibers to the saturated solution of sodium hydroxide NaOH (10%) and calcium hydroxide (Ca(OH)2). The results indicate that the mass loss of raw fiber is 37% and 20% in sodium and calcium hydroxide solution, respectively. Mass loss of treated fibers is roughly half as compared to raw fibers. The higher percentage of hemicellulose, cellulose, and lignin in treated fibers is the reason for this chemical durability.
A careful selection of fibers is a crucial task and required before using coconut fibers as well as other natural fibers in reinforced composites. Different parameters need to be identified, such as the origin and local and seasonal quality variations of the fibers in order to control the retting process, defects, and homogenous batches of fiber.
Considering the circular economy, sustainable development and environmental aspects, a simple method for coconut fibers preparation should be proposed, as illustrated in Figure 14. In the fiber preparation process, the collection must be installed near the coconut fields or the coconut pulp industry where raw coconut envelopes are collected. Husk retting and fibers extraction are processed using water without chemical additives at the same place. The water used is filtered and impurities gathered for biomass. Water is again reused for the retting process. Fibers are sun-dried and cut to the desired lengths with a knife mill machine equipped with various sieve sizes. In this cutting operation, coarse grains as chips are mixed with fibers that will be separated by means of an air jigging system. Finally, fibers cut to length are bagged like coconut chips.
