Tensile Properties and Microstructure of Single-Cellulosic Bamboo Fiber Strips after Alkali Treatment

Abstract

The study systematically explored the effect of alkali concentration and soaking time on the microstructure and tensile properties of single-cellulosic Buluh Semantan. Scanning electron microscopy and tensile tests were conducted to determine the effects of different alkali treatments on the properties of the single-cellulosic bamboo fibers. In particular, the effects of NaOH concentration and soaking time on the tensile properties of the single-cellulosic bamboo fiber were investigated. The single-cellulosic bamboo fiber was immersed in 2, 4, 6, and 8 wt.% aqueous NaOH solutions for soaking times of 1, 3, 6, 12, 18, and 24 h. The tensile properties of the fiber increased after each alkali treatment. The alkali concentration and soaking time significantly affected the fiber properties. The ultimate tensile strength of the single-cellulosic Buluh Semantan treated with 2 wt.% NaOH for 12 h decreased to 214 MPa relative to the fibers that experienced water retting. The highest tensile strength herein was 356.8 MPa for the single-cellulosic fiber that was soaked for 12 h in 4 wt.% NaOH. Comparatively, the tensile strength of the single-cellulosic bamboo fiber that was soaked for 12 h in 8 wt.% NaOH was 234.8 MPa. The tensile modulus of the single-cellulosic fiber was 12.06 GPa after soaking in 8 wt.% NaOH for 18 h, indicating that a strong alkali treatment negatively affected the stiffness and suitability for use of the fibers in applications. The topography of the fiber surface became much rougher after the alkali treatments due to the removal of hemicellulose and other surface impurities. The alkali treatments substantially changed the morphology of the fiber surface, suggesting an increase in wettability.

1. Introduction

Currently, due to the increasing awareness of environmentally friendly biomaterials, natural fibers have gained widespread attention as a prospective alternative to synthetic fibers, for their composite applications in the construction and automobile industries [1,2]. The benefits of using natural lignocellulose fibers in place of traditional inorganic fibers made from fossil fuels relate to their specific properties, such as their light weight, low cost, high specific properties, low density, good thermal properties, eco-friendliness, and biodegradability [1]. They can also be used as a replacement for glass fibers during composite manufacturing [3,4]. Indeed, far-ranging studies on natural fibers, including sisal, flax, kenaf, and bamboo, demonstrate that natural fibers possess amazing potential as an effective reinforcing phase in composite materials [1]. The NF exhibits poor resistance to moisture, thus leading to high water absorption and poor mechanical properties and dimensional stability. Alkali treatment is common fiber treatment, to provide fiber/matrix adhesion and good mechanical properties of the composites [5,6]. Bamboo is the largest member of the grass family Poaceae, subfamily Bambusoideae, and tribe Bambuseae. In tropical areas, especially Asian countries, bamboo is a basic natural resource that plays an important role in people’s daily lives and cultures because of its rapid growth, excellent flexibility, high strength, weight ratio, excellent specific strength, and high specific modulus [7,8]. Malaysia has classified bamboo into 59 species, of which 25 species have been introduced, while 34 species are indigenous [9,10]. The strength of bamboo generally increases with the thickening of its fiber walls, and maturity is reached in approximately three years [11,12]. In Asia, bamboo is widely used as a raw material for furniture, pulping, and handicrafts [13,14]. The bamboo culm is constructed in hollow cylinders, while internodes are the place where branches grow. Each section of the bamboo fiber has different properties. Different types of bamboo fibers vary in their properties due to differences in their length, diameter, constituent composition and lumen size. The term lignocellulose fiber includes all kinds of fibers that have major components comprising cellulose, hemicellulose, and lignin in different proportions depending on the type and source of the fiber [15,16]. The chemical components of bamboo fibers have been reported to include 73.83% cellulose, 12.49% hemicellulose, 10.15% lignin, 0.37% pectin, and 3.16% aqueous extract. Indeed, lignocellulose fibers are known to have a hydrophilic nature and are covered with pectin’s and waxy substances, thus preventing the hydroxyl groups from reacting with polar and hydrophobic organic matrices. This fact leads to premature ageing by degradation and loss of strength of the final composite [15,17]. Retting, also called degumming, is the process of removing non-cellulosic materials attached to fibers, to release the individual cellulosic fiber. However, information on the effect of extraction methods on natural fiber properties is limited. Amel et al. [18] investigated the effect of different extraction methods on the tensile strength, morphology, chemical composition, and density of kenaf fibers. The different methods include crude, decorticated, water-retted, 5 wt.% NaOH-retted, and 5 wt.% benzoate-retted methods. The water-retted fiber has the highest reported tensile strength of 426.05 MPa, while there is a slight difference in tensile strength between decorticated and NaOH-retted fibers (386.85 and 393.03 MPa, respectively). The hydrophilic nature of natural fibers may have disadvantages if they are used to reinforce hydrophobic polymeric matrices, because cellulose, as the main component of natural fiber, is cemented by matrix lignin, and hemicellulose functions as a weak boundary layer and reduces the adhesion between the fibers and polymeric materials [19]. Surface modification is necessary to improve the adhesion of fiber-polymeric materials, such as silane coupling agents [20], compatibilizers [21], alkali treatments [22,23,24], and heat treatments [25], which are often used to introduce a decreased number of polar groups and replace hydroxyl groups on bamboo fiber surfaces, as a means to decrease the water absorption and aggregation in the fiber [26]. Among all these treatments, mercerization or alkali treatments are versatile and bring about changes in the dimensions, fine structure, chemical composition, morphology, and crystalline component; they also improve the wettability and resin pick up of natural fibers, like coir, sisal, flax, and cotton. Alkali treatments improve the adhesion between these hydrophilic fibers and the hydrophobic matrix by roughening and exposing additional cellulose on the surface. Alkali treatments are effective in producing high-quality fibers at experimental and commercial scales, because they enable the disruption of hydrogen bonding in network structures, resulting in an increase in the surface roughness and removal of hemicellulose and lignin from the fiber surface. The alkali treatment modifies the chemical constituents, resulting in changes in the mechanical properties, surface roughening, crystallinity, and thermal behavior of the fibers. The literature reveals that NaOH treatment removes the binding materials, depending on the treatment time, concentration of NaOH, treatment temperature, and liquor ratio [3]. Studies on the effect of NaOH treatment on the properties of bamboo fiber have already been performed by researchers, such as Hong et al. [27], who studied the tensile properties of individual bamboo fibers by using NaOH solutions with concentrations ranged (6, 8, 10, 15, and 25 wt.%) for 2 h. The bamboos were cut into strips at 30 mm longitudinally and 2 × 2 mm² in the cross-section. The tensile strength and modulus of elasticity decreased for the bamboo strips treated with alkali concentrations that were greater than 8 wt.%. The effect of the NaOH concentration on the tensile strength was negligible, but the influence on the modulus of elasticity was significant. Wang et al. [1] investigated the influence of alkali concentration on the thermomechanical properties of bamboo fibers. The alkali concentrations were 1, 4, and 7 wt.% NaOH solutions at room temperature, and the treatment time was 1 h. Compared with that for the untreated fibers, there was an improvement in the average tensile strength of the fibers after an alkali treatment at a concentration of 4 wt.%, which can be attributed to the formation of an effective contact area being available for excellent bonding with the matrix after treatment, whereas the high concentration used in the treatment caused a decrease in the tensile strength. This paper investigates the effects of the alkali concentration and soaking time on bamboo strips. The morphologies of the fracture surfaces were examined by using scanning electron microscopy (SEM).

2. Experimental Methods

2.1. Materials

The bamboo fiber species used in this study was Gigantochloa scortechinii, which is commonly known as semantan bamboo and was obtained from Pahang, Malaysia. This fiber was subjected to a water-retting process before being supplied to the laboratory. The bamboo fibers were then dried under the sun before they were manually extracted. The strips were manually extracted from the bamboo culm after water retting. All fibers were obtained from the outer layer of the bamboo stem, and to ensure consistency, only fibers from the same bunch were used. The sodium hydroxide (NaOH) used in this study was supplied by Mylab company, Malaysia, in a 1 kg container with a small pallet shape.

2.2. Fiber Diameter

The bamboo fiber was selected and separated from the bundle fiber and finally separated into single fibers. The bamboo fiber diameter was measured at 4.5 mm intervals, along its length, using a Leica Stereo Microscopic video analyzer 2000 (Model 250 D, Selangor, Malaysia). The mean diameter of single bamboo fiber strips was measured from the average of ten fibers, in which the diameter for every fiber was the average value of the diameter measured ten times at 4.5 mm intervals along the fiber length. The measurement was replicated three times for each treatment condition.

2.3. Alkaline Treatment

For the first step, the bamboo fiber strips were subjected to a water-retting process before they were supplied to the laboratory. The selected Buluh semantan strips were cut into an average length of 240 mm, with a diameter of 95.12 µm, and soaked in an alkaline aqueous solution, at different soaking times, at room temperature. Mishra et al. [28] reported that the NaOH concentration can vary from 1 to 10 wt.%. The researchers who published [23,29] reported that high concentrations of NaOH can worsen the mechanical properties of bamboo fiber strips. In this work, four different alkaline concentrations were prepared (2, 4, 6, and 8 wt.%). After the treatment, the bamboo fiber strips were washed, using fresh water, to remove the alkali content from them. A litmus paper was used to confirm that the fibers were neutralized. This was followed by drying under the sun for approximately two days before they were dried in an oven at a temperature of 60 °C for 24 h. The dried bamboo fiber strips were then kept in a sealed plastic bag, to avoid water absorption from the atmosphere before tensile testing.

2.4. Fabrication of the Samples

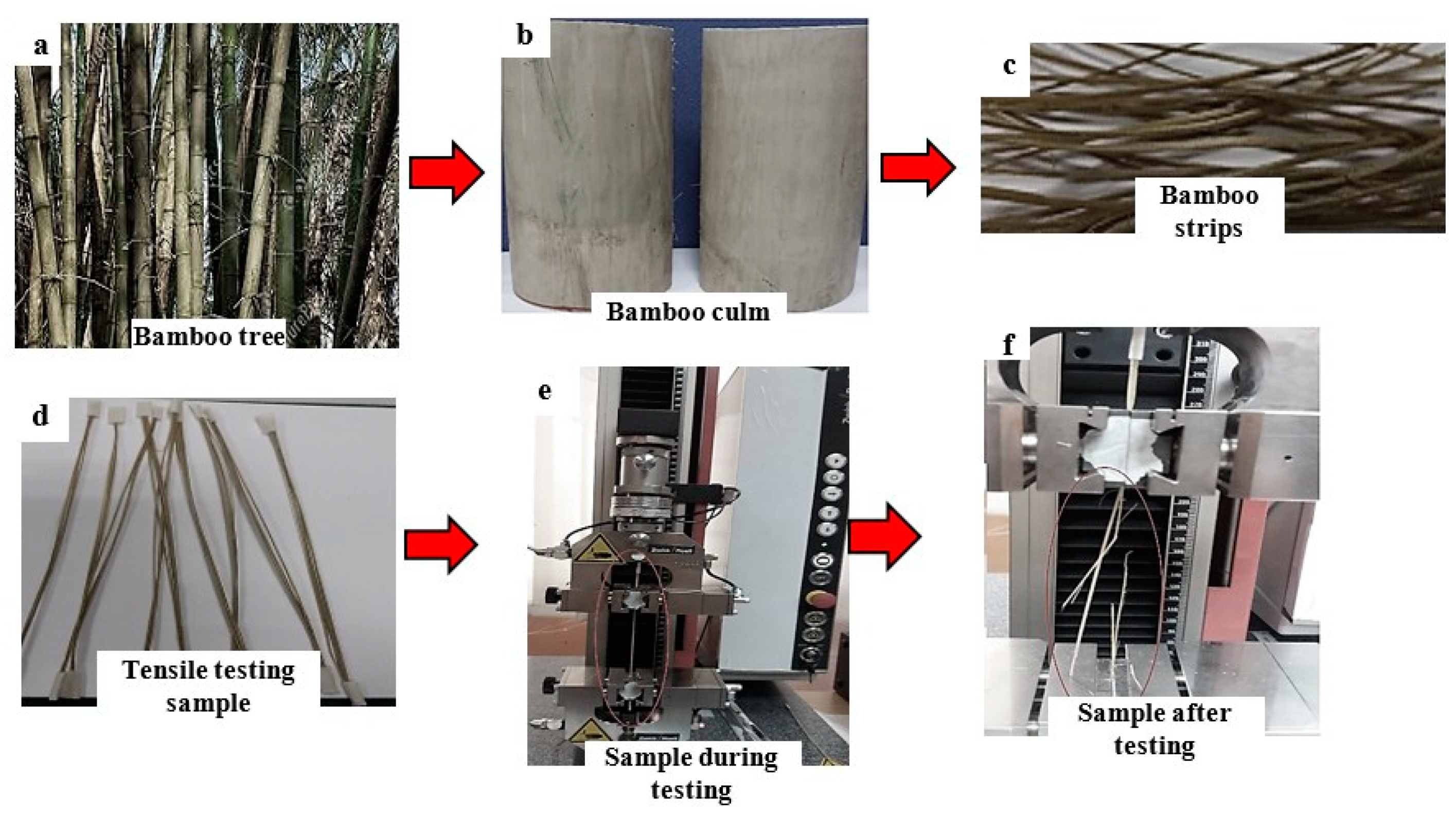

Before folding the adhesive tapes, the bamboo fiber strips were further glued with a cyanoacrylate adhesive liquid, to prevent the fibers from slipping during the tests and to enhance the adhesion of the fibers to the tape surface. All samples were fixed to a gauge length of 210 mm. Figure 1 shows a schematic diagram of the sample preparation method for the testing. The samples were then clamped tightly on a 2 kN Zwick/Roell machine (Zwick company, Berlin, Germany) (Figure 1e). The tensile test was carried out according to the ASTM-D 3822-07 standard. The crosshead speed was set to 1.5 mm/min. The tests were performed on fibers with 2, 4, 6, and 8 wt.% NaOH treatments. Seven samples from each condition were tested, and the average values were reported by calculating the maximum of five values, because we excluded from analysis the samples that broke near the edge of the clamps.

2.5. Fiber Morphology

The surface morphology of the bamboo strips after various alkali treatment conditions was examined with SEM (ZEISS/Carl ZEISS Sdn. Bhd.). The fractured surface of the tensile test samples was used with the SEM observations on an instrument operated at an accelerating voltage of 20 kV.

3. Results and Discussion

3.1. Microstructure Characterization

Figure 2, Figure 3 and Figure 4 show the surface morphologies of the 2 to 8 wt.% NaOH-treated single-cellulosic Buluh Semantan strips with a soaking time of 12 h. The strips treated with different concentrations of NaOH had a different surface morphology. Figure 2a–c shows the SEM micrographs of the single-cellulosic bamboo fiber strips. The fractured cellulose fibers were observed for the low-alkali-concentration sample, suggesting an unsuitable concentration. Figure 3a–c shows the individual cellular elements on the clean fiber surface after alkali treatment and relatively rough surfaces were observed on the single-cellulosic bamboo fibers. The researchers [30,31] reported that the surface roughness increases with increasing aqueous NaOH concentration. Rough surface morphologies are typical for treated fibers because of the removal of hemicellulose and other surface impurities. Thus, alkali treatment can result in substantial changes in the fiber surface morphology, which can lead to an increase in the fiber wettability.

The surface materials started to dissolve after treatment with the strong alkali concentrations (Figure 4a–c). Zhang et al. [26] reported that a decrease in fiber strength after treatment with high alkali concentrations can be attributed to the partial removal of cellulose. Holes and grooves were also observed, indicating the capability of the alkali treatment to remove very large amounts of soluble substances from the layers.

Hence, an excessive alkali treatment and soaking time can damage the strength of single-cellulosic bamboo fiber strips, suggesting that these variables are also unsuitable for treating bamboo fibers (Figure 5).

Figure 6 shows the microstructure of the single-cellulosic bamboo strips after soaking for 18 h in 4 wt.% alkali. The micrographs show a large number of regularly spaced holes or pits on the surface. These holes are possibly caused by the removal of fatty substances called tyloses from the fiber surface [31].

3.2. Tensile Properties

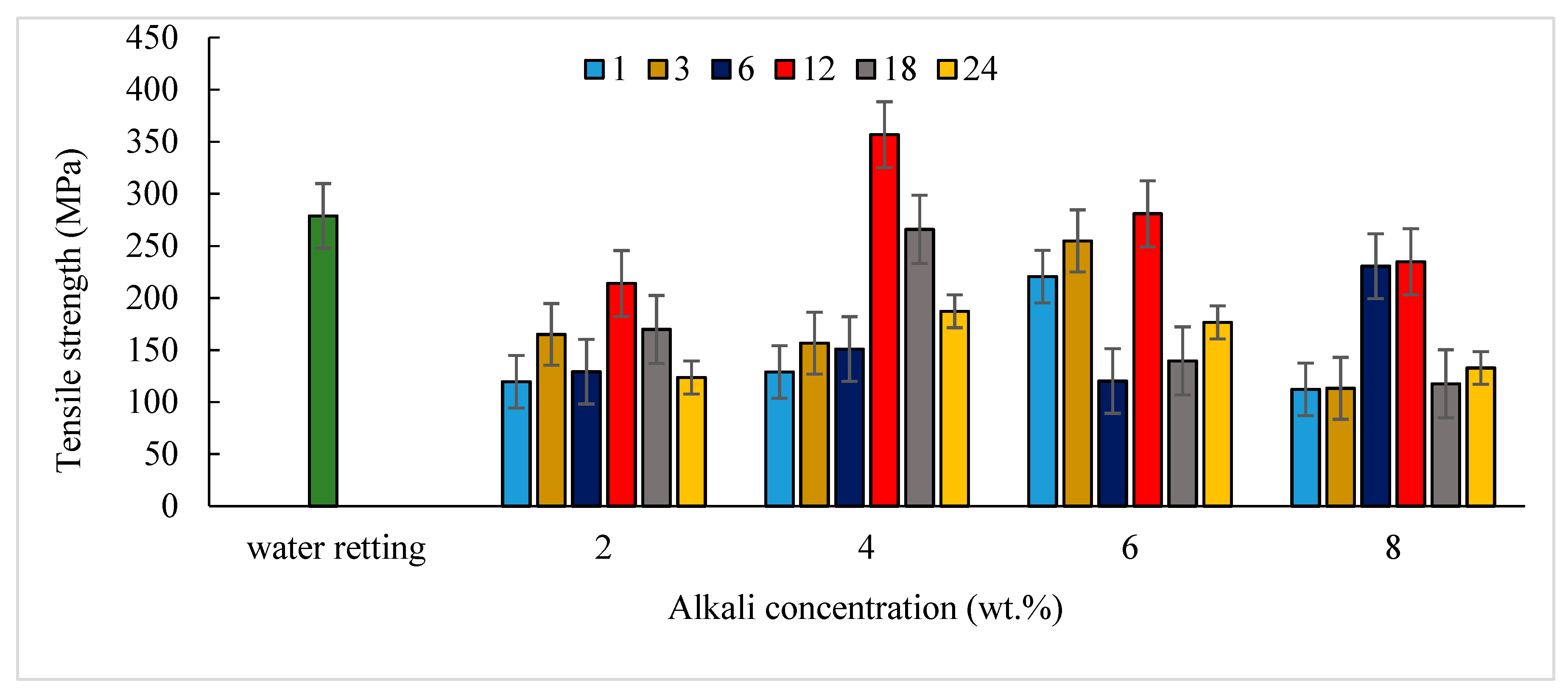

Figure 7 shows the tensile-strength results for the fibers treated with different alkali concentrations and different soaking times, relative to those that underwent water retting. The 4 wt.% NaOH treatment for 12 h had the best effect on the tensile strength of the bamboo fiber strips, whereas the high alkali concentration (i.e., 8 wt.% treatment) for different soaking times yielded the lowest result herein. Similar observations have been reported by [1], who investigated the influence of alkali concentration on tensile properties of bamboo fiber. The fibers were alkalized with 1, 4, and 7 wt.% NaOH solution for 1 h. They found that the maximum tensile strength is achieved at 4 wt.% alkali treatment as a result of the low-alkali-concentration removal of hemicellulose, lignin, and other impurities that makes those fibrils more capable of rearranging themselves along the direction of tensile deformation, resulting in better packing of cellulose chains. Moreover, leaching of these non-cellulosic materials makes a rough topography that appears on the fiber surface, offering better interfacial adhesion with the matrix, causing an improvement in the fiber strength. They also found that the tensile strength decreased by 4% when they increased the alkali concentration to 7%, as a result of weaker fiber with a high alkali concentration. The authors of [32] studied the soaking time effect on tensile strength of single pineapple leaf fiber. Their results showed that a 3-hour soaking time is insignificant for increasing tensile strength for both 3% and 6% NaOH treatment. However, a 6-hour soaking time at 6 wt.% NaOH is able to remove hemicellulose and lignin and enhance surface area adhesion for fiber/matrix. Likewise, a 12-hour soaking time and 6 wt.% NaOH treatment did not show much fluctuation and fall drastically to the lowest point, as the high alkali concentration may decrease tensile strength because it removes impurities, causes lignocellulosic degradation, and ruptures the fiber surface.

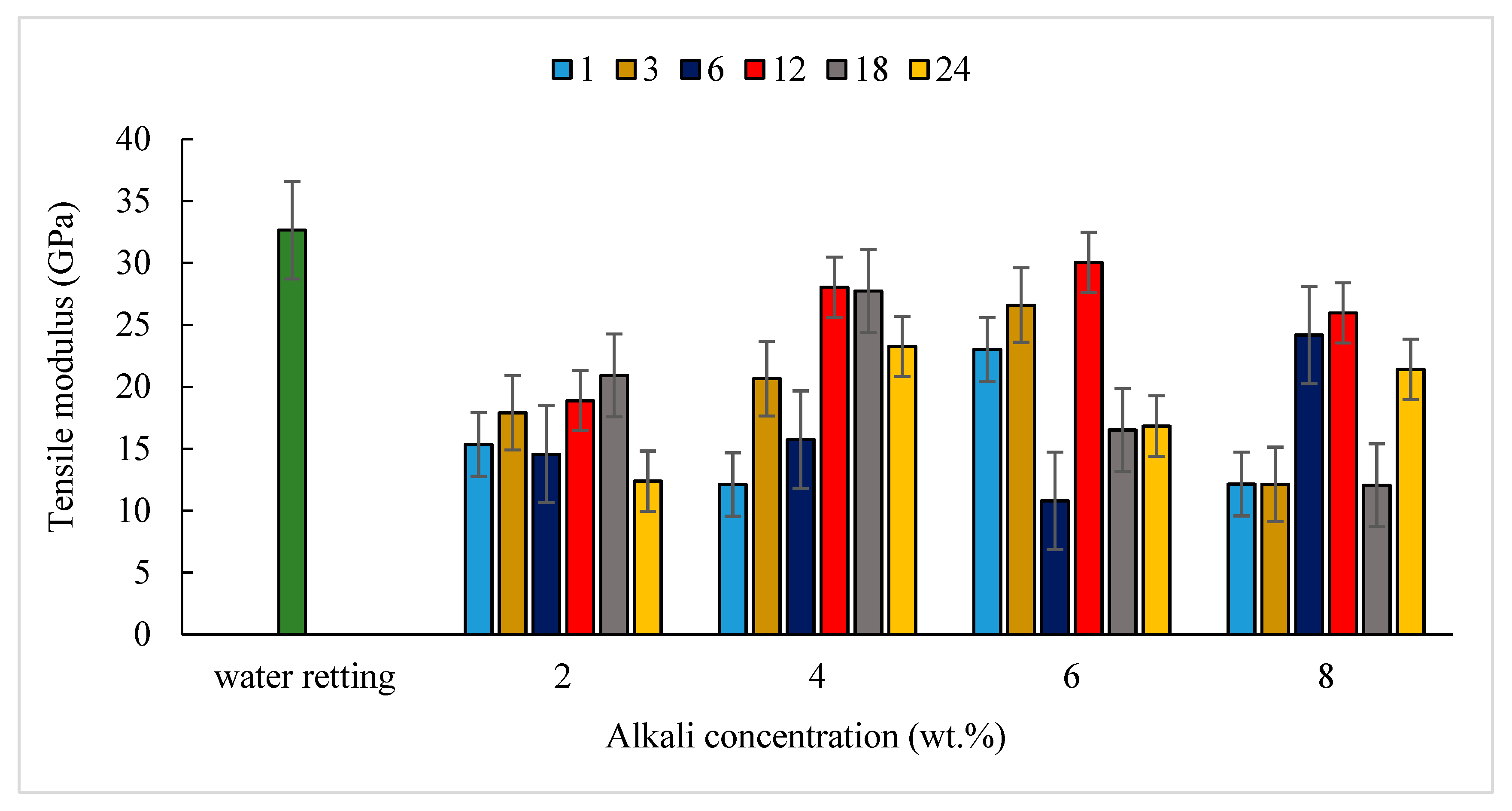

As shown in Figure 8, the trend of the tensile modulus is similar to that of the tensile strength, and the tensile modulus increased smoothly up to the 6 wt.% concentration; moreover, the effect of the treatment time seemed to be significant. The optimum increase in the tensile modulus was achieved at a 6 wt.% concentration and 12 h of soaking. Similar observations were reported by [3]. They found the tensile modulus of banana fiber has been increase by 38% and 102% for 10 and 15 wt.% alkali concentration, respectively, and the same studies reported a decreased in the tensile modulus when increase alkali concentration to 20 wt.%; due to degradation of cellulose, there is a reduction in tensile strength tenacity by 10% and tensile modulus by 66%. Reddy and Gowda [33] reported that alkali treatment of sisal fibers improved the cellulose crystallinity and removed impurities, such as hemicellulose and lignin. The sisal fibers became much more ductile after the removal of some of the impurities, resulting in a substantially increased fiber stiffness due to the increased crystallinity of the hard cellulose. The enhanced tensile modulus of bamboo strips fiber is also due to the same factor.

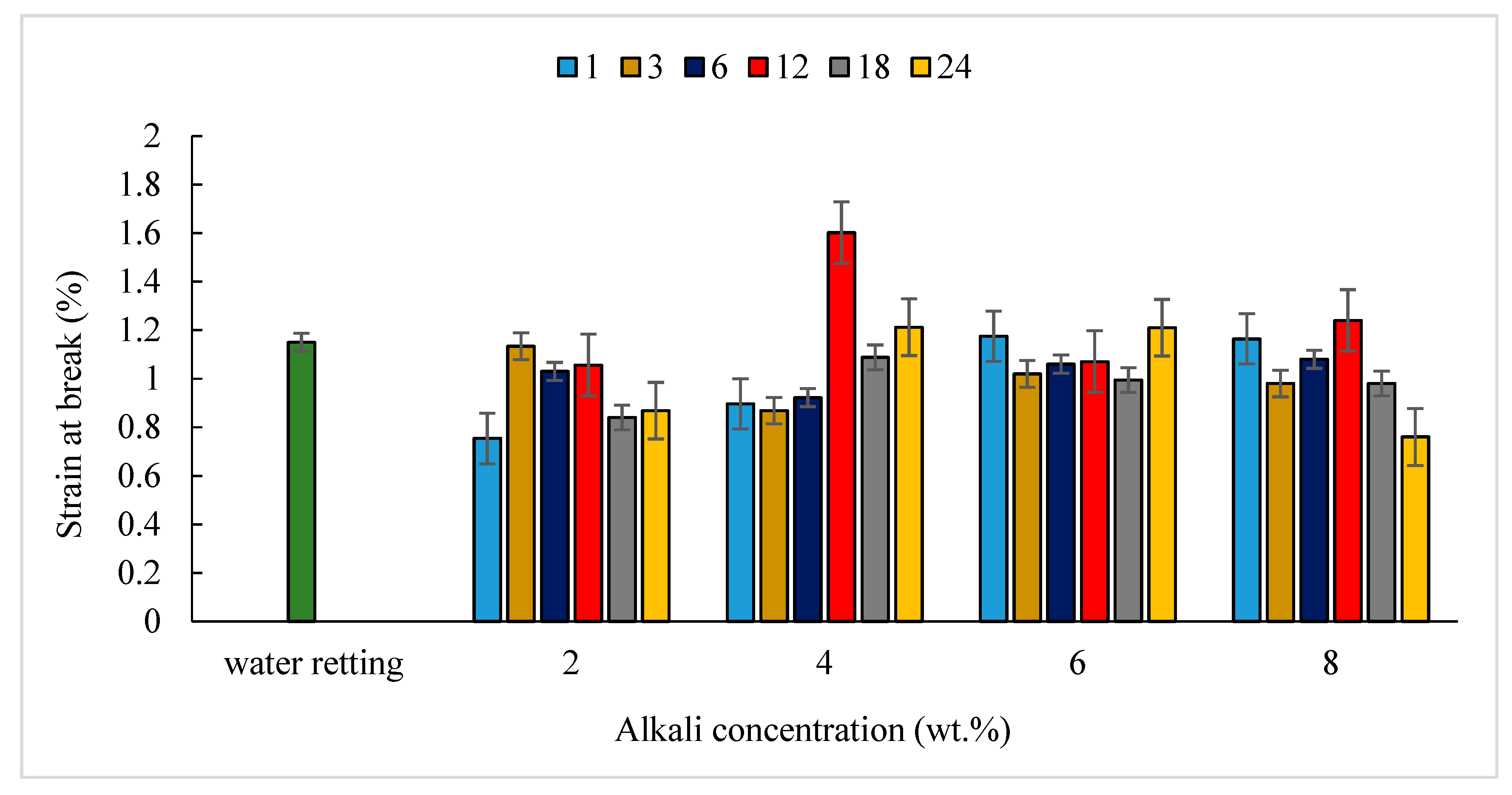

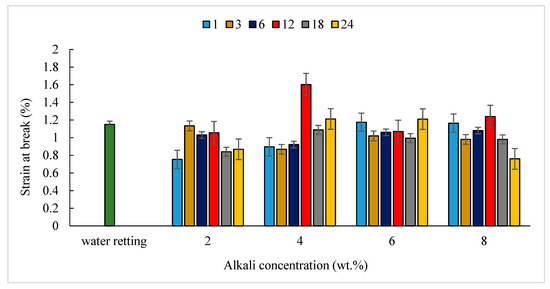

Figure 9 shows the strain-at-break results for the different alkali concentrations for various soaking times, relative to those that experienced water retting. No significant differences in the strain rate were observed for the fibers with the 2, 4, 6, and 8 wt.% treatments. The difference occurred between 0.7% and 1.6%. The strain-at-break decreased slightly following the 4 wt.% NaOH treatment. The data were consistent with an increase in the stiffness and brittleness of the fibers after the mid-phase of the alkali treatment in this study. The maximum strain-at-break of 1.602% was found for the fiber with the 4 wt.% alkali concentration and 12 h of soaking, whereas the minimum of 0.76 was found for the fiber with the 8 wt.% alkali concentration and 24 h of soaking. No obvious variations in the trend for the fracture strain as a function of the soaking time were established.

4. Conclusions

An experimental investigation was conducted in this study, to characterize the mechanical behavior and microstructure of single-cellulosic bamboo fiber strips. We found that the mechanical characteristics of the strips were affected by the various soaking times. The soaking time of 12 h resulted in optimized tensile properties, while increasing the soaking time to 18 and 24 h yielded the weakest performance herein. The tensile strength of the bamboo fiber strips was significantly improved after treatment with 4 wt.% NaOH for 12 h. In contrast, the fibers that experienced water retting only had a 28% increase in the tensile strength. Moreover, the tensile modulus of the bamboo fiber strips was significantly improved after treatment with 6 wt.% NaOH for 12 h, but the tensile modulus value at this condition was somewhat similar to that after water retting. We also found that an insufficient alkali solution decreased the tensile properties, whereas an excessively high NaOH solution can easily erode the fibers. The performance of the fibers was enhanced with the optimum drying and soaking times. The morphological changes determined from SEM observations indicated that alkali treatments at moderate concentrations enhanced the roughness of the Buluh semantan surface area, leading to an increase in the wettability. An excessive alkali concentration and soaking time damaged the fibers and subsequently affected their tensile properties.
