Next Article in Journal
Liquid Phase Selective Hydrogenation of Phenol to Cyclohexanone over Electrospun Pd/PVDF-HFP Catalyst
Next Article in Special Issue
In-Line Nanostructuring of Glass Fibres Using Different Carbon Allotropes for Structural Health Monitoring Application
Previous Article in Journal
Quasi-Static and Low-Velocity Impact Behavior of Intraply Hybrid Flax/Basalt Composites
Previous Article in Special Issue
Dissolution Kinetics of R-Glass Fibres: Influence of Water Acidity, Temperature, and Stress Corrosion
Open AccessArticle

Investigation of Atmospheric Moisture during Heat Treatment of Glass Fibres

Department of Mechanical & Aerospace Engineering, University of Strathclyde, 75 Montrose Street, Glasgow G1 1XJ, UK
*
Author to whom correspondence should be addressed.
Fibers 2019, 7(4), 27; https://doi.org/10.3390/fib7040027
Received: 27 February 2019 / Revised: 19 March 2019 / Accepted: 20 March 2019 / Published: 1 April 2019
(This article belongs to the Special Issue Advances in Glass Fibers)

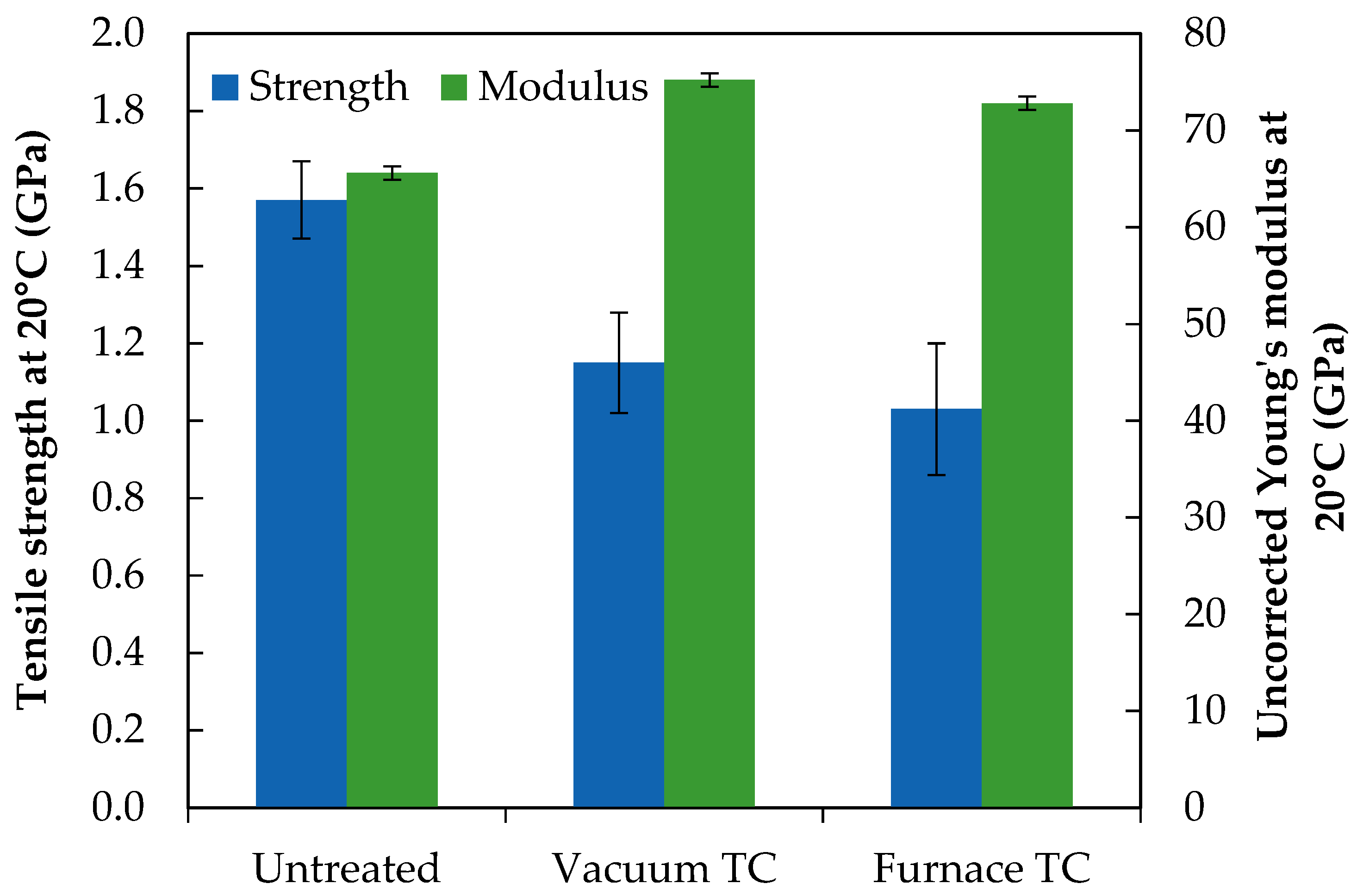

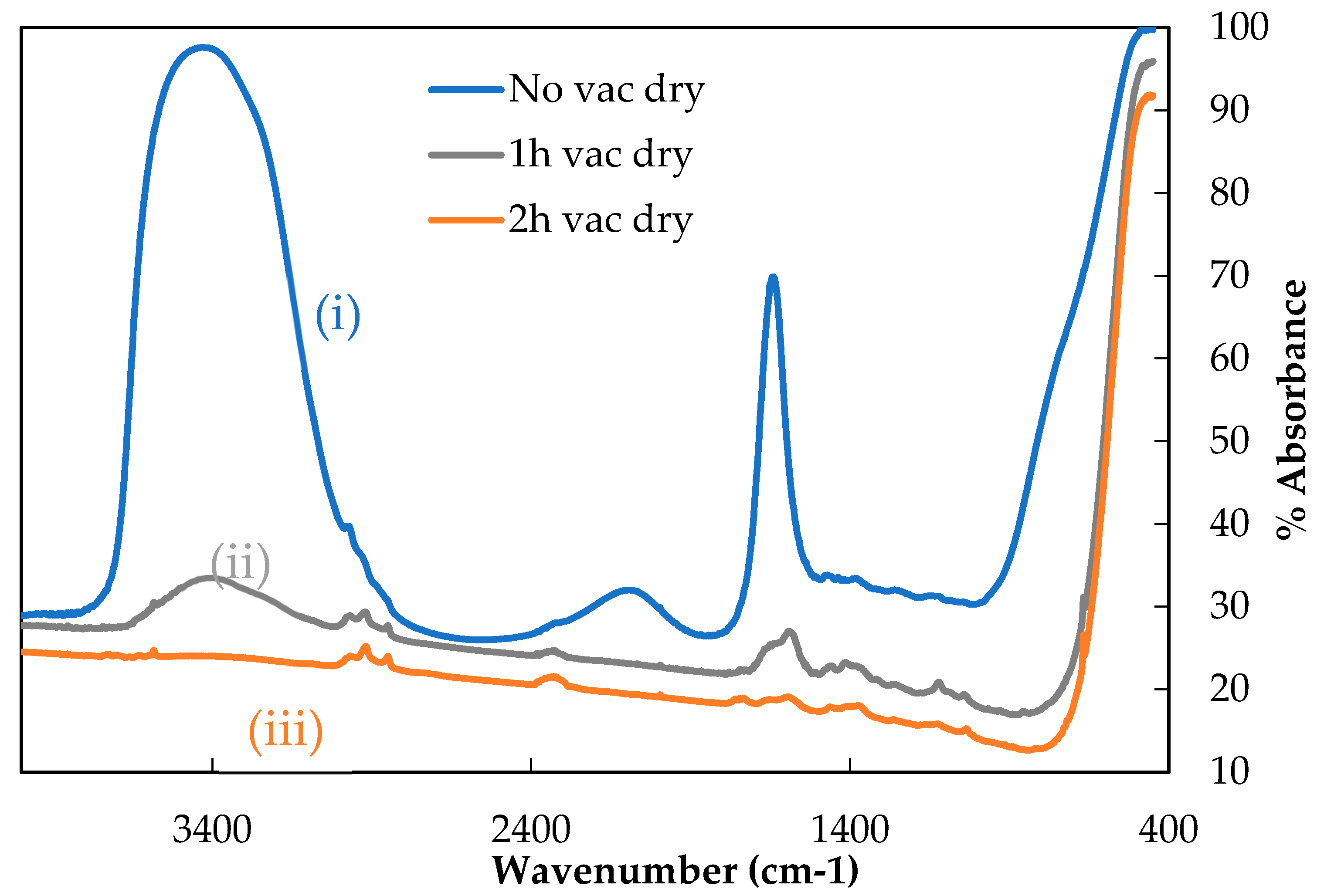

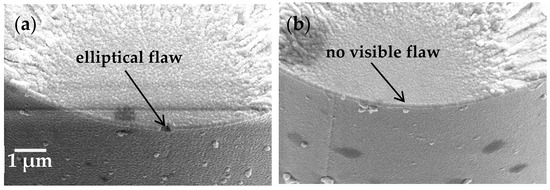

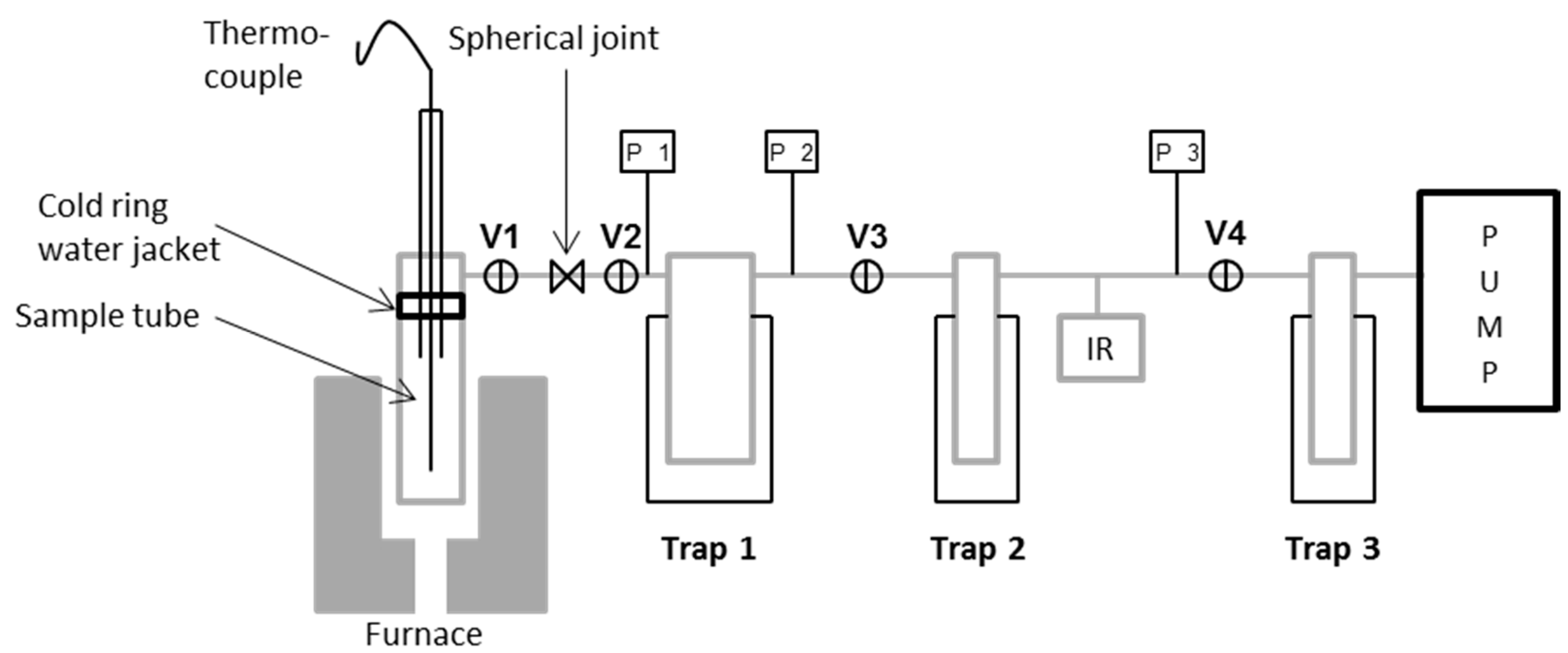

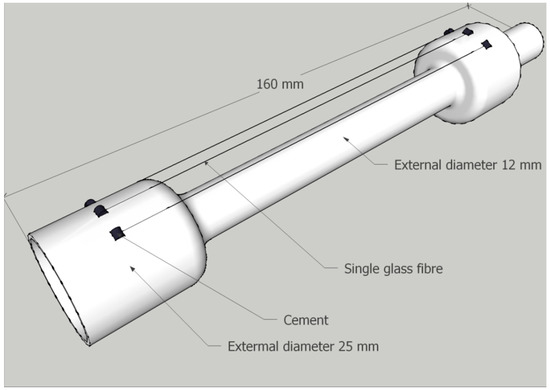

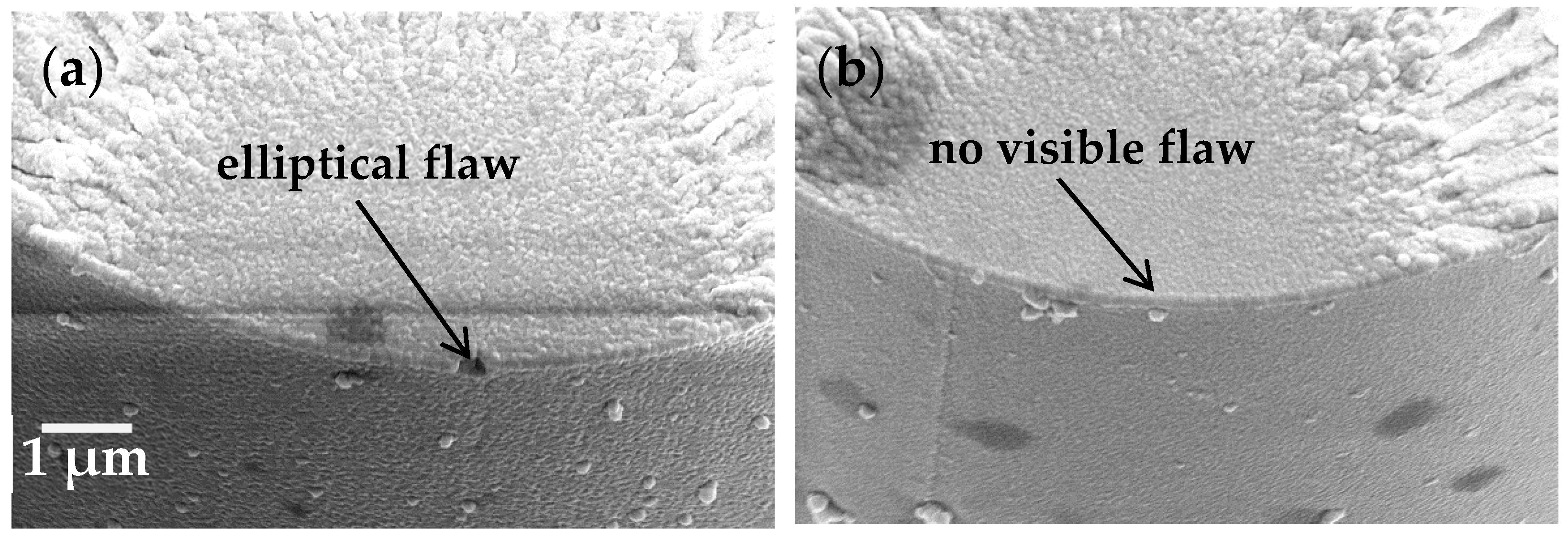

The tensile strength of single water-sized E-glass fibres that were thermally conditioned, either in air or under vacuum, was investigated. The vacuum removed water from the conditioning atmosphere, as well as the fibre surfaces, at room temperature but retained tensile strength of fibres treated in the absence of water were not significantly different from those thermally conditioned in a standard air furnace. The results suggest that water, either in the treatment atmosphere or on the surface of the fibres, is not a significant factor in fundamental glass fibre strength loss at an elevated temperature. It may, therefore, be necessary to consider alternative theories to explain this strength loss. View Full-Text
Keywords: glass fibres; thermal conditioning; strength loss; stress corrosion reaction; crack tip shielding glass fibres; thermal conditioning; strength loss; stress corrosion reaction; crack tip shielding
Show Figures

Figure 1

MDPI and ACS Style

Jenkins, P.G.; Yang, L.; Thomason, J.L. Investigation of Atmospheric Moisture during Heat Treatment of Glass Fibres. Fibers 2019, 7, 27.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
