Nanofibres in Drug Delivery Applications

Abstract

Over the years, scientists have been continually striving to develop innovative solutions to design and fabricate medicines with improved therapeutic potential. Conventional dosage forms, such as tablets, capsules, and injections, are limited when exploited for advanced therapeutics, such as drug targeting. To cater to these limitations, nanofibres have emerged as novel nanomaterials to provide enhanced bioavailability, targeted drug release, extended drug release profile, minimum toxicity, and reduced dosage frequency, which has indisputably improved patient adherence and compliance. This review will concern understanding the potential of drug-loaded nanofibres in drug delivery while comprehending a detailed description of their different production methods. The literature has been thoroughly reviewed to appreciate their potential in developing nanofibrous-based pharmaceutical formulations. Overall, this review has highlighted the importance, versatility, and adaptability of nanofibres in developing medicines with varied drug release kinetics. Several problems must be resolved for their full commercial realisation, such as the drug loading, the initial burst effect, the residual organic solvent, the stability of active agents, and the combined usage of new or existing biocompatible polymers.

1. Introduction

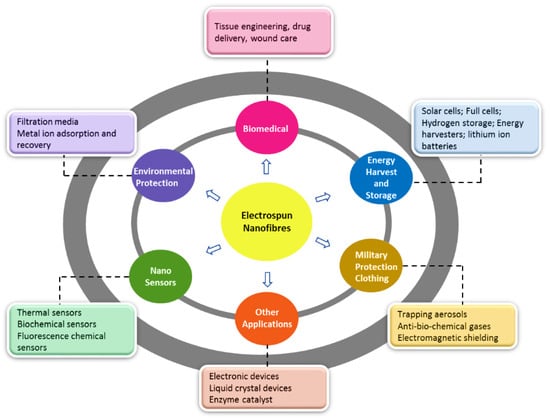

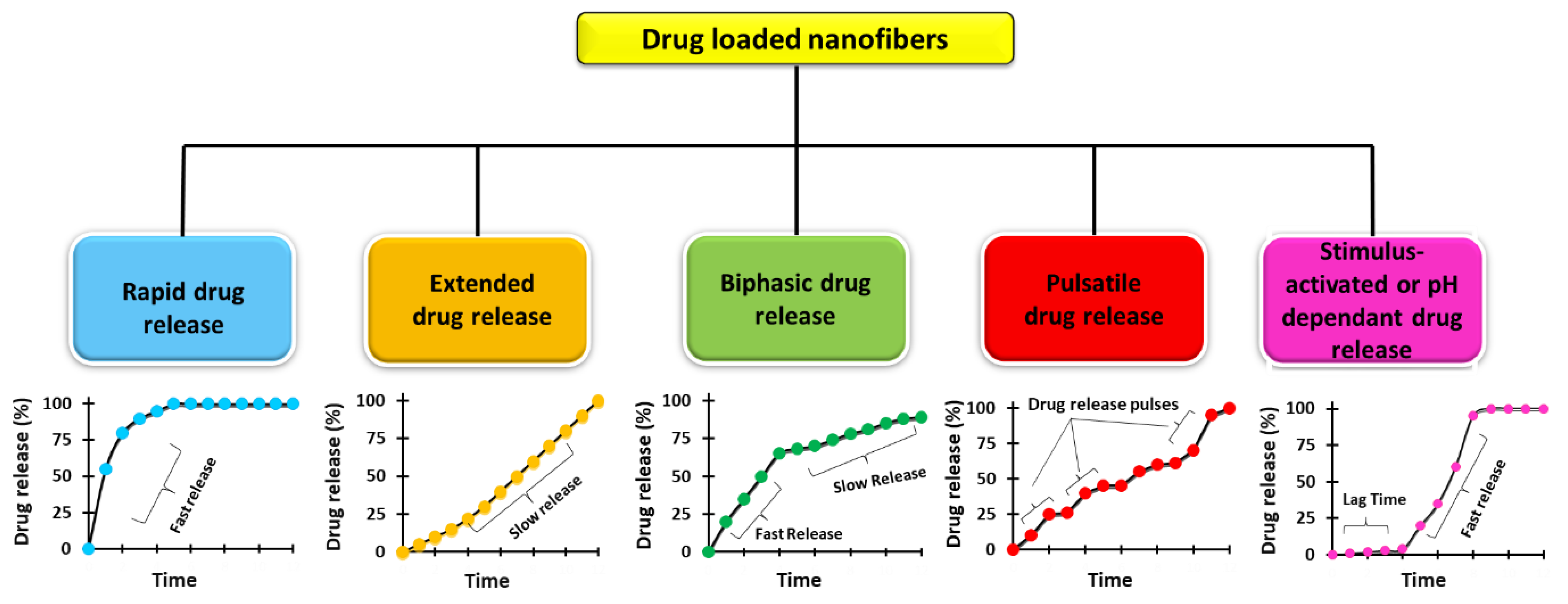

In recent years, nanotechnology research has grown massively, earning the epithet ‘tiny science’ [1,2]. The area of nanotechnology concerns the investigation, manipulation, and understanding of the properties of materials at the nanoscale [3]. Over the years, nanomaterials have been considered the centre of technological advancements for pharmaceutical, biomedical, and energy applications [4,5,6]. The production of structures in the nanometric range has provided groundbreaking developments in the healthcare sector [7]. Among various types of nanostructures that have been produced for practical applications, nanofibres are considered useful owing to their high surface area, porosity, ease of fabrication and excellent mechanical performance [8,9,10]. Currently, polymeric nanofibres are holding the inimitable limelight [11] due to their potential to address some of the limitations of conventional pharmaceutical formulations [12], which lack exactitude in advanced therapeutics [13]. In addition, they offer a promising solution for designing a drug delivery system in which the location, rate, and timing of drug release need to be controlled to achieve the desired therapeutic effect. Generally, these are solid fibres with a diameter of less than 1 µm (1000 nm) [14], having intrinsic nanoscale properties along with unique functionality (high surface area, high surface area–to–volume ratio, high mass transport, and interconnected nanoporosity) [15,16,17,18]. For these special characteristics, nanofibres are considered promising and universal drug delivery systems and can be fabricated using established technologies to attain wide-ranging drug-release kinetics (Figure 1). Nanofibres can also potentially protect the drug from decomposition within the body before reaching the target site. These have been exploited to develop formulations for oral, ocular, topical, transmucosal, and transdermal routes. This review is focused on appraising and compiling the literature to understand the potential of nanofibres in drug delivery while understanding the various manufacturing techniques [19].

2. Electrospinning

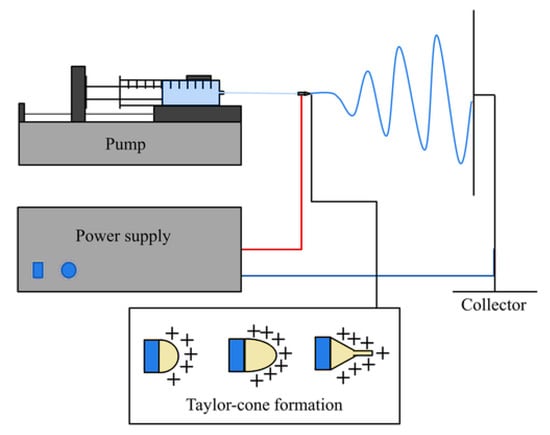

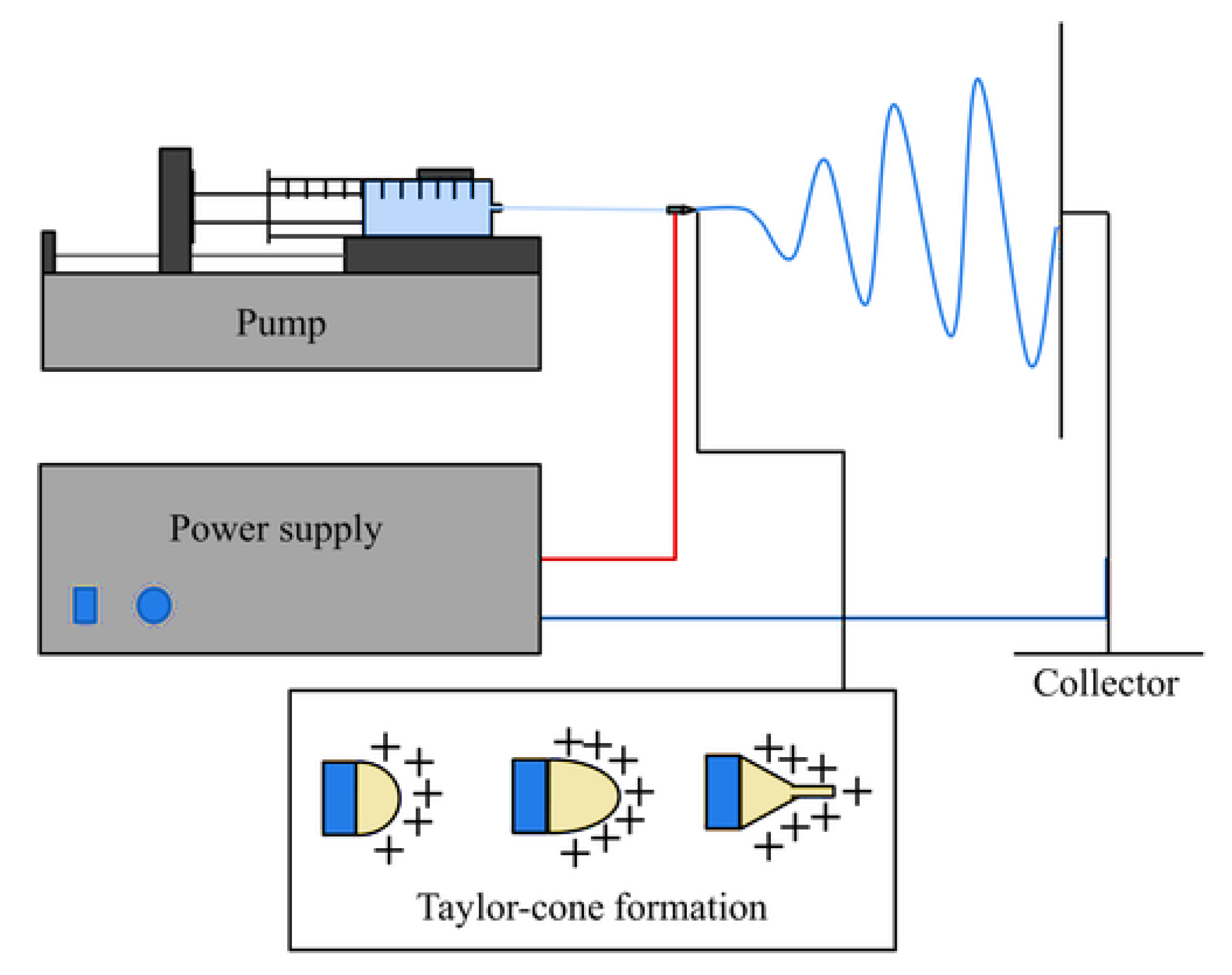

Electrospinning (ES) is a versatile and robust technique that produces fibres in the micro-to-nanometric range with a controlled surface morphology [20]. The porosity of these nanofibre-based meshes may vary, which can be tailored and controlled by modification of the experimental protocol. In electrospinning, a strong electric field (kV range) is applied to the liquids, which enables them to develop fine-charged jets. These liquids are usually polymer solutions, emulsions, polymer melts, or suspensions containing one or more active pharmaceutical ingredients [21,22]. Based on these liquids’ rheological and conductive properties, the applied voltage may change to develop fibres. This technology is considered economical in laboratory and small-scale production [23,24]. It has been exploited for various industrial applications (Figure 2), including biomedical [25], tissue engineering [26], environmental [27], biochemical [28], drug delivery [21], protective clothing [29], and energy storage [30]. In the early 1600s, William Gilbert first reported physical phenomena when he observed spherical drops of water being drawn and deformed into a cone shape or a spray of liquid when a piece of charged amber was placed close to it [31]. There were some notable scientific contributions from C.V Boys (1887), J.F. Cooley (1900 and 1902), W.J. Morton (1902), and John Zeleny (1914), but based on his initial experiments conducted in the 1930s, Anton Formhals (1934–1944) made further notable developments. He patented a setup capable of continuously producing fine nanofibres [32,33]. This period is the real beginning of electrospinning technology. Later, in the 1960s, Geffrey Taylor investigated the shape of the cone generated under the influence of an electric field with a 49.3° conical angle [34]. This cone was named the ‘Taylor cone’, and it has been used widely to explain the process of electrospinning and electrospraying.

Moreover, Taylor also proposed two critical instabilities, i.e., Rayleigh instability and bending instability, which aided in describing the parallel electric field jet phenomena [35]. Later, in the 1990s, Doshi and Reneker reported the development of nanostructured materials using this technique, and attention towards nanotechnology increased dramatically [36,37]. Since then, fibres from electrospinning technology have garnered interest from both industrial and academic sectors. The literature has made tremendous efforts to advance electrospinning technology by investigating mechanisms of fibre-making, characterization of fibres, and exploring novel ways of their applications [5]. Electrospinning involves feeding the spinning fluid in the syringe in the presence of high voltage to establish an electric field between the syringe needle and collector. The polymeric solution at the needle’s tip in an electric field becomes electrostatically charged to create a Taylor cone. When surface tension overcomes the electrostatic force, a charged polymer jet is ejected, which becomes thinner in an accelerated electric field. Additionally, the stretching of the polymer chain and rapid solvent evaporation resulted in solid nanofibres on the collector wall [38]. As shown in Figure 3 [39], the conventional electrospinning setup comprises a precision syringe pump, a high-voltage source, a syringe with a stainless-steel needle, and a collector. The electric supply is connected to the needle and the collector wall, with either a negative or positive charge [40]. The spinnable liquid filled in the syringe is composed of, e.g., a polymer solution with or without an active ingredient known as the working solution [41].

2.1. Factors Affecting the Electrospinning Process

The factors affecting electrospinning are classified generally as process, solution, and environmental parameters, as summarised in Table 1. In electrospinning, the process parameters depend upon the applied voltage, flow rate, needle diameter, and distance between the needle and the collector. The parameters of the solution include properties of the solvent used, the concentration of polymer, solution conductivity, and viscosity. The environmental parameters include relative humidity and temperature. All these parameters directly affect the generation of electrospun fibres. In the following section, these are discussed in detail with their implications on the electrospinning process [42].

2.1.1. Effect of Process Parameters

Effect of Applied Voltage

The supplied voltage should be sufficient to initiate jet formation, which mainly depends on the properties of the solution, including viscosity and surface tension. If low voltage is applied, the electrostatic force will be insufficient to overcome the droplet’s surface tension; as a result, the jet is not stretched out, and dripping happens. Increasing the voltage beyond the threshold leads to jet formation, which increases the further whipping and instability of fibres, and henceforth, fibre jet elongation occurs [43,44]. The effect of voltage on fibre diameter is controversial. Several studies have reported that increasing the applied voltage decreases fibre diameter [45,46]; however, several other reports discussed a negligible effect or an increase in fibre diameter [47,48].

Effect of Flow Rate

Flow rate, or infusion rate, is the speed at which the spinning solution is propelled towards the spinneret. The rate of solution ejection depends on the inner orifice diameter of the spinneret, applied voltage, and the rate of flow of the solution into the spinneret. Optimum flow rates are needed for any given voltage for any polymer material to produce fibres. When the flow rates are higher than the optimum range, the fibre diameter increases, impacting uniformity [49]. Faster flow rates usually produce coarser nanofibres at a given voltage because more solution is drawn out simultaneously. Additionally, the produced fibres may have defects, such as wrinkles or beads, before reaching the collector if enough time is not given to the solvent for evaporation. However, if the flow rates are lower than the optimum range, the electrospinning process can become intermittent due to the solution depletion at the tip of the nozzle [50,51].

Effect of Distance between Needle and the Collector

The distance between the needle tip and collector also plays an important role in controlling the morphology of the electrospun nanofibres. The morphology of nanofibres can be affected easily by the distance because it depends on the evaporation rate, deposition time, whipping, and instability interval [52]. Therefore, a critical distance must be maintained to develop uniform and smooth electrospun nanofibres [53]. Numerous researchers have studied the effect of the distance between the tip of the needle and collector and concluded that large diameter and defective nanofibres are produced when the distance is small. In contrast, the diameter of fibres is decreased when the distance is enhanced [52,54]. However, in some studies, no direct effect on the fibre’s morphology was observed when the distance between the metallic needle and collector was changed [55].

Table 1. Effects of different parameters on the morphology of fibres during the process of electrospinning [56].

Parameters	Effect on Fibre Morphology
Increases in applied voltage	Increase/decrease in fibre diameter
Increase in flow rate	Increase in fibre diameter also leads to (beads on fibre) in case of high flow rate
Increase distance from needle to collector	Electric field unstable, difficulties in performing process
Concentration of polymer	Increase in fibre diameter with increase in concentration
Viscosity	Low generation of beads, high increase in fibre diameter
Solution conductivity	Decrease in fibre diameter with increase in concentration
Solvent volatility	Fibres exhibit micro texture (pores on the surface of fibres, which increase their surface area)

Table 1. Effects of different parameters on the morphology of fibres during the process of electrospinning [56].

Parameters	Effect on Fibre Morphology
Increases in applied voltage	Increase/decrease in fibre diameter
Increase in flow rate	Increase in fibre diameter also leads to (beads on fibre) in case of high flow rate
Increase distance from needle to collector	Electric field unstable, difficulties in performing process
Concentration of polymer	Increase in fibre diameter with increase in concentration
Viscosity	Low generation of beads, high increase in fibre diameter
Solution conductivity	Decrease in fibre diameter with increase in concentration
Solvent volatility	Fibres exhibit micro texture (pores on the surface of fibres, which increase their surface area)

2.1.2. Solution Parameters

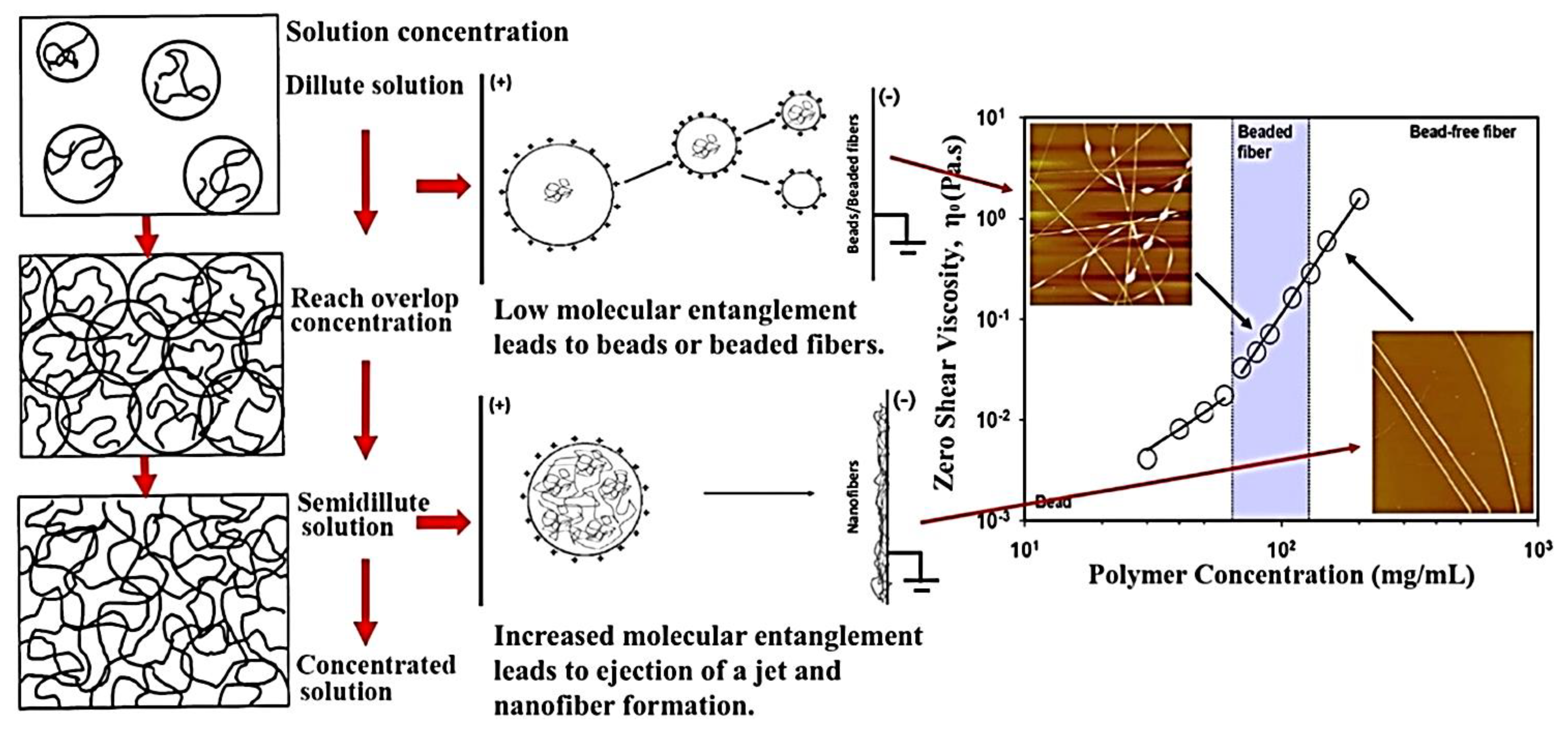

In the electrospinning technique, the polymer solution’s viscosity depends primarily on the concentration of the polymer and the type of solvent used. Viscosity is considered a critical parameter because it controls the solutions’ spinnability and its effect on the entanglement of the polymeric molecules for the formation of a continuous polymer jet [57]. However, the polymer solution with low viscosity produces smooth fibres with good mechanical strength and smaller diameters [58]. When the solution has very low viscosity, the polymeric molecules will not be adequately entangled, so beads or drops might be produced instead of fibres after spinning. In another scenario, extremely high viscosity will obstruct polymer flow through the capillary, thus preventing nanofibre production due to localized gel formation Figure 4 [59].

The solvent must be volatile to provide sufficient evaporation when the polymer jet moves towards the collector. The polymer solution is usually fabricated using volatile solvents, which has led to the development of fibres with a high surface area and porous structure. However, if fewer or non-volatile solvents are used, they may lead to the development of fibres having lower surface area and increased pore size, which may be considered less suitable for drug delivery and biomedical applications [59]. Finally, the conductivity of a polymer solution can also considerably impact the fibres’ morphology. Polymer solutions with more substantial conductivity can produce a jet with a greater charge, thus resulting in stronger electrostatic forces. So, the polymer jet experiences greater tensile strength and is stretched more, thus resulting in nanofibres with a smaller diameter and fewer beads [60]. The conductivity of the polymeric solutions can be enhanced by adding polyelectrolytes and ionic salts [41,61,62].

2.1.3. Ambient Conditions

Ambient conditions also play a significant role in the process of electrospinning as high temperature leads to the development of nanofibres with a lower diameter; however, an increase in humidity results in surface pore development [63,64].

3. Types of Electrospinning Techniques and Their Applications in Drug Delivery

3.1. Monoaxial Electrospinning

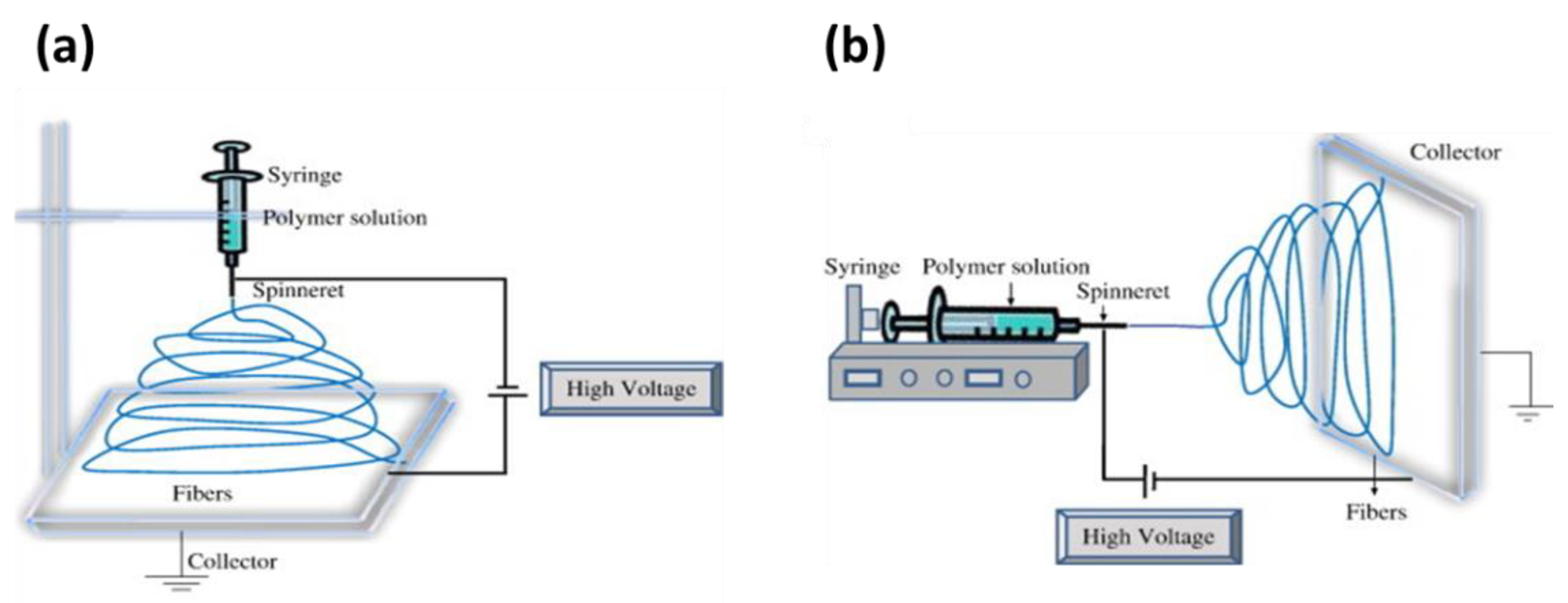

Monoaxial (or uniaxial) electrospinning is the most prominent method in which the fibres can be made via a single capillary nozzle in the presence of high voltage. Drug delivery systems in monoaxial electrospinning are usually produced using a polymer liquid (typically a solution, suspension, or emulsion). A drug is dispersed in a volatile solvent that can be dragged along with the polymer jet. During the process, higher electrical potential (commonly 5–20 kV) is applied between the needle and the metal collector in the monoaxial electrospinning [65]. The setup of monoaxial electrospinning can be made to spin vertically or horizontally onto a rotating drum or a conduction plate, as illustrated in Figure 5 [53].

Application of Monoaxial Electrospinning in Drug Delivery

Electrospinning offers remarkable flexibility in the choice of active ingredients and polymeric materials [67,68,69] for drug delivery applications. High drug loading capacity (up to 60%) [70,71,72], high encapsulation efficacy, simultaneous delivery of therapeutic agents, ease of operation, and cost-effectiveness scale [73] are also appealing features in the application of drug delivery, especially for postoperative local chemotherapy and wound-dressing materials [19]. Numerous carrier materials, from natural to synthetic (biodegradable and non-degradable) polymers or a blend of both, have been used successfully for electrospinning [74]. Moreover, drugs that have been investigated for monoaxial ES belong to different classes of therapeutics, like antibiotics [75,76], anticancer drugs [77,78], anti-inflammatory [79], cardiovascular [80,81], and ocular drugs [82,83]. In the following sections, some studies from the literature have been reported that employed monoaxial electrospinning for drug delivery applications and the summarised characteristics have been tabulated in Table 2.

Electrospun nanofibres have been used successfully to provide a new delivery platform for antibiotic therapy. For instance, Behbood et al. [75] produced chitosan and gelatin electrospun nanofibres to provide a mucoadhesive oral delivery of vancomycin. The prepared fibres were crosslinked with glutaraldehyde to improve the fibrous composites’ mechanical properties and water stability. From in vitro dissolution studies, the release of the drug changed from delayed to sustained release, and the dissolution data is best described using the Higuchi mathematical model following diffusion dominate drug release kinetics. In a recent study, a gastro-retentive drug delivery system was developed based on Bletilla striata polysaccharide (BSP), a natural polymer. The optimised levofloxacin-loaded BSP lyophilised wafers were coated with polycaprolactone (PCL) electrospun membrane.

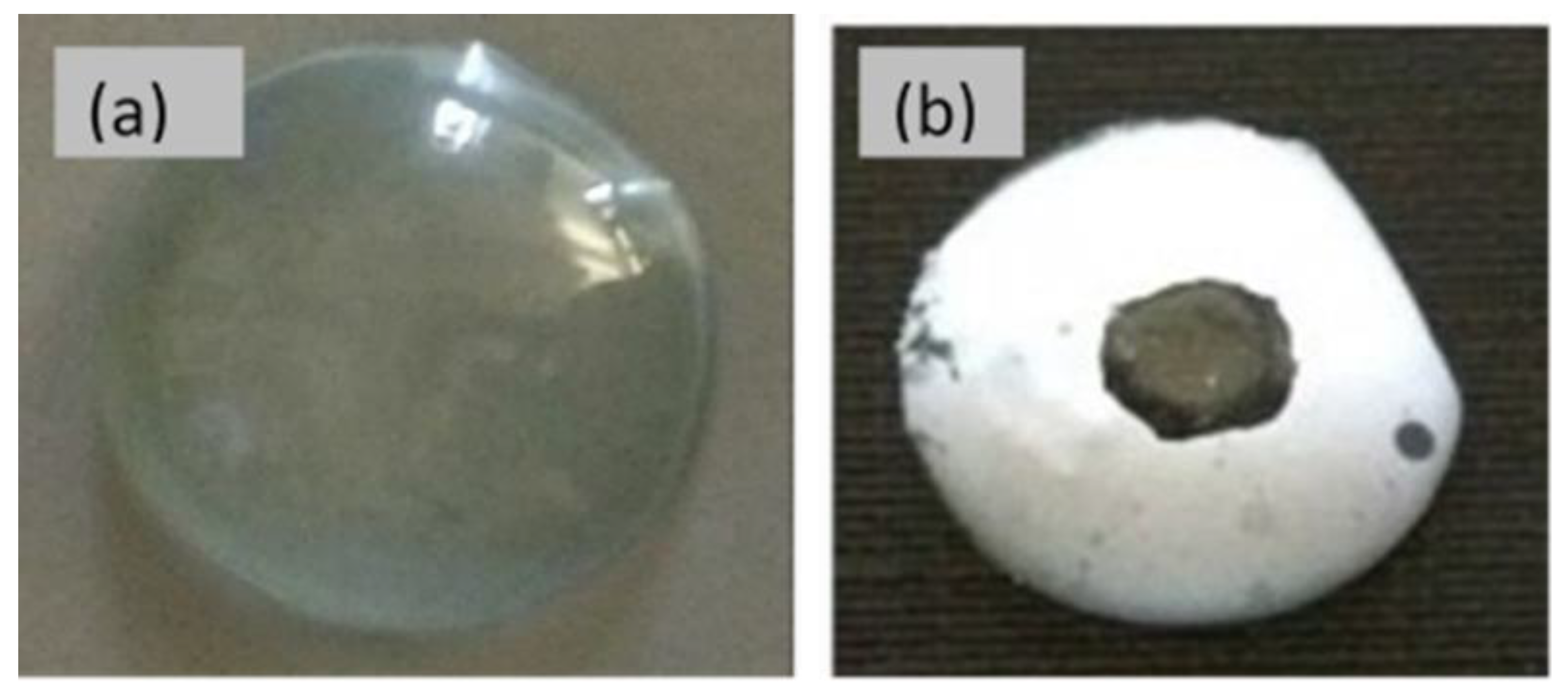

The optimised PCL-coated wafer displayed an excellent floating duration of more than 24 h with a sustained drug release profile over an extended time. Both in vitro and in vivo findings illustrated superior performance compared to the pure drug [76]. Additionally, the delivery of electrospun nanofibres of indomethacin to provide a colon-targeted drug delivery after oral administration is evaluated by Akhgari et al. [84]. The formulation comprising Eudragit S:Eudragit RS (60:40) with the 3:5 drug:polymer ratio displayed a pH-responsive drug release. A minor drug release was noticed at pH 1.2, 6.4 and 6.8; however, the bulk of the drug was released at pH 7.4 (simulated colon environment).

Electrospun nanofibres have also found great potential to provide site-specific delivery of chemotherapeutic agents due to their high biocompatibility and tuneable drug release profiles [85]. Therefore, electrospinning has been extensively employed to develop chemotherapeutic delivery systems. Various chemotherapeutic agents, including doxorubicin [77,86], 5-FU [87,88,89,90,91], cisplatin [92,93,94], paclitaxel [95,96], and metformin [97], have been added as model APIs to determine the ES effectiveness in cancer therapy. For example, Kuang et al. [77] developed doxorubicin (DOX)-loaded polyblend nanofibres to provide a biphasic release of drugs for localised cancer treatment. The release of the drug was tuned in two stages. In the first stage, fast release of the drug was observed to suppress the tumour growth, and in a later stage, nanofibres exhibited sustained release to prolong the adequate therapeutic time. The polymeric blend, which provides a desired release profile of fibres, was composed of 90% PLLA and 10% PEO. In in vivo studies, the localised biodistribution of the drug was observed within the tumour region with no adverse effects. In another study, PCL and chitosan were used to develop electrospun nanofibres loaded with 5-fluorouracil (5-FU). The drug-loaded nanofibres with a high chitosan proportion displayed a sustained release profile for a more extended period than other mats, as shown in Figure 6. Thus, nanofibrous composites can be used as a potential candidate in the treatment of colorectal cancer [78]. Similarly, in a recent study, PCL/gelatin fibres loaded with 5-FU were developed, which increased the amount of gelatin in the blend, and the release of the drug increased. The chemotherapeutic-loaded nanofibres showed suitable cell attachment and HT-29 colorectal cancer cell proliferation whilst displaying a controlled drug release [89].

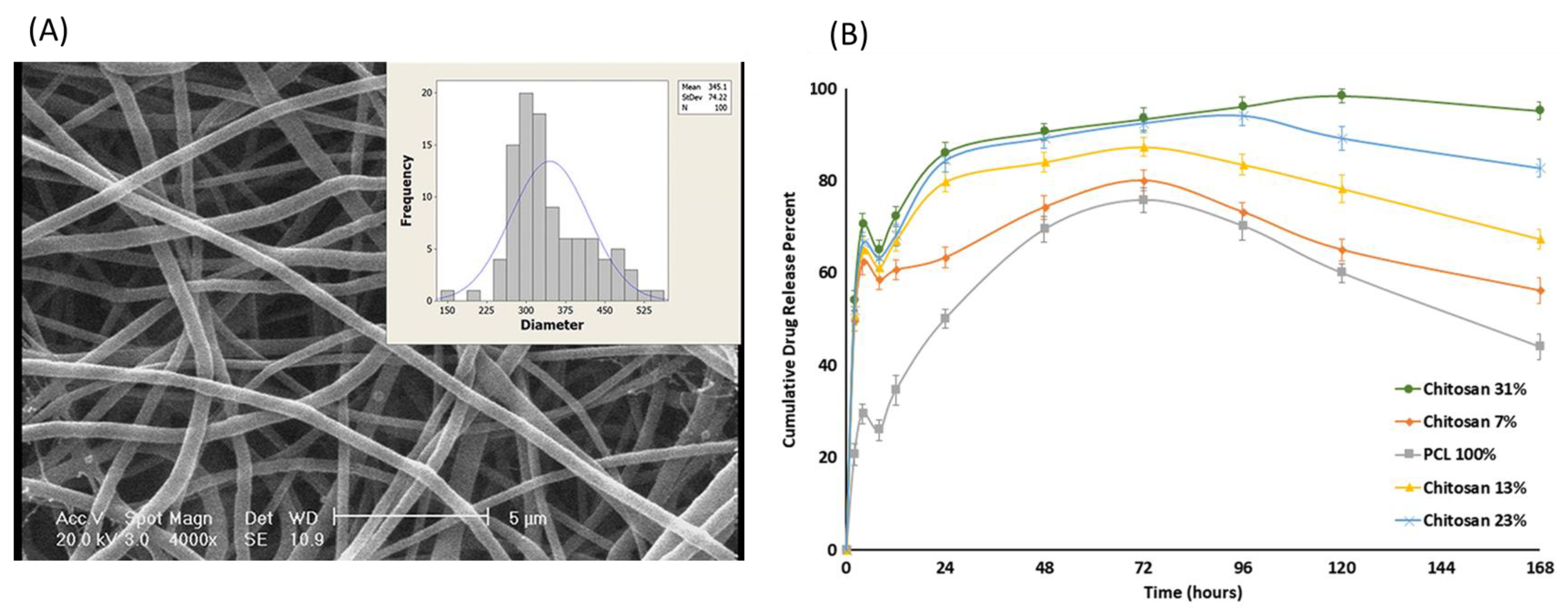

In recent years, there has been a growing interest in fabricating electrospun nanofibres composed of either natural or synthetic polymers through an electrospinning technique for wound dressing fabrication [98]. For instance, Alavarse et al. [99] developed tetracycline hydrochloride (TCH)-loaded PVA/chitosan fibrous mats for wound dressing. The produced fibrous mats exhibited a burst delivery in the initial 2 h with an effective antibacterial activity against E. coli, S. aureus, and Staphylococci epidermidis. The in vitro scratch assays and cell viability studies showed that the prepared mats were non-cytotoxic and could be used as a potential candidate for wound healing. In another study, Bakhsheshi-Rad et al. [100] developed gentamycin-loaded chitosan-alginate fibres for wound healing. The prepared mats displayed good antibacterial activity, cell attachment, and in vitro proliferation with enhanced regeneration of mice skin. In another study, moxifloxacin-loaded chitosan/PEO nanofibres were fabricated to provide enhanced healing and antibacterial efficacy as a wound dressing. The developed fibrous mats displayed good antibacterial activity and effectiveness in wound healing compared to the blank nanofibrous mats [101]. The technique of ES has also found great potential in drug delivery via the ocular route. For instance, Mehta et al. [82] investigated the electrospun fibres using one-step spinning process coatings as a novel approach for drug delivery through contact lenses to enhance the permeation of timolol maleate in the eye. The digital images of the coated and uncoated lens are shown in Figure 7. The resultant fibrous coatings containing PVP, poly (N-isopropyl acrylamide) (PNIPAM), borneol (as permeation enhancer), and the drug displayed 20% more drug release compared to the coatings without permeation enhancer. In another study, the ophthalmic inserts of hyaluronan-based nanofibres for ε-polylysine and ferulic acid dual delivery. The ferulic acid was blended with polymers and then cross-linked covalently with ε-polylysine after the electrospinning process. The cross-linked ocular inserts displayed in vitro biocompatibility and antibacterial activity with fast erosion, which led both the actives to release within 20 min [83].

Table 2. Summarised characteristics of some studies employing monoaxial electrospinning for drug delivery applications.

Drug(s)	Polymer(s)	Solvent(s)	Drug Release Characteristics	Reference
Vancomycin	Chitosan and gelatin	Glacial acetic acid and water	Sustained drug release	[75]
Levofloxacillin	Bletilla striata and PCL	DCM and DMF	Sustained drug release	[76]
Indomethacin	Eudragit RS100 and Eudragit S100	Ethanol	pH-controlled drug release	[84]
Doxorubicin	PEO and PLA	2,2,2-Trifluoroethanol	Biphasic release	[77]
5-fluorouracil	Polycaprolactone and chitosan	Formic acid/acetic acid solution	Sustained drug release	[78]
5-fluorouracil	Polycaprolactone and gelatin	Acetic acid and Formic acid	Controlled drug release	[89]
Tetracycline hydrochloride	PVA and Chitosan	Water and acetic acid solution	Initial burst followed by sustained release	[99]
Ciprofloxacin	PLCL and PNIPAAm	HFIP	Thermosensitive drug release	[102]
Gentamicin	Chitosan and alginate	Acetic acid and DI water	-	[100]
Moxifloxacin	Chitosan and PEO	DI Water	-	[101]
Timolol maleate	PVP and (PNIPAM)	Ethanol	Triphasic drug release	[82]
Ferulic Acid	Hyaluronan and PVP	Ethanol and Water	Burst release	[83]

PCL = Poly(ε-caprolactone), PEO = Poly (ethylene oxide), PLA = Poly(lactic acid), PVP = Polyvinylpyrrolidone, PLCL = Poly(l-lactic acid-co-ɛ-caprolactone), PNIPAAm= Poly(N-isopropylacrylamide), DCM = Dichloromethane, DMF = Dime-thylformamide, HFIP = Hexafluoro-2-propanol, DI water = Deionised Water.

Table 2. Summarised characteristics of some studies employing monoaxial electrospinning for drug delivery applications.

Drug(s)	Polymer(s)	Solvent(s)	Drug Release Characteristics	Reference
Vancomycin	Chitosan and gelatin	Glacial acetic acid and water	Sustained drug release	[75]
Levofloxacillin	Bletilla striata and PCL	DCM and DMF	Sustained drug release	[76]
Indomethacin	Eudragit RS100 and Eudragit S100	Ethanol	pH-controlled drug release	[84]
Doxorubicin	PEO and PLA	2,2,2-Trifluoroethanol	Biphasic release	[77]
5-fluorouracil	Polycaprolactone and chitosan	Formic acid/acetic acid solution	Sustained drug release	[78]
5-fluorouracil	Polycaprolactone and gelatin	Acetic acid and Formic acid	Controlled drug release	[89]
Tetracycline hydrochloride	PVA and Chitosan	Water and acetic acid solution	Initial burst followed by sustained release	[99]
Ciprofloxacin	PLCL and PNIPAAm	HFIP	Thermosensitive drug release	[102]
Gentamicin	Chitosan and alginate	Acetic acid and DI water	-	[100]
Moxifloxacin	Chitosan and PEO	DI Water	-	[101]
Timolol maleate	PVP and (PNIPAM)	Ethanol	Triphasic drug release	[82]
Ferulic Acid	Hyaluronan and PVP	Ethanol and Water	Burst release	[83]

PCL = Poly(ε-caprolactone), PEO = Poly (ethylene oxide), PLA = Poly(lactic acid), PVP = Polyvinylpyrrolidone, PLCL = Poly(l-lactic acid-co-ɛ-caprolactone), PNIPAAm= Poly(N-isopropylacrylamide), DCM = Dichloromethane, DMF = Dime-thylformamide, HFIP = Hexafluoro-2-propanol, DI water = Deionised Water.

3.2. Coaxial Electrospinning

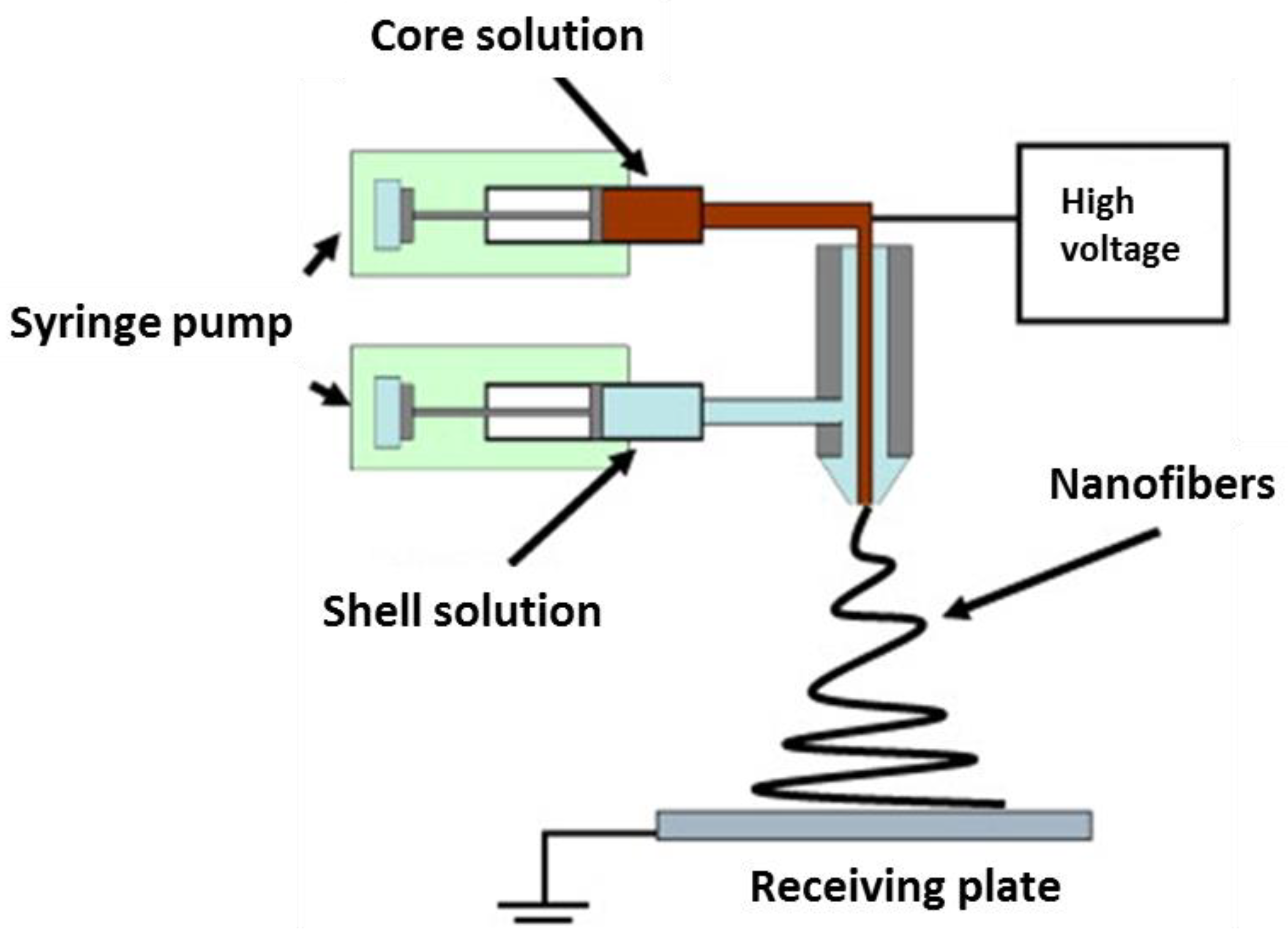

Coaxial electrospinning or (co-electrospinning) encompasses a two-needle spinneret for the development of nanofibres, in which one needle is concentrically inserted inside the other, as illustrated in Figure 8 [103]. Two spinnerets with different or immiscible polymeric solutions pump at varying rates from a single needle port during the coaxial spinning process. The shell solutions flow around the core spinneret (containing the core solution) up to the end of the spinneret until both solutions come in contact and pull towards the collector due to the applied electrostatic potential difference. The core-shell structure is maintained throughout this process, leading to the formation of long core-shell fibrous mats [104]. By applying coaxial electrospinning, multiple drugs can be loaded into the core-sheath fibres, and their release kinetics can be controlled [105].

Applications of Coaxial Electrospinning in Drug Delivery

Coaxial electrospinning provides excellent flexibility in the selection of materials and drugs. Moreover, the modified technique gives high drug encapsulation and enhanced resistance in the protection of bioactives against the harsh environment. The low cost and easy-to-operate setup of coaxial electrospinning make it an appealing system for producing core-shell nanofibres [106]. In the following passages, some studies using coaxial electrospinning in drug delivery are discussed, and their summarised characteristics are tabulated in Table 3.

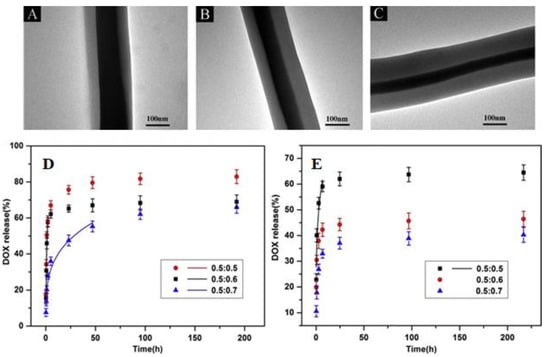

The core-shell structures obtained from coaxial electrospinning provide a controlled drug release profile in the case of APIs that are water-soluble APIs [107]. For this purpose, coaxially spun fibrous mats, composed of gentamicin/pluronic F127 in the core and silver/PCL in the shells, were developed as sutures to provide drug release in a sustained manner. The in vitro release profiles of the scaffolds exhibited an initial burst followed by a sustained release profile for up to 5 weeks, along with no apparent cytotoxicity. Moreover, the drug-loaded scaffolds displayed higher antibacterial activity than nanofibre sutures composed of silver or gentamycin alone [108]. In another study, nanofibrous composites via coaxial ES were developed to provide two drug delivery systems in antitumor applications. For the core structure, a PEG–PLGA emulsion containing Ag or Au and silibinin is used as a therapeutic agent, while PVA containing Fe₂O₃ as magnetic nanoparticles serve as a shell. The nanofibrous structure containing nanoparticles displayed an interesting, sustained release of the drug for more than 60 h without an initial burst [109].

Coaxial electrospinning has also been exploited to fabricate pH-sensitive core-shell nanofibrous composites for the potential delivery of chemotherapeutics in cervical cancer. The core-shell structure PVA and PCL act as a shell, while doxorubicin is embedded in the core. Transmission electron microscope (TEM) analysis determined that the change in flow rate increased the thickness of the shell, as shown in Figure 9a–c. The developed nanofibres exhibited a sustained and pH-responsive release of the drug (Figure 9d,e) with excellent activity against Hela cells of cervical cancer [110].

In a recent study, pH-responsive core-shell nanofibrous mats of PCL and chitosan as a carrier for the delivery of rosuvastatin were reported. The fabricated nanofibres comprised PCL as the core and a chitosan-containing drug as the shell. The cumulative drug release profiles showed an initial burst in the initial stage followed by a slow and sustained release profile over 48 h. The degradation of CS in the shell increased the drug release to 22% at pH 7.4, 64% at pH 6, and 84% at pH 4 after 48 h. From these findings, the PCL/CS fibrous mats can be used as a valuable approach in drug delivery systems [111]. Baghali with his team [112] developed novel core-shell nanofibrous mats for wound healing by incorporating an antibiotic (erythromycin) with appropriate transdermal absorption. The erythromycin-loaded PCL core with zein-containing titanium dioxide (TiO2) shell nanofibres displayed a sustained release profile for 72 h. Moreover, the prepared nanofibres showed excellent antibacterial activity against gram-positive and negative bacteria. Thus, the novel core-shell nanofibres can be used as an effective biomaterial in wound healing.

The treatment of ocular diseases through solid drug delivery systems has attracted great attention due to their higher potential bioavailability compared to conventional liquid formulations [113]. For this reason, Tawfik et al. [114] reported the development of core-shell nanofibres composed of two drugs. The two different drugs were incorporated in distinct compartments with the aim of treating the abrasion of the cornea and prevent any associated bacterial infection. After the successful development of fibres loaded with moxifloxacin and hydrophilic PVP as the core, the shell was composed of hydrophobic PLGA containing pirfenidone as an antifibrotic drug. The in vitro release profile demonstrated an initial burst release of pirfenidone followed by complete drug release after 24 h, while shell moxifloxacin released 60% after 30 min. From these findings, further work to tailor the release profile is required.

Table 3. Summarised characteristics of studies employing coaxial electrospinning for drug delivery applications.

Drug(s)	Core Fluid	Sheath Fluid	Solvent(s)	Drug Release Characteristics	Reference
Gentamicin	PCL and Pluronic ® F-127	Silver and PCL	DCM and DMF	Initial burst followed by Sustained drug release	[108]
Silibinin	PEG-PLGA with Ag or Au	Fe2O3 in PVA	DCM	Sustained drug release	[109]
Doxorubicin	PVA	PCL	Distilled water and 2,2,2-Trifluoroethanol via stirring	pH-responsive drug release	[110]
Rosuvastatin	PCL	Chitosan	Acetic acid	pH-responsive release	[111]
Erythromycin	PCL	Zein with Titanium dioxide nanoparticles	Chloroform and ethanol	Sustained release	[112]
Moxifloxacin	PVP	PLGA	Acetonitrile and ethanol	Initial burst, then sustained drug release	[114]

PCL = Poly(ε-caprolactone), PEG= Polyethylene glycol, PLGA = Poly(lactic-co-glycolic acid), PVA = Polyvinyl alcohol, PVP = Polyvinylpyrrolidone, Fe₂O₃ = Iron oxide, DCM = Dichloromethane, DMF = Dimethylformamide.

Table 3. Summarised characteristics of studies employing coaxial electrospinning for drug delivery applications.

Drug(s)	Core Fluid	Sheath Fluid	Solvent(s)	Drug Release Characteristics	Reference
Gentamicin	PCL and Pluronic ® F-127	Silver and PCL	DCM and DMF	Initial burst followed by Sustained drug release	[108]
Silibinin	PEG-PLGA with Ag or Au	Fe2O3 in PVA	DCM	Sustained drug release	[109]
Doxorubicin	PVA	PCL	Distilled water and 2,2,2-Trifluoroethanol via stirring	pH-responsive drug release	[110]
Rosuvastatin	PCL	Chitosan	Acetic acid	pH-responsive release	[111]
Erythromycin	PCL	Zein with Titanium dioxide nanoparticles	Chloroform and ethanol	Sustained release	[112]
Moxifloxacin	PVP	PLGA	Acetonitrile and ethanol	Initial burst, then sustained drug release	[114]

PCL = Poly(ε-caprolactone), PEG= Polyethylene glycol, PLGA = Poly(lactic-co-glycolic acid), PVA = Polyvinyl alcohol, PVP = Polyvinylpyrrolidone, Fe₂O₃ = Iron oxide, DCM = Dichloromethane, DMF = Dimethylformamide.

3.3. Triaxial Electrospinning

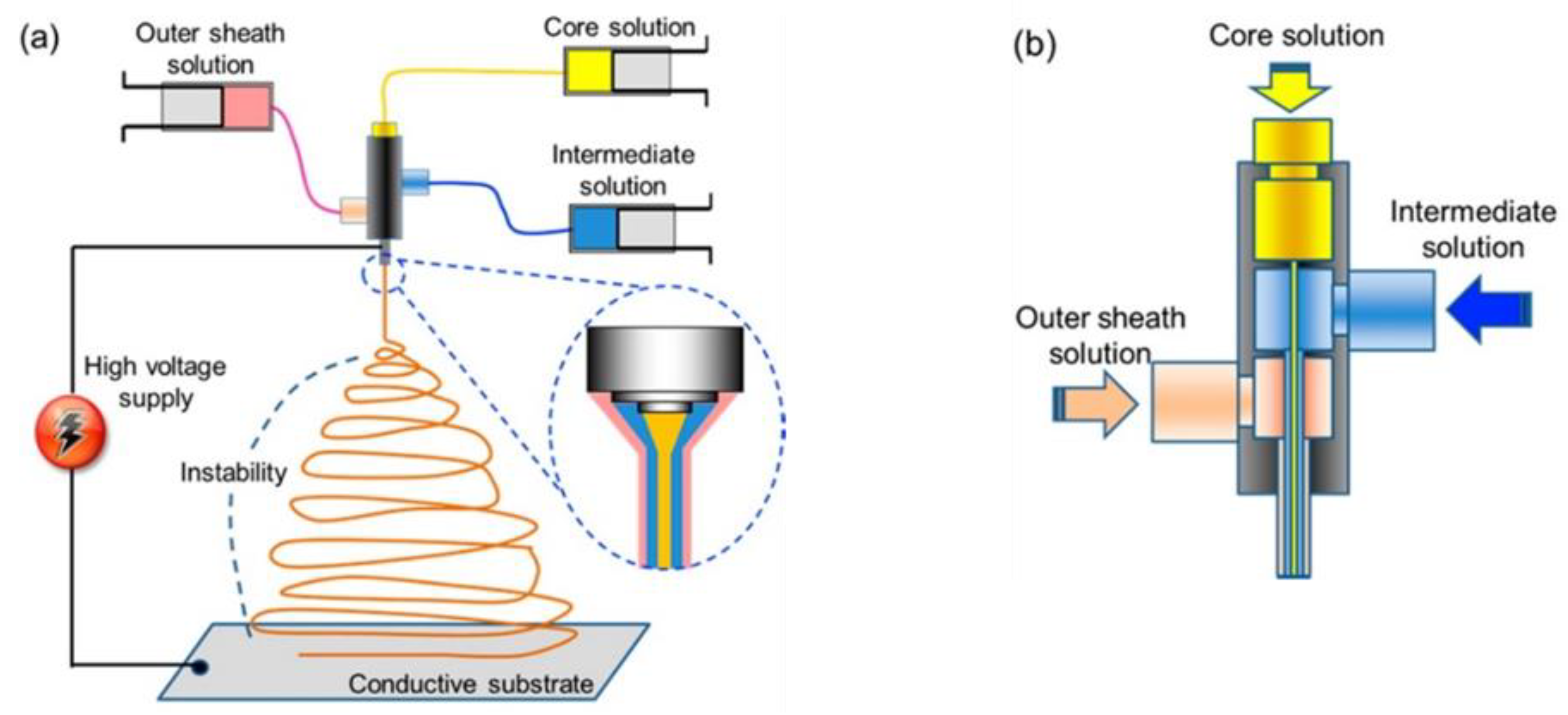

Triaxial electrospinning comprises a spinneret with three concentric needles, shown in Figure 10a,b [115]. Three polymer solutions are transferred through different pumps, which meet at the end of the spinneret tip. During the triaxial process, the deformation of a solution happens into a Taylor cone in the presence of an electrostatic field; thus, a jet emerges from the tip when the surface tension is overcome by the electrostatic force. Then, the jet experiences instability during bending, followed by solvent evaporation and, ultimately, dry fibre deposition on the collector wall [116].

Applications of Triaxial Electrospinning in Drug Delivery

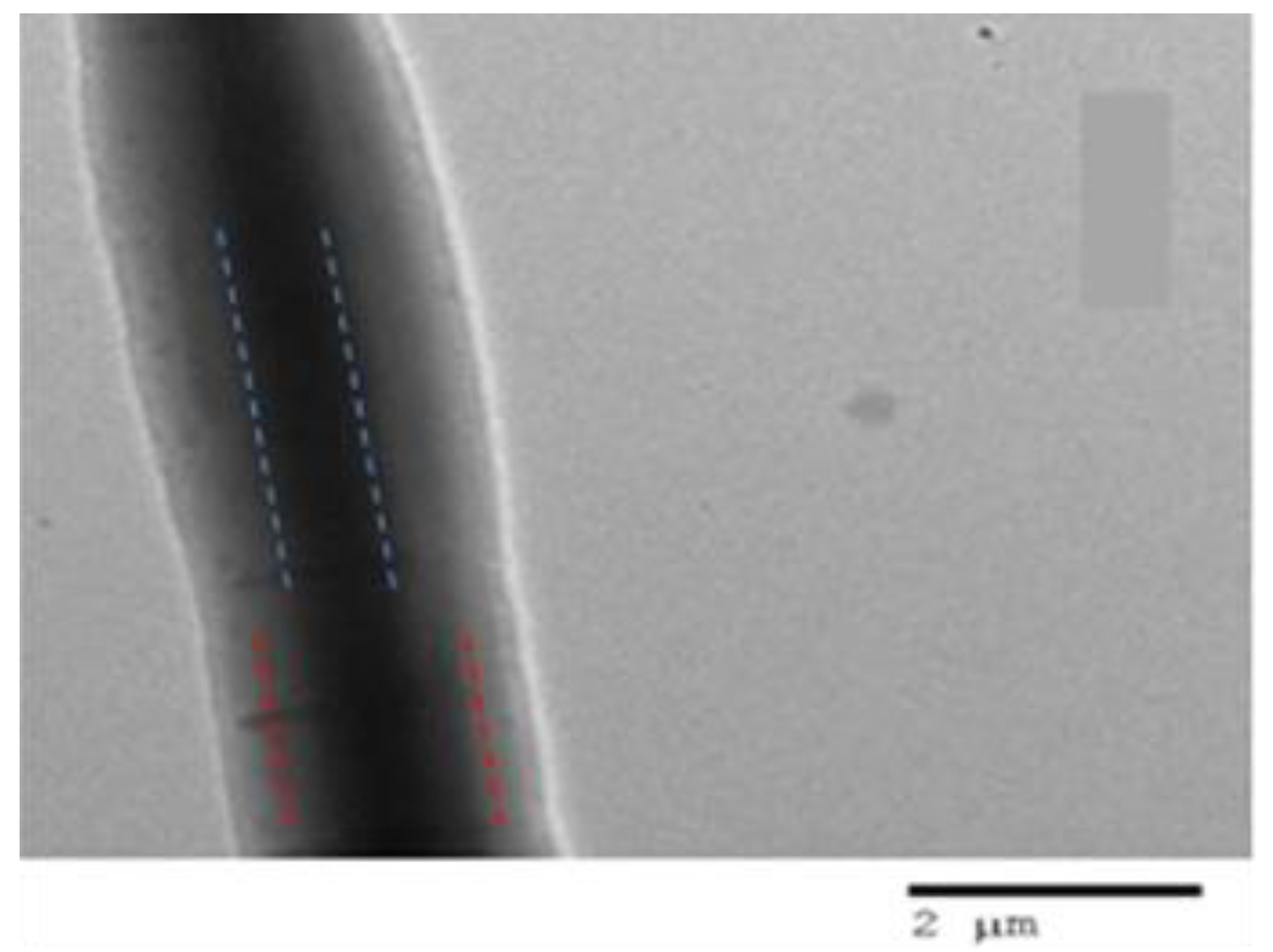

Triaxial electrospinning produces three-layered structure fibrous mats comprising core, intermediate, and shell layers [117]. The technique of triaxial electrospinning is important, particularly when adding hygroscopic material to the shell to acquire excellent biocompatibility. The intermediate hydrophobic layer forces the active molecule from the core via diffusion from the intermediate layer, which provides a sustained release of the drug rather than a premature burst release [115,118]. For triaxial electrospinning, novel carrier vehicles have been investigated to provide a combined delivery of multiple APIs with different release patterns. The dual release from triaxial fibrous composites containing functional molecules [115] can be controlled, or the drug release becomes pH-sensitive from these types of fibres materials [119]. Some of the studies that have been identified as employing triaxial electrospinning are summarised in the subsequent sections and tabulated in Table 4.

The triaxial electrospinning of fibrous composites has been investigated as a method to load different types of drugs along with their different release profiles [120,121,122]. Triaxial ES also has the advantage of processing a non-spinnable solution for long enough until one of the liquids under the processing phase becomes spinnable. For instance, Yang et al. [123] developed triaxial fibres from a modified triaxial process in which the core liquid contained a solution of sodium diclofenac and lecithin, while the middle layer contained Eudragit S100, and the outer layer contained pure ethanol. In this paper, only the middle liquid was spinnable, which was utilised to obtain triaxial fibres even though the inner fluid was unspinnable, and the outer liquid was pure solvent. The prepared core-shell fibrous mats exhibited a pH-responsive drug release in two successive stages in neutral pH. Initially, dissolution of the shell (ES100) occurred, then release of diclofenac occurred, which led to the enhanced permeation of the drug from intestinal mucosa. Jouybari et al. [124] developed triaxial nanofibres to attain a simultaneous release of three chemotherapeutic agents. The triaxial nanofibres are composed of chitosan/PVA as the core with 5-FU, while the intermediate layer contains PLA/chitosan with doxorubicin, and the outer layer containing PLA and chitosan is loaded with paclitaxel. The triaxial nanofibres exhibited 90% loading efficacy from all three drugs. In vitro studies demonstrated the slowest release of 5-FU from tri-layer mats due to inner core encapsulation. Moreover, the triaxial fibres displayed higher cell growth inhibition along with enhanced attachment to breast cancer cells (MCF-7). In another study, Li et al. [125] developed tri-layered fibrous composites to provide a time-programmed delivery of multiple anticancer drugs. The tri-axial layers contained glycerol and doxorubicin (Dox) in the inner core, while PCL and PLLA loaded with apatinib (multidrug resistance inhibitor) formed the double walls of the fibrous mats. The rupture of the cavity assured the Dox burst release to reduce the tumour mass, whereas the slow fibre mat degradation ensured a sustained apatinib release to eliminate the tumour. Moreover, in vivo studies demonstrated a synergistic effect in which a time-programmed release of the drug displayed excellent therapeutic effectiveness with no significant toxicity. Nagiah et al. [126] fabricated triaxial fibres comprising PCL as a core layer, gelatin as an intermediate layer, and 50:50 PLGA as a sheath layer. The model drugs were incorporated into the sheath and intermediate layers, i.e., Rhodamine B and Fluorescein isothiocyanate–Bovine Serum Albumin conjugate, respectively. The TEM images, as shown in Figure 11, clearly indicate a tri-layer fibrous structure. Interestingly, triaxial fibres not only exhibited dual release of the drug up to 600 h, but they also exhibited excellent tensile properties compared to uniaxial and coaxial fibres.

Ding et al. [127] developed core-shell nanofibres to provide colon-targeted drug delivery in an extended-release manner. The core-shell Eudragit S100 (ES100)-based nanofibres were developed, in which a shell layer ES100 (drug-free) was coated intentionally on a core containing ES100 with aspirin. The developed nanofibrous composites displayed a controlled drug release profile while the drug was freed as an erosion mechanism. The triaxial nanofibres released a smaller portion of the drug in the initial 2 h, protecting the membranes of the stomach and showed extended aspirin release with no significant cytotoxicity.

Table 4. Summarised characteristics of some studies employing triaxial electrospinning for drug delivery applications.

Drug(s)	Core Layer	Intermediate Layer	Sheath Layer	Drug Release Characteristics	Reference
Lecithin and Diclofenac sodium	Lecithin and diclofenac sodium	Eudragit S100	Ethanol	pH-controlled drug release	[123]
5-fluorouracil, Doxorubicin and Paclitaxel	Chitosan/PVA	PLA/Chitosan	PLA/chitosan	Controlled drug release	[124]
Doxorubicin and apatinib	Glycerol	PLLA and PCL		Initial burst followed by sustained drug release	[125]
Rhodamine B and Fluorescein isothiocyanate-Bovine Serum Albumin conjugate	PCL	Gelatin	PLGA	Dual drug release.	[126]
Aspirin	Eudragit (ES100) with Aspirin	Eudragit® S100	Ethanol and DMAc	Extended drug release	[127]

PVA = Polyvinyl alcohol, PCL = Poly(ε-caprolactone), PLLA = Poly-(L-lactide):, PLA = Polylactic acid, PLGA = Poly(lactic-co-glycolic acid), DMAc = Dimethylacetamide.

Table 4. Summarised characteristics of some studies employing triaxial electrospinning for drug delivery applications.

Drug(s)	Core Layer	Intermediate Layer	Sheath Layer	Drug Release Characteristics	Reference
Lecithin and Diclofenac sodium	Lecithin and diclofenac sodium	Eudragit S100	Ethanol	pH-controlled drug release	[123]
5-fluorouracil, Doxorubicin and Paclitaxel	Chitosan/PVA	PLA/Chitosan	PLA/chitosan	Controlled drug release	[124]
Doxorubicin and apatinib	Glycerol	PLLA and PCL		Initial burst followed by sustained drug release	[125]
Rhodamine B and Fluorescein isothiocyanate-Bovine Serum Albumin conjugate	PCL	Gelatin	PLGA	Dual drug release.	[126]
Aspirin	Eudragit (ES100) with Aspirin	Eudragit® S100	Ethanol and DMAc	Extended drug release	[127]

PVA = Polyvinyl alcohol, PCL = Poly(ε-caprolactone), PLLA = Poly-(L-lactide):, PLA = Polylactic acid, PLGA = Poly(lactic-co-glycolic acid), DMAc = Dimethylacetamide.

3.4. Side-by-Side Electrospinning

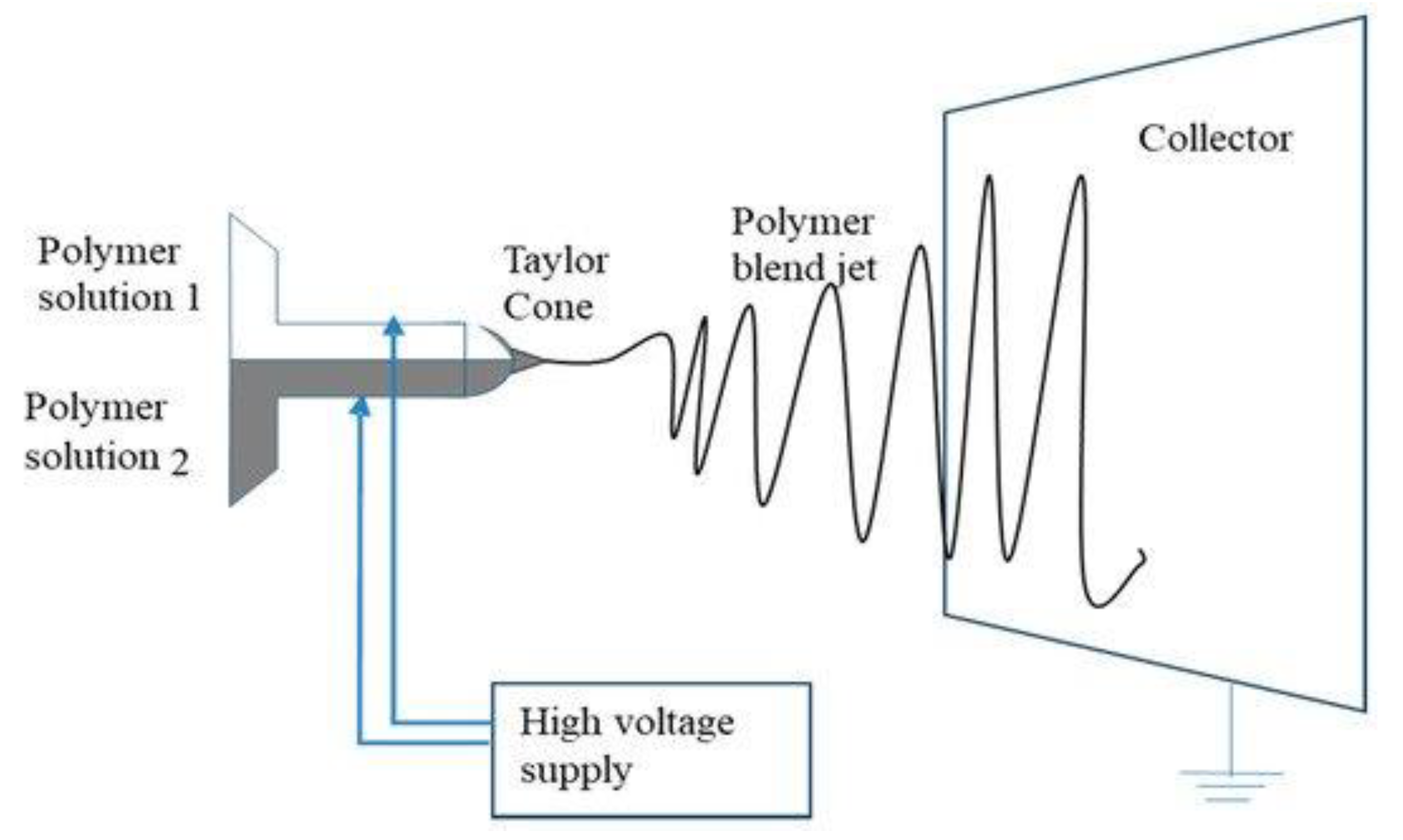

In side-by-side electrospinning, two types of polymer solutions are delivered via separate nozzles, which are arranged side-by-side. Both capillaries, from their tips, are connected to a high voltage supply, and the polymer solutions never meet until they reach the capillary end. During the process, when solutions approach the end of the capillary tip, a single Taylor cone is produced from a mixture of the non-uniform solutions, which deposit fibres on the collector wall after solvent evaporation, as shown in Figure 12 [128]. Janus fibres are produced using the side-by-side electrospinning method, comprising two unlike materials on either side of the fibre. For this type of electrospinning, both polymer solutions must possess similar conductivity to develop a single Taylor cone and be expelled in the form of a mixture [129].

Applications of Side-by-Side Electrospinning in Drug Delivery

The application of side-by-side electrospinning in the development of Janus fibres for drug delivery is not very frequently employed. Therefore, some of the studies which have been identified are summarised in subsequent sections and tabulated in

Table 5. Summarised characteristics some studies employing side-by-side electrospinning for drug delivery applications.

Polymer Solution 1	Polymer Solution 2	Solvent(s)	Drug Release Characteristics	Reference
Ketoprofen and PVP K60	Ethylcellulose, Ketoprofen and PVP k10	Ethanol	Biphasic drug release	[130]
PVP k10	PVP k90, Helicid	DMAc, ethanol	Fast-dissolving drug release	[131]
PVP and ciprofloxacin	Ethylcellulose and silver nanoparticles	Ethanol and acetone	Initial burst followed by sustained drug release	[132]

.

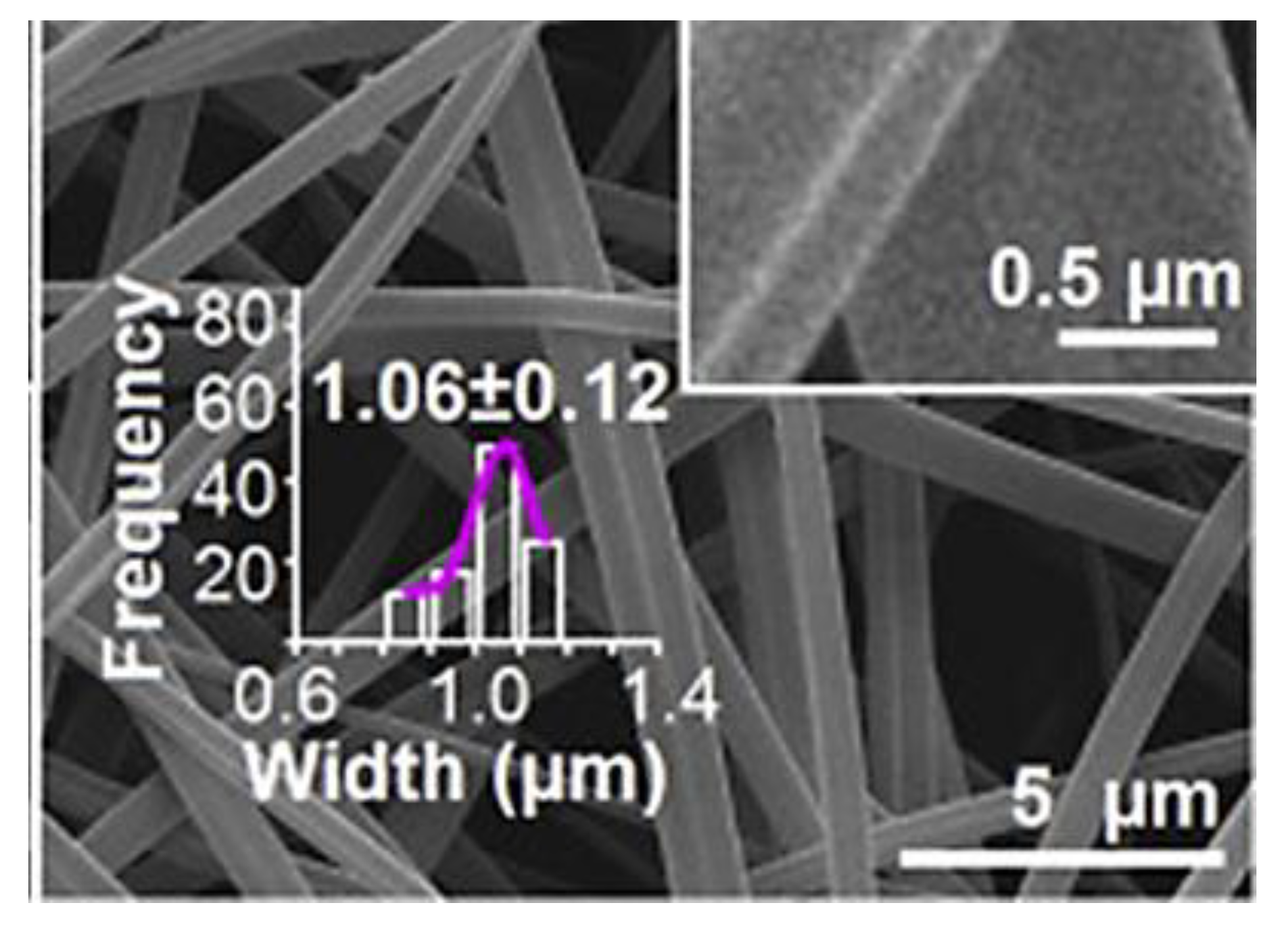

The first study for the use of side-by-side electrospinning was reported in 2016, in which dual ketoprofen (KET) delivery was achieved through the development of Janus nanofibres. One side of the fibre was composed of PVP, while the other side had ethyl cellulose (EC). The images of the Janus fibres are shown in Figure 13. From in vitro release profile, the PVP side dissolved very fast to unload the dose of KET. At the same time, the EC side provides sustained release of the remaining drug. In conclusion, the application of dual strategy gives robust control over the tuning of the two sides to achieve the maximum therapeutic effect of the APIs [130].

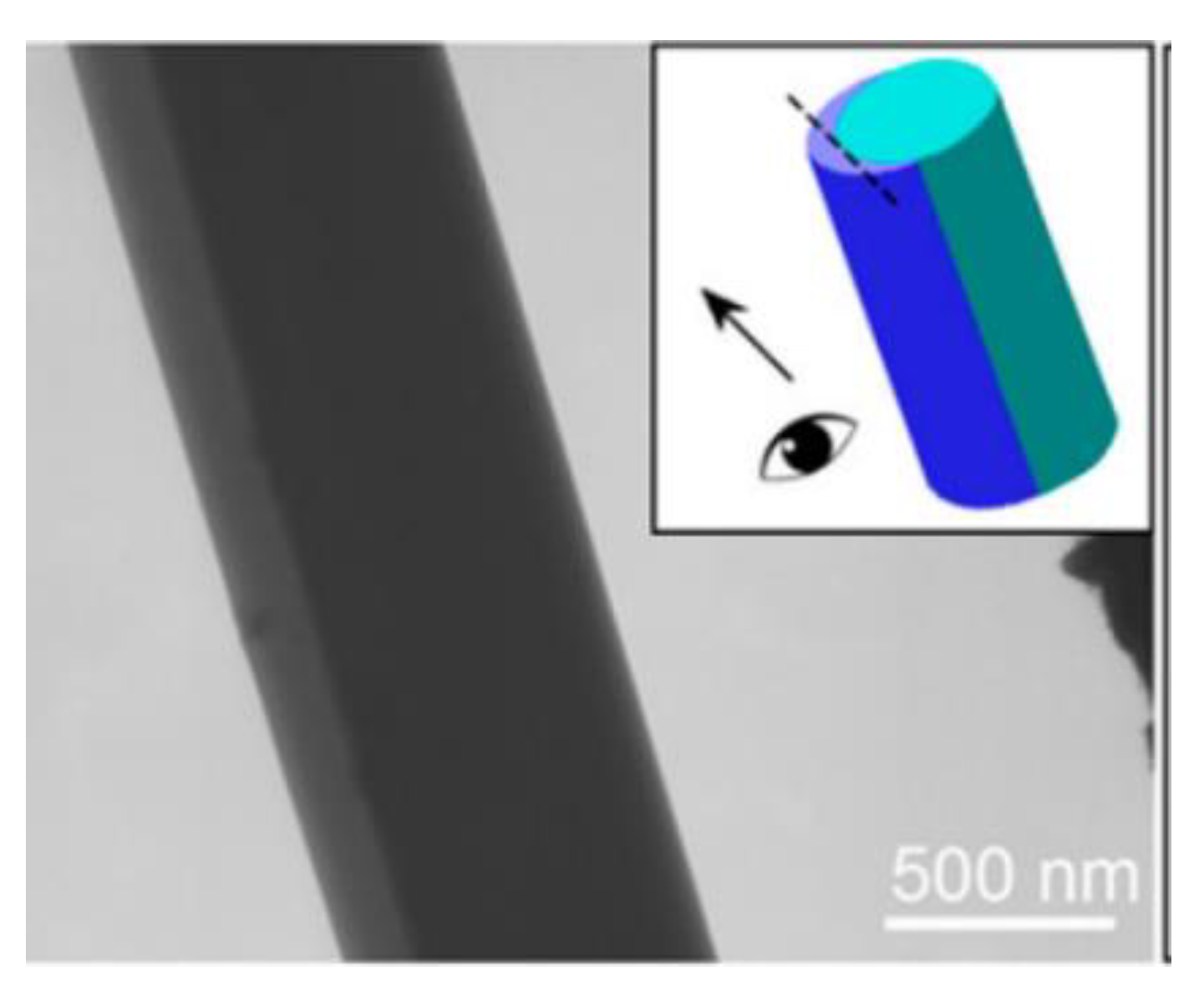

In another study, Wang with his colleagues developed Janus nanocomposites to improve the oral bioavailability of helicid (a herbal medicine) when administered orally. For the fabrication of Janus fibres, the one spinning solution comprised PVP with the drug. At the same time, the other spinning solution contained a non-spinnable solution along with sodium dodecyl sulphate (a permeation enhancer). The authors successfully spun both solutions simultaneously through the usage of the eccentric spinneret. The TEM image of Janus fibre is shown in Figure 14. The fabricated Janus nanofibres displayed rapid dissolution and an enhanced permeation of helicid on a porcine sublingual mucosa (ex vivo) [131]. In a recent study, nanofibres were developed from PVP and EC polymer matrices through side-by-side electrospinning, in which ciprofloxacin and silver nanoparticles were added to the two sides for wound dressing. Application of the Janus strategy allows the burst release of ciprofloxacin from the fibres within half an hour. Afterwards, the release of silver nanoparticles was sustained to maintain antibacterial activity for 72 h, thus resulting in potent bacterial growth inhibition [132].

4. Centrifugal Spinning

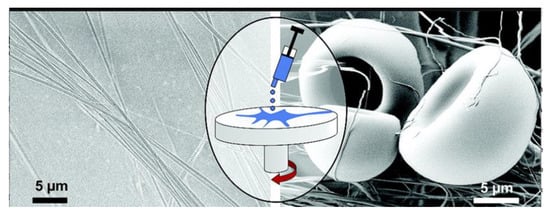

Centrifugal spinning, also known as rotary jet or rotary spinning, is an effective method for generating micro- to nanofibres with well-defined structures at low cost and high speed [133]. The technique utilizes centrifugal force to eject polymer jets into fibres instead of electrostatic force so that both conductive and nonconductive polymers can be spun in solution or melts [134]. In the centrifugal spinning process, polymer solutions and emulsions can be added to develop fibres.

4.1. Brief History of Centrifugal Spinning

Centrifugal spinning is not an entirely new technology to the industry. For instance, this technique has been extensively utilised in the production of glass fibres (also known as fibreglass or glass wool) for over half a century [135]. However, the use of this technique to prepare polymeric fibres, particularly polymer nanofibres, is comparatively new. In the 1990s, some big firms, such as BASF Aktiengesellschaft, Owens Corning Fiberglas, and AkzoNobel NV, tried to develop polymer fibres through the centrifugal spinning method. After that, many patents were published discussing spinning heads capable of spinning fibres from polymers. Moreover, the FibeRio Technology Corporation has successfully commercialised a centrifugal spinning system intended for large-scale production [136]. After the rapid popularity and development of centrifugal spinning in the commercial sector, centrifugal spinning also engrossed the interest of academia. In 2008, Weitz and colleagues [137] reported that a 5% solution of poly (methyl methacrylate) (PMMA), after being poured into the middle of a spinning head at 3000 rpm, could develop nanofibres of 25 nm in diameter in a few seconds (Figure 15). It is also reported that the fibre-forming process relies on the competition between the solution’s surface tension and centrifugal force.

Lozano and colleagues in 2010, [138] designed a multiple spinning head, which allowed a rotation speed from 3000 to 5000 rpm and produced PEO nanofibres up to 300 nm in diameter. Since 2010, researchers have reported many studies and many polymer solutions have been utilised to develop nanofibres. In 2013, Lu et al. [139] proposed a comprehensive relationship between operational conditions and nanofibre morphology. Numerous academic researchers have published their work employing the centrifugal spinning technique for different applications, including biological materials, energy storage, and photocatalysis [140,141,142,143].

4.2. Basic Centrifugal Spinning Mechanism

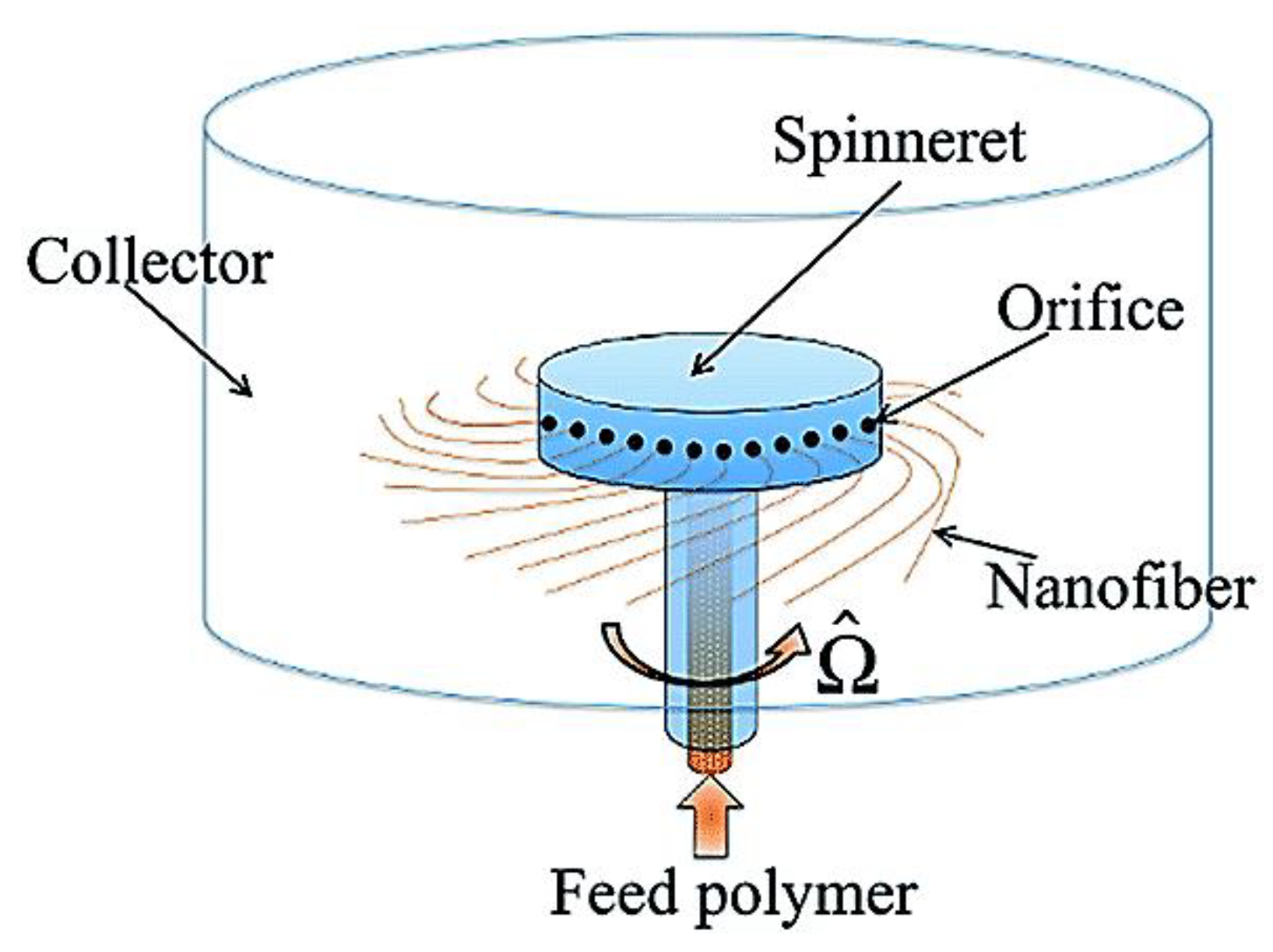

The basic bench-top centrifugal spinning device is shown in Figure 16 [144]. During the centrifugal spinning process, the solution is fed into the spinning rotating head, which contains several nozzles around the sidewall. As the rotation speed increases to attain a critical value, centrifugal force surpasses the spinning fluid’s surface tension; thus, a jet of liquid is emitted from the orifice. At this stage, the liquid jet elongates the solvent, which evaporates simultaneously, until the resultant reaches out towards the collector wall in the form of fibres [135].

4.3. Effect of Processing Parameters for Fibre Morphology and Diameter

The resultant structure and morphology of nanofibres is affected by a number of aspects of the centrifugal spinning process [145]. Two significant material parameters should be considered during the nanofibre production process, such as the solution’s viscosity and surface tension. Besides those, equipment parameters, for instance, the spinneret diameter, and the distance between the collector and the spinneret should also be considered [146]. The process parameters in the centrifugal spinning process, which are critically important, are discussed in the following sections and summarised in

Table 6. Effect of different Parameters on centrifugal spinning process [138,147].

Processing parameters	Centrifugal force	Increase in centrifugal force leads to jet breaking and the formation of beads.
	Spinneret angular velocity	Lower angular velocity beads on fibre.
	Orifice radius	Decrease in orifice diameter leads to a decrease in fibre diameter and fewer beads on fibres.
	Distance from spinneret to collector wall	Increase in the distance leads to the breaking of fibre. Decrease in distance leads to increase in fibre diameter.
	Rate of solvent evaporation	Low rate of solvent evaporation leads to collection of fibres in the form of thin film around the collector.
		High rate of evaporation leads to suppression of jet elongation, increase in fibre diameter.
	Temperature of spinneret for meltspun applications	Increase in Temperature cause burning of polymer.
		Decrease in temperature leads to an increase in fibre diameter or no jet formation.
Solution parameters	Viscoelasticity	Increase in viscosity leads to no jet formation Decrease in viscosity leads to beads Formation.
	Concentration of solution	This relates to viscosity of solution which needs to exceed the critical value to attain chain enlargement.
	Surface tension	Decrease in surface tension leads to production of bead fibres

.

4.4. Viscosity and Surface Tension of the Spinning Solution

In centrifugal spinning, the spinning solution’s surface tension and viscosity are considered critical parameters for good fibre formation. The surface tension has a significant role in the development of nanofibre because it is considered the essential force to shrink the surface area of the jet [139]. During the spinning process, the surface tension must be controlled via the centrifugal force to generate a Taylor cone from the spinning solution at the end of the orifice. The surface tension also reduces the surface energy of the solution to avoid droplet formation. The viscosity of the spinning solution is another crucial parameter [148] that also affects the fabrication of nanofibres during centrifugal spinning. If the solution viscosity is too high, the applied forces may not be strong enough to generate a jet. In contrast, the jet will break into droplets or beads if the solution viscosity is very low [149]. The most convenient and reasonable way to monitor the viscosity of the polymer solution is by adjusting the concentration of the polymeric solution [139].

4.5. Spinneret Speed

The speed of the spinneret is also considered a critical parameter for determining the production of nanofibres. During centrifugal spinning, when the speed is low, the centrifugal force cannot overcome the surface tension of the solution, and the solution will be stuck in the spinneret. So, the speed of the spinneret should be appropriate. In a certain range, the diameter of fibres decreases with an increase in spinneret speed. When the rotational speed when reaches a critical limit, the production of fibres will disconnect, resulting in the formation of a lot of beads [139].

4.6. Collection Distance from the Spinneret

The distance between the spinneret and the collector is considered another important parameter because when the distance of the collector changes, the morphology of the nanofibres is not changed, but the nanofibres break more and twist. The distance between the collector and spinneret should decrease when the viscosity of the solution increases. However, if the distance is too short, the fibre will not be allowed to stretch enough; thus, the diameter of the fibre will be larger. For centrifugal spinning, the optimal collection distance is usually 30–80 cm [150].

4.7. Diameter of the Orifice

The diameter of the orifice determines the solution’s flow and the initial diameter of the fibre directly. When the diameter of the orifice is too large, droplet formation happens as a result. When the diameter of the orifice is adequately small, it will result in the formation of nanofibres. Some studies have determined that reducing the orifice diameter decreases the final diameter of the collected nanofibres [151].

4.8. Applications of Centrifugal Spinning in Drug Delivery

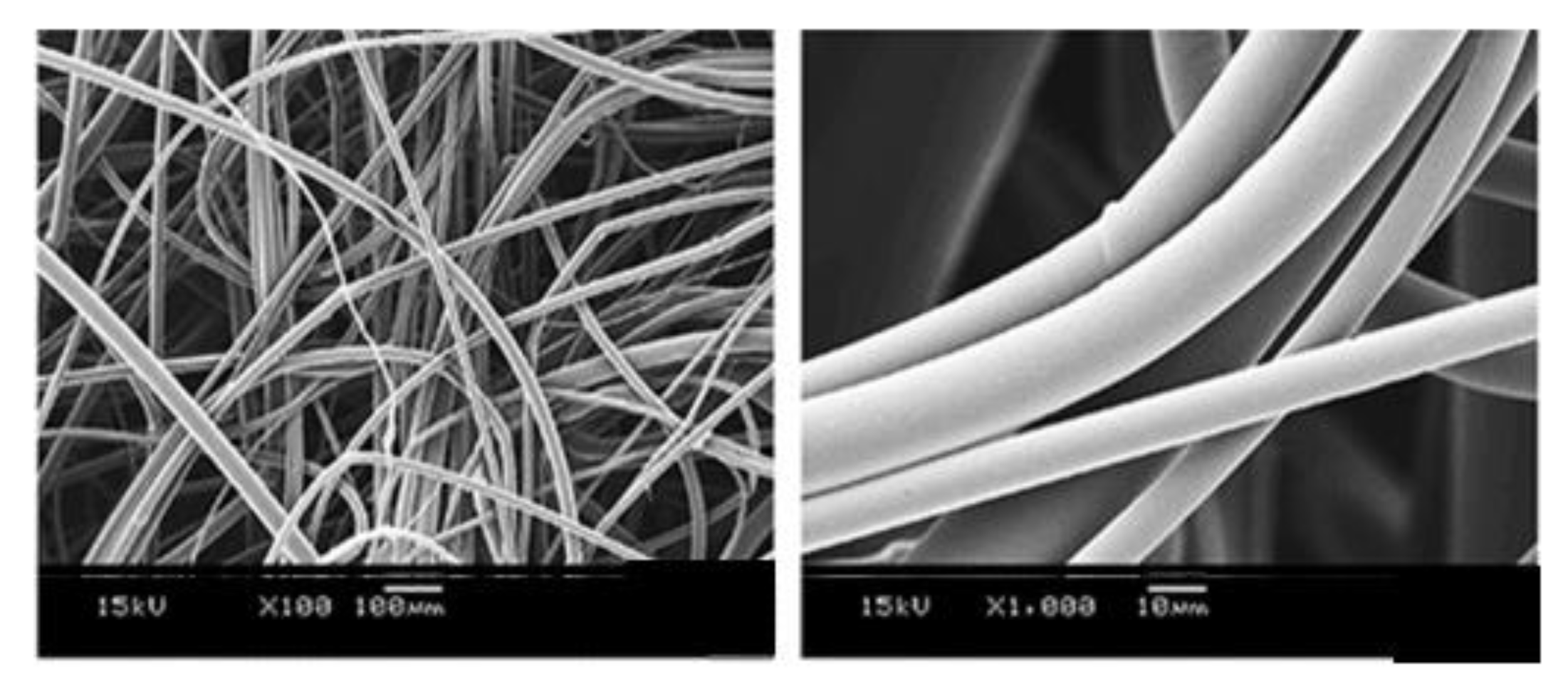

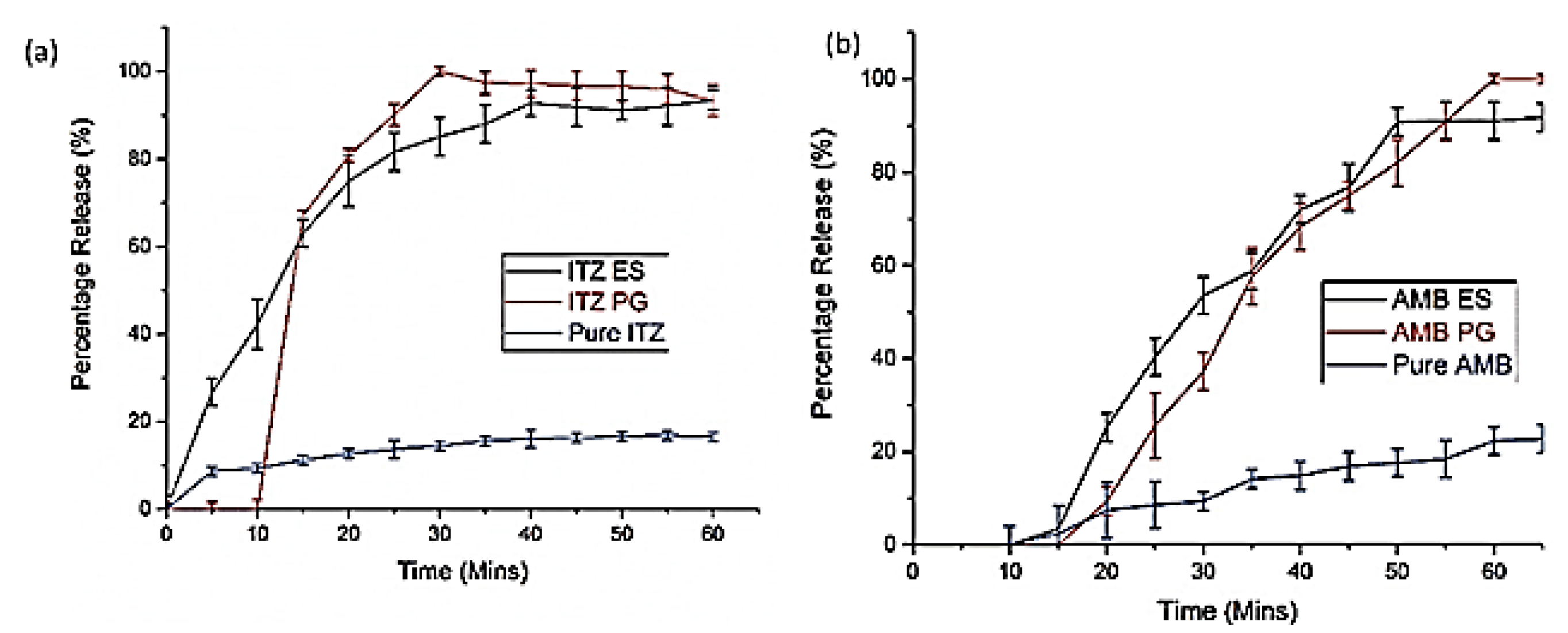

Centrifugally spun nanofibres possess a high porosity and surface area; therefore, they have become promising for various applications. In the context of drug delivery, this technique has also gained much attention in the last decade. For instance, Mary et al. [133] developed centrifugally spun PCL/PVP fibres containing tetracycline. The developed fibres were highly aligned with a diameter in the micron range. By varying the concentration of PCL/PVP in the fibres, the drug release can be tuned, and the prepared fibres demonstrated an effective inhibition of bacterial growth. Some of the applications of centrifugal spinning are discussed in subsequent sections and tabulated in Table 7.

The centrifugal spinning technique has also been exploited to develop orodispersible tablets after the compression of microfibres. The SEM images of carvedilol-loaded rotary spun microfibres are shown in Figure 17. The in vitro dissolution of a poorly soluble drug (carvedilol) was enhanced significantly compared to tablets made from a physical mixture containing the pure drug and hydroxypropyl cellulose. The physical mixture displayed incomplete and pH-dependent drug release profiles [152].

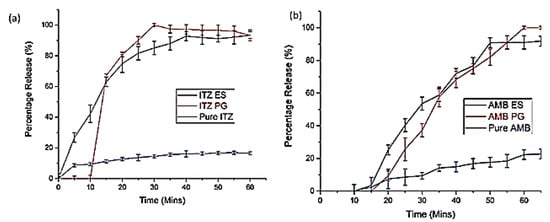

To increase the oral bioavailability and solubility of an antipsychotic agent and NSAID (olanzapine and piroxicam, respectively), Marano et al. [153] reported the fabrication of drug-loaded sucrose fibres through the solvent-free method of centrifugal spinning. The fabricated fibres were 10–15 μm in diameter, along with enhanced in vitro dissolution performance of the drugs. Another solvent-less study via in-house device was reported by Yang et al. [154], who developed fibrous films of five different drugs (ibuprofen, Indomethacin, tinidazole, nifedipine, and metoprolol tartrate) were developed. The films displayed high drug loadings, highly aligned film structure and orientation with modulable drug release profiles. The centrifugal spinning process enables the development of fibrous structures exhibiting the controlled release of drugs. For instance, Wang et al. [155] reported the development of a PVP fibre loaded with an antibiotic (tetracycline hydrochloride). Upon optimisation of the process, it was possible to obtain fibrous structures with a sustained release of antibiotics. The yielded fibres were in the nanometric range with a slow drug release profile along with good antimicrobial activity. Li et al. [156] fabricated centrifugally spun drug-loaded starch/PEO fibres to improve the solubility and bioavailability of poorly soluble drugs (Ibuprofen and ketoprofen). In vitro dissolution profile displayed more than 75% of the drug in the dissolution medium without the initial burst release of the drug. The ibuprofen-loaded fibres displayed sustained drug release over a period of 24 h; however, fibres loaded with ketoprofen did not release the drug for more than 48 h.

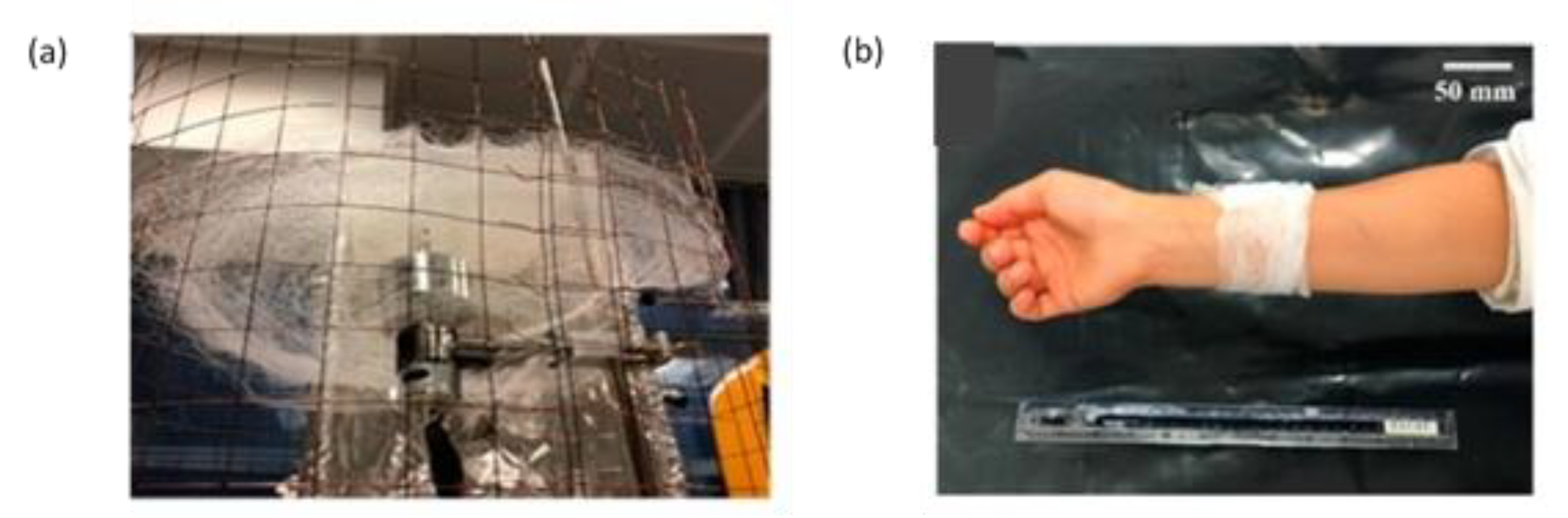

Centrifugally spun fibres have found great potential in wound healing due to their high surface area. Therefore, Cremar et al. [157] developed chitosan-based fibrous mats loaded with silver/cinnamaldehyde to provide enhanced antibacterial activity against S. aureus. From disk diffusion and cell viability methods, fibrous mats can be used successfully in wound healing due to enhanced antimicrobial activity as shown in Figure 18.

In another study, centrifugally spun fibres were fabricated for wound dressings. The ciprofloxacin loaded PLA/gelatin nanofibres displayed good antimicrobial activity with sustained release of drug up to 1 h (in vitro) [158]. In the same year, Aydogdu et al. [159] successfully developed bacterial cellulose fibres containing a blend of PCL/PLA as an adequate carrier for wound healing. The prepared scaffolds had an exceptional tensile strength and mechanical properties, with the diameter in the range of 5.0–18.5 µm. When researchers use the 70:30 PLA/PCL blend, they can produce fibrous mats like a bandage, which can be used as a potential candidate in wound healing, as shown in Figure 19.

Centrifugal spinning has also found great interest in recent years as a method for tissue engineering. For instance, in 2017, centrifugal spinning was used to develop platelet-functionalised 3D poly-ε-caprolactone scaffolds to deliver growth factors. The proposed scaffolds, upon biological evaluation on MG-63 cells, displayed enhanced metabolic activity, alkaline phosphatase activity, and cell proliferation compared to scaffolds that are nonfunctionalized. Moreover, increasing the concentration of platelets in the scaffolds leads to increased cell response due to dose dependency [160]. In another study, 3D fibrous scaffolds were formulated through emulsion centrifugal spinning. The poly-ɛ-caprolactone scaffolds containing growth factors (TGF-β, IGF, and bFGF) enhanced cell proliferation and chondrogenic differentiation. Thus, the prepared scaffolds can be used as a potential candidate for tissue engineering [161]. In a recent study, force spinning was employed to develop pH-controlled doxorubicin-loaded nanofibres. When functionalised with carbon nano-onions, PCL fibres exhibited a pH-responsive drug release over 15 days: an 87% drug release at pH 6.5 and a 99% drug release at pH 5.0. Thus, from these findings, centrifugally, spin fibrous composites were capable of releasing the drug in a sustained release manner [162].

Table 7. Some of the examples of centrifugal spinning in drug delivery applications.

Drug(s)	Polymer/Carrier	Solvent(s)	Drug Release Characteristics	Reference
Tetracycline	PVP/PCL	Chloroform/ethanol	Rapid drug release followed by sustained drug release	[133]
Carvedilol	Hydroxypropyl cellulose	Ethanol	Rapid drug release	[152]
Olanzapine and piroxicam	Sucrose	-	Fast disintegrating drug release	[153]
Ibuprofen, Indomethacin, tinidazole, nifedipine and metoprolol tartrate	Eudragit® EPO, Eudragit® RS Polyethylene glycol, Soluplus®	-	Modulable drug release	[154]
Tetracycline hydrogen chloride	PVP	Ethanol	Faster drug release followed by controlled drug release	[155]
Platelet	PCL	Chloroform and ethanol	Dose dependant drug release	[160]
Ibuprofen and Ketoprofen	PEO	Water/sodium hydroxide	Fast drug release without initial burst, then sustained drug release	[156]
Cinnamaldehyde or silver	Chitosan	Trifluoroacetic/dichloromethane	-	[157]
Ciprofloxacin	PLA/GE	HFP	Initial burst release of drug followed by sustained drug release	[158]
Bacterial cellulose	PLA/PCL	Chloroform	-	[159]
TGF-β, IGF and bFGF	PCL	Ethanol and chloroform	Prolonged drug release	[161]
Doxorubicin	PCL/PMPMA-CNOs	Trifluoroacetic acid	Sustained drug release	[162]

TGF-β = Transforming growth factor, IGF = Insulin-like growth factor, bFGF = basic fibroblast growth factor, PVP = Polyvinylpyrrolidone, PCL = Poly(ε-caprolactone), PEO = Poly (ethylene oxide), PLA/GE = Poly(lactic acid)/gelatin, HFP =1,1,1,3,3,3-hexafluoro-2-propanol.

Table 7. Some of the examples of centrifugal spinning in drug delivery applications.

Drug(s)	Polymer/Carrier	Solvent(s)	Drug Release Characteristics	Reference
Tetracycline	PVP/PCL	Chloroform/ethanol	Rapid drug release followed by sustained drug release	[133]
Carvedilol	Hydroxypropyl cellulose	Ethanol	Rapid drug release	[152]
Olanzapine and piroxicam	Sucrose	-	Fast disintegrating drug release	[153]
Ibuprofen, Indomethacin, tinidazole, nifedipine and metoprolol tartrate	Eudragit® EPO, Eudragit® RS Polyethylene glycol, Soluplus®	-	Modulable drug release	[154]
Tetracycline hydrogen chloride	PVP	Ethanol	Faster drug release followed by controlled drug release	[155]
Platelet	PCL	Chloroform and ethanol	Dose dependant drug release	[160]
Ibuprofen and Ketoprofen	PEO	Water/sodium hydroxide	Fast drug release without initial burst, then sustained drug release	[156]
Cinnamaldehyde or silver	Chitosan	Trifluoroacetic/dichloromethane	-	[157]
Ciprofloxacin	PLA/GE	HFP	Initial burst release of drug followed by sustained drug release	[158]
Bacterial cellulose	PLA/PCL	Chloroform	-	[159]
TGF-β, IGF and bFGF	PCL	Ethanol and chloroform	Prolonged drug release	[161]
Doxorubicin	PCL/PMPMA-CNOs	Trifluoroacetic acid	Sustained drug release	[162]

TGF-β = Transforming growth factor, IGF = Insulin-like growth factor, bFGF = basic fibroblast growth factor, PVP = Polyvinylpyrrolidone, PCL = Poly(ε-caprolactone), PEO = Poly (ethylene oxide), PLA/GE = Poly(lactic acid)/gelatin, HFP =1,1,1,3,3,3-hexafluoro-2-propanol.

5. Solution and Melt Blowing Spinning

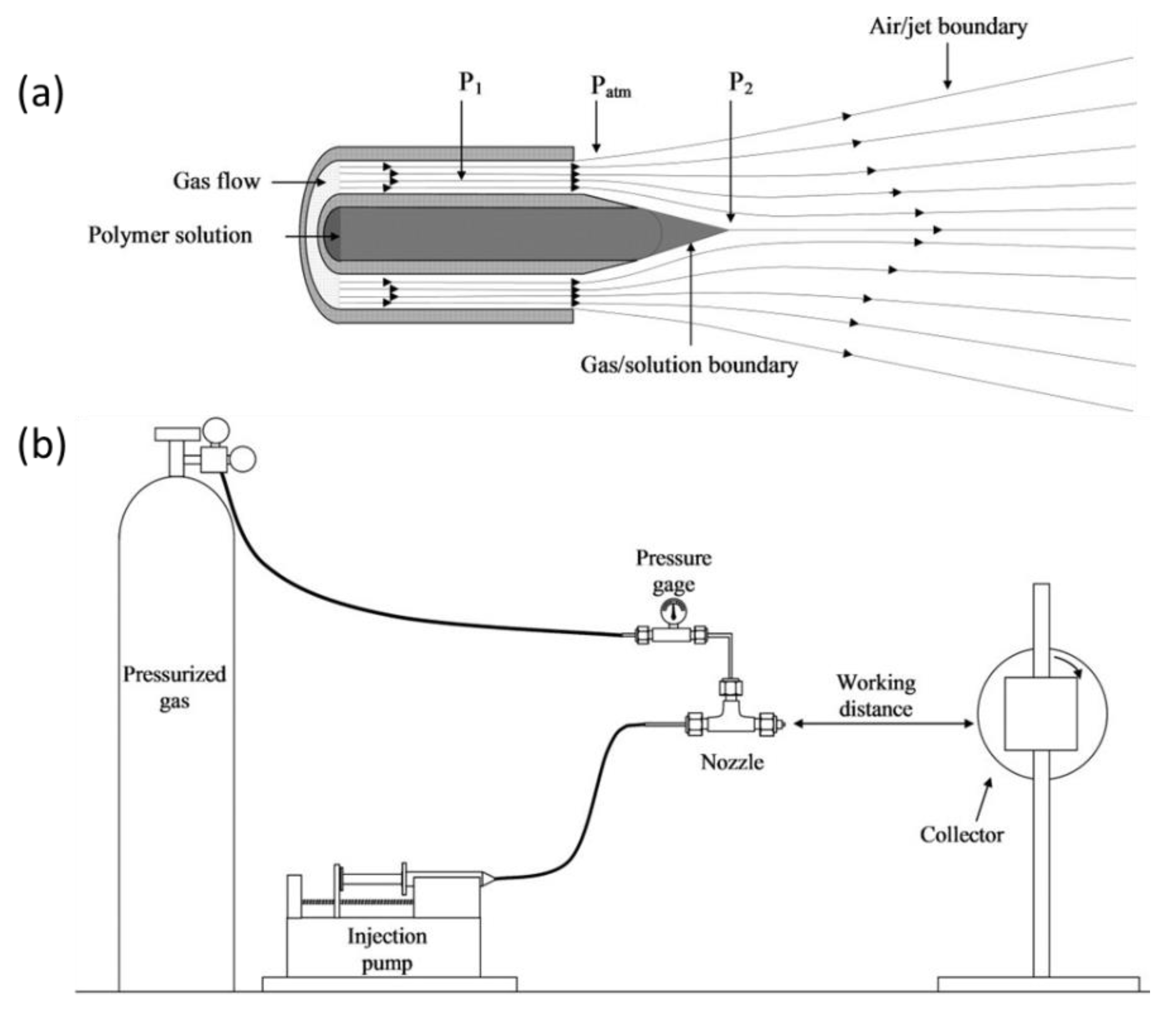

Solution-blowing spinning (SBS) is a new technique to produce polymeric micro/nanofibres from a polymer solution in a process that combines the principle of electrospinning and melt blowing [163]. Solution-blowing spinning necessitates a simple apparatus, homogenous polymer solution in a volatile solvent and a high-velocity gas source [164]. For the spinning device, a specialised nozzle is attached, having an inner nozzle for the pumping of the polymer solution and outer concentric nozzle that to supply pressurised air. During SBS, the streams of the solution are stretched into ultrafine jets under the flow of a high gas velocity from the outer nozzle. Then, the jet is solidified into nanofibres after the evaporation of the solvent Figure 20a,b [165,166].

5.1. Factors Affecting Solution Blowing and Melt Blowing Spinning

The parameters governing the solution-blowing method have been determined by many researchers. The jet attenuation of the polymer is affected by the number of events during solution blowing, including stretching, instability during bending, flapping motion, and solvent evaporation. In addition, polymer concentration and type also impart a direct morphological effect on the fibre. The injection rate of the solution, the pressure of the gas flow, the protrusion length of the inner nozzle, and the distance from the nozzle to the collector are some of the additional parameters that are important in solution blowing.

Table 8. Factors affecting the solution-blowing process [147].

Parameters	Effect on Fibre Morphology
Solution parameters	Viscosity	Increase in viscosity low beads formation but increase in fibre diameter.
	Polymer concentration	Polymer concentration is more than 15 wt%, fibre diameter increases.
		Low molecular concentration leads to no sufficient chain entanglement thus cause beads on fibre.
	Molecular weight	Increase leads to decrease in beads formation Decrease leads to increase in number of beads.
	Surface tension
	Vapour pressure
Process parameters	Air pressure	Cause great effect on the web uniformity.
		Decrease in air pressures cause droplets on fibres.
		No direct influence on diameter of fibre
	Distance between nozzle to collector	The optimum working distance is 30 cm. When the distance is short thin film of nanofibre is generated around the collector due to insufficient solvent evaporation.
	Flow rate of solution	Increase in flow rate cause increase in fibre diameters with greater polymer droplets.
System parameters	Nozzle diameter and geometry	Decrease in nozzle diameter decreases fibre diameter. Nozzle geometry lowers the pressure around inner nozzle, which helps in drawing of polymer solution in cone shape
Ambient conditions	Temperature Humidity Atmospheric pressure	Increase in temperature leads to decrease in fibre diameter. Increase in humidity small spherical pores appear further increase in humidity the pores will be connected. When humidity is very low, solvent evaporation occurs fast. The air flow above the needle, increase evaporation rate resulting in larger fibre diameter.

summarises the core parameters that affect the process of fibre formation when employing this technique [167].

5.2. Applications of Solution- and Melt-Blowing in Drug Delivery

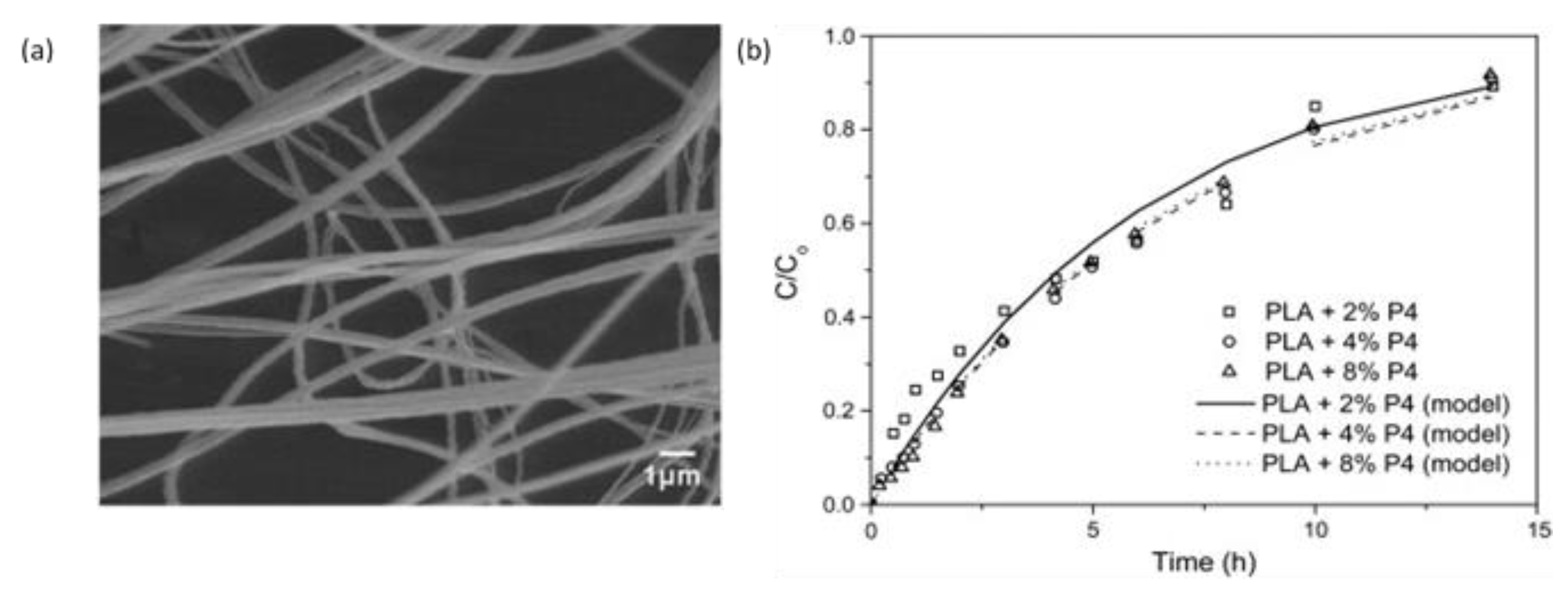

The solution-blowing method is independent of solvent limitations and electrostatic constraints, so voltage-sensitive polymers can be used without difficulty. These characteristics are causing solution-blowing applications ultimately to be extended from energy to filtration products. In terms of drug delivery, since its first report in 2009 [168], fewer studies have been reported in terms of drug delivery using solution-blowing. The first study was reported by Oliveira and co-workers [169], who prepared PLA fibres which are loaded with the hormone progesterone to provide controlled delivery of drugs in livestock. Initially, fibres were developed from the solutions containing PLA 6% wt and progesterone between 0 and 8% w/w, as shown in Figure 21a. In terms of drug release, nanofibres obeyed first-order kinetics, which could potentially be used in controlled drug delivery to control the reproductive cycle in livestock animals (Figure 21b). Some other studies have been discussed in succeeding sections and tabulated in

Table 9. Some examples of solution-blowing spinning in drug delivery applications.

Drug(s)	Polymer(s)	Solvent(s)	Type of Drug Delivery	Reference
Progesterone	PLA	Chloroform and acetone	First-order release kinetics	[160]
Diclofenac sodium	PHBV	Hexafluoro isopropanol	Initial burst release followed by controlled drug delivery	[170]
Copaiba oil	PLA/PVP	Chloroform/Acetone	Controlled drug delivery	[171]
Carvedilol	PVPVA64	PEG	Fast drug delivery	[172]

PLA = Poly(lactic acid), PHBV = Poly(3-hydroxybutyrate-co-3-hydroxyvalerate), PVP Polyvinylpyrrolidone, PVPVA64 = Vinylpyrrolidone-vinyl acetate, PEG = Polyethylene glycol.

employing SBS in drug delivery.

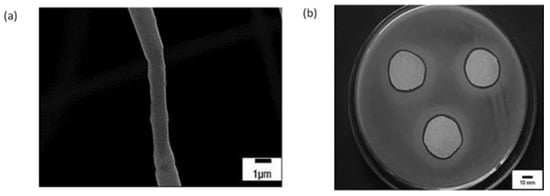

A study reported a comparison between fibres of PHBV loaded with a drug (sodium diclofenac) prepared with ES and the solution-blowing method. With ES, the drug-loaded fibres had larger diameters compared to the SB fibres. The release profile of the drug was dependent on temperature and drug concentration present within the fibres in both cases [170]. The solution-blowing technique has also been explored to develop fibres from Copaiba oil (CO) obtained from Copaifera sp., a medicinal plant often used to provide antimicrobial activity. The composites were constructed from a polymeric blend (PVP and PLA) with a diameter of around 1µm, as shown in Figure 22a. An increased content of PVP in fibres displayed higher antimicrobial activity against Staphylococcus aureus with a controlled release of the drug, as shown in Figure 22b [171].

6. Pressurised Gyration

The pressurised gyration (PG)-based hybrid system was first reported in 2013, combining the features of centrifugal spinning and solution-blowing to produce fibres at a large scale with greater control over the final product morphology. The gyration set-up, as shown in Figure 23, essentially contains an aluminium rotary vessel, which is surrounded by pinhole orifices for ejection. The top side of the vessel is connected to a gas inlet for producing pressures of up to 3 × 105 Pa while the bottom part is directly connected with the motor, to rotate the vessel and speed controller rotate the vessel up to 36,000 rpm [173].

6.1. Mechanism of Pressurised Gyration

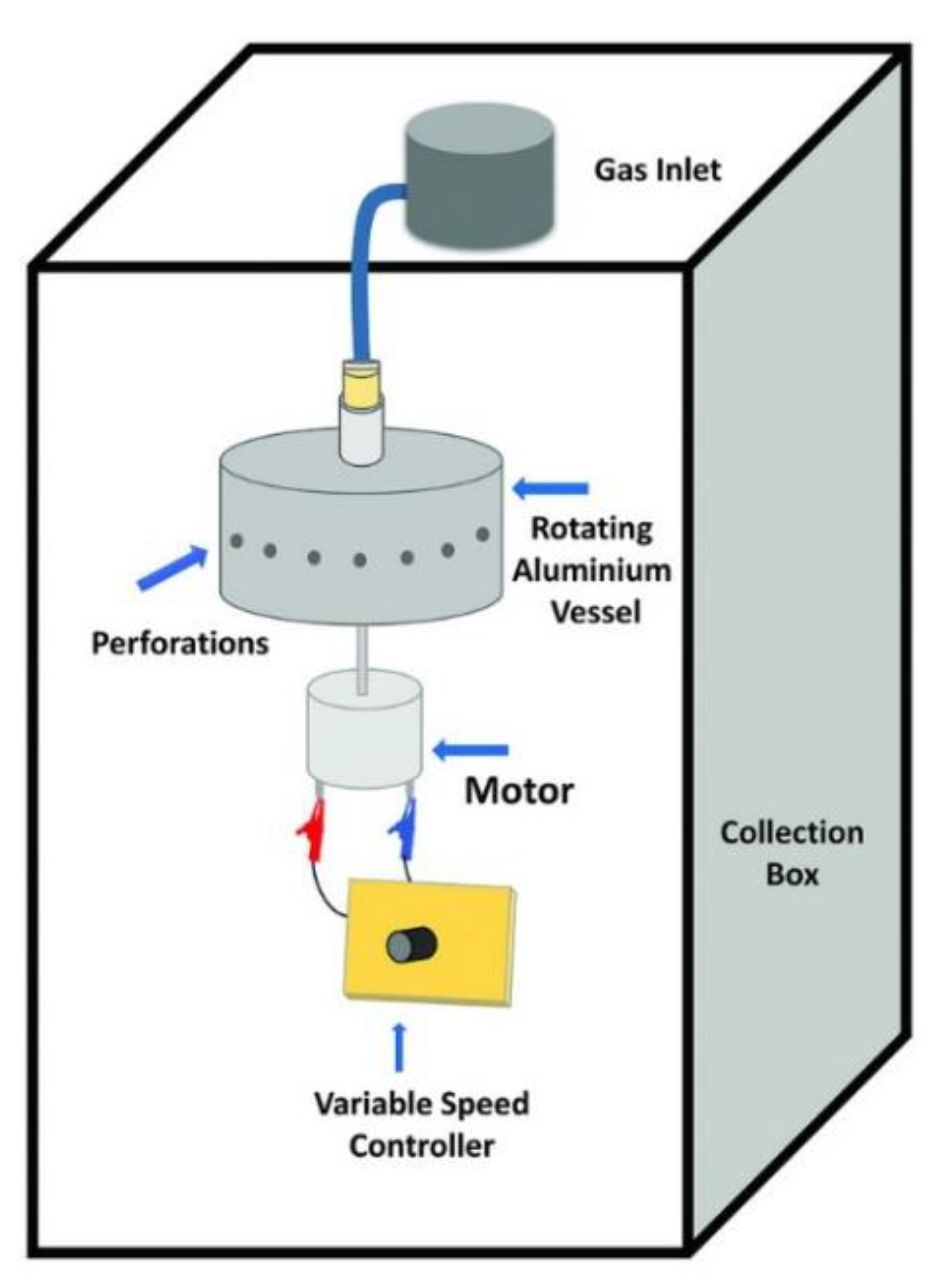

The PG technique is operated using the Rayleigh–Taylor instability of the chosen polymer solution. The polymer solution is fed into an aluminium rotary vessel, and during the gyration process, when the centrifugal force surpasses the solutions’ surface tension, a jet of liquid is ejected from each pinhole orifice present around the vessel. Fibre formation happens when the polymer jet stretches continuously due to the centrifugal force and the pressure differences arising from the gas inlet near the orifice. During the jetting stage, the solvent evaporates gradually; as a result, fibres are formed around the collector walls in a solid state [173].

6.2. System Parameters of Pressurised Gyration

The formation of fibres mainly depends on the solution properties and processing parameters of the technique. The properties of the solution govern spinnability and ultimately affect the fibre formation process. The applied gas and rotational speed of the vessel are considered critical processing parameters, which produce a marked effect on the morphology of the fibres. In addition, variation in collection distance and environmental conditions also alters the structure of the fibres [173].

Table 10. Factors affecting the pressurised gyration process [173].

Parameters		Effect on Fibre Morphology
Process parameters	Increase in Working pressure	Decrease in the fibre diameter.
	Increase in spinneret rotating speed	Decrease in the fibre diameter.
Solution parameters	Increase in Polymer molecular	Increase in the fibre diameter.
	Increase in polymer concentration	Increase in the fibre diameter.
	Increase in Solvent volatility	Decrease in the fibre diameter.
		Increase in the pore size of fibre.
System parameters	Increase in size of orifice	Increase in the diameter of fibre.
Ambient	Increase in Temperature	No direct effect.
	Increase in relative Humidity	Cause decrease in the fibre uniformity.

summarises the parameters of PG on the fibre surface and/or diameter.

6.3. Applications of Pressurised Gyration in Drug Delivery

The process of PG provides an attractive manufacturing route for the development of fibres with low diameters, which have demonstrated great potential in drug delivery. The PG technique overcomes major challenges in manufacturing large-scale micro/nanofibrous drug delivery systems, thus providing the production rate in kilograms per hour. In the following paragraphs, the applications of PG in drug delivery have been summarised and tabulated in Table 11.

The process of PG has been used to develop fibres of a poorly soluble drug (ibuprofen) to enhance its dissolution performance. After PG, the PVP fibres alone had diameters in the nanoscale, whereas, after the inclusion of the drug, the fibres were found in the microscale range. The amorphous drug–polymer composites had an accelerated dissolution profile under sink conditions, while non-sink conditions displayed supersaturation [174]. Brako et al. [175] employed PG to prepare a progesterone-loaded nanofibre from a bioadhesive polymer for vaginal therapy. The SEM images and diameter of drug-loaded fibres with 5 wt% of a drug is shown in Figure 24a,b. The hydrophobic drug, after dispersion into hydrophilic polymeric nanofibres (PEO and CMC), displayed a comparable dissolution profile with commercially available Cyclogest (progesterone pessary), as shown in Figure 24c, but nevertheless, the release was observed over 4 h. In conclusion, the PG technique has provided a successful loading of a poorly soluble drug along with suitable release characteristics and morphological properties. The prepared progesterone-loaded fibres have proved to be a promising candidate for drug delivery into the membrane of the vaginal mucosa. More recently, progesterone-loaded poly(lactic) acid polymeric scaffolds were fabricated using both ES and PG techniques to facilitate intra-vaginal therapy. The loaded drug patches obtained from both methods had similar thermal and release characteristics. However, patches attained using ES were more uniformly arranged with smaller fibre diameters in contrast to PG. However, PG provided superior tensile strength in patches and a high production yield compared to ES [176].

In another study, PG and ES were compared by Ahmed et al. [177] in delivering antifungal agents itraconazole (ITZ) and amphotericin B (AMB) through four spinning polymers PVP, PMMA, PNIPAM, and PVDF. The researchers found that the average diameter of the fibre was different due to the different types of polymer and methods used. For drug loading, both ITZ and AMB, PVP was selected as an optimal polymer for fibre production. In vitro dissolution studies displayed a successful release of drugs from both types of fibres, with a burst drug release within 15 min from the electrospun fibres. Whereas fibres obtained from PG displayed accelerated dissolution followed by drug release within 5 min and complete drug release in 1 h, as shown in Figure 25.

The use of pressurised gyration in the development of drug-loaded bandages is also found to be very productive in wound healing. For instance, Cinnamon-loaded PCL fibres were engineered and prepared to provide antifungal activity. When fibres were exposed to fungus (Candida albicans), no survival was observed after 48 h of treatment. Moreover, after three weeks of the following treatment, no fungal regrowth was seen, thus showing cinnamon efficacy when explored as an antifungal agent [178]. In recent years, the loading of actives to proliferate cells for wound healing has also become an exciting point of interest for researchers. Therefore, in a recent study, pioglitazone hydrochloride (PHR), an insulin-sensitising agent, was loaded into fibrous mats of PVP and PVP/PCL to attain a burst release and a sustained drug release, respectively. From in vitro and in vivo tests, a blend of PCL and PVP in PHR-loaded fibrous mats showed increased activity of epidermal regeneration and fibroblast proliferation, as shown in Figure 26. However, complete oedema improvement and hair follicle formation was only observed in sustained release preparations [179]. More recently, the same researchers developed a combination of pioglitazone with oral antidiabetic (glibenclamide and metformin) nanofibrous scaffolds to accelerate wound healing topically. The triple combination of drugs significantly enhanced epidermal regeneration, i.e., growth of hair follicles was seen within two weeks. Moreover, due to the increased wettability and hydrophilicity of the prepared scaffolds, it was possible to develop sustained release matrices with increased drug bioavailability whilst the dose frequency was reduced [180].

The potential for pressurised gyration in wound healing had also seen great importance when Altun et al. [181] first reported fibres from a blend of bacterial cellulose and PMMA. The produced fibres had an average fibre diameter in the 1.66 to 6.8 µm range. The formulated nanofibres showed no toxicity but enhanced biocompatibility.

Table 11. Studies in which pressurised gyration has been employed for drug delivery applications.

Drug(s)	Polymer(s)	Solvent(s)	Drug Release Characteristics	Reference
Ibuprofen	PVP	Ethanol	Fast drug release	[174]

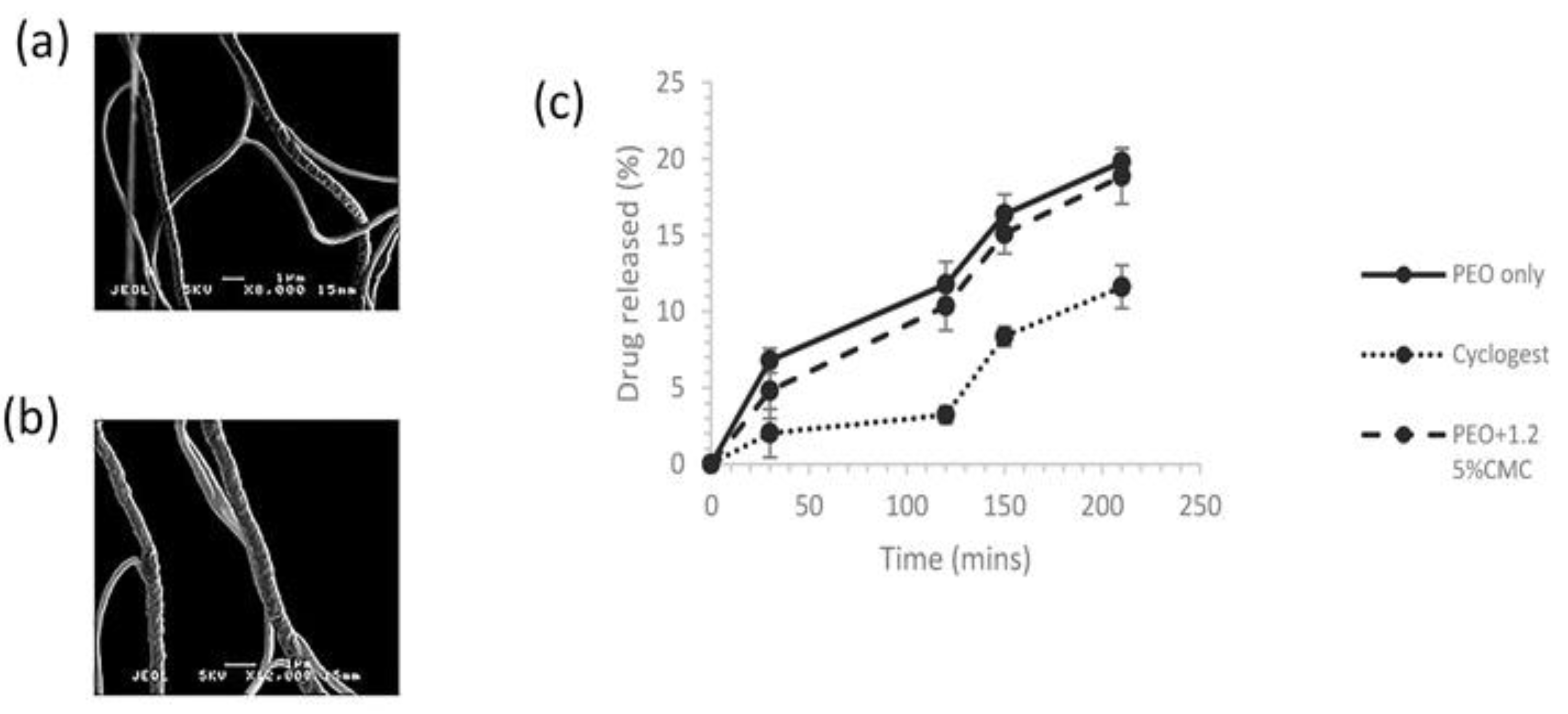

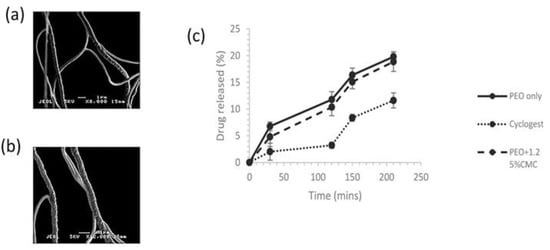

Progesterone	PEO and CMC	Ethanol	Zero-order drug release	[175]
Progesterone	PLA	Chloroform	Initial burst release followed by sustained drug release	[176]
Itraconazole and amphotericin B	PVP, PMMA, PNIPAM, and PVDF	Ethanol, dichloromethane, acetone, chloroform, dimethylformamide	Fast drug release	[177]
Cinnamon	PCL	Chloroform	-	[178]
Pioglitazone hydrochloride	PCL and PVP	Ethanol	Depends on the polymer concentration in the fibres. Some showed burst release, while one formulation showed sustained drug release	[179]
Pioglitazone Glibenclamide Metformin	PVP/PCL	Chloroform and methanol	Initial burst followed by sustained drug release	[180]

PVP = Polyvinylpyrrolidone; PEO = Poly (ethylene oxide); CMC = Carboxymethyl cellulose; PMMA = Poly methyl methacrylate; PNIPAM = poly (N-isopropyl acrylamide); PVDF = Polyvinylidene fluoride.

Table 11. Studies in which pressurised gyration has been employed for drug delivery applications.

Drug(s)	Polymer(s)	Solvent(s)	Drug Release Characteristics	Reference
Ibuprofen	PVP	Ethanol	Fast drug release	[174]
Progesterone	PEO and CMC	Ethanol	Zero-order drug release	[175]
Progesterone	PLA	Chloroform	Initial burst release followed by sustained drug release	[176]
Itraconazole and amphotericin B	PVP, PMMA, PNIPAM, and PVDF	Ethanol, dichloromethane, acetone, chloroform, dimethylformamide	Fast drug release	[177]
Cinnamon	PCL	Chloroform	-	[178]
Pioglitazone hydrochloride	PCL and PVP	Ethanol	Depends on the polymer concentration in the fibres. Some showed burst release, while one formulation showed sustained drug release	[179]
Pioglitazone Glibenclamide Metformin	PVP/PCL	Chloroform and methanol	Initial burst followed by sustained drug release	[180]

PVP = Polyvinylpyrrolidone; PEO = Poly (ethylene oxide); CMC = Carboxymethyl cellulose; PMMA = Poly methyl methacrylate; PNIPAM = poly (N-isopropyl acrylamide); PVDF = Polyvinylidene fluoride.

7. Other Techniques

In addition to the techniques discussed already, there are some techniques that have emerged to show the potential to develop nanofibres for drug delivery applications (

Table 12. Less commonly employed techniques for drug delivery applications.

Technique	Drugs	Polymers	Solvent(s)/ Excipients	Drug Release Characteristics	Reference
Electrospraying	IGF-1 (growth factor)	PLGA and poly(urethane-urea)	DMSO	Initial burst release followed by slow and subsequently fast drug release	[186]
	Protein bovine serum albumin	PCL and PLGA	Chloroform	Sustained drug release	[187]
	Rhodamine B	PLA/PEO	DCM and DMF	Zero-order drug release	[188]
Melt electrospinning	Carvedilol	Eudragit	-	Fast drug release	[189]
	Carvedilol	Eudragit E	Triacetin, Tween 80, and polyethylene glycol 1500	Fast drug release	[190]
	Curcumin	PCL	DCM/ethanol	Slow drug release without initial burst phase	[191]
Electro blowing	Diclofenac Sodium	HPβCD	Ethanol	Fast drug release	[192]
	Itraconazole	Eudragit E	DCM/methanol	Fast drug release	[193]
Microfluidic spinning	Ampicillin	Alginate	IPA sheath	Extended drug release	[194]

). Additional details on the principle of these techniques can be obtained from the recent reviews reported by Qi and Craig [182], Luo et al. [183] for electrospraying, Brown et al. [184] for melt electrospinning, and Cheng et al. [185] for microfluidic spinning.

8. Conclusions

In this review, we have discussed the development of nanofibres using different spinning techniques and their applications in drug delivery. The nanofibres produced from monoaxial electrospinning can provide rapid and extended drug release and can target drug delivery in response to pH conditions. Coaxial electrospinning can prepare multifunctional materials. Triaxial spinning offers complicated nano- and microscale architectures with enhanced functional performance, while side-by-side electrospinning was used in the development of Janus fibres for drug delivery. Nanofibres obtained from centrifugal spinning have also been employed in drug delivery along with different carriers, especially polymers. Solution-blowing spinning provides micro–nano scale fibres, while pressurised gyration can generate a large number of homogenous fibres with greater control over final product morphology. Some less well-reported manufacturing techniques have also been discussed. Overall, this review has highlighted the importance, versatility, and adaptability of nanofibres in developing medicines with varied drug release kinetics. Several issues still exist and need to be addressed for their full commercial realisation, such as the drug loading, the initial burst effect, the residual organic solvent, the stability of active agents, and the combined usage of new or existing biocompatible polymers.

9. Challenges and Future Outlook

The emergence of different nanofibre production strategies has led to a substantial breakthrough in developing various platforms for drug delivery technologies. These technologies have made extensive progress in recent years, but not without limitations. Despite noteworthy innovations, many remain in the proof-of-concept stages due to challenges associated with their biopharmaceutical performance. The leading research in electrospinning centrifugal spinning, solution-blowing, and pressurized gyration are moving slowly towards large-scale production, with some systems already being used at the industrial level (e.g., NanoSpinner416n, FibeRio^® Technology). Although these innovative techniques have shown great potential in developing uniform and continuous fibres, the challenge remains to ensure the production of fibres with the desired mechanical, chemical, and morphological properties, especially during large-scale production. The complex, multifaceted instrument-related parameters and factors associated with the working solution impact or compromise fibre production. Therefore, optimisation of working conditions and solutions is essential. More importantly, maybe because of these reasons, nanofibres’ applications are limited to the laboratory scale, necessitating the need for more in-depth pre-clinical and clinical evaluation to help the translation process of these products to market.
