# Performance of Steel Bar Lap Splices at the Base of Seismic Resistant Reinforced Concrete Columns Retrofitted with FRPs—3D Finite Element Analysis

^{*}

*Fibers*)

## Abstract

**:**

## 1. Introduction

_{u}) of the columns. Modern codes for seismic design and interventions, such as Eurocode 8 part 3 (EC8.3) [40] and Greek Retrofit Code (KANEPE) [41], have adopted such equations. The extensive investigation of the recent experimental and analytical database by Anagnostou et al. [42] (see also [43]) for 261 columns with or without lap splices suggests that the existing design models for RC columns of square or rectangular sections, with or without FRP confinement, provide the predicted shear strength compared against the experimental one, with an average absolute error (AAE) of about 20%. Further, the same study reveals that the AAE of the predicted chord rotation at failure was higher than 35% (for both codes). Therefore, besides the recent research focusing on the effects of external confinement with composites on the seismic behavior of columns [44,45,46], including their deformation capacity [47,48] and the plastic hinge length [49,50,51], further research is necessary to address the unidentified gaps in our knowledge.

## 2. Experimental Database

_{R}or P

_{max}) and chord rotation at failure (θ

_{u}). In addition, the yield and ultimate chord rotation, the yield curvature, the yield moment, and the shear strength of the columns are calculated according to EC8.3 [40] and KANEPE [41].

_{anal}is the analytical value and x

_{exp}is the experimental value of the parameter (e.g., θ

_{u}, V

_{R}). It should be noticed that values of AR close to 1 and values of AAE close to 0% indicate accurate predictions of the values under investigation.

## 3. 3D Finite Elements Modelling

#### 3.1. Materials

#### 3.1.1. Concrete

#### 3.1.2. Longitudinal and Transverse Steel Bars

#### 3.1.3. Fiber Reinforced Polymer Jacket

#### 3.2. Geometry

#### 3.3. Connections

#### 3.4. Mesh

#### 3.5. Boundary Conditions and Loading

## 4. Numerical Results and Discussion

#### 4.1. Lateral Force-to-Drift (%) Curves

_{max}, P

_{u}) and the ultimate displacements (δ

_{Pu}) are presented and compared in Table 5. The experimental results refer to the average values of the two directions, push and pull.

#### 4.2. Analytical Response of the Longitudinal Bars

#### 4.2.1. Axial Force of Longitudinal Bars at the Base of Column

_{max}(or the developed stress, f

_{s}), is provided. The comparative curves of the tensile axial force of the bar versus the horizontal displacement of the columns (F-δ curves) without FRP confinement are depicted in Figure 4.

_{max}) of unretrofitted column without lap splices (R-0L0) is 145.94 kN at a displacement of 37.80 mm (at ultimate or failure), higher than the analytical yield force F

_{y}= 130.8 kN. The presence of inadequate lap splices with 15 d

_{bL}length at the base of an unretrofitted RC column results in the decrease of F

_{max}by 40% in column R-0L1 (F

_{max}= 87.95 kN at 8.57 mm, lower than the analytical yield force F

_{y}= 130.8 kN), 5% in column R-0L3 (F

_{max}= 138.33 kN at 16.64 mm), and 2% in column R-0L4 (F

_{max}= 143.30 kN at 31.36 mm) compared to R-0L0. Both columns with considered adequate lap splice lengths (R-0L3, R-0L4) may face some temporary or detrimental slip after steel bar yielding.

_{max}is 147.89 kN (at 57.78 mm) in column R-P2L0, 85.49kN (at 7.29 mm) in column R-P2L1 (lower than the analytical yield force, F

_{y}= 130.8 kN), 134.63 kN (at 55.90 mm) in column R-P2L3, and 157.42 kN (at 96.27 mm) in column R-P2L4. It is observed that the F

_{max}-to-displacement curves of R-P2L0 (without lap splices) and R-P2L4 (45 d

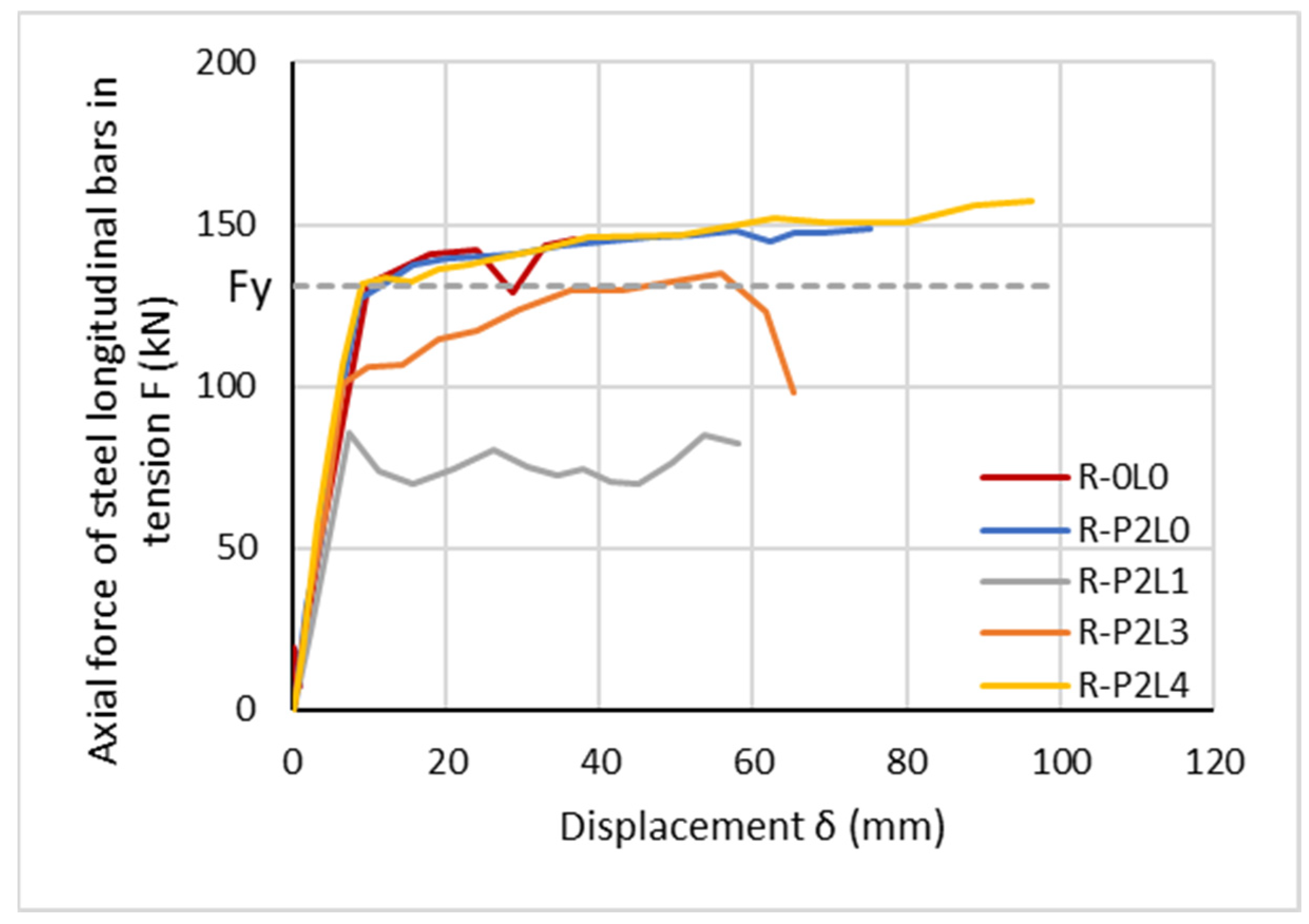

_{bL}lap splice length) are almost identical (also with R-0L0), confirming that a lap splice length of 45 d

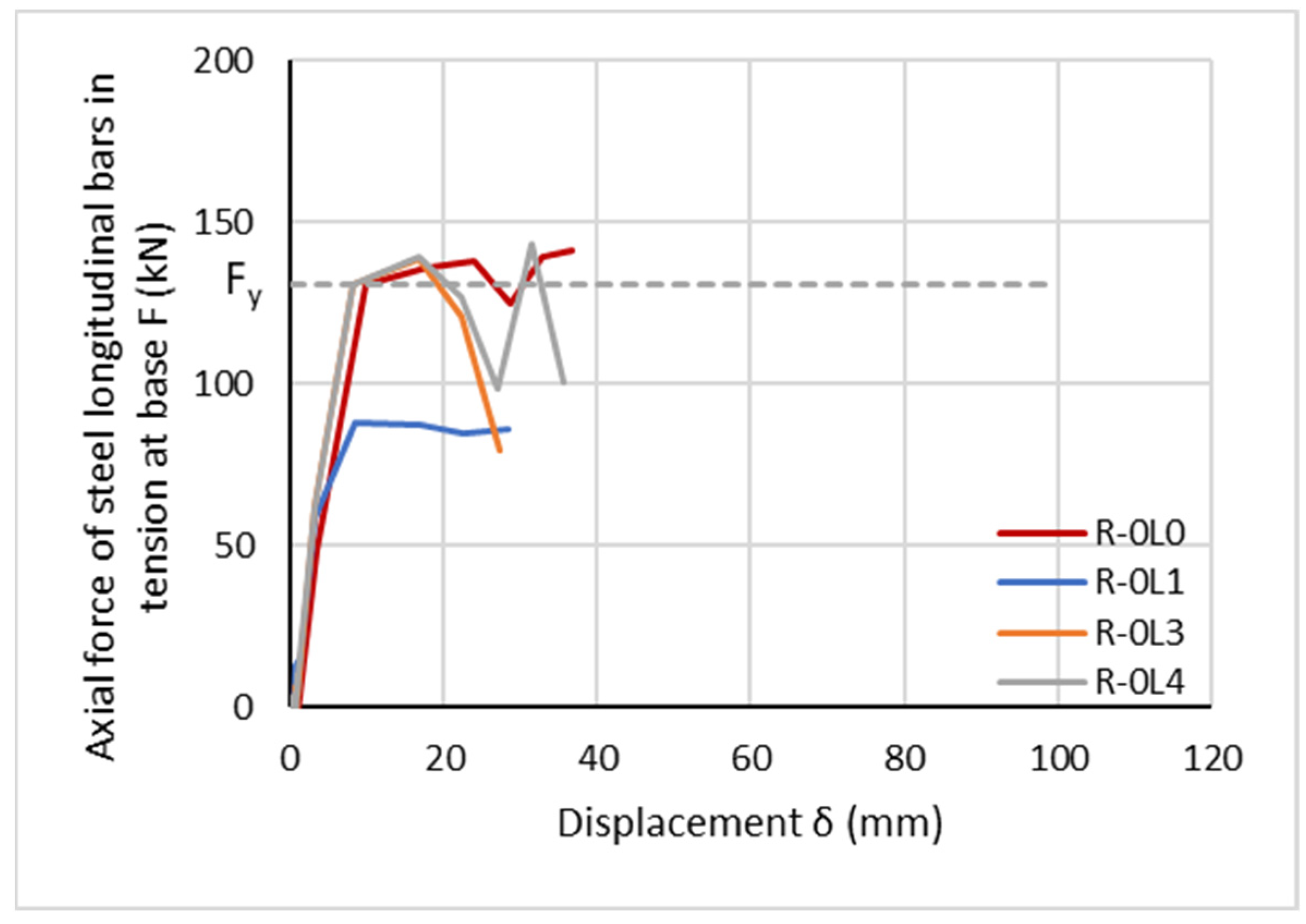

_{bL}provides an equivalent tensile bar response (Figure 5). In contrast, the analyses suggest that the F

_{max}obtained for column R-P2L1 is lower than the F

_{y}, although the column is externally confined with FRPs. The two layers of CFRP jacketing, in this case, are inadequate to prevent the lap-spliced bars from slipping, despite the pseudo-ductile behavior observed in Figure 3f. This pseudo-ductility is attributed to the pseudo-ductile bar contribution (see Figure 5). However, the response of the column is considered to be inadequate, as there is slip and it fails to reach bar yielding. This bar response is similar to the one in R-0L1 (Figure 4). For R-P2L3, the maximum tensile force of the bars exceeds the yield one, but at a horizontal displacement of 40 mm. The column seems to suffer initially by the controlled slip of the bars, starting before the displacement at the yielding of the bars of columns R-0L0 or R-P2L0 (Figure 5). However, at around 60 mm displacement, the bars slip again. The revealed deficient performance of the lap-spliced bars in R-P2L3 is in accordance with the lower bearing horizontal load of around 180–200 kN at the pseudo-yielding point (Figure 3). The corresponding bearing horizontal load for R-P2L0 at real bar yielding is around 190–225 kN (Figure 3).

_{bL}= 280 mm = 0.67 l

_{b,min}or 40 d

_{bL}= 560 mm = 1.29 l

_{b,min}) without FRP confinement (L20d_C, L40d_C) or with FRP confinement (L20d_R2, L40d_R2). They provided the steel strain histories of starter bars at the column base during testing, measured with strain-gauges (Figure 6). The lap-splice length equal to 20 d

_{bL}is inadequate for developing the yield strain (or yield stress) of the longitudinal bars (ε

_{yL}= 523/200,000 = 2.62‰), while the slippage of lap-spliced bars is observed. Although a lap-splice length of 40 d

_{bL}is adequate to develop the yield stress of the longitudinal bars, it is not sufficient to prevent slippage, which is observed after yielding. The application of two layers of CFRP delays the slippage of the lap-spliced bars for the inadequate lap-splice length of 20 d

_{bL}, happening at higher drifts of 3.75%. However, longitudinal bars do not really surpass yielding strain, while this marginal yielding of bars initiates at a higher column drift of 3.44%. As for the adequate lap-splice length of 40 d

_{bL}, FRP confinement does not affect the drift at the yielding of the lap-spliced bars, while no slippage is observed at higher drifts up to column failure.

_{y}(Figure 7a). However, for inadequate lap splice lengths, this change occurs at a lower force (F < F

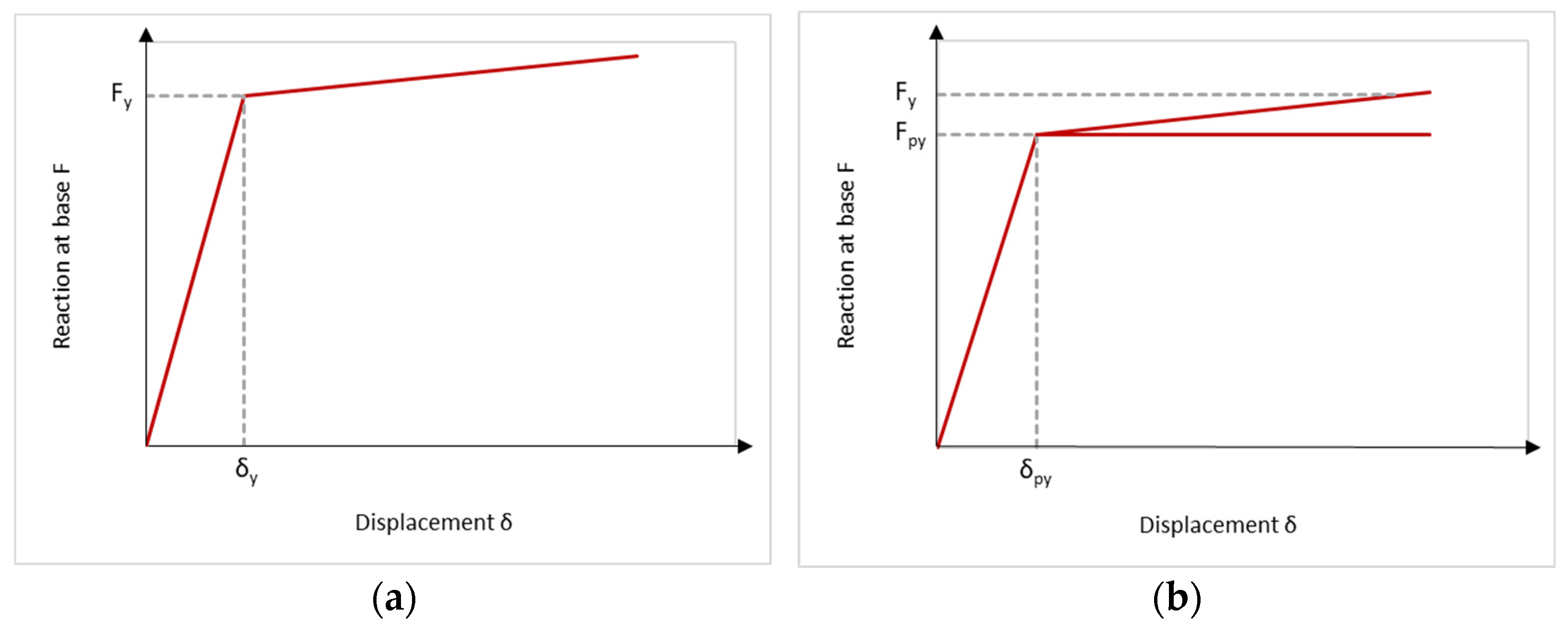

_{y}). In this case, the axial force is defined as pseudo-yield force (F

_{py}) and the corresponding displacement as pseudo-yield displacement (δ

_{py}), as shown in Figure 7b. This pseudo-ductility or delay in real tensile bar yielding development may explain the divergences in prediction in some cases in the yield flexural moment or chord rotation of the columns with lap-spliced bars, despite the fact that they are more or less affected by the mechanical characteristics of the steel bar under tension. These cases urge an assessment of the performance of such columns as acceptable or not in redesign.

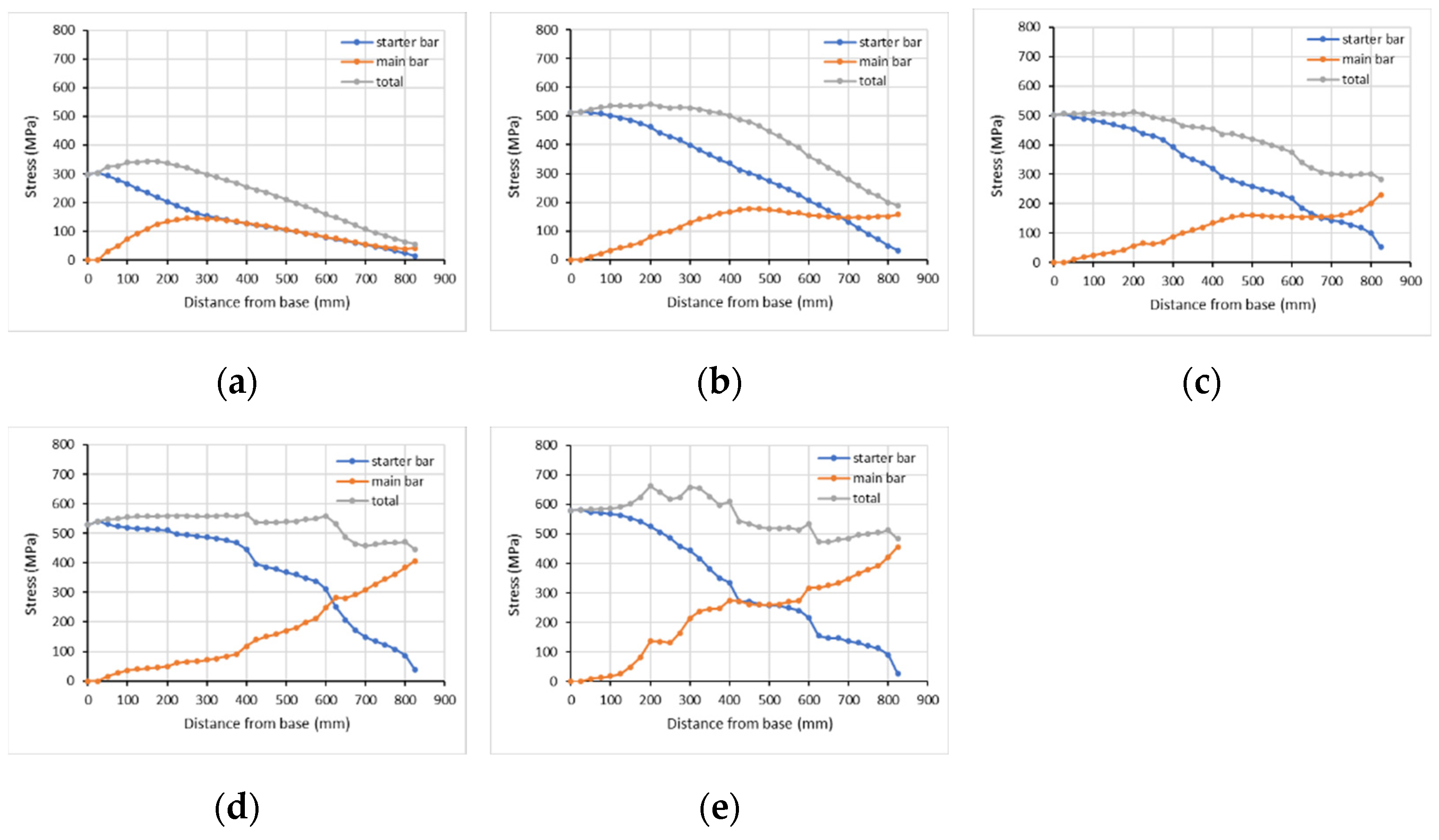

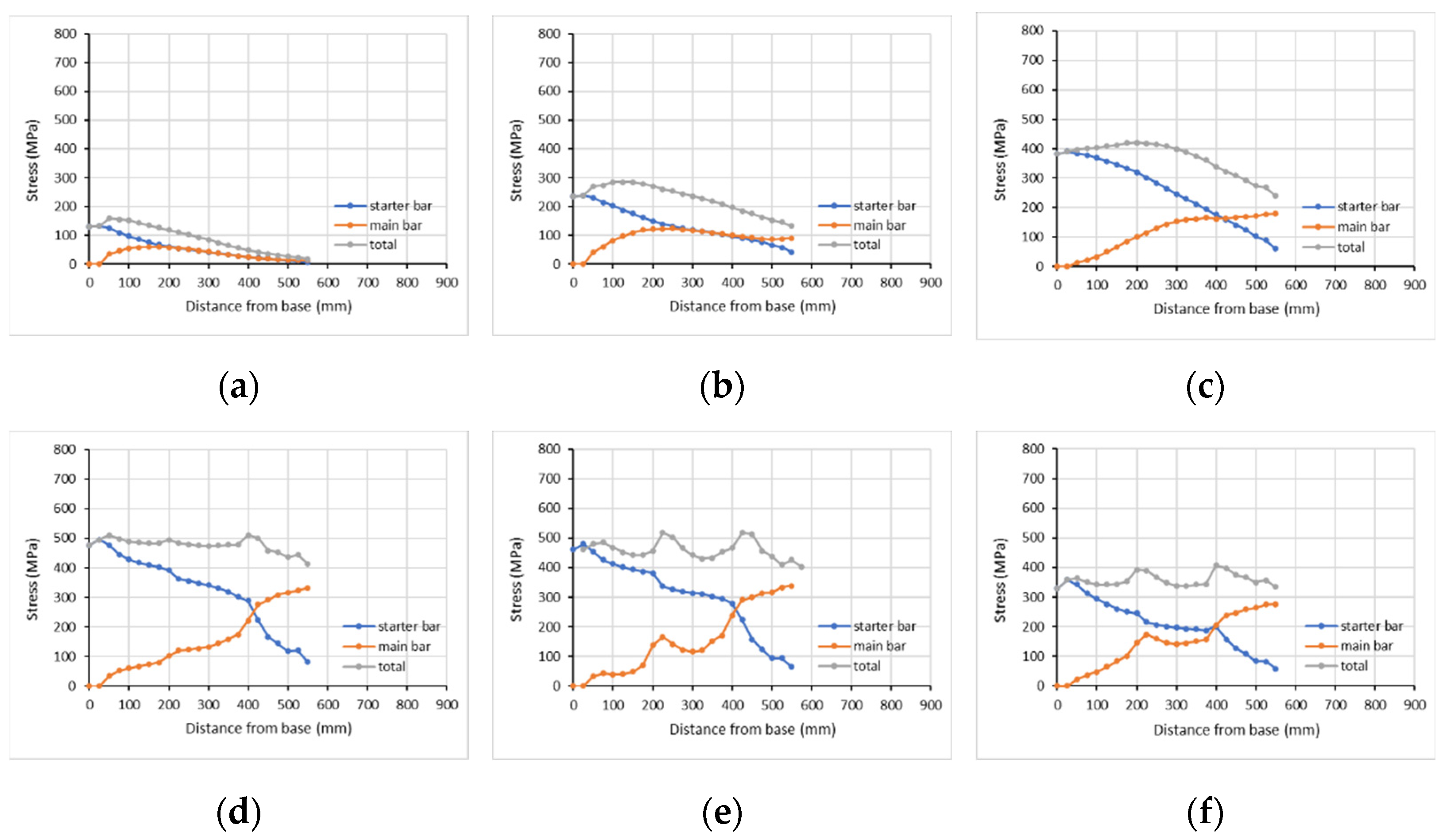

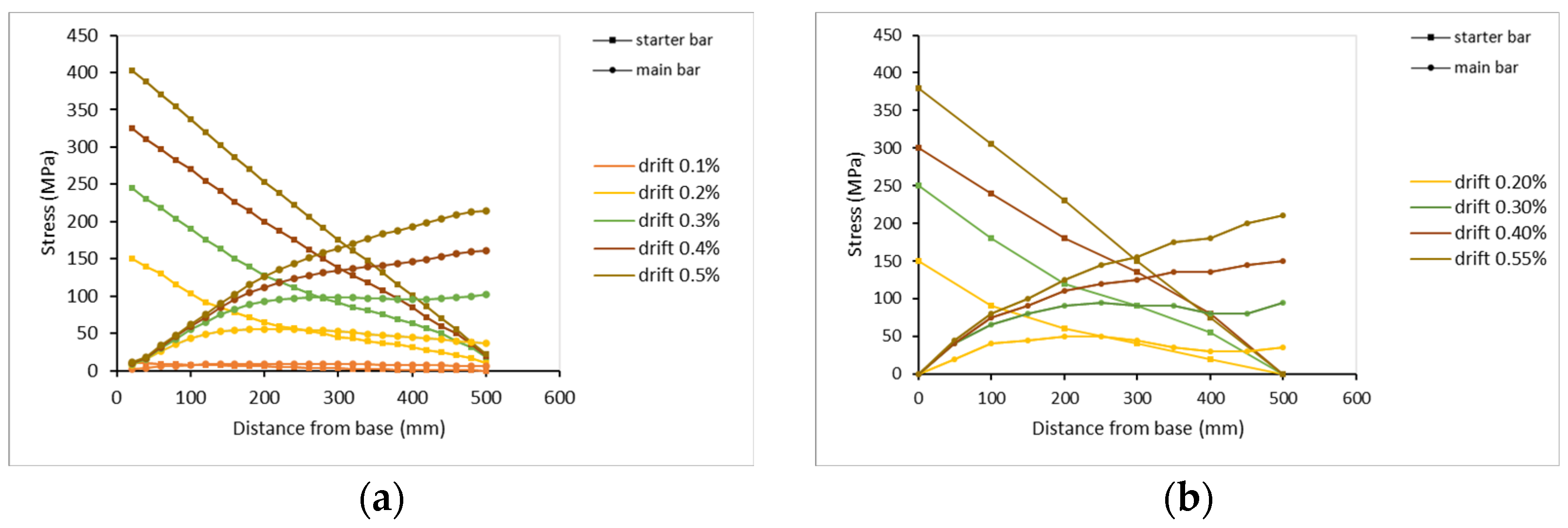

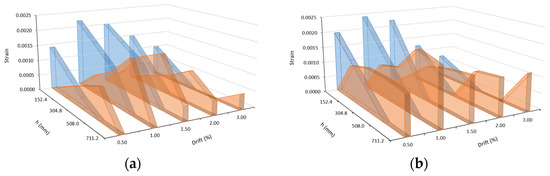

#### 4.2.2. Stress along the Lap Splice Length

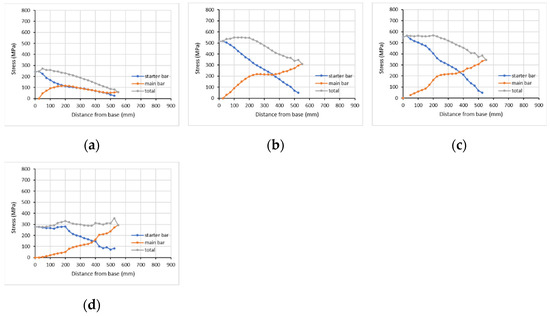

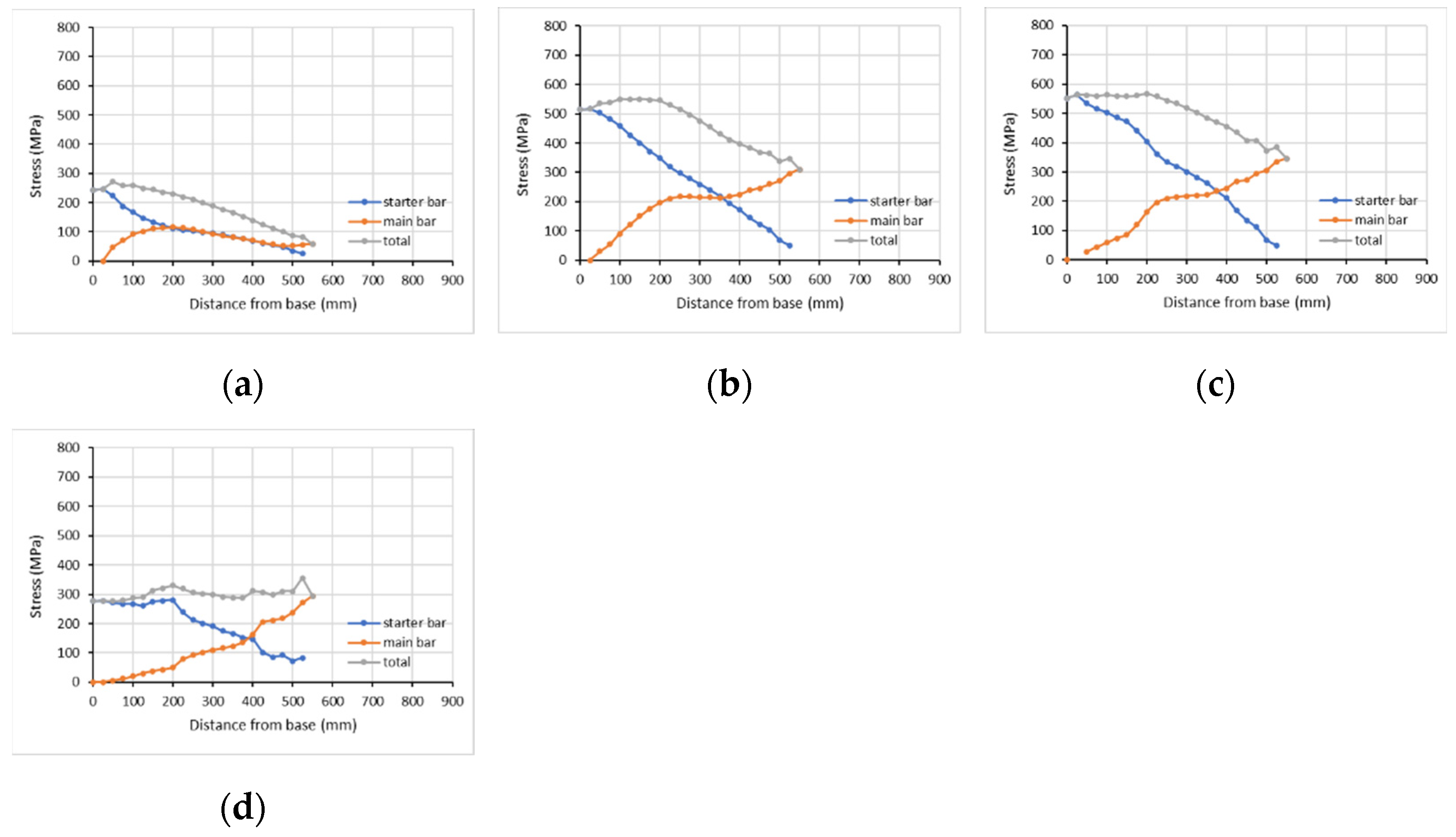

_{bL}= 508 mm = 0.78 l

_{b,min}). They placed strain gauges to monitor the strain histories of the lap-spliced bars (Figure 8a), which recorded at about 3% lateral drift when most of them were damaged due to the damage to the columns. They expected a triangular strain distribution before bond deterioration (Figure 8b).

_{yL,main}= 510 MPa for the main bars and f

_{yL,starter}= 521 MPa for the starter bars. For the starter bars, the strain distribution is triangular indeed (blue), while for the main bars it has a curved form (orange). A different response of the corner and middle longitudinal bars in tension during cyclic loading can also be observed.

_{bL}= 508 mm = 0.78 l

_{b,min}) predicts the increment of stress in both the starter and the main bars, for monotonic (Figure 10a) and cyclic (Figure 10b) analyses, as the drift ratio increases up to the lateral load capacity of columns (about 0.5% drift level). For both bars, the stress increases as the drift level increases. The stress of the starter bar along the lap splice length resembles a parabolic distribution at lower lateral drifts, which changes into triangular at higher lateral drifts. The stress distribution of the main bar has a wavy form.

_{yL}= 514 MPa), it has a wavy form. For higher lateral displacements and after yielding, it has a triangular form. Moreover, a longer part of the steel bar reaches the yield stress and the critical region within which the plastic hinge develops is extended up to 300 mm.

_{yL}= 514 MPa and yield strain ε

_{sL}= 2.57‰). Both bars seem to develop the same stress at about two thirds of the lap splice length away from the bottom section, even in cases of inadequate lap splice length. Moreover, the shape of the curves representing the stress along lap splice up to yielding for starter and main bars validates more or less the analytical model provided by Chowdhury & Orakcal [108]. FE analyses suggest that in most cases the developed stress at the base of the column is not fully transferred to the end of the lap splice, as the tensile strain of the bars may be lower far from the bottom section due to lower moment values along the column. Therefore, the loading along the lap-splice length is obviously not symmetrical.

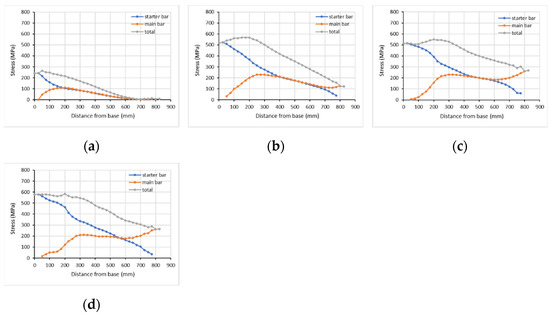

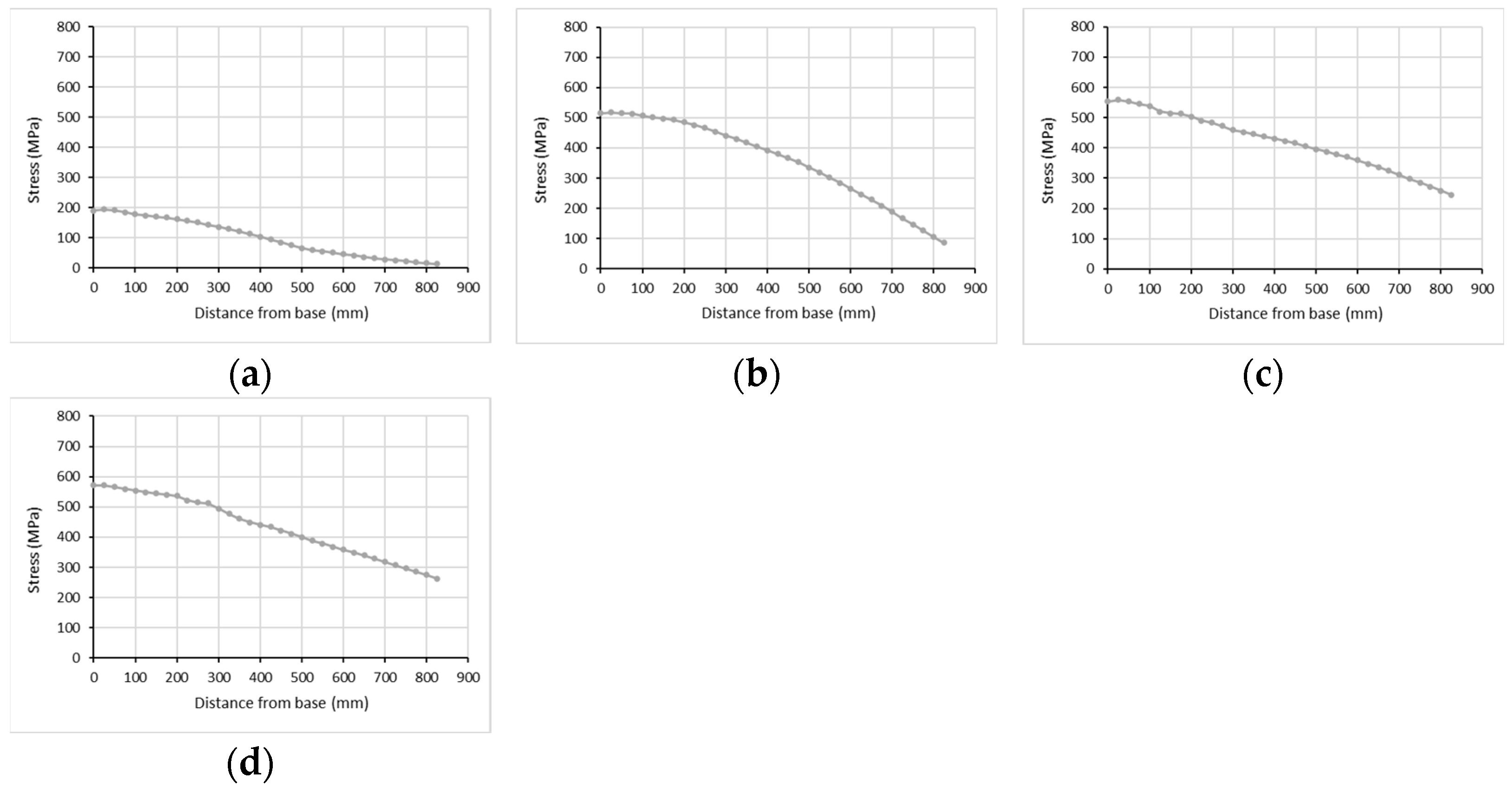

_{bL}= 810 mm = 1.53 l

_{b,min}) and no slippage is observed, the total bearing tensile stress by both bars at any section (gray line in Figure 12 and Figure 13) is lower at the end of the lap splice in accordance with the developed moments, similar to the column without laps (Figure 11). For higher column drift, the same pattern is valid (see R-0L4 and R-P2L4), as the bars achieve hardening behavior in response to the increased bearing stress. Further, it is interesting to note that in column R-0L0, the plastic hinge length is around 300 mm, defined by the length the tensile steel bars surpass the yield stress. In the case of R-0L4 with adequate lap-splice, the plastic hinge length is extended to 400 mm, as we consider the sum of the stress developed in both bars at an identical column length (gray line in Figure 12). Similarly, in R-P2L4, the FRP jacketing further extends the plastic hinge length to around 620 mm.

_{bL}(540 mm = 1.02 l

_{b,min}), the bars develop their yielding, but clearly, a slip occurs at ultimate drift (see R-0L3, Figure 15, and R-P2L3, Figure 16). When the column is confined with two layers of FRP, slip occurs at a far higher ultimate drift. Further, in the case of R-0L3, the plastic hinge length is extended to 325 mm, as we consider the sum of the stress developed in both bars at an identical column length (gray line in Figure 14). Similarly, in R-P2L3, the FRP jacketing further extends the plastic hinge length to around 450 mm. In R-P5L3, the corresponding plastic hinge length is developed at higher drifts but extends to 540 mm.

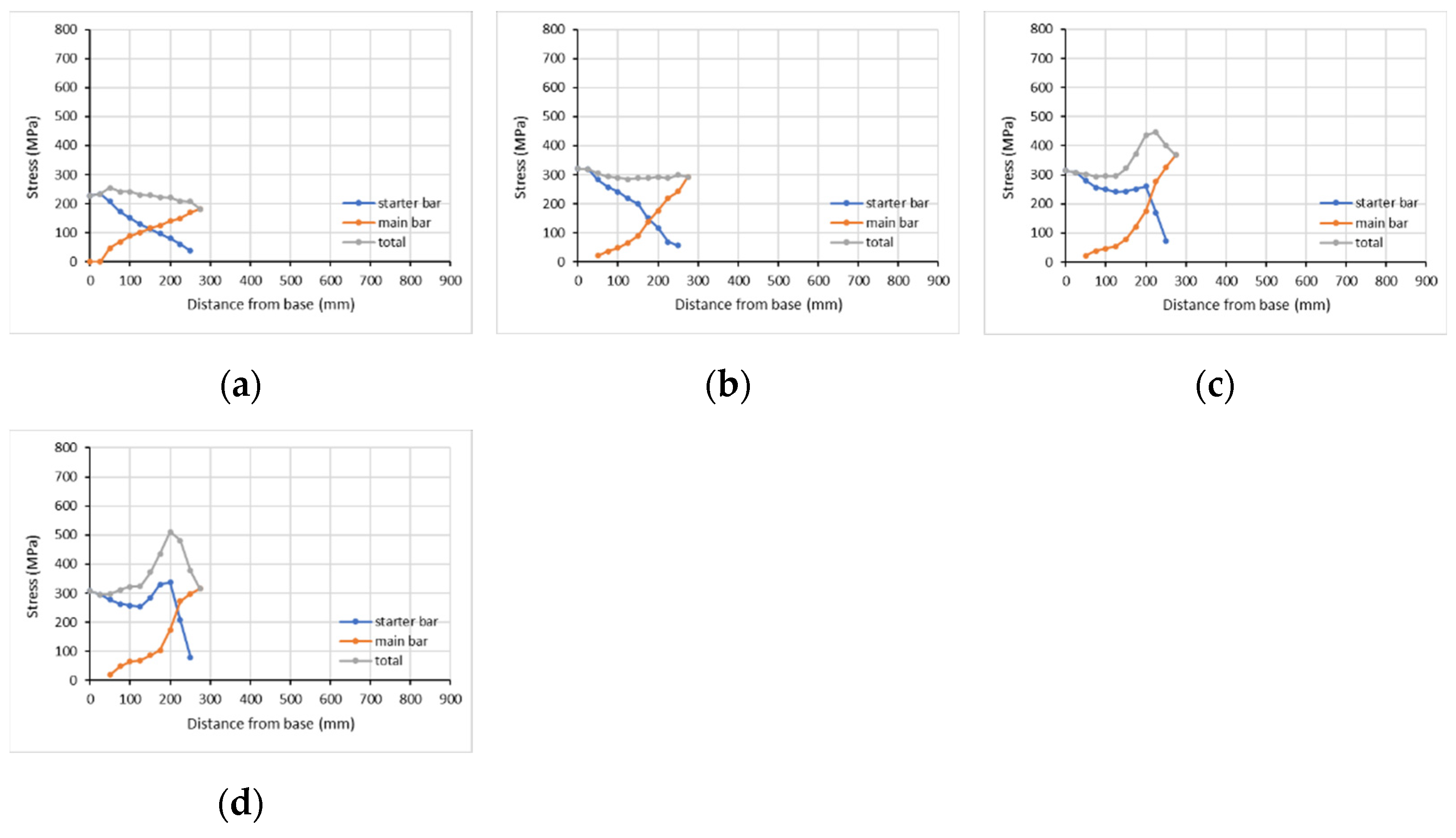

_{bL}= 270 mm = 0.51 l

_{b,min}), the total tensile stress by both bars at any section remains rather constant all along the lap-splice, and lower than the yield stress of the bars. This pattern is not affected by external FRP confinement. The total stress of the main bar may be higher than the starter’s for different horizontal drifts of the column. No plastic hinge length may be defined based on steel yielding.

_{f}) is 600 mm (Table 1). It barely exceeds the lap splice length of 30 d

_{bL}(h

_{f}= 600 mm > l

_{o}= 540 mm), while it is shorter than a lap splice length of 45 d

_{bL}(h

_{f}= 600 mm < l

_{o}= 810 mm). The height of the provided FRP confinement seems to affect the transfer mechanism of stress along the lap splice, as the diagrams in Figure 13 show a sudden stress decrease at 600 mm from the column bottom, at the end of the FRP jacket.

#### 4.2.3. Proposed Modifications

_{y}must be multiplied by an additional relation c (Equation (4)), regarding the RC columns with insufficient lap splices (0 < l

_{b}/l

_{b,min}< 1).

_{b}< 0.5 l

_{b,min}. If the bars reach the yield stress (c = 1), then the hardening of the steel bar is taken into consideration (1.25·f

_{y}). The (Equation (4)) is inserted in the yield curvature to calculate M

_{y}and θ

_{y}, and in the mechanical ratios of reinforcement to calculate θ

_{u}and therefore μ

_{δ}for adequate FRP strengthening (at least two layers). Obtained values of μ

_{δ}lower than 3.5 are avoided and higher FRP strengthening is recommended. Further, it should be secured that the shear force required to develop the full flexural strength of the column after the tensile yielding of the bars is lower than the shear capacity of the column. In cases where the lap length is adequate (higher than l

_{b,min}), c equals 1. It should be noted that, based on the proposed modification, the l

_{b,min}is different from that in seismic codes.

#### 4.2.4. Comparison of Analytical and Experimental Values

_{R}and an AAE of 37.48% and AR 0.97 for θ

_{u}, according to KANEPE. The corresponding values, according to EC8.3, are 19.40% and 0.87 for V

_{R}and 41.45% and 0.91 for θ

_{u}.

_{R}with an AAE of 20.83% and an AR of 0.80, while they predict the θ

_{u}with an AAE of 38.86% and an AR of 0.64. As for EC8.3, the corresponding values are 18.73% and 0.83 for V

_{R}and 46.11% and 0.54 for θ

_{u}. The above performance of the existing design models suggests that the error of prediction of the existing models is significant. As was already proposed in Section 4.2.3, the variable performance of the lap splices with inadequate length should be incorporated into the models to better address the variable beneficial effects of different quantities of external FRP confinement and their upper and lower limits.

## 5. Conclusions

- In most cases, the developed stress at the base of the column is not fully transferred to the end of the lap splice, as the tensile strain of the bars may be lower far from the bottom section (because of lower moment values). Both bars (starter and main) seem to develop the same stress at about two thirds of the lap splice length away from the bottom section (even in cases of inadequate lap length).
- In cases where the lap splice length is adequately long (45 d
_{bL}), the total bearing tensile stress by both bars at any section is lower at the end of the lap in accordance with the developed moments, similar to the column without laps. For higher column drift, the same pattern is valid, as the bars achieve the hardening behavior of increased bearing stress. Further, if we consider the sum of the developed stress for the lapped bars at any point, the plastic hinge length is extended from 300 mm for R-0L0 without lap, to 400 mm for R-0L4, and to more than double (620 mm) for FRP jacketing at the lap region in R-P2L4. - In cases the lap splice is 30 d
_{bL}the bars develop their yielding, but clearly a slip occurs at ultimate drift. When a column is confined with two layers of FRP, it initially suffers a temporary controlled slip of the bars, starting before the displacement at yielding of the columns R-0L0 or R-P2L0. After delayed bar yielding, the detrimental slip occurs at a far higher ultimate drift. The plastic hinge length is lower than in R-0L4 but higher than in R-0L0 (325 mm). Again, the plastic hinge length extends to around 450 mm or 540 mm for two or five layers of FRP jacketing, based on which is higher for higher lap length or FRP jacketing. - In cases where the lap splice length is inadequate (lap length of 15 d
_{bL}), the total tensile stress of both bars at any section remains rather constant all along the lap-splice and lower than the yield stress of the bars. This pattern is not affected by external FRP confinement. The total stress of the main bar one may be higher than the starter’s for different horizontal drifts of the column. No plastic hinge length may be defined in these cases, as no bar yielding occurs (despite pseudo-yielding). - Increased tensile bar stresses occur at the steel stirrups levels for different columns, as they tend to resist the opening of the potential crack along the spliced bars that leads to their relative slip. The CFRP retrofit seems to improve the axial force transfer mechanism and to result in a better bar stress distribution. The sum of the tensile stress received by both lapped bars increases for more layers of FRP.
- The height of the provided FRP confinement seems to affect the transfer mechanism of stress along the lap splice. If the FRP does not cover all lap splice regions, then a sudden bar stress decrease at the end of the FRP jacketing occurs.
- For the first time, cases of smooth bar slip together with delayed bar yielding or without bar yielding are identified that may be recorded through a “ductile” P-d seismic response. Such pseudo-ductile response cases are revisited through suitably revised redesign criteria for adequate FRP jacketing that identify if the lapped bar will yield.
- The authors propose that composite jacketing that leads to pseudo-ductile P-d behavior while the lapped bar does not yield due to slip (temporary or not) should be considered as inadequate in redesign, and additional FRP layers should be provided as per the framework presented in Section 4.2.2.
- The high potential of advanced dynamic 3D FEA should be further utilized to extend investigations in several challenging real cases of deficient existing columns with different cross-section geometry, multiple side steel bars inside the lap region, and different detailing of existing steel stirrups or of composite jacketing to assist successful redesign.

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Rousakis, T.; Ilki, A.; Kwiecien, A.; Viskovic, A.; Gams, M.; Triller, P.; Ghiassi, B.; Benedetti, A.; Rakicevic, Z.; Colla, C.; et al. Deformable Polyurethane Joints and Fibre Grids for Resilient Seismic Performance of Reinforced Concrete Frames with Orthoblock Brick Infills. Polymers
**2020**, 12, 2869. [Google Scholar] [CrossRef] [PubMed] - Rousakis, T.C.; Panagiotakis, G.D.; Archontaki, E.E.; Kostopoulos, A.K. Prismatic RC columns externally confined with FRP sheets and pre-tensioned basalt fiber ropes under cyclic axial load. Compos. Part B Eng.
**2019**, 163, 96–106. [Google Scholar] [CrossRef] - Pohoryles, D.A.; Bournas, D.A. Seismic retrofit of infilled RC frames with textile reinforced mortars: State-of-the-art review and analytical modelling. Compos. Part B Eng.
**2020**, 183, 107702. [Google Scholar] [CrossRef] - Zeng, J.J.; Ye, Y.Y.; Guo, Y.C.; Lv, J.F.; Ouyang, Y.; Jiang, C. PET FRP-concrete-high strength steel hybrid solid columns with strain-hardening and ductile performance: Cyclic axial compressive behavior. Compos. Part B Eng.
**2020**, 190, 107903. [Google Scholar] [CrossRef] - Park, S.H.; Dinh, N.H.; Um, J.W.; Choi, K.K. Experimental study on the seismic performance of RC columns retrofitted by lap-spliced textile-reinforced mortar jackets after high-temperature exposure. Compos. Struct.
**2021**, 256, 113108. [Google Scholar] [CrossRef] - Sakthimurugan, K.; Baskar, K. Experimental investigation on rcc external beam-column joints retrofitted with basalt textile fabric under static loading. Compos. Struct.
**2021**, 268, 114001. [Google Scholar] [CrossRef] - Karayannis, C.G.; Golias, E. Full scale tests of RC joints with minor to moderate seismic damage repaired using C-FRP sheets. Earthq. Struct.
**2018**, 15, 617–627. [Google Scholar] - Parvin, A.; Jamwal, A.S. Performance of externally FRP reinforced columns for changes in angle and thickness of the wrap and concrete strength. Compos. Struct.
**2006**, 73, 451–457. [Google Scholar] [CrossRef] - Rousakis, T.C.; Karabinis, A.I. Adequately FRP confined reinforced concrete columns under axial compressive monotonic or cyclic loading. Mater. Struct.
**2012**, 45, 957–975. [Google Scholar] [CrossRef] - Wang, Z.; Wang, D.; Smith, S.T.; Lu, D. CFRP-confined square RC columns. I: Experimental investigation. J. Compos. Constr.
**2012**, 16, 150. [Google Scholar] [CrossRef] - Rousakis, T.C. Hybrid confinement of concrete by fiber-reinforced polymer sheets and fiber ropes under cyclic axial compressive loading. J. Compos. Constr.
**2013**, 17, 732–743. [Google Scholar] [CrossRef] - Triantafyllou, G.G.; Rousakis, T.C.; Karabinis, A.I. Axially loaded reinforced concrete columns with a square section partially confined by light GFRP straps. J. Compos. Constr.
**2015**, 19, 04014035. [Google Scholar] [CrossRef] - Rousakis, T.C. Reusable and recyclable nonbonded composite tapes and ropes for concrete columns confinement. Compos. Part B Eng.
**2016**, 100, 15–22. [Google Scholar] [CrossRef] - Fanaradelli, T.; Rousakis, T.; Karabinis, A. Reinforced concrete columns of square and rectangular section, confined with FRP–Prediction of stress and strain at failure. Compos. Part B Eng.
**2019**, 174, 107046. [Google Scholar] [CrossRef] - Ombres, L.; Mazzuca, P.; Verre, S. Effects of Thermal Conditioning at High Temperatures on the Response of Concrete Elements Confined with a PBO-FRCM Composite System. J. Mater. Civil Eng.
**2022**, 34, 04021413. [Google Scholar] [CrossRef] - Ma, R.; Xiao, Y.; Li, K. Full-scale testing of a parking structure column retrofitted with carbon fiber reinforced composites. Constr. Build. Mater.
**2000**, 14, 63–71. [Google Scholar] [CrossRef] - Bousias, S.N.; Spathis, A.L.; Fardis, M.N. Concrete or FRP jacketing of columns with lap splices for seismic rehabilitation. J. Adv. Concr. Technol.
**2006**, 4, 431–444. [Google Scholar] [CrossRef] [Green Version] - Bournas, D.; Lontou, P.; Papanicolaou, C.; Triantafillou, T. Textile-reinforced mortar vs fiber-reinforced polymer confinement in reinforced concrete columns. ACI Struct. J.
**2007**, 104, 740–748. [Google Scholar] - Bournas, D.A.; Triantafillou, T.C. Bond strength of lap-spliced bars in concrete confined with composite jackets. J. Comput. Constr.
**2011**, 15, 157–167. [Google Scholar] [CrossRef] - Bournas, D.A.; Triantafillou, T.C.; Zygouris, K.; Stavropoulos, F. Textile-reinforced mortar versus FRP jacketing in seismic retrofitting of RC columns with continuous or lap-spliced deformed bars. J. Compos. Constr.
**2009**, 13, 360–371. [Google Scholar] [CrossRef] - Yalcin, C.; Kaya, O.; Sinangil, M. Seismic retrofitting of R/C columns having plain rebars using CFRP sheets for improved strength and ductility. Constr. Build. Mater.
**2008**, 22, 295–307. [Google Scholar] [CrossRef] - Realfonzo, R.; Napoli, A. Cyclic behavior of RC columns strengthened by FRP and steel devices. J. Struct. Eng.
**2009**, 135, 1164–1176. [Google Scholar] [CrossRef] - Realfonzo, R.; Napoli, A. Results from cyclic tests on high aspect ratio RC columns strengthened with FRP systems. Constr. Build. Mater.
**2012**, 37, 606–620. [Google Scholar] [CrossRef] - El Gawady, M.; Endeshaw, M.; McLean, D.; Sack, R. Retrofitting of rectangular columns with deficient lap splices. ASCE. J. Compos. Constr.
**2010**, 14, 22–35. [Google Scholar] [CrossRef] - Harajli, M.; Rteil, A. Effect of confinement using fiber-reinforced polymer or fiber reinforced concrete on seismic performance of gravity load-designed columns. ACI Struct. J.
**2004**, 101, 47–56. [Google Scholar] - Harajli, M.H. Bond strengthening of lap spliced reinforcement using external FRP jackets: An effective technique for seismic retrofit of rectangular or circular RC columns. Constr. Build. Mater.
**2009**, 23, 1265–1278. [Google Scholar] [CrossRef] - Harajli, M. Seismic behavior of RC columns with bond-critical regions: Criteria for bond strengthening using external FRP jackets. ASCE J. Compos. Constr.
**2008**, 12, 69–79. [Google Scholar] [CrossRef] - Harajli, M.H.; Dagher, F. Seismic strengthening of bond-critical regions in rectangular reinforced concrete columns using fiber-reinforced polymer wraps. ACI Struct. J.
**2008**, 105, 68. [Google Scholar] - Harajli, M.H.; Dagher, F.K.; ElSouri, A.M. Cyclic response of rectangular RC columns with bond-damaged zones repaired using steel or CFRP confinement. Spec. Publ.
**2010**, 272, 225–250. [Google Scholar] - Haroun, M.A.; Mossalam, A.S.; Feng, Q.; Elsanadedy, H.M. Experimental investigation of seismic repair and retrofit of bridge columns by composite jackets. FRP Compos. Civ. Eng.
**2001**, I, 1243–1268. [Google Scholar] [CrossRef] - Haroun, M.A.; Elsanadedy, H.M. Behavior of cyclically loaded squat reinforced concrete bridge columns upgraded with advanced composite-material jackets. J. Bridge Eng.
**2005**, 10, 741–748. [Google Scholar] [CrossRef] - Haroun, M.A.; Elsanadedy, H.M. Fiber-reinforced plastic jackets for ductility enhancement of reinforced concrete bridge columns with poor lap-splice detailing. J. Bridge Eng.
**2005**, 10, 749–757. [Google Scholar] [CrossRef] - Chang, K.; Liu, K.; Chang, S. Seismic retrofit study of RC rectangular bridge columns lap-spliced at the plastic hinge zone. FRP Compos. Civ. Eng.
**2001**, I, 869–875. [Google Scholar] - Eshghi, S.; Zanjanizadeh, V. Retrofit of slender square reinforced concrete columns with glass fiber-reinforced polymer for seismic resistance. Iran J. Sci. Technol. Trans. B Eng.
**2008**, 32, 437–450. [Google Scholar] - Ghosh, K.K.; Sheikh, S.A. Seismic upgrade with carbon fiber reinforced polymer of columns containing lap-spliced reinforcing bars. ACI Struct. J.
**2007**, 104, 227–236. [Google Scholar] - Sheikh, S.A.; Li, Y. Design of FRP confinement for square concrete columns. Eng. Struct.
**2007**, 29, 1074–1083. [Google Scholar] [CrossRef] - Saadatmanesh, H.; Ehsani, M.R.; Jin, L. Repair of earthquake-damaged RC columns with FRP wraps. ACI Struct. J.
**1997**, 94, 206–214. [Google Scholar] - Saadatmanesh, H.; Ehsani, M.R.; Jin, L. Seismic retrofitting of rectangular bridge columns with composite straps. Earthq. Spectra
**1997**, 13, 281–304. [Google Scholar] [CrossRef] - Kalogeropoulos, G.; Tsonos, A.D. Cyclic Performance of RC Columns with Inadequate Lap Splices Strengthened with CFRP Jackets. Fibers
**2020**, 8, 39. [Google Scholar] [CrossRef] - N 1998-1:2004; Eurocode 8: Design of Structures for Earthquake Resistance—Part 3: Assessment and Retrofitting of Buildings. European Committee for Standardization: Brussels, Belgium, 2005.
- Greek Retrofit Code (KANEPE), 2nd ed.; 2017. Available online: https://oasp.gr/node/92 (accessed on 25 May 2021).
- Anagnostou, E.; Rousakis, T.C.; Karabinis, A.I. Seismic retrofitting of damaged RC columns with lap-spliced bars using FRP sheets. Compos. Part B Eng.
**2019**, 166, 598–612. [Google Scholar] [CrossRef] - Anagnostou, E.; Rousakis, T. Seismic retrofitting of damaged RC columns with composites and other techniques. In Proceedings of the 25th Annual International Conference on Composites or Nano Engineering (ICCE-25), Rome, Italy, 16–22 July 2017. [Google Scholar]
- Seyhan, E.C.; Goksu, C.; Uzunhasanoglu, A.; Ilki, A. Seismic behavior of substandard RC columns retrofitted with embedded aramid fiber reinforced polymer (AFRP) reinforcement. Polymers
**2015**, 7, 2535–2557. [Google Scholar] [CrossRef] [Green Version] - Farrokh Ghatte, H.; Comert, M.; Demir, C.; Akbaba, M.; Ilki, A. Seismic retrofit of full-scale substandard extended rectangular RC columns through CFRP jacketing: Test results and design recommendations. J. Compos. Constr.
**2019**, 23, 04018071. [Google Scholar] [CrossRef] - Dai, J.G.; Lam, L.; Ueda, T. Seismic retrofit of square RC columns with polyethylene terephthalate (PET) fibre reinforced polymer composites. Constr. Build. Mater.
**2012**, 27, 206–217. [Google Scholar] [CrossRef] - Biskinis, D.; Fardis, M.N. Flexure-controlled ultimate deformations of members with continuous or lap-spliced bars. Struct. Concr.
**2010**, 11, 93–108. [Google Scholar] [CrossRef] - Grammatikou, S.; Biskinis, D.; Fardis, M.N. Effect of load cycling, FRP jackets, and lap-splicing of longitudinal bars on the effective stiffness and ultimate deformation of flexure-controlled RC members. J. Struct. Eng.
**2018**, 144, 04018056. [Google Scholar] [CrossRef] - Jiang, C.; Wu, Y.F.; Wu, G. Plastic hinge length of FRP-confined square RC columns. J. Compos. Constr.
**2014**, 18, 04014003. [Google Scholar] [CrossRef] - Yuan, F.; Wu, Y.F. Effect of load cycling on plastic hinge length in RC columns. Eng. Struct.
**2017**, 147, 90–102. [Google Scholar] [CrossRef] - Yuan, F.; Wu, Y.F.; Li, C.Q. Modelling plastic hinge of FRP-confined RC columns. Eng. Struct.
**2017**, 131, 651–668. [Google Scholar] [CrossRef] - Triantafyllou, G.G.; Rousakis, T.C.; Karabinis, A.I. Corroded RC beams patch repaired and strengthened in flexure with fiber-reinforced polymer laminates. Compos. Part B Eng.
**2017**, 112, 125–136. [Google Scholar] [CrossRef] - Rousakis, T.C.; Manolitsi, G.; Karabinis, A.I. FRP strengthening of RC columns: Parametric finite element analyses of bar quality effect. In Proceedings of the 1st Asia-Pacific Conference on FRP in Structures (APFIS 2007), Hong Kong, China, 12–14 December 2007. [Google Scholar]
- Karabinis, A.I.; Rousakis, T.C.; Manolitsi, G.E. 3D finite-element analysis of substandard RC columns strengthened by fiber-reinforced polymer sheets. J. Compos. Constr.
**2008**, 12, 531–540. [Google Scholar] [CrossRef] - Rousakis, T.C.; Karabinis, A.I.; Kiousis, P.D.; Tepfers, R. Analytical modelling of plastic behaviour of uniformly FRP confined concrete members. Compos. Part B Eng.
**2008**, 39, 1104–1113. [Google Scholar] [CrossRef] - Charalambidi, B.; Rousakis, T.; Karabinis, A. Finite Element Modeling of Reinforced Concrete Columns Seismically Strengthened through Partial FRP Jacketing. In Proceedings of the 15th World Conference on Earthquake Engineering, Lisbon, Portugal, 24–28 September 2012. [Google Scholar]
- Chalioris, C.E.; Kytinou, V.K.; Voutetaki, M.E.; Karayannis, C.G. Flexural damage diagnosis in reinforced concrete beams using a wireless admittance monitoring system—Tests and finite element analysis. Sensors
**2021**, 21, 679. [Google Scholar] [CrossRef] [PubMed] - Yuan, F.; Pan, J.; Wu, Y. Numerical study on flexural behaviors of steel reinforced engineered cementitious composite (ECC) and ECC/concrete composite beams. Sci. China Technol. Sci.
**2014**, 57, 637–645. [Google Scholar] [CrossRef] - Nisticò, N.; Ožbolt, J.; Polimanti, G. Modeling of reinforced concrete beams strengthened in shear with CFRP: Microplane-based approach. Compos. Part B Eng.
**2016**, 90, 351–364. [Google Scholar] [CrossRef] - Hany, N.F.; Hantouche, E.G.; Harajli, M.H. Finite element modeling of FRP-confined concrete using modified concrete damaged plasticity. Eng. Struct.
**2016**, 125, 1–14. [Google Scholar] [CrossRef] - Ozbakkaloglu, T.; Gholampour, A.; Lim, J.C. Damage-plasticity model for FRP-confined normal-strength and high-strength concrete. J. Compos. Constr.
**2016**, 20, 04016053. [Google Scholar] [CrossRef] - Yu, T.T.; Teng, J.G.; Wong, Y.L.; Dong, S.L. Finite element modeling of confined concrete-I: Drucker–Prager type plasticity model. Eng. Struct.
**2010**, 32, 665–679. [Google Scholar] [CrossRef] - Yu, T.; Teng, J.G.; Wong, Y.L.; Dong, S.L. Finite element modeling of confined concrete-II: Plastic-damage model. Eng. Struct.
**2010**, 32, 680–691. [Google Scholar] [CrossRef] - Rousakis, T.; Anagnostou, E.; Fanaradelli, T. Advanced Composite Retrofit of RC Columns and Frames with Prior Damages-Pseudodynamic Finite Element Analyses and Design Approaches. Fibers
**2021**, 9, 56. [Google Scholar] [CrossRef] - Rousakis, T.; Anagnostou, E.; Fanaradelli, T. Pseudo-dynamic analyses of infilled reinforced concrete framed structures with prior damages after advanced retrofit. In Proceedings of the 8th International Conference on Computational Methods in Structural Dynamics and Earthquake Engineering (COMPDYN 2021), Athens, Greece, 27–30 June 2021. [Google Scholar]
- Rousakis, T.; Vanian, V.; Fanaradelli, T.; Anagnostou, E. 3D FEA of infilled RC framed structures protected by seismic joints and FRP jackets. Appl. Sci.
**2021**, 11, 6403. [Google Scholar] [CrossRef] - Anagnostou, E.; Rousakis, T.; Georgiadis, N. Finite element analysis of deficient RC columns with square and rectangular section under pseudoseismic load and comparison with retrofit code predictions. In Proceedings of the ICCE-26 Conference, Paris, France, 15–21 July 2018. [Google Scholar]
- Rousakis, T.C.; Saridaki, M.E.; Mavrothalassitou, S.A.; Hui, D. Utilization of hybrid approach towards advanced database of concrete beams strengthened in shear with FRPs. Compos. Part B Eng.
**2016**, 85, 315–335. [Google Scholar] [CrossRef] - Fanaradelli, T.D.; Rousakis, T.C. 3D Finite Element Pseudodynamic Analysis of Deficient RC Rectangular Columns Confined with Fiber Reinforced Polymers under Axial Compression. Polymers
**2020**, 12, 2546. [Google Scholar] [CrossRef] [PubMed] - Biskinis, D.; Fardis, M.N. Models for FRP-wrapped rectangular RC columns with continuous or lap-spliced bars under cyclic lateral loading. Eng. Struct.
**2013**, 57, 199–212. [Google Scholar] [CrossRef] - Bousias, S.N.; Triantafillou, T.C.; Fardis, M.N.; Spathis, L.; O’Regan, B.A. Fiber-reinforced polymer retrofitting of rectangular reinforced concrete columns with or without corrosion. Struct. J.
**2004**, 101, 512–520. [Google Scholar] - Eshghi, S.; Zanjanizadeh, V. Repair of earthquake-damaged square R/C columns with glass fiber-reinforced polymer. Int. J. Civ. Eng.
**2007**, 5, 210–223. [Google Scholar] - Vrettos, I.; Kefala, E.; Triantafillou, T. Innovative flexural strengthening of reinforced concrete columns using carbon-fiber anchors. ACI Struct. J.
**2013**, 110, 63–70. [Google Scholar] - Ghobarah, A.; Galal, K. Seismic rehabilitation of short rectangular rc columns. J. Earthq. Eng.
**2004**, 8, 45–68. [Google Scholar] [CrossRef] - Colomb, F.; Tobbi, H.; Ferrier, E.; Hamelin, P. Seismic retrofit of reinforced concrete short columns by CFRP materials. Compos. Struct.
**2008**, 82, 475–487. [Google Scholar] [CrossRef] - Ye, L.P.; Zhang, K.; Zhao, S.H.; Feng, P. Experimental study on seismic strengthening of RC columns with wrapped CFRP sheets. J. Constr. Build. Mater.
**2003**, 17, 499–506. [Google Scholar] [CrossRef] - Ye, L.; Yue, O.; Zhao, S.; Li, Q. Shear strength of reinforced concrete columns strengthened with carbon-fiber-reinforced plastic sheet. ASCE J. Comp. Constr.
**2002**, 128, 1527–1534. [Google Scholar] [CrossRef] - Kim, J.; Kwon, M.; Jung, W.; Limkatanyu, S. Seismic performance evaluation of RC columns reinforced by GFRP composite sheets with clip connectors. Constr. Build. Mater.
**2013**, 43, 563–574. [Google Scholar] [CrossRef] - Lee, Y.T.; Kim, S.H.; Hwang, H.S.; Lee, L.H. Evaluation on the shear strengthening effect of RC columns with carbon fiber sheets. In Proceedings of the 13th World Conference on Earthquake Engineering, Vancouver, BC, Canada, 1–6 August 2004. [Google Scholar]
- Sadone, R.; Quiertant, M.; Mercier, J.; Ferrier, E. Experimental study on RC columns retrofitted by FRP and subjected to seismic loading. In Proceedings of the 6th International Conference on FRP Composites in Civil Engineering, Rome, Italy, 13–15 June 2012. [Google Scholar]
- Promis, G.; Ferrier, E. Performance indices to assess the efficiency of external FRP retrofitting of reinforced concrete short columns for seismic strengthening. Constr. Build. Mater.
**2012**, 26, 32–40. [Google Scholar] [CrossRef] - Sause, R.; Harries, K.A.; Waikup, S.L.; Pessiki, S.; Ricles, J.M. Flexural behavior of concrete columns retrofitted with carbon fiber-reinforced polymer jackets. ACI Struct. J.
**2004**, 101, 708–716. [Google Scholar] - Yoshimura, K.; Kikuchi, K.; Kuroki, M.; Wang, J.; Ichinose, K. Seismic strengthening of rectangular R/C columns confined by circular steel- and CF-jackets. In Proceedings of the 13th World Conference on Earthquake Engineering, Vancouver, BC, Canada, 1–6 August 2004. [Google Scholar]
- Thermou, G.E.; Pantazopoulou, S.J. Fiber-reinforced polymer retrofitting of predamaged substandard RC prismatic members. J. Compos. Constr.
**2009**, 13, 535–546. [Google Scholar] [CrossRef] - Kwon, M.; Seo, H.; Kim, J. Seismic performance of RC-column wrapped with velcro. Struct. Eng. Mech.
**2016**, 58, 379–395. [Google Scholar] [CrossRef] - Anggawidjaja, D.; Ueda, T.; Dai, J.; Nakai, H. Deformation capacity of RC piers wrapped by new fiber-reinforced polymer with large fracture strain. Cement. Concr. Compos.
**2006**, 28, 914–927. [Google Scholar] [CrossRef] - Juntanalikit, P.; Jirawattanasomkul, T.; Pimanmas, A. Experimental and numerical study of strengthening non-ductile RC columns with and without lap splice by CFRP jacketing. Eng. Struct.
**2016**, 125, 400–418. [Google Scholar] [CrossRef] - Fahmy, M.; Wu, Z. Exploratory study of seismic response of deficient lap-splice columns retrofitted with near surface–mounted basalt FRP bars. J. Struct. Eng
**2016**, 142, 04016020. [Google Scholar] [CrossRef] - Oscan, O.; Binici, B.; Canbay, E.; Ozcebe, G. Repair and strengthening of reinforced concrete columns with CFRPs. J. Reinf. Plast. Compos.
**2015**, 29, 3411–3424. [Google Scholar] [CrossRef] - Ozcan, O.; Binici, B.; Ozcebe, G. Improving seismic performance of deficient reinforced concrete columns using carbon fiber-reinforced polymers. Eng. Struct.
**2008**, 30, 1632–1646. [Google Scholar] [CrossRef] - Ozcan, O.; Binici, B.; Ozcebe, G. Seismic strengthening of rectangular concrete columns using fiber reinforced polymers. Eng. Struct.
**2010**, 32, 964–973. [Google Scholar] [CrossRef] - Abdel-Mooty, M.; Issa, M.; Farag, H.; Bitar, M. Seismic upgrading of square and rectangular RC columns using FRP wrapping. High. Perform. Struct. Mater. III
**2006**, 85, 419–428. [Google Scholar] - He, R.; Sneed, L.; Belarbi, A. Rapid repair of severely damaged RC columns with different damage conditions. An Experimental Study. Intern. J. Conc. Struct. Mater.
**2013**, 7, 35–50. [Google Scholar] [CrossRef] [Green Version] - ElSouri, A.; Harajli, M. Seismic repair and strengthening of lap splices in RC columns: Carbon fiber–reinforced polymer versus steel confinement. ASCE. J. Compos. Constr.
**2011**, 15, 721–731. [Google Scholar] [CrossRef] - Goksu, C.; Ilki, A. Seismic Behavior of Reinforced Concrete Columns with Corroded Deformed Reinforcing Bars. ACI Struct. J.
**2016**, 113, 1053–1064. [Google Scholar] [CrossRef] - Guo, A.; Li, H.; Ba, X.; Guan, X.; Li, H. Experimental investigation on the cyclic performance of reinforced concrete piers with chloride-induced corrosion in marine environment. Eng. Struct.
**2015**, 105, 1–11. [Google Scholar] [CrossRef] - Yang, S.Y.; Song, X.B.; Jia, H.X.; Chen, X.; Liu, X.L. Experimental research on hysteretic behaviors of corroded reinforced concrete columns with different maximum amounts of corrosion of rebar. Constr. Build. Mater.
**2016**, 121, 319–327. [Google Scholar] [CrossRef] - Rajput, A.S.; Sharma, U.K. Corroded reinforced concrete columns under simulated seismic loading. Eng. Struct.
**2018**, 171, 453–463. [Google Scholar] [CrossRef] - Li, J.; Gong, J.; Wang, L. Seismic behavior of corrosion-damaged reinforced concrete columns strengthened using combined carbon fiber-reinforced polymer and steel jacket. Constr. Build. Mater.
**2009**, 23, 2653–2663. [Google Scholar] [CrossRef] - Li, D.; Wei, R.; Xing, F.; Sui, L.; Zhou, Y.; Wang, W. Influence of Non-uniform corrosion of steel bars on the seismic behavior of reinforced concrete columns. Constr. Build. Mater.
**2018**, 167, 20–32. [Google Scholar] - Riedel, W.; Kawai, N.; Kondo, K.I. Numerical assessment for impact strength measurements in concrete materials. Intern. J. Impact. Eng.
**2009**, 36, 283–293. [Google Scholar] [CrossRef] [Green Version] - Bencardino, F.; Nisticò, M.; Verre, S. Experimental investigation and numerical analysis of bond behavior in SRG-strengthened masonry prisms using UHTSS and stainless-steel fibers. Fibers
**2020**, 8, 8. [Google Scholar] [CrossRef] [Green Version] - Carozzi, F.G.; Colombi, P.; Fava, G.; Poggi, C. A cohesive interface crack model for the matrix–textile debonding in FRCM composites. Compos. Struct.
**2016**, 143, 230–241. [Google Scholar] [CrossRef] - Hawileh, R.A.; El-Maaddawy, T.A.; Naser, M.Z. Nonlinear finite element modeling of concrete deep beams with openings strengthened with externally-bonded composites. Mater. Design
**2012**, 42, 378–387. [Google Scholar] [CrossRef] - Anıl, Ö.; Durucan, C.; Kara, M.E.; Başeğmez, Ö. Nonlinear three-dimensional FE analyses of RC beams retrofitted using externally bonded CFRP sheets with or without anchorages. J. Adhes. Sci. Technol.
**2017**, 31, 770–786. [Google Scholar] [CrossRef] - Kargaran, A.; Kheyroddin, A. Experimental and numerical investigation of seismic retrofitting of RC square short columns using FRP composites. European J. Environ. Civil Eng.
**2022**, 26, 4619–4642. [Google Scholar] [CrossRef] - Melek, M.; Conte, J.P.; Wallace, J.W. Experimental assessment of columns with short lap splices subjected to cyclic loads. Pacific Earthq. Eng. Res. Cent. 2003; Peer Report 2003/4. [Google Scholar]
- Chowdhury, S.R.; Orakcal, K. An analytical model for reinforced concrete columns with lap splices. Eng. Struct.
**2012**, 43, 180–193. [Google Scholar] [CrossRef]

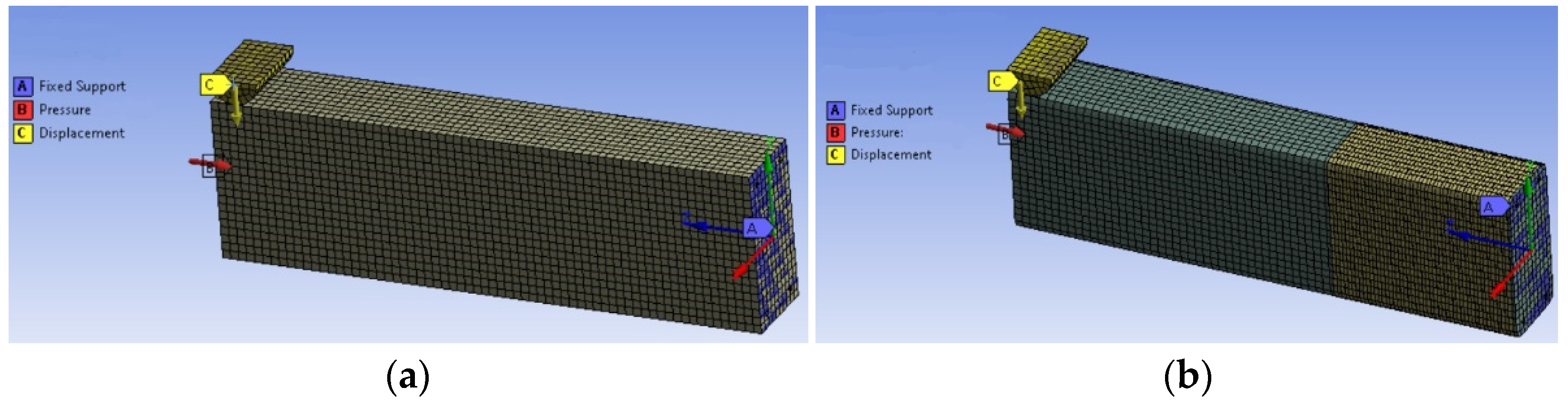

**Figure 1.**Parts of FE model (

**a**) concrete, (

**b**) internal (steel) reinforcement, (

**c**) external reinforcement (FRP jacket).

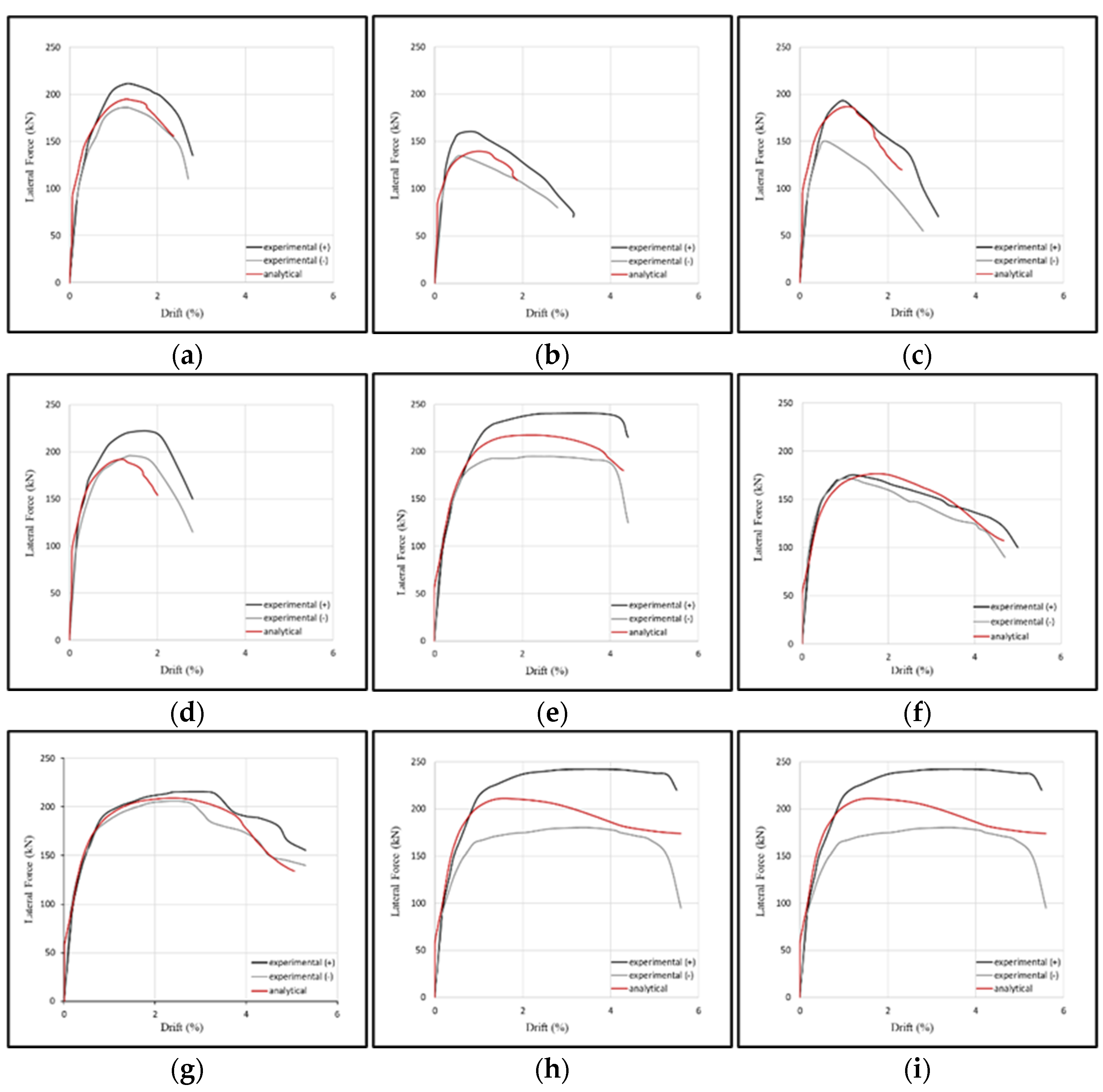

**Figure 3.**Lateral Force-Drift curves for columns (

**a**) R-0L0, (

**b**) R-0L1, (

**c**) R-0L3, (

**d**) R-0L4, (

**e**) R-P2L0, (

**f**) R-P2L1, (

**g**) R-P2L3, (

**h**) R-P2L4 and (

**i**) R-P5L3.

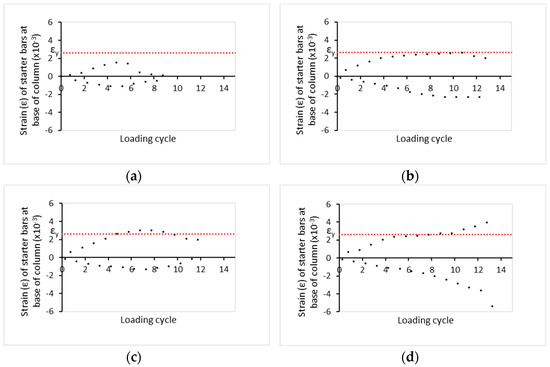

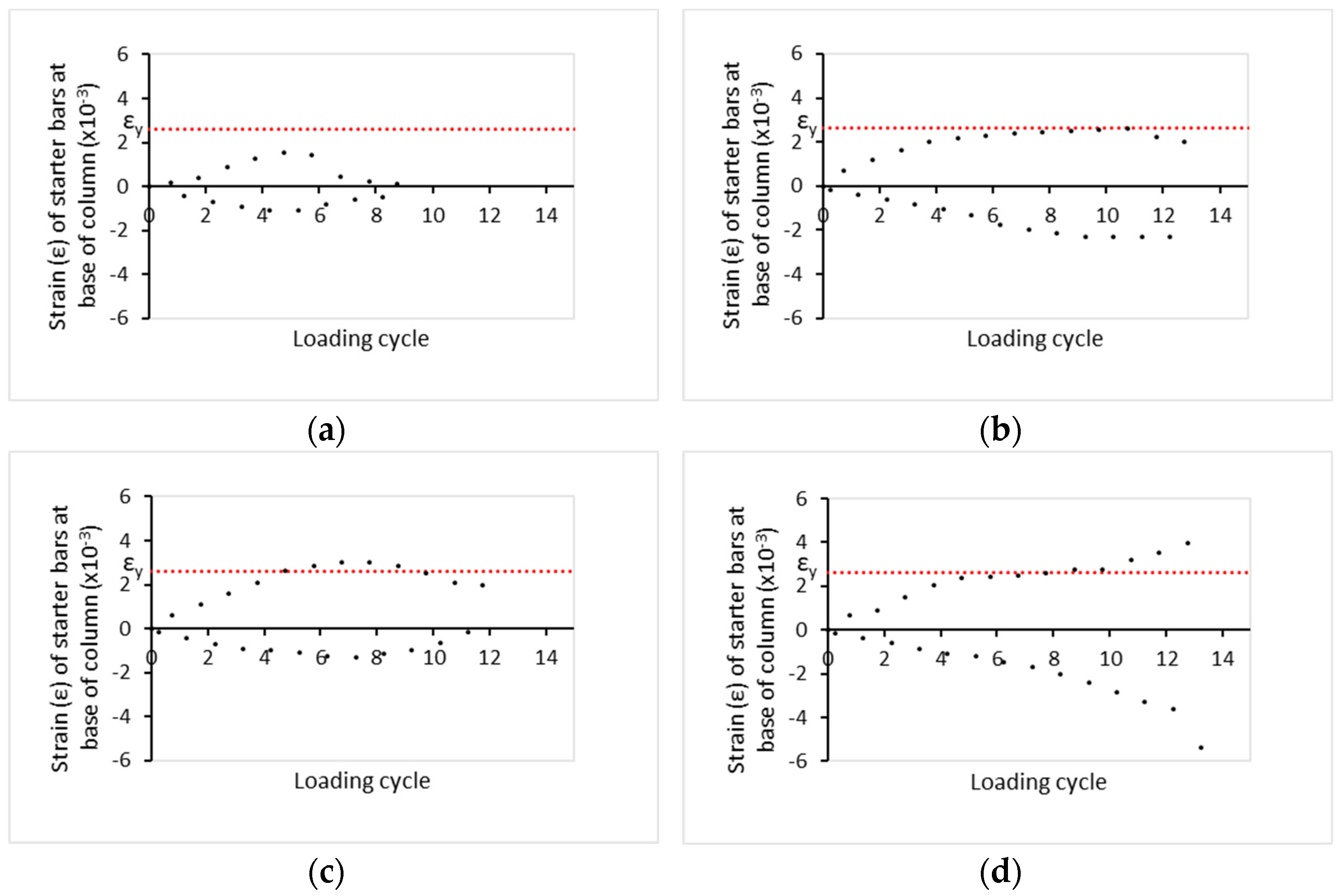

**Figure 6.**Peak pull and push steel strain of starter bars at the base of column (

**a**) L20d_C, (

**b**) L20d_R2, (

**c**) L40d_C and (

**d**) L40d_R2 at each loading cycle (based on results by [19]).

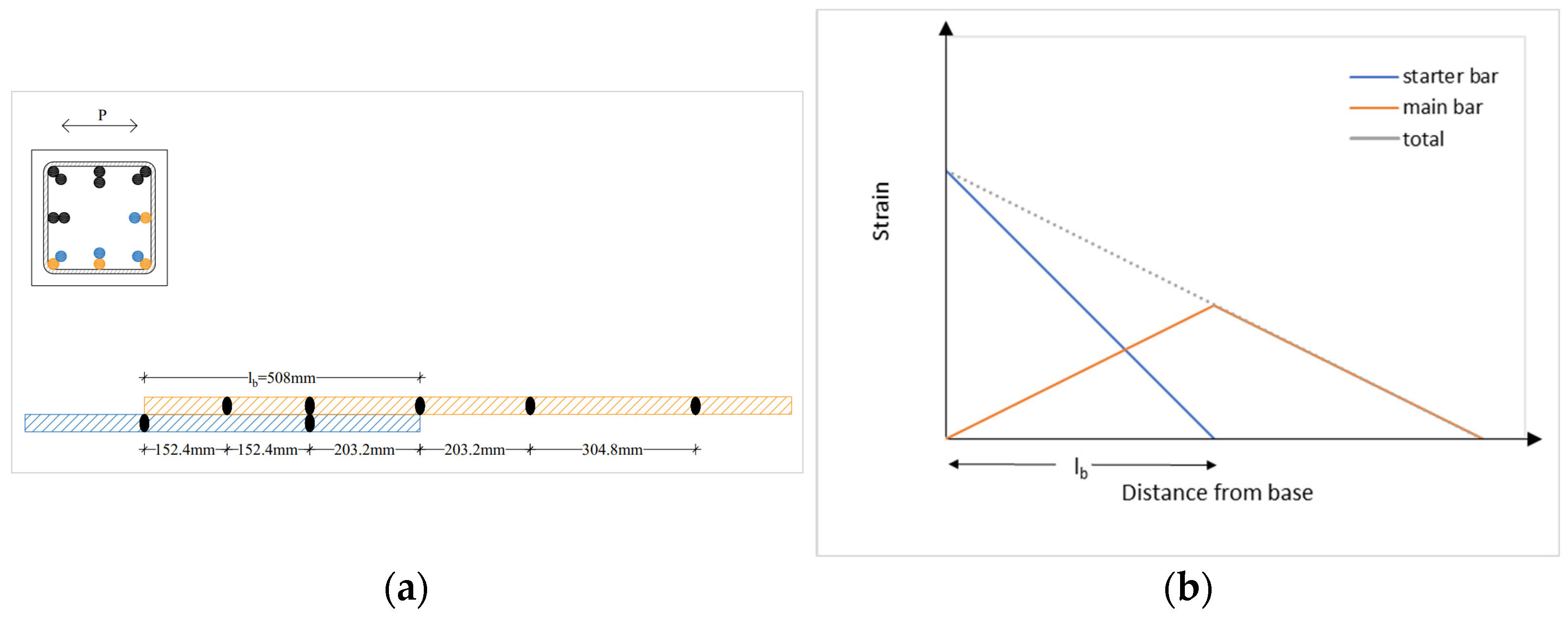

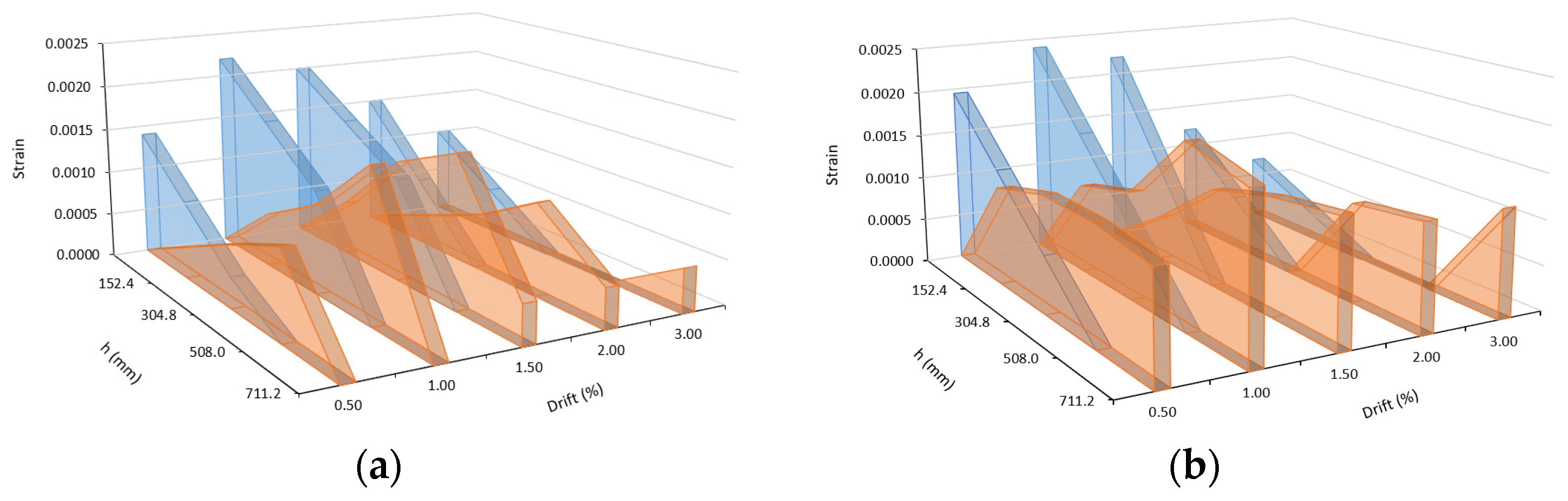

**Figure 8.**(

**a**) Strain gauges layout. (

**b**) Expected strain distribution along lap-spliced bars (based on [107]).

**Figure 10.**Predicted steel stress distribution on starter and main bar, for (

**a**) monotonic analysis, and (

**b**) cyclic analysis (based on results by [108]).

**Figure 11.**Developed stress along starter longitudinal bars in tension at a displacement of (

**a**) 3.39 mm, (

**b**) 9.74 mm (δ

_{y}), (

**c**) 23.88 mm (δ

_{Pmax}) and (

**d**) 36.86 mm (δ

_{u}), for column R-0L0.

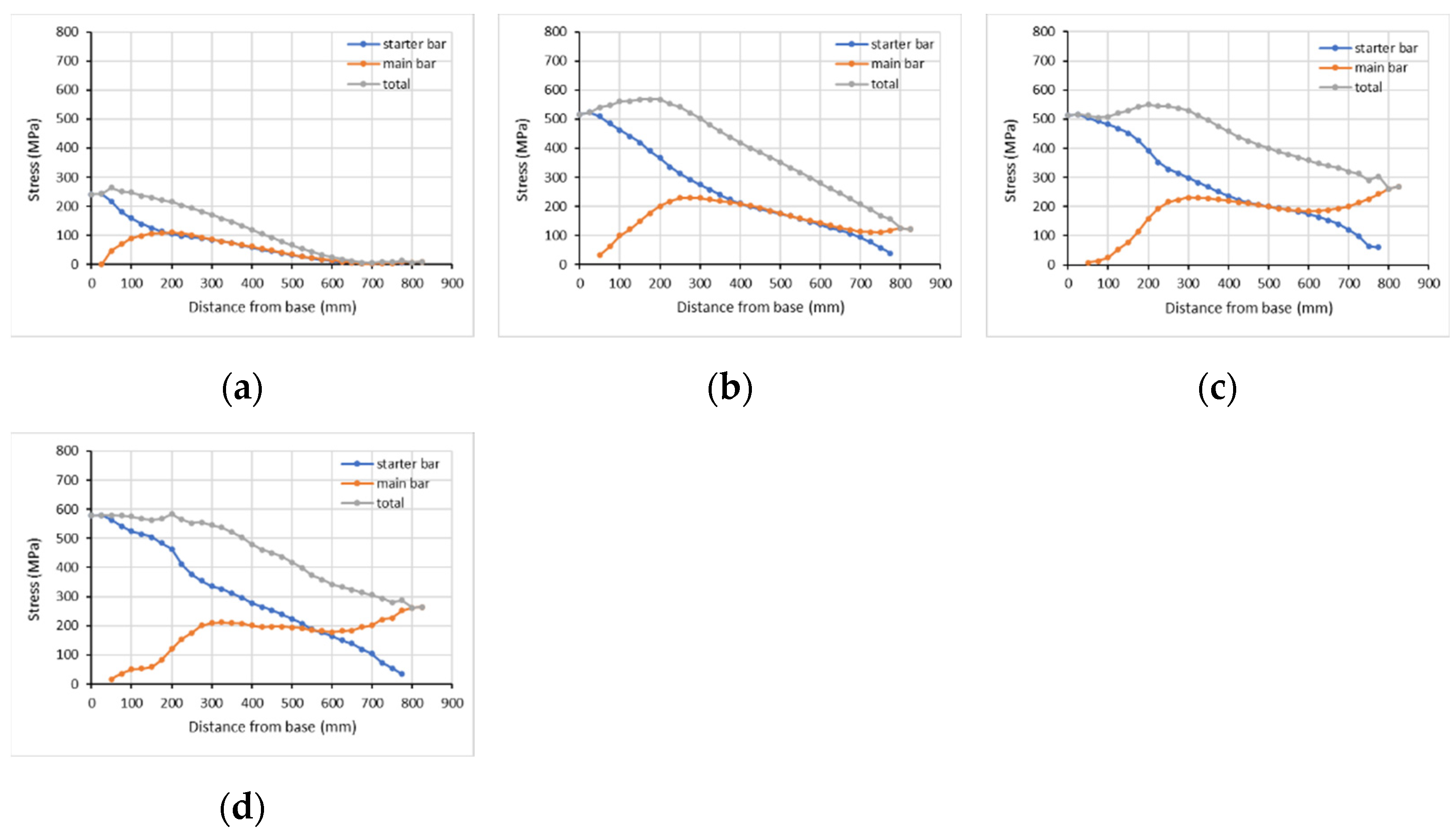

**Figure 12.**Developed stress along lap splice length at a displacement of (

**a**) 3.15 mm, (

**b**) 8.19 mm (δ

_{y}), (

**c**) 22.34 mm (δ

_{Pmax}), and (

**d**) 31.36 mm (δ

_{u}), for column R-0L4.

**Figure 13.**Developed stress along lap splice length at a displacement of (

**a**) 4.70 mm, (

**b**) 8.91 mm, (

**c**) 12.02 mm (δ

_{y}), (

**d**) 26.50 mm (δ

_{Pmax}), and (

**e**) 96.27 mm (δ

_{u}), for column R-P2L4.

**Figure 14.**Developed stress along lap splice length at a displacement of (

**a**) 3.16 mm, (

**b**) 8.22 mm (δ

_{y}), (

**c**) 16.64 mm (δ

_{Pmax}), and (

**d**) 27.20 mm (δ

_{u}), for column R-0L3.

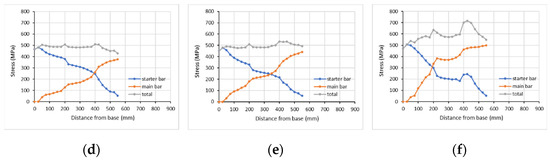

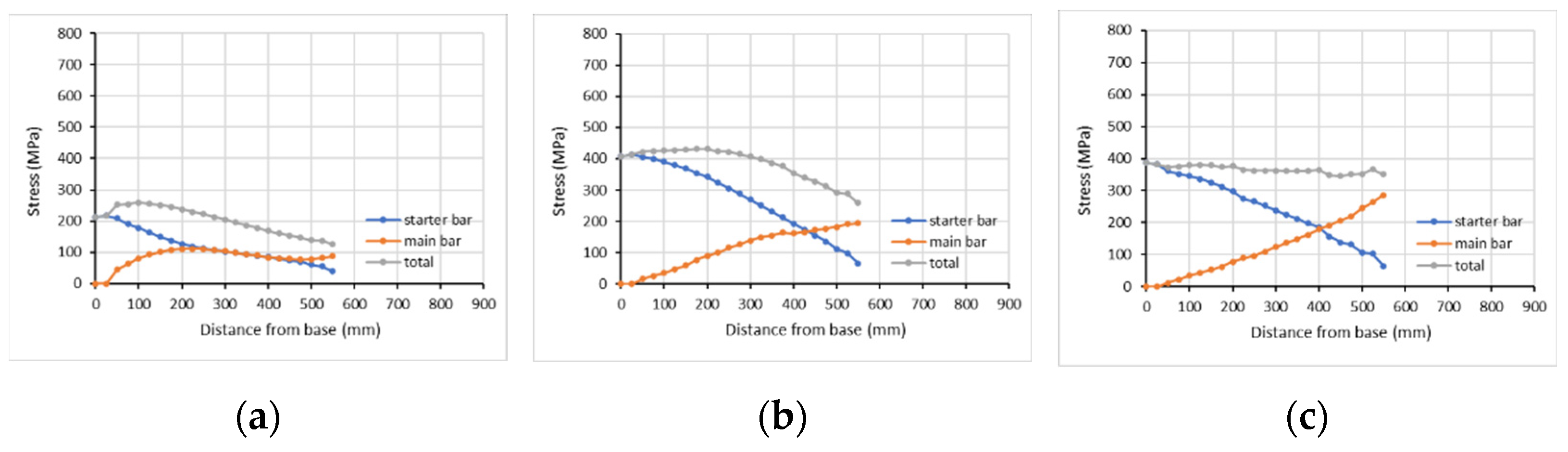

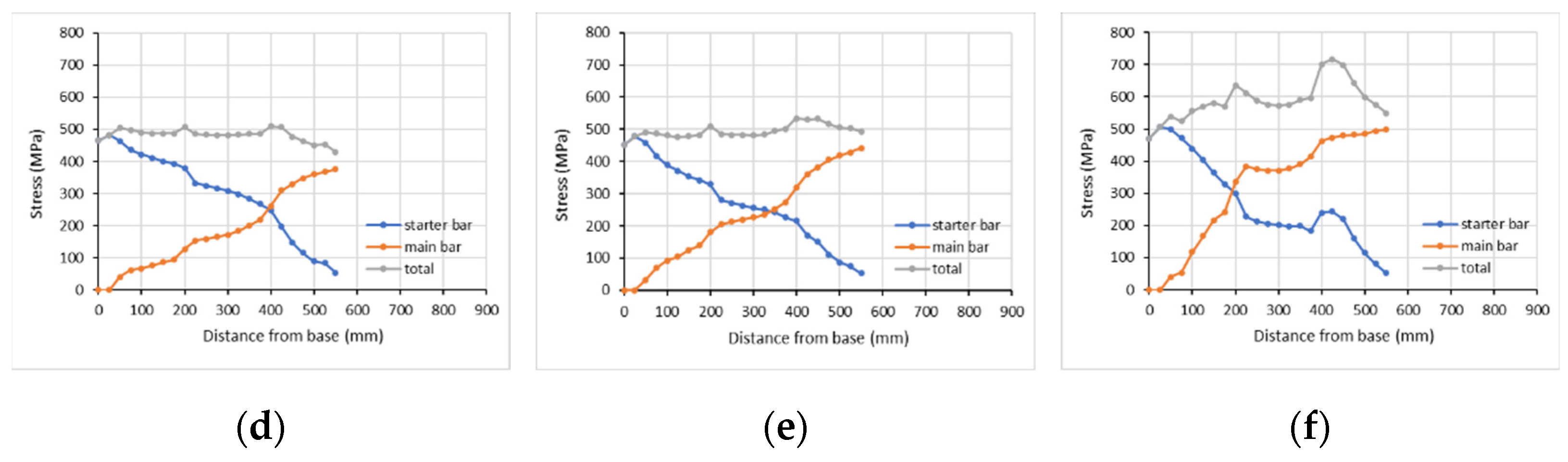

**Figure 15.**Developed stress along lap splice length at a displacement of (

**a**) 2.07 mm, (

**b**) 4.20 mm, (

**c**) 6.58 mm (δ

_{py}), (

**d**) 36.21 mm (δ

_{P€}), (

**e**) 49.30 mm (δ

_{y}), and (

**f**) 69.11 mm (δ

_{u}), for column R-P2L3.

**Figure 16.**Developed stress along lap splice length at a displacement of (

**a**) 3.44 mm, (

**b**) 7.23 mm, (

**c**) 10.14 mm (δ

_{py}), (

**d**) 37.83 mm (P

_{max}), (

**e**) 51.20 mm (δ

_{y}), and (

**f**) 97.17 mm (δ

_{u}), for column R-P5L3.

**Figure 17.**Developed stress along lap splice length at a displacement of (

**a**) 3.15 mm, (

**b**) 8.57 mm (δ

_{py}), (

**c**) 16.95 mm (δ

_{Pmax}), and (

**d**) 28.50 mm (δ

_{u}), for column R-0L1.

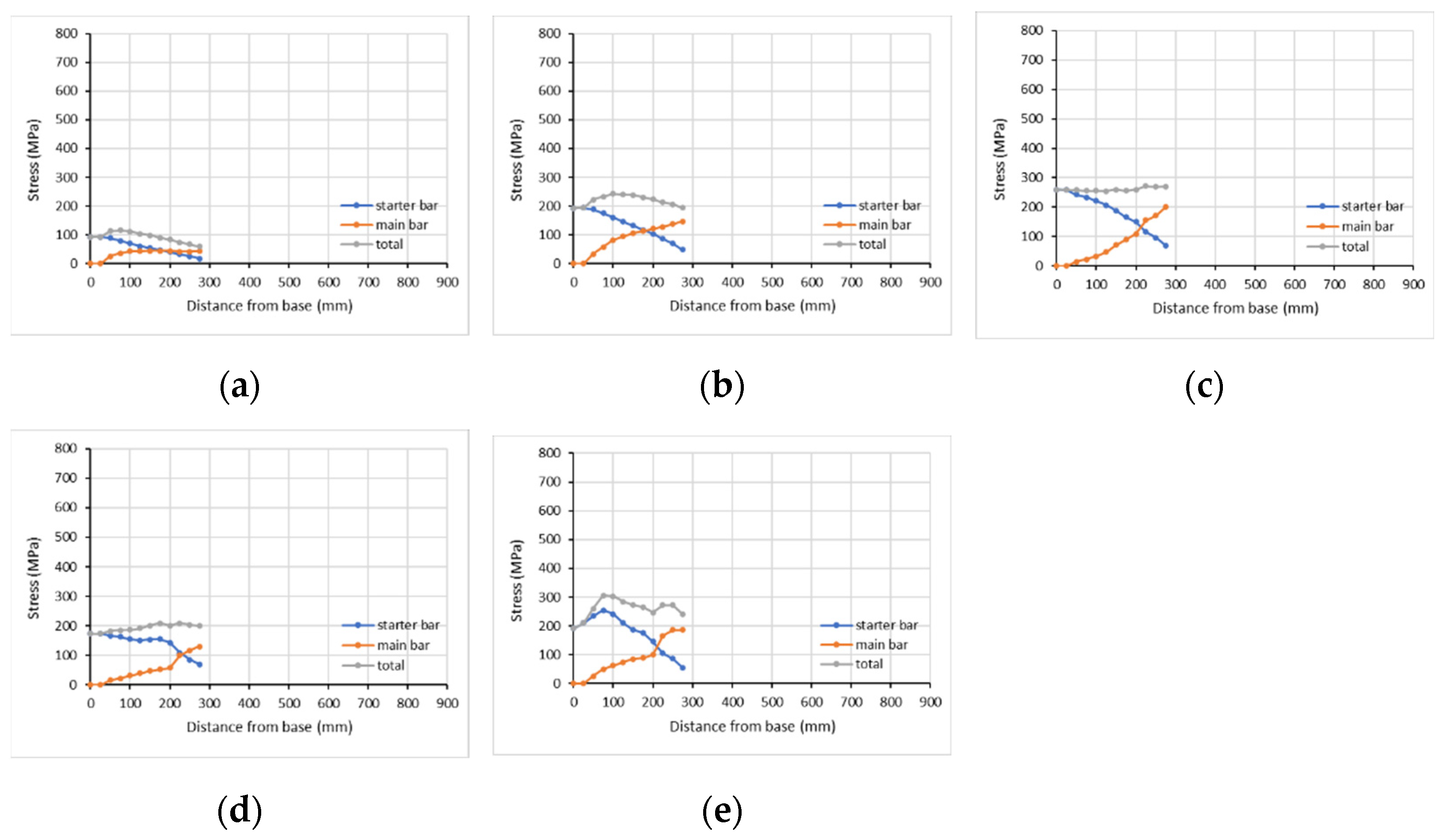

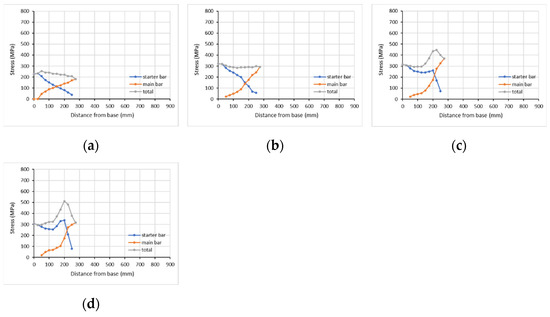

**Figure 18.**Developed stress along lap splice length at a displacement of (

**a**) 2.24 mm, (

**b**) 4.49 mm, (

**c**) 7.29 mm (δ

_{py}), (

**d**) 26.28 mm (δ

_{Pmax}), and (

**e**) 49.36 mm (δ

_{u}), for column R-P2L1.

Column | f_{c}(MPa) | Geometry | FRP | Longitudinal Bars | Stirrups | v | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

b_{w}(m) | h (m) | L_{s}(m) | Type of FRP | Height of FRP (mm) | t_{j}(mm) | E_{j}(GPa) | ε_{ju} | r (mm) | d_{bL}(mm) | Lap-splice Length (d _{bL}) | f_{yL}(MPa) | f_{uL}(MPa) | d_{w}(mm) | f_{yw}(MPa) | s (m) | f_{uw}(MPa) | |||

R-0L0 | 31.0 | 0.250 | 0.500 | 1.60 | - | - | - | - | - | 18 | - | 514 | 659 | 8 | 425 | 0.2 | 596 | 0.26 | |

R-0L1 | 27.4 | 0.250 | 0.500 | 1.60 | - | - | - | - | - | 18 | 15 | 514 | 659 | 8 | 425 | 0.2 | 596 | 0.23 | |

R-0L3 | 27.4 | 0.250 | 0.500 | 1.60 | - | - | - | - | - | 18 | 30 | 514 | 659 | 8 | 425 | 0.2 | 596 | 0.28 | |

R-0L4 | 27.4 | 0.250 | 0.500 | 1.60 | - | - | - | - | - | 18 | 45 | 514 | 659 | 8 | 425 | 0.2 | 596 | 0.28 | |

R-P2L0 | 32.9 | 0.250 | 0.500 | 1.60 | CFRP | 600 | 0.26 | 230 | 0.015 | 30 | 18 | - | 514 | 659 | 8 | 425 | 0.2 | 596 | 0.23 |

R-P2L1 | 26.9 | 0.250 | 0.500 | 1.60 | CFRP | 600 | 0.26 | 230 | 0.015 | 30 | 18 | 15 | 514 | 659 | 8 | 425 | 0.2 | 596 | 0.30 |

R-P2L3 | 26.9 | 0.250 | 0.500 | 1.60 | CFRP | 600 | 0.26 | 230 | 0.015 | 30 | 18 | 30 | 514 | 659 | 8 | 425 | 0.2 | 596 | 0.28 |

R-P2L4 | 26.9 | 0.250 | 0.500 | 1.60 | CFRP | 600 | 0.26 | 230 | 0.015 | 30 | 18 | 45 | 514 | 659 | 8 | 425 | 0.2 | 596 | 0.28 |

R-P5L3 | 27.0 | 0.250 | 0.500 | 1.60 | CFRP | 600 | 0.65 | 230 | 0.015 | 30 | 18 | 30 | 514 | 659 | 8 | 425 | 0.2 | 596 | 0.29 |

_{c}: concrete compressive strength, b

_{w}: width of cross-section, h: depth of cross-section, L

_{s}: shear span length, t

_{j}: total thickness of FRP jacket, E

_{j}: elastic modulus of CFRP, ε

_{ju}: strain at failure of CFRP, r: bend radius of FRP at the corners of the member, d

_{bL}: diameter of longitudinal steel bar, f

_{yL}: yield stress of longitudinal steel bar, f

_{uL}: ultimate stress of longitudinal steel bar, d

_{w}: diameter of transverse steel bar, f

_{yw}: yield stress of transverse reinforcement, s: stirrup spacing, f

_{uw}: ultimate stress of transverse reinforcement, v: normalized axial force.

Property | Value |
---|---|

Density (kg·m^{−3}) | 2314 |

Tensile Strength ft/fc | 0.1 |

Shear Strength fs/fc | 0.18 |

Intact Failure Surface Constant A | 1.6 |

Intact Failure Surface Exponent n | 0.61 |

Tension/Compression Meridian Ratio Q2.0 | 0.6805 |

Brittle to Ductile Transition BQ | 0.0105 |

Hardening Slope | 2 |

Elastic Strength/ft | 0.7 |

Elastic Strength/fc | 0.53 |

Property | Value | |
---|---|---|

Density (kg·m^{−3}) | 7850 | |

Isotropic elasticity | Young’s Modulus (MPa) | 2 × 10^{5} |

Poisson’s Ratio | 0.3 | |

Bulk Modulus (Pa) | 1.6667 × 10^{11} | |

Shear Modulus (Pa) | 7.6923 × 10^{10} | |

Plastic Strain | Stress | |

Multilinear isotropic hardening(Steel stirrups) | 0 | 425 |

0.05 | 550 | |

0.1 | 580 | |

0.195 | 596 | |

Multilinear isotropic hardening(Longitudinal bars) | 0 | 514 |

0.05 | 630 | |

0.1 | 650 | |

0.17 | 659 |

Property | Value |
---|---|

Density (kg·m^{−3}) | 1.451 × 10^{−9} |

Young’s Modulus X direction (MPa) | 59,160 |

Young’s Modulus Y direction (MPa) | 59,160 |

**Table 5.**Comparative experimental and numerical results of columns R-0L0, R-0L1, R-0L3, R-0L4, R-P2L0, R-P2L1, R-P2L3, R-P2L4, and R-P5L3.

Column | Results | P_{max}(kN) | AE (%) | P_{u,exp}(kN) | δ_{Pu}(mm) | δ_{Pu} AE(%) | δ_{u,exp}(mm) | P_{δu}(kN) | P_{δu} AE(%) |
---|---|---|---|---|---|---|---|---|---|

R-0L0 | Experimental | 196.50 | 0.79 | 157.20 | 40.00 | 6.93 | 40.00 | 157.20 | 2.06 |

numerical | 194.95 | 157.20 | 37.23 | 40.00 | 153.96 | ||||

R-0L1 | Experimental | 148.00 | 5.63 | 123.40 | 30.40 | 10.79 | 30.40 | 123.40 | 12.77 |

numerical | 139.67 | 123.40 | 27.12 | 30.40 | 107.64 | ||||

R-0L3 | Experimental | 173.75 | 7.67 | 139.00 | 30.40 | 1.78 | 30.40 | 139.00 | 1.64 |

numerical | 187.07 | 139.00 | 30.94 | 30.40 | 141.28 | ||||

R-0L4 | Experimental | 205.00 | 6.32 | 164.00 | 39.00 | 22.92 | 39.00 | 164.00 | 19.62 |

numerical | 192.05 | 164.00 | 30.06 | 39.00 | 131.82 | ||||

R-P2L0 | Experimental | 217.00 | 0.33 | 173.60 | 67.20 | 14.02 | 67.20 | 173.60 | 5.67 |

numerical | 217.73 | 173.60 | 76.62 | 67.20 | 183.44 | ||||

R-P2L1 | Experimental | 171.50 | 3.13 | 137.20 | 52.20 | 15.31 | 52.20 | 137.20 | 11.84 |

numerical | 176.86 | 137.20 | 60.19 | 52.20 | 153.45 | ||||

R-P2L3 | Experimental | 211.50 | 1.13 | 169.20 | 70.10 | 5.34 | 70.10 | 169.20 | 7.29 |

numerical | 209.11 | 169.20 | 66.36 | 70.10 | 156.86 | ||||

R-P2L4 | Experimental | 208.50 | 1.24 | 166.80 | 87.30 | 10.27 | 87.30 | 166.80 | 4.46 |

numerical | 211.08 | 166.80 | 96.27 | 87.30 | 174.24 | ||||

R-P5L3 | Experimental | 225.25 | 1.04 | 180.00 | 89.30 | 8.81 | 89.30 | 180.00 | 4.73 |

numerical | 222.90 | 180.00 | 97.17 | 89.30 | 188.52 |

(1) | (2) | (3) | (4) | (5) | (6) | (7) | (8) | (9) | (10) |
---|---|---|---|---|---|---|---|---|---|

Column | Lap Length (d _{bL}) | Layers CFRP | θ_{u,exp} | θ_{u,pred}(KANEPE) | AE (%) | θ_{u,pred}(EC8.3) | AE (%) | θ_{u,prop}(Proposed- Including Equation c) | AE (%) |

R-P2L0 | 0 | 2 | 0.044 | 0.0422 | 4.1 | 0.0419 | 4.9 | 0.0419 | 4.8 |

R-P2L1 | 15 | 2 | 0.034 | 0.0121 | 64.5 | 0.0167 | 50.9 | 0.0352 | 3.5 |

R-P2L3 | 30 | 2 | 0.047 | 0.0231 | 51.0 | 0.0227 | 51.7 | 0.0442 | 5.9 |

R-P2L4 | 45 | 2 | 0.056 | 0.0303 | 45.9 | 0.0298 | 46.8 | 0.0467 | 16.5 |

R-P5L3 | 30 | 5 | 0.056 | 0.0256 | 54.3 | 0.0252 | 55.0 | 0.0632 | 12.8 |

AAE(%) | 44.0 | 41.9 | 8.7 | ||||||

AR | 0.56 | 0.58 | 0.98 |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Anagnostou, E.; Rousakis, T.
Performance of Steel Bar Lap Splices at the Base of Seismic Resistant Reinforced Concrete Columns Retrofitted with FRPs—3D Finite Element Analysis. *Fibers* **2022**, *10*, 107.
https://doi.org/10.3390/fib10120107

**AMA Style**

Anagnostou E, Rousakis T.
Performance of Steel Bar Lap Splices at the Base of Seismic Resistant Reinforced Concrete Columns Retrofitted with FRPs—3D Finite Element Analysis. *Fibers*. 2022; 10(12):107.
https://doi.org/10.3390/fib10120107

**Chicago/Turabian Style**

Anagnostou, Evgenia, and Theodoros Rousakis.
2022. "Performance of Steel Bar Lap Splices at the Base of Seismic Resistant Reinforced Concrete Columns Retrofitted with FRPs—3D Finite Element Analysis" *Fibers* 10, no. 12: 107.
https://doi.org/10.3390/fib10120107
