Molybdenum Nitride Films: Crystal Structures, Synthesis, Mechanical, Electrical and Some Other Properties

Université de Limoges, CNRS, ENSCI, SPCTS UMR7315, F-87000 Limoges, France
Université de Limoges, CNRS, XLIM UMR6172, F-87060 Limoges, France
Author to whom correspondence should be addressed.
Coatings 2015, 5(4), 656-687;
Received: 24 July 2015 / Revised: 25 September 2015 / Accepted: 29 September 2015 / Published: 13 October 2015
(This article belongs to the Special Issue Trends in Coatings and Surface Technology—Feature Papers)


Among transition metal nitrides, molybdenum nitrides have been much less studied even though their mechanical properties as well as their electrical and catalytic properties make them very attractive for many applications. The δ-MoN phase of hexagonal structure is a potential candidate for an ultra-incompressible and hard material and can be compared with c-BN and diamond. The predicted superconducting temperature of the metastable MoN phase of NaCl-B1-type cubic structure is the highest of all refractory carbides and nitrides. The composition of molybdenum nitride films as well as the structures and properties depend on the parameters of the process used to deposit the films. They are also strongly correlated to the electronic structure and chemical bonding. An unusual mixture of metallic, covalent and ionic bonding is found in the stoichiometric compounds.

1. Introduction

Transition metal nitrides as well as carbides are close-packed metallic structures in which nitrogen or carbon atoms occupy the interstitial sites. They can also be viewed as a geometrical arrangement of coordination polyhedra.
Bonding in this structure involves simultaneous contribution of covalent, ionic and metallic bonding to the cohesive energy, which leads to very interesting properties [1,2]. Theoretical as well as experimental works show that metallic bonding is predominant in transition metal nitrides compared with the isostructural carbides [3]. Indeed, the main part of the chemical bonding in carbides is due to σ hybridization of the 2p states of carbon atoms and eg components of the d states of metal atoms. The covalent bonding charge between atoms is localized and close to atoms. The contribution of the t2g component of d states becomes greatly enhanced in the isostructural nitrides and oxides so the metal–metal bond becomes important and the charge in the nitrides is more itinerant and less tightly bound than in the carbides. Moreover, owing to charge transfers from the metal atoms to the nitrogen atoms, an increased ionicity of the chemical bonding is observed in nitrides. These tendencies are confirmed in a recent paper [4]. The calculations of the electronic structure of 4d transition metal mononitrides of NaCl or ZnS-structure types have shown that all mononitrides are metallic. Thus, the different covalency in carbides and nitrides is the main factor responsible for the differences in their mechanical and thermodynamic properties.
These compounds exist over a broad composition range and contain numerous vacancies especially in the nonmetal sites that modify the band structures and thus influence thermodynamic, mechanical, electrical, magnetic and superconducting properties. Because of their extreme hardness, high Young modulus, brittleness and high melting point, they can be considered as ceramic materials. The melting point of TiN equal to 3220 K is higher than the values corresponding to AlN, Al2O3 or Si3N4 equal to 2523, 2323 or 2173 K, respectively. For comparison, the melting point of the Ti parent metal is only equal to 1933 K [2]. They can also be considered as metals since their electronic conductivity is higher than those of ceramic materials. In the same way, the Hall coefficient and the magnetic susceptibility are close to the values of metals. They also have a good chemical resistance. Thus, they can be used in various applications such as hard coatings, corrosion and abrasion resistant layers to protect the tools (few microns thick), or as adaptive tribological coatings with low friction coefficient and wear [5,6,7,8] and for micromechanical applications [9]. They are also very interesting as gate electrodes and barriers of diffusion [10,11,12,13,14]. Moreover, their metallic appearance makes them very attractive for decorative coatings. Owing to their electronic structure, transition metal nitrides are also very active in numerous catalytic reactions such as ammonia synthesis or decomposition, CO hydrogenation, NO dissociation and various hydroprocessing [15,16,17,18,19,20,21].
Among transition metal nitrides such as Ti, Zr, W, or Cr nitrides, Mo nitrides have been much less studied although they exhibit hardness values ranging from 28 to 34 GPa, whereas those for Ti or Cr nitrides range between 18 and 24 GPa [5,6]. Because of their strong covalent bonding, the calculated values of the bulk modulus of the stoichiometric MoN phase of hexagonal or cubic structure are comparable with those of c-BN and even diamond. Their catalytic activity can be more efficient than more traditional catalysts such as sulfided Ni-Mo/Al2O3 and Co-Mo/Al2O3 [21]. In this work, the passivated β-Mo2N0.78 catalyst displays a high activity at the initial stage of thiofene hydrodesulfurization (HDS) and its catalytic activity is renewed by a nitriding treatment via temperature programmed reaction (TPR). Mo nitrides are also superconducting and the predicted value of the transition temperature for the metastable MoN phase of NaCl-B1-type cubic structure is the highest of all refractory carbides and nitrides.
Much data about the properties of transition metal carbides and to a lesser extent those of transition metal nitrides has been gathered in some books and reviews [1,2]. Since they have been much less studied, molybdenum nitrides are relatively underrepresented in such works.
This review attempts to fill the gap by collecting relatively recent data about the structure and the formation of molybdenum nitride phases, the method of deposition of films and coatings, their characteristics as well as mechanical, electrical and some other interesting properties.

2. Structure of Molybdenum Nitride Phases

2.1. γ-Mo2N1 ± x and β-Mo2N1 ± x Phases

Beside the solid solution of nitrogen in molybdenum, the so-called α phase, which contains 1.08 at % nitrogen, three molybdenum nitride phases are stable in thermal equilibrium according to the binary phase diagram determined by H. Jehn and coworkers [22]. The γ-Mo2N1 ± x phase is stable at high temperature. Its structure is cubic of NaCl-B1-type and can be described as a face centered cubic array of Mo atoms with N atoms randomly occupying one half of the octahedral interstices of the host metal (Fm3m, space group). Tagliazucca et al. [20] have reported another structure for the γ-Mo2N1 ± x phase, which consists of an ordered array of vacancies (Pm3m, space group) distinguished from the Fm3m space group by the presence of superstructure reflections. Molybdenum nitrides also crystallize in a structure similar to γ-Mo2N with an excess of nitrogen in the lattice and with the formula Mo3N2 [10].
The β-Mo2N1 ± x phase is stable at low temperature. Its structure is a face centered tetragonal structure of metal atoms with an ordered array of nitrogen atoms. This structure is often considered as a tetragonal modification of the cubic γ-Mo2N1 ± x phase with the lattice constant c doubled (I41/amd, space group) [12,22]. Both phases exist over a wide range of stoichiometry, the transition between them depends on the stoichiometry and lies in the temperature range from 673 to 1123 K. Another tetragonal molybdenum nitride phase has been produced with the formula Mo16N7 [23].
The lattice parameters of both phases are listed in Table 1.
Table 1. Lattice parameters of Mo2N films (f) compared with bulk (b), and theoretical values (th).
Table 1. Lattice parameters of Mo2N films (f) compared with bulk (b), and theoretical values (th).
Mo–N PhaseStructureSpace GroupLattice Constants (nm)References
γ-Mo2N bFace centred cubicFm3ma = 0.41613[24]
γ-Mo2N f a = 0.416–0.419[25]
a = 0.416[26]
a = 0.4124[27]
a = 0.42[28]
a = 0.4165[12]
a = 0.4215–0.4303[29]
a = 0.421–0.425[30]
a = 0.419–0.429[31]
a = 0.418–0.429[32]
β-Mo2N fBody centred tetragonalI41/amda = 0.416
c = 0.800
β-Mo2N0.85 f a = 0.4199
c = 0.7996
β-Mo2N f a = 0.4182
c = 0.7993
β-Mo16N7 bTetragonal a = 0.841
c = 0.805
MoN0.5 thCubic a = 0.4162[35]

2.2. Hexagonal δ-MoN Phase

Only the hexagonal δ-MoN phase exists at the stoichiometric composition under thermal equilibrium, and so it can be used as a standard for quantitative spectroscopic analysis. The δ-MoN phase crystallizes at least in three different form of the hexagonal structure and one slightly overstoichiometric with composition Mo5N6. The various forms have been very accurately described in the paper by Ganin et al. [36]. δ1-MoN has a WC-type crystal structure (P6m2, space group) with stacking faults of nitrogen atoms layers along the c axis due to nitrogen atoms disorder. δ2-MoN crystallizes with the NiAs structure-type (P63/mmc, space group) with an ordered array of nitrogen atoms. δ3-MoN is the much-investigated phase (P63mc, space group), it consists of trigonal Mo clusters and an ordered array of nitrogen atoms so the atomic arrangement can be described as a slightly deformed superstructure of NiAs. The Mo5N6 is the result of an intergrowth structure of the WC and NiAs-type building blocks with vacancies on Mo sites (P63/m or P6322, space group). Molybdenum nitrides also crystallize in Mo2N of hexagonal structure [10].
The lattice parameters of the phase are listed in Table 2.
Table 2. Lattice parameters of MoN films (f) compared with bulk values (b), and theoretical values (th).
Table 2. Lattice parameters of MoN films (f) compared with bulk values (b), and theoretical values (th).
Mo–N PhaseStructure TypeSpace GroupLattice Constants (nm)References
δ-MoN bHexagonalP63mca = 0.57402[37]
c = 0.56203
δ-MoN fHexagonal a = 0.572[25]
c = 0.560
a = 0.572[26]
b = 0.556
δ1-MoN fHexagonal WC-typeP6m2a = 0.2868[36]
c = 0.2810
δ3-MoN fHexagonal NiAs-typeP63mca = 0.57356[36]
c = 0.56281
Mo5N6 fHexagonal WC and NiAs-typeP63/ma = 0.48924[36]
c = 1.10643
MoN thHexagonal a = 0.5787[35]
c = 0.5404
δ1-MoN th a = 0.286[38]
c = 0.280
δ3-MoN th a = 0.5710[38]
c = 0.5625
δ1-MoN th P6m2a = 0.2861[39]
c = 0.2843
δ2-MoN th P63/mmca = 0.5700[39]
c = 0.5661
δ3-MoN th P63mca = 0.5721[39]
c = 0.5649
MoN fCubic NaCl-B1-typeFm3ma = 0.4212[40]
a = 0.420–0.427[25]
a = 0.4215–0.4253[41]
a = 0.420–0.422[26]
MoN th a = 0.425[42]

2.3. Metastable Cubic MoN Phase

The stoichiometric MoN phase of NaCl-B1-type cubic structure is thermodynamically unstable. In contrast with γ-Mo2N compound, the Fermi level lies well into the antibonding band, which consists primarily of Mo-d-t2g states with a small N-p component. This region of the valence band complex is known to influence the properties of materials such as superconductivity. The transition temperature Tc of the stoichiometric MoN phase is expected to be high [42] (Section 7.3). Some authors have attempted to stabilize the structure by non-equilibrium techniques such as RF sputtering in high nitrogen partial pressure, nitrogen ion implantation, low energy ion assisted deposition [25,28,41]. Saito et al. [26] have reported a continuous transformation of the γ-Mo2N phase to the stoichiometric B1-MoN phase by increasing nitrogen incorporation in the structure. The lattice parameter of 0.420–0.422 nm is close to the value equal to 0.425 nm calculated by Papaconstantopoulos et al. [42] and to the experimental value of 0.4212 nm reported in the paper of Linker et al. [40], which corresponds to the exact stoichiometry.
Savvides [41] found values in the range between 0.4215 and 0.4253 nm depending on the ion energy.
The corresponding lattice parameters of the stoichiometric cubic phase are listed in Table 2 and compared with theoretical values.

2.4. Amorphous Structures

Molydenum nitrides have also been synthesized in the form of amorphous structures such as Mo72N28 [31] and Mo75N25 [9] as well as compounds with N/Mo ratio larger than 1, such as the gold colored Mo3N2 phase [43].

3. Formation of Molybdenum Nitride Compounds

3.1. Thermodynamic Analysis

The solubility of nitrogen in molybdenum metal is rather low [22,44]. Direct reactions of the metal with nitrogen gas employ very high temperatures to cleave the strong N–N triple bond. The use of NH3 instead of N2 as reactive gas is not easy to control and often leads to a mixture of phases. Moreover, the decomposition of NH3 is endothermic but it can be replaced by N2–H2 gas mixtures, which circumvent the problem of heat transfer.
In the past years, Lyutaya [45] has developed a thermodynamic analysis of the formation of group VI metal nitrides and especially Mo2N. γ-Mo2N of face centered cubic structure (a = 0.4159 nm) is prepared from molybdenum powder exposed to an ammonia stream for 8 h at a temperature of 973 K. A molybdenum oxynitride Mo2O1 − xNx (a = 0.4168 nm) of face centered cubic structure is synthesized when MoO3 is exposed to NH3 at 973 K for 4 h. The author has developed a process to prepare Mo2N and MoN by removing oxygen from the molybdenum oxynitride in fast ammonia stream at 1173 K and synthesize Mo2N at 973 K for 2 h and MoN at 723 K for a longer period of time.
The author identified three reactions leading to the formation of Mo2N:
2 Mo + 1/2 N2 = Mo2N
2 MoO3 + 6 H2 + 1/2 N2 = Mo2N + 6 H2O
2 MoO3 + 4 NH3 = Mo2N + 6 H2O + 3/2 N2
The isobaric-isothermal potential ΔG° is equal to about −41.84 kJ·mol−1 for Reactions (1) and (3) at 500 K but it decreases very strongly with increasing temperature for Reaction (3). The value is slightly lower for Reaction (2). Jehn et al. [22] have determined a value of −30.38 kJ·mol−1 for Reaction (1).

3.2. Application to the Synthesis of Molybdenum Nitride Compounds

The reactions previously described occur in the synthesis of molybdenum nitride compounds by temperature programmed reaction (TPR), the so-called ammonolysis from MoO3 or MoCl5 precursors in NH3 gas or N2–H2 gas mixture flow. This method is usually carried out to prepare catalysts. The conditions differ in specific details but all authors apply slow temperature ramp rates and high ammonia space velocities. McKay et al. [16,46] have synthesized γ-Mo2N from MoO3 in NH3 gas at a temperature of 1078 K for 5 h, whereas N2-H2 gas mixture is used to prepare β-Mo2N at a temperature of 973 K for 2 h. The authors have reported that γ-Mo2N can also be prepared using N2–H2 gas mixture, although much more specific preparation conditions were employed in this synthesis. δ-MoN is synthesized in NH3 gas stream at a temperature of 1078 K for 60 h. The authors have also reported that γ-Mo2N decomposes to form β-Mo2N and eventually Mo in the ammonolysis of MoO3 at temperatures greater than 1073 K. It also decomposes to β-Mo2N by cooling it in inert gas or heating it to 1273 K in an inert atmosphere.
The formation of molybdenum nitrides proceeds through a set of parallel reactions involving the formation of intermediate compounds. Partially reduced oxides such as MoO2 or Mo4O11 as well as hydrogen molybdenum bronzes HxMoO3 and molybdenum oxynitrides MoOxN1 − x have been identified during the reduction nitridation process. HxMoO3 exists in four distinct phases in the range 0 < x ≤ 2 in which hydrogen is inserted into the MoO3 matrix with small consequential changes in the lattice parameters of MoO3 [47]. The enthalpy of formation of HxMoO3 determined at 298 K is negative for the four phases. The enthalpy of formation of MoO2 and H2MoO3 is equal to −598.94 and −80.4 kJ·mol−1, respectively, compared with the value corresponding to MoO3, which is equal to −745.05 kJ·mol−1.
In recent years, Tagliazucca et al. [20] studied the properties of molybdenum-based catalysts made from MoO3 in NH3 gas flow. The formation of HxMoO3 and MoO2 is observed at a temperature of 613 K during the reduction-nitridation process leading to the synthesis of molybdenum nitrides. Cardenas-Lizana et al. [48] have developed a process to produce β-Mo2N from MoO3 in N2–H2 gas mixture at a temperature of 933 K and observed the reduction of MoO3 to MoO2 and Mo. In contrast with many previous studies suggesting that the formation of molybdenum nitride intermediates is a thermochemically controlled process, the authors report a kinetically controlled process.

4. Deposition of Molybdenum Nitride Films and Coatings

Molybdenum nitride films are synthesized by various processes from reactive sputtering to thermal decomposition of precursors.
It is worth noting that in most X-ray diffraction (XRD) studies, it is not easy to differentiate the various phases of molybdenum nitrides, especially γ-Mo2N and β-Mo2N. The diffraction patterns show intense reflections close to one another at low Bragg angles. Moreover, the small size of the crystallites results in peaks broadening and owing to the overlapping of peaks arising from molybdenum oxides and molybdenum nitrides, the precise structure of molybdenum nitrides cannot be unambiguously determined. It is well known that crystalline phases in thin films tend to show preferred orientations, so only few diffraction peaks are detected by conventional X-ray diffraction that makes the analysis of the crystal structure difficult. Thus, in the following part, the structure of Mo2N phase is only specified when it is unambiguously determined.

4.1. Reactive Sputtering Method

The reactive sputtering of molybdenum target in pure N2 gas or Ar-N2 gas mixtures by means of DC (direct current), RF (radio frequency) and magnetron discharges is very often performed in most of works.
Because of the presence of reactive gas, the chemical composition of deposited films is different from the target material. Thus, the stoichiometry of MoN compounds as well as the crystallization, the structure, and the orientation of crystallites are strongly correlated with nitrogen partial pressure. The lattice parameter values of Mo2N produced as thin films are in general higher than the corresponding bulk value equal to 0.41613 nm (Table 1). Moreover, they increase with increasing nitrogen partial pressure. The substrate temperature (external heating or not) plays also a role in the crystallization of films.
Among all reactive sputtering techniques, magnetron sputtering allows large-area deposition, high quality films even at low substrate temperatures. Thus, this technique is widely used in coating processes. Figure 1 shows a schematic representation of a magnetic sputtering system. In this process, a strong magnetic field near the target area is generated which causes the travelling electrons to spiral along magnetic flux lines near the target. Thus, the plasma is confined near the target area that maintains the stoichiometry and the thickness uniformity of the deposited thin films. The high-density plasma is stable that improves the sputtering process efficiency. Moreover, non-conductive targets can be used and the arching is reduced because of the use of alternating electric field.

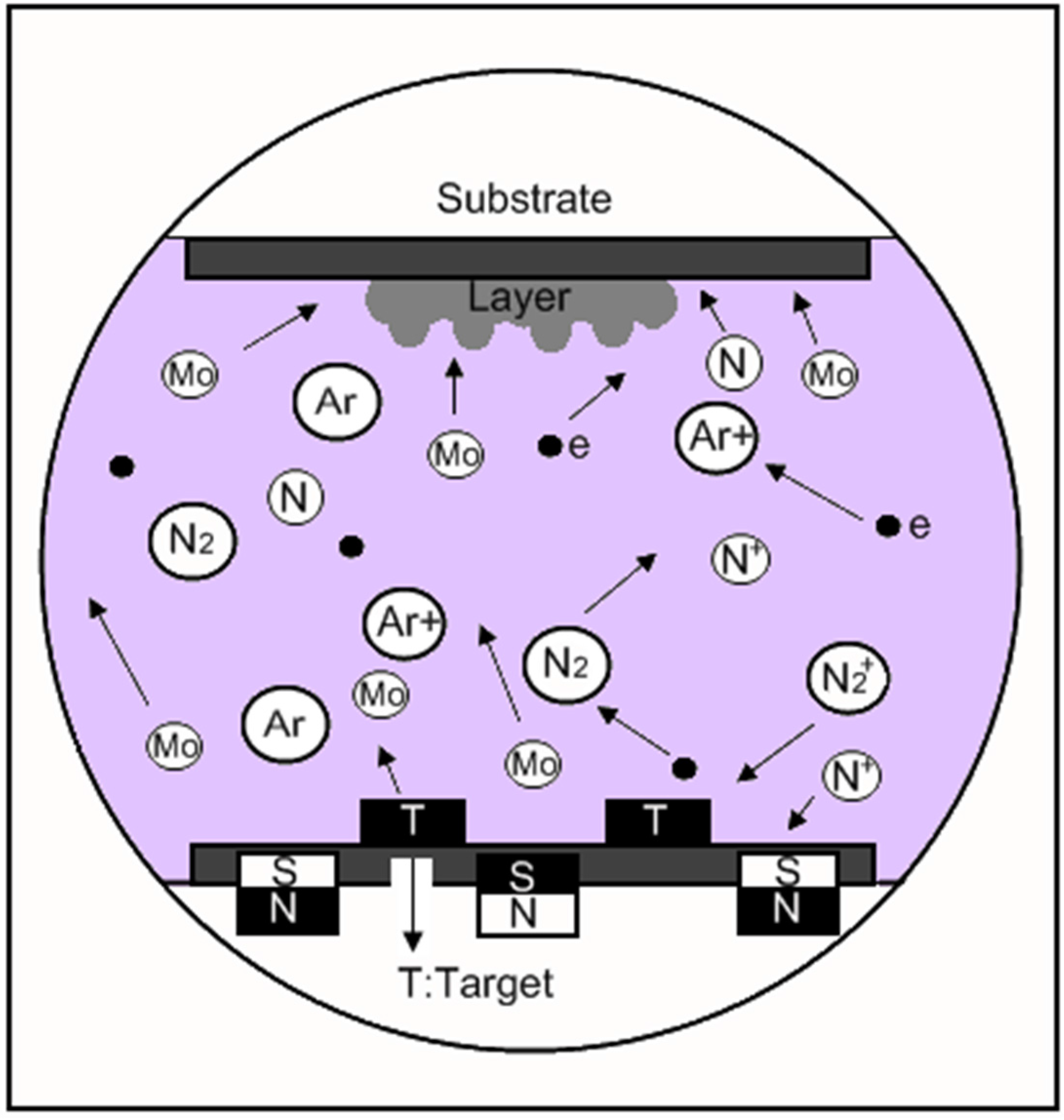

Figure 1. Experimental set up of magnetron sputtering method.
Figure 1. Experimental set up of magnetron sputtering method.
Coatings 05 00656 g001

4.1.1. Influence of the Nitrogen Pressure on the Formation of Crystalline or Amorphous Mo2N Phases

Anitha et al. [29] synthesized molybdenum nitride thin films on chemically cleaned glass or silicon substrates by reactive rf magnetron sputtering. The molybdenum target is sputtered in (Ar–N2) gas mixtures at nitrogen partial pressures ranging between 1 and 60 × 10−3 Pa. The substrate is heated at temperatures ranging between 300 and 575 K. The authors noticed that the rate of deposition remains relatively constant over a nitrogen partial pressure ranging from 1 to 20 × 10−3 Pa and falls drastically at higher nitrogen partial pressure. The substrate temperature has not any significant effect on the structure as well as on the lattice parameter of the phase, the grain size, and the orientation of crystallites. However, the nitrogen partial pressure exerts a strong influence on the orientation of crystallites since they are randomly oriented at low nitrogen partial pressure (4.7 to 15 × 10−3 Pa). The N/Mo ratio corresponds to the stoichiometric Mo2N phase. At larger nitrogen pressure of about 30–60 × 10−3 Pa, the crystallites exhibit strong (200) preferred orientation. In that case the films contain excess nitrogen and hence the lattice parameter increases (Table 1). However, the size of crystallites remains almost constant and equal to 10–25 nm. The morphology of films consists of dense and fibrous crystallites and their surface topography appears to be relatively smooth. This structure is close to the zone T regime of Thornton’s structure zone classification [49] with the ratio Ts/Tm equal to 0.21 where Ts is the substrate temperature and Tm the melting temperature (2275 K for Mo2N). The growth of molybdenum nitride films occurs under conditions of relatively low adatom mobilities.
The results obtained by Aouadi et al. [5] are consistent with the previous ones. The authors synthesized Mo2N/MoS2/Ag nanocomposites about 2.8 μm thick on hardened 440C grade stainless steels and on inconel 600 substrates from individual targets of Mo, MoS2 and Ag in (Ar–N2) gas mixture with partial pressures of 0.3 and 0.04 Pa, respectively, using an unbalanced magnetron sputtering apparatus. These composite coatings are expected to have tribological properties. The results are consistent with [29] since the Mo2N phase is strongly oriented in the (200) crystallographic direction at a nitrogen partial pressure of 4 × 10−2 Pa.
Wang et al. [31] have prepared molybdenum nitride films on Si wafers by pulsed dc reactive sputtering. The discharge power is equal to 150 W and the total pressure of (Ar–N2) gas mixture is fixed at 0.66 Pa. The films consist of randomly oriented Mo2N crystallites at low nitrogen partial pressure about 10%–30% N2 in (Ar–N2) gas mixture (6.6 to 19.8 × 10−2 Pa). Their size decreases with increasing nitrogen partial pressure (29.9 and 17.8 nm at 6.6 and 19.8 × 10−2 Pa, respectively). In contrast with [29] the films become amorphous at 50% N2. It is worth noting that the nitrogen partial pressure is one order of magnitude larger than in [29]. However, in both works the orientation of crystallites as well as the transition to an amorphous structure seems to be due to an excess of nitrogen in the structure, the N/Mo mole ratio is equal to 0.67 and 0.72 in references [29] and [31], respectively. No columnar structure was observed in all as-deposited films under different nitrogen pressure values [31]. The authors in [31] also investigated the bonding states of nitrogen and molybdenum by using X-ray photoelectron spectroscopy (XPS) and they found a continuous shift of the Mo3d5/2 XPS peak towards high binding energy from 228.1 eV to 228.5 eV, whereas the N1s XPS peak shifts towards low binding energy with increasing nitrogen partial pressure. This is due to the increase of charge transfer from Mo to N atoms, which leads to a more ionic Mo–N bond.
In a very recent paper, Stöber et al. [32] have reported results quite consistent with the previous work. The molybdenum nitride films about 150 nm thick are deposited by reactive dc magnetron sputtering at power ranging from 300 to 700 W and a total pressure ranging from 2 to 8 × 10−1 Pa. The crystallites of Mo2N are randomly oriented. The films become amorphous at 50% N2. Moreover, the authors observe shifts of X-ray diffraction lines, which are explained by the increasing film stress. However, in contrast with [31], the crystallite sizes are much smaller, they range between 3 and 8 nm and the films exhibit a columnar microstructure.
Kattelus et al. [9] have developed a deposition process, which allows the directional dependence in intrinsic film stress to be controlled for applications in micromachining. The films are deposited in (Ar–N2) gas mixture with an Ar partial pressure of 0.2 Pa using a dc sputtering system. The discharge power is kept constant at 3 kW. In contrast with the previous study [31], the film is amorphous at low nitrogen partial pressure and the first crystalline nitride phase appears at 26% N2. It is worth noting that the power used in this work is greatly larger than those used in previous works. The film thickness decreases with increasing nitrogen partial pressure from 300 nm to 200 nm at 26% N2.

4.1.2. Influence of the Nitrogen Pressure on the Formation of MoN Phases

Hones et al. [30] used the same process as [29] to investigate the structural and mechanical properties of molybdenum nitride films about 1 μm thick in a wide range of nitrogen/metal ratios. The discharge power is kept constant at 120 W, the total pressure of (Ar–N2) gas mixture during the sputtering process is equal to 0.66 Pa and the substrate temperature is fixed at 500 ± 20 K in order to obtain films of structures in the zone T regime of Thornton’s structure zone classification which allows optimizing the mechanical properties of films (Section 5). Previous mass spectrometry measurements of plasma species carried on during the sputtering of Cr targets have shown that the plasma consists of positive ions (Ar+, N+, N2+, …), metallic ions (Cr+) and compounds (CrN+). At low nitrogen pressure, the impinging effect of the high flux and kinetic energy of the Cr+ ions leads to a densely packed morphology of the films, whereas in absence of a significant amount of high flux and kinetic energy of Cr+ ions at higher nitrogen pressure, the films exhibit a columnar morphology. The authors have shown that the nitrogen content in the MoNy films linearly increases with increasing nitrogen partial pressure, y is the stoichiometric ratio. The randomly oriented crystallites of γ-Mo2N are formed at low nitrogen partial pressure of 0.2 Pa and their size linearly increases from 5 to 18 nm with increasing nitrogen partial pressure up to y equal to 0.8. A transition from γ-Mo2N of cubic structure to δ-MoN of hexagonal structure occurs at 0.33 Pa and the hexagonal phase becomes predominant at 0.43 Pa. It is worth noting that the nitrogen partial pressure is about one order of magnitude larger than the one reported in [29]. The grain size of the cubic phase decreases with the formation of grains of the hexagonal phase of size equal to 9 nm.
Guntur [12] prepared molybdenum nitride thin films by RF magnetron sputtering in (Ar–N2) gas mixtures without external heating. The films are deposited under two conditions: at 250 W with a total pressure of 0.93 Pa and at 300 W with a total pressure of 1.6 Pa. The results are consistent with [30] since a transition from γ-Mo2N of cubic structure to Mo5N6 and then δ-MoN of hexagonal structures is identified at 300 W and nitrogen partial pressures of 0.4 and 0.6 Pa. The same result is obtained at 250 W at nitrogen partial pressures of 0.26 and 0.4 Pa. At larger nitrogen pressure the films become amorphous.
Linker et al. [40] and Ihara et al. [25] have performed reactive sputtering process with high nitrogen partial pressure to synthesize stoichiometric MoN films of B1-NaCl-type cubic structure because this compound has been predicted to have a higher superconducting transition temperature than NbN (17 K) on the basis of electronic band calculations (Section 7.3). The films 150–400 nm thick have been deposited onto sapphire and glassy carbon substrates in (Ar-N2) gas mixture at partial pressures of 2.66 and 6.65 Pa, respectively, or in pure nitrogen gas at a pressure of about 20 Pa by using a RF system at a total power of 500 W in [40]. The substrate temperature was varied between room temperature and 1173 K. The stoichiometric MoN films are synthesized at a substrate temperature of 773 K. The resistivity of films has been studied as well as the superconducting temperature (Section 6 and Section 7). In [25], the MoN films are prepared by a reactive dc sputtering in pure N2 gas at pressures varying between 50 and 140 Pa. The substrate temperature is changed from 673 to 1073 K. MoNx compounds with increasing x from 0.5 to 1.8 are identified. The authors have investigated the valence band of MoNx films by XPS and they correlated it with the superconducting properties (Section 7.3).

4.2. Reactive Cathodic Arc Evaporation Method

Perry et al. [50] have deposited 1.5 μm thick molybdenum nitride films on low carbon steels by means of reactive arc evaporation. The main advantage of this technique is the high degree of ionization of the metal species produced during the evaporation process. The molybdenum is evaporated in (Ar–N2) at a total pressure of 1.6 Pa with a nitrogen partial pressure ranging between 0.4 and 1.46 Pa. The intensity of arc currents is equal to 130 or 150 A. The substrate is biased to −50 V. The authors investigated the crystal structure of the as-deposited films very accurately and found that the films synthesized at low nitrogen partial pressures of 0.4 Pa consist of single phase β-Mo2N crystallites, whereas single phase δ-MoN is formed at 1.4 Pa. The β-Mo2N, γ-Mo2N and δ-MoN phases coexist at pressures ranging between 0.4 and 1.4 Pa. At higher pressure the cubic NaCl-B1-type MoN phase would be synthesized, however, according to the authors it would be rather a metastable nitrogen supersaturated γ-Mo2N phase. Its formation could be kinetically controlled.

4.3. Ion Implantation Method

4.3.1. Influence of the Temperature on the Formation of Mo2N Phases

Mändl et al. [28,51,52] have prepared molybdenum nitride coatings by using a plasma immersion ion implantation (PIII) process with high implanted doses of nitrogen ranging between 1.7 and 3.3 × 1018 ions/cm2 (95% N2+, 5% N+) at a pressure of 0.3 Pa. The pure Mo sample of bcc structure and textured with (200) preferred orientation is heated at temperatures up to 1073 K. The results show that γ-Mo2N is synthesized at a temperature of 723 K. The film is textured with (200) orientation like the parent metal. However, because of the low size of crystallites resulting in the broadening of diffraction peaks, the formation of the β phase cannot be ruled out. Nevertheless, at temperatures greater than 853 K, a transition from the cubic structure to a tetragonal structure is clearly identified on X-ray diffraction patterns. The authors assigned this transition to the Jahn–Teller effect coupled with a volume reduction by 2.2%.

4.3.2. Influence of Nitrogen Doses on the Formation of Mo2N and MoN Phases

Saito et al. [26] have synthesized molybdenum nitride films by implanted sputtered Mo thin films with 125 keV N2+ ions doses ranging between 1 × 1017 and 16 × 1017 ions/cm2. The molybdenum substrate is not heated but the temperature rise is estimated to be about 423 K during the treatment. The authors report that the distribution of implanted nitrogen atoms is not uniform through the films because of the diffusion of nitrogen towards the surface and bulk sides during the treatment. Thus, the nitrogen-implanted thin films probably consist of two phases such as MoN compounds and remaining bcc MoN solid solution. Phase transformations are identified with increasing nitrogen doses: γ-Mo2N compound is formed after a dose of 1 × 1017 ions/cm2. For a critical dose of 5 × 1017 ions/cm2, the lattice parameter strongly increases and becomes close to the predicted value for the stoichiometric MoN of cubic NaCl-B1-type structure (Table 2). The cubic phase coexists with the stoichiometric δ-MoN compound of hexagonal structure, which becomes predominant with increasing nitrogen ion doses. The authors have also investigated the chemical bonding states of implanted nitrogen and Mo atoms. The results are consistent with [31] since an electron charge transfer is evidenced. The maximum of the energy shift corresponds to the critical nitrogen dose of 5 × 1017 ions/cm2, which results in the formation of the stoichiometric B1-type MoN compound that exhibits the maximum of the superconducting temperature (Section 7.3).
Linker et al. [40] have carried out implantation of nitrogen into evaporated Mo films and Mo single-crystal surfaces using multiple ion energies and fluences. They found similar results to those previously described in Section 4.1.2.

4.4. Low-Energy Ion-Assisted Method

Savvides [41] synthesized metastable MoN of B1-type cubic structure 0.4 μm thick by low-energy ion-assisted deposition on fused silica substrates. In this process, the quality of the film is controlled by the energy of ions. It is well known that the ion energy as the relative number of impinging ions to condense atoms arriving at the surface are important parameters affecting the growth morphology, composition, and properties of films. The ion energy ranges from 2 and 200 eV. The presence of chemically active N2+ ions allows the incorporation of nitrogen to be increased, and promotes ordering of the defect structure of cubic MoN. This parameter has a great influence on the value of the superconducting temperature (Section 7.3). The sputtering power is equal to 50 W and the flux of ions impinging on the growing film is equal to 4 × 1015 cm2/s. The substrates are heated at 673, 773 and 973 K. The ion energy greatly influences the film growth as well as the lattice spacing, the superconductivity and the resistivity (Section 6.2 and Section 7.3). The grain size distribution remains approximately constant at 24 nm up to 80 eV. The lattice parameter of fcc MoN compounds heated at 773 K is equal to 0.4225 nm at the lowest ion energy, it increases with increasing ion energy and is equal to 0.4253 nm at 100 eV and then decreases to reach the value of 0.4215 nm at 200 eV (Table 2). This is the result of a competition between the increasing concentration of nitrogen in the film and the resputtering of nitrogen by energetic ions. The decrease of the lattice parameter could also be due to the occurrence of compressive stresses arising from argon entrapment. The films deposited at low ion energies up to 100 eV have a strong (200) texture. The texture as well as the size of the grains decrease with increasing ion energy (>100 eV). In general, it is observed a tendency towards ordering in the lattice with increasing ion energy up to 100 eV that is reflected in good electrical properties (Section 6.2 and Section 7.3). A slight deterioration in the properties occurs at higher ion energies.

4.5. Pulsed Laser Method

Inumaru et al. [33] studied the crystalline structure of the superconducting β-Mo2N phase. The molybdenum nitride films are made on silicon substrates by means of pulsed laser technique with a KrF excimer laser (pulse repetition: 20 Hz) under irradiation of nitrogen radicals with an rf-plasma radical source (power: 350 W). The deposition rate is controlled by changing the power of the laser pulses (energy: 80–300 mJ). Well-crystallized β-Mo2N compound with a moderate orientation in which the c axis is parallel to the Si substrate is identified. The bonding states of nitrogen and molybdenum have also been investigated. The Mo3d5/2 binding energy of 227.8 eV is close to those of Mo2C and Mo metal (227.9 eV) and the N1s binding energy equal to 397.5 eV is close to that of the covalent nitride Si3N4. Thus, the bond between Mo and N atoms is rather covalent than ionic. The β-Mo2N phase is superconducting at low temperature (Section 7.1).

4.6. Atomic Layer Deposition (ALD)

Alen [11] has made molybdenum nitride films from MoCl5 and NH3 in a temperature range from 623 to 773 K. The main objective of this study is the deposition of very thin MoNx films about 10 nm thick and the determination of barrier properties. The films are deposited on soda lime and borosilicate glasses and Si substrates in an ALD reactor operating under a pressure of about 1 kPa. The size of the substrates is equal to 5 × 5 cm2. Nitrogen gas is used for the transportation of precursors and as a purging gas. The crystal structures vary with temperature. The films consist of γ-Mo2N at 623 K, whereas the films deposited at 673 and 723 K contain both δ-MoN and γ-Mo2N phases and the films deposited at 773 K only consist of δ-MoN. The film growth has been measured as a function of substrate temperature. It increases from 623 to 723 K and then drops from 723 to 773 K (Section 6). The author assigned the film growth drop to an etching reaction.

4.7. Plasma Enhanced Chemical Vapor Deposition Techniques

4.7.1. Hexagonal MoN Films

Ganin et al. [36] have performed a very accurate study on molybdenum nitride phases of hexagonal structure deposited on wafers of microcrystalline hexagonal boron nitride. The experiments were carried out in a PECVD reactor with N2 gas and MoCl5 as a precursor at 266 Pa. The deposition occurred in a plasma region inside of a quartz tube between two parallel electrodes (one is connected to a RF source of 13.56 MHz and the other served as a grounded substrate holder). The polycrystalline films about 2 μm thick are black in color. Films of pure δ1-MoN phase are deposited in the temperature range between 883 and 923 K, whereas δ3-MoN phase is predominant and identified with δ2-MoN in films made at higher temperature ranging from 953 to 1003 K. High resolution transmission electron microscopy (HRTEM) as well as selected area electron diffraction (SAED) have been carried out on films. The film of δ1-MoN consists of mostly disordered crystallites with a typical diameter of 50 nm, whereas the film consisting of δ3-MoN and δ2-MoN phases exhibits thin plates, which were mostly perfectly ordered. The authors have reported that Mo5N6 can be prepared by a reaction of thin Mo films with ammonia at 1023 K. The crystalline structure of all hexagonal MoN phases are described in Section 2.2.

4.7.2. β-Mo2N and γ-Mo2N Films in Expanding Plasma

Jauberteau et al. [34,53,54,55] have prepared molybdenum nitride films from Mo films coated on Si (100) substrates in an expanding plasma reactor. The molybdenum coatings have been deposited by electron beam evaporation of a molybdenum target in pure Ar atmosphere at a pressure of 0.5 Pa on Si substrates heated at 673 K with a radiofrequency electrical discharge operating at 50 W. The deposition rates are typically equal to 0.02–0.25 nms−1. The expanding plasma process is very efficient since only 20 min of treatment produces molybdenum nitride thin films about 500 nm thick at low power and even at low temperature. The use of natural gases such as N2 without adding any organic precursors allows the process to be performed in the area of compliance with environmental expectations. Moreover, because of the geometry of the expanding plasma, it is expected to process surfaces of dimensions larger than those usually treated and equal to 1 cm2. The substrates are heated at temperatures of 673 or 873 K and exposed to (Ar–N2–H2) gas mixtures at a pressure of 133 Pa. The microwave discharge (2.45 GHz) is produced at a power of 400–500 W in a fused silica tube. The plasma is expanded out of the discharge center into the stainless steel vessel up to the substrate holder.
The conditions of propagation of the electromagnetic wave are satisfied when the density of electrons is above a critical value, which depends on the plasma conditions (collisional or collisionless plasma). The density of electrons is equal to about 1016 m−3 in (Ar–25%N2–30%H2) gas mixture (the gas contents are expressed as a percentage of the total volume of gas). The authors have shown that the plasma is produced by a surface wave propagating into the reactor along the external surface of the expanding plasma. The reactive species, which are mainly produced on the edge of the plasma, diffuse towards the center of the plasma and react at the surface of the material.
The main objective of this work was to make correlations between the reactive processes occurring in the plasma and on the surface of the material during the formation of metal nitride thin films. The role of hydrogen gas species such as NHx or/and H atoms on the formation of molybdenum nitrides has been especially greatly investigated. Since the ion energy at the sheath entrance is low (0.1 eV), the energy of the ion flux, which mainly consists of Ar+ ions impinging the surface, is too low to produce a sputtering effect on the surface. Thus, the reducing activity on remaining passive layers as oxides is mainly confined to hydrogen species. The β-Mo2N phase of tetragonal structure is synthesized in the whole film 400 or 600 nm thick heated at 873 K and exposed to (Ar–25%N2–30%H2) and (Ar–8%N2–10%H2) plasma for 20 min. It consists of small columnar grains ranging in size from 20 to 30 nm in the growth direction. The diffusion coefficient of nitrogen ranging between 5 and 50 × 10−10 cm2s−1 is slightly higher than the value assigned to an interstitial atomic diffusion. The N/Mo ratio determined by X-ray photoelectron spectroscopy (XPS) ranges from 0.4 to 0.6. The mean binding energy of 397.45 eV for N1s XPS signal is correlated to the formation of a molybdenum nitride, whereas the Mo 3d5/2 signal is only slightly higher than the expected one for Mo metallic state. The role of hydrogen species in the plasma has been highlighted by Raman spectroscopy measurements. Hydrogen species such as atomic H, NHx < 3 radicals in (Ar–N2–H2) ternary plasma promote the diffusion of nitrogen into the metal film by reducing MoO2 oxides, which prevent nitrogen from widely diffusing into the film.
In their very recent paper [55], the authors have reported that the crystalline structure of molybdenum nitride films depends on the presence of both remaining oxides in the native molybdenum film and hydrogen species in the plasma. The high temperature γ-Mo2N phase is synthesized during a reduction-nitridation process where hydrogen species such as NHx (mainly NH3 molecules and NH2 radicals) react with the remaining oxides in the metal film. The reaction is exothermic and could involve the formation of intermediates such as hydrogen molybdenum bronze HxMoO3. Figure 2a shows that the molybdenum film 500 nm thick heated at 873 K and exposed to (Ar–33%N2–1%H2) plasma for only 30 min mainly consists of strongly oriented γ-Mo2N crystallites in the (220) direction. The γ-Mo2N/β-Mo2N ratio decreases with increasing film thickness (Figure 2b,c). Exothermic reactions occur at the surface of the film during the reduction nitridation process illustrated in Figure 3, which promotes the formation of the high temperature γ-Mo2N phase to the detriment of the low temperature β-Mo2N phase. The γ-Mo2N as well as β-Mo2N crystallites exhibit preferred (220) and (204) orientations, respectively, which are probably related to the occurrence of stresses during the growth of films.
Figure 2. (a) X-ray diffraction pattern of molybdenum film 500 nm thick heated at 873 K and exposed to (Ar–33%N2–1%H2) plasma for 30 min; (b) X-ray diffraction pattern of molybdenum film 800 nm thick heated at 873 K and exposed to (Ar–33%N2–1%H2) for 1 h; (c) X-ray diffraction pattern of molybdenum film 1 μm thick heated at 873 K and exposed to (Ar–33%N2–1%H2) for 1 h [55]. Copyright Elsevier 2015.
Figure 2. (a) X-ray diffraction pattern of molybdenum film 500 nm thick heated at 873 K and exposed to (Ar–33%N2–1%H2) plasma for 30 min; (b) X-ray diffraction pattern of molybdenum film 800 nm thick heated at 873 K and exposed to (Ar–33%N2–1%H2) for 1 h; (c) X-ray diffraction pattern of molybdenum film 1 μm thick heated at 873 K and exposed to (Ar–33%N2–1%H2) for 1 h [55]. Copyright Elsevier 2015.
Coatings 05 00656 g002
Figure 3. Schematic representation of the reduction-nitridation process that occurs during Mo film exposure to (Ar–N2–H2) expanding microwave plasma.
Figure 3. Schematic representation of the reduction-nitridation process that occurs during Mo film exposure to (Ar–N2–H2) expanding microwave plasma.
Coatings 05 00656 g003

4.8. Metal Organic Chemical Vapor Deposition

Rische [10] used a metal organic chemical vapor deposition (MOCVD) process to synthesize molybdenum nitride films from two molybdenum guanidinato complexes: the chloro compound Mo(Nt-Bu)2Cl [(Ni-Pr)2CNMe2] and its azido analogue Mo(Nt-Bu)2N3[(Ni-Pr)2CNMe2] with and without addition of NH3. All experiments are carried out in an horizontal cold wall, glass reactor at 0.1 kPa using nitrogen as carrier gas for 1 h. The process carried out with both chemical complexes used without addition of NH3 leads to the formation of molybdenum carbide with only low nitrogen contents. However, when both chemical complexes are used with addition of NH3, the nitrogen content increases up to approximately 30 at % that leads to the formation of γ-Mo2N as dominant phase. The films deposited at temperatures below 773 K are amorphous and those deposited at temperatures between 773 and 1073 K are crystallized. The thickness of films prepared from the chloro compound varies from 200 nm at 673 K to 1300 nm at 1073 K, whereas the one of the film prepared from azido compound varies from 300 nm at 673 K to 1200 nm at 1073 K. The resistivity of films has also been investigated (Section 6).
Fix et al. [43] have prepared molybdenum nitride thin films by MOCVD using tetrakis (dimethylamido)molybdenum (IV), Mo(N(CH3)2)4 and ammonia in an atmospheric–pressure laminar flow rectangular glass reactor heated from below. Ultra high purity He gas is used as carrier gas. The results are consistent with those previously reported since all molybdenum nitride films deposited at temperatures ranging from 473 K to 673 K are amorphous. The N/Mo ratio determined by Rutherford backscattering spectroscopy (RBS) is equal to 1.4–1.5. The Mo3d5/2 and N1s binding energy measured by XPS are equal to 228.4 and 397.3 eV, respectively. The N1s binding energy is close to the values reported for TiN, Zr3N4, Ta3N5 and other early transition metal nitrides. The H/Mo ratio decreases from 1 to 0.45 with increasing temperature. Because of their amorphous structure, the presence of hydrogen and, so on, the resistivity of films is very high (Section 6).

4.9. Deposition of MoN Coatings by Chemical Process

4.9.1. Polymer Assisted Deposition (PAD)

In a recent paper, Luo et al. [56] have reported for the first time the growth of epitaxial molybdenum nitride films with both controlled crystal structures and oxidation states using a chemical solution method. The solution is made from a homogeneous metal polymeric liquid precursors (the polymers are binding with Mo ions) and submitted to a thermolysis and ammonolysis treatment in flowing ammonia. The solution which consists of ((NH4)6Mo7O24·4H2O) is then spin coated on both c-cut Al2O3 and SrTiO3 (001) substrates. This method has produced films with thickness in the range of 35 to 45 nm after one spin-coat. The results showed that δ-MoN of hexagonal structure crystallized on Al2O3 and γ-Mo2N of cubic structure is synthesized on SrTiO3 (001) substrates with a lattice parameter lower than the value corresponding to the bulk γ-Mo2N because of the occurrence of a compressive strain (the lattice parameter of SrTiO3 is only equal to 0.39 nm). The lattice parameter of δ-MoN is close to the value corresponding to the bulk value (Table 1 and Table 2). Both films are preferentially oriented along the c axis perpendicular to the substrate surface. They are dense and smooth with no detectable microcracks. The root mean square surface roughness is equal to 3–5 nm. Both molybdenum nitride phases are superconducting (Section 7.1 and Section 7.2).

4.9.2. Thermal Processes

Maoujoud et al. [44] have determined the crystal structures of molybdenum nitride films made by the reaction of ammonia with molybdenum thin films deposited on MgO substrates at temperatures ranging from 573 to1223 K. The Mo thin films are obtained by thermal evaporation. The film thickness lies between 60 and 120 nm. The authors have reported that the predominance of one or the other nitride phase is related to the temperature range and the treatment mode. Only γ-Mo2N phase is formed at temperatures ranging between 537 and 723 K. However, long treatment times are needed (>15 h), especially at lower temperature limit. The stoichiometric δ-MoN phase is synthesized at temperatures ranging between 723 and 1073 K. In contrast with processes previously described, only 2 h of treatment at 998 K are sufficient for a complete transformation. This could be assigned to both nature of the specific surfaces and quantities of starting material. γ-Mo2N is also formed in the temperature range 1073–1223 K and only 2 h of treatment at 1098 K is needed.
Nagae et al. [57] have prepared molybdenum nitride coatings from a pure molybdenum sheet 1 mm thick prepared by powder metallurgy. The average grain size is equal to 30 μm. The nitriding treatment is performed at 1373 K for 16 h in a flowing NH3 gas at atmospheric pressure. The authors mainly studied the microstructure of molybdenum nitride compounds by transmission electron microscopy (TEM). The surface of the molybdenum nitride sheet consists of γ-Mo2N crystallites oriented in the (220) direction, which are randomly oriented at a depth of 25 μm. The β-Mo2N phase crystallizes from a depth of 35 to 70 μm and is rather randomly oriented. The authors have shown that compared with γ-Mo2N, β-Mo2N consists of lattice defects as twins which are due to stress relaxations.
Khojier et al. [8] have synthesized molybdenum nitrides from Mo thin films 100 nm thick deposited on Si substrates in Ar gas at a pressure of 3.2 Pa by d.c. magnetron sputtering operating at 750 V and 125 mA. The Mo thin films are then annealed at temperatures ranging from 673 to 1173 K in flowing nitrogen. The γ-Mo2N phase crystallizes at 673 K and the complete transformation of Mo metal in Mo2N is achieved at 798 K. Then a cubic-tetragonal transition is identified at a temperature of 1048 K.
Molybdenum nitride coatings are synthesized by conventional thermal equilibrium techniques as well as non-equilibrium methods.
The films are usually 10 nm to 1–2 μm thick depending on the process and they are more often deposited on silicon but other substrates can be used such as glass, steel, glassy carbon, sapphire, molybdenum, etc. depending on applications. The thickness of films can reach 100 μm after a 16 h thermal treatment in NH3 flow [57]. According to the previously described works, the structure of substrates can be chosen to promote the structure of molybdenum nitrides: δ-MoN films/hexagonal BN [36] or δ-MoN/Al2O3 and γ-Mo2N/SrTiO3 [56].
Among all non-equilibrium methods, reactive sputtering is very efficient to prepare molybdenum nitride films 1 μm thick of various stoichiometry, crystallization, structure (nanocrystalline or amorphous), and with oriented crystallites. The results mainly depend on the nitrogen partial pressure. Among all molybdenum nitride phases, γ-Mo2N can be synthesized over a large range of nitrogen pressure from some thousandths of Pascal in (Ar–N2) gas mixture [29] to dozens of Pascal in pure N2 gas [25,40]. Hence, depending on the range of pressure, an increase of pressure leads to contrasting results: A transition from γ-Mo2N to stoichiometric MoN phases occurs at large nitrogen partial pressure in (Ar–N2) gas mixture [40] or in pure N2 gas [25,40], whereas transitions from randomly oriented crystallites to oriented crystallites [29] or amorphous structures [31,32] occur at low nitrogen partial pressure. Such phenomena are related to an excess of nitrogen in the lattice and/or the occurrence of stresses during the film growth and so, discrepancies in the values of lattice parameters corresponding to γ-Mo2N are clearly seen in Table 1 compared with the bulk and theoretical values.
We can also notice that most works report the formation of γ-Mo2N rather than β-Mo2N, which are the high and low temperature phases at thermal equilibrium. In our opinion, this is probably because the diffraction patterns corresponding to both phases are not easy to differentiate by conventional X-ray diffraction measurements for the reasons previously evoked. The β-Mo2N crystallization has been reported by means of a diffractometer equipped with a multiaxes sample stage [33].
In other non-equilibrium processes such as nitrogen implantation, both nitrogen doses and temperature play a role. In [28], a transition from γ-Mo2N to β-Mo2N occurs at high temperature and in [26], transitions from γ-Mo2N to stoichiometric MoN compounds occur at high nitrogen doses. However, a similar transition is identified at high temperature during the thermal treatment of molybdenum films in flowing nitrogen [8] although this process cannot be compared with reactive sputtering or ion implantation processes. This effect is related to an increase of grain size at high temperature, which deteriorates the mechanical properties. The formation of both high temperature γ-Mo2N phase and low temperature β-Mo2N phase in expanding plasma is also rather unexpected since it is a non-equilibrium process because the temperature of electrons is much larger than the temperature of heavy species [55]. The authors assumed that exothermic reactions occur at the surface of the substrate between hydrogen species produced in the plasma and the remaining oxides in the molybdenum film, which promote the formation of the high temperature γ-Mo2N phase.
Among all molybdenum nitride phases, the stoichiometric metastable B1-MoN can be only obtained by non-equilibrium growth techniques such as reactive sputtering, ion implantation, etc. However, oxygen contamination, nitrogen vacancies, other defects and radiation damage in the compounds synthesized by reactive sputtering and ion implantation prevent the predicted structure with high superconducting temperature from forming. It is worth noting that the lattice parameters corresponding to B1-MoN listed in Table 2 are equal to the theoretical value [42] when they correspond to overstoichiometric phase as for example MoN1.8 [25]. Thus, the excess of nitrogen in the lattice would allow the predicted structure to be achieved. However, as we will see in Section 7, the excess of nitrogen in the structure decreases the superconducting temperature.

5. Mechanical Properties of Molybdenum Nitride Coatings

Hardness, compressibility, elastic modulus, and residual stress are significant properties of hard coatings. It is worth noting that generally high compressive stresses lead to harder films, whereas tensile stresses lead to softer films. Alloying molybdenum with nitrogen makes the nitride harder than the pure metal. Thus, the molybdenum nitride phases are less compressible than the parent pure metal. In fact the hardness, bulk modulus as well as Young’s modulus resemble those of ceramics. Covalent bonds lead to high bulk modulus and sometimes large mechanical hardness.

5.1. γ-Mo2N Phase

The hardness of γ-Mo2N phase is higher than those of transition metal nitrides such as ZrN, VN, NbN, HfN and TaN. It is equal to the value corresponding to Si3N4. Moreover, its compressibility is low. The bulk modulus of γ-Mo2N has been determined by high pressure-high temperature method [24], it is equal to 304 GPa (Table 3).
Table 3. Bulk modulus, Young’s modulus and hardness of Mo2N and MoN films (f) compared with bulk values (b), and theoretical values (th). The thickness (if known) is indicated in brackets. The values for Mo, cBN and C (diamond) are also indicated.
Table 3. Bulk modulus, Young’s modulus and hardness of Mo2N and MoN films (f) compared with bulk values (b), and theoretical values (th). The thickness (if known) is indicated in brackets. The values for Mo, cBN and C (diamond) are also indicated.
Mo–N Phase Thickness (μm)Bulk Modulus (GPa)Young’s Modulus (GPa)Hardness (GPa)References
γ-Mo2N b 16[2]
304 [24]
γ-Mo1.8N f (1) 36528–29[30]
γ-Mo2N f (0.1) 21012[8]
β-Mo2N f (0.1) 1306–7[8]
cubic MoN0.5 th348 [35]
δ3-MoN b345 [58]
δ-MoN1.2 f (1) 42026–27[30]
hex MoN th392 [35]
δ3-MoN th338–351 [59]
δ1-MoN th377640 [38]
δ3-MoN th379611 [38]
δ2-MoN th35660034[39]
δ1-MoN th353463 [39]
cubic MoN th389 [35]
cubic MoN b390 [60]
cubic MoN th352462 [38]
cubic BN b370 60[24]
C (diamond) b443900110[2]
Hones et al. [30] studied the mechanical properties of 1 μm thick molybdenum nitride films MoNy made by RF reactive magnetron sputtering (Section 4.1.2). The nitrogen stoichiometry y increases with increasing nitrogen partial pressure. The hardness has been measured by nanoindentation at 150–200 nm depth to avoid influence of the surface roughness and substrate. The hardness of γ-Mo2N lies at 29 GPa. However, the value decreases with increasing nitrogen content (from y = 0.4 to 0.8). The elastic modulus qualitatively follows the evolution of the hardness (Table 3). This behavior is correlated to the change in the electronic structure. The electron concentration increases with increasing y that leads to the filling of antibonding electronic states and then the cohesive energy decreases. The cubic phase exhibits tensile stresses, which increase up to 2 GPa with increasing y.
In contrast, Kattelus et al. [9] have reported compressive effective stresses in Mo–N films from 200 to 300 nm thick deposited by d.c. reactive sputtering for all compositions and structures of films from amorphous state (13%–17% N2) to crystalline phase (26% N2) (Section 4.1.1). However, the effective stress value for amorphous state can be tailored from compressive through zero into tensile by adding further argon gas into the deposition chamber.
Stöber et al. [32] have shown that a minimum film stress of −60 MPa is measured in Mo2N films produced with N2 fraction in (Ar–N2) gas mixture of 20% in a reactive dc magnetron sputtering process. The compressive stress increases with increasing nitrogen fraction up to a value of −4 GPa, which leads to adhesion problems and delamination due to an excess of nitrogen in the structure. The authors noticed an increase of the compressive stress with increasing plasma power values, whereas the increase of gas pressure leads to decreasing stress levels. This behavior is assumed to be correlated to the energy of the particles impinging the surface.
The mechanical properties of films are correlated to the grain size, film density and stoichiometry as well as to crystallographic orientations. A close-packed structure with small crystallites results in higher hardness.
Khojier et al. [8] have investigated the mechanical properties of molybdenum films, only 100 nm thick subsequently annealed in flowing N2 (Section 4.9.2). The hardness and the bulk modulus of thin films have been measured versus annealing temperature. The hardness and the bulk modulus increase from 4 to 12 GPa and from 120 to 210 GPa, respectively, with increasing temperature from 673 to 923 K, which corresponds to the transformation of pure Mo of bcc structure to γ-Mo2N of fcc structure. Then a further increase of the annealing temperature results in a strong decrease of both parameters because of the formation of the Mo2N phase of tetragonal structure at 1048 K with larger grain size. They are equal to 6–7 GPa and 130 GPa, respectively (Table 3).
Lowther et al. [35] have performed ab initio electronic structure calculations to determine the bulk modulus of the nonstoichiometric MoN0.5 phase of cubic structure. The value is equal to 348 GPa (Table 3).

5.2. Stoichiometric δ-MoN and Cubic MoN Phases

The bulk modulus values corresponding to stoichiometric MoN compounds of hexagonal and cubic structure are very high. They are found in the range of compressibility of diamond (Table 3).
Hart et al. [60] have reported that although nitrides of Zr, Nb and Mo have very similar density of states (DOS), the DOS at the Fermi level increases with increasing number of valence electrons, i.e., from Zr to Mo. In the same way the lattice constant decreases, whereas the bulk modulus increases with increasing number of valence electrons.
According to Soignard et al. [58], the stoichiometric hexagonal δ-MoN phase is a potential candidate for an ultra-incompressible and hard material since the authors determined a value of 345 GPa for the bulk modulus of δ3-MoN (P63mc, space group).
The hardness of δ-MoN is similar to the one measured for γ-Mo2N [30], whereas the elastic modulus is somewhat higher (Table 3). In contrast with γ-Mo2N, compressive stresses are measured for the hexagonal phase.
Sahu et al. [59] have calculated the bulk modulus corresponding to the δ3-MoN phase using the density functional theory. The value agrees with the experimental value of 345 GPa [58]. The authors report that the Mo–N bonding has a small covalent but large ionic component.
Ab initio electronic structure calculations [35] have given bulk modulus values of 392 and 389 GPa for the hexagonal and cubic structure of MoN, respectively. For comparison the bulk modulus of diamond is equal to 443 GPa.
Kanoun et al. [38] and more recently Zhao et al. [39] have also calculated the bulk modulus corresponding to the stoichiometric MoN phase of hexagonal structure by use of the density functional theory (Table 3). The analysis of the density of states of δ1-MoN and δ3-MoN phases show that the high values of bulk modulus result from the covalent character of the bonding due to the strong hybridization between N and Mo states [38]. The authors have also observed a strong directional charge redistribution from Mo to N atoms, which reflects the electronegative nature of N atoms and adds an ionic contribution to the metallic character of compounds. The authors have concluded that δ1-MoN and δ3-MoN phases exhibit an unusual mixture of metallic, covalent and ionic bonding.
Zhao et al. [39] have reported that among the hexagonal structures, δ2-MoN has the largest bulk modulus, which is equal to 356 GPa. This value can be compared with the one of c-BN equal to 370 GPa. This compound also exhibits the largest shear modulus, Young’s modulus, and the smallest Poisson’s ratio equal to 246 GPa, 600 GPa, and 0.22, respectively, that makes δ2-MoN an intrinsically strong solid and so a potential candidate for an ultra-incompressible and hard material.
As far as MoN phase of cubic structure is concerned and according to Hart et al. [60], the experimental instability of the phase could be explained by a negative C44 elastic constant. Moreover, the application of hydrostatic pressure on the structure seems to enhance the instability.
In summary, the analysis of Table 3 shows the dependence of mechanical properties with parameters such as grain size, lattice parameters, etc. The highest value of the hardness has been observed for γ-Mo2N 1 μm thick and δ2-, δ3-MoN. Such values are explained by the morphology of compounds and are linked with their electronic structures. An excess of nitrogen in coatings leads to compressive stresses and then to adhesion problems.

6. Resistivity

The resistivity of molybdenum nitride films has been widely investigated in numerous works. The values greatly depend on the structure, crystal orientation, nitrogen concentration, and so on. The values are higher than the bulk one of 19.8 μΩcm (Table 4). They range between 100 μΩcm for MoNx films 10 nm thick consisting of δ-MoN of hexagonal structure and made by atomic layer deposition (ALD) [11] and 10 × 103 μΩcm for amorphous Mo2N3 films prepared by metal organic chemical vapor deposition (MOCVD) at low temperature and atmospheric pressure [43] (Section 4.6 and Section 4.8). Such a high value is probably due to high nitrogen content, small grain size, amorphous structure and/or large hydrogen content. Figure 4 illustrates the change of deposition rates and resistivity of MoNx films versus deposition temperature [11]. The drop of the deposition rate is assumed to be due to an etching reaction.
Table 4. Resistivity and superconducting temperature of Mo2N and MoN films (f) compared with bulk values (b), theoretical values (th), Mo, and C (diamond). The amorphous structures are indicated with (a). The thickness of films (if known) is indicated in brackets.
Table 4. Resistivity and superconducting temperature of Mo2N and MoN films (f) compared with bulk values (b), theoretical values (th), Mo, and C (diamond). The amorphous structures are indicated with (a). The thickness of films (if known) is indicated in brackets.
Mo–N Phase Thickness (μm)Resistivity (μΩcm)Tc (K)References
Mo b5.47 [2]
Mo f7.5–12 [31]
Mo f (0.3)13 [9]
Mo2N b19.8 [2]
γ-Mo2N b 5.2[24]
Cubic Mo2N f 6–7[25]
γ-Mo2N f (0.15)25–804–6[26]
Mo2N f (0.2)180 [9]
Mo2N f500–900 [29]
300–550 [31]
γ-Mo2N f (0.01)100 [11]
γ-Mo2N f (1)2483 [10]
γ-Mo2N f245 [12]
Mo2N f150–460 [32]
β-Mo2N f (0.036) 5.2[33]
(a) Mo–N f1250 [31]
(a) Mo2N3 f104 [43]
δ-MoN f (0.15)1104[26]
δ1-MoN f 4[36]
δ3-MoN f 12[36]
Mo5N6 b 12[36]
δ-MoN f1000 [12]
cubic MoN f (0.15–0.4)850–17003–6[40]
cubic MoN f40–706.8[26]
cubic MoN f (0.4)120–2005–6.15[41]
cubic MoN th 29.4[42]
C (diamond) b1018 [2]

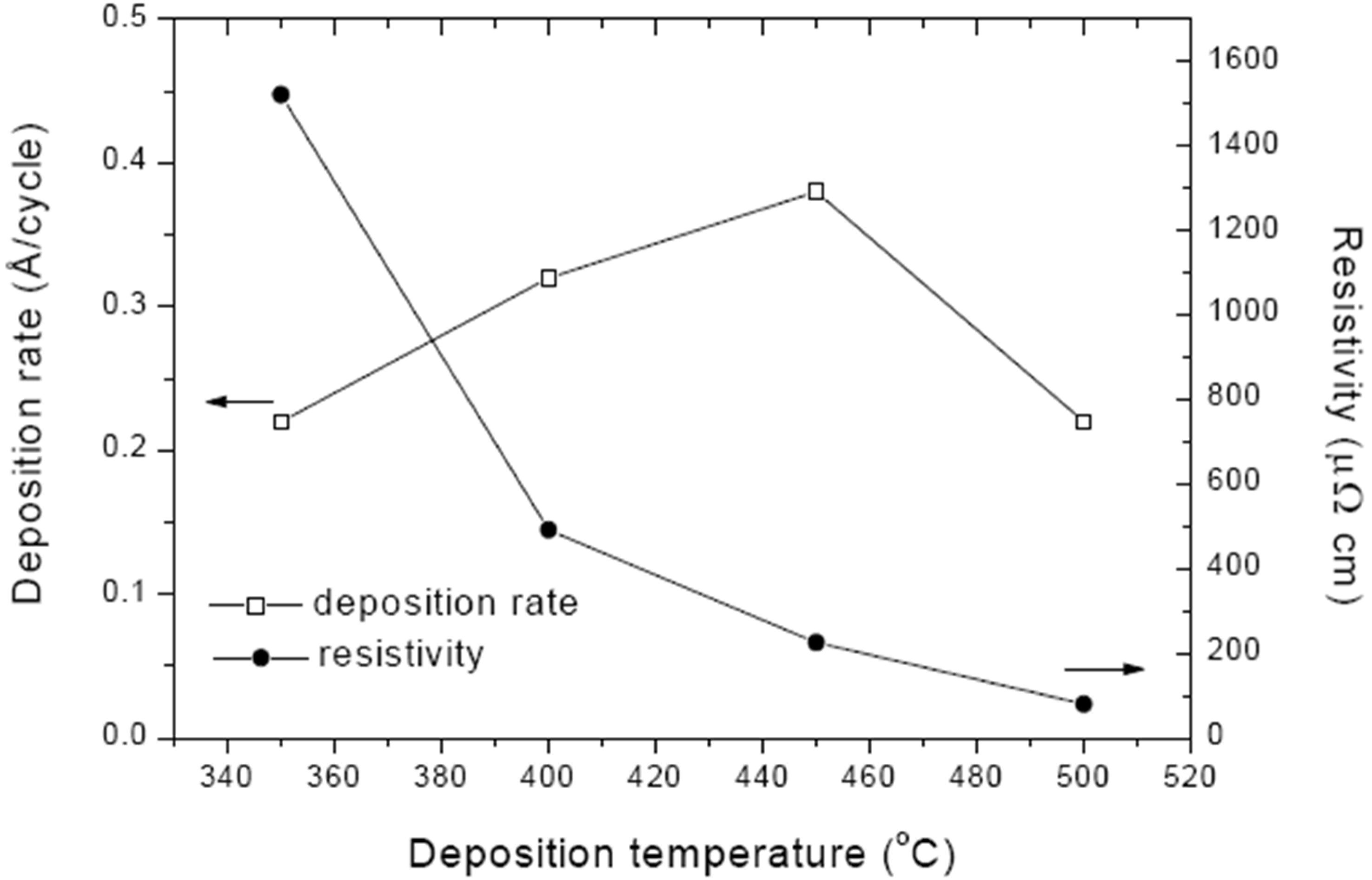

Figure 4. Deposition rates and resistivities of MoNx films as a function of deposition temperature (according to Alen, Ph.D. thesis, 2005 [11]).
Figure 4. Deposition rates and resistivities of MoNx films as a function of deposition temperature (according to Alen, Ph.D. thesis, 2005 [11]).
Coatings 05 00656 g004

6.1. Molybdenum Nitride Films Prepared by Reactive Sputtering

The resistivity of films made by reactive sputtering increases with increasing nitrogen partial pressure. This is due to the increasing amount of nitrogen atoms in the lattice. Compared with pure molybdenum films, the high resistivity values of MoNx films might be attributed to the scattering of electrons because of small grain size, and thus populated grain boundaries as well as distorted structures in films deposited at high nitrogen partial pressure.
According to Anitha et al. [29], the resistivity depends strongly on the size and the preferred orientation of crystallites. The films with large grain size and strong orientation exhibit local minima in the resistivity versus nitrogen partial pressure curves.
Moreover, the temperature dependence of resistivity for all films investigated in the temperature range 30–300 K exhibits a negative coefficient of resistivity.
The measured resistivity ρ is written:
ρ = ρ0 + ρ(t)
where ρ0 is the residual resistivity due to the electron scattering by defects, it corresponds to the compositional, topological and structural disorder in the sample and ρ(t) is the temperature dependent contribution due to the electron–phonon interaction.
According to the authors, the negative temperature coefficient is probably due to grain-boundary related effects and the presence of oxygen impurity in the films.
As a general rule, the resistivity strongly decreases at high annealing temperatures because of the increase in film crystallinity and removal of structural distortions, which result in enhanced phonon scattering of electrons.
In the paper by Wang et al. [31], the sheet resistivity increases with increasing nitrogen partial pressure from 300 to 1250 μΩcm, which corresponds to Mo2N crystallized compounds and amorphous structures, respectively. The value of 1250 μΩcm drastically drops to 650 μΩcm after 1073 K annealing that corresponds to the formation of Mo2N crystallites.
Kattelus et al. [9], who observed a transition from amorphous to crystallized structures (Section 4.1.1), report a resistivity of 180 μΩcm for crystallized Mo2N films 200 nm thick.
In his Ph.D. works, Guntur [12] have reported that the increase of the resistivity values of molybdenum nitride films with increasing nitrogen partial pressure is due to the transition from cubic Mo2N structure to hexagonal MoN structure (Table 4).
Stöber et al. [32] have also reported an increase of the resistivity of Mo2N films with increasing nitrogen fraction in (Ar–N2) gas mixtures. The resistivity of Mo2N films deposited at 20% of nitrogen fraction, a pressure of 500 W and a total pressure of 8 × 10−1 Pa is equal to 200 μΩcm. The authors have especially noticed that the temperature coefficient of resistance (TCR) changes from positive to negative versus temperature. For nitrogen fraction ranging from 5% to 20%, a transition from a thermally activated charge transfer mechanism over the grain boundary (TCR < 0) to a thermally activated charge transfer by means of electron–phonon interaction (TCR > 0) at 473 K occurs. For a nitrogen fraction larger than 30%, the films exhibit a semi-conductor like behavior.
The values determined by Linker et al. [40] range between 850 and 1700 μΩcm for the stoichiometric MoN films. It is worth noting that ion irradiation induces various kinds of lattice defects and hence deteriorates the related physical properties. The authors have also determined the residual resistivity ratio ρ(300 K)/ρ(4.2 K) that is indicative of disorder in MoN. They found values ranging between 1 and 0.8. The value decreases dramatically for overstoichiometric MoNx films (x > 1). At x = 1.8, the residual resistivity ρ(25 K) is very high and equal to 2.2 Ωcm which might be due to the columnar structure of films.

6.2. Molybdenum Nitride Films Prepared by Low-Energy Ion-Assisted Process

Savvides [41] have reported a very detailed study on the influence of ion energy on the structure and resistivity of molybdenum nitride films (Section 4.4). The MoN films deposited at 773 K at ion energy range 2–130 eV exhibit high resistivity values characterized by a negative temperature coefficient, which corresponds to disordered crystalline and amorphous metals.
In fact, the defect-dependent residual resistivity dominates the measured resistivity. Thus, the temperature-dependent contribution is weak and anomalous, pointing to anomalous electron transport, which can be understood in terms of disorder and localization. For ion energy above 130 eV, there is a transition in properties to those of a more ordered material. The temperature coefficient of resistivity is positive but the temperature-dependent contribution is still weak and anomalous. The transition occurs at about 150 μΩcm and coincides with Mott’s minimum metallic conductivity. However, at high flux of high-energy ions, a competition takes place with ion-induced structural disorder and loss of nitrogen.
The temperature coefficient of resistivity strongly increases when the films are subsequently annealed at 973 K after ion sputtering at 773 K. The MoN films exhibit metallic behavior. Moreover, the temperature dependence of the thermal contribution of annealed samples exhibits a T2 relation, which is observed for high Tc superconductors instead of the classical Tn (n = 3–5) dependence usually seen in simple metals and low Tc superconductors.

6.3. Molybdenum Nitride Films Prepared by Ion Implantation

In the paper by Saito et al. [26], the resistivity increases almost linearly with increasing nitrogen dose. The results are both ascribed to the transition from cubic γ-Mo2N to NaCl-B1-type MoN and the formation of hexagonal δ-MoN. Compared with Linker et al. results, the residual resistivity ratio slightly decreases with increasing nitrogen dose and the resistivity of films ranges between 25 and 110 μΩcm (Table 4).
In summary, the highest values of resistivity have been reported for γ-Mo2N 1 μm thick, amorphous MoN (10,000 μΩcm) and cubic MoN films. The small grains sizes, distorted and columnar structure as well as hydrogen contamination and defects induced by the process can explain such values. Films of lower thickness generally exhibit resistivity values ranging between 25 and 200 μΩcm depending on the process.

7. Superconducting Properties

7.1. γ-Mo2N and β-Mo2N Phase

γ-Mo2N compounds exhibit superconducting transition at critical temperatures Tc as low as 4–5 K. Bull et al. [24] have synthesized the molybdenum nitride phase by high-pressure high-temperature process and have measured a Tc value of 5.2 K. The same value has been found by Inumaru et al. [33], who have deposited β-Mo2N films by pulsed laser method.
In a recent work, Luo et al. [56] have studied the growth of epitaxial Mo2N films on SrTiO3. They report a Tc value of 4.5 K (Figure 5b).
Ihara et al. [25] have investigated the electronic structure and the superconducting transition temperature Tc of molybdenum nitride films deposited by reactive dc sputtering. The valence-band spectra change continuously from Mo to NaCl-B1-type cubic MoN1.8 with increasing nitrogen concentration. The Tc of cubic Mo2N films is equal to 6–7 K with a wide transition width of 1–2 K.
Saito et al. [26] have reported a Tc of 4–5 K for γ-Mo2N films prepared from Mo thin films implanted with N ions.
Figure 5. (a) Temperature dependence of resistivity of hexagonal MoN on Al2O3; and (b) temperature dependence of resistivity of hexagonal MoN on STO. The inset is the plot of resistivity at low temperature [56]. Copyright ACS Publications 2011.
Figure 5. (a) Temperature dependence of resistivity of hexagonal MoN on Al2O3; and (b) temperature dependence of resistivity of hexagonal MoN on STO. The inset is the plot of resistivity at low temperature [56]. Copyright ACS Publications 2011.
Coatings 05 00656 g005
As a general rule, the superconducting transition temperature is sensitive to the crystallinity, stoichiometry, and oxygen concentration.

7.2. δ-MoN Phase

The hexagonal MoN film exhibits a Tc value of 13.2 K with a transition width of 0.4 K [25]. A lower value equal to 4 K has been measured for hexagonal films made by ion implantation [26].
Luo et al. [56] have reported a Tc value equal to 12 K for hexagonal MoN epitaxially deposited on c cut Al2O3 (Figure 5a). A similar value has been determined for δ3-MoN (P63mc, space group) by Ganin et al. [36]. Mo5N6 is also superconducting with Tc equal to 12 K, whereas a lower value of 4 K has been determined for δ1-MoN (P6m2, space group). However, this value increases up to 6 K when the sample is heated at 923 K instead of 873 K.

7.3. Stoichiometric MoN Phase of Cubic Structure

The energy band structure of transition metal nitrides such as VN, MoN, CrN, NbN, etc. as well as the superconducting transition temperature has been extensively studied by Papaconstantopoulos et al. [42] by using the self-consistent semi-relativistic augmented-plane-wave (APW) method. Because of the high density of states (DOS) at the Fermi level and the high value of the electron–phonon interaction constant, the superconducting transition temperature Tc values are rather high. NbN of NaCl-B1-type cubic structure exhibits a Tc value of 17 K. Since the addition of an extra electron moves the Fermi level into a region with considerably higher DOS, the Tc value corresponding to MoN of similar structure could be higher than 30 K. However, the attempts to synthesize well-ordered stoichiometric cubic MoN did not succeed. Transition metal nitrides form with a large concentration of vacancies on the nonmetal sublattice, and to a lesser extent on the metal sublattice that lower Tc. Moreover, the loss of long range order in sputtered films due to columnar growth may also reduce Tc.
The valence-band spectrum corresponding to the overstoichiometric cubic MoN1.5 has a strong resemblance to the theoretical DOS calculated for the stoichiometric MoN phase of cubic structure, whereas the valence band spectrum of the stoichiometric MoN phase is not similar to the theoretical DOS [25]. Thus, the Tc value of B1-MoN films would decrease because of the vacancies and interstitial defects.
It is reported that high-Tc refractory compounds like NbC and NbN are rather sensitive to disorder induced by ion irradiation [40]. The stoichiometric MoN films of cubic structure produced by reactive sputtering and ion implantation exhibit Tc values equal to 3 and 6 K, respectively. These results are consistent with those obtained in reference [26]. According to the authors, the low values of Tc may be due to the inhomogeneity of samples and the presence of radiation-induced point defects and radiation-induced disorder in the nitrogen and/or molybdenum sublattice in the B1 structure. Tc increases up to 6.8 K with increasing nitrogen dose up to 5 × 1017 ions cm−2 in ion implantation process which corresponds to the transition from cubic γ-Mo2N to B1-MoN.
To our knowledge, the highest Tc value has been obtained by Savvides [41] who has deposited 400-nm-thick films by the low-energy ion-assisted method. The value corresponding to molybdenum nitride films processed at substrate temperature and ion energy of 773 K and 100 eV, respectively, increases from 6.2 K to 11.45 K after annealing at 973 K in a nitrogen ambient for 150 h. Annealing under such conditions allows the nitrogen concentration to be reduced from 56 at% to 48 at%.
In summary, the highest temperature Tc was obtained for amorphous δ3-MoN characterized by short Mo–Mo distances. The Mo5N6 crystalline solid would have a high superconducting temperature value Tc but this characteristic could be due to the contamination by δ3-MoN phase because of the low diamagnetic response [36]. As previously seen, owing to nitrogen vacancies and radiation damages induced by non-equilibrium processes, the predicted high superconducting structure cannot be synthesized. Even if the valence band displays by MoN1.5 is similar to the theoretical DOS corresponding to the stoichiometric B1-MoN phase [25], the superconducting temperature decreases from 12.5 to below 4.2 K with increasing x in MoNx structure from 1.1 to 1.8.
The low-energy ion-assisted method [41] could be able to synthesize such a structure with an annealing step conducted in pure N2 gas at 973 K, which probably promotes the atoms ordering in the structure since the highest superconducting temperature has been achieved.

8. Some Other Properties

Owing to their very good catalytic properties, molybdenum nitrides are compared with noble metals. This is due to the presence of nitrogen atoms in interstitial sites of the host metal which modifies the density of states at the Fermi level. Thus, molybdenum nitrides are very active for adsorption and catalytic activities. Since the specific surface area is one of the most important characteristics of a good catalyst, most experiments are made with nanosized powders, nanoporous materials, etc. However, because of the increasing interest in such properties for the future, we briefly present some recent works on the subject, keeping in mind that coatings could be promising for the future.
Tagliazucca et al. [19,20] have reported the influence of microstructure (nanocrystalline domains, porosity) on the catalytic activity of two molybdenum nitrides prepared by ammonolysis at temperatures of 923 and 1073 K. MoN-923 has higher conversion rates (3%–15%) during five reaction cycles in the 723–873 K range compared with MoN-1073 because MoN-923 displays smaller domain sizes and higher surface area. Moreover, the mechanical activation by ball milling of both samples reduces the domain sizes, narrows the distribution of the domain sizes, decreases the defects content, and then improves the catalytic activity during the first cycle considerably.
The good electronic conductivity as well as the moderately high surface area makes the molybdenum nitrides potential candidates for supercapacitors electrodes [61]. Nanostructured materials are especially interesting for such applications. MoNx powders (0.77 < x < 1.32) with a crystallite size of 9 nm, a specific surface area of 49 m2g−1 and an electrical conduction of 7.51 × 103 (Ωm)−1 display a specific capacitance value equal to 111 Fg−1 [61].
Among all catalyzed reactions, the hydrogen evolution reaction (HER) will have an increasing importance in the future because it is a carbon free alternative for hydrogen generation. This reaction is usually catalyzed by platinum, however less scarce and less expensive molybdenum nitrides as well as carbides are promising to replace platinum.
In a very recent work, Ma et al. [62] have synthesized γ-Mo2N nanoparticles (5–25 nm) and found that the overpotential needed to drive a current density of 10 mAcm−2 is equal to 353 mV. Nevertheless, this value remains higher than the one corresponding to α-Mo2C, which is equal to 176 mV, i.e., 100 mV higher than the value corresponding to platinum.
In another work, Chen et al. [63] have prepared carbon-supported molybdenum nitride nanoparticles γ-Mo2N-C (11 nm) and δ-MoN-C (5 nm) as well as molybdenum carbide nitride composites from solid state reaction involving soybean powder and ammonium molybdate; the so-called MoSoy catalyst. This compound exhibits better characteristics than bulk platinum. The overpotential needed for driving a current density of 10 mAcm−2 is equal to 109 mV. Moreover, the catalyst is highly durable in a corrosive acidic solution over a period exceeding 500 h.

9. Conclusions

The unique combination of physical and chemical characteristics which is the result of the wide range of stoichiometry of molybdenum nitrides makes them very interesting and promising for various applications. The stable and nonstoichiometric γ-Mo2N1 ± x phase of NaCl-B1-type cubic structure exhibits good catalytic properties, whereas the stable and stoichiometric δ-MoN phases of hexagonal structure have very high bulk moduli in the range of compressibility of c-BN and diamond, which make them potential candidates for ultra-incompressible and hard materials. The metastable and stoichiometric MoN phase of NaCl-B1-type cubic structure is a potential candidate for a high temperature superconductor. The critical temperature is the highest of all refractory carbides and nitrides and could be higher than 30 K. However, owing to the occurrence of point defects or disorder in the nitrogen and/or molybdenum sublattices in the B1 structure, the attempts to obtain high critical temperatures did not succeed. Nanocrystalline and amorphous structures have also been obtained in a large range of stoichiometry. Molybdenum nitride films can be synthesized by various deposition processes from reactive sputtering to thermal decomposition of precursors. The composition and the structure of films as well as the chemical-physical properties depend on process parameters such as nitrogen pressure and dose, temperature and nature of substrate, composition of plasma, treatment duration, and also the occurrence of stresses during the film growth. These characteristics are correlated to the electronic structure and chemical bonding in molybdenum nitrides. Thus, an accurate control of the process parameters as well as a thorough study of electron states and chemical bonding by the band theory and quantum chemistry could lead to processes of new compounds and materials with an optimal combination of required properties.


We gratefully acknowledge the Region Limousin for supporting the work on surface reactivity.

Author Contributions

Isabelle Jauberteau drafted and organized this review article. Annie Bessaudou focused on the information about reactive sputtering methods, Richard Mayet, Julie Cornette, Jean Louis Jauberteau and Pierre Carles focused on the information about X-ray diffraction results, Raman spectroscopy results, plasma chemistry and structures of molybdenum nitride films, respectively. Thérèse Merle-Méjean reviewed the article.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Toth, L. Transition Metal Carbides and Nitrides; Academic Press: New York, NY, USA; London, UK, 1971; pp. 29, 247–261. [Google Scholar]
  2. Oyama, S.T. Introduction to the chemistry of transition metal carbides and nitrides. In The Chemistry of Transition Carbides and Nitrides; Oyama, S.T., Ed.; Blackie Academic and Professional: London, Glasgow, UK, 1996; pp. 2–10. [Google Scholar]
  3. Gubanov, V.A.; Ivanovsky, A.L.; Zhukov, V.P. Electronic structure and interatomic interactions in transition-metal nitrides. In Electronic Structure of Refractory Carbides and Nitrides; Gubanov, V.A., Ivanovsky, A.L., Zhukov, V.P., Eds.; Cambridge University Press: Cambridge, UK, 1994; pp. 70–75. [Google Scholar]
  4. Chen, W.; Jiang, J.Z. Elastic properties and electronic structures of 4d- and 5d-transition metal mononitrides. J. Alloys Compd. 2010, 499, 243–254. [Google Scholar] [CrossRef]
  5. Aouadi, S.M.; Paudel, Y.; Luster, B.; Stadler, S.; Kohli, P.; Muratore, C.; Hager, C.; Voevodin, A.A. AdaptiveMo2N/MoS2/Ag Tribological nanocomposite coatings for aerospace applications. Tribol. Lett. 2008, 29, 95–103. [Google Scholar] [CrossRef]
  6. Aouadi, S.M.; Paudel, Y.; Simonson, W.J.; Ge, Q.; Kohli, P.; Muratore, C.; Voevodin, A.A. Tribological investigations of adaptiveMo2N/MoS2/Ag coatings with high sulfur content. Surf. Coat. Technol. 2009, 203, 1304–1309. [Google Scholar] [CrossRef]
  7. Gulbinski, W.; Suszko, T. Thin films of Mo2N/Ag nanocomposite-the structure, mechanical and tribological properties. Surf. Coat. Technol. 2006, 201, 1469–1476. [Google Scholar] [CrossRef]
  8. Khojier, K.; Karami Mehr, M.R.; Savaloni, H. Annealing temperature effect on the mechanical and tribological properties of molybdenum nitride thin films. J. Nanostruct. Chem. 2013, 3, 1–7. [Google Scholar] [CrossRef]
  9. Kattelus, H.; Koskenala, J.; Nurmela, A.; Niskanen, A. Stress control of sputter-deposited Mo–N films for micromechanical applications. Microelectron. Eng. 2002, 60, 97–105. [Google Scholar] [CrossRef]
  10. Rische, D. MOCVD of Tungsten and Molybdenum Nitrides. Ph.D. Thesis, University of Bochum, Bochum, Germany, 2007. [Google Scholar]
  11. Alen, P. Atomic Layer Deposition of TaN, NbN and MoN films for Cu Metallizations. Ph.D. Thesis, University of Helsinski, Helsinski, Finland, 2005. [Google Scholar]
  12. Guntur, V. Molybdenum Nitride Films in the Back Contact Structure of Flexible Substrates CdTe Solar Cells. Ph.D. Thesis, University of South Florida, Tampa, USA, 2011. [Google Scholar]
  13. Shuangxi, S.; Yuzhang, L.; Dali, M.; Huiqin, L.; Ming, L. Diffusion barrier performances of thin Mo, Mo–N and Mo/Mo–N films between Cu and Si. Thin Solid Films 2005, 476, 142–147. [Google Scholar]
  14. Reid, J.S. MEMS with Flexible Portions Made of Novel Materials. U.S. Patent 7071520B2, 4 July 2006. [Google Scholar]
  15. Nagai, M. Transition-metal nitrides for hydrotreating catalyst-synthesis, surface properties, and reactivities. Appl. Catal. A Gen. 2007, 322, 178–190. [Google Scholar] [CrossRef]
  16. McKay, D. Catalysis over Molybdenum Containing Nitride Materials. Ph.D. Thesis, University of Glasgow, Glasgow, UK, 2008. [Google Scholar]
  17. Zhu, J.F.; Guo, J.C.; Zhai, R.S.; Bao, X.; Zhang, X.Y.; Zhuang, S. Preparation and adsorption properties of Mo2N model catalyst. Appl. Surf. Sci. 2000, 161, 86–93. [Google Scholar] [CrossRef]
  18. Shi, C.; Zhu, A.M.; Yang, X.F.; Au, C.T. On the catalytic nature of VN, Mo2N and W2N nitrides for NO reduction with hydrogen. Appl. Catal. A Gen. 2004, 276, 223–230. [Google Scholar] [CrossRef]
  19. Tagliazucca, V.; Schlichte, K.; Schüth, F.; Weidenthaler, C. Molybdenum-based catalysts for the decomposition of ammonia: In situ X-ray diffraction studies, microstructure, and catalytic properties. J. Catal. 2013, 305, 277–289. [Google Scholar] [CrossRef]
  20. Tagliazucca, V.; Leoni, M.; Weidenthaler, C. Crystal structure and microstructural changes of molybdenum nitrides traces during catalytic reaction by in situ X-ray diffraction studies. Phys. Chem. Chem. Phys. 2014, 16, 6182–6188. [Google Scholar] [CrossRef] [PubMed]
  21. Gong, S.W.; Chen, H.K.; Li, W.; Li, B.Q. Catalytic behaviors of β-Mo2N0.78 as a hydrodesulfurization catalyst. Energy Fuels 2006, 20, 1372–1376. [Google Scholar] [CrossRef]
  22. Jehn, H.; Ettmayer, P. The molybdenum-nitrogen phase diagram. J. Less-Common Met. 1978, 58, 85–98. [Google Scholar] [CrossRef]
  23. Karam, R.; Ward, R. The Preparation of β-Molybdenum Nitride. Inorg. Chem. 1970, 9, 1385–1387. [Google Scholar] [CrossRef]
  24. Bull, C.L.; Kawashima, T.; McMillan, P.F.; Machon, D.; Shebanova, O.; Daisenberger, D.; Soignard, E.; Takayama-Muromachi, E.; Chapon, L.C. Crystal structure and high-pressure properties of γ-Mo2N determined by neutron powder diffraction and X-ray diffraction. J. Solid State Chem. 2006, 179, 1762–1767. [Google Scholar] [CrossRef]
  25. Ihara, H.; Kimura, Y.; Senzaki, K.; Zezuka, H.; Hirabayashi, M. Electronic structures of B1 MoN, fcc Mo2N and hexagonal MoN. Phys. Rev. B 1985, 31, 3177–3178. [Google Scholar] [CrossRef]
  26. Saito, K.; Asada, Y. Superconductivity and structural changes of nitrogen-ion implanted Mo thin films. J. Phys. F Met. Phys. 1987, 17, 2273–2283. [Google Scholar] [CrossRef]
  27. Wu, J.D.; Wu, C.Z.; Zhong, X.X.; Song, Z.M.; Li, F.M. Surface nitridation of transition metals by pulsed laser irradiation in gaseous nitrogen. Surf. Coat. Technol. 1997, 96, 330–336. [Google Scholar] [CrossRef]
  28. Mändl, S.; Manova, D.; Gerlach, J.W.; Assmann, W.; Neumann, H.; Rauschenbach, B. High temperature nitrogen plasma immersion ion implantation into molybdenum. Surf. Coat. Technol. 2004, 180–181, 362–366. [Google Scholar] [CrossRef]
  29. Anitha, V.P.; Major, S.; Chandrashekharam, D.; Bhatnagar, M. Deposition of molybdenum nitride films by r.f. reactive magnetron sputtering. Surf. Coat. Technol. 1996, 79, 50–54. [Google Scholar] [CrossRef]
  30. Hones, P.; Martin, N.; Regula, M.; Lévy, F. Structural and mechanical properties of chromium nitride, molybdenum nitride, and tungsten nitride thin films. J. Phys. D Appl. Phys. 2003, 36, 1023–1029. [Google Scholar] [CrossRef]
  31. Wang, Y.; Lin, R.Y. Amorphous molybdenum nitride thin films prepared by reactive sputter deposition. Mater. Sci. Eng. B 2004, 112, 42–49. [Google Scholar] [CrossRef]
  32. Stöber, L.; Konrath, J.P.; Krivec, S.; Patocka, F.; Schwartz, S.; Bittner, A.; Schneider, M.; Schmid, U. Impact of sputter deposition parameters on molybdenum nitride thin films properties. J. Micromech. Microeng. 2015, 25. [Google Scholar] [CrossRef]
  33. Inumaru, K.; Baba, K.; Yamanaka, S. Synthesis and Characterization of superconducting β-MoN crystalline phase on a Si substrate: An application of pulsed laser deposition to nitride chemistry. Chem. Mater. 2005, 17, 5935–5940. [Google Scholar] [CrossRef]
  34. Jauberteau, I.; Jauberteau, J.L.; Goudeau, P.; Soulestin, B.; Marteau, M.; Cahoreau, M.; Aubreton, J. Investigations on a nitriding process of molybdenum thin films exposed to (Ar–N2–H2) expanding microwave plasma. Surf. Coat. Technol. 2009, 203, 1127–1132. [Google Scholar] [CrossRef]
  35. Lowther, J.E. Lattice model for the properties of non-stoichiometric cubic and hexagonal molybdenum nitride. J. Alloys Compd. 2004, 364, 13–16. [Google Scholar] [CrossRef]
  36. Ganin, A.Y.; Kienle, L.; Vajenine, G.V. Synthesis and characterization of hexagonal molybdenum nitrides. J. Solid State Chem. 2006, 179, 2339–2348. [Google Scholar] [CrossRef]
  37. Bull, C.L.; McMillan, P.F.; Soignard, E.; Leinenweber, K. Determination of the crystal structure of δ-MoN by neutron diffraction. J. Solid State Chem. 2004, 177, 1488–1492. [Google Scholar] [CrossRef]
  38. Kanoun, M.B.; Goumri-Said, S.; Jaouen, M. Structure and mechanical stability of molybdenum nitrides: A first-principles study. Phys. Rev. B 2007, 76. [Google Scholar] [CrossRef]
  39. Zhao, E.; Wang, J.; Wu, Z. Displacive phase transition, structural stability, and mechanical properties of the ultra-incompressible and hard MoN by first principles. Phys. Status Solidi B 2010, 247, 1207–1213. [Google Scholar] [CrossRef]
  40. Linker, G.; Smithey, R.; Meyer, O. Superconductivity in MoN films with NaCl structure. J. Phys. F Met. Phys. 1984, 14, L115–L119. [Google Scholar] [CrossRef]
  41. Savvides, N. High Tc superconducting B1 phase MoN films prepared by low-energy ion-assisted deposition. J. Appl. Phys. 1987, 62, 600–610. [Google Scholar] [CrossRef]
  42. Papaconstantopoulos, D.A.; Pickett, W.E.; Klein, B.M.; Boyer, L.L. Electronic properties of transition-metal nitrides: The group-V and group-VI nitrides VN, NbN, TaN, CrN, MoN, and WN. Phys. Rev. B 1985, 31, 752–761. [Google Scholar] [CrossRef]
  43. Fix, R.; Gordon, R.G.; Hoffman, D.M. Low-temperature atmospheric-pressure metal-organic chemical vapor deposition of molybdenum nitride thin films. Thin Solid Films 1996, 288, 116–119. [Google Scholar] [CrossRef]
  44. Maoujoud, M.; Jardinier-Offergeld, M.; Bouillon, F. Synthesis and characterization of thin-film molybdenum nitrides. Appl. Surf. Sci. 1993, 64, 81–89. [Google Scholar] [CrossRef]
  45. Lyutaya, M.D. Formation of nitrides of the group VI transition metals. Powder Metall. Met. Ceram. 1979, 18, 190–196. [Google Scholar] [CrossRef]
  46. McKay, D.; Hargreaves, J.S.J.; Rico, J.L.; Rivera, J.L.; Sun, X.-L. The influence of phase and morphology of molybdenum nitrides on ammonia synthesis activity and reduction characteristics. J. Solid State Chem. 2008, 181, 325–333. [Google Scholar] [CrossRef]
  47. Birtill, J.; Dickens, P.G. Thermochemistry of Hydrogen Molybdenum Bronze Phases HxMoO3. J. Solid State Chem. 1979, 29, 367–372. [Google Scholar] [CrossRef]
  48. Cardenas-Lizana, F.; Gomez-Quero, S.; Perret, N.; Kiwi-Minsker, L.; Keane, M.A. β-Molybdenum nitride: Synthesis mechanism and catalytic response in the gas phase hydrogenation of p-chloronitrobenzene. Catal. Sci. Technol. 2011, 1, 794–801. [Google Scholar] [CrossRef]
  49. Thornton, J.A. High rate thick film growth. Annu. Rev. Mater. Sci. 1977, 7, 239–260. [Google Scholar] [CrossRef]
  50. Perry, A.J.; Baouchi, A.W.; Petersen, J.H.; Pozder, S.D. Crystal structure of molybdenum nitride films made by reactive cathodic arc evaporation. Surf. Coat. Technol. 1992, 54/55, 261–265. [Google Scholar] [CrossRef]
  51. Mändl, S.; Gerlach, J.W.; Assmann, W.; Rauschenbach, B. Phase formation and diffusion after nitrogen PIII in molybdenum. Surf. Coat. Technol. 2003, 174–175, 1238–1242. [Google Scholar] [CrossRef]
  52. Mändl, S.; Gerlach, W.; Rauschenbach, B. Nitride formation in transition metals during high fluence-high temperature implantation. Surf. Coat. Technol. 2005, 200, 584–588. [Google Scholar] [CrossRef]
  53. Jauberteau, I.; Merle-Méjean, T.; Touimi, S.; Weber, S.; Bessaudou, A.; Passelergue, A.; Jauberteau, J.L.; Aubreton, J. Expanding microwave plasma process for thin molybdenum films nitriding: Nitrogen diffusion and structure investigations. Surf. Coat. Technol. 2011, 205, S271–S274. [Google Scholar] [CrossRef]
  54. Jauberteau, I.; Jauberteau, J.L.; Touimi, S.; Merle-Méjean, T.; Weber, S.; Bessaudou, A. A thermochemical process using expanding plasma for nitriding thin molybdenum films at low temperature. Engineering 2012, 4, 857–868. [Google Scholar] [CrossRef]
  55. Jauberteau, I.; Mayet, R.; Cornette, J.; Bessaudou, A.; Carles, P.; Jauberteau, J.L.; Merle-Méjean, T. A reduction-nitridation process of molybdenum films in expanding microwave plasma: Crystal structure of molybdenum nitrides. Surf. Coat. Technol. 2015, 270, 77–85. [Google Scholar] [CrossRef]
  56. Luo, H.; Zou, G.; Wang, H.; Lee, J.H.; Lin, Y.; Peng, H.; Lin, Q.; Deng, S.; Bauer, E.; McKleskey, T.M.; et al. Controlling crystal structure and oxidation state in molybdenum nitrides through epitaxial stabilization. J. Phys. Chem. C 2011, 115, 17880–17883. [Google Scholar] [CrossRef]
  57. Nagae, M.; Yoshio, T.; Takemoto, Y.; Takada, J. Microstructure of a molybdenum nitride layer formed by nitriding molybdenum metal. J. Am. Ceram. Soc. 2001, 84, 1175–1177. [Google Scholar] [CrossRef]
  58. Soignard, E.; McMillan, P.F.; Chaplin, T.D.; Farag, S.M.; Bull, C.L.; Somayazulu, M.S.; Leinenweber, K. High-Pressure synthesis and study of low-compressibility molybdenum nitride (MoN and MoN1 − x phases). Phys. Rev. B 2003, 68. [Google Scholar] [CrossRef]
  59. Sahu, B.R.; Kleinman, L. Theoretical study of structural an electronic properties of δ-MoN. Phys. Rev. B 2004, 70. [Google Scholar] [CrossRef]
  60. Hart, G.L.W.; Klein, B.M. Phonon and elastic instabilities in MoC and MoN. Phys. Rev. B 2000, 61, 3151–3154. [Google Scholar] [CrossRef]
  61. Choi, D.; Kumta, P.N. Synthesis and characterization of nanostructured niobium and molybdenum nitrides by a two steps transition metal halide approach. J. Am. Ceram. Soc. 2011, 94, 2371–2378. [Google Scholar] [CrossRef]
  62. Ma, L.; Ting, L.R.L.; Molinari, V.; Giordano, C.; Yeo, B.S. Efficient hydrogen evolution catalyzed by molybdenum carbide and molybdenum nitride nanocatalysts synthesized via the urea glass route. J. Mater. Chem. A 2015, 3, 8361–8368. [Google Scholar] [CrossRef]
  63. Chen, W.F.; Muckerman, J.T.; Fujita, E. Recent developments in transition metal carbides and nitrides as hydrogen evolution eletrocatalysts. Chem. Commun. 2013, 49, 8896–8909. [Google Scholar] [CrossRef] [PubMed]

Share and Cite

MDPI and ACS Style

Jauberteau, I.; Bessaudou, A.; Mayet, R.; Cornette, J.; Jauberteau, J.L.; Carles, P.; Merle-Méjean, T. Molybdenum Nitride Films: Crystal Structures, Synthesis, Mechanical, Electrical and Some Other Properties. Coatings 2015, 5, 656-687.

AMA Style

Jauberteau I, Bessaudou A, Mayet R, Cornette J, Jauberteau JL, Carles P, Merle-Méjean T. Molybdenum Nitride Films: Crystal Structures, Synthesis, Mechanical, Electrical and Some Other Properties. Coatings. 2015; 5(4):656-687.

Chicago/Turabian Style

Jauberteau, Isabelle, Annie Bessaudou, Richard Mayet, Julie Cornette, Jean Louis Jauberteau, Pierre Carles, and Thérèse Merle-Méjean. 2015. "Molybdenum Nitride Films: Crystal Structures, Synthesis, Mechanical, Electrical and Some Other Properties" Coatings 5, no. 4: 656-687.

Article Metrics

Back to TopTop
