Next Article in Journal
Multiscale and Multi-Technical Approach to Characterize the Hot-Dip Galvanized Steel Surface and Its Consequence(s) on Paint Adhesion and Tendency to Blistering
Previous Article in Journal
Combined Pulsed RF GD-OES and HAXPES for Quantified Depth Profiling through Coatings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:

Surface Morphological and Chemical Features of Anticorrosion ZrO2–TiO2 Coatings: Impact of Zirconium Precursor

Institute of General and Inorganic Chemistry, Bulgarian Academy of Sciences, Acad G. Bonchev Blvd., bl. 11, 1113 Sofia, Bulgaria
Institute of Physical Chemistry “Rostislaw Kaishev”, Bulgarian Academy of Sciences, Acad. G. Bonchev Blvd., bl. 11, 1113 Sofia, Bulgaria
Institute of Catalysis, Bulgarian Academy of Sciences, Acad G. Bonchev Blvd., bl. 11, 1113 Sofia, Bulgaria
Faculty of Chemistry and Pharmacy, Sofia University, 1 James Bourchier Blvd., 1164 Sofia, Bulgaria
Author to whom correspondence should be addressed.
Coatings 2021, 11(6), 703;
Received: 20 May 2021 / Revised: 4 June 2021 / Accepted: 8 June 2021 / Published: 11 June 2021
(This article belongs to the Section Corrosion, Wear and Erosion)


Dense, highly textured, hydrophobic ZrO2-TiO2 (1:1) coatings with amorphous structure were prepared using the sol-gel method. Both organic and inorganic zirconium precursor salts were used. The present study dealt with the investigation of their protective ability in a selected model corrosive medium with chloride ions as corrosion activators. The coatings showed good anticorrosion performance during the test, which was demonstrated both by the weight loss method and potentiodynamic polarization curves. The samples were characterized by means of X-ray diffraction (XRD), Atomic Force Microscopy (AFM), contact angle measurements, Infrared spectroscopy (IRS), Scanning Electron Microscopy (SEM), Differential Thermal analysis (DTA-TG) and X-ray photoelectron spectroscopy (XPS). It was established that the extent of influence of some factors, like treatment temperature (Ttr) and type of zirconium precursor, was different. The PD curves of samples treated at 400 °C (A4 and B4, respectively) demonstrated an increased effect of the precursor in comparison to Ttr, since the application of organic Zr salt led to deterioration of the anodic passivation zones. Contrary to this, the coatings obtained from both the organic and inorganic Zr precursor salts with Ttr = 500 °C had similar corrosion efficiency, i.e., the influence of the precursor was minimized. All investigated coatings had no visible corrosion damage. It seems that some complex structural and surface parameters, such as amorphous dense structure, surface smoothness, hydrophobicity and the surface chemical composition (low hydroxyl groups content), were responsible for the increased anticorrosion properties of the composite films.

Graphical Abstract

1. Introduction

The global importance of corrosion-related durability challenges, especially in industry, requires a wide scope of scientific research work. Generally, corrosion can cause costly and dangerous damage of different important systems, as well as of major infrastructures. To the best of our knowledge, a great part of human health security and financial costs worldwide (including respective safety and environmental consequences) are corrosion-related. Despite the existing high level of academic potential and fundamental knowledge in the fields of electrochemistry and corrosion science, the situation regarding the protection of steel structures is not yet very optimistic. Therefore, investigations connected with the corrosion-protection of steel are of great importance. As it is well known, corrosion is a diffusion-controlled process, which can be either concentrated in selected areas forming pits or cracks, or it can extend across a wide area on the surface.
Various approaches have been applied to limit the harmful effects of this phenomenon, for example, cathodic protection or reducing the activity of the aggressive medium by application of different inhibitors [1,2,3,4,5]. Another possibility is to provide passive protection by creating a physical barrier between the metals and their surrounding environment by using (i) chromium (III)-based or chromium-free conversion films, (ii) painting, (iii) hot-dip galvanizing, (iv) nanosized ceramic oxide coatings, etc. [6,7,8,9,10]. The unique physical, mechanical and chemical properties of the latter compared with those of their cast counterparts are due to their small grain size (<100 nm) and high volume fraction of grain boundaries.
Several investigators have tried to obtain and characterize the protective properties of these mainly amorphous materials, through which the latter have offered an attractive basis for improved corrosion resistance, which is due to the practical absence of linear and planar defects like dislocations and chemical inhomogeneity. A greater number of amorphous materials are also characterized by high mechanical strength and good surface quality. Some authors have noted that the amorphous structure could effectively influence the composition and compactability of the passive films in aggressive media containing Cl ions as corrosion activators. The then-obtained films are more compact, having a lower defect density [11]. However, the demonstration of improved corrosion resistance of amorphous materials, compared to their crystalline counterparts, suffers from the fundamental drawback that it is difficult to achieve an amorphous structure and a crystalline single-phase material of the same alloy chemistry in most experimental and commercial systems [12,13]. According to [14] the surface reactivities of amorphous metals are certainly different from those of crystalline surfaces, and this parameter can be changed widely from a high activity to a low activity by controlling the composition. As it is well known, the amorphous structure exhibits a predominantly chemically homogeneous nature, which is due to the lack of defects which could possibly act as chemically active sites.
Ceramic coatings like TiO2, ZrO2, CeO2, etc. have attracted considerable attention due to their ease of manufacturing, low cost, electrical properties, better mechanical stability as well as corrosion resistance [15]. Generally, the very fine particle sizes of the coatings ensure better blocking of the diffusion of the corrosive elements to the substrate.
TiO2 has proved to be one of the most promising materials for various applications, such as solar energy conversion, fuel cells, paints and photocatalysts, especially in environmental remediation processes, due to its high chemical stability, availability and low cost. As TiO2 has worse mechanical properties, it is usually mixed with some other oxides, especially ZrO2, in order to increase its stability. Zirconia is widely used as a catalyst, since it exhibits acidic, basic, oxidizing and reducing properties. In addition, it is well known that the conductivity of TiO2 and ZrO2 is of the order of 10−8−1·m−1, which confirms their nature as insulators and leads to a better corrosion performance. It is known that the introduction of a second metal oxide (such as ZrO2) into TiO2 is a prospective way of modifying several physicochemical characteristics of bare oxide, such as textural properties, morphology, etc. [16]. The doping of TiO2 with ZrO2 improves several physical and chemical characteristics (like electron mobility, mechanical strength and thermal stability), prevents anatase–rutile transition [17] and decreases the titania particles sizes [18,19]. The mixture of ZrO2–TiO2 exhibits a higher thermal stability than that of the pure single oxides and has been extensively investigated in the field of acidic sites catalyzed by reactions or as a support of catalytically active species [20,21]. Titania–zirconia composites, as electrodes of dye-sensitized solar cells, have increased the optical band gap, thus leading to enhancement of solar energy conversion efficiency [22]. Miao et al. have reported the increased hardness of ZrO2–TiO2 composite films [23]. Other authors have been studying TiO2:ZrO2 multilayer thin films as humidity sensors [24]. Piwonski et al. have also revealed the positive effect of adding zirconia nanoparticles into TiO2 coatings on the frictional behavior and wear resistance in comparison to bare TiO2 [25]. Sudhagas et al. have synthesized ZrO2–TiO2 composites on stainless steel, which offer both the biocompatibility and high corrosion resistance for biomedical application [26]. Our survey of the available literature concerning titania–zirconia corrosion-resistance coatings revealed that the data about the complex influence of the topography, X-ray structure and hydrophobicity on their barrier properties are incomplete. The present study was aimed at revealing to what extent the surface chemistry (stoichiometry, content of oxygen and hydroxyl groups), in addition to the above-mentioned factors, contributes to the enhancement of anticorrosion efficiency of composite films based on TiO2–ZrO2/stainless steel.

2. Materials and Methods

Two types of zirconium precursors were applied: (A). organic, zirconium n-butoxide (Zr(C4H9O)4, Alfa Aesar, Haverhill, MA, USA), and (B) inorganic, zirconyl oxychloride (ZrOCl2·2H2O).

2.1. Sample Types

2.1.1. Samples Type A

Zirconium precursor solution “A” was prepared using Zr(C4H9O)4, diluted with isopropanol. Thereafter, a small amount of acetyl acetone, as a stabilizer, and acetic acid, as a complexing agent, were added. The solution was stirred for 2 h in order to complete the reaction between alkoxide and acetic acid. Titanium butoxide (Ti(OBu)4) and acetyl acetone were dissolved in 2-propanol to a 1 M solution, stirring vigorously at room temperature. The viscosity of the obtained salts was about 5–10 cP. The resulting sols were transparent and stable. The solutions were mixed at a ratio Ti:Zr = 50:50 (1:1). The procedure was repeated 5 times, after which the samples were divided into 2 groups, treated at 400 and 500 °C for 1 h and will be referred to here as A4 and A5, respectively.

2.1.2. Samples Type B

Zirconium precursor solution “B” was prepared using ZrOCl2·8H2O (p.a.) dissolved in ethanol and nitric acid; the latter was added to prevent hydrolysis. A small amount acetyl acetone was added, as a complexing agent, to the mixture, followed by stirring the solution for 2 h. The procedure described in step 1 was used to prepare the precursor solution for Ti. Both solutions were mixed at a ratio Ti:Zr = 50:50 (1:1). After ultrasonic cleaning of the steel substrates in ethanol for 10 min, they were immersed in each one of the respective precursor solutions, held for 10 s and then withdrawn at a rate of 30 mm/min. After each application, the samples were air-dried at 100 °C, after which the temperature was raised to 300 °C for 1 h. The samples were divided into 2 groups, treated at 400 and 500 °C for 1 h, and they will be referred to further as B4 and B5, respectively. Figure 1 presents the experimental scheme for deposition of the composite coatings.

2.2. Differential Thermal (DTA)/Thermogravimetric (TG) Analyses

The differential thermal analysis was accomplished on a combined DTA–TG apparatus LAB—SYSEVO 1600, manufactured by the SETARAM Company (Caluire, France). Synthetic air was used as the carrier gas: flow rate of 20 mL·min−1; heating rate 10 °C/min and probe mass was 25 mg. The analyses were carried out proceeding within the interval from 25 to 800 °C. A corundum crucible and a Pt/Pt–Rh thermocouple were used.

2.3. XRD Studies

The phase compositions of the samples were studied by X-ray diffraction (XRD) using CuKα-radiation (λ = 0.154056 nm at 40 kV; Philips PW 1050 apparatus, Amsterdam, The Netherlands).

2.4. Infrared Analyses

The infrared spectra (4000–400 cm−1 region) were registered in KBr pellets having a diameter of 13 MA, using a Thermo Scientific Nicolet iS5 Fourier-transform IR spectrometer (Thermo Scientific Co., Waltham, MA, USA) at a spectral resolution of 2 cm−1.

2.5. SEM Studies

Scanning electron microscopy (SEM) micrographs were recorded on apparatus JEOL JEM-200CX (JEOL, Tokyo, Japan), work mode: Secondary Electrons Image (SEI) and accelerating voltage: 80 keV.

2.6. AFM studies

The surface topography was evaluated by means of an Atomic Force microscope (AFM) (NanoScopeV system, Bruker Inc., Birrica, MA, USA) operating in tapping mode in air. The scanning rate was set at 1 Hz. and the images were taken in the highest possible resolution mode of the AFM, 512 × 512 pixels in JPEG format using the NanoScope software (Bruker Inc., Birrica, MA, USA). AFM permits evaluation of the roughness of the sample surface and its standard deviation (Rq). The roughness analysis also gave the value of Ra.
Images from three independent locations of the samples were taken for reproducibility purposes. From the applied roughness analysis, statistical values according to the relative heights of each pixel in a particular AFM image were calculated. The roughness analysis gave the value of Ra, which is an arithmetic average of the absolute values Zj of the surface height deviations, measured from the mean plane, i.e.,
R a = 1 N j = 1 N Z j
while the image Rq is the root mean square average of height deviations taken from the mean image data plane, expressed as:
R q = j = 1 N Z j 2 N

2.7. XPS Investigations

The measurements were carried out on an AXIS Supra electron-spectrometer (Kratos Analitycal Ltd., Manchester, UK), using achromatic AlKα radiation with a photon energy of 1486.6 eV and a charge neutralization system. The binding energies (BE) were determined with an accuracy of ±0.1 eV, using the C 1s line at 284.6 eV (adsorbed hydrocarbons). Using the commercially available data-processing software of Kratos Analytical Ltd., the concentrations of the different chemical elements (in at.%) were calculated by normalizing the areas of the photoelectron peaks to their relative sensitivity factors.

2.8. Contact Angle Measurements

Contact angle measurements were performed with Ramé–Hart automated goniometer model 290, with DROPimage advanced v2.4 (Ramé–Hart instrument co., Succasunna, NJ, USA) at room temperature. Drops of 2–5 μL were formed and deposited by the Ramé–Hart automatic dispensing system The corrosion resistance of the samples was estimated according to EN ISO 10289:2006) [27]. In order not to disturb the integrity of the test coating, the samples were washed several times with distilled water and dried before weighing.

2.9. Neutral Salt Spray (NSS) Tests

These tests were carried out in a special chamber (Q-Lab unit) and in a corrosive medium, i.e., salt spray obtained by spraying a 3.5 wt.% aqueous solution of NaCl (p.a.) with a pH value in the range 6.5–7.2. The operating temperature in the test chamber was maintained within 35 ± 2 °C (ISO 9227:2017) [28].

2.10. Potentiodynamic Investigations

These studies were performed in order to characterize the corrosion behavior of the samples of both groups (group A (A4 and A5) and group B (B4 and B5), respectively) in a model corrosive medium of 3.5% NaCl solution under conditions of external polarization (cathodic and anodic). The experiments were performed in a glass tri-electrode electrochemical cell having a volume of 300 mL. A saturated calomel electrode (SCE) was used as a reference electrode, and a platinum plate was applied as a polarizing one. The polarization of the test specimens was performed by the equipment “PAR VersaStat 4” (Ametek SI, Berwyn, PA, USA) at a sufficiently low potential scan rate of 1 mV/s.

3. Results

3.1. Differential Thermal (DTA)/Thermogravimetric (TG) Analyses

In order to determine the appropriate regime of thermal treatment of the composite coatings, at which they preserve their amorphous structure, we applied DTA/TG analyses to the precursor solutions A and B only, dried at 100 °C (Figure 2). The registered endothermic peak at 100 °C corresponded to the loss of adsorbed water. The observed four small exothermic peaks in the DTA curve of mixture A could have been due to the gradual decomposition of a greater amount of organic residues of the two metal alkoxides. According to the literature data [29,30,31], the decomposition of the single zirconium or titanium alkoxide proceeds within the interval from 400 to 500 °C, while in our case, the mixture ZrO2–TiO2 (1:1) remained amorphous up to 500 °C.
Other research groups have also revealed that the transition from the amorphous to crystalline phase occurs above 600 °C [32]. The registered exothermic peaks in the mixture B within the temperature interval of 250–550 °C could be assigned to the decomposition of organic groups and inorganic Zr salt, accompanied by a strong decrease of the mass. The exothermic peaks of 535 °C for sample A and 547 °C for sample B corresponded to the crystallization of ZrO2 and TiO2 from the amorphous mixtures, respectively. The peaks at 693 and 642 °C, registered in mixtures A and B, respectively, most probably corresponded to the crystallization of the ZrTiO4 phase.

3.2. XRD Studies

In order to obtain additional data on the crystallization behavior of the precursor mixtures, the powders were treated for 1 h in air at 800 °C, and thereafter, they were analyzed by the XRD method (Figure 3). The treated precursors possessed a pure ZrTiO4 orthorhombic structure with a space group, Pnab, according to the JCPDS file N 34-415, which confirms the data obtained by the DTA analyses. The size of the crystallites of mixtures A and B were 29 and 24 nm, respectively.
The XRD spectra of the coatings (Figure 4) both showed an anatase phase, while the crystallographic phase peaks of ZrO2 were not recorded, i.e., they had an X-ray amorphous structure. Similar results have been represented by Bu et al. for titania–zirconia composite films [33]. Other researchers have revealed that the binary TiO2–ZrO2 remains in the amorphous phase after calcination at 450 °C [34] and even up to 600 °C [35].

3.3. Infrared Analyses

Infrared spectroscopy was used to determine the rate and degree of hydrolysis and condensation, as well as the phase transformations in the gels (Figure 5). The absorption broad bands in both spectra at the 3000–3600 cm−1 region corresponded to the vibrational frequencies of OH groups, due to adsorbed water molecules and surface hydroxyl groups [36] The bands within the region of 2850–2960 cm−1 corresponded to vibrational vibrations of the CH groups of the organic precursors (butoxy group of the precursor) [37]. According to the literature data, Ti (IV) butoxide (TBT) is characterized by bands located between 1500–1300 cm−1, which correspond to the valence vibrations of the CH3 and CH2 groups [38]. The bands at 616 and 655 cm−1 corresponded to Zr–O and Zr–O–Zr vibrations, as well as to TiO6 structural units. There was also a wide band in the infrared spectrum of mixture A at 785 cm−1, which could have been related to the vibrations of the butoxy groups (Figure 5a). The spectrum in Figure 5b also revealed a peak at 1627 cm−1, which could be assigned to Zr(OCl)2·8H2O [39]. The 1100 and 1040 cm−1 bands were related to the fluctuations of terminal and bridge C–O bonds in the butoxy ligands [40]. It must be noted that the intensities of the peaks in the spectra of A and B mixtures (ranging from 600 to 1550 cm−1) were different. Smaller intensities of the peaks in the B mixture in comparison to those in mixture A could be explained by a higher degree of hydrolysis (decreased number of non-hydrolyzed alkoxy groups) [30].

3.4. SEM Studies

The morphology of the samples was investigated by SEM analysis, while the surface topography was evaluated by atomic force microscopy. All of the coatings possessed the island-like surface structure typical of sol gel coatings, without any deep cracks. Figure 6 reveals the typical morphology of freshly prepared coatings, obtained from different ZrO2 precursors.

3.5. AFM Studies

The AFM method was used for a more precise examination of the surface on the nanometric scale, and the obtained images gave additional information on the presence of visible corrosion damage, such as pores, surface irregularities, etc. Table 1 represents the Ra values for all freshly prepared coatings and after immersing them in corrosive medium.
Figure 7 shows the topography of the coating A4 after 400 °C thermal treatment (Figure 7, left) and after conducting a corrosion test (Figure 7, right). It could be seen that the coating was dense, without any visible pores and having good adhesion. The roughness calculated by the AFM software program, Rq, was 31 nm (Ra = 23.2 nm). The surface roughness was also very close to the data for the sample (A4) before immersing it in the NaCl model corrosive medium. Rq reached 22.2 nm, which was further evidence that the sample exhibited good anti-corrosion properties under the influence of NaCl for many hours. The freshly prepared coating after thermal treatment at 500 °C (A5) was relatively dense, possessing good adhesion (Figure 8). The roughness of this sample was higher than that of the A4 coatings treated at 400 °C (Table 1). The surface roughness after the corrosion attack did not change significantly, which could be regarded as a sign for excellent anti-corrosion properties of these samples.
The composites of group B, synthesized using inorganic zirconium precursor and titanium butoxide (Figure 9 and Figure 10, respectively), had a significantly lower roughness compared to those obtained using an organic Zr precursor, regardless of the temperature of the thermal treatment. Summarizing these data, it must be noted that after conducting of salt spray test, the roughness of the coatings increased slightly; the surface of all of the coatings was dense, showing an absence of any defects and any other signs of corrosion such as pits, cracks, etc. This result proves their excellent anticorrosion performance.

3.6. XPS Investigations

The surface composition and chemical state of TiO2–ZrO2 layers were investigated by XPS. The analysis showed peaks of C1s, O1s, Zr3d and Ti2p on the surface of the films. The O1s peaks were broad and asymmetric, and they could be deconvoluted by a Lorentzian–Gaussian curve fitting into two components (Figure 11). The first ones at ~529.8 eV were assigned to lattice oxygen in ZrO2 and TiO2, and the second ones at ~531.4 eV were attributed to adsorbed hydroxyl groups [41,42]. The Ti2p spectra had peaks at ~458.3 eV for Ti2p3/2 and ~464.0 eV for Ti2p1/2. The doublet separation between the 2p3/2 and 2p1/2 peaks of ~5.7 eV and the registered binding energies was characteristic of TiO2. The Zr3d5/2 peaks had a maximum at 182.0 eV, typical of the Zr4+ oxidation state [43]. In general, the sample A4 showed the smallest O/OH ratio, which means that, in that case, the hydroxyl surface group content was higher.

3.7. Contact angle and NSS Measurements

3.7.1. Relationships between the Corrosion Stability and Hydrophobicity

Figure 12a represents the photographs of water drops on the coatings surface. All of the samples possessed a hydrophobic nature of the surface. The water contact angles had very similar values, as they were within a range varying from 82 to 90 [44]. It is well known that the hydrophobicity of a material surface is determined by both intrinsic chemical properties and surface microstructure. It was found that the hydrophobic nature of the surface often (as a rule) inhibits the corrosion process, by limiting the surface–corrosive species (water, halide ions, etc.) interaction. The experimental data on the dependence between the hydrophobicity and the corrosion properties, obtained by many research groups, have been contradictory. It has been proved that superhydrophobic material improves corrosion resistance [45]. On the other hand, several researchers have revealed the absence of a direct correlation between the high contact angle of water and better anti-corrosion protection [46]. Huang and co-authors [47] also found that superhydrophobic TiO2 nanotubes possess low corrosion resistance.
Figure 12b shows that the water contact angle value did not significantly influence the barrier properties (evaluated by Neutral Salt Spray corrosion tests); moreover, no clear correlation between the surface hydrophobicity and the barrier properties of the coatings could be observed. The coatings of ZrO2–TiO2, treated at 500 °C, prepared by both an organic and inorganic zirconium precursor exhibited better protective properties than those prepared at 400 °C i.e., zero weight loss after the corrosion attack.

3.7.2. Relationships between the Corrosion Stability and Surface Chemistry

Figure 13 represents surface chemical composition (evaluated by XPS analyses) as a function of the weight loss measurements. It is clearly visible that the oxygen to metal ratio (O/Ti + Zr) was not a definitive factor for better corrosion resistivity of the coatings. Furthermore, it could be seen that the hydroxyl group content on the surface influenced the corrosion-resistance properties. It was obvious that a sample with an O/OH ratio lower than three (A4) lost a considerable share of its weight after immersion into the corrosive medium, while the other three samples displayed zero weight loss. The available literature data on the influence of the surface stoichiometry of ZrO2 films on their corrosion stability are insufficient. Concerning these effects, only one research group has mentioned something about the possible effect of the excess lattice oxygen content on the barrier properties of the CeO2 sputtered films [44]. However, even they did not provide conclusive evidence of the extent and how the chemical composition of the surface affected their corrosion stability.

3.8. Potentiodynamic Investigations

Figure 14 demonstrates the results obtained based on the potentiodynamic polarization curves of the investigated samples in the model corrosive medium of 3.5% NaCl solution. It was obvious that the values of the corrosion potential for the coatings in both groups were relatively similar (see Table 2 below).
The values of the corrosion current density and the average value of the current in the passive zones (Ipass) were measured approximately in the middle of the passive zone (at ~−300 mV). It was obvious that the sample A4 manifested the highest Icorr and Ipass values. In the anodic zone of the polarization curves of all investigated samples, a delay in the current density values could be observed during the course after the corrosion potential. This was related to the appearance of passive zones in the potential interval between –600 and –50 mV, in which the value of the anodic current remained almost constant, despite the change in the potential. Generally, these zones are an indication of a slower rate of the anodic process of dissolution of the coatings under conditions of external polarization. Moreover, all the investigated coatings had passive zones, which confirms their good protective properties.

4. Discussion

It could be generally concluded that samples B4, B5 and A5 were characterized by improved corrosion resistance upon external anodic polarization (lower corrosion and anodic current densities, respectively, as well as more positive corrosion potentials) compared to sample A4. On the basis of the results, obtained by potentiodynamic measurements (Figure 13 and Table 1), it can be concluded that the degrees of influence of the factors Ttr and the type of the zirconium precursor were different. In the cases of the samples A4 and B4 based on the PD curves, one could observe enhancement of the effect of the precursor in comparison with Ttr; the use of Zr butoxide led to a deterioration of the zone of passivation, while in the case of the samples heated at 500 °C, the influence of the precursor was minimized. Among the well-known factors which determine the corrosion stability of coatings are the amorphous structure, hydrophobicity and comparatively low roughness of the surface. It was seen that the surface morphology of the investigated layers also played an important role, bearing in mind the AFM images from Figure 6, Figure 7, Figure 8 and Figure 9. The surfaces of the samples demonstrated different roughness (degree of surface inhomogeneity) after the corrosive treatment. If the surface was more even, then this was generally accepted as a sign of greater corrosion resistance, since it is well known that an additional potential difference (leading to a higher corrosion rate) can appear between the concaved and protruded zones on the surface. According to [48], the influence of the surface morphology, represented by the roughness, on the corrosion rate can be described by the electron work function (EWF). The obtained results demonstrated that the corrosion rate increased when the surface roughness was greater, while its surface EWF decreased. The roughness could decrease the average EWF, but it would increase the fluctuation of the local EWF, which could promote the formation of microelectrodes, leading to corrosion acceleration. Generally, it seems that it is easier for the electrons in the vicinity of a peak to escape, compared to those in a valley (concaved zone), so that the peak will corrode preferentially. It can be expected, based on these investigations, that a smoother surface will lead to better corrosion resistance of the investigated coating. The formation of a corrosion cell could be promoted by EWF fluctuations, thus leading to enhanced corrosion rate of a rough surface.
In addition, Zuo et al. have explained that the surface with deeper grooves, respectively having a higher roughness value, ensures lower openness [49]. The openness of the grooves is characterized by the ratio w/d, where w is the width, and d is the depth of the grooves. A bigger w/d value (above some critical value) means smoother surface, and it is more difficult to micropit and to nucleate, and respectively, the corrosion rate is lower. As a result, the diffusion of the corrosive ions out of the formed grooves is limited; hence, they have a higher possibility to grow larger. Burstein et al. showed that the smoother surface of stainless steel is less capable of propagating metastable pits than the rougher one, mainly because the sites of pitting on the smoother surface are, on average, more open [50].
The data in the literature regarding the effect of the degree of crystallization of the oxide materials on their anticorrosion properties have been contradictory. Holgado et al. revealed that partially amorphous ZrO2 films deposited on brass and SiO2 were very effective in preventing the corrosion process [51]. Other research groups have found that fully amorphous samples possess a higher corrosion resistance than that of the partially crystallized samples [52,53]. In the crystalline materials, the active sites are the grain boundaries, which initiate the corrosion process. It is known that the amorphous materials are thermodynamically unstable, with a chemically homogeneous structure (without precipitates, segregates, etc.) and without defects (grain boundaries, twins, etc.). As a result, the amorphous structure can also effectively reduce the diffusion of the ionic species, thus increasing the corrosion resistance.
Among the well-known factors that determine the corrosion stability of the layers are amorphous structure, hydrophobicity and relatively low surface roughness. In our case, we found that there was another parameter connected with the chemistry of the surface which guaranteed enhanced corrosion stability, the O/OH ratio. For example, samples B4 and group A with an O/OH ratio above three had zero weight loss in the corrosion medium and lower corrosion current densities according to the PD measurements. In light of the experimental data, we can conclude that the presence of an amorphous dense structure having a hydrophobic nature and small content of hydroxyl groups is responsible for achieving the good corrosion stability of the ZrO2–TiO2 coatings, deposited on stainless steel. Keeping in mind this interesting fact. Our future investigations will be directed towards a more detailed investigation of these effects.

5. Conclusions

The ZrO2–TiO2 nanocomposite-coated specimens showed a higher corrosion resistance in the NaCl solution, surpassing the performance of the pure oxide coatings. All of the samples possessed a dense amorphous structure, having a hydrophobic nature, which was preserved after corrosion tests. It was established that the samples, treated at 400 °C, upon using of zirconium butoxide, manifested a deterioration of the zone of passivity, while after Ttr = 500 °C, the effect of the Zr precursor was weakened. The good anticorrosion performance of the composites could have been due to the synergism between the amorphous structure, topography (smoothness) and hydrophobicity. It is interesting to note that in addition to the above listed factors, the surface chemical composition was also essential for the improved protective properties. The obtained coatings were suitable for films covering stainless steel used in biomedical and industrial applications, in order to extend the duration of its service life time.

Author Contributions

Conceptualization, I.S., D.S. and N.B. (Nikolai Boshkov); methodology, I.S, M.S., N.B. (Nelly Boshkova), S.S. and N.G.; formal analysis, M.S., N.B. (Nelly Boshkova), S.S. and N.G.; investigation, I.S., D.S. and N.B. (Nelly Boshkova); writing—original draft preparation, I.S., D.S., N.B. (Nikolai Boshkov) and A.E.; writing—review and editing, I.S., D.S., N.B. (Nikolai Boshkov) and A.E.; visualization, I.S., M.S., D.S. and N.B. (Nikolai Boshkov); supervision, I.S, N.B. (Nikolai Boshkov) and A.E. All authors have read and agreed to the published version of the manuscript.


The authors express their gratitude to the Project with the Fund “Scientific Investigations”, Bulgaria, KP-06-N37/16 (KΠ-06-H37/16), “New environmentally friendly one- and multi-layer coatings for corrosion protection of structural materials with wide application” for the financial support to realize these investigations.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data available in a publicity accessible repository.


The authors express their gratitude to the contract “Mono- and poly-component catalytic systems for waste water and polluted air purification from model contaminants” within the Non-currency Equivalent Exchange Bilateral Cooperation between the Bulgarian Academy of Sciences and the Serbian Academy of Sciences and Fine Arts.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Raps, D.; Hack, T.; Wehr, J.; Zheludkevich, M.L.; Bastos, A.C.; Ferreira, M.G.S.; Nuyken, O. Electrochemical study of inhibitor-containing organic–inorganic hybrid coatings on AA2024. Corros. Sci. 2009, 51, 1012–1021. [Google Scholar] [CrossRef]
  2. Fuchs-Godec, R. The adsorption, CMC determination and corrosion inhibition of some N-alkyl quaternary ammonium salts on carbon steel surface in 2M H2SO4. Colloids Surf. A Physicochem. Eng. Asp. 2006, 280, 130–139. [Google Scholar] [CrossRef]
  3. Jenkins, A.; Grainger, N.; Blezard, M.; Pepin, M. Quaternary Ammonium Corrosion Inhibitors. U.S. Patent 9,103,039, 11 August 2015. [Google Scholar]
  4. Tang, J.; Hu, Y.; Han, Z.; Wang, H.; Zhu, Y.; Wang, Y.; Nie, Z.; Wang, Y. Experimental and theoretical study on the synergistic inhibition effect of pyridine derivatives and sulfur-containing compounds on the corrosion of carbon steel in CO2-Saturated 3.5 wt.% NaCl Solution. Molecules 2018, 23, 3270. [Google Scholar] [CrossRef][Green Version]
  5. Alzahrani, K.A.H.; Deeth, R.J. Molecular modeling of zinc paddlewheel molecular complexes and the pores of a flexible metal organic framework. J. Mol. Model 2016, 22, 80. [Google Scholar] [CrossRef] [PubMed][Green Version]
  6. Boshkova, N.D.; Petrov, P.D.; Chukova, V.; Lutov, L.S. Vitkova.D.; Boshkov, N.S. Surface morphology and corrosion behavior of zinc and zinc composite coatings with Cr(III) based conversion films. Bulg. Chem. Commun. 2016, 48, 53–59. [Google Scholar]
  7. Peshova, M.T.; Bachvarov, V.D.; Vitkova, S.D.; Boshkov, N.S. Obtaining and protective properties of passive films on Zn and Zn-Fe-P ternary alloys. Bulg. Chem. Commun. 2016, 48, 50–56. [Google Scholar]
  8. Boshkov, N.; Boshkova, N.; Bachvarov, V.; Peshova, M.; Lutov, L. Corrosion investigations of black chromite films on Zn and Zn-Co coatings with low cobalt content. J. Mater. Eng. Perform. 2015, 24, 4736–4745. [Google Scholar] [CrossRef]
  9. Tomachuk, C.R.; Elsner, C.I.; Di Sarli, A.R.; Ferraz, O.B. Corrosion resistance of Cr(III) conversion treatments applied on electrogalvanised steel and subjected to chloride. Mater. Chem. Phys. 2010, 119, 19–29. [Google Scholar] [CrossRef][Green Version]
  10. Hadley, J.; Verberne, W.; Wing, L.; Grady, J.O. Corrosion resistance without hexavalent chromium: New zinc plating systems. Met. Finish. 2002, 100, 33–36. [Google Scholar] [CrossRef]
  11. Wang, D.P.; Wang, S.L.; Wang, J.Q. Relationship between amorphous structure and corrosion behaviour in a Zr–Ni metallic glass. Corros. Sci. 2012, 59, 88–95. [Google Scholar] [CrossRef]
  12. Diegle, R.B.; Sorensen, N.R.; Tsuru, T.; Latanision, R.M. 2—The corrosion resistance of glassy alloys. Treatise Mater. Sci. Technol. 1983, 23, 59–102. [Google Scholar] [CrossRef]
  13. Ayer, R.; Ling, S.; Jin, H.W.; Pokutylowicz, N.; Koo, J.Y. The role of amorphous structure on corrosion resistance: Corrosion behavior of amorphous and crystalline zr2fe in slightly acidic chloride solution. In Proceedings of the Seventeenth International Offshore and Polar Engineering Conference, Lisbon, Portugal, 1–6 July 2007. [Google Scholar]
  14. Masumoto, T.; Hashimoto, K. Corrosion properties of amorphous metals. J. Phys. Coll. 1980, 41, C8-894–C8-900. [Google Scholar] [CrossRef]
  15. Wachtman, J.B.; Haber, A.R. Ceramic Films and Coatings; William Andrew Publishing, Noyes: Norwich, NY, USA, 1993. [Google Scholar]
  16. Hirano, M.; Nakahara, C.; Ota, K.; Inagaki, M. Direct formation of zirconia-doped titania with stable anatase-type structure by thermal hydrolysis. J. Am. Ceram. Soc. 2002, 85, 1333–1335. [Google Scholar] [CrossRef]
  17. Fu, X.; Clark, L.A.; Yang, Q.; Anderson, M.A. Enhanced photocatalytic performance of titania-based binary metal oxides: TiO2/SiO2 and TiO2/ZrO2. Environ. Sci. Technol. 1996, 30, 647–653. [Google Scholar] [CrossRef]
  18. Liu, Y.; Li, L.-L.; Li, Z.-X.; Fang, C.-J.; Duan, W.-T.; Li, X.-G.; Yan, C.-H. Highly ordered mesoporous titania-zirconia photocatalyst for applications in degradation of rhodamine-B and hydrogen evolution. Microporous Mesoporous Mat. 2009, 124, 169–178. [Google Scholar] [CrossRef]
  19. Sulym, I.; Goncharuk, O.; Sternik, D.; Skwarek, E.; Derylo-Marczewska, A.; Janusz, W.; Gun’ko, V.M. Silica-supported titania-zirconia nanocomposites: Structural and morphological characteristics in different media. Nanoscale Res. Lett. 2016, 11, 111–120. [Google Scholar] [CrossRef][Green Version]
  20. Reddy, B.M.; Khan, A. Recent advances on TiO2-ZrO2 mixed oxides as catalysts and catalyst supports. Catal. Rev. 2005, 47, 257–296. [Google Scholar] [CrossRef]
  21. Hachisuka, I.; Yoshida, T.; Ueno, H.; Takahashi, N.; Suda, A.; Sugiura, M. Improvement of NOx storage-reduction catalyst. SAE Tech. Paper 2002. [Google Scholar] [CrossRef]
  22. Kitiyanan, A.; Sakulkhaemaruethai, S.; Suzuki, Y.; Yoshikawa, S. Structural and photovoltaic properties of binary TiO2–ZrO2 oxides system prepared by sol–gel method. Compos. Sci. Technol. 2006, 66, 1259–1265. [Google Scholar] [CrossRef]
  23. Miao, X.; Sun, D.; Hoo, P.W.; Liu, J.; Hu, Y.; Chen, Y. Effect of titania addition on yttria-stabilised tetragonal zirconia ceramics sintered at high temperatures. Ceram. Int. 2004, 30, 1041–1047. [Google Scholar] [CrossRef]
  24. Biju, K.P.; Jain, M.K. Sol–gel derived TiO2:ZrO2 multilayer thin films for humidity sensing application. Sens. Actuators B Chem. 2008, 128, 407–413. [Google Scholar] [CrossRef]
  25. Piwonski, I.; Soliwoda, K.; Kisielewska, A.; Stanecka-Badura, R.; Kadziola, K. The effect of the surface nanostructure and composition on the antiwear properties of zirconia–titania coatings. Ceram. Int. 2013, 39, 1111–1123. [Google Scholar] [CrossRef]
  26. Sudhagar, P.; Nagarajan, S.; Mohana, M.; Raman, V.; Nishimura, T.; Kim, S.; Kang, Y.S.; Rajendran, N. Nanocomposite coatings on biomedical grade stainless steel for improved corrosion resistance and biocompatibility. Appl. Mater. Interf. 2012, 4, 5134–5141. [Google Scholar] [CrossRef]
  27. ISO 10289:2006 Methods for Corrosion Testing of Metallic and Other Inorganic Coatings on Metallic Substrates—Rating of Test Specimens and Manufactured Articles Subjected to Corrosion Tests; CP 401-1214; International Organization for Standardization: Geneva, Switzerland, 2006.
  28. ISO 9227:2017 Corrosion Tests in Artificial Atmospheres—Salt Spray Tests; CP 401-1214; International Organization for Standardization: Geneva, Switzerland, 2017.
  29. Tiwari, S.K.; Adhikary, J.; Singh, T.B.; Singh, R. Preparation and characterization of sol gel derived yttria doped zirconia coatings on AISI 316L. Thin Solid Film. 2009, 517, 4502–4508. [Google Scholar] [CrossRef]
  30. Bachvarova-Nedelcheva, A.; Yordanov, S.; Iordanova, R.; Stambolova, I. The solvent role on the hydrolysis-condensation processes and obtaining of TiO2 nanopowders. J. Chem. Technol. Metall. 2019, 54, 292–302. [Google Scholar]
  31. Marquez, M.E.; Picquart, M.; Bokhimi, X.; Lopez, T.; Quintana, P.; Coronado, J.M. X-ray diffraction and Raman scattering study of nanostructured ZrO2-TiO2 oxides prepared by sol gel. J. Nanosci. Nanotechnol. 2008, 8, 6623–6629. [Google Scholar] [CrossRef]
  32. Aust, U.; Benfer, S.; Dietze, M.; Rost, A.; Tomandi, G. Development of microporous ceramic membranes in the system TiO2/ZrO2. J. Membr. Sci. 2006, 281, 463–471. [Google Scholar] [CrossRef]
  33. Bu, A.; Wang, J.; Zhang, J.; Bai, J.; Shi, Z.; Liu, Q.; Ji, G. Corrosion behavior of ZrO2–TiO2 nanocomposite thin films coating on stainless steel through sol–gel method. J. Sol-Gel Sci. Technol. 2016, 81, 633–638. [Google Scholar] [CrossRef]
  34. Zou, H.; Lin, Y.S. Structural and surface chemical properties of sol–gel derived TiO2–ZrO2 oxides. Appl. Catal. A 2004, 265, 35–42. [Google Scholar] [CrossRef]
  35. Hu, M.; Payzant, Z.C.; Booth, E.A.; Rawn, K.R.; Hunt, R.D.; Allard, L.F. Ultrafine microsphere particles of zirconium titanate produced by homogeneous dielectric-tuning coprecipitation. J. Mater. Sci. 2003, 38, 3831–3844. [Google Scholar] [CrossRef]
  36. Georgieva, I.; Danchova, N.; Gutzov, S.; Trendafilova, I. DFT modeling, UV-Vis and IR spectroscopic study of acetylacetone-modified zirconia sol-gel materials. J. Mol. Model. 2012, 18, 2409–2422. [Google Scholar] [CrossRef] [PubMed]
  37. Taguchi, M.; Takami, C.; Adschiri, T.; Nakane, T.; Satoa, K.; Naka, T. Simple and rapid synthesis of ZrO2 nanoparticles from Zr(OEt)4 and Zr(OH)4 using a hydrothermal method. CrystEngComm 2012, 14, 2117–2123. [Google Scholar] [CrossRef]
  38. Velasco, M.J.; Rubio, F.; Rubio, J.; Oteo, J. Hydrolysis of titanium tetrabutoxide. Study by FT-IR spectroscopy. Spectr. Lett. 1999, 32, 289–304. [Google Scholar] [CrossRef]
  39. Das, V.K.; Das, S.; Thakur, A.J. Protection and deprotection chemistry catalyzed by zirconium oxychloride octahydrate (ZrOCl2·8H2O). Green Chem. Lett. Rev. 2012, 5, 577–586. [Google Scholar] [CrossRef][Green Version]
  40. Babiarczuk, B.; Szczurek, A.; Donesz-Sikorska, A.; Rutkowska, I.; Krzak, J. The influence of an acid catalyst on the morphology, wettabillity, adhesion and chemical structure properties of TiO2 and ZrO2 sol–gel thin films. J. Surf. Coat. Technol. 2016, 285, 134–145. [Google Scholar] [CrossRef]
  41. Fetisov, A.V.; Kozhina, G.A.; Estemirova, S.K.; Fetisov, V.B.; Gulyaeva, R.I. XPS study of the chemical stability of DyBa2C3O6+δ superconductor. Phys. C Supercond. 2015, 508, 62–68. [Google Scholar] [CrossRef][Green Version]
  42. Moulder, J.F.; Stickle, W.F.; Sobol, P.E.; Bomben, K.D. Handbook of X-ray Photoelectron Spectroscopy; Perkin-Elmer Corporation: Waltham, MA, USA, 1992. [Google Scholar]
  43. Bumajdad, A.; Nazeer, A.A.; Al Sagheer, F.; Zaki, M.I. Controlled Synthesis of ZrO2 nanoparticles with tailored size, morphology and crystal phases via organic/inorganic hybrid films. Sci. Rep. 2018, 8, 3695. [Google Scholar] [CrossRef] [PubMed][Green Version]
  44. Shi, Z.; Zhou, Z.; Shum, P.; Li, K.-Y.L. Thermal stability wettability and corrosion resistance of sputtered ceria films on 316 stainless steel. Appl. Surf. Sci. 2017, 477, 166–171. [Google Scholar] [CrossRef]
  45. Wang, P.; Zhang, D.; Qui, R.; Hou, B. Super-hydrophobic film prepared on zinc as corrosion barrier. Corr. Sci. 2011, 532080–532086. [Google Scholar] [CrossRef]
  46. Yu, D.; Tian, J. Super-hydrophobicity: It is really better than hydrophobicity on anti-corrosion? Colloids Surf. A 2014, 445, 75–78. [Google Scholar] [CrossRef]
  47. Huang, Q.; Yang, Y.; Hu, R.; Lin, C.; Sun, L.; Vogler, E.A. Reduced platelet adhesion and improved corrosion resistance of superhydrophobic TiO2-nanotube-coated 316L stainless steel. Colloids Surf. B 2015, 125, 134–141. [Google Scholar] [CrossRef]
  48. Li, W.; Li, D.Y. Influence of surface morphology on corrosion and electronic behavior. Acta Mater. 2006, 54, 445–452. [Google Scholar] [CrossRef]
  49. Zuo, Y.; Wang, H.; Xiong, J. The aspect ratio of surface grooves and metastable pitting of stainless steel. Corros. Sci. 2002, 44, 25–35. [Google Scholar] [CrossRef]
  50. Burstein, G.T.; Vines, S.P. Repetitive nucleation of corrosion pits on stainless steel and the effects of surface roughness. J. Electrochem. Soc. 2001, 148, B504. [Google Scholar] [CrossRef]
  51. Holgado, J.P.; Pérez-Sánchez, M.; Yubero, F.; Espinós, J.P.; González-Elipe, A.R. Corrosion resistant ZrO2 thin films prepared at room temperature by ion beam chemical vapor deposition. Surf. Coat. Technol. 2002, 151–152, 449–453. [Google Scholar] [CrossRef]
  52. Ghasemi, A.; Shahrabi, T.; Oskuie, A.A.; Hasannejad, H.; Sanjabi, S. Effect of heat treatment on corrosion properties of sol gel titania-ceria nanocomposite coatings. J. Alloys Compd. 2010, 504, 237–242. [Google Scholar] [CrossRef]
  53. Xueqing, W.; Changqing, X. Influence of crystallization on corrosion resistance on Al86Ni6La6Cu2 amorphous alloy. J. Rare Earth 2008, 26, 745–748. [Google Scholar] [CrossRef]

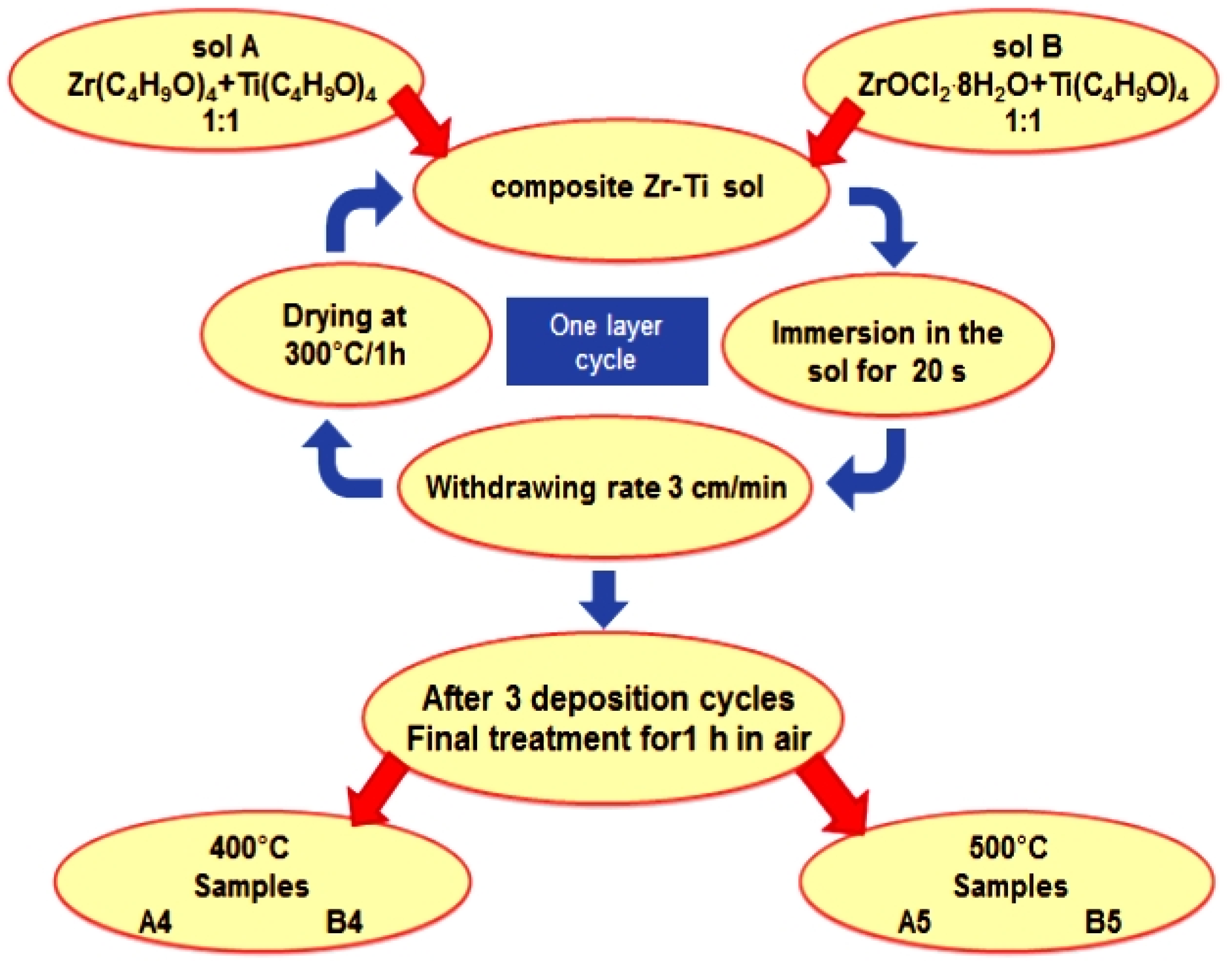

Figure 1. Experimental scheme for deposition of ZrO2–TiO2 coatings.
Figure 1. Experimental scheme for deposition of ZrO2–TiO2 coatings.
Coatings 11 00703 g001

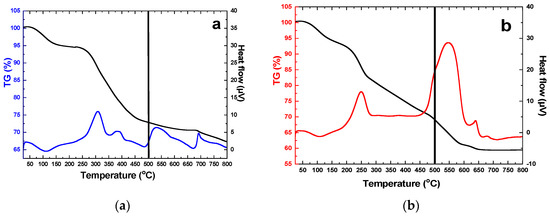

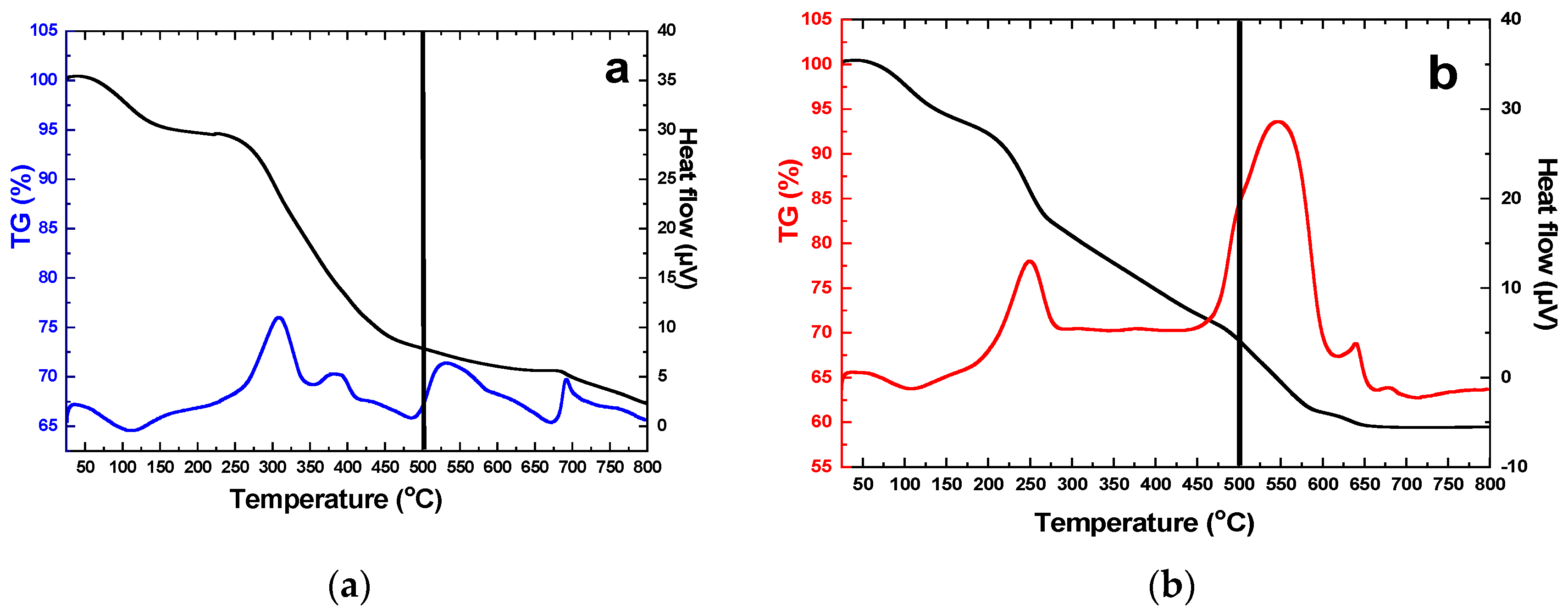

Figure 2. DTA/TG curves of the dried precursor mixtures A (a) and B (b).
Figure 2. DTA/TG curves of the dried precursor mixtures A (a) and B (b).
Coatings 11 00703 g002

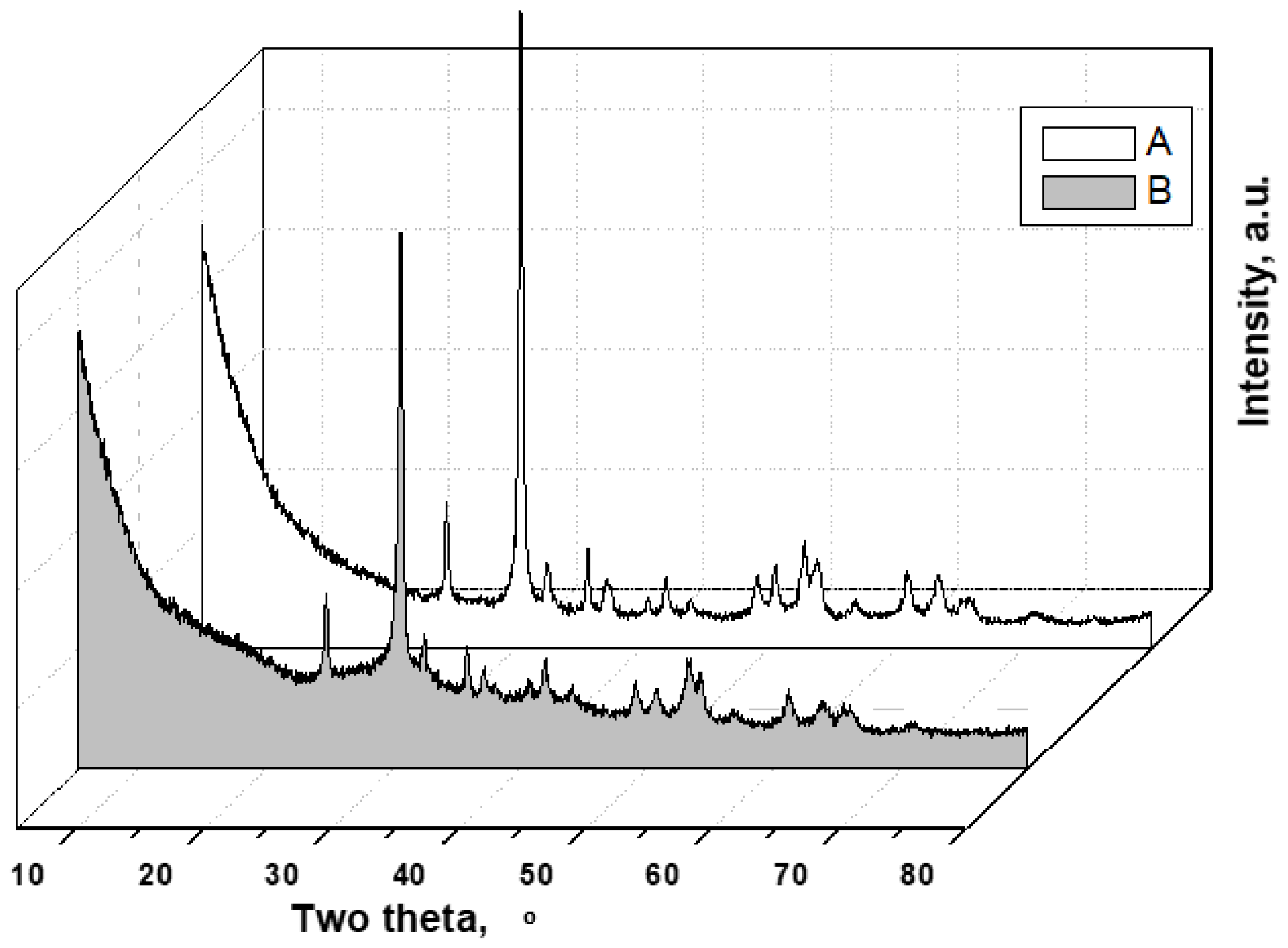

Figure 3. XRD patterns of precursor mixtures A and B, dried and treated at 800 °C.
Figure 3. XRD patterns of precursor mixtures A and B, dried and treated at 800 °C.
Coatings 11 00703 g003

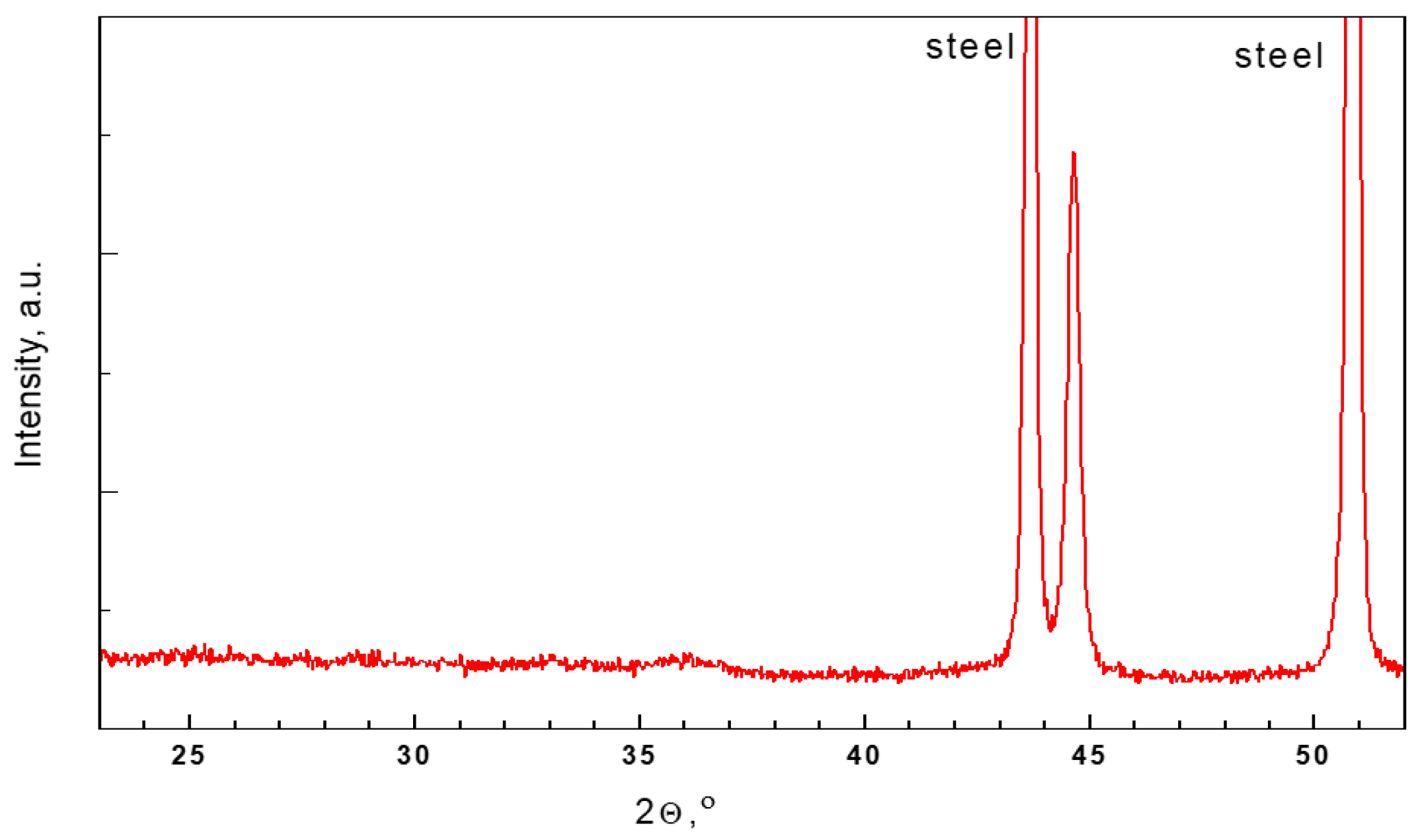

Figure 4. Typical XRD spectrum of freshly prepared ZrO2–TiO2 coating, treated at 500 °C (sample A5).
Figure 4. Typical XRD spectrum of freshly prepared ZrO2–TiO2 coating, treated at 500 °C (sample A5).
Coatings 11 00703 g004

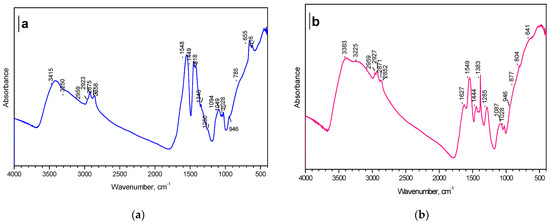

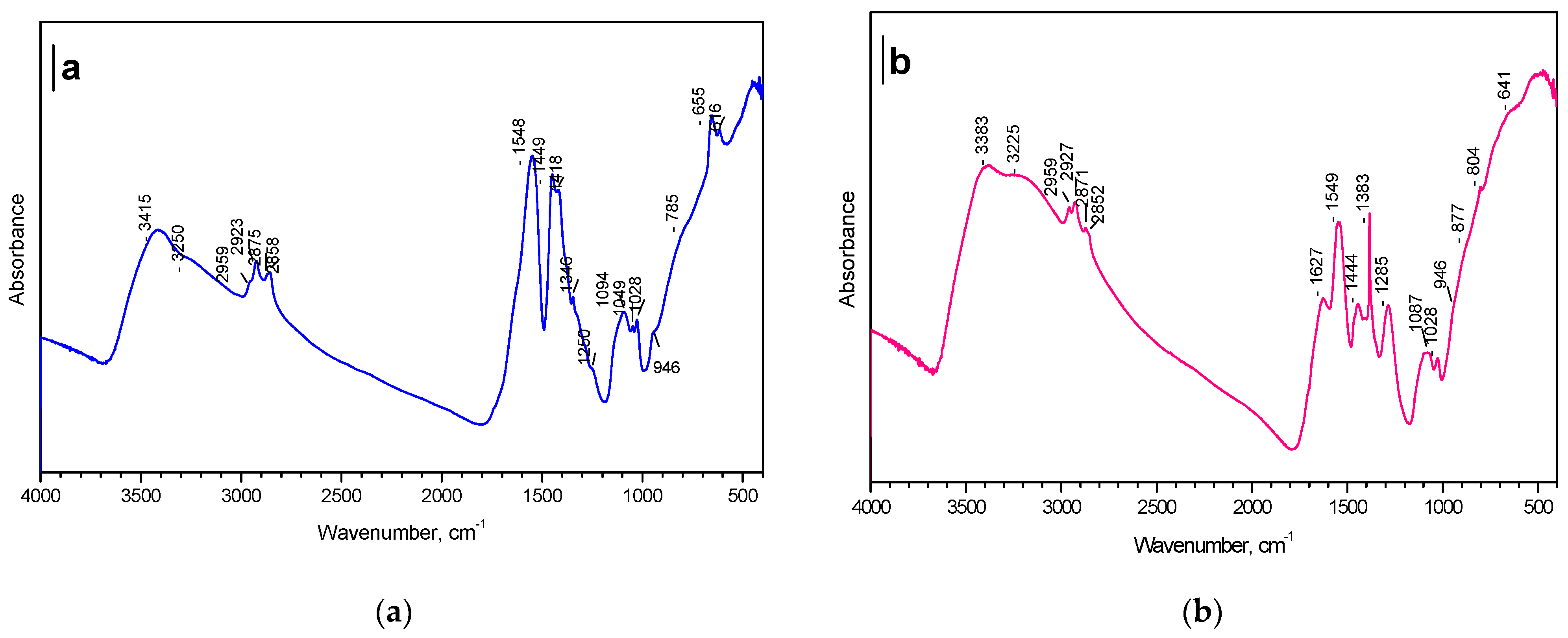

Figure 5. IR spectra of the dried precursor solutions A (a) and B (b).
Figure 5. IR spectra of the dried precursor solutions A (a) and B (b).
Coatings 11 00703 g005

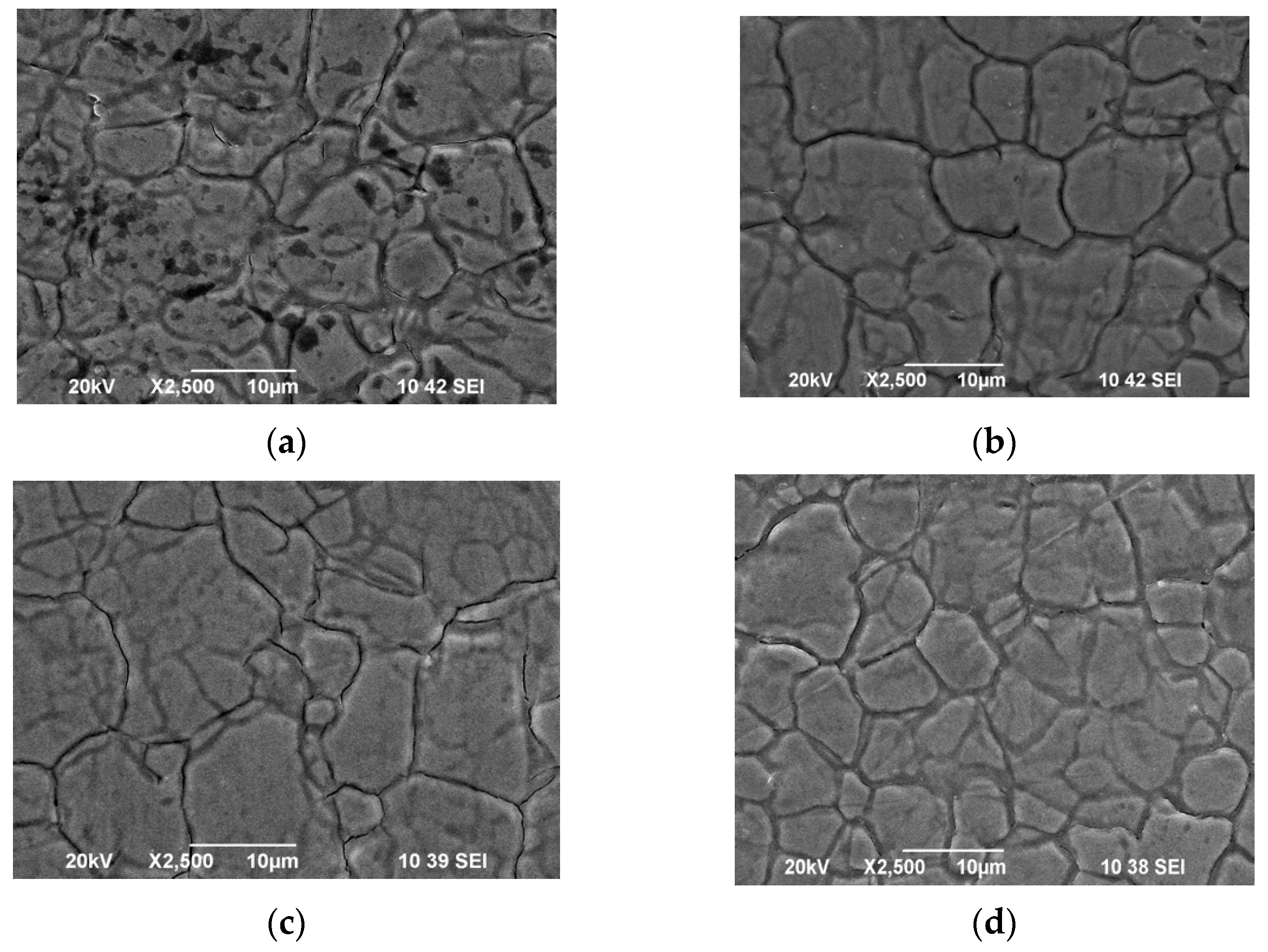

Figure 6. Typical SEM morphology of A4 (a), B4 (b), A5 (c) and B5 (d) fresh coatings.
Figure 6. Typical SEM morphology of A4 (a), B4 (b), A5 (c) and B5 (d) fresh coatings.
Coatings 11 00703 g006

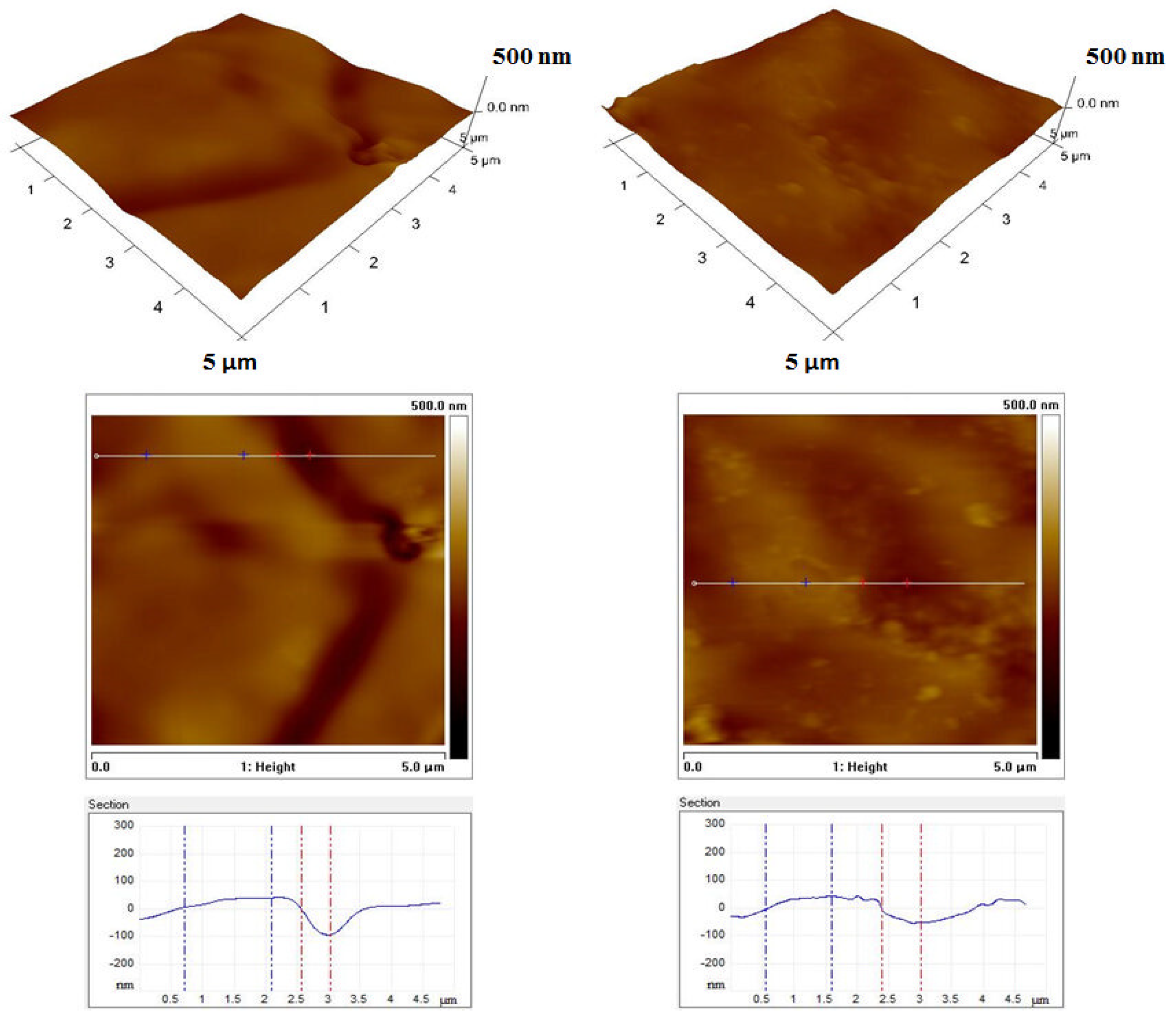

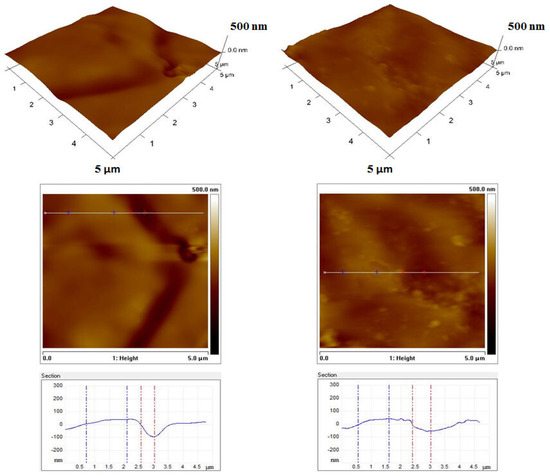

Figure 7. 3D topography of sample A4: fresh (left) and after corrosion attack (right).
Figure 7. 3D topography of sample A4: fresh (left) and after corrosion attack (right).
Coatings 11 00703 g007

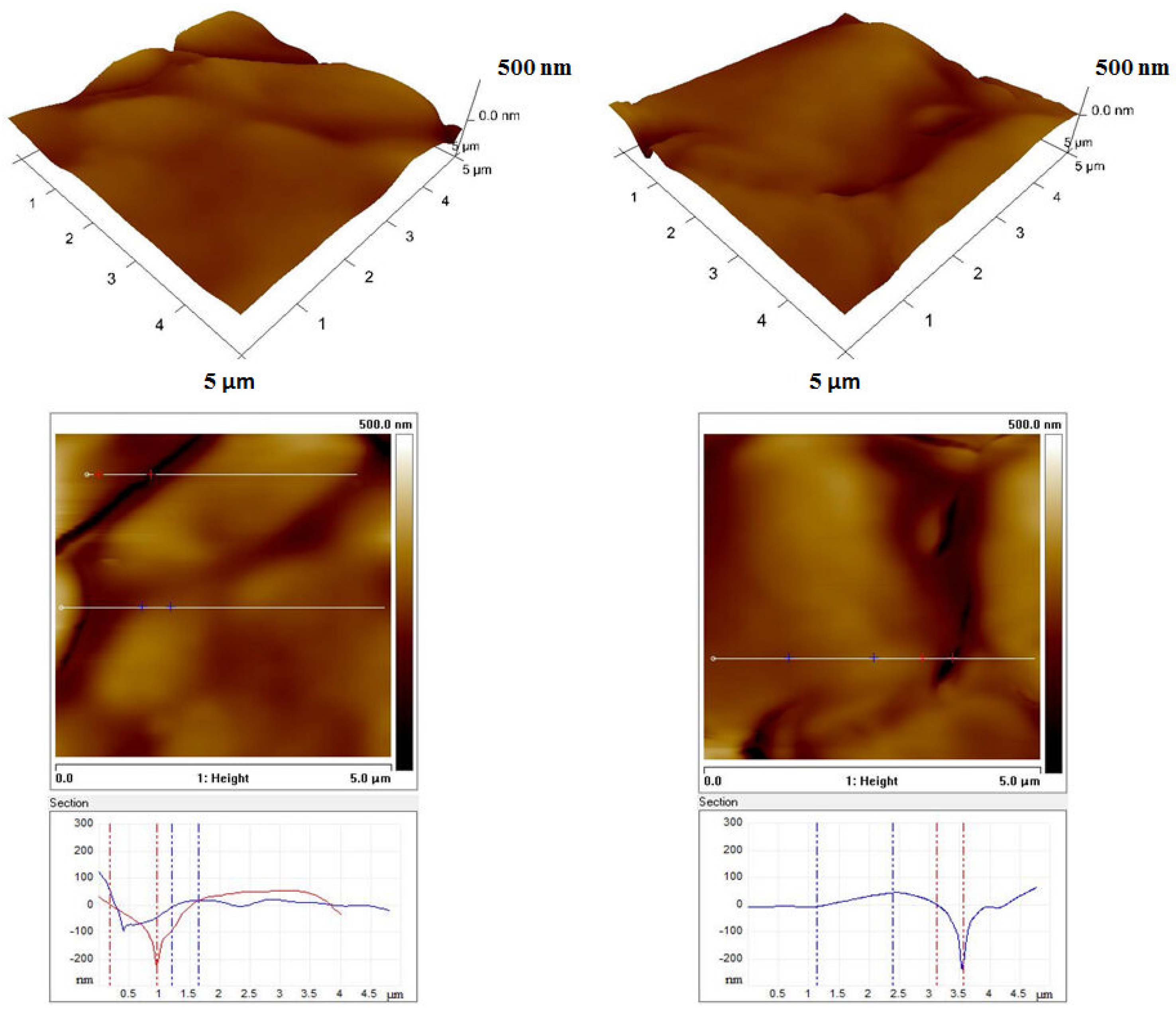

Figure 8. 3D morphology of sample A5: fresh (left) and after corrosion attack (right).
Figure 8. 3D morphology of sample A5: fresh (left) and after corrosion attack (right).
Coatings 11 00703 g008

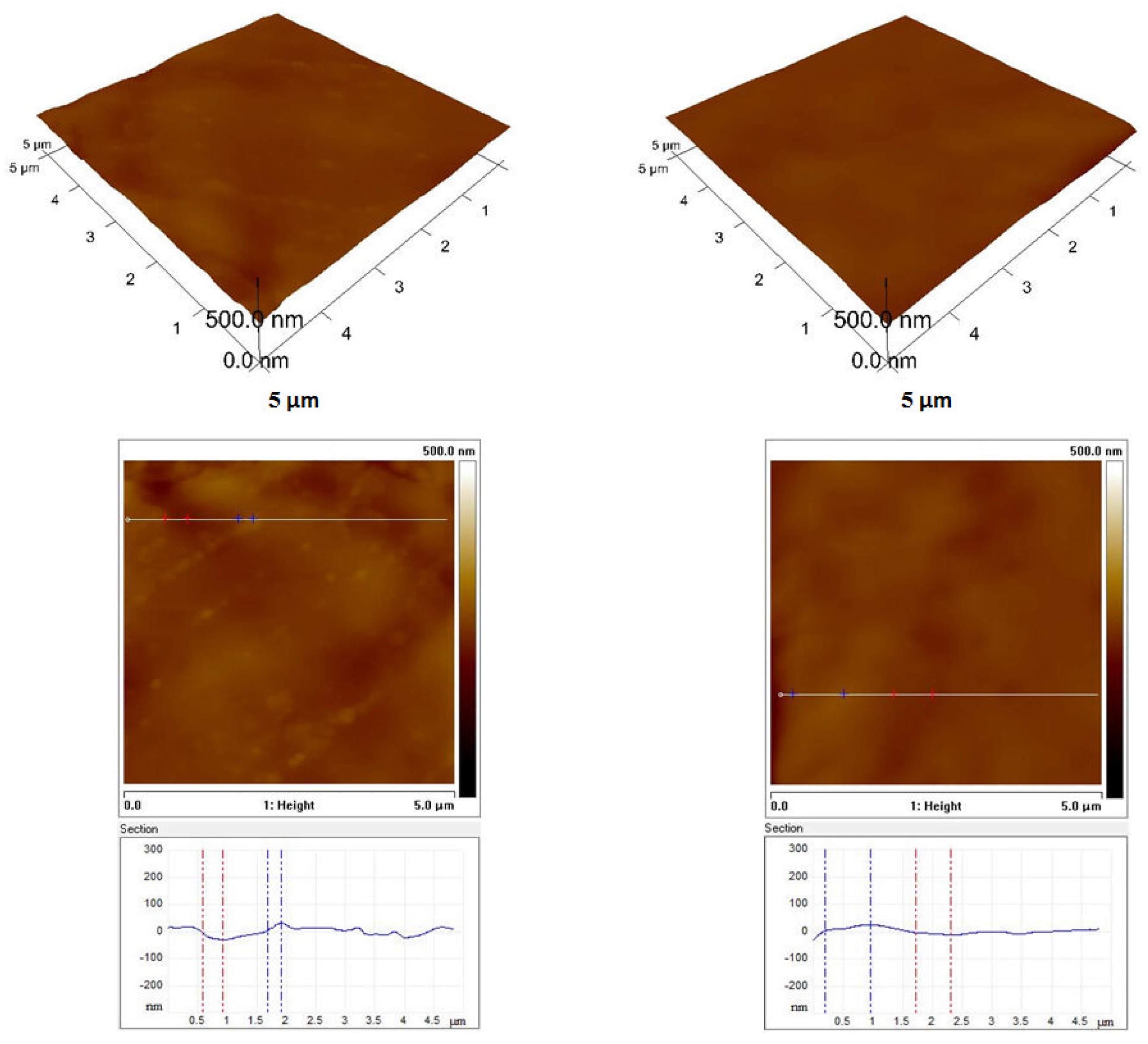

Figure 9. 3D morphology of sample B4: fresh (left) and after corrosive attack (right).
Figure 9. 3D morphology of sample B4: fresh (left) and after corrosive attack (right).
Coatings 11 00703 g009

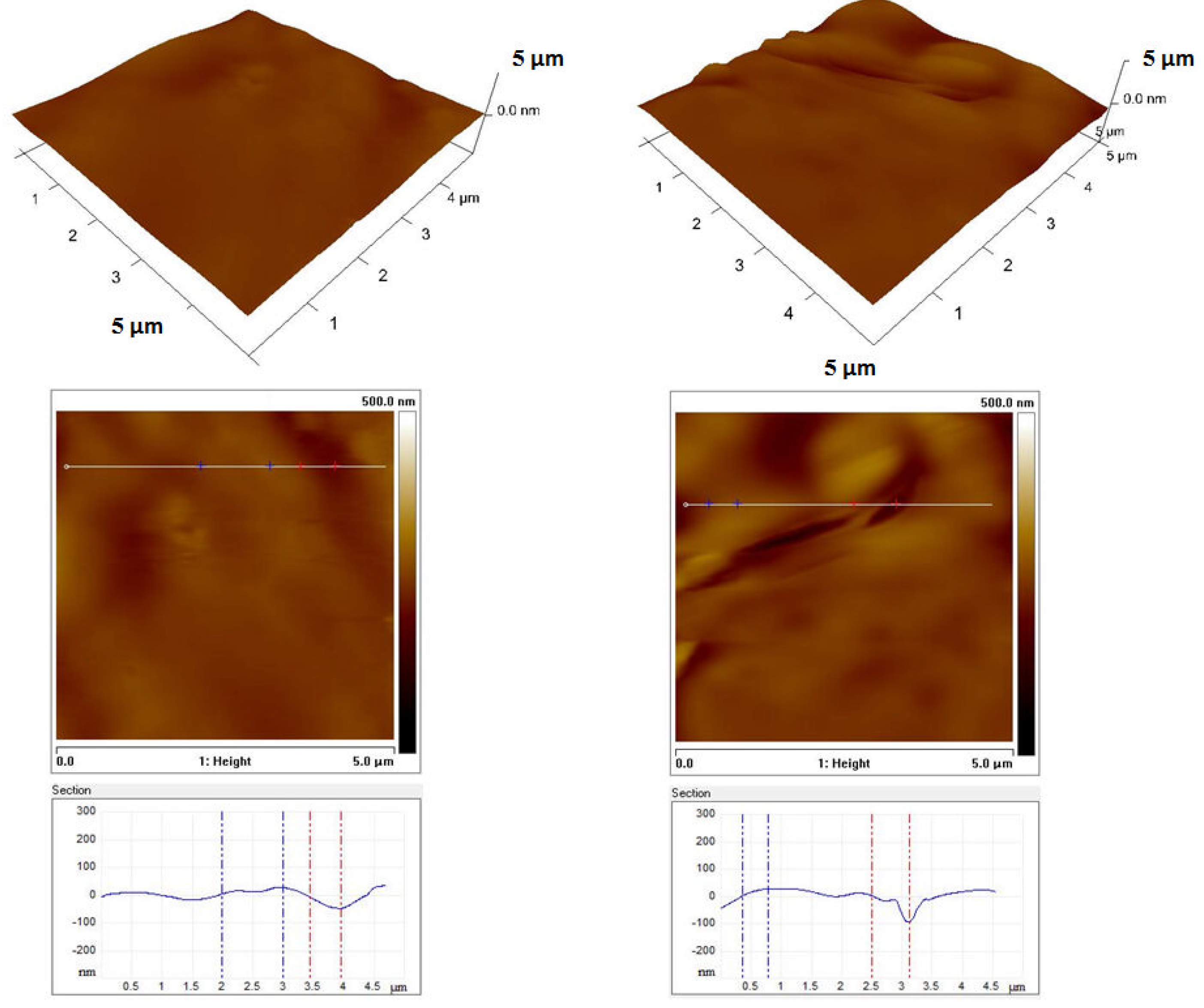

Figure 10. 3D morphology of sample B5: fresh (left) and after corrosive attack (right).
Figure 10. 3D morphology of sample B5: fresh (left) and after corrosive attack (right).
Coatings 11 00703 g010

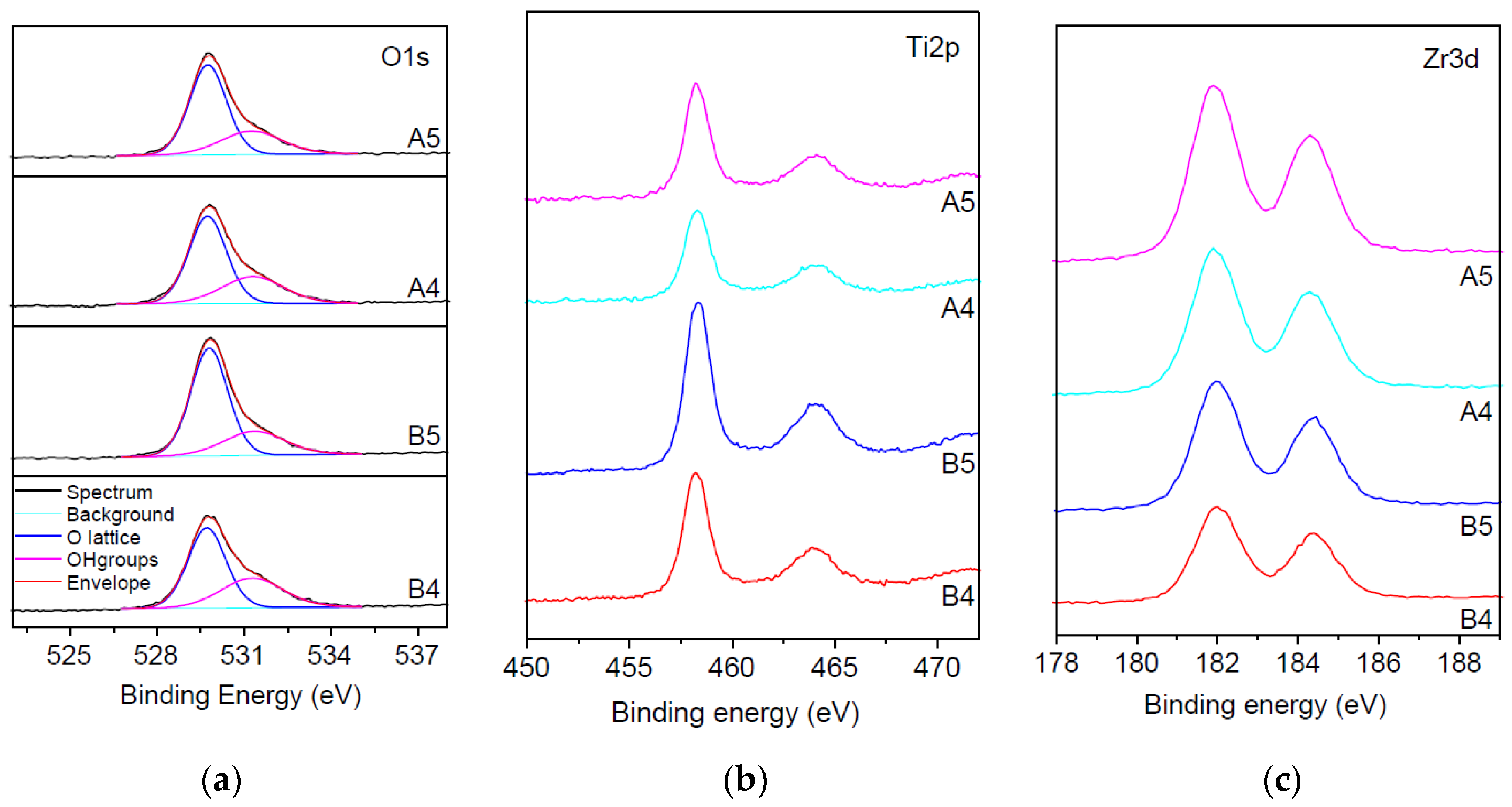

Figure 11. Deconvolution of O1s spectra (a) and core level spectra of Ti2p (b) and Zr3d (c) of ZrO2–TiO2 films.
Figure 11. Deconvolution of O1s spectra (a) and core level spectra of Ti2p (b) and Zr3d (c) of ZrO2–TiO2 films.
Coatings 11 00703 g011
Figure 12. (a) Photographs of the water drops on the surface of ZrO2–TiO2 coatings; (b) Effect of contact angle on the weight loss of the samples.
Figure 12. (a) Photographs of the water drops on the surface of ZrO2–TiO2 coatings; (b) Effect of contact angle on the weight loss of the samples.
Coatings 11 00703 g012

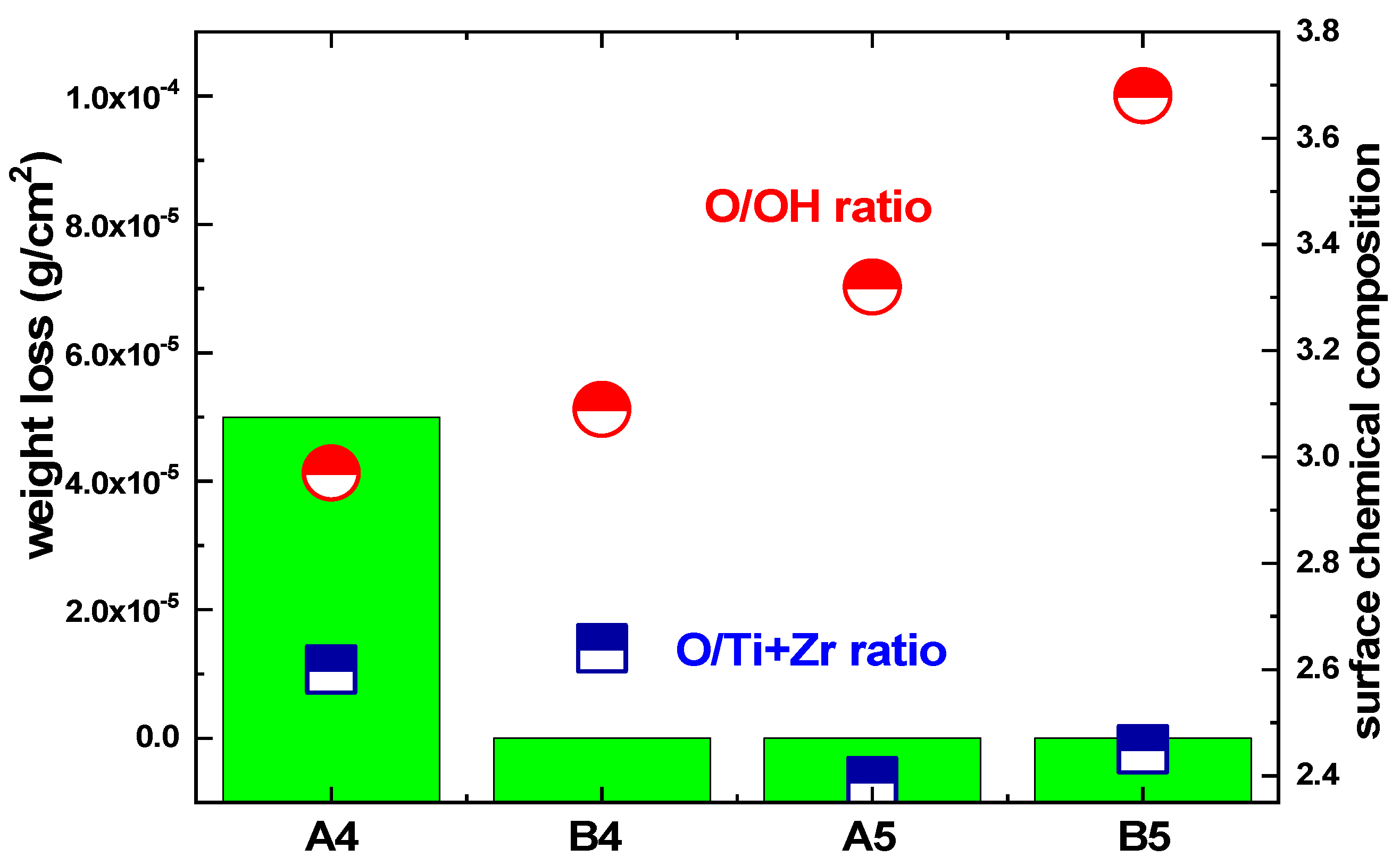

Figure 13. Correlation between weight loss and surface chemical composition, evaluated by XPS analyses.
Figure 13. Correlation between weight loss and surface chemical composition, evaluated by XPS analyses.
Coatings 11 00703 g013

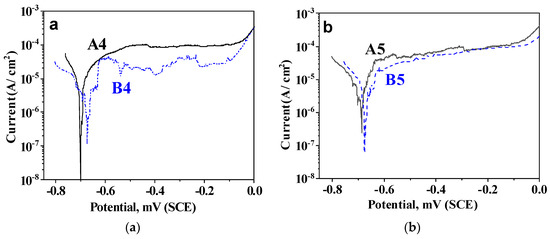

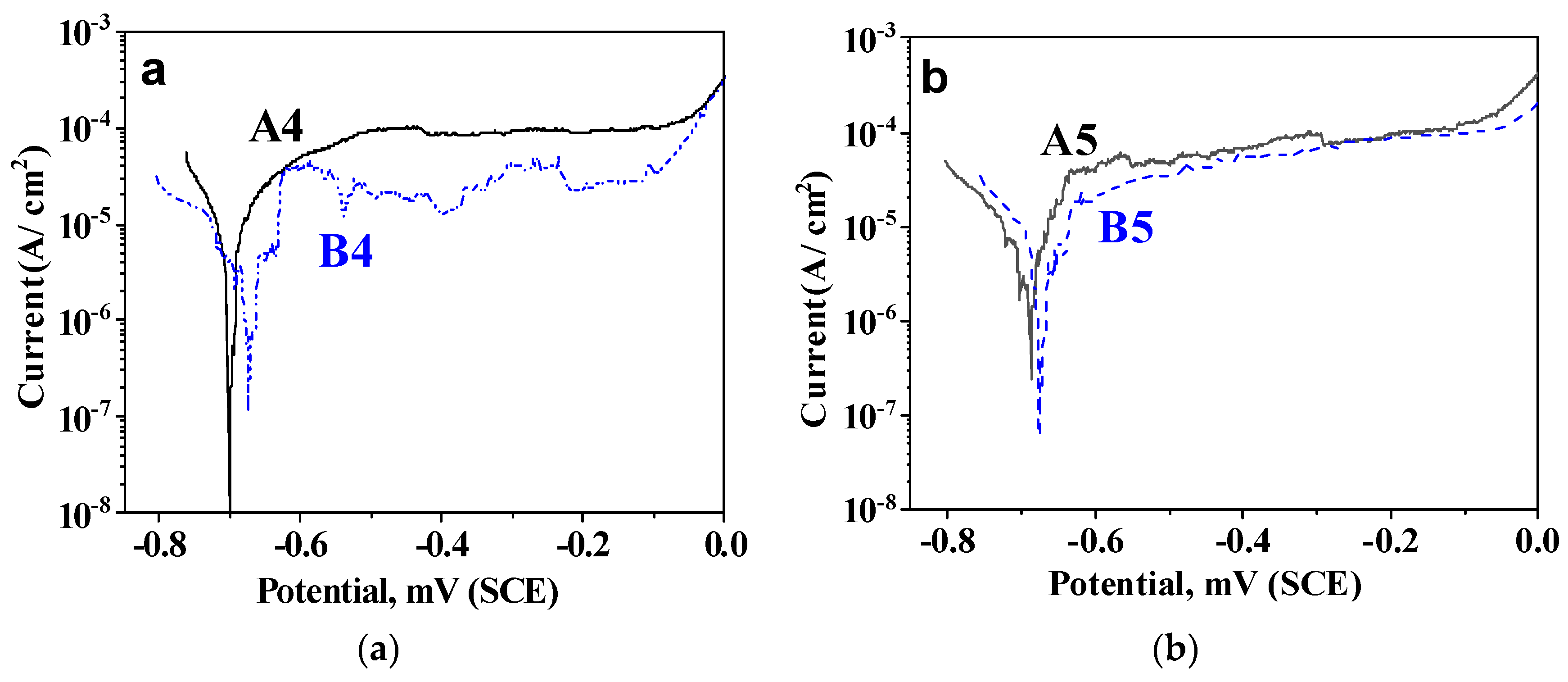

Figure 14. PD polarization curves in a model medium of 3.5 wt.% NaCl solution: A4 and B4 coatings (a); A5 and B5 coatings (b).
Figure 14. PD polarization curves in a model medium of 3.5 wt.% NaCl solution: A4 and B4 coatings (a); A5 and B5 coatings (b).
Coatings 11 00703 g014
Table 1. Roughness values of the ZrO2–TiO2 coatings: fresh coatings and after immersing them in corrosive chloride media.
Table 1. Roughness values of the ZrO2–TiO2 coatings: fresh coatings and after immersing them in corrosive chloride media.
SampleRq (nm)Ra (nm)
A4 fresh31.023.2
A4 after22.218.4
B4 fresh12.810.1
B4 after9.56.7
A5 fresh49.035.7
A5 after51.439.6
B5 fresh15.211.3
B5 after26.418.2
Table 2. Electrochemical parameters according to the PD polarization curves.
Table 2. Electrochemical parameters according to the PD polarization curves.
SampleEcorr (V)Icorr (A/cm2)Ipass (A/cm2)
A4–7007.0 × 10−69.5 × 10−5
B4–6742.5 × 10−63.8 × 10−5
A5–6853.8 × 10−69.4 × 10−5
B5–6754.1 × 10−66.7 × 10−5
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Stambolova, I.; Stoyanova, D.; Shipochka, M.; Boshkova, N.; Eliyas, A.; Simeonova, S.; Grozev, N.; Boshkov, N. Surface Morphological and Chemical Features of Anticorrosion ZrO2–TiO2 Coatings: Impact of Zirconium Precursor. Coatings 2021, 11, 703.

AMA Style

Stambolova I, Stoyanova D, Shipochka M, Boshkova N, Eliyas A, Simeonova S, Grozev N, Boshkov N. Surface Morphological and Chemical Features of Anticorrosion ZrO2–TiO2 Coatings: Impact of Zirconium Precursor. Coatings. 2021; 11(6):703.

Chicago/Turabian Style

Stambolova, Irina, Daniela Stoyanova, Maria Shipochka, Nelly Boshkova, Alexander Eliyas, Silviya Simeonova, Nikolay Grozev, and Nikolai Boshkov. 2021. "Surface Morphological and Chemical Features of Anticorrosion ZrO2–TiO2 Coatings: Impact of Zirconium Precursor" Coatings 11, no. 6: 703.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
