Properties of Spark Plasma Sintered Compacts and Magnetron Sputtered Coatings Made from Cr, Mo, Re and Zr Alloyed Tungsten Diboride

Abstract

To enhance the properties of tungsten diboride, we have synthesized and characterized solid solutions of this material with chromium, molybdenum, rhenium and zirconium. The obtained materials were subsequently deposited as coatings. Various concentrations of these transition metal elements, ranging from 0.0 to 24.0 at.%, on a metals basis, were made. Spark plasma sintering was used to synthesize these refractory compounds from the pure elements. Elemental and phase purity of both samples (sintered compacts and coatings) were examined using energy dispersive X-ray spectroscopy and X-ray diffraction. Microindentation was utilized to measure the Vickers hardness. X-ray diffraction results indicate that the solubility limit is below 8 at.% for Mo, Re and Zr and below 16 at.% for Cr. Above this limit both diborides (W,TM)B₂ are created. Addition of transition metals caused decrease of density and increase of hardness and electrical conductivity of sintered compacts. Deposited coatings W_1−xTM_xB_y (TM = Cr, Mo, Re, Zr; x = 0.2; y = 1.7–2) are homogenous, smooth and hard. The maximal hardness was measured for W-Cr-B films and under the load of 10 g was 50.4 ± 4.7 GPa. Deposited films possess relatively high fracture toughness and for WB₂ coatings alloyed with zirconium it is K_1c = 2.11 MPa m^1/2.

1. Introduction

Nowadays the rise of a broad class of compounds comprising heavy transition metal (TM) and light-element atoms, like nitrides, carbides, and borides can be seen. Such compounds possess excellent mechanical properties such as high hardness and high wear resistance, refractory properties and also good thermal and electrical conductivity resulting from the concurrently high valence electron density and strong covalent bonding in these compounds [1,2]. These advanced ceramics can find applications in key technological fields, including cutting and drilling tools, wear resistant coatings, and engine components [3,4]. However, a major challenge remains in that the applications are to produce reliable tool components made of these materials in a relatively simple and time-consuming manner. This challenge is partly resolved by deposition of thin films [5,6,7,8] developing easily machinable materials [3] or new methods of sintering [9]. For better electro machining the good electrical conductivity is needed. Among such compounds, tungsten diborides (WB₂) alloyed with other TM are especially promising for their very high hardness accompanied with increased toughness and good electrical conductivity [10,11]. The theoretical studies have showed that WB₂ doped by TM can possess the very high hardness above 40 GPa [1,5].

One of best candidates of WB₂ alloying is rhenium (Re). Diboride of this metal is superhard and can crystalize in similar to WB₂ hexagonal AlB₂-type structure [12]. The addition of rhenium into the WB₄ and W₂B₅ phases have been reported by Mohammadi et al. [13] and by Feng et al. [14]. With the addition of 1 at.% Re, the Vickers microhardness increased to approximately 50 GPa at 0.49 N. Obtained tungsten tetraboride (WB₄) with 1 at.% Re admixture is thermally stable up to approximately 400 °C in air. In the case of Re alloyed W₂B₅ theoretical studies showed that W_1.5Re_0.5B₅ and W_0.5Re_1.5B₅ are energetically and thermodynamically stable. The calculated hardness of W₂B₅ and W_0.5Re_1.5B₅ was 16.11 and 17.91 GPa, respectively. On the other hand, ReB₂ alloyed by tungsten was studied experimentally by Lech et al. [15]. The solid solutions of tungsten in ReB₂ have been successfully synthesized by using an electric-arc furnace. The solubility limit for tungsten in ReB₂ is nearly 48 at.%, which indicates a very high degree of solubility. The studies showed also that ReB₂ structured compounds are superhard and may warrant further studies into additional solid solutions or ternary compounds taking this structure type. By using first-principles calculations, the structure and elastic properties of Re_xW_1−xB₂ alloys (x = 0.1–0.9) with the ReB₂ like structure were studied by Yufei Tu et al. [16]. It was found that Re_0.4W_0.6B₂ has both high bulk modulus (360 GPa) and high shear modulus (291 GPa). The authors show that there is a pseudogap at the Fermi level, which indicates that the Re_0.4W_0.6B₂ is stable. The superior elastic property suggests the Re_0.4W_0.6B₂ is desired as a potential hard material. Shaw [10] showed that addition of molybdenum (Mo) to WB₂ significantly improves wear resistance. The formation of WB₂ and MoB₂ hard phases with AlB₂-type structure is most likely the reason for the very low wear volume. In this case, the wear volume decreases from 1.00 × 10⁷ (WB₂) to 3.22 × 10⁶ μm³ for WB₂–MoB₂ binary compound. Additionally, corrosion resistance of WB₂ ceramic was improved. In the case of alloying with zirconium (Zr) [9], the spark plasma sintered compacts are characterized by a specific wear rate in the range of 1 × 10⁻⁶–3 × 10⁻⁵ mm³/Nm. The friction and wear test results reveal the formation of a boron-based film which seems to play the role of solid lubricant. This effect demonstrates the possibility to use sintered W-Zr-B materials to make machining tools and various components work in harsh conditions. With an increasing zirconium content, the electrical conductivity of the SPSed specimens increased both in W_1−xZr_xB_4.5 and W_1−xZr_xB_4.5 (0 < x ≤ 0.24). W_0.76Zr_0.24B_2.5 sintered at a 24 min holding time is characterized by the highest electrical conductivity of 3.961 × 10⁶ S/m, which is similar to the electrical conductivity of WC-Co cemented carbides [9]. In the case WB₄ alloyed with chromium (Cr), Mohammadi et al. [13] showed that addition of 10 at.% Cr on a metals basis results in an increase in microhardness (at 0.49 N) from 43.3 ± 2.9 GPa for pure WB₄ to 53.5 ± 1.9 GPa and the defect structure of this material may be responsible for the hardening trends observed for the solid solutions.

As it was shown by Garbiec et al. [9], it is possible to synthesize in one stage fast process the W_1−xZr_xB₂ ceramic with properties competitive to the widely used WC-4Co sintered compacts. Additionally, until now there has been no information about the use of WB_x alloyed by Re, Mo, Cr, Zr as a coatings deposited by magnetron sputtering (MS). However, addition of other transition metals such as tantalum (Ta) [11] or titanium (Ti) [6,17] to α-WB₂ lattice can cause combining of high strength with high fracture toughness in deposited coatings. Deposited films are superhard (H > 40 GPa) and in the case of tantalum can exhibit fracture toughness K_1c values of 3.7 to 3.0 MPa∙m^1/2 for increasing Ta content (single-phased up to 26 at.% Ta) [11]. Psiuk et al. [18] studied W-Zr-B coatings deposited by a hybrid process combining pulsed laser deposition of ZrB₂ and radio frequency magnetron sputtering of W₂B₅. Deposited films with ≈1% atomic content of Zr were superhard (H = 40 ± 4 GPa) and incompressible (R_s = 12 ± 1 GPa) but possessed a relatively low Young’s modulus (E = 330 ± 32 GPa) and a high elastic recovery (W_e = 0.9). The above promising results suggest the need for further research.

Currently, there are only two commercially relevant superhard materials: diamond and cubic boron nitride [3]. Although diamond can be used to cut through rock, it cannot be used to cut steel due to a chemical reaction that forms iron carbide. Instead, cubic boron nitride is used to cut and mill ferrous metals. In some ways, it is remarkable that humanity has achieved so much in terms of industrial machining, drilling, and polishing, relying on just two high-end compositions. In this work novel materials in the form of compacts and protective coatings are presented. As it is shown in the above literature and on the basis of our research it can be concluded that alloyed WB₂ with Cr, Mo, Re or Zr can be competitive to widely used WC-Co. Proposed materials possess greater hardness and 20% lower density than WC. The alloying with transition metals additionally improves elastic and conductive properties of these materials. Because WC is quite brittle, binders such as cobalt are currently added to improve ductility, but such addition comes at the expense of hardness and additionally Co is toxic. The materials proposed by us may in the future replace tungsten carbide and may find many industrial applications, such as high-performance cutting tools and wear-protective coatings. In addition, W-TM-B coatings were investigated due to their excellent mechanical properties, i.e., very high hardness and relatively low Young’s modulus, which make them competitive to commercial protective TiN coatings [11].

In this article the synthesis of novel materials by spark plasma sintering and the possibility of subsequent using of compacts as a source for deposition of hard coatings with improved crack resistivity is presented. Till now there is no information about properties of WB₂ SPSed compacts and deposited by magnetron sputtering method coatings doped by chromium, molybdenum, rhenium and zirconium.

The aim of this work is to investigate and compare the influence of Re, Mo, Cr and Zr dopants on the microstructure, mechanical properties and electrical conductivity of WB₂ ceramics sintered by SPS method technique and explore the possibility of using them for deposition of functional coatings with magnetron sputtering method.

2. Material and Methods

2.1. Spark Plasma Sintering

Tungsten (purity: 99.9%, APS: 25 µm), zirconium (purity: 99.8%, APS: 250–350 µm), molybdenum (purity: 99.9%, APS: <10 µm), rhenium (purity: 99.8%, APS: 20 µm), chromium (purity: 99%, APS: <5 µm) and amorphous boron (purity: 95%, APS: 1 µm) powders were mixed for 30 min using a Turbula T2F shaker-mixer (WAB, Muttenz, Switzerland) in the compositions presented in

Table 1. Weight content of tungsten, transition metals (chromium, molybdenum, rhenium, zirconium) and boron in W-TM-B powder mixtures.

Material Composition	Tungsten, (g)	TM, (g)	Boron, (g)
WB2.5	12.202	-	1.795
W0.92Cr0.08B2.5	11.817	0.291	1.890
W0.84Cr0.16B2.5	11.389	0.614	1.995
W0.76Cr0.24B2.5	10.911	0.975	2.112
W0.92Mo0.08B2.5	11.613	0.527	1.857
W0.84Mo0.16B2.5	10.982	1.092	1.924
W0.76Mo0.24B2.5	10.305	1.698	1.995
W0.92Re0.08B2.5	11.216	0.988	1.794
W0.84Re0.16B2.5	10.232	1.974	1.792
W0.76Re0.24B2.5	9.249	2.958	1.791
W0.92Zr0.08B2.5	11.635	0.502	1.861
W0.84Zr0.16B2.5	11.025	1.042	1.931
W0.76Zr0.24B2.5	10.366	1.624	2.007

. The obtained powder mixtures were SPSed in vacuum using an HP D 25/3 (FCT Systeme, Frankenblick, Germany) furnace. The SPS process parameters are listed in

Table 2. Spark plasma sintering process parameters of W/B and W/Zr/B powder mixtures.

Material Composition	Sintering Temperature, °C	Heating Rate, °C/min	Holding Time, min	Compacting Pressure, MPa
W1−xTMxB2.5	1800	400	24	50

. Samples with a diameter of 25.4 mm and thickness of ≈3.5 mm were produced.

Optimal sintering parameters were selected on the basis of [9], where the influence of the holding time (2.5–30 min), sintering temperature and compacting pressure on the densification behavior, microstructure evolution and development of the properties of W-Zr-B compounds were studied. An example of sintering curves (chromium) is presented in Figure 1. It is clearly seen that the densification process is complete and after 24 min the displacement of punch is nearly constant.

2.2. Radio Frequency Magnetron Sputtering (RF-MS)

W-TM-B (where TM = Cr, Mo, Re, Zr) films were deposited by RF magnetron sputtering on Si (100) plates. The substrates were cleaned with subsequent rinses in acetone, alcohol and deionized water. Each of the substrates was mounted on a rotating substrate holder and heated to 520 °C. Heating was performed for better layer-to-substrate adhesion [19].

The deposition was performed in a vacuum chamber pumped (PREVAC, Rogów, Poland) to residual pressure of 10⁻³ Pa and then filled with argon to a working pressure of 0.9 Pa. The argon flow was 19 mL/min and it was adjusted with a mass flow controller. For deposition the W_0.76TM_0.24B_2.5 targets were chosen because of the best properties of coatings obtained from target with titanium dopant [6]. The water-cooled W-TM-B targets were mounted in the 1″ magnetron source (Kurt J. Lesker TORUS Magnetron Sputtering Cathode, Jefferson Hills, PA, USA) and positioned at a distance of 40 mm from the substrate. The RF sputtering power was 60 W. The bias potential on the substrate was floating. Pre-sputtering of the target was carried out for 5 min prior to each deposition. Then, the substrate holder was positioned next to the magnetron. The deposition time was 120 min. The deposition conditions were chosen due to the best mechanical and tribological properties of films presented in [6].

2.3. Characterization

The density of the SPSed samples was measured using the Archimedes method according to the ISO 18754: 2013 standard using an EX 2225DM (Ohaus, Parsippany, NJ, USA) laboratory scale with a resolution of 0.00001 g. The phase composition of the samples was examined by X-ray diffraction (XRD) with a D8 Discover (Bruker, Billerica, MA, USA) using CuK_α radiation (λ = 1.5418 Å). Microscopic observations of the microstructure and elemental microanalysis to study the elemental distribution of tungsten, zirconium and boron in the investigated samples were performed using a JSM6010PLUS/LV (JEOL, Tokyo, Japan) scanning electron microscope (SEM) equipped with an energy-dispersive X-ray spectroscope (EDS). Accelerating voltage 10 kV was used. For sintered compacts, Vickers hardness measurements were performed using Wilson VH1102 microhardness tester (Buehler, Lake Bluff, IL, USA). Load of 200 gf was used to measure hardness of targets and loads of 10, 25, 50 g were used to measure hardness of deposited coatings; 10 indentations on each sample were performed. For lower loads, a laser confocal microscope VK-X100 (Keyence, Osaka, Japan) was used to measure the indents. Vickers hardness was recalculated to account the influence of substrate by using Equation (1) [20].

$$H_c=H_s+\left[2C\frac{t}{D}-C^2{\left(\frac{t}{D}\right)}^2\right]\left(H_f-H_s\right)$$

(1)

where: H_c is the measured Vickers hardness of deposited composite bilayer, H_s is the hardness of silicon substrate, C = 2sin²(f/2), f is the angle of the tip sides with the surface (f = 22° for Vickers intender), t is the film thickness, D is the indentation depth (basing on indent diameter and ideal geometry of indenter) and H_f is the hardness of the film. Palmqvist method [21] was used to analyze changes in fracture toughness (K_1c). For each coating, based on a group of 10 indentations, the value of crack l, from the corner of the indent to end of crack, was determined. Equation (2) was used to evaluate the fracture toughness of deposited coatings.

$$K_{IC}=0.0028\times \sqrt{HV}\times \sqrt{\frac{P}{T}}$$

(2)

where: K_1c is fracture toughness (MPa m^1/2), HV is Vickers hardness in N/mm² (or MPa), P is the load (N) and T is total crack length (mm) measured from each corner of the indent (4 × l). The electrical conductivity was measured according to the ASTM E1004 standard using a Sigma Check (Ether NDE, St Albans, UK) eddy current conductivity meter.

3. Results and Discussion

3.1. Targets

3.1.1. Density

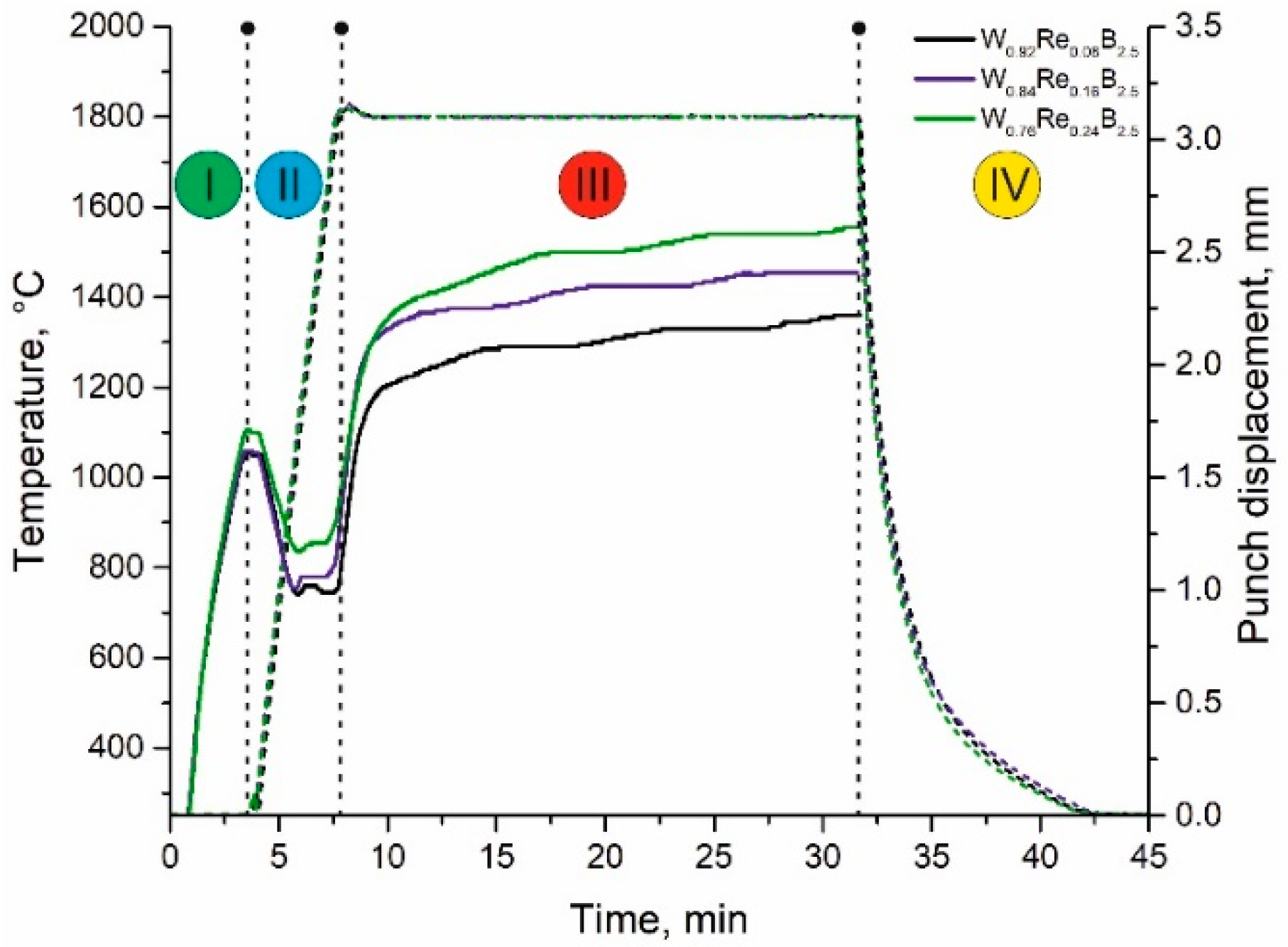

The densification behavior of the powder mixtures during the SPS process (see Figure 1) was analyzed based on the upper punch displacement registered with resolution of 0.01 mm during the compacting (I), heating (II), holding (III) and cooling (IV) stage. Regardless of the dopant, the profile of the sintering curves is similar. In the stage (I), when the powder mixtures are compacted, this punch moved by ≈1.6–1.7 mm in positive (+) direction. At the end of the compacting stage, when the compacting pressure of 50 MPa was reached, the powder mixtures were heated from the ambient temperature to 1800 °C with heating rate of 400 °C/min (stage (II)). At the beginning of this stage, due to the thermal expansion of the graphite tool setup, punch displacement in negative (−) direction is clearly seen. As the temperature increases, this effect is compensated by the further densification of the powder mixtures. When sintering temperature of 1800 °C is reached, further densification is also clearly seen in the upper punch displacement in positive direction. In Figure 1 it is clearly seen that sintering for 2.5 min is not enough to complete the densification process and sintered compacts with open porosity were obtained. The minimum holding time required to obtained near full dense sintered compacts is 8 min and a couple of seconds before this time the plateau of the sintering curves is clearly seen. This means that sintering is completed under certain conditions. Nevertheless, a further increase in the holding time (up to 15.5 min) resulted in further upper punch movement. This is related to the reactive sintering and creation of diborides from pure elements resulted in an increase in the density of the sintered body and finished between 14 and 15 min without any further densification (plateau of curves). Increasing the holding time to 30 min does not cause significant changes in densification of the samples. The dependence of density on composition change is presented in Figure 2.

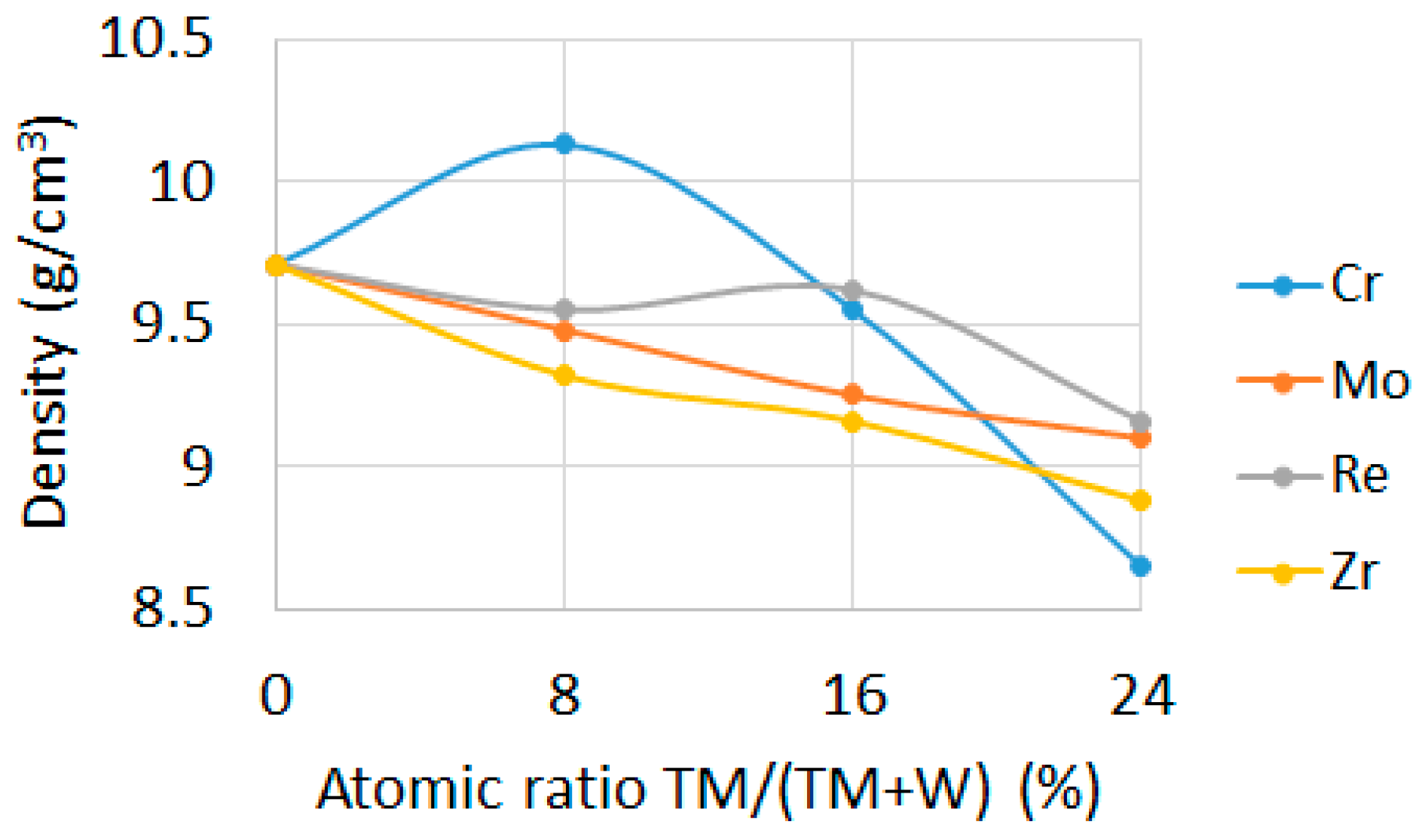

It is clearly seen from Figure 2 that as the amount of dopant increased, the density decreased and this is related to the lower atomic mass of dopant and also phase transformation occurring during the holding time from pure elements to (W,TM)B₂ phase, whose density is lower than the WB₂ phase. In turn, the density of the W_0.92Cr_0.08B_2.5 increases in comparison to WB_2.5. This may be connected with creation of solid solution of WB₂ with Cr where chromium takes not occupied by tungsten atoms positions in hexagonal structure of WB₂. For higher concentrations, when the solubility limit is reached, the CrB₂ phase begins to precipitate. Chromium diboride is much softer than the WB₂ phase and has a much lower density (5.21 and 12.76 g/cm³ [22] respectively).

3.1.2. Microstructure

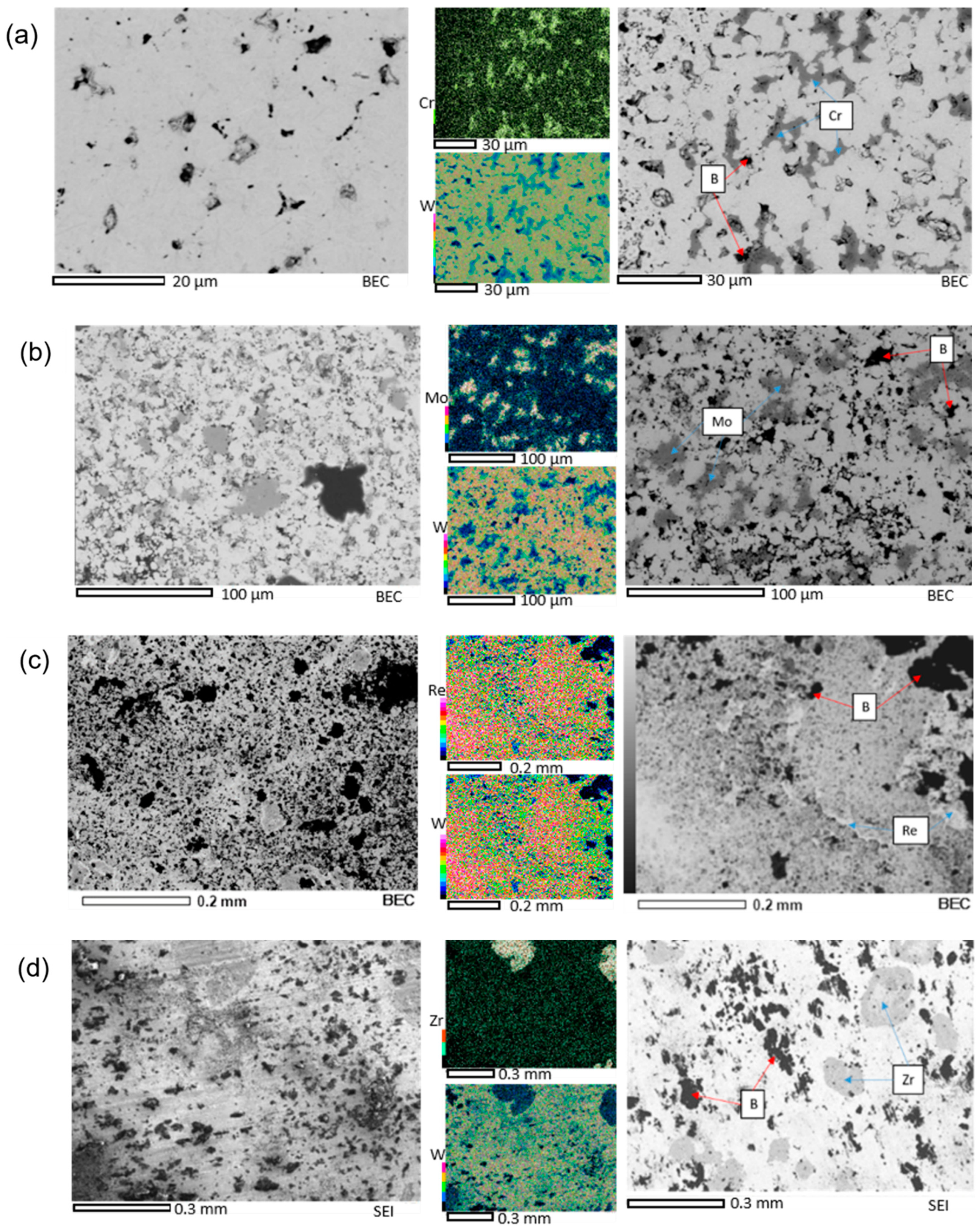

Figure 3 shows SEM micrographs and chemical analysis of (W,TM)B_2.5 sintered compacts surface alloyed with 8 at.% and 24 at.% of TM, where TM: Cr (Figure 3a), Mo (Figure 3b), Re (Figure 3c) and Zr (Figure 3d). In the left figures results of 8 at.% of addition were shown, at right—24 at.% respectively. In the middle position of Figure 3 an EDS analysis of tungsten and TM content in 24 at.% samples is presented. The rectangles with elements symbols point to the zones with maximal content of element. As it can be seen, the micrographs were done with different magnification. It is connected with different microstructure of compacts. In the case of chromium (Figure 3a), the samples are the most homogenous. For 8 at.% Cr the places with a predominance of chromium are not observed. The solubility limit is not reached and the chromium atoms are located in the crystal lattice of WB₂ which is supported by XRD spectra of this sample (Figure 4a). The increase of chromium content causes the CrB₂ to appear and can be observed in micrographs in the form of grains with irregular shapes. Similar results are observed in the case of molybdenum (Figure 3b) where grains of MoB₂ are observed. Addition of rhenium caused ReB₂ to be observed also for lower content of this element. The zones with rhenium diboride (ReB₂) are greater than for Cr and Mo. However, it is hard to indicate zones with a predominance of Re using SEM with backscattered electron (BSE) mode and EDS because the atomic mases of tungsten and rhenium are similar, 183.85 and 186.20 u respectively, and the contrast between both phases is very low. Zirconium is two times lighter and it is easy to see that it possesses the greatest grains among studied elements. It can be explained by the size of the used powders. The dimension of zirconium powders is about ten times greater than the size of tungsten powders. In this case the zirconium diboride is created mainly on the grain boundary (Figure 3d).

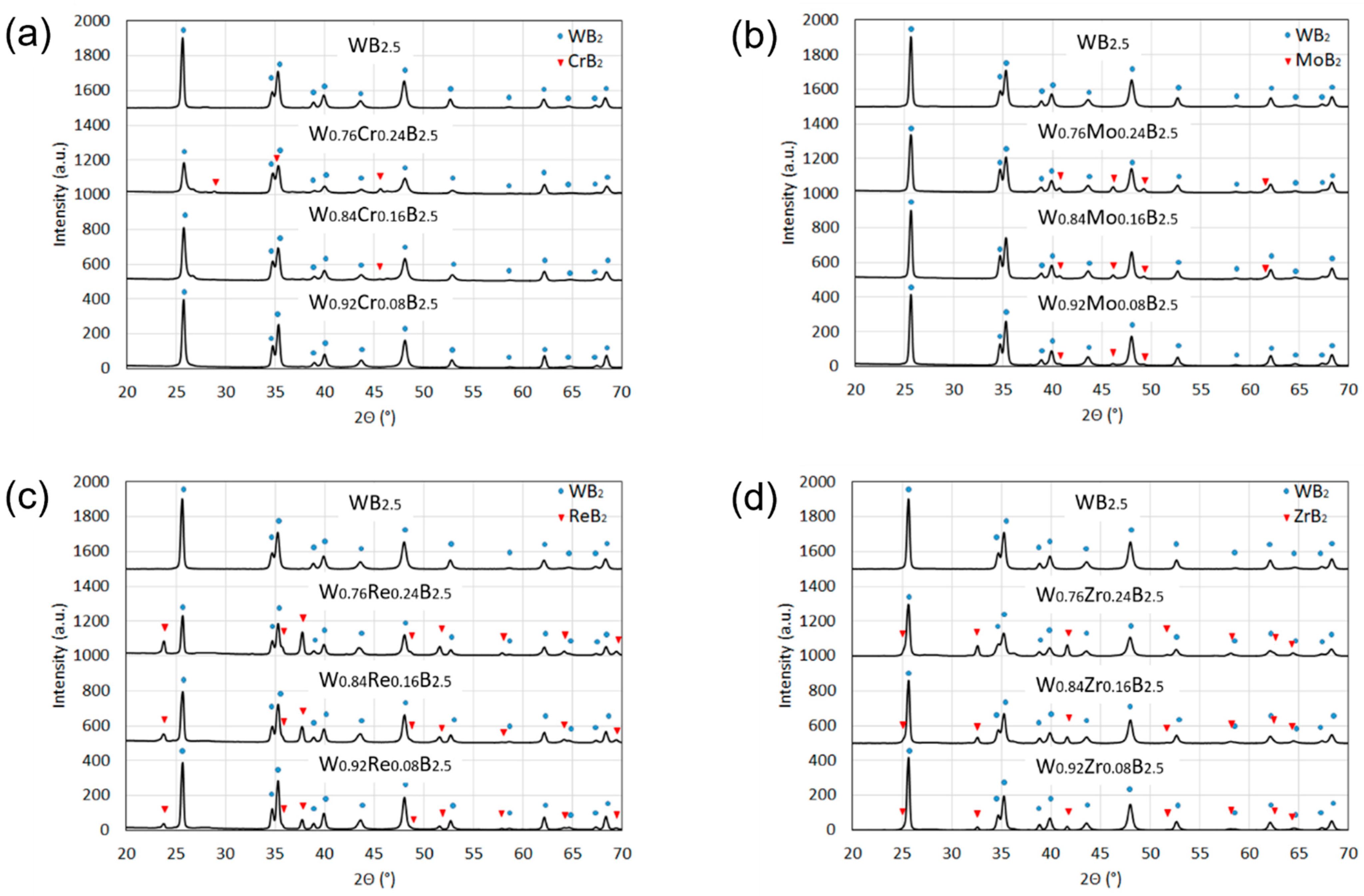

The diborides formation can be proved by using the XRD technique. Figure 4a shows the XRD patterns of W_x−1Cr_xB₂ compound. These spectra show that the solubility of Cr in hexagonal P6₃/mmc WB₂ (the upper spectra) is greater than 16 at.% and above CrB₂ appears as a second phase. An atomic radius of chromium is lower than the other used TM metals, and in agreement with this fact, the solubility of chromium in WB₂ appears to be the highest. The XRD spectra of Mo, Re and Zr added compounds are shown in Figure 4b–d respectively. The solubility of these elements in WB₂ is below 8 at.%. At and above 8 at.% TM addition, trigonal (R3m) MoB₂, hexagonal P6₃/mmc ReB₂ and hexagonal P6/mmm ZrB₂ starts to show up as an additional phase. The lattice parameters of the WB₂ solid solutions are a = 2.985 and c = 13.900 Å, respectively. It can be noted that the addition of small amounts of Cr, Mo, Re and Zr does not change the lattice parameters of WB₂. Only a small shift of the strongest peak (0 0 0 4) to higher angles is observed (0.08°, Figure 3) and may result from the stresses caused by the filling vacancies by atoms with different radii.

The microstructure of obtained compacts strongly depends on crystal structure of synthetized borides and also diameter of used powders. The structure of tungsten diboride allows it to accommodate metal atoms in vacancies in addition to ordinary substitution of metal (tungsten) positions, which enables alloys with other transition metals (Zr, Mo and Cr) to have enhanced mechanical properties (hardness), oxidation resistance and electrical conductivity [5]. Therefore, in addition to accommodating the metals in the voids inside the structure (as well as substitute in tungsten positions in the case of W_1−xMo_xB_2.5) WB₂ can also form a traditional solid solution, and therefore, the Hume-Rothery rules (atomic radii difference, similarity of crystal structure, oxidation states and electronegativity) are fully applicable to these cases [23]. Such situation can be observed for Mo, Cr and Zr where the most stable hexagonal structure P6/mmm is created during reactive sintering. For ReB₂, the phase P6₃/mmc is formed at all concentrations of rhenium. In this case, rhenium forms a very favorable, stable phase and does not readily alloy with WB₂. In result the spectra of this phase have higher intensity than other dopants (Figure 4c). In the case of zirconium, the diameter of used powders is crucial. The diameter of used zirconium powder is above ten times higher than tungsten. During sintering only surface of zirconium particles was reacted with boron and zirconium diboride was created (Figure 3d). Similar observation was done by Garbiec et al. [9]. As it will be shown in the next paragraphs, it highly influences hardness and electrical conductivity of compacts.

3.1.3. Hardness

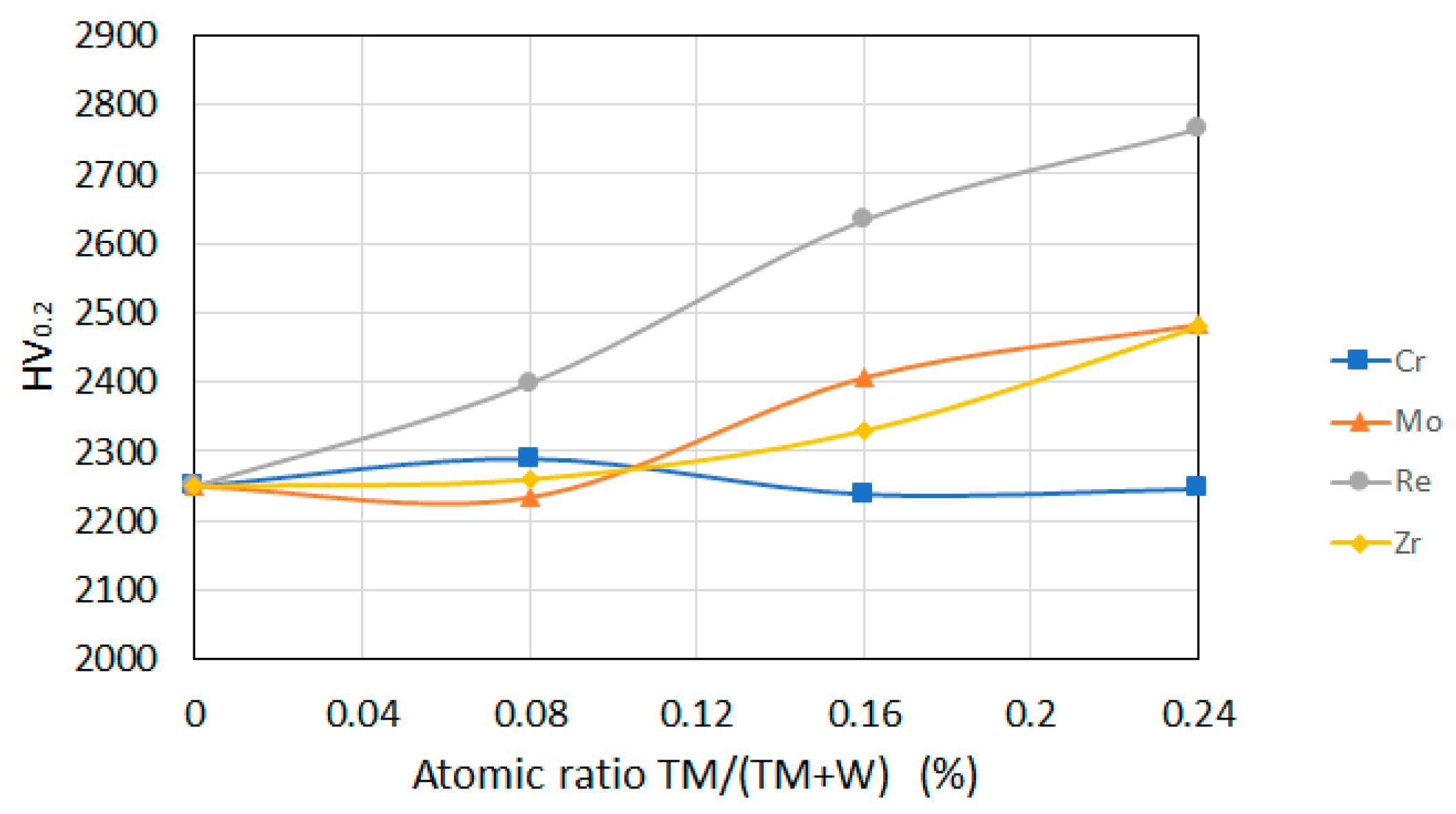

In Figure 5 the results of Vickers hardness are presented. The increase of hardness can be observed with an increase in the Cr, Mo, Re and Zr content. At low contents (below 8 at.%), by sitting at the positions of missing tungsten atoms, these elements could induce either tungsten vacancy at the WB₂ structure. It may cause the defect structure of material and may be responsible for the hardening trends observed for the solid solutions. For higher concentrations, XRD results (Figure 3) indicate the possibility of grain boundary strengthening mechanisms outside the solubility limits of three elements (Mo, Re and Zr). The greatest increase of hardness is observed for Re. It can be explained by the greatest hardness of ReB₂ (HV = 30.40–48.0 GPa [12,22]) among all diborides. With the increase of content of rhenium, the amount of rhenium diboride grows and can cause dispersion hardening. Due to the fact that the differences in the microhardness of ZrB₂ [24] or MoB₂ [10] and WB₂ [22] are insignificant, at lower contents, i.e., 0 and 16 at.% the hardness practically does not change and is about 23 ± 1 GPa. In the case of zirconium, according to the phase diagram of the W₂B₅–ZrB₂ pseudobinary system [25], a further increase in the amount of dopant results in achieving the composition with the lowest melting point (2180 ± 30 °C for the eutectic composition of 80 mol% W₂B₅ + 20 mol% ZrB₂). This phenomenon promotes greater consolidation of the material and thus also an increase in hardness. Moreover, on the basis of the analysis of the microstructure of the samples with the higher zirconium content (Figure 3d), both the unbound boron and ZrB₂ grains are smaller and more evenly distributed, which promotes dispersion strengthening. A similar relationship was observed by Hirota et al. [26] when ZrB₂ was doped with small amounts of tungsten. For monolithic Zr_1−xW_xB₂ (0 < x ≤ 0.12), W-doped ZrB₂ solid solutions with a lower hardness were formed and the hardness grew and stabilized for composites consisting of ZrB₂ solid solutions and WB₂ when x > 0.12 due to the formation of solid solution, homogeneously dispersed needle-like WB₂ particles [26]. An inverse relationship for hardness can be observed for the higher chromium content, where the hardness decreases with an increase in the chromium content. In this case chromium diboride is the softest material among investigated borides and increase of amount of CrB₂ causes the decrease in hardness.

3.1.4. Electrical Conductivity

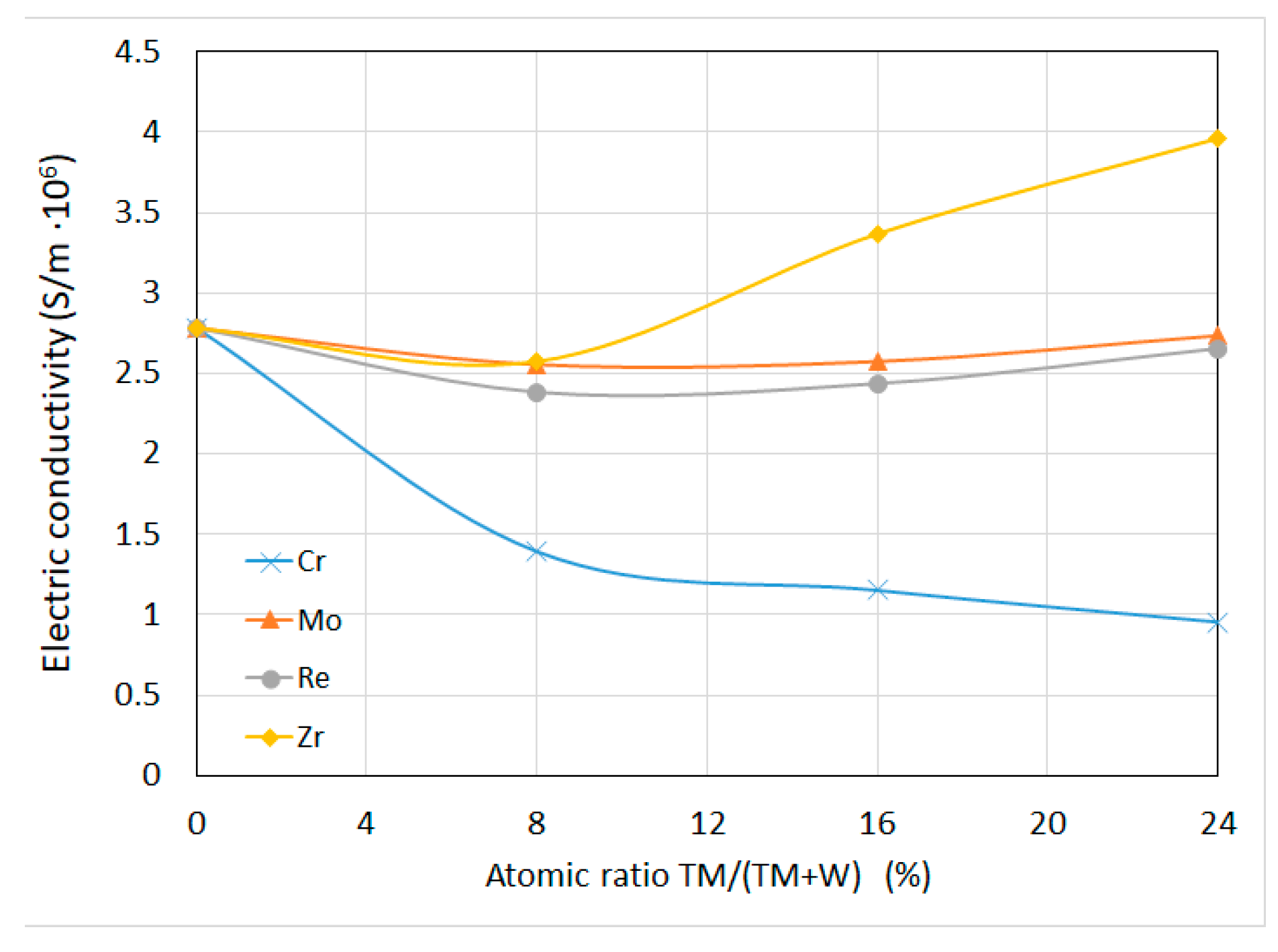

The electrical conductivity of the W_xTM_x−1B_2.5, (0 < x ≤ 0.24 TM = Cr, Mo, Re, Zr) samples is shown in Figure 6. It is clearly seen that the electrical conductivity of the samples with zirconium content is more or less two times higher than the samples without admixture and increases at ambient temperature with an increasing zirconium content up to 3.961 × 10⁶ S/m. In the case of molybdenum and rhenium the electrical conductivity is almost constant with increasing content of dopant. This is a result of similar conductivity of MoB₂ and ReB₂ to WB₂ and better electrical conductivity of zirconium diboride, respectively. Exemplary values of electrical conductivities for clean diborides are presented in

Table 3. Electrical conductivity of TM (TM = W, Cr, Mo, Re, Zr) diborides and tungsten carbide.

Boride	WB2	CrB2	MoB2	ReB2	ZrB2	WC-Co
Electrical conductivity (S/m)	1.1–4.5 × 106 [27]	0.95–1.42 × 106 [28]	7.8 × 106 [10]	2.45 × 106 [29]	10.9 × 106 [30]	4.76 × 106 [31]

.

Furthermore, the increased content of chromium decreased the electrical conductivity. For these materials, the addition of chromium reduces the electrical conductivity of the sintered compacts from 1.393 × 10⁶ to 0.954 × 10⁶ S/m. It should be noted that the electrical conductivity of WB_2.5 alloyed with Mo or Re (≈2.5 × 10⁶ S/m) is greater than the electrical conductivity of 304 stainless steel (1.45 × 10⁶ S/m) and in the case of 24 at.% zirconium is similar to the electrical conductivity of WC-Co cemented carbides (4.76 × 10⁶ S/m) [31].

3.2. Coatings

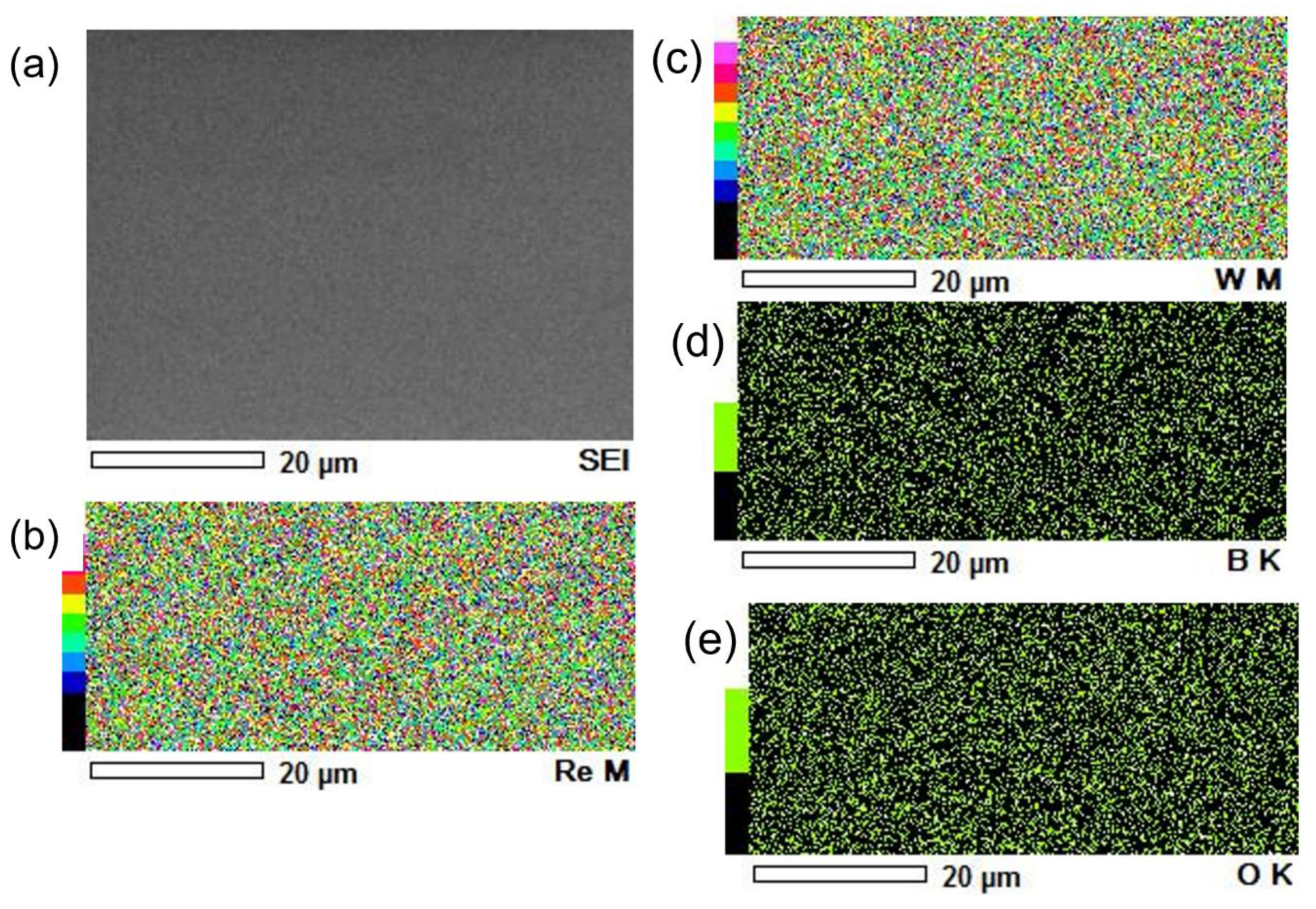

Targets with an admixture of 24 at.%. TM were selected to show the differences in the properties of the deposited layers. After 2 h of deposition all the coatings were smooth with a roughness below 22 ± 5 nm. No delamination was observed. An exemplary SEM micrograph for rhenium is presented in Figure 7a. Thickness of coatings differ from each other (Table 2). The greatest thickness is found in films with rhenium addition (3.18 μm) and the thickest coatings are for chromium (1.67 μm). As can be easily seen, the thickness of the layers decreases with molecular weight of the dopant. Rhenium has the greatest mass (186 u), comparable to tungsten (184 u), and chromium the lowest (52 u). It can influence dynamics of plasma during magnetron sputtering. The SEM-EDS analysis indicates that chemical elements of W_xTM_1−xB_y coatings were homogeneously distributed (see Figure 7b–e).

The quantitative analysis of chemical composition showed that stoichiometry of target is not preserved (Table 2). In all cases the TM and boron content dropped in the comparison to target composition. The decrease in TM content, as in the case of boron, is predicted to be due to scattering of the TM atoms on the tungsten atoms in the plasma plume during deposition. In addition, resputtering of atoms from surface deposited coatings is also possible. A decrease in light elements was already observed in References [18,32]. The boron content B/(Zr + W) is in the range of 1.54–2.06 (see Table 2) which means boron decrease of 38.4–17.7 % respectively compared to the target composition. In the case of transition metals losses are much smaller, which can be explained by their greater mass in relation to boron. In all coatings the presence of oxygen was detected. The lower content of oxygen was in films with chromium admixture (2.16 at.%) and the higher was for rhenium (5.24 at.%) respectively (

Table 4. Chemical composition and thickness of deposited coatings W_1−xTM_xB_y alloyed with TM (TM = Cr, Mo, Re, Zr).

TM	X = TM/(TM + W)	y = B/(TM + W)	at.% O (%)	Thickness (μm)
Cr	0.213	1.698	2.16	2.31
Mo	0.217	2.057	3.70	2.34
Re	0.185	1.540	5.24	3.18
Zr	0.202	1.919	3.42	2.25

).

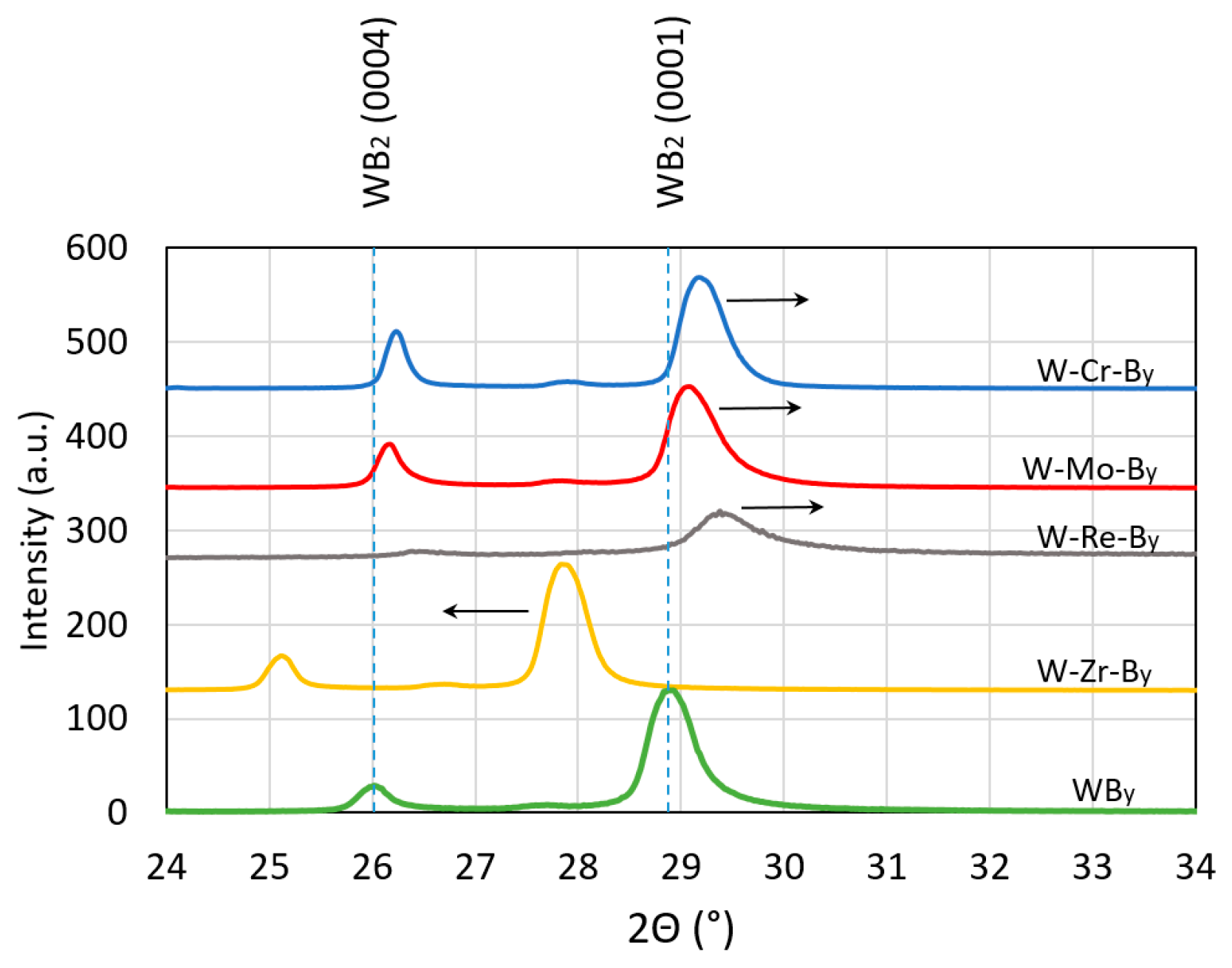

In Figure 8, XRD spectra of phase composition in deposited coatings is presented. Only spectra were recorded in the range of 24°–31°. XRD spectra of phase composition corresponds to the phase WB_y [18]. The comparison of XRD pattern of targets (Figure 4) and deposited coatings indicates the change of crystal structure of WB₂ from softer ω-WB₂ (P6₃/mmc) to harder α-WB₂ (P6/mmm). Regarding the synthesis via physical vapor deposition, it is a well-known fact that metastable structures can be captured via this synthesis route [5]. Admixture of transition metals does not cause of appearance of new phases of TM borides. XRD spectra of W-TM-B_y do not differ significantly from WB_y. However, careful analysis of the plot shows that depending on the used element, the peak positions are shifted. The black arrows in Figure 8 denote the direction of shift of (0 0 0 1) peak position. Only alloying with zirconium is significant and changes the direction of sift. Comparing the radii of the used elements with radii of tungsten (1.394 Å [33]), it can be observed that zirconium has a much larger radius than the other elements (Zr—1.597 Å; Cr—1.357 Å; Mo—1.386 Å; Re—1.373 Å [33]). The transition metal atoms take the places of tungsten in the crystal lattice, thus creating a solid solution with WB₂. Since zirconium possesses the radius larger than tungsten only, this makes the unit cell larger and causes the shift to lower angles. Detailed deconvolution of XRD spectra leads to the determination of cell parameters. The WB₂ phase has lattice parameters a = 2.96 Å and c = 3.089 Å and addition of zirconium increases them to a = 3.028 Å and c = 3.192 Å respectively.

All deposited coatings are very hard and the results of hardness measurement under load 10, 25 and 50 g are presented in

Table 5. Measured and recalculated hardness (Equation (1)) of deposited coatings.

TM	HV0.01	HV0.01 (Recalculated)	HV0.025	HV0.025 (Recalculated)	HV0.05	HV0.05 (Recalculated)
Cr	3610 ± 390	5140 ± 480	2760 ± 190	5570 ± 390	2140 ± 120	5490 ± 380
Mo	3250 ± 500	4630 ± 680	2330 ± 120	4610 ± 270	2170 ± 210	5540 ± 660
Zr	3050 ± 240	4480 ± 330	2690 ± 130	5540 ± 260	2010 ± 110	5150 ± 370
Re	2710 ± 540	3330 ± 650	1940 ± 210	3070 ± 400	1750 ± 60	3360 ± 180

. Film alloyed with Cr possesses the greatest hardness; after recalculation that takes into account coatings’ thickness (Equation (1)) and conversion to SI unit, it is 50.4 ± 4.7 GPa (at 98 mN). In the case of Mo, Zr and Re the hardness is lower and is 45.4 ± 6.7, 43.9 ± 3.3 and 32.6 ± 6.4 GPa respectively. These values are lower than hardness of unalloyed WB₂ presented in literature (H = 46 ± 2 GPa [18]). However, it should be noted that hardness results presented by Psiuk et al. [18] were measured by nanoindentation method under load of 3 mN. The lowest hardness, when rhenium is added, can be explained by the degree of crystallization conducted from XRD spectra. In this case the intensity of (0 0 0 1) peak (Figure 8) is also the lowest, which suggests that coatings are more amorphous. Additionally, decrease in boron content and creation of vacancies can influence this mechanical property.

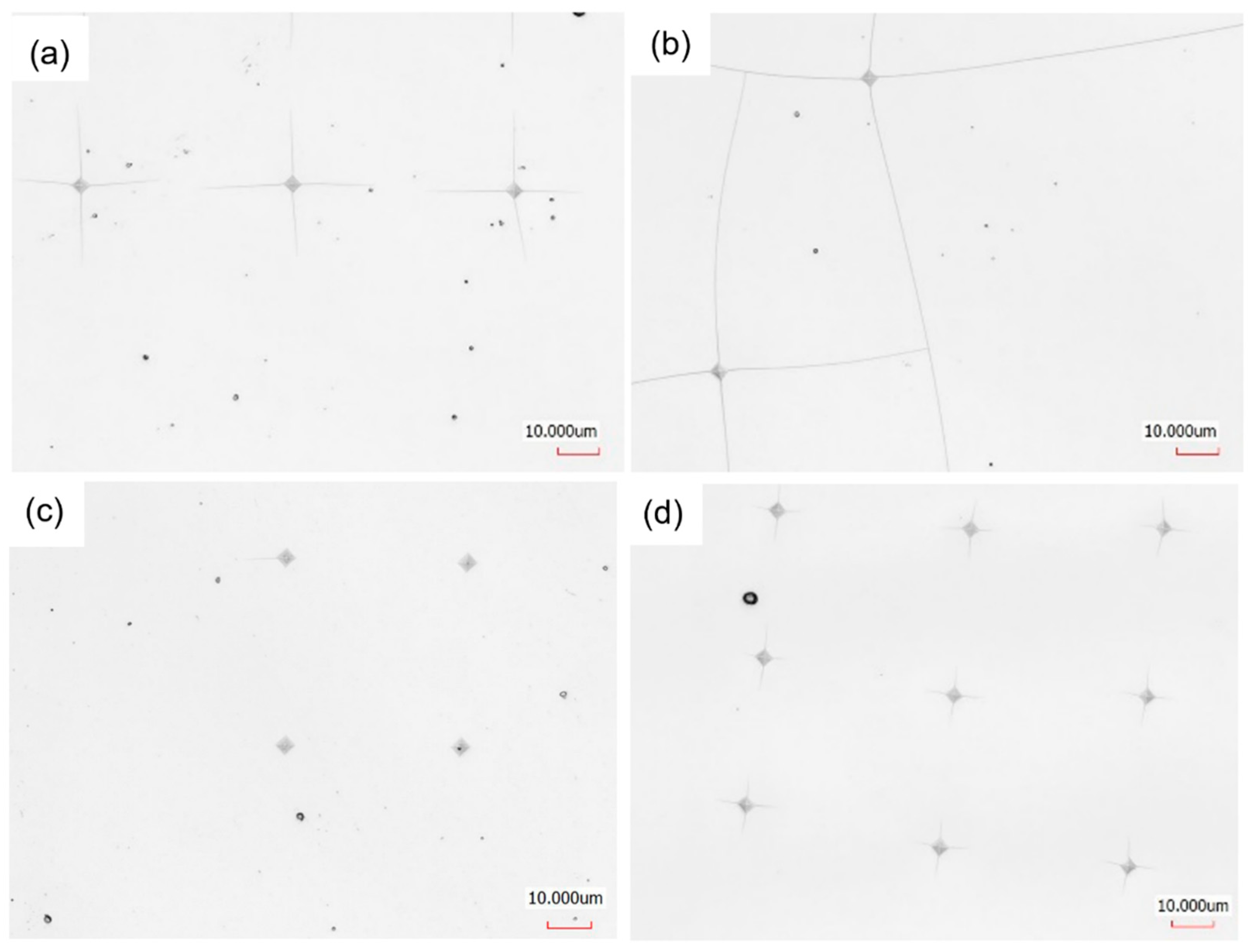

Deposited coatings are characterized by relatively high fracture toughness (K_1c). Because of difficulties with measurements of indents’ dimension under load 10 g for calculation K_1c, the load 50 g was selected. Exemplary micrographs of indents for zirconium and molybdenum are shown in Figure 9. As can be seen in Figure 9b, the molybdenum alloyed layers cracked during indentation. This proves low adhesion of this coating to the substrate. In the other cases the dimensions of indents are comparable but the length of the cracks are different. The shortest cracks were observed for coatings with chromium and the longest for rhenium. Based on the common Palmqvist method [21] the values of fracture toughness for coatings alloyed with zirconium, chromium and rhenium are 2.11, 1.40 and 1.77 MPa m^1/2 respectively. Obtained results of K_1c are similar to values of fracture toughness commonly used as protective coatings titanium nitrides [11]. It should be noted that in Palmqvist method K_1c is related to hardness (Equation (2)) and is influenced by relatively soft silicon substrate. Additionally, fracture toughness of deposited coatings might be influenced by brittle silicon substrate (<1 MPa m^1/2).

4. Conclusions

To improve the properties of tungsten diboride, solid solutions of this material with chromium, molybdenum, rhenium and zirconium in the form of spark plasma sintered compacts and magnetron sputtered coatings were synthesized and characterized. Various concentrations of transition metal elements, ranging from 0.0 to 24.0 at.%, on a metals basis, were made. Spark plasma sintering was used to synthesize these refractory compounds from the pure elements. Elemental and phase purity of the both samples (sintered compacts and coatings) were examined using energy-dispersive X-ray spectroscopy and X-ray diffraction, and microindentation was utilized to measure the Vickers hardness under applied load of 2 N for compacts and 0.1 N for coatings respectively. The main observations are:

• X-ray diffraction results of SPS-ed compacts indicate that the solubility limit is below 8 at.% for molybdenum, rhenium and zirconium and below 16 at.% for chromium. Above this limit, both diborides (W,TM)B₂ are created.
• The addition of transition metal caused decrease of density and increase of hardness and electrical conductivity of sintered compacts.
• Deposited coatings W_1−xTM_xB_y (TM = Cr, Mo, Re, Zr; x = ~0.2; y = 1.7–2.0) are homogenous, smooth and hard. The maximal hardness was measured for W-Cr-B₂ coatings and under the load 10 g was 50.4 ± 4.7 GPa. Deposited films possess relatively high fracture toughness and for WB₂ coatings alloyed with zirconium it was K_1c = 2.11 MPa m^1/2. The connection of very high hardness with high fracture toughness places these coatings in a group of novel materials with improved mechanical properties.

Due to the fact that the proposed materials possess reduced density and at the same time electrical and mechanical properties comparable or better than tungsten carbide, the presented research suggests the possibility of their implementation in everyday life. The simple and fast manufacturing process of the proposed materials should also be emphasized.
