Review

Sacrificial Thermally Sprayed Aluminium Coatings for Marine Environments: A Review

by
Berenika Syrek-Gerstenkorn
1,2,
Shiladitya Paul
3,4,* and
Alison J Davenport
1
1
School of Metallurgy and Materials, University of Birmingham, Edgbaston, Birmingham B15 2TT, UK
2
National Structural Integrity Research Centre, Cambridge CB21 6AL, UK
3
TWI, Cambridge CB21 6AL, UK
4
School of Engineering, University of Leicester, University Road, Leicester LE1 7RH, UK
*
Author to whom correspondence should be addressed.
Coatings 2020, 10(3), 267; https://doi.org/10.3390/coatings10030267
Submission received: 16 January 2020 / Revised: 2 March 2020 / Accepted: 4 March 2020 / Published: 12 March 2020
(This article belongs to the Special Issue Coatings for Harsh Environments)

Abstract

:
One of the corrosion mitigation methods that is used for the protection of steel operating in seawater environments involves the application of sacrificial metallic coatings (such as aluminium, zinc, and their alloys). This paper reviews current knowledge about thermally-sprayed (TS) and cold-sprayed (CS) Al coatings for the corrosion protection of steel. It also summarises the key findings of the substantial amount of work that has been devoted to understanding mechanisms and the parameters that control the performance of TS Al coatings, such as the spraying method and its parameters like coating thickness and the application of sealer. The paper includes suggestions for areas of further research that could lead to the development of more resilient and longer-lasting coatings, based on the results from both laboratory and field tests that have been published in the literature. It also highlights the need for conducting simulated laboratory tests at conditions of intended service and the importance of long-term testing.

1. Introduction

The corrosion protection of structures that operate in seawater environments is a particularly important issue. It has been estimated that the cost of corrosion is high, not only in terms of financial loss (3.4% of global GDP in accordance to the NACE report [1], but widely believed to be between 3% and 4%) but also in the number of lives lost due to catastrophic failures and environmental damage (when toxic products leak out from corroded equipment). The battle against corrosion can be supported in several ways: by appropriate material selection (e.g., corrosion-resistant alloys (CRAs)), by the application of coatings (organic or metallic), by cathodic protection (impressed current or sacrificial anodes), or by the use of corrosion inhibitors and corrosion allowance. The most common corrosion mitigation methods for the protection of offshore structures that are made of steel (usually mild or low-alloyed [2]) involve the application of cathodic protection and/or protective coatings, depending on the conditions to which the structure is subjected. The types of exposure for these materials can be divided into four main zones: atmospheric, splash/tidal, submerged, and buried. Parts of an offshore structure that are constantly immersed in seawater are usually protected by the application of cathodic protection, while parts that are exposed to the marine atmosphere are usually protected by protective coatings. In the splash/tidal zone however, the corrosion of steel is usually controlled by robust coatings and corrosion allowance (in the splash zone) as well as cathodic protection (for parts located below mean water level) [3]. This is the most severe and the most challenging area for corrosion protection due to alternating wetting and drying conditions, easy access to oxygen, atmospheric pollutants, UV radiation, and erosive actions combined with frequent contact with floating objects such as debris, boats or ice.
Protective coatings can be divided into: inorganic (for example ceramic (e.g., alumina) or carbon coatings), organic (such as epoxy and polyurethane), organic–inorganic hybrids (also known as smart or functionalised coatings), and metallic coatings [4]. Depending on the electrode potential with respect to the substrate metal (usually steel), metallic coatings can be formed either anodic (e.g., aluminium and zinc) or cathodic (e.g., nickel and copper). The primary function of protective coatings is their barrier properties. However, if the integrity of the coating is compromised and the substrate is exposed, the corrosion of either the substrate (in case of organic and cathodic coatings) or the coating (in case of sacrificial anodic coatings) will develop [5].
The aim of this paper was to review and summarise current knowledge about thermally-sprayed aluminium (TSA) coatings (formed by electric arc or wire flame) for the corrosion protection of steel operating in seawater environments and to suggest potential areas for further research. Sacrificial protection mechanisms that are provided by those coatings and the effect of various parameters (such as coating thickness and composition, spraying parameters, application of sealants and operating conditions) are discussed. A comparison with cold-sprayed aluminium coatings is also presented. Laboratory tests and in-service performance of the coatings are discussed and summarised.

2. Sacrificial Coatings

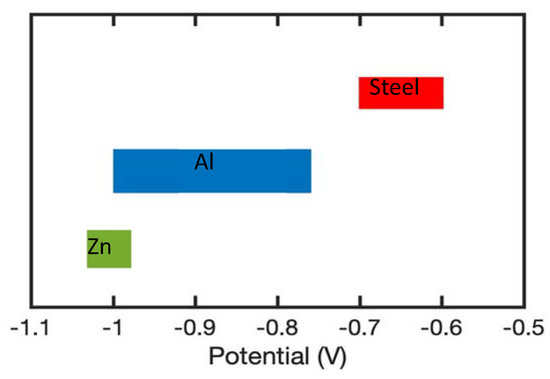

Metallic coatings (which are more active than steel) such as Al, Zn, and their alloys (Figure 1), supply cathodic protection to the substrate by working as a sacrificial anode. When Al (or Zn) and steel are coupled together and exposed to seawater, a galvanic couple is established between those two metals, and electrons flow from the coating (anode) towards the substrate (cathode), which is accompanied by the dissolution of the coating, as schematically shown in Figure 2. When steel is cathodically protected, calcareous matters deposit on its surface (due to local pH changes explained in Section 4.5), which decrease the cathodic protection (CP) demand.
There are two key factors that determine the performance of sacrificial coatings:
-
Low self-corrosion rate.
-
Current output enabling the polarisation of the steel in the protective regime, usually considered to be between −0.8 and −1.1 V (Ag/AgCl/seawater) [6]. Values more negative than −1.1 V are generally not recommended to avoid excessive hydrogen generation.
There are many advantages of sacrificial metallic coatings:
-
Barrier properties combined with cathodic protection.
-
Newly applied coatings can be handled immediately (i.e., no drying time) [7].
-
Spraying and repair can be performed on-site.
-
More economical over the lifetime than organic coatings (total life cycle cost).
-
Good resistance to mechanical damage.

3. Thermal Spraying

Though there are several thermal spray processes that can be used for the preparation of coatings, only two of them are commonly used for the deposition of sacrificial metallic coatings, namely electric arc and flame spray. Both involve propelling molten or semi-molten metal particles towards the substrate by a stream of air, thus creating a layer-by-layer deposition, until the required thickness of the coating is achieved. In contrast to other techniques, the two spraying processes above can be performed on-site and are economical.
A less commonly used technique for the deposition of metallic coatings is cold spray. This process, even though it is the costliest, has some advantages over the aforementioned techniques. Cold spray relies on the deposition of metallic powders in the solid-state, which means that no heat source such as flame or arc is needed, which can be critical when spraying materials that are highly sensitive to oxidation. The process can be performed in an area with a high risk of catching fire (e.g., an oil rig). There is no UV radiation during cold spraying, so no special eye protection measures are needed. Moreover, coatings that are prepared by cold spray tend to have a lower level of porosity [8], as can be seen in Figure 3.

3.1. Electric Arc Spraying

This technique, also known as twin wire arc or wire arc spray, is based on melting the tips of two metallic wires with an electric arc, which is established between them through the application of direct current (DC). Molten particles are then accelerated and propelled towards the substrate via an air stream. More information about the process can be found elsewhere: [9,10,11].

3.2. Wire Flame Spraying

In this technique, a metallic wire is melted by a flame, and the molten particles are accelerated towards the workpiece by pressurised air. More details can be found elsewhere: [12,13].

3.3. Cold Spraying

In contrast to thermal spraying processes, cold spray relies on the deposition of particles in the solid state, and these particles plastically deform upon impact [14]. Since the melting of the feedstock material is avoided, a coating with a negligible oxide content can be obtained. Moreover, cold-spray coatings tend to be denser (achievable porosity level below 1% [15]) than the coatings that are deposited by using low-velocity thermal spray processes, such as electric arc and wire flame spraying (typical porosity level between 5%–15% [16]), due to the lack of the splashing of molten droplets and the peening effect of solid particles, which close voids in the underlaying layer upon impact. Furthermore, since there is no melting of the feedstock material, the build-up of unfavourable tensile residual stresses arising from the thermal contraction of splats upon cooling is also reduced. This, combined with the peening effect, allows for the deposition of thicker coatings than the ones that are prepared by using arc or wire flame spraying [16]. A solid-state deposition also eliminates problems with the preferential evaporation of elements from feedstock material during spraying and maintains an unchanged phase composition of the coating as compared with the initial powder [16]. However, due to the low spray plume (typically <1 cm in diameter), the coating of large surface areas can be time-consuming. A detailed description of the process can be found elsewhere [17].

4. Laboratory Tests

Corrosion protection that is provided by thermally-sprayed aluminium coatings has been a subject of many investigations during the past three decades. Attempts have been made to understand the mechanisms and parameters that influence the performance of the coatings by using different methods. The most notable findings are reviewed below.

4.1. Effect of the Spraying Method and Its Parameters

A comparison between TSA coatings that are deposited by using electric arc (EA) and flame spraying (FS) was conducted by several researchers. Rodriguez et al. [18] observed differences in the oxide layers of coatings that were deposited by using arc and flame spraying through the use X-ray photoelectron spectroscopy (XPS). They also detected the different corrosion products that were formed on those coatings after a 4000-hour saline mist test: bayerite in the FS process and boehmite in the coating that was deposited by EA. Gartland and Eggen [19] concluded, based on their lab and field tests on TSA that was prepared by using both methods, that the spraying method had little influence on the performance of the coating, but the arc-sprayed coatings exhibited better adhesion (arc-sprayed Al: 9.0 ± 1 MPa, flame-sprayed Al: 3.5 ± 0.34 MPa). A higher adhesion of arc-sprayed coatings was also reported by others [20,21]. Moreover, coatings that are prepared by flame spraying tend to exhibit a higher level of porosity in comparison to the ones that are prepared by arc-spraying [9]. Porosity is an inevitable characteristic feature of thermally-sprayed coatings, but its level can be altered by selecting appropriate feedstock material, application method, and spraying parameters. To obtain a less porous coating, oxyfuel flame spraying and small diameter wire (1.6 and 2.3 mm), or low current (100–200 A) arc spraying should be used [22]. It has also been estimated that arc-spraying is more economical [9].
For cold-sprayed Al coatings, it has been recognised that a finer powder size provides better corrosion protection to the underlying steel due to its lower porosity level. Coatings that were prepared with 40–50 µm and 50–75 µm Al powders performed well, both under NaCl immersion and 11 years of atmospheric exposure [23]. A better performance of cold-sprayed Al coatings (attributed to their lower porosity level) than arc-sprayed coatings in natural seawater was observed by other researchers [8].

4.2. Effect of Coating Thickness

The effect of TSA coating thickness on corrosion performance was studied by Han et al. [24] by using electrochemical methods. They used stainless steel STS 304 steel substrates. Several experiments were performed, and their data were presented in the paper. However, based on the presented results, meaningful conclusions could not be drawn.
The results of the mechanical testing of arc-sprayed Al coatings (222–397 µm) on mild steel showed that the adhesion strength of the coatings increased with the coating thickness [25]. However, even the 222 µm coating showed a very good adhesion strength of 10.74 MPa. The minimal required adhesion strength of TS aluminium coatings varies across different standards from 4.5 to 10.3 MPa, as shown in Table 1.
However, laboratory tests that were performed by Thomason et al. [26] on flame-sprayed Al coatings revealed that a high coating thickness (~400–450 µm) may lead to the development of blisters, especially in an aggressive splash zone environment. It was suggested that residual stresses are higher in thick coatings. A similar correlation between the coating thickness and the tendency to develop blisters was also reported in a 19-year study conducted by the American Welding Society [27].
In order to provide a sufficient level of protection for the whole service life of a structure, the coating must not be too thin. The corrosion rates of TSA in salt water environments that have been reported in the literature (Table 2)—although estimated by using different experimental methods, exposure periods and temperatures—suggest that the dissolution of the coating in seawater is probably less than 20 µm year. This indicates a minimum coating thickness of 200 µm for 10 years exposure. The AWS C.2 18–93 standard recommends thickness between 200 and 350 µm for seawater immersion.

4.3. Effect of Coating Composition

The most commonly used alloys for the preparation of thermally-sprayed Al coatings for the corrosion protection of steel are Al 1050 (99.5% Al) and Al–5%Mg, as can be seen from Table 2. ISO 2063-1 and NORSOK M-501 also recommend those alloys. The required compositions of relevant wires provided in AWS C2.25 and ISO 14919 are shown in Table 3.
Pure aluminium shows excellent corrosion resistance due to its passive nature. When exposed to an oxidising environment (e.g., air and water), a continuous and uniform natural oxide film (Al2O3) develops on the metal’s surface, which works as an electrical insulator. It prevents the movement of electrons (produced during the anodic dissolution of the metal) from the metal to the oxide/solution interface, which results in the inhibition of cathodic reactions.
Mg, when added in small amounts, improves the mechanical properties of solid Al, but it does not decrease its corrosion performance. However, alloys containing 3% Mg or more are susceptible to the precipitation of intermetallic particles (Al3Mg2) at the grain boundaries when exposed to elevated temperatures for a longer period of time [41]. Those particles are anodic in relation to the Al matrix and corrode preferentially, leading to intergranular corrosion and stress corrosion cracking [42]. In the case of thermally-sprayed Al, Morakul et al. [43], who tested Al–2%Mg and Al–5%Mg in 3.5% NaCl at 25 °C, reported a lower corrosion resistance and a shorter fatigue life of the coating with a higher Mg concentration. At elevated temperatures, thermally-sprayed Al–5%Mg coatings with and without external CP were tested by Wilson et al. [32], who observed coating degradation (thickness reduction) at higher temperatures. They suggested the possible degradation mechanism as being chemical dissolution. Moreover, one of the samples that was exposed to 90 °C (internal temperature of the pipe) exhibited blistering.
In 2017, Quale et al. [30] tested a thermally-sprayed sacrificial coating comprised of Al, Zn and In, based on the assumption that the addition of Zn and In to aluminium prevents its passivation. The results of the tests revealed that the open circuit potential (OCP) of the freely corroding Al–Zn–In coating reached -1000 mV (Ag/AgCl) after 60 days in natural seawater and was 65 mV more negative than the Al (99.5%) coating. The difference was even more pronounced after 235 days when the coatings were coupled to carbon steel in a 10:1 ratio and the Al–Zn–In coating reached −972 mV, whereas the Al coating stabilised at −803 mV. It was concluded that the Al–Zn–In coating provides better protection than a conventional TSA coating due to its better CP efficiency. Moreover, the Al–Zn–In coating can be used in conjunction with conventional anodes with minimal current drain. It was also noticed that thermal spraying leads to a reduction of Zn content in the deposited coating.
In 2019, Adamiak et al. [44] tested arc-sprayed Al coatings with and without NiAl-buffered sub-coating on armour-grade steel. They observed that the use of the sub-coating increases adhesion and improves erosion wear resistance of the Al layer.

Al/Al2O3 Composites

Some attempts have been made to improve the corrosion and mechanical properties of Al cold-sprayed coatings by reinforcing Al with Al2O3 [38,45,46].
Based on the lab tests in a 3.5% NaCl solution, it was noticed that even though the reinforced coating exhibited a higher corrosion resistance during a short immersion (<200 h), its corrosion performance significantly worsened during longer immersion due to the severe corrosion of the aluminium matrix [46].
Huang et al. [47] tested an Al/Al2O3 flame-sprayed coating for marine applications. They observed a formation of an alumina skeleton inside the coatings, which gives rise to increased mechanical and barrier properties for the penetration of Cl ions. Moreover, they reported the dissolution of Al splats which were not connected to the Al2O3 frame.
A better performance of the composite coating was also reported by Abdoli et al. [37] after a 30-day immersion in artificial seawater (ASTMD1141) (with and without the addition of Escherichia coli bacteria) for 30 days.

4.4. Effect of Sealing

As shown by Lee et al. [36], corrosion products that form on Al-coated steel enhance the barrier properties of the coating by blocking the pores and cracks inside the coating. However, during the initial immersion, when corrosion deposits are not present, the dissolution of the Al coating can be relatively high. Moreover, if the coated structure is stored in a humid environment before being placed in service, rust staining may occur [7].
To prolong the lifetime of TSA coatings and prevent the development of discoloured areas, suitable sealant systems can be applied. Sealants are designed to penetrate and fill the surface-connected porosity, suppressing the diffusion of corrosive molecules from the environment through the coating.
Organic sealants are comprised of epoxies, phenolics, furans, polymethacrylates, silicones, polyesters, polyurethanes, and polyvinyl esters. For TSA, aluminium-filled vinyl and silicone have been used [48]. In accordance with the NORSOK M-501 standard [49], for low-temperature operations (below 120 °C), two-component epoxy should be used, whereas for high-temperature applications (above 120 °C), aluminium silicone should be used. Information on organic materials that are compatible with TSA is provided in ISO 1244-5. ISO 2063 and AWS C2.23, mention that the thickness of sealants should not exceed 40 μm. López-Ortega et al. [2,50] conducted a series of experiments in which arc-sprayed aluminium with an organic topcoat (epoxydic paint [51]) on high strength, low alloy steel R4 grade was studied. Based on weathering aging tests in different climatic cabinets, as well as immersion tests and tribocorrosion tests in artificial seawater, it was concluded that this duplex system exhibits good corrosion and tribocorrosion properties. The same group [51] also studied a functionalised topcoat system containing 25% wt of SiO2 and a 1.5 wt% Cu2O (to obtain superhydrophobicity and antibacterial characteristics) on a TSA coating that was modified by plasma electrolytic oxidation (PEO). The use of PEO on TSA was previously reported to be a promising technique for improved corrosion and wear resistance [52,53]. The effect of an epoxy sealant applied on an arc-sprayed Al coating by using a cathode electrophoresis method was investigated by Pang et al. [54] and compared with sealing by using boiling water. After immersion in 3.5% NaCl at 40 °C for seven days, it was observed that the thickness of epoxy-sealed TSA was unchanged but the thickness of the TSA that was sealed by using boiling water decreased from 100 to 40 μm.
Other inorganic sealing methods that have been investigated to enhance the behaviour of thermally-sprayed coatings have involved the thermal diffusion of Zn [55], the use of phosphate-containing salts that chemically react with Al [56], calcium nitrate [57], hydrothermal treatment in boiling deionised (DI) water [58], and the sol–gel method [59]. The use of glass powders to seal porosity in an arc-sprayed aluminium coating was also investigated [60].
The reduced porosity level of an arc-sprayed aluminium coating was also achieved by Wenming et al., who used a CO2 laser to re-melt the coating [61]. They also noticed that the re-melting of the coating changed the way the coating adhered to the substrate from mechanical to metallurgical bonding.
Though the use of sealants can significantly improve the performance of TSA, it should be noted that there have been some examples where sealed coatings developed blisters (Hutton tension leg platform [62]) or failed prematurely (Heidrun platform [26]). The degradation mechanisms of painted TSA was studied first by Knudsen [63] and later by Sumon et al. [64]. Knudsen attributed the accelerated degradation of TSA to the development of an acidic environment underneath the paint. His work focused on the scenarios where TSA/organic system was either in electrical contact with bare steel or contained a defect. Sumon et al. tested several organic coatings on TSA (with and without a scribe) and bare steel by using salt spray exposure. They observed organic coating delamination on TSA-coated samples, not only on scribed samples but also on intact ones due to the diffusion of water and chloride ions through the epoxy layer. The proposed organic coating disbonding mechanisms included the development of voluminous corrosion products lifting the organic layer, anodic undermining, and cathodic disbonding.

4.5. Effect of Damage

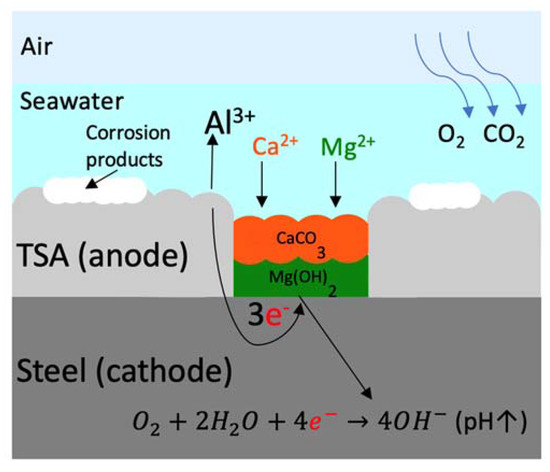

As mentioned in previous sections, when an aluminium coating gets damaged and the steel is in direct contact with an electrolyte, a galvanic couple is established between the coating and the substrate due to the potential difference between those two metals. Since Al exhibits more active potential than steel in seawater, it undergoes dissolution accordance to Equation (1):
A l A l 3 + + 3 e ,
Electrons that are produced during the above reaction are consumed at the steel (cathode) according to the following reactions:
O 2 + 2 H 2 O + 4 e 4 O H ,
2 H 2 O + 2 e H 2 + 2 O H ,
The production of OH ions during cathodic reactions causes an increase in the pH of the solution in the vicinity of the cathode, which triggers the precipitation of calcareous matters. These deposits, depending on the temperature, provide higher or lower barrier properties to the underlying steel.
In a paper published by Thomason, it was suggested that a holiday (a discontinuity: defect, pinhole, crack etc.) in a coating as large as 50% could be successfully protected by a TSA coating for a few years and for 20 years in the case of a 6% holiday in a 200 μm flame-sprayed coating [65].
Modelling work done by using the final element method (FEM) that was conducted by Huang et al. showed that a cold-sprayed AlZn coating can only provide protection to the substrate when the damage in the coating is not larger than 1 mm in width [66]. However, it should be pointed out that, in this study, the effects of calcareous deposits and corrosion product formations were not included.

4.6. Effect of Temperature

The behaviour of TSA (Al–5%Mg) coatings (with and without CP) in natural seawater at different temperatures was studied by Wilson et al. [32]. In their experiments, carbon steel pipes with TSA coatings were internally heated to 20, 50, 70 and 90 °C and exposed to seawater (8–10 °C). It was observed that the corrosion rate increased with increasing temperature. Moreover, high initial corrosion rates that were recorded at all temperatures decreased with time below 10 μm/year after approximately 40–50 days. Based on the analysis of the thickness loss of the coatings, it was suggested that TSA (in conjunction with CP) might undergo chemical dissolution at elevated temperatures [32]. It was also noted that temperature influences the type and amount of calcareous deposits that were formed on the coatings. Deposits that were formed at higher temperatures contained a higher amount of Mg, whereas at lower temperatures, the deposits mainly consisted of CaCO3. Experiments that were conducted by other researchers [67] on TSA (AA1050) that contained defects (4%) in boiling synthetic seawater (ASTM 1141) for up to 5000 h also revealed the formation of brucite as well as β-alumina and mixed hydrated oxides of Mg and Al. No CaCO3 was detected in the holiday (defect) region.
The precipitation of calcareous deposits during the corrosion of TSA coatings with a 4% defect was also studied in synthetic seawater at 30 and 60 °C by Ce and Paul [68]. The authors conducted pH measurements during the corrosion of samples that were exposed to seawater for up to 350 h and observed that the local pH of the TSA coating increased with time at 60 °C (to the value between 7 and 8.5), whereas the opposite behaviour occurred at 30 °C (decreased to pH 4.76). A higher pH was linked to the passivation phenomena. Moreover, different types of products were detected at those temperatures: Al(OH)3 at 30 °C and κ-Al2O3 at 60 °C. Some Fe-containing corrosion products were observed on the sample exposed at 30 °C, and both aragonite and brucite were detected at both temperatures in the holiday region.
The effect of temperature on the precipitation of calcareous scales on cathodically protected steel was studied by Lin and Dexter [69]. They noticed that less calcareous deposits formed at temperatures <~10 °C and that at lower temperatures, the predominant phase was calcite (CaCO3), whereas at higher temperatures, aragonite (CaCO3) dominated. The difference was attributed to the inhibitive properties of Mg ions, which inhibit both nucleation and growth of calcite but only the nucleation of aragonite. Studies performed by Yang et al. [70] on cathodically protected steel in artificial seawater at 20 °C revealed the presence of double-layered deposits consisting of an Mg-rich inner layer and a calcium-rich outer layer. The development of calcareous layers on exposed steel is important in the context of the cathodic protection that is provided by TSA coatings because the deposits impede oxygen diffusion to the steel surface and reduce the rate of dissolution of aluminium.
The performance of cathodically polarised (−1, −1.1 and −1.2 V Ag/AgCl) TSA coatings that were exposed to seawater and mud at elevated temperatures was studied by Knudsen et al. [33,71]. They observed an increase in the corrosion rate of TSA with temperature. They also pointed out that the excessive polarisation to −1.2 V of TSA that was exposed to mud led to the very rapid dissolution of the coating.
Significantly less attention has been given to the performance of TSA coatings at lower temperatures. However, two papers have been published by Paul on the performance on TSA coatings (with defects) at 5 °C, the first one at ambient pressure [39] and the second one [72] under high pressure (50 MPa) to simulate deep sea conditions. Both tests revealed the formation of calcareous deposits in the holiday region, which consisted of a thin layer of Mg(OH)2 and a thick layer of CaCO3. In both cases, TSA provided full protection to the underlying steel.
Tests that were performed by Dexter [73] on aluminium metal in seawater revealed an ennoblement of the potential with temperature decrease. A similar trend should be expected for sprayed aluminium. If the potential of a coating is less negative at lower temperatures, its ability to provide cathodic protection (when coating gets damaged) is probably lower too. No papers focusing on the performance of TSA operating at temperatures below 5 °C have been found in the literature.

4.7. Effect of Oxygen

Eighteen-day lab-based experiments [74] that were conducted in aerated and deaerated artificial seawater at 25 °C on TSA with 3% holiday showed that under deaerated conditions, the corrosion rate of TSA coatings is lower and calcareous deposits that are formed consist mainly of brucite (Mg(OH)2).
The effect of oxygen on the galvanic corrosion of aluminium–steel couple in an NaCl solution was studied by Pryor and Keir [75]. They noticed that at pH lower than 4 and higher than 10, the galvanic current flow and mass change of Al were independent on the dissolved oxygen concentration, which was attributed to the main cathodic reaction being the reduction of water leading to the evolution of the hydrogen gas. Within the 4–10 pH range, however, dissolved oxygen had a strong effect on the galvanic corrosion. The saturation of the solution with oxygen resulted in an increase in galvanic current, whereas deaeration caused a decrease of the current to nearly zero.

4.8. Effect of the Solution Chemistry

It is well known that aluminium owes its good corrosion resistance in neutral aqueous environments to its passivating nature. Aluminium oxide, which is formed naturally on the surface of the bare metal, works as an electrical insulator. It inhibits the movement of electrons between the metal and the electrolyte, which results in the inhibition of cathodic reactions. However, for effective galvanic protection, Al needs to be able to corrode at a certain rate to successfully protect the steel substrate. It has been well documented in the literature that chloride ions are capable of breaking down the protective oxide layer, which leads to a localized form of corrosion [76,77,78]. Even though one would usually try to avoid any form of corrosion, in the case of sacrificial coatings, the presence of chloride ions can be beneficial. It has been observed that for atmospheric exposures, there is a critical threshold value of 100 mg Cl m−2 day−1, below which Al and Al-based coatings are ineffective [79]. Similar behaviour has also been observed under full immersion laboratory tests that were performed in 0.6 M NaCl and 0.6 M Na2SO4 [80]. The presence of Cl ions was necessary for effective sacrificial performance, but no recommendations regarding minimum concentration were given.
The effect of magnesium and calcium ions on the performance on TSA coatings containing defects was recently studied by Echaniz et al. [35]. The 90-day immersion tests that were performed in different solutions revealed differences between calcareous deposits that were formed on the exposed steel. When samples were exposed to solutions that contained either magnesium or calcium ions, a single layer of either brucite or calcite, respectively, was formed. However, when both ions were present in the solution, a bi-layer consisting of aragonite on top of brucite was detected. Moreover, electrochemical measurements revealed more noble potential of the sample that was exposed to artificial seawater than to the solutions containing only a combination of the following salts: MgCl2, CaCl2, and NaHCO3.The reason for this could be due to the presence of SO42− ions in artificial seawater. Those ions were detected in Al corrosion products by Syrek-Gerstenkorn et al. on TSA coatings after immersion in artificial seawater for 32 days [34]. Other researchers who studied the effect of SO42− on the corrosion of aluminium in NaCl solution observed that the addition of those ions inhibited the initiation of pitting corrosion, but it enhances the growth of pre-existing pits [81]. The inhibitive effect of SO42− was also reported by others [82].

5. Long-Term Field Studies

TSA coatings have proven to be an effective corrosion mitigation control for steel during several long-term field studies that were performed in the past three decades. The most notable ones are summarised in the Table 4 below.

6. Laboratory Corrosion Testing Methods

In order to predict the long-term performance of anti-corrosive coatings, long-term field testing is the most reliable approach; however, these are expensive and require long-term access to marine test sites. Short laboratory testing can give some indication and insight into the mechanisms that dictate the protectiveness of the system. The most common lab-based testing methods involve salt spray tests and electrochemical measurements, such as monitoring of the open circuit potential (OCP) and electrochemical impedance spectroscopy (EIS), during immersion tests. In order to estimate the rate of corrosion of the coatings, several methods have been employed by different researchers, such as linear polarisation resistance (LPR), polarisation curves, and mass change, as shown in Table 2.
Unfortunately, all of the above methods have some limitations. For example, the LPR method is not applicable when a non-conductive sealant or paint is used. Moreover, this technique should be used when the system undergoes general corrosion, whereas Al is known to suffer from localised corrosion in aqueous solutions containing Cl ions.
Additionally, it should be mentioned that if the samples contain defects, the use of polarisation curves is not accurate, because anodic and cathodic polarization curves reflect reactions that occur on both metals simultaneously. Therefore, the Tafel slopes (which are needed to calculate corrosion rates) that are obtained from those curves are not accurate.
EIS is a powerful technique that is especially useful for studying coatings. However, the selection of appropriate equivalent electrical circuit that explains the mechanism occurring in the system can be very difficult, especially in case of porous coatings, such as TSA. Nonetheless, some researchers have done EIS modelling to understand the corrosion behaviour of sacrificial coatings [8,23,31,37,89,90,91].
The common industrial practices of the monitoring of corrosion based on salt spray testing and visual examination has its limitations, particularly for long-term prediction of performance. It is common laboratory practice to use 5 wt% or 3.5 wt% NaCl solutions for salt spray tests, even though natural seawater contains other ions, such as Mg2+,Ca2+, and SO42−, which play important roles in corrosion processes.
The estimation of corrosion rates based on the mass change of the samples is not applicable to thermally-sprayed coatings due to their porous nature. Corrosion products form on the coating, fill the pores, and are not possible to remove. Therefore, the mass of the corroded samples is changed due to both the dissolution of the coating and the corrosion products that get trapped inside it.

7. In-Service Performance of Al Coatings

One of the earliest applications of TSA coatings for the corrosion protection of an offshore structure was the Hutton tension leg platform (TLP) which was installed in 1984 in the North Sea [92]. TSA was applied on risers and tethers and flare boom. The risers were connected to the TLP hull (protected by an impressed current CP) and a subsea template (connected to sacrificial anodes). In 1986, one of the tethers was removed for inspection, and one of the risers was removed in the following year. The inspections revealed the presence of blisters on the coating that was applied on tethers (with vinyl sealer), and no signs of the degradation of the coating were observed on the risers (with silicone sealer). Apart from the blisters, TSA was in very good condition even after 12 years in service [26]. The possible reasons for the development of the blisters were related to the vinyl sealer, which either reacted with TSA or did not penetrate the coating.
In the Norwegian offshore sectors, TSA (mainly Al–5%Mg) has been used for the protection of several offshore structures (e.g., Shell Draugen field, Sleipner riser platform, Troll Gas, Heidrun field, Heimdal platform). By 1997, approximately 400,000 m2 of steel was protected by using TSA coatings. The most common areas that were protected by the TSA coatings include flare booms, crane booms, pipes, under cellar decks, vessels under thermal insulation, and burner booms [93]. An excellent performance of TSA with aluminium silicone paint on the Heimdal platform was reported after 10 years in service. However, a premature degradation of TSA was observed on the Sleipner platform (after seven years in service) as well as on Jotun B. In both cases, TSA coatings were applied as duplex systems consisting of sprayed aluminium and a thick overcoat [94]. A similar problem occurred on a gas platform near East Timor in Australia, where TSA failed after one year in service [95].
Another example where TSA did not provide adequate protection was the Heindrun TLP installed in 1995 in the Norwegian North Sea. After less than four years in service, a serious damage of the TSA coating (supported by CP from sacrificial anodes) with silicone sealer was observed on two oil export risers and one gas export riser operating in the splash zone. Further lab-based studies that were conducted to identify possible reasons for the TSA failure on the Heindrun risers revealed that the tendency of blistering increases with increases of coating thickness and the rise of pipe temperature. It was also observed that blistering can be mitigated by using a silicone sealer [26].
A very good performance of sealed TSA coatings that were applied on risers connected to sacrificial anodes was reported on the Jolliet tension leg platform operating in the Gulf of Mexico for 13 years [26].
TSA with organic topcoats was also used for the protection of bridges, such as Nidelv bridge in Trondheim, where the duplex system provided protection to the bridge for 30 years. However, when applied to Tromsø bridge, duplex coating failed after a year or less [93]. Some of the suggested possible factors that might have promoted the development of many blisters in the splash zone region included the insufficient quality of blast-cleaning and insufficient coating thickness [96].
Recently, TSA has been tested for the protection of offshore wind turbines as a part of the Cost Reduction for Offshore Wind Now (Crown) project [97]. TSA with epoxy paint as a sealant is also being used for the protection of offshore wind turbines operating in the Baltic Sea as a part of the Arkona project [98].

8. Summary and Future Outlook

The literature review revealed that TSA has proven its capability to successfully protect steel from corrosion in harsh marine environments when applied properly. The main conclusions that can be drawn from the substantial amount of work that has been devoted to understanding mechanisms and parameters controlling the performance of TSA are as follows:
1. It appears that the most economical spraying technique that is capable of producing coatings with low level of porosity and good adhesion is the electric arc spraying method.
2. Coating thickness is an important parameter that influences performance. The optimal thickness has been reported to be between 150–375 µm. A lower thickness can result in an insufficient amount of aluminium to provide long-term protection to the substrate. An excessive coating thickness may lead to high residual coating stress leading to its premature failure.
3. The application of sealants can prolong the lifetime of the coating. Moreover, it has been suggested that sealing can prevent blistering. However, a low viscosity sealant that flows easily inside the pores without staying on top of the TSA should be used. The application of a thick organic layer on TSA may lead to an accelerated dissolution of the coating. The suggested failure mechanisms include the development of an acidic environment underneath the organic layer, the development of voluminous corrosion products rising the organic coating, anodic undermining, and cathodic disbondment.
4. It is important to differentiate between the self-corrosion of the coatings and how protective they are for steel when the coating is damaged or connected to bare steel. If large area of steel is exposed, the corrosion of TSA can be significantly higher due to the anodic nature of the coating.
5. Simulated laboratory tests should be conducted under intended service conditions. The testing of the coatings in NaCl solutions is not representative of in-service conditions and should be avoided. Seawater temperature and ions present in seawater play important roles in the corrosion of Al and the precipitation of calcareous deposits on cathodically polarised steel. Calcareous minerals are capable of impeding the diffusion of oxygen to the steel surface and reducing the dissolution rate of aluminium. Hence, constituents of these minerals such as Ca2+ and Mg2+ ions should be included in the test electrolyte.
6. TSA has mostly been used in offshore structures with some form of CP system in place. Recently, TSA has been applied on offshore wind turbines as a stand-alone corrosion control method. However, no standards that cover the suitability of using TSA as a primary CP system exist.
Despite well-documented successful performance history of TSA, some gaps in knowledge still remain. Areas that have not been fully understood or addressed yet include:
  • The determination of minimal salinity of water needed for the TSA to work effectively, especially if TSA contains defects.
  • The performance of damaged TSA coatings in cold seawater, especially when not in conjunction with external CP.
  • The suitability of using TSA coatings in splash zones.
  • The suitability of using TSA coatings for the protection of high strength steels where hydrogen embrittlement is a concern.
Though cold-sprayed coatings have many advantages, such as low porosity and oxide levels, they have not been used for corrosion protection of steel structures in-service yet due to the higher costs (CAPEX AND OPEX) that are associated with cold spray systems. Only some limited laboratory data exist. To evaluate the corrosion performance of the coatings, long-term testing is needed.

Author Contributions

Conceptualization, B.S.-G.; writing—original draft preparation, B.S.-G.; writing—review A.J.D.; Review and editing—S.P.; supervision, A.J.D. and S.P. All authors have read and agreed to the published version of the manuscript.

Funding

This publication was made possible by the sponsorship and support of Lloyd’s Register Foundation, a charitable foundation helping to protect life and property by supporting engineering-related education, public engagement and the application of research. The work was enabled through, and undertaken at, the National Structural Integrity Research Centre (NSIRC), a postgraduate engineering facility for industry-led research into structural integrity established and managed by TWI through a network of both national and international Universities. Authors gratefully acknowledge financial support from the Centre for Doctoral Training in Innovative Metal Processing (IMPaCT) funded by the UK Engineering and Physical Sciences Research Council (EPSRC), grant reference EP/L016206/1.

Acknowledgments

The authors would like to thank P. McNutt for the micrograph of cold-sprayed coating.

Conflicts of Interest

The authors declare no conflict of interest.
