Resistance of PVD Coatings to Erosive and Wear Processes: A Review
Abstract
:1. Introduction

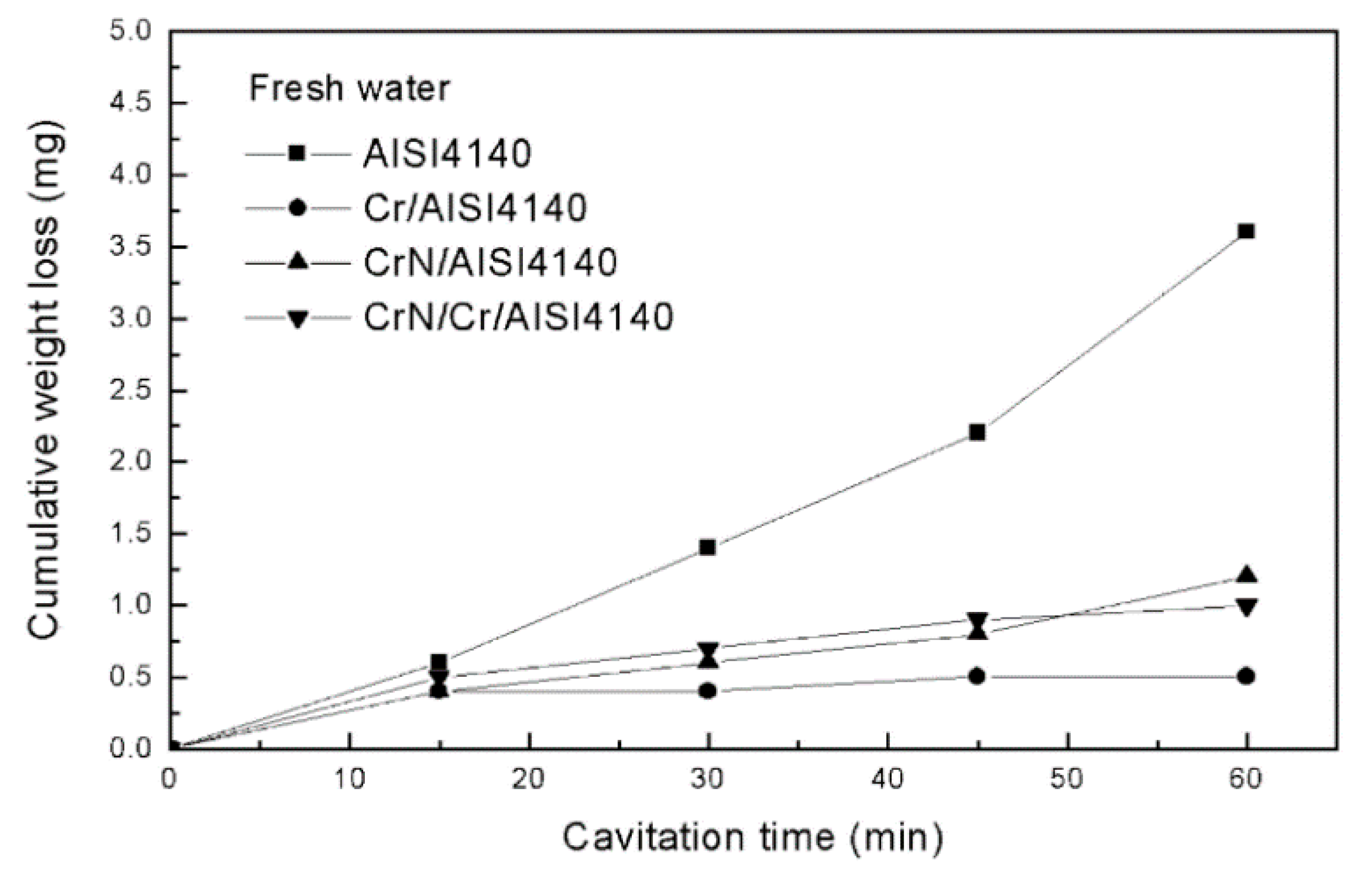

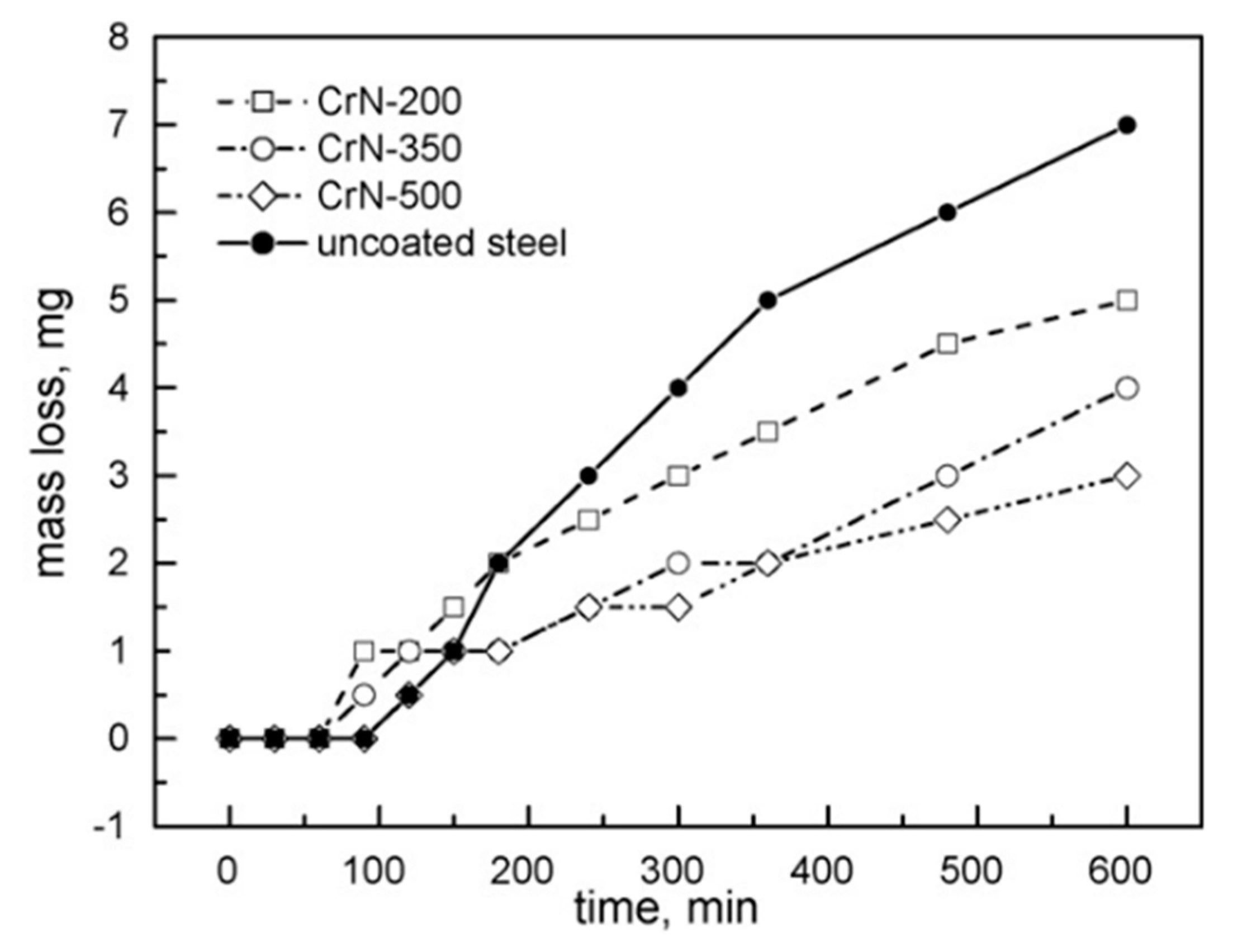

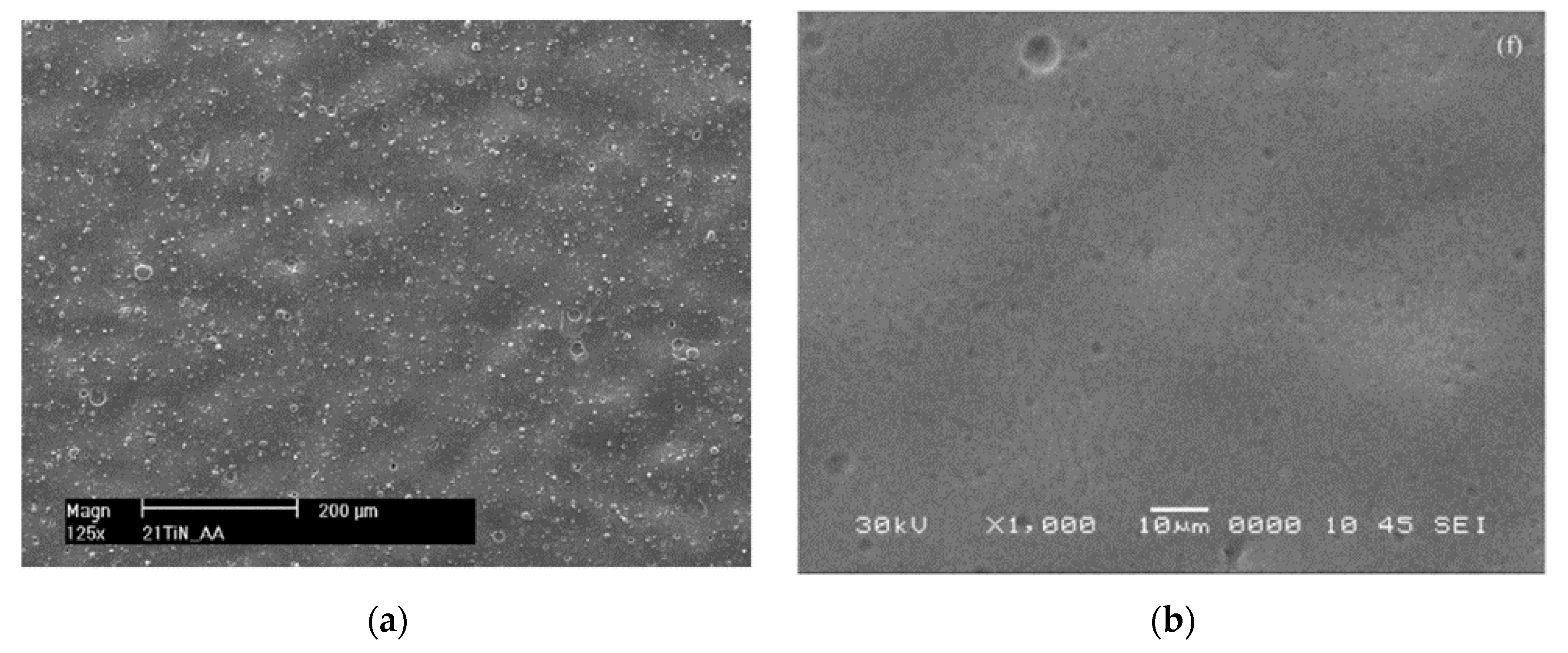

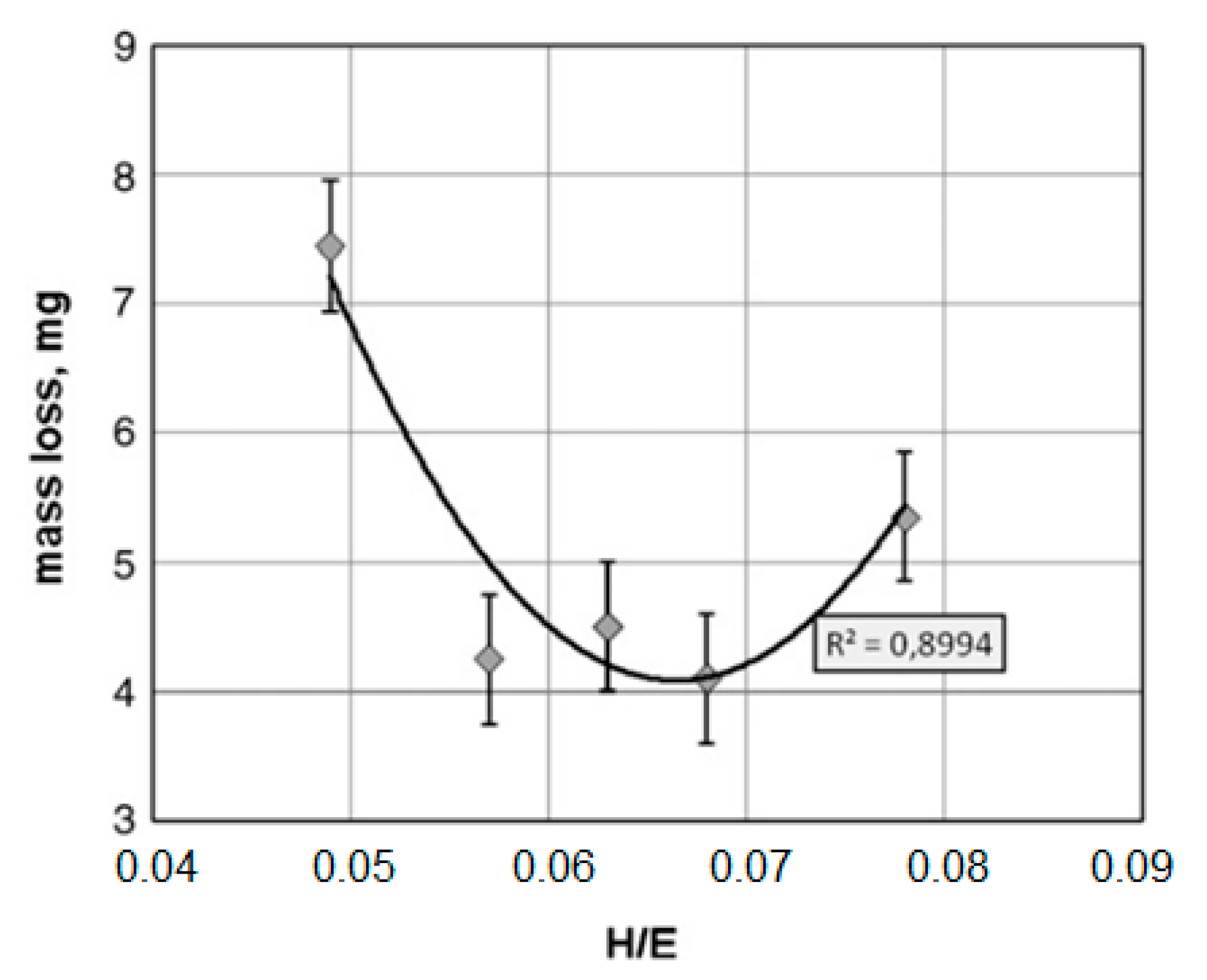

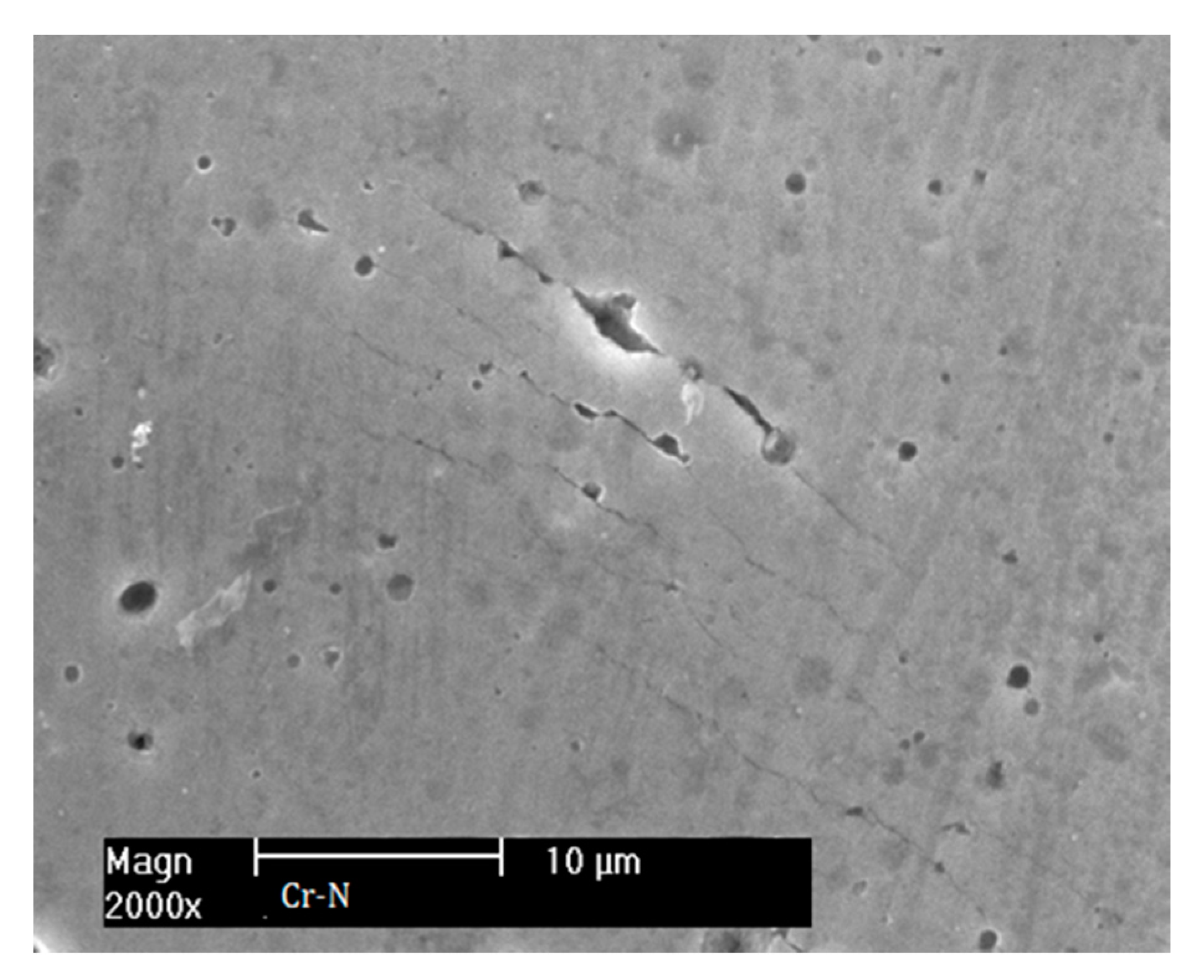

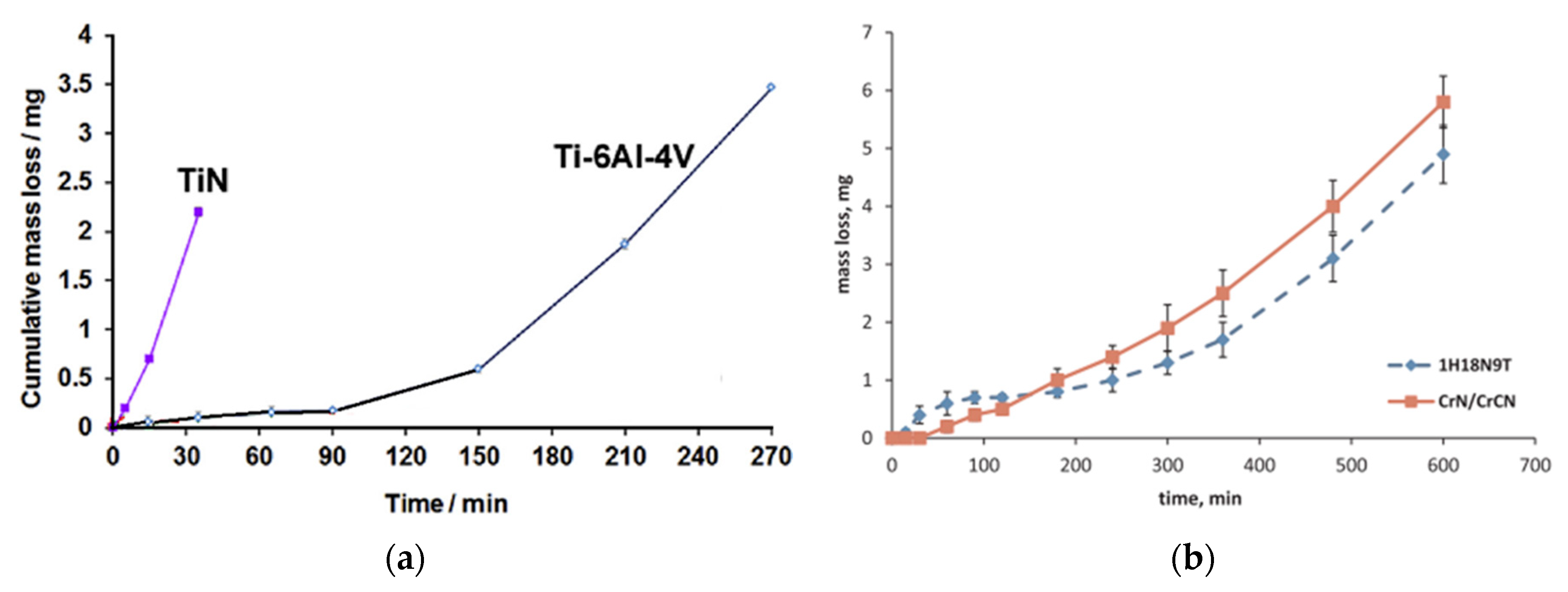

2. Resistance of PVD Coatings to Cavitation Erosion

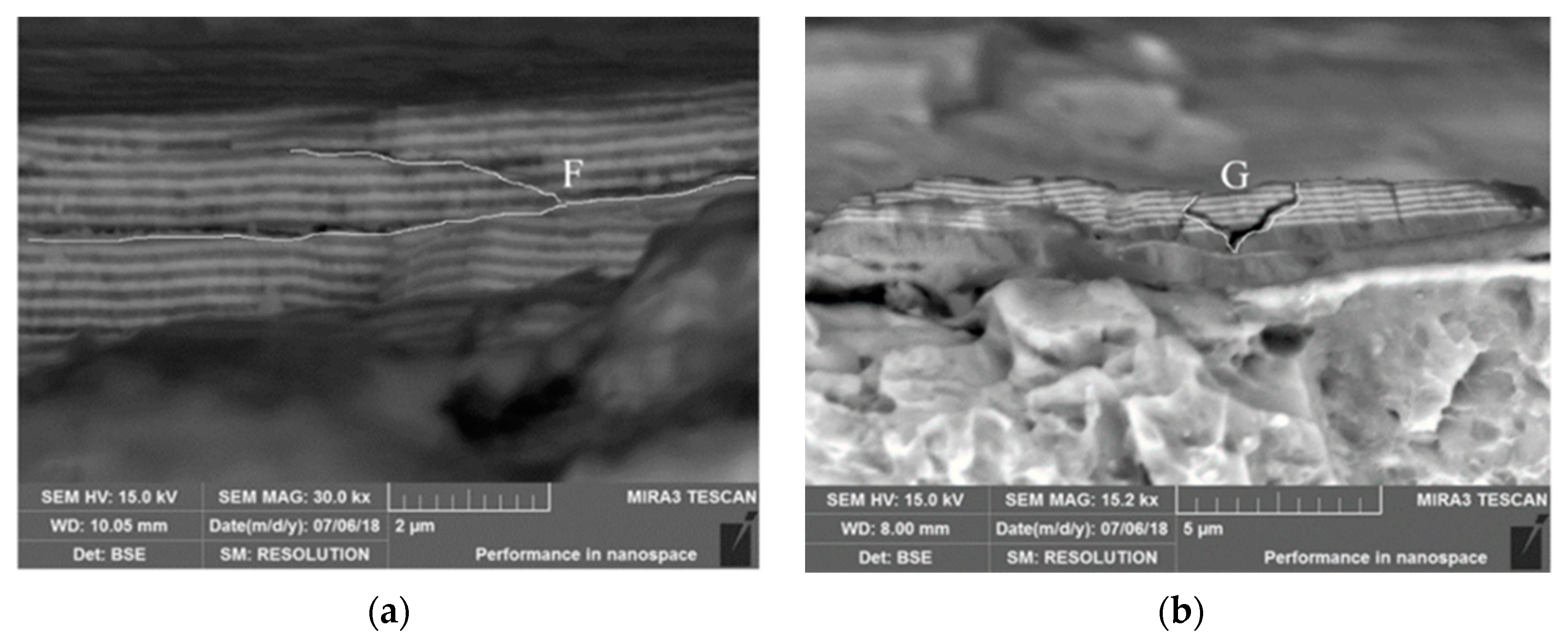

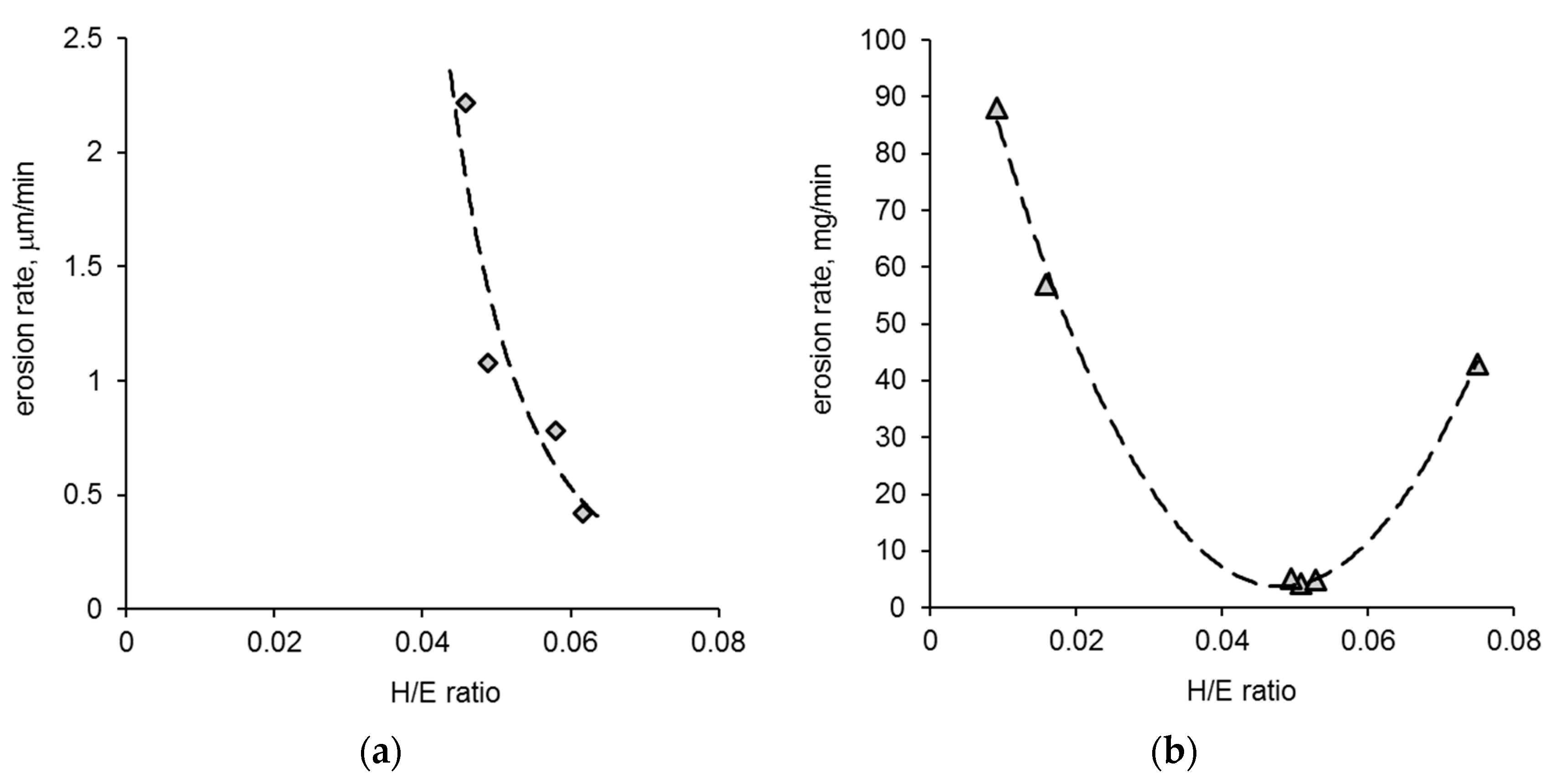

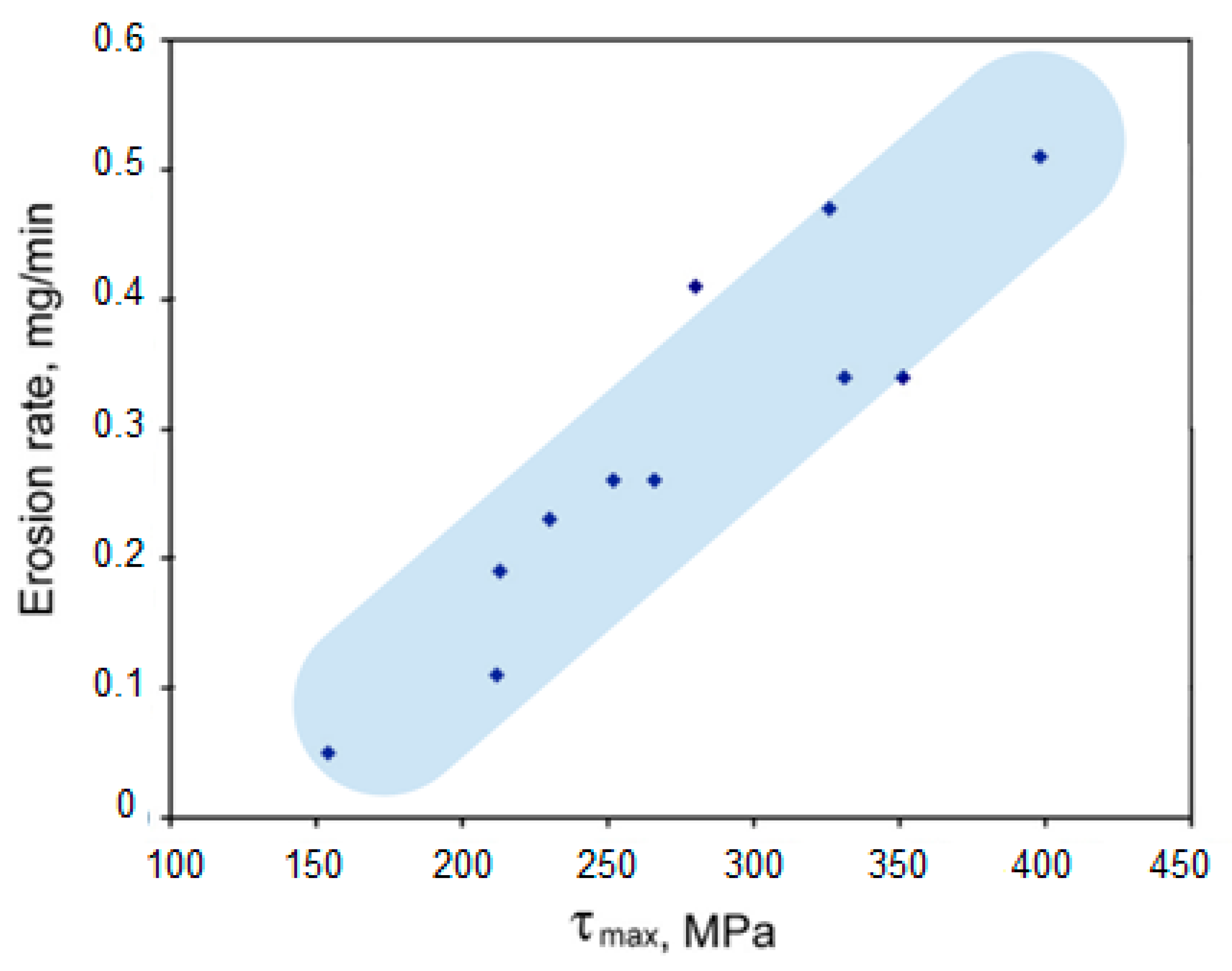

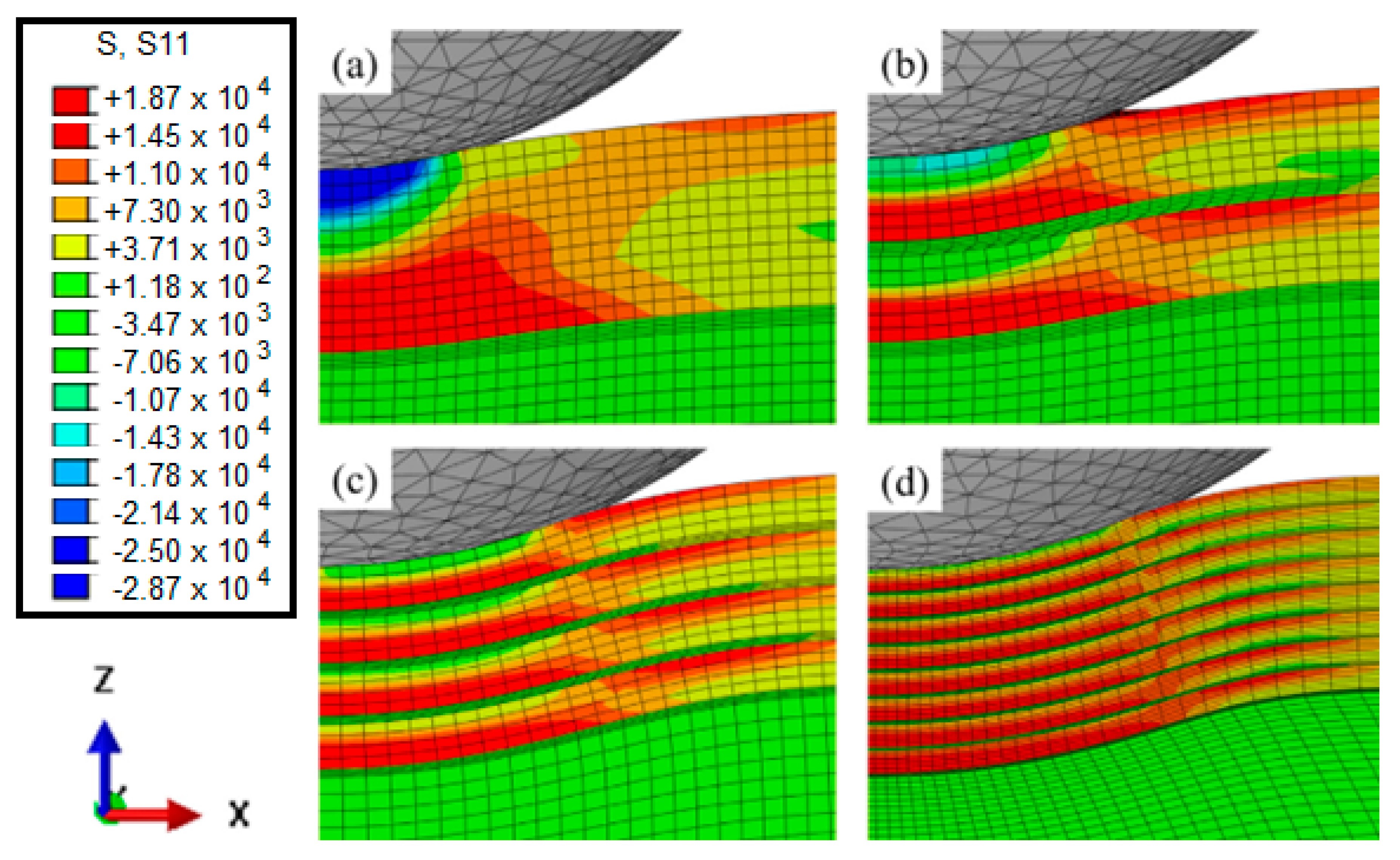

3. Resistance of PVD Coatings to Solid Particle Erosion

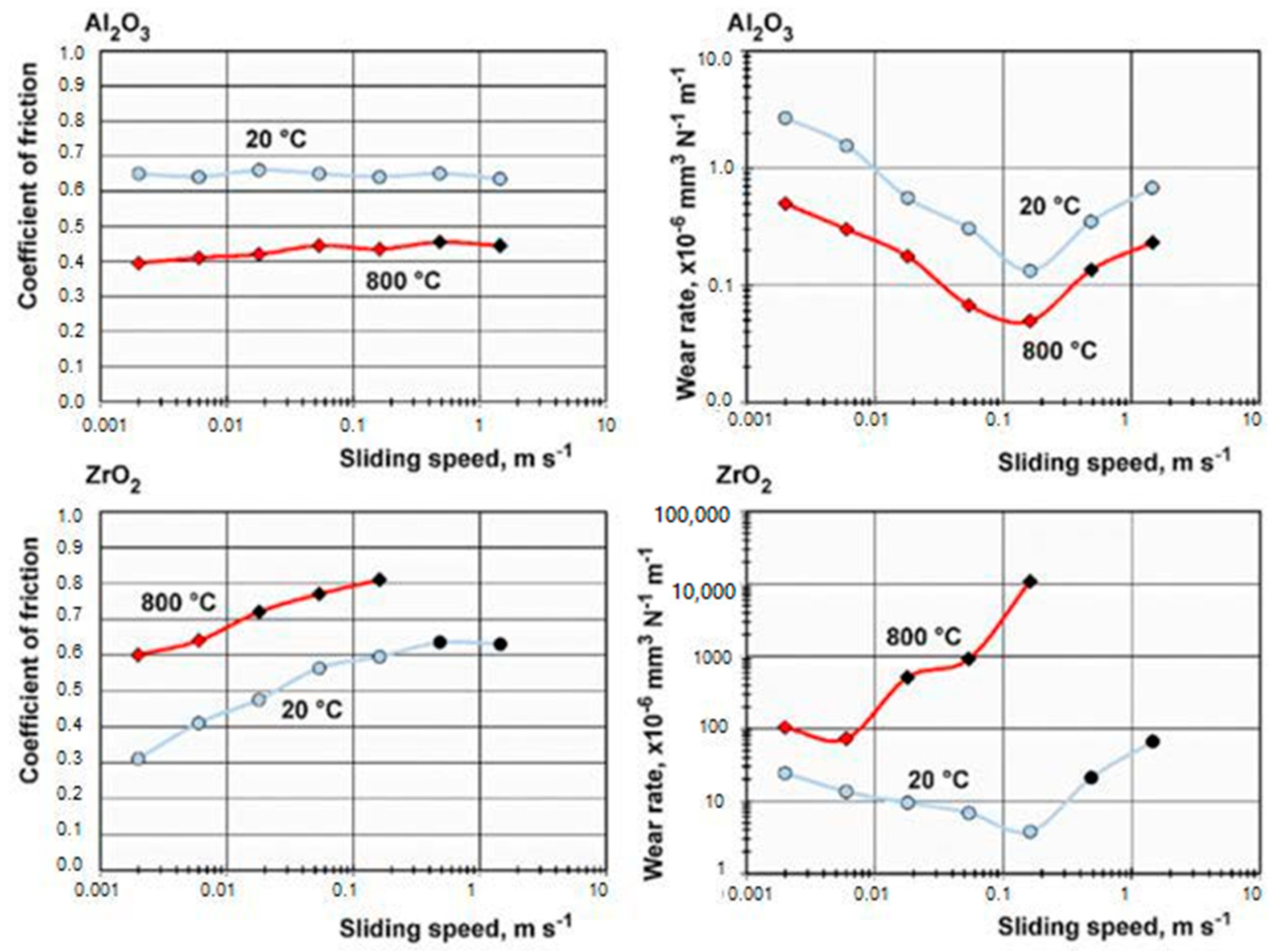

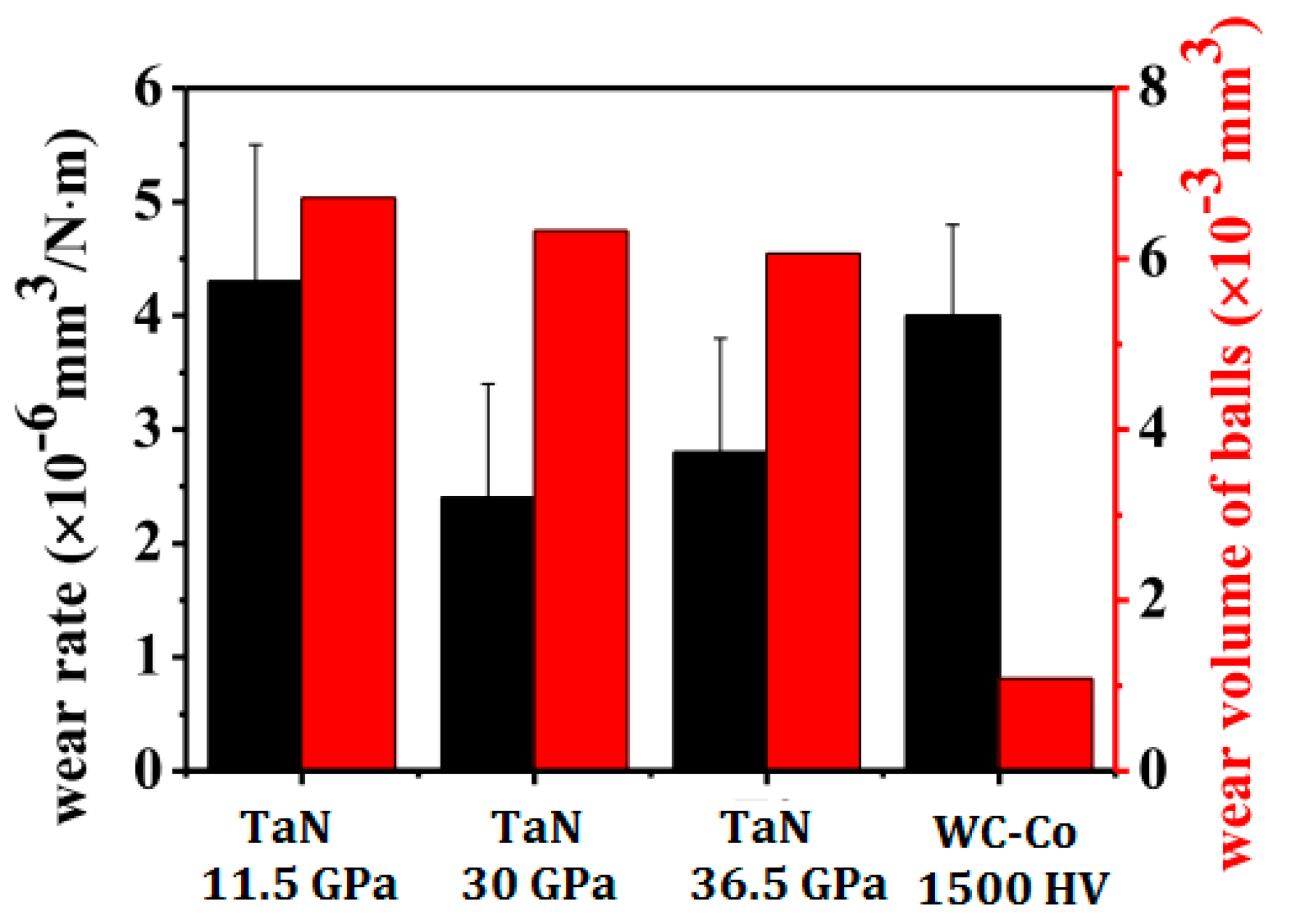

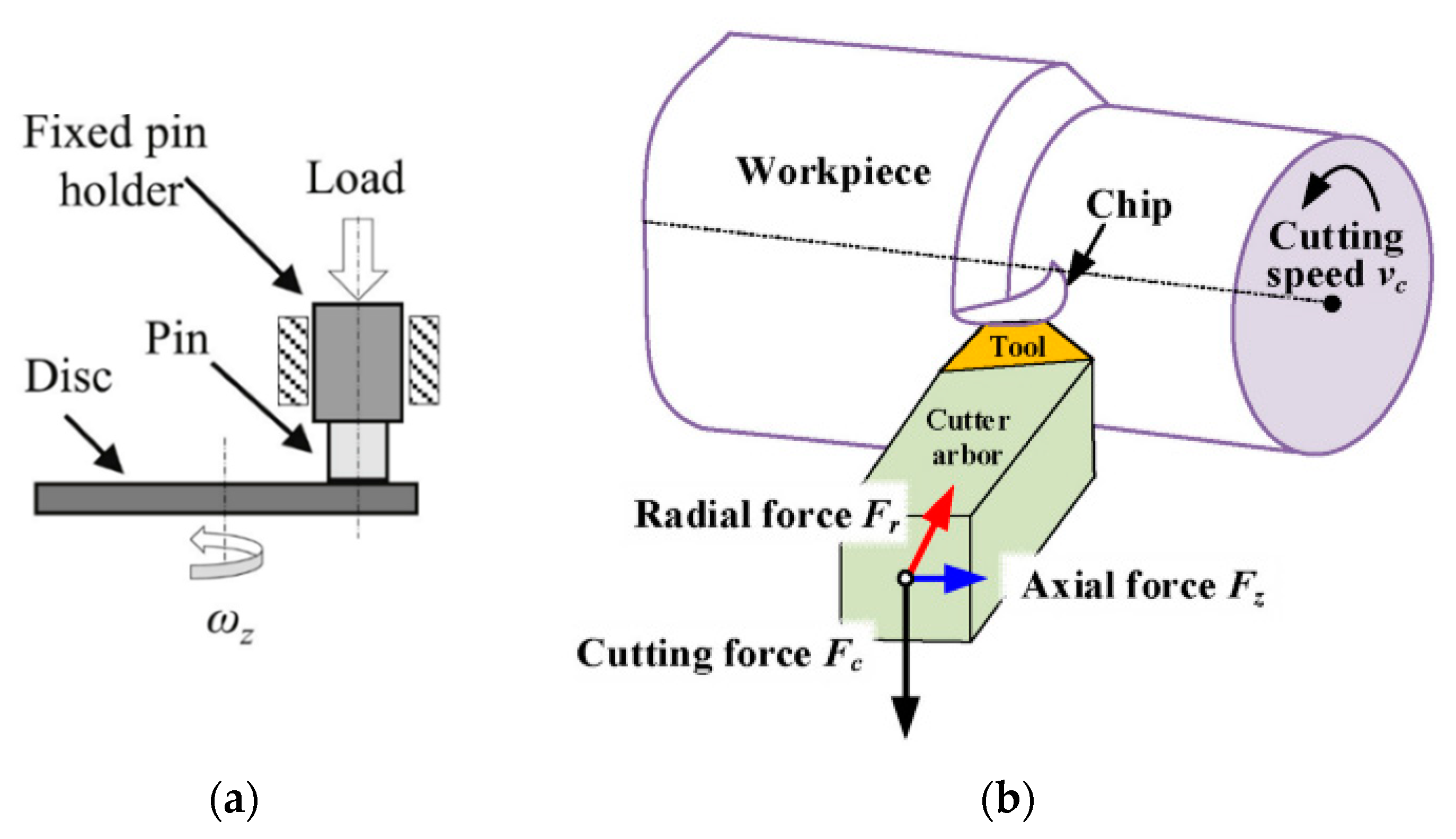

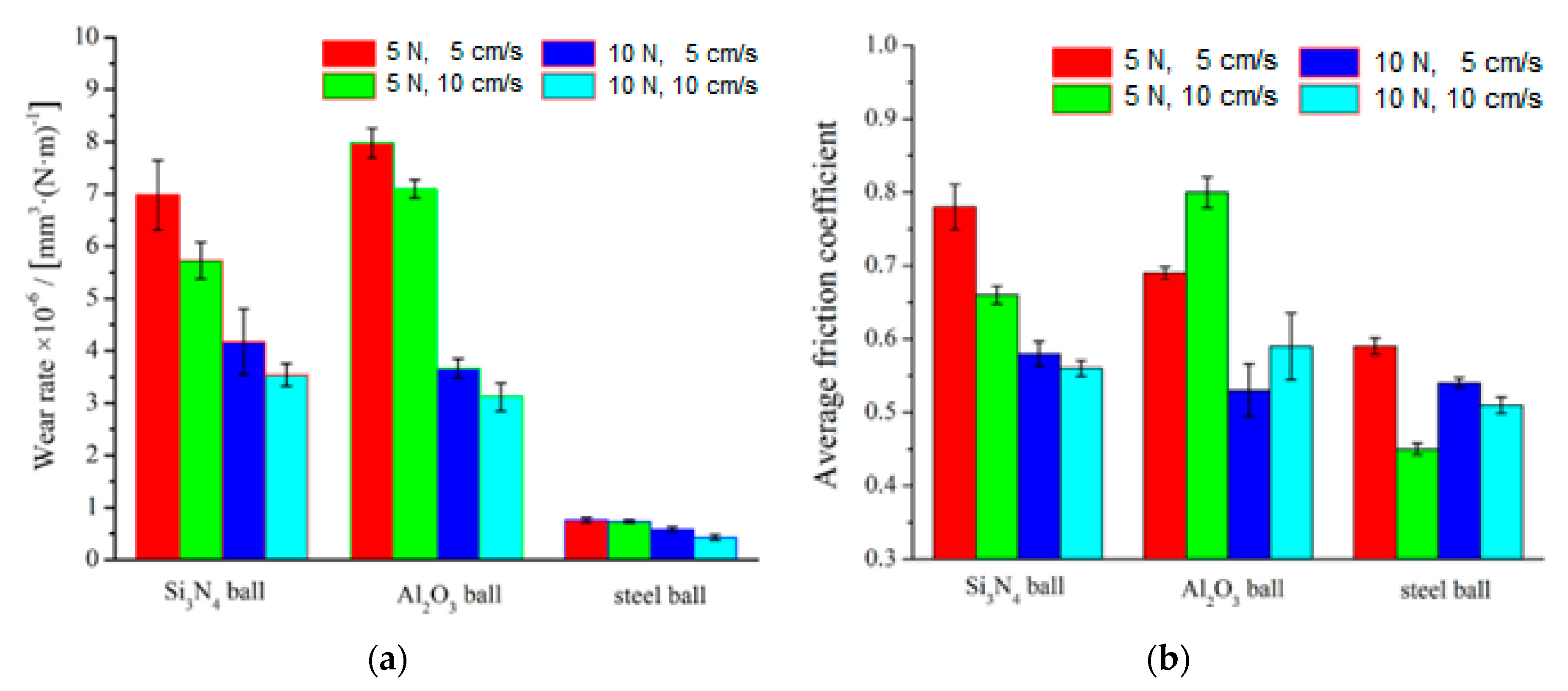

4. Resistance of PVD Coatings to Wear
5. Summary
Funding
Conflicts of Interest
References
- Sanga, S.; Singhal, M.K.; Saini, R.P. Hydro-abrasive erosion in hydro turbines: A review. Int. J. Green Energy 2018, 15, 232–253. [Google Scholar] [CrossRef]
- Lee, J.; Lee, S.; Han, H.N.; Kim, W. Yttrium Oxyfluoride Coatings Deposited by Suspension Plasma Spraying Using Coaxial Feeding. Coatings 2020, 10, 481. [Google Scholar] [CrossRef]
- Shi, M.; Xue, Z.; Zhang, Z.; Ji, X.; Byon, E.; Zhang, S. Effect of spraying powder characteristics on mechanical and thermal shock properties of plasma-sprayed YSZ thermal barrier coating. Surf. Coat. Technol. 2020, 395, 125913. [Google Scholar] [CrossRef]
- Garc, S.; Julio, A.; Bonache, V. Sprayed WC-12Co on ZE41 Magnesium Alloy. Coatings 2020, 10, 502. [Google Scholar]
- Hong, S.; Wu, Y.; Zhang, J.; Zheng, Y.; Zheng, Y.; Lin, J. Synergistic effect of ultrasonic cavitation erosion and corrosion of WC-CoCr and FeCrSiBMn coatings prepared by HVOF spraying. Ultrason. Sonochem. 2016, 31, 563–569. [Google Scholar] [CrossRef]
- Bouzakis, E. Fatigue Endurance Assessment of DLC Coatings on High-Speed Steels at Ambient and Elevated. Coatings 2020, 10, 547. [Google Scholar] [CrossRef]
- Awan, I.T.; Rivera, V.A.G.; Nogueira, I.C.; Pereira-da-Silva, M.A.; Li, M.S.; Ferreira, S.O.; Marega, E., Jr. Growth process and grain boundary defects in Er doped BaTiO3 processed by EB-PVD: A study by XRD, FTIR, SEM and AFM. Appl. Surf. Sci. 2019, 493, 982–993. [Google Scholar]
- Odén, M.; Ericsson, C.; Håkansson, G.; Ljungcrantz, H. Microstructure and mechanical behavior of arc-evaporated Cr-N coatings. Surf. Coat. Technol. 1999, 114, 39–51. [Google Scholar] [CrossRef]
- Wang, D.; Lin, S.; Liu, L.; Yang, H.; Shi, J.; Jiang, B.; Zhou, K.; Zhang, X. Micro-nano multilayer structure design and solid particle erosion resistance performance of CrAlNx/CrAlN coating. Vacuum 2020, 172, 109064. [Google Scholar] [CrossRef]
- Hoche, H.; Pusch, C.; Oechsner, M. Corrosion and wear protection of mild steel substrates by innovative PVD coatings. Surf. Coat. Technol. 2020, 391, 125659. [Google Scholar] [CrossRef]
- Gilewicz, A.; Warcholinski, B.; Szymanski, W.; Grimm, W. CrCN/CrN ta-C multilayer coating for applications in wood processing. Tribol. Int. 2013, 57, 1–7. [Google Scholar] [CrossRef]
- Zhou, H.; Liu, H.Y.; Fu, K.; Yuan, H.; Du, X.; Mai, Y.W. Numerical simulation of failure of composite coatings due to thermal and hygroscopic stresses. Coatings 2019, 9, 243. [Google Scholar] [CrossRef] [Green Version]
- Nadolny, K.; Kaplonek, W.; Sutowska, M.; Sutowski, P.; Myśliński, P.; Gilewicz, A. Experimental studies on durability of PVD-based CrCN/CrN-Coated cutting blade of planer knives used in the pine wood planing process. Materials 2020, 13, 2398. [Google Scholar] [CrossRef] [PubMed]
- Paiva, J.M.; Shalaby, M.A.M.; Chowdhury, M.; Shuster, L.; Chertovskikh, S.; Covelli, D.; Junior, E.L.; Stolf, P.; Elfizy, A.; Bork, C.A.S.; et al. Tribological and wear performance of carbide tools with TiB2 PVD coating under varying machining conditions of TiAl6V4 aerospace alloy. Coatings 2017, 7, 187. [Google Scholar] [CrossRef] [Green Version]
- Kiryukhantsev-Korneev, P.V.; Phiri, J.; Gladkov, V.I.; Ratnikov, S.N.; Yakovlev, M.G.; Levashov, E.A. Erosion and Abrasion Resistance, Mechanical Properties, and Structure of the TiN, Ti–Cr–Al–N and Cr–Al–Ti–N Coatings Deposited by CFUBMS. Prot. Met. Phys. Chem. Surf. 2019, 55, 913–923. [Google Scholar] [CrossRef]
- Zhang, H.; Li, Z.; He, W.; Liao, B.; He, G.; Cao, X.; Li, Y. Damage evolution and mechanism of TiN/Ti multilayer coatings in sand erosion condition. Surf. Coat. Technol. 2018, 353, 210–220. [Google Scholar] [CrossRef]
- Lima, R.S.; Guerreiro, B.M.H.; Aghasibeig, M. Microstructural Characterization and Room-Temperature Erosion Behavior of As-Deposited SPS, EB-PVD and APS YSZ-Based TBCs. J. Therm. Spray Technol. 2019, 28, 223–232. [Google Scholar] [CrossRef]
- Cai, F.; Huang, X.; Yang, Q. Mechanical properties, sliding wear and solid particle erosion behaviors of plasma enhanced magnetron sputtering CrSiCN coating systems. Wear 2015, 324–325, 27–35. [Google Scholar] [CrossRef]
- Xu, X.; Su, F.; Li, Z. Tribological properties of nanostructured TiAlN/W2N multilayer coating produced by PVD. Wear 2019, 430, 67–75. [Google Scholar] [CrossRef]
- Azizpour, A.; Hahn, R.; Klimashin, F.F.; Wojcik, T.; Poursaeidi, E.; Mayrhofer, P.H. Deformation and cracking mechanism in CrN/TiN multilayer coatings. Coatings 2019, 9, 363. [Google Scholar] [CrossRef] [Green Version]
- Zha, X.; Jiang, F.; Xu, X. Investigating the high frequency fatigue failure mechanisms of mono and multilayer PVD coatings by the cyclic impact tests. Surf. Coat. Technol. 2018, 344, 689–701. [Google Scholar] [CrossRef]
- Selivanov, K.S.; Smyslov, A.M.; Dyblenko, Y.M.; Semenova, I.P. Erosive wear behavior of Ti/Ti(V,Zr)N multilayered PVD coatings for Ti-6Al-4V alloy. Wear 2019, 418–419, 160–166. [Google Scholar] [CrossRef]
- Lin, S.; Zhou, K.; Dai, M.; Lan, E.; Shi, Q.; Hu, F.; Kuang, T.; Zhuang, C. Structural, mechanical, and sand erosion properties of TiN/Zr/ZrN multilayer coatings. Vacuum 2015, 122, 179–186. [Google Scholar] [CrossRef]
- Momeni, S.; Tillmann, W.; Pohl, M. Composite cavitation resistant PVD coatings based on NiTi thin films. Mater. Des. 2016, 110, 830–838. [Google Scholar] [CrossRef]
- Krella, A.K.; Czyżniewski, A.; Gilewicz, A.; Gajowiec, G. Experimental Study of the Influence of Deposition of Multilayer CrN/CrCN PVD Coating on Austenitic Steel on Resistance to Cavitation Erosion. Coatings 2020, 10, 487. [Google Scholar] [CrossRef]
- Xi, Y.; Gao, K.; Pang, X.; Yang, H.; Xiong, X.; Li, H.; Volinsky, A.A. Film thickness effect on texture and residual stress sign transition in sputtered TiN thin films. Ceram. Int. 2017, 43, 11992–11997. [Google Scholar] [CrossRef]
- Vega, J.; Scheerer, H.; Andersohn, G.; Oechsner, M. Experimental studies of the effect of Ti interlayers on the corrosion resistance of TiN PVD coatings by using electrochemical methods. Corros. Sci. 2018, 133, 240–250. [Google Scholar] [CrossRef]
- Zlamal, T.; Mrkvica, I.; Szotkowski, T.; Malotova, S. The influence of surface treatment of PVD coating on its quality and wear resistant. Coatings 2019, 9, 439. [Google Scholar] [CrossRef] [Green Version]
- Li, D.G.; Chen, D.R.; Liang, P. Enhancement of cavitation erosion resistance of 316 L stainless steel by adding molybdenum. Ultrason. Sonochem. 2017, 35, 375–381. [Google Scholar] [CrossRef]
- Zhang, L.; Liu, Y.H.; Luo, K.Y.; Zhang, Y.K.; Zhao, Y.; Huang, J.Y.; Wu, X.D.; Zhou, C. Tensile property of ANSI 304 stainless steel weldments subjected to cavitation erosion based on treatment of laser shock processing. Materials 2018, 11, 805. [Google Scholar] [CrossRef] [Green Version]
- Puchi-Cabrera, E.S.; Matínez, F.; Herrera, I.; Berríos, J.A.; Dixit, S.; Bhat, D. On the fatigue behavior of an AISI 316L stainless steel coated with a PVD TiN deposit. Surf. Coat. Technol. 2004, 182, 276–286. [Google Scholar] [CrossRef]
- Puchi-Cabrera, E.S.; Staia, M.H.; Quinto, D.T.; Villalobos-Gutiérrez, C.; Ochoa-Pérez, E. Fatigue properties of a SAE 4340 steel coated with TiCN by PAPVD. Int. J. Fatigue 2007, 29, 471–480. [Google Scholar] [CrossRef]
- Zhou, Y.; Rao, G.B.; Wang, J.Q.; Zhang, B.; Yu, Z.M.; Ke, W.; Han, E.H. Influence of Ti/TiN bilayered and multilayered films on the axial fatigue performance of Ti46Al8Nb alloy. Thin Solid Films 2011, 519, 2207–2212. [Google Scholar] [CrossRef]
- Cairney, J.M.; Tsukano, R.; Hoffman, M.J.; Yang, M. Degradation of TiN coatings under cyclic loading. Acta Mater. 2004, 52, 3229–3237. [Google Scholar] [CrossRef]
- Baragetti, S.; La Vecchia, G.M.; Terranova, A. Variables affecting the fatigue resistance of PVD-coated components. Int. J. Fatigue 2005, 27, 1541–1550. [Google Scholar] [CrossRef]
- Su, Y.L.; Yao, S.H.; Wei, C.S.; Kao, W.H.; Wu, C.T. Influence of single-and multilayer TiN films on the axial tension and fatigue performance of AISI 1045 steel. Thin Solid Films 1999, 338, 177–184. [Google Scholar] [CrossRef]
- Su, Y.L.; Yao, S.H.; Wei, C.S.; Wu, C.T.; Kao, W.H. Evaluation on the wear, tension and fatigue behavior of various PVD coated materials. Mater. Lett. 1998, 35, 255–260. [Google Scholar] [CrossRef]
- Su, Y.; Yao, S.; Wei, C.; Wu, C. Tension and fatigue behavior of a PVD TiN-coated material. Thin Solid Films 1998, 315, 153–158. [Google Scholar] [CrossRef]
- Sundaram, V.S. Diamond like carbon film as a protective coating for high strength steel and titanium alloy. Surf. Coat. Technol. 2006, 201, 2707–2711. [Google Scholar] [CrossRef]
- Teer, D.G. Fatigue properties of a 316L stainless steel coated with different TiN x. Surf. Coat. Technol. 2001, 148, 179–190. [Google Scholar]
- Trapezon, A.G.; Lyashenko, B.A. Effect of the deposition and thickness parameters of titanium nitride (TiN) coatings on the fatigue strength. Strength Mater. 2010, 42, 675–682. [Google Scholar] [CrossRef]
- Xin, L.; Liu, P.; Feng, C.; Zhu, S.; Wang, F. Fatigue behavior of (graded) (Ti, Al)N-coated 1Cr11Ni2W2MoV stainless steel at high temperature. Surf. Coat. Technol. 2010, 204, 2417–2423. [Google Scholar] [CrossRef]
- Cassar, G.; Avelar-Batista Wilson, J.C.; Banfield, S.; Housden, J.; Fenech, M.; Matthews, A.; Leyland, A. Evaluating the effects of plasma diffusion processing and duplex diffusion/PVD-coating on the fatigue performance of Ti-6Al-4V alloy. Int. J. Fatigue 2011, 33, 1313–1323. [Google Scholar] [CrossRef]
- Berríos-Ortíz, J.A.; La Barbera-Sosa, J.G.; Teer, D.G.; Puchi-Cabrera, E.S. Fatigue properties of a 316L stainless steel coated with different ZrN deposits. Surf. Coat. Technol. 2004, 179, 145–157. [Google Scholar] [CrossRef]
- Kim, K.R.; Suh, C.M.; Murakami, R.I.; Chung, C.W. Effect of intrinsic properties of ceramic coatings on fatigue behavior of Cr-Mo-V steels. Surf. Coat. Technol. 2003, 171, 15–23. [Google Scholar] [CrossRef]
- Krella, A.K.; Czyzniewski, A.; Gilewicz, A.; Krupa, A. Cavitation erosion of CrN/CrCN multilayer coating. Wear 2017, 386–387, 80–89. [Google Scholar] [CrossRef]
- Krella, A.K.; Zakrzewska, D.E.; Marchewicz, A. The resistance of S235JR steel to cavitation erosion. Wear 2020, 452–453, 203295. [Google Scholar] [CrossRef]
- Krella, A.K.; Zakrzewska, D.E. Cavitation Erosion–Phenomenon and Test Rigs. Adv. Mater. Sci. 2018, 18, 15–26. [Google Scholar] [CrossRef] [Green Version]
- Buszko, M.H.; Krella, A.K. Slurry Erosion–Design of Test Devices. Adv. Mater. Sci. 2017, 17, 5–17. [Google Scholar] [CrossRef] [Green Version]
- Javaheri, V.; Porter, D.; Kuokkala, V. Slurry erosion of steel – Review of tests, mechanisms and materials. Wear 2018, 408–409, 248–273. [Google Scholar] [CrossRef]
- Hattori, S.; Ishikura, R.; Zhang, Q. Construction of database on cavitation erosion and analyses of carbon steel data. Wear 2004, 257, 1022–1029. [Google Scholar] [CrossRef]
- Ding, X.; Ke, D.; Yuan, C.; Ding, Z.; Cheng, X. Microstructure and cavitation erosion resistance of HVOF deposited WC-Co coatings with different sized WC. Coatings 2018, 8, 307. [Google Scholar] [CrossRef] [Green Version]
- Krebs, S.; Kuroda, S.; Katanoda, H.; Gaertner, F.; Klassen, T.; Araki, H.; Frede, S. Warm Spraying of High-Strength Ni-Al-Bronze: Cavitation Characteristics and Property Prediction. J. Therm. Spray Technol. 2017, 26, 265–277. [Google Scholar] [CrossRef]
- Girisha, K.; Sreenivas Rao, K.V.; Durga Prasad, C. Slurry Erosion Resistance of Martenistic Stainless Steel with Plasma Sprayed Al2O3-40%TiO2Coatings. Mater. Today Proc. 2018, 5, 7388–7393. [Google Scholar] [CrossRef]
- Bousser, E.; Martinu, L.; Klemberg-Sapieha, J.E. Solid particle erosion mechanisms of protective coatings for aerospace applications. Surf. Coat. Technol. 2014, 257, 165–181. [Google Scholar] [CrossRef] [Green Version]
- Hotta, S.; Itou, Y.; Saruki, K.; Arai, T. Fatigue strength at a number of cycles of thin hard coated steels with quench-hardened substrates. Surf. Coat. Technol. 1995, 73, 5–13. [Google Scholar] [CrossRef]
- Carvalho, N.J.M.; Huis, A.J.; Hosson, J.T. De Interfacial fatigue stress in PVD TiN coated tool steels under rolling contact fatigue conditions. Surf. Coat. Technol. 1998, 105, 109–116. [Google Scholar] [CrossRef] [Green Version]
- Stewart, S.; Ahmed, R. Rolling contact fatigue of surface coatings—A review. Wear 2002, 253, 1132–1144. [Google Scholar] [CrossRef] [Green Version]
- Carvalho, N.J.M.; Zoestbergen, E.; Kooi, B.J.; De Hosson, J.T.M. Stress analysis and microstructure of PVD monolayer TiN and multilayer TiN/(Ti,Al)N coatings. Thin Solid Films 2003, 429, 179–189. [Google Scholar] [CrossRef] [Green Version]
- Ibrahim, R.N.; Rahmat, M.A.; Oskouei, R.H.; Singh Raman, R.K. Monolayer TiAlN and multilayer TiAlN/CrN PVD coatings as surface modifiers to mitigate fretting fatigue of AISI P20 steel. Eng. Fract. Mech. 2015, 137, 64–78. [Google Scholar] [CrossRef]
- Kim, G.S.; Lee, S.Y.; Hahn, J.H.; Lee, B.Y.; Han, J.G.; Lee, J.H.; Lee, S.Y. Effects of the thickness of Ti buffer layer on the mechanical properties of TiN coatings. Surf. Coat. Technol. 2003, 171, 83–90. [Google Scholar] [CrossRef]
- Chen, Z.; Zhao, J.; Meng, X.; Li, J. Evaluation of fatigue resistance of a gradient CrNx coating applied to turbine blades. Mater. Sci. Eng. A 2010, 527, 1436–1443. [Google Scholar] [CrossRef]
- Yoon, S.Y.; Yoon, S.Y.; Chung, W.S.; Kim, K.H. Impact-wear behaviors of TiN and Ti-Al-N coatings on AISI D2 steel and WC-Co substrates. Surf. Coat. Technol. 2004, 177–178, 645–650. [Google Scholar] [CrossRef]
- Krella, A.; Czyzniewski, A. Influence of the substrate hardness on the cavitation erosion resistance of TiN coating. Wear 2007, 263, 395–401. [Google Scholar] [CrossRef]
- ASTM G32-09 Standard Test Method for Cavitation Erosion Using Vibratory Apparatus 1; ASTM International: West Conshohocken, PA, USA, 2009; pp. 1–16.
- Lamana, M.S.; Pukasiewicz, A.G.M.; Sampath, S. Influence of cobalt content and HVOF deposition process on the cavitation erosion resistance of WC-Co coatings. Wear 2018, 398–399, 209–219. [Google Scholar] [CrossRef]
- Ma, D.; Harvey, T.J.; Wellman, R.G.; Ehiasarian, A.P.; Hovsepian, P.E.; Sugumaran, A.A.; Purandare, Y.P.; Wood, R.J.K. Cavitation erosion performance of CrAlYN/CrN nanoscale multilayer coatings deposited on Ti6Al4V by HIPIMS. J. Alloys Compd. 2019, 788, 719–728. [Google Scholar] [CrossRef]
- Ding, X.; Cheng, X.D.; Yu, X.; Li, C.; Yuan, C.; Ding, Z. Structure and cavitation erosion behavior of HVOF sprayed multi-dimensional WC–10Co4Cr coating. Trans. Nonferr. Met. Soc. China 2018, 28, 487–494. [Google Scholar] [CrossRef]
- Jasionowski, R.; Polkowski, W.; Zasada, D. Effect of crystalographic texture on cavitation wear resistance of as-cast CuZn10 alloy. Arch. Metall. Mater. 2018, 63, 935–940. [Google Scholar]
- Wu, P.; Bai, L.; Lin, W. On the definition of cavitation intensity. Ultrason. Sonochem. 2020, 67, 10–12. [Google Scholar] [CrossRef]
- Wu, Q.; Huang, B.; Wang, G.; Cao, S. The transient characteristics of cloud cavitating flow over a flexible hydrofoil. Int. J. Multiph. Flow 2018, 99, 162–173. [Google Scholar] [CrossRef]
- Choi, J.K.; Chahine, G.L. Relationship between material pitting and cavitation field impulsive pressures. Wear 2016, 352–353, 42–53. [Google Scholar] [CrossRef] [Green Version]
- Hong, Y.; Sarntinoranont, M.; Subhash, G.; Canchi, S.; King, M.A. Localized Tissue Surrogate Deformation due to Controlled Single Bubble Cavitation. Exp. Mech. 2016, 56, 97–109. [Google Scholar] [CrossRef]
- Soyama, H. Cavitation peening: A review. Metals 2020, 10, 270. [Google Scholar] [CrossRef] [Green Version]
- Krella, A.K.; Krupa, A. Effect of cavitation intensity on degradation of X6CrNiTi18-10 stainless steel. Wear 2018, 408–409, 180–189. [Google Scholar] [CrossRef]
- Münsterer, S.; Kohlhof, K. Cavitation protection by low temperature TiCN coatings. Surf. Coat. Technol. 1995, 74–75, 642–647. [Google Scholar]
- Liu, Z.; Zhu, S.; Shen, M.; Jia, Y.; Wang, W.; Wang, F. Microstructure and cavitation erosion behavior of sputtered NiCrAlTi coatings with and without N incorporations. J. Mater. Sci. Technol. 2020, 54, 211–222. [Google Scholar] [CrossRef]
- Krella, A.; Czyzniewski, A. Cavitation erosion resistance of nanocrystalline TiN coating deposited on stainless steel. Wear 2008, 265, 963–970. [Google Scholar] [CrossRef]
- Krella, A.; Czyzniewski, A. Cavitation resistance of Cr-N coatings deposited on austenitic stainless steel at various temperatures. Wear 2009, 266, 800–809. [Google Scholar] [CrossRef]
- Yang, L.M.; Tieu, A.K.; Dunne, D.P.; Huang, S.W.; Li, H.J.; Wexler, D.; Jiang, Z.Y. Cavitation erosion resistance of NiTi thin films produced by Filtered Arc Deposition. Wear 2009, 267, 233–243. [Google Scholar] [CrossRef] [Green Version]
- Szala, M.; Walczak, M.; Pasierbiewicz, K.; Kamiński, M. Cavitation erosion and sliding wear mechanisms of AlTiN and TiAlN films deposited on stainless steel substrate. Coatings 2019, 9, 340. [Google Scholar] [CrossRef] [Green Version]
- Bahri, A.; Kaçar, E.; Akkaya, S.S.; Elleuch, K.; Ürgen, M. Wear protection potential of TiN coatings for 304 stainless steels used in rotating parts during olive oil extraction. Surf. Coat. Technol. 2016, 304, 560–566. [Google Scholar] [CrossRef]
- Krella, A.; Czyzniewski, A. Investigation concerning the cavitation resistance of TiN coatings deposited on austenitic stainless steel at various temperatures. Wear 2008, 265, 72–80. [Google Scholar] [CrossRef]
- Zhang, K.; Guo, X.; Wang, C.; Liu, F.; Sun, L. Effect of plasma-assisted laser pretreatment of hard coatings surface on the physical and chemical bonding between PVD soft and hard coatings and its resulting properties. Appl. Surf. Sci. 2020, 509, 145342. [Google Scholar] [CrossRef]
- Saketi, S.; Olsson, M. Influence of CVD and PVD coating micro topography on the initial material transfer of 316L stainless steel in sliding contacts—A laboratory study. Wear 2017, 388–389, 29–38. [Google Scholar] [CrossRef]
- Bobzin, K.; Brögelmann, T.; Kalscheuer, C. Arc PVD (Cr,Al,Mo)N and (Cr,Al,Cu)N coatings for mobility applications. Surf. Coat. Technol. 2020, 384, 125046. [Google Scholar] [CrossRef]
- Fazlalipour, F.; Naghashnejad, M.; Niki Nushari, M. Evaluation of adhesion and erosion/corrosion resistance of nano-composite and nano-multilayer thin films in molten aluminum alloy. SN Appl. Sci. 2019, 1, 1308. [Google Scholar] [CrossRef] [Green Version]
- Gahlin, R.; Bromark, M.; Hedenqvist, P.; Hogmark, S.; Hakansson, G. Properties of TiN and CrN coatings deposited at low temperature using reactive arc-evaporation. Surf. Coat. Technol. 1995, 76–77, 174–180. [Google Scholar] [CrossRef]
- Harris, S.G.; Doyle, E.D.; Wong, Y.C.; Munroe, P.R.; Cairney, J.M.; Long, J.M. Reducing the macroparticle content of cathodic arc evaporated TiN coatings. Surf. Coat. Technol. 2004, 183, 283–294. [Google Scholar] [CrossRef]
- Hovsepian, P.E.; Lewis, D.B.; Munz, W.-D. Recent progress in large scale manufacturing of multilayer superlattice hard coatings. Surf. Coat. Technol. 2000, 133–134, 166–175. [Google Scholar] [CrossRef]
- Maksakova, O.; Simoẽs, S.; Pogrebnjak, A.; Bondar, O.; Kravchenko, Y.; Beresnev, V.; Erdybaeva, N. The influence of deposition conditions and bilayer thickness on physical-mechanical properties of CA-PVD multilayer ZrN/CrN coatings. Mater. Charact. 2018, 140, 189–196. [Google Scholar] [CrossRef]
- Krella, A. The influence of TiN coatings properties on cavitation erosion resistance. Surf. Coat. Technol. 2009, 204, 263–270. [Google Scholar] [CrossRef]
- Krella, A.K. Degradation of protective PVD coatings. In Handbook of Materials Failure Analysis; Elsevier: Amsterdam, The Netherlands, 2016; pp. 411–440. ISBN 9780081001165. [Google Scholar]
- Krella, A.K. The new parameter to assess cavitation erosion resistance of hard PVD coatings. Eng. Fail. Anal. 2011, 18, 855–867. [Google Scholar] [CrossRef]
- Qin, C.P.; Zheng, Y.G.; Wei, R. Cavitation erosion behavior of nanocomposite Ti-Si-C-N and Ti/Ti-Si-C-N coatings deposited on 2Cr13 stainless steel using a Plasma Enhanced Magnetron Sputtering process. Surf. Coat. Technol. 2010, 204, 3530–3538. [Google Scholar] [CrossRef]
- Krella, A. Cavitation Resistance of TiN Nanocrystalline Coatings with Various Thickness. Adv. Mater. Sci. 2009, 9, 12–24. [Google Scholar] [CrossRef]
- Abdoos, M.; Yamamoto, K.; Bose, B.; Fox-Rabinovich, G.; Veldhuis, S. Effect of coating thickness on the tool wear performance of low stress TiAlN PVD coating during turning of compacted graphite iron (CGI). Wear 2019, 422–423, 128–136. [Google Scholar] [CrossRef]
- Zhao, J.; Liu, Z. Influences of coating thickness on cutting temperature for dry hard turning Inconel 718 with PVD TiAlN coated carbide tools in initial tool wear stage. J. Manuf. Process. 2020, 56, 1155–1165. [Google Scholar] [CrossRef]
- Skordaris, G.; Bouzakis, K.D.; Kotsanis, T.; Charalampous, P.; Bouzakis, E.; Breidenstein, B.; Bergmann, B.; Denkena, B. Effect of PVD film’s residual stresses on their mechanical properties, brittleness, adhesion and cutting performance of coated tools. CIRP J. Manuf. Sci. Technol. 2017, 18, 145–151. [Google Scholar] [CrossRef]
- Krella, A. Cavitation erosion of TiN and CrN coatings deposited on different substrates. Wear 2013, 297, 992–997. [Google Scholar] [CrossRef]
- Krella, A. An experimental parameter of cavitation erosion resistance for TiN coatings. Wear 2011, 270, 252–257. [Google Scholar] [CrossRef]
- Han, S.; Lin, J.; Kuo, J.; He, J.; Shih, H. The cavitation-erosion phenomenon of chromium nitride coatings deposited using cathodic arc plasma deposition on steel. Surf. Coat. Technol. 2002, 161, 20–25. [Google Scholar] [CrossRef]
- Krella, A.K. Cavitation erosion resistance of Ti/TiN multilayer coatings. Surf. Coat. Technol. 2013, 228, 115–123. [Google Scholar] [CrossRef]
- Ali, R.; Sebastiani, M.; Bemporad, E. Influence of Ti-TiN multilayer PVD-coatings design on residual stresses and adhesion. Mater. Des. 2015, 75, 47–56. [Google Scholar] [CrossRef]
- Burnett, P.J.; Rickerby, D.S. The erosion behaviour of TiN coatings on steels. J. Mater. Sci. 1988, 23, 2429–2443. [Google Scholar] [CrossRef]
- Tabakoff, W. Erosion resistance of superalloys and different coatings exposed to particulate flows at high temperature. Surf. Coat. Technol. 1999, 120–121, 542–547. [Google Scholar] [CrossRef]
- Prashar, G.; Vasudev, H.; Thakur, L. Performance of different coating materials against slurry erosion failure in hydrodynamic turbines: A review. Eng. Fail. Anal. 2020, 115, 104622. [Google Scholar] [CrossRef]
- Singh, B.; Zafar, S. Effect of microwave exposure time on microstructure and slurry erosion behavior of Ni + 20% Cr7C3 composite clads. Wear 2019, 426–427, 491–500. [Google Scholar] [CrossRef]
- Krella, A.K.; Buszko, M.H.; Gajowiec, G. Degradation of ferritic X10CrAlSi18 stainless steel caused by slurry. Eng. Fail. Anal. 2020, 116, 104696. [Google Scholar] [CrossRef]
- Recco, A.A.C.; López, D.; Bevilacqua, A.F.; da Silva, F.; Tschiptschin, A.P. Improvement of the slurry erosion resistance of an austenitic stainless steel with combinations of surface treatments: Nitriding and TiN coating. Surf. Coat. Technol. 2007, 202, 993–997. [Google Scholar] [CrossRef]
- Chen, J.; Geng, M.; Li, Y.; Yang, Z.; Chai, Y.; He, G. Erosion resistance and damage mechanism of TiN/ZrN nanoscale multilayer coating. Coatings 2019, 9, 64. [Google Scholar] [CrossRef] [Green Version]
- Reedy, M.W.; Eden, T.J.; Potter, J.K.; Wolfe, D.E. Erosion performance and characterization of nanolayer (Ti,Cr)N hard coatings for gas turbine engine compressor blade applications. Surf. Coat. Technol. 2011, 206, 464–472. [Google Scholar] [CrossRef]
- Fang, Z.; Chen, J.; He, W.; Yang, Z.; Yuan, Z.; Geng, M.; He, G. Study on the damage mechanism of TiN/Ti coatings based on multi-directional impact. Coatings 2019, 9, 765. [Google Scholar] [CrossRef] [Green Version]
- Sergevnin, V.S.; Blinkov, I.V.; Belov, D.S.; Smirnov, N.I.; Volkhonskii, A.O.; Kuptsov, K.A. Wear and erosion of arc-PVD multilayer Ti-Al-Mo-N coatings under various conditions of friction and loading. Int. J. Adv. Manuf. Technol. 2018, 98, 593–601. [Google Scholar] [CrossRef]
- Cao, F.; Munroe, P.; Zhou, Z.; Xie, Z. Microstructure and mechanical properties of a multilayered CoCrNi/Ti coating with varying crystal structure. Surf. Coat. Technol. 2018, 350, 596–602. [Google Scholar] [CrossRef]
- Borawski, B.; Todd, J.A.; Singh, J.; Wolfe, D.E. The influence of ductile interlayer material on the particle erosion resistance of multilayered TiN based coatings. Wear 2011, 271, 2890–2898. [Google Scholar] [CrossRef]
- Naveed, M.; Obrosov, A.; Weiß, S. Investigation of the Wear Resistance Properties of Cr/CrN Multilayer Coatings against Sand Erosion. Conf. Pap. Sci. 2015, 2015, 1–9. [Google Scholar] [CrossRef]
- Maurer, C.; Schulz, U. Erosion resistant titanium based PVD coatings on CFRP. Wear 2013, 302, 937–945. [Google Scholar] [CrossRef]
- Zhang, M.; Niu, Y.; Xin, L.; Su, J.; Li, Y.; Wu, T.; Zhao, H.; Zhang, Y.; Xie, W.; Zhu, S.; et al. Studies on corrosion resistance of thick Ti/TiN multilayer coatings under solid NaCl–H2O–O2 at 450 °C. Ceram. Int. 2020, 46, 19274–19284. [Google Scholar] [CrossRef]
- Deng, J.; Wu, F.; Lian, Y.; Xing, Y.; Li, S. Erosion wear of CrN, TiN, CrAlN, and TiAlN PVD nitride coatings. Int. J. Refract. Met. Hard Mater. 2012, 35, 10–16. [Google Scholar] [CrossRef]
- Van Stappen, M.; Stals, L.M.; Kerkhofs, M.; Quaeyhaegens, C. State of art for industrial use of ceramic PVD coatings. Surf. Coat. Technol. 1995, 74–75, 629–633. [Google Scholar] [CrossRef]
- Konyashin, I.Y. PVD/CVD technology for coating cemented carbides. Surf. Coat. Technol. 1995, 71, 277–283. [Google Scholar] [CrossRef]
- Sproul, W.D. Physical vapor deposition tool coatings. Surf. Coat. Technol. 1996, 81, 1–7. [Google Scholar] [CrossRef]
- He, Q.; Paiva, J.M.; Kohlscheen, J.; Beake, B.D.; Veldhuis, S.C. An integrative approach to coating/carbide substrate design of CVD and PVD coated cutting tools during the machining of austenitic stainless steel. Ceram. Int. 2020, 46, 5149–5158. [Google Scholar] [CrossRef]
- Antonov, M.; Afshari, H.; Baronins, J.; Adoberg, E.; Raadik, T.; Hussainova, I. The effect of temperature and sliding speed on friction and wear of Si3N4, Al2O3, and ZrO2 balls tested against AlCrN PVD coating. Tribol. Int. 2018, 118, 500–514. [Google Scholar] [CrossRef]
- Pancielejko, M.; Precht, W.; Czyzniewski, A. Tribological properties of PVD titanium carbides. Vacuum 1999, 53, 57–60. [Google Scholar] [CrossRef]
- Bromark, M.; Larsson, M.; Hedenqvist, P.; Hogmark, S. Wear of PVD Ti/TiN multilayer coatings. Surf. Coat. Technol. 1997, 90, 217–223. [Google Scholar] [CrossRef]
- Borjali, A.; Monson, K.; Raeymaekers, B. Predicting the polyethylene wear rate in pin-on-disc experiments in the context of prosthetic hip implants: Deriving a data-driven model using machine learning methods. Tribol. Int. 2019, 133, 101–110. [Google Scholar] [CrossRef]
- Kong, Y.; Tian, X.; Gong, C.; Chu, P.K. Enhancement of toughness and wear resistance by CrN/CrCN multilayered coatings for wood processing. Surf. Coat. Technol. 2018, 344, 204–213. [Google Scholar] [CrossRef]
- Chavda, M.R.; Dave, D.P.; Chauhan, K.V.; Rawal, S.K. Tribological Characterization of TiN Coatings Prepared by Sputtering. Procedia Technol. 2016, 23, 36–41. [Google Scholar] [CrossRef] [Green Version]
- Beer, P.; Djouadi, M.A.; Marchal, R.; Sokolowska, A.; Lambertin, M.; Czyzniewski, A.; Precht, W. Antiabrasive coatings in a new application-wood rotary peeling process. Vacuum 1999, 53, 363–366. [Google Scholar] [CrossRef]
- Ding, X.-Z.; Zeng, X.T. Structural, mechanical and tribological properties of CrAlN coatings deposited by reactive unbalanced magnetron sputtering. Surf. Coat. Technol. 2005, 200, 1372–1376. [Google Scholar] [CrossRef]
- Mo, J.L.; Zhu, M.H. Tribological oxidation behaviour of PVD hard coatings. Tribol. Int. 2009, 42, 1758–1764. [Google Scholar] [CrossRef]
- Tan, P.; Fu, L.; Teng, J.; Zhu, J.; Yang, W.; Li, D.; Zhou, L. Effect of texture on wear resistance of tantalum nitride film. Tribol. Int. 2019, 133, 126–135. [Google Scholar] [CrossRef]
- Mejía, H.D.; Perea, D.; Bejarano, G. Development and characterization of TiAlN(Ag,Cu) nanocomposite coatings deposited by DC magnetron sputtering for tribological applications. Surf. Coat. Technol. 2020, 381, 125095. [Google Scholar] [CrossRef]
- Khanchaiyaphum, S.; Saikaew, C.; Wisitsoraat, A.; Surinphong, S. Wear behaviours of filtered cathodic arc deposited TiN, TiAlSiN and TiCrAlSiN coatings on AISI 316 stainless steel fishing net-weaving machine components under dry soft-sliding against nylon fibres. Wear 2017, 390–391, 146–154. [Google Scholar] [CrossRef]
- Yan, Z.; Jiang, D.; Gao, X.; Hu, M.; Wang, D.; Fu, Y.; Sun, J.; Feng, D.; Weng, L. Friction and wear behavior of TiN films against ceramic and steel balls. Tribol. Int. 2018, 124, 61–69. [Google Scholar] [CrossRef]
- Holleck, H.; Schier, V. Multilayer PVD coatings for wear protection. Surf. Coat. Technol. 1995, 76–77, 328–336. [Google Scholar] [CrossRef]
- Pougoum, F.; Qian, J.; Laberge, M.; Martinu, L.; Klemberg-Sapieha, J.; Zhou, Z.; Li, K.Y.; Savoie, S.; Schulz, R. Investigation of Fe3Al-based PVD/HVOF duplex coatings to protect stainless steel from sliding wear against alumina. Surf. Coat. Technol. 2018, 350, 699–711. [Google Scholar] [CrossRef]
- Gilewicz, A.; Warcholinski, B. Tribological properties of CrCN/CrN multilayer coatings. Tribol. Int. 2014, 80, 34–40. [Google Scholar] [CrossRef]
- Cheng, Y.H.; Browne, T.; Heckerman, B.; Bowman, C.; Gorokhovsky, V.; Meletis, E.I. Mechanical and tribological properties of TiN/Ti multilayer coating. Surf. Coat. Technol. 2010, 205, 146–151. [Google Scholar] [CrossRef]
- Dobrzański, L.A.; Pakuła, D.; Hajduczek, E. Structure and properties of the multi-component TiAlSiN coatings obtained in the PVD process in the nitride tool ceramics. J. Mater. Process. Technol. 2004, 157–158, 331–340. [Google Scholar]
- Srinivasan, D.; Kulkarni, T.G.; Anand, K. Thermal stability and high-temperature wear of Ti-TiN and TiN-CrN nanomultilayer coatings under self-mated conditions. Tribol. Int. 2007, 40, 266–277. [Google Scholar] [CrossRef]
- Panjan, P.; Drnovšek, A.; Gselman, P.; Čekada, M.; Panjan, M. Review of growth defects in thin films prepared by PVD techniques. Coatings 2020, 10, 447. [Google Scholar] [CrossRef]
- Mozgovoy, S.; Alik, L.; Hardell, J.; Prakash, B. Material transfer during high temperature sliding of Al-Si coated 22MnB5 steel against PVD coatings with and without aluminium. Wear 2019, 426–427, 401–411. [Google Scholar] [CrossRef]
- Leyland, A.; Matthews, A. On the significance of the H/E ratio in wear control: A nanocomposite coating approach to optimised tribological behaviour. Wear 2000, 246, 1–11. [Google Scholar] [CrossRef]
- Volosova, M.; Fyodorov, S.; Opleshin, S.; Mosyanov, M. Wear Resistance and Titanium Adhesion of Cathodic Arc Deposited Multi-Component Coatings for Carbide End Mills at the Trochoidal Milling of Titanium Alloy. Technologies 2020, 8, 38. [Google Scholar] [CrossRef]
- Silva, F.; Martinho, R.; Andrade, M.; Baptista, A.; Alexandre, R. Improving the wear resistance of moulds for the injection of glass fibre-reinforced plastics using PVD coatings: A comparative study. Coatings 2017, 7, 28. [Google Scholar] [CrossRef] [Green Version]
- Lawal, J.; Kiryukhantsev-Korneev, P.; Matthews, A.; Leyland, A. Mechanical properties and abrasive wear behaviour of Al-based PVD amorphous/nanostructured coatings. Surf. Coat. Technol. 2017, 310, 59–69. [Google Scholar] [CrossRef]
Coating | Substrate | Technique of Deposition | Coating Roughness (Ra [μm]) | Substrate Roughness (Ra [μm]) | CoF | Reference |
---|---|---|---|---|---|---|
Cr-N | high speed steel | Arc evaporation | 0.1 ÷ 1.06 | 0.05 | - | [8] |
CrN | 17-4 PH stainless steel | Plasma enhanced magnetron sputtering. | 0.015 | 0.004 | 0.81 | [18] |
CrN | cemented carbide (10 wt.% Co, 90 wt.% WC) | multi-arc ion plating technique | 0.21 | 0.04 | 0.8 | [133] |
Cr55Si1.3CN | 17-4 PH stainless steel | Plasma enhanced magnetron sputtering. | 0.008 | 0.004 | 0.71 | [18] |
Cr46Si2.6CN | 17-4 PH stainless steel | Plasma enhanced magnetron sputtering. | 0.017 | 0.004 | 0.91 | [18] |
Cr43Si3.4CN | 17-4 PH stainless steel | Plasma enhanced magnetron sputtering. | 0.013 | 0.004 | 0.67 | [18] |
CrN/CrCN | X6CrNiTi 18-10 stainless steel | Cathodic arc evaporation | 0.255 ± 0.05 | 0.02 | - | [46] |
CrCN/CrN | HS6-5-2 steel | Cathodic arc evaporation | 0.1 ÷ 1.06 | 0.02 | - | [13] |
AlCrN | cemented carbide (10 wt.% Co, 90 wt.% WC) | Multi-arc ion plating technique | 0.12 | 0.04 | 0.75 | [133] |
AlTiN | cemented carbide (10 wt.% Co, 90 wt.% WC) | Multi-arc ion plating technique | 0.14 | 0.04 | 0.82 | [133] |
TiN | AISI 316 | Cathodic arc evaporation | 0.64 ± 0.22 | 1.133 ± 0.35 | - | [136] |
TiAlN | AISI 420 | Magnetron sputtering | 0.1135 | 0.050 | 0.8 | [135] |
TiAlSiN | AISI 316 | Cathodic arc evaporation | 0.61 ± 0.08 | 1.133 ± 0.35 | - | [136] |
TiCrAlSiN | AISI 316 | Cathodic arc evaporation | 0.622 ± 0.33 | 1.133 ± 0.35 | - | [136] |
TiAlN (Ag,Cu) 11 at.% | AISI 420 | Magnetron sputtering | 0.176 | 0.050 | 0.31 | [135] |
TiAlN (Ag,Cu) 16 at.% | AISI 420 | Magnetron sputtering | 0.228 | 0.050 | 0.28 | [135] |
TiAlN (Ag,Cu) 17 at.% | AISI 420 | Magnetron sputtering | 0.425 | 0.050 | 0.25 | [135] |
TiAlN (Ag,Cu) 20 at.% | AISI 420 | Magnetron sputtering | 0.538 | 0.050 | 0.1 | [135] |
TiAlN/W2N modulation period 680 nm | AISI 304l | Multi-arc ion plating and magnetron sputtering | 0.436 | mirror polished | 0.78 | [19] |
TiAlN/W2N modulation period 373 nm | AISI 304l | Multi-arc ion plating and magnetron sputtering | 0.349 | mirror polished | 0.73 | [19] |
TiAlN/W2N modulation period 256 nm | AISI 304l | Multi-arc ion plating and magnetron sputtering | 0.327 | mirror polished | 0.80 | [19] |
TiAlN/W2N modulation period 197 nm | AISI 304l | Multi-arc ion plating and magnetron sputtering | 0.319 | mirror polished | 0.81 | [19] |
TiAlN/W2N modulation period 140 nm | AISI 304l | Multi-arc ion plating and magnetron sputtering | 0.295 | mirror polished | 0.81 | [19] |
Coating | Substrate | Deposition | Test Condition | Coating Hardness/Substrate Hardness | CoF | Adhesion (Critical Load, LC2) | Degra-Dation Rate | Reference |
---|---|---|---|---|---|---|---|---|
Cr-N V = −20 V | high speed steel | Arc evaporation | 1 μm diamond slurry load of 20 g | 2101 HV0.1 | - | 129 N | 24.5 μm3/mmN | [8] |
Cr-N V = −50 V | high speed steel | Arc evaporation | 1 μm diamond slurry, load of 20 g | 2213 HV0.11 | - | 127 N | 21.6 μm3/mmN | [8] |
Cr-N V = −100 V | high speed steel | Arc evaporation | 1 μm diamond slurry load of 20 g | 2474 HV0.1 1 | - | 120 N | 21.8 μm3/mmN | [8] |
Cr-N V = −200 V | high speed steel | Arc evaporation | 1 μm diamond slurry load of 20 g | 2027 HV0.1 1 | - | 110 N | 31.1 μm3/mmN | [8] |
CrN | 17-4 PH stainless steel | Plasma enhanced magnetron sputtering. | Sharp alumina φ 50 μm, velocity: 60 m/s, | 19.97 GPa | 0.81 | - | 1.29 μm3/mmN | [18] |

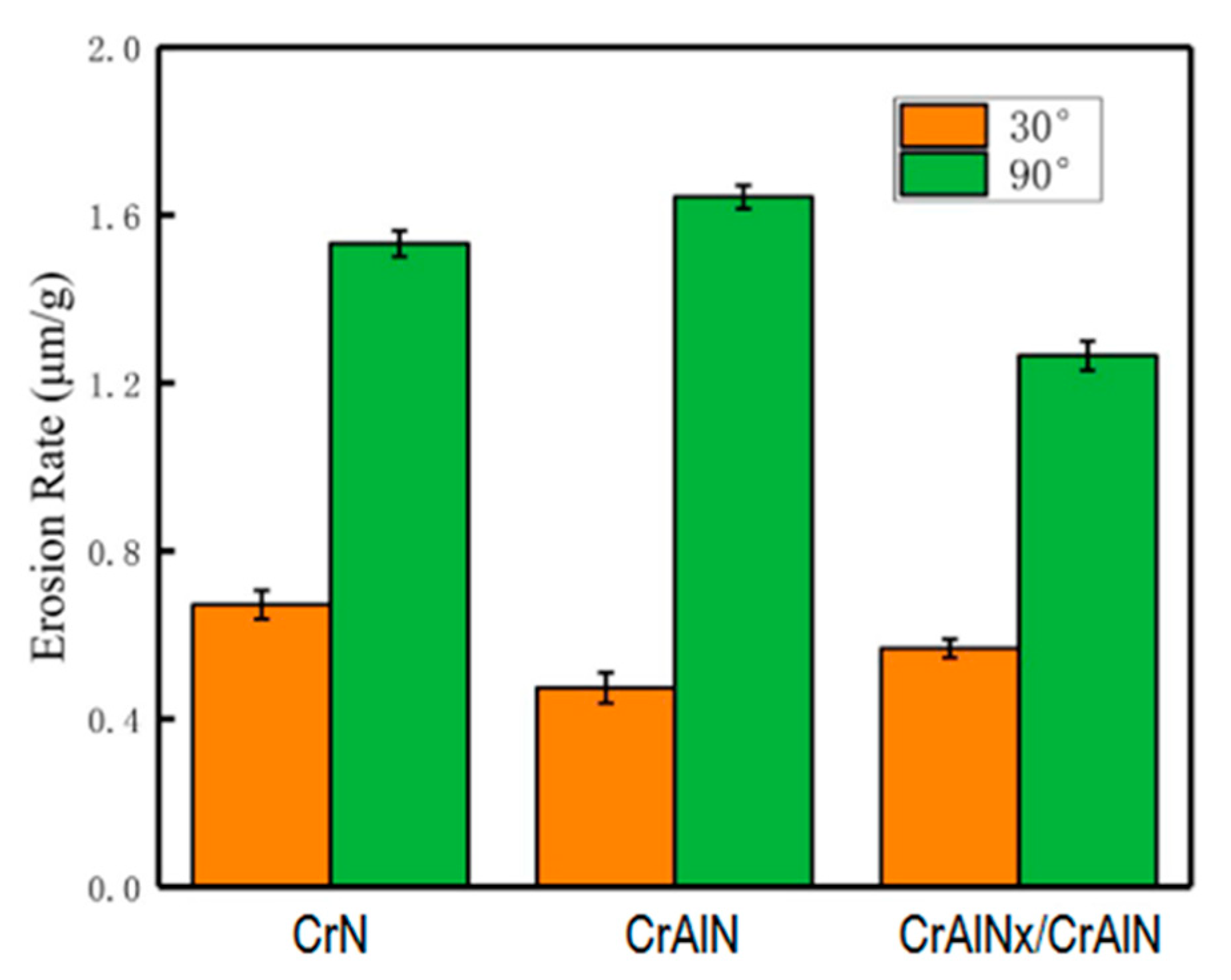

CrN | TC11 titanium alloy | Arc ion plating | alumina φ 80 μm; velocity: 30 m/s impact angle 30 and 90° | 21.4 ± 0.5 GPa | - | 42 N | 0.672 μm/g at 30° 1.532 μm/g at 90° | [9] |
CrAlN | TC11 titanium alloy | Arc ion plating | alumina φ 80 μm; velocity: 30 m/s impact angle 30 and 90° | 24.9 ± 0.3 GPa | - | 37.4 N | 0.474 μm/g at 30° 1.643 μm/g at 90° | [9] |
CrAlN Al/Cr atomic ratio = 0.13 | HSS | Unbalanced magnetron sputtering | alumina φ 9.5 mm, load: 10 N, speed: 20 cm/s, distance: 2000 m | 22.5 GPa | 0.44 | - | 0.8 μm3/mmN | [132] |
CrAlN Al/Cr atomic ratio = 0.26 | HSS | Unbalanced magnetron sputtering | alumina φ 9.5 mm, load: 10 N, speed: 20 cm/s, distance: 2000 m | 24.1 GPa | 0.43 | - | 0.6 μm3/mmN | [132] |
CrAlN Al/Cr atomic ratio = 0.39 | HSS | Unbalanced magnetron sputtering | alumina φ 9.5 mm, load: 10 N, speed: 20 cm/s, distance: 2000 m | 27.8 GPa | 0.45 | - | 0.38 μm3/mmN | [132] |
CrAlN Al/Cr atomic ratio = 0.51 | HSS | Unbalanced magnetron sputtering | alumina φ 9.5 mm, load 10 N, speed: 20 cm/s, distance: 2000 m | 26 GPa | 0.6 | - | 0.17 μm3/mmN | [132] |
Cr55Si1.3CN | 17-4 PH stainless steel, | Plasma enhanced magnetron sputtering | Sharp alumina, φ 50 μm, velocity: 60 m/s | 21.59 GPa | 0.71 | - | 1.12 μm3/mmN | [18] |
Cr46Si2.6CN | 17-4 PH stainless steel, | Plasma enhanced magnetron sputtering | Sharp alumina, φ 50 μm velocity: 60 m/s | 14.04 GPa | 0.91 | - | 2.12 μm3/mmN | [18] |
Cr43Si3.4CN | 17-4 PH stainless steel, | Plasma enhanced magnetron sputtering | Sharp alumina, φ 50 μm velocity: 60 m/s | 13.86 GPa | 0.67 | - | 1.1 μm3/mmN | [18] |
CrAlTiN | VT-3 titanium alloy | Unbalanced magnetron sputtering | Steel ball φ 25–40 mm, load: 0.5–10 N, sliding speed: 74–247 rpm, abrasive material: SiC | 18 GPa | - | 22 N | 5.18 μm3/mmN/23.66 μm3/mmN | [15] |
CrCN/CrN | HS18-0-1 high speed steel | Cathodic arc evaporation | alumina, φ 10 mm, load: 30 N, velocity: 0.2 m/s distance: 1500 m | 24.5 ± 0.5 GPa | 0.48 ± 0.03 | 115 ± 3 N | 2.4 μm3/mmN | [11] |
CrCN/CrN + ta-C | HS18-0-1 high speed steel | Cathodic arc evaporation | alumina, φ 6 mm, load: 20N, velocity: 0.1 m/s distance: 3790 m | 45 ± 2 GPa | 0.09 ± 0.02 | 71 ± 3 N | 1.3 μm3/mmN | [11] |
CrAlNx/CrAlN | TC11 titanium alloy | Arc ion plating | alumina φ 80 μm; velocity: 30 m/s impact angle 30 and 90° | 24.7 ± 0.6 GPa | - | 46.2 N | 0.568 μm/g at 30° 1.265 μm/g at 90° | [9] |
TiN | VT-3 titanium alloy | Unbalanced magnetron sputtering | steel ball φ 25–40 mm load: 0.5–10 N, sliding speed: 74–247 rpm, abrasive material: SiC | 41 GPa | - | 8 N | 6.59 μm3/mmN/27.92 μm3/mmN | [15] |
TiN | AISI 316 | Cathodic arc evaporation | nylon fibre φ 0.12 mm tension force: 2 N, sliding velocity: 225 m/min | 26.4 GPa/6.6 GPa | - | - | 0.967 g/m/4.73 g/m after 180 min | [136] |
TiAlN | AISI 420 | Magnetron sputtering | alumina, φ 6 mm, load: 1 N, rotation: 1432.4 rpm wear track: φ 0.2 cm, 185 cycles | 27 ÷ 1 GPa/6.0 ÷ 0.1 GPa | 0.8/0.7 | - | 4.0 × 10−4 mm3/5.4 × 10−4 mm3 | [135] |
TiCrAlN | VT-3 titanium alloy | Unbalanced magnetron sputtering | steel ball φ 25–40 mm, load of 0.5–10 N, sliding speed: 74–247 rpm, abrasive material: SiC | 17 GPa | - | 25 N | 3.39 μm3/mmN/6.29 μm3/mmN | [15] |
TiCrBN | VT-3 titanium alloy | Unbalanced magnetron sputtering | steel ball φ 25–40 mm, load of 0.5–10 N, sliding speed: 74–247 rpm, abrasive material: SiC | 28 GPa | - | 35 N | 4.759 μm3/mmN/120.8 μm3/mmN | [15] |
TiN/Ti | Ti6Al4V alloy | Combination of magnetic filtered cathode vacuum arc and metal vapor vacuum arc ion implantation | silica (SiO2), alumina (Al2O3) φ 150 μm; impact velocity: 130 m/s | 24.73 GPa ÷ 30.58 GPa | - | 77.8 ± 2.9 N ÷ 83.7 ± 3.5 N | 0.0014 mg/g ÷ 0.023 mg/g | [16] |
TiN/Ti | Ti-6Al-4V alloy | Arc evaporation | Corundum 0.053 mm size; velocity: 85 g/s, angle: 60° | 25.07 ÷ 34.06 GPa | - | 2.4 ÷ 14.1 N | 0.19 ÷ 0.51 mg/min | [22] |
TiAlN/W2N modula-tion period 680 nm | AISI 304 L | Multiarc ion plating and magnetron sputtering | Si3N4 ball, φ 6.0 mm; load: 5.0 N, rotating speed of 200 rpm, 30 min | 1.3 GPa | 0.78 | 41.8 N | 5.84 μm3/mmN/9.92 μm3/mmN | [19] |
TiAlN/W2N modula-tion period 373 nm | AISI 304 L | Multi-arc ion plating and magnetron sputtering | Si3N4 ball, φ 6.0 mm; load: 5.0 N, rotating speed of 200 rpm, 30 min | 1.76 | 0.73 | 35.3 | 2.50 μm3/mmN | [19] |
TiAlN/W2N modula-tion period 256 nm | AISI 304 L | Multi-arc ion plating and magnetron sputtering | Si3N4 ball, φ 6.0 mm; load: 5.0 N, rotating speed of 200 rpm, 30 min | 1.38 | 0.80 | 29.8 | 3.42 μm3/mmN | [19] |
TiAlN/W2N modula-tion period 197 nm | AISI 304 L | Multi-arc ion plating and magnetron sputtering | Si3N4 ball, φ 6.0 mm; load: 5.0 N, rotating speed of 200 rpm, 30 min | 1.29 | 0.81 | 24.1 | 4.11 μm3/mmN | [19] |
TiAlN/W2N modula-tion period 140 nm | AISI 304 L | Multi-arc ion plating and magnetron sputtering | Si3N4 ball, φ 6.0 mm; load: 5.0 N rotating speed of 200 rpm, 30 min | 1.14 | 0.81 | 18.9 | 4.38 μm3/mmN | [19] |
TiAlN (Ag,Cu) 11 at.% | AISI 420 | Magnetron sputtering | alumina, φ 6 mm, load: 1 N, rotation: 1432.4 rpm wear track: φ 0.2 cm, 185 cycles | 15.2 ± 0.4 GPa/6.0 ± 0.1 GPa | 0.31/0.7 | - | 2.2 × 10−4 mm3/5.4 × 10−4 mm3 | [135] |
TiAlN (Ag,Cu) 16 at.% | AISI 420 | Magnetron sputtering | alumina, φ 6 mm, load: 1 N, rotation: 1432.4 rpm wear track: φ 0.2 cm, 185 cycles | 10.1 ± 0.3 GPa/6.0 ± 0.1 GPa | 0.28/0.7 | - | 1.6 × 10−4 mm3/5.4 × 10−4 mm3 | [135] |
TiAlN (Ag,Cu) 17 at.% | AISI 420 | Magnetron sputtering | alumina, φ 6 mm, load: 1 N, rotation: 1432.4 rpm wear track: φ 0.2 cm, 185 cycles | 8.8 ± 1.4 GPa/6.0 ± 0.1 GPa | 0.25/0.7 | - | 7.7 × 10−5 mm3/5.4 × 10−4 mm3 | [135] |
TiAlN (Ag,Cu) 20 at.% | AISI 420 | Magnetron sputtering | alumina, φ 6 mm, load: 1 N, rotation: 1432.4 rpm wear track: φ 0.2 cm, 185 cycles | 6.7 ± 0.3 GPa/6.0 ± 0.1 GPa | 0.1/0.7 | - | 1.6 × 10−4 mm3/5.4 × 10−4 mm3 | [135] |
TiAlSiN | AISI 316 | Cathodic arc evaporation | nylon fibre φ 0.12 mm tension force: 2 N, sliding velocity: 225 m/min | 31.6 GPa/6.6 GPa | - | - | 0.494 g/m/ 4.73 g/m after 180 min | [136] |
TiCrAl SiN | AISI 316 | Cathodic arc evaporation | nylon fibre φ 0.12 mm tension force: 2 N, sliding velocity: 225 m/min | 30.4 GPa/6.6 GPa | - | - | 0.65 g/m/ 4.73 g/m after 180 min | [136] |
