Article

Evaluation of Antibacterial and Cytotoxic Properties of a Fluorinated Diamond-Like Carbon Coating for the Development of Antibacterial Medical Implants

1
Department of Orthopedic Surgery, Kanazawa Medical University, 1-1 Daigaku, Uchinada-machi, Kahokugun, Ishikawa 920-0293, Japan
2
Department of Infectious Diseases, Kanazawa Medical University, 1-1 Daigaku, Uchinada-machi, Kahokugun, Ishikawa 920-0293, Japan
3
Clinical Laboratory, Kanazawa Medical University Hospital, 1-1 Daigaku, Uchinada-machi, Kahokugun, Ishikawa 920-0293, Japan
4
Department of Mechanical Engineering, Kanazawa Institute of Technology, 7-1 Ohgigaoka, Nonoichi, Ishikawa 921-8501, Japan
5
Department of Technology Research, Onward Giken Corporation, Wa-13 Yoshiwara, Nomi, Ishikawa 929-0111, Japan
*
Author to whom correspondence should be addressed.
Antibiotics 2020, 9(8), 495; https://doi.org/10.3390/antibiotics9080495
Received: 22 June 2020 / Revised: 27 July 2020 / Accepted: 7 August 2020 / Published: 9 August 2020
(This article belongs to the Special Issue New Materials for Antibacterial Applications)

Abstract

Peri-implant infection is a serious complication in surgical procedures involving implants. We conducted an in vitro study to determine whether the use of a fluorinated diamond-like carbon (F-DLC) coating on a titanium alloy surface can prevent peri-implant infection. After applying the F-DLC, we evaluated its antibacterial and cytotoxic properties. The coating groups, containing controlled fluorine concentrations of 5.44%, 17.43%, 24.09%, and 30%, were examined for the presence of Staphylococcus aureus and Escherichia coli according to ISO 22196 for the measurement of antibacterial activity on plastics and other nonporous surfaces. Biological toxicity was evaluated using Chinese hamster V79 cells according to ISO 10993-5 for the biological evaluation of medical devices. In the control group, populations of S. aureus and E. coli substantially increased from 2.4 × 104 to (1.45 ± 1.11) × 106 colony-forming units (CFUs) and from 2.54 × 104 to (4.04 ± 0.44) × 106 CFUs, respectively. However, no bacteria colonies were detected in any F-DLC group with a fluorine concentration of ≥ 17.43%. In the biological toxicity study, an F-DLC coating with a fluorine concentration of 30% showed a colony formation rate of 105.8 ± 24.1%, which did not differ significantly from the colony formation rate of 107.5 ± 31.1% in the nontoxic control group. An F-DLC coating on titanium alloy discs showed excellent in vitro antibacterial activity with no biological toxicity.
Keywords: fluorine; diamond-like carbon; antibacterial; coating; implant; infection fluorine; diamond-like carbon; antibacterial; coating; implant; infection

1. Introduction

In orthopedic surgery, implants, such as artificial joints and internal fixation materials, are routinely used in many operations, and postoperative peri-implant infections are the most serious complications. The incidence of postoperative bone and joint infections has been reported to be 0.6%–11.9% for spine surgery [1,2,3] and 0.2%–3.8% for primary arthroplasty [4,5,6,7,8,9,10,11,12,13], and even higher incidence rates, such as 0.5%–17.3%, have been reported for revision arthroplasty [4,10,12]. Once infections occur, they are often difficult to treat because bacteria form a biofilm on the implant surface and demonstrate resistance to antibiotics [14,15,16]. Therefore, treatment is time-consuming and costly, and the patient’s quality of life substantially deteriorates [17,18,19]. Methods to impart antibacterial properties to implants themselves have been studied for use in preventing peri-implant infections. The use of various coatings on implants’ metal surfaces has been reported, including antibiotics such as gentamycin and vancomycin [20,21]; hydroxyapatite (HA) containing chlorhexidine, gentamycin, and tobramycin [22,23,24,25]; titanium dioxide, silver, and gold either applied directly or within HA containing them [26,27,28,29,30]; and iodine [31]. Some of these are already used clinically [32].
In the study we report here, we focused on a fluorinated diamond-like carbon (F-DLC) coating. Fluoride has been known for a long time to be relatively biologically safe and exert an antibacterial effect [33].
“Diamond-like carbon” is the generic name for carbon films that have diamond-like properties, such as high levels of hardness, electrical insulation, and infrared transparency [34]. F-DLC coating, which adds fluorine to the mix, is expected to be applied to implants retained in a blood vessel (e.g., vascular prosthesis, indwelling intravascular stent) because it has an anticoagulant effect [35]. Some antibacterial tests of F-DLC-coated metals and films have already been reported. However, the majority of those studies evaluated only the attachment of bacteria to the metal surface, focusing on water repellency and non-adhesiveness imparted by F-DLC, and no previous studies have been reported showing that F-DLC coating imparts infection prevention for medical implants. The culture time in those studies was as short as 3 h and, therefore, it was considered difficult to evaluate the infection protection for bioimplants [36,37,38,39]. We tried to impart an antibacterial property to implants themselves for the purpose of preventing peri-implant infections.
When using F-DLC for medical implants, it is necessary to consider not only antibacterial properties but also safety and proper concentration. The purpose of this study is to investigate whether the F-DLC coating applied to titanium shows no cytotoxicity as well as an antibacterial property. Furthermore, we investigated the proper concentration of fluorine to avoid cytotoxicity while maintaining antibacterial action.

2. Materials and Methods

2.1. Fluorinated Diamond-Like Carbon Coating

The titanium alloy Ti-6Al-4V was used as the substrate for coatings of DLC and of F-DLC. Ti-6Al-4V contains 6% aluminum and 4% vanadium and is a highly biocompatible material that is most commonly used for implants for bone fixation. The ASTM International standard was B348 grade 5 [40].
Titanium alloy discs (Semicon, Tokyo, Japan) were polished to a mean coating-surface roughness of 0.01 µm before being subjected to coating. To prevent F-DLC from coming off the metal, we etched the surface with ionic argon. We then used plasma chemical vapor deposition to apply the F-DLC [41] in three layers: (1) an SiC:H film layer of <0.1 µm, at a pressure of 0.3 Pa, using tetramethylsilane as a raw material; (2) a DLC film layer of 0.1 µm, at a pressure of 0.4 Pa, using acetylene (C2H2); and (3) an F-DLC film layer of 0.5 µm, at a pressure of 3.7 Pa, using a gaseous mixture of octafluoropropane (C3F8) and acetylene at specified ratios (Figure 1 and Figure 2). The fluorine content of the F-DLC coating was at as high a level as is currently reachable—30% (elemental fluorine content ratio: F/[C + F]; Figure 3). Plasma chemical vapor deposition to apply the F-DLC was used Inductively coupled plasma device. This equipment uses C2H2 and C3F8 as the source gas. Plasma is generated by applying a high frequency to the loop antennas arranged in parallel. A film can be formed by irradiating the sample surface with ions or radicals (Figure 4). The test pieces were autoclaved before being used for experiments.

2.2. Evaluation of Antibacterial Activity

The antibacterial performance of F-DLC–coated implants was evaluated in vitro using ISO standard 22196 (International Organization for Standardization) [42], the standard defining the methods for antibacterial testing of products that have undergone antimicrobial processing. The culture temperature used was 37 °C, to make the test conditions closer to those of an in vivo environment.
The bacteria used were Staphylococcus aureus (ATCC 29214) and Escherichia coli (ATCC 25922).
The test pieces were titanium-alloy discs with a 25 mm diameter and a 5 mm height, with the surface of each one polished to the same roughness. We prepared seven F-DLC–coated discs and, also, as controls, seven non-coated titanium alloy discs.

2.2.1. Bacterial Fluid Preparation

Nutrient agar media were inoculated with test bacteria once a day for two days before the activated bacteria were dissolved in 1/500-diluted nutrient broth (NSU05511, Nissui Pharmaceutical Co., Ltd., Tokyo, Japan) to prepare bacterial solutions of 3.0 × 105 cells/mL, 0.2 mL each of which was dropped onto test samples. Then the test samples were covered with alcohol-sterilized, 20-mm-diameter polyethylene sheets (IC-3-2454-03, As One Corp., Osaka, Japan) and were cultured in a 37 °C incubator at 90% relative humidity for 24 h. Then the test pieces and polyethylene sheets were washed with 10 mL each of soybean-casein digest broth with lecithin and polysorbate 80 medium (WK39500265, Wako Pure Chemical Industries, Ltd., Osaka, Japan). Undiluted solution and 10-fold, 100-fold, and 1000-fold serial dilutions of the wash fluids were prepared with 1.56 × 10–4 mol/L phosphate-buffered saline, made by diluting a phosphate buffer solution (WK16819965, Wako Pure Chemical Industries, Ltd.) with physiological saline.

2.2.2. Viable Cell Count and Antibacterial Activity Evaluation

Nutrient agar media (IC-2-8856-01, As One Corp.) were inoculated with 0.1 mL of undiluted solution and each dilution made by the method described earlier, and then cultured in a 37 °C incubator for 48 h before colonies were counted. The viable cell count was computed from the colony counts and dilution factors and was used to evaluate the antibacterial activity.
Using ISO 22196, we evaluated antibacterial activity with the following equation:
R = (Ut – U0) – (At – U0)
where R = antibacterial activity; Ut = common logarithm of the count of viable bacteria recovered after 24 h from the sample piece without an antimicrobial coating; At = common logarithm of the count of viable bacteria recovered after 24 h from the sample piece with an antimicrobial coating; and U0 = mean common logarithm of the count of viable bacteria recovered immediately after inoculation from the sample piece without an antimicrobial coating.
The antibacterial activity showed the difference in the logarithm of the viable cell count after inoculation of bacteria between the antibacterial-treated product and the untreated product. The bacterial growth rate was ≤1/100 compared with materials with antibacterial activity of ≥2 without antibacterial treatment.

2.3. Evaluation of Cytotoxicity

ISO 10993-5 was used for evaluation of the biological toxicity of F-DLC-coated implants in vitro [43]. ISO 10993 is an international standard defining the biological evaluation of medical devices. The experimental method used was based on ISO 10993-5, in particular ISO 10993-5 Annex B, with which cytotoxicity can be measured quantitatively.

2.3.1. Preparation of Test Pieces and Sample Extract Fluids

Test sample pieces were four F-DLC–coated discs with a content of 30% fluorine, with a 65-mm diameter and a 5 mm height; four titanium-alloy discs without any coating were used as control samples for comparison.
Sample fluid extracts were prepared by immersing each test sample in minimum essential medium (MEM) 05 medium (6 cm2/mL) for 24 h in a 5% CO2 incubator at 37 °C. Ingredients in the MEM05 medium were as follows: 500 mL of MEM with no glutamine (RO-10370021, Life Technologies, Tokyo, Japan), 53.5 mL of fetal bovine serum (RO-26140079, Life Technologies), 10 mL of sodium pyruvate (WK19014881, Wako Pure Chemical Industries, Ltd.), and 0.292 g of l-glutamic acid (WK07305391, Wako Pure Chemical Industries, Ltd.).

2.3.2. Test Material for Cytotoxicity Evaluation

The following controls for cytotoxicity were used: 0.1% zinc diethyldithiocarbamate (ZDEC, Food and Drug Safety Center, Hatano Research Institute, Kanagawa, Japan) and 0.25% zinc dibutyldithiocarbamate (ZDBC, Food and Drug Safety Center) as positive controls, and high-density polyethylene (Food and Drug Safety Center) as negative controls. A sample extract fluid was prepared from each sample.

2.3.3. Cell Culture

Chinese hamster V79 cells (DV-EC86041102, European Collection of Authenticated Cell Cultures, Wiltshire, England) were used for our cytotoxicity study. First, MEM05 medium was prepared to culture the cells. A V79 cell suspension of 33.3 cells/mL in MEM05 medium was dispensed in 3 mL portions into a well plate, and the plate was then incubated in a 5% CO2 incubator at 37 °C for 24 h. Next, the MEM05 medium in the well plate was discarded, and sample extract fluid was poured into each well plate. Two milliliters each of the undiluted extracts and of 1/2, 1/4, 1/8, 1/16, and 1/32 serial dilutions prepared from the sample extracts were dispensed in drops, and the plate was incubated in a 5% CO2 incubator at 37 °C for six days. Cell colonies formed in each well were fixed with methanol, stained with 5% Giemsa solution (prepared by diluting WK07904391 (Wako Pure Chemical Industries, Ltd.)), and counted.
Using ISO 10993-5, we computed the colony formation rate by dividing the number of colonies in each well by the number of colonies in the non-extract fluid (control). The sample was considered potentially cytotoxic when the colony formation rate at the highest concentration of the sample extract (100% extract) was <70% of the control rate; the sample was considered non-cytotoxic when the colony formation rate was ≥70% of the control rate [43].

2.4. Evaluation of Antibacterial Activity by Changes in Fluorine Density

The antibacterial activity imparted by the F-DLC coating was evaluated by measuring the minimum inhibitory concentration against bacteria. The effective antibacterial fluorine content was determined using F-DLC–coated samples with different fluorine contents. Titanium-alloy discs with a 25 mm diameter and 5 mm height were surface-polished to prepare plates with a uniform surface roughness. The fluorine content in the coat was changed by adjusting the fluorine gas concentration used in the F-DLC coating process. As a result, F-DLC-coated test pieces with fluorine contents of 5.44%, 17.46%, and 24.09% were obtained (Figure 5). For each fluorine content, two discs were prepared and used for the antibacterial activity assay in experiment 1.
For the continuous variables of values calculated from this experiment, two groups were compared by t-test. Any p value of <0.05 was considered statistically significant. Values were calculated using Excel 2013 (Microsoft Corp., Redmond, VA, USA).

3. Results

3.1. Evaluation of Antibacterial Activity

Using ISO 22109, we counted the number of bacterial colonies 24 h after culturing bacteria on noncoated and F-DLC coated discs. Seven samples were tested in each group (Table 1). For the group of noncoated discs, S. aureus and E. coli counts had increased from 2.4 × 104 colony-forming units (CFUs) and 2.54 × 104 CFUs to (1.45 ± 1.11) × 106 CFUs and (4.04 ± 0.44) × 106 CFUs, respectively (p < 0.005). For the group of F-DLC-coated discs with 30% fluorine, no bacteria were detected for any cultured samples, including those with media inoculated with the undiluted stock solution (Figure 6). The antibacterial activity values were 4.73 ± 0.35 and 5.30 ± 0.05 for S. aureus and E. coli, respectively, indicating the antibacterial activity of F-DLC-coated samples. The activity levels show the difference in the logarithms of the viable cell count, after inoculation with bacteria, between the antibacterial-treated product and the untreated product. Therefore, with the F-DLC coating, bacterial growth was suppressed to 1/10,000 in S. aureus and 1/100,000 in E. coli, in comparison with the noncoated group.

3.2. Evaluation of Cytotoxicity

The number of colonies and the colony formation rate for Chinese hamster V79 cells cultured for six days with sample extract solutions were determined (Table 2). The 0.1% ZDEC and 0.25% ZDBC in the toxicity group did not form colonies, and the cells were completely destroyed. Using the non-extract fluid as a control, we found that the colony formation rate for the undiluted extract of the F-DLC-coated sample (30% fluorine) was 105.8 ± 24.1%. The colony-forming activity of the polyethylene in the nontoxicity target group was 107.5 ± 31.1%, and there was no significant difference between groups (p = 0.94), indicating the nontoxicity of the F-DLC coating (Figure 7A,B).

3.3. Evaluation of Antibacterial Activity by Changes in Fluorine Density

Bacterial colony counts determined after culturing bacteria for 24 h with F-DLC-coated discs having different fluorine contents according to ISO 22109 are shown in Table 3. After incubation with S. aureus and E. coli of F-DLC-coated plates containing 17.46% and 24.09% fluorine, respectively, for 24 h, bacteria inoculations added before incubation formed no detectable bacterial colonies, which was the same as the result for F-DLC plates containing 30% fluorine. However, when F-DLC-coated plates containing 5.44% fluorine were used, S. aureus and E. coli counts increased from 4.45 × 104 CFUs and 2.54 × 104 CFUs to (1.51 ± 0.01) × 106 CFUs and (8.59 ± 0.16) × 106 CFUs, respectively, and no antibacterial activity was observed (S. aureus, p < 0.05; E. coli, p < 0.002).
From these results, effective antibacterial properties were shown when the concentration of F-DLC was ≥ 17.46%.

4. Discussion

Fluoride has been known for a long time to have an antibacterial effect and, thus, an appropriate amount of fluoride has been added to drinking water in North America since the 1940s to help prevent dental caries [33,44,45,46].
Fluorine inhibits some phosphoglyceromutases and enolases, which are the major enzymes involved in glycolysis, at concentrations of 0.5–1 ppm, and potently inhibits bacteria growth, hereby preventing dental caries at concentrations of 5–10 ppm [33,47]. In addition, fluorine has been reported to inhibit cellular Na+/K+-ATPase in the presence of divalent cations [48,49,50]. Moreover, fluorine is found at about a level of 0.0037% in the body, which is the second highest level, next to iron, among biological trace elements; its blood level is a mean of 17.5 ± 19.7 µg/L (in humans 15–90 years old; no gender difference) [51]. The mean daily fluorine intake in humans is 0.05 mg/kg, and fluorine has a low biological toxicity, with a reported upper intake dose level of 0.1 mg/kg/d) [52]. Furthermore, unlike what is the situation for antibiotics, there are no known cases of acquired fluorine resistance in bacteria, and its use is considered to be safe.
On the basis of on international standards, we evaluated the antibacterial effects and cytotoxicity for titanium alloy discs coated with fluorine. Testing revealed a very high antibacterial level, and we found no cytotoxicity when the fluorine concentration was ≤30%. In examining the minimum bacterial growth-inhibitory concentration of fluorine, we found no antibacterial properties at a fluorine concentration of 5.44%, and we found that neither S. aureus nor E. coli showed colony growth when the concentration was ≥17.46%. This result suggests that the antibacterial level of a titanium alloy coated with F-DLC depends on the fluorine concentration on the alloy’s surface.
Methods for imparting an antibacterial property to implants have been studied by researchers in various locations to determine their usefulness in preventing peri-implant infections. However, these studies employed different testing methods and so cannot be compared straightforwardly.
Silver-containing hydroxyapatite coating (Ag-HA coating), which is used clinically, has been reported to have antibacterial activity values of 5.0 for S. aureus and 4.1 for E. coli as measured according to ISO 22196, with a colony formation rate of 71.4% on biological toxicity tests done as specified by ISO 10993-5. In our study, the F-DLC coating had antibacterial activity values of 4.73 and 3.30 for S. aureus and E. coli, respectively, showing a colony formation rate of 105.8% on biological toxicity tests. These results indicate that an F-DLC coating and an Ag-HA coating impart comparable levels of antibacterial activity, but the former is associated with no cytotoxicity. Furthermore, some studies have been reported to try to obtain antibacterial properties by adding silver or copper to DLC. These studies demonstrated that bacteria were suppressed after cultured for 24 h [53,54]. On the other hand, in this study, no bacteria were detected after being cultured for 24 h. However, these studies performed different testing methods and so cannot be compared directly. In addition, there have been no reports of bacteria with acquired resistance to fluorine. Therefore, F-DLC may be a useful coating material for long-term implants, such as prosthetic implants. In addition, most implant materials currently used in orthopedic surgery, such as titanium alloy, cobalt chromium alloy, and stainless steel, can be coated with F-DLC.
Our study has several limitations:
  • Since this was an in vitro study, it is necessary to confirm whether similar safety and antibacterial efficacy are present in vivo.
  • The coating’s antibacterial effects on other bacteria, such as coagulase-negative staphylococci and pneumococci, remain to be determined.
  • We did not rule out the possibility that the fluorine coating reduced the bone affinity of DLC in vivo.
  • It is unknown how long fluorine can maintain its antibacterial properties in vivo.
  • Although F-DLC has low cytotoxicity, it is necessary to confirm whether biotransformation of the immune system or of the metabolic system occurs.

5. Conclusions

An F-DLC coating on titanium alloy discs showed excellent in vitro antibacterial activity with no biological toxicity. Our findings show that an F-DLC coating may be a revolutionary new technology for preventing peri-implant infections.

Author Contributions

Conceptualization, M.K.; Data curation, K.K.; Formal analysis, Y.I. and S.O.; Investigation, K.Y.; Methodology, K.S. and M.T.; Project administration, M.K.; Supervision, N.K.; Validation, T.I.; Writing – original draft, K.Y.; Writing – review & editing, A.K. All authors have read and agreed to the published version of the manuscript.

Funding

This study was conducted as part of our routine work; we received no grants.

Acknowledgments

Medical editor Katharine O’Moore-Klopf, ELS (East Setauket, NY, USA) provided professional English-language editing of this article.

Conflicts of Interest

The authors have no conflict of interest to report.

References

  1. Davne, S.H.; Myers, D.L. Complications of lumbar spinal fusion with transpedicular instrumentation. Spine 1992, 17 (Suppl. 6), S184–S189. [Google Scholar] [CrossRef] [PubMed]
  2. Sponseller, P.D.; LaPorte, D.M.; Hungerford, M.W.; Eck, K.; Bridwell, K.H.; Lenke, L.G. Deep wound infections after neuromuscular scoliosis surgery: A multicenter study of risk factors and treatment outcomes. Spine 2000, 25, 2461–2466. [Google Scholar] [CrossRef] [PubMed]
  3. Weinstein, M.A.; McCabe, J.P.; Cammisa, F.P., Jr. Postoperative spinal wound infection: A review of 2,391 consecutive index procedures. J. Spinal Disord. 2000, 13, 422–426. [Google Scholar] [CrossRef]
  4. Sperling, J.W.; Kozak, T.K.; Hanssen, A.D.; Cofield, R.H. Infection after shoulder arthroplasty. Clin. Orthop. Relat. Res. 2001, 382, 206–216. [Google Scholar] [CrossRef]
  5. Minnema, B.; Vearncombe, M.; Augustin, A.; Gollish, J.; Simor, A.E. Risk factors for surgical-site infection following primary total knee arthroplasty. Infect. Control. Hosp. Epidemiol. 2004, 25, 477–480. [Google Scholar] [CrossRef] [PubMed]
  6. Bengtson, S.; Knutson, K. The infected knee arthroplasty. A 6-year follow-up of 357 cases. Acta Orthop. Scand. 1991, 62, 301–311. [Google Scholar] [CrossRef] [PubMed]
  7. Petrie, R.S.; Hanssen, A.D.; Osmon, D.R.; Ilstrup, D. Metal-backed patellar component failure in total knee arthroplasty: A possible risk for late infection. Am. J. Orthop. (Belle Mead N. J.) 1998, 27, 172–176. [Google Scholar]
  8. Poon, P.C.; Rennie, J.; Gray, D.H. Review of total hip replacement. The Middlemore Hospital experience, 1980–1991. N. Z. Med. J. 2001, 114, 254–256. [Google Scholar]
  9. Tang, W.M.; Chiu, K.Y.; Ng, T.P.; Yau, W.P.; Ching, P.T.; Seto, W.H. Efficacy of a single dose of cefazolin as a prophylactic antibiotic in primary arthroplasty. J. Arthroplast. 2003, 18, 714–718. [Google Scholar] [CrossRef]
  10. Hill, G.E.; Droller, D.G. Acute and subacute deep infection after uncemented total hip replacement using antibacterial prophylaxis. Orthop. Rev. 1989, 18, 617–623. [Google Scholar]
  11. Wymenga, A.B.; van Horn, J.R.; Theeuwes, A.; Muytjens, H.L.; Slooff, T.J. Perioperative factors associated with septic arthritis after arthroplasty: Prospective multicenter study of 362 knee and 2,651 hip operations. Acta Orthop. Scand. 1992, 63, 665–671. [Google Scholar] [CrossRef] [PubMed]
  12. Phillips, C.B.; Barrett, J.A.; Losina, E.; Mahomed, N.N.; Lingard, E.A.; Guadagnoli, E.; Baron, J.A.; Harris, W.H.; Poss, R.; Katz, J.N. Incidence rates of dislocation, pulmonary embolism, and deep infection during the first six months after elective total hip replacement. J. Bone Jt. Surg. Am. 2003, 85, 20–26. [Google Scholar] [CrossRef] [PubMed]
  13. Bratzler, D.W.; Houck, P.M.; Richards, C.; Steele, L.; Patchen Dellinger, E.; Fry, D.E.; Wright, C.; Ma, A.; Carr, K.; Red, L. Use of antimicrobial prophylaxis for major surgery: Baseline results from the National Surgical Infection Prevention Project. Arch. Surg. 2005, 140, 174–182. [Google Scholar] [CrossRef] [PubMed]
  14. Gristina, A.G.; Costerton, J.W. Bacterial adherence to biomaterials and tissue. The significance of its role in clinical sepsis. J. Bone Jt. Surg. Am. 1985, 67, 264–273. [Google Scholar] [CrossRef]
  15. Nishimura, S.; Tsurumoto, T.; Yonekura, A.; Adachi, K.; Shindo, H. Antimicrobial susceptibility of Staphylococcus aureus and Staphylococcus epidermidis biofilms isolated from infected total hip arthroplasty cases. J. Orthop. Sci. 2006, 11, 46–50. [Google Scholar] [CrossRef]
  16. Sakimura, T.; Kajiyama, S.; Adachi, S.; Chiba, K.; Yonekura, A.; Tomita, M.; Koseki, H.; Miyamoto, T.; Tsurumoto, T.; Osaki, M. Biofilm-forming Staphylococcus epidermidis expressing vancomycin resistance early after adhesion to a metal surface. Biomed. Res. Int. 2015, 943056. [Google Scholar] [CrossRef]
  17. Kurtz, S.M.; Lau, E.; Watson, H.; Schmier, J.K.; Parvizi, J. Economic burden of periprosthetic joint infection in the United States. J. Arthroplast. 2012, 27 (Suppl. 8), 61–65.e1. [Google Scholar] [CrossRef]
  18. Whitehouse, J.D.; Friedman, N.D.; Kirkland, K.B.; Richardson, W.J.; Sexton, D.J. The impact of surgical-site infections following orthopedic surgery at a community hospital and a university hospital: Adverse quality of life, excess length of stay, and extra cost. Infect. Control. Hosp. Epidemiol. 2002, 23, 183–189. [Google Scholar] [CrossRef]
  19. Helwig, P.; Morlock, J.; Oberst, M.; Hauschild, O.; Hübner, J.; Borde, J.; Südkamp, N.P.; Konstantinidis, L. Periprosthetic joint infection—Effect on quality of life. Int. Orthop. 2014, 38, 1077–1081. [Google Scholar] [CrossRef]
  20. Lucke, M.; Schmidmaier, G.; Sadoni, S.; Wildemann, B.; Schiller, R.; Haas, N.P.; Raschke, M. Gentamicin coating of metallic implants reduces implant-related osteomyelitis in rats. Bone 2003, 32, 521–531. [Google Scholar] [CrossRef]
  21. Antoci, V., Jr.; Adams, C.S.; Hickok, N.J.; Shapiro, I.M.; Parvizi, J. Vancomycin bound to Ti rods reduces periprosthetic infection: Preliminary study. Clin. Orthop. Relat. Res. 2007, 461, 88–95. [Google Scholar] [CrossRef] [PubMed]
  22. Campbell, A.A.; Song, L.; Li, X.S.; Nelson, B.J.; Bottoni, C.; Brooks, D.E.; Dejong, E.S. Development, characterization, and anti-microbial efficacy of hydroxyapatite-chlorhexidine coatings produced by surface-induced mineralization. J. Biomed. Mater. Res. 2000, 53, 400–407. [Google Scholar] [CrossRef]
  23. Neut, D.A.; Dijkstra, R.J.; Thompson, J.I.; Kavanagh, C.; van der Mei, H.C.; Busscher, H.J. biodegradable gentamicin-hydroxyapatite-coating for infection prophylaxis in cementless hip prostheses. Eur. Cell Mater. 2015, 2, 42–55. [Google Scholar] [CrossRef] [PubMed]
  24. Alt, V.; Bitschnau, A.; Österling, J.; Sewing, A.; Meyera, C.; Kraus, R.; Meissner, S.A.; Wenisch, S.; Domann, E.; Schnettler, R. The effects of combined gentamicin-hydroxyapatite coating for cementless joint prostheses on the reduction of infection rates in a rabbit infection prophylaxis model. Biomaterials 2006, 27, 4627–4634. [Google Scholar] [CrossRef]
  25. Stigter, M.; de Groot, K.; Layrolle, P. Incorporation of tobramycin into biomimetic hydroxyapatite coating on titanium. Biomaterials 2002, 23, 4143–4153. [Google Scholar] [CrossRef]
  26. Oka, Y.; Kim, W.C.; Yoshida, T.; Hirashima, T.; Mouri, H.; Urade, H.; Itoh, Y.; Kubo, T. Efficacy of titanium dioxide photocatalyst for inhibition of bacterial colonization on percutaneous implants. J. Biomed. Mater. Res. Part B Appl. Biomater. 2008, 86, 530–540. [Google Scholar] [CrossRef]
  27. Noda, I.; Miyaji, F.; Ando, Y.; Miyamoto, H.; Shimazaki, T.; Yonekura, Y.; Miyazaki, M.; Mawatari, M.; Hotokebuchi, T. Development of novel thermal sprayed antibacterial coating and evaluation of release properties of silver ions. J. Biomed. Mater. Res. Part B. 2009, 89B, 456–465. [Google Scholar] [CrossRef]
  28. Funao, H.; Nagai, S.; Sasaki, A.; Hoshikawa, T.; Tsuji, T.; Okada, Y.; Koyasu, S.; Toyama, Y.; Nakamura, M.; Aizawa, M.; et al. A novel hydroxyapatite film coated with ionic silver via inositol hexaphosphate chelation prevents implant-associated infection. Sci. Rep. 2016, 23238. [Google Scholar] [CrossRef]
  29. Ando, Y.; Miyamoto, H.; Noda, I.; Sakurai, N.; Akiyama, T.; Yonekura, Y.; Shimazaki, T.; Miyazaki, M.; Mawatari, M.; Hotokebuchi, T. Calcium phosphate coating containing silver shows high antibacterial activity and low cytotoxicity and inhibits bacterial adhesion. Mater. Sci. Eng. C 2010, 30, 175–180. [Google Scholar] [CrossRef]
  30. Zainali, K.; Danscher, G.; Jakobsen, T.; Jakobsen, S.S.; Baas, J.; Møller, P.; Bechtold, J.E.; Soballe, K. Effects of gold coating on experimental implant fixation. J. Biomed. Mater. Res. A 2009, 88, 274–280. [Google Scholar] [CrossRef]
  31. Shirai, T.; Shimizu, T.; Ohtani, K.; Zen, Y.; Takaya, M.; Tsuchiya, H. Antibacterial iodine-supported titanium implants. Acta Biomater. 2011, 7, 1928–1933. [Google Scholar] [CrossRef] [PubMed]
  32. Eto, S.; Kawano, S.; Someya, S.; Miyamoto, H.; Sonohata, M.; Mawatari, M. First clinical experience with thermal-sprayed silver oxide-containing hydroxyapatite coating implant. J. Arthroplast. 2016, 31, 1498–1503. [Google Scholar] [CrossRef] [PubMed]
  33. Borei, H. Inhibition of cellular oxidation by fluoride. Ark. För KemiMineral. Och Geol. 1945, 20A, 1–215. [Google Scholar]
  34. Aisenberg, S.; Chabot, R. Ion-beam deposition of thin films of diamondlike carbon. J. Appl. Phys. 1971, 42, 2953. [Google Scholar] [CrossRef]
  35. Saito, T.; Hasebe, T.; Yohena, S.; Matsuoka, Y.; Kamijo, A.; Takahashi, K.; Suzuki, T. Antithrombogenicity of fluorinated diamond-like carbon films. Diam. Relat. Mat. 2005, 3–7, 1116–1119. [Google Scholar] [CrossRef]
  36. Marciano, F.R.; Lima-Oliveira, D.A.; Da-Silva, N.S.; Corat, E.J.; Trava-Airoldi, V.J. Antibacterial activity of fluorinated diamond-like carbon films produced by PECVD. Surf. Coat. Tech. 2010, 204, 2986–2990. [Google Scholar] [CrossRef]
  37. Ishihara, M.; Kosaka, T.; Nakamura, T.; Tsugawa, K.; Hasegawa, M.; Kokai, F.; Koga, Y. Antibacterial activity of fluoride incorporated DLC films. Diam. Relat. Mat. 2006, 15, 1011–1014. [Google Scholar] [CrossRef]
  38. Del Prado, G.; Terriza, A.; Ortiz-Pérez, A.; Molina-Manso, D.; Mahillo, I.; Yubero, F.; Puértolas, J.A.; Manrubia-Cobo, M.; Gómez Barrena, E.; Esteban, J. DLC coatings for UHMWPE: Relationship between bacterial adherence and surface properties. J. Biomed. Mater. Res. A 2012, 100, 2813–2820. [Google Scholar] [CrossRef]
  39. Bendavid, A.; Martin, P.J.; Randeniya, L.; Amin, M.S. The properties of fluorine containing diamond-like carbon films prepared by plasma-enhanced chemical vapour deposition. Diam. Relat. Mater. 2009, 18, 66–71. [Google Scholar] [CrossRef]
  40. ASTM International. ASTM B348/B348M-19. Standard Specification for Titanium and Titanium Alloy Bars and Billets; ASTM International: West Conshohocken, PA, USA, 2019. [Google Scholar]
  41. Kalita, G.; Aryal, H.R.; Adhikari, S.; Ghimire, D.C.; Afre, R.A.; Soga, T.; Sharon, M.; Umeno, M. Fluorine incorporated amorphous carbon thin films prepared by Surface Wave Microwave Plasma CVD. Diam. Relat. Mater. 2008, 17, 1697–1701. [Google Scholar] [CrossRef]
  42. International Organization for Standardization. ISO 22196. Measurement of Antibacterial Activity on Plastics and Other Non-Porous Surfaces; ISO: Geneva, Switzerland, 2011. [Google Scholar]
  43. International Organization for Standardization. ISO 10993-5. Biological Evaluation of Medical Devices—Part 5. Tests for In Vitro Cytotoxicity; ISO: Geneva, Switzerland, 2009. [Google Scholar]
  44. Arnold, F.A., Jr.; Dean, H.T.; Jay, P.; Knutson, J.W. Effect of fluoridated public water supplies on dental caries prevalence. Public Health Rep. 1956, 71, 652–658. [Google Scholar] [CrossRef] [PubMed]
  45. Newbrun, E. Effectiveness of water fluoridation. J. Public Health Dent. 1989, 49, 279–289. [Google Scholar] [CrossRef] [PubMed]
  46. Dunning, J.M. Principles of Dental Public Health, 4th ed.; Harvard University Press: Cambridge, MA, USA, 1986. [Google Scholar]
  47. Hamilton, I.R. Effects of fluoride on enzymatic regulation of bacterial carbohydrate metabolism. Caries Res. 1977, 11 (Suppl. 1), 262–291. [Google Scholar] [CrossRef]
  48. Murphy, A.J.; Hoover, J.C. Inhibition of the Na,K-ATPase by fluoride. Parallels with its inhibition of the sarcoplasmic reticulum CaATPase. J. Biol. Chem. 1992, 267, 16995–17000. [Google Scholar] [PubMed]
  49. Yoshida, H.; Nagai, K.; Kamei, M.; Nakagawa, Y. Irreversible inactivation of (Na+ -K+)-dependent ATPase and K+-dependent phosphatase by fluoride. Biochim. Biophys. Acta 1968, 150, 162–164. [Google Scholar] [CrossRef]
  50. Robinson, J.D. Functionally distinct classes of K+ sites on the (Na+ + K+)-dependent ATPase. Biochim. Biophys. Acta 1975, 384, 250–264. [Google Scholar] [CrossRef]
  51. Torra, M.; Rodamilans, M.; Corbella, J. Serum and urine ionic fluoride: Normal range in a nonexposed population. Biol. Trace Elem. Res. 1998, 63, 67–71. [Google Scholar] [CrossRef]
  52. Institute of Medicine (US) Standing Committee on the Scientific Evaluation of Dietary Reference Intakes. Dietary Reference Intakes for Calcium, Phosphorus, Magnesium, Vitamin D, and Fluoride; National Academies Press: Washington DC, USA, 1997; pp. 288–313. [Google Scholar]
  53. Gorzelanny, C.; Kmeth, R.; Obermeier, A.; Bauer, A.T.; Halter, N.; Kümpel, K.; Schneider, M.F.; Wixforth, A.; Gollwitzer, H.; Burgkart, R.; et al. Silver nanoparticle-enriched diamond-like carbon implant modification as a mammalian cell compatible surface with antimicrobial properties. Sci. Rep. 2016, 6, 22849. [Google Scholar] [CrossRef]
  54. Harrasser, N.; Jüssen, S.; Obermeir, A.; Kmeth, R.; Stritzker, B.; Burgkart, H.G.R. Antibacterial potency of different deposition methods of silver and copper containing diamond-like carbon coated polyethylene. Biomater. Res. 2016, 12, 17. [Google Scholar] [CrossRef]

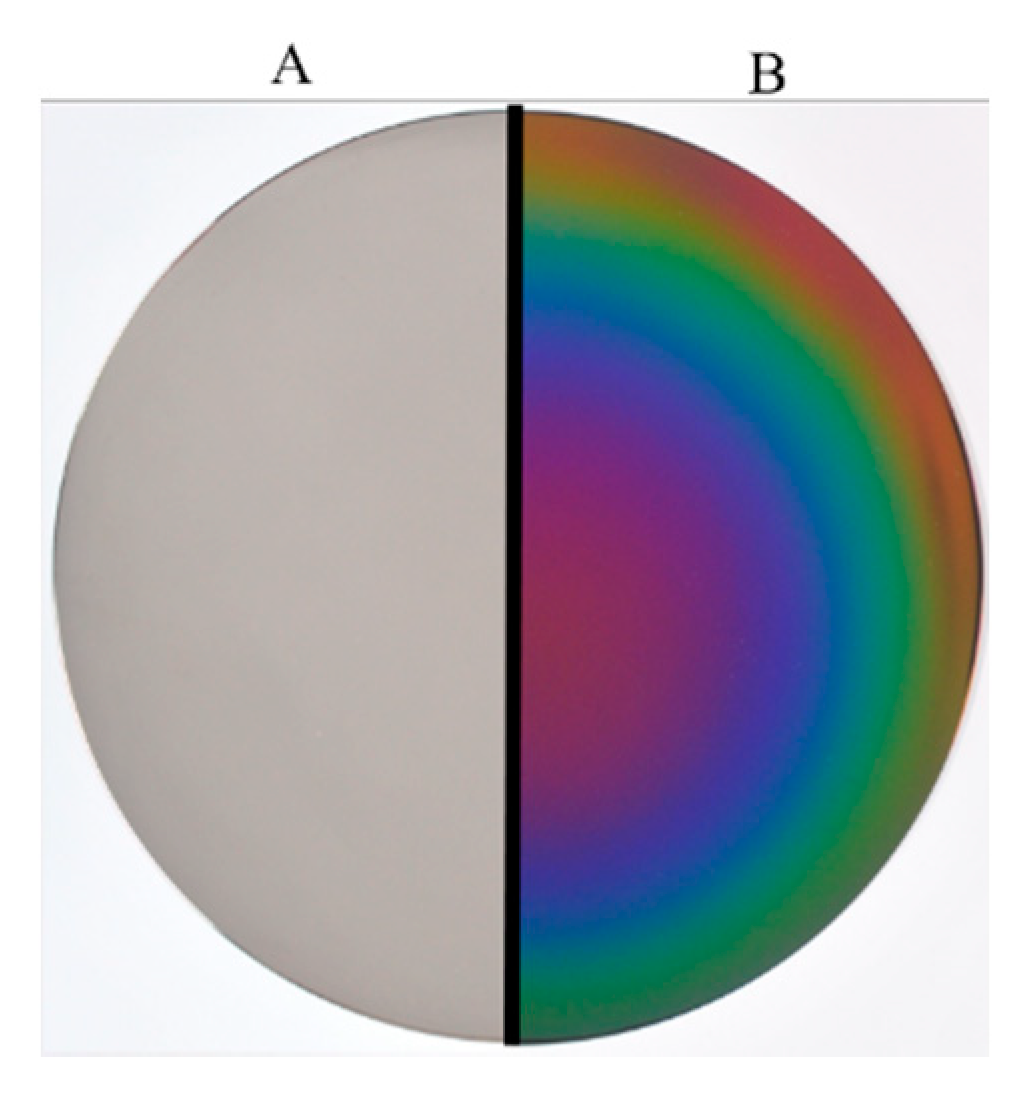

Figure 1. A titanium alloy disc: (A) before any processing; (B) after coating with fluorinated diamond-like carbon.
Figure 1. A titanium alloy disc: (A) before any processing; (B) after coating with fluorinated diamond-like carbon.
Antibiotics 09 00495 g001

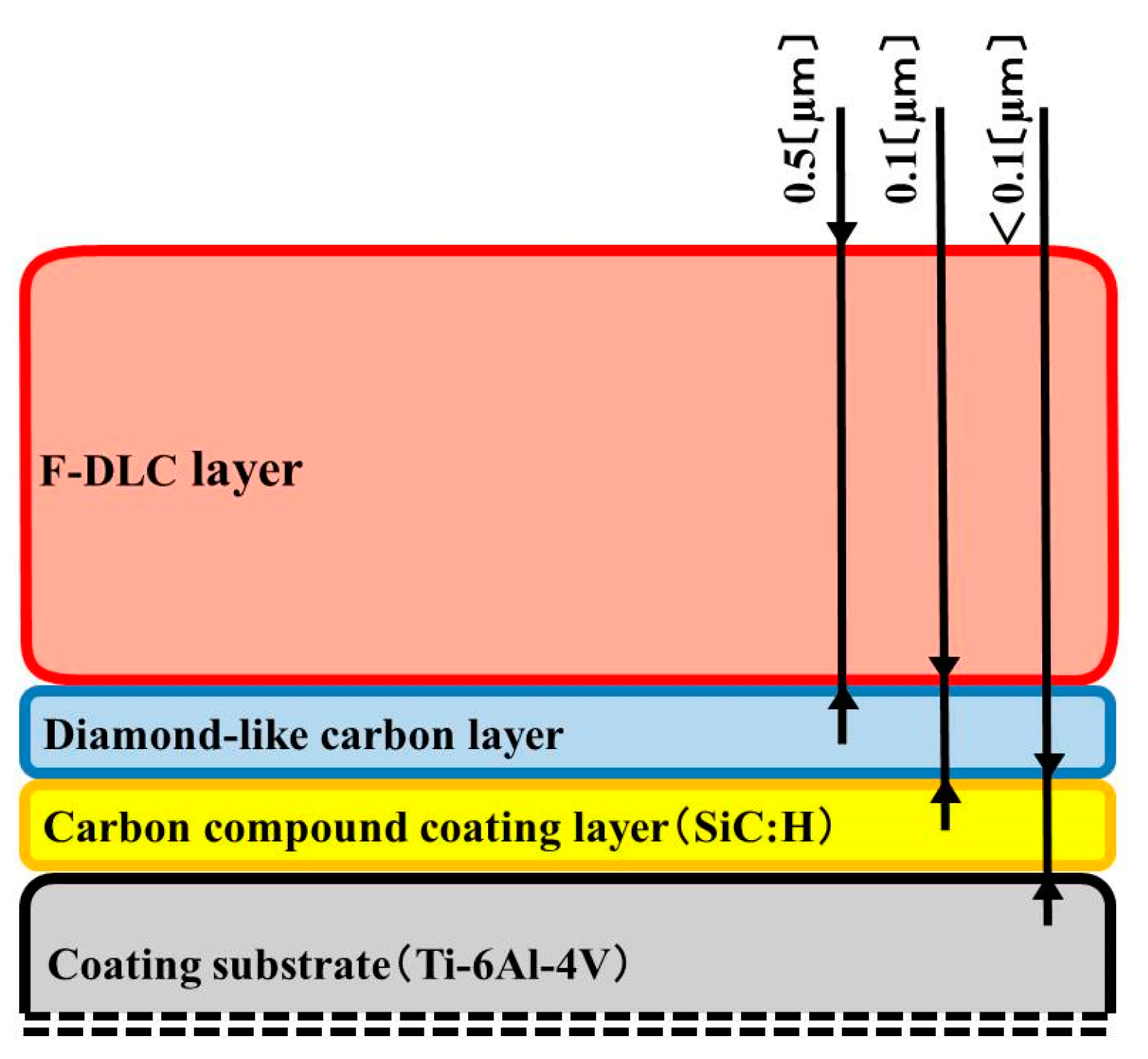

Figure 2. The layers of fluorinated diamond-like carbon (F-DLC) coating. First layer: SiC:H film <0.1 µm thick. Second layer: DLC film 0.1 µm thick. Third layer: F-DLC film 0.5 µm thick.
Figure 2. The layers of fluorinated diamond-like carbon (F-DLC) coating. First layer: SiC:H film <0.1 µm thick. Second layer: DLC film 0.1 µm thick. Third layer: F-DLC film 0.5 µm thick.
Antibiotics 09 00495 g002

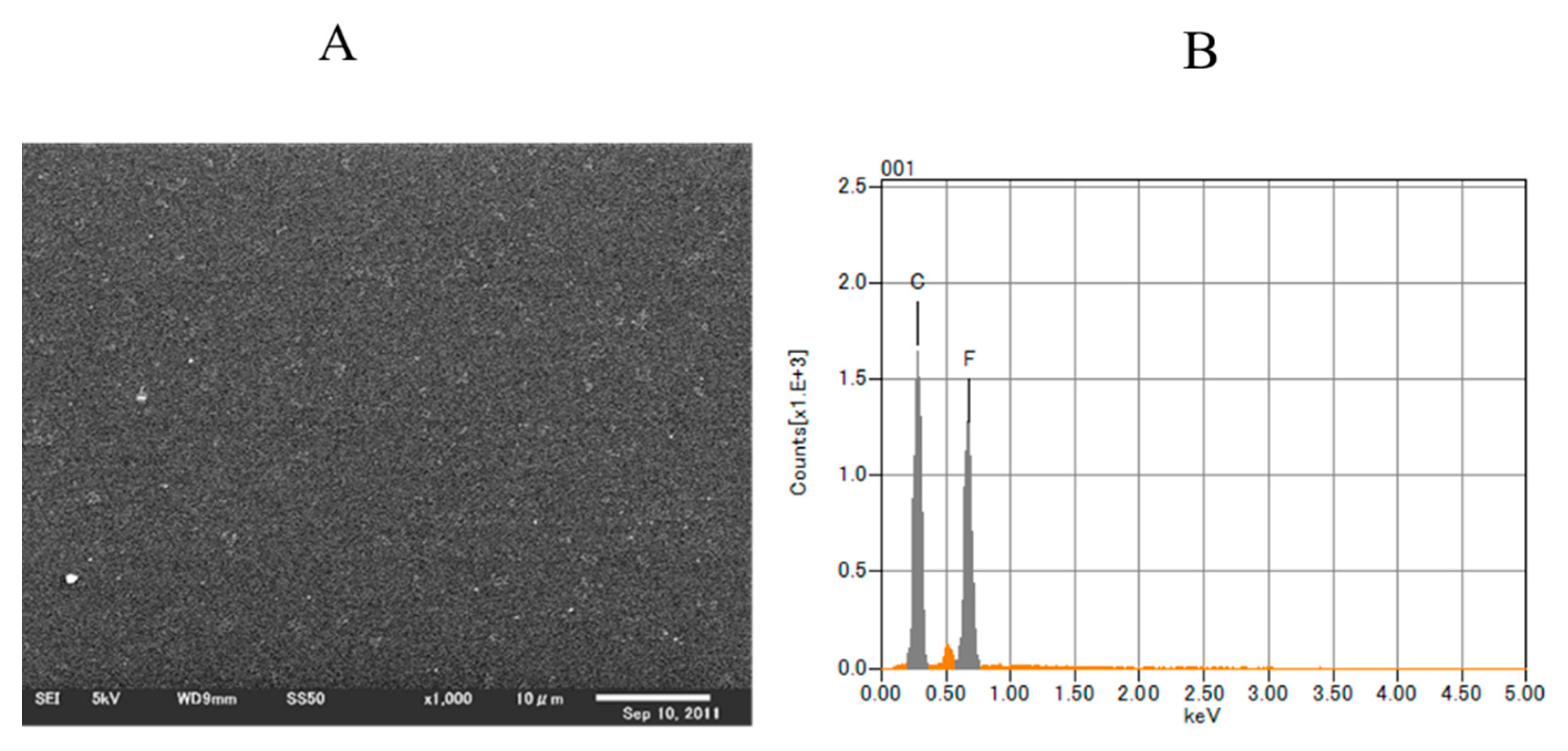

Figure 3. Element analysis using energy-dispersive X-ray spectroscopy (EDS) of fluorinated diamond-like carbon (F-DLC) coating of 30% fluorine: (A) A surface image of F-DLC coating obtained by electron microscopy (acceleration: 1000×; voltage: 5.00 kV). (B) EDS analysis showed that the carbon-to-fluorine ratio was 7:3. The surface fluorine concentration was 30%.
Figure 3. Element analysis using energy-dispersive X-ray spectroscopy (EDS) of fluorinated diamond-like carbon (F-DLC) coating of 30% fluorine: (A) A surface image of F-DLC coating obtained by electron microscopy (acceleration: 1000×; voltage: 5.00 kV). (B) EDS analysis showed that the carbon-to-fluorine ratio was 7:3. The surface fluorine concentration was 30%.
Antibiotics 09 00495 g003

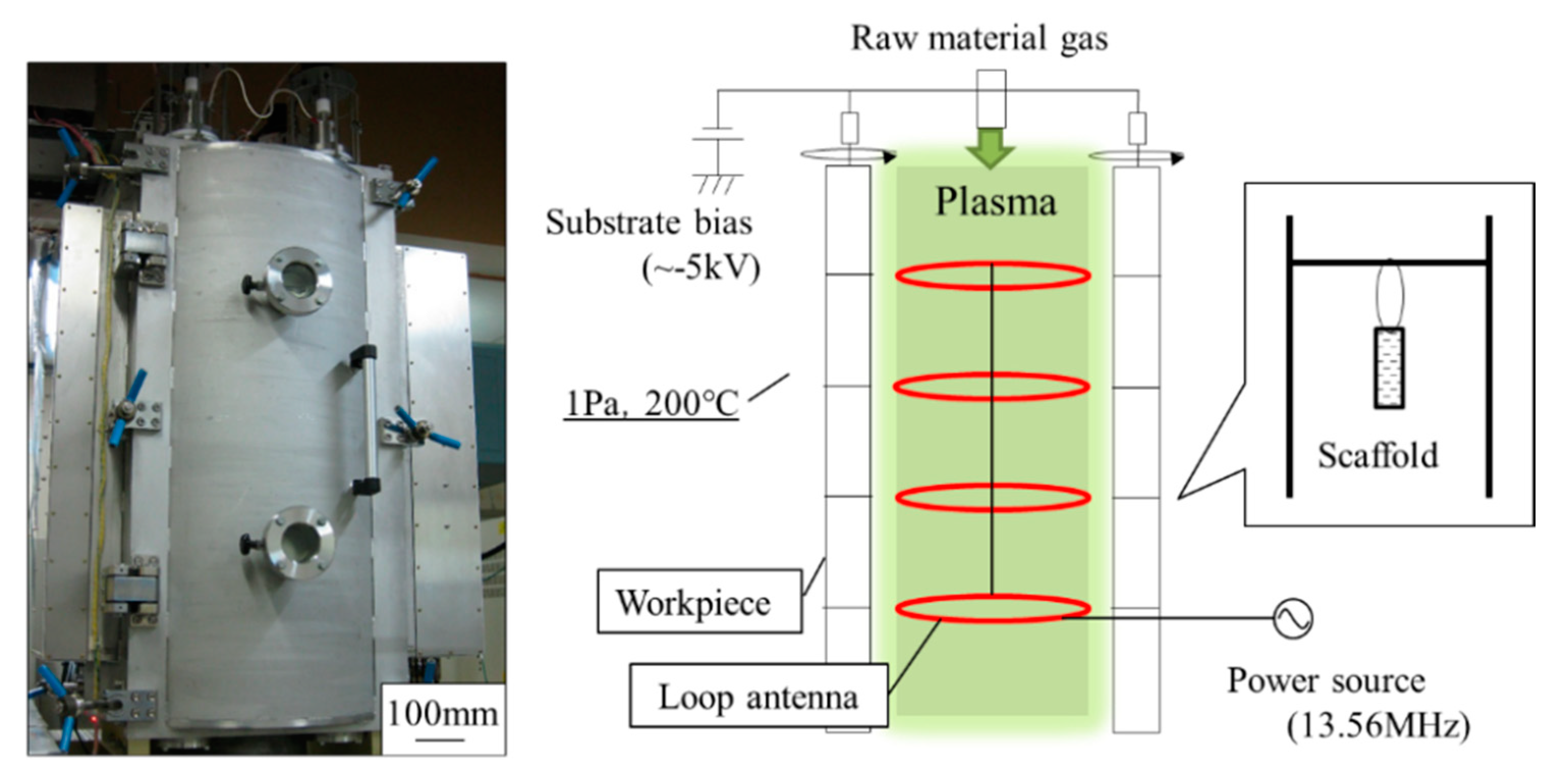

Figure 4. Inductively-coupled plasma device of the DLC coating device (Onward Giken, patent 4151000, 2008).
Figure 4. Inductively-coupled plasma device of the DLC coating device (Onward Giken, patent 4151000, 2008).
Antibiotics 09 00495 g004

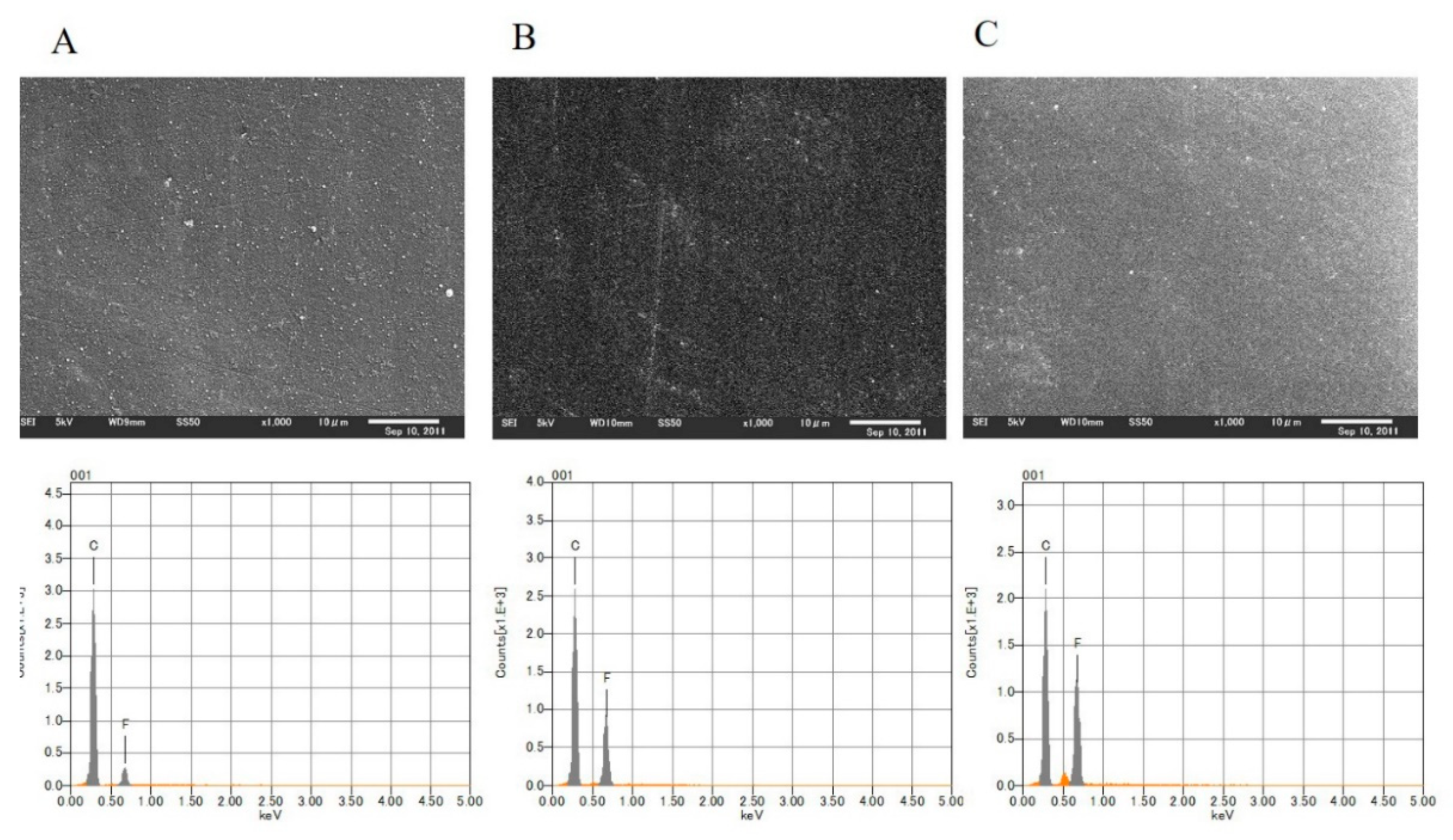

Figure 5. Surface images and element analysis by energy-dispersive X-ray spectroscopy of the fluorine content of the fluorinated diamond-like carbon (F-DLC) coating for various discs: (A) Content of 5.44%. (B) Content of 17.46%. (C) Content of 24.09%.
Figure 5. Surface images and element analysis by energy-dispersive X-ray spectroscopy of the fluorine content of the fluorinated diamond-like carbon (F-DLC) coating for various discs: (A) Content of 5.44%. (B) Content of 17.46%. (C) Content of 24.09%.
Antibiotics 09 00495 g005

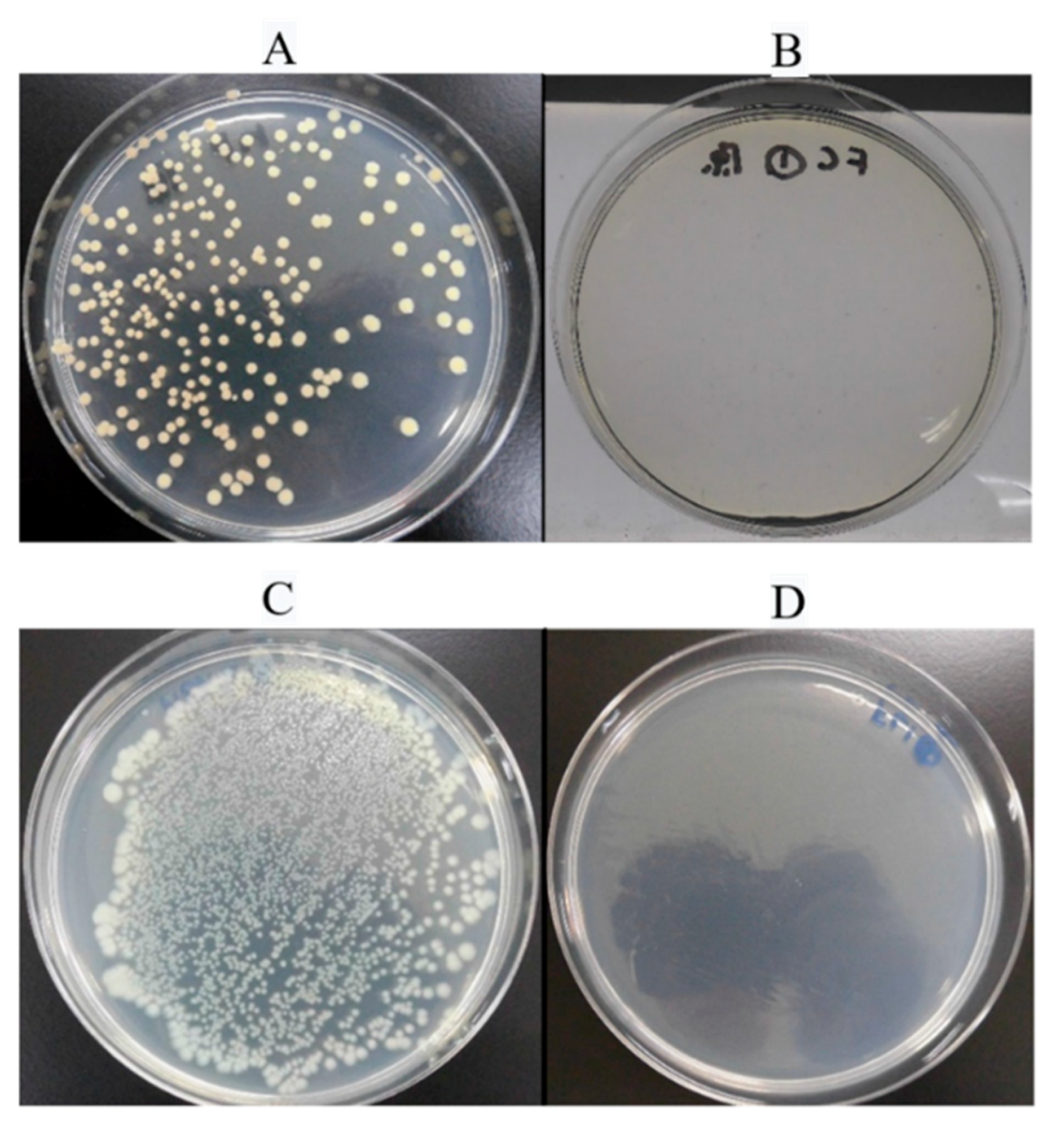

Figure 6. Antibacterial activity: (A) Staphylococcus aureus cultured on a noncoated titanium alloy disc. (B) S. aureus cultured on a disc with coated with fluorinated diamond-like carbon (F-DLC). (C) Escherichia coli cultured on a noncoated titanium-alloy disc. (D) E. coli cultured on a disc coated with F-DLC.
Figure 6. Antibacterial activity: (A) Staphylococcus aureus cultured on a noncoated titanium alloy disc. (B) S. aureus cultured on a disc with coated with fluorinated diamond-like carbon (F-DLC). (C) Escherichia coli cultured on a noncoated titanium-alloy disc. (D) E. coli cultured on a disc coated with F-DLC.
Antibiotics 09 00495 g006

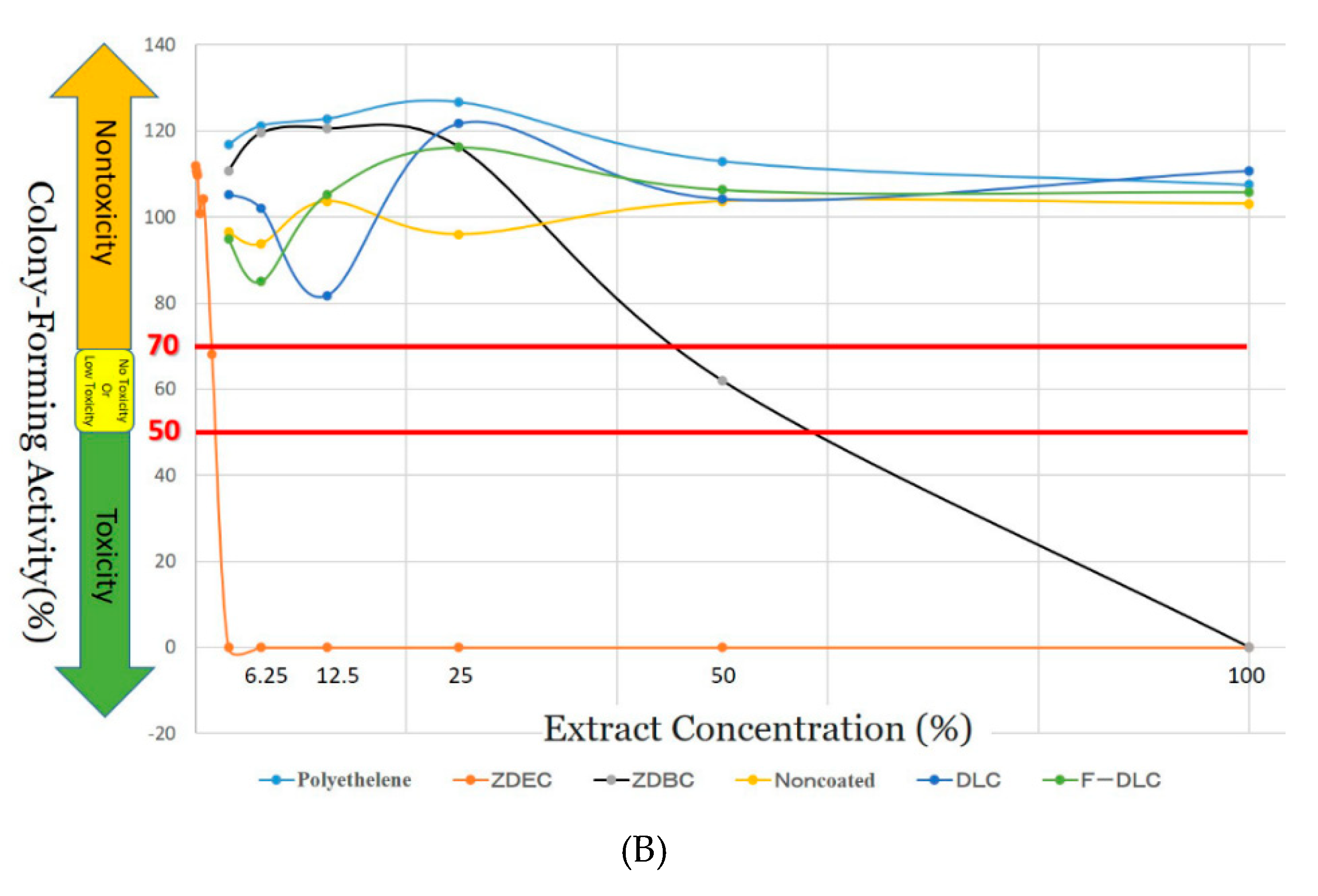

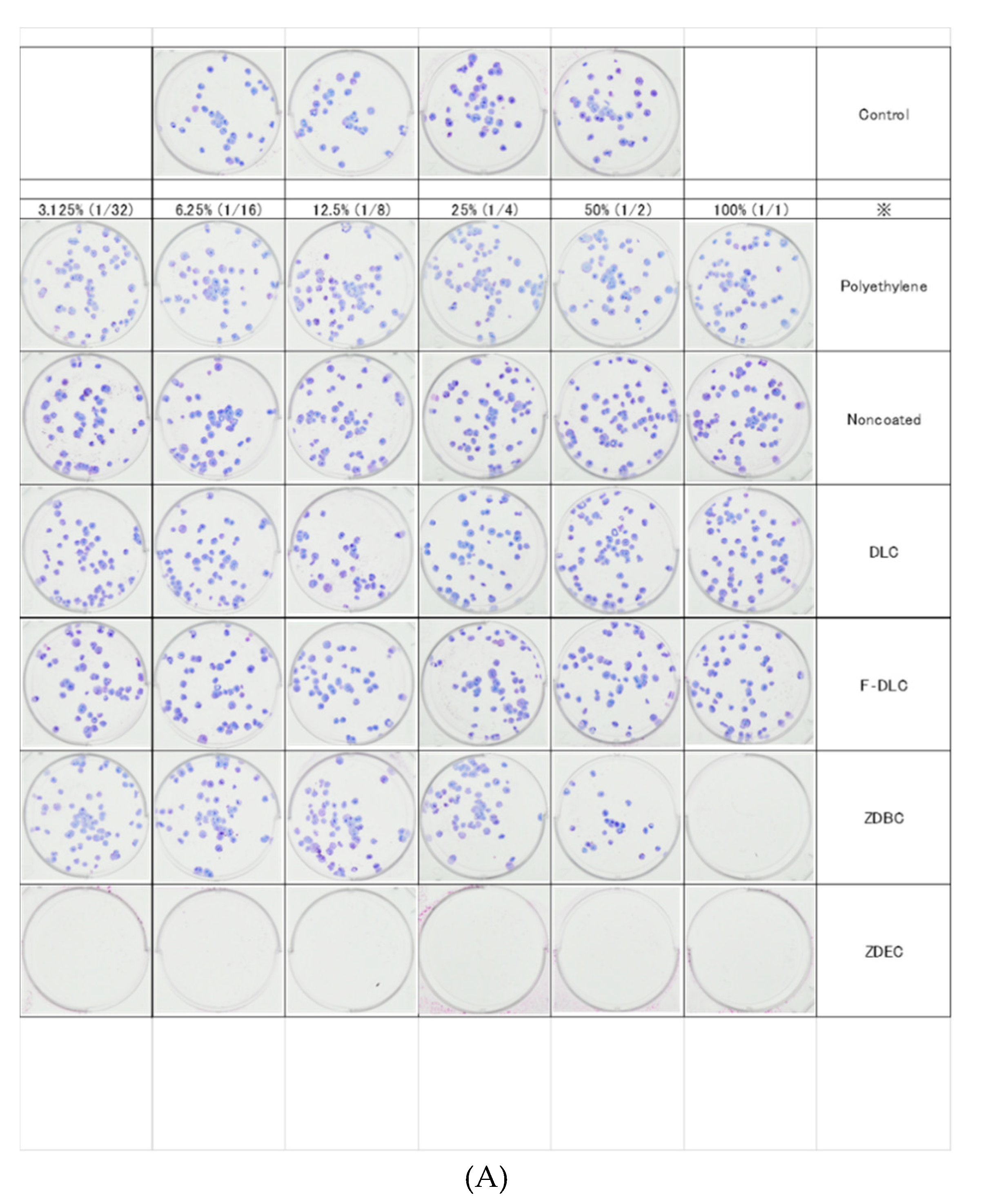

Figure 7. Colony-forming activity by extract concentration. (A) Number of viable V79 colonies after cultivation with test discs. V79 colonies in ZDBC and ZDEC were not detected in the undiluted extracts. Regarding viable V79 colonies for polyethylene and for F-DLC in titanium-alloy discs without coating, DLC was detected to the same extent in all extract dilution levels. (B) A graph of colony-forming activity by extract concentration. The activity level in ZDEC and ZDBC was 0% in the undiluted extracts, which shows that the sample are potentially cytotoxic. However, the activity in polyethylene and F-DLC-coated samples was >70%, which shows that the samples were likely non-cytotoxic. DLC, diamond-like carbon; F-DLC, fluorinated diamond-like carbon; ZDBC, 0.25% zinc dibutyldithiocarbamate; ZDEC, 0.1% zinc diethyldithiocarbamate.
Figure 7. Colony-forming activity by extract concentration. (A) Number of viable V79 colonies after cultivation with test discs. V79 colonies in ZDBC and ZDEC were not detected in the undiluted extracts. Regarding viable V79 colonies for polyethylene and for F-DLC in titanium-alloy discs without coating, DLC was detected to the same extent in all extract dilution levels. (B) A graph of colony-forming activity by extract concentration. The activity level in ZDEC and ZDBC was 0% in the undiluted extracts, which shows that the sample are potentially cytotoxic. However, the activity in polyethylene and F-DLC-coated samples was >70%, which shows that the samples were likely non-cytotoxic. DLC, diamond-like carbon; F-DLC, fluorinated diamond-like carbon; ZDBC, 0.25% zinc dibutyldithiocarbamate; ZDEC, 0.1% zinc diethyldithiocarbamate.
Antibiotics 09 00495 g007aAntibiotics 09 00495 g007b
Table 1. Number of viable bacteria on the disc.
Table 1. Number of viable bacteria on the disc.
MaterialBacteriumNumber of Viable Bacteria (CFUs)p-Value
Before IncubationAfter Incubation
Fluorinated diamond-like carbon coatingStaphylococcus aureus2.4 × 104<20 (not detected) NA
Escherichia coli2.54 × 104<20 (not detected)NA
Noncoated titanium-alloy discStaphylococcus aureus2.4 × 104(1.45 ± 1.11) × 106<0.001
Escherichia coli2.54 × 104(4.04 ± 0.44) × 106<0.001
Abbreviations: CFU, colony-forming unit. NA, not applicable because there were no values after incubation. When no bacteria were detected after incubation, the number of viable bacteria was less than the amount of soybean-casein digest broth with lecithin and polysorbate 80 medium. The values are given as the mean ± standard deviation.
Table 2. Number of cells in the V79 colonies and average colony-forming activities.
Table 2. Number of cells in the V79 colonies and average colony-forming activities.
MaterialNumber of Cells in the V79 Colonies (CFUs)Colony-Forming Activity (%)
Non-extract fluid 45.6 ± 11.9100 ± 17.1
Polyethylene49 ± 14.1107.5 ± 31.1
0.1% zinc diethyldithiocarbamate0 ± 00 ± 0
0.25% zinc dibutyldithiocarbamate0 ± 00 ± 0
Titanium alloy without coating47 ± 13.6103.1 ± 29.8
Fluorinated diamond-like carbon coating48.25 ± 11.0105.8 ± 24.1
Abbreviations: CFU, colony-forming unit. Number of cells were cultured by 100% extraction medium, and the colonies of 4 samples were averaged. There were no significant differences in the level of colony-forming activity of titanium alloy and fluorinated diamond-like carbon coating in comparison with that of polyethylene (p = 0.86 and 0.94, respectively). The values are given as the mean ± standard deviation.
Table 3. Number of viable bacteria on the disc at different fluorine concentrations.
Table 3. Number of viable bacteria on the disc at different fluorine concentrations.
MaterialDensity (%)BacteriumNumber of Viable Bacteria (CFUs)p-Valuea
Before IncubationAfter Incubation
Fluorinated diamond-like carbon coating24.09S. aureus4.45 × 104<20 (not detected)NA
E. coli2.54 × 104<20 (not detected)NA
17.46S. aureus4.45 × 104<20 (not detected)NA
E. coli2.54 × 104<20 (not detected)MA
5.44S. aureus4.45 × 104(1.51 ± 0.01) × 106<0.05
E. coli2.54 × 104(8.59 ± 0.16) × 106<0.01
Abbreviations: CFU, colony-forming unit; E. coli, Escherichia coli; S. aureus, Staphylococcus aureus. a Not applicable because there were no values after incubation. The values are given as the mean ± standard deviation.
Back to TopTop
