Comparison of Five Different Selective Agar for the Detection of Vancomycin-Resistant Enterococcus faecium

by
Alessa L. Boschert
1,
Franca Arndt
1,2,
Axel Hamprecht
1,3,4,
Martina Wolke
1 and
Sarah V. Walker
1,3,5,*
1
Institute for Medical Microbiology, Immunology and Hygiene, University Hospital of Cologne, 50935 Cologne, Germany
2
German Aerospace Center (DLR), Institute of Aerospace Medicine, 51147 Cologne, Germany
3
German Centre for Infection Research (DZIF), Partner Site Bonn-Cologne, 50441 Cologne, Germany
4
Institute for Medical Microbiology and Virology, University of Oldenburg, 26001 Oldenburg, Germany
5
Institute for Clinical Microbiology and Hospital Hygiene, Klinikum Ludwigsburg, 71634 Ludwigsburg, Germany
*
Author to whom correspondence should be addressed.
Antibiotics 2023, 12(4), 666; https://doi.org/10.3390/antibiotics12040666
Submission received: 4 March 2023 / Revised: 23 March 2023 / Accepted: 27 March 2023 / Published: 29 March 2023
(This article belongs to the Special Issue Antibiotic Treatment and Antibiotic Resistance of Enterococcus Infections)
Browse Figure
Versions Notes

Abstract

:
Five commercially available selective agar were evaluated regarding sensitivity and specificity to detect vancomycin-resistant Enterococcus (E.) faecium. Altogether 187 E. faecium strains were included, comprising 119 van-carrying strains (phenotypically vancomycin-resistant n = 105; phenotypically vancomycin-susceptible VVE-B n = 14) and 68 vancomycin-susceptible isolates. Limit of detection was calculated for each selective agar for pure cultures, stool suspensions and artificial rectal swabs. After 24-h incubation sensitivity ranged between 91.6% and 95.0%. It increased in 2 out of 5 agar after 48-h incubation. Specificity ranged between 94.1% and 100% and was highest after 24 h in 4 out of the 5 agar. Sensitivity of van-carrying phenotypically vancomycin-resistant strains was higher after 24 h (97.1–100%) and 48 h (99.1–100%) when compared to van-carrying strains that tested vancomycin-susceptible (50.0–57.1% after both incubation periods). Overall, chromID VRE, CHROMagar VRE and Brilliance VRE demonstrated the highest detection rates after 24 h. Detection rates of Chromatic VRE and VRESelect improved after 48 h. Adjustment of incubation time depending on the applied media may be advised. As detection of VVE-B was impeded with all selective agar, screening for vancomycin-resistant enterococci relying solely on selective media would not be recommended for critical clinical samples, but rather in combination with molecular methods to improve detection of these strains. Furthermore, stool samples were demonstrated to be superior to rectal swabs and should be favoured, if possible, in screening strategies.

1. Introduction

More than a decade ago, Enterococcus (E.) faecium was defined as part of the so-called ESKAPE group—a group of bacterial species most prone to developing antibiotic resistance [1]. Since then, there have been substantial changes in the prevalence of vancomycin-resistant E. faecium (VREfm).
Epidemiological dynamics differ substantially between countries within Europe. In Germany, strains initially detected in 1990 harboured a vanA-gene transferring resistance against Vancomycin and Teicoplanin. However, the vanB gene conferring resistance against only Vancomycin became the more prevalent resistance gene throughout Germany within the next 20 years. Furthermore, prevalence of VREfm has continued to rise over the past years [2,3]. Since a peak in VREfm prevalence, numbers continually decreased in Portugal until 2019. Since then, they have stagnated on a constant low level of around 8% of all E. faecium strains being VREfm [4]. Despite these varying developments, VREfm have been recognised as a serious health problem by several health institutions [5,6].
Although VREfm can also be found in reservoirs outside the hospital environment, previous antibiotic therapy, as well as regular contact with the healthcare system—more precisely previous antibiotic therapy and invasive devices—are associated with a higher colonization rate with VREfm [7]. Since colonization results in an increased infections risk, especially in high-risk patients such as paediatric, haematological patients and those with malignancies [8,9]. Despite several treatment options, such as daptomycin or linezolid, VREfm infections are associated with a higher mortality when compared to infections by vancomycin-susceptible strains [10]. In Europe, deaths ascribed to VREfm have almost doubled from 2007 to 2015 [11]. Similarly, in the USA, vancomycin-resistant enterococci have been estimated to be responsible for 54,500 infections and 5400 deaths in 2017 [12].
Early identification of VREfm in clinical or screening specimen allows for a fast, targeted therapeutic approach and renders a higher cost-effectiveness for healthcare facilities [13,14]—thus, ultimately, further improving patient care. This emphasizes the importance of rapid VREfm detections in diagnostic laboratories as a vital component, not only for infection control [15], but also to guarantee adequate antibiotic therapy strategies. This has also been probated by several national institutions [16,17].
Since the vanA phenotype remains the most prevalent, not only in Europe [18], but also worldwide [19], detection of vanB-gene VREfm is faced with even higher demands. Since the positive predictive value (PPV) is generally impeded for low prevalence, it is important to assess for screening parameters, including but limited to the PPV. This allows for evaluation of the screening procedure and the potential of false negative results to be integrated in the antimicrobial therapy approach in low as well as high prevalence regions. Furthermore, even though vanB VREfm are currently the most prevalent in only some regions, such as Australia and Germany [19], potential future epidemiological shifts may occur—as it has been the case in Germany in the last two decades. These two aspects highlight the necessity to identify potential diagnostic gaps in detection of vanB-mediated vancomycin-resistance in enterococci.
Rapid VREfm detection from rectal swabs or other screening specimen may be achieved if these are plated directly on selective media if sensitivity of the employed selective media is sufficient. Yet, screening may be unreliable due to vancomycin-variable strains (VVE). First described in 2011 [20], these strains harbour the vanA-gene, yet initially express a vancomycin-susceptible phenotype [21,22]. While they have the ability to switch to a vancomycin-resistant phenotype, they may not only evade automated testing systems [23] but potentially also selective media [24]. While most of the studies describe this phenotypical vancomycin-susceptibility in relation to the vanA-gene, similar findings were also made for vanB carrying E. faecium [25,26], with the phenotypic expression of the resistance being inducible [27]—referred to as VVE-B in the following.
Expression of glycopeptide resistance is controlled by a two-component regulatory system with the membrane-associated domains of the kinase VanSB/VanS detecting glycopeptides in the bacterial surrounding. The triggered signal cascade including the response regulator VanRB/VanR ultimately results in the synthesis of peptidoglycan precursors with D-Ala-D-Lac termini. Due to this altered site, glycopeptide binding affinity is decreased [28]. This results in a heterogenous expression of vancomycin resistance which not only hampers laboratory screening methods but also targeted antimicrobial therapy. Furthermore, even though each region has a specific predominant vanB strain due to heterogeneity within the vanB gene cluster, epidemiological shifts have been observed over the past years [29,30]. Vancomycin-resistance itself cannot be inferred from the predominant cluster at a given time due to varying levels of resistance within the clusters themselves [30]. This stresses the need for constant evaluation of laboratory screening methods used in current clinical diagnostics.
Previous studies have either compared several selective media by using clinical samples [31,32,33,34] or evaluated performance of one specific media [25,35,36,37,38]. Yet, detection rate of VVE-B might be difficult to assess by clinical samples, since—due to their heterogenous expression of vancomycin-resistance—they might evade several selective media. Additionally, availability of specific VREfm screening media used in routine diagnostics varies over time.
Therefore, the aim of the study was to compare sensitivity and specificity of VREfm screening agar currently available for VREfm strains but also for strains harbouring a vanB-gene while being vancomycin-susceptible (VVE-B), specifically.

2. Results

A total of 187 E. faecium isolates comprising 68 van-gene negative isolates (VVE), 14 vanB-gene carrying phenotypically vancomycin-susceptible isolates (VVE-B) and 105 vancomycin-resistant isolates (VREfm; vanB: 84, vanA: 20, vanA/B: 1) were tested for growth on the five selective media. Isolate characterization included identification by MALDI-TOF MS (Bruker Daltonic GmbH, Bremen, Germany), susceptibility testing by Vitek2 (bioMérieux) and molecular characterization by the Anyplex VanR-Real-Time Detection Kit (Seegen, Düsseldorf, Germany).
In total, 4 out of 5 selective media (chromID VRE, CHROMagar, BrillianceVRE, VRESelect) detected all 105/105 VREfm after 24 h (chromID VRE, CHROMagar, BrillianceVRE) and 48 h (VRESelect), respectively. The fifth, ChromaticVRE, detected 104/105 strains. None of the 5 media detected all VVE-B strains, with strains detected after 24 h of incubation ranging between 7/14 (ChromaticVRE) and 8/14 (chromID VRE, CHROMagar, BrillianceVRE, VRESelect). Numbers remained the same after 48 h of incubation. Overall, 48-h incubation mainly increased growth of VSE on each agar, except chromID VRE, which did not increase unspecific growth (Table 1). The 10 E. coli isolates used as additional negative controls grew on neither of the 5 tested media. The within-species positive control (DSMZ 17,050 strain: VREfm) grew on all selective media after 24 h and 48 h of incubation. The negative control (DMSZ 20,477 strain: VSE) grew on neither of the agar.
The growth score (GS) was calculated as the sum of the growth in each smear (first, second and third smear) for each of the subgroups of the strains. This allowed for comparison of growth effectiveness between the different selective media and E. faecium subgroups. After 24 h of incubation, it was highest for all vancomycin-resistant enterococci (VREfm + VVE-B) in CHROMagar VRE (329) and lowest in Chromatic VRE Liolichem (228). It increased for all media on the second incubation day (Table 1).
Highest overall sensitivity was achieved by chromID VRE, CHROMagar VRE and Brilliance VRE (each 95.0%) at 24 h and remained constant at 48 h. VRESelect reached 95.0% sensitivity only at 48 h, while Chromatic VRE demonstrated the lowest sensitivity of all selective agar even after 48 h of incubation (93.3%, Table 2). Specific sensitivity for VVE-B was low in all agar and did not differ between 24 and 48 h. It was lowest in Chromatic VRE (50.0%, 7/14) and 57.1% (8/14) in all the others (Table 2). Of the 7 strains that evaded detection of at least one agar, 6 of those strains grew on neither of the tested selective media.
Highest overall specificity was observed by Chromatic VRE at 24 h (100%) but decreased slightly at 48 h (98.5%). Only the chromID VRE maintained a constant high specificity at 24 and 48 h (98.5%), while all other agar decreased in specificity at 48 h (Table 2).
To evaluate the balance between sensitivity and specificity, next, the Youden index (YI = sensitivity + specificity) − 1) was calculated. It was highest for chromID VRE and CHROMagar (each 0.94) at 24 h but only chromID maintained it at 48 h. It was lowest for Brilliance VRE at 48 h (0.89) (Table 2).
The highest negative predictive value was 0.92 at 24 h by chromID VRE, CHROMagar VRE, Brilliance VRE and at 48 h by VRE Select. It was lowest in Chromatic VRE at 24 h. The positive predictive value ranged from 1.00 (Chromatic VRE) to 0.97 (Brilliance VRE) after 24 h and between 0.99 (Chromatic VRE, chromID VRE) and 0.97 (BrillianceVRE, VRESelect) after 48 h of incubation (Table 2).
In order to assess the minimum number of bacteria within the sample needed for detection via each of the selective media, the limit of detection (LoD) was determined by a dilution series in pure cultures, as well as spiked human faecal mixtures. The required number of colony forming units (CFU)/mL was then calculated. Lowest LoD overall (pure culture, stool suspension, both 24 and 48 h) was determined for the CHROMagar and VRESelect which produced stable results (1.5 × 101 CFU/mL) (Table 3). LoD for Chromatic VRE was only definable for pure cultures (24 h: 1.5 × 104, 48 h: 1.5 × 102). Inoculation with the stool suspension did not produce evaluable results even after four repetitions as unspecific growth of green colour covered the entirety of the agar (Supplementary Figures S1–S3): Since the manufacturer describes VREfm growing in blue-green colours, colonies were subcultivated and subsequently identified as different species, including Enterobacterales, via MALDI-TOF.
Since rectal swabs are more feasible for screening in clinical daily routine, the experiments were the repeated with the spiked human faecal mixture and rectal swabs. Lowest LoD after 24-h incubation was achieved by 2/5 agar plates (CHROMagar VRE, Chromatic VRE) with the minimum CFU within the sample being 1.5 × 102 CFU/mL. For the remaining three agar plates (Brilliance VRE, VRESelect, chromID VRE) the LoD was 1.5 × 103 CFU/mL. In total, 3 cultures growing at a dilution of 1:10−7 on Chromatic VRE after 48 h were identified as Ligilactobacillus salivarius by MALDI-TOF. LoD improved in 2/5 agar (VRESelect, chromID VRE) after 48-h incubation. It was the same in the three remaining selective media.
Overall, LoDs determined by our artificial rectal swabs were at least one dilution stage higher after 24-h incubation in comparison to the LoDs of our stool suspensions and pure culture suspensions (Table 3).

3. Discussion

In this study we compared five of the VRE screening media commercially available in Germany regarding their sensitivity and specificity. While overall performance was good for all media according to the manufacturers’ information, none of them were able to detect all E. faecium strains harbouring a vanB gene. This concurs with previous findings [39], although overall detection rate was lower in our study. This may be attributed to the relevant number of VVE-B tested in our study.
All agar plates displayed acceptable performance when looking at the VREfm isolates only, with sensitivity being high and in a similar range for all media. Reliability of results, as assessed by the Youden-Index, was also high for all agar plates. Furthermore, PPV was high in all agar. While these results cannot be directly ascribed to regions with low vanB VREfm, still a reliable detection can be expected.
However, only about 50%—7–8/14, respectively—of VVE-B strains were detected by the tested media. Since the detection limit of the selective media is derived from current breakpoints, such as a breakpoint 4 mg/L defined by the EUCAST, this finding must be expected. Yet, these results are a major issue for routine laboratory detection of VREfm. Even though a vanA/B PCR on every E. faecium isolate cultivated from clinical specimen would be optimal, it is not feasible for most diagnostic labs. Therefore, especially in patient screening, there will be a diagnostic gap of undetected vancomycin-resistant E. faecium strains.
Our findings indicate to not solely rely on VRE-selective media for detection of VVE-B, as several strains evaded detection via the five tested selective media. A combination of different selective media will most likely not enhance detection as six strains did not grow on either of the media. As these strains will evade detection irrespective of the agar used, a combination of methods should be considered, such as additional incubation in glycopeptide-containing broth or performing a vanA/B PCR on clinically relevant E. faecium isolates. Routine molecular exclusion of vanA/B seems advisable, if feasible, in clinical isolates of high importance that require immediate adequate antibiotic therapy strategies and in patients with antibiotic treatment failure.
While all selective media performed well, in regard to sensitivity and specificity with the chromID VRE, CHROMagar VRE and Brilliance VRE, a 24-h incubation period seems sufficient for detection of vancomycin-resistant E. faecium, especially since detection of VVE-B did not improve after 48 h of incubation. However, with the Chromatic VRE and VRESelect agar, a 48-h incubation may be justifiable.
Even though overall sensitivity increased only slightly in 2/5 agar plates, overall specificity decreased in 4/5 agars. On the other hand, the growth score increased for all selective media, thus potentially facilitating identification of VREfm on the second day. Yet, this comes with a higher risk of false positive results. As the use of same-day identification (e.g., via the MALDI-TOF technique) is widely implied in diagnostic laboratories, phenotypic species identification of E. faecium after an additional incubation period of 24 h would lead to a clinically relevant reporting delay.
Additionally, the LoD of the human faecal stool mixture, that is the number of CFU within the sample needed for detection, decreased only in one of the tested agar plates (ChromidVRE) after an additional 24 h of incubation (total of 48 h of incubation), while it remained stable for the remaining three agar. This further emphasizes that a 48-h incubation does not improve the detection level.
To mirror real-life screening settings in most hospitals we created artificial rectal swabs and determined LoD for each screening agar. Apart from the Chromatic VRE, all agar demonstrated a lower LoD after 24 and 48 h of incubation, implying screening stool specimens may be superior to rectal swabs to decrease detection gaps of VRE. As LoD from stool suspensions for Chromatic VRE was not determinable four times, comparison was only possible to pure cultures and the artificially spiked swabs.
We could not identify the reason for the unspecific growth when performing the LoD testing in stool mixture on Chromatic VRE. Despite repeating the experiment four times we were not able to obtain evaluable results. Yet, at the same time, none of the E. coli strains used as additional negative controls grew on the agar plates, indicating species-specificity for Enterococci. Despite some unspecific growth, experiments with the artificially spiked rectal swabs achieved evaluable results with the LoD being similar to all other tested media. Therefore, the unspecific growth can most likely be attributed to a batch-specific issue or improper storage during transport.
Next, these results also hint at an important aspect in regions with high vanB prevalence, such as Germany [3]. Although VVE carry the vanA-gene [22], there also seem to be vanB carrying strains with a vancomycin-susceptible phenotype [26], named VVE-B in this study. This must be considered, again especially in highly vital clinical specimen, when weighing potential diagnostic pathways and antibiotic therapies. Yet so far there is only limited data available on these strains.
For practical implementation, one limitation needs to be considered. As already mentioned, the examined samples did not comprise of clinical specimen, but rather of pure cultures, stool and swabs that were artificially inoculated with E. faecium strains. This was executed to ensure comparability and reproducibility of the results. It thus allowed for determination of further testing parameters, such as LoD.
In conclusion, while all agar showed a good performance, chromID VRE, CHROMagar VRE and Brilliance VRE had the highest sensitivity and specificity after 24 h of incubation. However, VVE-B may remain undetected even by molecular methods [15], yet a combination of different methods may decrease evasion rate. As stool samples demonstrated superiority to rectal swabs regarding LoD, we would recommend implementing stool samples as preferred screening specimen whenever accessible.

4. Materials and Methods

4.1. Selective Agar

All five selective agar commercially available in Germany at the time of the study were evaluated. They comprised of VRESelect™ (Bio-Rad, Hercules, CA, USA), CHROMagar™ VRE (CHROMagar, Paris, France), Brilliance™ VRE (Thermo Fisher, Dreieich, Germany), chromID® VRE (bioMérieux, Marcy-l’Étoile, France) and Chromatic™ VRE (Liofilchem, Roseto degli Abruzzi, Italy).

4.2. Clinical Isolates

A total of 187 E. faecium strains from various clinical specimens (27 strains: blood culture, 24 samples: stool, 75 strains: urine, 70 strains: various clinical specimens, e.g., biopsies, punctates) were included in this study. Clinical specimens were incubated on non-selective media and stool samples on VRE-selective media (chromID® VRE) for up to 48 h. Identification was performed by MALDI-TOF MS (Bruker Daltonic GmbH, Bremen, Germany) and vancomycin resistance was determined by Vitek2 (bioMérieux) in accordance with the current routine laboratory procedure. Vancomycin-resistance was defined in accordance with the EUCAST breakpoints (MIC > 4 mg/L).
All isolates (Figure 1) were analysed for the presence of vanA/vanB/vanC by the Anyplex VanR Real-Time Detection Kit (Seegene, Düsseldorf, Germany). The limit of detection as given by the manufacturer is 2000 copies/reaction with no observable cross-reaction of the target between species. Isolates harbouring vanA/vanB/vanC with phenotypical susceptibility to vancomycin via Vitek2 were additionally investigated by broth microdilution using the MICRONAUT-S MRSA/GP plate (Merlin Diagnostika, Bornheim, Germany) confirming their vancomycin resistance.
Vancomycin-resistant E. faecium strains (n = 119) consisted of 20 vanA, 98 vanB and 1 vanA/B harbouring isolates. Of note, the latter strain harbouring a vanA/B gene was additionally confirmed by sequencing. The 68 (36.6%) vancomycin-susceptible strains tested negative for vanA/vanB/vanC105 strains expressed a vancomycin-resistance (84/105 vanB; 20/105 vanA; 1/105 vanA/B). The 14 remaining strains, while being vancomycin-susceptible, harboured a vanB gene, thus being defined as VVE-B (vanB positive, vancomycin-susceptible) in the following.
To assess specificity of the screening agar, 10 clinical Escherichia (E.) coli isolates—a gram-negative bacterium with high abundance in the human gut microbiota that should be suppressed by the selective media—were included in the testing. For within species control, two type strains were used: DMSZ 17,050 (VREfm) as positive control and DSMZ 20,477 (VSE) as negative control.
To obtain fresh cultures, all isolates were cultivated on SBA universal blood agar (OxoidTM, Thermo Fisher Scientific; Waltham, MA, USA) 24 h prior to testing. Screening media were inoculated via the streak plate method with 10 µL of bacterial suspensions with a McFarland of 0.5 in NaCl (0.85%). They were then incubated at 37 °C ± 1 °C. Growth was assessed after 24 h and 48 h, respectively. Evaluation included the amount of growth (first, second or third smear), as well as the specific colour of the colonies in accordance with the manufacturer’s instructions. Since bacterial loads may vary substantially between and within clinical samples, such as rectal swabs, bacterial suspensions were used to ensure standardization and, thus, comparability.
The limit of detection (LoD) was determined in biological triplicates by three VREfm and two VVE-B strains. The LoD was defined as the highest dilution allowing for a minimum growth of three colonies on all three agar combined. A McFarland standard of 0.5 in NaCl was prepared from pure cultures (24 h) of each strain. Afterwards, serial dilutions from 1:10−2 to 1:10−12 were established. A total of 100 µL was then plated on each of the screening media with the Eddy Jet 2 W spiral plater (IUL Instruments S.A., Königswinter, Germany) and growth was evaluated after 24 and 48 h, respectively. Simultaneously, growth of each strain was recorded on Mueller-Hinton agar (Oxoid Deutschland GmbH, Wesel, Germany).
Furthermore, to test for specificity, LoD determination was additionally performed with a human faecal mixture sample: five VREfm-negative clinical stool samples were dissolved in NaCl (0.85%). They were then merged, in a ratio of 1:1, with each serial dilution of each strain. Prior to testing the stool samples, absence of VREfm was ensured via culture on chromID™ CPS® Elite agar (bioMérieux, Marcy-l’Étoile, France), identification of Enterocci via MALDI-TOF, susceptibility testing of E. faecium isolates by Vitek2 and molecular testing for the presence of vanA/vanB/vanC by the Anyplex VanR Real-Time Detection Kit. LoD determination was performed as described above.
Subsequently, to assess typical screening conditions in hospitals, LoD determination from rectal swabs was performed. With the LoD of the human faecal mixture known, four dilution steps were chosen for testing the spiked rectal swabs (dilutions: 1:10−4–1:10−7) was repeated with rectal swabs. After preparation of the spiked faecal mixture samples as described above, swabs without medium (Sarstedt Group, Nürnsbrecht, Germany) were dipped into the mixture and then streaked out on each of the selective media. Growth was evaluated after 24 h and 48 h of incubation. Testing was carried out in biological triplicates with a new swab being used for each of the triplicates. LoD was then determined as described above.

4.3. Statistics

Molecular characterization was set as the gold standard for definition of vancomycin-resistance or susceptibility. The mean growth score (GS) was calculated for each isolate group (VREfm, VVE-B, VSE). For this, the number of smears showing growth were added up for each strain, thus varying between 0–3.
Overall sensitivity and specificity, positive (PPV) and negative (NPV) predictive values, and positive (LR+) and negative (LR−) likelihood ratios were calculated for each agar plate after 24- and 48-h incubation. Of note, as all strains harbouring a van gene were considered vancomycin-resistant, this group comprised of VVE-B and VREfm. Sensitivity for VVE-B and VREfm were also calculated separately for each group. In addition, to evaluate reliability, the Youden index (YI = sensitivity + specificity − 1) was calculated.
All values were calculated for E. faecium isolates only, thus excluding the 10 E. coli strains.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/antibiotics12040666/s1, Figure S1: Exemplary presentation of serial dilution in biological triplicates for determination of limit of detection (LoD) (frontside of agar plates); Figure S2: Exemplary presentation of serial dilution in biological triplicates for determination of limit of detection (LoD) (backside of agar plates); Figure S3: Exemplary presentation of serial dilution of isolate 3 in a stool suspension for determination of limit of detection (LoD) on Chromatic™ VRE (Liofilchem®) (frontside of agar plates).

Author Contributions

Conceptualization, S.V.W.; methodology, S.V.W.; formal analysis, S.V.W., A.L.B. and A.H.; investigation, F.A., M.W., A.L.B. and S.V.W.; data curation, S.V.W.; writing—original draft preparation, A.L.B.; writing—review and editing, S.V.W., A.L.B., F.A., M.W. and A.H.; visualization, S.V.W. and A.L.B.; supervision, S.V.W.; funding acquisition, S.V.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external or specific funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Boucher, H.W.; Talbot, G.H.; Bradley, J.S.; Edwards, J.E.; Gilbert, D.; Rice, L.B.; Scheld, M.; Spellberg, B.; Bartlett, J. Bad Bugs, No Drugs: No ESKAPE! An Update from the Infectious Diseases Society of America. Clin. Infect. Dis. 2009, 48, 1–12. [Google Scholar] [CrossRef] [Green Version]
  2. Markwart, R.; Willrich, N.; Haller, S.; Noll, I.; Koppe, U.; Werner, G.; Eckmanns, T.; Reuss, A. The Rise in Vancomycin-Resistant Enterococcus Faecium in Germany: Data from the German Antimicrobial Resistance Surveillance (ARS). Antimicrob. Resist. Infect. Control 2019, 8, 1–11. [Google Scholar] [CrossRef] [Green Version]
  3. Werner, G.; Neumann, B.; Weber, R.E.; Kresken, M.; Wendt, C.; Bender, J.K.; Becker, K.; Borgmann, S.; Diefenbach, A.; Hamprecht, A. Thirty Years of VRE in Germany—“Expect the Unexpected”: The View from the National Reference Centre for Staphylococci and Enterococci. Drug Resist. Updates 2020, 53, 100732. [Google Scholar] [CrossRef]
  4. Surveillance Atlas of Infectious Diseases. Available online: https://www.ecdc.europa.eu/en/surveillance-atlas-infectious-diseases (accessed on 21 January 2023).
  5. VRE in Healthcare Settings|HAI|CDC. Available online: https://www.cdc.gov/hai/organisms/vre/vre.html (accessed on 21 January 2023).
  6. WHO Publishes List of Bacteria for Which New Antibiotics Are Urgently Needed. Available online: https://www.who.int/news-room/detail/27-02-2017-who-publishes-list-of-bacteria-for-which-new-antibiotics-are-urgently-needed (accessed on 30 July 2019).
  7. Sakka, V.; Tsiodras, S.; Galani, L.; Antoniadou, A.; Souli, M.; Galani, I.; Pantelaki, M.; Siafakas, N.; Zerva, L.; Giamarellou, H. Risk-Factors and Predictors of Mortality in Patients Colonised with Vancomycin-Resistant Enterococci. Clin. Microbiol. Infect. 2008, 14, 14–21. [Google Scholar] [CrossRef] [Green Version]
  8. Alevizakos, M.; Gaitanidis, A.; Nasioudis, D.; Tori, K.; Flokas, M.E.; Mylonakis, E. Colonization with Vancomycin-Resistant Enterococci and Risk for Bloodstream Infection Among Patients With Malignancy: A Systematic Review and Meta-Analysis. Open Forum Infect. Dis. 2017, 4, ofw246. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Flokas, M.E.; Karageorgos, S.A.; Detsis, M.; Alevizakos, M.; Mylonakis, E. Vancomycin-Resistant Enterococci Colonisation, Risk Factors and Risk for Infection among Hospitalised Paediatric Patients: A Systematic Review and Meta-Analysis. Int. J. Antimicrob. Agents 2017, 49, 565–572. [Google Scholar] [CrossRef]
  10. DiazGranados, C.A.; Zimmer, S.M.; Mitchel, K.; Jernigan, J.A. Comparison of Mortality Associated with Vancomycin-Resistant and Vancomycin-Susceptible Enterococcal Bloodstream Infections: A Meta-Analysis. Clin. Infect. Dis. 2005, 41, 327–333. [Google Scholar] [CrossRef] [Green Version]
  11. Brinkwirth, S.; Ayobami, O.; Eckmanns, T.; Markwart, R. Hospital-Acquired Infections Caused by Enterococci: A Systematic Review and Meta-Analysis, WHO European Region, 1 January 2010 to 4 February 2020. Eurosurveillance 2021, 26, 2001628. [Google Scholar] [CrossRef]
  12. CDC The Biggest Antibiotic-Resistant Threats in the U.S. Available online: https://www.cdc.gov/drugresistance/biggest-threats.html (accessed on 21 January 2023).
  13. Puchter, L.; Chaberny, I.F.; Schwab, F.; Vonberg, R.-P.; Bange, F.-C.; Ebadi, E. Economic Burden of Nosocomial Infections Caused by Vancomycin-Resistant Enterococci. Antimicrob. Resist. Infect. Control 2018, 7, 1–7. [Google Scholar] [CrossRef]
  14. Mac, S.; Fitzpatrick, T.; Johnstone, J.; Sander, B. Vancomycin-Resistant Enterococci (VRE) Screening and Isolation in the General Medicine Ward: A Cost-Effectiveness Analysis. Antimicrob. Resist. Infect. Control 2019, 8, 168. [Google Scholar] [CrossRef] [PubMed]
  15. Zhou, X.; Willems, R.J.L.; Friedrich, A.W.; Rossen, J.W.A.; Bathoorn, E. Enterococcus Faecium: From Microbiological Insights to Practical Recommendations for Infection Control and Diagnostics. Antimicrob. Resist. Infect. Control 2020, 9, 130. [Google Scholar] [CrossRef] [PubMed]
  16. Krankenhaushygiene und Infektionsprävention (KRINKO) beim Robert Koch-Institut. Hygienemaßnahmen Zur Prävention Der Infektion Durch Enterokokken Mit Speziellen Antibiotikaresistenzen. Bundesgesundheitsblatt-Gesundh.-Gesundh. 2018, 10, 1310. [Google Scholar]
  17. Centers for Disease Control and Prevention Recommendations for Preventing the Spread of Vancomycin Resistance Recommendations of the Hospital Infection Control Practices Advisory Committee (HICPAC). Available online: https://www.cdc.gov/mmwr/preview/mmwrhtml/00039349.htm (accessed on 19 July 2021).
  18. Toc, D.A.; Butiuc-Keul, A.L.; Iordache, D.; Botan, A.; Mihaila, R.M.; Costache, C.A.; Colosi, I.A.; Chiorean, C.; Neagoe, D.S.; Gheorghiu, L.; et al. Descriptive Analysis of Circulating Antimicrobial Resistance Genes in Vancomycin-Resistant Enterococcus (VRE) during the COVID-19 Pandemic. Biomedicines 2022, 10, 1122. [Google Scholar] [CrossRef] [PubMed]
  19. Gorrie, C.; Higgs, C.; Carter, G.; Stinear, T.P.; Howden, B. Genomics of Vancomycin-Resistant Enterococcus Faecium. Microb. Genom. 2019, 5, e000283. [Google Scholar] [CrossRef] [PubMed]
  20. Gagnon, S.; Lévesque, S.; Lefebvre, B.; Bourgault, A.-M.; Labbé, A.-C.; Roger, M. VanA-Containing Enterococcus Faecium Susceptible to Vancomycin and Teicoplanin Because of Major Nucleotide Deletions in Tn 1546. J. Antimicrob. Chemother. 2011, 66, 2758–2762. [Google Scholar] [CrossRef]
  21. Kohler, P.; Eshaghi, A.; Kim, H.C.; Plevneshi, A.; Green, K.; Willey, B.M.; McGeer, A.; Patel, S.N.; Network (TIBDN), T.I.B.D. Prevalence of Vancomycin-Variable Enterococcus Faecium (VVE) among VanA-Positive Sterile Site Isolates and Patient Factors Associated with VVE Bacteremia. PLoS ONE 2018, 13, e0193926. [Google Scholar] [CrossRef]
  22. Merlino, J.; Gray, T. Vancomycin Variable Enterococcus (VVE), E. faecium, Harbouring the VanA Gene Complex. Pathology 2021, 53, 680–682. [Google Scholar] [CrossRef]
  23. Walker, S.V.; Wolke, M.; Plum, G.; Weber, R.E.; Werner, G.; Hamprecht, A. Failure of Vitek2 to Reliably Detect VanB-Mediated Vancomycin Resistance in Enterococcus Faecium. J. Antimicrob. Chemother. 2021, 76, 1698–1702. [Google Scholar] [CrossRef]
  24. Viswanath, L.S.; Sugumar, M.; Peela, S.C.M.; Walia, K.; Sistla, S. Detection of Vancomycin Variable Enterococci (VVE) among Clinical Isolates of Enterococcus Faecium Collected across India-First Report from the Subcontinent. Indian J. Med. Microbiol. 2022, 40, 285–288. [Google Scholar] [CrossRef]
  25. Savini, V.; Marrollo, R.; Coclite, E.; Fusilli, P.; D’Incecco, C.; Fazii, P.; Gherardi, G. Liofilchem® Chromatic VRE and Vancomycin MIC Test Strip Detected Glycopeptide Resistance in a VanB Neonatal Enterococcus Faecium Isolate Showing Alternate Vancomycin Susceptibility and Resistance with BioMérieux Vitek2. Int. J. Clin. Exp. Pathol. 2014, 7, 6274. [Google Scholar]
  26. Hashimoto, Y.; Kurushima, J.; Nomura, T.; Tanimoto, K.; Tamai, K.; Yanagisawa, H.; Shirabe, K.; Ike, Y.; Tomita, H. Dissemination and Genetic Analysis of the Stealthy VanB Gene Clusters of Enterococcus Faecium Clinical Isolates in Japan. BMC Microbiol. 2018, 18, 1–12. [Google Scholar] [CrossRef] [Green Version]
  27. Ahmed, M.O.; Baptiste, K.E. Vancomycin-Resistant Enterococci: A Review of Antimicrobial Resistance Mechanisms and Perspectives of Human and Animal Health. Microb. Drug Resist. 2018, 24, 590–606. [Google Scholar] [CrossRef] [Green Version]
  28. Arthur, M.; Quintiliani, R., Jr. Regulation of VanA-and VanB-Type Glycopeptide Resistance in Enterococci. Antimicrob. Agents Chemother. 2001, 45, 375–381. [Google Scholar] [CrossRef] [Green Version]
  29. Sadowy, E.; Gawryszewska, I.; Kuch, A.; Żabicka, D.; Hryniewicz, W. The Changing Epidemiology of VanB Enterococcus Faecium in Poland. Eur. J. Clin. Microbiol. Infect. Dis. 2018, 37, 927–936. [Google Scholar] [CrossRef] [Green Version]
  30. Dahl, K.H.; Simonsen, G.S.; Olsvik, Ø.; Sundsfjord, A. Heterogeneity in the VanB Gene Cluster of Genomically Diverse Clinical Strains of Vancomycin-Resistant Enterococci. Antimicrob. Agents Chemother. 1999, 43, 1105–1110. [Google Scholar] [CrossRef] [Green Version]
  31. Suwantarat, N.; Roberts, A.; Prestridge, J.; Seeley, R.; Speser, S.; Harmon, C.; Zhang, C.; Henciak, S.; Stamper, P.D.; Ross, T. Comparison of Five Chromogenic Media for Recovery of Vancomycin-Resistant Enterococci from Fecal Samples. J. Clin. Microbiol. 2014, 52, 4039–4042. [Google Scholar] [CrossRef] [Green Version]
  32. Willey, B.M.; Louie, L.; Gnanasuntharam, P.; Fung, T.; Watt, C.; Gnanasuntharam, P.; Vermeiren, C.; Ricci, G.; Lo, P.; Wong, K.; et al. Prospective Evaluation of Brilliance VRE and VRESelect Chromogenic Agars for Detection of Vancomycin-Resistant Enterococci from Surveillance Specimens; European Society of Clinical Microbiology and Infectious Diseases (ESCMID): Milan, Italy, 2011; p. 1036. Available online: https://www.thermoscientific.com/content/dam/tfs/SDG/MBD/MBD%20Documents/Third-Party%20Papers/Microbiology/Prospective-Evaluation-of-Brilliance-VRE-From-Surveillance-Specimens-EN.pdf (accessed on 4 March 2023).
  33. Anderson, N.W.; Buchan, B.W.; Young, C.L.; Newton, D.W.; Brenke, C.; Lapsley, L.; Granato, P.A.; Ledeboer, N.A. Multicenter Clinical Evaluation of VRE Select Agar for Identification of Vancomycin-Resistant Enterococcus Faecalis and Enterococcus Faecium. J. Clin. Microbiol. 2013, 51, 2758–2760. [Google Scholar] [CrossRef] [Green Version]
  34. Wijesuriya, T.M.; Perry, P.; Pryce, T.; Boehm, J.; Kay, I.; Flexman, J.; Coombs, G.W.; Ingram, P.R. Low Vancomycin MICs and Fecal Densities Reduce the Sensitivity of Screening Methods for Vancomycin Resistance in Enterococci. J. Clin. Microbiol. 2014, 52, 2829–2833. [Google Scholar] [CrossRef] [Green Version]
  35. Delmas, J.; Robin, F.; Schweitzer, C.; Lesens, O.; Bonnet, R. Evaluation of a New Chromogenic Medium, ChromID VRE, for Detection of Vancomycin-Resistant Enterococci in Stool Samples and Rectal Swabs. J. Clin. Microbiol. 2007, 45, 2731–2733. [Google Scholar] [CrossRef] [Green Version]
  36. Ongut, G.; Kilinckaya, H.; Baysan, B.O.; Ogunc, D.; Colak, D.; Inan, D.; Kasaroglu, K.; Gunseren, F. Evaluation of Brilliance VRE Agar for the Detection of Vancomycin-Resistant Enterococci in Rectal Swab Specimens. J. Med. Microbiol. 2013, 62, 661–662. [Google Scholar] [CrossRef] [Green Version]
  37. Cuzon, G.; Naas, T.; Fortineau, N.; Nordmann, P. Novel Chromogenic Medium for Detection of Vancomycin-Resistant Enterococcus Faecium and Enterococcus Faecalis. J. Clin. Microbiol. 2008, 46, 2442–2444. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Peterson, J.F.; Doern, C.D.; Kallstrom, G.; Riebe, K.M.; Sander, T.; Dunne, W.M., Jr.; Ledeboer, N.A. Evaluation of Spectra VRE, a New Chromogenic Agar Medium Designed to Screen for Vancomycin-Resistant Enterococcus Faecalis and Enterococcus Faecium. J. Clin. Microbiol. 2010, 48, 4627–4629. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Klare, I.; Fleige, C.; Geringer, U.; Witte, W.; Werner, G. Performance of Three Chromogenic VRE Screening Agars, Two Etest(®) Vancomycin Protocols, and Different Microdilution Methods in Detecting VanB Genotype Enterococcus Faecium with Varying Vancomycin MICs. Diagn. Microbiol. Infect. Dis. 2012, 74, 171–176. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Antibiotics 12 00666 g001 550

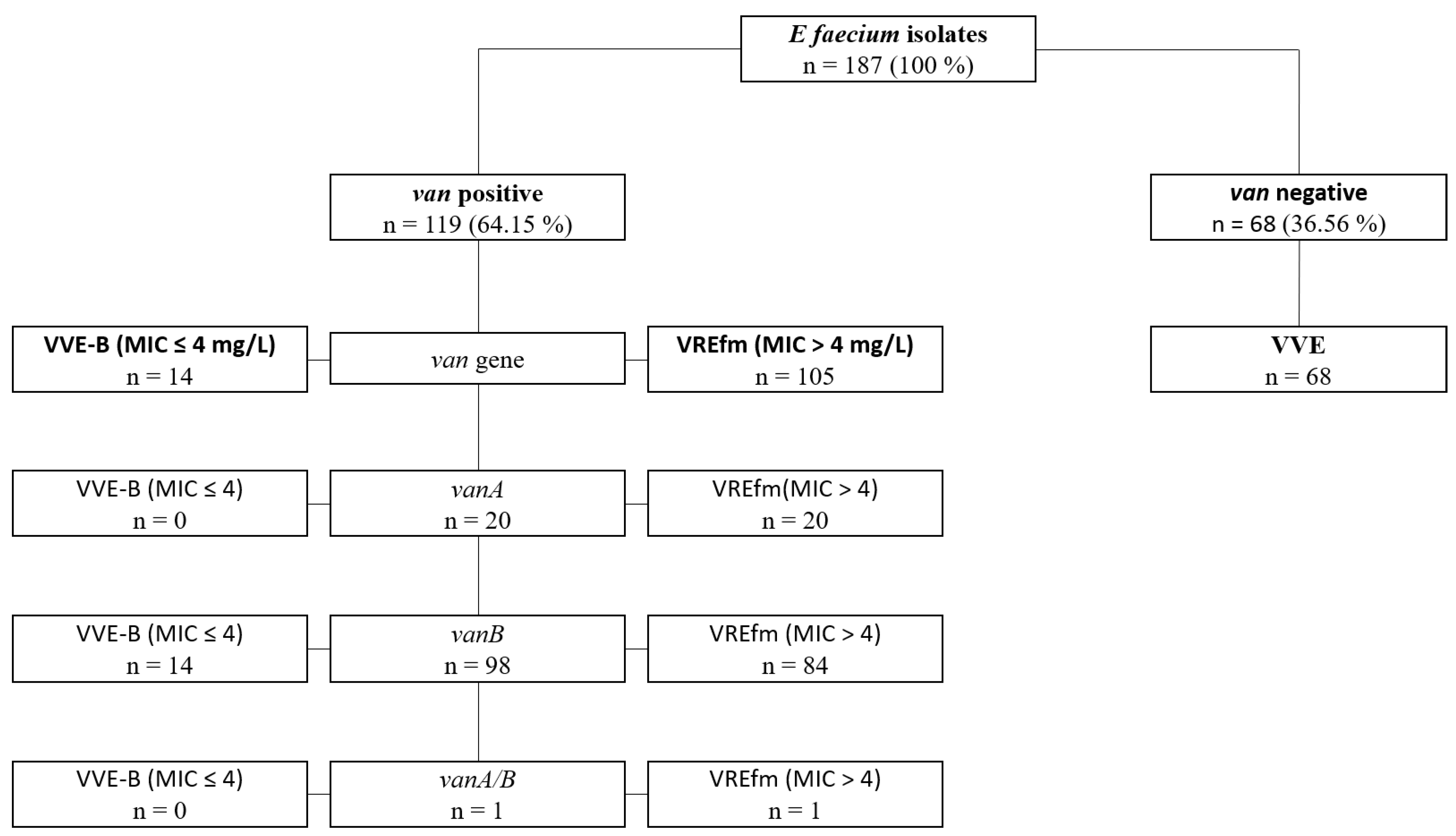

Figure 1. Overview of E. faecium strains. Overview of characteristics of all E. faecium strains included in the study. [VREfm: high-level vancomycin-resistant E. faecium; VVE-B: phenotypically tested vancomycin-susceptible E. faecium strains harbouring a vanB-gene; VSE: vancomycin-susceptible E. faecium; MIC-minimal inhibitory concentration].
Figure 1. Overview of E. faecium strains. Overview of characteristics of all E. faecium strains included in the study. [VREfm: high-level vancomycin-resistant E. faecium; VVE-B: phenotypically tested vancomycin-susceptible E. faecium strains harbouring a vanB-gene; VSE: vancomycin-susceptible E. faecium; MIC-minimal inhibitory concentration].
Antibiotics 12 00666 g001
Table
Table 1. Overview of general growth of E. faecium on the agar plates *.
Table 1. Overview of general growth of E. faecium on the agar plates *.
Total no. of Strains of Each CategoryChromID VRE
BioMérieux		CHROMagar VRE
CHROMagar		Brilliance VRE
ThermoFisher		VRESelect
Bio-Rad		Chromatic VRE
Liofilchem
Incubation [Hours] 24482448244824482448
Growth
No. of VREfm + VVE-B grown119113113113113113113112113109111
No. of VREfm grown105105105105105105105104105102104
No. of VVE-B grown148888888877
No. of VSE grown681113342301
No. of E. coli grown100000000000
Positive control (DSMZ 17050)11111111111
Negative control
(DSMZ 20477)		10000000000
Growth score (GS)
GS VREfm + VVE-B119315336328334329333288324228284
GS VREfm105297312304310306310268300215268
GS VVE-B1418242424232320241316
GS VSE681113562301
* Growth score (GS) was calculated as the sum of all smears with growth. The E. faecium type strains DSMZ 17,050 (VREfm) and DSMZ 20,477 (VSE) were used as positive and negative control, respectively. [VREfm: vancomycin-resistant E. faecium; VVE-B: phenotypically tested vancomycin-susceptible E. faecium strains harbouring a vanB-gene; VSE: vancomycin-susceptible E. faecium].
Table
Table 2. E. faecium-specific agar plate characteristics *.
Table 2. E. faecium-specific agar plate characteristics *.
ChromID VRE
(BioMérieux)		CHROMagar VRE
(CHROMagar)		Brilliance VRE
(ThermoFisher)		VRESelect
(Bio-Rad)		Chromatic VRE
(Liofilchem)
Incubation [Hours]24482448244824482448
Sensitivity [%]
(95% CI)		95.0
(88.9–97.9)		95.0
(88.9–97.9)		95.0
(88.9–97.9)		95.0
(88.9–97.9)		95.0
(88.9–97.9)		95.0
(88.9–97.9)		94.1
(88.9–97.9)		95.0
(88.9–97.9)		91.6
(84.7–95.7)		93.3
(86.8–96.8)
Specificity [%]
(95% CI)		98.5
(91.0–99.9)		98.5
(91.0–99.9)		98.5
(91.0–99.9)		95.6
(86.8–98.9)		95.6
(86.8–98.6)		94.1
(84.7–98.1)		97.1
(88.8–99.5)		95.6
(86.8–98.9)		100.0
(93.3–100.0)		98.5
(91.0–99.9)
Youden-Index0.940.940.940.910.910.890.910.910.920.92
VREfm sensitivity [%]100.0100.0100.0100.0100.0100.099.1100.097.199.1
VVE-B sensitivity [%]57.157.157.157.157.157.157.157.150.050.0
PPV 0.990.990.990.970.970.970.980.971.000.99
NPV0.920.920.920.920.920.910.900.920.870.89
LR+64.5764.5764.5721.5221.5216.1432.0021.52n.c.63.43
LR−0.050.050.050.050.050.050.060.050.080.07
* Calculations include all tested 187 E. faecium strains excluding the two type strains used as control. [PPV: positive predictive value; NPV: negative predictive value; LR+: positive likelihood ratio; LR−: negative likelihood ratio; VREfm: high-level vancomycin-resistant E. faecium; VVE-B: phenotypically tested vancomycin-susceptible E. faecium strains harbouring a vanB-gene; n.c.: not calculatable].
Table
Table 3. Limit of detection of the different selective agars *.
Table 3. Limit of detection of the different selective agars *.
Limit of Detection (CFU/mL)
24 h48 h
Pure CultureStool SuspensionArtificial Rectal SwabsPure CultureStool SuspensionArtificial Rectal Swabs
CHROMID VRE (bioMérieux)1.5 × 1031.5 × 1021.5 × 1031.5 × 1011.5 × 1011.5 × 102
CHROMagar VRE (CHROMagar)1.5 × 1011.5 × 1011.5 × 1021.5 × 1011.5 × 1011.5 × 102
Brilliance VRE
(ThermoFisher)		1.5 × 1011.5 × 1011.5 × 1031.5 × 1011.5 × 1011.5 × 103
VRESelect (Bio-Rad)1.5 × 1031.5 × 1021.5 × 1031.5 × 1011.5 × 1021.5 × 102
Chromatic™ VRE (Liofilchem)1.5 × 104-1.5 × 1021.5 × 102-1.5 × 102
* For the limit of detection, the minimum number of bacteria needed within the sample to be detected was calculated as CFU/mL. [CFU: colony forming units].
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Boschert, A.L.; Arndt, F.; Hamprecht, A.; Wolke, M.; Walker, S.V. Comparison of Five Different Selective Agar for the Detection of Vancomycin-Resistant Enterococcus faecium. Antibiotics 2023, 12, 666. https://doi.org/10.3390/antibiotics12040666

AMA Style

Boschert AL, Arndt F, Hamprecht A, Wolke M, Walker SV. Comparison of Five Different Selective Agar for the Detection of Vancomycin-Resistant Enterococcus faecium. Antibiotics. 2023; 12(4):666. https://doi.org/10.3390/antibiotics12040666

Chicago/Turabian Style

Boschert, Alessa L., Franca Arndt, Axel Hamprecht, Martina Wolke, and Sarah V. Walker. 2023. "Comparison of Five Different Selective Agar for the Detection of Vancomycin-Resistant Enterococcus faecium" Antibiotics 12, no. 4: 666. https://doi.org/10.3390/antibiotics12040666

APA Style

Boschert, A. L., Arndt, F., Hamprecht, A., Wolke, M., & Walker, S. V. (2023). Comparison of Five Different Selective Agar for the Detection of Vancomycin-Resistant Enterococcus faecium. Antibiotics, 12(4), 666. https://doi.org/10.3390/antibiotics12040666

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
