Article

Innovative Sensor Approach to Follow Campylobacter jejuni Development

1
Department of Information Engineering, University of Brescia, Brescia, via Branze, 38, 25123 Brescia, BS, Italy
2
CNR-IBBR, Institute of Bioscience and Bioresources, via Madonna del Piano, 10, 50019 Sesto Fiorentino, FI, Italy
3
NANO SENSOR SYSTEMS, NASYS Spin-Off University of Brescia, Brescia, via Camillo Brozzoni, 9, 25125 Brescia, BS, Italy
*
Author to whom correspondence should be addressed.
Biosensors 2019, 9(1), 8; https://doi.org/10.3390/bios9010008
Received: 7 November 2018 / Revised: 17 December 2018 / Accepted: 26 December 2018 / Published: 7 January 2019

Abstract

Campylobacter spp infection affects more than 200,000 people every year in Europe and in the last four years a trend shows an increase in campylobacteriosis. The main vehicle for transmission of the bacterium is contaminated food like meat, milk, fruit and vegetables. In this study, the aim was to find characteristic volatile organic compounds (VOCs) of C. jejuni in order to detect its presence with an array of metal oxide (MOX) gas sensors. Using a starting concentration of 103 CFU/mL, VOCs were analyzed using Gas-Chromatography Mass-Spectrometry (GC-MS) with a Solid-Phase Micro Extraction (SPME) technique at the initial time (T0) and after 20 h (T20). It has been found that a Campylobacter sample at T20 is characterized by a higher number of alcohol compounds that the one at T0 and this is due to sugar fermentation. Sensor results showed the ability of the system to follow bacteria curve growth from T0 to T20 using Principal Component Analysis (PCA). In particular, this results in a decrease of ΔR/R0 value over time. For this reason, MOX sensors are a promising technology for the development of a rapid and sensitive system for C. jejuni.
Keywords: Campylobacter jejuni; VOCs; GC-MS SPME; nanowire sensors; PCA Campylobacter jejuni; VOCs; GC-MS SPME; nanowire sensors; PCA

1. Introduction

Nowadays we live in the safest environment regarding the food industry. Organizations as EFSA (European Food Safety Agency), WHO (World Health Organization), and FAO (Food and Agriculture Organization) determine, organize and rule all the regulations that control every single aspect of food safety, security and trading. Even if the risk perception regarding the food industry is not one of the first concerns of the population in non-developing countries [1,2], food poisoning is still the first cause of hospitalization in the world. The CDC (Center of Disease Control) estimates that each year 48 million people get sick from a foodborne illness, 128,000 are hospitalized and 3000 die just in the USA [3].
The FoodNet (Foodborne Diseases Active Surveillance Network) division of the CDC affirms in its 2017 report that the incidence of infections per 100,000 people was highest for Campylobacter spp and Salmonella spp from 2016 to 2017, which is similar to previous years. The situation in Europe for Campylobacter spp infections is illustrated by the Campylobacteriosis-Annual epidemiological report published the 30 January of 2017 by the ECDC (European Center of Disease Control) from data collected in 2014 [4]. The report affirms that 240,379 confirmed cases were reported in 2014 with a rate of campylobacteriosis of 59.8 cases per 100,000 population in the EU/EEA, representing a 13% increase compared with the previous year. Human campylobacteriosis was more common in children below five years of age and in general was slightly higher for males than females across all age groups. Campylobacteriosis shows a clear seasonality, with a sharp peak of cases in July, trend that it is confirmed by the CDC as well. At the beginning of the summer of 2018 in Pescara (Italy), 180 cases of intoxicated children were reported and identified as campylobacteriosis infection.
The most representative etiologic agent for campylobacteriosis is Campylobacter jejuni. It is a slender, spirally curved rod that possesses a single polar flagellum at one or both ends of the cell. It is oxidase and catalase positive, is microaerophilic, requiring small amounts of oxygen (3–6%) for growth; its optimum growth temperatures on solid media are 37 °C, and it grows well at pH 5.5–8.0. C. jejuni is associated with warm-blooded animals, in fact a large percentage of all major livestock animals have been shown to contain these organisms in their feces [5,6]. Some strains of C. jejuni produce a thermolabile enterotoxin (CJT), that has been reported to have some similar properties with the enterotoxins of Vibrio cholerae (CT) and Escherichia coli (LT) [7,8].
Many livestock warm-blooded animals can carry in their intestines, liver and giblets cells of C. jejuni that can be transferred to other edible parts of an animal when it’s slaughtered. In the USA in 2014, National Antimicrobial Resistance Monitoring System (NARMS) testing found C. jejuni on 33% of raw chicken bought from retailers [9]. Campylobacter spp infection can also be transmitted through unpasteurized milk ingestion when a cow has C. jejuni cells in its udder or when milk is contaminated with manure [10]. Moreover, most problematic foods regarding Campylobacter spp infection are those consumed raw, such as fruits and vegetables that can be contaminated through contact with soil containing feces from cows, birds or other animals [11]. Animal feces can also contaminate water sources, such as lakes and streams.
Today there are many techniques that can be used in the identification of this type of contamination, many of which have limits related to the collection time of responses, high complexity or the possibility of being reused several times.
In the last few years, different kinds of sensors have been developed for C. jejuni detection. They are essentially DNA-biosensors, of which specificity is due to oligonucleotide probes covalently immobilized on the sensing surface. Several optical [12], acoustic [13] and electrochemical [14] techniques have been proposed for traducing the hybridization with the specific target nucleic acid to the pathogen detection [15]. As an example, quartz crystal microbalance (QCM) immunosensors, using monoclonal and polyclonal antibody systems coupled with the use of gold nanoparticles (AuNPs) to increase the sensitivity, were used [16]. In this way, a limit of detection (LOD) of 104 CFU/mL was reached; however, this kind of sensor is limited to a single use and consequently does not have a low usage cost. The same LOD was reached using a colorimetric aptasensor, that can be used for on-line applications and gives its response in 30 min [17].
As an example, to overcome time consumption and single-use limitations, approaches based on nanowire gas sensor technology could be employed. Nanowire gas sensors base their action principle on the analysis and recognition of the volatile fingerprint of a determinate sample. This kind of approach has already been applied successfully in many different fields as human microbiota monitoring [18], and environmental monitoring [19,20]. In particular, regarding food microbial contamination, nanowire tech was able to recognize the presence of a determinate microorganism throughout the set of volatile organic compounds (VOCs) emitted when growing in a determinate matrix [21,22,23]. In comparison with the aforementioned sensor technologies, nanowire gas sensors exhibit advantages of nanostructured materials such as long-term stability for sustained operations, high rate surface/area, drastically reduced time of response and the possibility to be reused as well. In this study, an array of these sensors has been used inside a portable device called Small Sensor System (S3), described in detail in Section 2.3.
The aim of this work was to find and identify the VOCs set that characterizes C. jejuni through Gas-Chromatography Mass-Spectrometry (GC-MS) and to assess the capability of S3 to distinguish between samples inoculated with this microorganism and control specimens to follow C. jejuni temporal development. The success of this study can lay the foundation to deepen the research in this field in order to use S3 as a tool for prevention of illness and food quality control in the future.

2. Materials and Methods

2.1. Samples Preparation

Samples were prepared using C. jejuni subsp. jejuni type strain purchased from DMSZ, DSM number 4688, (ATCC 33560, CCUG 11284, CIP 702, NCTC 11351) and Brain Heart Infusion Broth (BHI) media purchased from Sigma Aldrich (Merck). Tubes containing 9 mL of sterile BHI were inoculated with C. jejuni cells and were aerobically incubated for 24 h at 35 °C in order to produce enough biomass to proceed with the next step of analysis. After the incubation, the culture was used to inoculate tubes of sterile BHI media in order to realize the same optical density (OD) of the number 3 standard of McFarland that corresponds to a concentration of 9 × 108 CFU (Colony Forming Unit) by mL [24]. Subsequently, serial dilutions using sterile BHI media were performed until the concentration was decreased by 4 orders of magnitude to 9 × 104 CFU/mL. This concentration was used for the inoculation of the analyzed vials.
Sterile chromatography 20 mL vials containing 4 mL of BHI were inoculated with 100 μL of the 9 × 104 CFU/mL solution reaching a final concentration of 2.20 × 103 CFU/mL. Control vials were performed as well keeping the vials containing 4 mL of BHI with no inoculum. Furthermore, in order to control the effective number of cells at the beginning and the end of the analysis, a plate count technique was applied using four plates for each time (T0 and T20).

2.2. GC-MS Analysis

The Gas Chromatograph (GC) used during the analyses was a Shimadzu GC2010 PLUS (Kyoto, KYT, Japan), equipped with a Shimadzu single quadrupole Mass Spectrometer (MS) MS-QP2010 Ultra (Kyoto, KYT, Japan) and an autosampler HT280T (HTA s.r.l., Brescia, Italy). The GC-MS analysis was coupled with the Solid-Phase Micro Extraction (SPME) method in order to find the most characteristic VOCs for each sample.
The fiber used for the adsorption of volatiles was a DVB/CAR/PDMS-50/30 µm (Supelco Co., Bellefonte, PA, USA). The fiber was exposed to the headspace of the vials after heating and shaking the samples in the HT280T oven, thermostatically regulated at 40 °C for 15 min, with the aim of creating the headspace equilibrium. The length of the fiber in the headspace was kept constant. Desorption of volatiles took place in the injector of the GC-MS for 6 min at 240 °C.
The gas chromatograph was operated in the direct mode throughout the run, with the mass spectrometer in electron ionization (EI) mode (70 eV). GC separation was performed on a MEGA-WAX capillary column (30 m × 0.25 mm × 0.25 μm, Agilent Technologies, Santa Clara, CA, USA). Ultrapure helium (99.99%) was used as the carrier gas, at the constant flow rate of 1.5 mL/min. The following GC oven temperature programming was applied. At the beginning, the column was held at 40 °C for 3.5 min, and then raised from 40 to 90 °C at 5 °C/min. Next, the temperature was raised from 90 °C to 220 °C, with a rate of 12 °C/min; finally, 220 °C was maintained for 7 min.
The GC-MS interface was kept at 200 °C. The mass spectra were collected over the range of 40 to 500 m/z in the Total Ion Current (TIC) mode, with scan intervals at 0.3 s. The identification of the volatile compounds was carried out using the NIST11 and the FFNSC2 libraries of mass spectra.
Four samples were analyzed: control and C. jejuni at times T0 and T20.

2.3. S3 Analysis

The S3 device used in the present work has been completely designed and constructed at SENSOR Laboratory (University of Brescia, Brescia, Italy) in collaboration with NASYS S.r.l., a spin-off of the University of Brescia, Brescia, Italy. It has been described in other works [25,26,27,28]. Briefly, the tool comprises three parts: Pneumatic components that transfer VOCs from the headspace of samples to the sensing chamber; electronic boards that manage the acquisition and transmission of the data from the device to the dedicated Web-App and allow the synchronization between S3 and the auto-sampler; and a sensing chamber, that can host from five to ten different metal oxide (MOX) gas sensors and is thermostatically isolated in order to avoid any influence of the surrounding environment. To function properly, sensors need a reference value that has been obtained by filtering the ambient air with a small metal cylinder (21.5 cm in length, 5 cm in diameter) filled with activated carbons.
Eight MOX gas sensors were used. Three of them are MOX nanowire [29,30]. Two of them are tin oxide nanowires sensors, both grown by means of the Vapor Liquid Solid technique [31], using a gold catalyst on the alumina substrate and functionalizing one of them with gold clusters; the third sensor has an active layer of copper oxide nanowires. The working temperature is 350 °C, 350 °C and 400 °C, respectively. The other three sensors are prepared with Rheotaxial Growth and Thermal Oxidation (RGTO) thin film technology [32]; one is tin oxide functionalized with gold clusters (working at 400 °C), while the other two are pure tin oxide (working at 300 °C and at 400 °C, respectively). The last two are commercial MOX sensors produced by Figaro Engineering Inc. (Osaka, Japan). In particular, they are the TGS2611 and TGS2602, which are sensitive to natural gases and odorous gases like ammonia, respectively, according to the datasheet of the company. Commercial sensors have been mounted on our e-nose in order to evaluate the performances of nanowire sensors. Details of S3 sensors made at SENSOR Laboratory are summarized in Table 1. Response to 5 ppm of ethanol, selectivity (response ethanol/response carbon monoxide) and limit of detection (LOD) of ethanol are also included.
The autosampler headspace system HT2010H (HTA s.r.l., Brescia, Italy) was coupled with S3. It supports a 42-loading-sites carousel and a shaking oven to equilibrate the sample headspace. 40 vials were placed in a randomized mode into the carousel. Among these vials, 5 were control samples analyzed at times 2.5 h, 5.5 h, 8.5 h, 11.5 h and 14.5 h. Each vial was incubated at 40 °C for 10 min in the autosampler oven. The sample headspace was then extracted from the vial in the dynamic headspace path and released into the carried flow (100 sccm). The analysis timeline can be divided into three different steps for a duration of 30 min per sample divided as follows: 5 min to analyze samples, 5 min to clean the tube that carries VOCs from sample headspace to sensing chamber and 20 min to restore the baseline. Thanks to the processor integrated in the S3 instrument, the frequency at which the equipment works is equal to 1 Hz.

2.4. S3 Data Analysis

Data analysis was performed using MATLAB® R2015a software (MathWorks, Natick, MA, USA). First of all, sensors responses in terms of resistance (Ω) were normalized when compared to the first value of the acquisition (R0). For all the sensors, the difference between the first value and the minimum value during the analysis time was calculated; hence, ΔR/R0 has been extracted as featured.
Principal Component Analysis (PCA) was applied to this data matrix in order to evaluate the ability of the system to follow variation over time of the number of bacteria and therefore also the quantity of VOCs emitted.

3. Results and Discussion

3.1. GC-MS Results

Chromatograms of analyzed samples were compared to highlight differences between control samples and C. jejuni ones to see the variation of emitted VOCs in the headspace between T0 and T20.
The comparison between control and C. jejuni specimens at time T0 underlines no significant differences in terms of number and amount of VOCs. In Table 2, the list of compounds with their retention time (RT) and abundance in arbitrary unit is reported. Correlation coefficient has been calculated to get how similar the two samples were; a value equal to 0.9965 has been obtained. This proves that during the conditioning period of 15 min before fiber exposure in the GC injector, C. jejuni VOCs production was too small to change headspace composition.
On the contrary, sample analysis after 20 h has indicated changes in vial headspace due to microorganisms metabolic activity and to slow release of VOCs contained in BHI broth. In Table 3, the list of VOCs is shown. Main differences between the specimens reside in the presence of alcohol compounds, such as 1-pentanol, acetoin, 2,7-dimethyl-4,5-octanediol, 2-propyl-1-pentanol, bicyclo[3.2.1]octan-6-ol, 1-nonanol, γ-methylmercaptopropyl alcohol and (9E)-9-hexadecen-1-ol greater in C. jejuni samples than control one. This result points out how sugar fermentation went on during a 20 h incubation period at 37 °C. Furthermore, this heating phase could also be responsible for the formation of new compounds derived from pyrazine, like trimethylpyrazine and 2-ethyl-3,6-dimethylpyrazine. In this case, the correlation coefficient is equal to 0.2666, indicating the samples were strongly diverse.
Growth of C. jejuni is also confirmed by microbiological analysis. There were (8.57 ± 1.18) × 104 CFU/mL at time T0 in terms of mean ± standard deviation calculated on four plates and (1.38 ± 0.40) × 107 CFU/mL at time T20.

3.2. S3 Results

First step of S3 data analysis consisted of checking which of the eight sensors were performing more. Sensor responses were normalized in order to highlight the variation of the resistance once sensing materials were exposed to VOCs. Five sensors showed the best performances: two RGTO (SnO2Au and SnO2 heated at 300 °C), SnO2Au nanowire, copper oxide and TGS2611. Resistance variation over time for all measures is shown in Figure 1 for three kinds of sensors, i.e., RGTO, nanowire and commercial MOX.
CuO sensing material exhibits an increase in resistance with respect to the R0 value, while TGS2611 and SnO2 RGTO have an opposite behavior due to their n-type semiconductor characteristic. However, all of them are characterized by the decreasing of ΔR with the growth of time. This trend is more evident for CuO and TGS2611 sensors. Conversely, RGTO has an increase of ΔR for the first five samples, while from the seventh specimen it has the same kind of response as the other two, even if it is less accentuated. This tendency could be explained considering that the number of microorganisms grows over time very quickly; it has been shown that they double their number in BHI broth in 75 min (average value) [33]. Hence, many VOCs could be used by C. jejuni to feed, thus subtracting them from the headspace. At the same time, new compounds are emitted from bacteria and pass in the gaseous phase, as shown in Table 2 and Table 3. It is important to underline that for 20 h not only the alcohols have increased in number and amount, but also other compounds. Among them, the one present in greater quantity is pyrindan, a bicyclic compound containing a pyridine ring. The reduction of ΔR/R0 value could be due to action of this compound. Furthermore, it can be noticed that the first sample of the analysis produced a ΔR significantly different in respect to the others; it is higher for all sensors, especially for RGTO and nanowire sensors. Since this could be the result of a different conditioning, it has been discarded for the following analysis.
Figure 2 refers to PCA that has been performed using the five aforementioned sensors. The first two Principal Components (PC) were used for a total explained variance equal to 99.08% (91.77% in PC1 and 7.31 in PC2). It is possible to identify two different trends. For C. jejuni samples, first four samples (0.5–2.5 h) are characterized by descending scores along PC2 axis, while the other specimens (3–20 h) are distributed essentially along PC1 ascending scores. Furthermore, the distance between points decreases as time goes on and it can be explained by the typical growth curve of microorganism. Indeed, it is characterized by four phases: (A) lag phase (bacteria adapt themselves to growth conditions and are yet not able to divide), (B) log phase (cell doubling), (C) stationary phase (growth rate and stationary rate are equal due to a growth-limiting factor such as the depletion of an essential nutrient) and (D) death phase (bacteria die). In PCA, lag phase corresponds to the first four points that move along PC2 axis, log phase to the following eleven samples (3–8 h) and stationary phase to the remaining ones (8.5–20 h). Instead, control samples assume higher scores along both PCs axes with increasing time. It is due to the slow release in the headspace of some VOCs contained in the BHI broth. The only exception is the fourth control sample that does not follow the parabolic trend of the others, but it is closer to C. jejuni points.

4. Conclusions

This work demonstrates the potential of this technology for the development of a device able to give a response very quickly when compared to classical microbiological methods, 5 min for the former and several hours for the latter. This lays the foundation to develop a rapid and sensitive detection method for C. jejuni in the future. Innovative gas sensors with nanowire and RGTO morphologies used in this study have proven to be useful tools for the identification and characterization of microbiological contamination. In particular, PCA done with five sensors shows the capability of the system to follow bacteria growth along a period of 20 h. During which the sensors used were able to associate the response faithfully following the growth curve of the contaminated microorganisms. We will plan to continue this study by focusing on reducing the detection threshold in order to use this tool to individuate the presence of C. jejuni at low concentrations and to avoid human infections. We will evaluate in future works how the food matrix where C. jejuni develops and grows will influence sensor responses and their LODs.

Author Contributions

Conceptualization, E.N.-C; Methodology, E.N.-C.; software, M.A.; Validation, E.N.-C., M.A. and V.S.; Formal analysis, M.A.; Data curation, M.A.; Writing—original draft preparation, E.N.-C., M.A. and V.S.; Writing—review and editing, E.N.-C., M.A. and V.S.; Supervision, V.S.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yeung, R.M.W.; Morris, J. Food safety risk—Consumer perception and purchase behavior. Br. Food J. 2001, 103, 170–187. [Google Scholar] [CrossRef]
  2. Yu, H.; Neal, J.A.; Sirsat, S.A. Consumers’ food safety risk perceptions and willingness to pay for fresh-cut produce with lower risk of foodborne illness. Food Control 2018, 86, 83–89. [Google Scholar] [CrossRef]
  3. Centers for Disease Control and Prevention, Foodborne Illnesses and Germs. Available online: https://www.cdc.gov/foodsafety/foodborne-germs.html (accessed on 31 October 2018).
  4. European Centers for Disease Prevention and Control, Campylobacteriosis—Annual Epidemiological Report 2016. Available online: https://ecdc.europa.eu/en/publications-data/campylobacteriosis-annual-epidemiological-report-2016-2014-data (accessed on 31 October 2018).
  5. Açik, M.N.; Çetinkaya, B. Heterogeneity of Campylobacter jejuni and Campylobacter coli strains from healthy sheep. Vet. Microbiol. 2006, 115, 370–375. [Google Scholar] [CrossRef] [PubMed]
  6. Brown, P.E.; Christensen, O.F.; Clough, H.E.; Diggle, P.J.; Hart, C.A.; Hazel, S.; Kemp, R.; Leatherbarrow, A.J.H.; Moore, A.; Sutherst, J.; et al. Frequency and spatial distribution of environmental Campylobacter spp. Appl. Environ. Microbiol. 2004, 70, 6501–6511. [Google Scholar] [CrossRef]
  7. Klipstein, F.A.; Engert, R.F. Properties of Crude Campylobacter jejuni Heat-Labile Enterotoxin. Infect. Immun. 1984, 45, 314–319. [Google Scholar] [PubMed]
  8. Jay, J.M.; Loessner, M.J.; Golden, D.A. Foodborne Gastroenteritis Caused by Vibrio, Yersinia and Campylobacter. In ModernFood Microbiology, 7th ed.; Heldman, D.R., Ed.; Heldman Associates: San Marcos, CA, USA, 2005; Volume 1, pp. 657–678. ISBN 0-387-23180-3. [Google Scholar]
  9. The National Antimicrobial Resistance Monitoring System: Enteric Bacteria. Available online: https://www.google.com/url?q=https://www.fda.gov/downloads/AnimalVeterinary/SafetyHealth/AntimicrobialResistance/NationalAntimicrobialResistanceMonitoringSystem/UCM528861.pdf&sa=D&ust=1543574350805000&usg=AFQjCNEMaE6VwxnVNmUYIOqrV7HnmBpcNQ (accessed on 30 November 2018).
  10. Artursson, K.; Schelin, J.; Lambertz, S.T.; Hansson, I.; Engvall, E.O. Foodborne pathogens in unpasteurized milk in Sweden. Int. J. Food Microbiol. 2018, 284, 120–127. [Google Scholar] [CrossRef] [PubMed]
  11. Verhoeff-Bakkenesa, L.; Jansenb, H.A.P.M.; In’t Veldb, P.H.; Beumerc, R.R.; Zwieteringc, M.H.; van Leusden, F.M. Consumption of raw vegetables and fruits: A risk factor for Campylobacter infections. Int. J. Food Microbiol. 2011, 144, 406–412. [Google Scholar] [CrossRef]
  12. Cecchini, F.; Manzano, M.; Mandabi, Y.; Perelman, E.; Marks, R.S. Chemiluminescent DNA optical fibre sensor for Brettanomyces bruxellensis detection. J. Biotechnol. 2012, 157, 25–30. [Google Scholar] [CrossRef] [PubMed]
  13. Jia, K.; Toury, T.; Ionescu, R.E. Fabrication of an atrazine acoustic immunosensor based on a drop-deposition procedure. IEEE Trans. Ultrason. Ferroelectr. Freq. Control 2012, 59, 2015–2021. [Google Scholar]
  14. Kubičárová, T.; Fojta, M.; Vidic, J.; Tomschik, M.; Suznjevic, D.; Paleček, E. Voltammetric and chronopotentiometric measurements with nucleic acid-modified mercury film on a glassy carbon electrode. Electroanalysis 2000, 12, 1390–1396. [Google Scholar] [CrossRef]
  15. Vidic, J.; Manzano, M.; Chang, C.M.; Jaffrezic-Renault, N. Advanced biosensors for detection of pathogens related to livestock and poultry. Vet. Res. 2017, 48, 1–22. [Google Scholar] [CrossRef] [PubMed]
  16. Masdor, N.A.; Altintas, Z.; Tothilla, I.E. Sensitive detection of Campylobacter jejuni using nanoparticles enhanced QCM sensor. Biosens. Bioelectron. 2016, 78, 328–336. [Google Scholar] [CrossRef] [PubMed]
  17. Kim, Y.J.; Kim, H.S.; Chon, J.W.; Kim, D.H.; Hyeon, J.Y.; Seo, K.H. New colorimetric aptasensor for rapid on-site detection of Campylobacter jejuni and Campylobacter coli in chicken carcass samples. Anal. Chim. Acta 2018, 1029, 78–85. [Google Scholar] [CrossRef] [PubMed]
  18. Sberveglieri, V.; Núñez-Carmona, E.; Ponzoni, A.; Comini, E.; Galstyan, V.; Zappa, D.; Pulvirenti, A. Skin microbiota monitoring by nanowire MOS sensors. In Proceedings of the 29th European Conference on Solid-State Transducers, EUROSENSORS 2015, Freiburg, Germany, 6–9 September 2015; Volume 120, pp. 756–759. [Google Scholar]
  19. Núñez-Carmona, E.; Soprani, M.; Sberveglieri, V. Nanowire (S3) Device for the quality control of drinking water. In Smart Sensors, Measurement and Instrumentation; Mukhopadhyay, S.C., Ed.; Springer: Berlin/Heidelberg, Germany, 2007; Volume 23, pp. 179–203. [Google Scholar]
  20. Núñez-Carmona, E.; Sberveglieri, V.; Ponzoni, A.; Zappa, D.; Pulvirenti, A. Small Sensor Sistem S3 device to control the microbial contamination in water. In Proceedings of the 9th International Conference on Sensing Technology (ICST), Auckland, New Zealand, 8–11 December 2015; pp. 246–250. [Google Scholar]
  21. Núñez-Carmona, E.; Sberveglieri, V.; Ponzoni, A.; Galstyan, V.; Zappa, D.; Pulvirenti, A.; Comini, E. Detection of food and skin pathogen microbiota by means of an electronic nose based on metal oxide chemiresistors. Sens. Actuators B-Chem. 2017, 238, 1224–1230. [Google Scholar] [CrossRef]
  22. Zambotti, G.; Sberveglieri, V.; Gobbi, E.; Falasconi, M.; Núñez-Carmona, E.; Pulvirenti, A. Fast identification of microbiological contamination in vegetable soup by electronic nose. In Proceedings of the 28th European Conference on Solid-State Transducers, EUROSENSORS 2014, Brescia, Italy, 7–10 September 2014; pp. 246–250. [Google Scholar]
  23. Ponzoni, A.; Baratto, C.; Cattabiani, N.; Falasconi, M.; Galstyan, V.; Núñez-Carmona, E.; Rigoni, F.; Sberveglieri, V.; Zambotti, G.; Zappa, D. Smetal oxide gas sensors, a survey of selectivity issues addressed at the SENSOR lab, Brescia (Italy). Sensors 2017, 17, 714. [Google Scholar] [CrossRef]
  24. McFarland Standards. Available online: http://www.dalynn.com/dyn/ck_assets/files/tech/TM53.pdf (accessed on 30 November 2018).
  25. Abbatangelo, M.; Núñez-Carmona, E.; Sberveglieri, V.; Zappa, D.; Comini, E.; Sberveglieri, G. Application of a Novel S3 Nanowire Gas Sensor Device in Parallel with GC-MS for the Identification of Rind Percentage of Grated Parmigiano Reggiano. Sensors 2018, 18, 617. [Google Scholar] [CrossRef] [PubMed]
  26. Abbatangelo, M.; Núñez-Carmona, E.; Sberveglieri, V. Application of a novel S3 nanowire gas sensor device in parallel with GC-MS for the identification of Parmigiano Reggiano from US and European competitors. J. Food Eng. 2018, 236, 36–43. [Google Scholar] [CrossRef]
  27. Sberveglieri, V. Validation of Parmigiano Reggiano Cheese Aroma Authenticity, Categorized through the Use of an Array of Semiconductors Nanowire Device (S3). Materials 2016, 9, 81. [Google Scholar] [CrossRef]
  28. Sberveglieri, V.; Bhandari, M.P.; Núñez-Carmona, E.; Betto, G.; Sberveglieri, G. A novel MOS nanowire gas sensor device (S3) and GC-MS-based approach for the characterization of grated Parmigiano Reggiano cheese. Biosensors 2016, 6, 60. [Google Scholar] [CrossRef]
  29. Ponzoni, A.; Zappa, D.; Comini, E.; Sberveglieri, V.; Faglia, G.; Sberveglieri, G. Metal oxide nanowire gas sensors: Application of conductometric and surface ionization architectures. Chem. Eng. Trans. 2012, 30, 31–36. [Google Scholar] [CrossRef]
  30. Sberveglieri, G.; Concina, I.; Comini, E.; Falasconi, M.; Ferroni, M.; Sberveglieri, V. Synthesis and integration of tin oxide nanowires into an electronic nose. Vacuum 2012, 86, 532–535. [Google Scholar] [CrossRef]
  31. Wagner, R.S.; Ellis, W.C. Vapor-Liquid-Solid Mechanism of Single Crystal Growth. Appl. Phys. Lett. 1964, 4, 89–90. [Google Scholar] [CrossRef]
  32. Sberveglieri, G. Recent developments in semiconducting thin-film gas sensors. Sens. Actuators B-Chem. 1995, 23, 103–109. [Google Scholar] [CrossRef]
  33. Battersby, T.; Walsh, D.; Whyte, P.; Bolton, D.J. Campylobacter growth rates in four different matrices: Broiler caecal material, live birds, Bolton broth, and brain heart infusion broth. Infect. Ecol. Epidemiol. 2016, 6. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Resistance variations of three sensors once exposed to VOCs. From top to bottom: copper oxide nanowire, TGS2611 and tin oxide Rheotaxial Growth and Thermal Oxidation (RGTO). On the x-axis there is time in seconds, on the y-axis normalized resistance.
Figure 1. Resistance variations of three sensors once exposed to VOCs. From top to bottom: copper oxide nanowire, TGS2611 and tin oxide Rheotaxial Growth and Thermal Oxidation (RGTO). On the x-axis there is time in seconds, on the y-axis normalized resistance.
Biosensors 09 00008 g001

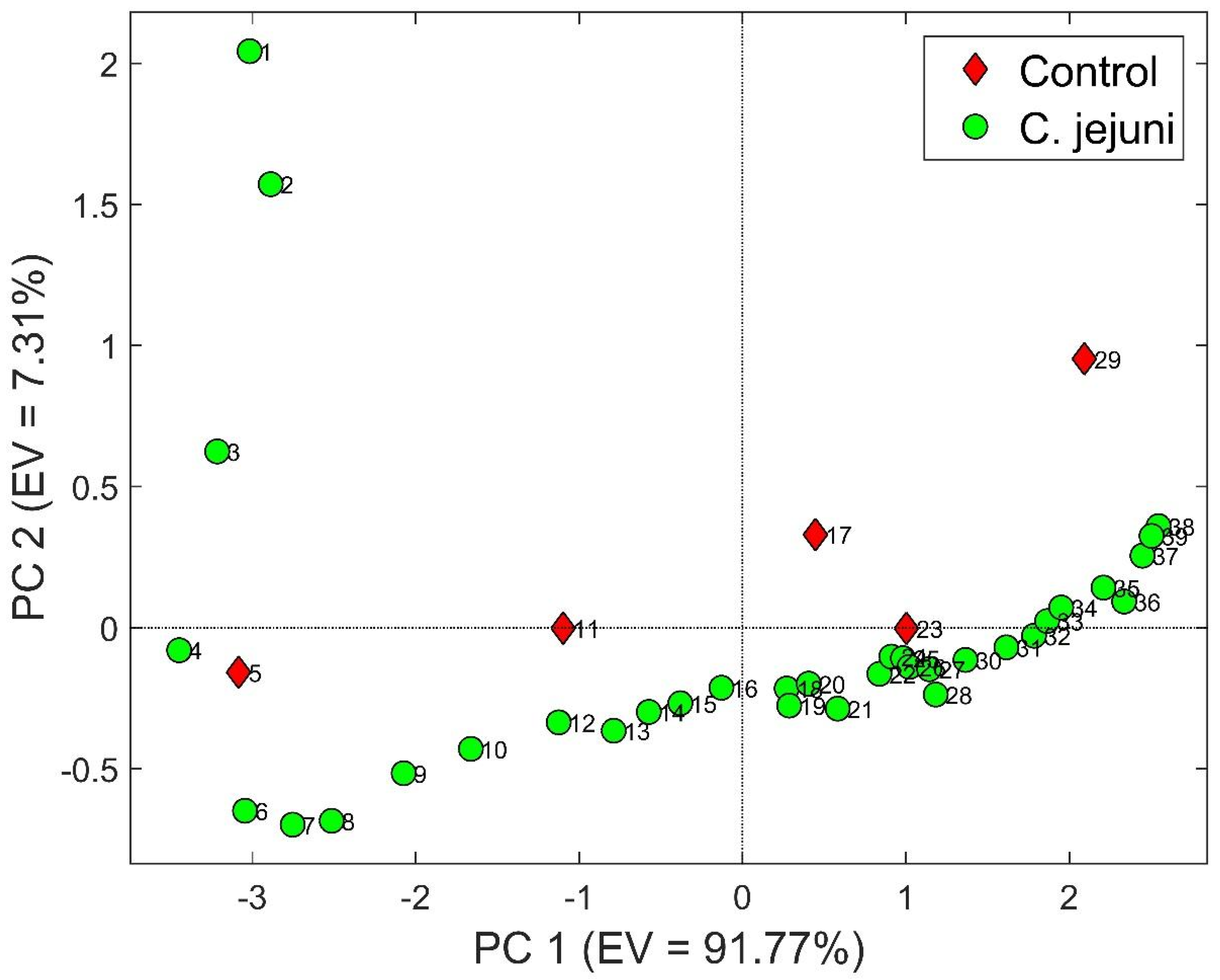

Figure 2. Principal Component Analysis (PCA) done with first two components (total variance equal to 99.08%). Green circles are C. jejuni samples, red diamond control ones.
