Article

An Efficient Enzyme-Less Uric Acid Sensor Development Based on PbO-Doped NiO Nanocomposites

by
Md Mahmud Alam
1,
Abdullah M. Asiri
1,2 and
Mohammed M. Rahman
1,2,*
1
Center of Excellence for Advanced Materials Research (CEAMR), King Abdulaziz University, P.O. Box 80203, Jeddah 21589, Saudi Arabia
2
Chemistry Department, Faculty of Science, King Abdulaziz University, P.O. Box 80203, Jeddah 21589, Saudi Arabia
*
Author to whom correspondence should be addressed.
Biosensors 2022, 12(6), 381; https://doi.org/10.3390/bios12060381
Submission received: 24 April 2022 / Revised: 26 May 2022 / Accepted: 27 May 2022 / Published: 31 May 2022
(This article belongs to the Special Issue Application of Nanomaterials for Biosensors)
Browse Figures
Versions Notes

Abstract

:
Here, the voltammetric electrochemical approach was applied to detect uric acid (UA) in a conductive sensing medium (phosphate buffer solution-PBS) by using PbO-doped NiO nanocomposites (NCs)-decorated glassy carbon electrode (GCE) performing as working electrode. The wet-chemically prepared PbO-doped NiO NCs were subjected to characterization by the implementation of XRD, FESEM, XPS, and EDS analysis. The modified GCE was used to detect uric acid (UA) in an enzyme-free conductive buffer (PBS) of pH = 7.0. As the outcomes of this study reveal, it exhibited good sensitivity of 0.2315 µAµM−1cm−2 and 0.2233 µAµM−1cm−2, corresponding to cyclic (CV) and differential pulse (DPV) voltammetric analysis of UA, respectively. Furthermore, the proposed UA sensor showed a wider detection (0.15~1.35 mM) range in both electrochemical analysis methods (CV & DPV). In addition, the investigated UA sensor displayed appreciable limit of detection (LOD) of 41.0 ± 2.05 µM by CV and 43.0 ± 2.14 µM by DPV. Good reproducibility performance, faster response time and long-time stability in detection of UA were perceived in both electrochemical analysis methods. Finally, successful analysis of the bio-samples was performed using the recovery method, and the results were found to be quite acceptable in terms of accuracy. Thus, the findings indicate a reliable approach for the development of 5th generation biosensors using metal-oxides as sensing substrate to fulfill the requirements of portable use for in situ detection.

1. Introduction

Generally, uric acid (UA) is produced through bio-metabolism of purine nucleotides and execrated from human blood serum via the renal pathway as urine. UA is a strong anti-oxidant and reducing agent in human blood serum [1]. Due to poor kidney dialysis function, UA levels in human blood can gradually increase, and can be responsible for perinatal risk of asphyxia, tumors, hyperuricemia, hyperthermia, pre-eclampsia, leukemia, cerebral ischemia, high blood pressure, atherosclerosis, Parkinson’s disease, kidney disease, high blood lipids and gout [2,3,4,5,6,7]. From the viewpoint of a healthy life, only the early diagnosis of uric acid in human blood can prevent millions of lives from being affected by dreadful diseases. Therefore, a reliable and convenient portable device for analysis of uric acid is necessary for the detection and diagnosis of the above-reported syndromes in humans. To date, distinct analytical approaches have been applied, including HPLC [8,9,10], electrochemical methods [11,12], fluorescence probes [13], and the enzyme method [14] for the reliable detection and quantification of uric acid. Among these uric acid detection methods, the electrochemical technique of voltammetry has more potential than others.
Recently, various Molecularly Imprinted Polymer (MIP) electron sensing substrates have been used in the development of UA sensors, applying distinct electrochemical detection methods. These materials include graphene-doped chitosan [15], MIPCPE [16], UA-imprinted-poly(hydroxyethyl-methacrylate-methacryloyl-l-cysteine-methylester)-Fe3+[poly(HEMA-MAC)-Fe3+] NPs [17], uric-acid-imprinted polypyrrole [18], carbon-enwrapped nickel NPs [19], MIP-nano-porous Au-leaf [20], polypyrrole-based MIP [21] and conductive-azopolymer based MIP [22]. Photoluminescence spectroscopy [23], surface plasmon resonance [24] and photo-electrochemical technique [25] have also been employed to develop UA sensors. From all these methods, cyclic voltammetry (CV) has been found to demonstrate the most potential and greatest reliability. Therefore, this type of potential dynamic electrochemical measurement has been applied to detect UA based on various modified electrodes, and exhibited wider LRD, such as 0–50.0 µM for Nafion®-coated carbon-paste [26], 2.5 µM–0.03 mM for pyrolytic graphite (PGE) [27], 20.0 µM–1.0 mM for solar graphene [28], 1.0 µM–0.3 mM for carbon paste (CPE) decorated with iron(II) phthalo-cyanine [29], 2.0 µM–0.6 mM for PEDOT-modified gold [30], and 6 µM–0.1 mM for methylene-blue as adsorbed on phosphorylated zirconia–silica composite [31]. These dynamic ranges for uric acid detection are suitable for the analysis of uric acid in human serum (0.24~0.51 mM in the adult male and 0.16~0.43 mM in the adult female). The interference effects of those sensors have been investigated precisely. The reproducibility, stability and response times of these reported UA sensors have not been evaluated. Except for these parameters, the inspected sensors are adequately fit for application for the purpose of developing a tiny and portable uric acid sensor probe. Thus, the aim of this study is to advance the development of a UA sensor based on nanocomposites of metal oxides capable of analyzing levels of UA in human serum. The assembled sensor should fulfil all requirements and parameters to establish reliability.
PbO is an n-type semiconductor, with tetragonal and orthorhombic phases of optical band-gap 1.9–2.2 eV and 2.6 eV, respectively. Therefore, PbO has been reported as a voltammetric electrochemical sensor to detect glucose [32]. NiO also belongs to the p-type semiconductor group, with an optical band-gap of 3.2 eV and is especially efficient in numerous sensing applications including M-tolyl hydrazine [33], L-glutamic acid [34], choline [35], and kanamycin [36], via an electrochemical approach. It has been stated that PbO and NiO have potential electrochemical properties suitable for sensing applications.
Doped nanocomposite materials have gained a great deal of attention due to their chemical, structural, physical, and optical properties. They can demonstrate large active surface area, high stability, high porosity, and permeability, directly dependent on the structural morphology prepared by reactant precursors for these materials in basic medium at low-temperature. Here, NCs were synthesized by a wet-chemical method using reducing agents in ambient conditions. This technique and the method have several advantages, including simple preparation, accurate control of the reactant temperature, easy handling, one-step reactions, high surface area, and high porosity. Optical, morphological, electrical and chemical properties of PbO-doped NiO nanocomposites are of huge significance compared to undoped PbO or NiO materials. Non-stoichiometry, characterized mostly by oxygen vacancies, provides the conducting nature in the PbO-doped NiO nanocomposites. The formation energy of oxygen vacancies and metal interstitials in semiconductors is very low and thus these defects form easily, resulting in the experimentally elevated conductivity of NCs compared to undoped materials. PbO-doped NiO nanocomposites have also attracted considerable interest due to their potential applications in fabricating opto-electronics, electro-analytics, selective detection of assays, sensor devices, hybrid-composites, electron-field emission sources for emission exhibits, biochemical detection, and surface-enhanced Raman properties, etc. PbO-doped NiO nanocomposites offer improved performance due to their large active surface area which increases the conductivity and current responses of PbO-doped NiO NCs/Nafion/GCE assembly during electrochemical investigation.
Therefore, this study was conducted into the development of a voltammetric electrochemical sensor for reliable detection of UA in buffer solution. It was seen to perform appreciably and outstandingly. In the near future, this voltammetric electrochemical approach for diagnosis of numerous bio-chemicals in human fluid (urine and blood serum) will be useful for identifying dangerous physiological syndromes in humans.

2. Experimental

2.1. Materials and Methods

In this study, Sigma-Aldrich (Steinheim am Albuch, Germany) supplied the precursors of lead (II) chloride PbCl2 (CAS 7758-95-4) and Nickel (II) chloride hexahydrate NiCl2·6H2O (CAS 7791-20-0), which were used to prepare PbO-doped NiO nanomaterials. Auto-clave assisted co-precipitation was applied in 10.5 pH medium. Ammonium hydroxide (CAS 1336-21-6), uric acid (UA; CAS 69-93-2), mono-sodium phosphate (7558-80-7), di-sodium phosphate (CAS 7782-85-6), and adhesive glue (5% Nafion; CAS 31175-20-9) were obtained at analytical grade from the supplier (Merck—Darmstadt, Germany) to conduct this analysis. The XPS (Thermo—Dreieich, Scientific Germany, A1-k-α1 radiation sources and 300.0 µm beam size investigated at 200.0 eV) was applied at 10-8 Torr pressure on the prepared micro-structures (nano-materials) to analyze the ionization states and the binding energy of existing atoms. Later, the structural and elemental compositions of prepared metal oxides were confirmed by using FESEM and EDS analysis; instrument model JEOL, JSM-7600F (Tokyo, Japan) was used for this purpose. The crystallinity and particle size of the prepared PbO-doped NiO nanomaterials were evaluated using a powder X-ray diffractometer. Finally, the potentiostats/galvanostats (Metrohm Autolab Modules- PGSTAT128N, Herisau, Switzerland) was used as the constant potential supply source for the sensor application.

2.2. Wet-Chemical Preparation of PbO-Doped NiO NCs

For the preparation of doped nanostructure materials, the wet-chemical (co-precipitation) method was used. The advantage of this process is to prepare the proper shape and size of doped or un-doped materials at nano-level scale. Here, the PbO-doped NiO nanomaterials were prepared using a co-precipitation technique with the analytical grade PbCl2 and the NiCl2·6H2O salt. The initial preparation of this material used deionized water to form 0.1 M solution of PbCl2 and NiCl2·6H2O separately in two volumetric flasks of 100.0 mL. Then, a 200.0 mL beaker was used to mix these solutions of 50.0 mL each and stirred rigorously to ensure proper mixing. For the co-precipitation process of these metal ions into the solution, the 0.1 M NH4OH was drop-wise mixed to increase the pH to above 10.5. As we know, over pH 10.5, the dissolved metallic ions would be co-precipitated as metal hydroxides to form the doped nano-crystals of aggregated Pb(OH)2·Ni(OH)2. Later, the final mixture in the beaker was kept inside an auto-clave reactor, where the temperature was fixed at 80 °C for 6 h. The resultant mixture in the beaker was kept for 6 h under this condition to complete the co-precipitation in the synthesis of doped nanostructure materials. Then the precipitate was decanted and separated using filter paper. The precipitate was washed with ethanol, acetone, and water to remove all organic and inorganic parts as well as unreacted components from the prepared sample. The probable chemical reactions involved in the co-precipitation process are presented as follows: (Equations (1)–(4)),
NH4OH(s) → NH4+(aq) + OH−(aq)
PbCl2(s) → Pb2+(aq) + 2Cl−(aq)
NiCl2(s) → Ni2+(aq) + 2Cl−(aq)
Pb2+ + Ni2+(aq)+4OH−(aq)+nH2O → Pb(OH)2·Ni(OH)2·nH2O ↓
At this stage, the prepared aggregated nano-crystals of Pb(OH)2·Ni(OH)2·nH2O were dried in an oven at 120 °C for 12 h. The nanocrystals were finally calcined using the muffle furnace at 500 °C. The prepared metal hydroxides were oxidized to metal oxides in the presence of oxygen flow. It is proposed that the following reaction [Reaction (5)] formed the metal-oxide-doped nanostructure material during drying in the muffle furnace. The calcined doped nanostructure materials were then characterized for crystallinity, morphology, size, elemental analysis, band-gap energy, etc., using various conventional methods.
Pb(OH)2 + Ni(OH)2 → PbO·NiO+2H2O

2.3. GCE Modification by PbO-Doped NiO NCs

For the fabrication of GCE, the key objective of this study was to modify the electrode surface with prepared PbO-doped NiO NCs for application in the development of an efficient working electrode for the proposed uric acid electrochemical sensor probe. The tiny GCE surface area (0.0316 cm2) was modified with a slurry of PbO-doped NiO NCs, prepared in the ethanol solution. Then the modified electrode was kept in an ambient condition during air drying for 10 min. For improved stability of the deposited layer on the GCE, a conducting coating binder of Nafion was used suspended as 5% in ethanol. Thus, the net-type binder was used as a chemical glue to stick the nanomaterials on the GCE surface for electrochemical analysis. This electrode fabricated with NCs and Nafion was air dried for 30 min to stablize the thin surface of the doped nanomaterials on the electrode. Finally, the electrode was prepared with PbO-doped NiO NCs as the PbO-doped NiO NCs/Nafion/GCE sensor probe for practical use in electrochemical investigation. With this working electrode, the Pt-wire and Ag/AgCl(sat. KCl) were used as counter and reference electrodes in the analysis. Then the analyte solution (UA) was used to prepare a series of solutions ranging from 0.15~1.35 mM and applied to the electrochemical characterization of the assembled sensor. Mono- and disodium phosphate solution (0.1M) were diluted into deionized water for the formation of the phosphate buffer solutions with different pH values ranging from 5.7 to 8.0. Finally, 30.0 mL samples of these prepared phosphate buffer solutions were used to prepare UA solution with various concentrations in the range of 0.15–1.35 mM, to carry out the electrochemical investigation.

3. Results and Discussion

3.1. Characterization of PbO-Doped NiO NCs by FESEM and EDS

The PbO/NiO nanomaterials were prepared in pH 10.5 alkaline medium applying a wet-chemical (co-precipitation) method. To enable investigation of PbO/NiO nanomaterials in terms of morphology as well as composition, samples were subjected to FESEM and EDS analysis, as shown in Figure 1. As observed from the low-to-high magnification FESEM images presented in Figure 1a,b, the nanocrystals of PbO/NiO nanomaterials are aggregated in such a way that it resembles a flower-type, but not exactly flower shape. Therefore, the synthesized nanomaterials are named nanocomposites (NCs). A comparable image was obtained from the EDS analysis report, illustrated in Figure 1c. The analysis of elemental compositions of PbO/NiO nanocomposites (NCs) by EDS investigation revealed O = 27.2%, Ni = 63.14% and Pb = 9.67% by weight. Based on the elemental compositions, it can be asserted that the synthesized nanomaterials are PbO-doped NiO NCs. Thus, this characterization confirmed the existence of Pb, Ni, and O in the prepared NCs sample. The EDS-mapping of each elements and presented in the Figure 2; mapping analysis reveals the presence of O, Ni, Pb elements in the selected SEM image of PbO-doped NiO NCs.

3.2. XRD Analysis of PbO-Doped NiO NCs

The XRD analysis of PbO-doped NiO NCs was performed at a range of 2θ = 20~80° represented in Figure 3. Prepared NCs consisted of crystalline phases of PbO and NiO only, as seen in Figure 3. As obtained, the plans of (100), (101), (110), (002), (211), (202), and (220), of PbO were observed and identified by JCPDS no. 0005-0561 and previous authors [37,38]. The crystalline plans of NiO including (002), (111), (200), (220), (004), and (311) are also confirmed in Figure 3, compared with JCPDS no. 0047-1049 and the reported article on NiO [39]. The average nano-grain size of CNs was calculated applying Debye-Scherer’s formula presented in (6), and calculated size is 21.50 nm obtained from the Ni(002).
D = 0.9 λ/(βcosθ)
Here, λ = wavelength at 1.5418 Å of X-ray radiation, β = width Ni (002) peak at half (FWHM) position. Thus, the XRD analysis identified crystalline plans of PbO and NiO that completely agreed with FESEM and EDS analysis.

3.3. XPS Analysis of PbO-Doped NiO NCs

Figure 4 represents the XPS orbitals of synthesized PbO-doped NiO NCs, and consists of O1s, Ni2p and Pb4f orbitals. Peaks associated with the presence of impurities were not identified, as illustrated in Figure 4. As shown in Figure 4a, the Ni2p orbital split to form Ni2p3/2 and Ni2p1/2 spin orbitals, positioned at 856.5 and 874.0 eV with spin separation of 17.5 eV. Thus, the resultant values can be characterized for presence of Ni2+ oxidation in the prepared PbO-doped NiO NCs. Additionally, two satellite spin orbitals of Ni2p-level can be perceived in Figure 4a located at 861.5 and 879.0 eV, corresponding to Ni2p3/2 and Ni2p1/2 spin-orbitals, respectively, with binding energy separation of 17.5 eV. Therefore, the main and satellite peaks both confirmed 2+ oxidation of Ni in the prepared samples [40,41]. The O1s XPS spectrum as in Figure 4b presents an peak at 531.0 eV, indicating O2− ion associated with the Ni-O and Pb-O bonds in the PbO-doped NiO NCs [42]. Also, the Pb4f orbital shows two spin orbitals of Pb4f7/2 and Pb4f5/2 located at 138.5 and 143.5 respectively and separated by 5 eV spin energy, which is recognized for oxidation of Pb2+ in PbO-doped NiO NCs, as seen in the Figure 4c [43,44]. Overall, the XPS analysis reflected the analogous information obtained from the FESEM, EDS and XRD investigation of prepared NCs.

3.4. TEM Analysis of PbO-Doped NiO NCs

In this approach, the morphology of the PbO-doped NiO nanocomposite material was characterized by recording TEM images, and is presented in Figure 5a,b. It can be seen that PbO-doped NiO NCs are present as particle shapes of diameter in the range 15–28 nm. The average diameter of doped material was 17.5 nm. This observation implies that PbO-doped NiO NCs would provide a large surface area due to the small size (nano-scale), potentially helpful for the efficient sensing of uric acid by electrochemical methods.

3.5. Characterization of Working Electrode (WE)

The GCE coated with PbO-doped NiO NCs was characterized by applying a voltammetric electrochemical approach to oxidize and reduce 0.6 mM UA in pH = 7.0 PBS (phosphate buffer solution), shown in Figure 6a. As established in Figure 6a, the oxidation and reduction peak point current of 0.6 mM UA obtained its maximum for PbO-doped NiO-coated GCE compared to bare GCE. Oxidation to reduction peak separation for bare GCE (∆Ep = infinity) was higher compared to coated GCE (∆Ep = +0.12 V). Therefore, the narrow oxidation–reduction peak separation potential (∆Ep) of coated GCE confirmed the higher electron mobility of modified GCE, as similar observations have previously indicated [45]. Impedance spectroscopy is can measure the electron transfer rate of an electrode. For this purpose, the modified GCE based on PbO-doped NiO NCs was subjected to impedance testing using 0.6 mM UA in 7.0 pH buffer solution, as recorded in Figure 6b. As shown in the Nyquist plot (Figure 6b), the semi-circle diameter is small for the coated GCE compared to bare GCE.
Therefore, the coated GCE had the lesser charge transfer resistance (Rtc) in the oxidation of UA. In other word, the WE (working electrode) based on PbO-doped NiO NCs/GCE demonstrated high electron mobility capacity, a similar concept has been reported by previous authors [46,47].
Figure 7a presents the scan-rate (SR) of GCE modified by PbO-doped NiO NCs using 0.6 mM UA applying the voltammetric electrochemical approach in pH = 7.0 buffer solution. As demonstrated in Figure 7a, the peak pint current for oxidation (+0.5 V) and reduction (+0.38 V) are linearly shifted at the 25~300 mV/s range. In the Figure 7b, the square roots of SR are plotted against the peak point’s oxidation and reduction current, and revealed to be linear; the equations of resulting lines are ip = 42.673 (SR)0.5 − 4.9664 (R2 = 0.9914) for oxidation and ip = 37.904 (SR)0.5 + 4.0735 (R2 = 9937). Thus, the good linearity of oxidation and reduction current suggest that the electrochemical oxidation and reduction of UA by coated GCE at 0.6 mM concentration of UA in pH = 7.0 buffer is a controlled diffusion process.

3.6. Electrochemical Detection of UA by Voltammetry Approach

The voltammetry electrochemical detection method of a biochemical, such as differential-pulse voltammetry (DPV), is well-known and reliably applied technique. In this study, the DPV method was applied to analysis of 0.6 mM UA solution in the buffer medium of distinct pH (5.7~8.0) value based on PbO-doped NiO NCs coated on GCE; the data are presented in Figure 8a.
As perceived, UA showed the highest peak current at pH 7.0 in the oxidation, as the bar diagrams show in Figure 8b. Therefore, pH 7.0 can be considered the optimum pH value to detect UA in the DPV method. Next, the UA at 0.15 to 1.35 concentration range was subjected to DPV analysis using the WE based on PbO-doped NiO NCs/GCE, and the resulted outcomes are explored in Figure 8c. The peak point currents in the oxidation of UA increased with corresponding higher concentrations of UA in pH = 7.0 buffer solution. Thus, a calibration for UA detection can be established by plotting concentration versus current, demonstrated in the Figure 8d, which is found to be linear (Regression co-efferent; R2 = 0.9901) and expressed with the equation of ip(µA) = 7.0255C(mM) + 6.4137. The concentration ranges 0.15~1.35 mM, where concentration versus current was linear, are defined as the detection range (LDR) for UA in buffer. Obviously, the resultant LDR is broad and well-fitted to analysis of normal UA concentration ranges in human serum and urine. The slope of calibration of the UA sensor as seen in Figure 8d was used to calculate the sensor sensitivity, equal to 0.2233 µAµM−1cm−2, a value confirming the high sensitivity of the proposed UA sensor. A signal/noise = 3 was applied to calculate the limit of detection (LOD) of UA, an appreciable LOD of 43 ± 2.14 µM.
Another promising method, CV was applied to analyze UA at a range of concentrations (0.15~1.35 mM) in buffer solution of pH = 7.0, as shown in Figure 9a. Analogous information as in Figure 8c can be perceived (the peak oxidation and reduction currents increased and decreased with increasing UA concentration in the testing buffer phase). Calibration plots were identified using peak currents versus concentration, as revealed in Figure 9b, which can be expressed by linear-equations ip(µA) = 7.3147 C(mM) + 5.7349 (R2 = 0.9901) for the oxidation of UA and ip(µA) = 6.9306 C(mM) − 5.4176 (R2 = 0.9912) for the reduction of UA, respectively, at a concentration ranges of 0.15~1.35 mM. Thus, the 0.15~1.35 mM UA concentration range is also considered to be the detection range (LDR) for UA in the cyclic voltammetry electrochemical approach, as similar to that obtained in Figure 8d for DPV analysis of UA. Considering the LDR slope as shown in Figure 9b, and the active surface area of GCE (0.0316 cm2), sensitivity for CV was calculated to a value of 0.2315 µAµM−1cm−2, very close to the DPV method (0.2233 µAµM−1cm−2). The limit of detection (41 ± 2.05 µM) was estimated applying signal/noise = 3, and closely matched the DPV method. Therefore, it can be predicted that the developed UA sensor based on PbO-doped NiO NCs/GCE is reliable and efficient, since both methods (DPV and CV) show substantial and analogous performances in UA detection in buffer phase at 0.6 mM UA concentration.
To establish the reliability of the DPV sensor in analyzing UA, repeatability was tested at 0.60 mM UA in the pH = 7.0 buffer solution, presented in Figure 10a,b (bar diagram). As perceived, the data obtained from DPV analysis of UA are completely indistinguishable from the experimental conditions. Thus, it is confirmed from Figure 10a,b that the assembled UA sensor can analyzeUA reliably.
The sensor stability, which is another sensor reliability measuring parameter, was tested at 0.1 mM Fe(CN)63−/4− in a pH = 7.0 buffer solution, shown in Figure 10c. CV analysis showed that the proposed UA sensor demonstrated good stability at 20 cycles. Therefore, this test confirms the long-term performance ability as well as the reliability of the voltammetric electrochemical analysis of UA based on PbO-doped NiO NCs/GCE in buffer solution. The response time, another sensor efficiency measuring criterion, is defined as the period needed to complete an electrochemical analysis of UA by the proposed UA sensor. Thus, necessary parameter was tested using 0.6 mL UA in the pH = 7.0 buffer by applying an electrochemical approach (three-electrode based system), demonstrated and presented in Figure 10d. Fast response times around 15 s were found, which indicated the high efficiency as well as the faster response of this UA sensor with the fabricated electrode.
To establish the logic for using binary NCs of PbO-doped NiO as electron sensing substrate for UA, rather than the single constituting metal-oxides PbO and NiO, the control experiments were performed as presented in Figure 9. As shown in Figure 11a, GCEs without coating and those coated with NiO, PbO and PbO-doped NiO NCs were subjected to analysis using UA at 0.6 mM concentration in buffer medium of pH 7.0; PbO-doped NiO NCs on GCE exhibited the highest oxidation and reduction peak current points. The highest electrochemical activity of PbO-doped NiO NCs is helped the doping of NiO by PbO, which enhanced the reactive surface area of prepared NCs, evidently shown in the EDS analysis (Figure 1d). On the other hand, the prepared NCs of PbO-doped NiO showed high crystallinity with nano-level grain size as illustrated in Figure 3, which might be another cause of higher reactive surface area in the prepared NCs. Thus, in both plots (Figure 11a,b), UA showed high electrochemical responses in terms of current density versus potential.
To test the reliability of the UA sensor based on PbO-doped NiO NCs coated on GCE, the interference effect of the assembled sensor was tested, as shown in Figure 12a. As illustrated in the plot, UA was analysed applying the CV electrochemical technique in the presence of Na+, K+, dopamine, and choline, and it was clearly observed that in the presence of these interfering chemicals, the electrochemical response of UA was not affected. Therefore, it can be concluded that the assembled UA sensor suffers no interference effect and is selective to UA only. For these experiments, 0.6 mM of each component was used in a butter medium of pH 7.0. The sensor probe with PbO-doped NiO NCs/GCE was also tested for its selectivity in the presence of other chemicals including dopamine, choline, xanthine, lactic acid, in identical conditions (0.6mM), presented in Figure 12b. It can be observed that the sensor probe PbO-doped NiO NCs/GCE exhibited the highest electrochemical process response in the presence of UA in identical conditions compared to other chemicals.

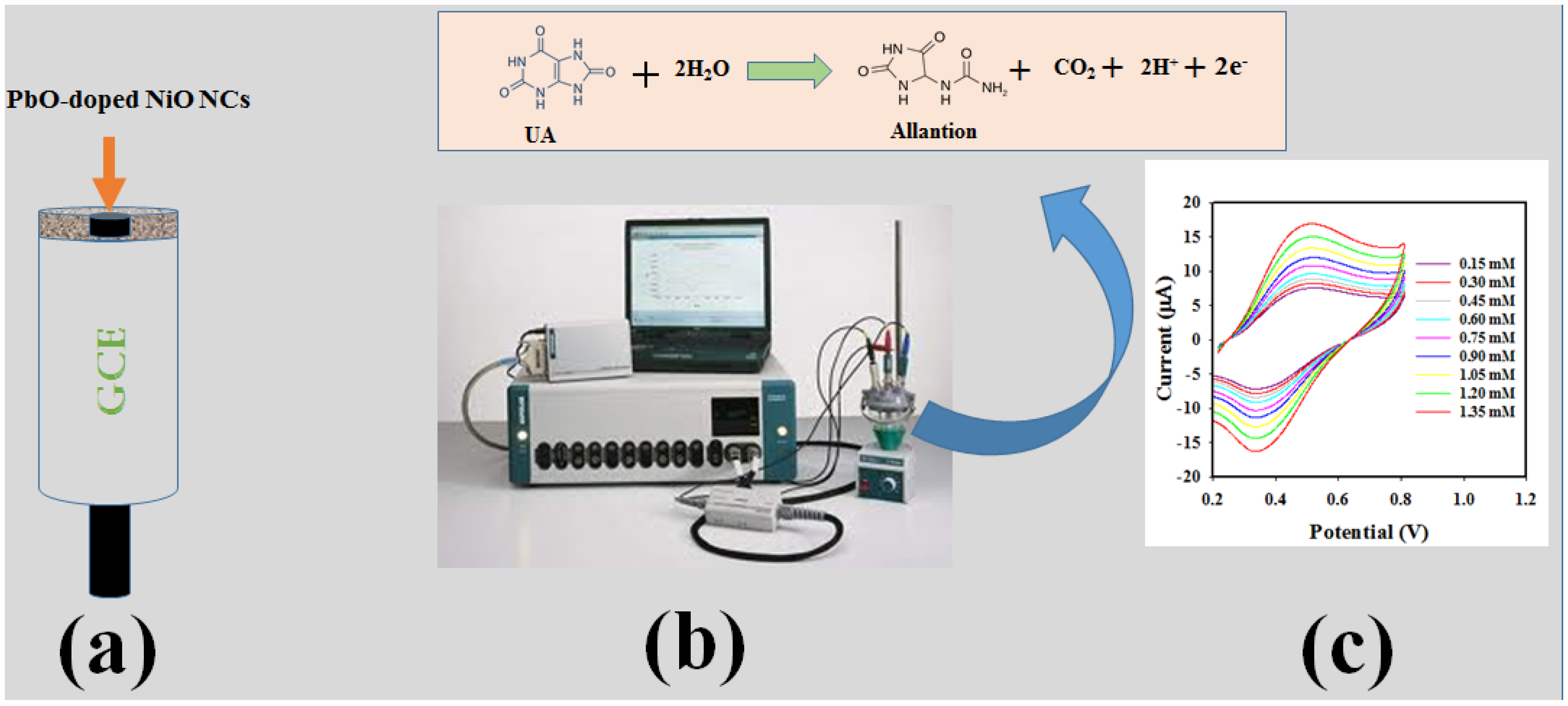

Scheme 1a is represents the sensor fabrication process using GCE and PbO-doped NiO NCs. As illustrated in Scheme 1b, UA molecules were absorbed on the GCE surface modified by PbO-doped NiO NCs and oxidized to Allantion. The oxidation of UA generated protons and electrons as illustrated. The peak currents obtained by cyclic voltammetric analysis of UA increased with increasing 0.6 mM UA concentration, indicated in Scheme 1c; analogous information has been published in the previous reports [48,49].
A comparison as in Table 1 [12,13,14,26,27,30,31,48,49,50,51,52,53,54] is illustrated to clarify the scientific evidence of this study based on LDR, LOD and sensitivity of the sensor. It is clearly demonstrated that the studied UA sensor performed better, and it is clearly observed that our investigated UA sensor PbO-doped NiO NCs–GCE performed well enough to analyze human serum (0.24~0.51 mM in the adult male and 0.16~0.43 mM in the adult female) perfectly. On the other hand, the most of the articles mentioned in Table 1 is failed to include the analysis of human serum in real sample validation. Among those, some may be fit for human use but have not been investigated properly in terms of sensor parameters such as sensitivity and LRD. Additionally, other sensor parameters including response time, stability, reproducibility, and sample meta-analysis have been seldom addressed. All these parameters are investigated properly in our study, appreciably and reliably.

3.7. Analyzing of Human Samples

To use the fabricated sensor probe for its real purpose, it was employed to analyze human samples (blood serum & urine) by the recovery method. The recovery method is way to test the applicability of a newly assembled nanomaterial sensor probe, where a sample with known concentration is analyzed. The resultant value is compared with the known value, in terms of percentage of recovery. In this study, real samples of known concentrations were prepared. The human fluid (urine and blood serum) was added and then subjected to investigation with the fabricated sensor probe. The investigation results, by applying DPV and CV as presented in Table 2, were found satisfactory and acceptable. From these observation, it is introduced a new route for the determination of unsafe biochemicals by using various nanoscale or nanocomposite materials fabricated novel sensor probe onto glassy carbon electrode by electrochemical approach [55,56,57,58] for the safety of healthcare as well as biomedical fields in a broad scale.

4. Conclusions

In this approach, the UA sensor probe was assembled with wet-chemically prepared PbO-NiO NCs coated onto GCE. The prepared PbO-NiO NCs sensor-probe was used for the detection of UA in the pH = 7.0 buffer by using DPV and CV electrochemical methods. The obtained sensor parameters including LDR, sensitivity, LOD, reproducibility, response time, and stability were investigated and found to return good and satisfactory results. In addition, the UA sensor-probe successfully analyzed human samples by the recovery method. Thus, it introduces an excellent method for the detection of human bio-chemicals applying doped microstructure materials as sensing substrates, with practical potential in the healthcare sector and biomedical fields on a broad scale.

Author Contributions

Conceptualization, M.M.R.; methodology, M.M.A. and M.M.R.; validation, M.M.A.; formal analysis, M.M.A. and M.M.R.; investigation, M.M.A. and M.M.R.; resources, A.M.A.; data curation, M.M.A.; writing-original draft preparation, M.M.A.; writing—review and editing, M.M.R. and A.M.A.; visualization, A.M.A.; supervision, M.M.R.; funding acquisition, M.M.R. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Deanship of Scientific Research (DSR), King Abdulaziz University, Jeddah, under grant No. D-50-130-1443.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Acknowledgments

This work was funded by the Deanship of Scientific Research (DSR), King Abdulaziz University, Jeddah, under grant No. D-50-130-1443. The authors, therefore, acknowledge with thanks DSR technical and financial support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Maxwell, S.R.J.; Thomason, H.; Sandler, D.; Leguen, C.; Baxter, M.A.; Thorpe, G.H.G.; Jones, A.F.; Barnett, A.H. Antioxidant status in patients with uncomplicated insulin-dependent and non-insulin-dependent diabetes mellitus. Eur. J. Clin. Investig. 1997, 27, 484–490. [Google Scholar] [CrossRef] [PubMed]
  2. Feig, D.I.; Kang, D.H.; Johnson, R.J. Uric Acid and Cardiovascular Risk. N. Engl. J. Med. 2008, 359, 1811–1821. [Google Scholar] [CrossRef] [PubMed]
  3. Higgins, P.; Dawson, J.; Lees, K.R.; McArthur, K.; Quinn, T.J.; Walters, M.R. Xanthine Oxidase Inhibition for the Treatment of Cardiovascular Disease: A Systematic Review and Meta-Analysis. Cardiovasc. Ther. 2012, 30, 217–226. [Google Scholar] [CrossRef] [PubMed]
  4. So, A.; Thorens, B. Uric acid transport and disease. J. Clin. Investig. 2010, 120, 1791–1799. [Google Scholar] [CrossRef] [Green Version]
  5. Chen, C.; Lü, J.M.; Yao, Q. Hyperuricemia-Related Diseases and Xanthine Oxidoreductase (XOR) Inhibitors: An Overview. Med. Sci. Monit. 2016, 22, 2501–2512. [Google Scholar] [CrossRef] [Green Version]
  6. Martinon, F.; Pétrilli, V.; Mayor, A. Gout-associated uric acid crystals activate the NALP3 inflammasome. Nature 2006, 440, 237–241. [Google Scholar] [CrossRef] [Green Version]
  7. Landmesser, U.; Spiekermann, S.; Preuss, C.; Sorrentino, S.; Fischer, D.; Manes, C.; Mueller, M.; Drexler, H. Angiotensin II Induces Endothelial Xanthine Oxidase Activation: Role for Endothelial Dysfunction in Patients with Coronary Disease. Arterioscler. Thromb. Vasc. Biol. 2007, 27, 943–948. [Google Scholar] [CrossRef] [Green Version]
  8. Pachla, L.A.; Kissinger, P.T. Estimation of serum uric acid by high performance liquid chromatography with electrochemical detection. Clin. Chim. Acta 1975, 59, 309–312. [Google Scholar] [CrossRef]
  9. Kanďár, R.; Drábková, P.; Hampl, R. The determination of ascorbic acid and uric acid in human seminal plasma using an HPLC with UV detection. J. Chromatogr. B 2011, 879, 2834–2839. [Google Scholar] [CrossRef]
  10. Rahman, M.M.; Hussain, M.M.; Asiri, A.M. Enzyme-free detection of uric acid using hydrothermally prepared CuO·Fe2O3 nanocrystals. New J. Chem. 2020, 44, 19581–19590. [Google Scholar] [CrossRef]
  11. Sun, C.L.; Lee, H.H.; Yang, J.M.; Wu, C.C. The simultaneous electrochemical detection of ascorbic acid, dopamine, and uric acid using graphene/size-selected Pt nanocomposites. Biosens. Bioelectron. 2011, 26, 3450–3455. [Google Scholar] [CrossRef]
  12. Inoue, K.; Namiki, T.; Iwasaki, Y.; Yoshimura, Y.; Nakazawa, H. Determination of uric acid in human saliva by high-performance liquid chromatography with amperometric electrochemical detection. J. Chromatogr. B 2003, 785, 57–63. [Google Scholar] [CrossRef]
  13. Fang, A.; Wu, Q.; Lu, Q.; Chen, H.; Li, H.; Liu, M.; Zhang, Y.; Yao, S. Up-conversion ratiometric fluorescence and colorimetric dual-readout assay for uric acid. Biosens. Bioelectron. 2016, 86, 664–670. [Google Scholar] [CrossRef] [PubMed]
  14. Galbán, J.; Andreu, Y.; Almenara, M.J.; Marcos, S.D.; Castillo, J.R. Direct determination of uric acid in serum by a fluorometric-enzymatic method based on uricase. Talanta 2001, 54, 847–854. [Google Scholar] [CrossRef]
  15. Lian, H.; Sun, Z.; Sun, X.; Liu, B. Graphene Doped Molecularly Imprinted Electrochemical Sensor for Uric Acid. Anal. Lett. 2012, 45, 2717–2727. [Google Scholar] [CrossRef]
  16. Motghare, R.V.; Tadi, K.K.; Dhawale, P.; Deotare, S.; Kawadkar, A.K.; Chillawar, R.; Khan, S. Voltammetric Determination of Uric Acid Based on Molecularly Imprinted Polymer Modified Carbon Paste Electrode. Electroanalysis 2015, 27, 825–832. [Google Scholar] [CrossRef]
  17. Sarıkay, A.G.; Osman, B.; Çam, T.; Denizli, A. Molecularly imprinted surface plasmon resonance (SPR) sensor for uric acid determination. Sens. Actuators B Chem. 2017, 251, 763–772. [Google Scholar] [CrossRef]
  18. Plausinaitis, D.; Sinkevicius, L.; Samukaite-Bubniene, U.; Ratautaite, V.; Ramanavicius, A. Evaluation of electrochemical quartz crystal microbalance based sensor modified by uric acid-imprinted polypyrrole. Talanta 2020, 220, 121414. [Google Scholar] [CrossRef]
  19. Wang, Y.; Liu, X.; Lu, Z.; Liu, T.; Zhao, L.; Ding, F.; Zou, P.; Wang, X.; Zhao, Q.; Rao, H. Molecularly imprinted polydopamine modified with nickel nanoparticles wrapped with carbon: Fabrication, characterization and electrochemical detection of uric acid. Microchem. Acta 2019, 186, 414. [Google Scholar] [CrossRef]
  20. Li, N.; Nan, C.; Mei, X.; Sun, Y.; Feng, H.; Li, Y. Electrochemical sensor based on dual-template molecularly imprinted polymer and nanoporous gold leaf modified electrode for simultaneous determination of dopamine and uric acid. Microchim. Acta 2020, 187, 496. [Google Scholar] [CrossRef]
  21. Ratautaite, V.; Samukaite-Bubniene, U.; Plausinaitis, D.; Boguzaite, R.; Balciunas, D.; Ramanaviciene, A.; Neunert, G.; Ramanavicius, A. Molecular Imprinting Technology for Determination of Uric Acid. Int. J. Mol. Sci. 2021, 22, 5032. [Google Scholar] [CrossRef]
  22. Trevizan, H.F.; Olean-Oliveira, A.; Cardoso, C.X.; Teixeira, M.F.S. Development of a molecularly imprinted polymer for uric acid sensing based on a conductive azopolymer: Unusual approaches using electrochemical impedance/capacitance spectroscopy without a soluble redox probe. Sens. Actuators B Chem. 2021, 343, 130141. [Google Scholar] [CrossRef]
  23. Turemis, M.; Zappi, D.; Giardi, M.T.; Basile, G.; Ramanaviciene, A.; Kapralovs, A.; Ramanavicius, A.; Viter, R. ZnO/polyaniline composite based photoluminescence sensor for the determination of acetic acid vapor. Talanta 2020, 211, 120658. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Balciunas, D.; Plausinaitis, D.; Ratautaite, V.; Ramanaviciene, A.; Ramanavicius, A. Towards electrochemical surface plasmon resonance sensor based on the molecularly imprinted polypyrrole for glyphosate sensing. Talanta 2022, 241, 123252. [Google Scholar] [CrossRef] [PubMed]
  25. Zhao, J.; Cheng, J.; Sun, Y.; Liu, J.; Chen, W.; Xu, Y.; Yang, J.; Li, Y. A photoelectrochemical sensor based on Z-Scheme TiO2@Au@CdS and molecularly imprinted polymer for uric acid detection. Microchim. Acta 2021, 188, 188. [Google Scholar] [CrossRef] [PubMed]
  26. Zen, J.M.; Hsu, C.T. A selective voltammetric method for uric acid detection at Nafion®-coated carbon paste electrodes. Talanta 1998, 46, 1363–1369. [Google Scholar] [CrossRef]
  27. Da-Silva, R.P.; Lima, A.W.O.; Serrano, S.H.P. Simultaneous voltammetric detection of ascorbic acid, dopamine and uric acid using a pyrolytic graphite electrode modified into dopamine solution. Anal. Chim. Acta 2008, 612, 89–98. [Google Scholar] [CrossRef]
  28. Nancy, T.E.M.; Anithakumary, V.; Swamy, B.E.K. Solar graphene modified glassy carbon electrode for the voltammetric resolution and detection of dopamine, ascorbic acid and uric acid. J. Electroanal. Chem. 2014, 720, 107–114. [Google Scholar] [CrossRef]
  29. Shahrokhian, S.; Ghalkhani, M.; Amini, M.K. Application of carbon-paste electrode modified with iron phthalocyanine for voltammetric determination of epinephrine in the presence of ascorbic acid and uric acid. Sens. Actuators B Chem. 2009, 137, 669–675. [Google Scholar] [CrossRef]
  30. Belaidi, F.S.; Boyer, P.T.; Gros, P. Voltammetric microsensor using PEDOT-modified gold electrode for the simultaneous assay of ascorbic and uric acids. J. Electroanal. Chem. 2010, 647, 159–168. [Google Scholar] [CrossRef] [Green Version]
  31. Argüello, J.; Leidens, V.L.; Magosso, H.A.; Ramos, R.R.; Gushikem, Y. Simultaneous voltammetric determination of ascorbic acid, dopamine and uric acid by methylene blue adsorbed on a phosphorylated zirconia–silica composite electrode. Electrochim. Acta 2008, 54, 560–565. [Google Scholar] [CrossRef]
  32. Chen, T.; Li, X.; Qiu, C.; Zhu, W.; Ma, H.; Chen, S.; Meng, O. Electrochemical sensing of glucose by carbon cloth-supported Co3O4/PbO2 core-shell nanorod arrays. Biosens. Bioelectron. 2014, 53, 200–206. [Google Scholar] [CrossRef] [PubMed]
  33. Subhan, M.A.; Saha, P.C.; Hossain, M.A.; Alam, M.M.; Asiri, A.M.; Rahman, M.M.; Al-Mamun, M.; Rifat, T.P.; Raihan, T.; Azad, A.K. Photocatalysis, photoinduced enhanced antibacterial functions and development of a selective m-tolyl hydrazine sensor based on mixed Ag.NiMn2O4 nanomaterials. RSC Adv. 2020, 10, 30603–30619. [Google Scholar] [CrossRef] [PubMed]
  34. Alam, M.M.; Rahman, M.M.; Uddin, M.T.; Asiri, A.M.; Inamuddin; Chani, M.T.S.; Islam, M.A. Development of L-glutamic acid biosensor with ternary ZnO/NiO/Al2O3 nanoparticles. J. Lumin. 2020, 227, 117528. [Google Scholar] [CrossRef]
  35. Zeid, E.F.A.; Nassar, A.M.; Husseind, M.A.; Alam, M.M.; Asiri, A.M.; Hegazy, H.H.; Rahman, M.M. Mixed oxides CuO-NiO fabricated for selective detection of 2-Aminophenol by electrochemical approach. J. Mater. Res. Technol. 2020, 9, 1457–1467. [Google Scholar] [CrossRef]
  36. Rahman, M.M.; Alam, M.M.; Asiri, A.M. Detection of toxic choline based on Mn2O3/NiO nanomaterials by an electrochemical method. RSC Adv. 2019, 9, 35146–35157. [Google Scholar] [CrossRef] [Green Version]
  37. Rahman, M.M. Label-free Kanamycin sensor development based on CuO NiO hollow-spheres: Food samples analyses. Sens. Actuators B Chem. 2018, 264, 84–91. [Google Scholar] [CrossRef]
  38. Güngör, A.; Genç, R.; Özdemir, T. Facile Synthesis of Semiconducting Nanosized 0D and 2D Lead Oxides Using a Modified Co-Precipitation Method. JOTSA 2017, 4, 1017–1030. [Google Scholar] [CrossRef] [Green Version]
  39. Arulmozhi, K.T.; Mythili, N. Studies on the chemical synthesis and characterization of lead oxide nanoparticles with different organic capping agents. AIP Adv. 2013, 3, 122122. [Google Scholar] [CrossRef]
  40. Srivastava, N.; Srivastava, P.C. Realizing NiO nanocrystals from a simple chemical method. Bull. Mater. Sci. 2010, 33, 653–656. [Google Scholar] [CrossRef] [Green Version]
  41. Zhang, F.S.; Wang, J.W.; Luo, J.; Liu, R.R.; Zhang, Z.M.; He, C.T.; Lu, T.B. Extraction of nickel from NiFe-LDH into Ni2P@NiFe hydroxide as a bifunctional electro-catalyst for efficient overall water splitting. Chem. Sci. 2018, 9, 1375–1384. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Song, H.; Dai, M.; Song, H.; Wan, X.; Xu, X.; Zhang, C.; Wang, H. Synthesis of a Ni2P catalyst supported on anatase–TiO2 whiskers with high hydrodesulfurization activity, based on triphenylphosphine. Catal. Commun. 2014, 43, 151–154. [Google Scholar] [CrossRef]
  43. Li, H.; Mu, S.; Weng, X.; Zhao, Y.; Song, S. Rutile flotation with Pb2+ions as activator: Adsorption of Pb2+atrutile/water interface. Colloids Surf. A Physicochem. Eng. Asp. 2016, 506, 431–437. [Google Scholar] [CrossRef]
  44. Szafraniak, I.; Połomska, M.; Hilczer, B.; Talik, E.; Kepiński, L. Characterization of PbTiO3 Nanopowders Obtained by Room Temperature Synthesis. Ferroelectrics 2006, 336, 279–287. [Google Scholar] [CrossRef]
  45. Asiri, A.M.; Adeosun, W.A.; Marwani, H.M.; Rahman, M.M. Homo-polymerization of 3-aminobenzoic acid for enzyme-free electrocatalytic assay of nitrite ions. New J. Chem. 2020, 44, 2022–2032. [Google Scholar] [CrossRef]
  46. Alizadeh, T.; Azizi, S. Graphene/graphite paste electrode incorporated with molecularly imprinted polymer nanoparticles as a novel sensor for differential pulse voltammetry determination of fluoxetine. Biosens. Bioelectron. 2016, 81, 198–206. [Google Scholar] [CrossRef]
  47. Ahmed, J.; Rakib, R.H.; Rahman, M.M.; Asiri, A.M.; Siddiquey, I.A.; Islam, S.S.M.; Hasnat, M.A. Electrocatalytic Oxidation of 4-Aminophenol Molecules at the Surface of an FeS2/Carbon Nanotube Modified Glassy Carbon Electrode in Aqueous Medium. ChemPlusChem 2019, 84, 175–182. [Google Scholar] [CrossRef]
  48. Rajabi, H.; Noroozifar, M.; Sabbaghi, N. Electrochemical Determination of Uric Acid using Nano Resin Modified Carbon Paste Electrode as a New Sensor. J. Mater. Appl. Sci. 2017, 1, 1002. [Google Scholar]
  49. Khan, M.M.I.; Haque, A.M.J.; Kim, K. Electrochemical determination of uric acid in the presence of ascorbic acid on electrochemically reduced graphene oxide modified electrode. J. Electroanal. Chem. 2013, 700, 54–59. [Google Scholar] [CrossRef]
  50. Sheng, Z.H.; Zheng, X.Q.; Xu, J.Y.; Bao, W.J.; Wang, F.B.; Xia, X.H. Electrochemical sensor based on nitrogen doped graphene: Simultaneous determination of ascorbic acid, dopamine and uric acid. Biosens. Bioelectron. 2012, 34, 125–131. [Google Scholar] [CrossRef]
  51. Zhang, F.; Wang, X.; Ai, S.; Sun, Z.; Wan, Q.; Zhu, Z.; Xian, Y.; Jin, L.; Yamamoto, K. Immobilization of uricase on ZnO nanorods for a reagent-less uric acid biosensor. Anal. Chim. Acta 2004, 519, 155–160. [Google Scholar] [CrossRef]
  52. Savk, A.; Özdil, B.; Demirkan, B.; Nas, M.S.; Calimli, M.H.; Alma, M.H.; Inamuddin; Asiri, A.M.; Şen, F. Multi-walled carbon nanotube-based nano-sensor for ultrasensitive detection of uric acid, dopamine, and ascorbic acid. Mater. Sci. Eng. C 2019, 99, 248–254. [Google Scholar] [CrossRef] [PubMed]
  53. Zhang, H.; Liu, S. Electrochemical sensors based on nitrogen-doped reduced graphene oxide for the simultaneous detection of ascorbic acid, dopamine and uric acid. J. Alloy. Compd. 2020, 842, 155873. [Google Scholar] [CrossRef]
  54. Wang, C.; Du, J.; Wang, H.; Zou, C.; Jiang, F.; Yang, P.; Du, Y. A facile electrochemical sensor based on reduced graphene oxide and Au nanoplates modified glassy carbon electrode for simultaneous detection of ascorbic acid, dopamine and uric acid. Sens. Actuators B Chem. 2014, 204, 302–309. [Google Scholar] [CrossRef]
  55. Adeosun, W.A.; Asiri, A.M.; Marwani, H.M.; Rahman, M.M. Enzyme-less electrocatalytic detection of uric acid using polydopamine/polypyrole copolymeric film. ChemistrySelect 2020, 5, 156–164. [Google Scholar] [CrossRef] [Green Version]
  56. Alam, M.M.; Asiri, A.M.; Uddin, M.T.; Islam, M.A.; Awual, M.R.; Rahman, M.M. Detection of uric acid based on doped ZnO/Ag2O/Co3O4 nanoparticles fabricated glassy carbon electrode. New J. Chem. 2019, 43, 8651–8659. [Google Scholar] [CrossRef]
  57. Rahman, M.M.; Ahmed, J.; Asiri, A.M. A glassy carbon electrode modified with γ-Ce2S3-decorated CNT nanocomposites for uric acid sensor development: A real sample analysis. RSC Adv. 2017, 7, 14649–14659. [Google Scholar] [CrossRef] [Green Version]
  58. Hussain, M.M.; Rahman, M.M.; Asiri, A.M.; Awual, M.R. Non-enzymatic simultaneous detection of L-glutamic acid and uric acid using mesoporous Co3O4 nanosheets. RSC Adv. 2016, 6, 80511–80521. [Google Scholar] [CrossRef]
Biosensors 12 00381 g001 550

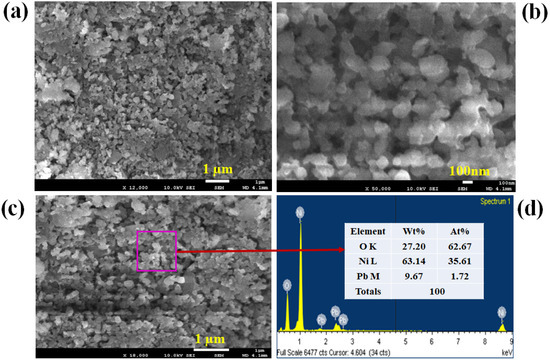

Figure 1. FESEM and EDS investigation of PbO/NiO nanomaterials. (a,b) Low and high magnification images of prepared PbO/NiO nanomaterials obtained from FESEM, (c) the magnified image of PbO/NiO nanomaterials from EDS analysis, and (d) atomic composition PbO/NiO NCs.
Figure 1. FESEM and EDS investigation of PbO/NiO nanomaterials. (a,b) Low and high magnification images of prepared PbO/NiO nanomaterials obtained from FESEM, (c) the magnified image of PbO/NiO nanomaterials from EDS analysis, and (d) atomic composition PbO/NiO NCs.
Biosensors 12 00381 g001
Biosensors 12 00381 g002 550

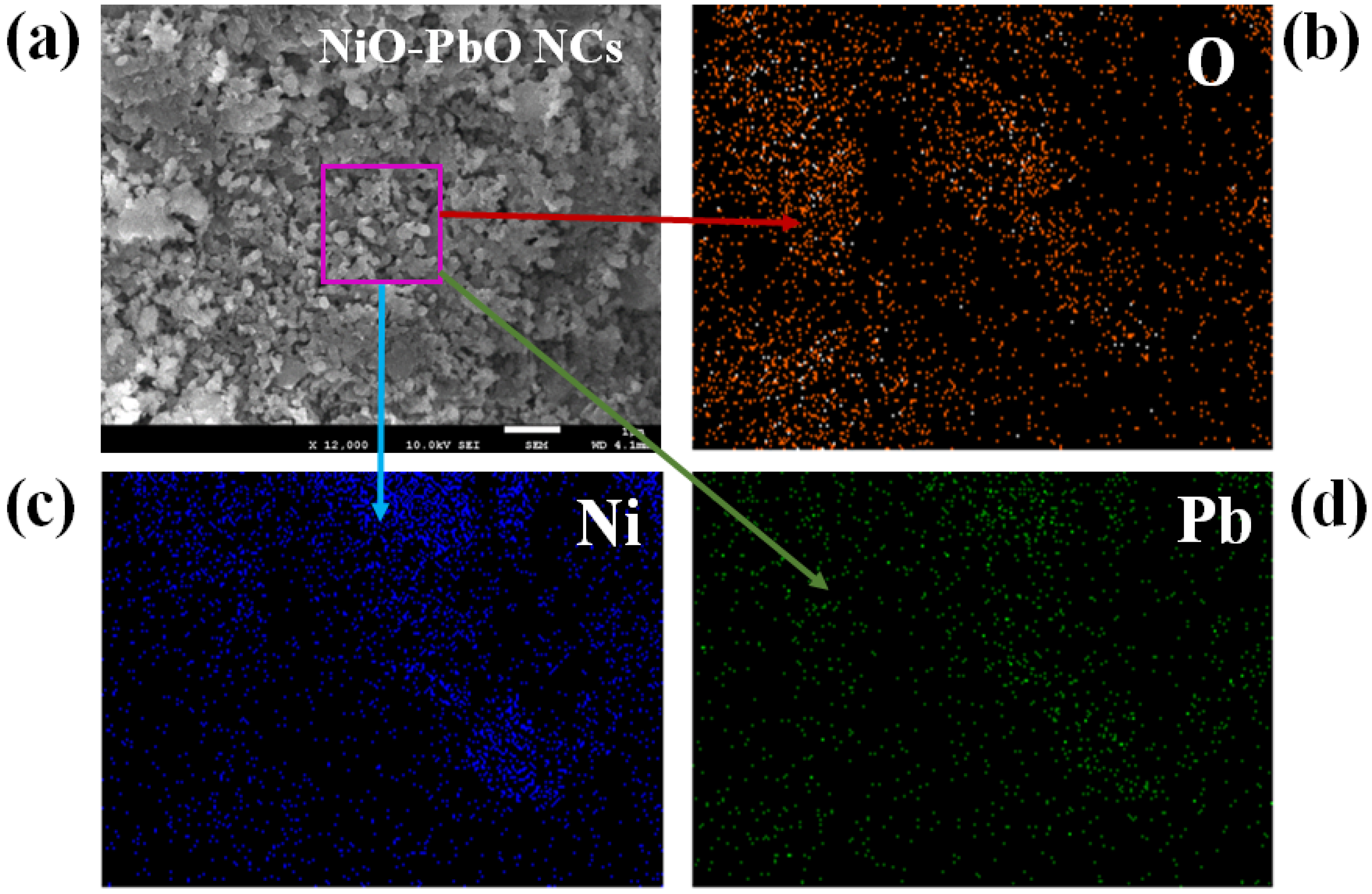

Figure 2. EDS mapping of PbO-doped NiO nanocomposites. (a) SEM image of PbO-doped NiO NCs, (b) Oxygen mapping, (c) Nickel mapping, and (d) Lead mapping.
Figure 2. EDS mapping of PbO-doped NiO nanocomposites. (a) SEM image of PbO-doped NiO NCs, (b) Oxygen mapping, (c) Nickel mapping, and (d) Lead mapping.
Biosensors 12 00381 g002
Biosensors 12 00381 g003 550

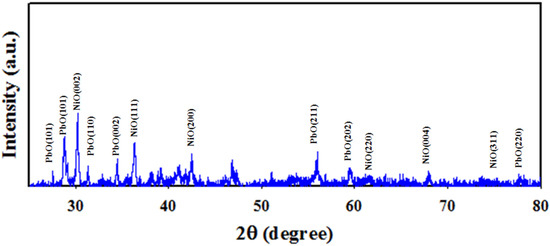

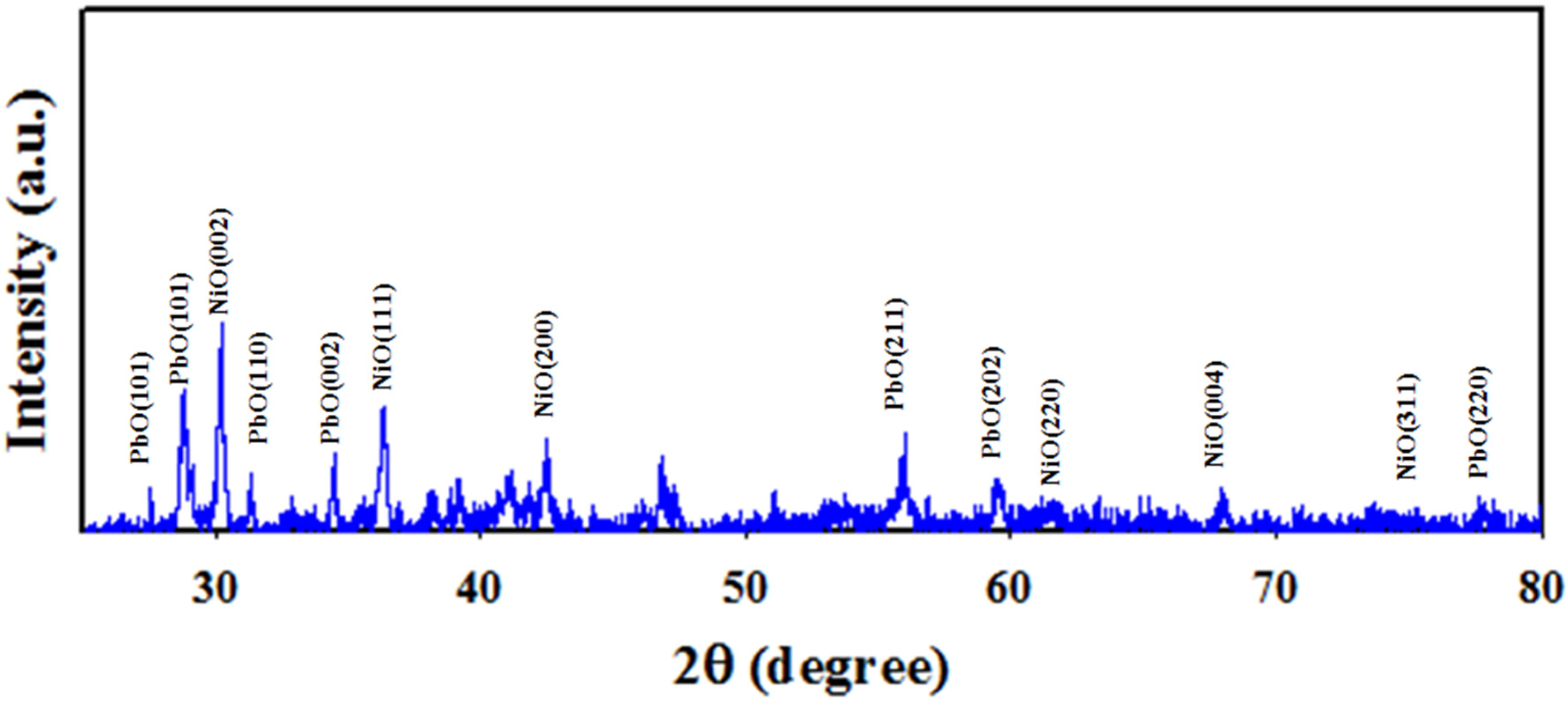

Figure 3. XRD analysis of PbO-doped NiO NCs performed at 2θ = 20–80°.
Figure 3. XRD analysis of PbO-doped NiO NCs performed at 2θ = 20–80°.
Biosensors 12 00381 g003
Biosensors 12 00381 g004 550

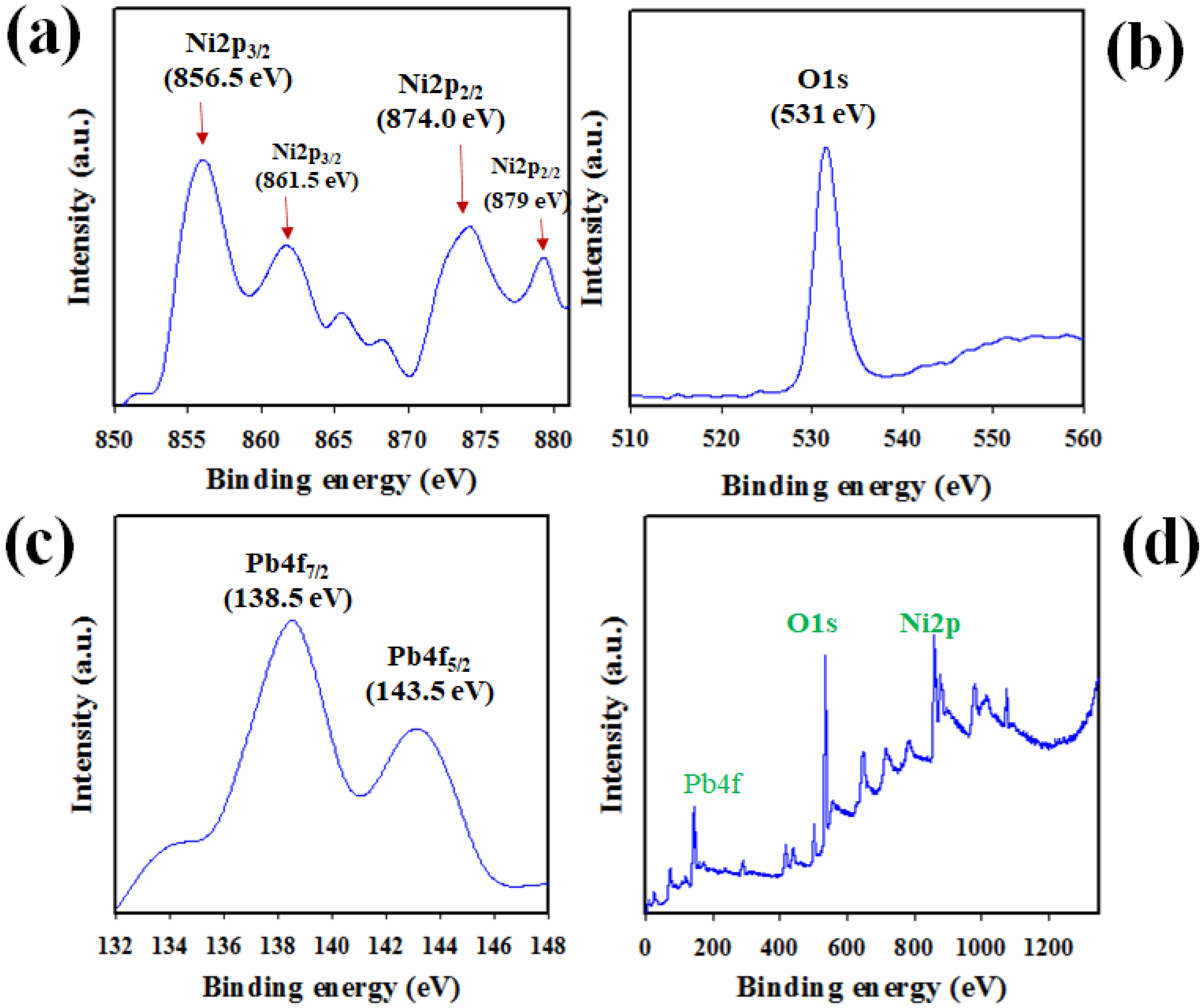

Figure 4. (a) The spin orbitals of Ni2p level, (b) the orbital O1s, (c) the spin orbitals of Pb4f level, and (d) XPS spectrum of PbO-doped NiO NCs.
Figure 4. (a) The spin orbitals of Ni2p level, (b) the orbital O1s, (c) the spin orbitals of Pb4f level, and (d) XPS spectrum of PbO-doped NiO NCs.
Biosensors 12 00381 g004
Biosensors 12 00381 g005 550
Figure 5. TEM analysis of PbO-doped NiO nanocomposite. (a) low-magnified image and (b) high-magnified image.
Figure 5. TEM analysis of PbO-doped NiO nanocomposite. (a) low-magnified image and (b) high-magnified image.
Biosensors 12 00381 g005
Biosensors 12 00381 g006 550

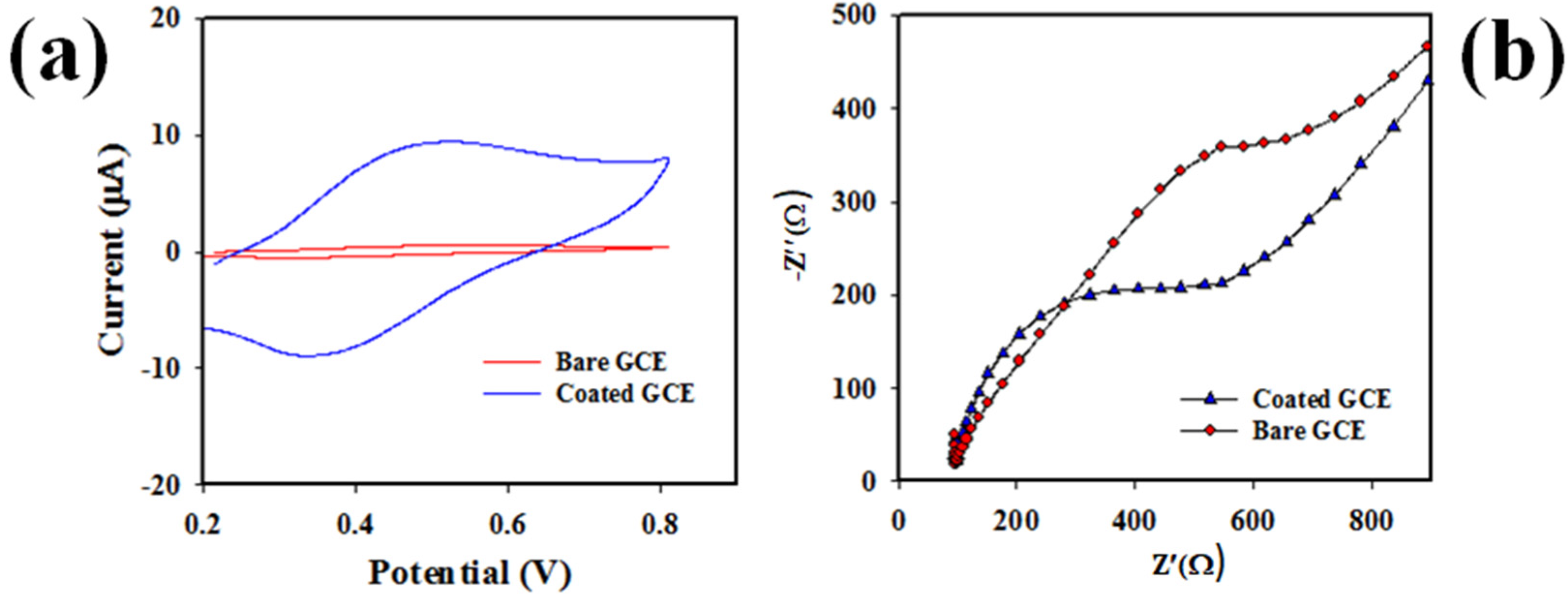

Figure 6. (a) The electrochemical characterization of PbO-doped NiO NCs WE and bare GCE at oxidation and reduction of 0.6 mM UA in pH = 7.0 buffer. (b) the Nyquist plot of UA to measure impedance of coated and bare GCE in 0.6 mM UA, pH = 7.0 buffer.
Figure 6. (a) The electrochemical characterization of PbO-doped NiO NCs WE and bare GCE at oxidation and reduction of 0.6 mM UA in pH = 7.0 buffer. (b) the Nyquist plot of UA to measure impedance of coated and bare GCE in 0.6 mM UA, pH = 7.0 buffer.
Biosensors 12 00381 g006
Biosensors 12 00381 g007 550

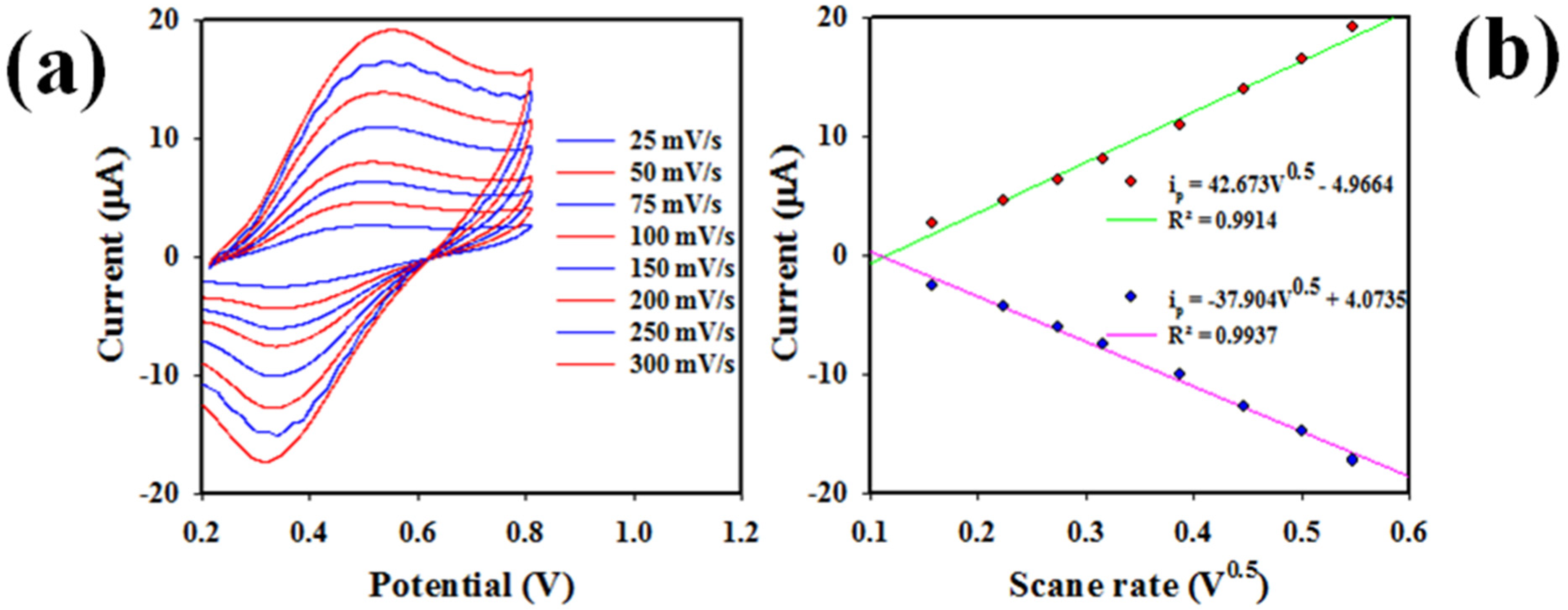

Figure 7. (a) The SR of modified GCE in electrochemically analysis of 0.6 mM UA, in pH = 7.0 buffer solution, (b) the square -root of SR versus oxidation-reduction peak point currents of UA.
Figure 7. (a) The SR of modified GCE in electrochemically analysis of 0.6 mM UA, in pH = 7.0 buffer solution, (b) the square -root of SR versus oxidation-reduction peak point currents of UA.
Biosensors 12 00381 g007
Biosensors 12 00381 g008 550

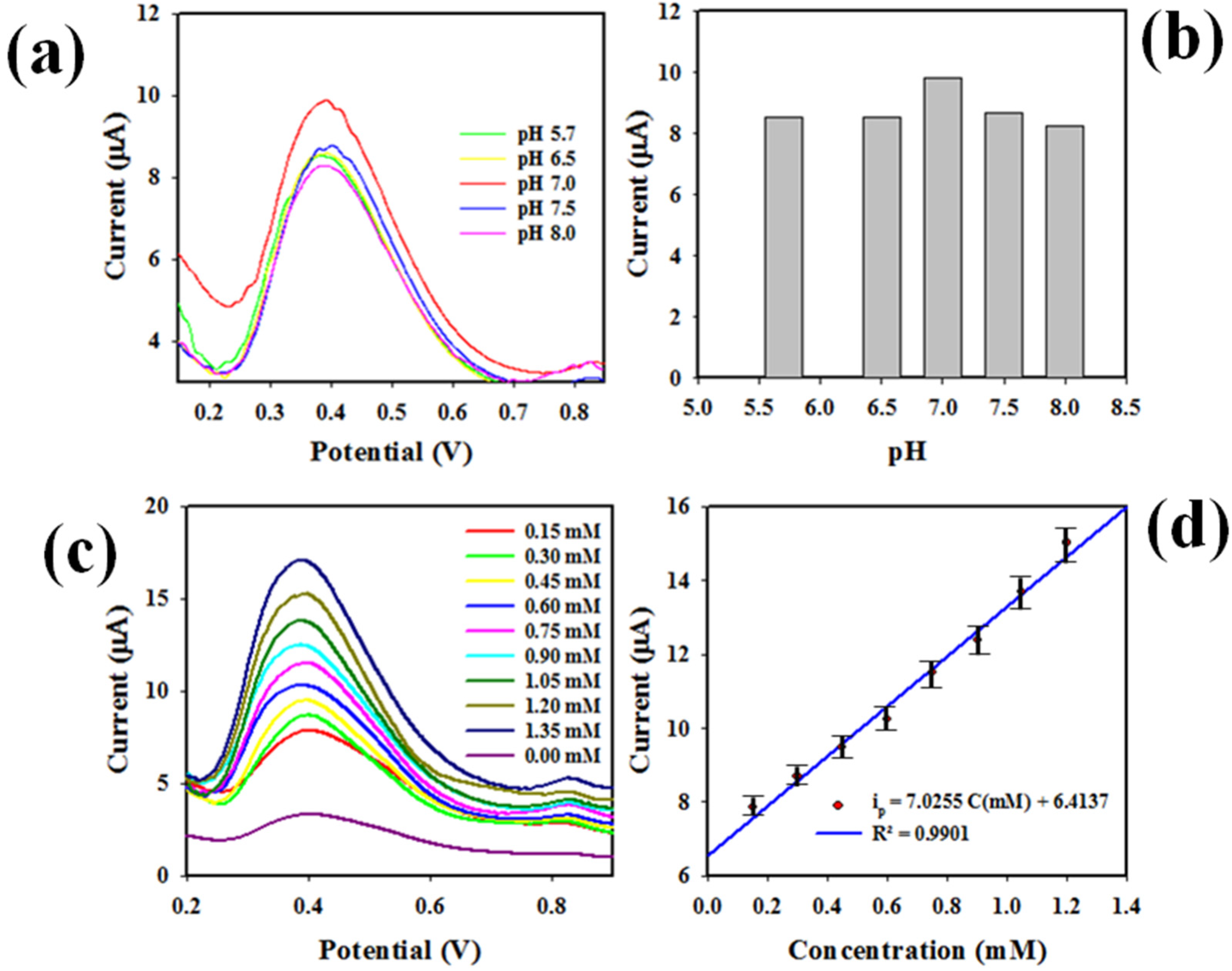

Figure 8. Detection of target chemicals with PbO-doped NiO NCs. (a) pH optimization DPV analysis of UA using PbO-doped NiO NCs/GCE electrode, (b) bar diagram of pH optimization, (c) DPV of UA based on modified GCE in buffer solution of pH 7.0, (d) calibration of UA sensor executed from peak current versus concentration of UA using the data from Figure 6c.
Figure 8. Detection of target chemicals with PbO-doped NiO NCs. (a) pH optimization DPV analysis of UA using PbO-doped NiO NCs/GCE electrode, (b) bar diagram of pH optimization, (c) DPV of UA based on modified GCE in buffer solution of pH 7.0, (d) calibration of UA sensor executed from peak current versus concentration of UA using the data from Figure 6c.
Biosensors 12 00381 g008
Biosensors 12 00381 g009 550

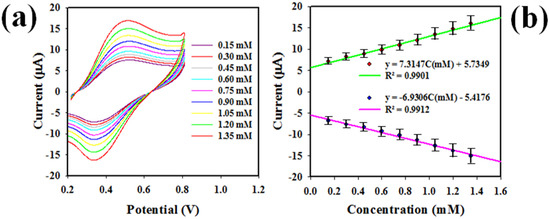

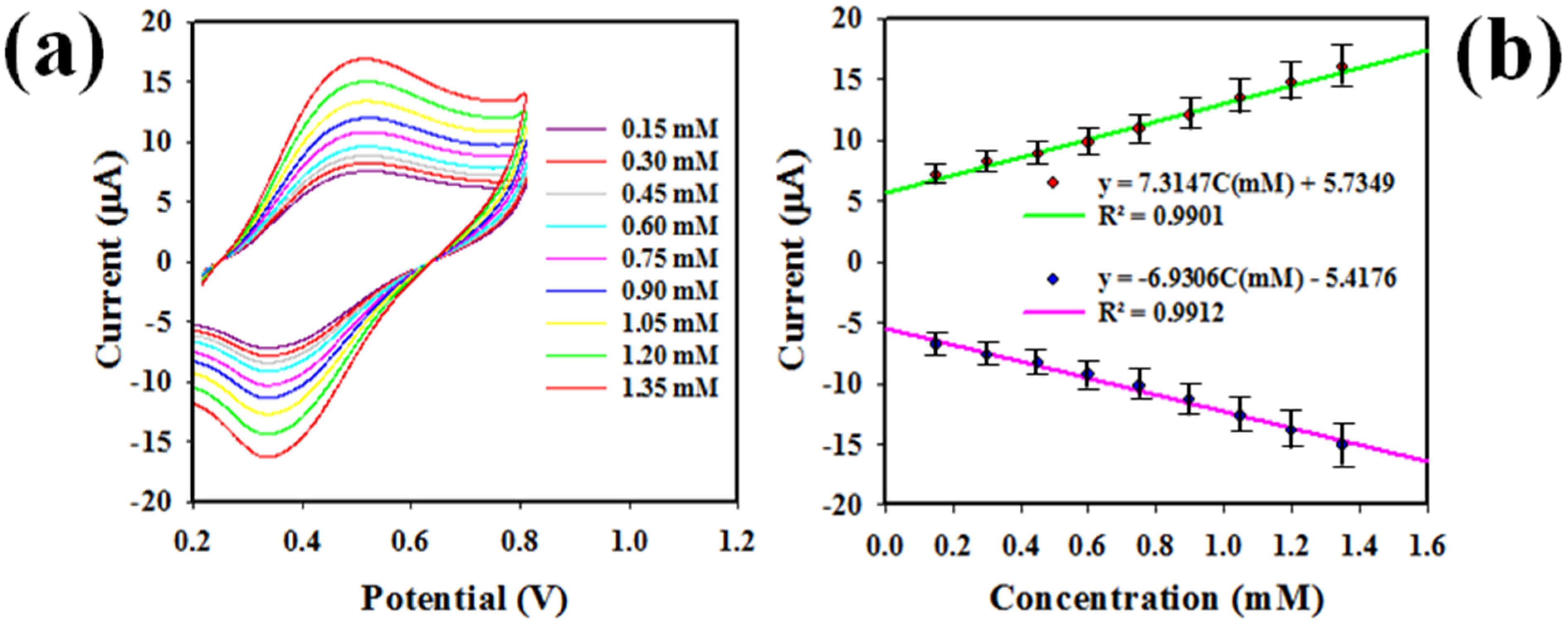

Figure 9. (a) Cyclic voltammetric analysis of UA at a range of concentrations (0.15–1.35 mM) in 7.0 pH buffer solution in presence of 0.6 mM K3Fe (CN)6 (0.1M PBS), and (b) calibration of UA sensor based on the analysis of CV, where peak oxidation and reduction currents are collected from Figure 7a.
Figure 9. (a) Cyclic voltammetric analysis of UA at a range of concentrations (0.15–1.35 mM) in 7.0 pH buffer solution in presence of 0.6 mM K3Fe (CN)6 (0.1M PBS), and (b) calibration of UA sensor based on the analysis of CV, where peak oxidation and reduction currents are collected from Figure 7a.
Biosensors 12 00381 g009
Biosensors 12 00381 g010 550

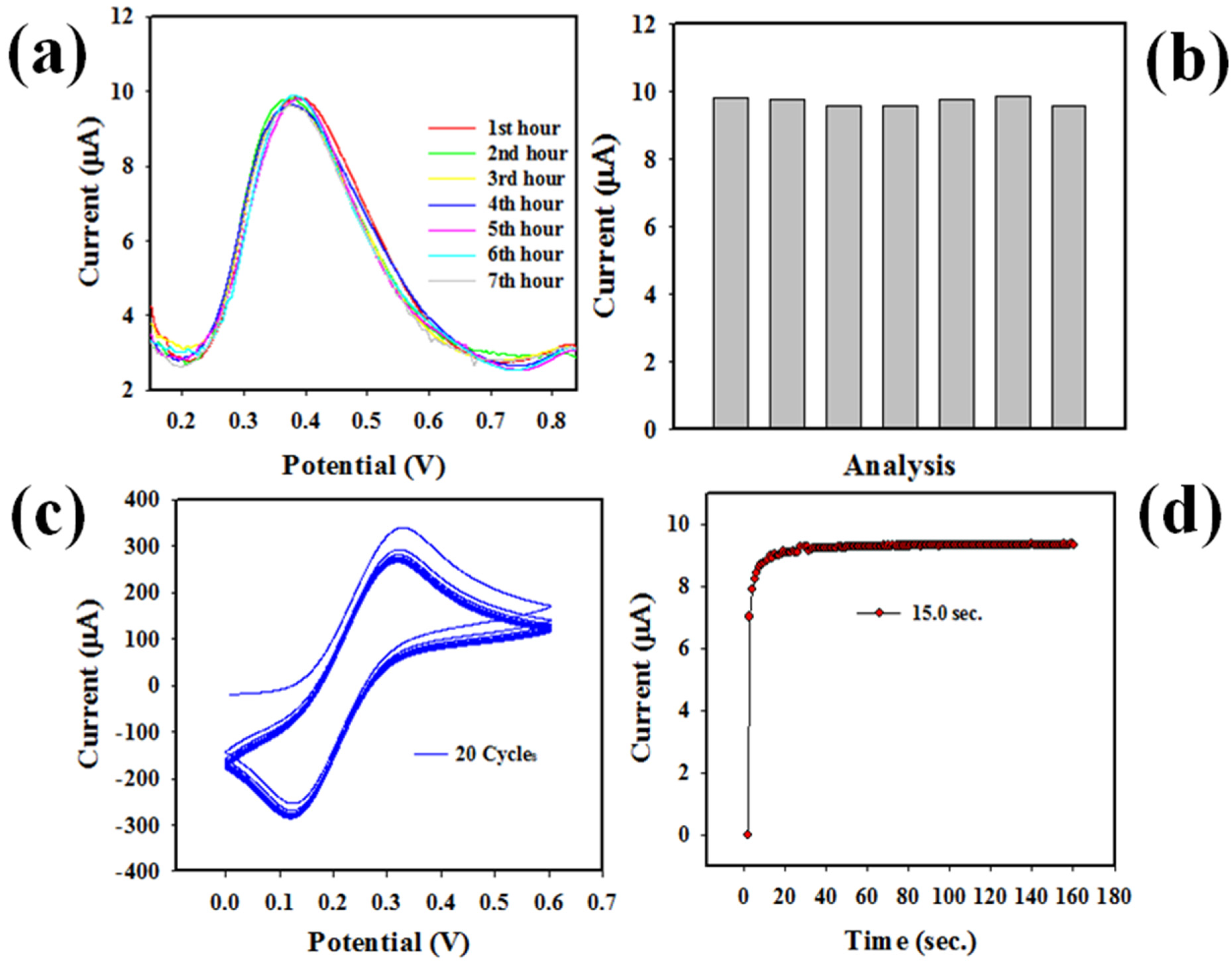

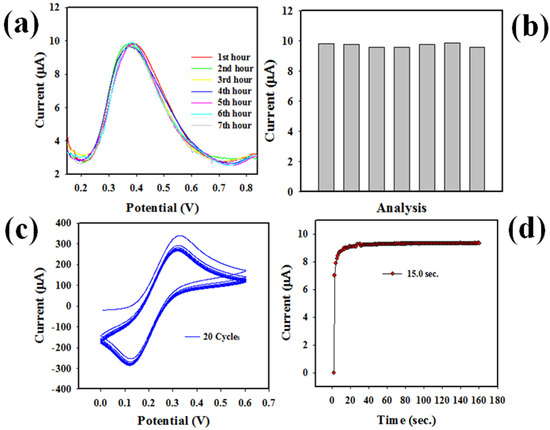

Figure 10. Optimization of sensor. (a) UA sensor reproducibility test, (b) reproducibility bar diagram of UA sensor, (c) performing stability test, and (d) response time of UA sensor.
Figure 10. Optimization of sensor. (a) UA sensor reproducibility test, (b) reproducibility bar diagram of UA sensor, (c) performing stability test, and (d) response time of UA sensor.
Biosensors 12 00381 g010
Biosensors 12 00381 g011 550

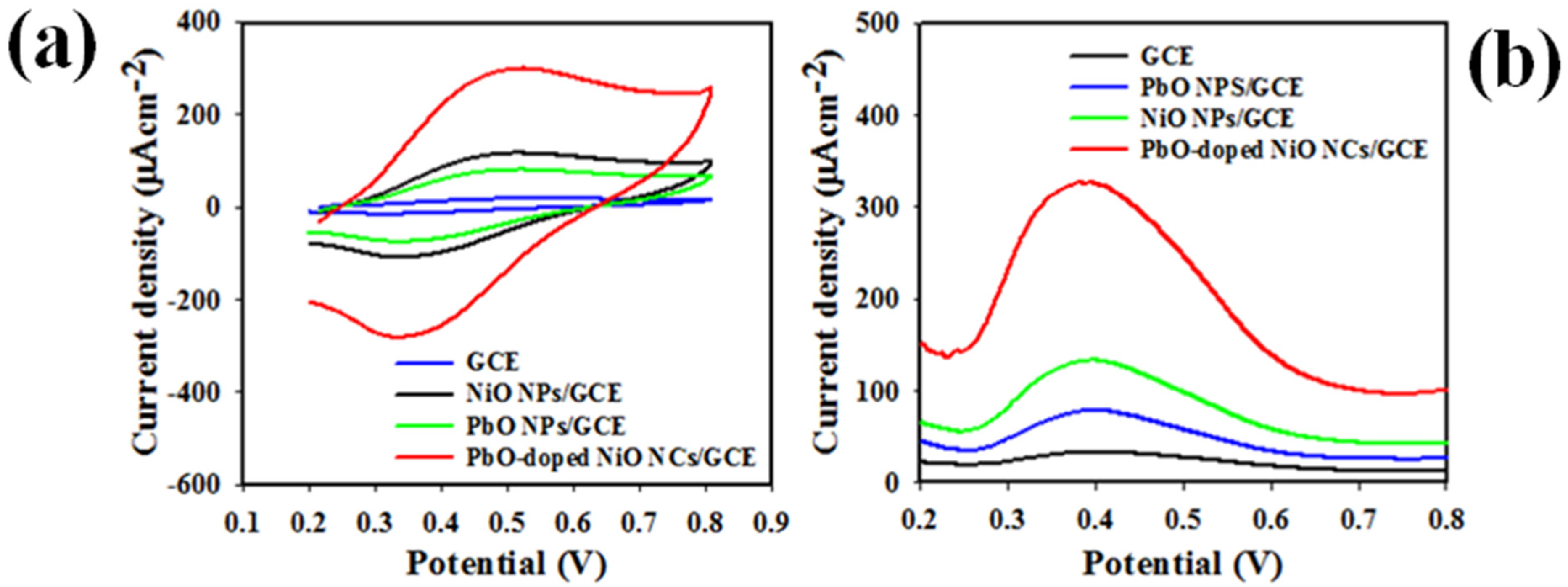

Figure 11. The control experiments for UA applying CV and DPV. (a) Current density versus applied potential of UA responses at 0.6 mM concentration for constituting single metal oxides compared with binary NCs of PbO-doped NiO applying CV and (b) similar experiments for UA applying DPV.
Figure 11. The control experiments for UA applying CV and DPV. (a) Current density versus applied potential of UA responses at 0.6 mM concentration for constituting single metal oxides compared with binary NCs of PbO-doped NiO applying CV and (b) similar experiments for UA applying DPV.
Biosensors 12 00381 g011
Biosensors 12 00381 g012 550

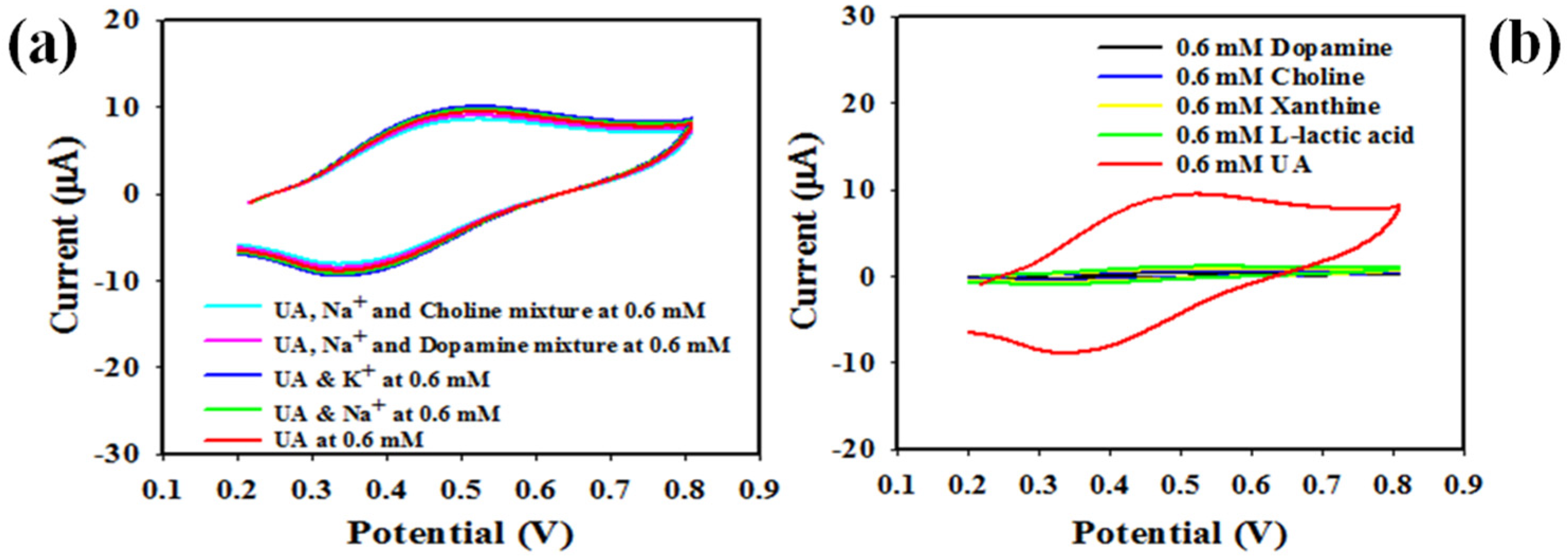

Figure 12. (a) Interference effect of UA sensor tested at 0.6 mM concentration of each component in a buffer medium of pH 7.0. (b) Selectivity study of UA sensor probe in identical condition in presence of various chemicals.
Figure 12. (a) Interference effect of UA sensor tested at 0.6 mM concentration of each component in a buffer medium of pH 7.0. (b) Selectivity study of UA sensor probe in identical condition in presence of various chemicals.
Biosensors 12 00381 g012
Biosensors 12 00381 sch001 550
Scheme 1. Schematic presentation of UA electrochemical sensor applying voltammetric electrochemical approach. (a) GCE modification with PbO-doped NiO NCs, (b) Instrumental arrangement of sensor Auto-lab, and (c) the resulting data from the analysis.
Scheme 1. Schematic presentation of UA electrochemical sensor applying voltammetric electrochemical approach. (a) GCE modification with PbO-doped NiO NCs, (b) Instrumental arrangement of sensor Auto-lab, and (c) the resulting data from the analysis.
Biosensors 12 00381 sch001
Table
Table 1. Comparison of UA sensors based on various nanomaterial/nanocomposite materials by electrochemical approach. This study is bold.
Table 1. Comparison of UA sensors based on various nanomaterial/nanocomposite materials by electrochemical approach. This study is bold.
Electrode
Materials		Sensor TypeDetection Method* DOL# LDRSensitivityRefs.
-Non-EnzymaticHPLC-Amperometry5.1 µM0.06~6 µM-[12]
-Non-Enzymaticfluorometric2.86 μM0.01~1 mM-[13]
-Enzymaticfluorometric-0.03~0.6 mM-[14]
Nafion/CPENon-EnzymaticVoltammetric0.25 μM0~50 μM-[26]
PGENon-EnzymaticVoltammetric1.4 µM-7.7 µAµM−1cm−2[27]
EDOT/AuENon-EnzymaticDPV1.5 μM2.0~600 μM4.05 AM−1cm−2[30]
PZ–Silica matrixNon-EnzymaticVoltammetric3.7 μM22~350 μM-[31]
PSR/CPENon-Enzymaticcyclic voltammetric0.176 µM0.3~3.1 µM-[48]
erGO/ITONon-EnzymaticDPV0.3 μM0.3~100 μM-[49]
N-doped GO/GCENon-EnzymaticDPV0.045 nM0.1nM~0.02 µM-[50]
Uricase/ZnO/GCEEnzymaticDPV2.0 µM5.0 µM~0.1 mM-[51]
ZnNi@f-MWCNT/GCENon-EnzymaticDPV-0.2–1.1 mM-[52]
N-rGO/GCENon-EnzymaticDPV0.2 µM1~30 µM-[53]
Au/RGO/GCENon-EnzymaticDPV1.8 µM8.8~53.0 µM-[54]
PbO/NiO NCs/GCENon-EnzymaticDPV43.0 µM0.15~1.35 mM0.22 µAµM−1cm−2This
Non-EnzymaticCV41.0 µM0.15~1.35 mM0.23 µAµM−1cm−2study
* DL (detection limit), # LDR (linear dynamic range), µM (micromole), mM (millimole).
Table
Table 2. Analyses of real samples with PbO-doped NiO NCs/GCE probe sensor.
Table 2. Analyses of real samples with PbO-doped NiO NCs/GCE probe sensor.
MethodsReal
Samples		Added UA
Conc. (mM)		Measured UA Conc. a by PbO-NiO NCs/GCE (mM)Average Recovery b (%)RSD c (%)
(n = 3)
R1R2R3
DPVBlood serum0.50000.49560.49160.490998.542.07
Urine0.50000.49370.49070.498798.812.15
CVBlood serum0.50000.50160.49730.5108100.641.52
Urine0.50000.48920.49080.493498.231.73
a Mean of three repeated determination (signal to noise ratio 3) with PbO-NiO NCs/GCE. b Concentration of UA determined/concentration taken (Unit: µM). c Relative standard deviation value indicates precision among three repeated measurements (R1, R2, & R3).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Alam, M.M.; Asiri, A.M.; Rahman, M.M. An Efficient Enzyme-Less Uric Acid Sensor Development Based on PbO-Doped NiO Nanocomposites. Biosensors 2022, 12, 381. https://doi.org/10.3390/bios12060381

AMA Style

Alam MM, Asiri AM, Rahman MM. An Efficient Enzyme-Less Uric Acid Sensor Development Based on PbO-Doped NiO Nanocomposites. Biosensors. 2022; 12(6):381. https://doi.org/10.3390/bios12060381

Chicago/Turabian Style

Alam, Md Mahmud, Abdullah M. Asiri, and Mohammed M. Rahman. 2022. "An Efficient Enzyme-Less Uric Acid Sensor Development Based on PbO-Doped NiO Nanocomposites" Biosensors 12, no. 6: 381. https://doi.org/10.3390/bios12060381

APA Style

Alam, M. M., Asiri, A. M., & Rahman, M. M. (2022). An Efficient Enzyme-Less Uric Acid Sensor Development Based on PbO-Doped NiO Nanocomposites. Biosensors, 12(6), 381. https://doi.org/10.3390/bios12060381

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
