Gold Plate Electrodes Functionalized by Multiwall Carbon Nanotube Film for Potentiometric Thallium(I) Detection

Chemistry Department, Faculty of Science, Ain Shams University, Abbasia 11566, Cairo, Egypt
Electro Chemical Treatment Dept., Central Metallurgical Research and Development Institute (CMRDI), P.O. Box 87, Helwan 11421, Cairo, Egypt
Pharmaceutical Chemistry Department, Drug Exploration & Development Chair (DEDC), College of Pharmacy, King Saud University, Riyadh 11451, Saudi Arabia
Applied Organic Chemistry Department, National Research Center, Dokki 12622, Giza, Egypt
Authors to whom correspondence should be addressed.
Nanomaterials 2019, 9(8), 1160;
Received: 22 June 2019 / Revised: 20 July 2019 / Accepted: 1 August 2019 / Published: 14 August 2019
PDF [2318 KB, uploaded 14 August 2019]

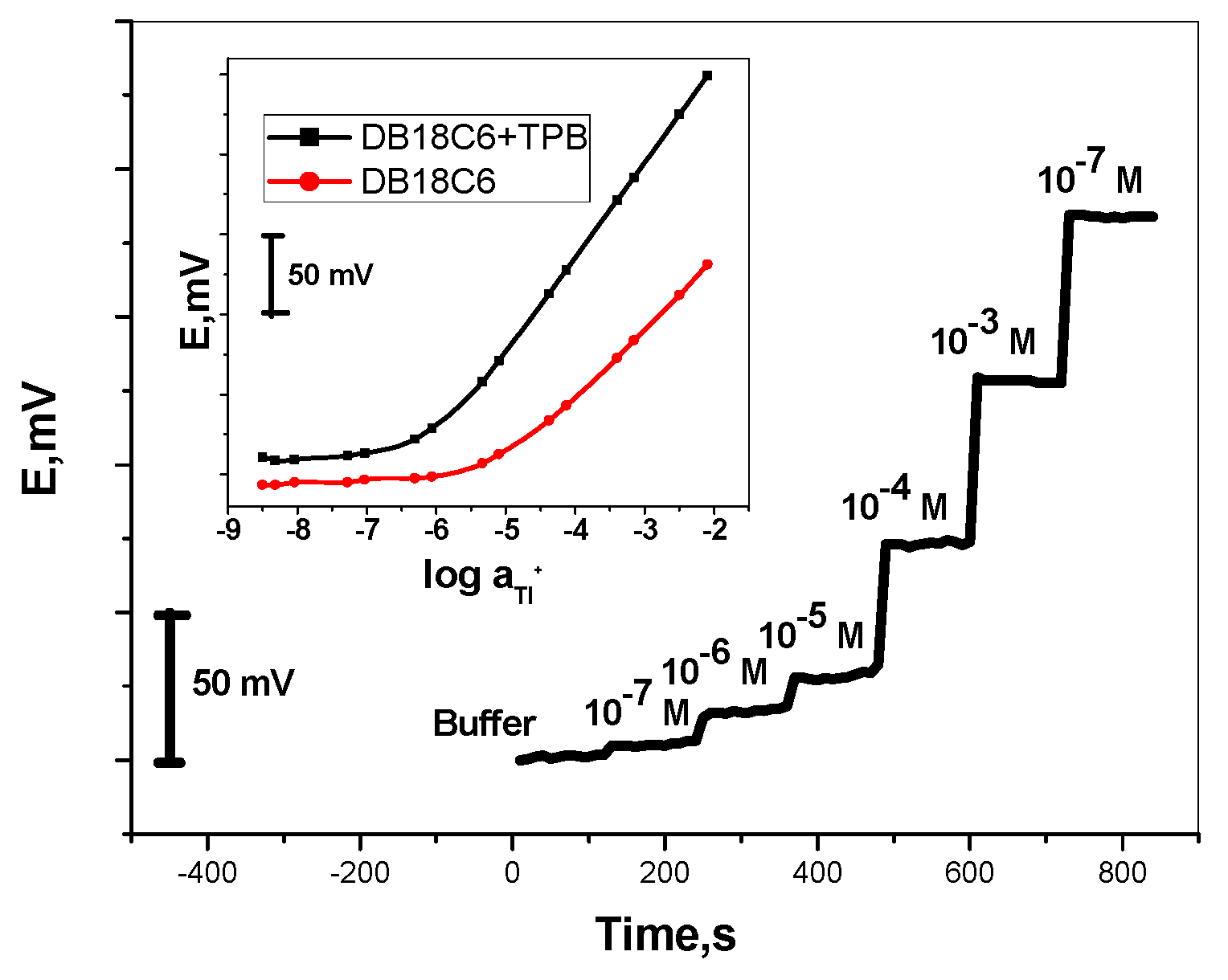

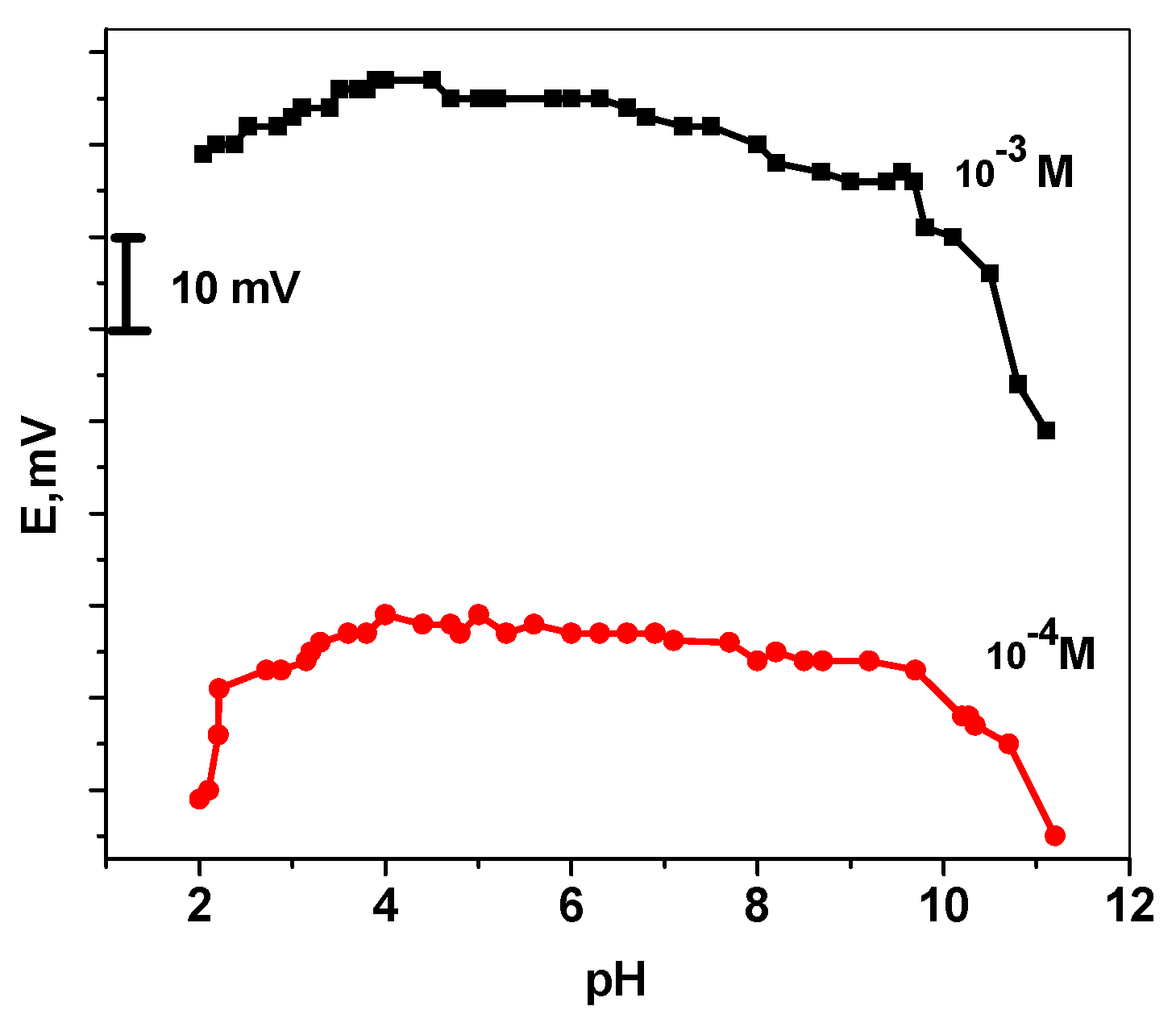

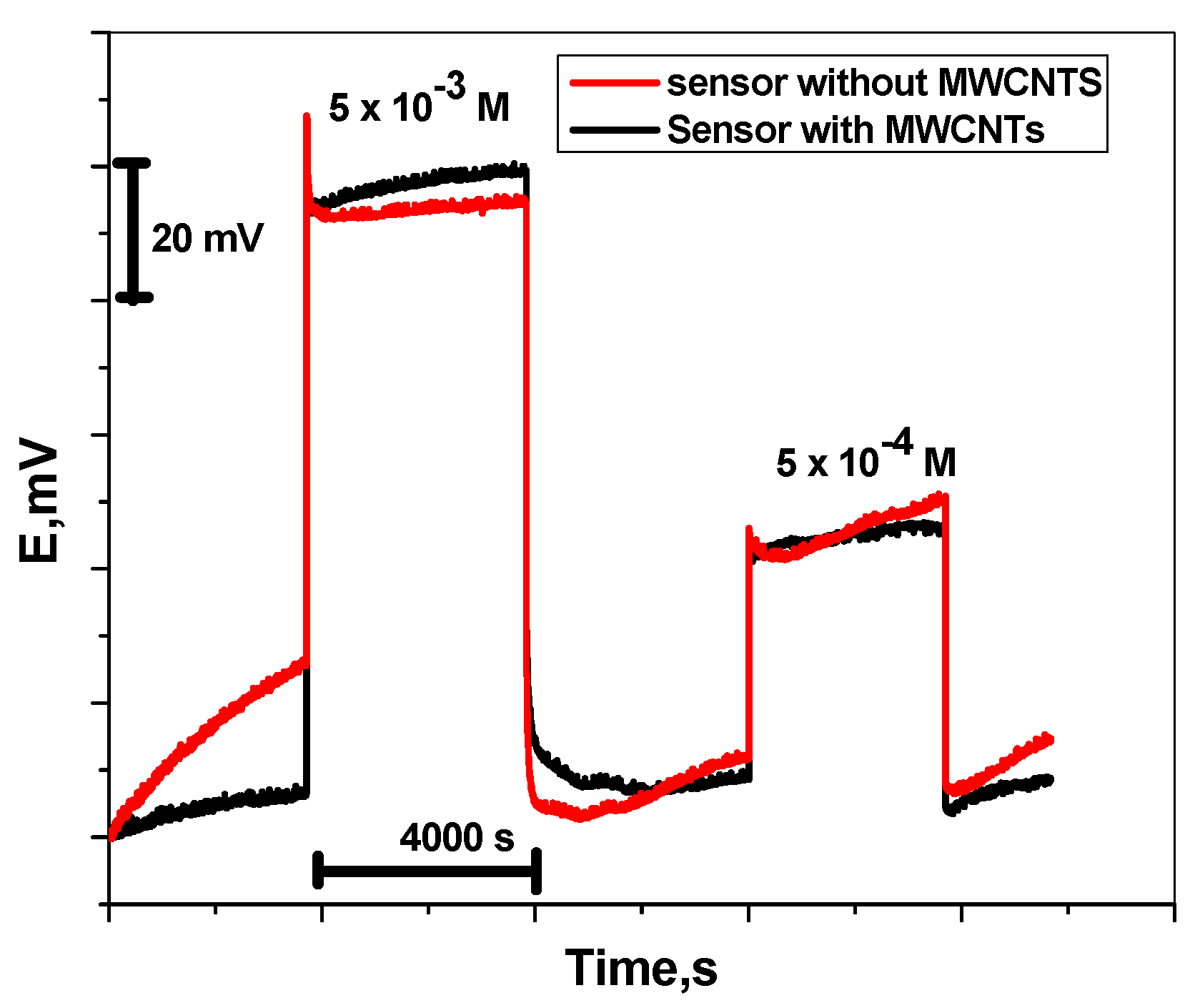

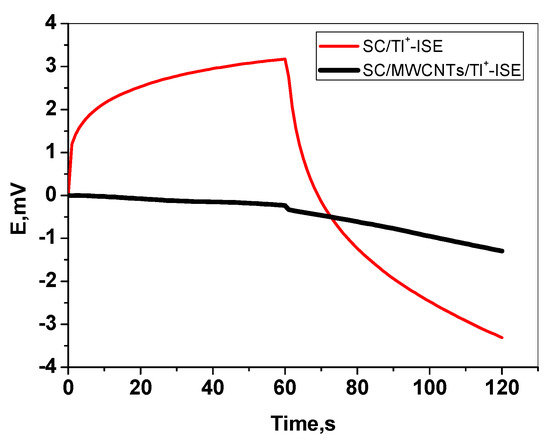

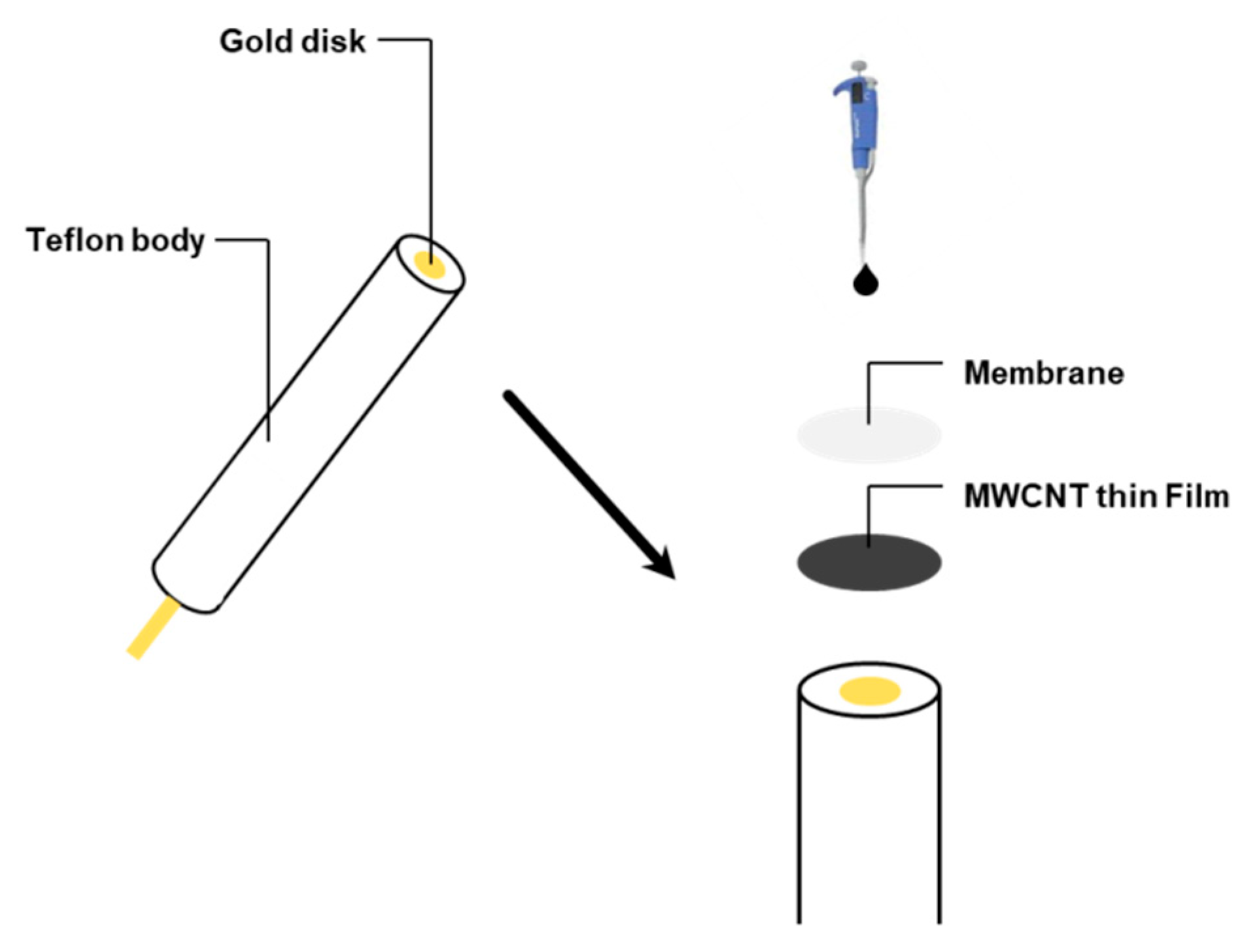

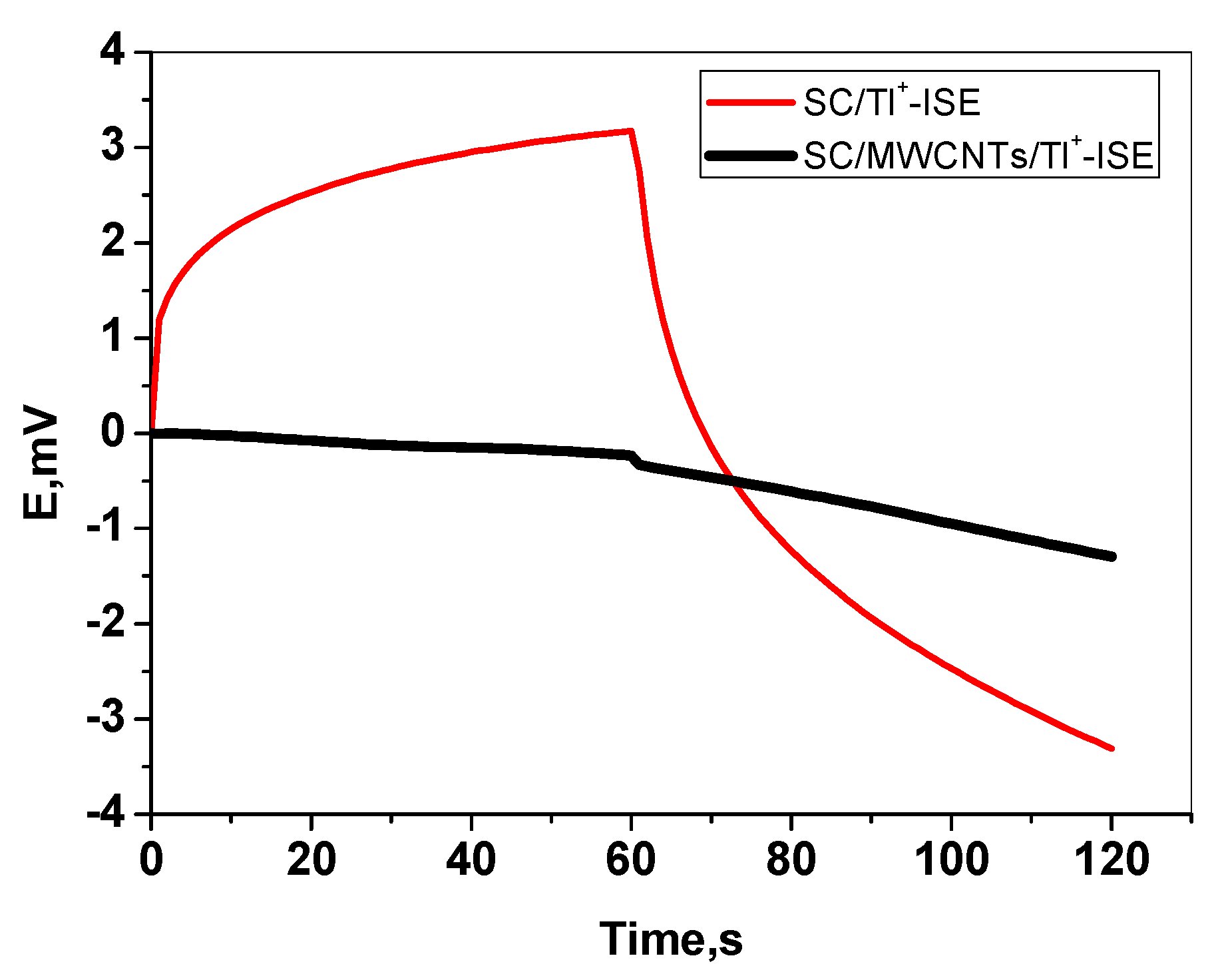

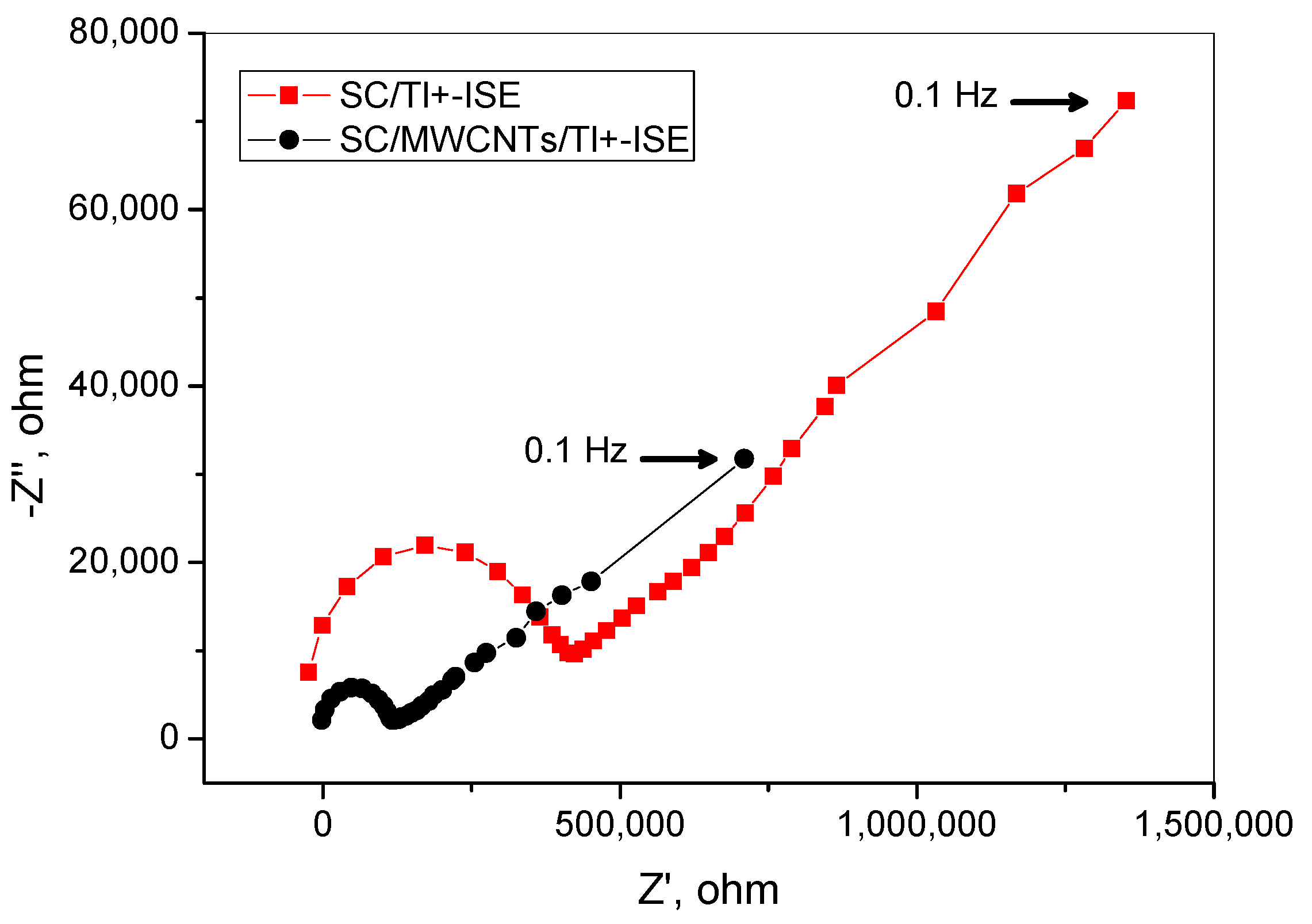

Solid-contact potentiometric ion-selective electrodes (SC-ISEs) for thallium determination have been designed using multiwall carbon nanotubes (MWCNTs) as the ion-to-electron transducer. Dispersed MWCNTs were drop-casted over a gold plate electrode. Two different crown ethers were used in the sensing membrane for the recognition of thallium (I). Sensorsbased on dibenzo-18-crown-6 (DB18C6) as a neutral carrier and NaTPB as an anionic additive exhibited a near Nernstian response of 57.3 mV/decade towards Tl+ ions over the activity range 4.5 × 10−6–7.0 × 10−4 M, with a limit of detection of 3.2 × 10−7 M. The time required to achieve 95% of the steadyequilibrium potential was <10 s. The complex formation constant (log βML) between dibenzo-18-crown-6 and thallium (I) (i.e., 5.99) was measured using the sandwich membrane technique. The potential response was pH independent over the range 3.0–9.5. The introduction of MWCNTs as an electron-ion-transducer layer between gold plate and the sensing membrane lead to a smaller membrane resistance and a large double layer capacitance, which was proven using impedance spectra and chronopotentiometry (i.e., 114.9 ± 12 kΩ, 52.1 ± 3.3 pF, 200 ± 13.2 kΩ, and 50 ± 4.2 µF). Additionally, reduction ofthe water layer between the sensing membrane and the underlying conductor wastested. Thus, it is clear that MWCNTs can be used as a transducing layer in SC-ISEs. The proposed sensor was introduced as an indicator electrode for potentiometric titration of single and ternary mixtures of I, Br, and S2− anions. View Full-Text
Keywords: solidcontact ISEs; thallium; ion-to-electron transducer; multiwall carbon nanotubes (MWCNTs) solidcontact ISEs; thallium; ion-to-electron transducer; multiwall carbon nanotubes (MWCNTs)

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Hassan, S.S.M.; Abdelbasir, S.M.; Fathy, M.A.; Amr, A. .-G.; Al-Omar, M.A.; Kamel, A.H. Gold Plate Electrodes Functionalized by Multiwall Carbon Nanotube Film for Potentiometric Thallium(I) Detection. Nanomaterials 2019, 9, 1160.
