Nanomaterials 2019, 9(7), 974; https://doi.org/10.3390/nano9070974

Review
Recent Progress in Metal–Organic Framework (MOF) Based Luminescent Chemodosimeters
1
Henan Key Laboratory of Biomolecular Recognition and Sensing, College of Chemistry and Chemical Engineering, Shangqiu Normal University, Shangqiu 476000, China
2
Key Laboratory of Theoretical Organic Chemistry and Function Molecule of Ministry of Education, School of Chemistry and Chemical Engineering, Hunan University of Science and Technology, Xiangtan 411201, China
3
College of Chemistry and Molecular Engineering, Zhengzhou University, Zhengzhou 450001, China
*
Authors to whom correspondence should be addressed.
Received: 16 May 2019 / Accepted: 17 June 2019 / Published: 3 July 2019

Abstract

:
Metal–organic frameworks (MOFs), as a class of crystalline hybrid architectures, consist of metal ions and organic ligands and have displayed great potential in luminescent sensing applications due to their tunable structures and unique photophysical properties. Until now, many studies have been reported on the development of MOF-based luminescent sensors, which can be classified into two major categories: MOF chemosensors based on reversible host–guest interactions and MOF chemodosimeters based on the irreversible reactions between targets with a probe. In this review, we summarize the recently developed luminescent MOF-based chemodosimeters for various analytes, including H2S, HClO, biothiols, fluoride ions, redox-active biomolecules, Hg2+, and CN. In addition, some remaining challenges and future perspectives in this area are also discussed.
Keywords:
metal–organic frameworks; luminescent sensor; chemodosimeter; review

1. Introduction

Metal–organic frameworks (MOFs), constructed by metal ions (or clusters) with organic ligands, are a subclass of coordination polymers with highly crystalline structures [1,2]. In the past two decades, enormous progress has been made in the synthesis and application of MOFs [3,4,5]. Because of their remarkable structural features, such as high porosity and large surface area, as well as their exceptional physicochemical properties, MOFs possess versatile applications in gas storage and separation [6,7,8,9,10,11], heterogeneous catalysis [12,13,14,15], drug delivery and chemotherapy [16,17], and sensing [18,19]. As new types of promising functional materials, luminescent MOFs especially have great potential as alternative phosphors in lighting devices and luminescent sensors [20,21,22,23].
Due to the versatile building blocks of MOFs (inorganic ions and organic ligand molecules), as well as their structural diversity, the photoluminescence of MOFs can arise from a variety of possibilities [20]: (i) luminescence from organic linkers, which are normally extended π-conjugation systems with rigid structures, such as pyrene, anthracene, and their derivatives; (ii) metal-based emissions, e.g., MOFs with metal centers of lanthanoid; (iii) a metal–to–ligand charge transfer (MLCT), e.g., d10 Cu(I)- and Ag(I)-based MOFs; (iv) a ligand–to–metal charge transfer (LMCT), e.g., Zn(II)/Cd(II) and carboxylate ligand based MOFs; (v) antennae effects; and (vi) sensitization, e.g., MOFs with absorbing ligands and emitting lanthanoid ions (Figure 1). In the past, the competent luminescence features of MOFs have been extensively studied and exploited in fluorescence imaging and sensing applications [24]. These developed MOF-based luminescent probes can be classified into two types according to the recognition mechanism between the probe with the target analyte: (1) an MOF-based chemosensor, in which the analyte coordinates or interacts with the probe in a reversible manner, such as via physical/electrostatic interaction; (2) an MOF-based chemodosimeter, in which the target analyte can irreversibly react with a probe to yield a product that is chemically different from the starting probe via target-induced oxidation, hydrolysis, and nucleophilic processes.
MOF-based luminescent chemosensors have shown great potential in the detection of various analytes, including volatile organic compounds [25,26,27], ions (especially for metal cations) [28,29,30,31], gases [32,33,34,35], as well as for monitoring pH [36,37,38,39,40,41,42], humidity [43,44,45], and temperature [46,47,48]. Compared to the relatively well-developed fluorescent MOFs chemosensors, MOF-based chemodosimeters are expected to be more efficient in terms of selectivity, as they exploit the specific reactivities of certain target analytes [24]. Moreover, numerous MOF-based luminescent chemodosimeters can be afforded by introducing various recognition moieties for different analytes into building blocks. In the past several years, considerable effort has been expended in this field, and research interest is still growing. In spite of this interest, to date, the studies concerning MOF-based chemodosimeters have not yet been comprehensively addressed. To fill this gap, in the present review, we will make an effort to summarize recent progress in the development of MOF-based chemodosimeters. Moreover, the promising prospects and remaining challenges for future research in the field will also be discussed.

2. MOF-Based Luminescent Chemodosimeters for Sulfur Compounds

2.1. MOF-Based Chemodosimeters for H2S

Hydrogen sulfide (H2S), the smallest sulfhydryl compound, exists as a typical rotten egg smelling gas in the air or as a hydrosulfide ion while being dissolved in an aqueous solution under neutral pH conditions. Traditionally, H2S was simply considered to be an environmentally toxic species. In recent years, H2S has been discovered to be an essential biological molecule that can function as a cytoprotectant and gasotransmitter in organisms [49,50]. Moreover, the metabolism of H2S is closely related to various physiological and pathological events in the human body [51,52]. In this context, the development of new methods for sensing H2S and studying its biological roles has attracted tremendous attention [53,54,55]. Fluorescence technology is particularly promising for such purposes, as it enables monitoring of the target with superior temporal and spatial resolution [56,57,58,59], especially for in vivo applications. By exploiting its unique characteristics, such as strong nucleophilicity and ability to reduce potency, various small-molecule fluorescent probes have been developed for detecting and imaging H2S. These probes can be mainly categorized into three types according to their sensing strategy: (i) sensors based on the H2S-mediated reduction of an azide/nitro group to the amine [60,61,62,63]; (ii) sensors based on the H2S-participated nucleophilic reaction [64,65,66,67]; and (iii) sensors based on the binding reaction between sulfide and Cu2+ [68,69]. By exploiting the similar sensing strategies and carefully employing post-synthetic modification approaches, a number of MOF-based fluorescent H2S probes (Table 1) were successfully constructed in the last few years [70].

2.1.1. Based on the H2S-Mediated Reduction of Azide/Nitro Group to Amine

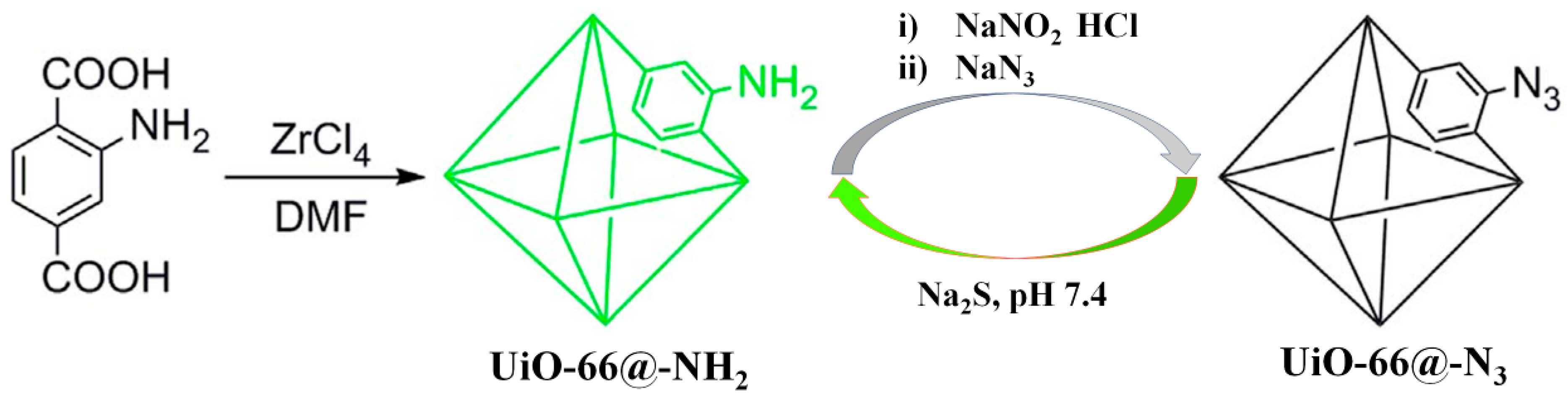

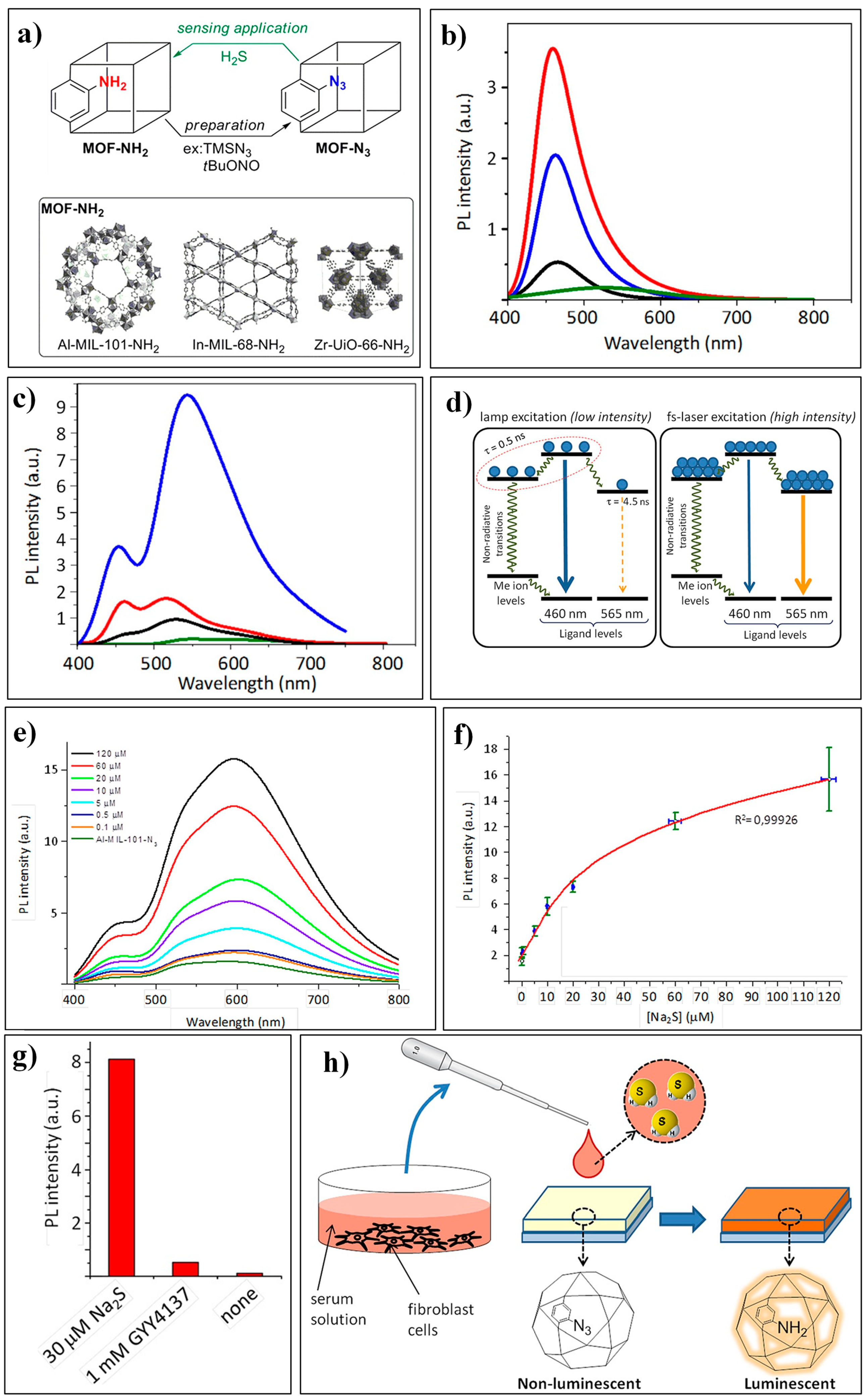

Ghosh et al. first reported a Zr-based MOF, Zr6O4(OH)4(BDC-N3)6 ([email protected]3), bearing an azide group for sensing H2S [71]. The MOF-based chemodosimeter [email protected]3 was prepared via post modification of the amine functionalized [email protected]2 using an azidation agent. [email protected]3 is highly stable in an aqueous solution and fluoresces very weakly due to the presence of an electron-deficient azide group (Figure 2). Treating [email protected]3 with Na2S in an HEPES (4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid) aqueous buffer (10 mM, pH 7.4) creates a strong emission (16-fold enhancement), which can be ascribed to the target-mediated reduction of azide to amine, which produces the luminescent [email protected]2. This conversion process is characterized by FTIR (Fourier Transform infrared spectroscopy) and NMR (Nuclear Magnetic Resonance Spectroscopy) studies. [email protected]3 can respond rapidly to H2S (less than 180 s) with high selectivity over other interferences, including most abundant biothiols (Cys and GSH). Moreover, [email protected]3 also displays low cell viability and has been applied to live cell imaging studies. The same research group subsequently prepared a nitro-functionalized Zr-MOF ([email protected]2) for the fluorescence turn-on detection of H2S, in which [email protected]2 can be facilely obtained in a single synthetic step by using 2-nitroterephthalic acid as the ligand [72]. Incorporation of the azide/nitro group onto other MOFs scaffolds has afforded a variety of luminescent H2S chemodosimeters. Qian et al. reported an azide-appended Zn-MOF for the fluorescent turn-on detection of H2S [73]. In a HEPES ethanol buffer, the probe displayed excellent selectivity and a rapid response time for H2S. By directly reacting the cerium(IV) nitrate with an azide/nitro-substituted 1,4-benzenedicarboxylate (BDC), Biswas et al. synthesized two Ce-MOFs ([email protected]3, [email protected]2) for sensing H2S [74]. Since then, the Biswas group has developed a number of reaction-based luminescent H2S sensors, including Al(OH)(IPA-N3) [75], Zr6O4(OH)4((NDC-(NO2)2)6 [76], Al(OH)(BDC-N3) [77], and Zr6O4(OH)4(BDC-(NO2)2)6 [78]. Further, Al(OH)(BDC-N3) was also employed as a turn-off fluorimetric sensor for detecting Fe(III) in an aqueous solution [77].
Canivet et al. reported an Al-MOF, Al3(O)(OH)(BDC-N3)3 (Al-MIL-101-N3, Figure 3a) based sensing system for H2S [79]. It is worth noting that the use of a femtosecond (fs)-pulse laser excitation can significantly improve the emission features as well as the analytical performances of this MOF-based luminescent assay. All these investigated BDC-based MOFs (Al-MIL-101-NH2, In-MIL-68-NH2, and Zr-UiO-66-NH2) displayed characteristic emissions at about 460 nm (Figure 3b) under UV-lamp excitation at 343 nm. While under fs-pulse laser excitation, Al-MIL-101-NH2 revealed another predominent emission band centered at 565 nm, which may have resulted from an increase of the luminescence center in the electronic excited state and the redistribution of the photoexcited charge carriers (Figure 3c,d). The spectral behaviors of Al-MIL-101-N3 for H2S were studied in DMSO (dimethyl sulfoxide) as well as in HBSS (Hank’s balanced salt solution). In the biological media of HBSS, Al-MIL-101-N3 displayed a wide dynamic range of 0.1–120 μM and a low LOD of 100 nM for H2S (Figure 3e,f). Moreover, Al-MIL-101-N3 was applied to detect sulfide from an exogenous small molecule releaser (GYY4137) and endogenous H2S produced by 3T3L1 cells (Figure 3g,h).

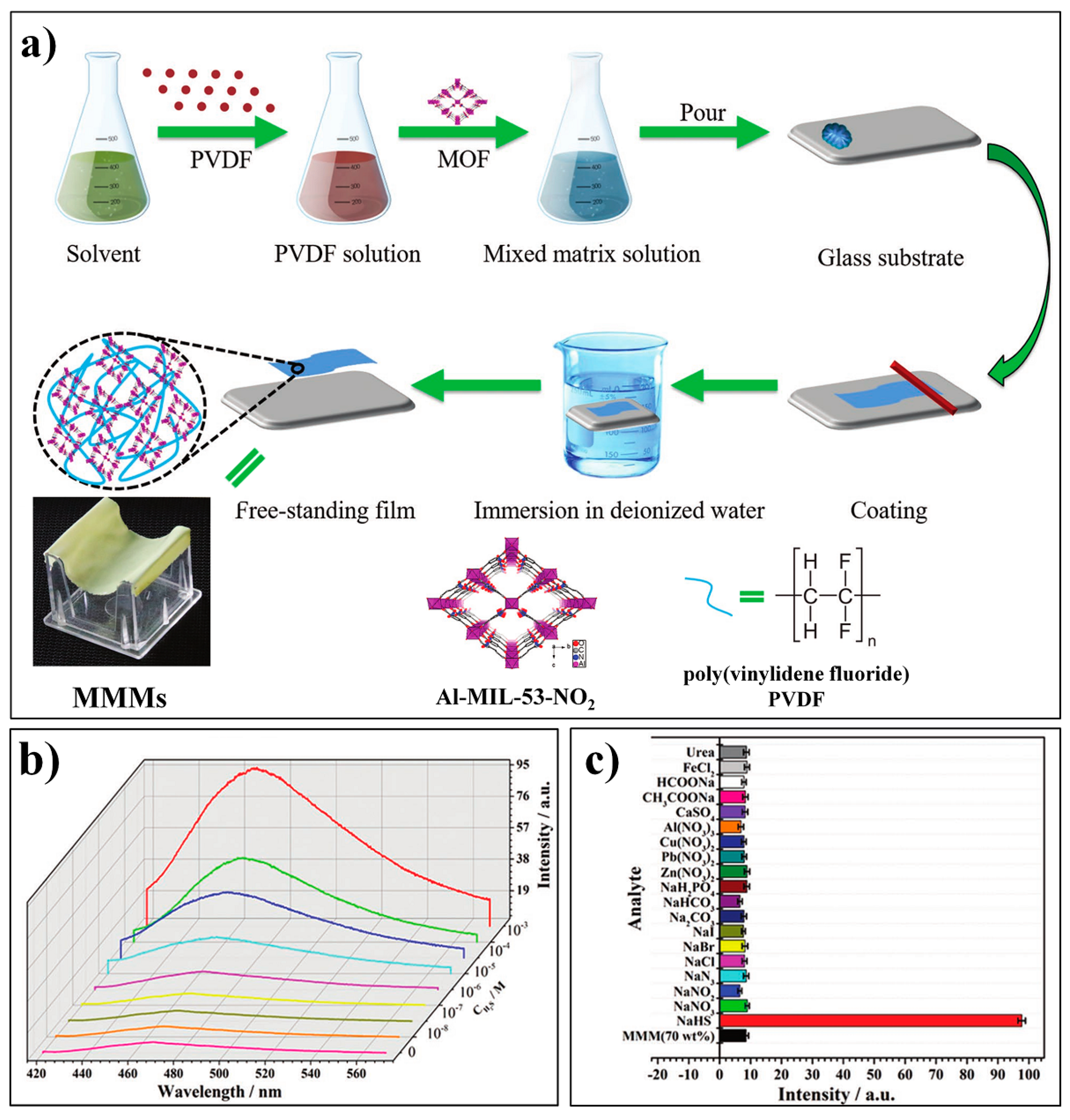

By integrating Al-MOF (Al(OH)(BDC-NO2), Al-MIL-53-NO2), and poly(vinylidene fluoride) (PVDF), Qian et al. developed a novel MMM (MOF-polymer mixed-matrix membrane) for the fluorescence turn-on detection of H2S [80]. The Al-MIL-53-NO2@PVDF MMM can be readily prepared with a high loading of the MOF probes (70 wt%), following the procedures as depicted in Figure 4a. The obtained Al-MIL-53-NO2 MMM is mechanically robust and flexible and can be easily handled. The Al-MIL-53-NO2 MMM can be effectively applied to the flow-through detection of H2S, which exhibited remarkably high sensitivity with an LOD of 92.31 nM (Figure 4b,c).
Furthermore, the constructed Al-MIL-53-NO2 MMM was also used to detect H2S in real water samples.

2.1.2. Based on the Binding Reaction between S2− and Cu2+

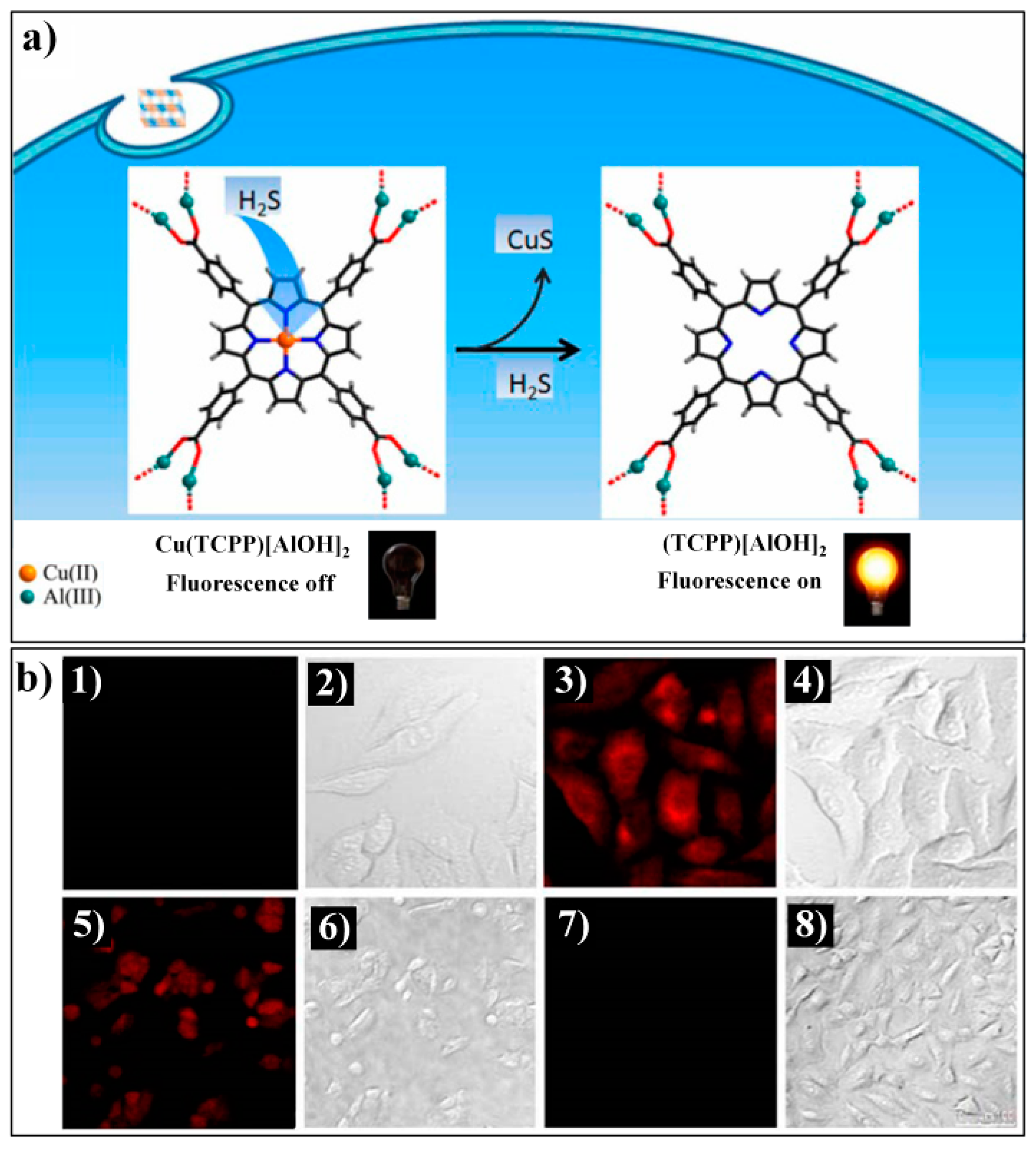

Tang et al. firstly reported a Cu(II)-metalated MOF, Cu(TCPP)[AlOH]2 (TCPP: meso-tetrakis(4-carboxylphenyl)porphyrin), for luminescent sensing of H2S [81]. Cu(TCPP)[AlOH]2 was obtained via Cu(II) metalation of the porphyrin ring-contained parent MOF TCPP[AlOH]2(DMF)3(H2O)2. The paramagnetic Cu(II) ions can quench the ligand-based (porphyrin) fluorescence of Cu(TCPP)[AlOH]2. Upon the addition of H2S, the Cu(II) ion can be taken from the porphyrin center via the formation of a CuS precipitate, thereby leading to the recovery of porphyrin-based emissions in the MOF system (Figure 5a). The fluorescence response of Cu(TCPP)[AlOH]2 to H2S can occur instantaneously with high sensitivity (LOD: 16 nM) and excellent selectivity as other analytes did not generate any fluorescence enhancement. Luminescence imaging studies also demonstrated that Cu(TCPP)[AlOH]2 can be employed for monitoring both exogenous and endogenic H2S in liver hepatocellular (HepG2) cells (Figure 5b). The Tang group recently developed a CuO NPs functionalized NMOF (Nanoscale metal–organic frameworks) hybrid nanoprobe, [email protected]@UiO-66, for the sensing and imaging of H2S [82]. Due to the energy transfer process from [email protected] to CuO NPs, the nanoprobe is weakly emissive. Sulfide can react with CuO to release the luminescent [email protected], thereby achieving a sensitive turn-on fluorescence response to H2S.
Qian et al. prepared a nano MOF Eu3+/Cu2+@UiO-66-(COOH)2 system for the ratiometric luminescent sensing of H2S by the post-modification of UiO-66-(COOH)2 with Eu3+ and Cu2+ ions [83]. This MOF system displayed two distinct emissions, a sharp Eu3+ emission at 615 nm and a broad ligand-based emission at 393 nm. Due to the decreased antenna efficiency of the H4btec ligands to Eu3+ in the presence of Cu2+, Eu3+/Cu2+@UiO-66-(COOH)2 exhibited a weak Eu3+ emission and a relatively enhanced ligand-based emission. While the target sulfide can effectively snatch the copper ion from the MOF probe and result in a significant enhancement in the fluorescence intensity ratio (I615/I393), thus achieving a ratiometric fluorescence response for H2S (Figure 6). Other advantageous features of this MOF sensor include excellent compatibility with aqueous media and instant response. However, it should be noted that other sulfhydryl compounds (i.e., GSH, Hcy, and Cys) also generated a certain degree of fluorescence response, which may be ascribed to the moderate binding affinity of H4btec to Cu2+, and these interferences also competitively bind to Cu2+. The same research group consequently developed a fluorescent MOF-based logic platform Eu3+/Ag+@UiO-66-(COOH)2 for H2S detection [84].
Yang et al. reported a luminescent composite Tb3+@Cu-MOF for the turn-on ratiometric sensing of H2S [85]. The synthesis process for Tb3+@Cu-MOF and the sensing mechanism for H2S are shown in Figure 7a. The Cu-MOF, [Cu(CPOC)2] was firstly prepared by reacting copper salt with an organic ligand (CPOC: 5-(4′-carboxyphenoxy) nicotinic acid). SC-XRD (single crystal X-ray diffraction) analysis indicated that [Cu(CPOC)2] belongs to the monoclinic system (P21/c), with a half crystallographically independent metal center and one ligand per asymmetric unit (Figure 7b). The probe Tb3+@Cu-MOF can be readily obtained via post-grafting modification with Tb3+. [Cu(CPOC)2] displayed an emission band at about 390 nm. Tb3+@Cu-MOF showed additional emissions of the Tb3+ ion (at 489, 544, 585, and 620 nm) but with relatively weak intensities because the Cu2+ with an unsaturated electronic state (3d9) has a tendency to gain electrons and thus quench the fluorescence. With the addtion of sulfide, Cu2+ can be bounded and, as a consequence its quenching effect, can be hindered, leading to a significant and selective increase in the characteristic emissions of Tb3+ (Figure 7c). Noticeably, the Tb3+@Cu-MOF well retained its crystalline structure after being incubated with Na2S.

2.1.3. Other MOF-Based Chemodosimeters for H2S

Cui et al. designed a vinyl-functionalized Zr-MOF (UiO-66-CH = CH2) for detecting H2S by using 2-vinylterephthalic acid as the linker ligand [86]. UiO-66-CH = CH2 showed a turn-off fluorescence response toward H2S with high sensitivity and selectivity. This probe also featured low toxicity and good water stability, but the sensing mechanism is not discussed in this study. Wang et al. reported a novel turn-on fluorescent assay for H2S based on the target-mediated collapse of an MOF structure (Fe3O(OH2)3(BDC-NH2)3, FeIII-MIL-88-NH2) (Figure 8) [87]. Due to the paramagnetic nature of Fe(III), FeIII-MIL-88-NH2 is non-emissive. Mixing the FeIII-MIL-88-NH2 suspension with a NaHS solution can lead to the breakdown of the MOFs and a release of the luminescent ligand of 2-aminoterephthalic acid.

2.2. MOF-Based Chemodosimeters for Biothiols

Biothiols such as Cys (cysteine), Hcy (homocysteine), and GSH (glutathione) play vital roles in various physiological and pathological processes [88,89,90,91]. During the past decade, a huge number of fluorescent probes have been developed for sensing and imaging biothiols by exploiting the specific reactivities of sulfhydryl group and/or amino group [92,93,94,95,96,97,98], including nucleophilic addition to electron-deficient unsaturated bonds, conjugate addition−cyclization reaction, cleavage of sulfonamide and sulfonate ester, cleavage of disulfide, and displacement of coordination to the metal complex. MOF-based Chemodosimeters for fluorescent sensing biothiols have emerged in the last two years.

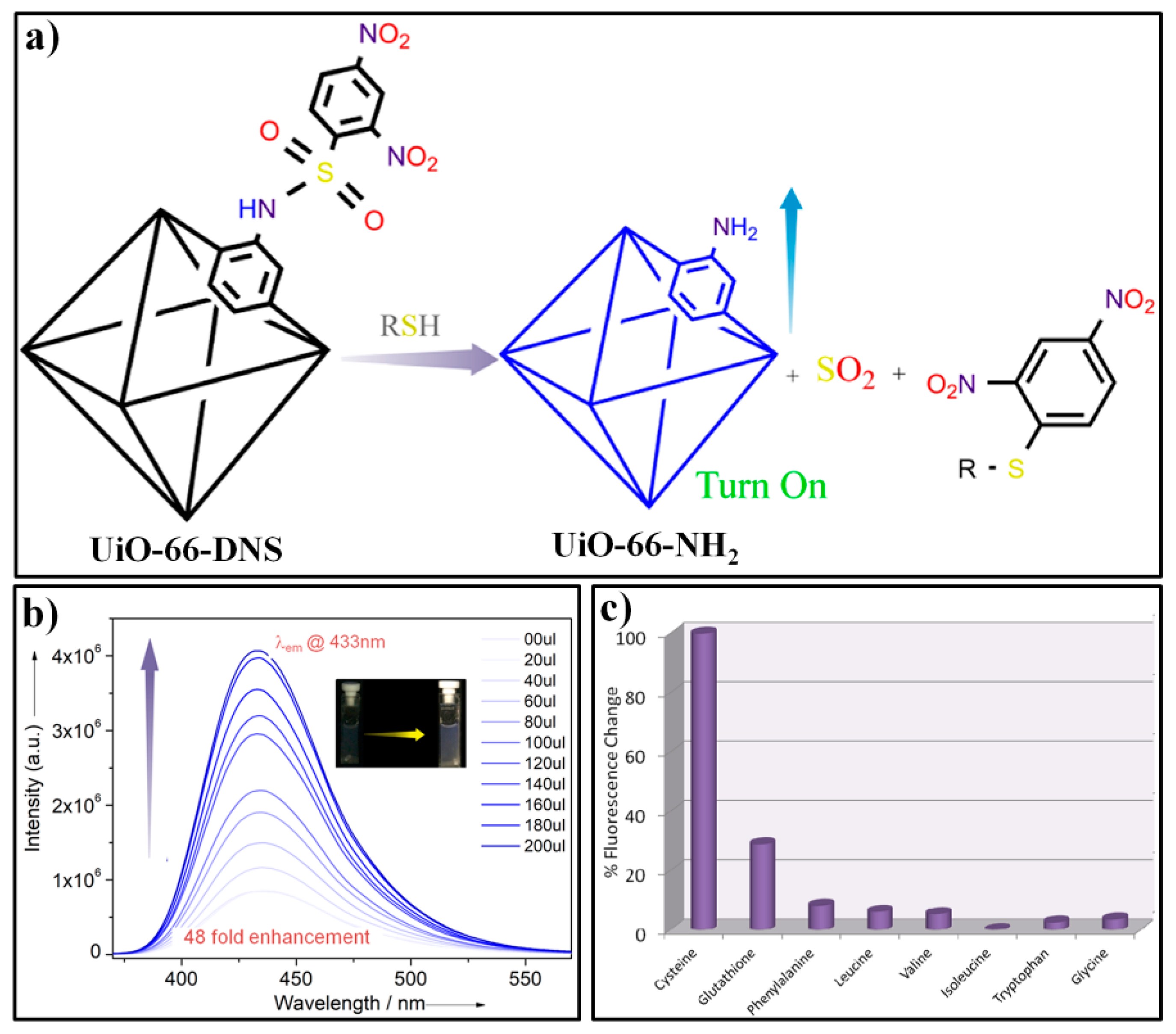

Ghosh et al. reported a turn-on fluorescent probe, UiO-66-DNS, for selective sensing of biothiols [99]. UiO-66-DNS was prepared by post-grafting 2,4-dinitrosulfonyl moiety (DNS) to the chemically stable UiO-66-NH2 MOF. UiO-66-DNS exhibited weak fluorescence due to the PET (photoinduced electron transfer) from the ligand of 2-aminoterephthalic acid to the highly electron-withdrawing functional group of DNP (Figure 9a). After the addition of Cys to a UiO-66-DNS dispersed water solution (Figure 9b), a significant enhancement (ca. ∼48-fold) in luminescent intensity at 432 nm was obtained, which can be ascribed to the thiol-mediated cleavage of the DNS moiety and the release of UiO-66-NH2. Compared with Cys, UiO-66-DNS displayed slower response toward GSH because of its intrinsic bulkier feature for diffusing and interacting with the probe. Other amino acids did not generate any obvious enhancement in the emission intensity of the probe (Figure 9c), which demonstrated that the UiO-66-DNS is highly specific to biothiol.

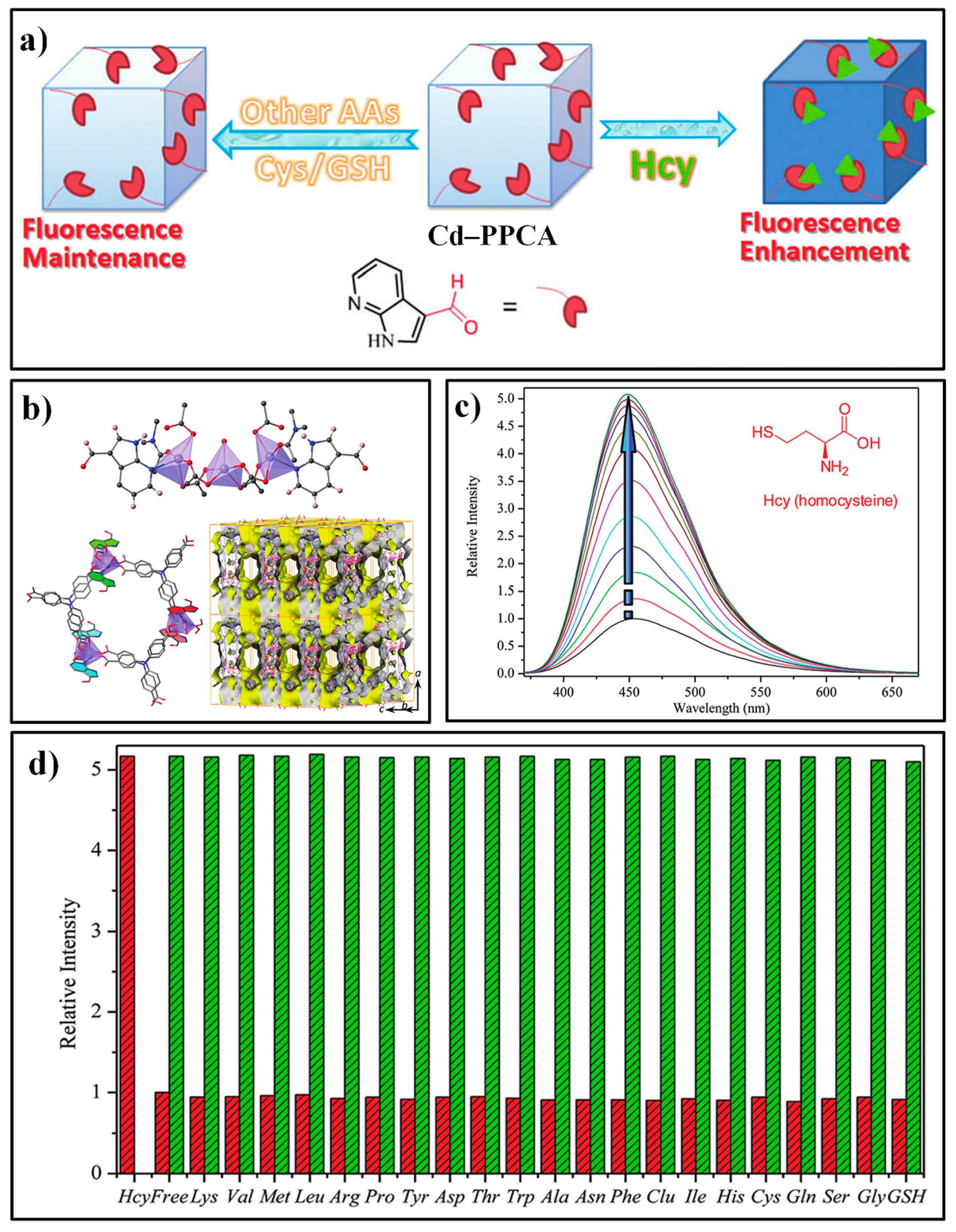

Wu et al. developed a novel aldehyde-functionalized MOF, Cd–PPCA (Figure 10a), for selective sensing of Hcy [100]. The Cd–PPCA consisted of a Cd(II) metal center and two types of ligands, H3tca (4,4′,4″-tricarboxyltriphenylamine) and ppca (1H-pyrrolo-[2,3-b] pyridine-2-carbaldehyde). XRD (X-ray diffraction) results indicated that Cd–PPCA crystallized in the orthorhombic space group Pbnm with a = 25.500(5), b = 20.600(4), c = 13.700(3) Å (Figure 10b). Each unit building of trinuclear [Cd3(COO)8] contained one ppca ligand, with a nitrogen atom to coordinate with Cd and a desired aldehyde functional group for the specific recognition of the target Hcy. Suspended in a HEPES (pH = 7.4) buffer solution, Cd–PPCA showed a weakened fluorescence emission at about 450 nm compared with similar MOFs comprised of H3tca ligands and Cd2+ nods, which can be attributed to the PET from the triphenylamine groups to the electron withdrawing aldehyde moieties of the ppca ligand. With the addition of Hcy, the emission intensity of the assay showed a significant enhancement (Figure 10c), which can be ascribed to the selective reaction of the aldehyde moiety with Hcy and thus the inhibition of the PET process. This fluorescent response was also observed to be very fast (60 s) and sensitive (LOD: 40 nM). Moreover, the probe Cd–PPCA exhibited excellent specificity for Hcy over other species, including Cys (Figure 10d).
Wang and Zhang et al. developed a novel Zr-MOF based fluorescent PET switch/sensor, UiO-68-An/Ma [101]. The probe contains two kinds of ligands, one embedded with the anthracene unit serving as the luminophore and the other appended with a maleimide moiety as the PET acceptor (Figure 11a). The multivariate UiO-68-An/Ma favors a pseudo-PET process and only shows very weak fluorescence with an absolute PLQY (photoluminescence quantum yield) of 1.1%. Notably, the fluorescence behavior of UiO-68-An/Ma can be tuned by altering the acceptor moiety and thus the PET process. The authors firstly confirmed the tunable fluorescence response of UiO-68-An/Ma via a reversible D–A reaction with 3-furanmethanol. Furthermore, UiO-68-An/Ma was applied for sensing biothiols based on the well-established maleimide–thiol addition reaction. As a solid-state fluorescent turn-on sensor, UiO-68-An/Ma can sensitively response to biothiols (Cys, Hcy, and GSH) as low as 50 µM (Figure 11b).
With the in-situ encapsulation of rhodamine B (RhB) into Cu-BTC, Gao and Huang et al. reported a turn-on fluorescent assay ([email protected] MOFs) for sensing Cys [102]. The fluorescence of [email protected] was very weak because the embedded RhB was adjacent to the paramagnetic copper center. In the presence of Cys, the Cu-BTC framework collapsed, which resulted the release of RhB and thus a turn-on fluorescence response (Figure 12).
The MOF based fluorescent probe has also been exploited for sensing sulfur dioxide (SO2) or sulfite/bisulfite, another kind of important sulfur-containing specie on both biological and environmental aspects. Ghosh et al. constructed a MOF based luminescent probe, NH2-MIL-68(In)@CHO, for the monitoring of bisulfite [103]. The probe was prepared by the post synthetic approach via condensation of NH2-MIL-68(In) (In(OH)(bdc-NH2)) with glyoxal (Figure 13). The introduced aldehyde moiety can react with bisulfite to generate an OH group, which is available to form an intramolecular hydrogen bond and thus resulted in the inhibition of the C = N isomerization and the recovery of the fuorescence of the probe. Cui and Qian et al. prepared a Eu-BDC-NH2 film on the UiO-66-NH2 modified glass through an in situ secondary growth and successfully applied this functional film for sensing gaseous sulfur dioxide [104].

3. MOF-Based Chemodosimeters for Other Redox-Active Biomolecules

3.1. MOF-Based Chemodosimeters for HClO

Hypochlorous acid (HClO) is an important chemical reagent with wide application in various areas of organic synthesis, the cosmetics industry, food service, water treatment, etc. In living organisms, HClO is a kind of essential reactive oxygen species (ROS), which is normally produced in phagosomes via the reaction between hydrogen peroxide and chloride ions catalyzed by myeloperoxidase [105]. As a powerful oxidizer, the endogenous HClO can act as effective microbicidal agent when the host is being invaded by microbials [106]. On ther hand, HClO can also react with functioning biomolecules, such as proteins, nucleic acid, and fatty acids, which would produce adverse effects for organisms and correlate to numerous human diseases, such as kidney disease, cardiovascular diseases, and even cancers [107]. Therefore, the development of reliable analytical methods for monitoring HClO has attracted a great deal of attention [108,109]. Based on the unique characteristics of HClO, acting as both a potent oxidant and a good chlorination agent, various reaction-based organic fluorescent probes has been reported for selective sensing of HClO [110,111,112,113,114,115,116,117]. Until now, several examples of MOF-based chemodosimeters for luminescent detection of HClO have been presented.
Ma and Wang et al. developed the first MOF-based chemodosimetric probe for sensing HClO [118]. The designing strategy for the probe, UiO-Eu-L1 (L1: dimethyl 4-(carbaldehyde oxime) pyridine-2,6-dicarboxylate), is depicted in Figure 14. Uio-Eu-L1 was obtained by successively treating the Zr-MOF UiO-67 (Zr6O4(OH)4(BPDC)6) with europium ions and the functional ligand L1. Due to the efficient C = N isomerization-induced fluorescence quenching, UiO-Eu-L1 displayed very weak red emissions derived from europium ions. In the presence of HClO, the hydroxylamine moiety can be converted to aldehyde, which, in turn, leads to the inhibition of the C = N isomerization and thus the turn-on fluorescence response of the probe system. Ascribed to the long-lived phosphorescence of the Uio-Eu based MOF, this luminescent assay can efficiently eliminate the background signals and auto-fluorescence effects by the use of time-gated measurements. Uio-Eu-L1 also exhibited high sensitivity for HClO with a dynamic range of 0.1–5 μM and a detection limit of 16 nM.
Gu et al. presented a novel luminophore integrated MOF system, [email protected], for specific detection of HClO [119]. The composite [email protected] can be readily prepared via a one-step process by using 5-aminofluorescein (AF) as a co-reactant in the synthesis of MOF-801 (Figure 15a). AF can serve as a sensitive turn-off fluorescent HClO probe, as HClO can react with AF to produce chlorinated products. However, other coexistent biological molecules (such as dopamine, DA) also can lead to the similar fluorescent changes of AF. In the constructed sensory platform of [email protected], AF can be confined in the cages of the framework and the target HClO can diffuse into the framework to react with the probe AF, while the ultra-small aperture can block the entry of large-sized interferents. Due to this size-selective effect, [email protected] displayed excellent specificity for HClO. Only ClO produced the significant luminescence response of [email protected] (Figure 15b), while both ClO and DA generated strong fluorescence quenching for the free AF probe (Figure 15c). The feasibility of [email protected] for monitoring intracellular HClO was also demonstrated by MTT assay and flow cytometry analysis (FCA), as well as confocal laser scanning microscopy (CLSM) measurements (Figure 15d).
Chen et al. constructed a [email protected] ([email protected]) nanocomposite-based ratiometric fluorescent probe for HClO by simultaneously encapsulating two fluorophores, fluorescein o-acrylate (F1) and tris(2,2′-bipyridyl)-dichroruthe-nium(II) hexahydrate (Rubpy), into ZnMOF74 [120]. [email protected] displayed two distinct emissions at 512 nm and 600 nm, corresponding to F1 and Rubpy, respectively. In the presence of HClO, the fluorescence of the target-responsive fluorophore F1 can be quenched, while the reference signal that originated from Rubpy remained unchanged, thus achieving a ratiometric response for HClO. In an aqueous HEPES buffer (pH = 7.5) solution, the fluorescence intensity ratio (I512/I600) of the [email protected] was found to be linearly correlated with the concentration of ClO with a dynamic range of 3.6 nM-100 μM.

3.2. MOF-Based Chemodosimeters for Ascorbic Acid

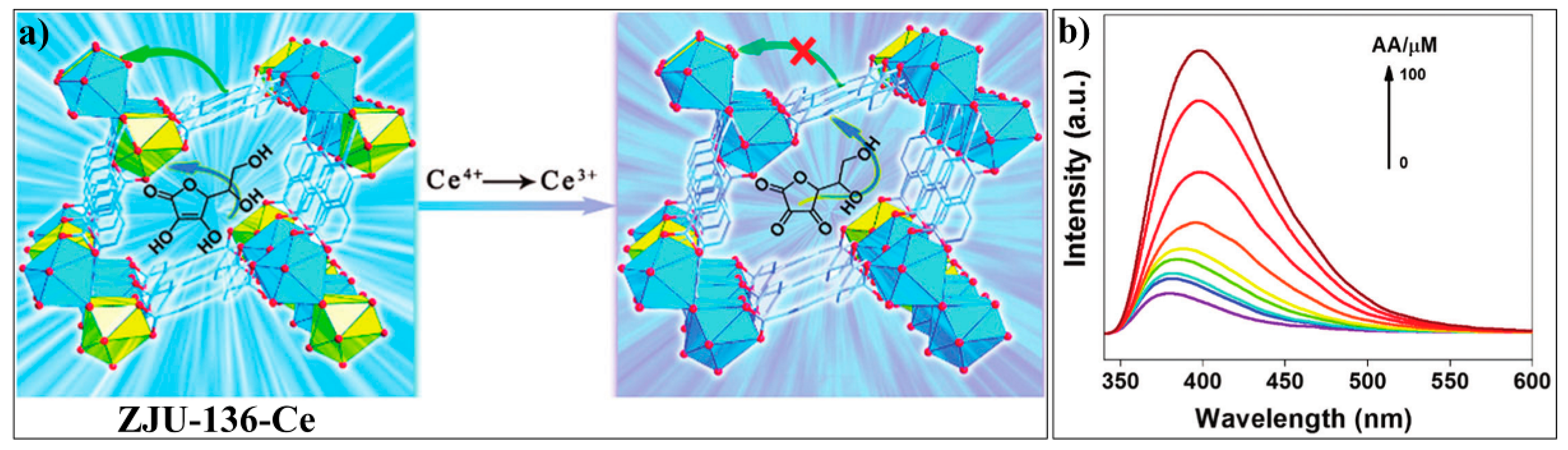

Chen and Qian et. al. developed a Ce-MOF sensor ZJU-136-Ce, (Me2NH2)0.6{[CeIV(TPTC)]0.4-[CeIII(TPTC)]0.6}(H2O)2(H4TPTC = 1,1′:4′,1″-terphenyl-2′,4,4″,5′-tetracarboxylic acid) for sensing ascorbic acid (AA) [121]. CeIV in the probe ZJU-136-Ce can react with the AA to generate CeIII and oxidized AA (DHA, dehydroascorbic acid). ZJU-136-Ce displays a luminescence band at 380 nm with a lifetime of 0.84 ns, which corresponds to the emissions of the Ce ion (Figure 16a). After reacting with AA, the probe system shows an increased emission band at about 400 nm (Figure 16b), which corresponds to the emission of the ligand. This fluorescence spectral response can be ascribed to the enhanced conjugation effect of the oxidized product DHA and thus the inhabited PET process from the TPTC ligand to the Ce ion. Subsequently, by introducing the Eu ions into the MOFs ZJU-136-Ce, the Qian group constructed a dual-emissive MOFs, ZJU-136-Ce1−xEux (x = 0.24, 0.36), which can serve as an efficient ratiometric probe for monitoring AA [122]. The same research group also reported a new Zn-MOF, ZnL(H2O) (ZJU-137, H2L = 4,4′-(1H-pyrazole-1,3-diyl)dibenzoic acid, for the fluorescence “turn-off” detection of AA [123].

3.3. MOF-Based Chemodosimeter for 5-Hydroxytryptamine

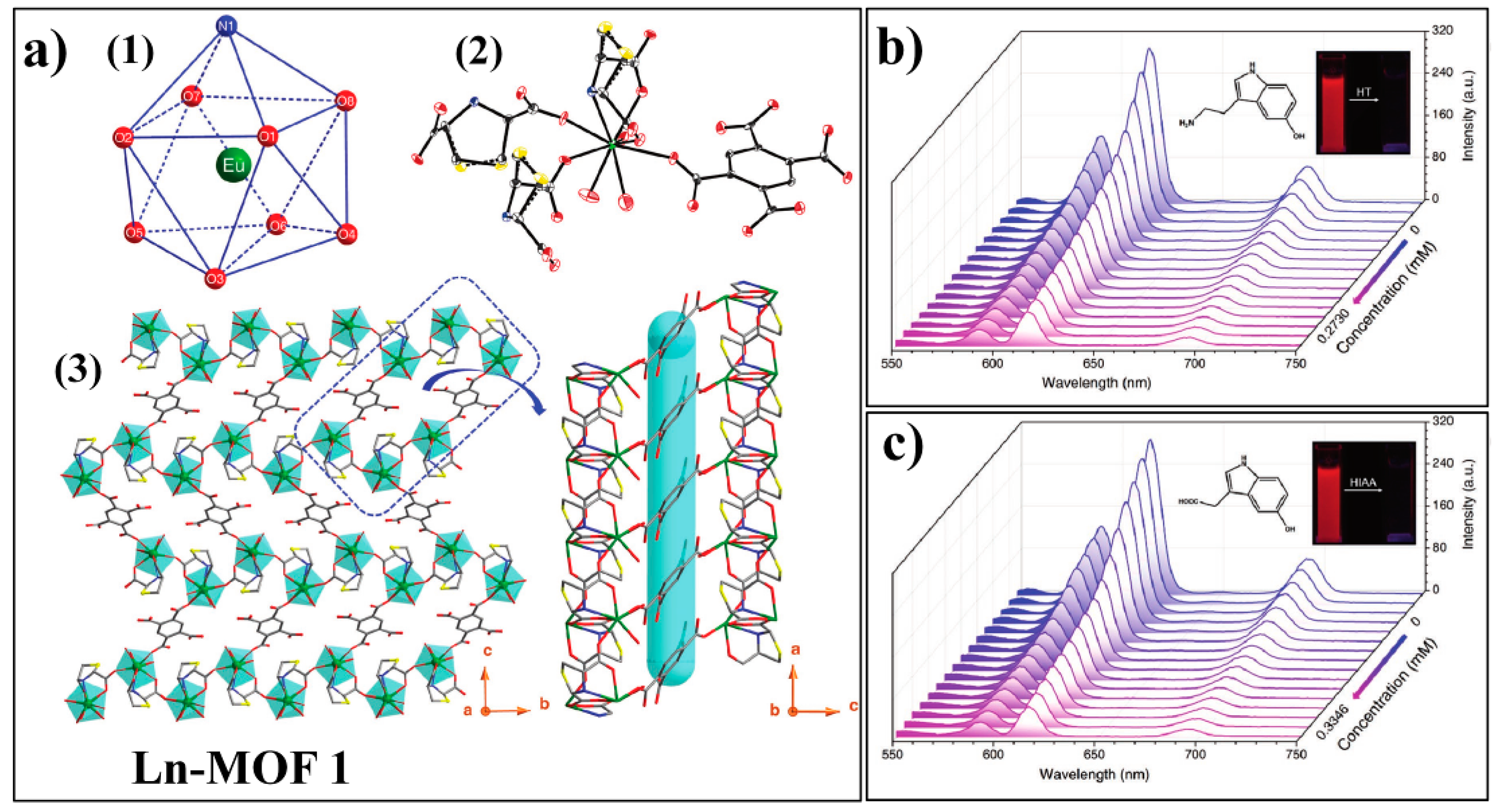

Shi and Cheng et al. presented a Ln-MOF, Ln-MOF 1: {[Eu(TDA)(H2BTEC)0.5(H2O)3]·H2O}n (H2TDA = thiazolidine 2,4-dicaboxylic acid, H4btec = 1,2,4,5-benzenetetracarboxylic acid), for sensing 5-hydroxytryptamine (HT) and 5-hydroxyindole-3-acetic acid (HIAA), which was synthesized by reacting Eu3+ with mixed ligands of H2TDA and H4BTEC [124]. Ln-MOF 1 is crystallized in the monoclinic space group P21/c, in which each Eu3+ ion is nine-coordinates in a spherical capped square antiprism coordination geometry (Figure 17a). Due to the conjugated π system and the pronounced antenna effect of the ligand BTEC, Ln-MOF 1 displays intense characteristic emissions of the Eu3+ emitter with a maximum peak located at 616 nm, which is ascribed to the 5D07F2 transition of Eu3+ ion. In the presence of HT or HIAA, the luminescence of the Ln-MOF 1 can be effectively quenched (Figure 17b,c). This process was attributed to the competitive absorption of excitation light by the analyte and the ligand. Ln-MOF 1 displayed several favorable features for HT and HIAA sensing, including high stability over a wide pH range and long-term storage, excellent sensitivity, and fast response time.

3.4. MOF-Based Chemodosimeter for H2O2

The hydrogen peroxide (H2O2) mediated conversion of arylboronates to phenols has been widely exploited for the development of fluorescent H2O2 probes [125]. On the basis of this unique chemical reaction, Biswas et al. developed a Zr-MOF based probe, Zr-UiO-66-B(OH)2, for sensing H2O2 [126]. Zr-UiO-66-B(OH)2, which can be can be easily prepared by reacting ZrOCl2·8H2O with the linker of BDC-B(OH)2 (2-boronobenzene-1,4-dicarboxylic acid) (Figure 18). Zr-UiO-66-B(OH)2 can act as a sensitive and selective off−on luminescent chemodosimeter for H2O2 with a 4-fold increment in the fluorescence intensity upon the addition of an excess amount of the target. Moreover, the probe Zr-UiO-66-B(OH)2 was successfully applied to image H2O2 in MDAMB-231 cells.

4. MOF-Based Chemodosimeters for Ions

4.1. MOF-Based Chemodosimeters for Fluoride Ions

The fluoride ion, F, as a typical hard Lewis base with the smallest ionic radius and highest charge density, has attracted much interest due to its association with various biological, medical, and technological processes. Commonly, fluoride is considered to be a critical component for preventing dental caries as fluoride can promote the formation of enamel-strengthening fluorapatite [127,128,129]. However, the over intake of fluoride can lead to excess mineralization within oganisms and cause gastric and kidney problems. Various analytical techniques have been developed for sensing fluoride [130], including the well-established electrochemical method [131,132], chromatography [133,134], and colorimetric and fluorogenic assays [135]. In the past decades, numerous fluorescent probes have been developed for fluoride based on different fluoride-participated processes, such as fluoride-induced Si−O or Si−C bond cleavage, H−F hydrogen bonding formation, and Lewis acid−base interactions [136,137,138]. By exploiting these special reactivities of fluoride, several MOF-based luminesscent probes have recently been developed for its detection [139,140].
Yin et al. reported a reaction-based MOF probe (Eu-bop, Eu2(isp)3(H2O)2) for fluoride ions [141]. Eu-bop was prepared by using Eu3+ as the metal node and 5-bop (5-boronoisophthalic acid) as the ligand that contains a recognition moiety of a boric acid group for the target F. The substituted boric acid group also can tune the electronic structure of the ligand and resulted in an incomplete energy transfer from the ligand to Eu3+ emitter in the probe Eu-bop. Therefore, the Eu-bop displayed two emission bands: 366 nm, corresponding to the ligand of 5-bop; and 570–750 nm, corresponding to Eu3+. Upon the addition of fluoride ions, the emission intensity at 366 nm was significant increased with a concomitant decrease in emissions at 625 nm (Figure 19a). The fluorescence response can be ascribed to the OH/F exchange reaction on the boron atom, which changed the hybridization state of boron from sp2 (−B(OH)2) to sp3 (−BF3), and thus disrupted the pπ−π conjugation of the 5-bop and the decreased intersystem crossing efficiency (Figure 19b), as well as the antenna effect of the ligand. The fluorescence intensity ratio (I625/I366) of the probe system was found to vary linearly with the concentration of fluoride in a range of 4–80 μM. The probe was also applied to detect fluoride in real samples of river and underground water.
Recently, Stylianou et al. developed a luminescent lanthanide MOF, ([Eu(tctb)(H2O)]·2DMF), referred to as SION-105 for the recognition of fluoride ion [142]. SION-105 consisted of tris (p-carboxylic acid) tridurylborane ligand (tctb3−) and an EuIII metal center. The ligand tctb3− contains a three-coordinate B acting as the recognition site for F and the surrounding duryl groups offering size-selective steric protection from other interferences (Figure 20a). SION-105 displayed a strong characteristic EuIII luminescent emission due to the efficient antenna effect of the ligand tctb3− (Figure 20d). Upon the addition of F, the emissions of the probe can be quenched due to the specific interaction of F with the B Lewis acid site. A linear luminescence quenching response of SION-105 towards the F ion was observed in a range of 0.5 to 2.0 ppm (Figure 20b). A Stern−Volmer plot of quenching with the F concentration indicates the occurrence of both static and dynamic quenching (Figure 20c).

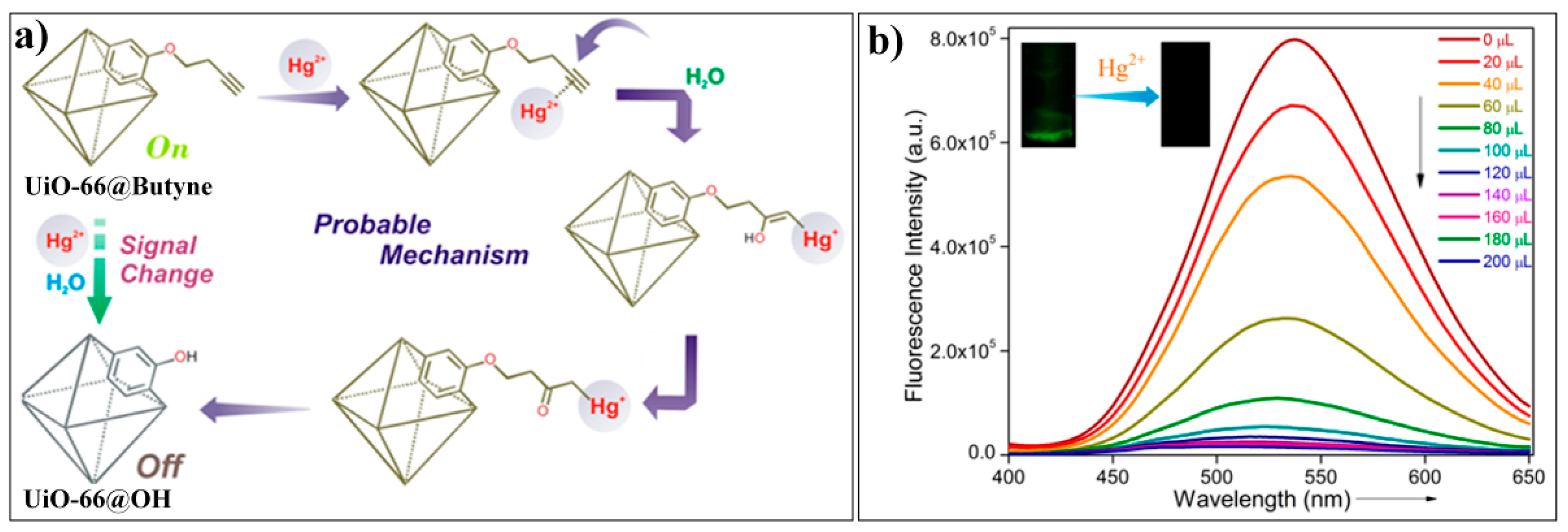

4.2. MOF-Based Chemodosimeter for Hg2+

Mercury is one of the most toxic heavy metals in the environment. In aqueous media, mercury can be transformed into methylmercury, a powerful neurotoxin, which can be accumulated and ingested by humans through the food chain [143,144,145]. In the human body, methylmercury can lead to serious symptoms, such as cognitive and motor disorders, neurological impairments, brain damage, and even death [146,147,148]. These environmental and biological problems have prompted the rapid development of techniques for sensing mercury [149,150,151,152,153]. Until present, many reaction-based fluorescent probes for Hg2+ have been developed based on various Hg2+-induced chemical processes [154,155,156], such as desulfation or deselenization processes, desulfation and cyclization processes, thiol elimination process, and the oxymercuration−elimination of vinyl/alkyne ether. Recently, Ghosh reported a MOF probe ([email protected]) for the reaction-based detection of Hg2+ [157]. [email protected] was prepared from Zr ion and a ligand of 2,5-bis (but-3-yn-1-yloxy) terephthalic acid, which contained a butyne moiety acting as the recognition site for Hg2+ (Figure 21a). The prepared [email protected] retained the crystalline structure of MOF UiO-66 and showed a strong green emission (λem,max = 537 nm). Addition of Hg2+ to the aqueous solution of [email protected] can result in fluorescent quenching of the system (Figure 21b), which can be attributed to the target-induced conversion of [email protected] to the less fluorescent product of [email protected] through the process of oxymercuration−elimination of ethynyl ether. As this MOF-based chemodosimeter exploited the specific reactivity of the target, [email protected] exhibited excellent selectivity for Hg2+.

4.3. MOF-Based Chemodosimeter for CN

The cyanide ion is an extremely poisonous chemical with widespread applications in industries such as metal mining, electroplating, and plastic and fertilizer manufacturing [158,159]. Various methods have been developed for the quantitative analysis of CN, including the titration method, electrochemical assays [160], chromatography [161], as well as the colorimetric and fluorogenic method [162]. Among these methods, the design and use of fluorescent probes for sensing CN have received considerable attention [163,164,165]. The chemososimeters for CN monitoring are normally associated, with several typical chemical reactions, including the cyanohydrin forming process, additions to the dicyano-vinyl group, michael addition, and indolium or pyridinium addition reactions. Recently, based on the specific addtion reaction of CN dicyano-vinyl group, Ghosh developed a Zeolitic imidazolate framework, M-ZIF-90 ([Zn(C8H6N4O2)]n), for fluorescence sensing CN [166]. M-ZIF-90 was prepared by incorporating the recognition moiety of dicyano-vinyl onto the aldehyde-appended ZIF-90 via post-synthetic modification (Figure 22). In the H2O/DMSO (1:1) mixture, M-ZIF-90 displayed a turn-off fluorescence response towards CN based on the nucleophilic addition of CN to the dicyano-vinyl group, which would interrupt the π-conjugation of the probe and thus result in significant fluorescence change.

5. Conclusions

In recent years, the design, synthesis, and application of MOFs have attracted an ever-increasing interest of researchers in the fields of chemistry, physics, materials, and engineering. The porous and crystalline nature, versatile selections for metal nodes and organic linkers, and tunable structures also endow MOFs with unique characteristics for sensing applications. In this review, we summarized recently developed MOF-based luminescent chemodosimeters. These reaction-based luminescent probes inherit the robust structural features of MOFs (e.g., large surface area, high porosity, and good thermal and chemical stability) and also exhibit excellent selectivity as they exploit the specific reactivities of the target analyte. Several strategies have been involved in the development of MOF-based chemodosimeters: (i) installing the recognition moiety onto the ligand via a post-synthetic modification approach or using a recognition moiety-appended ligand for preparing MOFs; (ii) construction of small-molecule fluorescent [email protected] hybrid nanocomposites, in which the MOFs act as a carrier to confine the responsive probe; (iii) based on the target-induced collapse of the MOF structure, etc. Further, the MOF scaffolds exploited for constructing luminescent chemodosimeters are normally required to possess several features, including high stability and dispersibility in aqueous (or aqueous-containing) media, feasibility of installing the recognition moiety for certain analytes, environmental friendliness, and/or good biocompatibility for biosensing and bioimaging applications. Until now, although, dozens of MOF-based chemodosimeters have been reported for different analytes with several desirable traits, such as high selectivity and sensitivity, good stability, and rapid response, some critical performance limitations for this type of luminescent probe still need to be improved, including short-wavelength light excitation and/or emission, insufficient designing strategies for the probe, and limited target analytes. To overcome these shortcomings, several future directions for the design of MOF-based chemodosimeters are proposed herein.
(i) Employing New Rationally Designed Ligands
Most of the developed MOF-based chemodosimeters are ligand-based emission systems. Currently, the used ligand normally belongs to a blue-emissive fluorophore (e.g., BDC) with ultraviolet to blue light excitation, which is unfavorable for applications in complex samples, as well as in bioimaging. Future efforts should focus on the design and utilization of new ligands for constructing luminescent MOFs that have typical spectral features, such as visible/near-infrared emission, two-photon excitation, and large Stokes shifts.
(ii) Developing Dual-Ligand Mofs Systems
Compared with the single-ligand system, the dual-ligand MOFs have greater structural and functional diversity. For example, a fluorescence resonance energy transfer (FRET) sensing system could be achieved by carefully designing the electronic structure of two different ligands. Ratiometric fluorescent probes could be obtained by using one ligand as the target-responsive unit and the other ligand as the internal signal reference.
(iii) Expanding the Application Scope for Mof-Based Chemodosimeters
To date, MOF-based chemodosimeters have only been employed for sensing some ions and small molecules, such as F, Hg2+, CN, H2S, HClO, Cys, H2O2, AA, and HT. It is anticipated that future efforts will focus on developing MOF-based chemodosimeters for monitoring other important biomolecules, such as bioenzymes, as well as for bioimaging applications.
In summary, MOF-based luminescent chemodosimeters have increasingly attracted research interest. It can be expected that ongoing studies in this area will lead to the rapid development of more effective luminescent nanomaterials for sensing and imaging applications.

Author Contributions

Conceptualization, Y.H., Y.Z. (Yanli Zhou), and M.X.; Writing—Original Draft preparation, Y.H.; Writing—Review and Editing, S.C., Y.Z. (Yintang Zhang), Y.Z. (Yanli Zhou), and M.X.; project administration, Y.H., Y.Z. (Yanli Zhou), and M.X.; funding acquisition, Y.H., Y.Z. (Yanli Zhou), and M.X.

Funding

This work was funded by the National Natural Science Foundation of China (Project Nos. 21804085, 21675109, U1404215, 21475084).

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

IPAisophthalic acid
NDCnapthalene-2,6-dicarboxylic acid
TCPPmeso-tetrakis (4-carboxylphenyl) porphyrin
HBSSHanks’ balanced salt solutions
BBSboricacid−borax buffer
SNPS-nitroso-N-acetyl-dl-penicillamine
PPGdl-propargylglycine
TOthiazole orange
MTT3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide
FCAflow cytometry analysis
CLSMconfocal laser scanning microscopy
Cyscysteine
Hcyhomocysteine
GSHglutathione
DNPdinitrophenyl
PETphotoinduced electron transfer
H3tca4,4′,4″-tricarboxyltriphenylamine
Ppca1H-pyrrolo-[2,3-b]pyridine-2-carbaldehyde
PLQYphotoluminescence quantum yield
RhBrhodamine B
AAascorbic acid
Ispisophthalic acid
5-bop5-boronoisophthalic acid
H3tctbtris (p-carboxylic acid) tridurylborane
H2TDAthiazolidine 2,4-dicaboxylic acid
BDC-B(OH)22-boronobenzene-1,4-dicarboxylic acid
ZIFZeolitic imidazolate frameworks

References

  1. Li, H.; Eddaoudi, M.; O’Keeffe, M.; Yaghi, O.M. Design and synthesis of an exceptionally stable and highly porous metal-organic framework. Nature 1999, 402, 276–279. [Google Scholar] [CrossRef]
  2. James, S.L. Metal-organic frameworks. Chem. Soc. Rev. 2003, 32, 276–288. [Google Scholar] [CrossRef] [PubMed]
  3. Stock, N.; Biswas, S. Synthesis of Metal-Organic Frameworks (MOFs): Routes to Various MOF Topologies, Morphologies, and Composites. Chem. Rev. 2012, 112, 933–969. [Google Scholar] [CrossRef] [PubMed]
  4. Rowsell, J.L.C.; Yaghi, O.M. Metal-organic frameworks: A new class of porous materials. Microporous Mesoporous Mater. 2004, 73, 3–14. [Google Scholar] [CrossRef]
  5. Cook, T.R.; Zheng, Y.R.; Stang, P.J. Metal-Organic Frameworks and Self-Assembled Supramolecular Coordination Complexes: Comparing and Contrasting the Design, Synthesis, and Functionality of Metal-Organic Materials. Chem. Rev. 2013, 113, 734–777. [Google Scholar] [CrossRef] [PubMed]
  6. Li, J.R.; Kuppler, R.J.; Zhou, H.C. Selective gas adsorption and separation in metal-organic frameworks. Chem. Soc. Rev. 2009, 38, 1477–1504. [Google Scholar] [CrossRef]
  7. Li, J.R.; Ma, Y.G.; McCarthy, M.C.; Sculley, J.; Yu, J.M.; Jeong, H.K.; Balbuena, P.B.; Zhou, H.C. Carbon dioxide capture-related gas adsorption and separation in metal-organic frameworks. Coord. Chem. Rev. 2011, 255, 1791–1823. [Google Scholar] [CrossRef]
  8. Wang, Z.; Luo, X.; Zheng, B.; Huang, L.; Hang, C.; Jiao, Y.; Cao, X.; Zeng, W.; Yun, R. Highly Selective Carbon Dioxide Capture and Cooperative Catalysis of a Water-Stable Acylamide-Functionalized Metal–Organic Framework. Eur. J. Inorg. Chem. 2018, 2018, 1309–1314. [Google Scholar] [CrossRef]
  9. Zheng, B.; Luo, X.; Wang, Z.; Zhang, S.; Yun, R.; Huang, L.; Zeng, W.; Liu, W. An unprecedented water stable acylamide-functionalized metal–organic framework for highly efficient CH4/CO2 gas storage/separation and acid–base cooperative catalytic activity. Inorg. Chem. Front. 2018, 5, 2355–2363. [Google Scholar] [CrossRef]
  10. Zheng, B.; Huang, L.; Cao, X.; Shen, S.; Cao, H.; Hang, C.; Zeng, W.; Wang, Z. A highly porous acylamide decorated MOF-505 analogue exhibiting high and selective CO2 gas uptake capability. CrystEngComm 2018, 20, 1874–1881. [Google Scholar] [CrossRef]
  11. Zheng, B.; Wang, H.; Wang, Z.; Ozaki, N.; Hang, C.; Luo, X.; Huang, L.; Zeng, W.; Yang, M.; Duan, J. A highly porous rht-type acylamide-functionalized metal–organic framework exhibiting large CO2 uptake capabilities. Chem. Commun. 2016, 52, 12988–12991. [Google Scholar] [CrossRef] [PubMed]
  12. Lee, J.; Farha, O.K.; Roberts, J.; Scheidt, K.A.; Nguyen, S.T.; Hupp, J.T. Metal-organic framework materials as catalysts. Chem. Soc. Rev. 2009, 38, 1450–1459. [Google Scholar] [CrossRef] [PubMed]
  13. Liu, J.W.; Chen, L.F.; Cui, H.; Zhang, J.Y.; Zhang, L.; Su, C.Y. Applications of metal-organic frameworks in heterogeneous supramolecular catalysis. Chem. Soc. Rev. 2014, 43, 6011–6061. [Google Scholar] [CrossRef] [PubMed]
  14. Corma, A.; Garcia, H.; Xamena, F. Engineering Metal Organic Frameworks for Heterogeneous Catalysis. Chem. Rev. 2010, 110, 4606–4655. [Google Scholar] [CrossRef] [PubMed]
  15. Li, H.; Ke, F.; Zhu, J. MOF-Derived Ultrathin Cobalt Phosphide Nanosheets as Efficient Bifunctional Hydrogen Evolution Reaction and Oxygen Evolution Reaction Electrocatalysts. Nanomaterials 2018, 8, 89. [Google Scholar] [CrossRef] [PubMed]
  16. Horcajada, P.; Gref, R.; Baati, T.; Allan, P.K.; Maurin, G.; Couvreur, P.; Ferey, G.; Morris, R.E.; Serre, C. Metal-Organic Frameworks in Biomedicine. Chem. Rev. 2012, 112, 1232–1268. [Google Scholar] [CrossRef]
  17. Illes, B.; Wuttke, S.; Engelke, H. Liposome-Coated Iron Fumarate Metal-Organic Framework Nanoparticles for Combination Therapy. Nanomaterials 2017, 7, 351. [Google Scholar] [CrossRef] [PubMed]
  18. Kreno, L.E.; Leong, K.; Farha, O.K.; Allendorf, M.; Van Duyne, R.P.; Hupp, J.T. Metal-Organic Framework Materials as Chemical Sensors. Chem. Rev. 2012, 112, 1105–1125. [Google Scholar] [CrossRef]
  19. Hu, Z.C.; Deibert, B.J.; Li, J. Luminescent metal-organic frameworks for chemical sensing and explosive detection. Chem. Soc. Rev. 2014, 43, 5815–5840. [Google Scholar] [CrossRef]
  20. Allendorf, M.D.; Bauer, C.A.; Bhakta, R.K.; Houk, R.J.T. Luminescent metal-organic frameworks. Chem. Soc. Rev. 2009, 38, 1330–1352. [Google Scholar] [CrossRef]
  21. Cui, Y.J.; Yue, Y.F.; Qian, G.D.; Chen, B.L. Luminescent Functional Metal-Organic Frameworks. Chem. Rev. 2012, 112, 1126–1162. [Google Scholar] [CrossRef] [PubMed]
  22. Zhang, Y.M.; Yuan, S.; Day, G.; Wang, X.; Yang, X.Y.; Zhou, H.C. Luminescent sensors based on metal-organic frameworks. Coord. Chem. Rev. 2018, 354, 28–45. [Google Scholar] [CrossRef]
  23. Wang, Y.; Lin, S.; Luo, J.; Huang, R.; Cai, H.; Yan, W.; Yang, H. A Novel [email protected] as Self-Calibrating Luminescent Sensor for Nutritional Antioxidant. Nanomaterials 2018, 8, 796. [Google Scholar] [CrossRef] [PubMed]
  24. Lustig, W.P.; Mukherjee, S.; Rudd, N.D.; Desai, A.V.; Li, J.; Ghosh, S.K. Metal–organic frameworks: Functional luminescent and photonic materials for sensing applications. Chem. Soc. Rev. 2017, 46, 3242–3285. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, H.; Lustig, W.P.; Li, J. Sensing and capture of toxic and hazardous gases and vapors by metal-organic frameworks. Chem. Soc. Rev. 2018, 47, 4729–4756. [Google Scholar] [CrossRef] [PubMed]
  26. Liu, X.G.; Wang, H.; Chen, B.; Zou, Y.; Gu, Z.G.; Zhao, Z.J.; Shen, L. A luminescent metal-organic framework constructed using a tetraphenylethene-based ligand for sensing volatile organic compounds. Chem. Commun. 2015, 51, 1677–1680. [Google Scholar] [CrossRef] [PubMed]
  27. Zhang, M.; Feng, G.; Song, Z.; Zhou, Y.-P.; Chao, H.-Y.; Yuan, D.; Tan, T.T.Y.; Guo, Z.; Hu, Z.; Tang, B.Z.; et al. Two-Dimensional Metal–Organic Framework with Wide Channels and Responsive Turn-On Fluorescence for the Chemical Sensing of Volatile Organic Compounds. J. Am. Chem. Soc. 2014, 136, 7241–7244. [Google Scholar] [CrossRef]
  28. Hao, J.N.; Yan, B. Highly sensitive and selective fluorescent probe for Ag+ based on a Eu3+ post-functionalized metal-organic framework in aqueous media. J. Mater. Chem. A 2014, 2, 18018–18025. [Google Scholar] [CrossRef]
  29. Yang, C.X.; Ren, H.B.; Yan, X.P. Fluorescent Metal Organic Framework MIL-53(Al) for Highly Selective and Sensitive Detection of Fe3+ in Aqueous Solution. Anal. Chem. 2013, 85, 7441–7446. [Google Scholar] [CrossRef]
  30. Zhang, Y.; Yan, B. A ratiometric fluorescent sensor with dual response of Fe3+/Cu2+ based on europium post-modified sulfone-metal-organic frameworks and its logical application. Talanta 2019, 197, 291–298. [Google Scholar] [CrossRef]
  31. Helal, A.; Nguyen, H.L.; Al-Ahmed, A.; Cordova, K.E.; Yamani, Z.H. An Ultrasensitive and Selective Metal–Organic Framework Chemosensor for Palladium Detection in Water. Inorg. Chem. 2019, 58, 1738–1741. [Google Scholar] [CrossRef] [PubMed]
  32. Wu, P.Y.; Wang, J.; He, C.; Zhang, X.L.; Wang, Y.T.; Liu, T.; Duan, C.Y. Luminescent Metal-Organic Frameworks for Selectively Sensing Nitric Oxide in an Aqueous Solution and in Living Cells. Adv. Funct. Mater. 2012, 22, 1698–1703. [Google Scholar] [CrossRef]
  33. Liu, S.-Y.; Qi, X.-L.; Lin, R.-B.; Cheng, X.-N.; Liao, P.-Q.; Zhang, J.-P.; Chen, X.-M. Porous Cu(I) Triazolate Framework and Derived Hybrid Membrane with Exceptionally High Sensing Efficiency for Gaseous Oxygen. Adv. Funct. Mater. 2014, 24, 5866–5872. [Google Scholar] [CrossRef]
  34. Xu, Y.; Liu, S.-Y.; Liu, J.; Zhang, L.; Chen, D.; Chen, J.; Ma, Y.; Zhang, J.-P.; Dai, Z.; Zou, X. In Situ Enzyme Immobilization with Oxygen-Sensitive Luminescent Metal–Organic Frameworks to Realize “All-in-One” Multifunctions. Chem. Eur. J. 2019, 25, 5463–5471. [Google Scholar] [CrossRef] [PubMed]
  35. Lin, R.-B.; Liu, S.-Y.; Ye, J.-W.; Li, X.-Y.; Zhang, J.-P. Photoluminescent Metal–Organic Frameworks for Gas Sensing. Adv. Sci. 2016, 3, 1500434. [Google Scholar] [CrossRef] [PubMed]
  36. Lu, Y.; Yan, B. A ratiometric fluorescent pH sensor based on nanoscale metal–organic frameworks (MOFs) modified by europium(III) complexes. Chem. Commun. 2014, 50, 13323–13326. [Google Scholar] [CrossRef] [PubMed]
  37. Harbuzaru, B.V.; Corma, A.; Rey, F.; Jordá, J.L.; Ananias, D.; Carlos, L.D.; Rocha, J. A Miniaturized Linear pH Sensor Based on a Highly Photoluminescent Self-Assembled Europium(III) Metal–Organic Framework. Angew. Chem. Int. Ed. 2009, 48, 6476–6479. [Google Scholar] [CrossRef]
  38. Zhang, X.; Jiang, K.; He, H.; Yue, D.; Zhao, D.; Cui, Y.; Yang, Y.; Qian, G. A stable lanthanide-functionalized nanoscale metal-organic framework as a fluorescent probe for pH. Sens. Actuators B Chem. 2018, 254, 1069–1077. [Google Scholar] [CrossRef]
  39. Chen, H.; Wang, J.; Shan, D.; Chen, J.; Zhang, S.; Lu, X. Dual-Emitting Fluorescent Metal–Organic Framework Nanocomposites as a Broad-Range pH Sensor for Fluorescence Imaging. Anal. Chem. 2018, 90, 7056–7063. [Google Scholar] [CrossRef]
  40. He, C.B.; Lu, K.D.; Lin, W.B. Nanoscale Metal-Organic Frameworks for Real-Time Intracellular pH Sensing in Live Cells. J. Am. Chem. Soc. 2014, 136, 12253–12256. [Google Scholar] [CrossRef]
  41. Jiang, H.L.; Feng, D.W.; Wang, K.C.; Gu, Z.Y.; Wei, Z.W.; Chen, Y.P.; Zhou, H.C. An Exceptionally Stable, Porphyrinic Zr Metal-Organic Framework Exhibiting pH-Dependent Fluorescence. J. Am. Chem. Soc. 2013, 135, 13934–13938. [Google Scholar] [CrossRef] [PubMed]
  42. Holler, C.J.; Muller-Buschbaum, K. The First Dinitrile Frameworks of the Rare Earth Elements: (3)(infinity) LnCl(3)(1,4-Ph(CN)(2)) and (3)(infinity) Ln(2)Cl(6)(1,4-Ph(CN)(2)), Ln = Sm, Gd, Tb, Y; Access to Novel Metal-Organic Frameworks by Solvent Free Synthesis in Molten 1,4-Benzodinitrile. Inorg. Chem. 2008, 47, 10141–10149. [Google Scholar] [CrossRef] [PubMed]
  43. Marshall, R.J.; Kalinovskyy, Y.; Griffin, S.L.; Wilson, C.; Blight, B.A.; Forgan, R.S. Functional Versatility of a Series of Zr Metal–Organic Frameworks Probed by Solid-State Photoluminescence Spectroscopy. J. Am. Chem. Soc. 2017, 139, 6253–6260. [Google Scholar] [CrossRef] [PubMed]
  44. Robinson, A.L.; Stavila, V.; Zeitler, T.R.; White, M.I.; Thornberg, S.M.; Greathouse, J.A.; Allendorf, M.D. Ultrasensitive Humidity Detection Using Metal–Organic Framework-Coated Microsensors. Anal. Chem. 2012, 84, 7043–7051. [Google Scholar] [CrossRef] [PubMed]
  45. Gao, Y.; Jing, P.T.; Yan, N.; Hilbers, M.; Zhang, H.; Rothenberg, G.; Tanase, S. Dual-mode humidity detection using a lanthanide-based metal-organic framework: Towards multifunctional humidity sensors. Chem. Commun. 2017, 53, 4465–4468. [Google Scholar] [CrossRef] [PubMed]
  46. Zhao, D.; Yue, D.; Jiang, K.; Zhang, L.; Li, C.X.; Qian, G.D. Isostructural Tb3+/Eu3+ Co-Doped Metal Organic Framework Based on Pyridine-Containing Dicarboxylate Ligands for Ratiometric Luminescence Temperature Sensing. Inorg. Chem. 2019, 58, 2637–2644. [Google Scholar] [CrossRef] [PubMed]
  47. Li, H.; Han, W.; Lv, R.; Zhai, A.; Li, X.L.; Gu, W.; Liu, X. Dual-Function Mixed-Lanthanide Metal-Organic Framework for Ratiometric Water Detection in Bioethanol and Temperature Sensing. Anal. Chem. 2019, 91, 2148–2154. [Google Scholar] [CrossRef]
  48. Wieme, J.; Lejaeghere, K.; Kresse, G.; Van Speybroeck, V. Tuning the balance between dispersion and entropy to design temperature-responsive flexible metal-organic frameworks. Nat. Commun. 2018, 9, 10. [Google Scholar] [CrossRef]
  49. Kimura, H.; Nagai, Y.; Umemura, K.; Kimura, Y. Physiological Roles of Hydrogen Sulfide: Synaptic Modulation, Neuroprotection, and Smooth Muscle Relaxation. Antioxid. Redox Signal. 2005, 7, 795–803. [Google Scholar] [CrossRef]
  50. Li, L.; Rose, P.; Moore, P.K. Hydrogen Sulfide and Cell Signaling. Annu. Rev. Pharmacool. Toxicol. 2011, 51, 169–187. [Google Scholar] [CrossRef]
  51. Watanabe, M.; Osada, J.; Aratani, Y.; Kluckman, K.; Reddick, R.; Malinow, M.R.; Maeda, N. Mice deficient in cystathionine beta-synthase: Animal models for mild and severe homocyst(e)inemia. Proc. Natl. Acad. Sci. USA 1995, 92, 1585–1589. [Google Scholar] [CrossRef] [PubMed]
  52. Dorman, D.C.; Moulin, F.J.-M.; McManus, B.E.; Mahle, K.C.; James, R.A.; Struve, M.F. Cytochrome Oxidase Inhibition Induced by Acute Hydrogen Sulfide Inhalation: Correlation with Tissue Sulfide Concentrations in the Rat Brain, Liver, Lung, and Nasal Epithelium. Toxicol. Sci. 2002, 65, 18–25. [Google Scholar] [CrossRef] [PubMed]
  53. Xu, T.L.; Scafa, N.; Xu, L.P.; Zhou, S.F.; Al-Ghanem, K.A.; Mahboob, S.; Fugetsu, B.; Zhang, X.J. Electrochemical hydrogen sulfide biosensors. Analyst 2016, 141, 1185–1195. [Google Scholar] [CrossRef] [PubMed]
  54. Llobet, E.; Brunet, J.; Pauly, A.; Ndiaye, A.; Varenne, C. Nanomaterials for the Selective Detection of Hydrogen Sulfide in Air. Sensors 2017, 17, 19. [Google Scholar] [CrossRef] [PubMed]
  55. Luo, Y.N.; Zhu, C.Z.; Du, D.; Lin, Y.H. A review of optical probes based on nanomaterials for the detection of hydrogen sulfide in biosystems. Anal. Chim. Acta 2019, 1061, 1–12. [Google Scholar] [CrossRef] [PubMed]
  56. Lin, V.S.; Chen, W.; Xian, M.; Chang, C.J. Chemical probes for molecular imaging and detection of hydrogen sulfide and reactive sulfur species in biological systems. Chem. Soc. Rev. 2015, 44, 4596–4618. [Google Scholar] [CrossRef] [PubMed]
  57. Hao, Y.; Zhang, Y.; Ruan, K.; Meng, F.; Li, T.; Guan, J.; Du, L.; Qu, P.; Xu, M. A highly selective long-wavelength fluorescent probe for hydrazine and its application in living cell imaging. Spectrochim. Acta A 2017, 184, 355–360. [Google Scholar] [CrossRef]
  58. Hao, Y.; Zhang, Y.; Ruan, K.; Chen, W.; Zhou, B.; Tan, X.; Wang, Y.; Zhao, L.; Zhang, G.; Qu, P.; et al. A naphthalimide-based chemodosimetric probe for ratiometric detection of hydrazine. Sens. Actuators B Chem. 2017, 244, 417–424. [Google Scholar] [CrossRef]
  59. Yu, F.; Han, X.; Chen, L. Fluorescent probes for hydrogen sulfide detection and bioimaging. Chem. Commun. 2014, 50, 12234–12249. [Google Scholar] [CrossRef]
  60. Peng, H.; Cheng, Y.; Dai, C.; King, A.L.; Predmore, B.L.; Lefer, D.J.; Wang, B. A Fluorescent Probe for Fast and Quantitative Detection of Hydrogen Sulfide in Blood. Angew. Chem. Int. Ed. 2011, 50, 9672–9675. [Google Scholar] [CrossRef]
  61. Lippert, A.R.; New, E.J.; Chang, C.J. Reaction-Based Fluorescent Probes for Selective Imaging of Hydrogen Sulfide in Living Cells. J. Am. Chem. Soc. 2011, 133, 10078–10080. [Google Scholar] [CrossRef] [PubMed]
  62. Hammers, M.D.; Taormina, M.J.; Cerda, M.M.; Montoya, L.A.; Seidenkranz, D.T.; Parthasarathy, R.; Pluth, M.D. A Bright Fluorescent Probe for H2S Enables Analyte-Responsive, 3D Imaging in Live Zebrafish Using Light Sheet Fluorescence Microscopy. J. Am. Chem. Soc. 2015, 137, 10216–10223. [Google Scholar] [CrossRef] [PubMed]
  63. Ke, B.; Wu, W.; Liu, W.; Liang, H.; Gong, D.; Hu, X.; Li, M. Bioluminescence Probe for Detecting Hydrogen Sulfide in Vivo. Anal. Chem. 2016, 88, 592–595. [Google Scholar] [CrossRef] [PubMed]
  64. Chen, Y.; Zhu, C.; Yang, Z.; Chen, J.; He, Y.; Jiao, Y.; He, W.; Qiu, L.; Cen, J.; Guo, Z. A Ratiometric Fluorescent Probe for Rapid Detection of Hydrogen Sulfide in Mitochondria. Angew. Chem. Int. Ed. 2013, 52, 1688–1691. [Google Scholar] [CrossRef] [PubMed]
  65. Wang, X.; Sun, J.; Zhang, W.; Ma, X.; Lv, J.; Tang, B. A near-infrared ratiometric fluorescent probe for rapid and highly sensitive imaging of endogenous hydrogen sulfide in living cells. Chem. Sci. 2013, 4, 2551–2556. [Google Scholar] [CrossRef]
  66. Huang, Z.; Ding, S.; Yu, D.; Huang, F.; Feng, G. Aldehyde group assisted thiolysis of dinitrophenyl ether: A new promising approach for efficient hydrogen sulfide probes. Chem. Commun. 2014, 50, 9185–9187. [Google Scholar] [CrossRef] [PubMed]
  67. Men, J.; Yang, X.; Zhang, H.; Zhou, J. A near-infrared fluorescent probe based on nucleophilic substitution–cyclization for selective detection of hydrogen sulfide and bioimaging. Dyes Pigments 2018, 153, 206–212. [Google Scholar] [CrossRef]
  68. Sasakura, K.; Hanaoka, K.; Shibuya, N.; Mikami, Y.; Kimura, Y.; Komatsu, T.; Ueno, T.; Terai, T.; Kimura, H.; Nagano, T. Development of a Highly Selective Fluorescence Probe for Hydrogen Sulfide. J. Am. Chem. Soc. 2011, 133, 18003–18005. [Google Scholar] [CrossRef]
  69. Liang, Z.H.; Tsoi, T.H.; Chan, C.F.; Dai, L.X.; Wu, Y.D.; Du, G.Y.; Zhu, L.Z.; Lee, C.S.; Wong, W.T.; Law, G.L.; et al. A smart “off-on” gate for the in situ detection of hydrogen sulphide with Cu(II)-assisted europium emission. Chem. Sci. 2016, 7, 2151–2156. [Google Scholar] [CrossRef] [PubMed]
  70. Vikrant, K.; Kumar, V.; Ok, Y.S.; Kim, K.-H.; Deep, A. Metal-organic framework (MOF)-based advanced sensing platforms for the detection of hydrogen sulfide. TrAC Trends Anal. Chem. 2018, 105, 263–281. [Google Scholar] [CrossRef]
  71. Nagarkar, S.S.; Saha, T.; Desai, A.V.; Talukdar, P.; Ghosh, S.K. Metal-organic framework based highly selective fluorescence turn-on probe for hydrogen sulphide. Sci. Rep. 2014, 4, 7053. [Google Scholar] [CrossRef] [PubMed]
  72. Nagarkar, S.S.; Desai, A.V.; Ghosh, S.K. A Nitro-Functionalized Metal–Organic Framework as a Reaction-Based Fluorescence Turn-On Probe for Rapid and Selective H2S Detection. Chem. Eur. J. 2015, 21, 9994–9997. [Google Scholar] [CrossRef] [PubMed]
  73. Zhang, X.; Zhang, J.; Hu, Q.; Cui, Y.; Yang, Y.; Qian, G. Postsynthetic modification of metal–organic framework for hydrogen sulfide detection. Appl. Surf. Sci. 2015, 355, 814–819. [Google Scholar] [CrossRef]
  74. Buragohain, A.; Biswas, S. Cerium-based azide- and nitro-functionalized UiO-66 frameworks as turn-on fluorescent probes for the sensing of hydrogen sulphide. CrystEngComm 2016, 18, 4374–4381. [Google Scholar] [CrossRef]
  75. Nandi, S.; Reinsch, H.; Banesh, S.; Stock, N.; Trivedi, V.; Biswas, S. Rapid and highly sensitive detection of extracellular and intracellular H2S by an azide-functionalized Al(III)-based metal–organic framework. Dalton Trans. 2017, 46, 12856–12864. [Google Scholar] [CrossRef] [PubMed]
  76. Dalapati, R.; Balaji, S.N.; Trivedi, V.; Khamari, L.; Biswas, S. A dinitro-functionalized Zr(IV)-based metal-organic framework as colorimetric and fluorogenic probe for highly selective detection of hydrogen sulphide. Sens. Actuators B Chem. 2017, 245, 1039–1049. [Google Scholar] [CrossRef]
  77. Das, A.; Banesh, S.; Trivedi, V.; Biswas, S. Extraordinary sensitivity for H2S and Fe(III) sensing in aqueous medium by Al-MIL-53-N3 metal–organic framework: In vitro and in vivo applications of H2S sensing. Dalton Trans. 2018, 47, 2690–2700. [Google Scholar] [CrossRef] [PubMed]
  78. Nandi, S.; Banesh, S.; Trivedi, V.; Biswas, S. A dinitro-functionalized metal–organic framework featuring visual and fluorogenic sensing of H2S in living cells, human blood plasma and environmental samples. Analyst 2018, 143, 1482–1491. [Google Scholar] [CrossRef]
  79. Legrand, A.; Pastushenko, A.; Lysenko, V.; Geloen, A.; Quadrelli, E.A.; Canivet, J.; Farrusseng, D. Enhanced Ligand-Based Luminescence in Metal–Organic Framework Sensor. ChemNanoMat 2016, 2, 866–872. [Google Scholar] [CrossRef]
  80. Zhang, X.; Zhang, Q.; Yue, D.; Zhang, J.; Wang, J.; Li, B.; Yang, Y.; Cui, Y.; Qian, G. Flexible Metal–Organic Framework-Based Mixed-Matrix Membranes: A New Platform for H2S Sensors. Small 2018, 14, 1801563. [Google Scholar] [CrossRef]
  81. Ma, Y.; Su, H.; Kuang, X.; Li, X.; Zhang, T.; Tang, B. Heterogeneous Nano Metal–Organic Framework Fluorescence Probe for Highly Selective and Sensitive Detection of Hydrogen Sulfide in Living Cells. Anal. Chem. 2014, 86, 11459–11463. [Google Scholar] [CrossRef]
  82. Ma, Y.; Zhang, C.; Yang, P.; Li, X.; Tong, L.; Huang, F.; Yue, J.; Tang, B. A CuO-functionalized NMOF probe with a tunable excitation wavelength for selective detection and imaging of H2S in living cells. Nanoscale 2018, 10, 15793–15798. [Google Scholar] [CrossRef]
  83. Zhang, X.; Hu, Q.; Xia, T.; Zhang, J.; Yang, Y.; Cui, Y.; Chen, B.; Qian, G. Turn-on and Ratiometric Luminescent Sensing of Hydrogen Sulfide Based on Metal–Organic Frameworks. ACS Appl. Mater. Interfaces 2016, 8, 32259–32265. [Google Scholar] [CrossRef]
  84. Zhang, X.; Fang, L.; Jiang, K.; He, H.; Yang, Y.; Cui, Y.; Li, B.; Qian, G. Nanoscale fluorescent metal–organic framework composites as a logic platform for potential diagnosis of asthma. Biosens. Bioelectron. 2019, 130, 65–72. [Google Scholar] [CrossRef]
  85. Zheng, X.; Fan, R.; Song, Y.; Wang, A.; Xing, K.; Du, X.; Wang, P.; Yang, Y. A highly sensitive turn-on ratiometric luminescent probe based on postsynthetic modification of Tb3+@Cu-MOF for H2S detection. J. Mater. Chem. C 2017, 5, 9943–9951. [Google Scholar] [CrossRef]
  86. Li, Y.; Zhang, X.; Zhang, L.; Jiang, K.; Cui, Y.; Yang, Y.; Qian, G. A nanoscale Zr-based fluorescent metal-organic framework for selective and sensitive detection of hydrogen sulfide. J. Solid State Chem. 2017, 255, 97–101. [Google Scholar] [CrossRef]
  87. Cao, Y.-Y.; Guo, X.-F.; Wang, H. High sensitive luminescence metal-organic framework sensor for hydrogen sulfide in aqueous solution: A trial of novel turn-on mechanism. Sens. Actuators B Chem. 2017, 243, 8–13. [Google Scholar] [CrossRef]
  88. Reddie, K.G.; Carroll, K.S. Expanding the functional diversity of proteins through cysteine oxidation. Curr. Opin. Chem. Biol. 2008, 12, 746–754. [Google Scholar] [CrossRef]
  89. Dudev, T.; Lim, C. Metal Binding Affinity and Selectivity in Metalloproteins: Insights from Computational Studies. Annu. Rev. Biophys. 2008, 37, 97–116. [Google Scholar] [CrossRef]
  90. Paulsen, C.E.; Carroll, K.S. Cysteine-Mediated Redox Signaling: Chemistry, Biology, and Tools for Discovery. Chem. Rev. 2013, 113, 4633–4679. [Google Scholar] [CrossRef]
  91. Lieberman, M.W.; Wiseman, A.L.; Shi, Z.Z.; Carter, B.Z.; Barrios, R.; Ou, C.N.; Chévez-Barrios, P.; Wang, Y.; Habib, G.M.; Goodman, J.C.; et al. Growth retardation and cysteine deficiency in gamma-glutamyl transpeptidase-deficient mice. Proc. Natl. Acad. Sci. USA 1996, 93, 7923–7926. [Google Scholar] [CrossRef]
  92. Wang, S.Q.; Shen, S.L.; Zhang, Y.R.; Dai, X.; Zhao, B.X. Recent Progress in Fluorescent Probes for the Detection of Biothiols. Chin. J. Org. Chem. 2014, 34, 1717–1729. [Google Scholar] [CrossRef]
  93. Niu, L.-Y.; Chen, Y.-Z.; Zheng, H.-R.; Wu, L.-Z.; Tung, C.-H.; Yang, Q.-Z. Design strategies of fluorescent probes for selective detection among biothiols. Chem. Soc. Rev. 2015, 44, 6143–6160. [Google Scholar] [CrossRef]
  94. Ding, S.; Liu, M.; Hong, Y. Biothiol-specific fluorescent probes with aggregation-induced emission characteristics. Sci. China Chem. 2018, 61, 882–891. [Google Scholar] [CrossRef]
  95. Yin, C.-X.; Xiong, K.-M.; Huo, F.-J.; Salamanca, J.C.; Strongin, R.M. Fluorescent Probes with Multiple Binding Sites for the Discrimination of Cys, Hcy, and GSH. Angew. Chem. Int. Ed. 2017, 56, 13188–13198. [Google Scholar] [CrossRef]
  96. Chen, X.; Zhou, Y.; Peng, X.; Yoon, J. Fluorescent and colorimetric probes for detection of thiols. Chem. Soc. Rev. 2010, 39, 2120–2135. [Google Scholar] [CrossRef]
  97. Ren, X.; Tian, H.; Yang, L.; He, L.; Geng, Y.; Liu, X.; Song, X. Fluorescent probe for simultaneous discrimination of Cys/Hcy and GSH in pure aqueous media with a fast response under a single-wavelength excitation. Sens. Actuators B Chem. 2018, 273, 1170–1178. [Google Scholar] [CrossRef]
  98. Yang, L.; Xiong, H.; Su, Y.; Tian, H.; Liu, X.; Song, X. A red-emitting water-soluble fluorescent probe for biothiol detection with a large Stokes shift. Chin. Chem. Lett. 2019, 30, 563–565. [Google Scholar] [CrossRef]
  99. Sharma, S.; Ghosh, S.K. Metal–Organic Framework-Based Selective Sensing of Biothiols via Chemidosimetric Approach in Water. ACS Omega 2018, 3, 254–258. [Google Scholar] [CrossRef]
  100. Wang, J.; Liu, Y.; Jiang, M.; Li, Y.; Xia, L.; Wu, P. Aldehyde-functionalized metal–organic frameworks for selective sensing of homocysteine over Cys, GSH and other natural amino acids. Chem. Commun. 2018, 54, 1004–1007. [Google Scholar] [CrossRef]
  101. Gui, B.; Meng, Y.; Xie, Y.; Tian, J.; Yu, G.; Zeng, W.; Zhang, G.; Gong, S.; Yang, C.; Zhang, D.; et al. Tuning the Photoinduced Electron Transfer in a Zr-MOF: Toward Solid-State Fluorescent Molecular Switch and Turn-On Sensor. Adv. Mater. 2018, 30, 1802329. [Google Scholar] [CrossRef]
  102. Zhao, X.; Zhang, Y.; Han, J.; Jing, H.; Gao, Z.; Huang, H.; Wang, Y.; Zhong, C. Design of “turn-on” fluorescence sensor for L-Cysteine based on the instability of metal-organic frameworks. Microporous Mesoporous Mater. 2018, 268, 88–92. [Google Scholar] [CrossRef]
  103. Sen, A.; Desai, A.V.; Samanta, P.; Dutta, S.; Let, S.; Ghosh, S.K. Post-synthetically modified metal–organic framework as a scaffold for selective bisulphite recognition in water. Polyhedron 2018, 156, 1–5. [Google Scholar] [CrossRef]
  104. Zhang, J.; Xia, T.; Zhao, D.; Cui, Y.; Yang, Y.; Qian, G. In situ secondary growth of Eu(III)-organic framework film for fluorescence sensing of sulfur dioxide. Sens. Actuators B Chem. 2018, 260, 63–69. [Google Scholar] [CrossRef]
  105. Fang, F.C. Antimicrobial reactive oxygen and nitrogen species: Concepts and controversies. Nat. Rev. Microbiol. 2004, 2, 820–832. [Google Scholar] [CrossRef]
  106. Li, H.; Cao, Z.; Moore, D.R.; Jackson, P.L.; Barnes, S.; Lambeth, J.D.; Thannickal, V.J.; Cheng, G. Microbicidal Activity of Vascular Peroxidase 1 in Human Plasma via Generation of Hypochlorous Acid. Infect. Immun. 2012, 80, 2528–2537. [Google Scholar] [CrossRef]
  107. Bhattacharyya, A.; Chattopadhyay, R.; Mitra, S.; Crowe, S.E. Oxidative Stress: An Essential Factor in the Pathogenesis of Gastrointestinal Mucosal Diseases. Physiol. Rev. 2014, 94, 329–354. [Google Scholar] [CrossRef]
  108. Soto, N.O.; Horstkotte, B.; March, J.G.; de Alba, P.L.L.; Martínez, L.L.; Martín, V.C. An environmental friendly method for the automatic determination of hypochlorite in commercial products using multisyringe flow injection analysis. Anal. Chim. Acta 2008, 611, 182–186. [Google Scholar] [CrossRef]
  109. Ordeig, O.; Mas, R.; Gonzalo, J.; Del Campo, F.J.; Muñoz, F.J.; de Haro, C. Continuous Detection of Hypochlorous Acid/Hypochlorite for Water Quality Monitoring and Control. Electroanalysis 2005, 17, 1641–1648. [Google Scholar] [CrossRef]
  110. Zhang, Y.-R.; Liu, Y.; Feng, X.; Zhao, B.-X. Recent progress in the development of fluorescent probes for the detection of hypochlorous acid. Sens. Actuators B Chem. 2017, 240, 18–36. [Google Scholar] [CrossRef]
  111. Duan, Q.; Jia, P.; Zhuang, Z.; Liu, C.; Zhang, X.; Wang, Z.; Sheng, W.; Li, Z.; Zhu, H.; Zhu, B.; et al. Rational Design of a Hepatoma-Specific Fluorescent Probe for HOCl and Its Bioimaging Applications in Living HepG2 Cells. Anal. Chem. 2019, 91, 2163–2168. [Google Scholar] [CrossRef] [PubMed]
  112. Wu, L.; Wu, I.C.; DuFort, C.C.; Carlson, M.A.; Wu, X.; Chen, L.; Kuo, C.-T.; Qin, Y.; Yu, J.; Hingorani, S.R.; et al. Photostable Ratiometric Pdot Probe for in Vitro and in Vivo Imaging of Hypochlorous Acid. J. Am. Chem. Soc. 2017, 139, 6911–6918. [Google Scholar] [CrossRef] [PubMed]
  113. Nguyen, K.H.; Hao, Y.; Zeng, K.; Fan, S.; Li, F.; Yuan, S.; Ding, X.; Xu, M.; Liu, Y.-N. A benzothiazole-based fluorescent probe for hypochlorous acid detection and imaging in living cells. Spectrochim. Acta A 2018, 199, 189–193. [Google Scholar] [CrossRef] [PubMed]
  114. Liang, S.; Kuang, Y.; Ma, F.; Chen, S.; Long, Y. A sensitive spectrofluorometric method for detection of berberine hydrochloride using Ag nanoclusters directed by natural fish sperm DNA. Biosens. Bioelectron. 2016, 85, 758–763. [Google Scholar] [CrossRef] [PubMed]
  115. Zhang, P.; Wang, H.; Hong, Y.; Yu, M.; Zeng, R.; Long, Y.; Chen, J. Selective visualization of endogenous hypochlorous acid in zebrafish during lipopolysaccharide-induced acute liver injury using a polymer micelles-based ratiometric fluorescent probe. Biosens. Bioelectron. 2018, 99, 318–324. [Google Scholar] [CrossRef] [PubMed]
  116. Zhang, P.; Wang, H.; Zhang, D.; Zeng, X.; Zeng, R.; Xiao, L.; Tao, H.; Long, Y.; Yi, P.; Chen, J. Two-photon fluorescent probe for lysosome-targetable hypochlorous acid detection within living cells. Sens. Actuators B Chem. 2018, 255, 2223–2231. [Google Scholar] [CrossRef]
  117. Xue, M.; Wang, H.; Chen, J.; Ren, J.; Chen, S.; Yang, H.; Zeng, R.; Long, Y.; Zhang, P. Ratiometric fluorescent sensing of endogenous hypochlorous acid in lysosomes using AIE-based polymeric nanoprobe. Sens. Actuators B Chem. 2019, 282, 1–8. [Google Scholar] [CrossRef]
  118. Zhou, Z.; Li, X.; Tang, Y.; Zhang, C.C.; Fu, H.; Wu, N.; Ma, L.; Gao, J.; Wang, Q. Oxidative deoximation reaction induced recognition of hypochlorite based on a new fluorescent lanthanide-organic framework. Chem. Eng. J. 2018, 351, 364–370. [Google Scholar] [CrossRef]
  119. Ye, Y.; Zhao, L.; Hu, S.; Liang, A.; Li, Y.; Zhuang, Q.; Tao, G.; Gu, J. Specific detection of hypochlorite based on the size-selective effect of luminophore integrated MOF-801 synthesized by a one-pot strategy. Dalton Trans. 2019, 48, 2617–2625. [Google Scholar] [CrossRef]
  120. Cai, K.; Zeng, M.; Wang, L.; Song, Y.; Chen, L. Ratiometric Fluorescent Detection of ClO Based on Dual-Emission [email protected] Metal-Organic Frameworks. ChemistrySelect 2019, 4, 2649–2655. [Google Scholar] [CrossRef]
  121. Yue, D.; Zhao, D.; Zhang, J.; Zhang, L.; Jiang, K.; Zhang, X.; Cui, Y.; Yang, Y.; Chen, B.; Qian, G. A luminescent cerium metal–organic framework for the turn-on sensing of ascorbic acid. Chem. Commun. 2017, 53, 11221–11224. [Google Scholar] [CrossRef] [PubMed]
  122. Yue, D.; Huang, Y.; Zhang, L.; Jiang, K.; Zhang, X.; Cui, Y.; Yu, Y.; Qian, G. Ratiometric luminescence sensing based on a mixed Ce/Eu metal–organic framework. J. Mater. Chem. C 2018, 6, 2054–2059. [Google Scholar] [CrossRef]
  123. Yue, D.; Huang, Y.; Zhang, J.; Zhang, X.; Cui, Y.; Yang, Y.; Qian, G. A Two-Dimensional Metal–Organic Framework as a Fluorescent Probe for Ascorbic Acid Sensing. Eur. J. Inorg. Chem. 2018, 2018, 173–177. [Google Scholar] [CrossRef]
  124. Wu, S.; Lin, Y.; Liu, J.; Shi, W.; Yang, G.; Cheng, P. Rapid Detection of the Biomarkers for Carcinoid Tumors by a Water Stable Luminescent Lanthanide Metal–Organic Framework Sensor. Adv. Funct. Mater. 2018, 28, 1707169. [Google Scholar] [CrossRef]
  125. Chan, J.; Dodani, S.C.; Chang, C.J. Reaction-based small-molecule fluorescent probes for chemoselective bioimaging. Nat. Chem. 2012, 4, 973. [Google Scholar] [CrossRef] [PubMed]
  126. Sk, M.; Banesh, S.; Trivedi, V.; Biswas, S. Selective and Sensitive Sensing of Hydrogen Peroxide by a Boronic Acid Functionalized Metal–Organic Framework and Its Application in Live-Cell Imaging. Inorg. Chem. 2018, 57, 14574–14581. [Google Scholar] [CrossRef] [PubMed]
  127. Kotecha, P.V.; Patel, S.V.; Bhalani, K.D.; Shah, D.; Shah, V.S.; Mehta, K.G. Prevalence of dental fluorosis & dental caries in association with high levels of drinking water fluoride content in a district of Gujarat, India. Indian J. Med. Res. 2012, 135, 873–877. [Google Scholar]
  128. Chirani, R.A.; Foray, H. Dental fluorosis: Etiological diagnosis. Arch. Pediatr. 2005, 12, 284–287. [Google Scholar] [CrossRef]
  129. Souza, D.C.C.; Maltz, M.; Hashizume, L.N. Fluoride retention in saliva and in dental biofilm after different home-use fluoride treatments. Braz. Oral Res. 2014, 28, 255–259. [Google Scholar] [CrossRef]
  130. Dhillon, A.; Nair, M.; Kumar, D. Analytical methods for determination and sensing of fluoride in biotic and abiotic sources: A review. Anal. Methods 2016, 8, 5338–5352. [Google Scholar] [CrossRef]
  131. Wu, S.; Han, T.; Guo, J.; Cheng, Y. Poly(3-aminophenylboronic acid)-reduced graphene oxide nanocomposite modified electrode for ultrasensitive electrochemical detection of fluoride with a wide response range. Sens. Actuators B Chem. 2015, 220, 1305–1310. [Google Scholar] [CrossRef]
  132. Snowden, T.S.; Anslyn, E.V. Anion recognition: Synthetic receptors for anions and their application in sensors. Curr. Opin. Chem. Biol. 1999, 3, 740–746. [Google Scholar] [CrossRef]
  133. Michigami, Y.; Kuroda, Y.; Ueda, K.; Yamamoto, Y. Determination of urinary fluoride by ion chromatography. Anal. Chim. Acta 1993, 274, 299–302. [Google Scholar] [CrossRef]
  134. Xu, X.R.; Li, H.B.; Gu, J.-D.; Paeng, K.J. Determination of Fluoride in Water by Reversed-Phase High-Performance Liquid Chromatography using F-La3+-Alizarin Complexone Ternary Complex. Chromatographia 2004, 59, 745–747. [Google Scholar] [CrossRef]
  135. Han, J.; Zhang, J.; Gao, M.; Hao, H.; Xu, X. Recent advances in chromo-fluorogenic probes for fluoride detection. Dyes Pigments 2019, 162, 412–439. [Google Scholar] [CrossRef]
  136. Zhou, Y.; Zhang, J.F.; Yoon, J. Fluorescence and Colorimetric Chemosensors for Fluoride-Ion Detection. Chem. Rev. 2014, 114, 5511–5571. [Google Scholar] [CrossRef]
  137. Zhang, H.M.; Wu, Y.C.; You, J.Y.; Cao, L.; Ding, S.; Jiang, K.; Wang, Z.Y. New Progress in the Design, Synthesis and Application of Fluorescent Probes for Fluoride Ion Detection. Chin. J. Org. Chem. 2016, 36, 2559–2582. [Google Scholar] [CrossRef]
  138. Wang, X.; Hu, R.; Li, S.Y. Design Strategy and Application of F Luminescent Probes. Prog. Chem. 2018, 30, 1364–1379. [Google Scholar]
  139. Chen, B.; Wang, L.; Zapata, F.; Qian, G.; Lobkovsky, E.B. A Luminescent Microporous Metal–Organic Framework for the Recognition and Sensing of Anions. J. Am. Chem. Soc. 2008, 130, 6718–6719. [Google Scholar] [CrossRef]
  140. Zheng, H.-Y.; Lian, X.; Qin, S.-J.; Yan, B. Novel “Turn-On” Fluorescent Probe for Highly Selectively Sensing Fluoride in Aqueous Solution Based on Tb3+-Functionalized Metal–Organic Frameworks. ACS Omega 2018, 3, 12513–12519. [Google Scholar] [CrossRef]
  141. Yang, Z.-R.; Wang, M.-M.; Wang, X.-S.; Yin, X.-B. Boric-Acid-Functional Lanthanide Metal–Organic Frameworks for Selective Ratiometric Fluorescence Detection of Fluoride Ions. Anal. Chem. 2017, 89, 1930–1936. [Google Scholar] [CrossRef] [PubMed]
  142. Ebrahim, F.M.; Nguyen, T.N.; Shyshkanov, S.; Gładysiak, A.; Favre, P.; Zacharia, A.; Itskos, G.; Dyson, P.J.; Stylianou, K.C. Selective, Fast-Response, and Regenerable Metal–Organic Framework for Sampling Excess Fluoride Levels in Drinking Water. J. Am. Chem. Soc. 2019, 141, 3052–3058. [Google Scholar] [CrossRef] [PubMed]
  143. Dorea, J.G.; Donangelo, C.M. Early (in uterus and infant) exposure to mercury and lead. Clin. Nutr. 2006, 25, 369–376. [Google Scholar] [CrossRef] [PubMed]
  144. Harris, H.H.; Pickering, I.J.; George, G.N. The Chemical Form of Mercury in Fish. Science 2003, 301, 1203. [Google Scholar] [CrossRef] [PubMed]
  145. Llobet, J.M.; Falcó, G.; Casas, C.; Teixidó, A.; Domingo, J.L. Concentrations of Arsenic, Cadmium, Mercury, and Lead in Common Foods and Estimated Daily Intake by Children, Adolescents, Adults, and Seniors of Catalonia, Spain. J. Agric. Food. Chem. 2003, 51, 838–842. [Google Scholar] [CrossRef] [PubMed]
  146. Tchounwou, P.B.; Ayensu, W.K.; Ninashvili, N.; Sutton, D. Review: Environmental exposure to mercury and its toxicopathologic implications for public health. Environ. Technol. 2003, 18, 149–175. [Google Scholar] [CrossRef] [PubMed]
  147. Harada, M. Minamata Disease: Methylmercury Poisoning in Japan Caused by Environmental Pollution. Crit. Rev. Toxicol. 1995, 25, 1–24. [Google Scholar] [CrossRef] [PubMed]
  148. Chen, S.; Kuang, Y.; Zhang, P.; Huang, Y.; Wen, A.; Zeng, X.; Feng, R.; Nie, H.; Jiang, X.; Long, Y. A dual-functional spectroscopic probe for simultaneous monitoring Cu2+ and Hg2+ ions by two different sensing nature based on novel fluorescent gold nanoclusters. Sens. Actuators B Chem. 2017, 253, 283–291. [Google Scholar] [CrossRef]
  149. Hao, Y.; Xiong, D.; Wang, L.; Chen, W.; Zhou, B.; Liu, Y.-N. A reversible competition colorimetric assay for the detection of biothiols based on ruthenium-containing complex. Talanta 2013, 115, 253–257. [Google Scholar] [CrossRef] [PubMed]
  150. Cui, Y.; Hao, Y.; Zhang, Y.; Liu, B.; Zhu, X.; Qu, P.; Li, D.; Xu, M. A water-soluble and retrievable ruthenium-based probe for colorimetric recognition of Hg(II) and Cys. Spectrochim. Acta A 2016, 165, 150–154. [Google Scholar] [CrossRef] [PubMed]
  151. Suherman, A.L.; Tanner, E.E.L.; Compton, R.G. Recent developments in inorganic Hg2+ detection by voltammetry. TrAC Trends Anal. Chem. 2017, 94, 161–172. [Google Scholar] [CrossRef]
  152. Mahato, P.; Saha, S.; Das, P.; Agarwalla, H.; Das, A. An overview of the recent developments on Hg2+ recognition. RSC Adv. 2014, 4, 36140–36174. [Google Scholar] [CrossRef]
  153. Chen, S.; Tang, J.; Kuang, Y.; Fu, L.; Ma, F.; Yang, Y.; Chen, G.; Long, Y. Selective deposition of HgS at the corner sites of triangular silver nanoprism and its tunable LSPR for colorimetric Hg2+ detection. Sens. Actuators B Chem. 2015, 221, 1182–1187. [Google Scholar] [CrossRef]
  154. Quang, D.T.; Kim, J.S. Fluoro- and Chromogenic Chemodosimeters for Heavy Metal Ion Detection in Solution and Biospecimens. Chem. Rev. 2010, 110, 6280–6301. [Google Scholar] [CrossRef] [PubMed]
  155. Kim, H.N.; Ren, W.X.; Kim, J.S.; Yoon, J. Fluorescent and colorimetric sensors for detection of lead, cadmium, and mercury ions. Chem. Soc. Rev. 2012, 41, 3210–3244. [Google Scholar] [CrossRef] [PubMed]
  156. Yang, Y.; Zhao, Q.; Feng, W.; Li, F. Luminescent Chemodosimeters for Bioimaging. Chem. Rev. 2013, 113, 192–270. [Google Scholar] [CrossRef] [PubMed]
  157. Samanta, P.; Desai, A.V.; Sharma, S.; Chandra, P.; Ghosh, S.K. Selective Recognition of Hg2+ ion in Water by a Functionalized Metal–Organic Framework (MOF) Based Chemodosimeter. Inorg. Chem. 2018, 57, 2360–2364. [Google Scholar] [CrossRef] [PubMed]
  158. Panda, M.; Robinson, N.C. Kinetics and mechanism for the binding of HCN to cytochrome c oxidase. Biochemistry 1995, 34, 10009–10018. [Google Scholar] [CrossRef]
  159. Jiang, J.; Wang, X.; Zhou, W.; Gao, H.; Wu, J. Extraction of gold from alkaline cyanide solution by the tetradecyldimethylbenzylammonium chloride/tri-n-butyl phosphate/n-heptane system based on a microemulsion mechanism. Phys. Chem. Chem. Phys. 2002, 4, 4489–4494. [Google Scholar] [CrossRef]
  160. Attar, A.; Cubillana-Aguilera, L.; Naranjo-Rodríguez, I.; de Cisneros, J.L.; Palacios-Santander, J.M.; Amine, A. Amperometric inhibition biosensors based on horseradish peroxidase and gold sononanoparticles immobilized onto different electrodes for cyanide measurements. Bioelectrochemistry 2015, 101, 84–91. [Google Scholar] [CrossRef]
  161. Kang, H.-I.; Shin, H.-S. Derivatization Method of Free Cyanide Including Cyanogen Chloride for the Sensitive Analysis of Cyanide in Chlorinated Drinking Water by Liquid Chromatography-Tandem Mass Spectrometry. Anal. Chem. 2015, 87, 975–981. [Google Scholar] [CrossRef] [PubMed]
  162. Xu, Z.; Chen, X.; Kim, H.N.; Yoon, J. Sensors for the optical detection of cyanide ion. Chem. Soc. Rev. 2010, 39, 127–137. [Google Scholar] [CrossRef] [PubMed]
  163. Wang, F.; Wang, L.; Chen, X.; Yoon, J. Recent progress in the development of fluorometric and colorimetric chemosensors for detection of cyanide ions. Chem. Soc. Rev. 2014, 43, 4312–4324. [Google Scholar] [CrossRef] [PubMed]
  164. Udhayakumari, D. Chromogenic and fluorogenic chemosensors for lethal cyanide ion. A comprehensive review of the year 2016. Sens. Actuators B Chem. 2018, 259, 1022–1057. [Google Scholar] [CrossRef]
  165. Hao, Y.; Nguyen, K.H.; Zhang, Y.; Zhang, G.; Fan, S.; Li, F.; Guo, C.; Lu, Y.; Song, X.; Qu, P.; et al. A highly selective and ratiometric fluorescent probe for cyanide by rationally altering the susceptible H-atom. Talanta 2018, 176, 234–241. [Google Scholar] [CrossRef] [PubMed]
  166. Karmakar, A.; Kumar, N.; Samanta, P.; Desai, A.V.; Ghosh, S.K. A Post-Synthetically Modified MOF for Selective and Sensitive Aqueous-Phase Detection of Highly Toxic Cyanide Ions. Chem. Eur. J. 2016, 22, 864–868. [Google Scholar] [CrossRef]

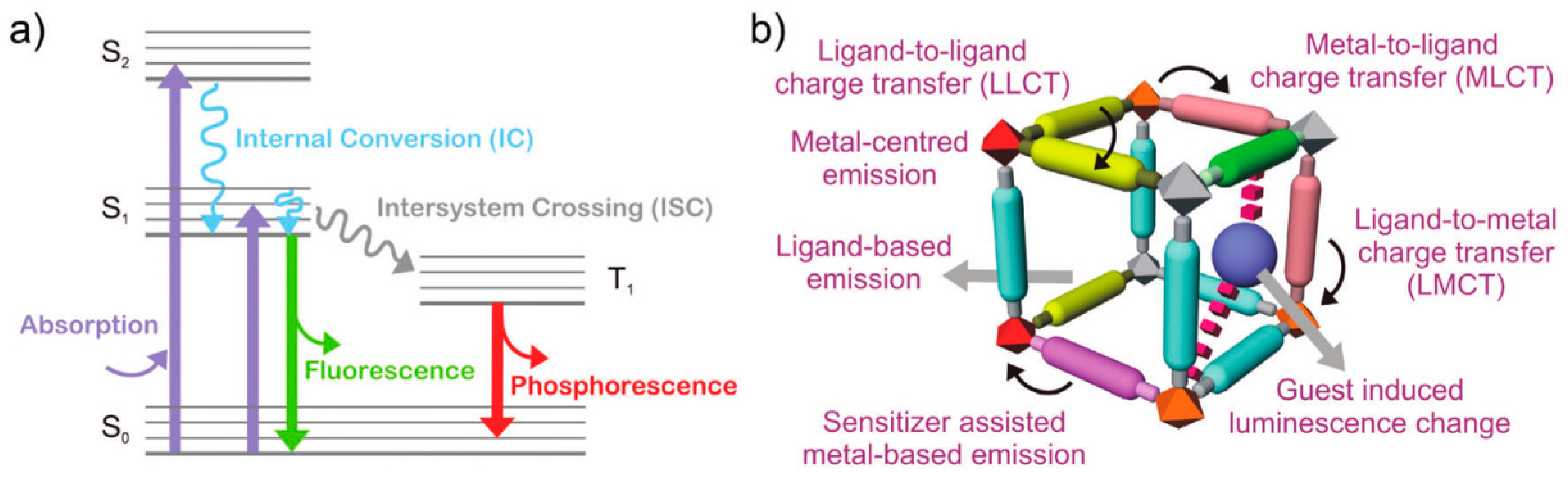

Figure 1. (a) Partial energy-level diagram for photoluminescent processes; (b) various possibilities for the emission of metal–organic frameworks (MOFs). Reproduced with permission from [24]. Copyright the Royal Society of Chemistry, 2017.
Figure 1. (a) Partial energy-level diagram for photoluminescent processes; (b) various possibilities for the emission of metal–organic frameworks (MOFs). Reproduced with permission from [24]. Copyright the Royal Society of Chemistry, 2017.
Nanomaterials 09 00974 g001
Figure 2. The synthetic route and sensing mechanism of [email protected]3 for H2S. Reproduced with permission from [71]. Copyright Nature Publishing Group, 2014.
Figure 2. The synthetic route and sensing mechanism of [email protected]3 for H2S. Reproduced with permission from [71]. Copyright Nature Publishing Group, 2014.
Nanomaterials 09 00974 g002
Figure 3. (a) Azido-MOFs for H2S sensing. (b,c) Emission spectra of dry MOF samples, Al-MIL-101-NH2 (blue), In-MIL-68-NH2 (red), Zr-UiO-66-NH2 (black), Al-MIL-101-N3 (green) under UV-lamp excitation (b) or fs-pulse laser excitation (c) at 343 nm. (d) Proposed schematic mechanisms of charges recombination underpinning the observed switch in emission channels. (e) Emission spectra of Al-MIL-101-N3 in the presence of different concentrations of sodium sulfide (excited at 343 nm with a fs-pulse laser). (f) Reversed cubic fit of sodium sulfide concentration vs. measured intensity of the 565 nm band in emission spectra. (g) Detection of H2S released from GYY4137. (h) Exposure of Al-MIL-101-N3 to a sample of culture medium for cells with endogenously produced H2S. Reproduced with permission from [79]. Copyright Wiley-VCH, 2016.
Figure 3. (a) Azido-MOFs for H2S sensing. (b,c) Emission spectra of dry MOF samples, Al-MIL-101-NH2 (blue), In-MIL-68-NH2 (red), Zr-UiO-66-NH2 (black), Al-MIL-101-N3 (green) under UV-lamp excitation (b) or fs-pulse laser excitation (c) at 343 nm. (d) Proposed schematic mechanisms of charges recombination underpinning the observed switch in emission channels. (e) Emission spectra of Al-MIL-101-N3 in the presence of different concentrations of sodium sulfide (excited at 343 nm with a fs-pulse laser). (f) Reversed cubic fit of sodium sulfide concentration vs. measured intensity of the 565 nm band in emission spectra. (g) Detection of H2S released from GYY4137. (h) Exposure of Al-MIL-101-N3 to a sample of culture medium for cells with endogenously produced H2S. Reproduced with permission from [79]. Copyright Wiley-VCH, 2016.
Nanomaterials 09 00974 g003
Figure 4. (a) Fabrication process for Al-MIL-53-NO2@PVDF MOF-polymer mixed-matrix membranes (MMMs). (b) Fluorescence spectra of Al-MIL-53-NO2@PVDF MMMs (70 wt%) with different concentrations of H2S (excited at 396 nm). (c) Fluorescence response of Al-MIL-53-NO2 MMMs at 466 nm toward various analytes. Reproduced with permission from [80]. Copyright Wiley-VCH, 2016.
Figure 4. (a) Fabrication process for Al-MIL-53-NO2@PVDF MOF-polymer mixed-matrix membranes (MMMs). (b) Fluorescence spectra of Al-MIL-53-NO2@PVDF MMMs (70 wt%) with different concentrations of H2S (excited at 396 nm). (c) Fluorescence response of Al-MIL-53-NO2 MMMs at 466 nm toward various analytes. Reproduced with permission from [80]. Copyright Wiley-VCH, 2016.
Nanomaterials 09 00974 g004
Figure 5. (a) The proposed strategy for the fluorescent variation of Cu(TCPP)[AlOH]2 for H2S. (b) Confocal fluorescence images in living cells: (1) image of HepG2 cells incubated with 10 μM Cu(TCPP)[AlOH]2; (2) bright-field image of (1); (3) image of HepG2 cells incubated with 10 μM Cu(TCPP)[AlOH]2 and 50 μM NaHS; (4) bright-field image of (3); (5) image of A549 cells incubated with 500 μM SNP and 10 μM Cu(TCPP)[AlOH]2; (6) bright-field image of (5); (7) image of A549 cells incubated with 250 mg·L1 dl-propargylglycine (PPG) and 10 μM Cu(TCPP)[AlOH]2; (8) bright-field image of (7). Reproduced with permission from [81]. Copyright American Chemical Society, 2014.
Figure 5. (a) The proposed strategy for the fluorescent variation of Cu(TCPP)[AlOH]2 for H2S. (b) Confocal fluorescence images in living cells: (1) image of HepG2 cells incubated with 10 μM Cu(TCPP)[AlOH]2; (2) bright-field image of (1); (3) image of HepG2 cells incubated with 10 μM Cu(TCPP)[AlOH]2 and 50 μM NaHS; (4) bright-field image of (3); (5) image of A549 cells incubated with 500 μM SNP and 10 μM Cu(TCPP)[AlOH]2; (6) bright-field image of (5); (7) image of A549 cells incubated with 250 mg·L1 dl-propargylglycine (PPG) and 10 μM Cu(TCPP)[AlOH]2; (8) bright-field image of (7). Reproduced with permission from [81]. Copyright American Chemical Society, 2014.
Nanomaterials 09 00974 g005

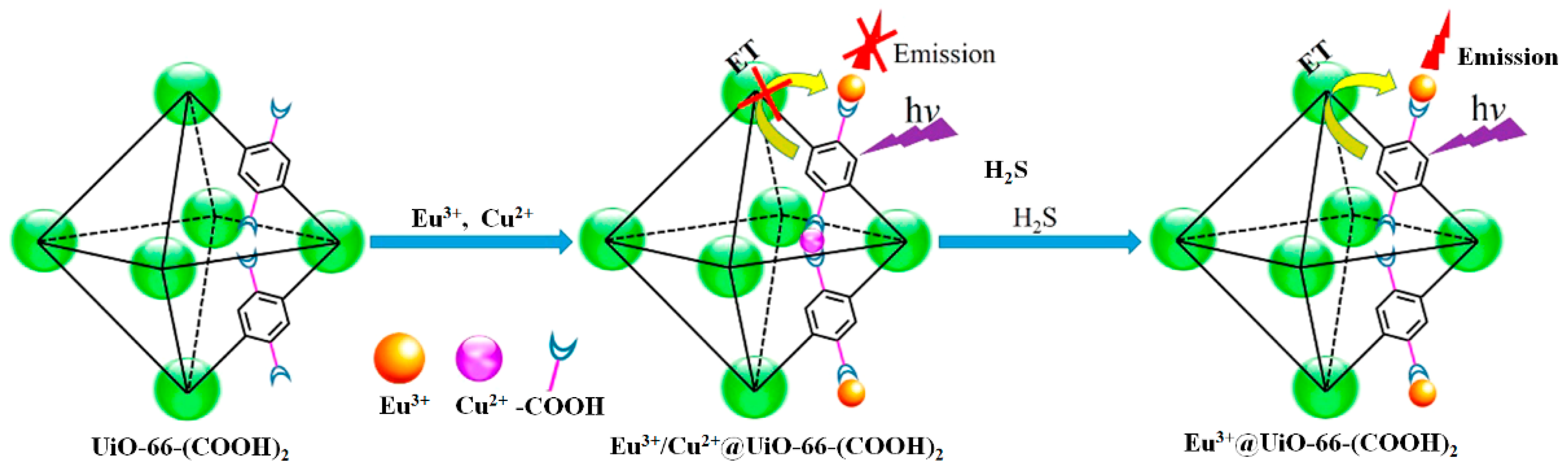

Figure 6. The fluorescence detection mechanism of the MOF Eu3+/Cu2+@UiO-66-(COOH)2 system for H2S. Reproduced with permission from [83]. Copyright American Chemical Society, 2016.
Figure 6. The fluorescence detection mechanism of the MOF Eu3+/Cu2+@UiO-66-(COOH)2 system for H2S. Reproduced with permission from [83]. Copyright American Chemical Society, 2016.
Nanomaterials 09 00974 g006
Figure 7. (a) Synthetic route for Tb3+@Cu-MOF and its sensing mechanism for H2S. (b) Crystalline structure of [Cu(CPOC)2], (1) 2D layers of Cu1; (2) 2D layers of Cu1 viewed along the c axis; (3) 1D channel in the 3D framework; (4) 3D supramolecular framework of [Cu(CPOC)2] through O–H···O interactions; (5) topological representation of the 3D structure. (c) Fluorescence response of Tb3+@[Cu(CPOC)2] towards sulfide and other analytes. Reproduced with permission from [85]. Copyright the Royal Society of Chemistry, 2017.
Figure 7. (a) Synthetic route for Tb3+@Cu-MOF and its sensing mechanism for H2S. (b) Crystalline structure of [Cu(CPOC)2], (1) 2D layers of Cu1; (2) 2D layers of Cu1 viewed along the c axis; (3) 1D channel in the 3D framework; (4) 3D supramolecular framework of [Cu(CPOC)2] through O–H···O interactions; (5) topological representation of the 3D structure. (c) Fluorescence response of Tb3+@[Cu(CPOC)2] towards sulfide and other analytes. Reproduced with permission from [85]. Copyright the Royal Society of Chemistry, 2017.
Nanomaterials 09 00974 g007

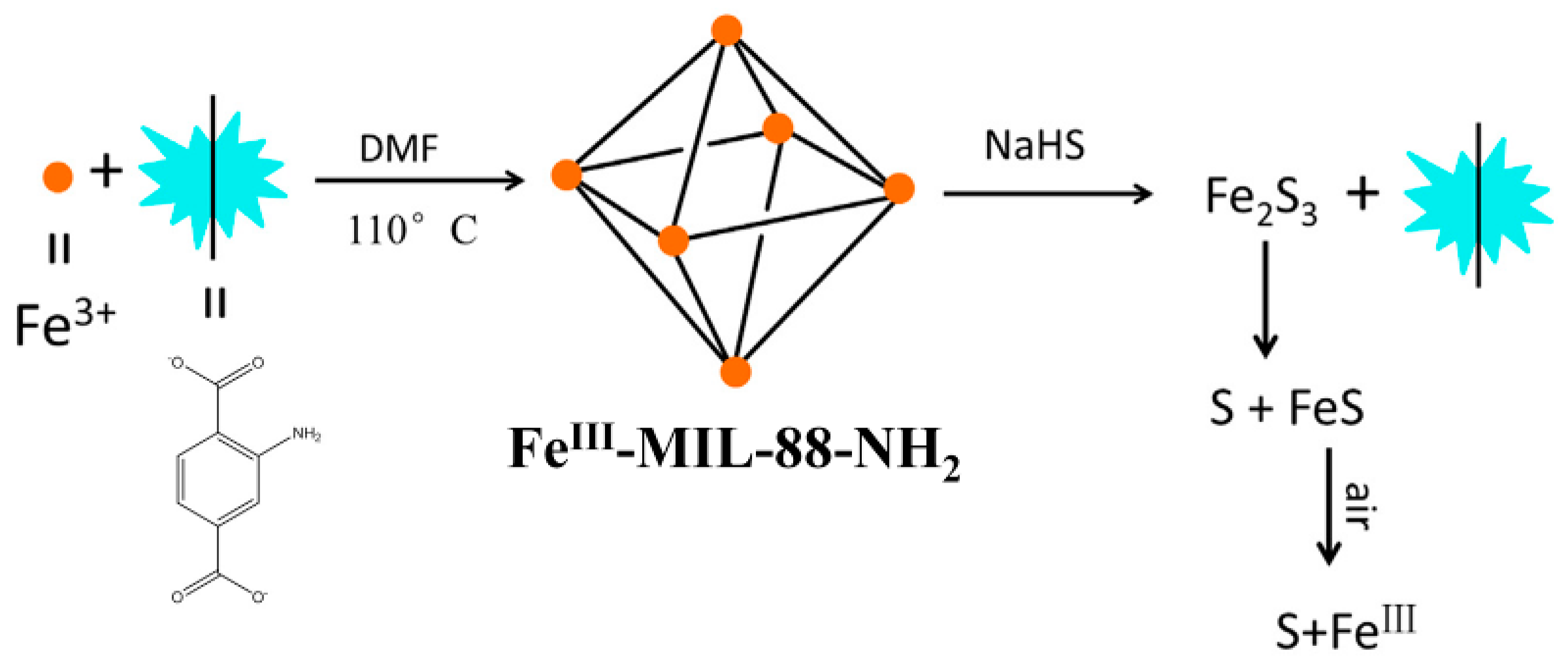

Figure 8. The synthesis and the turn-on fluoresence response of FeIII-MIL-88-NH2 for H2S. Reproduced with permission from [87]. Copyright Elsevier B.V., New York, NY, USA, 2017.
Figure 8. The synthesis and the turn-on fluoresence response of FeIII-MIL-88-NH2 for H2S. Reproduced with permission from [87]. Copyright Elsevier B.V., New York, NY, USA, 2017.
Nanomaterials 09 00974 g008
Figure 9. (a) The fluorescence detection mechanism of UiO-66-DNS for biothiols. (b) The fluorescence responses of UiO-66-DNS after addition of different amount of Cys. (c) Relative changes in the fluorescence intensity of UiO-66-DNS upon treatment with various amino acids. Reproduced with permission from [99]. Copyright American Chemical Society, 2016.
Figure 9. (a) The fluorescence detection mechanism of UiO-66-DNS for biothiols. (b) The fluorescence responses of UiO-66-DNS after addition of different amount of Cys. (c) Relative changes in the fluorescence intensity of UiO-66-DNS upon treatment with various amino acids. Reproduced with permission from [99]. Copyright American Chemical Society, 2016.
Nanomaterials 09 00974 g009
Figure 10. (a) The fluorescence detection mechanism of Cd–PPCA for Hcy. (b) the coordinated environment of the Cd2+ in Cd–PPCA (Top); a two-dimensional double-layer structure composed of Cd2+ and ligands of ppca and H3tca (bottom-left); the Connolly surface of the framework of Cd–PPCA (bottom-right). (c) The fluorescence spectra of Cd–PPCA upon addition of different amounts of Hcy. (d) Results for selectivity and competition tests. Reproduced with permission from [100]. Copyright the Royal Society of Chemistry, 2018.
Figure 10. (a) The fluorescence detection mechanism of Cd–PPCA for Hcy. (b) the coordinated environment of the Cd2+ in Cd–PPCA (Top); a two-dimensional double-layer structure composed of Cd2+ and ligands of ppca and H3tca (bottom-left); the Connolly surface of the framework of Cd–PPCA (bottom-right). (c) The fluorescence spectra of Cd–PPCA upon addition of different amounts of Hcy. (d) Results for selectivity and competition tests. Reproduced with permission from [100]. Copyright the Royal Society of Chemistry, 2018.
Nanomaterials 09 00974 g010

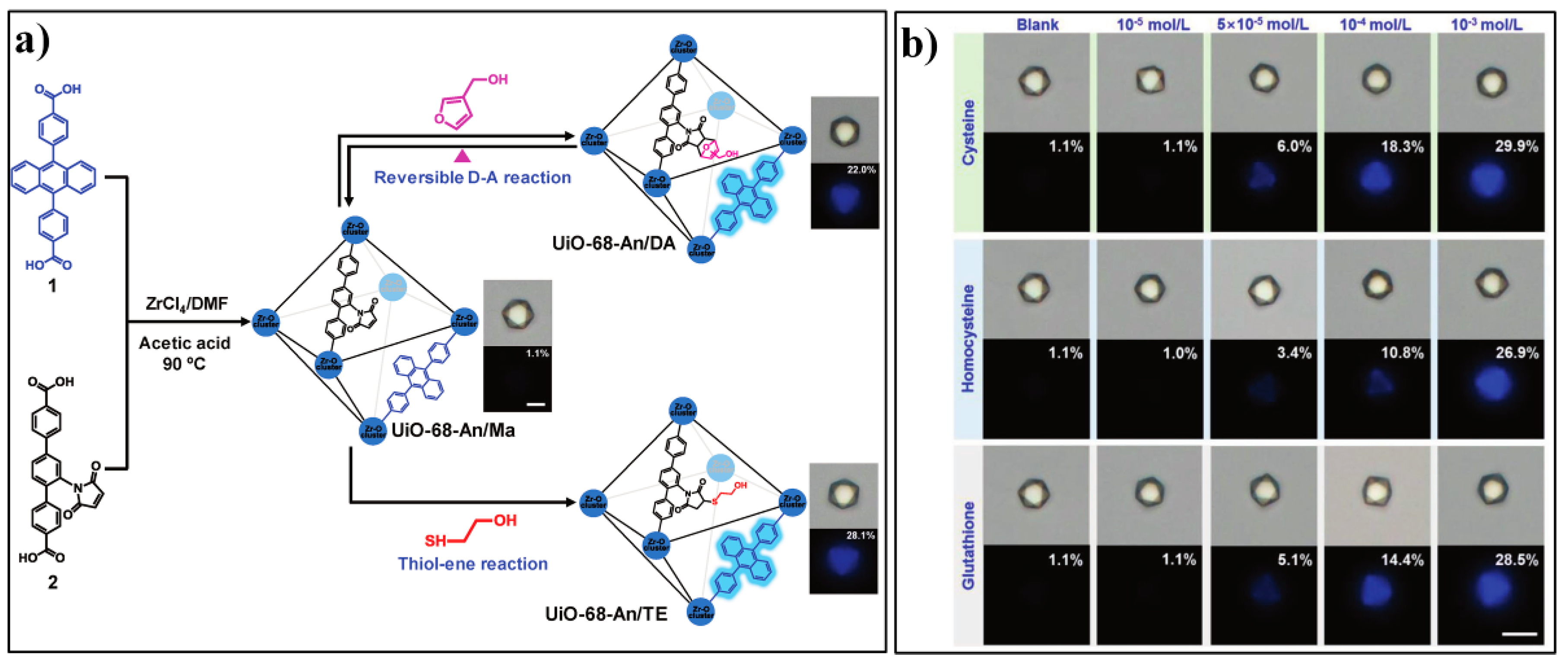

Figure 11. (a) Synthesis of UiO-68-An/Ma and tuning the fluorescent photoinduced electron transfer (PET) in the MOF through a reversible D–A reaction or thiol-ene reaction. (b) Bright-field and photoluminescence single-crystal images of UiO-68-An/Ma treated with different concentrations of Cys, Hcy, and GSH for 5 min. Reproduced with permission from [101]. Copyright Wiley-VCH, 2016.
Figure 11. (a) Synthesis of UiO-68-An/Ma and tuning the fluorescent photoinduced electron transfer (PET) in the MOF through a reversible D–A reaction or thiol-ene reaction. (b) Bright-field and photoluminescence single-crystal images of UiO-68-An/Ma treated with different concentrations of Cys, Hcy, and GSH for 5 min. Reproduced with permission from [101]. Copyright Wiley-VCH, 2016.
Nanomaterials 09 00974 g011

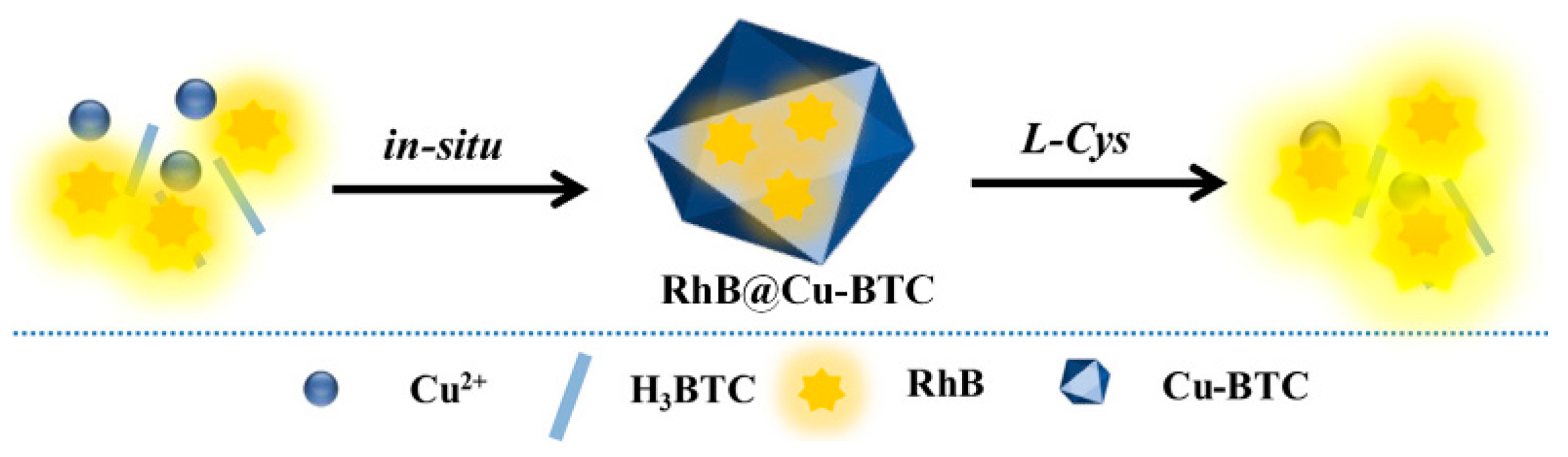

Figure 12. The synthesis of [email protected] and its sensing process for Cys. Reproduced with permission from [102]. Copyright 2018 Elsevier B.V., New York, NY, USA.
Figure 12. The synthesis of [email protected] and its sensing process for Cys. Reproduced with permission from [102]. Copyright 2018 Elsevier B.V., New York, NY, USA.
Nanomaterials 09 00974 g012

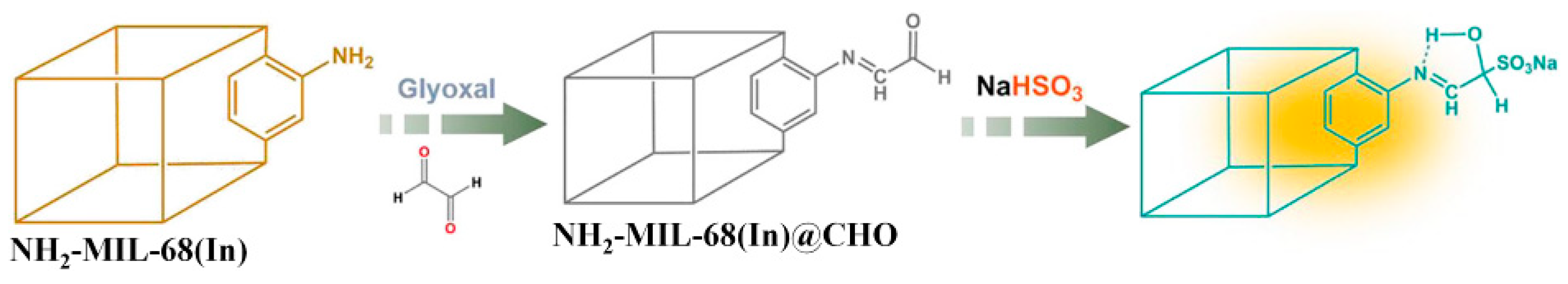

Figure 13. The synthesis of NH2-MIL-68(In)@CHO and its sensing process for bisulfite. Reproduced with permission from [103]. Copyright Elsevier B.V., New York, NY, USA, 2018.
Figure 13. The synthesis of NH2-MIL-68(In)@CHO and its sensing process for bisulfite. Reproduced with permission from [103]. Copyright Elsevier B.V., New York, NY, USA, 2018.
Nanomaterials 09 00974 g013
Figure 14. The structure and sensing mechanism of Uio-Eu-L1 for ClO. Reproduced with permission from [118]. Copyright Elsevier B.V., New York, NY, USA, 2018.
Figure 14. The structure and sensing mechanism of Uio-Eu-L1 for ClO. Reproduced with permission from [118]. Copyright Elsevier B.V., New York, NY, USA, 2018.
Nanomaterials 09 00974 g014

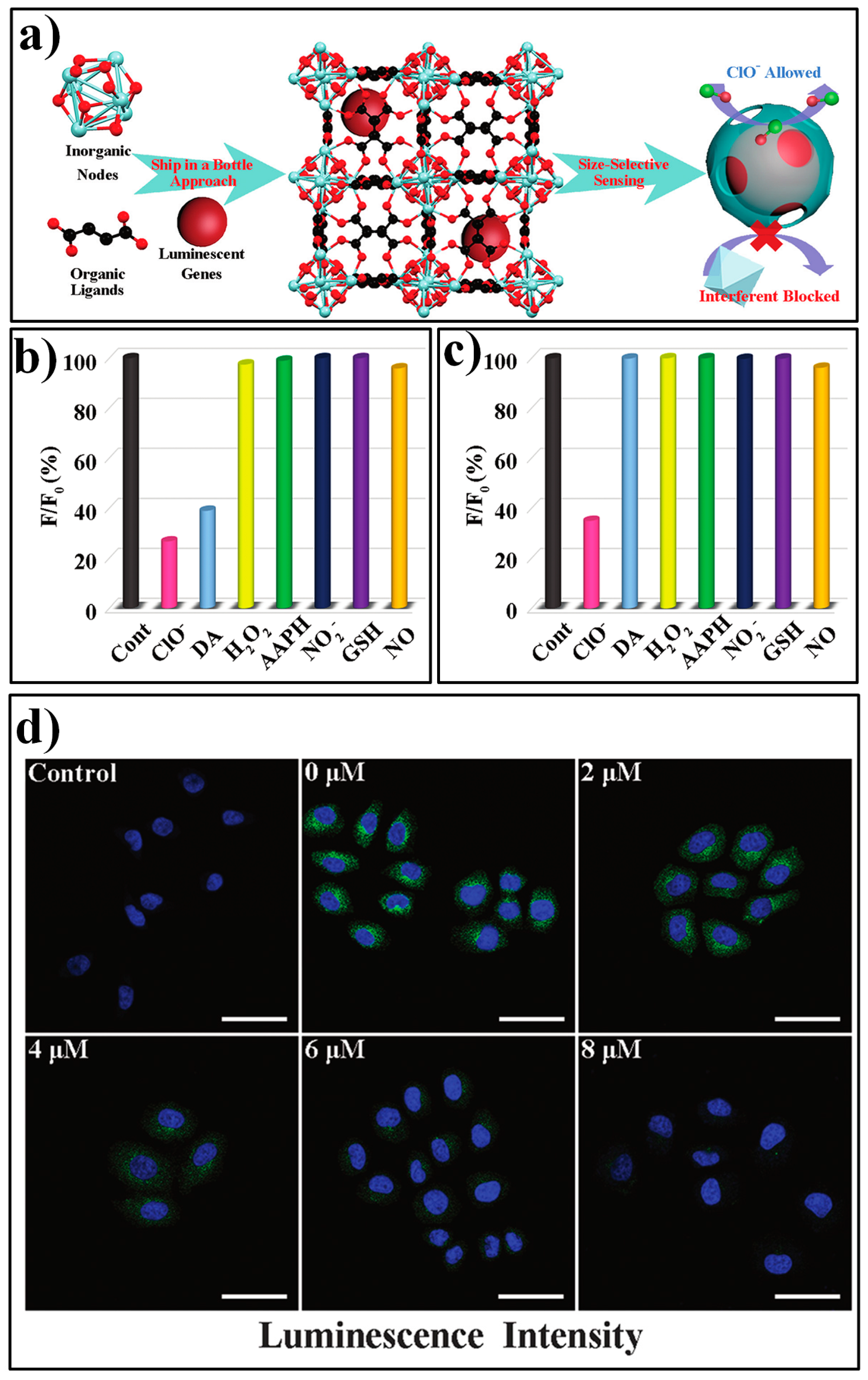

Figure 15. (a) Schematic illustration of the synthetic procedure for [email protected] and the size-selective sensing mechanism toward targe analyte of ClO. (b) The luminescence responses of free AF for various analytes. (c) The luminescence responses of [email protected] for various analytes. (d) The confocal laser scanning microscopy images of SMMC-7721 cells incubated with [email protected] and with various concentrations of ClO. Reproduced with permission from [119]. Copyright the Royal Society of Chemistry, 2019.
Figure 15. (a) Schematic illustration of the synthetic procedure for [email protected] and the size-selective sensing mechanism toward targe analyte of ClO. (b) The luminescence responses of free AF for various analytes. (c) The luminescence responses of [email protected] for various analytes. (d) The confocal laser scanning microscopy images of SMMC-7721 cells incubated with [email protected] and with various concentrations of ClO. Reproduced with permission from [119]. Copyright the Royal Society of Chemistry, 2019.
Nanomaterials 09 00974 g015
Figure 16. (a) Schematic illustration of the sensing mechanism of ZJU-136-Ce for asorbic acid (AA). (b) Luminescence spectra of ZJU-136-Ce in the presence of different concentrations of AA. Reproduced with permission from [121]. Copyright the Royal Society of Chemistry, 2017.
Figure 16. (a) Schematic illustration of the sensing mechanism of ZJU-136-Ce for asorbic acid (AA). (b) Luminescence spectra of ZJU-136-Ce in the presence of different concentrations of AA. Reproduced with permission from [121]. Copyright the Royal Society of Chemistry, 2017.
Nanomaterials 09 00974 g016
Figure 17. (a) structure of Ln-MOF 1: (1) Coordination geometry of the Eu3+; (2) The asymmetric unit of Ln-MOF 1; (3) 3D framework composed of Ln-MOF 1. Atom codes: Eu (green), C (gray), N (blue), O (red), and S (yellow). Emission spectra of Ln-MOF 1 upon addition increase amount of (b) HT and (c) HIAA. Reproduced with permission from [124]. Copyright Wiley-VCH, 2018.
Figure 17. (a) structure of Ln-MOF 1: (1) Coordination geometry of the Eu3+; (2) The asymmetric unit of Ln-MOF 1; (3) 3D framework composed of Ln-MOF 1. Atom codes: Eu (green), C (gray), N (blue), O (red), and S (yellow). Emission spectra of Ln-MOF 1 upon addition increase amount of (b) HT and (c) HIAA. Reproduced with permission from [124]. Copyright Wiley-VCH, 2018.
Nanomaterials 09 00974 g017

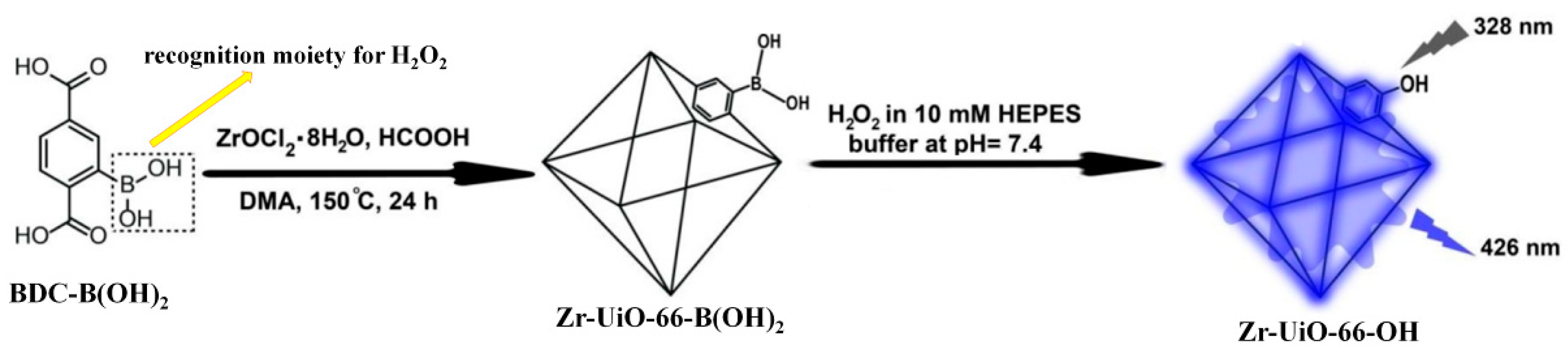

Figure 18. Schematic illustration of the sysnthesis of Zr-UiO-66-B(OH)2 and the sensing process for H2O2. Reproduced with permission from [126]. Copyright American Chemical Society, 2018.
Figure 18. Schematic illustration of the sysnthesis of Zr-UiO-66-B(OH)2 and the sensing process for H2O2. Reproduced with permission from [126]. Copyright American Chemical Society, 2018.
Nanomaterials 09 00974 g018

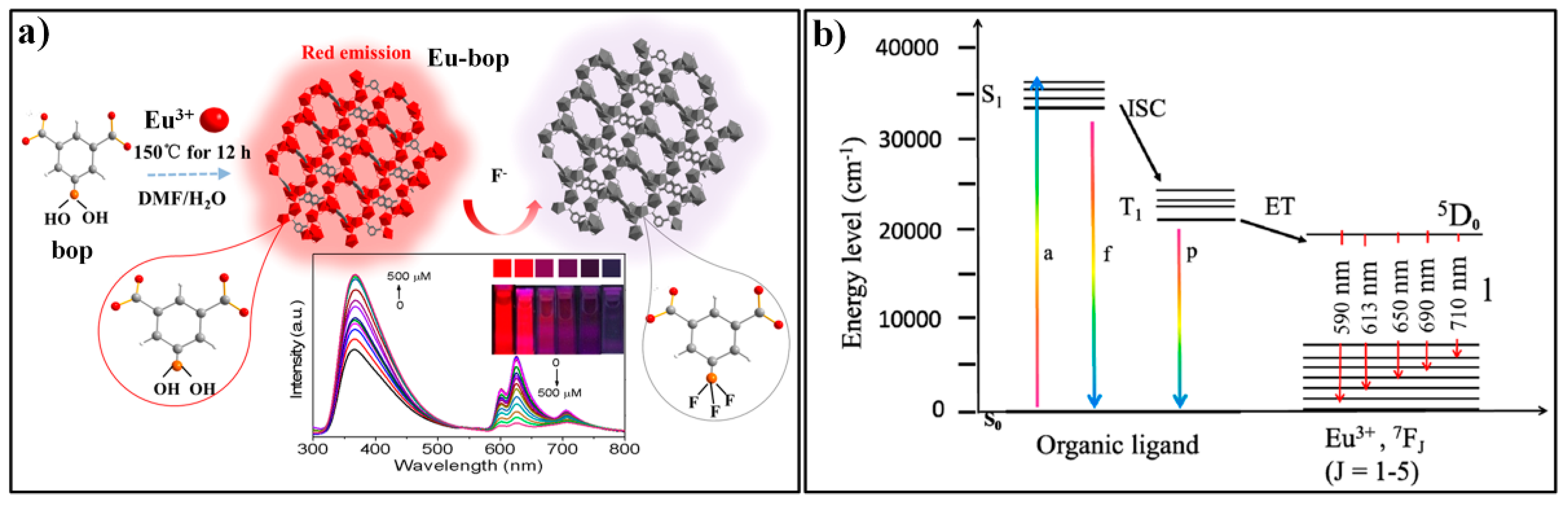

Figure 19. (a) The synthesis of Eu-bop and its sensing process for F. (b) Schematic representation of absorption, migration, and emission of Eu-bop. Reproduced with permission from [141]. Copyright American Chemical Society, 2017.
Figure 19. (a) The synthesis of Eu-bop and its sensing process for F. (b) Schematic representation of absorption, migration, and emission of Eu-bop. Reproduced with permission from [141]. Copyright American Chemical Society, 2017.
Nanomaterials 09 00974 g019

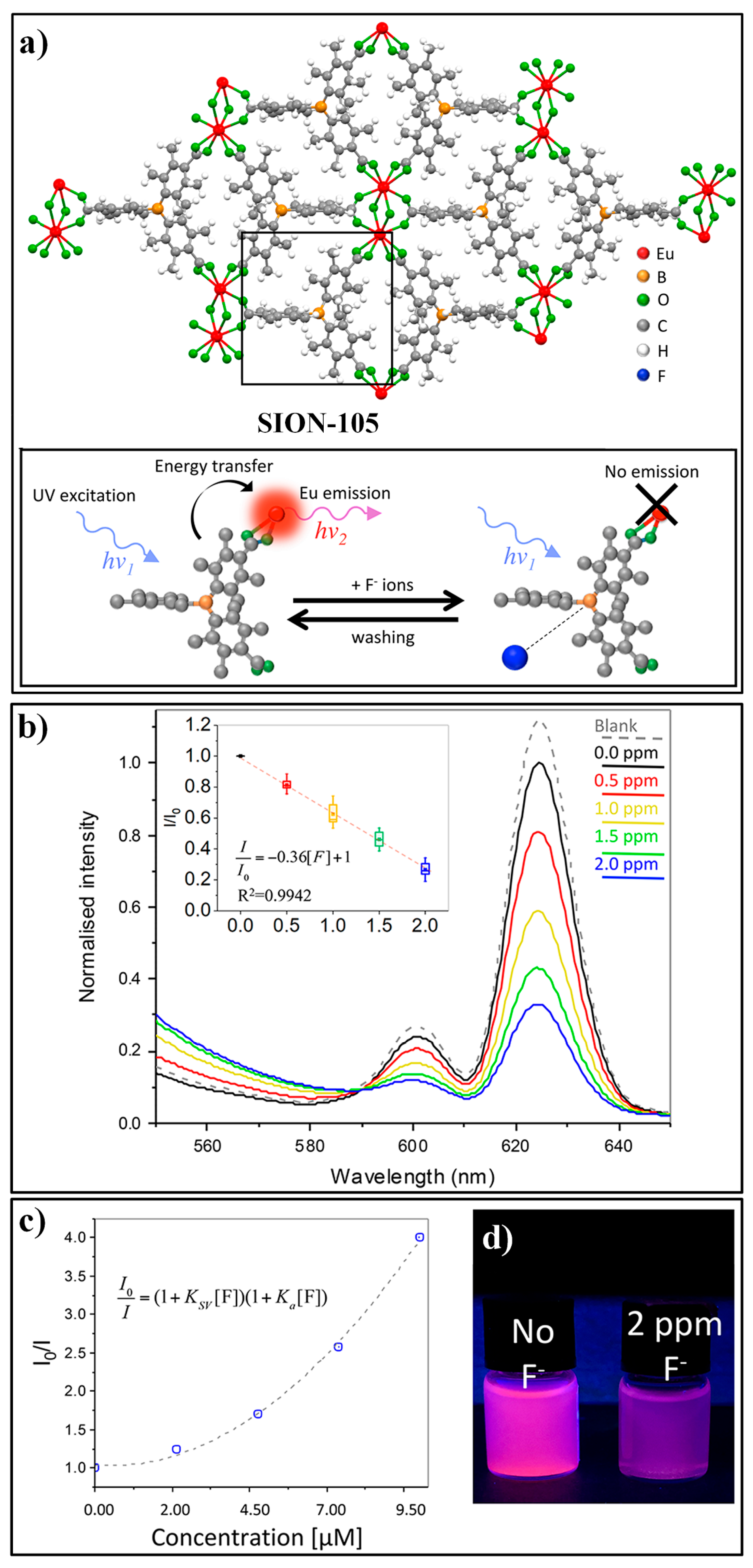

Figure 20. (a) The structure of SION-105 and its sensing process for F. (b) Luminescence spectra of SION-105 upon the addition of F with different concentrations. (c) Stern−Volmer plot of quenching with increasing F concentration. (d) Photographs of SION-105 suspension with or without of F. Reproduced with permission from [142]. Copyright American Chemical Society, 2019.
Figure 20. (a) The structure of SION-105 and its sensing process for F. (b) Luminescence spectra of SION-105 upon the addition of F with different concentrations. (c) Stern−Volmer plot of quenching with increasing F concentration. (d) Photographs of SION-105 suspension with or without of F. Reproduced with permission from [142]. Copyright American Chemical Society, 2019.
Nanomaterials 09 00974 g020
Figure 21. (a) Schematic illustration of the sensing mechanism of [email protected] for Hg2+. (b) Fluorescence spectra of [email protected] upon addition of different amount of Hg2+. Reproduced with permission from [157]. Copyright American Chemical Society, 2018.
Figure 21. (a) Schematic illustration of the sensing mechanism of [email protected] for Hg2+. (b) Fluorescence spectra of [email protected] upon addition of different amount of Hg2+. Reproduced with permission from [157]. Copyright American Chemical Society, 2018.
Nanomaterials 09 00974 g021
Figure 22. Schematic illustration of the the sysnthesis of M-ZIF-90 and the sensing process for CN. Reproduced with permission from [166]. Copyright Wiley-VCH, 2016.
Figure 22. Schematic illustration of the the sysnthesis of M-ZIF-90 and the sensing process for CN. Reproduced with permission from [166]. Copyright Wiley-VCH, 2016.
Nanomaterials 09 00974 g022
Table 1. List of MOF-based luminescent chemodosimeters for H2S.
Table 1. List of MOF-based luminescent chemodosimeters for H2S.
MOF Formulaλexem (nm)Dynamic RangeLOD 1RT 2MediaReal SampeRef.
Zr6O4(OH)4(BDC-N3)6334/4360–4 mM117 μM180 sHEPES buffer (10 mM, pH 7.4)Live cells[71]
Zr6O4(OH)4(BDC-NO2)6334/4360–4 mM188 μM460 sHEPES buffer (10 mM, pH 7.4)--[72]
Zn4O(OH)4(BDC-N3)3395/4550–0.5 mM28.3 μM90 sHEPES ethanol buffer (10 mM, pH 7.4)--[73]
Ce6O4(OH)4(BDC-N3)6334/4290–3.5 mM12.2 μM760 sHEPES buffer (10 mM, pH 7.4)--[74]
Ce6O4(OH)4(BDC-NO2)6334/4290–3.5 mM34.8 μM480 sHEPES buffer (10 mM, pH 7.4)--[74]
Al(OH)(IPA-N3)330/4050–0.06 mM2.65 μM420 sHEPES buffer (10 mM, pH 7.4)Live cells[75]
Zr6O4(OH)4((NDC-(NO2)2)6390/4740.1–0.7 mM20 μM50 minHEPES buffer (10 mM, pH 7.4)Live cells[76]
Al(OH)(BDC-N3)315/4250.2–1.6 μM90.47 nM60 sHEPES buffer (10 mM, pH 7.4)Live cells[77]
Al3O4(OH)4(BDC-(NO2)2)6345/5270.1–0.6 mM14.14 μM40 minHEPES buffer (10 mM, pH 7.4)Live cells[78]
Al3(O)(OH)(BDC-N3)3343/460, 5650.1–120 μM100 nM--Hank’s balanced salt solutionCell sample[79]
Al(OH)(BDC-NO2)/poly(vinylidene fluoride)396/4660–0.1 mM92.31 nM--PVDF membraneLake water[80]
Cu(TCPP)[AlOH]2419/602, 6500–10 μM16 nMinstantBBS buffer (20 mM, pH 7.4)Live cells[81]
[email protected]@UiO-66510/~5600–100 μM0.51 μMinstantTris-HCl butter (20 mM, pH 7.4)Live cells[82]
Eu3+/Cu2+@UiO-66-(COOH)2305/393, 6150–625 μM5.45 μM30 sHEPES buffer (10 mM, pH 7.4)--[83]
Eu3+/Ag+@UiO-66-(COOH)2305/6150–2.5 mM23.53 μM30 sHEPES buffer (10 mM, pH 7.4)Serum[84]
Tb3+@[Cu(CPOC)2]280/390, 5440–1.6 mM13.25 μM2 minHEPES buffer (10 mM, pH 7.4)--[85]
UiO-66-CH = CH2 Zr6O4(OH)4(BDC-CH = CH2)6328/3820–0.05 mM6.46 μM10 sHEPES buffer (10 mM, pH 7.4)Live cells[86]
FeIII-MIL-88-NH2333/~44060–100 μM10 μM5 minAqueous solution--[87]
1 LOD means limit of detection. 2 RT means reaction time.

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Nanomaterials EISSN 2079-4991 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
