Communication

A Polyol-Mediated Fluoride Ions Slow-Releasing Strategy for the Phase-Controlled Synthesis of Photofunctional Mesocrystals

School of Chemistry and Environmental Engineering, Jiangsu University of Technology, Changzhou 213001, Jiangsu, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2019, 9(1), 28; https://doi.org/10.3390/nano9010028
Submission received: 1 December 2018 / Revised: 17 December 2018 / Accepted: 22 December 2018 / Published: 26 December 2018
(This article belongs to the Special Issue Green Synthesis of Nanomaterials)

Abstract

:
There are only a few inorganic compounds that have evoked as much interest as sodium yttrium fluoride (NaYF4). Its extensive applications in various fields, including transparent displays, luminescence coding, data storage, as well as biological imaging, demand the precise tuning of the crystal phase. Controlling the emergence of the desired α-phase has so far remained a formidable challenge, especially via a simple procedure. Herein, we represented a polyol-assisted fluoride ions slow-release strategy for the rational control of pure cubic phase NaYF4 mesocrystals. The combination of fluorine-containing ionic liquid as a fluoride source and the existence of a polyalcohol as the reactive medium ensure the formation of uniform α-phase mesocrystallines in spite of a higher temperature and/or higher doping level.

1. Introduction

Since inorganic micro/nanocrystals usually exist in various forms or phases, the phase transformation from kinetically stable ones to thermally stable ones is a normal phenomenon [1,2,3,4]. The intrinsic properties of a micro/nanomaterial are largely determined by its unique crystal structure [5,6]. Hence, controlling the phase formation is essential for both scientific interests and extended applications. As a typical example, sodium yttrium fluoride (NaYF4) owns two polymorphs under ambient condition, i.e., the cubic (α-) and hexagonal (β-) phase, which is a commonly used matrix lattice for up-conversion luminescence. The former is a high-temperature metastable phase, while the latter remains thermodynamically stable [7,8]. The past decades have witnessed much exploration of its controlled synthesis and up-/down-conversion luminescent properties [1,4,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34]. Compared with considerable work on α→β phase transformation [1,4,9,10,11,12,13,14,15,16,17,18,19], the fabrication of α-NaYF4 as well as the investigation involving the β→α transformation process have been neglected [26,30,33,34]. So far, some strategies have been developed to fabricate α-phase NaYF4 nano-/mocro-crystal, such as a liquid–solid–solution (LSS) procedure [21], polyol method [22], two-phase interfacial route [23], microwave-assisted ionic liquid (IL)-based technique [24], modified solvothermal approach [25], and self-sacrificing template multiple-step route [26,27]. Furthermore, introducing Mn2+ (r = 81 pm) with a smaller size than Y3+ (r = 89 pm) into an NaYF4 host can dominate, forming pure α-phase NaYF4 nanoparticles [28]. However, α-phase NaYF4 inevitably transforms into the hexagonal ones due to its thermodynamic instability. Additionally, the cubic NaYF4 nanoparticles are usually formed preferentially in the solution system of non-equilibrium reactions [20]. As a consequence, rationally controlling α-NaYF4 and simultaneously avoiding the generation of β-phase or a mixture of α and β phases remain formidable challenges, especially via a simple procedure [28,29,34].
On the other hand, the above-mentioned progress focused on NaYF4 micro/nanocrystals instead of mesocrystals. Mesocrystals are three-dimensional (3D) order nanoparticles superstructures with unique properties and various potential applications as functional materials [35,36,37,38]. Nevertheless, the range of known mesocrystallines remains quite limited, in which few investigations to fluorine-containing compound mesocrystallines are available [39,40,41,42,43,44,45]. More recently, our group fabricated yttrium hydroxide fluoride mesocrystalline, as well as its Eu3+ doped analogue, by means of an additive-free hydrothermal procedure, which involved the reaction of Y(NO3)3, NaF, and NaOH aqueous solution without any organic additives [39]. Furthermore, we explored the preparation of rare-earths trifluoride mesocrystals by a solvothermal route involving IL 1-butyl-3-methylimidazolium hexafluorophosphate (BmimPF6) as the fluorine source in the presence of 1,4-butanediol [40]. However, no effort has been made to reveal the phase control related to rare-earths fluoride mesocrystallines. Herein, we present a facile, one-pot route called a polyol-mediated fluoride slow-releasing strategy for the rational control of pure phase α-NaYF4 mesocrystals. In spite of a higher temperature or/and higher doping level, cubic phase can be maintained.

2. Experimental Procedure

2.1. Chemicals and Materials

Analytical grade rare earth chlorides and/or nitrates (yttrium chloride hexahydrate, gadolinium chloride hexahydrate, ytterbium nitrate pentahydrate, and erbium nitrate pentahydrate, 99.9%) were provided by Aladdin Industrial Inc. Shanghai, China. NaNO3 (99.0%), 2,2′-oxydiethanol (99.0%, diethylene glycol, abbreviated as DEG), 1,2-ethanediol (99.0%), and ethanol (99.8%) were obtained from Sinopharm Chemical Reagent Company, Shanghai, China. 1-Butyl-3-methylimidazolium hexafluorophosphate (BminPF6, 99%) was purchased from Aldamas-beta Co., Shanghai, China. All of the reagents and solvents were directly used without further treatment.

2.2. Synthesis

NaYF4:Yb3+,Er3+(20/2 mol%) (abbreviated as NYF:Yb3+,Er3+ hereafter) and Gd3+ tri-doped NYF:Yb3+,Er3+(20/2 mol%) nanocrystals (NCs) were synthesized via a polyol-mediated solvothermal procedure. Here, we took the synthesis of NYF:Yb3+,Er3+ (20/2 mol%) as an example. The starting chemicals including NaNO3, yttrium chloride hexahydrate, ytterbium nitrate pentahydrate, and erbium nitrate pentahydrate in the stoichiometric ratio were well mixed with 1,2-ethanediol (or DEG) under stirring, to form solution. Thereafter, the solution was slowly added into a 25-mL polytetrafluoroethylene (PTFE) vial containing a proper amount of BminPF6 under vigorous stirring. The autoclave was sealed after vigorous stirring at room temperature for around 15 min, and then heated at 120 °C for 24 h. The final products were collected by centrifugation, and then washed sequentially using ethanol and H2O three times. After drying at 70 °C under dynamic vacuum for 24 h, an NYF:Yb3+,Er3+ sample was obtained. The synthetic procedure of Gd3+ tri-doped NYF:Yb3+,Er3+ (20/2 mol%) NCs was the same as that which was used to fabricate NYF:Yb3+,Er3+, except that the stoichiometric amount of gadolinium chloride hexahydrate was also added to 1,2-ethanediol (or DEG).

2.3. Characterization

The crystal structure and phase analysis were determined via X-ray diffraction (XRD) using a Bruker D8 Advanced X-ray diffractometer (Ni filtered, Cu Kα radiation, 40 kV and 40 mA) (Bruker, Billerica, MA, USA). The morphology the products were recorded on a transmission electron microscope (TEM, JEM-2010, JOEL Ltd., Tokyo, Japan) and a Hitachi S4800 field-emission scanning electron microscope (FE-SEM) (Hitachi Ltd., Tokyo, Japan). The selected area electron diffraction (SAED) pattern were characterized by the above-mentioned TEM (JEM-2010). An up-conversion fluorescence spectrum was obtained on an Edinburgh Instrument FLS920 phosphorimeter (Edinburgh Instruments Ltd., Livingston, UK) with a 980-nm laser diode Module (K98D08M-30mW, Changchun, China) as the excitation light source. The above-mentioned measurements were performed at room temperature from powder samples.

3. Results and Discussion

NaYF4-based mesocrystals were fabricated via solvothermal treatment of Na+, Y3+, and BminPF6 in the presence of viscous polyol-like diethylcol or 1,2-ethanediol. Apart from serving as solvent and complexant (i.e., bonding with Na+ and Y3+), polyol also acts as a stabilizer that limits particle growth and suppresses the α→β phase transition of NaYF4 [22,46]. BmimPF6 was chosen as a task-specific fluorine source (the reason why it was chosen as the fluorine source is given in the Supplementary Materials). The required fluoride anion (F) was provided by BmimPF6 as a result of its slow decomposition and hydrolysis [23,45,47]. Even without additional water, BmimPF6 can hydrolyze with the aid of the trace water and hydration water molecules from yttrium chloride hexahydrate [45,48]. During the treatment procedure, PF6 can slowly hydrolyze and then produce F through slowly increasing the temperature [45], as revealed in Equation (1):
PF6 (IL) + H2O → PF5·H2O + F
Therefore, this procedure was defined as a fluoride slow-release strategy, which involved fluoride releasing from BmimPF6 with the assistance of polyol [49].
Powder XRD patterns of a Yb3+-Er3+ co-doped and pure NaYF4 submicrocube in the case of DEG as the reaction medium are illustrated in Figure 1a and Figure 2a, respectively. All of the diffraction peaks matched the α-phase NaYF4 crystals (PDF No.77-2042), and no impurities were found. The sharp and narrow diffraction peaks revealled the highly crystallinity of these submicrocubes despite treatment at relatively low temperature (120 °C).
As exhibited in Figure 1b–d, all of the NYF:Yb3+,Er3+ submicrocrystals show cubic shapes and edge lengths of about 120 nm. Both FE-SEM and TEM photos illustrated their novel microstructure features, which are built from many nanoparticles and exhibited rough surfaces. A few nanoparticles were found attached on its surface (Figure 1e). Especially, the SAED pattern (Figure 1f) of a single NaYF4 cube shows sharp and periodic spots, revealing its noticeable single crystal-like feature. According to Cölfen et al. [35,36,37,38,39,40], the regular-shaped NaYF4 cubes actually belong to typical mesocrystals. The combination of a coarse surface pattern and the attachment of nanoparticles reveal that these mesocrystallines resulted from the self-assembling of nanoparticle subunits rather than the classic crystalline growth [18,35,36,37,38,39,40].
When DEG was replaced by 1,2-ethanediol, the product can also be indexed as pure-phase cubic NaYF4 crystal (Figure 2b). All of these results indicated that IL BmimPF6 in the presence of polyol also acts as a crystal-phase manipulator during the formation of NaYF4 [18].
For comparison, the preparation of NYF:Yb3+,Er3+ was also conducted through an LSS procedure using NH4F as the F source and the mixture of ethanol–H2O–oleic acid as the medium at 120 °C and 220 °C [11,21]. Figure S2 (see Supplementary Materials) revealed the XRD patterns of as-obtained NYF:Yb3+,Er3+ (20/2 mol%) at 120 °C and 220 °C. Obviously, the product obtained at the lower temperature can be ascribed to a pure α-phase NaYF4, as expected for NaYF4 synthesized under mild conditions [21,23,32]. However, in the case of higher temperature (220 °C), only β-phase NaYF4 was fabricated. These results demonstrated that promoting the reaction temperature can induce the α→β phase change of NaYF4, which is consistent with previous reports [9,10,11,12]. However, as shown in Figure 1a, even if the reaction temperature reached 220 °C, the as-prepared nanoparticles via the fluoride ions-slow-release procedure unambiguously remained in a pure cubic phase. In a word, regardless of the treatment temperature, an α-phase NaYF4 can be obtained by this slow-release strategy.
As mentioned above, without the tri-doping of Gd3+, the XRD pattern of the NYF:Yb3+,Er3+ (20/2 mol%) sample matched a cubic phase of NaYF4 (PDF No.77-2042). As for the NYF:Yb3+,Er3+ (20/2 mol%) sample, previous works revealed that introducing lanthanide ions (such as Gd3+) with a larger size than the Y3+ ion in the NaYF4 lattice not only induced an alteration from the α phase to the β phase, it also dominated the forming of pure β-phase NaYF4 NCs [1,20,50]. However, in this work, as revealed in Figure 3a, the pure cubic phase of NaYF4 remained when Gd3+ of 15 mol% was incorporated into host lattices. With the further increasing of the Gd3+ ion content (Figure 3b), no impurity diffraction peaks were found, showing the forming of a homogeneous solid solution, which is due to the small structural difference between the cubic-phase NaGdF4 and NaYF4. Obviously, phase transformation did not occur upon a higher-level doping of the dopant.
High-level doping usually leads to an α→β phase transition of NaYF4 in the LSS reaction system [1,20]. However, in present work, by using BminPF6 and polyol as the F source and reaction medium, respectively, as shown in Figure 3c, the as-synthesized submicrocubes remained in the cubic phase of NaYF4 in spite of higher total doping concentrations (52 mol%) as well as a higher solvothermal treatment temperature (180 °C). Even if the total doping contents were set as high as 52 mol%, and the treatment temperature simultaneously approached 220 °C (near to the work-limited temperature of the PTFE vial), the α-phase NaYF4 still existed in the products (see Figure 3d).
According to He et al. [51], the α→β phase change of NaYF4 can be attributed to the elevated content of F and the alteration to the reaction environment of Y3+ ions. In an LSS system involving oleic acid and a high active F source such as NH4F and NaF, it is found that the oleate anions are more likely to be combined with Y3+ in comparison with Na+ ions [4]. The interaction between oleate anions and Y3+ could effectively lower the energy barrier of the α→β phase transition [4]. Moreover, effective concentration of F ions was elevated, resulting from the rapid supply of F. All of these could effectively promote the α→β phase transformation of NaYF4 [4,52,53]. Ultimately, β-phase NaYF4 was formed in an LSS system [9,10,11,12,21].
However, in the case of BminPF6 as the F source in the presence of polyol, the interaction between PF6 ions and Y3+ was quite limited compared with the case of the above-mentioned LSS system [17,18]. In addition, noting the solubility product of NaYF4, aNaaYaF4, the supersaturation degree (aNaaYaF4/KSP) drastically varies with the content of fluoride ions, with an exponential relationship. Thus, the content of fluoride ions in a reactive system is of importance to the phase control of NaYF4 [15,19,33]. Herein, BmimPF6 slowly decomposes and hydrolyzes to create the required F during the elevation of the reaction temperature [23,45,47]. Therefore, BmimPF6 is a low-active F source relative to NH4F and NaF. Since the equilibrium constant of the hydrolyzed reaction (Equation (1)) is extremely small, the effective concentration of F ions was relatively low in the reaction system, which consequently results in a very slow precipitation with Na+ and Y3+ [45] (Equation (2)).
Na+ + Y3+ + 4F → NaYF4
In such circumstances, the supersaturation degree of the reaction system is not adequate to form the nuclei of the hexagonal phase NaYF4 [23]. Therefore, the formation of cubic phase NaYF4 was favored [51].
As mentioned above, polyol can complex with Na+ and Y3+. In addition, according to Chaumont et al. [54], PF6 (IL) can coordinate with Y3+. Consequently, when BmimPF6 was uniformly dispersed in 1,2-ethanediol (or DEG) solution containing Na+ and Y3+ ions, these metal ions were believed to be simultaneously bonded by PF6 anions as well as polyol [45]. In this case, Na+ and Y3+ ions were in the same shell surrounded by the imidazolium cation of BmimPF6 [23]. Upon thermal treatment, PF6 slowly hydrolyzed and released F, which was accompanied by forming NaYF4 nanosized grains; this can be evidenced by the nanoparticles that were attached on the surface of the as-obtained mesocrystals (Figure 1e). Subsequently, the polyol and IL co-stabilized nanoparticles aggregated to form NaYF4 mesocrystals, which possibly occurred through oriented attachment or mesoscale assembly processes due to the coexistence of a Coulombic force, van der Waals interaction, and hydrogen bonds in the system of polyol and BminPF6 [55,56]. Finally, it should be pointed out that the above-proposed forming course is only one of several possible mechanisms. Further studies about this issue are underway, and will be reported in future work.
Under the excitation of a 980-nm laser, α-phase NYF:Yb3+,Er3+ (20/2 mol%) mesocrystalline emitted bright yellow fluorescence, which demonstrated its photo functionality performance. The related luminescence spectrum is shown in Figure 4a. The green-emitting bands at about 521 nm and 540/552 nm are due to the 2H11/24I15/2 and 4S3/24I15/2 energy-level transitions of Er3+, respectively, while the red band at around 651/669 nm is assigned to the 4F9/24I15/2 transition of Er3+. The related Commission Internationale de l’Eclairage (CIE) coordinates are calculated as (x = 0.3984, y = 0.5854), which are situated in the region of yellowish light (point “×” in Figure 4b), revealing that it emitted yellowish light.

4. Conclusions

In summary, cubic-phase well-defined NaYF4 based photofunctional mesocrystallines were successfully prepared at relatively low temperature by using IL BmimPF6 and viscous polyol as the fluorine source and reaction medium, respectively. Combining slow-releasing fluoride via the decomposition and hydrolysis of fluorine-containing IL and the assistance of polyol, the formation of cubic-phase NaYF4 was favored, despite the higher treatment temperature or/and higher content of dopant. We believed that the key to the formation of uniform α-NaYF4-based mesocrystals is the use of fluorine-containing IL as a fluorine source as well as the existence of a polyalcohol. Our contribution offers a new alternative in constructing mesocrystal and other hierarchical nanostructured materials with an object phase under mild conditions.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/9/1/28/s1, Figure S1: XRD pattern of the sample using BmimBF4 as fluorine source (The bar represents the standard cards PDF#70-1935 for YF3), Figure S2: XRD patterns of NYF:Yb3+,Er3+ (20/2 mol%) NCs via LSS method at (a) 120 °C and (b) 220 °C (The bars in (a) and (b) represent the standard cards PDF#77-2042 and #PDF16-0334, respectively).

Author Contributions

Supervision, X.H.; data curation, X.H.; writing—original draft preparation, X.H.; writing—review and editing, Y.Z.; investigation, Y.F.; formal analysis, N.L.; methodology, Z.L.

Funding

This research was funded by the National Natural Science Foundation of China, grant number 51872129; and the Natural Science Research Fund of Jiangsu University of Technology.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, F.; Han, Y.; Lim, C.; Lu, Y.; Wang, J.; Xu, J.; Chen, H.; Zhang, C.; Hong, M.; Liu, X.G. Simultaneous phase and size control of upconversion nanocrystals through lanthanide doping. Nature 2010, 463, 1061–1065. [Google Scholar] [CrossRef] [PubMed]
  2. Farvid, S.S.; Radovanovic, P.V. Phase Transformation of Colloidal In2O3 Nanocrystals Driven by the Interface Nucleation Mechanism: A Kinetic Study. J. Am. Chem. Soc. 2012, 134, 7015–7024. [Google Scholar] [CrossRef] [PubMed]
  3. Song, S.; Kuang, Y.; Liu, J.; Yang, Q.; Luo, L.; Sun, X. Separation and phase transition investigation of Yb3+/Er3+ co-doped NaYF4 nanoparticles. Dalton Trans. 2013, 42, 13315–13318. [Google Scholar] [CrossRef] [PubMed]
  4. Sui, Y.Q.; Tao, K.; Tian, Q.; Sun, K. Interaction between Y3+ and Oleate Ions for the Cubic-to-Hexagonal Phase Transformation of NaYF4 Nanocrystals. J. Phys. Chem. C 2012, 116, 1732–1739. [Google Scholar] [CrossRef]
  5. Zhang, F.; Li, G.; Zhang, W.; Yan, Y.L. Phase-Dependent Enhancement of the Green-Emitting Upconversion Fluorescence in LaVO4:Yb3+,Er3+. Inorg. Chem. 2015, 54, 7325–7334. [Google Scholar] [CrossRef] [PubMed]
  6. Zhua, Y.; Chen, D.; Huang, L.; Liu, Y.; Brikd, M.G.; Zhong, J.; Wang, J. Phase-transition-induced giant enhancement of red emission in Mn4+-doped fluoride elpasolite phosphors. J. Mater. Chem. C 2018, 6, 3951–3960. [Google Scholar] [CrossRef]
  7. Thoma, R.E.; Hebert, G.M.; Insley, H.; Weaver, C.F. Phase Equilibria in the System Sodium Fluoride-Yttrium Fluoride. Inorg. Chem. 1963, 2, 1005–1012. [Google Scholar] [CrossRef]
  8. Arnold, A.A.; Terskikh, V.; Li, Q.Y.; Naccache, R.; Marcotte, I.; Capobianco, J. Structure of NaYF4 Upconverting Nanoparticles: A Multinuclear Solid-State NMR and DFT Computational Study. J. Phys. Chem. C 2013, 117, 25733–25741. [Google Scholar] [CrossRef]
  9. Mai, H.X.; Zhang, Y.W.; Si, R.; Yan, Z.G.; Sun, L.D.; You, L.P.; Yan, C.H. High-Quality Sodium Rare-earth Fluoride Nanocrystals: Controlled Synthesis and Optical Properties. J. Am. Chem. Soc. 2006, 128, 6426–6436. [Google Scholar] [CrossRef]
  10. Wei, Y.; Lu, F.; Zhang, X.; Chen, D. Synthesis of Oil-Dispersible Hexagonal-Phase and Hexagonal-Shaped NaYF4:Yb,Er Nanoplates. Chem. Mater. 2006, 18, 5733–5737. [Google Scholar] [CrossRef]
  11. Zhang, F.; Wan, Y.; Yu, T.; Zhang, F.; Shi, Y.; Xie, S.; Li, Y.; Xu, L.; Tu, B.; Zhao, D. Uniform Nanostructured Arrays of Sodium Rare-Earth Fluorides for Highly Efficient Multicolor Upconversion Luminescence. Angew. Chem. Int. Ed. 2007, 46, 7976–7979. [Google Scholar] [CrossRef] [PubMed]
  12. Wang, L.; Li, Y. Controlled Synthesis and Luminescence of Lanthanide Doped NaYF4 Nanocrystals. Chem. Mater. 2007, 19, 727–734. [Google Scholar] [CrossRef]
  13. Yi, G.S.; Chow, G.M. Synthesis of Hexagonal-Phase NaYF4:Yb,Er and NaYF4:Yb,Tm Nanocrystals with Efficient Up-Conversion Fluorescence. Adv. Funct. Mater. 2006, 16, 2324–2329. [Google Scholar] [CrossRef]
  14. Shan, J.; Ju, Y. A Single-Step Synthesis and the Kinetic Mechanism for Monodisperse and Hexagonal-Phase NaYF4:Yb,Er Upconversion Nanophosphors. Nanotechnology 2009, 20, 275603. [Google Scholar] [CrossRef] [PubMed]
  15. Li, C.; Zhang, C.; Hou, Z.; Wang, L.; Quan, Z.; Lian, H.; Lin, J. β-NaYF4 and β-NaYF4:Eu3+ Microstructures: Morphology Control and Tunable Luminescence Properties. J. Phys. Chem. C 2009, 113, 2332–2339. [Google Scholar] [CrossRef]
  16. Wang, Z.L.; Hao, J.; Chan, H.L.; Wong, W.T.; Wong, K.L. A strategy for simultaneously realizing the cubic-to-hexagonal phase transition and controlling the small size of NaYF4:Yb3+,Er3+ nanocrystals for in vitro cell imaging. Small 2012, 8, 1863–1868. [Google Scholar] [CrossRef] [PubMed]
  17. He, M.; Huang, P.; Zhang, C.; Chen, F.; Wang, C.; Ma, J.; He, R.; Cui, D. A general strategy for the synthesis of upconversion rare earth fluoride nanocrystals via a novel OA/ionic liquid two-phase system. Chem. Commun. 2011, 47, 9510–9512. [Google Scholar] [CrossRef]
  18. He, M.; Huang, P.; Zhang, C.; Ma, J.; He, R.; Cui, D. Phase- and Size-Controllable Synthesis of Hexagonal Upconversion Rare-Earth Fluoride Nanocrystals through an Oleic Acid/Ionic Liquid Two-Phase System. Chem. Eur. J. 2012, 18, 5954–5969. [Google Scholar] [CrossRef]
  19. Zhang, Q.; Yan, B. Phase control of upconversion nanocrystals and new rare earth fluorides though a diffusion-controlled strategy in a hydrothermal system. Chem. Commun. 2011, 47, 5867–5869. [Google Scholar] [CrossRef]
  20. Chen, D.; Huang, P.; Yu, Y.; Huang, F.; Yang, A.; Wang, Y. Dopant-induced phase transition: A new strategy of synthesizing hexagonal upconversion NaYF4 at low temperature. Chem. Commun. 2011, 47, 5801–5803. [Google Scholar] [CrossRef]
  21. Wang, X.; Zhuang, J.; Peng, Q.; Li, Y. A general strategy for nanocrystal synthesis. Nature 2005, 437, 121–124. [Google Scholar] [CrossRef] [PubMed]
  22. Wei, Y.; Lu, F.; Zhang, X.; Chen, D. Polyol-mediated synthesis and luminescence of lanthanide-doped NaYF4 nanocrystal upconversion phosphors. J. Alloys Compd. 2008, 455, 376–384. [Google Scholar] [CrossRef]
  23. Zhang, C.; Chen, J. Facile EG/ionic liquid interfacial synthesis of uniform RE3+ doped NaYF4 nanocubes. Chem. Commun. 2010, 46, 592–594. [Google Scholar] [CrossRef] [PubMed]
  24. Chen, C.; Sun, L.D.; Li, Z.X.; Li, L.L.; Zhang, J.; Zhang, Y.W.; Yan, C.H. Ionic Liquid-Based Route to Spherical NaYF4 Nanoclusters with the Assistance of Microwave Radiation and Their Multicolor Upconversion Luminescence. Langmuir 2010, 26, 8797–8803. [Google Scholar] [CrossRef] [PubMed]
  25. Li, H.; Wang, L. Controllable Multicolor Upconversion Luminescence by Tuning the NaF Dosage. Chem. Asian J. 2014, 9, 153–157. [Google Scholar] [CrossRef] [PubMed]
  26. Han, Y.; Gai, S.; Ma, P.; Wang, L.; Zhang, M.; Huang, S.; Yang, P. Highly Uniform α-NaYF4:Yb/Er Hollow Microspheres and Their Application as Drug Carrier. Inorg. Chem. 2013, 52, 9184–9191. [Google Scholar] [CrossRef] [PubMed]
  27. Lv, C.; Di, W.; Liu, Z.; Zheng, K.; Qin, W. Synthesis of NaLuF4-based nanocrystals and large enhancement of upconversion luminescence of NaLuF4:Gd, Yb, Er by coating an active shell for bioimaging. Dalton Trans. 2014, 43, 14001–14008. [Google Scholar]
  28. Tian, G.; Gu, Z.; Zhou, L.; Yin, W.; Liu, X.; Yan, L.; Zhao, Y. Mn2+ Dopant-Controlled Synthesis of NaYF4:Yb/Er Upconversion Nanoparticles for in vivo Imaging and Drug Delivery. Adv. Mater. 2012, 24, 1226–1231. [Google Scholar] [CrossRef]
  29. Heer, S.; Kömpe, K.; Güdel, H.U.; Haase, M. Highly Efficient Multicolour Upconversion Emission in Transparent Colloids of Lanthanide-Doped NaYF4 Nanocrystals. Adv. Mater. 2004, 16, 2102–2105. [Google Scholar] [CrossRef]
  30. Gao, L.; Ge, X.; Chai, Z.; Xu, G.; Wang, X.; Wang, C. Shape-controlled synthesis of octahedral α-NaYF4 and its rare earth doped submicrometer particles in acetic acid. Nano Res. 2010, 2, 565–574. [Google Scholar] [CrossRef]
  31. Liang, X.; Wang, X.; Zhuang, J.; Peng, Q.; Li, Y. Synthesis of NaYF4 Nanocrystals with Predictable Phase and Shape. Adv. Funct. Mater. 2007, 17, 2757–2765. [Google Scholar] [CrossRef]
  32. Zhang, F.; Li, J.; Shan, J.; Xu, L.; Zhao, D. Shape, Size, and Phase-Controlled Rare-Earth Fluoride Nanocrystals with Optical Up-Conversion Properties. Chem. Eur. J. 2009, 15, 11010–11019. [Google Scholar] [CrossRef] [PubMed]
  33. Qin, R.; Song, H.; Pan, G.; Zhao, H.; Ren, X.; Liu, L.; Bai, X.; Dai, Q.; Qu, X. Polyol-mediated synthesis of well-dispersed α-NaYF4 nanocubes. J. Cryst. Growth 2009, 311, 1559–1564. [Google Scholar] [CrossRef]
  34. He, L.; Zou, X.; He, X.; Lei, F.; Jiang, N.; Zheng, Q.; Xu, C.; Liu, Y.; Lin, D. Reducing Grain Size and Enhancing Luminescence of NaYF4:Yb3+, Er3+ Upconversion Materials. Cryst. Growth Des. 2018, 18, 808–817. [Google Scholar] [CrossRef]
  35. Cölfen, H.; Antonietti, M. Mesocrystals: Inorganic superstructures made by highly parallel crystallization and controlled alignment. Angew. Chem. Int. Ed. 2005, 44, 5576–5591. [Google Scholar] [CrossRef] [PubMed]
  36. Niederberger, M.; Cölfen, H. Oriented attachment and mesocrystals: Non-classical crystallization mechanisms based on nanoparticle assembly. Phys. Chem. Chem. Phys. 2006, 8, 3271–3287. [Google Scholar] [CrossRef] [PubMed]
  37. Bergström, L.; Sturm (née Rosseeva), E.V.; German, S.; Cölfen, H. Mesocrystals in Biominerals and Colloidal Arrays. Acc. Chem. Res. 2015, 48, 1391–1402. [Google Scholar] [CrossRef]
  38. Zhou, L.; O’Brien, P. Mesocrystals-Properties and Applications. J. Phys. Chem. Lett. 2012, 3, 620–628. [Google Scholar] [CrossRef]
  39. He, X.; Yan, B. Yttrium hydroxide fluoride based monodisperse mesocrystals: Additive-free synthesis, enhanced fluorescent properties, and potential application in temperature sensing. CrystEngComm 2015, 17, 621–627. [Google Scholar] [CrossRef]
  40. He, X.; Yan, B. Double role of the hydroxy group for water dispersibility and luminescence of REF3 (RE = Yb, Er, Tm) based mesocrystals. New J. Chem. 2015, 39, 6730–6733. [Google Scholar] [CrossRef]
  41. Zhuang, J.; Yang, X.; Fu, J.; Liang, C.; Wu, M.; Wang, J.; Su, Q. Monodispersed β-NaYF4 Mesocrystals: In Situ Ion Exchange and Multicolor Up-and Down-Conversions. Cryst. Growth Des. 2013, 13, 2292–2297. [Google Scholar] [CrossRef]
  42. Zhong, S.L.; Lu, Y.; Gao, M.R.; Liu, S.J.; Peng, J.; Zhang, L.C.; Yu, S.H. Monodisperse Mesocrystals of YF3 and Ce3+/Ln3+ (Ln=Tb, Eu) Co-Activated YF3: Shape Control Synthesis, Luminescent Properties, and Biocompatibility. Chem. Eur. J. 2012, 18, 5222–5231. [Google Scholar] [CrossRef] [PubMed]
  43. Lausser, C.; Kumke, M.U.; Antonietti, M.; Cölfen, H. Fabrication of EuF3-Mesocrystals in a Gel Matrix. Z. Anorg. Allg. Chem. 2010, 636, 1925–1930. [Google Scholar] [CrossRef]
  44. Wang, J.; Liu, B.Q.; Huang, G.; Zhang, Z.J.; Zhao, J.T. Monodisperse NaxY(OH)yF3+x-y mesocrystals with tunable morphology and chemical composition: pH-mediated ion-exchange. Cryst. Growth Des. 2017, 17, 711–718. [Google Scholar] [CrossRef]
  45. Zhang, C.; Chen, J.; Zhou, Y.; Li, D. Ionic liquid-based “all-in-one” synthesis and photoluminescence properties of lanthanide fluorides. J. Phys. Chem. C 2008, 112, 10083–10088. [Google Scholar] [CrossRef]
  46. Zhao, Q.; You, H.; Lü, W.; Guo, N.; Jia, Y.; Lv, W.; Jiao, M. Dendritic Y4O(OH)9NO3:Eu3+/Y2O3:Eu3+ hierarchical structures: Controlled synthesis, growth mechanism, and luminescence properties. CrystEngComm 2013, 15, 4844–4851. [Google Scholar] [CrossRef]
  47. Swatloski, R.P.; Holbrey, J.D.; Rogers, R.D. Ionic liquids are not always green: Hydrolysis of 1-butyl-3-methylimidazolium hexafluorophosphate. Green Chem. 2003, 5, 361–363. [Google Scholar] [CrossRef]
  48. Xie, N.; Luan, W. Ionic-liquid-induced microfluidic reaction for water-soluble Ce1−xTbxF3 nanocrystal synthesis. Nanotechnology 2011, 22, 265609. [Google Scholar] [CrossRef]
  49. Lin, J.; Wang, Q. Systematic studies for the novel synthesis of nano-structured lanthanide fluorides. Chem. Eng. J. 2014, 250, 190–197. [Google Scholar] [CrossRef]
  50. Klier, D.T.; Kumke, M.U. Upconversion Luminescence Properties of NaYF4:Yb:Er Nanoparticles Codoped with Gd3+. J. Phys. Chem. C 2015, 119, 3363–3373. [Google Scholar] [CrossRef]
  51. He, M.; Huang, P.; Zhang, C.; Hu, H.; Bao, C.; Gao, G.; He, R.; Cui, D. Dual Phase-Controlled Synthesis of Uniform Lanthanide-Doped NaGdF4 Upconversion Nanocrystals Via an OA/Ionic Liquid Two-Phase System for In Vivo Dual-Modality Imaging. Adv. Funct. Mater. 2011, 21, 4470–4477. [Google Scholar] [CrossRef]
  52. Ghosh, P.; Patra, A. Tuning of crystal phase and luminescence properties of Eu3+ doped sodium yttrium fluoride nanocrystals. J. Phys. Chem. C 2008, 112, 3223–3231. [Google Scholar] [CrossRef]
  53. Xue, X.; Duan, Z.; Suzuki, T.; Tiwari, R.N.; Yoshimura, M.; Ohishi, Y. Luminescence Properties of α-NaYF4:Nd3+ Nanocrystals Dispersed in Liquid: Local Field Effect Investigation. J. Phys. Chem. C 2012, 116, 22545–22551. [Google Scholar] [CrossRef]
  54. Chaumont, A.; Wipff, G. Solvation of M3+ lanthanide cations in room-temperature ionic liquids. A molecular dynamics investigation. Phys. Chem. Chem. Phys. 2003, 5, 3481–3488. [Google Scholar] [CrossRef]
  55. Yasui, K.; Kato, K. Oriented Attachment of Cubic or Spherical BaTiO3 Nanocrystals by van der Waals Torque. J. Phys. Chem. C 2015, 119, 24597–24605. [Google Scholar] [CrossRef]
  56. Ye, J.; Liu, W.; Cai, J.; Chen, S.; Zhao, X.; Zhou, H.; Qi, L. Nanoporous anatase TiO2 mesocrystals: Additive-free synthesis, remarkable crystalline-phase stability, and improved lithium insertion behavior. J. Am. Chem. Soc. 2011, 133, 933–940. [Google Scholar] [CrossRef] [PubMed]
Figure 1. (a) X-ray diffraction (XRD) patterns of sodium yttrium fluoride (NYF):Yb3+Er3+ (20/2 mol%) sample at various solvothermal temperatures using diethylene glycol (DEG) as the reaction medium (all of the diffraction peaks are attributed to cubic-phase NaYF4), field-emission scanning electron microscope (FE-SEM) images ((b) low-magnification; (c) high-magnification), (d,e) TEM images, and (f) selected area electron diffraction (SAED) pattern of as-obtained NYF:Yb3+,Er3+ (20/2 mol%) submicrocrystals at 120 °C. (Note the nanoparticles aggregated to form submicrocubes).
Figure 1. (a) X-ray diffraction (XRD) patterns of sodium yttrium fluoride (NYF):Yb3+Er3+ (20/2 mol%) sample at various solvothermal temperatures using diethylene glycol (DEG) as the reaction medium (all of the diffraction peaks are attributed to cubic-phase NaYF4), field-emission scanning electron microscope (FE-SEM) images ((b) low-magnification; (c) high-magnification), (d,e) TEM images, and (f) selected area electron diffraction (SAED) pattern of as-obtained NYF:Yb3+,Er3+ (20/2 mol%) submicrocrystals at 120 °C. (Note the nanoparticles aggregated to form submicrocubes).
Nanomaterials 09 00028 g001

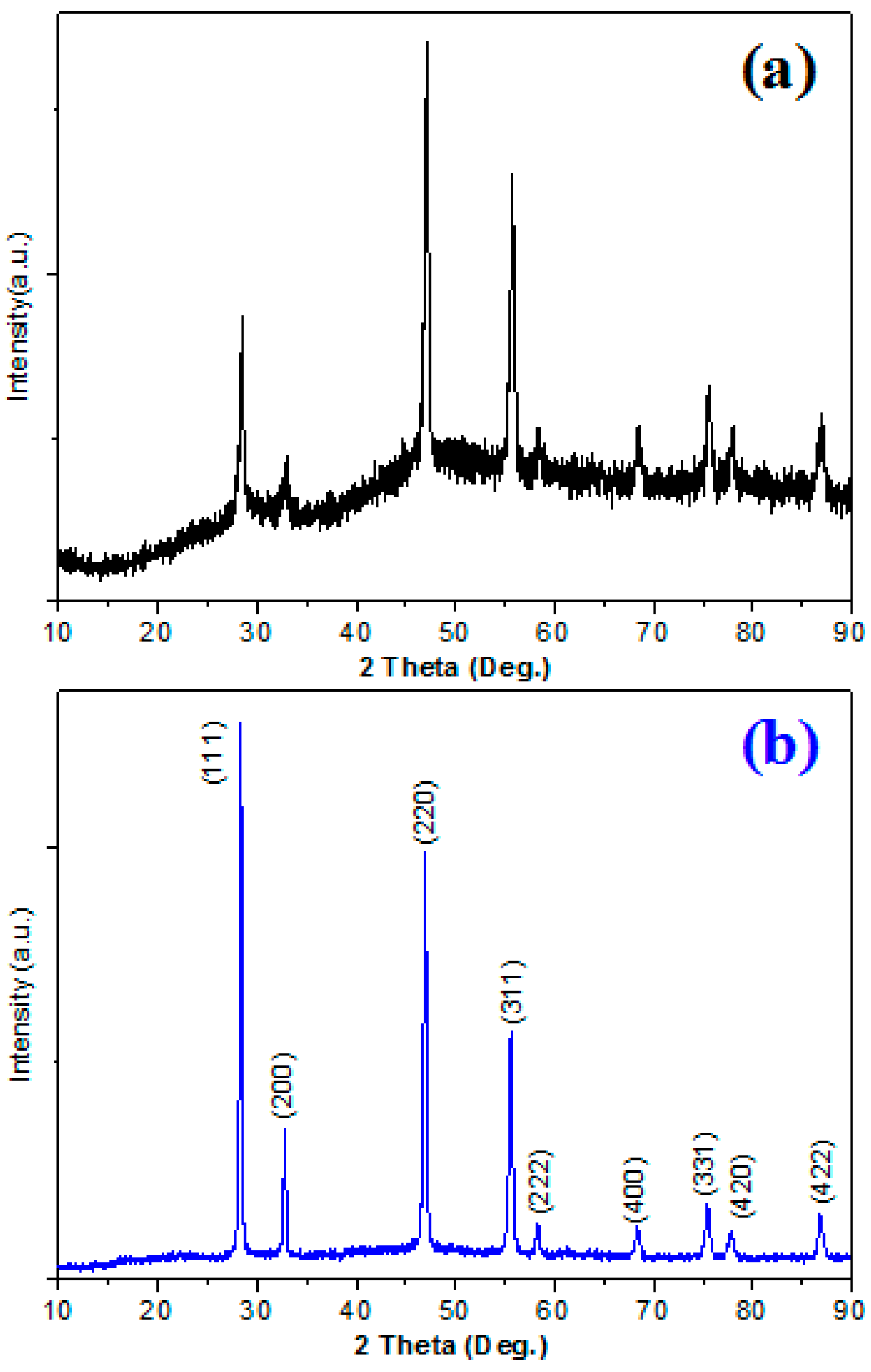

Figure 2. XRD patterns of (a) NaYF4 host, and (b) NYF:Yb3+,Er3+ (20/2 mol%) samples using 1,2-ethanediol as solvent.
Figure 2. XRD patterns of (a) NaYF4 host, and (b) NYF:Yb3+,Er3+ (20/2 mol%) samples using 1,2-ethanediol as solvent.
Nanomaterials 09 00028 g002

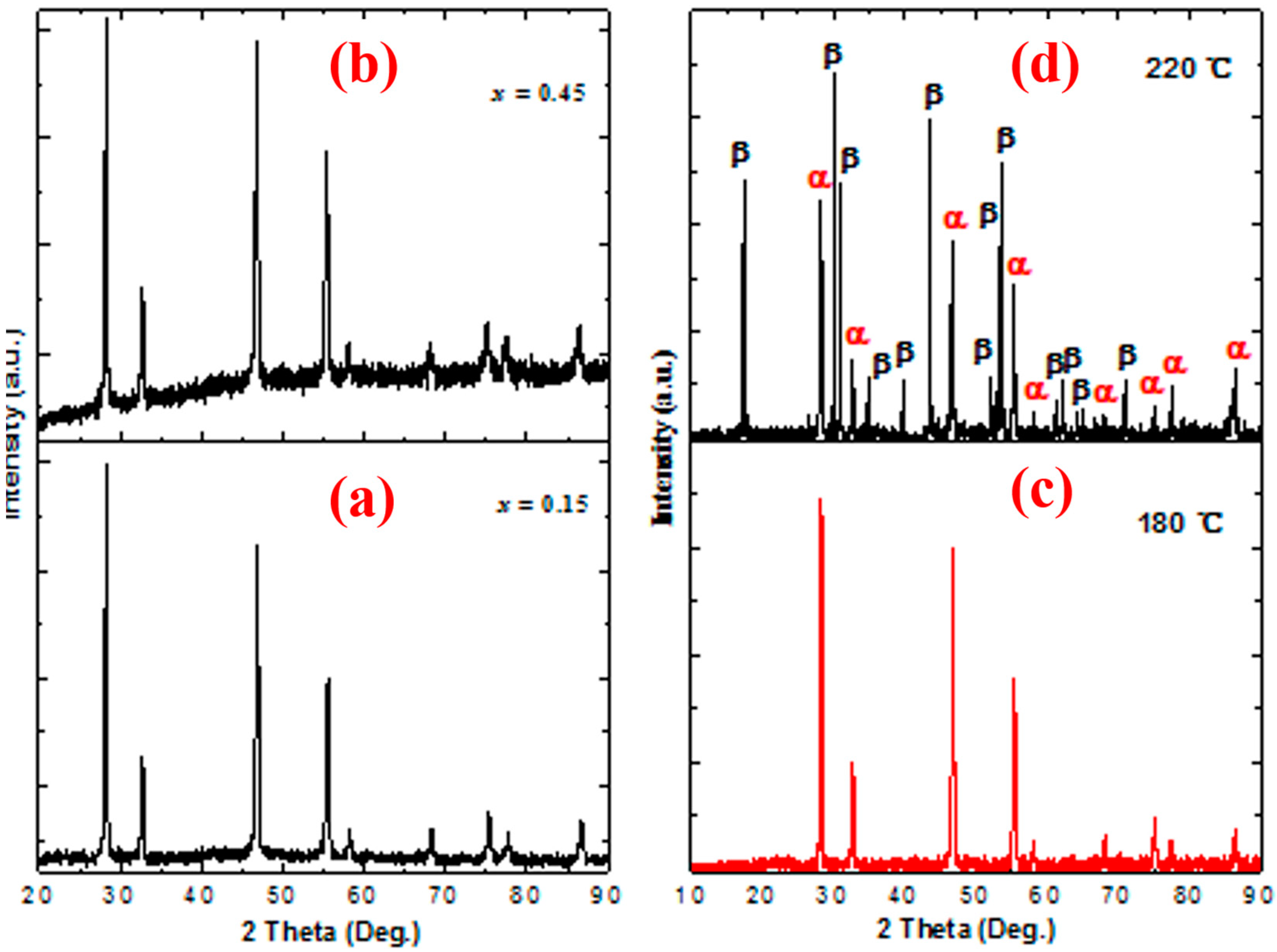

Figure 3. XRD patterns of Na (Y0.78-xGdx), F4:Yb3+, and Er3+(20/2 mol%) samples with different tri-doping levels of Gd3+ ((a) x = 0.15, (b) x = 0.45), and Na (Y0.48Gd0.30)F4:Yb3+,Er3+(20/2 mol%) samples obtained at higher solvothermal temperatures ((c) 180 °C, (d) 220 °C; the symbol α and β represent cubic and hexagonal phases, respectively).
Figure 3. XRD patterns of Na (Y0.78-xGdx), F4:Yb3+, and Er3+(20/2 mol%) samples with different tri-doping levels of Gd3+ ((a) x = 0.15, (b) x = 0.45), and Na (Y0.48Gd0.30)F4:Yb3+,Er3+(20/2 mol%) samples obtained at higher solvothermal temperatures ((c) 180 °C, (d) 220 °C; the symbol α and β represent cubic and hexagonal phases, respectively).
Nanomaterials 09 00028 g003

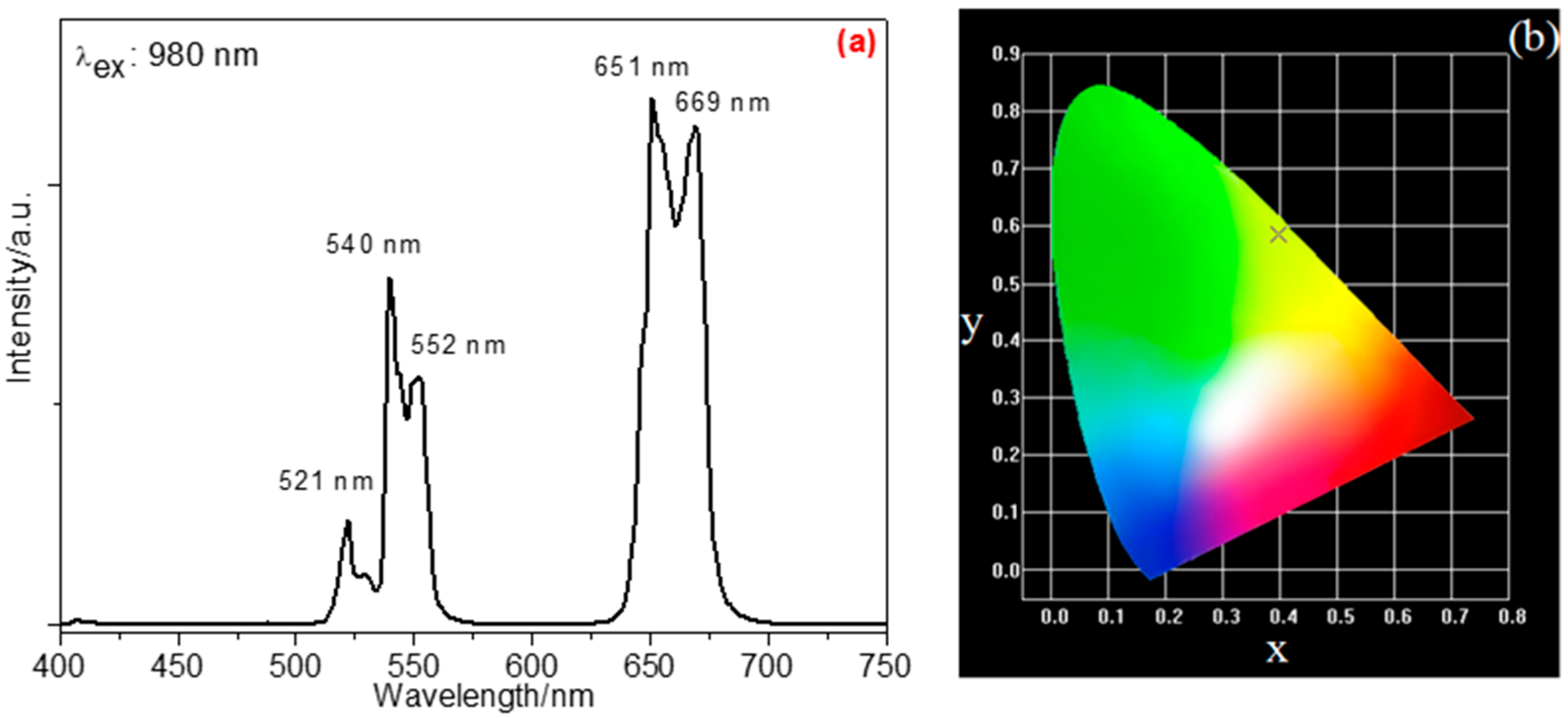

Figure 4. (a) Up-conversion luminescence spectrum at room temperature and (b) Commission Internationale de l’Eclairage (CIE) chromaticity diagram of NYF:Yb3+,Er3+(20/2 mol%) sample (λex: 980 nm).
