Spatially Correlated, Single Nanomaterial-Level Structural and Optical Profiling of Cu-Doped ZnO Nanorods Synthesized via Multifunctional Silicides
1
Department of Chemistry, Georgetown University, 37th & O Sts. NW., Washington, DC 20057, USA
2
Department of Chemistry and Biochemistry, University of Maryland Baltimore County, 1000 Hilltop Circle, Baltimore, MD 21250, USA
*
Author to whom correspondence should be addressed.
Received: 19 March 2018 / Accepted: 5 April 2018 / Published: 7 April 2018

Abstract

:
We demonstrate a straightforward and effective method to synthesize vertically oriented, Cu-doped ZnO nanorods (NRs) using a novel multipurpose platform of copper silicide nanoblocks (Cu3Si NBs) preformed laterally in well-defined directions on Si. The use of the surface-organized Cu3Si NBs for ZnO NR growth successfully results in densely assembled Cu-doped ZnO NRs on each NB platform, whose overall structures resemble thick bristles on a brush head. We show that Cu3Si NBs can uniquely serve as a catalyst for ZnO NRs, a local dopant source of Cu, and a prepatterned guide to aid the local assembly of the NRs on the growth substrate. We also ascertain the crystalline structures, optical properties, and spectroscopic signatures of the Cu-doped ZnO NRs produced on the NBs, both at each module of NRs/NB and at their ensemble level. Subsequently, we determine their augmented properties relative to the pristine form of undoped ZnO NRs and the source material of Cu3Si NBs. We provide spatially correlated structural and optical data for individual modules of Cu-doped ZnO NRs assembled on a Cu3Si NB by resolving them along the different positions on the NB. Ensemble-averaged versus individual behaviors of Cu-doped ZnO NRs on Cu3Si NBs are then compared. We further discuss the potential impact of such ZnO-derived NRs on their relatively unexplored biological and biomedical applications. Our efforts will be particularly useful when exploiting each integrated module of self-aligned, Cu-doped ZnO NRs on a NB as a discretely addressable, active element in solid-state sensors and miniaturized luminescent bioprobes.
Keywords:
zinc oxide; copper-doped zinc oxide; copper zinc oxide; 1D nanomaterial; nanorod; luminescence; fluorescence; Raman scattering

1. Introduction

Optical properties of one dimensional (1D) zinc oxide nanowires and nanorods (ZnO NWs and NRs) have been extensively studied and optimized for photonic [1,2,3,4], optoelectronic [5,6,7,8,9,10,11], and biosensing applications [12,13,14]. One particularly effective strategy for tuning the intrinsic properties of ZnO is to introduce dopants of transition metal ions such as copper (Cu). Many studies have previously demonstrated that the incorporation of Cu into the ZnO lattice can significantly alter the structural, chemical, optical, and electrical properties of ZnO [15,16,17,18,19,20,21,22,23,24,25,26,27,28]. These endeavors have been largely focused on thin film and powder structures of ZnO [15,16,17,18,19,20]. For instance, Cu doping into ZnO thin films can reduce their bandgaps [15] and induce ferromagnetic behaviors unlike neat ZnO or Cu [17,18]. In other examples, Cu doping of ZnO can produce highly nonlinear current–voltage characteristics used in varistors [19] and, together with Ga, Cu-incorporated ZnO thin films have been constructed as cathodoluminescent screens [20].
More recently, some efforts have been made to produce 1D forms of Cu-doped ZnO. They have been produced via hydrothermal [21], chemical vapor deposition (CVD) [22,23,24,25,26], thermal diffusion [27], and electrochemical deposition [28] methods. Among these, CVD has often been the method of choice, since the gas phase approach can minimize unwanted incorporation of chemical impurities during synthesis that may otherwise arise from the presence of counter ions and bystander species in solutions. In previous CVD approaches, reactions were carried out by using source mixtures of Cu/Zn, CuO/ZnO, CuI/ZnI2, Cu(C5H7O2)2/Zn/(Zn(C2H3O2)2·2H2O)2, or Cu film coating ZnO [22,23,24,25,26]. Regardless of the dimensionality of the synthesized materials, the development of Cu-doped ZnO has so far been geared towards magnetic, electrical, and optoelectronic functions to create better luminescence activators, dilute magnetic semiconductors, and multispectral photodetectors. For reasons, Cu-doped ZnO in previous studies has been largely examined for its properties associated with ferromagnetism, near-band-edge-related photoluminescence, and photon-induced current–voltage relationships.
We have previously demonstrated that ZnO NRs can be successfully employed in bioanalyte detection [12,13,14,29,30,31,32,33]. In these efforts, pristine ZnO NRs served as efficient subwavelength waveguides and surface evanescent wave carriers, which subsequently permitted ultrasensitive detection of DNA- and protein-derived fluorescence signals. Being utilized as passive waveguides of non-intrinsic light generated by fluorophore-conjugated biomolecules, ZnO NRs in these applications were designed to be optical quality single crystals, free of chemical and crystalline defects. The undoped ZnO NRs exhibited optical transparency in the visible range needed in fluorescence-based bioassays with no absorption or emission under commonly used visible excitation settings. However, rather than simply utilizing them as passive components, transforming ZnO NRs into active waveguides of visible light by augmenting their optical properties can be highly beneficial in biodetection. Exemplar uses of active visible light waveguides include in vivo bioprobes, luminescent markers, and local light sources in integrated optical biosensors.
In this study, we devise a straightforward and effective method to synthesize Cu-doped ZnO NRs using a novel multifunctional platform of copper silicide nanoblocks (Cu3Si NBs). The Cu3Si NBs play multiple roles, serving as catalysts for the ZnO NR growth, a local Cu source for doping the NRs, and prepatterned guides to aid the local assembly of the NRs on the growth substrate. The Cu3Si bases are first formed into square or rectangular nanoblocks (NBs) on Si in well-defined directions. Subsequent ZnO NR growth yields a forest of Cu-doped ZnO NRs vertically grown from the base of each Cu3Si NB. The resulting assembly of ZnO NRs on the Cu3Si NB resembles thick bristles on a brush head. The crystalline structures, optical properties, and spectroscopic signatures of the resulting Cu-doped ZnO NRs on the NBs are then ascertained at both the ensemble and individual block levels. Among the different material characterization methods that were used, fluorescence emission and Raman scattering profiles are particularly sensitive to Cu incorporation into ZnO NRs. With the use of Cu3Si NBs as an effective Cu dopant source, we also show that the optical properties of the NRs are significantly altered from pristine ZnO materials. ZnO NRs synthesized on Cu3Si NBs emit strong fluorescence in the visible range that is not seen from either Cu3Si NBs or undoped ZnO NRs. Cu-doped ZnO NRs also exhibit phonon modes forbidden by the Raman selection rule of wurtzite ZnO and cause large peak shifts in Raman scattering. Distinct from many previous studies investigating macroscopic or ensemble-averaged behaviors of Cu-doped ZnO, we ascertain the structural and optical characteristics of Cu-doped ZnO NRs on Cu3Si NBs by spatially correlating fluorescence and Raman data collected from individual NBs.

2. Experimental Methods

Cu3Si NBs were first synthesized on clean Si(100) substrates (Silicon Quest International Inc., San Jose, CA, USA) in a CVD reactor. A mixture of 0.9 g of CuO and 0.6 g of graphite, obtained from Alfa Aesar (Ward Hill, MA, USA), was placed on a source boat at the center of a horizontal resistance tube furnace. A target boat containing the Si(100) substrate was placed at the downstream side, 12 cm away from the center. The temperature of the furnace was then raised to 800 °C for 1 h under a constant Ar flow of 100 standard cubic centimeters per minute (sccm). During the CVD reaction, CuO was reduced to Cu which further reacted with Si, producing Cu3Si nanostructures along the Si atom directions on Si(100). ZnO NRs were subsequently grown using the Cu3Si NBs as catalysts. The Cu3Si NBs/Si(100) sample was cleaned with a 1:5 mixture of NH3F/HF–deionized water (DI) for 25 min and then in 0.01 N HNO3 for 40 min. ZnO NRs were synthesized in a CVD reactor kept under 100 sccm of Ar flow, similar to the setup described above. The source and target boats contained a 1:2 mixture of ZnO (99.999%) and graphite (99%) powder (Alfa Aesar Inc., Tewksbury, MA, USA) by weight and the Cu3Si NBs/Si(100) sample, respectively. The CVD reaction was held at 1000–1050 °C for 4 h. Alternatively, for synthesizing undoped ZnO NRs, 20 nm Au nanoparticles (Au NPs) from Ted Pella, Inc. (Redding, CA, USA) on a Si wafer were used as catalysts. The source materials, a 1:2 mixture of ZnO to graphite powder (0.45 g total), were placed in a quartz boat at the furnace center. The furnace was heated to 950 °C for 40 min under a 100 sccm Ar flow. Upon synthesis, the growth plate contained a dense mat of undoped ZnO NRs from which the NRs were sonicated off and dispersed in ethanol. Reconstituted ZnO NRs were then deposited onto a clean Si substrate via drop casting.
The Cu3Si NBs as well as doped and undoped ZnO NRs were subsequently characterized using a scanning electron microscope (SEM), FEI Nova NanoSEM 450 (FEI Company, Hillsboro, OR, USA), operated at 20 keV. For all optical measurements, a Zeiss Axio Imager A2M (Carl Zeiss, Inc., Thornwood, NY, USA) microscope equipped with an AxioCAM HRm digital camera (Carl Zeiss Microscopy GmbH., Jena, Germany) was employed. Reflected bright-/dark-field illumination and unpolarized fluorescence excitation were produced using a 12 V/100 W halogen lamp (Carl Zeiss Microscopy GmbH., Jena, Germany) and a 120 W mercury vapor lamp (X-Cite 120Q, Carl Zeiss Microscopy GmbH., Jena, Germany), respectively. Various spectroscopic settings were employed in order to check fluorescence emission of the nanomaterials in the visible window. Images were acquired with EC Epiplan-NEOFLUAR 50X (numerical aperture, NA = 0.8) and 100× magnification (NA = 0.9) objective lenses using a 2 s exposure. X-ray diffraction (XRD) measurements were made using a Rigaku Ultima IV X-ray diffractometer (Rigaku Corp., Tokyo, Japan), operated with an accelerating voltage of 40 kV under Cu Kα radiation (1.542 Å, 1.5104) and scanned in the range of 2θ = 30–70° at a rate of 1°/min. Ultraviolet–visible (UV–vis) absorption spectroscopy data were collected using an Agilent 8453 UV–vis spectrometer (Agilent Tech, Santa Clara, CA, USA). Fourier transform infrared (FTIR) spectroscopy measurements were taken using an Agilent Technologies Cary 670 Spectrometer (Santa Clara, CA, USA) with a home-built attenuated total reflectance (ATR) attachment. Raman spectra and maps were acquired using a LabRAM HR Evolution Raman confocal microscope (Horiba Instruments Inc., Sunnyvale, CA, USA) with a long working distance and 100× objective lens of 0.8 NA (Olympus Corp., Waltham, MA, USA). Raman signals upon 532 nm laser excitation were collected in the wavenumber range of 50–500 cm−1 using an 1800 lines/mm grating and a charge-coupled-device detector.

3. Results and Discussion

The bright-field optical image in Figure 1A and SEM panels in Figure 1B display low- and high-magnification views, respectively, of the as-synthesized Cu3Si NBs. The Cu3Si NBs on Si(100) were aligned in two specific crystal directions along [011] and [01-1] as previously reported [34,35], consistent with the underlying Si atom arrangement. The Cu3Si NBs shown in Figure 1 are approximately 750–800 nm in diameter and 11–14 μm in length. The Cu3Si NBs typically exhibit an aspect ratio much greater than 1:10. In addition, square-shaped Cu3Si nanocrystallites (NCs) can also be seen in Figure 1A,B. The small Cu3Si NCs are the dominant form on samples grown only for a short time (5–10 min), making them early-stage structures before developing into the highly elongated constructs of NBs. With increasing growth time, the NCs become lengthened along either [011] or [01-1] on the substrate of Si(100), sometimes merging with other NBs growing nearby.
Figure 1C,D display the bright-field and SEM images of the ZnO NRs grown on the Cu3Si NBs. The panels clearly show that the resulting NR growths occurred on Cu3Si NBs but not in other areas on the substrate. Thus, Cu3Si NBs can serve as effective catalysts for the nucleation and growth of the ZnO NRs. The as-grown structures of ZnO NRs jutting out of each Cu3Si NB resemble dense bristles on a brush head. The assembled structures of multiple modules of NRs/NB as well as a single module of NRs/NB can be clearly seen in the zoomed-in SEM panels in Figure 1D. The NRs shown in Figure 1D are approximately 160–300 nm in diameter and 10–12 μm in length, grown vertically from the NB base with one end free and the other end attached to the Cu3Si NB. Figure 1E,F show the bright-field and SEM images of undoped ZnO NRs. The undoped NRs were reconstituted and redeposited onto a clean Si from the growth plate containing a dense mat of NRs. The basal (hexagonal end) and prismic (rectangular side) facets of the pristine ZnO NR crystals can be clearly seen in the high-magnification SEM image in Figure 1F.
After examining the physical dimensions and morphologies of the nanostructures, we then investigated the optical properties of the undoped and Cu-doped ZnO NR samples. ZnO NRs synthesized using Au NPs versus Cu3Si NBs exhibited vastly different fluorescence emission behaviors under visible excitation. Figure 2A,B display representative fluorescence panels collected from the samples of Cu3Si NBs alone and neat ZnO NRs grown on Au NPs, respectively. Excitation and collection wavelength ranges (λexcol) used were 450–490/540–552 and 510–540/575–640, all in units of nm. Cu3Si NBs and undoped ZnO NRs did not show any fluorescence under these settings. Contrastingly, as-grown ZnO NRs produced on Cu3Si NBs yielded strong, stable fluorescence in the specified emission wavelength range as displayed in Figure 2C, which was due to Cu doping into the NRs. Fluorescence from vertically grown NR ensembles yielded furry green patches that span along the nonemitting Cu3Si NBs. The hazy fluorescence pattern is due to the collective emission of many m-long doped ZnO NRs vertically straddling the focal plane. In contrast, those NRs lying in the imaging plane unmistakably appear as fluorescing rods in the same fluorescence images. Similar fluorescence emission was also confirmed in the red range for the ZnO NRs grown on Cu3Si NBs.
We subsequently employed various diffraction and spectroscopic techniques to examine the different nanomaterials. Figure 3A displays XRD data of pristine ZnO NRs, Cu-doped ZnO NRs, and Cu3Si NBs as grown on Si wafers. The topmost spectrum shown in Figure 3A, corresponding to as-synthesized, undoped ZnO NRs, agrees well with the characteristic diffraction peaks of wurtzite ZnO crystals. The peaks at 2θ = 31.8°, 34.5°, 36.5°, 47.5°, 56.5°, and 63° belong to (110), (002), (101), (102), (110), and (103) of the ZnO NR crystal, respectively, and the unassigned peaks in the spectrum belong to the Si substrate. The middle spectrum in Figure 3A is taken from Cu-doped ZnO NRs grown on Cu3Si NBs, showing the same diffraction patterns as undoped ZnO NRs. We did not observe any significant deviations in terms of new peaks or peak shifts in the undoped versus Cu-doped ZnO NR samples. No peaks related to Cu or CuO appeared and only the overall peak intensities of the Cu-doped ZnO NRs decreased. This was due to the lower amounts of ZnO NRs synthesized as they form only on the Cu3Si NBs areas. The absence of CuO phase in the spectra indicates that the incorporated Cu level in our NR samples has not exceeded the solid solubility of Cu in ZnO which is ~1 atomic percent [36,37]. The bottommost diffraction panel in Figure 3A is from Cu3Si NBs self-assembled along the two preferential growth directions on Si(100). The peak appearing at 45.5° is indicative of Cu3Si (120)/(210) and the other peaks present are from Si [34,35].
Data in Figure 3B,C display the IR and UV–vis spectra, respectively, of undoped and Cu-doped ZnO NRs. Relatively broad peaks centered at 350 and 550 cm−1 in the fingerprint region of ZnO were found in the ATR FTIR spectra of both undoped and Cu-doped ZnO NRs in Figure 3B. These peaks are associated with Zn–O stretching [38,39,40]. No additional absorption peaks were identified from the Cu-doped ZnO NRs. Unlike the XRD and ATR FTIR outcomes, the UV–vis absorption profiles characterized from the two samples showed a small change in the 400–500 nm range, noticeable in Figure 3C. The absorption profile of neat ZnO NRs center in the UV region and show a sharp decrease at 390 nm. In contrast, the decrease in this region becomes more gradual and extends towards the visible range in the absorption spectrum for the Cu-doped ZnO NRs. The increased absorbance into the visible region of the Cu-doped ZnO NR sample coincides with the appearance of visible fluorescence emission from the NRs in Figure 2.
Figure 4 displays the Raman scattering results from undoped and Cu-doped ZnO NRs. Wurtzite ZnO, according to group theory, has the optical modes of Γopt = A1 + 2B1 + E1 + 2E2 at the point of the Brillouin zone [41,42]. A1, E1, and E2 are Raman active whereas B1 is a silent mode in pristine ZnO. The atomic arrangements of Zn and O in a wurtzite crystal structure as well as the vibrations associated with the characteristic ZnO phonon modes are depicted in Figure 4A,B. As seen from the Raman scattering data of pristine ZnO NRs in the left panel of Figure 4C, the Raman modes of E2L, E2H–E2L, A1T, E1T, and E2H were resolved at 98, 331, 378, 413, and 437 cm−1, respectively. These peaks are expected from wurtzite ZnO NRs belonging to the C46v space group [41,42,43]. The strong peaks of high and low E2 reflect the chemical composition of Zn (E2L) and O (E2H) in the high-quality wurtzite ZnO NR sample. Contrarily, the Raman signals from Cu-doped ZnO NRs in the right panel of Figure 4C indicate significant deviations from the scattering behaviors of pristine ZnO NRs. Large peak shifts were observed for the E2H–E2L and E2H modes by 8–12 cm−1 to the left of those from pristine ZnO. In addition, the forbidden B1L mode newly appeared at around 280 cm−1 in the Cu-doped ZnO NR Raman spectra as did the second-order E2L peak centered at 196 cm−1. A clear indication of Cu incorporation into the Zn–O lattice was the new peak at 220 cm−1, which originates from the presence of Cu(I)–O in the Zn–O lattice [44,45]. The Cu(I)–O peak is marked with an asterisk in the Raman spectrum of Cu-doped ZnO NRs in Figure 4C. Although appearing small in the ensemble-averaged Raman spectra of Cu-doped ZnO NR samples, the Cu(I)–O peak was identified prominently in the Raman measurements examining single modules of NRs/NB, which will be discussed in Figure 5. Regardless, we successfully revealed additional Raman peaks and peak shifts specifically related to Cu doping of ZnO NRs, which could not be identified previously under low doping regimes. The Cu incorporation in our samples neither altered the dominant growth direction of the NRs nor changed the wurtzite crystals to an amorphous or another crystalline state, as evidenced by the XRD data in Figure 3A. However, the Cu dopant resulted in significant disruptions in the long-range order of the NR crystal, as seen by the pronounced downshift as well as the broadening and weakening of the Raman peaks. The perturbed Raman spectra of the doped relative to the pristine ZnO NR samples indicate that the symmetry of the allowed phonons is broken due to Cu introduction into the host ZnO lattice. The Cu-induced, long-range disorder in the ZnO lattice is likely to cause the contribution of q ≠ 0 phonons to the Raman features such as the additional second-order peaks, not observed from pristine ZnO NRs.
Our results indicated that fluorescence emission and Raman scattering were particularly sensitive to Cu addition to ZnO NRs. Hence, in addition to those collectively acquired from a group of NRs/NBs, we further examined the fluorescence emission and Raman scattering profiles of Cu-doped ZnO NRs on Cu3Si NBs at the individual nanostructure level. Specifically, individual NRs/NB modules were studied via spatially correlated optical, fluorescence, and Raman measurements along the length of the NB. Figure 5 displays typical, correlated data acquired by examining individual NRs/NB modules. Figure 5A is a merged bright- and dark-field image of Cu-doped ZnO NRs on a NB. Figure 5B is the corresponding fluorescence emission collected in the green (top) and red (bottom) wavelength ranges. The spectra presented in Figure 5C correspond to the spatially resolved Raman scattering signals taken from the NRs/NB module. Although overall features were similar, Raman scattering profiles from individual NRs/NB modules differed from those of NRs/NB ensembles, whose representative data are shown in Figure 4C and Figure 5C, respectively. For individual NRs/NB modules, the characteristic peaks associated with Cu doping of ZnO NRs such as the Cu(I)–O and B1L modes appeared more prominently, whereas the contribution of the second-order E2L mode was reduced. The location of the Cu(I)–O peak is found at 225 cm−1 in individual NRs/NB spectra, moved from 220 cm−1 for the ensemble samples. The peak shifts of the E2H–E2L and E2H modes seen in the ensemble samples were also observed in the individual NRs/NB modules.
To construct NB position-resolved Raman scattering profiles, two-dimensional (2D) Raman mapping was carried out for which a laser beam of approximately 1 µm in diameter was rastered in the vicinity of a NRs/NB module of interest. Depending on the size of the NB, the steps taken in the beam walk ranged 550–750 nm and 270–440 nm along the long and short axes of the NB, respectively. The resulting Raman map, corresponding to the E2H peak shift of the NRs/NB sample in Figure 5A, is presented in Figure 5D. The two panels in Figure 5E are a superimposed view of the bright-field and Raman data (top) with that of the fluorescence and Raman data (bottom). As evidenced in the top panel of Figure 5E, the NB areas of NR growths in the optical microscopy image match with the regions of large E2H peak shifts in the Raman map. As observed in the bottom panel of Figure 5E, the NB areas of large fluorescence and Raman peak shift signals are co-located. As both the visible fluorescence and the Raman peak shift are indicative of Cu doping, the correlated data set further confirms that the resulting ZnO NRs on the Cu3Si NB are indeed doped with Cu.
The inherent property of neat ZnO NRs showing optical transparency in the visible range has so far limited their applications to luminescence and active guiding in the spectral region of UV. Even for the limited cases employing ZnO NRs as passive waveguides in the visible region, the endeavors were largely in optoelectronic fields [1,2,6,46]. Yet, these ZnO NRs and their derivatives have potential to be engineered into biodetection modules [47,48,49,50,51] for measuring protein activities and cell differentiation/growth using visible light. For such biological applications, visualization of the NRs is essential because determining the exact placement and distribution of the NRs in tissues and cells/cellular components is critical for interpreting results. Our efforts demonstrated in this study may be significant in this regard. For instance, the visible luminescence from vertically grown Cu-doped ZnO NRs on NBs that are self-aligned laterally on a Si wafer may be used in the streamlined fabrication of nanophotonic circuitries in integrated biosensors for bioanalyte detection via fluorescence resonance energy transfer [52,53] and fluorescence anisotropy [54,55]. The intense green fluorescence produced by the Cu-doped ZnO NRs on Cu3Si NBs may enable precise determination of their location once coupled with cellular systems. In addition, our approach demonstrated in this paper can greatly increase the versatility of ZnO-derived NRs in fluorescence-based biodetection by promoting them to effectively function as an active, not just passive, guiding element for visible light. For example, highly controlled spatial delivery of the green light from the Cu-doped ZnO NRs can be enabled by actively waveguiding the inherent light to the NR termini and, subsequently, to the bioanalytes of interest for exclusive excitation, without affecting nearby species whose unwanted excitation can contribute to background interference. Therefore, our efforts can be highly valuable in paving the way for new applications of ZnO-derived NRs in basic biological research and in biomedical detection which is relatively unexplored so far, particularly for the development of integrated optical biosensors and miniaturized bioprobes.

4. Summary

In summary, we have demonstrated a straightforward and effective method to synthesize Cu-doped ZnO NRs using a novel system of Cu3Si NBs pre-aligned laterally on a Si wafer. We showed that the unique platform of Cu3Si NBs can play multifunctional roles in the CVD synthesis. They functioned as a catalyst for ZnO NR growth, a local Cu dopant source, and a pre-assembled guide for NR assembly on the Si substrate. As a result, dense, bristle-like, Cu-doped ZnO NRs were nucleated and vertically grown from each Cu3Si NB base. We subsequently characterized their structural, optical, and spectroscopic characteristics at both the ensemble and individual nanostructure levels. In particular, we have successfully performed spatially correlated structural and optical measurements at the level of each NRs/NB module, including NB position-resolved fluorescence and Raman spectra. We have ascertained the augmented optical properties of doped ZnO NRs relative to those of pristine ZnO NRs and Cu3Si NBs, and further discussed their potential biodetection applications. Specifically, Cu-doped ZnO NRs showed an extended absorption edge and strong luminescence in the visible range. The inclusion of Cu into ZnO NR crystals induced the emergence of the forbidden B1L and the second-order E2L modes as well as considerable peak downshifts for the E2H–E2L and E2H phonon modes in Raman spectra. Coupled with the facile assembly of inherently fluorescing NRs on the bases of self-aligned NBs and the widespread use of fluorescence in solid-state biodetection, our Cu-doped ZnO NRs/NB architectures may be particularly advantageous for use in active visible waveguiding, nanobiophotonics, bioprobes, and luminescent markers.

Acknowledgments

The authors acknowledge financial support of this work by the ACS Petroleum Research Fund Award (55283-ND10) and the National Science Foundation Major Research Instrumentation Award (CHE1429079).

Author Contributions

J.-i.H. conceived and designed the experiments; J.T., M.H., and T.X. performed the experiments and analyzed the data; B.S. and M.-C.D carried out SEM measurements and analysis; J.T., M.H., and J.-i.H. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Law, M.; Sirbuly, D.J.; Johnson, J.C.; Goldberger, J.; Saykally, R.J.; Yang, P. Nanoribbon waveguides for subwavelength photonics integration. Science 2004, 305, 1269–1273. [Google Scholar] [CrossRef] [PubMed]
  2. Sirbuly, D.J.; Law, M.; Pauzauskie, P.; Yan, H.; Maslov, A.V.; Knutsen, K.; Ning, C.Z.; Saykally, R.J.; Yang, P. Optical routing and sensing with nanowire assemblies. Proc. Natl. Acad. Sci. USA 2005, 102, 7800–7805. [Google Scholar] [CrossRef] [PubMed]
  3. Sirbuly, D.J.; Law, M.; Yan, H.; Yang, P. Semiconductor nanowires for subwavelength photonics integration. J. Phys. Chem. B 2005, 109, 15190–15213. [Google Scholar] [CrossRef] [PubMed]
  4. Willander, M.; Nur, O.; Zhao, Q.X.; Yang, L.L.; Lorenz, M.; Cao, B.Q.; Zúñiga Pérez, J.; Czekalla, C.; Zimmermann, G.; Grundmann, M.; et al. Zinc oxide nanorod based photonic devices: Recent progress in growth, light emitting diodes and lasers. Nanotechnology 2009, 20, 332001. [Google Scholar] [CrossRef] [PubMed]
  5. Johnson, J.C.; Yan, H.; Schaller, R.D.; Haber, L.H.; Saykally, R.J.; Yang, P. Single nanowire lasers. J. Phys. Chem. B 2001, 105, 11387–11390. [Google Scholar] [CrossRef]
  6. Johnson, J.C.; Yan, H.; Yang, P.; Saykally, R.J. Optical cavity effects in ZnO nanowire lasers and waveguides. J. Phys. Chem. B 2003, 107, 8816–8828. [Google Scholar] [CrossRef]
  7. Law, M.; Greene, L.E.; Johnson, J.C.; Saykally, R.; Yang, P. Nanowire dye-sensitized solar cells. Nat. Mater. 2005, 4, 455–459. [Google Scholar] [CrossRef] [PubMed]
  8. Soci, C.; Zhang, A.; Xiang, B.; Dayeh, S.A.; Aplin, D.P.R.; Park, J.; Bao, X.Y.; Lo, Y.H.; Wang, D. ZnO nanowire UV photodetectors with high internal gain. Nano Lett. 2007, 7, 1003–1009. [Google Scholar] [CrossRef] [PubMed]
  9. Wang, G.; Chu, S.; Zhan, N.; Lin, Y.; Chernyak, L.; Liu, J. ZnO homojunction photodiodes based on Sb-doped p-type nanowire array and n-type film for ultraviolet detection. Appl. Phys. Lett. 2011, 98, 041107. [Google Scholar] [CrossRef]
  10. Yan, H.; Johnson, J.; Law, M.; He, R.; Knutsen, K.; McKinney, J.R.; Pham, J.; Saykally, R.; Yang, P. ZnO nanoribbon microcavity lasers. Adv. Mater. 2003, 15, 1907–1911. [Google Scholar] [CrossRef]
  11. Zhang, C.; Zhang, F.; Qian, S.; Kumar, N.; Hahm, J.-I.; Xu, J. Multiphoton absorption induced amplified spontaneous emission from biocatalyst-synthesized ZnO nanorods. Appl. Phys. Lett. 2008, 92, 233116. [Google Scholar] [CrossRef]
  12. Adalsteinsson, V.; Parajuli, O.; Kepics, S.; Gupta, A.; Reeves, W.B.; Hahm, J. Ultrasensitive detection of cytokines enabled by nanoscale ZnO arrays. Anal. Chem. 2008, 80, 6594–6601. [Google Scholar] [CrossRef] [PubMed]
  13. Hahm, J. Zinc oxide nanomaterials for biomedical fluorescence detection. J. Nanosci. Nanotechnol. 2014, 14, 475–486. [Google Scholar] [CrossRef] [PubMed]
  14. Singh, M.; Truong, J.; Reeves, W.B.; Hahm, J.-I. Emerging cytokine biosensors with optical detection modalities and nanomaterial-enabled signal enhancement. Sensors 2017, 17, 428. [Google Scholar] [CrossRef] [PubMed]
  15. Ahn, K.-S.; Deutsch, T.; Yan, Y.; Jiang, C.-S.; Perkins, C.L.; Turner, J.; Al-Jassim, M. Synthesis of band-gap-reduced p-type ZnO films by Cu incorporation. J. Appl. Phys. 2007, 102, 023517. [Google Scholar] [CrossRef]
  16. Hu, L.; Zhu, L.; He, H.; Guo, Y.; Pan, G.; Jiang, J.; Jin, Y.; Sun, L.; Ye, Z. Colloidal chemically fabricated ZnO: Cu-based photodetector with extended UV-visible detection waveband. Nanoscale 2013, 5, 9577–9581. [Google Scholar] [CrossRef] [PubMed]
  17. Buchholz, D.B.; Chang, R.P.H.; Song, J.-Y.; Ketterson, J.B. Room-temperature ferromagnetism in Cu-doped ZnO thin films. Appl. Phys. Lett. 2005, 87, 082504. [Google Scholar] [CrossRef]
  18. Herng, T.S.; Wong, M.F.; Qi, D.; Yi, J.; Kumar, A.; Huang, A.; Kartawidjaja, F.C.; Smadici, S.; Abbamonte, P.; Sánchez-Hanke, C.; et al. Mutual ferromagnetic–ferroelectric coupling in multiferroic copper-doped ZnO. Adv. Mater. 2011, 23, 1635–1640. [Google Scholar] [CrossRef] [PubMed]
  19. Kutty, T.R.N.; Raghu, N. Varistors based on polycrystalline ZnO:Cu. Appl. Phys. Lett. 1989, 54, 1796–1798. [Google Scholar] [CrossRef]
  20. Kryshtab, T.G.; Khomchenko, V.S.; Papusha, V.P.; Mazin, M.O.; Tzyrkunov, Y.A. Thin ZnS:Cu,Ga and ZnO:Cu,Ga film phosphors. Thin Solid Films 2002, 403–404, 76–80. [Google Scholar] [CrossRef]
  21. Elżbieta, R.; Emerson, C.; Michał, K.; Stefan, J.; Karol, Z.; Henryk, D. The effect of Cu doping on the mechanical and optical properties of zinc oxide nanowires synthesized by hydrothermal route. Nanotechnology 2016, 27, 175706. [Google Scholar]
  22. Xu, C.; Yang, K.; Huang, L.; Wang, H. Cu-doping induced ferromagnetism in ZnO nanowires. J. Chem. Phys. 2009, 130, 124711. [Google Scholar] [CrossRef] [PubMed]
  23. Xu, C.X.; Sun, X.W.; Zhang, X.H.; Ke, L.; Chua, S.J. Photoluminescent properties of copper-doped zinc oxide nanowires. Nanotechnology 2004, 15, 856. [Google Scholar] [CrossRef]
  24. Zhou, S.-M.; Zhang, X.-H.; Meng, X.-M.; Zou, K.; Fan, X.; Wu, S.-K.; Lee, S.-T. The fabrication and optical properties of highly crystalline ultra-long Cu-doped ZnO nanowires. Nanotechnology 2004, 15, 1152. [Google Scholar] [CrossRef]
  25. Kouklin, N. Cu-doped ZnO nanowires for efficient and multispectral photodetection applications. Adv. Mater. 2008, 20, 2190–2194. [Google Scholar] [CrossRef]
  26. Zhu, H.; Iqbal, J.; Xu, H.; Yu, D. Raman and photoluminescence properties of highly Cu doped ZnO nanowires fabricated by vapor-liquid-solid process. J. Chem. Phys. 2008, 129, 124713. [Google Scholar] [CrossRef] [PubMed]
  27. The Long, P.; Roger, V.; David, C.; Nguyen Xuan, N.; Ursaki, V.V. Raman scattering in Me-doped ZnO nanorods (Me = Mn, Co, Cu and Ni) prepared by thermal diffusion. Nanotechnology 2008, 19, 475702. [Google Scholar]
  28. Lupan, O.; Pauporté, T.; Le Bahers, T.; Viana, B.; Ciofini, I. Wavelength-emission tuning of ZnO nanowire-based light-emitting diodes by Cu doping: Experimental and computational insights. Adv. Funct. Mater. 2011, 21, 3564–3572. [Google Scholar] [CrossRef]
  29. Singh, M.; Jiang, R.; Coia, H.; Choi, D.S.; Alabanza, A.; Chang, J.Y.; Wang, J.; Hahm, J.-I. Insight into factors affecting the presence, degree, and temporal stability of fluorescence intensification on ZnO nanorod ends. Nanoscale 2015, 7, 1424–1436. [Google Scholar] [CrossRef] [PubMed]
  30. Singh, M.; Song, S.; Hahm, J. Unique temporal and spatial biomolecular emission profile on individual zinc oxide nanorods. Nanoscale 2014, 6, 308–315. [Google Scholar] [CrossRef] [PubMed]
  31. Hahm, J.-I. Fundamental properties of one-dimensional zinc oxide nanomaterials and implementations in various detection modes of enhanced biosensing. Ann. Rev. Phys. Chem. 2016, 67, 691–717. [Google Scholar] [CrossRef] [PubMed]
  32. Singh, M.; Zhuo, X.; Choi, D.S.; Gonzalez, L.E.; Wang, J.; Hahm, J.-I. Effects of crystallographic facet-specific peptide adsorption along single ZnO nanorods on the characteristic fluorescence intensification on nanorod ends (FINE) phenomenon. Nanoscale 2015, 7, 18813–18826. [Google Scholar] [CrossRef] [PubMed]
  33. Truong, J.; Singh, M.; Hansen, M.; Hahm, J.-I. Polarization-resolved mechanistic investigation of fluorescence signal intensification on zinc oxide nanorod ends. Nanoscale 2017, 9, 8164–8175. [Google Scholar] [CrossRef] [PubMed]
  34. Zhang, Z.; Wong, L.M.; Ong, H.G.; Wang, X.J.; Wang, J.L.; Wang, S.J.; Chen, H.; Wu, T. Self-assembled shape- and orientation-controlled synthesis of nanoscale Cu3Si triangles, squares, and wires. Nano Lett. 2008, 8, 3205–3210. [Google Scholar] [CrossRef] [PubMed]
  35. Yuan, F.-W.; Wang, C.-Y.; Li, G.-A.; Chang, S.-H.; Chu, L.-W.; Chen, L.-J.; Tuan, H.-Y. Solution-phase synthesis of single-crystal Cu3Si nanowire arrays on diverse substrates with dual functions as high-performance field emitters and efficient anti-reflective layers. Nanoscale 2013, 5, 9875–9881. [Google Scholar] [CrossRef] [PubMed]
  36. Hu, L.; Zhu, L.; He, H.; Zhang, L.; Ye, Z. Acceptor defect-participating magnetic exchange in ZnO: Cu nanocrystalline film: Defect structure evolution, Cu–N synergetic role and magnetic control. J. Mater. Chem. C 2015, 3, 1330–1346. [Google Scholar] [CrossRef]
  37. Park, M.S.; Min, B.I. Ferromagnetism in ZnO codoped with transition metals. Phys. Rev. B 2003, 68, 224436. [Google Scholar] [CrossRef]
  38. Pashchanka, M.; Hoffmann, R.C.; Gurlo, A.; Swarbrick, J.C.; Khanderi, J.; Engstler, J.; Issanin, A.; Schneider, J.J. A molecular approach to Cu doped ZnO nanorods with tunable dopant content. Dalton Trans. 2011, 40, 4307–4314. [Google Scholar] [CrossRef] [PubMed]
  39. Khan, M.F.; Ansari, A.H.; Hameedullah, M.; Ahmad, E.; Husain, F.M.; Zia, Q.; Baig, U.; Zaheer, M.R.; Alam, M.M.; Khan, A.M.; et al. Sol-gel synthesis of thorn-like ZnO nanoparticles endorsing mechanical stirring effect and their antimicrobial activities: Potential role as nano-antibiotics. Sci. Rep. 2016, 6, 27689. [Google Scholar] [CrossRef] [PubMed]
  40. Daniel, S.C.; Matthew, H.; Edward Van, K.; Jong-in, H. Highly photoresponsive, ZnO nanorod-based photodetector for operation in the visible spectral range. Nanotechnology 2017, 28, 145203. [Google Scholar]
  41. Calleja, J.M.; Cardona, M. Resonant raman scattering in ZnO. Phys. Rev. B 1977, 16, 3753–3761. [Google Scholar] [CrossRef]
  42. Arguello, C.A.; Rousseau, D.L.; Porto, S.P.S. First-order raman effect in wurtzite-type crystals. Phys. Rev. 1969, 181, 1351–1363. [Google Scholar] [CrossRef]
  43. Cuscó, R.; Alarcón-Lladó, E.; Ibáñez, J.; Artús, L.; Jiménez, J.; Wang, B.; Callahan, M.J. Temperature dependence of raman scattering in ZnO. Phys. Rev. B 2007, 75, 165202. [Google Scholar] [CrossRef]
  44. Powell, D.; Compaan, A.; Macdonald, J.R.; Forman, R.A. Raman-scattering study of ion-implantation-produced damage in Cu2O. Phys. Rev. B 1975, 12, 20–25. [Google Scholar] [CrossRef]
  45. Simas, R.; Albert, G.N.; Hua, J.; Ying, T.; Victor, I.K.; Jani, S.; Elena, D.O.; Sofia, N.B.; Alexander, N.O.; Esko, I.K. A novel method for metal oxide nanowire synthesis. Nanotechnology 2009, 20, 165603. [Google Scholar]
  46. Van Vugt, L.K.; Piccione, B.; Cho, C.-H.; Nukala, P.; Agarwal, R. One-dimensional polaritons with size-tunable and enhanced coupling strengths in semiconductor nanowires. Proc. Natl. Sci. Acad. USA 2011, 108, 10050–10055. [Google Scholar] [CrossRef] [PubMed]
  47. Na, Y.-R.; Kim, S.Y.; Gaublomme, J.T.; Shalek, A.K.; Jorgolli, M.; Park, H.; Yang, E.G. Probing enzymatic activity inside living cells using a nanowire–cell “sandwich” assay. Nano Lett. 2013, 13, 153–158. [Google Scholar] [CrossRef] [PubMed]
  48. Hällström, W.; Mårtensson, T.; Prinz, C.; Gustavsson, P.; Montelius, L.; Samuelson, L.; Kanje, M. Gallium phosphide nanowires as a substrate for cultured neurons. Nano Lett. 2007, 7, 2960–2965. [Google Scholar] [CrossRef] [PubMed]
  49. Li, Z.; Song, J.; Mantini, G.; Lu, M.-Y.; Fang, H.; Falconi, C.; Chen, L.-J.; Wang, Z.L. Quantifying the traction force of a single cell by aligned silicon nanowire array. Nano Lett. 2009, 9, 3575–3580. [Google Scholar] [CrossRef] [PubMed]
  50. Bucaro, M.A.; Vasquez, Y.; Hatton, B.D.; Aizenberg, J. Fine-tuning the degree of stem cell polarization and alignment on ordered arrays of high-aspect-ratio nanopillars. ACS Nano 2012, 6, 6222–6230. [Google Scholar] [CrossRef] [PubMed]
  51. Trine, B.; Sara, B.; Katrine, R.R.; Morten Hannibal, M.; Claus, B.S.; Jesper, N.; Karen, L.M. Cell membrane conformation at vertical nanowire array interface revealed by fluorescence imaging. Nanotechnology 2012, 23, 415102. [Google Scholar]
  52. Selvin, P.R. The renaissance of fluorescence resonance energy transfer. Nat. Struct. Mol. Biol. 2000, 7, 730–734. [Google Scholar] [CrossRef] [PubMed]
  53. Forster, T. 10th spiers memorial lecture. Transfer mechanisms of electronic excitation. Discuss. Faraday Soc. 1959, 27, 7–17. [Google Scholar] [CrossRef]
  54. Yan, Y.; Marriott, G. Analysis of protein interactions using fluorescence technologies. Curr. Opin. Chem. Biol. 2003, 7, 635–640. [Google Scholar] [CrossRef] [PubMed]
  55. Jameson, D.M.; Ross, J.A. Fluorescence polarization/anisotropy in diagnostics and imaging. Chem. Rev. 2010, 110, 2685–2708. [Google Scholar] [CrossRef] [PubMed]

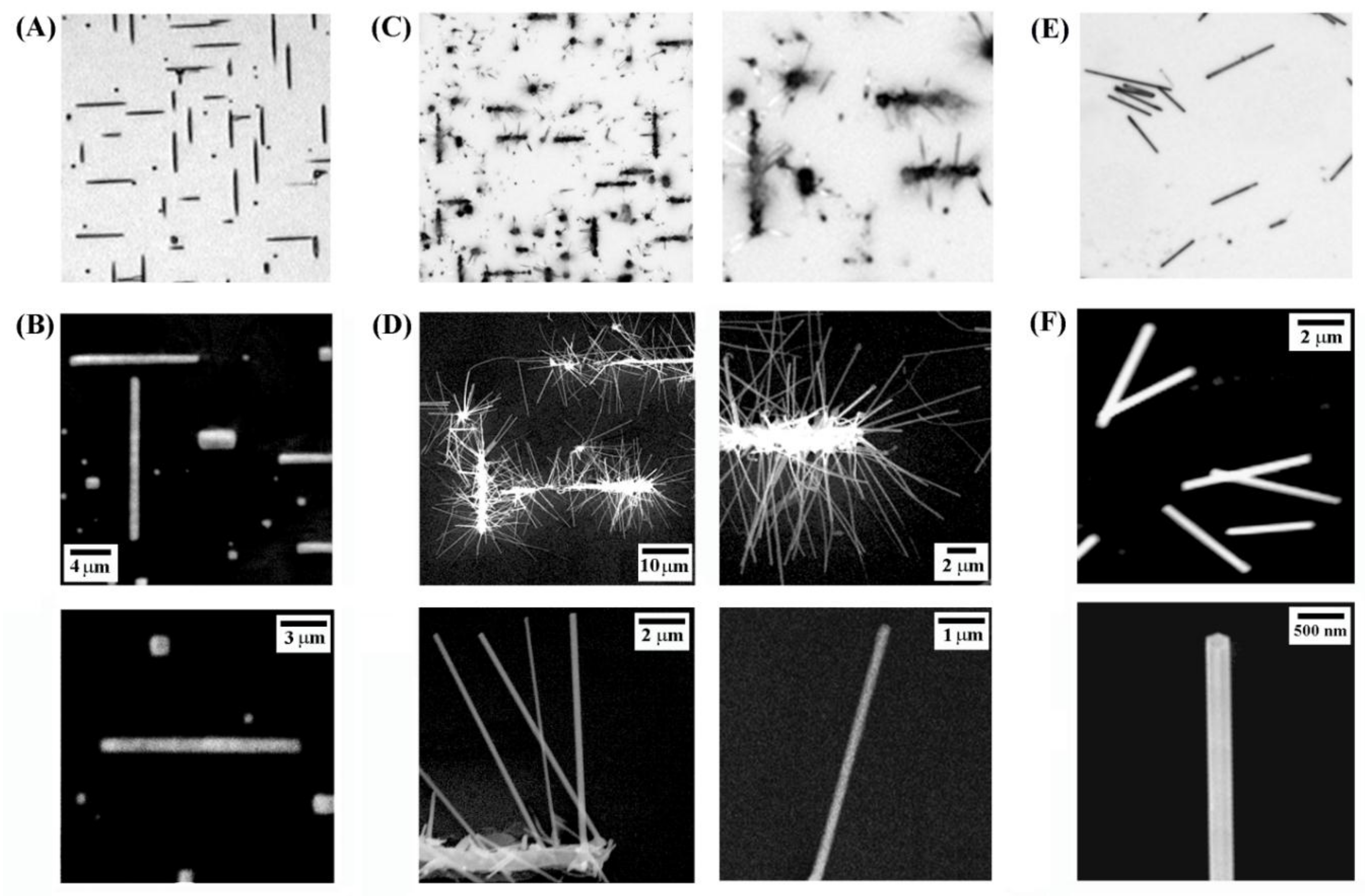

Figure 1. Bright-field and SEM images showing the structures of Cu3Si nanoblock (NB) catalysts, ZnO nanorods (NRs) grown on Cu3Si NBs (Cu-doped ZnO NRs), and ZnO NRs grown on Au nanoparticles (NPs) (undoped ZnO NRs). (A,B) As-synthesized Cu3Si NBs on Si. Upon CVD, Cu3Si NBs nucleate and self-assemble into NBs on the Si(100) growth substrate, as shown in the optical (A) and SEM (B) panels; (C,D) As-synthesized Cu3Si NBs on Si such as the ones displayed in (A,B) were used as catalysts to directly grow ZnO NRs on the NBs. Cu-doped ZnO NRs can be successfully produced on Cu3Si NBs, seen as brushlike structures in the bright-field image in (C); The wire-like shape of the Cu-doped ZnO NRs extended from a Cu3Si NB base can be clearly seen in the zoomed-in SEM panels in (D); (E,F) The optical and SEM panels in (E,F), respectively, are typical images of undoped ZnO NRs produced by using Au NP catalysts. The second row of panels shown in (BF) displays zoomed-in views of the nanostructures shown in the first row images.
Figure 1. Bright-field and SEM images showing the structures of Cu3Si nanoblock (NB) catalysts, ZnO nanorods (NRs) grown on Cu3Si NBs (Cu-doped ZnO NRs), and ZnO NRs grown on Au nanoparticles (NPs) (undoped ZnO NRs). (A,B) As-synthesized Cu3Si NBs on Si. Upon CVD, Cu3Si NBs nucleate and self-assemble into NBs on the Si(100) growth substrate, as shown in the optical (A) and SEM (B) panels; (C,D) As-synthesized Cu3Si NBs on Si such as the ones displayed in (A,B) were used as catalysts to directly grow ZnO NRs on the NBs. Cu-doped ZnO NRs can be successfully produced on Cu3Si NBs, seen as brushlike structures in the bright-field image in (C); The wire-like shape of the Cu-doped ZnO NRs extended from a Cu3Si NB base can be clearly seen in the zoomed-in SEM panels in (D); (E,F) The optical and SEM panels in (E,F), respectively, are typical images of undoped ZnO NRs produced by using Au NP catalysts. The second row of panels shown in (BF) displays zoomed-in views of the nanostructures shown in the first row images.
Nanomaterials 08 00222 g001

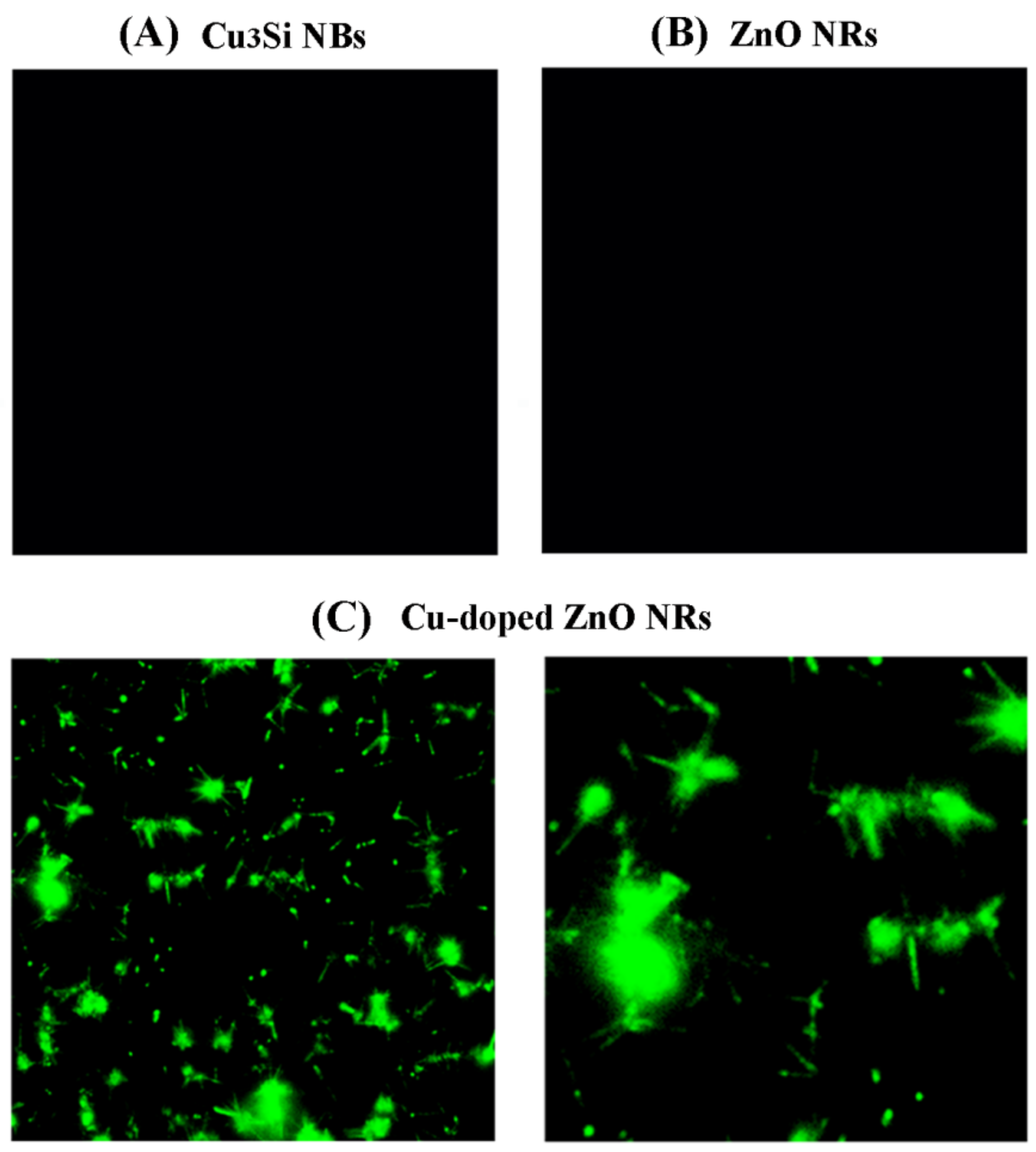

Figure 2. Fluorescence panels of the Cu3Si NB, Cu-doped ZnO NRs on Cu3Si NB, and neat ZnO NR samples shown in Figure 1. No fluorescence emission was seen in the visible range from the samples containing (A) Cu3Si NBs and (B) undoped ZnO NRs; (C) In contrast, strong fluorescence from the samples of ZnO NRs grown on Cu3Si NBs was observed due to the doping of ZnO NRs with Cu from Cu3Si NB catalysts. The fluorescence images in (A,B) are 300 μm × 300 μm in size. The left and right panels shown in (C) are 160 μm × 160 μm and 50 μm × 50 μm, respectively.
Figure 2. Fluorescence panels of the Cu3Si NB, Cu-doped ZnO NRs on Cu3Si NB, and neat ZnO NR samples shown in Figure 1. No fluorescence emission was seen in the visible range from the samples containing (A) Cu3Si NBs and (B) undoped ZnO NRs; (C) In contrast, strong fluorescence from the samples of ZnO NRs grown on Cu3Si NBs was observed due to the doping of ZnO NRs with Cu from Cu3Si NB catalysts. The fluorescence images in (A,B) are 300 μm × 300 μm in size. The left and right panels shown in (C) are 160 μm × 160 μm and 50 μm × 50 μm, respectively.
Nanomaterials 08 00222 g002

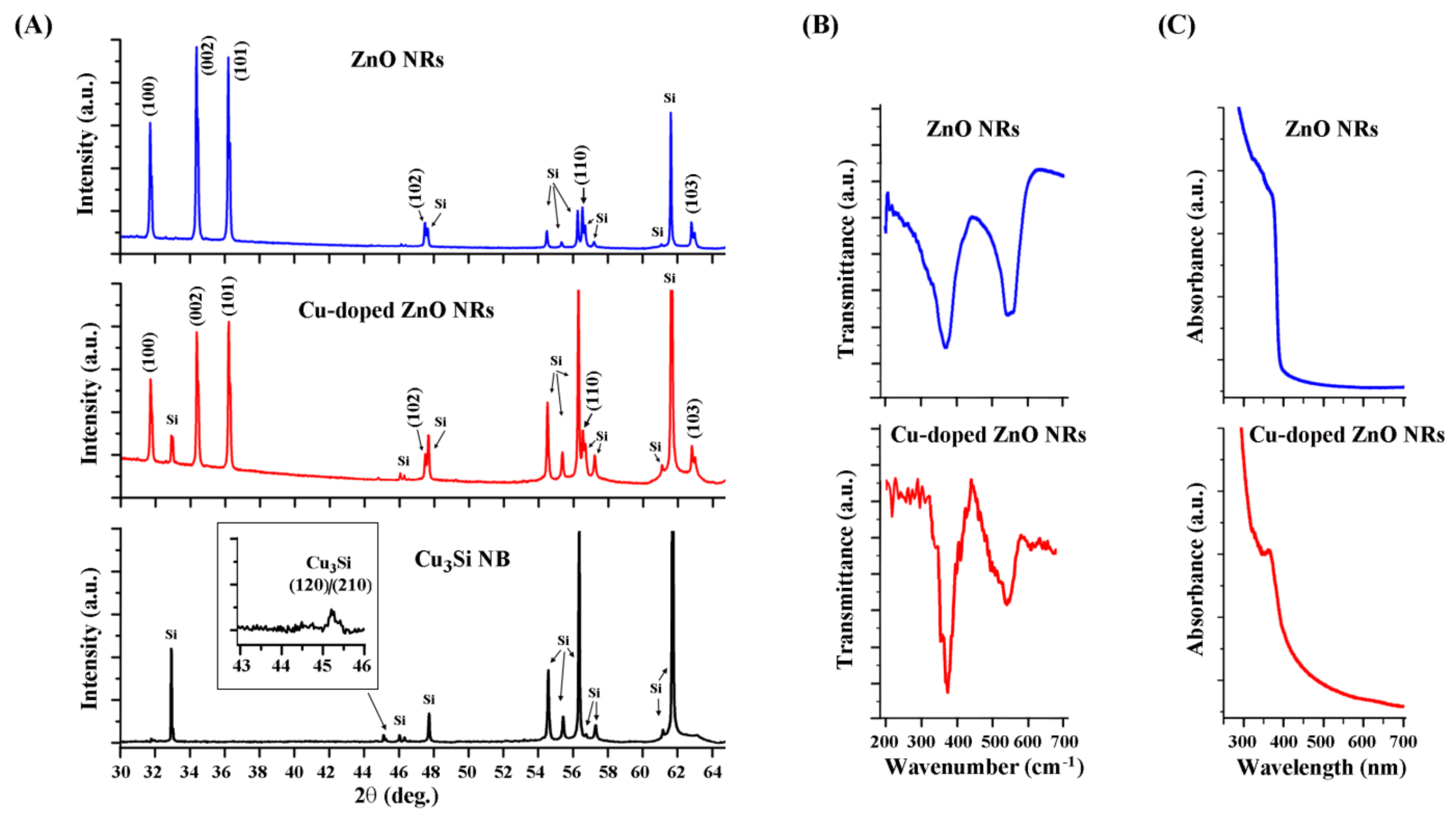

Figure 3. Diffraction and spectroscopic data of the NBs and NRs. (A) XRD data of Cu3Si NBs (black), Cu-doped ZnO NRs on Cu3Si NBs (red), and undoped ZnO NRs (blue); (B) ATR-FTIR spectra of undoped (blue) and Cu-doped (red) ZnO NRs; (C) UV–vis spectra of undoped (blue) and Cu-doped (red) ZnO NRs.
Figure 3. Diffraction and spectroscopic data of the NBs and NRs. (A) XRD data of Cu3Si NBs (black), Cu-doped ZnO NRs on Cu3Si NBs (red), and undoped ZnO NRs (blue); (B) ATR-FTIR spectra of undoped (blue) and Cu-doped (red) ZnO NRs; (C) UV–vis spectra of undoped (blue) and Cu-doped (red) ZnO NRs.
Nanomaterials 08 00222 g003

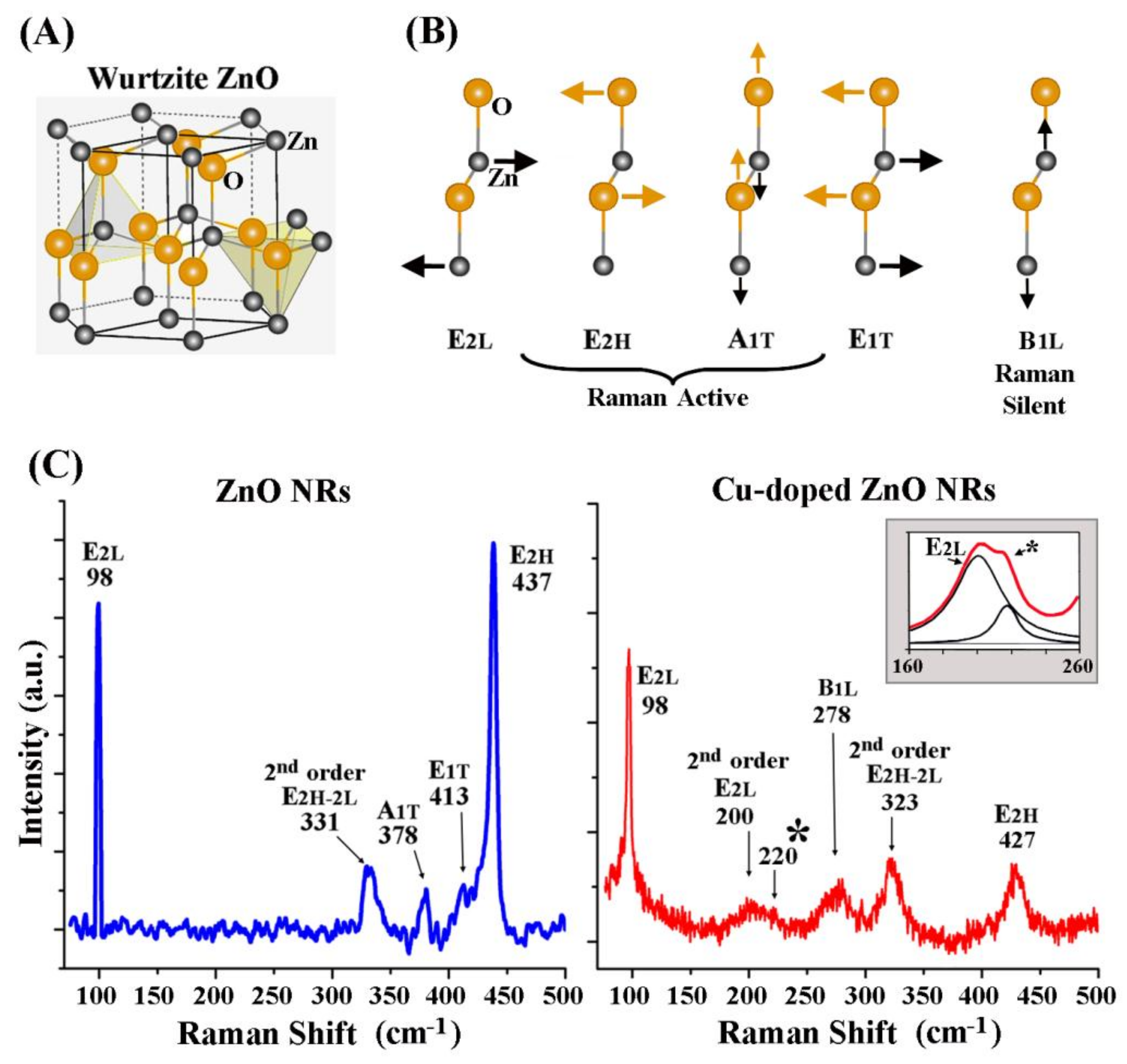

Figure 4. Raman spectra of undoped and Cu-doped ZnO NRs, as synthesized on Si substrates using Au NP and Cu3Si NB catalysts, respectively. (A) A ball-and-stick model of atomic arrangements of Zn and O is displayed for an undoped, wurtzite ZnO crystal; (B) Characteristic Raman vibration modes of wurtzite ZnO are schematically depicted; (C) The differences in the Raman scattering behaviors between the undoped (blue) and Cu-doped (red) ZnO NR samples are clearly resolved. The Raman spectra are ensemble-averaged signals acquired from a collection of undoped ZnO NRs (blue) and concentrated modules of Cu-doped ZnO NRs on NBs (red). The inset in the Cu-doped ZnO spectrum is the magnified view of the curve fit (red) and the peak fits (black) of the scattering data between 160 and 260 cm−1. The Cu(I)–O peak is marked with an asterisk.
