Magnesium and Nitrogen Co-Doped Mesoporous Carbon with Enhanced Microporosity for CO2 Adsorption

Qingdao Key Laboratory of Functional Membrane Material and Membrane Technology, Qingdao Institute of Bioenergy and Bioprocess Technology, Chinese Academy of Sciences, No. 189 Songling Road, Qingdao 266101, China
University of Chinese Academy of Sciences, Beijing 100049, China
Author to whom correspondence should be addressed.
Nanomaterials 2018, 8(5), 275;
Received: 29 March 2018 / Revised: 20 April 2018 / Accepted: 23 April 2018 / Published: 25 April 2018
(This article belongs to the Special Issue Preparation and Application of Hybrid Nanomaterials)


Mesoporous carbons (MC) have attracted a tremendous amount of interest due to their efficient molecular transport properties. However, the limited number of active sites and low microporosity generally impede their use for practical applications. Herein, we have fabricated Mg and N co-doped mesoporous carbon (Mg-NMC) with high microporosity via one-pot synthetic route followed by further steam activation. In comparison with the parent N-doped mesoporous carbon, Mg-NMC shows partially ordered mesostructure and improved CO2 adsorption capacity attributed to the introduction of basic site after Mg doping. Upon further steam activation, the microporosity is enhanced to 37.3%, while the CO2 adsorption capacity is also increased by 70.4% at 273 K and 1.0 bar.

Graphical Abstract

1. Introduction

Mesoporous carbons (pore size 2–50 nm) have attracted a great deal of attention in diverse areas including gas adsorption, catalysis and energy storage [1], owing to their unique physicochemical properties such as good chemical inertness and mesostructured channels. Compared to microporous carbon materials, the channels of mesoporous carbons facilitate fast mass transfer [2]. However, mesoporous carbon materials generally possess a limited number of active sites, which hinders their use for practical applications. Incorporation of heteroatoms such as B, N, P, S and F into carbon framework has been widely explored to increase the number of active sites of carbon materials [3,4,5,6]. In particular, the incorporation of N atoms not only increases number of basic sites but also improves surface polarity, which would significantly enhance the catalytic and adsorption properties of carbon materials [7]. For instance, Zhao et al. introduced N atoms into carbon framework to obtain N-doped mesoporous carbon with a high N content and a CO2 adsorption capacity of 2.8–3.2 mmol g−1 at 298 K and 1.0 bar [8]. However, most mesoporous carbons have a low N content or mesopore structure with low thermal stability [9], mainly due to the decomposition of N-containing precursors during self-assembly process and N-containing carbon framework during the carbonization at high temperature [8].
Recently, different metal species have been dispersed into N-containing carbon frameworks for improving adsorption and catalytic properties [10,11]. Some of these metal species may stabilize the preformed nitrogen sites [12]. In addition, previous literatures have suggested that MgO nanoparticles embedded into mesoporous carbon can provide a large number of basic O2− sites which are beneficial for CO2 adsorption, and restrict further shrinkage of carbon framework [13,14]. On the other hand, Mg2+ can accelerate the polycondensation process, and improve the cure rate of phenolic resin [15].
In addition to basic active sites, microporosity is also one of the most important factors governing CO2 adsorption properties. It has been demonstrated that micropores with pore size less than 1 nm have strong adsorption affinity for CO2 molecules. Based on previous literature, microporosity of carbon materials can be easily enhanced by physical as well as chemical activation [16]. Currently, KOH, CO2, NH3 and steam have been widely explored as common activation agents for the development of microporosity [17]. In contrast to other activation agents, steam has attracted intensive attention on account of being readily available, cost effective and environmentally benign. Han et al. reported that graphene aerogel with steam activation exhibited a higher CO2 adsorption capacity (2.5 mmol g−1 at 273 K and 1.0 bar) than sample without steam activation. In addition, the Langmuir specific surface area of graphene aerogel without steam activation was 820 m2 g−1, which was increased to 1690 m2 g−1 after steam treatment [18]. The enhanced surface area and CO2 adsorption performance were attributed to high microporosity resulting from steam activation.
The above discussion implies that the introduction of basic sites by doping heteroatoms or metal species coupled with enhanced microporosity by physicochemical activation play an important role in manipulating the adsorption properties of mesoporous carbon materials. However, the work reported so far mainly emphasized on how to increase the adsorption capacity either by tunable surface modification or adjustable microporosity. In this study, we combine these two strategies to enhance the CO2 adsorption properties of mesoporous carbon. At first, basic N and Mg species were incorporated into carbon framework using 3-aminophenol and hexamethylentetramine as nitrogen source and Mg(NO3)2·6H2O as magnesium source, resulting in partially ordered mesostructure with two types of basic sites. In the second step, the as-synthesized Mg and N co-doped mesoporous carbon was etched by steam at elevated temperature to generate a large number of micropores in the carbon framework. As expected, after steam activation, the Mg and N co-doped material exhibited a much higher CO2 uptake capacity.

2. Materials and Methods

2.1. Materials

All chemicals were utilized as received without further purification: Pluronic F127 (Mw = 12,600 EO106-PO70-EO106, Sigma-Aldrich, Co., St. Louis, MO, USA), Magnesium nitrate hexahydrate (Sinopharm Chemical Regent Co., Ltd., Shanghai, China), 3-aminophenol (3-AP, Aladdin Industrial Corporation, Shanghai, China) and hexamethylentetramine (HMT, Aladdin Industrial Corporation, Shanghai, China).

2.2. Synthesis of N-Containing Mesoporous Carbon and Mg and N Co-Doped Mesoporous Carbon

N-containing mesoporous carbon (NMC) and Mg and N co-doped mesoporous carbon (Mg-NMC) were prepared via a procedure similar to that reported by Wang et al. [19]. In a typical synthesis, 0.654 g of 3-AP, 0.42 g of HMT and 0.534 g of Mg(NO3)2·6H2O were dissolved in 75 mL of deionized water at room temperature. Then, 5 mL of deionized water containing 0.47 g of Pluronic F127 was slowly added into the above solution with stirring. The resulting mixture was further stirred at room temperature for 30 min to obtain a homogeneous solution. After that, it was transferred to a thermostated oil bath to continue stirring at 50 °C for 16 h, followed by stirring at 80 °C for 8 h to ensure complete polymerization. The obtained polymer was collected by filtration, washed with deionized water and dried at 50 °C under vacuum. The dried sample was further calcined at 350 °C for 2 h followed by calcination at 700 °C for 3 h with a heating rate of 1 °C min−1 under argon flow.

2.3. Steam Activation

Steam activation was performed in a quartz tube furnace, wherein Mg-NMC was heated from room temperature to 700 °C at a ramp rate of 5 °C min−1 under a flow of argon. After the furnace temperature reached at 700 °C, the carrier gas was bubbled through water before entering into the tube furnace and the furnace temperature was maintained at 700 °C for 4 h. Finally, the carrier gas was switched back to pure argon in order to prevent uncontrolled activation during the cool down process. The final sample was denoted as Mg-NMC-H2O.

2.4. Characterization

X-ray photoelectron spectroscopy (XPS) measurements were performed on an ESCALAB 250Xi with Mg Kα (hν = 1253.6 eV) X-ray source (Thermo Fisher Scientific, Waltham, MA, USA). Fourier-transform infrared (FT-IR) spectra were recorded on a Nicolet iN10 IR microscope (Thermo Nicolet Corporation, Madison, WI, USA). Transmission electron microscopy (TEM) analyses were carried out using an H-7650 microscope (Hitachi High-Technologies Corporation, Tokyo, Japan) and a G2 microscope (FEI Co., Hillsboro, OR, USA) operated at an accelerate voltage of 120 kV. Nitrogen adsorption and desorption isotherms and CO2 adsorption isotherms were carried out on an Autosorb-iQ analyzer (Quantachrome Instruments, Boynton Beach, FL, USA ) at 77 K and 273 K, respectively. Prior to measurements, all samples were degassed under vacuum at 200 °C for 8 h. Surface areas were calculated using Brunauer-Emmett-Teller (BET) method. Pore size distributions were calculated via the nonlocal density functional theory (NLDFT) algorithm. Microporosity was calculated from the relation X% = Vmico/Vtotal × 100%. XRD patterns were obtained with a Bruker D8 Advance diffractometer (Bruker AXS GmbH, Karlsruhe, Germany) using Cu Kα radiation source. Scanning electron microscopy (SEM) studies were conducted with Hitachi S-4800 microscopes (Hitachi, Tokyo, Japan). CO2 temperature programmed desorption (CO2-TPD) experiment was carried out on an AutoChem II 2920 chemisorption analyser (Micromeritics Instrument Corporation, Norcross, GA, USA). Before experiment, the sample was degassed at 700 °C for 2 h under helium flow, and then cooled down to room temperature. The sample was exposed to flowing 10% CO2/He for 2 h, and heated from room temperature to 900 °C under helium flow with a heating rate of 10 °C min−1.

3. Results and Discussion

NMC was fabricated via soft-template method using 3-AP and HMT as precursors and F127 as surfactant under alkaline conditions. Addition of magnesium salt into the precursors of NMC produced Mg-NMC. The sample Mg-NMC-H2O was obtained by further etching of Mg-NMC in water vapor at elevated temperature. XPS analyses were performed to investigate the chemical composition of all the samples. As shown in Figure 1a, the XPS spectra of NMC and Mg-NMC exhibit strong signals of carbon, nitrogen and oxygen elements, verifying the presence of N in the two samples. The N content of NMC reaches up to 10.9 wt %, which is higher than the value reported in previous literature. Additionally, the XPS spectrum of Mg-NMC shows Mg 1s signal, indicating a successful incorporation of Mg within the mesoporous matrix. In order to investigate the types of nitrogen species present in NMC before and after Mg doping, N 1s XPS analysis was performed and the corresponding spectra are presented in Figure 1b. Three peaks are observed in the N 1s curve-fitting spectrum of NMC. The peak at 398.3 eV is assigned to pyridinic N, the strong peak at 400.6 eV is attributed to pyrrolic N, while the small peak at 403.2 eV can be ascribed to oxidized pyridinic N [20,21]. After Mg doping, the N 1s spectrum shows a new peak at 400.8 eV which is attributed to graphitic N [2]. Therefore, it can be reasonably speculated that Mg doping leads to the generation of graphitic N sites in carbon framework. Both pyridinic and graphitic N are considered as basic sites [22,23]. Magnesium and oxygen states of Mg-NMC before and after steam activation were investigated in detail. As shown in Figure 1c, Mg 1s XPS spectrum of Mg-NMC consists of two peaks located at 1304.4 and 1304.7 eV which indicate the presence of MgO and MgCO3 [24,25]. This can be explained on the following grounds. Initially, Mg(NO3)2 fully decomposed to MgO during the calcination of Mg-NMC at 700 °C. MgO probably converted to MgCO3 and Mg(OH)2 in situ by reaction with CO2 and water released from the carbonization of phenolic resin and decomposition of triblock copolymer [26]. Subsequently, these Mg species could decompose either partially or completely back to MgO under high temperature conditions. Apart from MgCO3, a small amount of Mg(OH)2 might also be present, but it is difficult to observe due to the low peak intensity [27]. After steam activation, three peaks were observed at 1303.9, 1304.7 and 1305 eV respectively in the Mg 1s spectrum of Mg-NMC-H2O (Figure 1c, upper). The peak at 1303.9 eV indicates the presence of Mg(OH)2, which is probably formed by the reaction between MgO/MgCO3 and adsorbed water during the steam activation process [28]. Figure 1d displays the O 1s XPS spectra of Mg-NMC and Mg-NMC-H2O. Before steam activation, the O 1s curve-fitting spectrum of Mg-NMC contains three peaks located at 530.9 eV (MgO); 531.9 eV (C-O); and 533.0 eV (MgCO3) [29,30,31]. In contrast, after steam activation, central peak shifts from 531.9 to 532.1 eV, which can be ascribed to the combination of C-O and Mg(OH)2 [29]. These results suggest that Mg-NMC-H2O probably contains MgO, MgCO3 and Mg(OH)2. However, it is difficult to ascertain these magnesium species by XPS analysis, which can be further confirmed by FT-IR measurement.
The FT-IR spectra of NMC, Mg-NMC and Mg-NMC-H2O are depicted in Figure 2. As shown in Figure 2a, the featured absorption peaks assigned to N-containing carbons are observed for NMC, such as 3446 cm−1 (N-H stretching vibration), 1628 cm−1 (C=C and C=O stretching vibration) and 1100 cm−1 (C-N or C-O stretching vibration) [32,33,34]. These results further confirm the existence of nitrogen species in NMC. After incorporation of Mg into the NMC framework (Figure 2b), two absorption peaks in the finger print region at 668 and 596 cm−1 can be assigned to Mg-O stretching and bending vibrations, suggesting the formation of MgO in Mg-NMC [35,36]. In addition, the absorption peak at 856 cm−1 is ascribed to the out-of-plane bending vibrations of CO32− [37]. After steam activation, a new observed peak at 449 cm−1 can be assigned to Mg-O stretching vibration in Mg(OH)2 [38]. All these results demonstrate that MgO and MgCO3 co-exist in Mg-NMC, whereas after steam activation Mg(OH)2 is generated in the framework of Mg-NMC-H2O.
In order to further probe the influence of Mg doping on the morphology and mesostructure of NMC, TEM analyses were performed. As shown in Figure 3a and b, the parent NMC exhibits spherical morphology with a disordered mesostructure. However, after Mg doping the sample Mg-NMC shows a combination of ordered and worm-like mesostructure (Figure 3c,d). This enhanced mesostructure ordering is mainly attributed to Mg doping. During the self-assembly process, Mg2+ can improve the polymerization of ortho-methylol groups to generate methylene linkages, leaving more para-methylol groups which can easily react with similar groups from other molecules resulting in considerable shortening of cure time of the resin [39]. Previous reports have also suggested that enhancing polymerization [40] or polycondensation [41] rate contributes towards improvement of structural ordering. As seen in Figure 3, the disordered mesostructure is changed to partially ordered mesostructure after Mg doping, indicating the efficacy of Mg2+ as a catalyst for the construction of ordered mesostructure. Furthermore, no isolated particles are observed either outside or on the surface of Mg-NMC matrix (Figure 3c,d), which probably refers to a high dispersion of MgO and/or MgCO3 within the mesoporous framework without any microphase separation.
The wide-angle XRD pattern of Mg-NMC presents no apparent diffraction peaks of MgO and MgCO3 (Figure 4a), suggesting small particle size as well as high dispersion of magnesium species within the Mg-NMC matrix. Small-angle XRD patterns of NMC and Mg-NMC are displayed in Figure 4b. There is no peak in the small-angle XRD pattern of NMC, indicating its disordered mesostructure. In contrast, a strong diffraction peak around 0.94° is observed for Mg-NMC, which implies that ordered mesostructure can be obtained by the addition of Mg(NO3)2. These results are in good agreement with the TEM results.
Effect of Mg doping and steam activation on textural features such as microporosity and specific surface area was deeply investigated by N2 adsorption measurements. Figure 5 displays the N2 sorption isotherms and pore size distribution plots of NMC, Mg-NMC and Mg-NMC-H2O. Both NMC and Mg-NMC exhibit typical type IV adsorption curves. However, there are some differences in the shapes of hysteresis loops. The sample NMC displays a typical H1-type hysteresis loop and a sharp capillary condensation at high relative pressure range (P/Po > 0.5). In contrast, Mg-NMC exhibits an H2-type hysteresis loop and an adsorption saturation platform at a relative pressure of about 0.5. This indicates the improvement of mesostructure ordering for Mg-NMC, which further validates the TEM and small-angle XRD results. Moreover, the pore size of NMC decreases from 9 to 4.5 nm after Mg doping (Figure 5b). A comparison of the textural properties of NMC, Mg-NMC and Mg-NMC-H2O is given in Table 1. The specific surface area of NMC reduces from 457 to 385 m2 g−1. However, the microporosity of NMC increases from 18.3% to 29.8%. These results indicate that Mg doping has a profound influence on the formation of mesostructure during the synthesis process.
After steam activation, Mg-NMC-H2O exhibits a much sharper slope at the low relative pressure region (Figure 5a). This phenomenon is due to additional micropores generated by steam etching of Mg and N co-doped carbon framework. During the steam activation process, steam acts as an oxidizing agent for carbon, with a concomitant release of H2 and CO which results in the formation of additional micropores. Compared to Mg-NMC, the increased microporosity (from 29.8% to 37.3%) and higher specific surface area (from 385 to 541 m2 g−1) for Mg-NMC-H2O are mainly attributed to these additional micropores. As shown in Figure 5b, the number of micropores with pore size around 0.55 nm significantly increases after steam activation, implying that steam activation can generate more micoropores (below 1 nm). Indeed, it is well known that high microporosity is beneficial for carbon materials to adsorb gas molecules.
The CO2 adsorption capacities of NMC, Mg-NMC and Mg-NMC-H2O were investigated at 273 K and corresponding adsorption isotherms are depicted in Figure 6a, while Figure 6b displays the CO2-TPD profile of Mg-NMC. As can be seen in Figure 6a, before Mg doping, NMC shows an adsorption capacity of 2.16 mmol g−1 at 1.0 bar, which increases to 2.77 mmol g−1 after incorporation of Mg species into the carbon matrix. Upon steam activation, the adsorption capacity is further enhanced and reaches up to 3.68 mmol g−1 at 1.0 bar, which is much higher compared to the inactivated sample. In general, the CO2 adsorption capacity of a mesoporous material can be improved by the introduction of basic active sites as well as enhanced microporosity. According to the XPS results previously discussed, Mg doping leads to the generation of basic graphitic N sites in addition to pyridinic and pyrrolic N sites inside the carbon matrix. In addition, the CO2-TPD profile of Mg-NMC (Figure 6b) presents two distinct desorption peaks corresponding to two different types of basic sites i.e., N [42] and O2− [43]. In addition, Mg-NMC also possesses higher microporosity (29.8%) compared to NMC (18.3%) as given in Table 1. These results account for the improved CO2 uptake capacity of Mg-NMC over NMC. Subsequently, steam activation not only increases the microporosity and specific surface area of Mg-NMC, but also exposes more basic sites to the gas molecules, thereby leading to a further enhancement of CO2 uptake capacity. In addition, it is known that suitable micropores with pore size <1 nm have strong adsorption affinity for CO2 molecules. For example, Jaroniec et al. have reported that high micropore volume with small pore size (typically less than 0.8 nm) is essential for enhancing CO2 adsorption capacity [44]. Likewise in our case, the enhanced adsorption capacity can also be partly attributed to increased microporosity owing to the micropores with pore size around 0.55 nm for Mg-NMC-H2O (Figure 5b). As a result, after Mg doping followed by steam activation, the CO2 adsorption capacity of NMC increases by 70.4%, implying that basic active sites and microporosity are significantly important for improving the adsorptive performance of mesoporous carbon materials.

4. Conclusions

In summary, Mg and N co-doped mesoporous carbon with high microporosity was successfully prepared via one-pot self-assembly method followed by steam activation. In contrast to N-doped mesoporous carbon, Mg and N co-doped mesoporous carbon showed two types of basic sites and partially ordered mesostructure. Upon further steam activation, the microporosity was enhanced to 37.3%, while the specific surface area was increased from 385 to 541 m2 g−1. Moreover, the Mg and N co-doped mesoporous carbon exhibited a good CO2 adsorption capacity of 3.68 mmol g−1 at 273 K and 1.0 bar. The present strategy paves the way towards synthesizing heteroatom and metal oxide co-doped mesoporous carbons with high porosity for potential applications in gas adsorption and catalysis.

Author Contributions

Heqing Jiang and Chengli Jiao designed the experiments and revised the paper; Jingting Lu performed the experiments, analyzed the data and wrote the paper; Zeeshan Majeed wrote the paper.


The authors acknowledge the financial support from the National Natural Science Foundation of China (21403267 and 21650110459), Qingdao Applied Basic Research Projects (17-1-1-75-jch), and CAS President’s International Fellowship Initiative (2016PT015).

Conflicts of Interest

There are no conflicts of interest to declare.


  1. Liang, C.D.; Li, Z.J.; Dai, S. Mesoporous carbon materials: Synthesis and modification. Angew. Chem. Int. Ed. 2008, 47, 3696–3717. [Google Scholar]
  2. Tang, J.; Liu, J.; Li, C.L.; Li, Y.Q.; Tade, M.O.; Dai, S.; Yamauchi, Y. Synthesis of nitrogen-doped mesoporous carbon spheres with extra-large pores through assembly of diblock copolymer micelles. Angew. Chem. Int. Ed. 2015, 54, 588–593. [Google Scholar] [CrossRef]
  3. Asefa, T. Metal-free and noble metal-free heteroatom-doped nanostructured carbons as prospective sustainable electrocatalysts. Acc. Chem. Res. 2016, 49, 1873–1883. [Google Scholar] [CrossRef] [PubMed]
  4. Shahtalebi, A.; Mar, M.; Guérin, K.; Bhatia, S.K. Effect of fluorine doping on structure and CO2 adsorption in silicon carbide-derived carbon. Carbon 2016, 96, 565–577. [Google Scholar] [CrossRef]
  5. Nabae, Y.; Nagata, S.; Ohnishi, K.; Liu, Y.Y.; Sheng, L.; Wang, X.L.; Hayakawa, T. Block copolymer templated carbonization of nitrogen containing polymer to create fine and mesoporous carbon for oxygen reduction catalyst. J. Polym. Sci. Polym. Chem. 2017, 55, 464–470. [Google Scholar] [CrossRef]
  6. Liu, Y.Y.; Ohnishi, K.; Sugimoto, S.; Okuhara, K.; Maeda, R.; Nabae, Y.; Kakimoto, M.; Wang, X.L.; Hayakawa, T. Well-ordered mesoporous polymers and carbons based on imide-incorporated soft materials. Polym. Chem. 2014, 5, 6452–6460. [Google Scholar] [CrossRef]
  7. Yu, J.; Guo, M.Y.; Muhammad, F.; Wang, A.F.; Zhang, F.; Li, Q.; Zhu, G.S. One-pot synthesis of highly ordered nitrogen-containing mesoporous carbon with resorcinol-urea-formaldehyde resin for CO2 capture. Carbon 2014, 69, 502–514. [Google Scholar] [CrossRef]
  8. Wei, J.; Zhou, D.D.; Sun, Z.K.; Deng, Y.H.; Xia, Y.Y.; Zhao, D.Y. A controllable synthesis of rich nitrogen-doped ordered mesoporous carbon for CO2 capture and supercapacitors. Adv. Funct. Mater. 2013, 23, 2322–2328. [Google Scholar] [CrossRef]
  9. Yang, J.P.; Zhai, Y.P.; Deng, Y.H.; Gu, D.; Li, Q.; Wu, Q.L.; Huang, Y.; Tu, B.; Zhao, D.Y. Direct triblock-copolymer-templating synthesis of ordered nitrogen-containing mesoporous polymers. J. Colloid Interface Sci. 2010, 342, 579–585. [Google Scholar] [CrossRef] [PubMed]
  10. Zhang, Z.Z.; Zhu, C.M.; Sun, N.N.; Wang, H.; Tang, Z.Y.; Wei, W.; Sun, Y.H. One-pot solvent-free synthesis of nitrogen and magnesium codoped mesoporous carbon composites for CO2 Capture. J. Phys. Chem. C 2015, 119, 9302–9310. [Google Scholar] [CrossRef]
  11. Wang, G.H.; Deng, X.H.; Gu, D.; Chen, K.; Tüysüz, H.; Spliethoff, B.; Bongard, H.J.; Weidenthaler, C.; Schmidt, W.; Schüth, F. CO3O4 nanoparticles supported on mesoporous carbon for selective transfer hydrogenation of α,β-unsaturated aldehydes. Angew. Chem. Int. Ed. 2016, 55, 11267–11271. [Google Scholar] [CrossRef]
  12. Wang, X.Q.; Lee, J.S.; Zhu, Q.; Liu, J.; Wang, Y.; Dai, S. Ammonia-treated ordered mesoporous carbons as catalytic materials for oxygen reduction reaction. Chem. Mater. 2010, 22, 2178–2180. [Google Scholar] [CrossRef]
  13. Liu, W.J.; Jiang, H.; Tian, K.; Ding, Y.W.; Yu, H.Q. Mesoporous carbon stabilized MgO nanoparticles synthesized by pyrolysis of MgCl2 preloaded waste biomass for highly efficient CO2 capture. Environ. Sci. Technol. 2013, 47, 9397–9403. [Google Scholar] [CrossRef] [PubMed]
  14. She, L.; Li, J.; Wan, Y.; Yao, X.D.; Tu, B.; Zhao, D.Y. Synthesis of ordered mesoporous MgO/carbon composites by a one-pot assembly of amphiphilic triblock copolymers. J. Mater. Chem. 2011, 21, 795–800. [Google Scholar] [CrossRef]
  15. Fan, D.B.; Li, G.Y.; Qin, T.F.; Chu, F.X. Synthesis and structure characterization of phenol-urea-formaldehyde resins in the presence of magnesium oxide as catalyst. Polymers 2014, 6, 2221–2231. [Google Scholar] [CrossRef]
  16. Górka, J.; Jaroniec, M. Hierarchically porous phenolic resin-based carbons obtained by block copolymer-colloidal silica templating and post-synthesis activation with carbon dioxide and water vapor. Carbon 2011, 49, 154–160. [Google Scholar] [CrossRef]
  17. Ludwinowicz, J.; Jaroniec, M. Effect of activating agents on the development of microporosity in polymeric-based carbon for CO2 adsorption. Carbon 2015, 94, 673–679. [Google Scholar] [CrossRef]
  18. Sui, Z.Y.; Meng, Q.H.; Li, J.T.; Zhu, J.H.; Cui, Y.; Han, B.H. High surface area porous carbons produced by steam activation of graphene aerogels. J. Mater. Chem. A 2014, 2, 9891–9898. [Google Scholar] [CrossRef]
  19. Wang, G.H.; Cao, Z.W.; Gu, D.; Pfänder, N.; Swertz, A.-C.; Spliethoff, B.; Bongard, H.-J.; Weidenthaler, C.; Schmidt, W.; Rinaldi, R.; et al. Nitrogen-doped ordered mesoporous carbon supported bimetallic PtCo nanoparticles for upgrading of biophenolics. Angew. Chem. Int. Ed. 2016, 55, 8850–8855. [Google Scholar] [CrossRef] [PubMed]
  20. Daems, N.; Sheng, X.; Vankelecom, I.F.J.; Pescarmona, P.P. Metal-free doped carbon materials as electrocatalysts for the oxygen reduction reaction. J. Mater. Chem. A 2014, 2, 4085–4110. [Google Scholar] [CrossRef]
  21. Xu, Q.; Yu, X.L.; Liang, Q.H.; Bai, Y.; Huang, Z.H.; Kang, F.Y. Nitrogen-doped hollow activated carbon nanofibers as high performance supercapacitor electrodes. J. Electroanal. Chem. 2015, 739, 84–88. [Google Scholar] [CrossRef]
  22. Guo, D.H.; Shibuya, R.; Akiba, C.; Saji, S.; Kondo, T.; Nakamura, J. Active sites of nitrogen-doped carbon materials for oxygen reduction reaction clarified using model catalysts. Science 2016, 351, 361–365. [Google Scholar] [CrossRef] [PubMed]
  23. Zhou, M.; Wang, H.L.; Guo, S.J. Towards high-efficiency nanoelectrocatalysts for oxygen reduction through engineering advanced carbon nanomaterials. Chem. Soc. Rev. 2016, 45, 1273–1307. [Google Scholar] [CrossRef] [PubMed]
  24. Ohtani, S.; Yano, T.; Kondo, S.; Kohno, Y.; Tomita, Y.; Maeda, Y.; Kobayashi, K. Electron emission from h-BN films codoped with Mg and O atoms. Thin Solid Films 2013, 546, 53–57. [Google Scholar] [CrossRef]
  25. Khairallah, F.; Glisenti, A. Synthesis, characterization and reactivity study of nanoscale magnesium oxide. J. Mol. Catal. A Chem. 2007, 274, 137–147. [Google Scholar] [CrossRef]
  26. Wu, Z.X.; Meng, Y.; Zhao, D.Y. Nanocasting fabrication of ordered mesoporous phenol–formaldehyde resins with various structures and their adsorption performances for basic organic compounds. Microporous Mesoporous Mat. 2010, 128, 165–179. [Google Scholar] [CrossRef]
  27. Wu, Z.X.; Hao, N.; Xiao, G.K.; Liu, L.Y.; Webley, P.; Zhao, D.Y. One-pot generation of mesoporous carbon supported nanocrystalline calcium oxides capable of efficient CO2 capture over a wide range of temperatures. Phys. Chem. Chem. Phys. 2011, 13, 2495–2503. [Google Scholar] [CrossRef] [PubMed]
  28. Neville, A.; Morizot, A.P. Calcareous scales formed by cathodic protection-an assessment of characteristics and kinetics. J. Cryst. Growth 2002, 243, 490–502. [Google Scholar] [CrossRef]
  29. Zhang, H.; Luo, R.F.; Li, W.J.; Wang, J.; Maitz, M.F.; Wang, J.; Wan, G.J.; Chen, Y.Q.; Sun, H.; Jiang, C.X.; et al. Epigallocatechin gallate (EGCG) induced chemical conversion coatings for corrosion protection of biomedical MgZnMn alloys. Corros. Sci. 2015, 94, 305–315. [Google Scholar] [CrossRef]
  30. Liu, S.; Tian, J.Q.; Wang, L.; Zhang, Y.W.; Qin, X.Y.; Luo, Y.L.; Asiri, A.M.; Al-Youbi, A.O.; Sun, X.P. Hydrothermal treatment of grass: A low-cost, green route to nitrogen-doped, carbon-rich, photoluminescent polymer nanodots as an effective fluorescent sensing platform for label-free detection of Cu(II) ions. Adv. Mater. 2012, 24, 2037–2041. [Google Scholar] [CrossRef] [PubMed]
  31. Santamaria, M.; Quarto, F.D.; Zanna, S.; Marcus, P. Initial surface film on magnesium metal: A characterization by X-ray photoelectron spectroscopy (XPS) and photocurrent spectroscopy (PCS). Electrochim. Acta 2007, 53, 1314–1324. [Google Scholar] [CrossRef][Green Version]
  32. Tseng, R.-L.; Wu, F.-C.; Juang, R.-S. Adsorption of CO2 at atmospheric pressure on activated carbons prepared from melamine-modified phenol-formaldehyde resins. Sep. Purif. Technol. 2015, 140, 53–60. [Google Scholar] [CrossRef]
  33. Li, Y.B.; Zhang, H.M.; Wang, Y.; Liu, P.R.; Yang, H.G.; Yao, X.D.; Wang, D.; Tang, Z.Y.; Zhao, H.J. A self-sponsored doping approach for controllable synthesis of S and N co-doped trimodal-porous structured graphitic carbon electrocatalysts. Energy Environ. Sci. 2014, 7, 3720–3726. [Google Scholar] [CrossRef]
  34. Yang, Z.; Xu, M.H.; Liu, Y.; He, F.J.; Gao, F.; Su, Y.J.; Wei, H.; Zhang, Y.F. Nitrogen-doped, carbon-rich, highly photoluminescent carbon dots from ammonium citrate. Nanoscale 2014, 6, 1890–1895. [Google Scholar] [CrossRef] [PubMed]
  35. Patel, M.K.; Ali, M.A.; Krishnan, S.; Agrawal, V.V.; Al Kheraif, A.A.; Fouad, H.; Ansari, Z.A.; Ansari, S.G.; Malhotra, B.D. A label-free photoluminescence genosensor using nanostructured magnesium oxide for cholera detection. Sci. Rep. UK 2015, 5, 17384. [Google Scholar] [CrossRef] [PubMed]
  36. Jeon, H.; Min, Y.J.; Ahn, S.H.; Hong, S.-M.; Shin, J.-S.; Kim, J.H.; Lee, K.B. Graft copolymer templated synthesis of mesoporous MgO/TiO2 mixed oxide nanoparticles and their CO2 adsorption capacities. Colloids Surf. A Physicochem. Eng. Asp. 2012, 414, 75–81. [Google Scholar] [CrossRef]
  37. Botha, A.; Strydom, C.A. DTA and FT-IR analysis of the rehydration of basic magnesium carbonate. J. Therm. Anal. Calorim. 2003, 71, 987–995. [Google Scholar] [CrossRef]
  38. Ghanbari, D.; Salavati-Niasari, M.; Sabet, M. Preparation of flower-like magnesium hydroxide nanostructure and its influence on the thermal stability of poly vinyl acetate and poly vinyl alcohol. Compos. Part B Eng. 2013, 45, 550–555. [Google Scholar] [CrossRef]
  39. Huang, J.Y.; Xu, M.Q.; Ge, Q.; Lin, M.H.; Lin, Q.; Chen, Y.H.; Chu, J.Y.; Dai, L.Z.; Zou, Y.S. Controlled synthesis of high-ortho-substitution phenol-formaldehyde resins. J. Appl. Polym. Sci. 2005, 97, 652–658. [Google Scholar] [CrossRef]
  40. Wang, X.Q.; Liang, C.D.; Dai, S. Facile synthesis of ordered mesoporous carbons with high thermal stability by self-assembly of resorcinol-formaldehyde and block copolymers under highly acidic conditions. Langmuir 2008, 24, 7500–7505. [Google Scholar] [CrossRef] [PubMed]
  41. Kim, W.J.; Yoo, J.C.; Hayhurst, D.T. Synthesis of hydrothermally stable MCM-41 with initial adjustment of pH and direct addition of NaF. Microporous Mesoporous Mat. 2000, 39, 177–186. [Google Scholar] [CrossRef]
  42. Deng, Q.F.; Liu, L.; Lin, X.Z.; Du, G.H.; Liu, Y.P.; Yuan, Z.Y. Synthesis and CO2 capture properties of mesoporous carbon nitride materials. Chem. Eng. J. 2012, 203, 63–70. [Google Scholar] [CrossRef]
  43. Verziu, M.; Cojocaru, B.; Hu, J.C.; Richards, R.; Ciuculescu, C.; Filip, P.; Parvulescu, V.I. Sunflower and rapeseed oil transesterification to biodiesel over different nanocrystalline MgO catalysts. Green Chem. 2008, 10, 373–381. [Google Scholar] [CrossRef]
  44. Wickramaratne, N.P.; Jaroniec, M. Importance of small micropores in CO2 capture by phenolic resin-based activated carbon spheres. J. Mater. Chem. A 2013, 1, 112–116. [Google Scholar] [CrossRef]

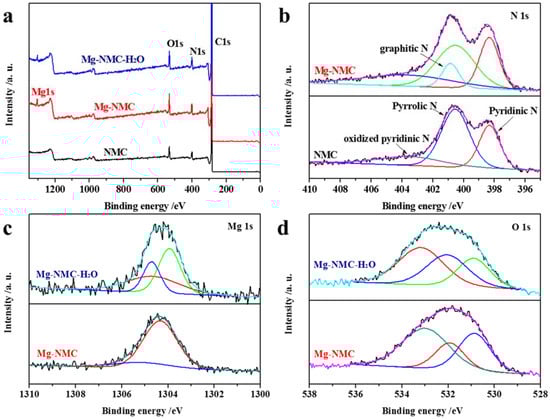

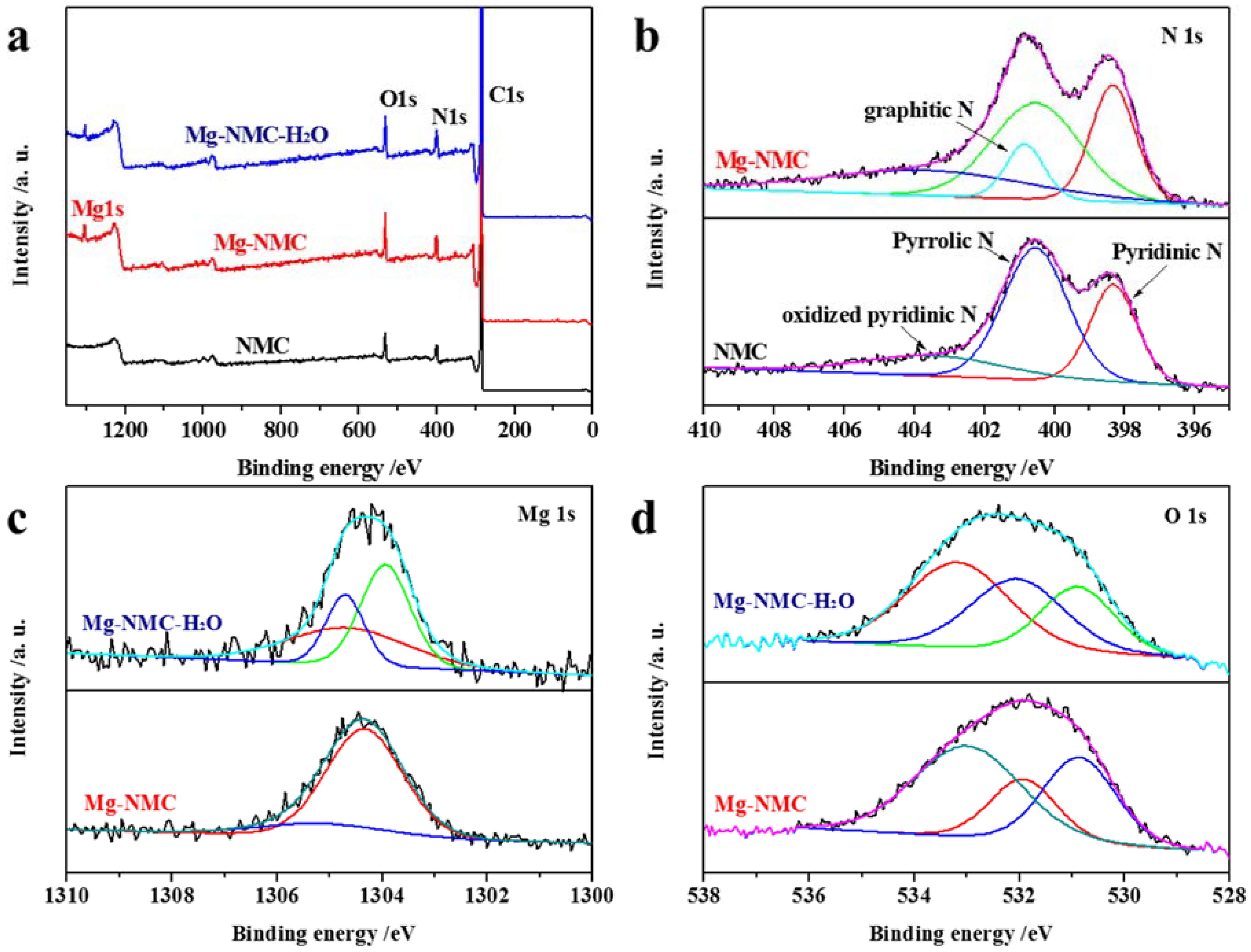

Figure 1. (a) XPS survey spectra for NMC, Mg-NMC and Mg-NMC-H2O; (b) XPS N 1s spectra of NMC and Mg-NMC; (c) XPS Mg 1s and (d) O 1s spectra of Mg-NMC and Mg-NMC-H2O.
Figure 1. (a) XPS survey spectra for NMC, Mg-NMC and Mg-NMC-H2O; (b) XPS N 1s spectra of NMC and Mg-NMC; (c) XPS Mg 1s and (d) O 1s spectra of Mg-NMC and Mg-NMC-H2O.
Nanomaterials 08 00275 g001

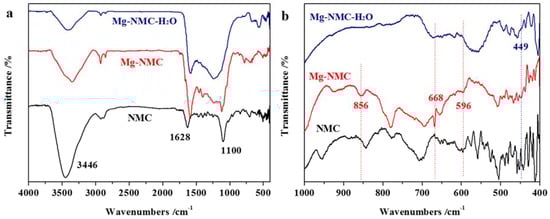

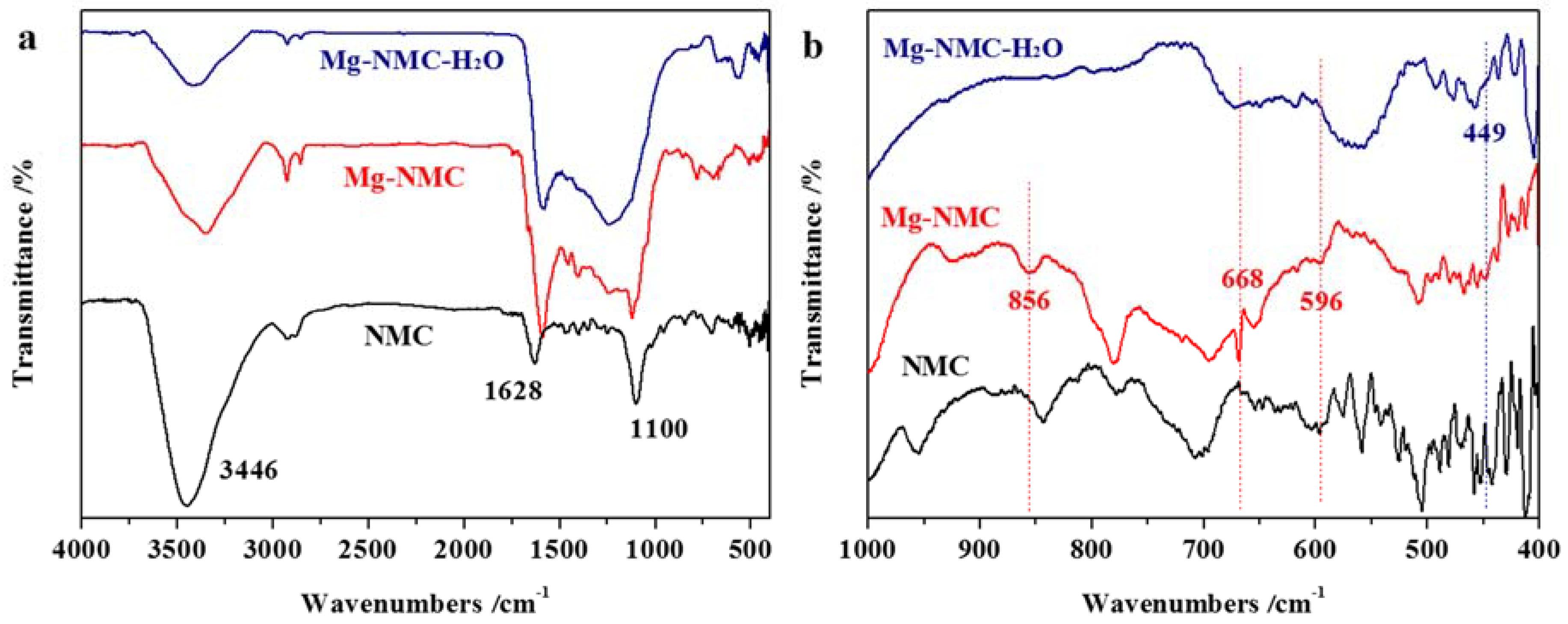

Figure 2. FT-IR spectra (a,b) of NMC, Mg-NMC and Mg-NMC-H2O.
Figure 2. FT-IR spectra (a,b) of NMC, Mg-NMC and Mg-NMC-H2O.
Nanomaterials 08 00275 g002
Figure 3. TEM images of NMC (a,b) and Mg-NMC (c,d).
Figure 3. TEM images of NMC (a,b) and Mg-NMC (c,d).
Nanomaterials 08 00275 g003

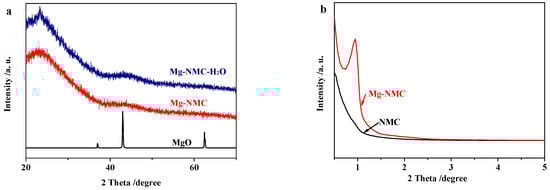

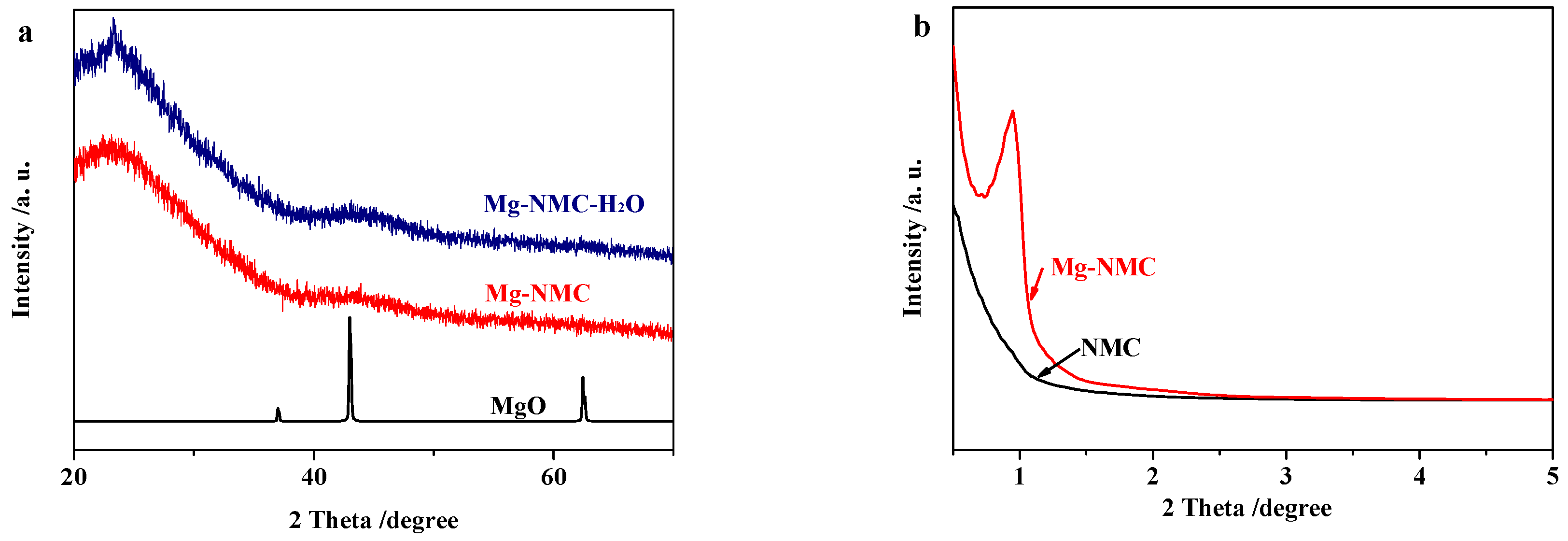

Figure 4. (a) Wide-angle XRD patterns of MgO, Mg-NMC and Mg-NMC-H2O; (b) Small-angle XRD patterns of NMC and Mg-NMC.
Figure 4. (a) Wide-angle XRD patterns of MgO, Mg-NMC and Mg-NMC-H2O; (b) Small-angle XRD patterns of NMC and Mg-NMC.
Nanomaterials 08 00275 g004

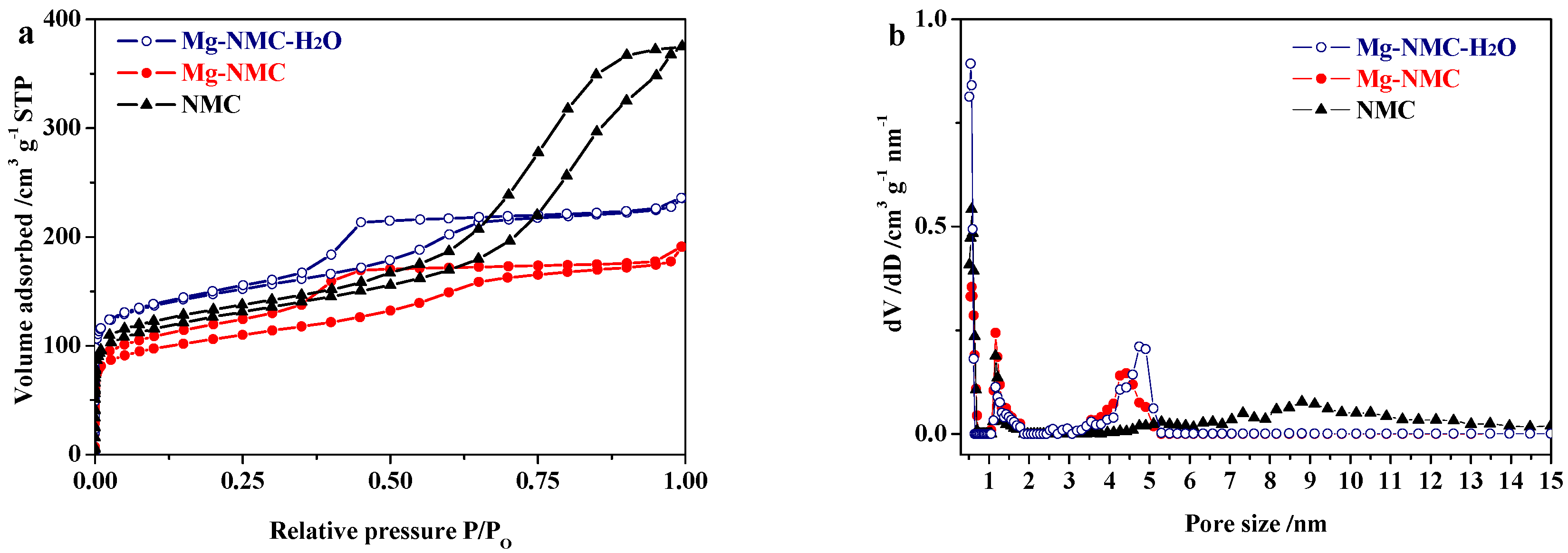

Figure 5. N2 sorption isotherms (a) and pore size distribution plots (b) of NMC (solid triangles), Mg-NMC (solid circles) and Mg-NMC-H2O (open circles).
Figure 5. N2 sorption isotherms (a) and pore size distribution plots (b) of NMC (solid triangles), Mg-NMC (solid circles) and Mg-NMC-H2O (open circles).
Nanomaterials 08 00275 g005

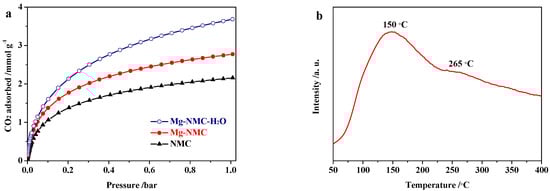

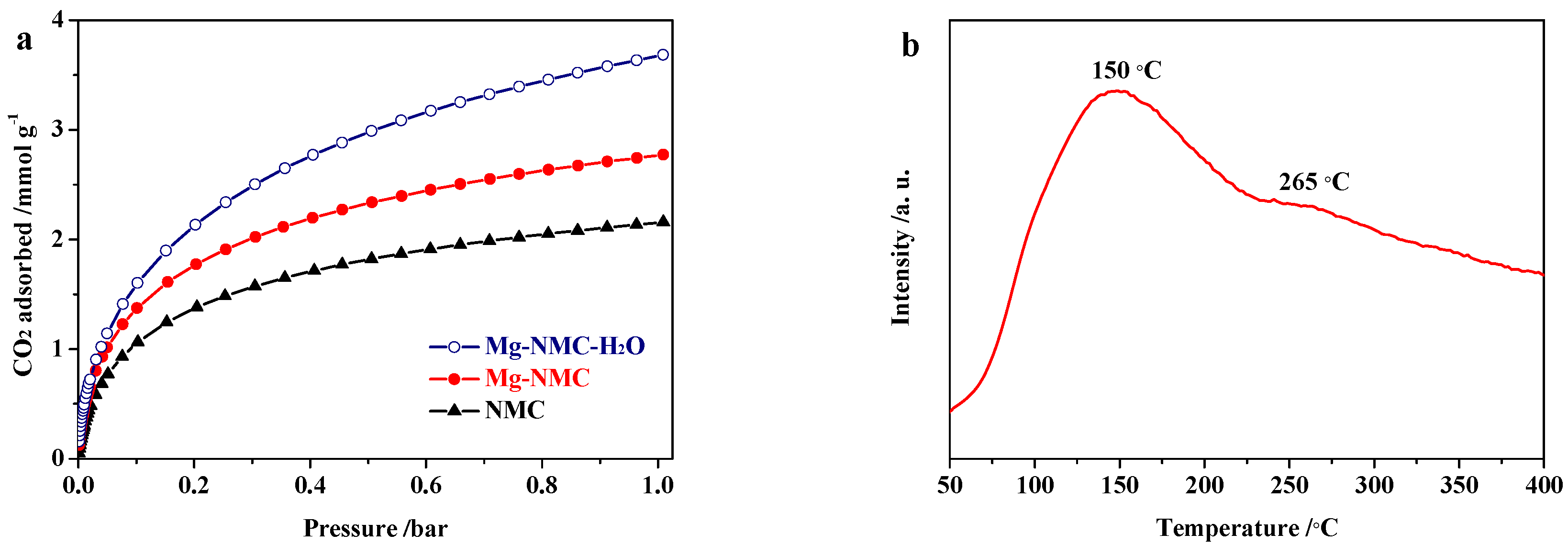

Figure 6. (a) CO2 adsorption isotherms for NMC, Mg-NMC and Mg-NMC-H2O at 273 K; (b) CO2-TPD profile of Mg-NMC.
Figure 6. (a) CO2 adsorption isotherms for NMC, Mg-NMC and Mg-NMC-H2O at 273 K; (b) CO2-TPD profile of Mg-NMC.
Nanomaterials 08 00275 g006
Table 1. Textural properties of NMC, Mg-NMC and Mg-NMC-H2O.
Table 1. Textural properties of NMC, Mg-NMC and Mg-NMC-H2O.
SampleSBET/m2 g−1Vtotal/cm3 g−1Vmicro/cm3 g−1Vmeso/cm3 g−1Microporosity/%
