Preparation, Characterization, and Applications of Transition Metal Dichalcogenides Nanoscrolls: Recent Development and Prospects

Abstract

Two-dimensional (2D) transition metal dichalcogenide (TMDC) nanoscrolls have attracted significant attention in recent years owing to their fascinating properties, including high specific surface area, unique electronic structure, and excellent optoelectronic performance. These properties arise from their intrinsic one-dimensional (1D) spiral scroll geometry. In this review, we systematically present the preparation methods, properties, and applications of TMDC nanoscrolls. For fabrication, we detail a variety of preparation strategies, both on substrates and in solution. Next, we discuss the characterization and physical properties of TMDC nanoscrolls. Finally, we summarize their applications in photodetection, the hydrogen evolution reaction (HER), optoelectronic synapses, and other related fields.

1. Introduction

Owing to their unique electronic, optical, and mechanical properties, layered transition metal dichalcogenide (TMDC) nanomaterials have attracted considerable attention in optoelectronics, energy storage, sensing, electrocatalysis, and related fields [1,2,3]. TMDCs adopt the general formula MX₂, where M is a transition metal atom (e.g., Mo, W, Nb) and X is a chalcogen atom (S, Se, or Te). In each MX₂ layer, an M-atom plane is sandwiched between two X-atom planes in an X-M-X stacking sequence. Adjacent layers are held together vertically by weak van der Waals interactions, allowing the exfoliation of single- or few-layer nanosheets. Taking MoS₂ as an example, each layer consists of S-Mo-S triple planes, and neighboring layers are bonded by van der Waals forces with an interlayer spacing of 6.5 Å [4].

As two-dimensional (2D) nanomaterials, TMDC nanosheets exhibit remarkable properties, including a layer-dependent bandgap transition (indirect in bulk vs. direct in monolayers), strong light–matter interaction, significant spin–orbit coupling, valley polarization, mechanical flexibility, and catalytically active edge sites—properties that differ markedly from those of bulk materials. Nevertheless, these nanosheets face significant challenges. For instance, although the direct bandgap of TMDC nanosheets enables strong light absorption and emission, their atomic thinness limits absorption efficiency. Consequently, monolayer TMDC nanosheets absorb only 5–10% of visible light, resulting in limited photogenerated carriers and low photoresponsivity. Moreover, photocarrier trapping in atomically thin TMDC nanosheets further restricts the response speed [5].

Transforming 2D TMDC nanosheets into one-dimensional (1D) TMDC nanoscrolls could overcome these challenges. TMDC nanoscrolls not only inherit the excellent physical and chemical properties of TMDC nanosheets but also exhibit new characteristics, such as high carrier mobility, tunable band structure, enhanced optoelectronic performance, strain induced by scroll geometry, and good mechanical flexibility [6,7,8,9,10]. Compared with other 1D nanomaterials, the tubular structure of TMDC nanoscrolls endows them with distinctive electronic and optical properties [11], including a relatively wide bandgap, low dark current, high on/off ratio, good environmental stability, and enhanced carrier mobility, making them highly desirable for photodetection and sensing [12]. Furthermore, the tunable interlayer spacing and open ends of TMDC nanoscrolls offer additional advantages. The nanoscroll geometry, with its high specific surface area, effectively reduces exposure to oxygen and water vapor, thereby decreasing the degree of oxidation [13]. Owing to their one-dimensional anisotropy and high surface activity, TMDC nanoscrolls show great potential for applications in photodetection, energy storage and conversion, electrocatalysis, and synaptic devices, among others [14,15,16].

To date, various methods have been developed to prepare TMDC nanoscrolls, including organic solvent-assisted scrolling [17,18,19], centrifugal force-assisted scrolling [20], intercalation-induced scrolling [21], plasma treatment-assisted scrolling [22,23], and anisotropic stress-induced scrolling [24]. Using these methods, the length, diameter, interlayer spacing, and crystalline orientation of the resulting nanoscrolls can be controlled to a certain extent. Nevertheless, it is still highly desirable to produce high-quality nanoscrolls on a large scale with uniform structure.

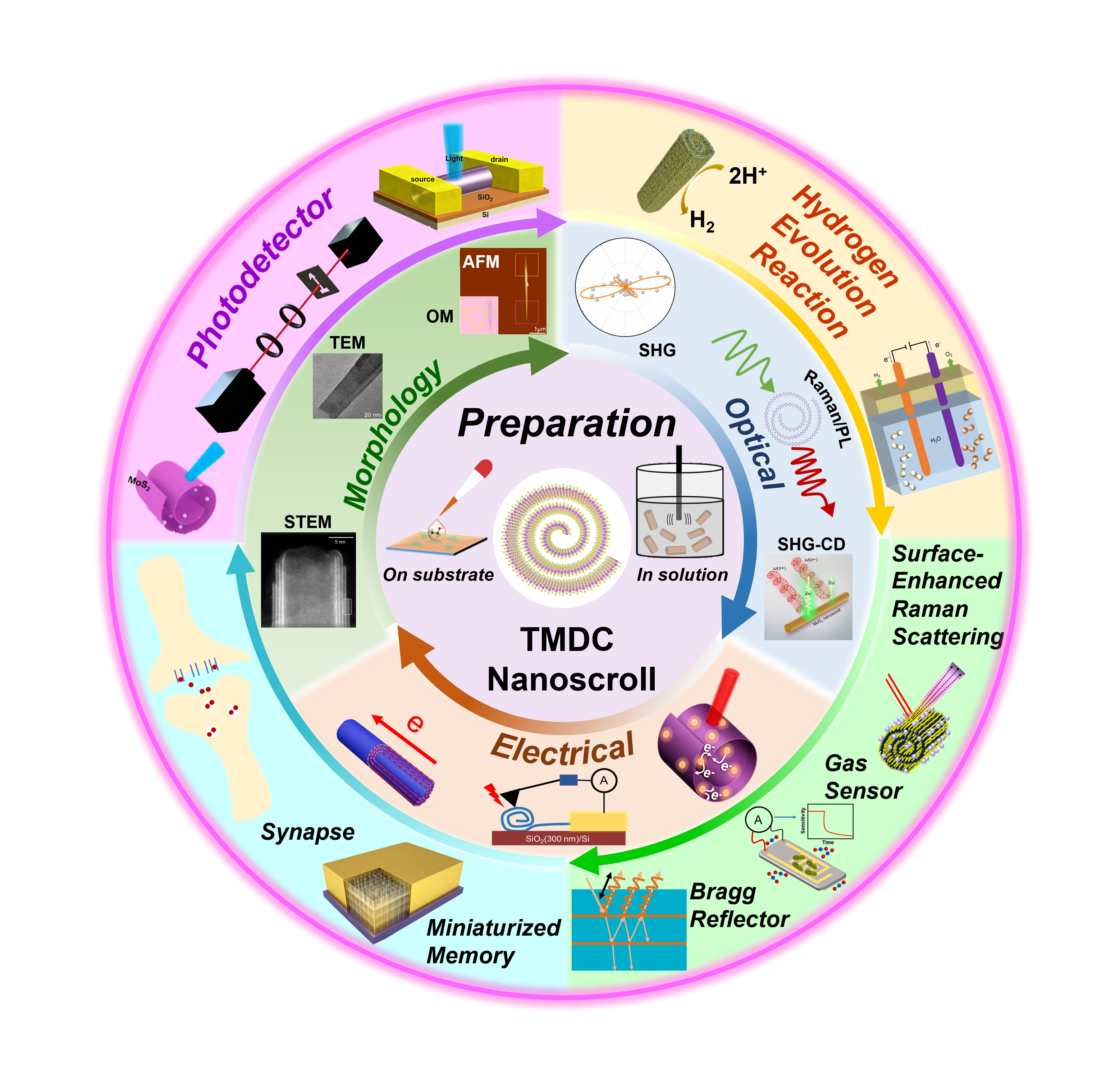

In this review, we comprehensively summarize the current state of research on TMDC nanoscrolls, focusing on the diverse formation mechanisms, properties modulated by scroll geometry, and extensive applications. In the first part, we describe theoretical investigations of TMDC nanoscrolls, the developed preparation methods, and the curling mechanisms associated with each method. In the second part, we provide a detailed characterization of the physical, optical, and electrical properties of TMDC nanoscrolls. In the final part, we summarize the applications of TMDC nanoscrolls in photodetection, electrocatalysis, sensing, memory, and synaptic devices, among others.

2. Structure of TMDC Nanoscrolls

TMDC nanoscrolls refer to one-dimensional (1D) nanomaterials with a tubular structure, formed by spirally rolling up a monolayer or few-layer 2D nanosheet into an Archimedean nanoscroll (Figure 1a). TMDC nanoscrolls have open ends, and the interlayer interaction between adjacent layers is the van der Waals (vdW) force. The formation of a nanoscroll is governed by the elastic energy of the bent sheet and the interlayer interaction in the overlapping region. When the radius and number of turns of a nanoscroll are appropriate, and the interlayer interaction is sufficiently large, the nanoscroll remains more stable than its planar counterpart. The inner radius of a nanoscroll is determined thermodynamically by balancing the bending energy and the interlayer binding energy. For example, the inner radius of a MoSSe nanoscroll depends on the curvature and the interlayer binding energy [25], taking into account both the internal strain arising from structural asymmetry and the strain energy released through curling or rolling.

For a nanoscroll with inner radius R_in, outer radius R_out, and layer spacing h (Figure 1b) [26], the equilibrium configuration can be described by the following equation [27],

$${\displaystyle \frac{2\mathsf{\gamma }h}{D}} ={\displaystyle \frac{1}{R_{\mathit{in}}}}-{\displaystyle \frac{1}{R_{\mathit{out}}}}$$

(1)

where D is the bending stiffness, $\mathsf{\gamma }$ is the layer binding strength, h is the interlayer spacing, $R_{\mathit{in}}$ is the inner radius, and $R_{\mathit{out}}$ is the outer radius of the nanoscroll. $R_{\mathit{in}}$ and $R_{\mathit{out}}$ depend strongly on the length of the scrolled nanosheet and on the interlayer spacing (h), provided that h is much smaller than the radii of the nanoscroll. Therefore, the configuration of a nanoscroll depends on the interlayer binding energy ($\mathsf{\gamma }$) and the bending stiffness (D).

Liu et al. investigated the relationship between the energetically favorable interlayer spacing and the interlayer binding energy using first-principles calculations [28]. As the interlayer spacing increases, the energy per atom initially decreases and then increases. The equilibrium distance is 6.138 Å for a MoS₂ nanoscroll (Figure 1c). Similarly, Wang et al. found that a MoS₂ nanoscroll is in an energetically favorable state when the interlayer spacing lies in the range of 4.5–7.0 Å [27]. Crystalline orientation also plays important role in rolling up a TMDC nanosheet. Using molecular dynamics (MD) simulations, Wang et al. investigated the influence of crystalline orientation on the dominant scrolling tendency of a MoS₂ nanosheet from a molecular-level perspective [27]. They found that the MoS₂ nanosheet scrolled along the armchair orientation exhibited the lowest energy per atom compared with those scrolled along the zigzag or chiral orientations (Figure 1d,e). Therefore, they concluded the MoS₂ nanosheet preferentially scrolls along the armchair direction (the Mo-S bond direction) [27].

Figure 1. Structural illustration, energetical stability, and chirality-dependent properties of TMDC nanoscrolls. (a) Schematic illustration of the geometric transformation from a 2D nanosheet to a nanoscroll. Adapted with permission from Ref. [28]. Copyright 2017 IOP. (b) Structural diagram of a MoS₂ nanoscroll showing the inner radius R_in, outer radius R_out, and interlayer spacing h. Adapted from Ref. [26]. (c) Plot of binding energy (E_b) of a MoS₂ nanoscroll as a function of interlayer spacing (h). Reproduced with permission from Ref. [28]. Copyright 2017 IOP. (d) Structural evolution of MoS₂ sheets of the same size scrolled along the armchair (left panels) and zigzag (right panels) orientations before and after structural relaxation. (e) Computed energy per atom as a function of simulation time for MoS₂ nanoscrolls with three orientations: chirality (300, 150), zigzag (300, 0), and armchair (300, 300). Reproduced with permission from Ref. [27]. Copyright 2018 RSC.

Figure 1. Structural illustration, energetical stability, and chirality-dependent properties of TMDC nanoscrolls. (a) Schematic illustration of the geometric transformation from a 2D nanosheet to a nanoscroll. Adapted with permission from Ref. [28]. Copyright 2017 IOP. (b) Structural diagram of a MoS₂ nanoscroll showing the inner radius R_in, outer radius R_out, and interlayer spacing h. Adapted from Ref. [26]. (c) Plot of binding energy (E_b) of a MoS₂ nanoscroll as a function of interlayer spacing (h). Reproduced with permission from Ref. [28]. Copyright 2017 IOP. (d) Structural evolution of MoS₂ sheets of the same size scrolled along the armchair (left panels) and zigzag (right panels) orientations before and after structural relaxation. (e) Computed energy per atom as a function of simulation time for MoS₂ nanoscrolls with three orientations: chirality (300, 150), zigzag (300, 0), and armchair (300, 300). Reproduced with permission from Ref. [27]. Copyright 2018 RSC.

Yang et al. simulated the scrolling of MoS₂ nanoribbon with varying densities of sulfur vacancies using MD simulations. A zigzag MoS₂ nanoribbon with 20% S vacancies completely rolled into a nanoscroll after 550 ps, which was faster than the armchair MoS₂ nanoribbon with the same vacancy density (620 ps) (Figure 2a,b). When the density of S vacancy increased to 30%, no difference in scrolling time was observed between the zigzag and armchair nanoribbons (Figure 2c,d) [29]. Using MD simulations, the same authors also investigated the preferred scrolling direction of Janus MoSSe nanosheets [25]. In contrast to MoS₂ nanoscrolls, they found that Janus MoSSe nanoscrolls formed along the zigzag orientation exhibited lower energy than those along the armchair orientation, for both triangular and hexagonal nanosheets.

3. Preparation of TMDC Nanoscrolls

3.1. TMDC Nanoscrolls Prepared on Substrate

3.1.1. Organic Solvent-Assisted Scrolling

The most common method for preparing TMDC nanoscrolls is to drop a volatile organic solvent onto monolayer TMDC nanosheets [30,31,32,33]. At room temperature, organic solvents are typically volatile liquids. During evaporation, Marangoni flows are considered to play an important role in rolling TMDC nanosheets until they form a complete nanoscroll [34].

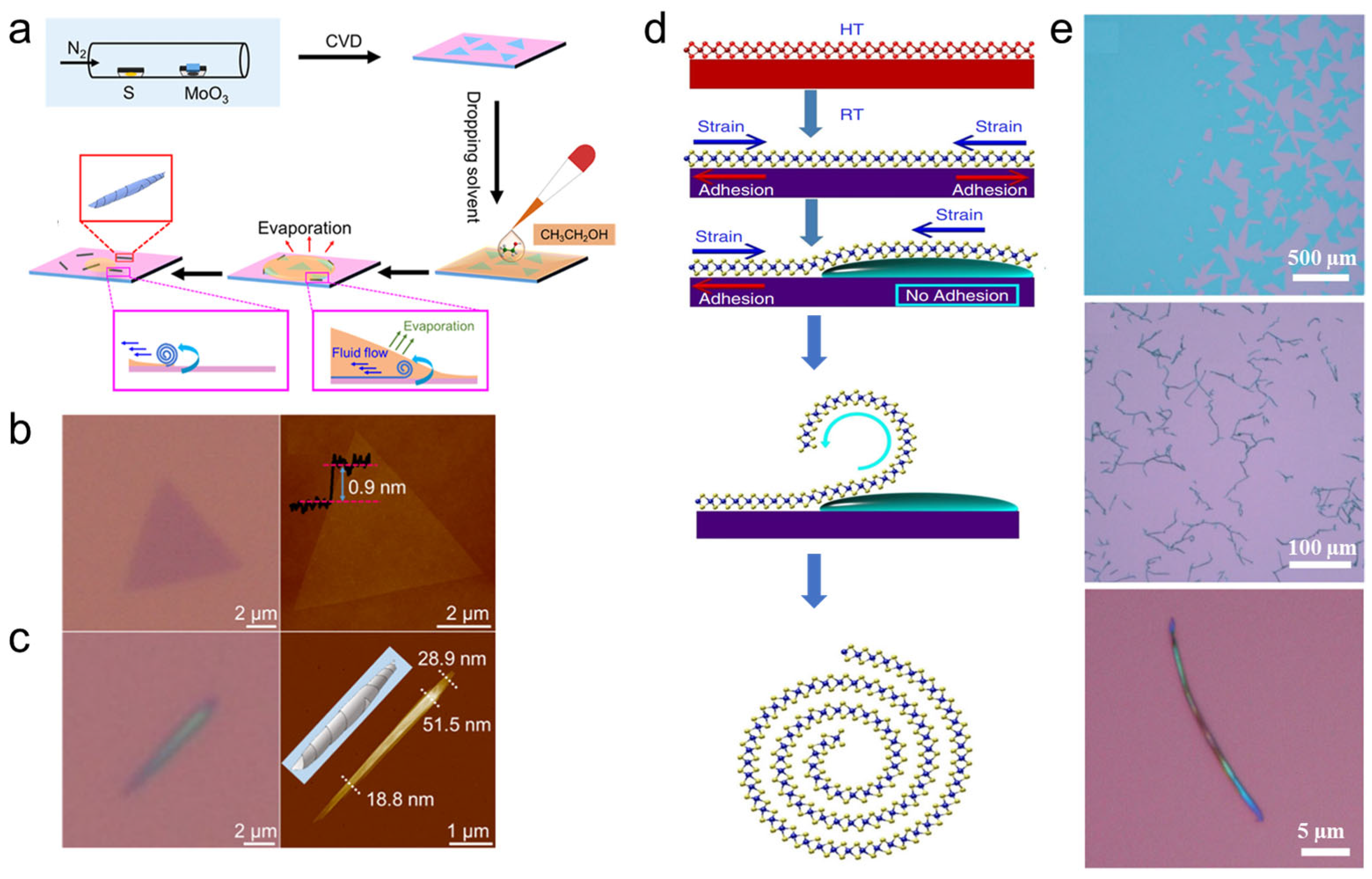

In 2018, Fang et al. prepared MoS₂ nanoscrolls by dropping ethanol onto monolayer MoS₂ nanosheets (Figure 3a). First, monolayer MoS₂ nanosheets were grown directly on a SiO₂/Si substrate via chemical vapor deposition (CVD) (Figure 3b). Then, an ethanol droplet was deposited onto the substrate to cover the CVD-grown MoS₂ nanosheets. Due to its low surface tension and amphiphilic nature, ethanol can effectively wet the MoS₂ and SiO₂/Si substrate. During evaporation, a thin ethanol layer forms near the contact line, and the resulting temperature difference creates a surface tension gradient. This gradient induces fluid flow within the ethanol layer, known as Marangoni flow [34]. As the contact line recedes during evaporation, the fluid flow rolls up the edge of the MoS₂ nanosheet until a complete MoS₂ nanoscroll is formed (Figure 3c) [18]. Classical molecular dynamics (MD) simulations were performed to investigate the dynamic formation of MoS₂ nanoscrolls. The results indicated that nanoscroll formation typically initiates at the edge of the MoS₂ nanosheet [27]. The preferred scrolling direction is parallel to the armchair orientation and perpendicular to the nanosheet edge, and this direction is independent of the nanoscroll size.

An alternative method to effectively obtain MoS₂ nanoscrolls involves immersing CVD-grown monolayer MoS₂ nanosheets on a SiO₂/Si substrate in ethanol solution for several hours prior to evaporation. In 2024, Qiao et al. immersed the MoS₂ nanosheets grown on a SiO₂/Si substrate in ethanol solution for several hours to release tensile stress, then rapidly blow-dried the sample using compressed air [35]. This process successfully yielded MoS₂ nanoscrolls in high yield. The formation of MoS₂-NS is partially mediated by the internal Marangoni flow within the ethanol droplet during evaporation. They noted that precise control of the scrolling process is challenging due to the hydrodynamic instability of the Marangoni flow, which often results in distorted or excessively scrolled structures. By blowing away the ethanol droplet in a timely manner, the scrolling process can be halted at an appropriate intermediate stage, yielding partially scrolled MoS₂ nanoscrolls with excellent axial uniformity.

In 2018, Zheng et al. successfully prepared MoS₂, WS₂, MoSe₂ and WSe₂ NSs by dropping a mixture of ethanol and water with a volume ratio of 2:1 onto CVD-grown monolayer TMDC nanosheets [17]. The preparation process is illustrated in Figure 3d. First, monolayer TMDC nanosheets were obtained on a SiO₂/Si substrate by CVD at a high temperature (≥720 °C). Because of the difference in thermal expansion coefficients between the TMDC nanosheets and the SiO₂/Si substrate (Figure 3d), strain was generated in the nanosheets upon cooling to room temperature. After the aqueous ethanol solution was dropped onto the TMDC nanosheets, the liquid film intercalated the interface between the nanosheets and the substrate. Consequently, the edges of the TMDC nanosheets were released from the substrate. Thus, the adhesion force between the edges and the substrate was reduced, releasing the built-in strain and curling the nanosheet edges into scrolls.

In addition to ethanol, other volatile organic solvents, such as acetone [31], isopropanol [33] and chloroform solutions [36], are also used to assist the formation of TMDC nanoscrolls. In 2022, Ghosh et al. prepared WS₂/MoS₂ heterojunction nanoscrolls by dropping acetone onto a WS₂/MoS₂ heterojunction film [32]. In 2024, Kaneda et al. reported the fabrication of MoSSe NSs by spin-coating a PMMA/chloroform solution onto Janus MoSSe monolayer nanosheets (Figure 4) [36]. First, monolayer MoSe₂ (or WSe₂) nanosheets were grown on a SiO₂/Si substrate by CVD (Figure 4a,b) [36]. At room temperature, the Se atoms on the top surface of the monolayer were replaced by S atoms using hydrogen plasma treatment (Figure 4c), forming a Janus MoSSe monolayer (Figure 4e) [37]. After that, cracks were formed because of the tensile strain introduced into grains. A drop of polymethyl methacrylate (PMMA)/chloroform solution was then spin-coated onto the substrate, and chloroform molecules permeated into the interface between the nanosheets and the SiO₂/Si substrate owing to their low surface tension, releasing the edges of the Janus MoSSe nanosheets from the substrate (Figure 4c). Thereafter, the edges of local strain-induced cracks and grain boundaries in Janus nanosheets served as nucleation sites, triggering the directional spontaneous scrolling to form Janus MoSSe NSs (Figure 4f). Yang et al. investigated the spontaneous formation process of Janus TMDC NSs using molecular dynamics simulations [38]. It was found that the relaxation of intrinsic strain was the driving force that initiated the scrolling of a MoSSe nanoribbon. When the Se atoms at one end of the MoSe₂ nanosheet are partially replaced by S atoms, the out-of-plane atomic asymmetry induces internal stress relaxation, leading to spontaneous curling. Moreover, the bending stiffness, spontaneous curling curvature, interlayer distance, interlayer interaction, and length of the MoSSe nanoribbon can significantly influence the inner radius of MoSSe NSs [38]. Furthermore, armchair and zigzag Janus MoSSe nanoribbons exhibit similar scrolling behavior, indicating that the scrolling process is insensitive to the crystalline orientation.

By dropping volatile organic solvents onto TMDC nanosheets, high-quality TMDC nanoscrolls with large dimensions can be produced in large quantities within a short time. However, residual organic solvents encapsulated within the scroll and the loosely scrolled structure remain challenges for enhancing the performance of TMDC nanoscrolls. These residues are found to act as charge trapping centers, which are responsible for the giant hysteresis and memory effect [35]. Meanwhile, the solvent induced scattering and charge impurity effects decreased carrier mobility and introduced device instability [39].

3.1.2. Alkali Solvent-Assisted Scrolling

To release TMDC nanosheets from the underlying substrate, overcoming the adhesion force between them is the key factor in successfully preparing TMDC nanoscrolls. Volatile organic solvents are typically used to scroll monolayer TMDC nanosheets. However, the interface between the TMDC nanosheets and the substrate cannot be effectively intercalated by volatile organic solvents when the adhesion force is too strong. Moreover, organic solvents are ineffective at curling thick TMDC nanosheets with high bending stiffness. It has been reported that Marangoni flow within an evaporating organic droplet cannot effectively roll up the edges of bilayer or thick TMDC nanosheets to form scrolls [12,40], owing to either the increased bending stiffness of the nanosheet or its strong adhesion to the substrate. Therefore, alternative methods that overcome the strong adhesion force or high rigidity of TMDC nanosheets are desirable for preparing nanoscrolls.

In 2020, Wang et al. prepared TMDC heterostructure nanoscrolls by dropping alkaline solution onto hetero-bilayer TMDC nanosheets grown on a SiO₂/Si substrate [12]. First, large-area bilayer WS₂/MoS₂ heterostructures were grown on a SiO₂/Si substrate by CVD (Figure 5a). Subsequently, 50 μL of 0.1 M KOH or NaHCO₃ solution was dropped onto the bilayer WS₂/MoS₂ heterostructures. With increasing reaction time, the alkaline solution etched the top layer of the SiO₂ film and then penetrated into the interface between the hetero-bilayer and the underlying substrate. As a result, the adhesion force between the hetero-bilayer and the SiO₂/Si substrate was eliminated. Subsequently, the released hetero-bilayer WS₂/MoS₂ nanosheets spontaneously rolled up from the edges and formed nanoscrolls (Figure 5b).

To transform bilayer or thick TMDC heterostructures into 1D nanoscrolls, Zhao et al. used a mixed ethanol-water-ammonia solution to delaminate the thick heterostructures from the underlying substrate [40]. First, a monolayer TMDC nanosheet was grown on a SiO₂/Si substrate by a modified CVD process with controllable reverse flow. The as-grown TMDC nanosheet was used as a template for epitaxially growing another 2D nanosheet on top, yielding vertically stacked van der Waals (vdW) hetero-bilayer nanosheets (Figure 5c,d), such as SnS₂/WSe₂ and NbSe₂/MoSe₂. A drop of the ethanol-water-ammonia mixture was then added onto the TMDC hetero-bilayer. After the SiO₂/Si substrate was etched by the alkaline solution, the SnS₂/WSe₂ heterostructure was peeled off from the substrate and spontaneously rolled up to form nanoscrolls [40]. Various 2D/2D vdW heterostructures, including MoSe₂/WSe₂, SnS₂/MoS₂, MoS₂/WS₂, SnSe₂/WSe₂, Cr₅Te₈/WSe₂, and In₂Se₃/WSe₂, have been successfully scrolled using this method. In addition, thin films and 1D nanowires can also be encapsulated into TMDC nanoscrolls, extending the capability of this method for creating mixed-dimensional vdW heterostructure nanoscrolls.

Zero-dimensional (0D) nanoparticles can also be encapsulated into TMDC nanoscrolls using alkaline solution. After PbI₂ nanoparticles were deposited on monolayer MoS₂ nanosheets, they were immersed in a mixture of ammonia and isopropanol to prepare the PbI₂/MoS₂ nanoscrolls [41]. Similarly, Zhang et al. prepared BaTiO₃/MoS₂ nanoscrolls by dropping NaHCO₃ solution onto BaTiO₃ nanoparticles-decorated monolayer MoS₂ nanosheets [42]. Overall, the use of alkaline solution to overcome the adhesion force between TMDC nanosheets and the substrate has advanced the fabrication of TMDC nanoscrolls. It is a highly reproducible process for preparing heterojunction nanoscrolls with high yield and large dimensions. However, etching of the underlying substrate and residual solvent trapped within the nanoscrolls remain challenges.

Figure 5. Etching of the SiO₂ substrate with alkaline solution to roll up TMDC nanosheets. (a) Schematic illustration of the preparation of WS₂/MoS₂ nanoscrolls using an alkaline solution. (b) Optical images of a WS₂/MoS₂ nanosheet and nanoscroll before and after dropping the alkaline solution. Reproduced with permission from Ref. [12]. Copyright 2020 Springer Nature. (c) Schematic diagram of the preparation of van der Waals (vdW) heterostructure nanoscrolls using an ethanol-water-ammonia mixture. (d) SEM and cross-sectional STEM images of the as-prepared vdW heterostructure nanoscrolls. Reproduced with permission from Ref. [40]. Copyright 2021 Springer Nature.

Figure 5. Etching of the SiO₂ substrate with alkaline solution to roll up TMDC nanosheets. (a) Schematic illustration of the preparation of WS₂/MoS₂ nanoscrolls using an alkaline solution. (b) Optical images of a WS₂/MoS₂ nanosheet and nanoscroll before and after dropping the alkaline solution. Reproduced with permission from Ref. [12]. Copyright 2020 Springer Nature. (c) Schematic diagram of the preparation of van der Waals (vdW) heterostructure nanoscrolls using an ethanol-water-ammonia mixture. (d) SEM and cross-sectional STEM images of the as-prepared vdW heterostructure nanoscrolls. Reproduced with permission from Ref. [40]. Copyright 2021 Springer Nature.

3.1.3. Dragging Water Droplet on Hot Substrate

Although organic solvents and alkaline solutions have been successfully used to prepare TMDC nanoscrolls, the device performance of these nanoscrolls is inevitably degraded by residual solvent trapped within them. In 2022, Zhao et al. reported a solvent-free method to fabricate clean, tightly packed TMDC nanoscrolls by dragging a water droplet across monolayer TMDC nanosheets on a hotplate (Figure 6). First, large-area monolayer MoS₂ nanosheets were grown by CVD and then heated on a hotplate at 100 °C. Subsequently, a deionized (DI) water droplet was deposited on the hot MoS₂ nanosheets and dragged from one end to the other at a speed of 3 mm/s (Figure 6a). The formation of a nanoscroll is illustrated in Figure 6b. At 100 °C, the adhesion force between the MoS₂ nanosheet and the underlying SiO₂/Si substrate was weaker than that at room temperature. As the water droplet moved, the edge of the MoS₂ nanosheet curled first, and then a nanoscroll formed spontaneously (Figure 6c). As shown in Figure 6d, the height of the MoS₂ NS prepared using ethanol (referred to as MoS₂-EtOH NS) decreased by approximately one-third after heating at 250 °C for 30 min, which was attributed to the evaporation of ethanol molecules encapsulated within the MoS₂ NS. In contrast, the height of the MoS₂ NS (H₂O) remained almost unchanged under the same conditions. Because the MoS₂ nanosheet is hydrophobic, water molecules could not be encapsulated within the nanoscroll, resulting in a solvent-free MoS₂ NS. This method can produce clean, tightly packed TMDC nanoscrolls with high yield. However, it is not applicable to materials that are sensitive to water or heat [39].

3.1.4. Spin-Coating-Assisted Scrolling

Spin-coating is a widely used technique for uniformly distributing liquid onto a substrate that is rotated at a controlled speed. When a liquid droplet is deposited onto the rotating substrate, it spreads outward and flows from the center to the edge under centrifugal force. In this process, the liquid flow can overcome the adhesion force between the nanosheet and the substrate, potentially forming a nanoscroll. In 2024, Yu et al. prepared TMDC nanoscrolls by spin-coating a viscous polyethylene glycol (PEG) droplet onto CVD-grown monolayer TMDC nanosheets [20], as shown in Figure 7. First, monolayer TMDC nanosheets were grown on a SiO₂/Si substrate by CVD (Figure 7a). Then, viscous PEG droplets were spin-coated continuously onto the nanosheets at 3000 rpm (Figure 7b). As the PEG flowed outward from the center to the edge of the substrate (Figure 7c), the edge of TMDC nanosheet curled up and nanoscroll formed spontaneously (Figure 7d).

PEG appears as a viscous liquid at room temperature when its molecular weight is less than 800 g/mol, i.e., PEG-800. In the experiment, PEG-400 with a viscosity of 37–45 mm²/s was spin-coated onto monolayer TMDC nanosheets. Compared with other low-viscosity solvents (such as deionized water and ethanol), PEG-400 flows at an appropriate speed under centrifugal force. During spin-coating, the interaction between the flowing PEG and the TMDC nanosheets is stronger than the adhesion between the nanosheets and the substrate, which drives the edges of the nanosheets to roll up into a scrolled structure. Unlike volatile organic solvents and alkaline solutions, PEG molecules can be effectively removed by soaking in deionized water at 100 °C. After annealing at 250 °C, the height of the MoS₂-PEG NS remained almost unchanged (Figure 7e), indicating the PEG molecules are not trapped inside the nanoscroll. The MoS₂-PEG NS exhibited significantly higher carrier mobility, photosensitivity, photoresponsivity, and external quantum efficiency (EQE) than those of the MoS₂ nanosheet and the MoS₂-EtOH NS [43]. The enhanced performance can be attributed to confined carrier motion along the one-dimensional scrolled structure, the increased light-absorption cross-section of the nanoscroll, and the absence of oxygen and water within the tightly packed scroll structure. TMDC nanoscrolls prepared by this method offer the advantages of high yield, a compact and clean structure, and an environmentally friendly process.

3.1.5. Plasma Treatment-Assisted Scrolling

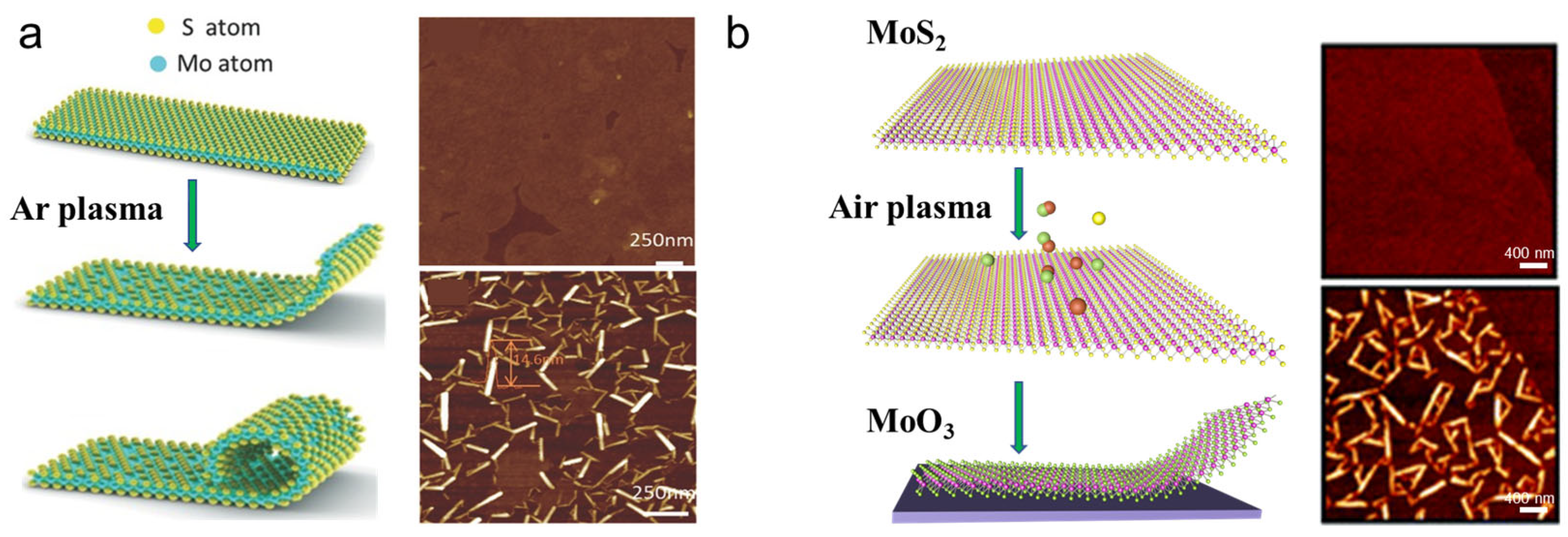

In 2016, Zhang et al. prepared MoS₂ nanoscrolls by treating CVD-grown monolayer MoS₂ nanosheets with argon plasma at 150 °C [22]. Under plasma bombardment, sulfur atoms were directly removed from the top surface of the MoS₂ nanosheet when the kinetic energy of the plasma overcame the Mo-S binding energy. As a result, sulfur vacancies initially appeared at defects and reactive grain boundaries. Consequently, the MoS₂ lattice was disrupted, and out-of-plane strain was generated due to the sulfur vacancies. This stress in the MoS₂ basal plane curled the edge up and drove the formation of nanoscrolls along defective sites and grain boundaries, as shown in Figure 8a. As the plasma power increased, the time required to form MoS₂ nanoscrolls decreased. Conversely, longer time was required to trigger scrolling of MoS₂ nanosheets under low-power plasma. Kinks formed when the adjacent edges of the MoS₂ nanosheet were not parallel. MD simulations confirmed that sulfur vacancies induced atomic asymmetry and provided the driving force for scrolling. As the sulfur vacancy density increased from 15% to 30%, the MoS₂ nanoribbon exhibited an accelerated scrolling rate, and less time was required to form the nanoscroll [29].

By replacing argon with air, Wang et al. obtained MoO₃ and WO₃ nanoscrolls by treating MoS₂, WS₂, MoSe₂, and WSe₂ nanosheets with plasma. Monolayer TMDC nanosheets were first prepared using mechanical exfoliation or CVD and then placed into a plasma cleaner at a chamber pressure of 40–80 mTorr. MoO₃ and WO₃ nanoscrolls were obtained by air plasma treatment at 18 W for 2–3 s, as shown in Figure 8b. When MoS₂ nanosheets were treated by air plasma, sulfur atoms in the top surface were replaced by oxygen atoms, forming Mo-O bonds. Consequently, lattice distortion occurred, introducing strain and rolling up the edge of the MoO₃ nanosheet to form a nanoscroll [23].

The preparation of TMDC nanoscrolls by plasma treatment is convenient and solvent-free. Nevertheless, several challenges remain. First, the size of the resulting TMDC nanoscrolls is too small for practical applications. The length of TMDC nanoscrolls prepared by this method is typically several hundred nanometers. Second, the original nanosheets are damaged by plasma bombardment, and the resulting nanoscrolls are amorphous with poor crystalline quality. Third, the plasma treatment method is ineffective for multilayer 2D materials. This limitation arises from the strong interlayer interaction between the oxidized layer and the underlying TMDC layer. Consequently, the induced stress is insufficient to overcome the adhesion force and drive the formation of a nanoscroll.

3.1.6. Rapidly Quenching Induced Scrolling

Hao et al. prepared MoS₂ nanoscrolls by introducing strain into CVD-grown monolayer MoS₂ nanosheet via rapid quenching [44], as shown in Figure 9. Monolayer MoS₂ nanosheets were first grown on a SiO₂/Si substrate by CVD (Figure 9a) and then rapidly quenched to room temperature at a cooling rate of approximately 300 °C/min. Owing to the difference in thermal expansion coefficients, a lattice contraction mismatch arose between the MoS₂ nanosheet and the SiO₂/Si substrate during quenching. Because the MoS₂ nanosheet cooled faster than the SiO₂/Si substrate, it shrank more rapidly as the temperature quickly decreased to room temperature (Figure 9b). During CVD growth, sulfur vacancies inevitably formed on the MoS₂ nanosheets, which acted as crack nucleation sites owing to the strain induced by rapid quenching. Consequently, the MoS₂ nanosheet cracked and curled up at these defective sites. To minimize the surface free energy, the curled edges spontaneously rolled up until a MoS₂ nanoscroll formed (Figure 9c,d). Cracks typically propagated along the zigzag direction, resulting in fracture along an energetically favorable orientation (Figure 9e).

It has been reported that the structural transition from a nanosheet to a nanoscroll depends on the competition between van der Waals (vdW) interactions and elastic bending energy. In this regard, the vdW interactions in the overlapping regions of the MoS₂ nanosheet reduce the surface free energy by an amount that exceeds the increase in elastic bending energy caused by scrolling. Therefore, the scrolling process occurs spontaneously to form a MoS₂ nanoscroll. However, the low yield and incomplete curling of TMDC nanosheets achieved with this method hinder its practical application.

This section describes six methods for fabricating TMDC nanoscrolls on a substrate: organic solvent-assisted scrolling, alkali solvent-assisted scrolling, dragging a water droplet on a hot substrate, spin-coating-assisted scrolling, plasma treatment-assisted scrolling, and rapid quenching-induced scrolling.

The key step in rolling up TMDC nanosheets from a substrate is overcoming the adhesion force between the nanosheet and the substrate. In organic solvent-assisted scrolling, Marangoni flow generated during solvent evaporation rolls up the edges of TMDC nanosheets. Alkaline solutions completely eliminate adhesion by etching the SiO₂ substrate. Dragging a water droplet or spin-coating a polyethylene glycol (PEG) droplet across a TMDC nanosheet uses liquid flow to roll up the nanosheet edges, producing nanoscrolls free of solvent residues. Plasma treatment introduces surface defects and induces strain due to lattice distortion, which rolls up the nanosheet edges to form nanoscrolls. During rapid quenching, the difference in thermal expansion coefficients between the TMDC nanosheet and the substrate generates strain, leading to crack formation and subsequent scrolling.

Nevertheless, these preparation methods still face several challenges. First, the yield of nanoscrolls is too low for practical applications. Second, solvent residues may become encapsulated inside the nanoscrolls, although they can be partially removed by annealing. Third, achieving uniform nanoscrolls with high controllability remains difficult. Considerable efforts are therefore required to address these challenges.

3.2. TMDC Nanoscrolls Prepared in Solution

The aforementioned methods for preparing TMDC nanoscrolls are conducted on substrates. Nevertheless, the scalable synthesis of TMDC nanoscrolls with controlled dimensions (diameter, length, and number of layers) on substrates remains a significant challenge, yet it is crucial for practical applications. Therefore, it is highly desirable to develop a promising method for preparing TMDC nanoscrolls in large quantities in a controlled manner. Exploring the formation of TMDC nanoscrolls in solution could provide an alternative approach to addressing this challenge.

3.2.1. Shear Force Assisted Scrolling

Alharbi et al. transformed 2D MoS₂ nanosheets into MoS₂ nanoscrolls under continuous flow in a homemade vortex fluidic device (VFD), as shown in Figure 10. First, MoS₂ powders with a lateral size of approximately 1.5 µm was dispersed in a mixture of ethanol, water, and DMF in a volume ratio of 1:1:1 and ultrasonicated for 30 min (Figure 10a). The mixture was then placed into the VFD and processed at a rotation speed of 4000 rpm, a flow rate of 0.45 mL/min, and a tilt angle of 45° (Figure 10b). Finally, the product was collected and vacuum-dried to obtain the nanoscrolls (Figure 10c) [45].

Within the VFD, mechanical energy was converted into high shear stress through topological fluid flows at the micrometer scale, including typhoon-like spinning top (ST) flow from the tube bottom and double-helix (DH) flow from the thin film. At a low rotation speed of 4000 rpm, the shear stress was dominated primarily by the typhoon-like ST flow (Figure 10d). At a high rotation speed of 8000 rpm, the DH flow arising from twisted Faraday wave vortices dominated the shear stress. The ST flow generated shear stress on the MoS₂ surface and induced exfoliation to produce MoS₂ nanosheets. The as-exfoliated nanosheets were then curled into nanoscrolls with the aid of a chiral upward flow (Figure 10e), located at the center of the ST [46,47]. SEM and TEM characterization revealed that the as-prepared nanoscrolls had a diameter of less than 0.2 μm and a length ranging from 3 to 10 μm (Figure 10f).

Compared with existing preparation methods for TMDC nanoscrolls, the VFD method offers the following advantages. On one hand, the yield of nanoscrolls can be increased by extending the processing time. On the other hand, the exfoliation and scrolling of MoS₂ nanosheets can be achieved simultaneously under optimized conditions.

3.2.2. Sonication Assisted Scrolling

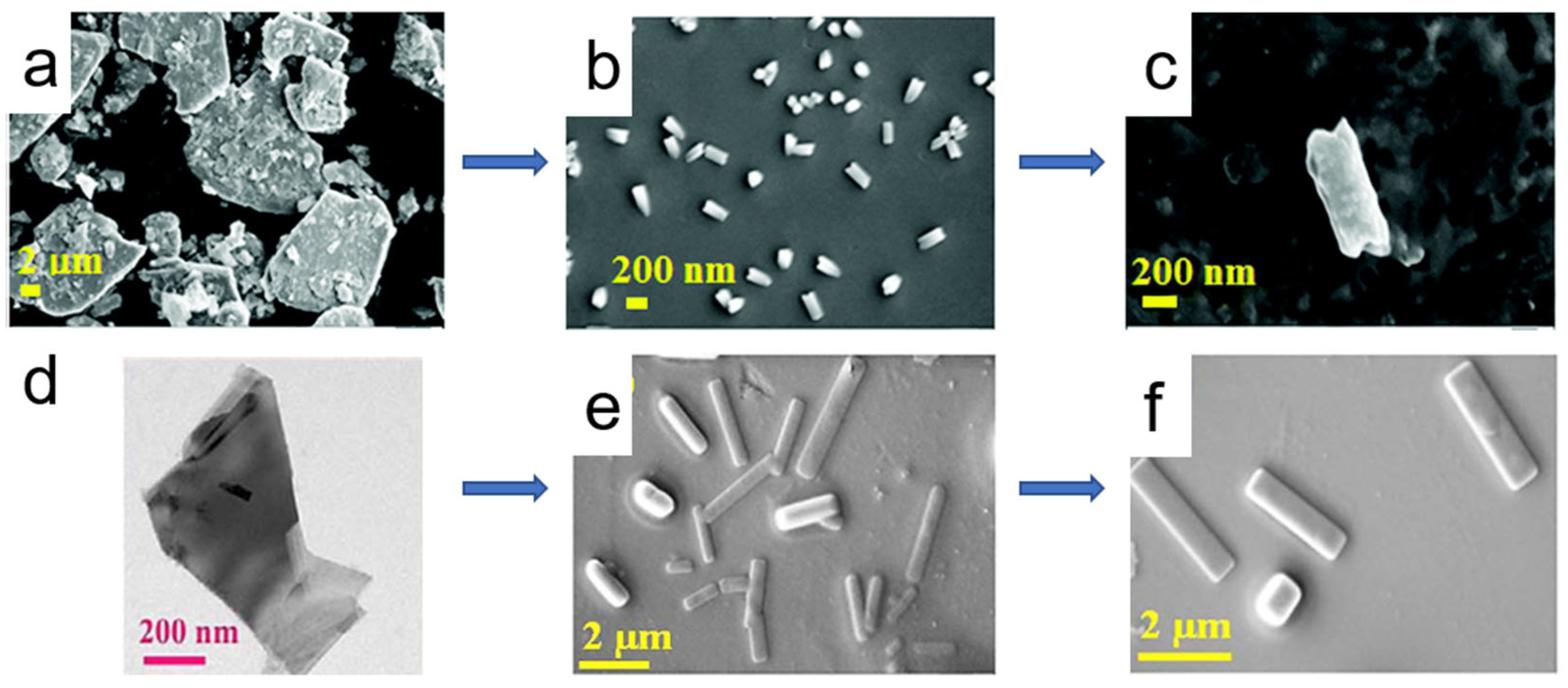

Thaar M.D. Alharbi also fabricated WS₂ nanoscrolls by sonicating WS₂ powder in DMF. In the experiment, a low-frequency (20 kHz) probe ultrasonication was used, as high-frequency ultrasonication could damage the crystal structure of the WS₂ powder. WS₂ powder was first dispersed in DMF to form a colloid suspension using a bath sonicator for 15 min. The resulting solution was then placed in a probe sonicator for 2 h to prepare WS₂ nanoscrolls. During the first hour of sonication, WS₂ platelets with a lateral size of approximately 2 μm were first exfoliated into nanosheets by shock stress waves induced by cavitation bubble collapse. The as-exfoliated WS₂ nanosheets were then transformed into 1D WS₂ nanoscrolls by sonicating for an additional hour. In this process, continuous cavitation bubble collapse enabled the WS₂ nanosheets to overcome surface energy, resulting in scrolling of the exfoliated nanosheets (Figure 11). During sonication, the temperature was maintained below 30 °C [48].

This method is simple, rapid, and low-cost, achieving a yield of WS₂ nanoscrolls of up to 90%. Moreover, it can directly prepare WS₂ nanoscrolls from bulk WS₂ without the use of surfactants or pretreatment steps. However, the length of the resulting WS₂ nanoscrolls is less than 1 μm, which limits their practical application.

3.2.3. Supercritical Fluid Assisted Scrolling

When the temperature and pressure of a fluid are above the critical point, the fluid is in a supercritical state. A supercritical fluid (SCF) exhibits both gas-like and liquid-like physicochemical properties, including a high diffusion coefficient, near-zero interfacial tension, pressure-tunable solvating power, and low viscosity [49,50]. Owing to these intriguing properties, SCFs have been applied to the liquid exfoliation of layered materials, as they are expected to efficiently penetrate the gaps between adjacent layers and delaminate them.

By treating MoS₂ nanosheets with SCF, Pitchai Thangasamy and Marappan Sathish successfully fabricated MoS₂ and WS₂ nanoscrolls in DMF solution within 30 min (Figure 12) [51]. MoS₂ powder was added to DMF and ultrasonicated for 5 min to form a suspension. The suspension was then poured into a sealed stainless-steel reactor and heated in a furnace at 400 °C for 30 min. The reactor was then removed and immediately quenched in an ice-water bath. The supernatant was centrifuged to collect the nanoscrolls. During SCF processing, the bulk MoS₂ was first delaminated into MoS₂ nanosheets. To minimize the surface energy, the as-exfoliated MoS₂ nanosheets spontaneously rolled up to form 1D nanoscrolls. SEM characterization indicated that the as-prepared nanoscrolls had a diameter of 50–150 nm and a length of 0.2–3 μm (Figure 12a–c). In 2022, they also prepared the one-dimensional WS₂ nanoscrolls from bulk WS₂ powder using the same one-pot SCF processing for 30 min [52] (Figure 12d–f). The high-temperature SCF processing provided the energy for interlayer separation, exfoliating the bulk WS₂ into few-layer nanosheets (3–10 layers). Owing to their high surface energy, the as-exfoliated 2D WS₂ nanosheets were unstable and spontaneously formed a 1D spirally scrolled structure through a thermodynamically driven process. Partially curled WS₂ nanosheets were observed after SCF processing for 15 min, confirming the intermediate state of transformation.

This method enables the mass production of TMDC nanoscrolls. The crystallinity and catalytic activity of the TMDC nanosheets are well preserved, making them suitable for optoelectronics and energy storage. However, the length of the resulting nanoscrolls is relatively short.

3.2.4. Self-Assembling of Amphiphilic Materials-Assisted Scrolling

In 2017, Hwang et al. prepared MoS₂ nanoscrolls in solution through the self-assembly of an amphiphilic material [53], N-(2-aminoethyl)-3α-hydroxy-5β-cholan-24-amide (LCA), as shown in Figure 13. First, LCA was dissolved in o-dichlorobenzene (ODCB) and heated to 60 °C. MoS₂ nanosheets were exfoliated by ultrasonication. The LCA solution was then poured into the MoS₂ solution and stored at room temperature for 24 h to obtain MoS₂ nanoscrolls. Using this method, TMDC nanoscrolls such as MoS₂, MoSe₂, and MoTe₂ nanoscrolls, have been successfully prepared [54].

The formation of MoS₂ nanoscrolls by this method can be explained as follows. LCA molecules contain amine functional groups, which exhibit strong binding affinity for MoS₂ nanosheets, particularly at the edges. One side of the MoS₂ edge may have a slightly stronger interaction with LCA molecules, leading to a subtle interaction difference between the two sides. As a result, the edge of the MoS₂ nanosheet bends, and the adsorbed LCA molecules gradually self-assemble into a fiber. After the bent MoS₂ edge completes the first scroll turn, the LCA molecules continue to self-assemble. Consequently, the MoS₂ nanosheet transforms into a nanoscroll encapsulating a self-assembled LCA fiber.

In addition to bare MoS₂ nanosheet, nanoparticles-decorated MoS₂ nanosheets can also be transformed into nanoscrolls by adding LCA in solution. When LCA molecules were added to a solution of Pt nanoparticle-decorated MoS₂ nanosheets, MoS₂@Pt nanoscrolls were obtained (Figure 13) [55]. Similarly, MoS₂@Au and MoS₂@Ag nanoscrolls were also prepared by adding LCA (Figure 13) [56]. By adjusting the concentration of LCA and the type of nanoparticles, the diameter and size of the resulting nanoscrolls can be controlled. Although TMDC nanoscrolls can be produced in large quantities by this method, the use of small-sized TMDC nanosheets leads to short nanoscrolls.

Figure 13. Schematic illustration of the preparation of MoS₂ nanoscrolls, as well as MoS₂@Ag and MoS₂@Au nanoscrolls, via the self-assembly of LCA. Adapted with permission from Ref. [56]. Copyright 2017 IOP.

Figure 13. Schematic illustration of the preparation of MoS₂ nanoscrolls, as well as MoS₂@Ag and MoS₂@Au nanoscrolls, via the self-assembly of LCA. Adapted with permission from Ref. [56]. Copyright 2017 IOP.

3.2.5. Pulsed Laser Ablation (PLA) Assisted Scrolling

Owing to hydrogen bonding at room temperature, a mixture of choline chloride and urea in a 1:2 molar ratio remains liquid, forming a deep eutectic solvent (DES). Using DES as a confinement medium, Betancourt et al. prepared MoSe₂ nanoscrolls via pulsed laser ablation (PLA) [57]. Owing to the high-oxygen environment, MoO_x nanoparticles are preferentially formed by PLA in water, inhibiting the formation of large-sized nanosheets. The MoSe₂ nanosheets prepared in DES are larger than those prepared in water by PLA, which is attributed to the lower polarity of DES compared with that of water. In addition, DES has low oxygen content, and the as-prepared MoSe₂ nanosheets have a highly crystalline structure, demonstrating the advantages of DES for PLA. In DES, the MoSe₂ nanosheets tend to be flexible and undergo deformation at the edges owing to the strong hydrogen bonding interactions of the environment. The edge of a MoSe₂ nanosheet can be bent by the interlayer van der Waals forces acting vertically on the MoSe₂ surface, which are thought to overcome the hydrogen bonding interactions of DES, thereby inducing scrolling. The DES used in this method is a low-vapor-pressure and recyclable solvent, making it more environmentally friendly than volatile organic solvents. The size distribution of nanoscrolls can be optimized by adjusting the processing parameters.

3.2.6. Stirring Magnetically Assisted in Solution

In 2018, Wang et al. used a magnetic stirring method to fabricate graphene, h-BN, and TMDC nanoscrolls with high yield [58]. Two-dimensional nanosheets with a thickness of 1–5 layers were exfoliated using a supercritical CO₂ method in a shear mixer [59]. The as-prepared nanosheets and AgNO₃ were mixed and magnetically stirred in ethanol for 30 min at room temperature. The nanosheet dispersion changed from a uniform gray solution to a clear solution with suspended black precipitates (Figure 14a,b), which were confirmed to be nanoscrolls by SEM and TEM characterization (Figure 14c,d).

When 2D nanosheets are mixed with AgNO₃ in ethanol solution, the active dangling bonds at the nanosheet edges trigger the formation of cyanide ion (CN⁻) through cleavage of the C-C bond in ethanol and the N-O bond in the nitrate ion [60]. Silver cyanide (AgCN) nanoparticles were formed in situ when Ag⁺ ions met CN⁻ ions (Figure 14e), which were observed at the edges of the nanoscrolls. The as-generated AgCN nanoparticles modified the surface electron density of the nanosheets, which affected the adsorption state of ethanol on the nanosheets and increased their surface energy. As the amount of AgCN nanoparticles increased, the surface energy of the nanosheets gradually accumulated. Once the energy exceeded a critical threshold, the nanosheets curled from the edges to reduce their surface energy (Figure 14f). During curling, the edges of the nanosheets gradually overlapped with the inner layers. Thus, interlayer van der Waals forces became the driving force for continued curling until the nanoscroll was fully formed. Therefore, the formation of AgCN nanoparticles at the edges of the nanosheets played a significant role in driving the scrolling process.

This section describes five methods for preparing TMDC nanoscrolls in solution, which serve as a distinct complement to substrate-based preparation techniques. Bulk TMDCs are first exfoliated into thin layers, followed by spontaneous scrolling driven by shear flow in a vortex fluidic device (VFD), impact stress during ultrasonication, elevated temperature and pressure above the critical point of supercritical fluids, and edge-localized particles induced by magnetic stirring. This process is fundamentally different from in situ scrolling on substrates.

These solution-based preparation methods have both advantages and challenges. The VFD and ultrasonication methods achieve yields exceeding 90% within several hours, whereas the supercritical fluid method completes the process in 30 min, making it suitable for mass production. The self-assembly method enables the facile preparation of composite nanoscrolls (e.g., MoS₂@Au) through co-assembly of LCA molecules and nanoparticles (Pt, Au, Ag), thereby expanding their functionality. Supercritical fluids and pulsed laser ablation (PLA) in deep eutectic solvent media preserve the lattice integrity of TMDCs well, whereas intense ultrasonication or high shear forces may induce edge defects. However, most nanoscrolls prepared by solution-based methods have lengths ranging from 1 to 10 μm, which is much shorter than the hundred-micrometer-scale nanoscrolls obtained on substrates. This size difference arises because the initial dimensions of bulk TMDC powders in solution are typically below 10 μm.

In summary, TMDC nanoscrolls prepared on substrates are suitable for device integration and fundamental research, whereas those prepared in solution are used in fields requiring large quantities of nanoscrolls, such as energy storage, catalysis, and composite functional materials.

In this section, we have discussed the preparation of TMDC nanoscrolls to date. Despite the apparent diversity of the methods described in Section 3, three prerequisites are necessary for successful scrolling of TMDC nanosheets: (i) an external stimulus must overcome the adhesion force on the substrate or the bending energy in solution to initiate curling; (ii) the interlayer interaction between adjacent layers must be strong enough to maintain the scrolled structure on the substrate or in solution; and (iii) the nanosheet must have sufficiently low bending stiffness. Thus, although the specific initiation mechanisms vary, the fundamental physics underlying scroll formation is unified: any process that locally detaches a flexible, strained nanosheet leads to spontaneous scrolling that minimizes surface free energy. The advantages, challenges, and underlying principles of each method are summarized in

Table 1. Methods for Preparing TMDC Nanoscroll.

Method		Advantages	Challenges	Length	Driving Force	Ref.
On substrate	Organic solvent evaporation	Large size, high yield, and short time	Solvent residue, loose structure, and degraded optoelectronic performance	a few hundred micrometers	Marangoni flow	[17,18,19,30,31,32,33,35,36,37,38]
	Alkaline droplet-assisted	High yield and suitable for thick nanosheets	Substrate etching and solvent residue	a few hundred micrometers	Reduced adhesion	[12,40,41,42]
	Water droplet dragging	Solvent free and tightly packed structure	Not suitable for moisture or temperature sensitive materials	several tens of micrometers	Liquid flow	[39]
	Spin-coating	Large scale, compact structure, and environment friendly	Applicable to monolayer nanosheet	a few hundred micrometers	Liquid flow	[20]
	Plasma-assisted	Simple process and high yield	Small size and structural damage	less than 1 μm	Lattice distortion	[22,23]
	Quenching-induced	Simple process	Complex process, low yield, and incomplete curling	~8 μm	Thermal expansion coefficient difference induced strain	[44]
In solution	Vortex fluidic device (VFD)	High yield and easy operation	Solvent residue	~10 μm	Strong shear force	[45]
	Sonication	Simple, low cost, and scalable	Small size	~650 nm	Impact stress	[48]
	Supercritical fluid	Simple and short processing time	Small size and solvent residue	0.2–3 μm	Surface energy miniaturization	[51,52]
	LCA self-assembly	High yield and easy operation	Small size and solvent residue	0.5–2 μm	Local strain	[53,54,55,56]
	Pulsed laser ablation (PLAL)	Rapid and low cost	Low yield and oxide byproducts	~500 nm	Overcoming dynamic hydrogen bonds	[57]
	Magnetic stirring	Facile and scalable	Solvent residue	0.5–10 μm	Edge localized particles	[60]

. The preparation methods are also classified according to the types of nanoscrolls produced in

Table 2. Preparation comparison of TMDC Nanoscroll.

Nanoscroll Type	Preparation Method	Temperature	Dimensions	Ref.
MoS2 (also WS2)	Organic solvent evaporation	Room temperature (RT)	Diameter: 314 nm; Length: a few hundred micrometers	[17,18,30,31,32,33]
	Dragging water droplet	100 °C	Diameter: 245.1 nm; Length: several tens of micrometers	[39]
	Spin coating PEG droplet	RT	Height: 36 nm; Length: a few hundred micrometers	[20]
	Plasma bombardment (S removal)	150 °C	Height: 14.6 nm; Length: ~500 nm	[22,23]
	Rapid quenching (300 °C/min)	Not applicable	Height: 14 nm; Length: 8 μm	[44]
	Vortex fluidic device (VFD)	RT	Length: 10 μm	[45]
WS2	Ultrasonication	RT	Height: 5–10 nm; Length: 650 nm	[48]
	Supercritical fluid	400 °C	Diameter: 50–150 nm; Length: 0.2–3 μm	[51,52]
	LCA self-assembly	RT	Diameter: 20 nm; Length: 0.5–2 μm	[53,54,55,56]
WSe2	Pulsed laser ablation (PLA)	70 °C	Length: ~500 nm	[57]

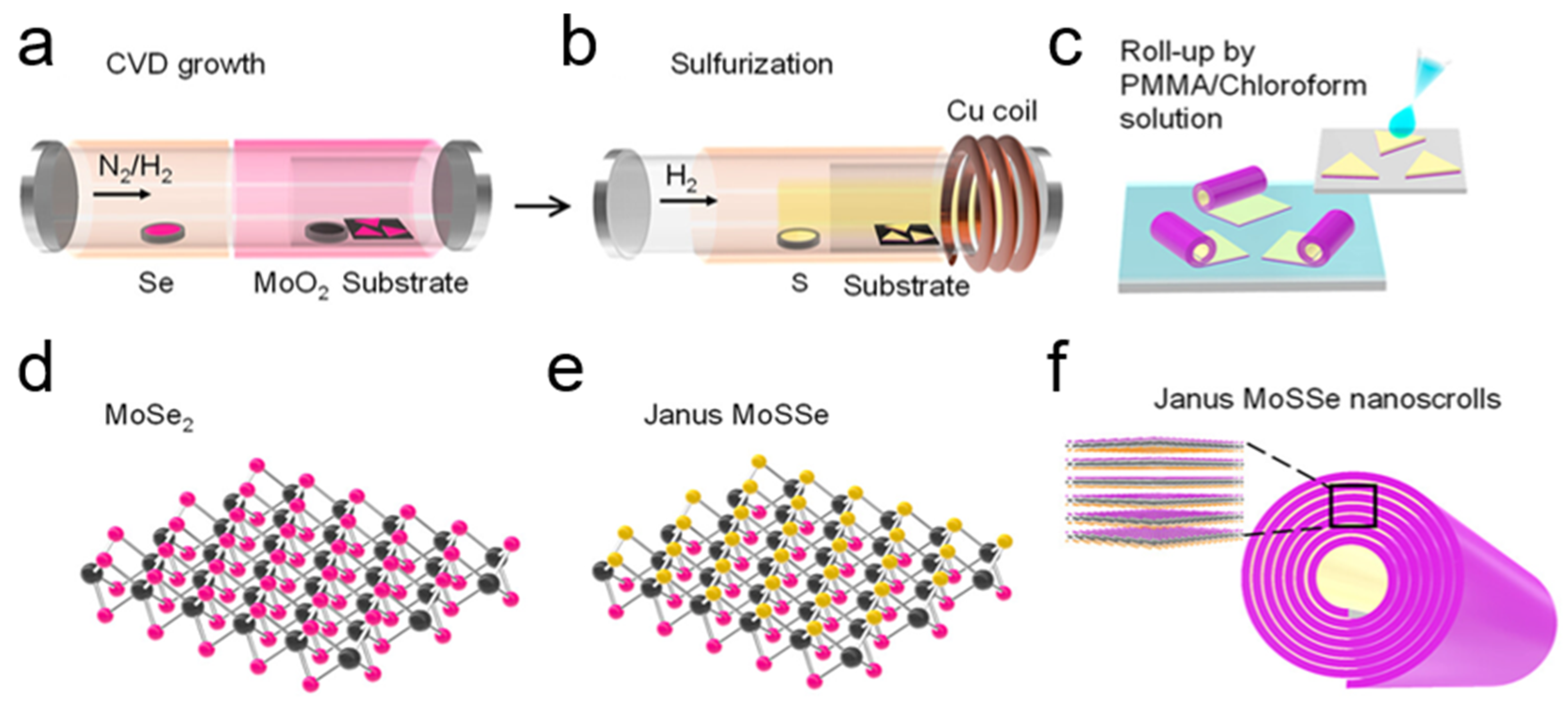

Janus MoSSe	H2 plasma (top Se replaced by S) + spin-coating PMMA/chloroform	RT	Height: 8–61 nm; Length: 0.18–2.3 μm	[36]
InSe	Solvent assisted self-assembly	80 °C	Diameter: 10.5 nm; Length: 90 μm	[61]
MoS2/WS2	Alkaline solution etching	RT	Diameter: ~100 nm; Length: a few hundred micrometers	[12]
SnS2/WSe2	Alkaline solution etching	RT	Length: 3–7 μm	[40]

.

4. Properties of TMDC Nanoscrolls

In this section, we summarize the property investigation of TMDC nanoscrolls using techniques such as transmission electron microscopy (TEM), second harmonic generation (SHG), Raman spectroscopy, photoluminescence (PL) spectroscopy, circular dichroism spectroscopy, photoconductive atomic force microscopy (AFM), X-ray photoelectron spectroscopy (XPS), and semiconductor characterization systems. These results reveal significant differences between TMDC nanosheets and nanoscrolls in terms of structure, crystalline defects, electrical and optoelectronic performance, and magnetoresistance.

4.1. Morphology

Atomic force microscopy (AFM) can clearly resolve the morphology of nanoscrolls, including length, diameter, and spiral structure. The AFM image clearly shows that the MoS₂ nanoscroll is transformed in situ from a triangular nanosheet (Figure 15a). The magnified AFM phase image clearly shows that the MoS₂ nanoscroll has an Archimedean screw structure. Transmission electron microscopy (TEM) is used to observe the high-resolution structure of TMDC nanoscrolls, particularly their crystalline structure and interlayer spacing. As shown in Figure 15b, the TEM image of a WS₂ nanoscroll shows a closely packed layered structure with an interlayer spacing of 0.69 nm. This value is consistent with the measured thickness of a single-layer nanosheet. Figure 15c shows the multiwall structure of a Janus MoSSe nanoscroll observed by high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) [19,21]. The magnified STEM image clearly shows the three-atom-thick structure of an individual layer (Figure 15d). The HAADF-STEM image and electron energy loss spectroscopy (EELS) maps of the Janus nanoscroll are shown in Figure 15e. As observed from the spatial distribution in the EELS maps, the inner and outer sides of the Mo atoms are occupied by S and Se atoms, respectively, confirming the replacement of surface S atoms by Se atoms.

4.2. Optical Properties

4.2.1. Second Harmonic Generation

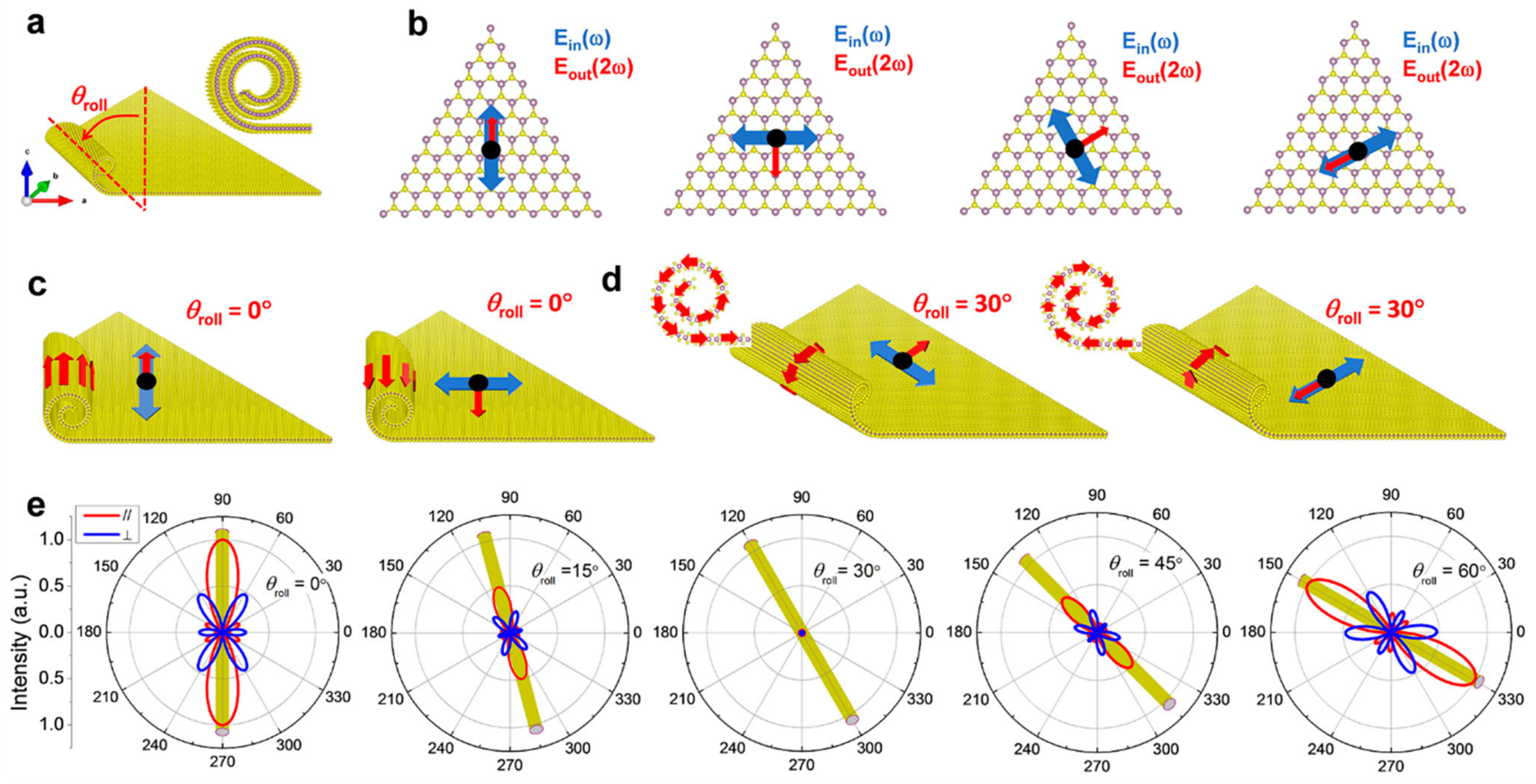

As a second-order nonlinear optical process, second harmonic generation (SHG) is widely used in applications such as optical frequency conversion, interface spectroscopy, and ultrashort pulse characterization [62]. Odd-numbered 2H-MoS₂ layers exhibit inversion symmetry breaking and show observable SHG responses, whereas even-numbered layers do not generate SHG owing to the presence of inversion symmetry [63]. In 2020, Qian et al. found that MoS₂ nanoscrolls exhibited strong chirality-dependent SHG owing to their reduced symmetry (Figure 16) [64]. Unlike previous polarization-resolved SHG measurements that relied on sample rotation, they collected the SHG signal by rotating the polarization of the incident laser, thereby improving accuracy and consistency. Interestingly, the MoS₂ nanoscroll exhibited an SHG signal two orders of magnitude higher than that of a monolayer MoS₂ nanosheet, a phenomenon that was sensitive to the chirality of the nanoscroll and arose from the superposition of the SH electric fields from the nanoscroll walls. The angle between the nanoscroll axis and the armchair orientation of the triangular MoS₂ nanosheet was defined as the rolling direction, denoted as θ_roll (Figure 16a). The laser polarization was set parallel and perpendicular to the nanoscroll axis, respectively. The induced SH electric field was oriented parallel or perpendicular to the polarized incident laser along the armchair or zigzag direction, respectively (Figure 16b). When θ_roll = 0°, the SH electric fields from the nanoscroll walls were aligned with the nanoscroll axis when the incident laser was polarized along the axis direction (Figure 16c). In this case, the SHG efficiency was greatly enhanced because the total SH dipole experienced no orientation loss. When the incident laser was polarized perpendicular to the nanoscroll axis, the overall SHG signal was weakened owing to the out-of-plane component of the incident electric field on the vertical sidewall of the MoS₂ nanoscroll. When the MoS₂ nanosheet was rolled up along the zigzag orientation (θ_roll = 30°), the SH dipole was oriented spirally around the nanoscroll axis when the incident laser was polarized both along and perpendicular to the axis (Figure 16d). Therefore, the total SHG electric fields counteract each other, resulting in a very weak SHG signal (Figure 16e).

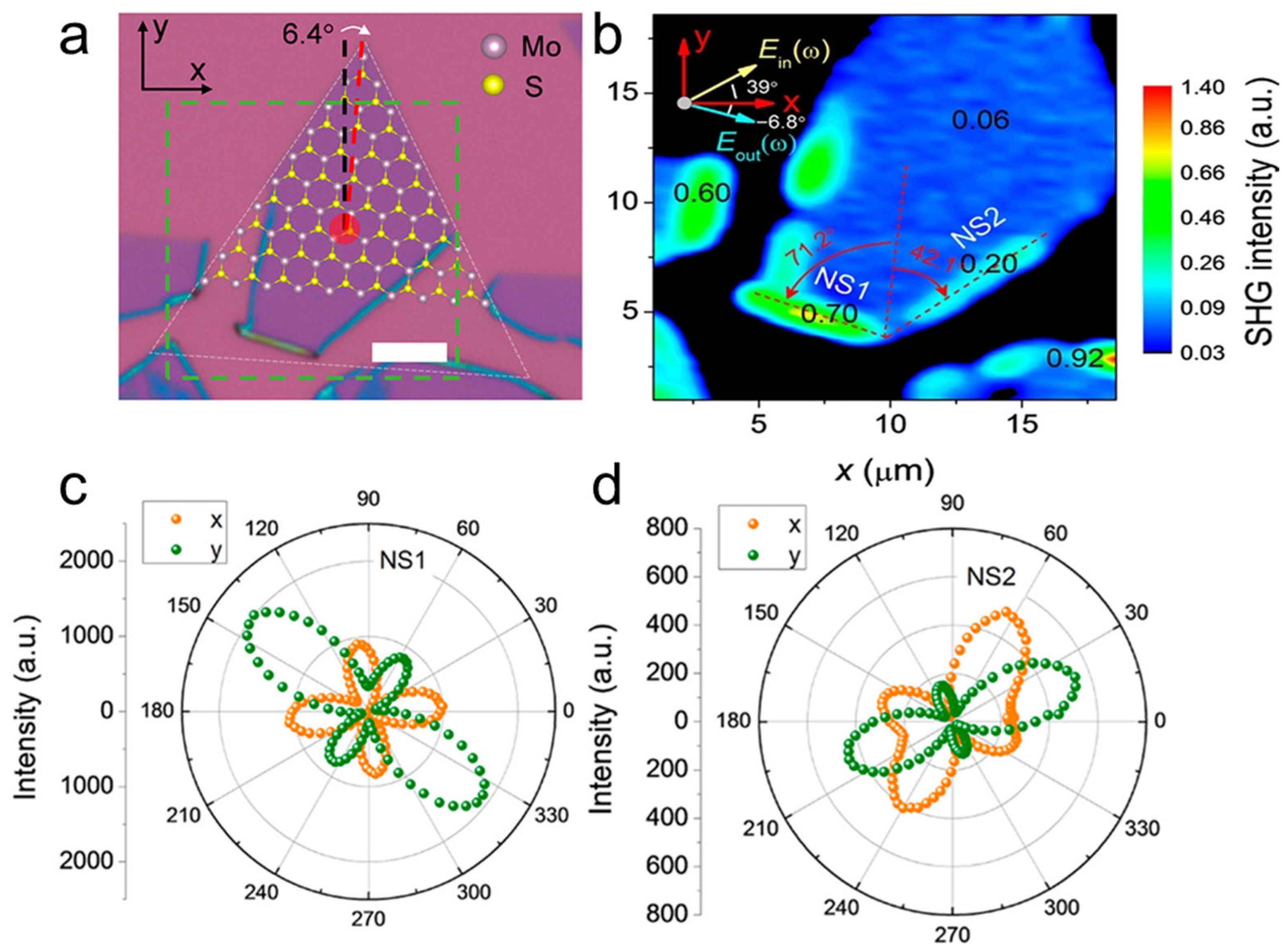

Figure 17a,b shows the optical image and polarization-resolved SHG mapping of a MoS₂ nanosheet and a MoS₂ nanoscroll, respectively. The monolayer MoS₂ nanosheet exhibited a uniform but weak SHG signal with an intensity of 0.06. In contrast, the MoS₂ nanoscrolls with θ_roll = 71.2° (NS1) and θ_roll = 42.1° (NS2) exhibited strong SHG signals, which were 12 and 3.3 times higher than that of the monolayer MoS₂ nanosheet, respectively. Figure 17c,d shows the polarization-resolved SHG emission patterns of NS1 and NS2 measured experimentally, where the SH electric field was polarized along the x and y directions, respectively. Unlike the isotropic four-fold petal pattern observed in the monolayer MoS₂ nanosheet, anisotropic four-petal patterns with enhanced intensities were observed for NS1 and NS2, demonstrating the symmetry breaking induced by scrolling [62,65,66,67]. The highest total SHG intensities (I_x + I_y) of NS1 and NS2 were 95 and 34 times higher than those of the monolayer MoS₂ nanosheet, respectively, when the incident laser was polarized nearly along the nanoscroll axis.

4.2.2. Nonlinear Circular Dichroism (SHG-CD)

Nonlinear circular dichroism (CD) spectroscopy is used to characterize the nonlinear optical responses of chiral materials excited by the left-circularly polarized (LCP) light (σ⁺) and right-circularly polarized (RCP) light (σ⁻) (Figure 18a), respectively. By replacing the half-wave plate with a quarter-wave plate (QWP), Xue et al. investigated nonlinear CD in chiral MoS₂ nanoscrolls by measuring circular polarization-dependent SHG [68]. Monolayer MoS₂ nanosheets were first grown by CVD and then self-assembled into chiral nanoscrolls in a mixture of isopropanol and water. The chiral MoS₂ nanoscrolls exhibited distinct nonlinear responses under LCP and RCP excitation, generating SHG-CD signals. The degree of structural asymmetry was described by the chiral angle, α, defined as the angle between the armchair orientation of the MoS₂ lattice and the nanoscroll axis. α was positive when the nanoscroll axis was oriented counterclockwise relative to the armchair direction of the MoS₂ lattice, and negative when oriented in the opposite direction. The strength of the SHG-CD signal was defined as (I_σ+ − I_σ−)/(I_σ+ + I_σ−). By tuning α in the range from −30° to 30°, the strength of the SHG-CD signal can be continuously modulated from −1 to 1 (Figure 18b). When α = 0° or ±30°, no CD signal was observed because the nanoscroll possessed inversion symmetry. When α = ±24°, the CD signal reached a maximum of 0.8, indicating the strongest CD effect under these conditions. The ability to manipulate the chirality of MoS₂ nanoscrolls provides a new route for precisely controlling the nonlinear optical response.

4.2.3. Raman Spectroscopy

Raman spectroscopy is a fast, non-destructive technique for characterizing the electronic and crystalline structure of 2D nanomaterials. Raman peaks of 2D nanomaterials provide rich information on frequency, line shape, intensity, and full width at half maximum, which are related to lattice orientation, number of layers, defects, doping, stacking order, strain, and other factors.

Raman spectroscopy also plays an important role in characterizing TMDC nanoscrolls [69]. Figure 19a shows the Raman spectra of a WS₂ nanosheet and a WS₂ nanoscroll [69]. The A_1g mode of the WS₂ nanoscroll exhibits a blue shift due to increased interlayer interaction [70,71]. In contrast, the E_2g mode of the WS₂ nanoscroll exhibits a red shift, which is attributed to increased uniaxial strain on the basal plane caused by bending of the nanoscroll. Furthermore, the frequency difference between the E_2g and A_1g modes of the WS₂ nanoscroll is larger than that of the WS₂ nanosheet, indicating an increase in long-range Coulomb interactions owing to structural and stacking deformation [72,73]. Similar phenomena are also observed in the Raman spectra of MoS₂ nanoscrolls [17], WSe₂ nanoscrolls [19], and MoS₂-Ag nanoscrolls (Figure 19b–d) [74].

High-frequency Raman spectroscopy (>100 cm⁻¹) is primarily used to probe intralayer vibrations in 2D nanomaterials. Although ultralow-frequency (ULF) in-plane and out-of-plane interlayer vibrations (<100 cm⁻¹) are relative weak and close to the Rayleigh line, they are sensitive to vdW interactions and coupling in stacked 2D nanosheets. Therefore, ULF Raman spectroscopy is often used to accurately characterize the number of layers and stacking order. The main ULF vibration modes include the TA mode (transverse acoustic mode), shear mode, and LB mode (layer breathing mode). As shown in Figure 19e, the ULF Raman spectrum of WS₂/MoS₂ nanoscrolls shows four peaks located at 12.4, 17.7, 21.9, and 28.2 cm⁻¹, respectively, under XX polarization. The disappearance of the two peaks marked with asterisks under XY polarization indicates that they are LB mode peaks, confirming the existence of interfacial coupling between adjacent layers in the WS₂/MoS₂ nanoscrolls. The other two peaks, marked with square symbols (21.9 and 28.2 cm⁻¹), are still observed under XY polarization, implying that they are shear mode peaks [12].

Figure 19f shows the ULF Raman spectra of MoS₂ nanoscrolls under XX and XY polarizations. The MoS₂ nanoscrolls were prepared by dropping ethanol solution and by dragging a water droplet on a hot plate, respectively, and are referred to as MoS₂ NS-W and MoS₂ NS-E. After peak deconvolution, MoS₂ NS-E exhibited three Raman peaks under XX polarization. Under the same conditions, MoS₂ NS-W showed seven Raman peaks. All of these Raman peaks disappeared under XY polarization, indicating that they were LB mode peaks and confirming out-of-plane interlayer interactions in the MoS₂ nanoscroll. Compared with MoS₂ NS-E, MoS₂ NS-W exhibited more ULF LB mode peaks, implying that MoS₂ NS-W had stronger interlayer interaction between adjacent layers than MoS₂ NS-E did. This demonstrates that the scroll structure of MoS₂ NS-W is more compact than that of MoS₂ NS-E [39].

4.2.4. Photoluminescence (PL) Spectroscopy

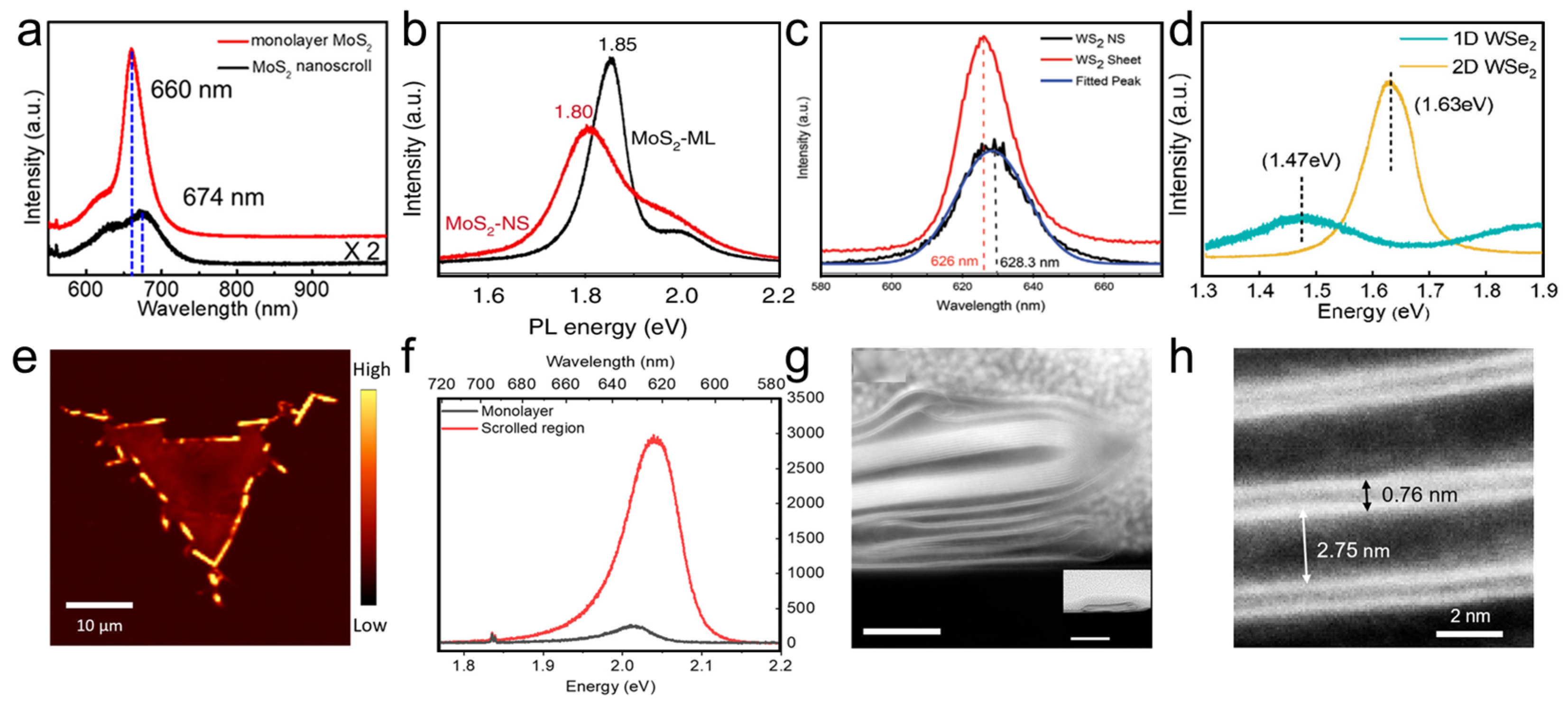

Monolayer TMDC nanosheets are known to exhibit strong photoluminescence (PL) owing to their direct bandgaps [75]. However, the PL intensity of TMDC nanosheets decreases with increasing thickness owing to the direct-to-indirect bandgap transition. The bandgap of a TMDC nanosheet can be tuned by introducing local strain [76]. In a TMDC-NS, the monolayer TMDC nanosheet is rolled up into a curved structure. Consequently, strain is inevitably distributed in the basal plane because of the bent geometry. Furthermore, a TMDC-NS behaves as a multilayer structure to some extent. Therefore, the PL of a TMDC-NS is influenced by its scrolled structure. As shown in Figure 20, the PL peaks of various TMDC nanoscrolls exhibited a clear red shift compared with those of monolayer TMDC nanosheets [17,18,31,77], indicating a change in the electronic structure of the nanoscroll. The red shift in the PL peaks may arise from stacking effects and deformation-induced strain in the nanoscroll. However, the PL peak of the MoS₂ nanoscroll with a loosely assembled structure showed a blue shift compared with that of the nanosheet (Figure 20a,b) [31]. Moreover, the loosely scrolled MoS₂ nanoscroll exhibited a much stronger PL peak than the monolayer MoS₂ nanosheet (Figure 20e,f) [31]. This enhanced PL peak was attributed to the considerably large interlayer spacing of 2.75 nm in the MoS₂ nanoscroll (Figure 20g,h), which resulted from the intercalation of acetone molecules during rapid scrolling. Similar blue-shifted PL peaks were also observed in a WSe₂ nanoscroll prepared from a bilayer nanosheet and in a MoS₂–Ag nanoscroll (Figure 20d) [19,74,78], suggesting that these nanoscrolls may also possess a loosely scrolled or inhomogeneously folded structure.

Owing to their unique structure, TMDC nanoscrolls exhibit strong anisotropy. To investigate their anisotropic vibrational behavior, the Raman and PL spectra of a MoS₂ nanosheet and a MoS₂ nanoscroll were measured using polarization-dependent Raman spectroscopy at different angles. Figure 21 shows the polar plots of the peak intensities of the ${\mathrm{E}}_{2\mathrm{g}}^1$ and A_1g vibration modes, as well as the PL peaks, of a MoS₂ nanosheet and a MoS₂ nanoscroll [79]. The intensities of the ${\mathrm{E}}_{2\mathrm{g}}^1$ and A_1g Raman modes remain almost unchanged for the MoS₂ nanosheet at various polarization angles (Figure 21a,c), indicating the isotropic structure of the monolayer MoS₂ nanosheet. In contrast, the intensities of the ${\mathrm{E}}_{2\mathrm{g}}^1$ and A_1g modes for the MoS₂ nanoscroll varied with a period of 180° as the polarization angle was changed. This variation in peak intensity reflects the influence of the nanoscroll axis orientations on Raman scattering. The intensity reached its maximum and minimum when the polarized laser was aligned with and perpendicular to the long axis of the nanoscroll (Figure 21b,d), respectively. Similarly, the intensities of the A and B exciton emissions also exhibited a period of 180° in the angle-resolved PL spectrum of the MoS₂ nanoscroll (Figure 21e,f).

4.2.5. Laser Emission

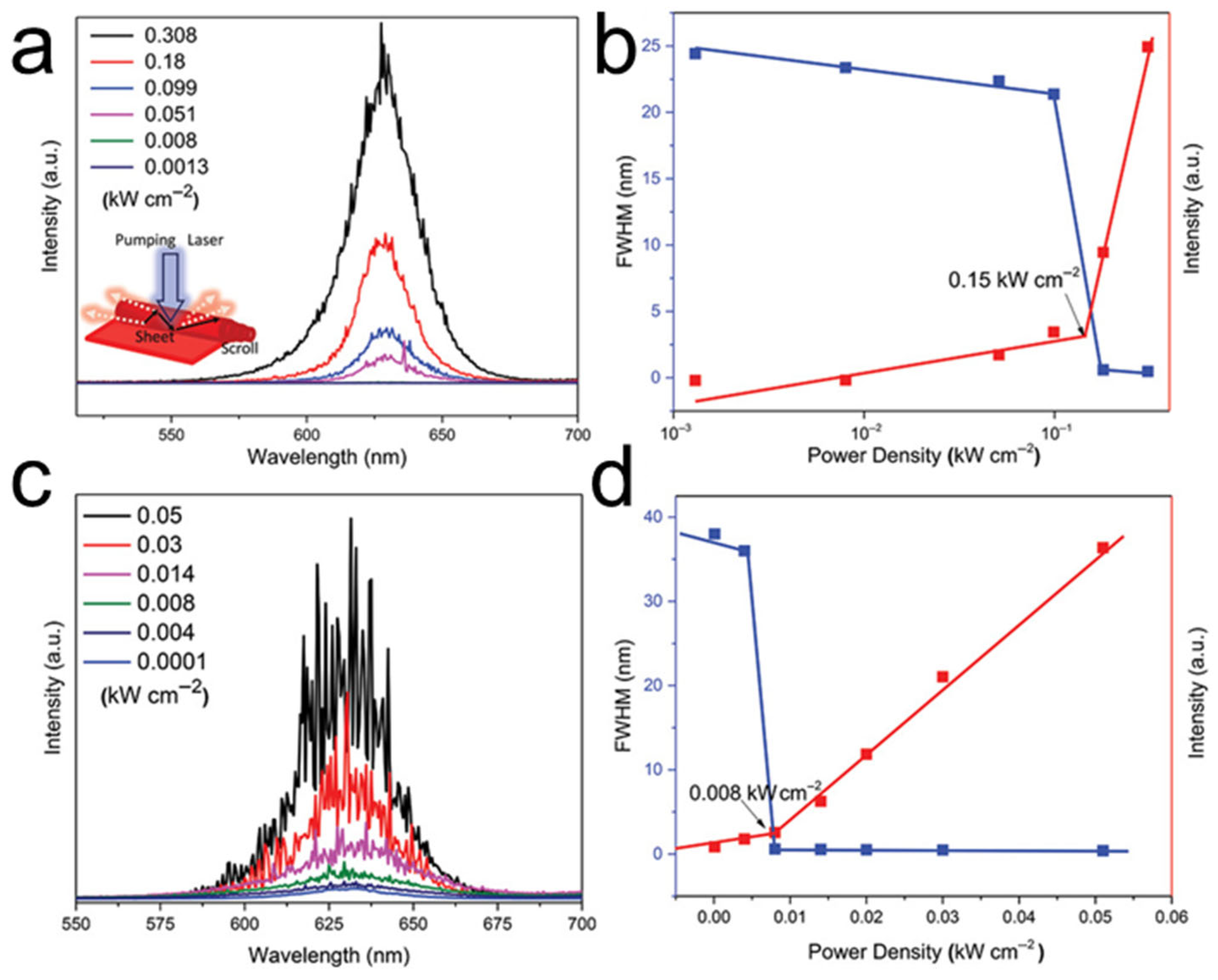

Because a TMDC nanoscroll possesses a cylindrical microcavity structure, light is scattered randomly inside the microcavity under illumination. Owing to the difference in refractive index between the TMDC layer and air, total internal reflection occurs at the interface. Consequently, stimulated emission can be observed because light remains confined within the microcavity for a sufficiently long time. As shown in Figure 22a, the WS₂ nanoscroll exhibited a similar PL peak to that of the WS₂ nanosheet when irradiated by a low-power laser. However, when the laser pumping power exceeded a threshold of 0.15 kW/cm², many weak but sharp peaks with a full width at half maximum (FWHM) of less than 1 nm appeared in the PL spectrum of the WS₂ nanoscroll (Figure 22a,b). Interestingly, the threshold decreased significantly to 0.008 kW/cm² when CdSe/ZnS quantum dots (QDs) were wrapped into the WS₂ nanoscroll (denoted QD/WS₂ NS) (Figure 22c,d). Furthermore, numerous strong lasing spikes were observed in the emission spectra of the QD/WS₂ NS (Figure 22c). The strong random laser emission of the QD/WS₂ NS can be attributed to Förster resonance energy transfer (FRET) between the CdSe/ZnS QDs and the 2D WS₂, as well as to multiple scattering and reflection of light inside the nanoscroll [69].

4.3. Magnetoresistance

Zhao et al. investigated the magneto-transport properties of a SnS₂/WSe₂ hetero-bilayer nanoscroll [40]. The magnetoresistance of the SnS₂/WSe₂ hetero-bilayer nanoscroll was measured as a function of the rotation angles θ and φ, which are perpendicular and parallel to the nanoscroll axis (Figure 23a), respectively. The angle θ plays an important role in tuning the magnetoresistance magnitude. As shown in Figure 23a, the magnetoresistance magnitude decreased as θ decreased. In contrast, the magnetoresistance was insensitive to variations in φ owing to the rotational symmetry of the nanoscroll. As shown in Figure 23b, the magnetoresistance did not change with φ but exhibited a sine-function dependence on θ at B = 9 T [80], implying a 1D transport characteristic of the nanoscroll. Furthermore, the magnetoresistance of the 1D SnS₂/WSe₂ nanoscroll exhibited a clear linear relationship with the magnetic field at 3 K, whereas that of the 2D SnS₂/WSe₂ heterostructure showed a quadratic dependence (Figure 23c) [40]. The quadratic magnetoresistance dependence can be attributed to the Onsager reciprocity relation [81], as reported in other 1D and 2D systems. Linear magnetoresistance has previously been observed in gapless semiconductors and may arise from the topological properties of the band structure [82].

4.4. Electrical Properties

When a MoS₂ nanosheet is rolled into a MoS₂ nanoscroll, the width of the conduction channel is significantly reduced (Figure 24a) [17]. Consequently, the nanoscroll is expected to exhibit higher current density and mobility than the nanosheet. Furthermore, there are no charge traps or dangling bonds between adjacent layers of the MoS₂ nanoscroll, which further improves carrier transport efficiency. Moreover, in a MoS₂ nanoscroll, carriers are transported through the entire plane, whereas in a multilayer MoS₂ nanosheet, they are confined to only a few shell layers (Figure 24b). Therefore, the MoS₂ nanoscroll should exhibit higher mobility than both monolayer and multilayer MoS₂ nanosheets. This explanation is supported by experimental data. Cui et al. found that the mobility of the MoS₂ nanoscroll was in the range of 200–700 cm² V⁻¹ s⁻¹, which is nearly 30 times higher than that of the MoS₂ nanosheet [17]. Zhao et al. reported that the current of a field-effect transistor (FET) based on a SnS₂/WSe₂ nanoscroll was two to six orders of magnitude higher than that of an FET based on a SnS₂/WSe₂ nanosheet (Figure 24c) [40]. Furthermore, the carrier density of the SnS₂/WSe₂ nanoscroll was also two to three orders of magnitude higher than that of the SnS₂/WSe₂ nanosheet (Figure 24d).

Under illumination, TMDC nanoscrolls also exhibit excellent optoelectronic performance. The MoS₂ nanosheet and nanoscroll have exciton lifetimes of 726 and 303 ps, respectively, as measured by time-resolved PL spectroscopy [79]. The MoS₂ nanoscroll has shorter lifetime, indicating highly efficient separation of photogenerated charges. Owing to the anisotropic structure, photogenerated carriers preferentially transport along the nanoscroll axis. In contrast, in a MoS₂ nanosheet, photogenerated carriers diffuse in all directions owing to its isotropic structure. Therefore, TMDC nanoscrolls are expected to exhibit faster electron transport than their nanosheet counterparts. Wang et al. found that the photocurrent of a WS₂/MoS₂ hetero-bilayer was 3.3 nA under 405 nm laser illumination [12]. In contrast, the photocurrent of a WS₂/MoS₂ nanoscroll was significantly enhanced to 152 nA under the same conditions (Figure 24e,f), demonstrating the excellent optoelectronic performance of TMDC nanoscrolls.

By using conductive atomic force microscopy (C-AFM), Bhuyan et al. investigated in situ the photocurrents of a MoS₂ nanoscroll and a MoS₂ nanosheet [83]. The surface topography and electrical conductivity of nanomaterials can be obtained simultaneously by C-AFM at the nanoscale. As shown in Figure 25, the current distribution and I-V characteristics of a MoS₂ nanoscroll and a MoS₂ nanosheet were measured directly using C-AFM under dark and illuminated conditions, respectively. The MoS₂ nanoscroll and nanosheet exhibited similar currents under dark conditions (Figure 25a), whereas the photocurrent of the MoS₂ nanoscroll was 6 times higher than that of the MoS₂ nanosheet (Figure 25b). The current distribution of the MoS₂ nanoscroll and nanosheet was mapped by point-by-point current measurements on the sample surface (Figure 25c,d). The current of the MoS₂ nanoscroll increased under illumination, indicating that more photogenerated carriers were generated than under dark conditions. In addition, they found that the MoS₂ nanoscroll-based FET device showed a 15-fold higher saturated photocurrent than the MoS₂ nanosheet-based FET device at the same conditions (Figure 25e,f). The MoS₂ nanoscroll-based FET device also exhibited an on/off current ratio one order of magnitude higher than that of the MoS₂ nanosheet-based FET device (Figure 25g,h). Importantly, the MoS₂ nanoscroll-based FET device exhibited a mobility of approximately 2400 ± 400 cm² V⁻¹ s⁻¹, which was about 2 orders of magnitude higher than that of the MoS₂ nanosheet-based FET device (approximately 10.5 cm² V⁻¹ s⁻¹). These results indicate that the electrical performance of the MoS₂ nanoscroll is substantially better than that of the MoS₂ nanosheet.

4.5. Phase Transition

Compared with 2H-phase TMDC nanosheets, 1T-phase nanosheets exhibit dramatically reduced charge transfer resistance owing to their metallic phase structure, which has attracted intensive attention in the fields of energy storage and hydrogen evolution reactions. However, 1T-phase TMDC is metastable and is easily converted to the stable 2H-phase. Therefore, obtaining stable 1T-phase TMDC at room temperature remains a challenge.

In 2017, Hwang and Suh reported the phase transition from 2H-MoS₂ to 1T-MoS₂ during the formation of MoS₂ nanoscrolls in solution. As the MoS₂ nanosheet was rolled up, lattice distortion induced intra-layer plane gliding. Consequently, the 1T phase formed upon movement of the intra-layer S plane (Figure 26a). The proportion of the 1T phase increased with increasing uniaxial bending strain as the MoS₂ nanosheet continued to scroll.

X-ray photoelectron spectroscopy (XPS) was employed to analyze the composition and chemical state of the MoS₂ nanoscroll. As shown in Figure 26b, the 2H-MoS₂ nanosheet exhibited two peaks at 229.5 and 233 eV, which were attributed to the Mo⁴⁺ 3d_5/2 and Mo⁴⁺ 3d_3/2, respectively. Upon deconvolution of the Mo 3d region in the high-resolution XPS spectra, additional peaks at approximately 232 and 228.9 eV appeared, arising from the 1T-phase MoS₂ and confirming the coexistence of 1T and 2H phases. Furthermore, the proportion of 1T phase can be obtained by analyzing the area of the corresponding peaks. Upon annealing the MoS₂ nanoscroll from room temperature to 773 K, the proportion of the 1T phase first reached a maximum of 0.58 at 473 K and then decreased to 0.26 as the temperature further increased to 673 K. For a 1T-phsae MoS₂ nanosheet prepared by exfoliating MoS₂ powder in n-butyl lithium, 90% of the 1T phase was converted to the 2H phase at 473 K. The stability of the 1T phase in the MoS₂ nanoscroll at elevated temperatures was also confirmed by Raman spectroscopy. As shown in Figure 26c, the two dominant peaks at 381 and 406 cm⁻¹ were attributed to the 2H-phase MoS₂. However, an E_1g mode peak at 274 cm⁻¹ was observed in the Raman spectrum of the MoS₂ nanoscroll; this peak is inactive in 2H-phase MoS₂, confirming the presence of the 1T phase in the nanoscroll [53,84].

This section presents the unique properties of TMDC nanoscrolls in terms of morphology, optics, electrical transport, magnetic transport, and phase transition. A thorough investigation of these properties enables a better understanding of how the nanoscroll structure influences device performance, thereby guiding its practical applications.

AFM and TEM characterizations show that TMDC nanoscrolls have a compact spiral structure, with an interlayer spacing of approximately 0.69 nm, which matches the monolayer thickness, indicating a closely packed structure. Second harmonic generation (SHG) studies reveal that the rolling angle (θ_roll) directly determines the degree of SHG signal enhancement (up to 95 times that of monolayer nanosheets) and the nonlinear chiral response (continuously tunable SHG circular dichroism). The enhanced SHG signal originates from symmetry breaking and chirality generation induced by rolling. Raman spectra show that the A1g peak of nanoscrolls generally exhibits a blue shift due to enhanced interlayer coupling, whereas the E_2g peak displays a red shift caused by uniaxial strain from bending. Moreover, the number and polarization response of low-frequency breathing (LB) modes in ultra-low-frequency Raman spectra directly reflect the compactness of interlayer stacking. MoS₂ nanoscrolls prepared by the water-dragging method exhibit more LB peaks than those prepared by evaporating an ethanol droplet, confirming that the solvent-free strategy yields a more compact structure. In photoluminescence (PL) spectra, tightly rolled nanoscrolls usually show a red shift resulting from strain and stacking effects, whereas loosely structured nanoscrolls exhibit anomalous blue shifts accompanied by enhanced PL intensity.

MoS₂ nanoscrolls prepared using ethanol exhibit a significantly higher dark current, indicating that residual ethanol molecules weaken interlayer coupling. Marangoni flow induced by organic solvent evaporation frequently generates inhomogeneous strain in TMDC nanoscrolls, leading to local intensity variations in SHG mapping. In contrast, heterojunction nanoscrolls (e.g., SnS₂/WSe₂) fabricated by alkaline solution etching display angle-dependent magnetoresistance, implying a uniform scrolling structure. MoS₂ nanoscrolls prepared through LCA self-assembly show characteristic 1T phase signatures in XPS and Raman spectra, demonstrating that rolling-induced lattice sliding can stabilize the metastable 1T phase. Nanoscrolls obtained by plasma treatment commonly present an amorphous structure with significantly broadened Raman peaks. In contrast, nanoscrolls synthesized via the supercritical fluid method and VFD shearing method maintain excellent crystallinity.

More importantly, the same characterization result may originate from different microscopic mechanisms. For example, a PL red shift could correspond to either strain or stacking-induced changes in the indirect bandgap, requiring differentiation with the aid of theoretical simulations. Furthermore, high-resolution characterization of the internal defect distribution in nanoscrolls—such as the orientation of sulfur vacancies along the rolling direction—remains lacking at present.

5. Applications

Owing to their high mobility, thickness-dependent band structure, van der Waals interfaces, and excellent mechanical flexibility, TMDC nanosheets have become ideal materials for photodetectors. Compared with monolayer TMDC nanosheets, TMDC nanoscrolls exhibit an enlarged cross-section, which improves light absorption. In addition, light–matter interaction in TMDC nanoscrolls is enhanced owing to total internal reflection within their scrolled structure. Moreover, strain at the curved interface of the scroll induces bandgap variation and enhances light–matter coupling. Therefore, the optoelectronic performance of TMDC nanoscrolls is significantly improved compared with that of monolayer TMDC nanosheets. Owing to the excellent physical and chemical properties arising from their unique structure, TMDC nanoscrolls are extensively explored in optoelectronics, catalytic hydrogen evolution, gas sensing, and synaptic applications. In this section, we discuss the latest progress of TMDC nanoscrolls in various applications.

5.1. Photodetector

To evaluate the optoelectronic performance of a photodetector, the representative parameters are PDR (photocurrent-to-dark-current ratio), R (photoresponsivity), EQE (external quantum efficiency), and D* (detectivity). Their definitions are as follows.

$$\mathrm{PDR}={\mathrm{I}}_{\mathrm{photo}}/{\mathrm{I}}_{\mathrm{dark}}$$

(2)

where I_photo is photocurrent, and I_dark is dark current.

$$\mathrm{R}={\mathrm{I}}_{\mathrm{photo}}/\mathrm{PS}$$

(3)

where P is the laser power density, and S is the effective area of the device.

$$\mathrm{EQE}= \mathrm{hcR}/\mathrm{e}\mathsf{\lambda }$$

(4)

where h is the Planck’s constant, c is the speed of light, e is the charge, and λ is the laser wavelength.

$${\mathrm{D}}^{*}=\mathrm{R}{\mathrm{S}}^{1/2}/(2\mathrm{e}{\mathrm{I}}_{\mathrm{dark}}{)}^{1/2}$$

(5)

5.1.1. Photodetectors Based on TMDC Nanoscrolls

When 2D TMDC nanosheets are transformed into 1D nanoscrolls, their tubular structures facilitate the movement of photogenerated carriers along the axis. In addition, strain from the curvature of the scroll induces bandgap variation. Therefore, TMDC nanoscrolls are promising candidates for photodetectors.

Zhao et al. investigated the optoelectronic performance of a monolayer MoS₂ nanosheet and a MoS₂ nanoscroll by comparing their PDRs (Figure 27a) [39]. The MoS₂ nanoscrolls were prepared by dropping an ethanol droplet and dragging a water droplet across the CVD-grown monolayer MoS₂ nanosheets, respectively, and are referred to as MoS₂ NS-E and MoS₂ NS-W. Under 405 nm laser illumination, the PDR of the monolayer MoS₂ nanosheet was approximately 6, whereas the PDRs of MoS₂ NS-E and MoS₂ NS-W were 230 and 2800 (Figure 27b), respectively. The enhanced PDR of MoS₂ NS-W can be explained as follows. Although MoS₂ NS-W had a comparable photocurrent to MoS₂ NS-E, the dark current of MoS₂ NS-W was one order of magnitude lower than that of MoS₂ NS-E [39]. For MoS₂ NS-E, ethanol residues were inevitably wrapped between the adjacent layers of the nanoscroll during the rapid preparation process, which can donate electrons to the MoS₂ layer, increasing the dark current of the TMDC nanoscrolls [39]. Under illumination, the encapsulated ethanol residues further reduced light absorption efficiency. Compared with MoS₂ NS-W, which contained no solvent residue, less light passed through the ethanol/MoS₂ layer. Moreover, the presence of ethanol hindered interlayer transport of photogenerated carriers. Therefore, the PDR of MoS₂ NS-W was one order of magnitude higher than that of MoS₂ NS-E.

Zhou et al. fabricated a photodetector based on MoSe₂ scrolls using a self-rolled-up technique [21]. The as-prepared MoSe₂ scroll exhibited a lower dark current than the planar MoSe₂ film. At the same bias voltage, the dark current of the planar MoSe₂ film (1.13 × 10⁻⁴ A) was approximately 2 times that of the MoSe₂ scroll (6.03 × 10⁻⁵ A). The reduced dark current can be attributed to the following factors. Owing to the curvature effect, a uniaxial tensile strain of approximately 3.2% developed in the MoSe₂ scroll, which increased the Schottky barrier at the electrode–MoSe₂ interface. Consequently, the number of carriers injected from the source was reduced owing to the increased barrier. In addition, the rolled-up structure exposed a larger surface area to air than the planar structure, resulting in a higher density of surface states that can trap charge and reduce the effective conductive region. When the devices were illuminated with an 808 nm laser at the same optical power density, the photocurrent of the MoSe₂ scroll was one order of magnitude higher than that of the planar MoSe₂ film. Under illumination from an 808 nm laser with a power density of 368.3 mW/cm², the MoSe₂ scroll exhibited a responsivity (R) of 282.5 A/W, a detectivity (D*) of 1.96 × 10¹¹ Jones, and a photosensitivity (PDR) of 19—values that were greatly enhanced compared with those of the planar MoSe₂ film (Figure 27c,d).

Owing to the avalanche multiplication effect, numerous secondary electron–hole pairs are accelerated to extremely high kinetic energies in a strong electric field [85], resulting in a carrier multiplication process. Consequently, the performance of optoelectronic devices can be greatly enhanced through significant amplification of the number of photogenerated carriers. Deng et al. demonstrated the avalanche multiplication effect in a MoS₂ nanoscroll-based photodetector [15]. In a MoS₂ nanoscroll, the band gap is reduced and scattering is suppressed owing to the strain effect. As a result, avalanche multiplication can be triggered by a significantly lower electric field compared with that required for a MoS₂ nanosheet. Consequently, the MoS₂ nanoscroll exhibited an ultrahigh photoresponsivity of >10⁴ A/W and a specific detectivity of approximately 2 × 10¹² Jones (Figure 27e,f). Using a dry-transfer method, they also integrated a mechanically exfoliated WSe₂ nanosheet with a MoS₂ nanoscroll, thereby forming a heterojunction (Figure 27g). The resulting heterojunction enhanced the built-in potential, which in turn reduced the surface recombination effect. As a result, the dark current was effectively suppressed to less than 10⁻¹² A, and the PDR exceeded 10²—approximately two orders of magnitude higher than that of a single MoS₂ nanoscroll (Figure 27h). At a bias voltage of 1 V, the photoresponsivity of the WSe₂/MoS₂ NS device reached 0.3 A/W, and the external quantum efficiency was approximately 75% (Figure 27g). The response time of the WSe₂/MoS₂ NS device was only 5 ms, which was approximately three orders of magnitude faster than that of a photodetector based on a MoS₂ nanoscroll [86].

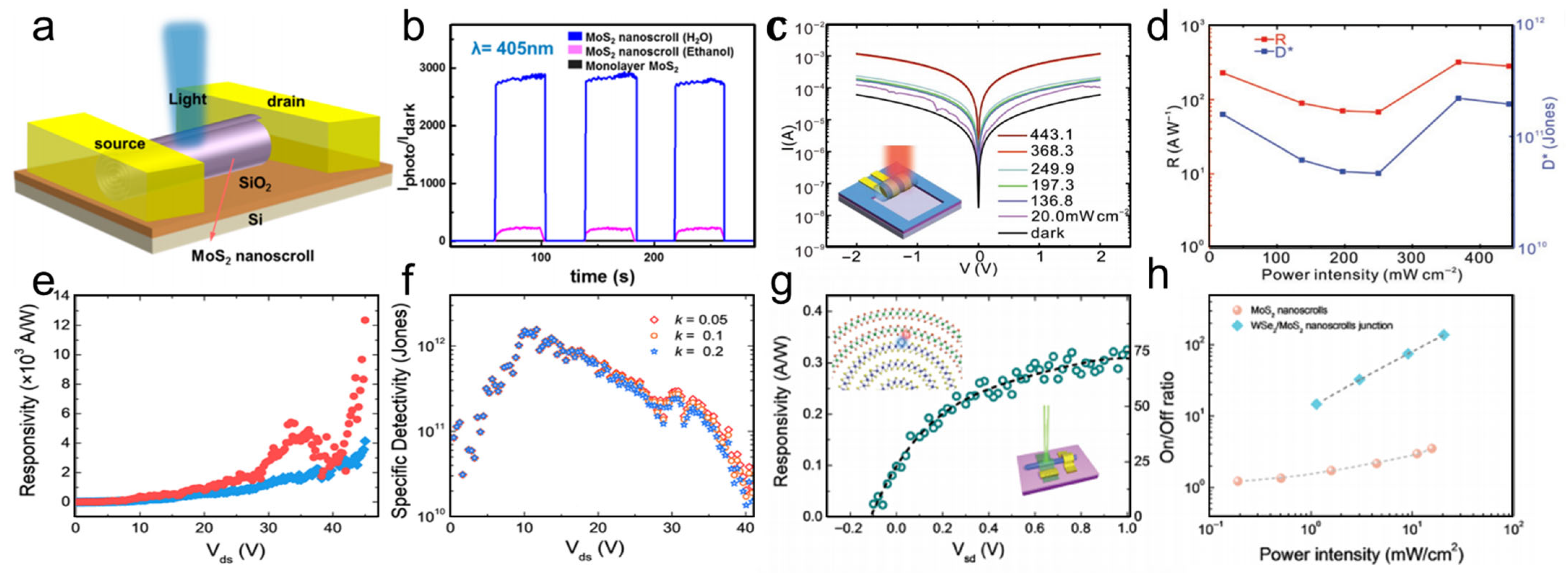

Figure 27. Photodetectors based on TMDC Nanoscrolls. (a) Schematic of a MoS₂ nanoscroll photodetector. (b) PDRs comparison of MoS₂ nanosheet, MoS₂ NS-W, and MoS₂ NS-E photodetectors under 405 nm laser. Reproduced with permission from Ref. [39]. Copyright 2022 ACS. (c) I-V curves of MoSe₂ nanoscroll device in dark and under 808 nm laser. (d) Responsivity and detectivity of MoSe₂ nanoscroll device versus laser power. Reproduced with permission from Ref. [21]. Copyright 2019 Wiley. (e) Responsivity and (f) detectivity of MoS₂ nanoscroll avalanche photodetector versus bias voltage. Adapted with permission from Ref. [15]. Copyright 2020 ACS. (g) Responsivity and EQE of WSe₂/MoS₂ nanoscroll under 532 nm laser. (h) On/off ratios of WSe₂/MoS₂ and MoS₂ nanoscroll devices versus light power. Reproduced with permission from Ref. [86]. Copyright 2019 Wiley.

Figure 27. Photodetectors based on TMDC Nanoscrolls. (a) Schematic of a MoS₂ nanoscroll photodetector. (b) PDRs comparison of MoS₂ nanosheet, MoS₂ NS-W, and MoS₂ NS-E photodetectors under 405 nm laser. Reproduced with permission from Ref. [39]. Copyright 2022 ACS. (c) I-V curves of MoSe₂ nanoscroll device in dark and under 808 nm laser. (d) Responsivity and detectivity of MoSe₂ nanoscroll device versus laser power. Reproduced with permission from Ref. [21]. Copyright 2019 Wiley. (e) Responsivity and (f) detectivity of MoS₂ nanoscroll avalanche photodetector versus bias voltage. Adapted with permission from Ref. [15]. Copyright 2020 ACS. (g) Responsivity and EQE of WSe₂/MoS₂ nanoscroll under 532 nm laser. (h) On/off ratios of WSe₂/MoS₂ and MoS₂ nanoscroll devices versus light power. Reproduced with permission from Ref. [86]. Copyright 2019 Wiley.

5.1.2. Photodetectors Based on TMDC Nanoscrolls Encapsulating with Photosensitive Nanomaterials

Owing to their atomically thin thickness, single-layer TMDC nanosheets absorb less than 10% of visible light [87]. Incorporating photosensitive materials such as nanoparticles, quantum dots, and organic dyes has been proposed as an effective strategy to enhance the light absorption of TMDC nanosheets. Therefore, encapsulating photosensitive nanomaterials within TMDC nanoscrolls is also considered a promising approach to further improve optoelectronic performance.

In 2021, Yue et al. reported the encapsulation of silver (Ag) nanoparticles (NPs) within MoS₂ and WS₂ nanoscrolls to improve the photoresponse [74]. MoS₂ and WS₂ nanosheets were first grown on a SiO₂/Si substrate by CVD; then, a silver nitrate (AgNO₃) solution was spin-coated onto them to obtain Ag-nanoparticle-decorated MoS₂ and WS₂ nanosheets (referred to as MoS₂-Ag and WS₂-Ag nanosheets). By dropping alkaline solution onto the MoS₂-Ag and WS₂-Ag nanosheets at 60 °C, MoS₂-Ag and WS₂-Ag nanoscrolls were obtained [74]. Under blue light (405 nm) irradiation, the PDR of the MoS₂-Ag nanoscroll was significantly improved compared with that of a MoS₂ nanosheet (Figure 28a). Due to the encapsulation of Ag NPs, the PDR of MoS₂-Ag nanoscroll was approximately twice that of a MoS₂ nanoscroll. When Ag NPs were encapsulated in the nanoscroll, incident light scattering and near-field oscillations of conducting electrons were enhanced by the increased local electrical field and light absorption induced by the Ag NPs [74]. In addition, the multilayer structure of the nanoscroll further increased the light absorption cross-section. Moreover, the MoS₂ layers of the nanoscroll could accept electrons from the Ag NPs decorating both sides, further increasing the photocurrent. Consequently, the MoS₂-Ag and WS₂-Ag nanoscrolls exhibited much higher PDRs than the MoS₂ and WS₂ nanosheets, as well as the MoS₂ and WS₂ nanoscrolls (Figure 28b).

Su et al. prepared a BaTiO₃/MoS₂ nanoscroll by wrapping BaTiO₃ nanoparticles into a MoS₂ nanoscroll using NaHCO₃ solution at 60 °C [42]. Under illumination from a 470 nm laser with a power density of 0.58 mW/cm², the photoresponsivity of the BaTiO₃/MoS₂ nanoscrolls was 73.9 A/W—much higher than those of a MoS₂ nanoscroll and a MoS₂ nanosheet (Figure 28c,d). After CdSe-ZnS core–shell quantum dots (QDs) were deposited onto a CVD-grown monolayer WS₂ nanosheet by spin-coating, Ghosh et al. prepared a QD/WS₂ hybrid nanoscroll using volatile acetone solvent [69]. A p-n like junction formed between the QDs and the WS₂ layer in the QD/WS₂ nanoscroll, enabling effective separation of photogenerated carriers. Meanwhile, recombination of electron-hole pairs was suppressed. Consequently, the separation of electron–hole pairs was accelerated, generating an ultrahigh photocurrent. As a result, the photoresponsivity, photo gain, and detectivity were greatly enhanced to 1.67 × 10⁴ A/W, 3.9 × 10⁴, and 1.5 × 10¹² Jones (Figure 28e,f), respectively—the highest values among NS-based devices at that time.

In 2022, Wu et al. immersed CVD-grown monolayer MoS₂ nanosheets in a PbI₂/DMF solution to obtain PbI₂/MoS₂ nanosheets. Subsequently, PbI₂/MoS₂ nanoscrolls were successfully prepared by dropping a mixed solution of ammonia and isopropanol onto the PbI₂/MoS₂ nanosheets at 80 °C [88]. Multiple type-II heterojunction interfaces formed between the PbI₂ and MoS₂ layer, which promoted the generation and separation of photogenerated carriers, thereby greatly improving the optoelectronic performance of the PbI₂/MoS₂ nanoscroll (Figure 28g). Under 405 nm, 532 nm, and 633 nm lasers, the PDRs of the PbI₂/MoS₂ nanoscroll were 48,185, 3670, and 25,662, respectively, which were three orders of magnitude higher than those of a MoS₂ nanosheet. Compared with a MoS₂ nanoscroll, the PDR of the PbI₂/MoS₂ nanoscroll was also increased by two orders of magnitude. Under 532 nm laser, the PDRs of the PbI₂/MoS₂ nanoscroll were substantially higher than those of a MoS₂ nanoscroll across various light power densities (Figure 28h).

As a photoactive organic dye, rhodamine (R6G) has been widely used to enhance the photoresponsivity and detectivity of optoelectronic devices [89,90]. In 2024, Ye et al. encapsulated R6G within MoS₂ (R6G/MoS₂) nanoscrolls to enhance light absorption and photoresponse. In the resulting R6G/MoS₂ nanoscrolls, multiple type-II heterojunction interfaces played a crucial role in facilitating photogenerated carriers and the subsequent separation of electron–hole pairs (Figure 28i). The separated electrons were transported rapidly along the nanoscroll axis. Under a 405 nm laser, the photoresponsivity of the R6G/MoS₂ nanoscrolls was four orders of magnitude higher than that of a single-layer MoS₂ nanosheet [91] (Figure 28j,k). The R6G/MoS₂ nanoscrolls maintained good optoelectronic performance even after 6 months, whereas the photoresponsivity of R6G/MoS₂ nanosheets decreased significantly. This clearly indicates that the nanoscroll structure can effectively protect R6G from degradation under ambient conditions, thereby maintaining its excellent optoelectronic performance.

Figure 28. Photodetectors based on TMDC Nanoscrolls encapsulating photoactive nanomaterials. (a) Schematic diagram of MoS₂-Ag NS. (b) PDR curves of a MoS₂-Ag NS, a MoS₂ NS, a MoS₂-Ag nanosheet, and a MoS₂ nanosheet as a function of laser power density under 405 nm laser illumination. Reproduced with permission from Ref. [74]. Copyright 2021 ACS. (c) Histogram of the responsivity and (d) photocurrent curves of a MoS₂ nanosheet, a BaTiO₃-MoS₂ nanoscroll, and a MoS₂ nanoscroll as a function of light power density. Reproduced with permission from Ref. [42]. Copyright 2023 ACS. (e) Responsivity and photoconductive gain, and (f) detectivity of a QD/WS₂ nanoscroll as a function of light power density. Reproduced with permission from Ref. [69]. Copyright 2020 Wiley. (g) Schematic diagram of a PbI₂-MoS₂ nanoscroll. (h) PDR curves of a PbI₂/MoS₂ nanoscroll and a MoS₂ nanoscroll as a function of laser power density. Reproduced with permission from Ref. [88]. Copyright 2022 ACS. (i) Schematic diagram of an R6G/MoS₂ nanoscroll. Responsivity of a MoS₂ nanoscroll and an R6G/MoS₂ nanoscroll as a function of laser power density under (j) 405 nm and (k) 532 nm laser illumination. Reproduced from Ref. [91].

Figure 28. Photodetectors based on TMDC Nanoscrolls encapsulating photoactive nanomaterials. (a) Schematic diagram of MoS₂-Ag NS. (b) PDR curves of a MoS₂-Ag NS, a MoS₂ NS, a MoS₂-Ag nanosheet, and a MoS₂ nanosheet as a function of laser power density under 405 nm laser illumination. Reproduced with permission from Ref. [74]. Copyright 2021 ACS. (c) Histogram of the responsivity and (d) photocurrent curves of a MoS₂ nanosheet, a BaTiO₃-MoS₂ nanoscroll, and a MoS₂ nanoscroll as a function of light power density. Reproduced with permission from Ref. [42]. Copyright 2023 ACS. (e) Responsivity and photoconductive gain, and (f) detectivity of a QD/WS₂ nanoscroll as a function of light power density. Reproduced with permission from Ref. [69]. Copyright 2020 Wiley. (g) Schematic diagram of a PbI₂-MoS₂ nanoscroll. (h) PDR curves of a PbI₂/MoS₂ nanoscroll and a MoS₂ nanoscroll as a function of laser power density. Reproduced with permission from Ref. [88]. Copyright 2022 ACS. (i) Schematic diagram of an R6G/MoS₂ nanoscroll. Responsivity of a MoS₂ nanoscroll and an R6G/MoS₂ nanoscroll as a function of laser power density under (j) 405 nm and (k) 532 nm laser illumination. Reproduced from Ref. [91].

Table 3. Performance of TMDC Nanoscroll Photodetectors Wrapped with Functional Materials.

TMDC Nanoscrolls	Functional Materials	Performance Improvement
Organic material-wrapped	R6G (rhodamine)	At 405 nm: responsivity (R), EQE, and detectivity (D*) are four orders of magnitude higher than monolayer TMDC
Inorganic material-wrapped	CQDs (carbon quantum dots)	Under 300 nm: photocurrent increased by 20.7 times; R increased by 830 times (up to 1793 A/W); specific detectivity (D*) increased by 268 times; EQE increased by 830 times; under 400 nm: photocurrent increased by 10.7 times
	BaTiO3	Photoresponsivity (73.9 A/W) significantly higher than pure MoS2 nanoscroll (1.1 A/W) and 2D MoS2 nanosheet (1.5 A/W)
	PbI2	PDR improved by two orders of magnitude vs. pure MoS2 nanosheets and nanoscrolls. Under 405 nm: PDR is 91 times that of MoS2 nanoscroll
	Ag+	PDR increased up to 530 times compared with monolayer TMDC nanosheet (under 633 nm laser)
	WS2/MoS2 heterojunction	PDR increased by 15 times; shorter response and recovery time
	WSe2 homojunction	Excellent performance under zero bias: on/off ratio = 1.5 × 103; detectivity = 3.24 × 109 Jones

summarizes the impact of various encapsulated nanomaterials on the performance of TMDC nanoscrolls.

5.1.3. Polarization Sensitive Photodetector

Ao et al. investigated the photoresponse of a WSe₂ nanoscroll transformed from a bilayer WSe₂ nanosheet (Figure 29a,b) [19]. The photocurrent of the WSe₂ nanoscroll was sensitive to the polarization direction of the incident light, in contrast to that of the WSe₂ nanosheet. The WSe₂ nanoscroll exhibited maximal and minimal photocurrents when the polarization direction was parallel and perpendicular to the nanoscroll axis (Figure 29c–e), respectively. In contrast, the photocurrent of the bilayer WSe₂ nanosheet did not exhibit any periodic change as the polarization direction varied (Figure 29f–h). Under 808 nm laser illumination, the anisotropy photocurrent ratio of the WSe₂ nanoscroll reached 1.5 (Figure 29e), demonstrating the potential of TMDC nanoscrolls as polarization-sensitive photodetectors. Lan et al. found that the photodetector based on a bilayer WSe₂ nanoscroll exhibited an excellent response in the spectral range of 365–830 nm. It exhibited a rise time of 27.1 ms, a fall time of 28 ms, an on-off ratio as high as 5.3 × 10³, an ultralow dark current of 5 × 10⁻¹⁴ A, and a detectivity of 2.63 × 10⁹ Jones (Figure 29i–k). The aforementioned excellent optoelectronic performance is attributed to the increased carrier concentration in the bilayer nanoscroll, the strain-enhanced light-matter interaction, multiple light reflections in the nanoscroll microcavities, and the accelerated charge-carrier mobility along the 1D nanoscroll axis [92].

In 2024, Zhang et al. reported a high-performance, self-powered, polarization-sensitive photodetector based on a 1D WSe₂ nanoscroll/2D WSe₂ nanosheet (1D/2D WSe₂) homojunction [77]. By precisely controlling the volume ratio of ethanol to water, a WSe₂ nanosheet was partially rolled up to form a 1D/2D WSe₂ homojunction structure in the ethanol/water solution (Figure 30a). The as-fabricated device exhibited excellent self-powered optoelectronic performance, including a photoresponse across a wide spectral range of 405–808 nm, an on/off ratio of 1.5 × 10³, and a detectivity of 3.24 × 10⁹ Jones (Figure 30b). This performance was attributed to the ultralow dark current at zero bias voltage. The 1D/2D WSe₂ homojunction also showed a polarization-dependent photoresponse. As the polarization angle of the incident light varied, maximal photocurrent values were observed at 0° and 180°, whereas minimal values were observed at 90° and 270° under both 638 and 808 nm laser illumination (Figure 30c). In addition, the homojunction exhibited dichroic ratios of 2.02 and 1.96 under 638 and 808 nm laser illumination (Figure 30d), respectively, indicating strong polarization sensitivity. The 1D/2D WSe₂ homojunction also exhibited good imaging capability under polarized light. As shown in Figure 30e, an imaging detection platform based on the homojunction presented a clear difference under light with polarization angles of 0° and 90°, indicating its excellent multispectral and polarization-sensitive imaging capabilities.

5.2. Miniaturized Memory

Using an improved volatile organic solvent evaporation-induced curling method, Qiao et al. prepared MoS₂ nanoscrolls with high yield and good axial uniformity (Figure 31a) [35]. A field-effect transistor was then fabricated using the as-prepared MoS₂ nanoscroll as the channel material. Owing to ethanol molecules trapped between adjacent layers, the nanoscroll transistor exhibited a large hysteresis during cyclic gate voltage (V_g) scanning, and the on/off ratio was significantly reduced (Figure 31b). The width of the hysteresis window increased with the scanning amplitude of V_g and remained highly repeatable after multiple scanning cycles. The maximum window width reached 131 V when V_g was scanned from −120 V to 120 V.

To demonstrate the memory functionality, a series of V_g pulses with a width of 1 s were applied to program the conductance states of the MoS₂ nanoscroll-based FET (Figure 31c). The MoS₂ nanoscroll was capacitively charged when a V_g pulse of 100 V was applied (marked as “I” in Figure 31c). In this case, some electrons were driven into trap states, corresponding to the Erase process (marked as “E” in Figure 31c). The MoS₂ nanoscroll was modulated to a high-resistance state when a V_g pulse of 0 V was applied (marked as “II” in Figure 31c), releasing the capacitive charge and corresponding to the Read process (marked as “R” in Figure 31c). The electrons were further depleted in the channel when a V_g pulse of −100 V was applied (marked as “III” in Figure 31c), corresponding to the Write process (marked by “W” in Figure 31c). Thus, the complete “Erase-Read-Write-Read” sequence was demonstrated, enabling multi-level memory storage. The MoS₂ nanoscroll still exhibited an on/off ratio of approximately 10 even after a retention time of 1000 s, indicating the stability of the resistance state. In the charge-accumulation state, the curved surface of the MoS₂ nanoscroll could generate a strong radial electric field, which facilitated charge trapping into the surrounding ethanol filler (which has a high dielectric constant), thereby enabling efficient local charge storage. Owing to the small volume of the 1D MoS₂ nanoscroll, high-speed writing and erasing operations can be realized by precisely modulating a tiny number of charges, enabling miniaturized memory.

5.3. Electrocatalytic Hydrogen Evolution Reaction

The hydrogen evolution reaction plays an important role in the fields of energy, environmental, and chemical engineering. Transforming 2D TMDC nanosheets into 1D TMDC nanoscrolls exposes more active sites at the curled edges, thereby enhancing electrocatalytic performance [52,93]. In a TMDC nanoscroll, the potential barrier between adjacent layers is lower than that in a TMDC nanosheet, owing to increased interlayer coupling. Consequently, electrons can be easily transported from the glassy carbon electrode to the active sites, resulting in excellent HER performance. Jiang et al. prepared bilayer MoS₂ nanoscrolls by immersing bilayer MoS₂ nanosheets on a SiO₂/Si substrate in hot KOH solution. The as-prepared MoS₂ nanoscroll exhibited an overpotential of −153 mV at −10 mA·cm⁻², and a Tafel slope of 73 mV/dec (Figure 32a,b) [93]. In contrast, the overpotential and Tafel slope of the bilayer MoS₂ nanosheet were −343 mV and 91 mV/dec, respectively. Thus, the bilayer MoS₂ nanoscroll exhibited much better HER catalytic performance than the bilayer MoS₂ nanosheet.

Ghosh et al. found that WS₂/MoS₂ heterojunction nanoscrolls not only improved photogenerated carrier generation efficiency but also enhanced electrocatalytic efficiency [32]. Electrochemical impedance spectroscopy measurements indicated that the WS₂/MoS₂ heterojunction nanoscroll had a much lower charge-transfer resistance (616 Ω) than those of the MoS₂ nanoscroll (2500 Ω) and the WS₂ nanoscroll (3150 Ω) (Figure 32c), implying enhanced HER performance of the heterojunction nanoscroll. At a current density of 2 mA·cm⁻², the overpotential of heterojunction nanoscroll was 50 mV, and the Tafel slope was 111 mV·dec⁻¹ (Figure 32d). Moreover, the WS₂/MoS₂ heterojunction nanoscroll exhibited good electrochemical stability even after 72 h.

Janardhanan et al. synthesized MoS₂ nanosheets using a hydrothermal method [14]. After a phenothiazine-based dye (PT) was adsorbed on the MoS₂ nanosheets, MoS₂/PT nanoscrolls were obtained through a self-assembly process facilitated by non-covalent interactions between the MoS₂ nanosheets and PT. The number of active edge sites on MoS₂ exposed to the electrode increased because of PT adsorption, thereby enhancing HER performance. The MoS₂ nanosheet exhibited an overpotential of 432 mV and a Tafel slope of 184 mV·dec⁻¹. In contrast, the MoS₂/PT nanoscroll exhibited an overpotential of 343 mV and a Tafel slope of 141 mV·dec⁻¹ [14].

Liu et al. added ammonium tetrathiomolybdate into the supernatant of Ti₃C₂T_x and mixed them homogeneously by ultrasonication [94]. The mixed solution was then immersed in liquid nitrogen and subsequently annealed to prepare MoS₂/Ti₃C₂T_X nanoscrolls. The as-prepared MoS₂/Ti₃C₂T_X hybrid nanoscrolls exhibited an overpotential of 152 mV at a current density of 10 mA·cm⁻² and a Tafel slope of 70 mV·dec⁻¹ (Figure 32e,f). Compared with a single-layer MoS₂ nanosheet, the exchange current density of the MoS₂/Ti₃C₂T_X hybrid nanoscroll increased more than 25-fold [94].

The crystalline phase of TMDC nanoscrolls also affects HER performance. Wang et al. prepared metallic-phase WSe₂ (M-WSe₂) nanoscrolls using Li-intercalation exfoliation in combination with a spontaneously curling process. Compared with 2H-WSe₂ nanoscrolls prepared by a thermal annealing method, the electrocatalytic performance of M-WSe₂ nanoscrolls was greatly improved. At a current density of 10 mA·cm⁻², the M-WSe₂ nanoscrolls had an overpotential of 282 mV, whereas that of the 2H-WSe₂ nanoscrolls was 401 mV (Figure 32g). The Tafel slopes of M-WSe₂ and 2H-WSe₂ nanoscrolls were 82.3 and 147.7 mV·dec⁻¹ (Figure 32h), respectively, indicating the good electrocatalytic performance of the M-WSe₂ nanoscrolls. In addition, the M-WSe₂ nanoscrolls exhibited low resistance and good stability [95]. Similarly, Hwang et al. demonstrated that MoS₂@Pt nanoscrolls with mixed 1T/2H phases exhibited excellent catalytic activity [55]. They found that a MoS₂ nanosheet showed a high Tafel slope of 167 mV·dec⁻¹. In contrast, the Tafel slope of 1T/2H-MoS₂@Pt nanoscrolls decreased significantly to 39 mV·dec⁻¹, indicating the important role of the crystalline phase in enhancing electrocatalytic performance.

5.4. Gas Sensor

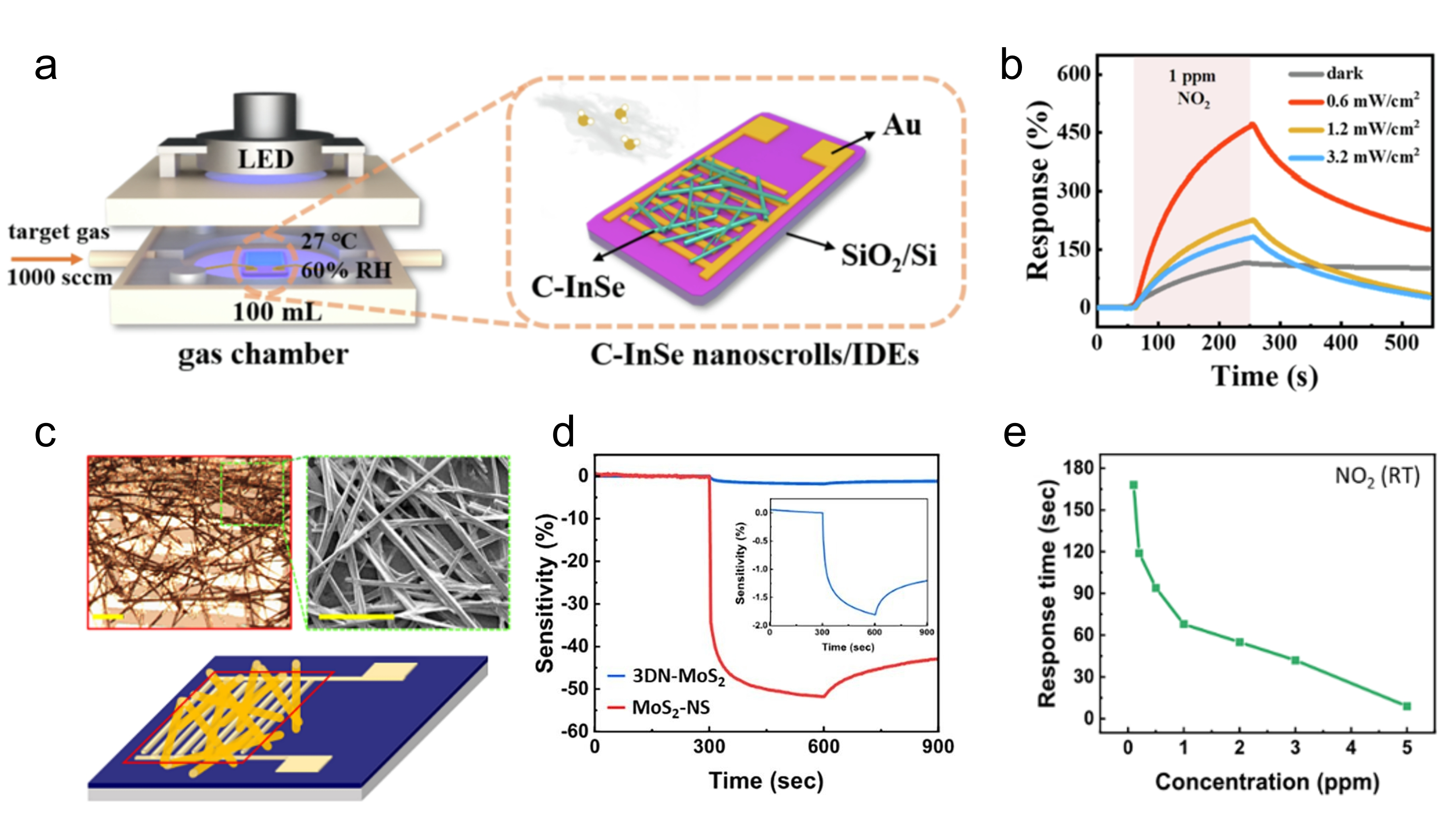

Compared with 2D TMDC nanosheets, 1D TMDC nanoscrolls possess multiple inner and outer surfaces, which form double depletion regions for gas absorption and desorption, leading to an improved change in resistance. Therefore, TMDC nanoscrolls are considered to exhibit better gas-sensing performance than TMDC nanosheets. Zhang et al. prepared a gas sensor based on carbon/oxygen functional-group-modified InSe (C-InSe) nanoscrolls (Figure 33a) [61]. InSe nanosheets were exfoliated by electrochemical intercalation and ultrasonication. After scrolling the InSe nanosheets by solvent evaporation at 80 °C under vacuum, the samples were heated at 300 °C for 2 h to obtain C-InSe nanoscrolls. Benefiting from the unique loosely scrolled structure and excellent optoelectronic properties, the C-InSe nanoscrolls exhibited response and recovery times twice as fast as those of C-InSe nanosheets. Under visible light illumination, the C-InSe nanoscrolls exhibited a response intensity of 381% per ppm NO₂ (Figure 33b), a recovery time of 200 s, a detection limit as low as 0.43 ppb, good selectivity, repeatability, and long-term stability. The excellent gas-sensing performance of C-InSe nanoscrolls can be explained as follows. First, the tubular structure of the nanoscroll increases the specific surface area and provides more active sites for gas absorption and desorption. Second, internal reflection of light within the nanoscroll cavity enhances light absorption and increases the carrier concentration. Third, the carbon/oxygen functional groups of the nanoscroll enhance the binding energy of NO₂ through chemical interactions and simultaneously accelerate desorption. Therefore, TMDC nanoscrolls provide a new strategy for constructing gas-sensing platforms with high stability and low power consumption.

Park et al. rolled up the three-dimensionally nanostructured MoS₂ (3DN-MoS₂) film by dropping ethanol solution [30]. The as-prepared 3DN-MoS₂ nanoscrolls (3DN-MoS₂ NS) were used as sensitive channel materials for a gas sensor to detect NO₂ (Figure 33c). Owing to the increased surface area and exposed active edges, the 3DN-MoS₂ NS exhibited enhanced gas-sensing performance compared with the 3DN-MoS₂ film. As an oxidizing gas, NO₂ acts as an electron acceptor. Both the 3DN-MoS₂ film and the 3DN-MoS₂ NS sensors exhibited decreased resistance because of their p-type character, indicating negative sensitivity (Figure 33d). Under 5 ppm NO₂, the sensitivities of the 3DN-MoS₂ NS and the 3DN-MoS₂ film were 51% and 1.8%, respectively, indicating a 28-fold enhancement in sensitivity for the nanoscroll. As the concentration of NO₂ increased from 100 ppb to 5 ppm at room temperature, the response time of the 3DN-MoS₂ NS decreased from 168 s to 9 s (Figure 33e), implying that a low concentration of NO₂ leads to a decreased gas diffusion rate in the interlayer spaces of the nanoscroll and a delayed response time [30].

5.5. Surface-Enhanced Raman Scattering

When molecules are positioned close to the surface of gold or silver nanostructures, their Raman scattering signals are greatly enhanced. This phenomenon is known as surface-enhanced Raman scattering (SERS) [96]. Owing to their atomic thickness and high surface activity, TMDCs are often explored in the field of SERS. However, the SERS performance of monolayer MoS₂ is limited owing to weak charge transfer, rapid charge recombination, and low conductivity [97].

Encapsulating Ag and Au nanoparticles (NPs) into MoS₂ nanoscrolls enables a large SERS enhancement. When Ag and Au NPs are encapsulated into MoS₂ nanoscrolls to form MoS₂-Au and MoS₂-Ag nanoscrolls, the tensile strain induced by the curved scroll structure generates a local electric field accompanying surface plasmon excitation, resulting in enhanced SERS performance [56]. As shown in Figure 34a, the ${\mathrm{E}}_{2\mathrm{g}}^1$ peak of the MoS₂-Ag nanoscroll split into ${\mathrm{E}}_{{2\mathrm{g}}^{+}}^1$ and ${\mathrm{E}}_{{2\mathrm{g}}^{-}}^1$ peaks, which have also been reported in MoS₂ nanosheets under tensile strain [98]. Thus, the appearance of the two new peaks, ${\mathrm{E}}_{{2\mathrm{g}}^{+}}^1$ and ${\mathrm{E}}_{{2\mathrm{g}}^{-}}^1$, arises from the uniaxial strain induced in the MoS₂-Ag nanoscroll. Furthermore, an in-plane ${\mathrm{E}}_{1\mathrm{g}}$ peak was observed at 274 cm⁻¹, which is Raman inactive both for MoS₂-Ag nanosheets and MoS₂ nanoscrolls. When a molecule is positioned close to a Ag NP, the electronic interaction between the molecule’s orbitals and the NP’s conduction band activates a new charge-transfer resonance, which couples to the vibrational state of the molecule. Consequently, the vibrational motion and electron density within the molecule are redistributed, creating a localized surface plasmon resonance and improving SERS performance [56,96]. As shown in Figure 34b, the intensity ratios of ${\mathrm{E}}_{{2\mathrm{g}}^{+}}^1$/Si and ${\mathrm{E}}_{{2\mathrm{g}}^{-}}^1$/Si for MoS₂-Ag nanoscroll were 7.69 and 9.71, respectively, which were much higher than the intensity ratio of ${\mathrm{E}}_{2\mathrm{g}}^1$/Si for a MoS₂ nanosheet (~1.2). Furthermore, the intensity ratio of ${\mathrm{A}}_{1\mathrm{g}}$/Si for the MoS₂-Ag nanoscroll was approximately 24.3, roughly 7 times higher than that of a MoS₂ nanosheet. The enhanced Raman peaks of the MoS₂-Ag nanoscroll are attributed to the tensile strain arising from bending of the MoS₂ layer caused by the encapsulated Ag NPs (Figure 34c). Moreover, the SERS enhancement factor was calculated to be as high as 1.22 × 10⁵.

5.6. Bragg Reflector

When multiple layers with different refractive indices are periodically stacked, they form a Bragg reflector. When such a Bragg reflector is irradiated with incident light, multiple interferences are observed. Under 532 nm irradiation, the refractive indices of MoS₂ and poly (methyl methacrylate) (PMMA) are 4.43 and 1.49, respectively. When MoS₂ and PMMA layers are alternatively stacked to form a planar structure (Figure 35a), a Bragg reflector is constructed, which can enhance the light-coupling efficiency of 2D TMDCs [99]. The planar MoS₂/PMMA stack appears brown under white illumination and exhibits red reflection when tilted by 30°, which arises from Bragg diffraction (Figure 35b) [16]. A monolayer MoS₂ exhibits PL peaks at 603 and 651 nm. In contrast, the planar MoS₂/PMMA stack exhibits a Bragg wavelength (λ_B) at 636.7 nm. A monolayer MoS₂ on a 226 nm-thick PMMA film was scrolled using a transverse shear method to obtain a scroll fiber with a diameter of approximately 81 µm (Figure 35c,f). The MoS₂/PMMA scroll fiber exhibited red reflection with a λ_B of 629.1 nm under white illumination (Figure 35d). The λ_B significantly red-shifted to 697.8 nm after the MoS₂/PMMA scroll fiber was annealed at 160 °C (Figure 35e), a temperature higher than the glass transition temperature of PMMA (100–120 °C). The redshift of λ_B can be explained as follows. Unlike the planar MoS₂/PMMA stack, wrinkles inevitably formed on the PMMA layers during the transverse shear scrolling process. The wrinkles in the PMMA layers could be stretched above the glass transition temperature, and air gaps formed between the MoS₂/PMMA layers after cooling to room temperature (Figure 35g).

5.7. Synapse

By mimicking the function of biological neural synapses, the optoelectronic synapse plays a key role in advancing neuromorphic and brain-inspired computing [100,101,102,103], serving as the core component of artificial visual perception systems. Such a device can not only sense and process optical signals but also mimic the information perception, processing, and memory of a neuromorphic system through electrical signals. Li et al. developed a polarization-sensitive optoelectronic synapse based on a graphene/MoS₂ heterojunction field-effect transistor (FET) with a scrolled tubular structure [104] (Figure 36a). The presence of graphene greatly enhanced the carrier mobility of the device. Owing to its broad light absorption range spanning from UV to visible spectra, MoS₂ exhibits sustained photoconductivity, making it suitable for emulating a wide range of neural synaptic functions. The resulting graphene/MoS₂ scroll structure, with its multiple heterojunction interfaces, further enhances light absorption and polarization sensitivity. Numerous defects exist at the graphene/MoS₂ heterojunction interfaces and on the MoS₂ surface, which can trap photogenerated carriers for a finite period, leading to a long recovery time (Figure 36b). Consequently, the relaxation of photocurrent can be used to emulate the postsynaptic current (PSC) in biological synapses. When the FET device based on the graphene/MoS₂ heterojunction scroll was excited again by a light pulse while some photogenerated carriers remained trapped by the defects, a longer recovery time was observed (Figure 36c), which can be used to emulate synaptic plasticity in a biological system. Using two consecutive light pulses under 660 nm illumination with a pulse width of 5 s and an interval of 1 s, the amplitude of the second photocurrent (A2) was higher than that of the first photocurrent (A1) (Figure 36c). The human brain exhibits two forms of synaptic plasticity, which are considered the fundamental mechanisms underlying learning and memory. Information encoded by short-term potentiation (STP) is readily forgotten because STP is associated with transient neural responses. In contrast, external information can be stored for extended periods through long-term potentiation (LTP) via repeated rehearsal. Under repetitive light pulses at various frequencies, the graphene/MoS₂ heterojunction scroll can also emulate short-term depression (STD), long-term depression (LTD), and the STD-LTD transition (Figure 36d,e).

This section presents the broad application prospects of TMDC nanoscrolls in photodetectors, miniaturized memory, electrocatalytic hydrogen evolution reaction, gas sensing, surface-enhanced Raman scattering, Bragg reflectors, and synaptic devices. The unique performance of TMDC nanoscrolls in these applications stems from their distinctive geometric structure, strain effects, and interlayer coupling.

The rolled structure of TMDC nanoscrolls enhances light–matter interaction, and scrolling induces strain-tunable bandgaps, greatly improving the photodetection responsivity (PDR) and detectivity. For example, QD/WS₂ nanoscrolls achieve a responsivity of 1.67 × 10⁴ A/W, substantially higher than that of planar QD/WS₂ nanosheets. The PDR of MoS₂ nanoscrolls is two orders of magnitude higher than that of MoS₂ nanosheets. Moreover, WSe₂ nanoscrolls exhibit strong polarization-sensitive properties with an anisotropy ratio of 1.5–2.0. Self-powered polarization imaging has been realized using a 1D-WSe₂ nanoscroll/2D-WSe₂ nanosheet homojunction, a capability unattainable with WSe₂ nanosheets alone. The edges of TMDC nanoscrolls provide abundant active sites, and the reduced interlayer barrier facilitates electron transport, lowering the hydrogen evolution overpotential of MoS₂ nanoscrolls from −343 mV to −153 mV. Notably, MoS₂ nanoscrolls with mixed 1T/2H phases or WS₂/MoS₂ heterojunction nanoscrolls further enhance catalytic efficiency. The inner and outer surfaces of a nanoscroll form a double depletion layer, and the carrier concentration increases under illumination, enabling a C-InSe nanoscroll to achieve an ultra-low detection limit of 0.43 ppb for NO₂. The defect trapping effect in curled graphene/MoS₂ heterojunctions accurately mimics short-term and long-term plasticity, providing new hardware support for neuromorphic computing.

Despite their excellent performance, current research remains largely at the proof-of-concept stage, with few studies successfully integrating nanoscrolls into practical systems. The core obstacle lies in the large-scale preparation of TMDC nanoscrolls with high yield, low cost, and ease of operation.

6. Conclusions

Over the past decade, transition metal dichalcogenide nanoscrolls (TMDC nanoscrolls) have attracted much attention and become a focus of intense research, owing to their fascinating and distinctive 1D architecture. By transforming flat 2D nanosheets into spiraled 1D structures with a hollow core, TMDC nanoscrolls not only inherit the intrinsic electronic, optical, and catalytic properties of the parent 2D materials, but also possess geometric advantages of 1D rolled structure. Compared with flat TMDC nanosheets and conventional nanotubes, TMDC nanoscrolls exhibit unique features rarely found together in a single nanomaterial. First, the spiral morphology yields a massively enhanced accessible surface area. The outer wall, the inner core wall, and the interlayer spacings between successive turns all become available for interaction. Second, exceptionally high density of catalytically active edge sites is exposed along the entire scroll, which is superior to the hydrogen evolution reaction (HER). Third, the curvature of scroll wall can be precisely tuned by changing interlayer spacing, enabling continuous modulation of the bandgap, excitonic behavior, and catalytic adsorption energies. Finally, the hollow core and the open interlayer spacings form continuous nanochannels along the scroll axis, facilitating rapid longitudinal mass transport of ions, molecules, and gases, which can overcome the diffusion bottlenecks of stacked 2D materials. This review systematically discusses the preparation, properties, and applications of TMDC nanoscrolls. Regarding preparation, we present a critical cross-method comparison with quantitative assessments of scalability, cost, and yield. We also provide a systematic investigation of the properties of TMDC nanoscrolls, including SHG, CD, ultra-low-frequency Raman, magnetoresistance, and others. Quantitative benchmarking tables are summarized to expand the application landscape to include memory, SERS, Bragg reflectors, and synapses. These features collectively distinguish our review from previous efforts. A graphical roadmap summarizing the preparation, properties, and applications of TMDC nanoscrolls is shown in Figure 37.

Despite these compelling attributes, the path to practical application of TMDC nanoscrolls is obstructed by some challenges. First, the scalable and controlled synthesis of TMDC nanoscrolls suffers from low yield and poor uniformity. Preparing gram-scale quantities of TMDC nanoscrolls with precisely defined dimensions and high purity is difficult to achieve. Key structural parameters of TMDC nanoscrolls, such as diameter, length, number of layers, pitch, and chirality, are hard to control efficiently. Second, nondestructive characterization of the complex three-dimensional structure of TMDC nanoscrolls is highly dependent on sophisticated techniques like aberration-corrected transmission electron microscopy. Third, long-term structural and operational stability is still unresolved under high applied potential in the oxidative environment during electrochemical cycling. Finally, integrating individual scrolls into large-area arrays for functional devices remains technically challenging.

Addressing these limitations will require coordinated advances across synthesis, characterization, and materials engineering. A deeper fundamental understanding must accompany these synthetic efforts. Advanced in situ and operando characterization tools (liquid-cell electron microscopy, electrochemical atomic force microscopy, operando Raman and X-ray absorption spectroscopy) will be essential to observe structural evolution, strain dynamics, and chemical transformations under realistic operating conditions. Multi-scale modeling, linking density functional theory (DFT) with molecular dynamics and continuum mechanics, can provide predictive relationships between scroll geometry and performance, guiding the rational design of optimized structures. Stability can be enhanced through protective coatings (ultrathin carbon, conductive polymers, atomic-layer-deposited oxides) that shield scrolls without blocking active sites, and through integration into robust three-dimensional frameworks such as graphene foams or carbon nanotube networks. Finally, device integration must advance from isolated demonstrations to engineered systems.

Transition metal dichalcogenide nanoscrolls stand at an exciting crossroads. Their unique combination of high accessible surface area, abundant edge sites, tunable strain and interlayer spacing, open mass-transport channels, and structural resilience offers a platform that surpasses both their 2D precursors and conventional 1D counterparts. Yet the journey from these intrinsic advantages to real-world impact is contingent upon overcoming the synthesis, stability, and integration hurdles that currently define the field. The coming decade will likely witness a convergence of scalable manufacturing, advanced in situ characterization, and predictive modeling, transforming TMDC nanoscrolls from a collection of proof-of-concept demonstrations into enabling components for sustainable energy systems, smart sensors, and next-generation quantum devices. Their evolution will serve as a testament to the enduring value of dimensional engineering in nanomaterials research.
