In this study, zinc-doped (
-Fe
O
:Zn), silver-doped (
-Fe
O
:Ag) and zinc/silver co-doped hematite (
-Fe
O

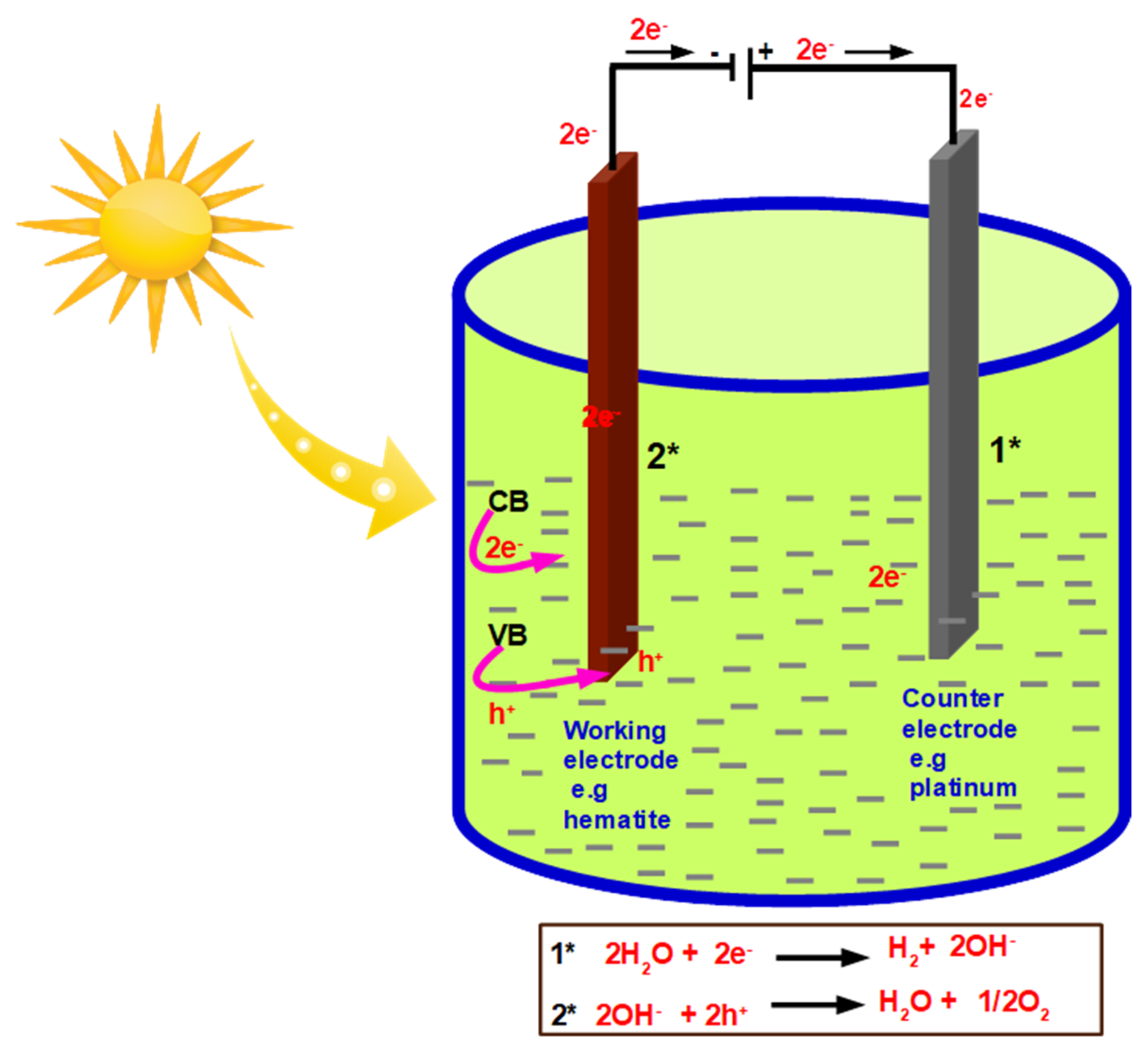

:Zn/Ag) nanostructures were synthesized by spray pyrolysis. The synthesized nanostructures were used as photoanodes in the photoelectrochemical (PEC) cell for water-splitting. A significant improvement in photocurrent density of 0.470 mAcm
at 1.23 V vs. reversible hydrogen electrode (RHE) was recorded for
-Fe
O
:Zn/Ag. The
-Fe
O
:Ag,
-Fe
O
:Zn and pristine hematite samples produced photocurrent densities of 0.270, 0.160, and 0.033 mAcm
, respectively. Mott–Schottky analysis showed that
-Fe
O
:Zn/Ag had the highest free carrier density of 8.75 × 10
cm
, while pristine
-Fe
O
,
-Fe
O
:Zn,
-Fe
O
:Ag had carrier densities of 1.57 × 10
, 5.63 × 10
, and 6.91 × 10
cm
, respectively. Electrochemical impedance spectra revealed a low impedance for
-Fe
O
:Zn/Ag. X-ray diffraction confirmed the rhombohedral corundum structure of hematite. Scanning electron microscopy micrographs, on the other hand, showed uniformly distributed grains with an average size of <30 nm. The films were absorbing in the visible region with an absorption onset ranging from 652 to 590 nm, corresponding to a bandgap range of 1.9 to 2.1 eV. Global analysis of ultrafast transient absorption spectroscopy data revealed four decay lifetimes, with a reduction in the electron-hole recombination rate of the doped samples on a timescale of tens of picoseconds.
View Full-Text
►▼
Show Figures
This is an open access article distributed under the
Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
