# Highly Sensitive Plasmonic Structures Utilizing a Silicon Dioxide Overlayer

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Theoretical Background

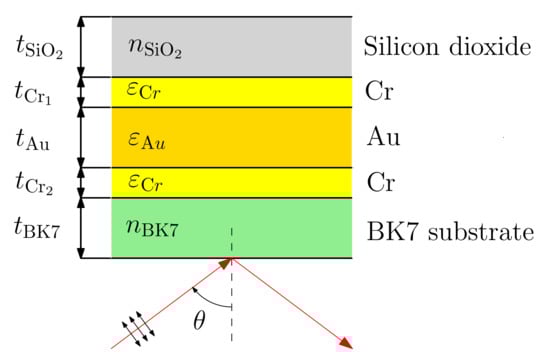

#### 2.1. Structure Design

#### 2.2. Transfer Matrix Method

#### 2.3. Material Parameters

#### 2.3.1. Substrate (BK7 Glass) and Silicon Dioxide (${\mathrm{SiO}}_{2}$)

#### 2.3.2. Gold Layer

#### 2.3.3. Adhesion Chromium Layers

## 3. Theoretical Analysis

## 4. Fabrication of Structures

## 5. Responses of Real Structures

## 6. Experimental Analysis

#### Experimental Results and Discussion

## 7. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Kretschmann, E.; Raether, H. Radiative decay of nonradiative surface plasmons excited by light. Z. Naturforschung A
**1968**, 23, 2135–2136. [Google Scholar] [CrossRef] - Raether, H. Surface Plasmons on Smooth and Rough Surfaces and on Gratings; Springer: New York, NY, USA, 1988. [Google Scholar]
- Homola, J.; Yee, S.; Gauglitz, G. Surface plasmon resonance sensors: Review. Sens. Actuators B Chem.
**1999**, 54, 3–15. [Google Scholar] [CrossRef] - Homola, J. Surface Plasmon Resonance Based Sensors; Springer: New York, NY, USA, 2006. [Google Scholar]
- Manuel, M.; Vidal, B.; Lopéz, R.; Alegret, S.; Alonso-Chamarro, J.; Garces, I.; Mateo, J. Determination of probable alcohol yield in musts by means of an SPR optical sensor. Sens. Actuators B Chem.
**1993**, 11, 455–459. [Google Scholar] [CrossRef] - Liedberg, B.; Nylander, C.; Lundström, I. Principles of biosensing with an extended coupling matrix and surface plasmon resonance. Sens. Actuators B Chem.
**1993**, 11, 63–72. [Google Scholar] [CrossRef] - Dostálek, J.; Vaisocherova, H.; Homola, J. Multichannel surface plasmon resonance biosensor with wavelength division multiplexing. Sens. Actuators B Chem.
**2005**, 108, 758–764. [Google Scholar] [CrossRef] - Gwon, H.R.; Lee, S.H. Spectral and angular responses of surface plasmon resonance based on the Kretschmann prism configuration. Mater. Trans.
**2010**, 51, 1150–1155. [Google Scholar] [CrossRef] - Shalabney, A.; Abdulhalim, I. Figure-of-merit enhancement of surface plasmon resonance sensors in the spectral interrogation. Opt. Lett.
**2012**, 37, 1175–1177. [Google Scholar] [CrossRef] - Urbancova, P.; Chylek, J.; Hlubina, P.; Pudis, D. Guided-Mode Resonance-Based Relative Humidity Sensing Employing a Planar Waveguide Structure. Sensors
**2020**, 20, 6788. [Google Scholar] [CrossRef] - Nikitin, P.; Beloglazov, A.; Kochergin, V.; Valeiko, M.; Ksenevich, T. Surface plasmon resonance interferometry for biological and chemical sensing. Sens. Actuators B Chem.
**1999**, 54, 43–50. [Google Scholar] [CrossRef] - Hlubina, P.; Ciprian, D. Spectral phase shift of surface plasmon resonance in the Kretschmann configuration: Theory and experiment. Plasmonics
**2017**, 12, 1071–1078. [Google Scholar] [CrossRef] - Lahav, A.; Shalabaney, A.; Abdulhalim, I. Surface plasmon sensor with enhanced sensitivity using top nano dielectric layer. J. Nanophotonics
**2009**, 3, 031501. [Google Scholar] [CrossRef] - Wang, H.; Zhang, H.; Dong, J.; Hu, S.; Zhu, W.; Qiu, W.; Lu, H.; Yu, J.; Guan, H.; Gao, S.; et al. Sensitivity-enhanced surface plasmon resonance sensor utilizing a tungsten disulfide (WS
_{2}) nanosheets overlayer. Photonics Res.**2018**, 6, 485–491. [Google Scholar] [CrossRef] - Maurya, J.B.; Prajapati, Y.K.; Singh, V.; Saini, J.P.; Tripathi, R. Performance of graphene–MoS
_{2}based surface plasmon resonance sensor using Silicon layer. Opt. Quant. Electron.**2015**, 47, 3599–3611. [Google Scholar] [CrossRef] - Szunerits, S.; Shalabney, A.; Boukherroub, R.; Abdulhalim, I. Dielectric coated plasmonic interfaces: Their interest for sensitive sensing of analyte-ligand interactions. Rev. Anal. Chem.
**2012**, 31, 15–28. [Google Scholar] [CrossRef] - Mishra, A.K.; Mishra, S.K.; Verma, R.K. An SPR-based sensor with an extremely large dynamic range of refractive index measurements in the visible region. J. Phys. D Appl. Phys.
**2015**, 48, 435502. [Google Scholar] [CrossRef] - Sharma, A.K. Analyzing the application of silicon–silver–2D nanomaterial–Al
_{2}O_{3}heterojunction in plasmonic sensor and its performance evaluation. Opt. Commun.**2018**, 410, 75–82. [Google Scholar] [CrossRef] - Samdani, S.; Kala, A.; Kaurav, R.; Kaladharan, S.; Achanta, V.G. Reusable Biosensor Based on Differential Phase Detection at the Point of Darkness. Adv. Photonics Res.
**2021**, 2, 2000147. [Google Scholar] [CrossRef] - Mahajna, S.; Neumann, M.; Eyal, O.; Shalabney, A. Plasmon-Waveguide Resonances with Enhanced Figure of Merit and Their Potential for Anisotropic Biosensing in the Near Infrared Region. J. Sens.
**2016**, 2016, 898315. [Google Scholar] [CrossRef] - Nesterenko, D.V.; Hayashi, S.; Sekkat, Z. Extremely narrow resonances, giant sensitivity and field enhancement in low-loss waveguide sensors. J. Opt.
**2016**, 18, 065004. [Google Scholar] [CrossRef] - Kabashin, A.; Evans, P.; Pastkovsky, S.; Hendren, W.; Wurtz, G.A.; Atkinson, R.; Pollard, R.; Podolskiy, V.A.; Zayats, A.V. Plasmonic nanorod metamaterials for biosensing. Nat. Mater.
**2009**, 8, 867–871. [Google Scholar] [CrossRef] - Cetin, A.E.; Etezadi, D.; Galarreta, B.C.; Busson, M.P.; Eksioglu, Y.; Altug, H. Plasmonic Nanohole Arrays on a Robust Hybrid Substrate for Highly Sensitive Label-Free Biosensing. ACS Photonics
**2015**, 2, 1167–1174. [Google Scholar] [CrossRef] - Sreekanth, K.V.; Alapan, Y.; ElKabbash, M.; Ilkerand, E.; Hinczewski, M.; Gurkan, U.A.; Luca, A.D.; Strangi, G. Extreme sensitivity biosensing platform based on hyperbolic metamaterials. Nat. Mater.
**2016**, 15, 621–627. [Google Scholar] [CrossRef] [PubMed] - Garoli, D.; Calandrini, E.; Giovannini, G.; Hubarevich, A.; Caligiuri, V.; Angelis, F.D. Nanoporous gold metamaterials for high sensitivity plasmonic sensing. Nanoscale Horiz.
**2019**, 4, 1153–1157. [Google Scholar] [CrossRef] - Yan, R.; Wang, T.; Yue, X.; Wang, H.; Zhang, Y.H.; Xu, P.; Wang, L.; Wang, Y.; Zhang, J. Highly sensitive plasmonic nanorod hyperbolic metamaterial biosensor. Photonics Res.
**2022**, 10, 84–95. [Google Scholar] [CrossRef] - Yeh, P. Optical Waves in Layered Media; John Wiley and Sons: Hoboken, NJ, USA, 2005. [Google Scholar]
- Polyanskiy, M.N. Refractive Index Database. Available online: http://refractiveindex.info (accessed on 18 July 2022).
- Malitson, I.H. Interspecimen Comparison of the Refractive Index of Fused Silica. J. Opt. Soc. Am.
**1965**, 55, 1205–1209. [Google Scholar] [CrossRef] - Vial, A.; Grimault, A.S.; Macías, D.; Barchiesi, D.; Chapelle, M.L.D.L. Improved analytical fit of gold dispersion: Application to the modeling of extinction spectra with a finite-difference time-domain method. Phys. Rev. B
**2005**, 71, 085416. [Google Scholar] [CrossRef] - Vial, A.; Laroche, T. Description of dispersion properties of metals by means of the critical points model and application to the study of resonant structures using the FDTD method. J. Phys. D Appl. Phys.
**2007**, 40, 7152–7158. [Google Scholar] [CrossRef] - Yang, Z.; Gu, D.; Gao, Y. An improved dispersion law of thin metal film and application to the study of surface plasmon resonance phenomenon. Opt. Commun.
**2014**, 329, 180–183. [Google Scholar] [CrossRef] - Sinibaldi, A.; Danz, N.; Descrovi, E.; Munzert, P.; Schulz, U.; Sonntag, F.; Dominici, L.; Michelotti, F. Direct comparison of the performance of Bloch surface wave and surface plasmon polariton sensors. Sens. Actuators B Chem.
**2012**, 174, 292–298. [Google Scholar] [CrossRef] - Refki, S.; Hayashi, S.; Ishitobi, H.; Nesterenko, D.V.; Rahmouni, A.; Inouye, Y.; Sekkat, Z. Resolution Enhancement of Plasmonic Sensors by Metal-Insulator-Metal Structures. Ann. Der Phys.
**2018**, 530, 1700411. [Google Scholar] [CrossRef] - Tikhonravov, A.V.; Trubetskov, M.K.; Hrdina, J.; Sobota, J. Characterization of quasi-rugate filters using ellipsometric measurements. Thin Solid Films
**1996**, 277, 83–89. [Google Scholar] [CrossRef] - Chlebus, R.; Chylek, J.; Ciprian, D.; Hlubina, P. Surface plasmon resonance based measurement of the dielectric function of a thin metal film. Sensors
**2018**, 18, 3693. [Google Scholar] [CrossRef] [PubMed] - Shrivastav, A.M.; Satish, L.; Kushmaro, A.; Shvalya, V.; Cvelbar, U.; Abdulhalim, I. Engineering the penetration depth of nearly guided wave surface plasmon resonance towards application in bacterial cells monitoring. Sens. Actuators B Chem.
**2021**, 345, 130338. [Google Scholar] [CrossRef] - Urbancova, P.; Pudis, D.; Goraus, M.; Kovac, J.J. IP-Dip-Based SPR Structure for Refractive Index Sensing of Liquid Analytes. Nanomaterials
**2021**, 11, 1163. [Google Scholar] [CrossRef] [PubMed]

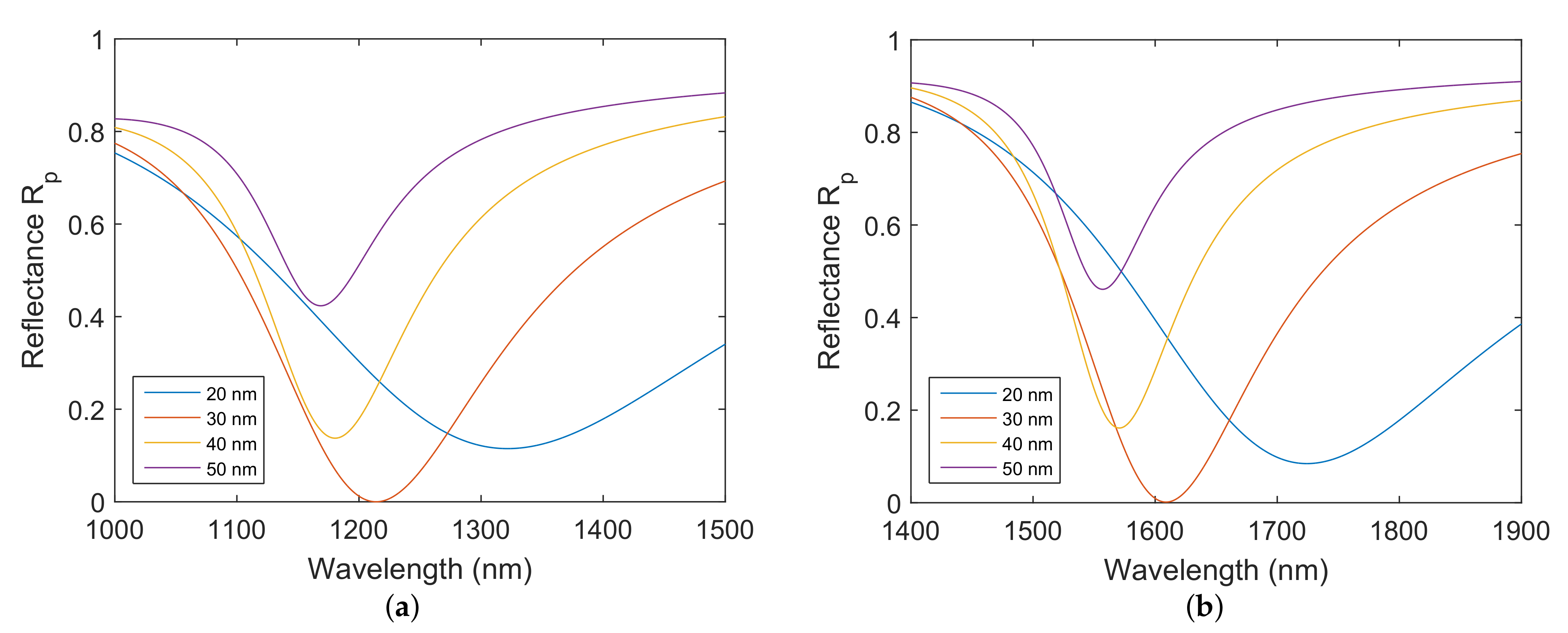

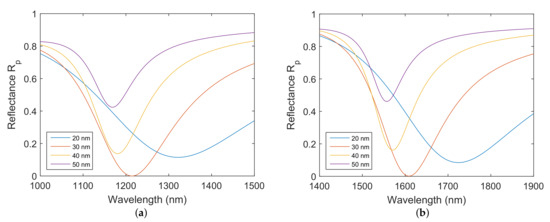

**Figure 2.**Theoretical spectral reflectance ${R}_{p}\left(\lambda \right)$ for distinct gold layer thicknesses for: ${t}_{{\mathrm{SiO}}_{2}}=150$ nm (

**a**), ${t}_{{\mathrm{SiO}}_{2}}=300$ nm (

**b**). Angle of incidence $\theta ={68}^{\circ}$. Chromium layer thicknesses ${t}_{\mathrm{Cr}}=2$ nm. The analyte is water.

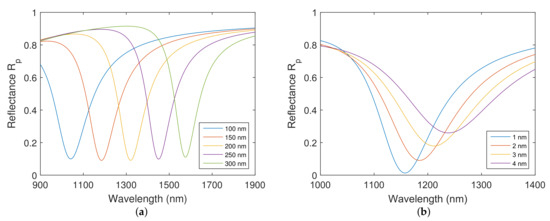

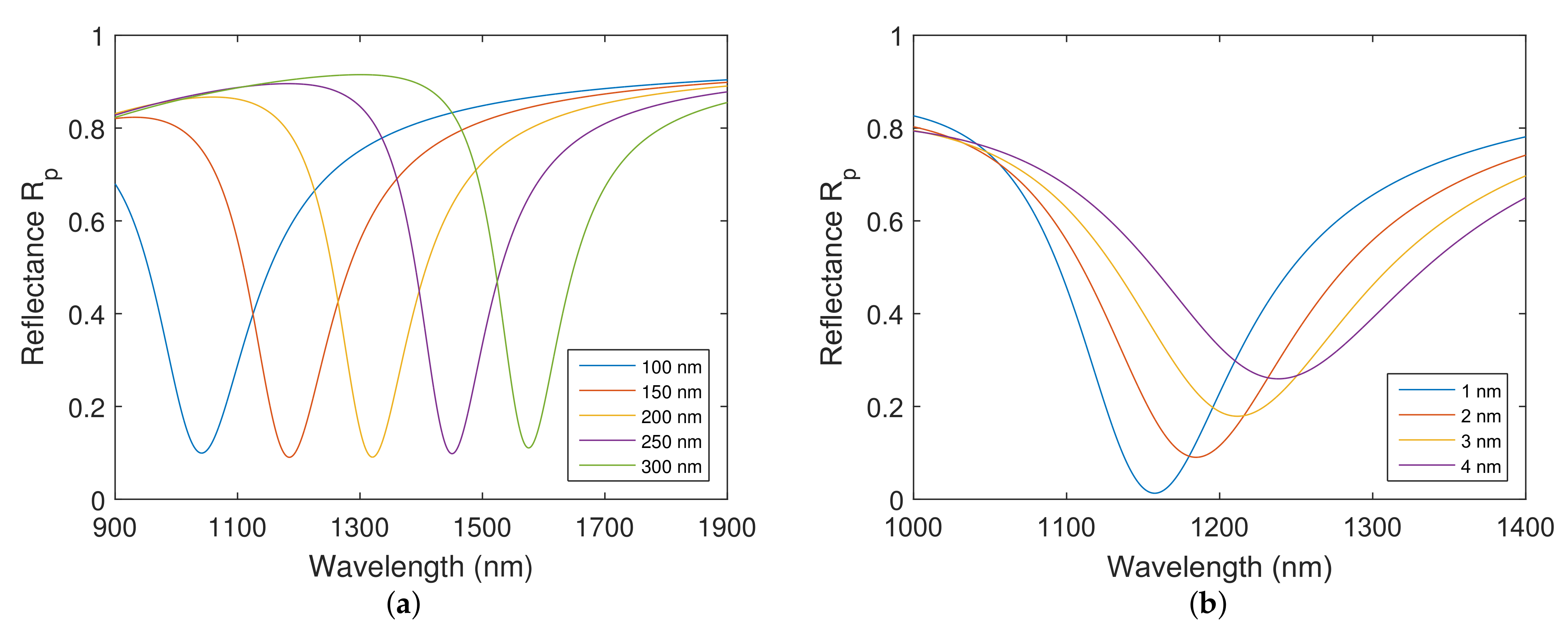

**Figure 3.**Theoretical spectral reflectance ratio ${R}_{p}\left(\lambda \right)$ for distinct silicon dioxide layer thicknesses (

**a**) and for distinct adhesion chromium layer thicknesses (

**b**). Gold layer thickness ${t}_{\mathrm{Au}}=38$ nm. Angle of incidence $\theta ={68}^{\circ}$. The analyte is water.

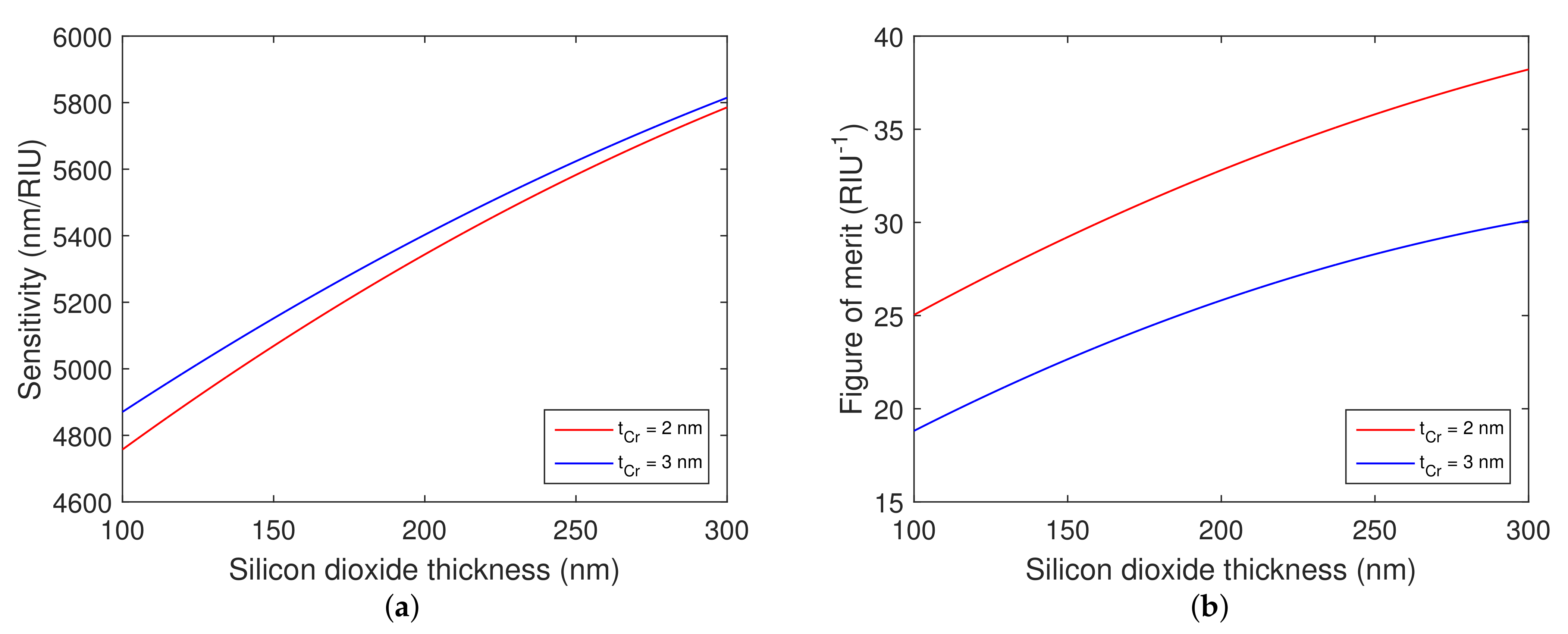

**Figure 4.**Theoretical RI sensitivity (

**a**) and figure of merit (

**b**) as a function of the silicon dioxide thickness when water was considered as an analyte. Gold layer thickness ${t}_{\mathrm{Au}}=38$ nm. Silicon dioxide thickness ${t}_{{\mathrm{SiO}}_{2}}=150$ nm. Angle of incidence $\theta ={68}^{\circ}$.

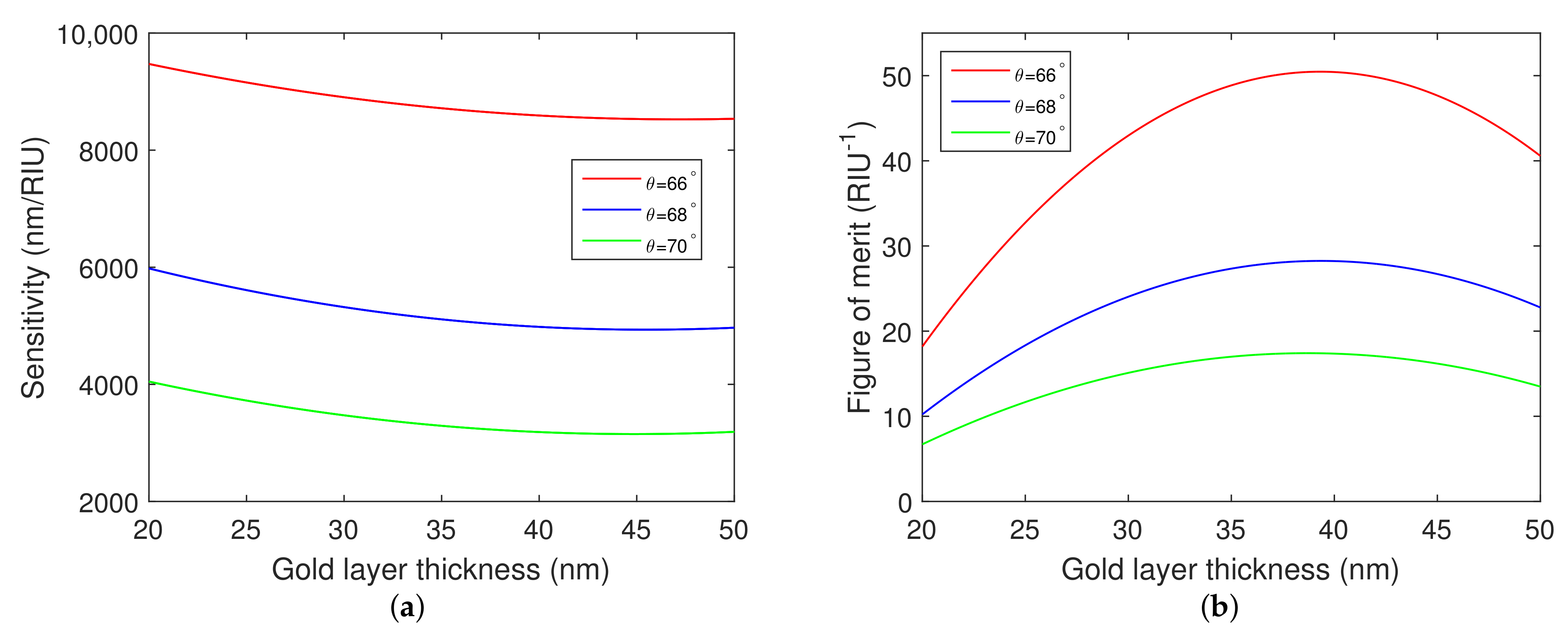

**Figure 5.**Theoretical RI sensitivity (

**a**) and figure of merit (

**b**) as a function of the gold layer thickness when water was considered as an analyte. Silicon dioxide thickness ${t}_{{\mathrm{SiO}}_{2}}=150$ nm. Chromium layer thickness ${t}_{\mathrm{Cr}}=2$ nm. Angles of incidence $\theta ={66}^{\circ}$, ${68}^{\circ}$, and ${70}^{\circ}$.

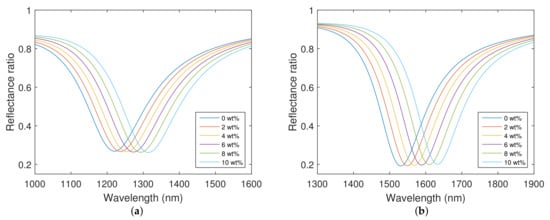

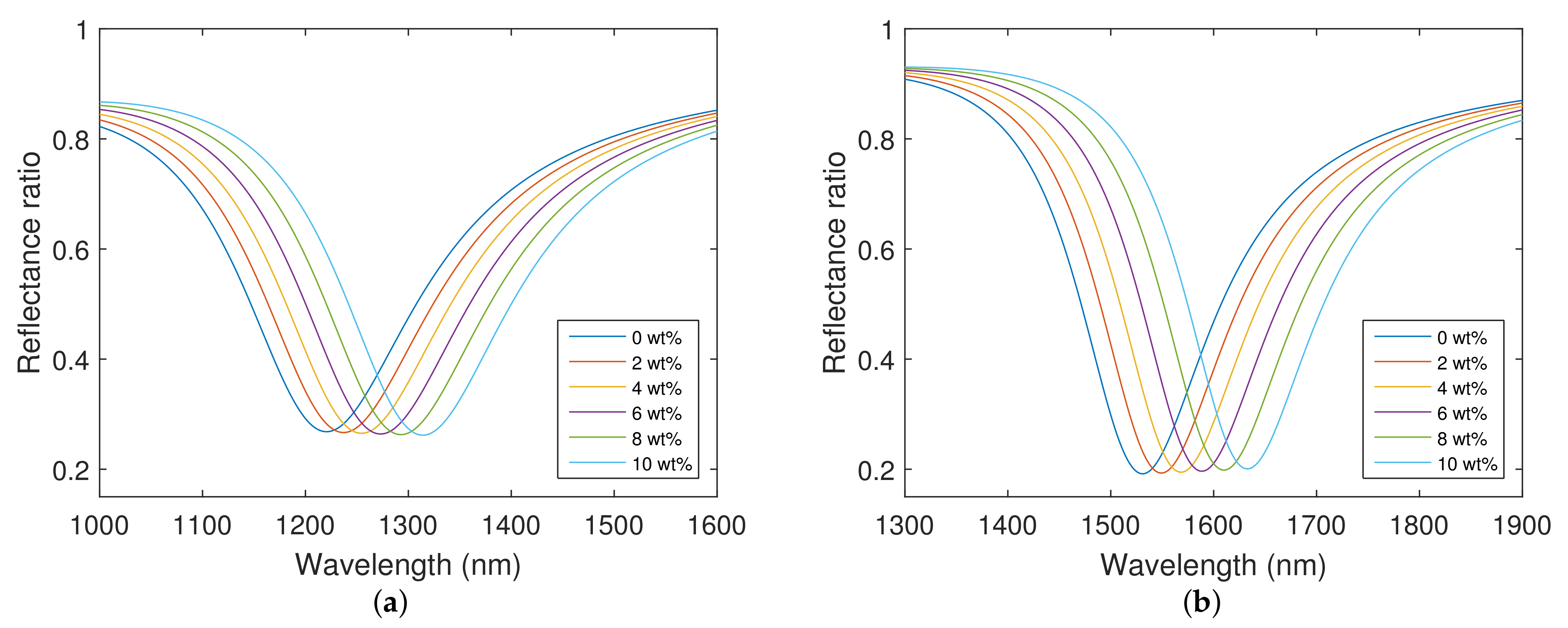

**Figure 6.**Theoretical spectral reflectance ratio ${R}_{p}\left(\lambda \right)/{R}_{s}\left(\lambda \right)$ for the silicon dioxide layer thicknesses: ${t}_{{\mathrm{SiO}}_{2}}=147.5$ nm (

**a**), ${t}_{{\mathrm{SiO}}_{2}}=270.9$ nm (

**b**). Angle of incidence $\theta ={68}^{\circ}$.

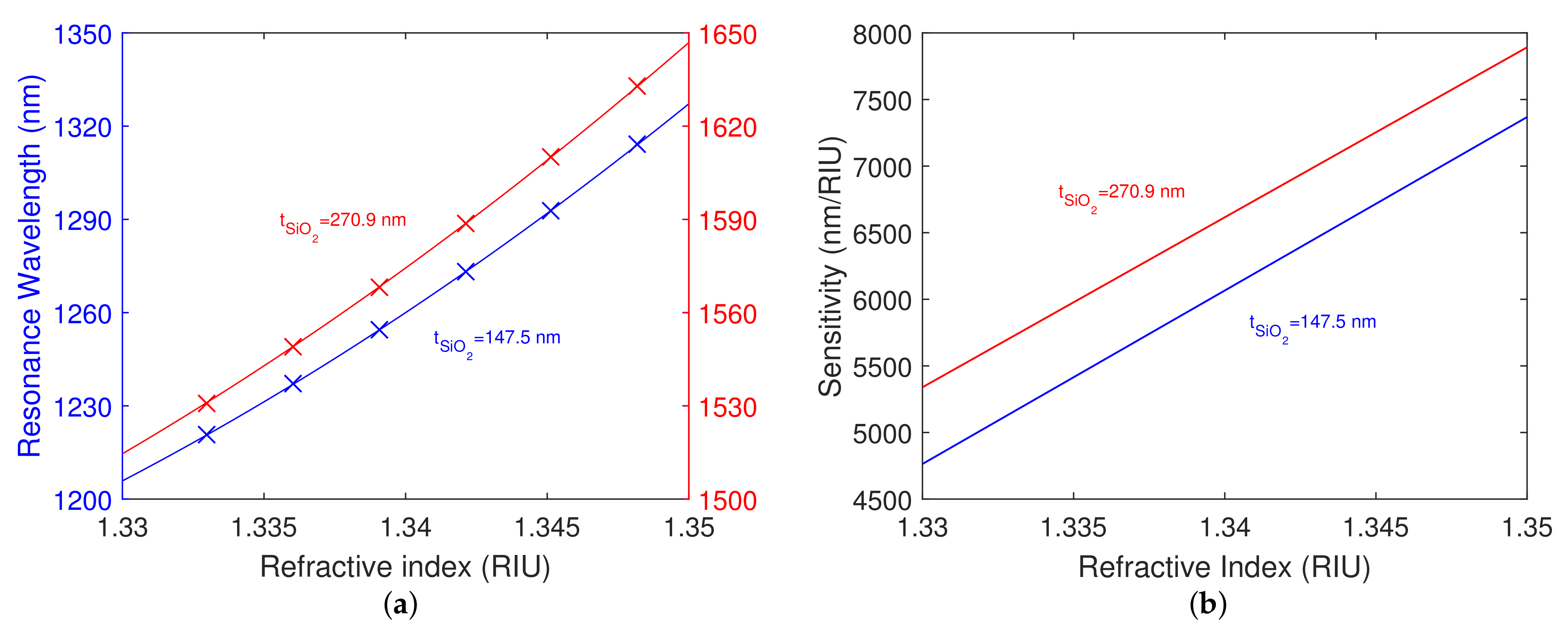

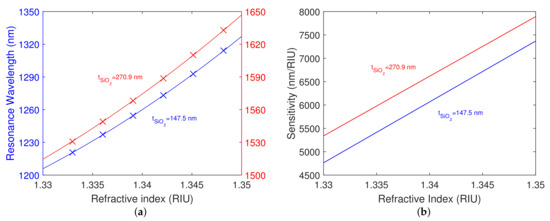

**Figure 7.**Theoretical resonance wavelength as a function of refractive index of the analyte and second-order polynomial fit for both structures (

**a**). Theoretical RI sensitivity for both structures (

**b**). Angle of incidence $\theta ={68}^{\circ}$.

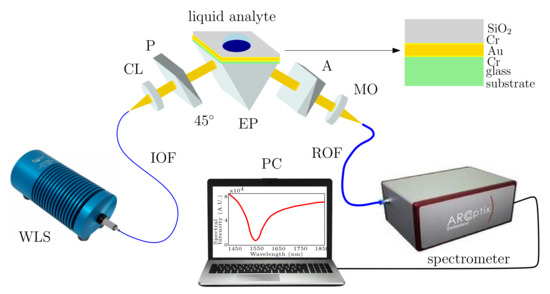

**Figure 8.**Schematic drawing of the experimental setup employing the SPR structure: white light source (WLS), input optical fiber (IOF), collimating lens (CL), polarizer (P), equilateral prism (EP), analyzer (A), microscope objective (MO), read optical fiber (ROF), and personal computer (PC).

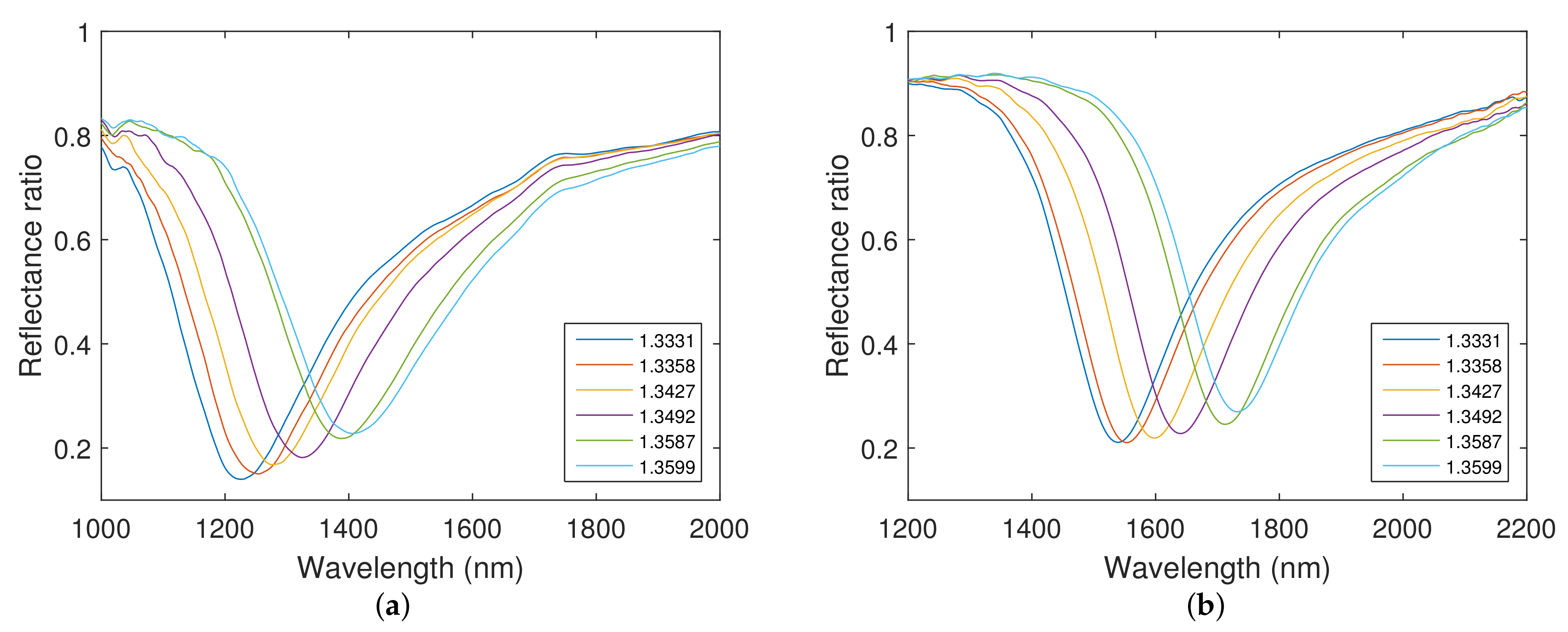

**Figure 9.**Measured spectral reflectance ratios ${R}_{p}\left(\lambda \right)/{R}_{s}^{ref}\left(\lambda \right)$ for the silicon dioxide layer thicknesses: ${t}_{{\mathrm{SiO}}_{2}}=147.5$ nm (

**a**), ${t}_{{\mathrm{SiO}}_{2}}=270.9$ nm (

**b**). The angle of incidence $\theta \approx {70.2}^{\circ}$.

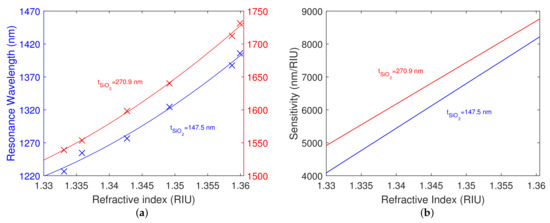

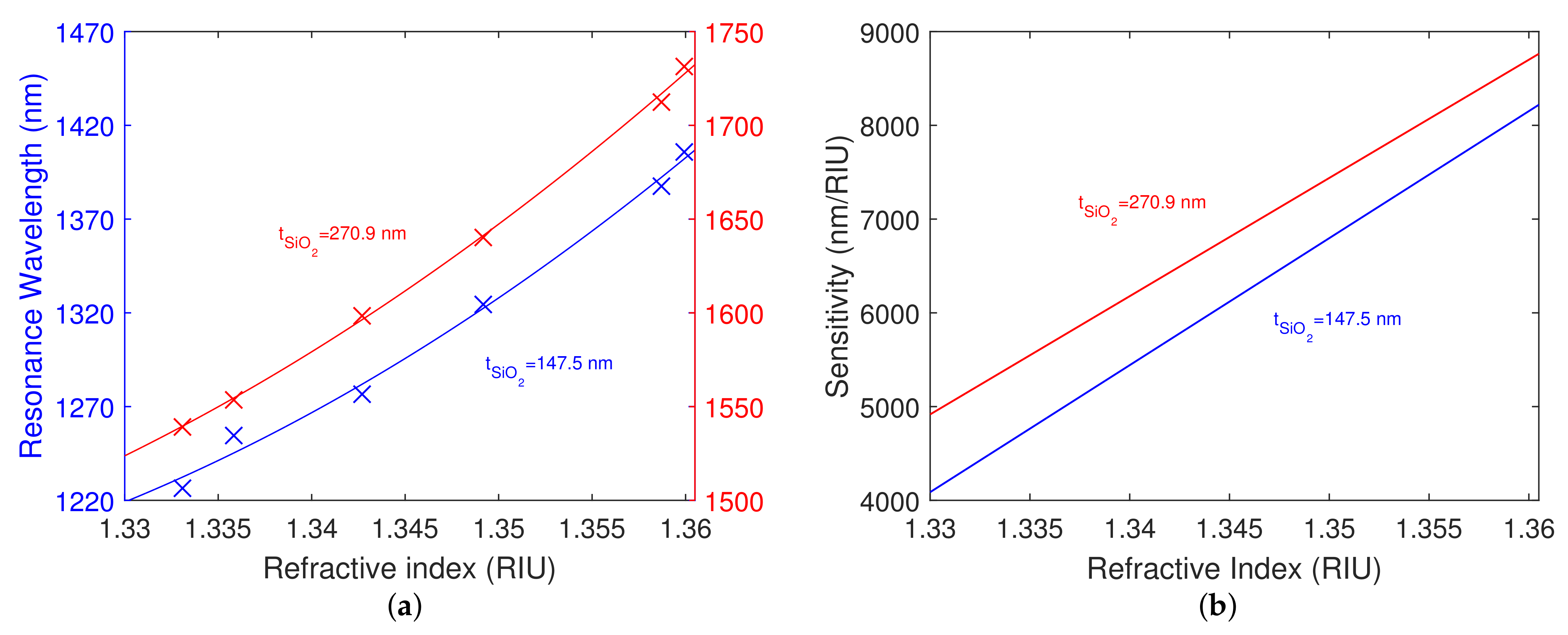

**Figure 10.**Measured resonance wavelength as a function of refractive index of the analyte and second-order polynomial fit for both structures (

**a**). RI sensitivity measured for both structures (

**b**). The angle of incidence $\theta \approx {70.2}^{\circ}$.

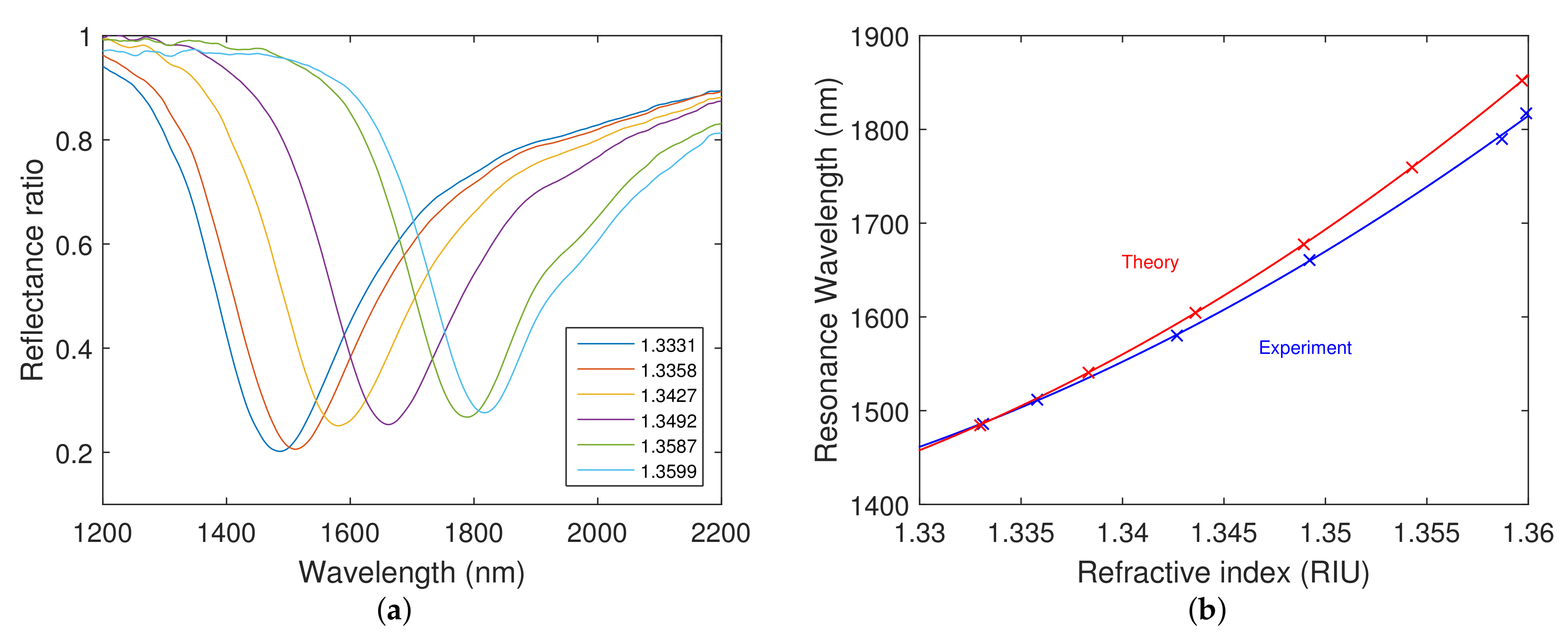

**Figure 11.**Measured spectral reflectance ratios ${R}_{p}\left(\lambda \right)/{R}_{s}^{ref}\left(\lambda \right)$ (

**a**). RI sensitivity measured for a smaller angle of incidence (blue) and theoretical RI sensitivity for angle of incidence $\theta =65.{6}^{\circ}$ (red) (

**b**). The silicon dioxide layer thickness ${t}_{{\mathrm{SiO}}_{2}}=147.5$ nm.

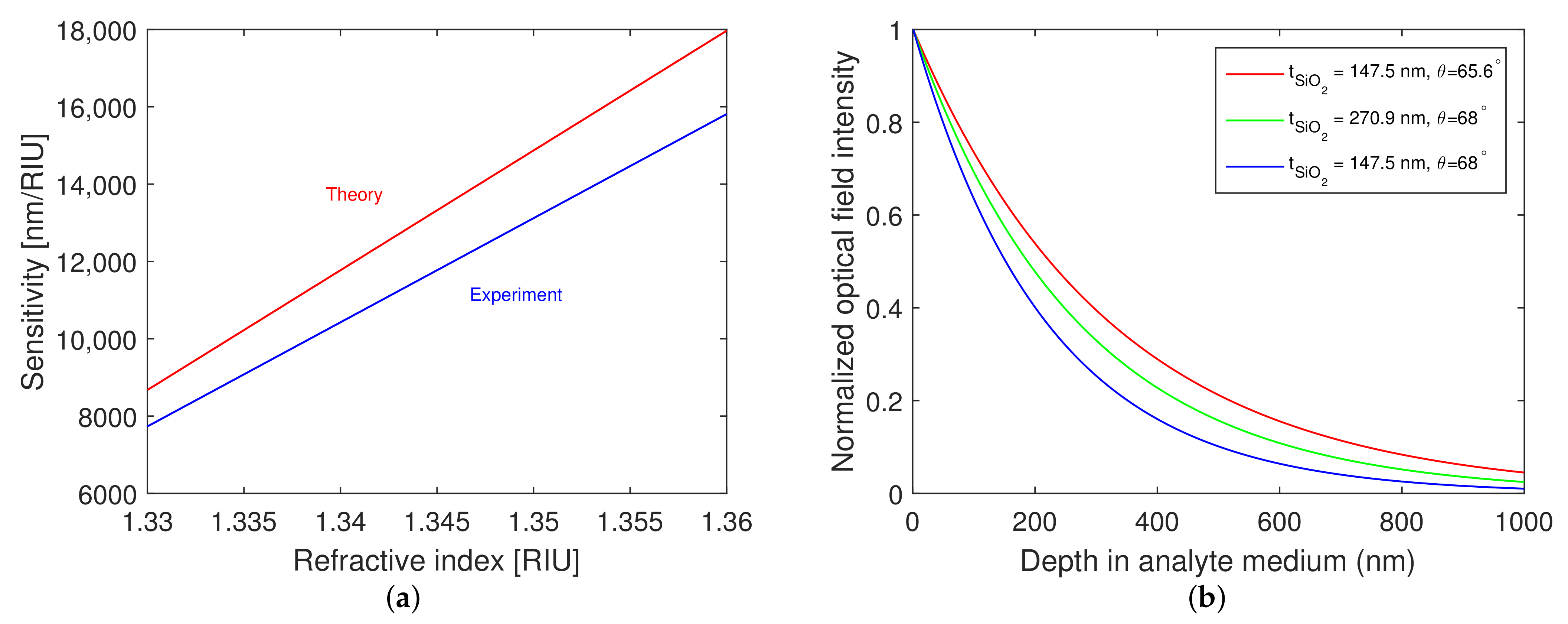

**Figure 12.**Comparison of RI sensitivity measured for a smaller angle of incidence (blue) and theoretical RI sensitivity (red) (

**a**). Normalized optical field intensity distribution in the analyte (water) for different silicon dioxide layer thicknesses ${t}_{{\mathrm{SiO}}_{2}}$ and angles of incidence $\theta $ (

**b**).

Drude Term Parameter | Value | Oscillator 1 Parameter | Value | Oscillator 2 Parameter | Value |
---|---|---|---|---|---|

${\u03f5}_{\infty}$ | 1 | ${A}_{1}$ | 3.612 | ${A}_{2}$ | 1.423 |

${\lambda}_{p}$ (nm) | 133.85 | ${\lambda}_{1}$ (nm) | 309.11 | ${\lambda}_{2}$ (nm) | 424.06 |

${\gamma}_{p}$ (nm) | 27851 | ${\gamma}_{1}$ (nm) | 2591.3 | ${\gamma}_{2}$ (nm) | 1515.2 |

Drude Term Parameter | Value | CP Term 1 Parameter | Value | CP Term 2 Parameter | Value |
---|---|---|---|---|---|

${\u03f5}_{\infty}$ | 1.129 | ${A}_{1}$ | 33.086 | ${A}_{2}$ | 1.659 |

${\lambda}_{p}$ (nm) | 213.67 | ${\lambda}_{1}$ (nm) | 1082.3 | ${\lambda}_{2}$ (nm) | 496.5 |

${\gamma}_{p}$ (nm) | 4849.8 | ${\gamma}_{1}$ (nm) | 1153.2 | ${\gamma}_{2}$ (nm) | 2559.7 |

${\mathrm{\Phi}}_{1}$ (nm) | −0.25722 | ${\mathrm{\Phi}}_{2}$ (nm) | 0.83533 |

${\mathit{t}}_{{\mathbf{SiO}}_{2}}$ | ${\mathit{t}}_{{\mathbf{Cr}}_{1}}$ | ${\mathit{t}}_{\mathbf{Au}}$ | ${\mathit{t}}_{{\mathbf{Cr}}_{2}}$ | ${\mathit{t}}_{\mathbf{BK}7}$ |
---|---|---|---|---|

147.5 nm | 3.66 nm | 38.95 nm | 2 nm | 1 mm |

270.9 nm | 3.11 nm | 37.93 nm | 2 nm | 1 mm |
