Communication

Enhanced Photocatalytic Hydrogen Production Activity by Constructing a Robust Organic-Inorganic Hybrid Material Based Fulvalene and TiO2

by
Mengyuan Wang
,
Shizhuo Su
,
Xin Zhong
,
Derui Kong
,
Bo Li
,
Yujie Song
,
Chunman Jia
and
Yifan Chen
*
Hainan Provincial Key Laboratory of Fine Chemicals, College of Chemical Engineering and Technology, Hainan University, Haikou 570228, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2022, 12(11), 1918; https://doi.org/10.3390/nano12111918
Submission received: 2 April 2022 / Revised: 9 May 2022 / Accepted: 9 May 2022 / Published: 3 June 2022
(This article belongs to the Special Issue Colloidal Semiconductor Nanostructures for Light-Harvesting and Beyond)
Browse Figures
Review Reports Versions Notes

Abstract

:
A novel redox-active organic-inorganic hybrid material (denoted as H4TTFTB-TiO2) based on tetrathiafulvalene derivatives and titanium dioxide with a micro/mesoporous nanomaterial structure has been synthesized via a facile sol-gel method. In this study, tetrathiafulvalene-3,4,5,6-tetrakis(4-benzoic acid) (H4TTFTB) is an ideal electron-rich organic material and has been introduced into TiO2 for promoting photocatalytic H2 production under visible light irradiation. Notably, the optimized composites demonstrate remarkably enhanced photocatalytic H2 evolution performance with a maximum H2 evolution rate of 1452 μmol g−1 h−1, which is much higher than the prototypical counterparts, the common dye-sensitized sample (denoted as H4TTFTB-5.0/TiO2) (390.8 μmol g−1 h−1) and pure TiO2 (18.87 μmol g−1 h−1). Moreover, the composites perform with excellent stability even after being used for seven time cycles. A series of characterizations of the morphological structure, the photoelectric physics performance and the photocatalytic activity of the hybrid reveal that the donor-acceptor structural H4TTFTB and TiO2 have been combined robustly by covalent titanium ester during the synthesis process, which improves the stability of the hybrid nanomaterials, extends visible-light adsorption range and stimulates the separation of photogenerated charges. This work provides new insight for regulating precisely the structure of the fulvalene-based composite at the molecule level and enhances our in-depth fundamental understanding of the photocatalytic mechanism.

1. Introduction

H2, as a high calorific value and zero pollution, has attracted widespread attention [1,2,3]. Photocatalytic water splitting is considered to be one of the significant strategies for converting solar energy into chemical energy without pollution to the environment [4,5,6,7,8,9]. Using semiconductor photocatalysis to split water is an effective clean hydrogen production technology. Among many photocatalytic semiconductor materials, n-type TiO2 has become one of the most promising photocatalysts due to its excellent photoelectrochemical performance, low cost, non-toxic and strong redox activity [10,11,12,13]. However, TiO2 has a wide band gap and low visible-light absorption ability, and it can only absorb ultraviolet light (about 4% of solar energy) [14]. Simultaneously, photogenerated carriers are easy to recombine, and quantum efficiency is low, which seriously affects the development of TiO2 in the field of photocatalytic hydrogen production. Adjusting the morphological structure and the energy band position on TiO2, such as doping of metal and non-metal ions [15,16,17], dye sensitization [18,19,20] and semiconductor combination [14,21,22,23], has been carried out to enhance the photocatalytic activity of TiO2. Especially, dye-sensitized composites have been applied to utilize visible-light sections for photocatalytic conversion. However, dye-sensitized composites have poor stability and are easy to deactivate due to dyes detaching and degrading from the surface of the semiconductor under light irradiation [24,25]. To remedy the situation, we used the facile sol-gel method to design and synthesize a series of hybrid materials based on functional organic molecules (calixarene or pillararene derivative) and TiO2 for photocatalytic H2 production from splitting water under visible light irradiation [20,26,27]. Compared with the dye sensitization systems, these hybrid photocatalysts show outstanding photocatalytic stability due to high robust coordination linkage and efficient photogenerated charges separation and transfer from organic dyes to TiO2. However, these calixarene or pillararene derivatives still have some disadvantages in the hybrid system, such as weak optical responsiveness ability (an absorption band edge <500 nm), which hinder its development in photocatalysis. Thus, it is essential to exploit functional organic molecules with their extended visible-light absorption wavelength range to achieve efficient solar-energy conversion.
Tetrathiafulvalene (TTF) and its derivatives own unique electron-rich and redox-active properties [28], which commonly work as functional building blocks to construct two-dimensional (2D) and three-dimensional (3D) framework materials (COF or MOF) and organic-inorganic hybrid materials, and have been intensively studied in the fields of photothermal conversion, photocatalysis [29,30,31,32], superconductors [33], sensors [34,35,36] and solar cell [37,38,39]. For example, Zhou et al. reported a composite (Ag@Dy-m-TTFTB) containing Ag nanoparticles and tetrathiafulvalene-based MOFs materials with a wide absorption wavelengths range (200–1000 nm) and efficient NIR photothermal conversion owing to the doping of the partially oxidized TTF ligands (TTF•+) and the plasmonic Ag nanoparticles [40]. Lan et al. designed and synthesized 2-dimensional COFs (TTCOF-Zn) based on porphyrin and tetrathiafulvalene, which worked as catalysts for the photocatalytic coupling reaction of CO2 and H2O, achieving high photocatalytic CO production with nearly 100% selectivity and accompanying with H2O photooxidation to O2 [41]. Dai et al. synthetized a self-condenses black organic-inorganic polymeric nanomaterials (B-1) assembled by a cyclic titanium-oxo cluster and organic TTF units, which owned multiporous nanostructure and generous electron density on TTF moiety for outstanding dye selection adsorption, and would even work as photocurrent-responsive electrode materials [42]. The studies above indicate that TTF derivatives have a huge potential application in the field of artificial photocatalysis and could greatly embellish the photophysics property of TiO2 nanomaterials. However, the synthesis methods for TTF-based composites are still hard and complicated. Therefore, it is absolutely necessary to exploit TTF-based composites with a flexible, simple preparation processed to endow its wide optical spectrum responsiveness range to fully use solar energy and high optical quantum conversion efficiency for photocatalytic reaction.
Herein, we designed and synthesized binary organic-inorganic composite nanomaterials, which combine TTF derivatives with TiO2 nanoparticles by a simple sol-gel method. Among them, TTF derivatives are tetrathiafulvalene-3,4,5,6-tetrakis(4-benzoic acid) (H4TTFTB) structure, as superior electron donors/acceptors, enabling the formation of intermolecular π-π stacking with relatively short S-S interactions, which could efficiently facilitate charges separation and transfer under illumination [40]. The organic-inorganic composite nanomaterials loaded with a co-catalyst are expected as an excellent photocatalyst owing to some advantages as below: (1) H4TTFTB possesses donors-conjugation-acceptors (D-π-A) electric structure, achieving excellent photoresponse ability and promoting effective photogenerated charge separation from excited H4TTFTB to TiO2 nanoparticles; (2) high photostable and thermostable H4TTFTB molecule has multiple -COOH functional groups that can integrate with Ti(OC4H9)4 to come into being steady TiO2-O-TTFTB bonds, improving the stability of the hybrid; (3) the composite nanomaterials have a large surface area due to a multiporous nanostructure, which endues the photocatalysts with ample light-response active sites, leading to effective light harvesting and utilizing in the pores and channels. In this work, we confirm the advantage of the composite based on H4TTFTB and TiO2 with Pt nanoparticles (Pt NPs) as a co-catalyst. We have optimized the activity of photocatalytic H2 evolution from water for the hybrid materials with a mass percentage difference of H4TTFTB and TiO2. Remarkably, the hybrid materials with a 5.0% mass percentage of H4TTFTB, denoted as H4TTFTB-TiO2-5.0, exhibit the best photocatalytic H2 evolution activity with a rate of 1452 μmol g−1 h−1 (TON = 1101). Moreover, the photocatalytic mechanisms of the H4TTFTB-TiO2 composite have been explored. It testifies that the outstanding photocatalytic performance of H4TTFTB-TiO2 composite is attributed to a large surface area, suitable energy band position and multifunctional synergistic catalysis between H4TTFTB and TiO2.

2. Materials and Methods

2.1. Materials

The chemical reagents used in this work were of analytic grade and were used without further purification. Tetrabutyl titanate (Ti(OBu)4, ≥99.0%), acetic acid (CH3COOH, ≥99.5%), N,N-dimethylformamide (DMF, 99.9%), tetrahydrofuran (THF, 99.9%) and triethanolamine (TEOA, >99.0%) were purchased from Innochem company (Beijing, China). Tetrathiafulvalene-3,4,5,6-tetrakis(4-benzoic acid) (H4TTFTB, 98%) was purchased from Chemextension company (Jilin, China).

2.2. Synthesis of Photocatalysts

2.2.1. Synthesis of H4TTFTB-TiO2 Materials

The structure of H4TTFTB and H4TTFTB-TiO2 hybrid materials are shown in Figure S1a,b, respectively. To prepare H4TTFTB-TiO2-5.0, THF (2.0 mL), acetic acid (336 μL), distilled water (212 μL) and Tetrabutyl titanate (2 mL) were subsequently added to a 20 mL glass sample bottle, and then H4TTFTB (24.0 mg) in DMF (2 mL) was added. The color of the mixture changed from light yellow to dark red and, when stirred, became transparent gelatum. The gelatum was heated at 75 °C overnight to obtain a red solid. The residue was soxhleted with distilled water at 100 °C for 48 h and evaporated to dryness. The hybrid nanomaterials were calcined in a Muffle furnace at 250 °C for 2 h to become yellow-brown powder. Similarly, the hybrid material was handled as the above process with different calcination temperatures (150 °C, 250 °C and 350 °C) and then denoted as H4TTFTB-TiO2 (150 °C), H4TTFTB-TiO2 (250 °C) and H4TTFTB-TiO2 (350 °C). In order to elaborate the formation process of the hybrid materials H4TTFTB-TiO2, the intermediate products at various reaction times were collected to characterize their crystalline states by checking their XRD patterns (Figure S2).
H4TTFTB-TiO2 materials with different H4TTFTB mass contents (0, 1.7%, 3.4% and 6.5%) were prepared with the above method and denoted as a-TiO2, H4TTFTB-TiO2-1.7, H4TTFTB-TiO2-3.4 and H4TTFTB-TiO2-6.5, respectively.

2.2.2. Synthesis of Dye-Sensitized Composites

The a-TiO2 powder was dispersed in 0.7 mM DMF solution of H4TTFTB at room temperature in the dark for 6 h and then centrifuged and washed with DMF and methanol until no color was observed from the eluent. The solid was dried under a vacuum oven at room temperature, denoted as H4TTFTB-5.0/TiO2.

2.2.3. Synthesis of Composites Materials Loaded with Pt NPs

The hybrid material above (20 mg) was dispersed in a photocatalytic reaction cell containing 4 mL H2O and 10 mL methanol. K2PtCl4 aqueous solution (0.01 M) was added under stirring, and then the resulting mixture was stirred another 1 h under full-light irradiation by a 300 W xenon lamp. After illumination, the material was centrifugally washed with water and methanol and then dried in a vacuum. Pt NPs’ actual loading amounts tested by inductively coupled plasma atomic emission spectrometry (ICP-AES) were 0.39 wt%, 0.88 wt% and 1.0 wt% (Table S1).

2.3. Photocatalytic Hydrogen Production

The photocatalytic hydrogen evolution by water splitting was carried out in a glass reaction cell with a quartz cover connected to a closed gas circulation, which was swept by high-purity Ar before illumination. A total of 20 mg photocatalysts were dispersed in 20 mL of 10 vol% TEOA aqueous solution. Then the suspension was exposed to a 300 W Xe lamp equipped with an optical filter (λ > 400 nm) to cut off the light in the ultraviolet region. The reaction solution was stirred continuously and cooled to maintain a suitable temperature by the circulation of cooling water. The amount of hydrogen evolved was determined at an interval of 1 h with online gas chromatography.

2.4. Materials Characterization

The solid ultraviolet diffraction spectrum was measured using a Shimadzu UV-2600 spectrometer (Shimadzu, Kyoto, Japan), and fluorescence spectra were measured by a Fluorolog-3 spectrometer (HORIBA, Shanghai, China). The FT-IR spectra were monitored by a Nicolet iS50 spectrometer (Thermo Fisher Scientific, Waltham, MA, USA). Powder X-ray diffraction (PXRD) was recorded on a Rigaku Smart Lab (Rigaku, Beijing, China) diffractometer (Bragg-Brentano geometry, Cu-Kɑ1 radiation, λ = 1.54056 Å). Transmission electron microscopy (TEM) images, high-resolution transmission electron microscopy (HRTEM), high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) micrographs, selected area electron diffraction (SAED), energy-dispersive X-ray spectroscopy (EDX) and elemental mapping were obtained by an FEI Talos F200X (FEI, Hillsboro, OR, USA) transmission electron microscope at 200 kV. Scanning electron microscope (SEM) micrographs were recorded on a SU8020 (HITACHI, Tokyo, Japan)ultrahigh resolution field emission scanning electron microscope. Gas adsorption measurements were performed using ultra-high purity N2 on the Quantachrome Auto-sorb-iQ2-MP analyzer (Quantachrome, Beijing, China). X-ray photoelectron spectroscopy (XPS) (Thermo escalab 250Xi, Thermo Fisher Scientific, Waltham, MA, USA) measurements were carried out using a monochromated Al Kα X-ray source (hν = 1486.6 eV) with a 400 μm spot size in an ultrahigh vacuum chamber. The pass energy was 30 eV. Thermogravimetric (TG) analysis was performed at a constant heating rate of 10 °C min−1 from 30 to 600 °C in air, on a NETZSCH STA 449 F5/F3 Jupiter thermal analyzer (NETZSCH, Free State of Bavaria, Germany). The collection system of photocatalytic hydrogen production was Perfect Light Lab Solar-6A (PerfectLight, Beijing, China), and H2 measurement was performed on FuLi GC9790Ⅱ (FuLi, Taizhou, China). The amounts of Pt nanoparticles loaded on samples were detected by Agilent ICP-OES730 (Agilent, Palo Alto, CA, USA).

2.5. Photolectrochemical Methods

The Mott–Schottky curves were conducted on an Ivium-n-Stat electrochemical analyzer (Ivium Technologies B.V., Eindhoven, Netherlands) in a three-electrode cell. A platinum plate was used as a counter electrode, and an Ag/AgCl electrode (3 M KCl) was used as a reference electrode. The electrolyte was a 0.5 M Na2SO4 solution. In order to prepare the working electrolyte, 5 mg samples were added to a mixed solution of ethanol and Nafion. The photocurrent response and electrochemical impedance measurements were performed using a 0.5 M Na2SO4 solution electrolyte, using a 300 W xenon lamp with a 400 nm cut-off filter as the light source. Cyclic voltammograms (CVs) were recorded using an Ivium-n-Stat electrochemical analyzer with the platinum plate as the working electrode, Ag/AgCl as the reference electrode and Pt wire as the counter electrode. CVs were measured using 0.1 M tetrabutylammonium hexafluorophosphate (TBAPF6) as a supporting electrolyte in DMF with a scan rate of 50 mV s−1.

3. Results and Discussions

Figure 1a,b display the XRD patterns of a-TiO2 and H4TTFTB-TiO2(1.7/3.4/5.0/6.5) hybrid materials. The obtained diffraction peaks at 25.54°, 37.85°, 47.90°, 54.22° and 62.70° were consistent with the standard card of anatase TiO2 (JCPDS 21–1272), which demonstrated the formation of anatase TiO2 (Figure 1a). Calcination at 250 °C can remove impurities and facilitate the separation and transfer of photogenerated carriers. Simultaneously, the XRD analysis of H4TTFTB-TiO2 hybrid materials calcined at 250 °C is shown in Figure 1b. As can be seen (Figure S3), no obvious diffraction peaks of H4TTFTB can be found, and it shows little impact on the crystallinity due to low contents and high dispersion of H4TTFTB in H4TTFTB-TiO2 hybrid nanomaterials.
Figure 2 shows the N2 adsorption-desorption isotherms at 77K of a-TiO2 and H4TTFTB-TiO2-5.0 materials. The isotherms plots have a typical type IV pattern, which is evidently characteristic of mesoporous materials. The prepared a-TiO2 and H4TTFTB-TiO2-5.0 possess high BET specific surface area, 184.1 m2/g and 212.7 m2/g, respectively. These results show that the introduction of H4TTFTB could appropriately increase the specific surface area of the hybrid nanomaterials. Moreover, the pore size was simulated and calculated by the Barrett-Joyner-Halenda (BJH) method. From the pore size distribution diagram (Figure S4), it could be observed that the pore size distribution (3.630 nm) of H4TTFTB-TiO2-5.0 nanomaterial is smaller than that (4.411 nm) of a-TiO2. The detailed data of the surface areas and the pore sizes are summarized in Table S2. In general, H2 production involves surface adsorption and interface reaction of reaction substrates in the heterogeneous photocatalyst system, which could be significantly affected by the morphology and structure of the photocatalyst. Thus, H4TTFTB-TiO2 composite nanomaterials prepared through a sol-gel process endow mesoporous hierarchical structure and multifunctional synergistic effect, which results in broad visible-light response and more efficient photocatalytic performance.
The morphology and structure of the hybrid were characterized by SEM, TEM, HRTEM and SAED, as well as the element mapping. The SEM image of H4TTFTB-TiO2-5.0 material is recorded in Figure S5, showing the size of ellipse nanoparticles as about 10–15 nm. To enhance the activity of photocatalytic H2 production, H4TTFTB-TiO2-5.0 was loaded with Pt NPs by the photodeposition method. TEM images of Pt@H4TTFTB-TiO2-5.0 show that platinum particles are uniformly distributed, and the size is about 2–5 nm (Figure 3a). The HRTEM image indicates that the distance of two adjacent lattice planes of Pt NPs is about 0.226 nm, consistent with the spacing of Pt NPs (111) planes (Figure 3b). The SAED result proves the crystallinity of H4TTFTB-TiO2-5.0 nanomaterials (Figure 3c). The HAADF-STEM mapping and EDX of Pt@H4TTFTB-TiO2-5.0 certify the existence of H4TTFTB, TiO2 and Pt NPs in the composite and C, O, Ti, S and Pt are uniformity dispersed throughout all of the composites (Figure S6 and Figure 3d–i, Table S3). In addition, XPS measurements for a-TiO2, H4TTFTB-TiO2-5.0 and Pt@H4TTFTB-TiO2–5.0 were carried out (Figures S7–S9). Generally, pollution carbon C1s (284.8 eV) is used for charge calibration for all samples. In Figure S8, the survey spectrum displays that C, O, Ti and S exist in the H4TTFTB-TiO2-5.0. The binding energy of Ti 2p3/2 and Ti 2p1/2 is at 458.7 and 464.4 eV, respectively, and the binding energy of O 1s is at 529.9 eV, which could be attributed to the Ti-O bond of TiO2 for a-TiO2 and H4TTFTB-TiO2-5.0 (Figures S7 and S8). Moreover, the compositions of Ti and O for both a-TiO2 and H4TTFTB-TiO2-5.0 display the expected 1:2 ratio, indicating the existence of TiO2 in the hybrid. Compared to a-TiO2, the binding energy at 164.2 eV and 165.2 eV, 168.6 eV and 169.6 eV belongs to S 2p3/2 and S 2p1/2, respectively, demonstrating that H4TTFTB is successfully doped within TiO2. Furthermore, the two different types of peaks represent the existence of the neutral sulfur and oxidized sulfur of H4TTFTB in the composite (Figure S8d). However, the partially oxidized sulfur of H4TTFTB in the composite indicates that the electron-rich tetrathiafulvalene (TTF) could be oxidized easily to its stable radical oxidation states (TTF•+) during the synthesis process of the hybrid. Furthermore, when the composite H4TTFTB-TiO2-5.0 was loaded with the Pt NPs by the photoreduction with the aid of methanol, the proportion of neutral sulfur of H4TTFTB in the hybrid would increase owing to the reduction of the oxidized sulfur by methanol. In addition, the banding energy at 71.1 eV and 74.4 eV belongs to Pt 4f7/2 and Pt 4f5/2, respectively, which could be attributed to Pt (0), also the weak banding energy at 72.5 eV (Pt 4f7/2) and 75.6 eV (Pt 4f5/2), which could be attributed to a small amount of unreduced Pt2+ (Figure S9).
The FT-IR spectra of a-TiO2, H4TTFTB and H4TTFTB-TiO2-5.0 hybrid are displayed in Figure 4. Notably, 1621 cm−1 and 3417 cm−1 of absorption peaks are attributed to the bending and stretching vibrations of -OH groups from a-TiO2, which is pivotal for the combination with H4TTFTB molecules. The stretching vibrations of C=O groups and C-O groups from H4TTFTB are at 1696 cm−1 and 1103–1378 cm−1, respectively. Moreover, the characteristic vibration bands of the benzene skeleton are around 650–900 cm−1, which conforms to the structure feature of H4TTFTB. Compared with a-TiO2, the characteristic vibration bands of C=C from H4TTFTB and Ti-O from a-TiO2 appear at 1500 cm−1 and 500–700 cm−1, respectively, indicating the existence of H4TTFTB and TiO2 in the hybrid materials. Furthermore, the C=O stretching vibration of H4TTFTB at 1696 cm−1 disappears, and two new bands appear at 1407 cm−1 and 1621 cm−1 in H4TTFTB-TiO2-5.0, which could be attributed to the symmetric and anti-symmetric stretch of -COO-. Thus, H4TTFTB should be chemically combined with TiO2 through titanium ester bonds (O=C-O-Ti), which could also enhance the separation and transfer of photogenerated charges between H4TTFTB and Ti (3d) orbital manifold of a-TiO2 [43,44]. Further, thermogravimetric analysis (TGA) of H4TTFTB and of H4TTFTB-TiO2-5.0 were carried out to evaluate their thermostability, revealing that the organic molecular H4TTFTB and the hybrid materials could be stable up to 300 °C (Figure S10).
The UV-vis diffraction spectra of H4TTFTB, H4TTFTB-TiO2-5.0 and a-TiO2 are displayed in Figure 5a. As we can see, H4TTFTB shows a strong absorption range of about 300–650 nm, ascribing to n-π* or π-π* transition of the phenyl-TTF moiety. The small shoulder at around 650–800 nm could be attributed to the partially oxidized TTF ligands (TTF•+) [40]. The UV-vis absorption spectrum and the emission spectra of H4TTFTB are exhibited in Figure S11. The maximum emission wavelength of H4TTFTB is located at 650 nm; thus, its transition energies (E0–0) are calculated to be 2.34 eV. However, a-TiO2 only has a strong UV absorption peak with a 400 nm absorption edge, which matches the verified band gap (about 3.2 eV) (Figure 5b) [12]. H4TTFTB is reacted with tetrabutyl titanate in situ by sol-gel method to obtain composite H4TTFTB-TiO2. The composite has a broad absorption range at about 300–600 nm, along with a smaller shoulder adsorption peak at 650–800 nm, owing to the low contents of H4TTFTB doped. Compared with pure TiO2, the H4TTFTB-TiO2-5.0 composite has two band gaps: a wide band gap of 2.8 eV and a narrow band gap of 2.0 eV (Figure 5b), attributed to a-TiO2 and H4TTFTB, respectively. The band gap of H4TTFTB in the composite is lower than the E0–0 value of 2.34 eV in pure H4TTFTB, indicating that a robust combination exists between H4TTFTB and TiO2 in the hybrid.
In order to elucidate the photocatalytic mechanism of H4TTFTB-TiO2 under visible light irradiation, Mott–Schottky (M-S) measurements of a-TiO2 were carried out at different frequencies of 500 Hz, 1000 Hz and 1500 Hz (Figure S12). The positive slopes of the M-S plots match with an n-type semiconductor. The flat band positions (Vfb) of a-TiO2 are calculated to be −0.7 V (vs. Ag/AgCl). As well known, the conduction band (CB) of n-type semiconductors is approximately the same as the value of Vfb [25]. Consequently, the CB of a-TiO2 is about −0.7 eV (vs. Ag/AgCl), being more negative than the redox potential of H+/H2, thus, favoring the photoreduction of the proton from water to produce H2. The valence band (VB) of a-TiO2 is counted to be 2.5 eV (vs. Ag/AgCl). Moreover, the first oxidation potential of H4TTFTB was detected by CVs characterization to acquire the highest occupied molecular orbital (HOMO) value (Figure S13). The redox potential of excited H4TTFTB* is about −1.64 eV (vs. Ag/AgCl); namely, the bottom of the lowest unoccupied molecular orbital (LUMO) is counted from the HOMO and the E0–0 value of H4TTFTB, which is more negative than the CB of a-TiO2. Thus, it is thermodynamically favorable for the transfer to be directly from the H4TTFTB* to CB of a-TiO2.
The photocatalytic activities of H4TTFTB-TiO2-5.0 catalysts with different amounts of H4TTFTB-doping and with different contents (0.5/1.0/1.5 wt%) of Pt NPs loading have been optimized under visible light irradiation. A series of experiment data are presented in Figure 6a. The results demonstrate that H4TTFTB-TiO2-5.0 with 1.0 wt% Pt NPs has the optimized photocatalytic activity (Figure S14). Moreover, the photoactivity increases with the addition of H4TTFTB-doped amount (1.7 wt%, 3.4 wt% and 5.0 wt%), reaching a maximum for H4TTFTB-TiO2-5.0. However, further increasing the percentage of H4TTFTB to 6.5 wt% with a decrease in photoactivity indicates that the photoactivity of H4TTFTB-TiO2 nanomaterials could not correlate only to H4TTFTB amounts. Reasonable speculation is that excessive H4TTFTB in the composite could block porous channels and impede electron migrating and transporting. The photocatalytic activity of the composites nanomaterials is influenced by many factors, such as temperature, pH, solvents, additives, etc. Among them, the calcination temperature is pivotal in building up the structural morphology of composites and enhancing the photocatalytic activity. Thus, the calcination temperature of H4TTFTB-TiO2-5.0 was optimized. In addition, H4TTFTB-TiO2-5.0 with 250 °C calcination exhibits the best photocatalytic rates of H2 production, which is greatly superior to higher or lower calcination temperature (150 °C or 350 °C) (Figure S15). It is believed that appropriate calcination temperature not only could eliminate the impurity but also improve the crystallinity of the hybrid materials. However, a lower temperature (150 °C) could not meet the requirements for the synthesis of the hybrid, and a higher calcination temperature (350 °C) could destroy the organic component H4TTFTB.
In contrast, the rate of photocatalytic H2 production of a-TiO2 and sensitization H4TTFTB-5.0/TiO2 with only 1.0 wt% Pt (0) loading are 18.87 and 390.8 μmol g−1 h−1 which are both less than the rates of H4TTFTB-TiO2-5.0. It demonstrates that the composites have excellent photocatalytic activity than the dye sensitization TiO2 system owing to the more efficient migration of photogenerated electrons from H4TTFTB* to TiO2 through the robust linkages between H4TTFTB and TiO2. Moreover, to assess the stability of H4TTFTB-TiO2 nanomaterial, we conducted photocatalytic H2 evolution experiments at intervals of 5 h. The H4TTFTB-TiO2 composite was reused by centrifugation, washed with water and methanol and then vacuum dried. As shown in Figure 6b, the photocatalytic activity of H4TTFTB-TiO2 shows no significant decrease, revealing high photocatalytic stability in photocatalytic reducing H2 with seven recycles. The TONH2 is calculated as the mole numbers of H2 over the mole numbers of Pt NPs, giving significant results of 1101 after 35 h of photoreactions. In general, compared with other reported photocatalysts (Table S4), the photocatalytic activity of the H4TTFTB-TiO2-5.0 system is moderate. However, the simple and flexible synthesis approach has been proposed in this study to obtain the robust fulvalene-based composite, which is significant to shed light on the rational design of photocatalysts and understand the photocatalytic inherent nature. Thus, our next work will focus on regulating precisely the structure of the fulvalene-based composite at a molecule level, which would enhance our in-depth fundamental understanding of the photocatalytic mechanism.
The photocurrent-time (i-t) curves and the electrochemical impedance spectroscopy (EIS) of a-TiO2, H4TTFTB-5.0/TiO2 and H4TTFTB-TiO2-5.0 have been monitored under visible light illumination to further verify the influence of enhanced photoresponse on the photocatalytic process (Figure 6c,d). It is clear that the photocurrent of H4TTFTB-TiO2-5.0 is higher than H4TTFTB-5.0/TiO2, indicating that effective interfacial electrons migration and transfer between H4TTFTB and TiO2 in H4TTFTB-TiO2-5.0 (Figure 6c). Figure 6d displays the EIS Nyquist plots for samples. Compared with a-TiO2 and H4TTFTB-5.0/TiO2, H4TTFTB-TiO2-5.0 exhibits a smaller semicircular diameter in Nyquist plots, suggesting that the smaller resistance of photogenerated charge migration and transfers on the electrode surface. Thus, the result demonstrates that the hybrid materials possess a smaller interfacial charge-transfer resistance, which could significantly enhance the photoactivity for H2 generation, hinting that more effective interfacial photogenerated electrons migrate and transfer between H4TTFTB and TiO2 in H4TTFTB-TiO2 composites.
According to the results and discussions above, a possible photocatalytic mechanism for the H4TTFTB-TiO2 catalytic system is proposed, as shown in Figure 7. H4TTFTB owns excellent light absorbance ability to act as a light harvester under visible light irradiation. The excited electrons jump from HOMO into LUMO of H4TTFTB and inject into the CB band of TiO2. The electrons separated successfully could reduce proton to H2 production with the aid of Pt (0) NPs. Herein, Pt (0) NPs are loaded on the surface of H4TTFTB-TiO2 by the in-situ photodeposition and commonly work as co-catalysts to provide reactive sites, owing to the formation of the Schottky barrier at the interface of Pt NPs and the hybrid, which could be beneficial to promote the separation and transfer of photogenerated charges and enhance the photocatalytic activity. The electrons on the CB of a-TiO2 could be captured by the co-catalysts and then efficiently photoreduce H+ to H2. The holes retained in the VB of H4TTFTB are neutralized by sacrificial reagent triethanolamine (TEOA). Furthermore, the oxidative H4TTFTB+ could also be reduced by TEOA to obtain relative H4TTFTB.

4. Conclusions

In summary, we have in situ synthesized organic-inorganic H4TTFTB-TiO2 composite containing organic light-harvesting unit H4TTFTB and inorganic semiconductor TiO2 by the sol-gel method. H4TTFTB-TiO2-5.0 material exhibits high photocatalytic efficiency under visible light irradiation. A series of characterizations on structural morphology and photoelectric physical and chemical properties suggest that H4TTFTB is successfully doped into H4TTFTB-TiO2, which is attributed to the formation of stable titanium ester bond linkage between H4TTFTB and TiO2. The absorption ability of H4TTFTB extended to visible light range could fully use the solar energy. The multifunctional synergistic effect of organic and inorganic components of H4TTFTB-TiO2 composite could promote efficient electron migration and transfer in the interface. This work sheds light on the relationship of structure, photocatalytic activity and reaction pathway of TTF-based composite nanomaterials for splitting water to H2 production under visible light irradiation.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano12111918/s1. Figure S1. (a) The structure of H4TTFTB, (b) illustration of the fabrication of the H4TTFTB-TiO2. Figure S2: The XRD patterns of the intermediate products at different reaction times. Figure S3. The XRD patterns of the a-TiO2, H4TTFTB and H4TTFTB-TiO2-5.0. Figure S4: The pore size distributions of (a) a-TiO2, (b) H4TTFTB-TiO2-5.0. Figure S5: The SEM of H4TTFTB-TiO2-5.0. Figure S6: EDX of the Pt@ H4TTFTB-TiO2-5.0. Figure S7: X-ray photoelectron spectra for Ti and O of a-TiO2. Atomic ratio of Ti:O = 35%:65% ≈ 1:2. Figure S8. X-ray photoelectron spectra for C, O, Ti and S of H4TTFTB-TiO2-5.0. Atomic ratio of Ti:O:C:S = 27%:51%:21%:1.18%. Figure S9: X-ray photoelectron spectra of C, O, Ti, S, Pt of Pt@ H4TTFTB-TiO2-5.0. Figure S10: Thermal gravity analysis of (a) H4TTFTB compound and (b) H4TTFTB-TiO2-5.0. Figure S11: UV-vis absorption spectra and photoluminescence spectra of H4TTFTB in DMF (E0–0 = 1240/λint). Figure S12: Mott-Schottky plot of a-TiO2 in 0.5 M Na2SO4 aqueous solution. Figure S13: Cyclic voltammogram of H4TTFTB in 0.1 M TBAPF6 of DMF solutions measured with a scan rate of 50 mV s−1. Figure S14: Comparison of photocatalytic H2 evolution of 5 h of H4TTFTB-TiO2-5.0 hybrid material under different loads of Pt. Figure S15: Comparison of photocatalytic H2 evolution of H4TTFTB-TiO2-5.0 hybrid material under different calcined temperature loaded with 1.0 wt% Pt. Table S1. The amount of Pt NPs of Pt@H4TTFTB-TiO2. Table S2: BET surface area, pore volume and pore width of a-TiO2, H4TTFTB-TiO2-5.0 derived from 77 K N2 sorption isother. Table S3: Atmoic Fraction of Pt@H4TTFTB-TiO2. Table S4: Comparison of H2 evolution activity of TTF and TiO2 photocatalytic systems. References [45,46,47,48,49,50,51,52,53,54,55,56] are cited in the supplementary materials.

Author Contributions

Conceptualization, Y.C.; methodology, Y.C.; validation, Y.C.; investigation, M.W. and S.S.; resources, Y.C.; data curation, M.W.; software, M.W., X.Z., D.K. and B.L.; writing original draft preparation, M.W.; writing review and editing, M.W., Y.C., Y.S. and C.J.; supervision, Y.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Hainan Provincial Natural Science Foundation of China (NO. 220RC460), Hainan Provincial Natural Science Foundation of China (NO. 219QN151), Hainan University Start-up fund (NO. KYQD(ZR)1955), Hainan Postgraduate Innovation Project Fund (NO. Hys2020–63).

Data Availability Statement

The data presented in this article is available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, X.; Li, C.; Gratzel, M.; Kostecki, R.; Mao, S.S. Nanomaterials for renewable energy production and storage. Chem. Soc. Rev. 2012, 41, 7909–7937. [Google Scholar] [CrossRef]
  2. Child, M.; Koskinen, O.; Linnanen, L.; Breyer, C. Sustainability guardrails for energy scenarios of the global energy transition. Renew. Sust. Energy Rev. 2018, 91, 321–334. [Google Scholar] [CrossRef]
  3. Qyyum, M.A.; Dickson, R.; Ali Shah, S.F.; Niaz, H.; Khan, A.; Liu, J.J.; Lee, M. Availability, versatility, and viability of feedstocks for hydrogen production: Product space perspective. Renew. Sust. Energy Rev. 2021, 145, 110843. [Google Scholar] [CrossRef]
  4. Sprick, R.S.; Jiang, J.X.; Bonillo, B.; Ren, S.; Ratvijitvech, T.; Guiglion, P.; Zwijnenburg, M.A.; Adams, D.J.; Cooper, A.I. Tunable organic photocatalysts for visible-light-driven hydrogen evolution. J. Am. Chem. Soc. 2015, 137, 3265–3270. [Google Scholar] [CrossRef] [PubMed]
  5. Hu, W.; Lin, L.; Zhang, R.; Yang, C.; Yang, J. Highly Efficient Photocatalytic Water Splitting over Edge-Modified Phosphorene Nanoribbons. J. Am. Chem. Soc. 2017, 139, 15429–15436. [Google Scholar] [CrossRef] [PubMed]
  6. Fu, C.F.; Wu, X.; Yang, J. Material Design for Photocatalytic Water Splitting from a Theoretical Perspective. Adv. Mater. 2018, 30, 1802106. [Google Scholar] [CrossRef]
  7. Li, Y.; Wu, S.; Zheng, J.; Peng, Y.K.; Prabhakaran, D.; Taylor, R.A.; Tsang, S.C.E. 2D photocatalysts with tuneable supports for enhanced photocatalytic water splitting. Mater. Today 2020, 41, 34–43. [Google Scholar] [CrossRef]
  8. Lin, L.; Hisatomi, T.; Chen, S.; Takata, T.; Domen, K. Visible-Light-Driven Photocatalytic Water Splitting: Recent Progress and Challenges. Trends Chem. 2020, 2, 813–824. [Google Scholar] [CrossRef]
  9. Prasad Ojha, G.; Muthurasu, A.; Prasad Tiwari, A.; Pant, B.; Chhetri, K.; Mukhiya, T.; Dahal, B.; Lee, M.; Park, M.; Kim, H.Y. Vapor solid phase grown hierarchical CuxO NWs integrated MOFs-derived CoS2 electrode for high-performance asymmetric supercapacitors and the oxygen evolution reaction. Chem. Eng. J. 2020, 399, 125532. [Google Scholar] [CrossRef]
  10. Ma, Y.; Wang, X.; Jia, Y.; Chen, X.; Han, H.; Li, C. Titanium dioxide-based nanomaterials for photocatalytic fuel generations. Chem. Rev. 2014, 114, 9987–10043. [Google Scholar] [CrossRef] [PubMed]
  11. Guo, Q.; Ma, Z.; Zhou, C.; Ren, Z.; Yang, X. Single Molecule Photocatalysis on TiO2 Surfaces. Chem. Rev. 2019, 119, 11020–11041. [Google Scholar] [CrossRef] [PubMed]
  12. Guo, Q.; Zhou, C.; Ma, Z.; Yang, X. Fundamentals of TiO2 Photocatalysis: Concepts, Mechanisms, and Challenges. Adv. Mater. 2019, 31, 190199. [Google Scholar] [CrossRef] [PubMed]
  13. Meng, A.; Zhang, L.; Cheng, B.; Yu, J. Dual Cocatalysts in TiO2 Photocatalysis. Adv. Mater. 2019, 31, 1807660. [Google Scholar] [CrossRef] [PubMed]
  14. Hou, H.J.; Zhang, X.H.; Huang, D.K.; Ding, X.; Wang, S.Y.; Yang, X.L.; Li, S.Q.; Xiang, Y.G.; Chen, H. Conjugated microporous poly(benzothiadiazole)/TiO2 heterojunction for visible-light-driven H2 production and pollutant removal. Appl. Catal. B Environ. 2017, 203, 563–571. [Google Scholar] [CrossRef]
  15. Wu, Z.; Wang, J.; Zhou, Z.; Zhao, G. Highly selective aerobic oxidation of biomass alcohol to benzaldehyde by an in situ doped Au/TiO2 nanotube photonic crystal photoanode for simultaneous hydrogen production promotion. J. Mater. Chem. A 2017, 5, 12407–12415. [Google Scholar] [CrossRef]
  16. Yu, X.; Fan, X.; An, L.; Liu, G.; Li, Z.; Liu, J.; Hu, P. Mesocrystalline Ti3+ TiO2 hybridized g-C3N4 for efficient visible-light photocatalysis. Carbon 2018, 128, 21–30. [Google Scholar] [CrossRef]
  17. Yu, Y.; Zhu, L.; Liu, G.; Qiu, M.; Chen, P.; Chang, Z. Pd quantum dots loading Ti3+, N co-doped TiO2 nanotube arrays with enhanced photocatalytic hydrogen production and the salt ions effects. Appl. Surf. Sci. 2021, 540, 148239. [Google Scholar] [CrossRef]
  18. Narayanaswamy, K.; Tiwari, A.; Mondal, I.; Pal, U.; Niveditha, S.; Bhanuprakash, K.; Singh, S.P. Dithiafulvalene functionalized diketopyrrolopyrrole based sensitizers for efficient hydrogen production. Phys. Chem. Chem. Phys. 2015, 17, 13710–13718. [Google Scholar] [CrossRef]
  19. Tiwari, A.; Duvva, N.; Rao, V.N.; Venkatakrishnan, S.M.; Giribabu, L.; Pal, U. Tetrathiafulvalene Scaffold-Based Sensitizer on Hierarchical Porous TiO2: Efficient Light-Harvesting Material for Hydrogen Production. J. Phys. Chem. C 2018, 123, 70–81. [Google Scholar] [CrossRef]
  20. Chen, Y.F.; Huang, J.F.; Shen, M.H.; Liu, J.M.; Huang, L.B.; Zhong, Y.H.; Qin, S.; Guo, J.; Su, C.Y. A porous hybrid material based on calixarene dye and TiO2 demonstrating high and stable photocatalytic performance. J. Mater. Chem. A 2019, 7, 19852–19861. [Google Scholar] [CrossRef]
  21. Zhang, X.; Xiao, J.; Peng, C.; Xiang, Y.; Chen, H. Enhanced photocatalytic hydrogen production over conjugated polymer/black TiO2 hybrid: The impact of constructing active defect states. Appl. Surf. Sci. 2019, 465, 288–296. [Google Scholar] [CrossRef]
  22. Genc, E.; Yüzer, A.C.; Yanalak, G.; Harputlu, E.; Aslan, E.; Ocakoglu, K.; Ince, M.; Patir, I.H. The effect of central metal in phthalocyanine for photocatalytic hydrogen evolution via artificial photosynthesis. Renew. Energy 2020, 162, 1340–1346. [Google Scholar] [CrossRef]
  23. Ojha, D.P.; Karki, H.P.; Kim, H.J. Design of ternary hybrid ATO/g-C3N4/TiO2 nanocomposite for visible-light-driven photocatalysis. J. Ind. Eng. Chem. 2018, 61, 87–96. [Google Scholar] [CrossRef]
  24. Nilsing, M.; Lunell, S.; Persson, P.; Ojamäe, L. Phosphonic acid adsorption at the TiO2 anatase (101) surface investigated by periodic hybrid HF-DFT computations. Surf. Sci. 2005, 582, 49–60. [Google Scholar] [CrossRef]
  25. Chen, Y.F.; Tan, L.L.; Liu, J.M.; Qin, S.; Xie, Z.Q.; Huang, J.F.; Xu, Y.W.; Xiao, L.M.; Su, C.Y. Calix[4]arene based dye-sensitized Pt@UiO-66-NH2 metal-organic framework for efficient visible-light photocatalytic hydrogen production. Appl. Catal. B Environ. 2017, 206, 426–433. [Google Scholar] [CrossRef]
  26. Wu, H.M.; Wang, M.Y.; Jing, F.; Kong, D.R.; Chen, Y.F.; Jia, C.M.; Li, J.W. Enhanced photocatalytic hydrogen production performance of pillararene-doped mesoporous TiO2 with extended visible-light response. Chin. Chem. Lett. 2022, 33, 1983–1987. [Google Scholar] [CrossRef]
  27. Huang, J.F.; Liu, J.M.; Xiao, L.M.; Zhong, Y.H.; Liu, L.; Qin, S.; Guo, J.; Su, C.Y. Facile synthesis of porous hybrid materials based on Calix-3 dye and TiO2 for high photocatalytic water splitting performance with excellent stability. J. Mater. Chem. A 2019, 7, 2993–2999. [Google Scholar] [CrossRef]
  28. El-Kemary, M.A. Photophysical properties of 2,5-diphenyl-1,6,6a-trithiapentalene revealed by time-resolved spectroscopy. Spectrochim. Acta Part A 2001, 57, 177–183. [Google Scholar] [CrossRef]
  29. Wang, H.Y.; Cui, L.; Xie, J.Z.; Leong, C.F.; D’Alessandro, D.M.; Zuo, J.L. Functional coordination polymers based on redox-active tetrathiafulvalene and its derivatives. Coordin. Chem. Rev. 2017, 345, 342–361. [Google Scholar] [CrossRef]
  30. Jana, A.; Bahring, S.; Ishida, M.; Goeb, S.; Canevet, D.; Salle, M.; Jeppesen, J.O.; Sessler, J.L. Functionalised tetrathiafulvalene- (TTF-) macrocycles: Recent trends in applied supramolecular chemistry. Chem. Soc. Rev. 2018, 47, 5614–5645. [Google Scholar] [CrossRef]
  31. Zhang, J.; Sun, B.; Zhao, Y.; Kretschmer, K.; Wang, G. Modified Tetrathiafulvalene as an Organic Conductor for Improving Performances of Li-O2 Batteries. Angew. Chem. Int. Ed. 2017, 56, 8505–8509. [Google Scholar] [CrossRef] [Green Version]
  32. Hammerich, O.; Nielsen, M.B. Extended tetrathiafulvalenes with polycyclic aromatic cores. J. Mater. Chem. C 2019, 7, 2809–2822. [Google Scholar] [CrossRef]
  33. Mroweh, N.; Meziere, C.; Pop, F.; Auban-Senzier, P.; Alemany, P.; Canadell, E.; Avarvari, N. In Search of Chiral Molecular Superconductors: Kappa-[(S,S)-DM-BEDT-TTF]2 ClO4 Revisited. Adv. Mater. 2020, 32, 2002811. [Google Scholar] [CrossRef] [PubMed]
  34. Souto, M.; Romero, J.; Calbo, J.; Vitorica-Yrezabal, I.J.; Zafra, J.L.; Casado, J.; Orti, E.; Walsh, A.; Minguez Espallargas, G. Breathing-Dependent Redox Activity in a Tetrathiafulvalene-Based Metal-Organic Framework. J. Am. Chem. Soc. 2018, 140, 10562–10569. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Strauss, I.; Mundstock, A.; Treger, M.; Lange, K.; Hwang, S.; Chmelik, C.; Rusch, P.; Bigall, N.C.; Pichler, T.; Shiozawa, H.; et al. Metal-Organic Framework Co-MOF-74-Based Host-Guest Composites for Resistive Gas Sensing. ACS Appl. Mater. Interfaces 2019, 11, 14175–14181. [Google Scholar] [CrossRef] [Green Version]
  36. Yu, X.; Kilani, M.; Siddiqui, A.; Mao, G. One-Step Synthesis of Charge-Transfer Salt Nanosensors on Microelectrode Patterns. Adv. Mater. Technol. 2020, 5, 2000554. [Google Scholar] [CrossRef]
  37. Hou, J.L.; Weng, Y.G.; Liu, P.Y.; Cui, L.N.; Zhu, Q.Y.; Dai, J. Effects of the Ligand Structures on the Photoelectric Activities, a Model Study Based on Titanium-Oxo Clusters Anchored with S-Heterocyclic Ligands. Inorg. Chem. 2019, 58, 2736–2743. [Google Scholar] [CrossRef]
  38. Liu, L.; Zhou, S.; Zhao, C.; Jiu, T.; Bi, F.; Jian, H.; Zhao, M.; Zhang, G.; Wang, L.; Li, F.; et al. TTA as a potential hole transport layer for application in conventional polymer solar cells. J. Energy Chem. 2020, 42, 210–216. [Google Scholar] [CrossRef] [Green Version]
  39. Zhao, M.; Li, Y.; Liu, L.; Zhao, C.; Jiu, T.; Hu, M.; Xiao, X. Non-planar tetrathiafulvalene derivative modified hole transporting layer for efficient organic solar cells with improved fill factor. Solar Energy 2021, 224, 883–888. [Google Scholar] [CrossRef]
  40. Su, J.; Cai, P.; Yan, T.; Yang, Z.M.; Yuan, S.; Zuo, J.L.; Zhou, H.C. Enhancing the photothermal conversion of tetrathiafulvalene-based MOFs by redox doping and plasmon resonance. Chem. Sci. 2022, 13, 1657–1664. [Google Scholar] [CrossRef]
  41. Lu, M.; Liu, J.; Li, Q.; Zhang, M.; Liu, M.; Wang, J.L.; Yuan, D.Q.; Lan, Y.Q. Rational Design of Crystalline Covalent Organic Frameworks for Efficient CO2 Photoreduction with H2O. Angew. Chem. Int. Ed. 2019, 58, 12392–12397. [Google Scholar] [CrossRef]
  42. Ge, C.Y.; Hou, J.L.; Zhou, Z.Y.; Zhu, Q.Y.; Dai, J. A Cyclic Titanium-Oxo Cluster with a Tetrathiafulvalene Connector as a Precursor for Highly Efficient Adsorbent of Cationic Dyes. Inorg. Chem. 2022, 61, 486–495. [Google Scholar] [CrossRef]
  43. Li, Z.; Wang, C.; Su, Z.; Zhang, W.; Wang, N.; Mele, G.; Li, J. New porphyrin/Cu(II) porphyrin-TiO2 nanohybrids for improved photocatalytic oxidation and reduction activities. Mater. Chem. Phys. 2020, 252, 123228. [Google Scholar] [CrossRef]
  44. Yu, M.M.; Li, J.; Sun, W.J.; Jiang, M.; Zhang, F.X. Preparation, characterization, and photocatalytic properties of composite materials of copper(II) porphyrin/TiO2. J. Mater. Sci. 2014, 49, 5519–5528. [Google Scholar] [CrossRef]
  45. Verma, P.; Singh, A.; Rahimi, F.A.; Sarkar, P.; Nath, S.; Pati, S.K.; Maji, T.K. Charge-transfer regulated visible light driven photocatalytic H2 production and CO2 reduction in tetrathiafulvalene based coordination polymer gel. Nat. Commun. 2021, 12, 7313. [Google Scholar] [CrossRef]
  46. Wu, K.; Li, K.; Chen, S.; Hou, Y.J.; Lu, Y.L.; Wang, J.S.; Wei, M.J.; Pan, M.; Su, C.Y. The Redox Coupling Effect in a Photocatalytic Ru(II)-Pd(II) Cage with TTF Guest as Electron Relay Mediator for Visible-Light Hydrogen-Evolving Promotion. Angew. Chem. Int. Ed. 2020, 59, 2639–2643. [Google Scholar] [CrossRef]
  47. Le, T.T.; Akhtar, M.S.; Park, D.M.; Lee, J.C.; Yang, O.B. Water splitting on Rhodamine-B dye sensitized Co-doped TiO2 catalyst under visible light. Appl. Catal. B Environ. 2012, 111–112, 397–401. [Google Scholar] [CrossRef]
  48. Jing, F.; Guo, Y.; Li, B.; Chen, Y.F.; Jia, C.; Li, J. Enhanced photocatalytic hydrogen production under visible light of an organic-inorganic hybrid material based on enzo[1,2-b:4,5-b’]dithiophene polymer and TiO2. Chin. Chem. Lett. 2022, 33, 1303–1307. [Google Scholar] [CrossRef]
  49. Lai, H.; Liu, X.; Zeng, F.; Peng, G.; Li, J.; Yi, Z. Multicarbazole-Based D-pi-A Dyes Sensitized Hydrogen Evolution under Visible Light Irradiation. ACS Omega 2020, 5, 2027–2033. [Google Scholar] [CrossRef]
  50. Shen, X.F.; Watanabe, M.; Takagaki, A.; Song, J.T.; Ishihara, T. Pyridyl-Anchored Type BODIPY Sensitizer-TiO2 Photocatalyst for Enhanced Visible Light-Driven Photocatalytic Hydrogen Production. Catalysts 2020, 10, 535. [Google Scholar] [CrossRef]
  51. Liu, X.; Lai, H.; Li, J.; Peng, G.; Yi, Z.; Zeng, R.; Wang, M.; Liu, Z. Polyaniline sensitized Pt@TiO2 for visible-light-driven H2 generation. Int. J. Hydrogen Energy 2019, 44, 4698–4706. [Google Scholar] [CrossRef]
  52. Sun, Y.; Wang, X.F.; Chen, G.; Zhan, C.H.; Kitao, O.; Tamiaki, H.; Sasaki, S.i. Near-infrared absorption carboxylated chlorophyll-a derivatives for biocompatible dye-sensitized hydrogen evolution. Int. J. Hydrogen Energy 2017, 42, 15731–15738. [Google Scholar] [CrossRef]
  53. Yan, Z.; Yu, X.; Zhang, Y.; Jia, H.; Sun, Z.; Du, P. Enhanced visible light-driven hydrogen production from water by a noble-metal-free system containing organic dye-sensitized titanium dioxide loaded with nickel hydroxide as the cocatalyst. Appl. Catal. B Environ. 2014, 160–161, 173–178. [Google Scholar] [CrossRef]
  54. Aslan, E.; Gonce, M.K.; Yigit, M.Z.; Sarilmaz, A.; Stathatos, E.; Ozel, F.; Can, M.; Patir, I.H. Photocatalytic H2 evolution with a Cu2WS4 catalyst on a metal free D-π-A organic dye-sensitized TiO2. Appl. Catal. B Environ. 2017, 210, 320–327. [Google Scholar] [CrossRef]
  55. Veikko, U.; Zhang, X.; Peng, T.; Cai, P.; Cheng, G. The synthesis and characterization of dinuclear ruthenium sensitizers and their applications in photocatalytic hydrogen production. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2013, 105, 539–544. [Google Scholar] [CrossRef] [PubMed]
  56. Hou, C.P.; Chen, X.L.; Huang, Z.J.; Lei, Y.; Xiao, L.M.; Huang, J.F.; Li, S.Y.; Liu, J.M. Robust Heterogeneous Photocatalyst for Visible-Light-Driven Hydrogen Evolution Promotion: Immobilization of a Fluorescein Dye-Encapsulated Metal-Organic Cage on TiO2. ACS Appl. Mater. Interfaces 2021, 13, 57230–57240. [Google Scholar] [CrossRef]
Nanomaterials 12 01918 g001 550

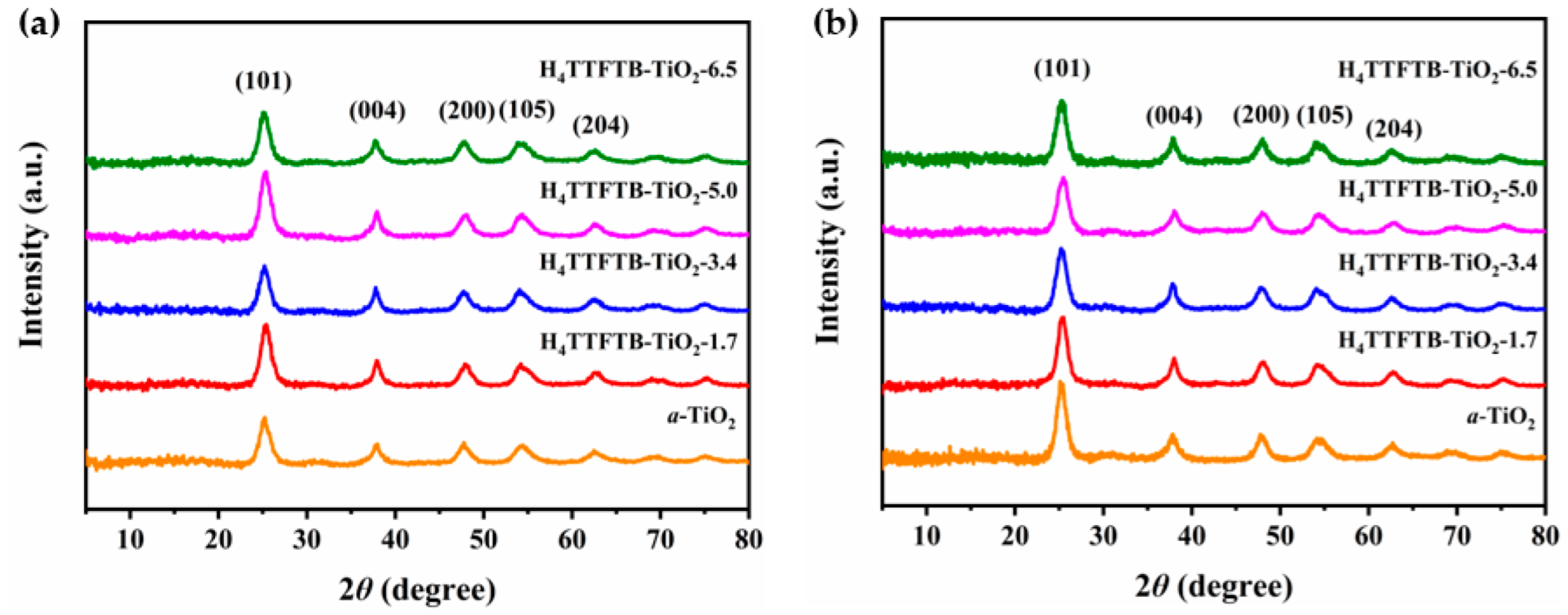

Figure 1. XRD of H4TTFTB-TiO2 with different H4TTFTB amounts were listed above without (a) and with (b) 250 °C calcination.
Figure 1. XRD of H4TTFTB-TiO2 with different H4TTFTB amounts were listed above without (a) and with (b) 250 °C calcination.
Nanomaterials 12 01918 g001
Nanomaterials 12 01918 g002 550
Figure 2. N2 adsorption-desorption isotherms of H4TTFTB-TiO2 system measured under 77 K.
Figure 2. N2 adsorption-desorption isotherms of H4TTFTB-TiO2 system measured under 77 K.
Nanomaterials 12 01918 g002
Nanomaterials 12 01918 g003 550

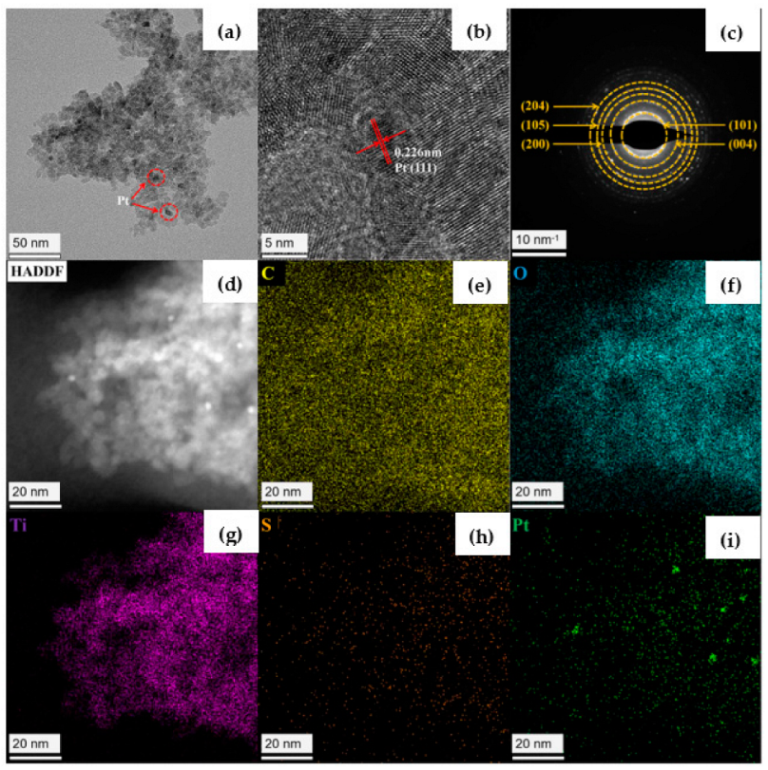

Figure 3. (a) TEM, (b) HRTEM, (c) SAED of H4TTFTB-TiO2 and (d–i) the elemental mappings image of Pt@ H4TTFTB-TiO2-5.0.
Figure 3. (a) TEM, (b) HRTEM, (c) SAED of H4TTFTB-TiO2 and (d–i) the elemental mappings image of Pt@ H4TTFTB-TiO2-5.0.
Nanomaterials 12 01918 g003
Nanomaterials 12 01918 g004 550

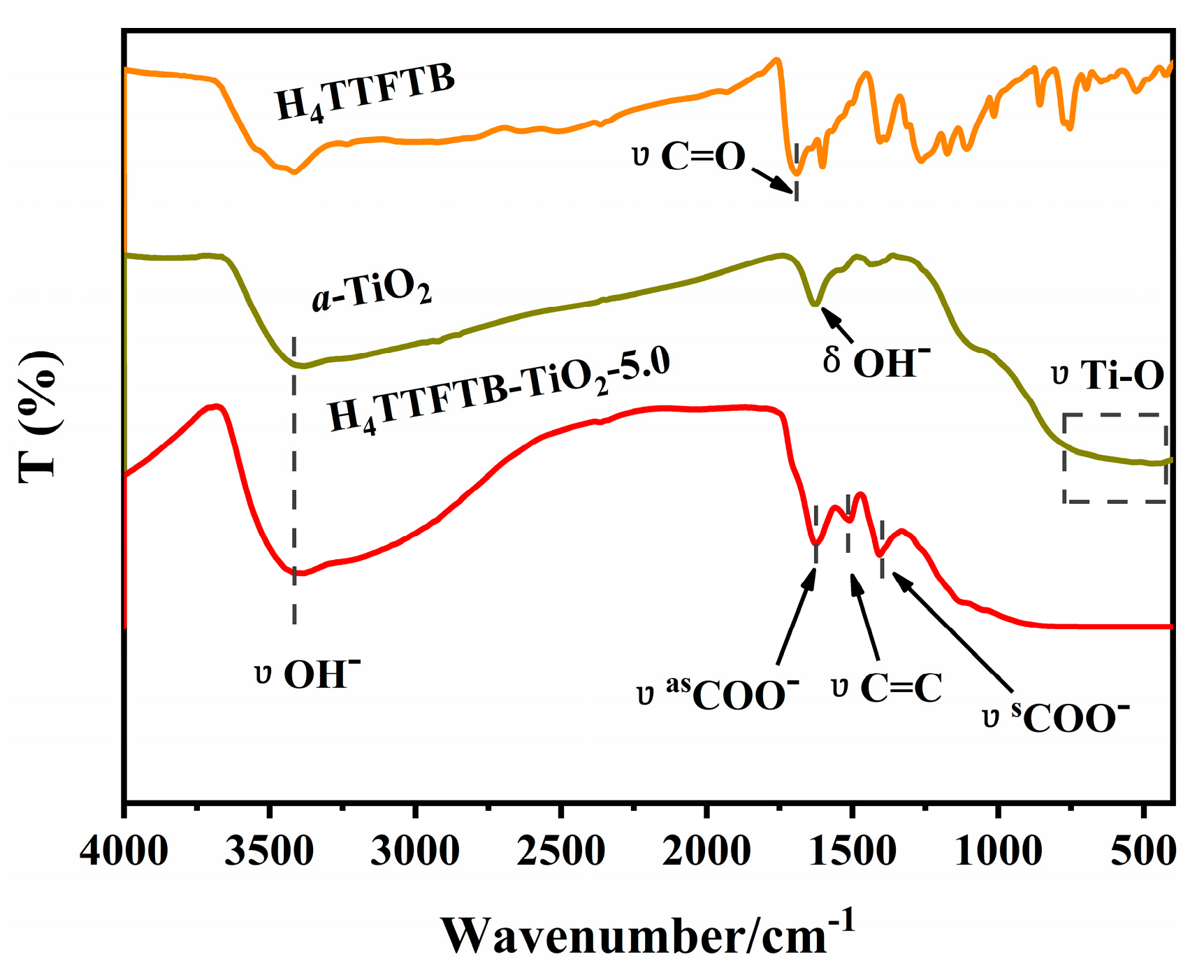

Figure 4. The FT-IR spectra of H4TTFTB-TiO2-5.0, H4TTFTB, a-TiO2.
Figure 4. The FT-IR spectra of H4TTFTB-TiO2-5.0, H4TTFTB, a-TiO2.
Nanomaterials 12 01918 g004
Nanomaterials 12 01918 g005 550
Figure 5. (a) UV-vis diffraction spectra of a-TiO2, H4TTFTB and H4TTFTB-TiO2-5.0, (b) the Tauc plot of a-TiO2 and H4TTFTB-TiO2-5.0.
Figure 5. (a) UV-vis diffraction spectra of a-TiO2, H4TTFTB and H4TTFTB-TiO2-5.0, (b) the Tauc plot of a-TiO2 and H4TTFTB-TiO2-5.0.
Nanomaterials 12 01918 g005
Nanomaterials 12 01918 g006 550
Figure 6. (a) Effect of the amount of H4TTFTB doped into the TiO2 on the performance of photocatalytic hydrogen production, (b) Photocatalytic H2 production over the recyclability of H4TTFTB-TiO2-5.0 in 20 mL H2O/TEOA (9:1 v/v) with 1.0 wt% Pt loading under visible light irradiation (λ > 400 nm), (c) Transient photocurrent responses and (d) EIS Nyquist plots.
Figure 6. (a) Effect of the amount of H4TTFTB doped into the TiO2 on the performance of photocatalytic hydrogen production, (b) Photocatalytic H2 production over the recyclability of H4TTFTB-TiO2-5.0 in 20 mL H2O/TEOA (9:1 v/v) with 1.0 wt% Pt loading under visible light irradiation (λ > 400 nm), (c) Transient photocurrent responses and (d) EIS Nyquist plots.
Nanomaterials 12 01918 g006
Nanomaterials 12 01918 g007 550

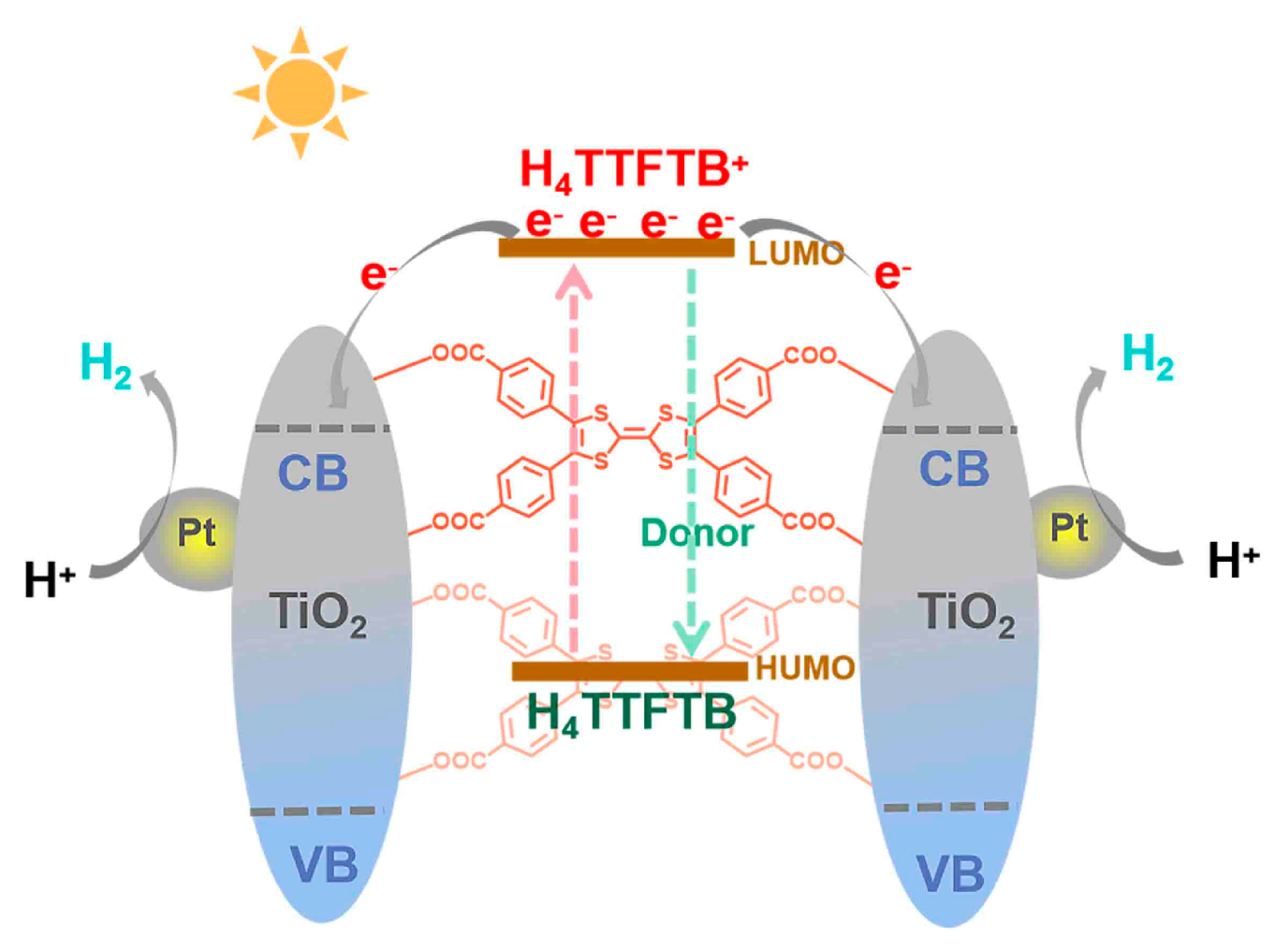

Figure 7. Proposed mechanism of photocatalytic H2 production over Pt@H4TTFTB-TiO2.
Figure 7. Proposed mechanism of photocatalytic H2 production over Pt@H4TTFTB-TiO2.
Nanomaterials 12 01918 g007
