#
Revisiting the van der Waals Epitaxy in the Case of (Bi_{0.4}Sb_{0.6})_{2}Te_{3} Thin Films on Dissimilar Substrates

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

## 3. Results and Discussion

#### 3.1. Substrate and Material Choice

#### 3.2. High Degree of Crystallinity, Consistent with vdW Epitaxy

#### 3.3. Morphological Differences, Indicating Quasi-vdW Epitaxy

#### 3.4. Employing Quasi-vdW Epitaxy to Enhance Single Domain Rotational Alignment with the Substrate

#### 3.5. Revealing the Nature of the Film-Substrate Interaction in Quasi-vdW Epitaxy

## 4. Conclusions

## Supplementary Materials

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Zhang, Y.; He, K.; Chang, C.Z.; Song, C.L.; Wang, L.L.; Chen, X.; Jia, J.F.; Fang, Z.; Dai, X.; Shan, W.Y.; et al. Crossover of the three-dimensional topological insulator Bi
_{2}Se_{3}to the two-dimensional limit. Nat. Phys.**2010**, 6, 584–588. [Google Scholar] [CrossRef] [Green Version] - Zhang, H.; Liu, C.X.; Qi, X.L.; Dai, X.; Fang, Z.; Zhang, S.C. Topological insulators in Bi
_{2}Se_{3}, Bi_{2}Te_{3}and Sb_{2}Te_{3}with a single Dirac cone on the surface. Nat. Phys.**2009**, 5, 438–442. [Google Scholar] [CrossRef] - Xia, Y.; Qian, D.; Hsieh, D.; Wray, L.; Pal, A.; Lin, H.; Bansil, A.; Grauer, D.; Hor, Y.S.; Cava, R.J.; et al. Observation of a large-gap topological-insulator class with a single Dirac cone on the surface. Nat. Phys.
**2009**, 5, 398–402. [Google Scholar] [CrossRef] [Green Version] - Hsieh, D.; Xia, Y.; Qian, D.; Wray, L.; Dil, J.H.; Meier, F.; Osterwalder, J.; Patthey, L.; Checkelsky, J.G.; Ong, N.P.; et al. A tunable topological insulator in the spin helical Dirac transport regime. Nature
**2009**, 460, 1101–1105. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Chen, Y.L.; Analytis, J.G.; Chu, J.H.; Liu, Z.K.; Mo, S.K.; Qi, X.L.; Zhang, H.J.; Lu, D.H.; Dai, X.; Fang, Z.; et al. Experimental realization of a three-dimensional topological insulator, Bi
_{2}Te_{3}. Science**2009**, 325, 178–181. [Google Scholar] [CrossRef] [Green Version] - Hsieh, D.; Xia, Y.; Qian, D.; Wray, L.; Meier, F.; Dil, J.H.; Osterwalder, J.; Patthey, L.; Fedorov, A.V.; Lin, H.; et al. Observation of time-reversal-protected single-Dirac-cone topological-insulator states in Bi
_{2}Te_{3}and Sb_{2}Te_{3}. Phys. Rev. Lett.**2009**, 103, 146401. [Google Scholar] [CrossRef] [Green Version] - Fu, L.; Kane, C.L. Superconducting Proximity Effect and Majorana Fermions at the Surface of a Topological Insulator. Phys. Rev. Lett.
**2008**, 100, 096407. [Google Scholar] [CrossRef] [Green Version] - Das Sarma, S.; Freedman, M.; Nayak, C. Majorana zero modes and topological quantum computation. npj Quantum Inf.
**2015**, 1, 15001. [Google Scholar] [CrossRef] [Green Version] - Qi, X.L.; Li, R.; Zang, J.; Zhang, S.C. Inducing a Magnetic Monopole with Topological Surface States. Science
**2009**, 323, 1184–1187. [Google Scholar] [CrossRef] [Green Version] - Nogueira, F.S.; Nussinov, Z.; van den Brink, J. Fractional Angular Momentum at Topological Insulator Interfaces. Phys. Rev. Lett.
**2018**, 121, 227001. [Google Scholar] [CrossRef] [Green Version] - Zhang, J.; Chang, C.Z.; Zhang, Z.; Wen, J.; Feng, X.; Li, K.; Liu, M.; He, K.; Wang, L.; Chen, X.; et al. Band structure engineering in (Bi
_{1−x}Sb_{x})_{2}Te_{3}ternary topological insulators. Nat. Commun.**2011**, 2, 574. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Richardella, A.; Kandala, A.; Lee, J.S.; Samarth, N. Characterizing the structure of topological insulator thin films. APL Mater.
**2015**, 3, 083303. [Google Scholar] [CrossRef] [Green Version] - Ngabonziza, P. Quantum transport and potential of topological states for thermoelectricity in Bi
_{2}Te_{3}thin films. Nanotechnology**2022**, 33, 192001. [Google Scholar] [CrossRef] [PubMed] - Liu, W.; Endicott, L.; Stoica, V.A.; Chi, H.; Clarke, R.; Uher, C. High-quality ultra-flat BiSbTe
_{3}films grown by MBE. J. Cryst. Growth**2015**, 410, 23–29. [Google Scholar] [CrossRef] [Green Version] - Yang, F.; Taskin, A.A.; Sasaki, S.; Segawa, K.; Ohno, Y.; Matsumoto, K.; Ando, Y. Top gating of epitaxial (Bi
_{1−x}Sb_{x})_{2}Te_{3}topological insulator thin films. Appl. Phys. Lett.**2014**, 104, 161614. [Google Scholar] [CrossRef] [Green Version] - He, L.; Kou, X.; Lang, M.; Choi, E.S.; Jiang, Y.; Nie, T.; Jiang, W.; Fan, Y.; Wang, Y.; Xiu, F.; et al. Evidence of the two surface states of (Bi
_{0.53}Sb_{0.47})_{2}Te_{3}films grown by van der Waals epitaxy. Sci. Rep.**2013**, 3, 3406. [Google Scholar] [CrossRef] [Green Version] - Kim, K.C.; Lee, J.; Kim, B.K.; Choi, W.Y.; Chang, H.J.; Won, S.O.; Kwon, B.; Kim, S.K.; Hyun, D.B.; Kim, H.J.; et al. Free-electron creation at the 60° twin boundary in Bi
_{2}Te_{3}. Nat. Commun.**2016**, 7, 12449. [Google Scholar] [CrossRef] [Green Version] - Shimizu, S.; Yoshimi, R.; Hatano, T.; Takahashi, K.S.; Tsukazaki, A.; Kawasaki, M.; Iwasa, Y.; Tokura, Y. Gate control of surface transport in MBE-grown topological insulator (Bi
_{1−x}Sb_{x})_{2}Te_{3}thin films. Phys. Rev. B**2012**, 86, 045319. [Google Scholar] [CrossRef] - Weyrich, C.; Drögeler, M.; Kampmeier, J.; Eschbach, M.; Mussler, G.; Merzenich, T.; Stoica, T.; Batov, I.E.; Schubert, J.; Plucinski, L.; et al. Growth, characterization, and transport properties of ternary (Bi
_{1−x}Sb_{x})_{2}Te_{3}topological insulator layers. J. Phys. Condens. Matter**2016**, 28, 495501. [Google Scholar] [CrossRef] [Green Version] - Zhang, G.; Qin, H.; Chen, J.; He, X.; Lu, L.; Li, Y.; Wu, K. Growth of topological insulator Bi
_{2}Se_{3}thin films on SrTiO3 with large tunability in chemical potential. Adv. Funct. Mater.**2011**, 21, 2351–2355. [Google Scholar] [CrossRef] - He, X.; Guan, T.; Wang, X.; Feng, B.; Cheng, P.; Chen, L.; Li, Y.; Wu, K. Highly tunable electron transport in epitaxial topological insulator (Bi
_{1−x}Sb_{x})_{2}Te_{3}thin films. Appl. Phys. Lett.**2012**, 101, 123111. [Google Scholar] [CrossRef] - He, X.; Li, H.; Chen, L.; Wu, K. Substitution-induced spin-splitted surface states in topological insulator (Bi
_{1−x}Sb_{x})_{2}Te_{3}. Sci. Rep.**2015**, 5, 8830. [Google Scholar] [CrossRef] [PubMed] - Qin, H.; Guo, B.; Wang, L.; Zhang, M.; Xu, B.; Shi, K.; Pan, T.; Zhou, L.; Chen, J.; Qiu, Y.; et al. Superconductivity in single-quintuple-layer Bi
_{2}Te_{3}grown on epitaxial FeTe. Nano Lett.**2020**, 20, 3160–3168. [Google Scholar] [CrossRef] [PubMed] - Zhao, H.; Rachmilowitz, B.; Ren, Z.; Han, R.; Schneeloch, J.; Zhong, R.; Gu, G.; Wang, Z.; Zeljkovic, I. Superconducting proximity effect in a topological insulator using Fe(Te, Se). Phys. Rev. B
**2018**, 97, 224504. [Google Scholar] [CrossRef] [Green Version] - Harrison, S.E.; Li, S.; Huo, Y.; Zhou, B.; Chen, Y.L.; Harris, J.S. Two-step growth of high quality Bi
_{2}Te_{3}thin films on Al_{2}O_{3}(0001) by molecular beam epitaxy. Appl. Phys. Lett.**2013**, 102, 171906. [Google Scholar] [CrossRef] - Koirala, N.; Brahlek, M.; Salehi, M.; Wu, L.; Dai, J.; Waugh, J.; Nummy, T.; Han, M.G.; Moon, J.; Zhu, Y.; et al. Record Surface State Mobility and Quantum Hall Effect in Topological Insulator Thin Films via Interface Engineering. Nano Lett.
**2015**, 15, 8245–8249. [Google Scholar] [CrossRef] - Wang, Y.; Ginley, T.P.; Law, S. Growth of high-quality Bi
_{2}Se_{3}topological insulators using (Bi_{1−x}In_{x})_{2}Se_{3}buffer layers. J. Vac. Sci. Technol. B**2018**, 36, 02D101. [Google Scholar] [CrossRef] - Wang, Z.; Li, H.; Guo, X.; Ho, W.; Xie, M. Growth characteristics of topological insulator Bi
_{2}Se_{3}films on different substrates. J. Cryst. Growth**2011**, 334, 96–102. [Google Scholar] [CrossRef] - Hwang, J.Y.; Kim, Y.M.; Lee, K.H.; Ohta, H.; Kim, S.W. Te monolayer-driven spontaneous van der Waals epitaxy of two-dimensional pnictogen chalcogenide film on sapphire. Nano Lett.
**2017**, 17, 6140–6145. [Google Scholar] [CrossRef] - Walsh, L.A.; Hinkle, C.L. Van der Waals epitaxy: 2D materials and topological insulators. Appl. Mater. Today
**2017**, 9, 504–515. [Google Scholar] [CrossRef] - Nečas, D.; Klapetek, P. Gwyddion: An open-source software for SPM data analysis. Cent. Eur. J. Phys.
**2012**, 10, 181–188. [Google Scholar] [CrossRef] - Degen, T.; Sadki, M.; Bron, E.; König, U.; Nénert, G. The HighScore Suite. Powder Diffr.
**2014**, 29, S13–S18. [Google Scholar] [CrossRef] [Green Version] - Yang, F.; Taskin, A.A.; Sasaki, S.; Segawa, K.; Ohno, Y.; Matsumoto, K.; Ando, Y. Dual-gated topological insulator thin-film device for efficient fermi-level tuning. ACS Nano
**2015**, 9, 4050–4055. [Google Scholar] [CrossRef] [PubMed] - Li, B.; Guo, X.; Ho, W.; Xie, M. Strain in epitaxial Bi
_{2}Se_{3}grown on GaN and graphene substrates: A reflection high-energy electron diffraction study. Appl. Phys. Lett.**2015**, 107, 081604. [Google Scholar] [CrossRef] [Green Version] - Tarakina, N.V.; Schreyeck, S.; Luysberg, M.; Grauer, S.; Schumacher, C.; Karczewski, G.; Brunner, K.; Gould, C.; Buhmann, H.; Dunin-Borkowski, R.E.; et al. Suppressing twin formation in Bi
_{2}Se_{3}thin films. Adv. Mater. Interfaces**2014**, 1, 1400134. [Google Scholar] [CrossRef] [Green Version] - Borisova, S.; Krumrain, J.; Luysberg, M.; Mussler, G.; Grützmacher, D. Mode of growth of ultrathin topological insulator Bi
_{2}Te_{3}films on Si (111) substrates. Cryst. Growth Des.**2012**, 12, 6098–6103. [Google Scholar] [CrossRef] - Borisova, S.; Kampmeier, J.; Luysberg, M.; Mussler, G.; Grützmacher, D. Domain formation due to surface steps in topological insulator Bi
_{2}Te_{3}thin films grown on Si (111) by molecular beam epitaxy. Appl. Phys. Lett.**2013**, 103, 081902. [Google Scholar] [CrossRef] [Green Version] - Lanius, M.; Kampmeier, J.; Kölling, S.; Mussler, G.; Koenraad, P.M.; Grützmacher, D. Topography and structure of ultrathin topological insulator Sb
_{2}Te_{3}films on Si(111) grown by means of molecular beam epitaxy. J. Cryst. Growth**2016**, 453, 158–162. [Google Scholar] [CrossRef] - Winnerlein, M.; Schreyeck, S.; Grauer, S.; Rosenberger, S.; Fijalkowski, K.M.; Gould, C.; Brunner, K.; Molenkamp, L.W. Epitaxy and structural properties of (V,Bi,Sb)
_{2}Te_{3}layers exhibiting the quantum anomalous Hall effect. Phys. Rev. Mater.**2017**, 1, 011201(R). [Google Scholar] [CrossRef] [Green Version] - Mu, X.; Zhou, H.; He, D.; Zhao, W.; Wei, P.; Zhu, W.; Nie, X.; Liu, H.; Zhang, Q. Enhanced electrical properties of stoichiometric Bi
_{0.5}Sb_{1.5}Te_{3}film with high-crystallinity via layer-by-layer in-situ growth. Nano Energy**2017**, 33, 55–64. [Google Scholar] [CrossRef] - Kandala, A. Transport Studies of Mesoscopic and Magnetic Topological Insulators. Ph.D. Thesis, Pennsylvania State University, State College, PA, USA, 2015. [Google Scholar]
- Kremer, G.; Zhu, K.; Pierron, T.; Fournee, V.; Ledieu, J.; Andrieu, S.; Kierren, B.; Moreau, L.; Malterre, D.; He, K.; et al. Recovery of surface state bands after desorption of Te capping layer on (Bi
_{1−x}Sb_{x})_{2}Te_{3}ternary topological insulators. J. Phys. D Appl. Phys.**2019**, 52, 494002. [Google Scholar] [CrossRef] - Ferhat, M.; Tedenac, J.C.; Nagao, J. Mechanisms of spiral growth in Bi
_{2}Te_{3}thin films grown by the hot-wall-epitaxy technique. J. Cryst. Growth**2000**, 218, 250–258. [Google Scholar] [CrossRef] - Gilmer, G.H.; Grabow, M.H. Models of thin film growth modes. J. Met.
**1987**, 39, 19–23. [Google Scholar] [CrossRef] - Guo, X.; Xu, Z.J.; Liu, H.C.; Zhao, B.; Dai, X.Q.; He, H.T.; Wang, J.N.; Liu, H.J.; Ho, W.K.; Xie, M.H. Single domain Bi
_{2}Se_{3}films grown on InP(111)A by molecular-beam epitaxy. Appl. Phys. Lett.**2013**, 102, 151604. [Google Scholar] [CrossRef] [Green Version] - Richardson, C.L.; Devine-Stoneman, J.M.; Divitini, G.; Vickers, M.E.; Chang, C.Z.; Amado, M.; Moodera, J.S.; Robinson, J.W.A. Structural properties of thin-film ferromagnetic topological insulators. Sci. Rep.
**2017**, 7, 12061. [Google Scholar] [CrossRef] [Green Version] - Lanius, M.; Kampmeier, J.; Weyrich, C.; Kölling, S.; Schall, M.; Schüffelgen, P.; Neumann, E.; Luysberg, M.; Mussler, G.; Koenraad, P.M.; et al. P–N junctions in ultrathin topological insulator Sb
_{2}Te_{3}/Bi_{2}Te_{3}heterostructures grown by molecular beam epitaxy. Cryst. Growth Des.**2016**, 16, 2057–2061. [Google Scholar] [CrossRef] - Reed, T.B. Free Energy of Formation of Binary Compounds: An Atlas of Charts for High-Temperature Chemical Calculations; MIT Press: Cambridge, MA, USA, 1971. [Google Scholar]
- Volykhov, A.A.; Sánchez-Barriga, J.; Batuk, M.; Callaert, C.; Hadermann, J.; Sirotina, A.P.; Neudachina, V.S.; Belova, A.I.; Vladimirova, N.V.; Tamm, M.E.; et al. Can surface reactivity of mixed crystals be predicted from their counterparts? A case study of (Bi
_{1−x}Sb_{x})_{2}Te_{3}topological insulators. J. Mater. Chem. C**2018**, 6, 8941–8949. [Google Scholar] [CrossRef] [Green Version] - Koster, G.; Kropman, B.L.; Rijnders, G.J.H.M.; Blank, D.H.A.; Rogalla, H. Quasi-ideal strontium titanate crystal surfaces through formation of strontium hydroxide. Appl. Phys. Lett.
**1998**, 73, 2920–2922. [Google Scholar] [CrossRef] [Green Version] - Kampmeier, J.; Borisova, S.; Plucinski, L.; Luysberg, M.; Mussler, G.; Grützmacher, D. Suppressing twin domains in molecular beam epitaxy grown Bi
_{2}Te_{3}topological insulator thin films. Cryst. Growth Des.**2015**, 15, 390–394. [Google Scholar] [CrossRef] - Mussler, G. Molecular-beam epitaxy of 3D topological insulator thin films and devices on Si substrates. Phys. Status Solidi B
**2021**, 258, 2000007. [Google Scholar] [CrossRef] - Ginley, T.P.; Wang, Y.; Law, S. Topological insulator film growth by molecular beam epitaxy: A review. Crystals
**2016**, 6, 154. [Google Scholar] [CrossRef] - Bouwmeester, R.L.; de Hond, K.; Gauquelin, N.; Verbeeck, J.; Koster, G.; Brinkman, A. Stabilization of the Perovskite Phase in the Y–Bi–O System By Using a BaBiO
_{3}Buffer Layer. Phys. Status Solidi (RRL)—Rapid Res. Lett.**2019**, 13, 1800679. [Google Scholar] [CrossRef] [Green Version]

**Figure 1.**(

**a**–

**c**) RHEED patterns and (

**d**) symmetric 2$\theta -\omega $ diffractograms of 10 nm BST on InP (111), Al${}_{2}$O${}_{3}$ (001), and SrTiO${}_{3}$ (111) substrates, respectively. The presented RHEED patterns are recorded along $\langle 2\overline{1}\overline{1}0\rangle $ and are representative for other BST films deposited on these substrates. The XRD data have been given an offset for clarity. The solid (semi-transparent) lines present the smoothed (real) data. The Miller indices of the different crystallographic planes $(hk\ell )$ are indicated. The diffractograms and the sharp streaks observed in the RHEED patterns confirm the crystallinity of all three BST films in the out-of-plane direction.

**Figure 2.**RSMs of 10 nm BST films deposited on (

**a**) InP (111)A; (

**b**) Al${}_{2}$O${}_{3}$ (001); and (

**c**) SrTiO${}_{3}$ (111). All RSMs map out the same region of reciprocal space chosen to cover the three nearest substrate reflections and the reciprocal space position of the BST (0120) and (1019) reflections. The RSMs indicate that there is no significant strain imposed on the film.

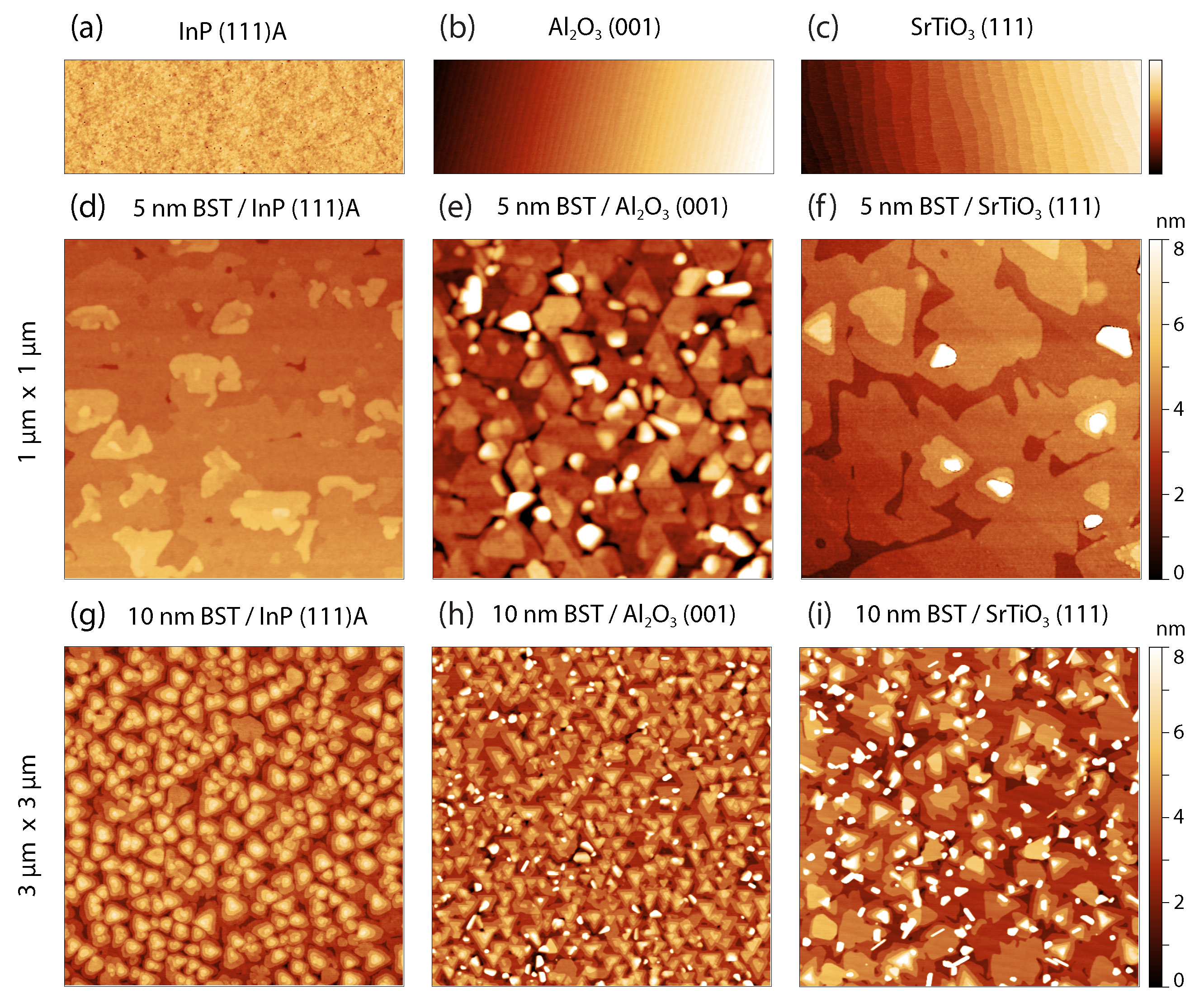

**Figure 3.**AFM images revealing the surface morphology of the used substrates (

**a**–

**c**) with a dimension of 1 $\mathsf{\mu}\mathrm{m}$ × 3 $\mathsf{\mu}\mathrm{m}$. Surface morphology of 5 and 10 nm BST films deposited on InP (

**d**,

**g**); Al${}_{2}$O${}_{3}$ (

**e**,

**h**); and SrTiO${}_{3}$ (

**f**,

**i**), with a lateral dimension of 1 $\mathsf{\mu}\mathrm{m}$ × 1 $\mathsf{\mu}\mathrm{m}$ and 3 $\mathsf{\mu}\mathrm{m}$ × 3 $\mathsf{\mu}\mathrm{m}$, respectively. The BST films exhibit randomly inclined crystals when deposited on SrTiO${}_{3}$ and Al${}_{2}$O${}_{3}$, whereas it grows relatively smooth on InP. The observed defects are expected to arise from defects in the nucleation layer of the film due to the relatively large lattice mismatch between the film and the SrTiO${}_{3}$ and Al${}_{2}$O${}_{3}$ substrates.

**Figure 4.**Pole figures taken in symmetric $2\theta -\omega $ configuration at $2\theta =38.06{}^{\circ}$ on 10 nm BST films deposited on (

**a**) InP (111)A; (

**b**) Al${}_{2}$O${}_{3}$ (001); and (

**c**) SrTiO${}_{3}$ (111). $\phi $ and $\chi $ present the azimuthal and tilt angle, respectively. Mapping the BST{1010} of the film on SrTiO${}_{3}$ (

**a**) and InP (

**c**) clearly shows the existence of the twin domains while a domain suppression is achieved in the film on Al${}_{2}$O${}_{3}$ (

**b**).

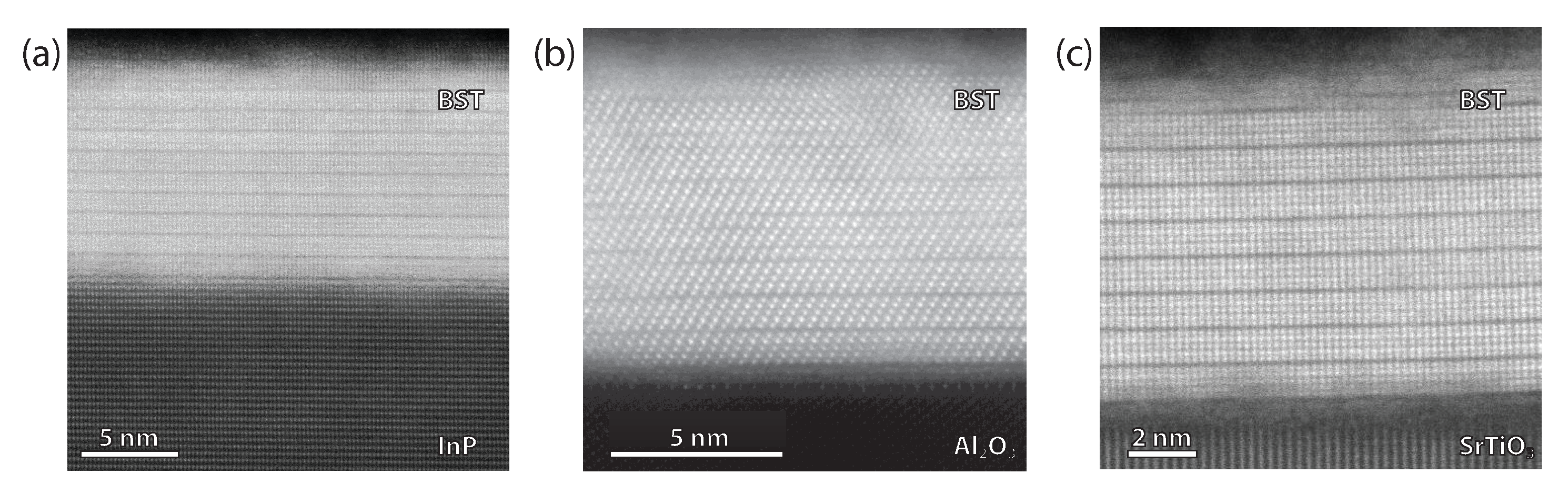

**Figure 5.**STEM images of the substrate/film interface (

**a**) ADF mapping performed on a 10 nm BST film deposited on InP. STEM cross-sectional view along the $\left[2\overline{1}\overline{1}0\right]$ (in-plane) direction, presenting a regular stacking of the QLs and revealing a well-defined substrate/film interface; (

**b**) HAADF mapping performed on a 10 nm BST film deposited on Al${}_{2}$O${}_{3}$ presenting a cross-sectional view along the $\left[01\overline{1}0\right]$ (in-plane) direction; (

**c**) HAADF STEM cross-sectional view along the $\left[2\overline{1}\overline{1}0\right]$ (in-plane) direction on a 10 nm BST film deposited on SrTiO${}_{3}$.

**Figure 6.**STEM HAADF image (

**a**) and EDX maps (

**b**,

**c**) of lamella presented in Figure 5c, presenting a cross-sectional view along the $\left[2\overline{1}\overline{1}0\right]$ (in-plane) direction on a 10 nm BST film deposited on SrTiO${}_{3}$. The dotted line marks the bottom of the first QL. (

**a**) HAADF image of the area on which the EDX mapping is performed; (

**b**) overlay of elemental maps; (

**c**) individual elemental maps of Bi (red), Sb (green) and Te (blue). The analysis reveals the ordering of Sb in the interfacial layer.

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Mulder, L.; Wielens, D.H.; Birkhölzer, Y.A.; Brinkman, A.; Concepción, O.
Revisiting the van der Waals Epitaxy in the Case of (Bi_{0.4}Sb_{0.6})_{2}Te_{3} Thin Films on Dissimilar Substrates. *Nanomaterials* **2022**, *12*, 1790.
https://doi.org/10.3390/nano12111790

**AMA Style**

Mulder L, Wielens DH, Birkhölzer YA, Brinkman A, Concepción O.
Revisiting the van der Waals Epitaxy in the Case of (Bi_{0.4}Sb_{0.6})_{2}Te_{3} Thin Films on Dissimilar Substrates. *Nanomaterials*. 2022; 12(11):1790.
https://doi.org/10.3390/nano12111790

**Chicago/Turabian Style**

Mulder, Liesbeth, Daan H. Wielens, Yorick A. Birkhölzer, Alexander Brinkman, and Omar Concepción.
2022. "Revisiting the van der Waals Epitaxy in the Case of (Bi_{0.4}Sb_{0.6})_{2}Te_{3} Thin Films on Dissimilar Substrates" *Nanomaterials* 12, no. 11: 1790.
https://doi.org/10.3390/nano12111790
