Article

Cytostatic and Cytotoxic Effects of Hollow-Shell Mesoporous Silica Nanoparticles Containing Magnetic Iron Oxide

by
Manuel Pérez-Garnes
,
Victoria Morales
,
Raul Sanz
* and
Rafael A. García-Muñoz
*
Department of Chemical and Environmental Technology, Rey Juan Carlos University, C/Tulipán s/n, 28933 Madrid, Spain
*
Authors to whom correspondence should be addressed.
Nanomaterials 2021, 11(9), 2455; https://doi.org/10.3390/nano11092455
Submission received: 23 July 2021 / Revised: 8 September 2021 / Accepted: 15 September 2021 / Published: 21 September 2021
(This article belongs to the Special Issue Silica Nanoparticles as Safety Nanocarriers)
Browse Figures
Versions Notes

Abstract

Among the different types of nanoparticles used in biomedical applications, Fe nanoparticles and mesoporous siliceous materials have been extensively investigated because of their possible theranostic applications. Here, we present hollow-shell mesoporous silica nanoparticles that encapsulate iron oxide and that are prepared using a drug-structure-directing agent concept (DSDA), composed of the model drug tryptophan modified by carbon aliphatic hydrocarbon chains. The modified tryptophan can behave as an organic template that allows directing the hollow-shell mesoporous silica framework, as a result of its micellisation and subsequent assembly of the silica around it. The one-pot synthesis procedure facilitates the incorporation of hydrophobically stabilised iron oxide nanoparticles into the hollow internal silica cavities, with the model drug tryptophan in the shell pores, thus enabling the incorporation of different functionalities into the all-in-one nanoparticles named mesoporous silica nanoparticles containing magnetic iron oxide (Fe3O4@MSNs). Additionally, the drug loading capability and the release of tryptophan from the silica nanoparticles were examined, as well as the cytostaticity and cytotoxicity of the Fe3O4@MSNs in different colon cancer cell lines. The results indicate that Fe3O4@MSNs have great potential for drug loading and drug delivery into specific target cells, thereby overcoming the limitations associated with conventional drug formulations, which are unable to selectively reach the sites of interest.

Graphical Abstract

1. Introduction

Over the past few decades, nanotechnology has emerged as a discipline with multiple applications in fields such as energy, environment, optics, and biomedicine [1,2,3,4,5,6,7,8]. Nanoparticles (NPs) have been investigated for biomedical applications because their versatility enables the development of smart materials that can target specific tissues and because of their potential as drug vehicles. Thus, the current trends of employing NPs in medicine are focused on the development of novel strategies for the treatment and diagnosis of several diseases [9]. Nowadays, NPs for biomedical applications are obtained via different strategies, including organic systems (micelles, liposomes, and polymers, among others) [10,11], inorganic-based NPs (silica, iron oxides, carbon nanotubes, etc.) [12,13,14], and organic–inorganic systems [15].
Iron oxide NPs have received the attention of several studies because of their feasibility of synthesis and their possibilities of obtaining magnetic NPs. Thus, magnetite (Fe3O4), maghemite (γ-Fe2O3), and hematite (α-Fe2O3) have been widely investigated for the diagnosis and treatment of different types of cancer [16]. Specifically, magnetite NPs show ferromagnetic behaviour for sizes greater than 20 nm, while below this threshold, they possess superparamagnetic properties, with magnetisation values between 25 and 180 emu/g [17]. These properties make magnetite NPs excellent nanodevices, such as contrast agents in magnetic resonance imaging (MRI), therapeutic agents to be applied in magnetic hyperthermia, and drug nanocarriers in drug delivery systems [18,19,20]. Usually, the superparamagnetic NPs are functionalised with molecules to avoid their agglomeration in a physiological medium, as well as to improve their biocompatibility and to enhance their bioaccumulation in a specific target tissue, allowing a controlled drug delivery [9,21,22,23]. Therefore, several researchers have investigated magnetite NPs combined with therapeutic agents, such as drugs for targeted transportation and selective release, siRNA for gene therapy, functional moieties to facilitate passage through cell membranes, photofunctional moieties, etc. [9,24]. In addition to these applications, superparamagnetic NPs can be employed in various treatments—mainly cancer hyperthermia and immunotherapy—by two main routes, leading to an increase in thermal energy: magnetic hyperthermia by the application of an alternating magnetic field and photothermal ablation by the irradiation and adsorption of light [25,26,27,28,29].
However, these iron oxide magnetic NPs present some problems related to their size and shape, among others, for use in biomedical applications. Thus, the cytotoxicity of iron oxide NPs with different sizes has been investigated, and the results showed that NPs below 6 nm had a negligible effect, while larger NPs induced some cytotoxicity [30]. Also, the size and shape of magnetic NPs are key factors for the time that they can circulate in blood vessels [31,32,33]. Additionally, bare iron oxide magnetic NPs tend to aggregate because of their affinity, permitting a rapid uptake by clearance organs, which results in a short lifetime. Surface coating or modification of iron oxide NPs is required to overcome these limitations. Thus, different strategies are used depending on the application and target tissue, are used. To prevent the aggregation of iron oxide magnetic NPs, different coating materials have been investigated, including oleic acid, cetyltrimethylammonium bromide (CTAB), citric acid, polymers, aminosilanes, silica, amino acids, and unspecific proteins [34,35,36,37,38,39]. One well-reported method for coating iron oxide magnetic NPs is the grafting of polymeric chains onto the NPs’ surface. Polymers can decrease the inherent negative charge on the surface of NPs, so they can strongly affect the blood circulation, cytotoxicity, cellular endocytosis, and biodegradation of NPs. In addition, the polymer coverage may provide a framework for the physical adsorption or chemical bonding of active molecules, such as drugs and RNA and DNA strands. For these purposes, a wide range of polymers have been studied, including polyethylene glycol [40], dextran [41], chitosan [42], polyacrylic acid [43], and carboxymethylcellulose [44]. On the other hand, coating NPs with silica, producing so-called mesoporous silica nanoparticles (MSNs), is a promising methodology. MSNs are proven to be mechanically and chemically stable nanocarriers, containing mesopores that are suitable drug delivery systems. Iron oxide magnetic NPs coated with MSNs are core–shell magnetic NPs with an encapsulated magnetic core and a porous shell. These NPs are easy to functionalise, are able to incorporate cargo drugs, and can be modulated and stimulated by magnetic interactions to selectively accumulate and release the drugs [45,46,47,48]. Different routes can be used for the silica coating of iron oxide magnetic NPs. Stöber’s method is one of the most employed methods for the coating of metallic NPs and consists of a sol-gel process from a silica source in an alcoholic medium using NH4OH as a catalyst [49,50,51]. Employing methods derived from Stöber’s method, several studies have been conducted to obtain silica materials with different morphologies containing magnetite cores. The silica shell can be tailored by varying the amount of the silica source and catalyst in the media [13,52,53].
In the present work, we propose an oil-in-water method for encapsulating iron oxide magnetic NPs within hollow-shell MSNs (h-MSNs), prepared using the drug-structure-directing agent (DSDA) concept [12,54]. By this method, an amino acid, L-tryptophan, is conveniently modified with fatty acids by means of amidation reactions, leading to an anionic DSDA. This DSDA, together with cationic aminosilane moieties, acts as a co-structure-directing agent (CSDA) to guide the formation of the h-MSN structure. Furthermore, iron oxide magnetic NPs (Fe3O4 NPs)—stabilised with different molecules—are added to the h-MSN synthesis media during the sol-gel process, leading to the formation of all-in-one hollow-shell MSNs with magnetic cores and loaded with the model drug tryptophan (Fe3O4@MSNs). Additionally, the cell viability and antiproliferative activity reveal the absence of cytotoxicity, which makes these nanocarriers potential candidates for selectively and safely delivering drugs into cancer cells.

2. Materials and Methods

2.1. Materials

L-tryptophan (98%), decanoyl chloride (98%), sodium hydroxide (97%), sodium bicarbonate (97%), 3-aminopropyl trimethoxysilane (97%), tetraethyl orthosilicate (98%), butyric acid (99%), cetyltrimethylammonium bromide (99%), and dichloromethane (99.8%) were purchased from Sigma-Aldrich (St. Louis, MO, USA). Tetrahydrofuran (TFH, 99.5%), hydrochloric acid (35% w/w), oleic acid (99%), palmitic acid (99%), citric acid (99%), ammonia solution (32% w/w), iron (III) chloride (97%), iron (II) chloride tetrahydrate (99%), and sodium chloride (99.5%) were supplied by Scharlab (Barcelona, Spain).

2.2. Synthesis and Functionalisation of Magnetic NPs (Fe3O4 NPs)

The iron oxide magnetite NPs (Fe3O4 NPs) were synthesised using a co-precipitation method, adding the ferric salts FeCl2 and FeCl3 in a molar ratio of 1:2 of Fe+2:Fe+3 in an aqueous medium using NH4OH as a base. Briefly, 2.4 g of FeCl3 and 6.0 g of FeCl2·4H2O were dissolved in water at 80 °C in a nitrogen atmosphere. After homogenisation, 20 mL of NH4OH (28–30% NH3 basis in water) was added dropwise, and the reaction was kept overnight. The NPs were collected by filtration, washed several times with water and ethanol, and dried and stored in vacuum.
Fe3O4 NPs were stabilised for their subsequent incorporation into the silica framework with different moieties: oleic acid, palmitic acid, butyric acid, citric acid, 3-aminopropyltrimethoxysilane (APS), and cetyltrimethylammonium bromide (CTAB). The molar ratio between Fe3O4 NPs and the different stabilisers was maintained at a constant ratio of 1:1.

2.3. Synthesis of Magnetic MSNs (Fe3O4@MSNs)

First, the DSDA surfactant, N-decanoyl-L-tryptophan (NDLT), was prepared as described previously [11]. Briefly, 4.5 g of L-tryptophan was dissolved in 50 mL of water and 25 mL of THF. The resulting solution was cooled at 0 °C in an ice bath, and 3 g of NaOH was added and stirred for 30 min until the L-tryptophan was completely dissolved. Then, 4.24 mL of decanoyl chloride was added dropwise over a period of 10 min and dissolved in 50 mL of the THF. The reaction was maintained in the ice bath for 2 h and then overnight at room temperature. The product was acidified using 12 mL of HCl (37% w/w), and the THF was removed by low pressure, and the product was extracted with dichloromethane. The dichloromethane was removed by low pressure, and the final product was dried. The Fe3O4@MSNs were prepared in an aqueous solution containing the corresponding DSDA and stabilised Fe3O4 NPs in a molar ratio of DSDA:Fe3O4 NPs:water of 1:0.6:2000. After the complete dispersion of both components, APS was added as a co-surfactant; after 5 min, tetraethyl orthosilicate (TEOS) was added as the main silica source. The final molar ratio of NDLT:Fe3O4 NPs:APS:TEOS:water was 1:0.6:1.65:11.8:2000. Briefly, the DSDAs were dispersed in water overnight at 80 °C, then the dispersion was cooled to 60 °C and the stabilised Fe3O4 NPs were added to the aqueous solutions. After 30 min of mechanical stirring, the APS was added and stirred for 5 min; after that, TEOS was added dropwise and stirred for an additional 10 min. The solution was kept without stirring for 24 h at 60 °C and for an additional 72 h at 100 °C. The materials were recovered by filtration and washed with abundant de-ionised water and dried under vacuum.

2.4. Physicochemical Characterisation

The organic content (DSDA and APS) in the Fe3O4@MSNs was determined by thermogravimetry from ambient temperature to 800 °C at 5 °C/min under an air atmosphere using a Star System Mettler Thermobalance. X-ray diffraction patterns were recorded on a Philips X’PERT MPD powder diffractometer equipped with CuKα radiation. The textural properties were obtained by N2 adsorption–desorption isotherms at −196 °C with a Micromeritics TriStar 3000 instrument (Norcross, GA, USA) from the calcined and extracted Fe3O4@MSN samples. Before measurement, the materials were outgassed at 300 °C with an N2 flux. Slit pore geometry was assumed for the calculation of the mesopores’ size distribution using the NLDFT model. Transmission electron microscopy (TEM) images of the samples were recorded using a Philips Tecnai F20 microscope (Amsterdam, Netherlands) operating at 200 kV. Previously, the samples were crushed, dispersed in acetone, and deposited on a carbon-coated copper grid. The measurements of the NPs’ features were derived from the TEM images using ImageJ software. Images of the surfaces of the Fe3O4@MSNs were collected by scanning electron microscopy (SEM) using a Nova NanoSEM 230 machine. STEM images and elemental mapping of the samples were recorded using a JEOL JEM200F (Tokyo, Japan) operated at 200 kV with a 0.19 nm resolution, equipped with a HAADF detector and 100 mm2 JEOL CENTURIO EDS detector (Tokio, Japan). A NanoPlus DLS Zeta Potential from Micromeritics was used for obtaining the hydrodynamic size of nanoparticles values of the particle suspensions. The CONTIN method has been used to resolve particle size distributions from the measured autocorrelation functions.

2.5. DSDA Delivery and Cell Viability Studies

The release of the surfactant, containing L-tryptophan, from Fe3O4@MSN materials was monitored at different times (up to 3 months) from a sample of 100 mg placed into dialysis bags (cut-off 10,000 Da) in 100 mL of the medium at pH 8 (0.1 M of NaHCO3 in water) at 37 °C under sealed conditions. The concentrations of the released surfactant were calculated using the Lambert–Beer law according to the absorbance of the surfactants by UV-spectrometry (JASCO V-630, Tokyo, Japan) at 280 nm, using the corresponding calibration curve.
Human colon (DLD-1 and HCT 116) cancer cells were obtained from the American Type Culture collection. Cells were cultured in DMEM, supplemented with 10% fetal bovine serum, and maintained under standard conditions of temperature (37 °C), humidity (95%), and carbon dioxide (5%). Cells were seeded on 96-well plates in the exponential growth phase using a cell suspension of 200 µL per well at a density between 250 and 1500 cells. After 24 h, the media were replaced with media of 200 µl containing serial concentrations of NPs (stocks prepared at 20 mg/mL in sterile phosphate-buffered saline). After 48 h, 72 h, or 7 days of treatment, the cells were subjected to a 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) assay, with 20 µL/well of MTT (Sigma-Aldrich, Burlington, MA, USA) solution at 5 mg/mL in phosphate-buffered saline. The cells were incubated for 3 h at 37 °C; after that, the MTT-containing media were removed, and the MTT reduced to purple formazan by living cells was solubilised by the addition of 200 µL/well of DMSO. After 1 h of incubation, the plates were measured at 560 nm using a scanning spectrophotometer microplate reader (Biochrom Asys UVM 340 Microplate Reader; ISOGEN, De Meern, The Netherlands). Quantities of the formazan product are directly related to the number of viable cells. At least three independent experiments, each performed in triplicate, were conducted in each case.

3. Results and Discussion

3.1. Synthesis and Functionalisation of Magnetic NPs (FeNPs)

Superparamagnetic NPs (Fe3O4 NPs) were synthesised using a co-precipitation method of FeCl2 and FeCl3 salts and their subsequent stabilisation by using different ligands with the aim of endowing Fe3O4 NPs with both colloidal stability and the ability to be encapsulated in the core of the micellar structures that drive the formation of MSNs. The optimal stabiliser ligands for the appropriate incorporation of Fe3O4 NPs into the h-MSNs were determined according to the morphological characteristics of the magnetic Fe3O4@MSNs observed from SEM images, as further discussed below.
Figure 1A,B shows the SEM images of the synthesised Fe3O4 NPs at different magnifications. The sizes of the corresponding NPs were smaller than 20 nm. In addition, Figure 1C shows the low-angle XRD pattern of the Fe3O4 NPs, which allows the crystalline phase of magnetite to be identified, according to the assignation of the main reflections at 21.2, 30.1, 35.4, 43.0, 53.5, 57.0, and 62.6 (2θ degrees) for Miller indexes of 111, 220, 311, 400, 422, 511, and 440, respectively (JCPDS card No. 19-0629).
The synthesis of Fe3O4 NPs using the co-precipitation method leads to NPs that contain hydroxyl groups on their surface because of the basic media employed during the synthesis. The presence of hydroxyl moieties constitutes an advantage for the subsequent stabilisation by means of surface coating. Different stabiliser ligands were used, such as oleic acid, palmitic acid, butyric acid, citric acid, 3-aminopropyltrimethoxysilane (APS), and cetyltrimethylammonium bromide (CTAB); most of them are widely employed [34,35,36,37,38,39].
Figure 2 shows the thermogravimetric analysis of Fe3O4 NPs. Bare as-made Fe3O4 NPs, without coating, showed a small degradation with a weight loss of 1% at high temperatures between 300 and 380 °C, corresponding to the dehydroxylation of the hydroxyl groups. In contrast, Fe3O4 NPs coated with stabiliser ligands exhibited higher weight losses, ranging from 2 to 7 wt.%. These results can be explained by the successful coating of Fe3O4 NPs. The interval of weight loss mediated by the efficacy of the functionalisation, corresponding to a maximum weight loss of 7 wt.%, can be attributed to the use of citric acid moieties.

3.2. Synthesis of Magnetic MSNs (Fe3O4@MSNs)

The stability of Fe3O4 NPs can be improved by encapsulation with silica shells [55]. Thus, silica-coated Fe3O4 NPs were prepared by assembling the iron oxide NPs with stabiliser ligands followed by an oil-in-water silica sol-gel methodology, based on the drug-structure-directing agent (DSDA) concept previously reported [12]. The stabilised Fe3O4 NPs were combined with the DSDA and water in a molar ratio of 1:0.6:2000. Subsequently, after adding the co-structure-directing agent, oil-in-water emulsions were spontaneously formed, which spontaneously turned into spherical silica–surfactant aggregates after TEOS addition in a one-pot reaction [12]. The DSDA employed was N-decanoyl-L-tryptophan (NDLT), containing a hydrophobic chain of 10 carbon molecules and the model drug L-tryptophan.
The different morphological structures of the synthesised Fe3O4@MSNs, employing NDLT as a surfactant, were determined by SEM microscopy. Figure 3 shows that only the Fe3O4@MSNs prepared from Fe3O4 NPs stabilised with butyric acid and CTAB are characterised by a spherical shape without the presence of other undefined morphologies. In addition, the TEM images of these samples (results not shown) corroborated that only these two reagents are able to accomplish appropriate incorporation of Fe3O4 NPs into Fe3O4@MSNs (Figure 3). These results suggest that the correct incorporation of Fe3O4 NPs into Fe3O4@MSNs is accomplished by the hydrophobic nature of the functionalised Fe3O4 NPs, and the chain length of the reagent might have an influence as well.
Fe3O4@MSNs were synthesized by means of the combination of Fe3O4 NPs with the DSDA and water. The DSDA employed was NDLT (containing a hydrophobic chain of 10 carbon molecules). According to the above-mentioned study of the Fe3O4 NP stabilisers, the selected reagents for such functionalisation were CTAB and butyric acid, named as Fe3O4@MSN-b or Fe3O4@MSN-c, stabilised by butyric acid or CTAB, respectively. After the addition of Fe3O4 NPs and under mechanical stirring, a homogeneous brown solution was observed. Later, APS and TEOS were added, and clear brown precipitates were observed, suggesting good incorporation of the Fe3O4 NPs into the growing silica NPs. Some NPs with a dark black appearance, corresponding to Fe3O4 NPs that were not incorporated into the silica NPs, were observed in the TEM images. After washing, the excess Fe3O4 NPs were removed, and the resulting Fe3O4@MSNs were proven to have magnetic properties by the application of a magnet. Figure 4 shows the TEM images of the different Fe3O4@MSNs synthesised by employing both Fe3O4 NP stabiliser ligands. The Fe3O4@MSNs show the characteristic morphology of the NPs developed without the addition of Fe3O4 NPs [12]. Thus, the Fe3O4@MSNs exhibit a well-defined spherical shape (Figure 4A–F) with an average size of around 350 nm. The Fe3O4@MSNs contain inner cavities separated by internal mesoporous walls, and the NPs are surrounded by an external mesoporous shell. However, when CTAB was employed as a stabiliser ligand of Fe3O4 NPs, two different types of NPs were observed: hollow-shell NPs without mesoporous internal walls (Figure 4B, red arrows) and the characteristic NPs containing multiple cavities separated by mesoporous walls (Figure 4A–C, blue arrows). This phenomenon may be induced by the presence of some free CTAB and the ionic interactions that take place in the synthesis media because of the different species involved, which promote the formation of both types of NPs. When butyric acid was used as a functionalising agent, the NPs’ structures with several inner voids separated by a mesoporous wall and a thick mesoporous shell remained predominant (Figure 4D–F, blue arrows).
The incorporation of Fe3O4 NPs into MSNs was successfully accomplished, regardless of the stabiliser ligand employed in the synthesis. Figure 4 shows the TEM images, and the presence of Fe3O4 NPs in the internal cavities of the NPs is clearly observed (black and white arrows in Figure 4A–F). To confirm the presence of Fe3O4 NPs into the internal cavities of the nanoparticles, an advanced STEM-XEDS analysis was performed. The elemental mapping based on energy dispersive X-rays (EDX) shows that the Fe atoms were successfully incorporated into the silica nanoparticles, which matches well with the small nanoparticles with dark contrast in the STEM images inside the silica cavities (Figure 4G–I). Moreover, TEM microanalysis in areas with small particles and dark contrast and areas with clear contrast was accomplished. The elemental analysis in areas corresponding to small particles with dark contrast shows the characteristic peaks of Fe, corroborating the presence of Fe3O4 NPs (Figure 4J), while in the clear areas, no evidence or negligible presence of Fe was confirmed (Figure 4L). Additionally, the different Fe3O4@MSNs synthesised showed a similar external morphology. The SEM images of Figure 5 show the nearly spherical geometry of the NPs, with a remarkable rough surface and a raspberry-like morphology with protrusions or depressions. This feature is very interesting considering the special adhesion and superior cell uptake properties of NPs with rough surfaces, compared with NPs with smooth surfaces, as a result of the lower repulsive interactions with cell membranes [56,57,58,59,60].
Figure 6 shows the low-angle XRD diffractograms. The patterns show the typical characteristic diffraction peaks corresponding to mesostructured silica materials, while the wide-angle XRD patterns (not shown) show no evidence of a magnetite phase, probably because the iron oxide NPs were within the MSNs and the diffraction peaks are not discerned. The N2 adsorption–desorption isotherms (Figure 6) of the Fe3O4@MSNs after the extraction and calcination processes show typical type IV curves with capillary condensation steps at a relative pressure of 0.35−0.4, corroborating the presence of mesopores. The Fe3O4@MSNs exhibit a type H3 hysteresis loop, which might be attributed to the effect of the internal cavities or hollows [12,61,62]. The pore size distribution was calculated by means of the non-local density functional theory (NLDFT) model, obtaining a wide pore distribution as a result of the contribution of the different pore and intra-void sizes of the NPs (Table 1), with a main contribution around 3.0 nm.
Table 1 summarises the BET surface area and the total pore volume. The SBET of the Fe3O4@MSNs was higher when butyric acid instead of CTAB was employed as a functionalising agent of the Fe3O4 NPs (394 m2/g vs. 227 m2/g). This fact may be associated with the higher stability of Fe3O4 NPs functionalised using butyric acid, probably due to the smaller size of the hydrocarbon chain with respect to CTAB. The calcination process led to a remarkable increment in SBET for all the samples. This can be explained by shell shrinkage as well as by a reduction in internal mesoporous walls upon calcination.
The thermal degradation of the samples (Figure 7) provided information about the organic content (amounts of DSDA and APS). The thermograms are characterised by several overlapping degradation stages between 200 and 700 °C, associated with the removal of the APS and DSDA chains. The residual content in the as-made NPs (Figure 7A) was similar in the different NPs (between 55 and 65% of their initial weight, which corresponds to the percentage in weight of the silica framework and Fe3O4 NPs). On the other hand, the residual content of the extracted materials (Figure 7B) was between 80 and 90%, which corresponds to the weight (%) of the silica framework after the extraction.

3.3. DSDA Delivery and Cell Viability

The delivery of DSDA from the Fe3O4@MSNs was conducted in a solution of 0.1 M NaHCO3 with pH 7.4. Figure 8 shows a sustained release of DSDA during a remarkable period of 20 days. The trend is characterised by a linear release at short times and a stabilisation of the DSDA release at longer times. On the other hand, the release does not depend on the functionalisation of Fe3O4 NPs.
The possible cytotoxic effects of the functionalised Fe3O4 NPs and Fe3O4@MSNs employing NDLT as a surfactant were addressed using DLD1 human colon cancer cells. The viability of these cells was evaluated by carrying out MTT assays after 48 h of incubation and at different concentrations of NPs in the culture medium (Figure 9). Figure 9 indicates that the different NP systems showed no cytotoxic effect. Qualitative similar results were also observed in an additional human colon cancer cell line, HCT-116.
The cytotoxic effect was studied even at a concentration of NPs in the culture medium of 70 µg/mL and after 7 days of incubation (Figure 10). Even after 7 days, none of the NPs showed cytotoxicity, and only a slight effect on cell growth was observed, which was not dependent on time or dose. The Fe3O4 NPs had a low antiproliferative activity against DLD1 colon cancer cells, independently of employing bare Fe3O4 NPs or functionalised Fe3O4 NPs.

4. Conclusions

In summary, hollow-shell MSNs with a raspberry-like rough surface and iron oxide magnetite inside have been successfully synthesised through an oil-in-water emulsion method based on the DSDA concept. The DSDA is composed of the model drug L-tryptophan modified with decanoic aliphatic hydrocarbon chains, which are responsible for the structure of the h-MSNs but also impart intrinsic pharmacological activity to the h-MSNs. Iron oxide NPs whose external surfaces were modified by the ligand stabilisers CTAB and butyric acid were also added to the synthesis media to add magnetic properties. The one-pot synthesis led to all-in-one NPs with a well-defined hollow-shell structure with a rough morphology and with Fe3O4 NPs incorporated into the inner cavities of the h-MSNs, separated by internal mesoporous walls and an outer shell with mesopores of 3 nm containing the model drug tryptophan. The obtained Fe3O4@MSNs possess large surface areas of up to 500 m2·g−1 and a pore volume of 0.4 cm3·g−1. Additionally, the in vitro delivery studies showed a sustained release of DSDA tryptophan from Fe3O4@MSNs for 20 days. Cell viability experiments indicated that Fe3O4@MSNs showed no cytotoxicity and only low antiproliferative activity against colon cancer cells. Because of the magnetic properties, rough surface, and open and accessible mesopore channels that can be loaded with different drugs, it is expected that these Fe3O4@MSNs may find applications in drug delivery in cancer therapy.

Author Contributions

Investigation, M.P.-G. and V.M.; writing–original draft preparation, M.P.-G.; writing–review and editing, V.M., R.S. and R.A.G.-M.; conceptualisation, R.S. and R.A.G.-M.; supervision, R.S. and R.A.G.-M.; funding acquisition, R.S. and R.A.G.-M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Spanish government, grant Nos. CTQ2014-57858-R and CTQ2017-88642-R.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. García-Muñoz, R.A.; Morales, V.; Linares, M.; González, P.E.; Sanz, R.; Serrano, D.P. Influence of the structural and textural properties of ordered mesoporous materials and hierarchical zeolitic supports on the controlled release of methylprednisolone hemisuccinate. J. Mater. Chem. B 2014, 2, 7996–8004. [Google Scholar] [CrossRef] [Scilit]
  2. Sun, M.; Chen, C.; Chen, L.; Su, B. Hierarchically Porous Materials: Synthesis Strategies and Emerging Applications. Front. Chem. Sci. Eng. 2016, 10, 301–347. [Google Scholar] [CrossRef] [Scilit]
  3. Tsou, C.J.; Hung, Y.; Mou, C.Y. Hollow Mesoporous Silica Nanoparticles with Tunable Shell Thickness and Pore Size Distribution for Application as Broad-Ranging pH Nanosensor. Microporous Mesoporous Mater. 2014, 190, 181–188. [Google Scholar] [CrossRef] [Scilit]
  4. Morales, V.; Villajos, J.A.; García, R.A. Simultaneous Synthesis of Modified Binol-Periodic Mesoporous Organosilica SBA-15 Type Material. Application as Catalysts in Asymmetric Sulfoxidation Reactions. J. Mater. Sci. 2013, 48, 5990–6000. [Google Scholar] [CrossRef] [Scilit]
  5. García-Muñoz, R.A.; Morales, V.; Linares, M.; Rico-Oller, B. Synthesis of Helical and Supplementary Chirally Doped PMO Materials. Suitable Catalysts for Asymmetric Synthesis. Langmuir 2014, 30, 881–890. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  6. Ortiz-Bustos, J.; Martín, A.; Morales, V.; Sanz, R.; García-Muñoz, R.A. Surface-Functionalization of Mesoporous SBA-15 Silica Materials for Controlled Release of Methylprednisolone Sodium Hemisuccinate: Influence of Functionality Type and Strategies of Incorporation. Microporous Mesoporous Mater. 2017, 240, 236–245. [Google Scholar] [CrossRef] [Scilit]
  7. García, R.A.; Morales, V.; Garcés, T. One-Step Synthesis of a Thioester Chiral PMO and Its Use as a Catalyst in Asymmetric Oxidation Reactions. J. Mater. Chem. 2012, 22, 2607–2615. [Google Scholar] [CrossRef] [Scilit]
  8. Wang, Y.; Li, B.; Zhang, L.; Song, H. Multifunctional Mesoporous Nanocomposites with Magnetic, Optical, and Sensing Features: Synthesis, Characterization, and Their Oxygen-Sensing Performance. Langmuir 2013, 29, 1273–1279. [Google Scholar] [CrossRef] [Scilit]
  9. Hola, K.; Markova, Z.; Zoppellaro, G.; Tucek, J.; Zboril, R. Tailored Functionalization of Iron Oxide Nanoparticles for MRI, Drug Delivery, Magnetic Separation and Immobilization of Biosubstances. Biotechnol. Adv. 2015, 33, 1162–1176. [Google Scholar] [CrossRef] [Scilit]
  10. Stigliano, C.; Key, J.; Ramirez, M.; Aryal, S.; Decuzzi, P. Radiolabeled Polymeric Nanoconstructs Loaded with Docetaxel and Curcumin for Cancer Combinatorial Therapy and Nuclear Imaging. Adv. Funct. Mater. 2015, 25, 3371–3379. [Google Scholar] [CrossRef] [Scilit]
  11. Marianecci, C.; Di Marzio, L.; Del Favero, E.; Cantù, L.; Brocca, P.; Rondelli, V.; Rinaldi, F.; Dini, L.; Serra, A.; Decuzzi, P.; et al. Niosomes as Drug Nanovectors: Multiscale pH-Dependent Structural Response. Langmuir 2016, 32, 1241–1249. [Google Scholar] [CrossRef] [Scilit]
  12. Morales, V.; Gutiérrez-Salmerón, M.; Balabasquer, M.; Ortiz-Bustos, J.; Chocarro-Calvo, A.; García-Jiménez, C.; García-Muñoz, R.A. New Drug-Structure-Directing Agent Concept: Inherent Pharmacological Activity Combined with Templating Solid and Hollow-Shell Mesostructured Silica Nanoparticles. Adv. Funct. Mater. 2016, 26, 7291–7303. [Google Scholar] [CrossRef] [Scilit]
  13. Okada, T.; Ozono, S.; Okamoto, M.; Takeda, Y.; Minamisawa, H.M.; Haeiwa, T.; Sakai, T.; Mishima, S. Magnetic Rattle-Type Core–Shell Particles Containing Iron Compounds with Acid Tolerance by Dense Silica. Ind. Eng. Chem. Res. 2014, 53, 8759–8765. [Google Scholar] [CrossRef] [Scilit]
  14. Han, L.; Zhang, X.-Y.; Wang, Y.-L.; Li, X.; Yang, X.-H.; Huang, M.; Hu, K.; Li, L.-H.; Wei, Y. Redox-Responsive Theranostic Nanoplatforms Based on Inorganic Nanomaterials. J. Control. Release 2017, 259, 40–52. [Google Scholar] [CrossRef] [Scilit]
  15. Alvarez-Berríos, M.P.; Vivero-Escoto, J.L. In Vitro Evaluation of Folic Acid-Conjugated Redox-Responsive Mesoporous Silica Nanoparticles for the Delivery of Cisplatin. Int. J. Nanomed. 2016, 11, 6251–6265. [Google Scholar] [CrossRef] [Scilit]
  16. Lu, A.-H.; Salabas, E.L.; Schüth, F. Magnetic Nanoparticles: Synthesis, Protection, Functionalization, and Application. Angew. Chem. Int. Ed. 2007, 46, 1222–1244. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  17. Ling, D.; Lee, N.; Hyeon, T. Chemical Synthesis and Assembly of Uniformly Sized Iron Oxide Nanoparticles for Medical Applications. Acc. Chem. Res. 2015, 48, 1276–1285. [Google Scholar] [CrossRef] [Scilit]
  18. Dobson, J. Gene Therapy Progress and Prospects: Magnetic Nanoparticle-Based Gene Delivery. Gene Ther. 2006, 13, 283–287. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  19. Mou, X.; Xianbo, A.; Li, S.; He, N. Applications of Magnetic Nanoparticles in Targeted Drug Delivery System. J. Nanosci. Nanotech. 2015, 15, 54–62. [Google Scholar] [CrossRef] [Scilit]
  20. Lin, Y.; Zhang, K.; Zhang, R.; She, Z.; Tan, R.; Fan, Y.; Li, X. Magnetic nanoparticles applied in targeted therapy and magnetic resonance imaging: Crucial preparation parameters, indispensable pre-treatments, updated research advancements and future perspectives. J. Mater. Chem. B 2020, 8, 5973–5991. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  21. Espinosa, A.; Di Corato, R.; Kolosnjaj-Tabi, J.; Flaud, P.; Pellegrino, T.; Wilhelm, C. Duality of Iron Oxide Nanoparticles in Cancer Therapy: Amplification of Heating Efficiency by Magnetic Hyperthermia and Photothermal Bimodal Treatment. ACS Nano 2016, 10, 2436–2446. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  22. Schweiger, C.; Pietzonka, C.; Heverhagen, J.; Kissel, T. Novel Magnetic Iron Oxide Nanoparticles Coated with Poly(ethylene Imine)-G-Poly(ethylene Glycol) for Potential Biomedical Application: Synthesis, Stability, Cytotoxicity and MR Imaging. Int. J. Pharm. 2011, 408, 130–137. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  23. Cheng, K.K.; Chan, P.S.; Fan, S.; Kwan, S.M.; Yeung, K.L.; Wáng, Y.-X.J.; Chow, A.H.L.; Wu, E.X.; Baum, L. Curcumin-Conjugated Magnetic Nanoparticles for Detecting Amyloid Plaques in Alzheimer’s Disease Mice Using Magnetic Resonance Imaging (MRI). Biomaterials 2015, 44, 155–172. [Google Scholar] [CrossRef] [Scilit]
  24. Mykhaylyk, O.; Sanchez-Antequera, Y.; Vlaskou, D.; Cerda, M.B.; Bokharaei, M.; Hammerschmid, E.; Anton, M.; Plank, C. Magnetic Nanoparticle and Magnetic Field Assisted siRNA Delivery In Vitro. In Methods in Molecular Biology; Humana Press: Clifton, NJ, USA, 2015; Volume 1218, pp. 53–106. [Google Scholar]
  25. Ma, M.; Chen, H.; Chen, Y.; Wang, X.; Chen, F.; Cui, X.; Shi, J. Au Capped Magnetic Core/mesoporous Silica Shell Nanoparticles for Combined Photothermo-/chemo-Therapy and Multimodal Imaging. Biomaterials 2012, 33, 989–998. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  26. Cho, M.; Cervadoro, A.; Ramirez, M.R.; Stigliano, C.; Brazdeikis, A.; Colvin, V.L.; Civera, P.; Key, J.; Decuzzi, P. Assembly of Iron Oxide Nanocubes for Enhanced Cancer Hyperthermia and Magnetic Resonance Imaging. Nanomaterals 2017, 7, 72. [Google Scholar] [CrossRef] [Scilit]
  27. Estelrich, J.; Busquets, M. Iron Oxide Nanoparticles in Photothermal Therapy. Molecules 2018, 23, 1567. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  28. Lin, F.C.; Hsu, C.H.; Lin, Y.Y. Nano-Therapeutic Cancer Immunotherapy Using Hyperthermia-Induced Heat Shock Proteins: Insights from Mathematical Modeling. Int. J. Nanomed. 2018, 13, 3529–3539. [Google Scholar] [CrossRef] [Scilit]
  29. Guoming, H.; Yuan, Q.; Feifei, Y.; Jiangao, X.; Xin, C.; Lili, W.; Huanghao, Y. Magnetothermally Triggered Free-Radical Generation for Deep Seated Tumor Treatment. Nano Lett. 2021, 21, 2926–2931. [Google Scholar]
  30. Xie, Y.X.; Liu, D.J.; Cai, C.L.; Chen, X.J.; Zhou, Y.; Wu, L.L.; Sun, Y.W.; Dai, H.L.; Kong, X.M.; Liu, P.F. Size-dependent cytotoxicity of Fe3O4 nanoparticles induced by biphasic regulation of oxidative stress in different human hepatoma cells. Int. J. Nanomed. 2016, 11, 3557–3570. [Google Scholar]
  31. Decuzzi, P.; Causa, F.; Ferrari, M.; Netti, P.A. The Effective Dispersion of Nanovectors Within the Tumor Microvasculature. Ann. Biomed. Eng. 2006, 34, 633–664. [Google Scholar] [CrossRef] [Scilit]
  32. Sherwood, J.; Lovas, K.; Rich, M.; Yin, Q.; Lackey, K.; Bolding, M.S.; Bao, Y. Shape-dependent cellular behaviors and relaxivity of iron oxide-based T1 MRI contrast agents. Nanoscale 2016, 8, 17506–17515. [Google Scholar] [CrossRef] [Scilit]
  33. Drummod, D.C.; Meyer, O.; Hong, K.; Kirpotin, D.B.; Papahadjopoulos, D. Optimizing Liposomes for Delivery of Chemotherapeutic Agents to Solid Tumors. Pharmacol. Rev. 1999, 51, 691. [Google Scholar]
  34. Patsula, V.; Kosinová, L.; Lovrić, M.; Ferhatovic Hamzić, L.; Rabyk, M.; Konefal, R.; Paruzel, A.; Šlouf, M.; Herynek, V.; Gajović, S.; et al. Superparamagnetic Fe3O4 Nanoparticles: Synthesis by Thermal Decomposition of Iron(III) Glucuronate and Application in Magnetic Resonance Imaging. ACS Appl. Mater. Interfaces 2016, 8, 7238–7247. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  35. Zhang, J.; Li, X.; Rosenholm, J.M.; Gu, H. Synthesis and Characterization of Pore Size-Tunable Magnetic Mesoporous Silica Nanoparticles. J. Colloid Interface Sci. 2011, 361, 16–24. [Google Scholar] [CrossRef] [Scilit]
  36. Răcuciu, M.; Creangă, D.E.; Airinei, A. Citric-Acid-Coated Magnetite Nanoparticles for Biological Applications. Eur. Phys. J. E 2006, 21, 117–121. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  37. Villa, S.; Riani, P.; Locardi, F.; Canepa, F. Supplementary Materials: Functionalization of Fe3O4 NPs by Silanization: Use of Amine (APTES) and Thiol (MPTMS) Silanes and Their Physical Characterization. Materials 2016, 9, 826. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  38. Yang, Q.; Lan, F.; Yi, Q.; Wu, Y.; Gu, Z. A Colloidal Assembly Approach to Synthesize Magnetic Porous Composite Nanoclusters for Efficient Protein Adsorption. Nanoscale 2015, 7, 17617–17622. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  39. Zaloga, J.; Janko, C.; Nowak, J.; Matuszak, J.; Knaup, S.; Eberbeck, D.; Tietze, R.; Unterweger, H.; Friedrich, R.P.; Duerr, S.; et al. Development of a Lauric Acid/albumin Hybrid Iron Oxide Nanoparticle System with Improved Biocompatibility. Int. J. Nanomed. 2014, 9, 4847–4866. [Google Scholar] [CrossRef] [Scilit]
  40. Chung, H.J.; Lee, H.; Bae, K.H.; Lee, Y.; Park, J.; Cho, S.-W.; Hwang, J.Y.; Park, H.; Langer, R.; Anderson, D.; et al. Facile Synthetic Route for Surface-Functionalized Magnetic Nanoparticles: Cell Labeling and Magnetic Resonance Imaging Studies. ACS Nano 2011, 5, 4329–4336. [Google Scholar] [CrossRef] [Scilit]
  41. Shaterabadi, Z.; Nabiyouni, G.; Soleymani, M. High Impact of in Situ Dextran Coating on Biocompatibility, Stability and Magnetic Properties of Iron Oxide Nanoparticles. Mater. Sci. Eng. C 2017, 75, 947–956. [Google Scholar] [CrossRef] [Scilit]
  42. Stephen, Z.R.; Dayringer, C.J.; Lim, J.J.; Revia, R.A.; Halbert, M.V.; Jeon, M.; Bakthavatsalam, A.; Ellenbogen, R.G.; Zhang, M. Approach to Rapid Synthesis and Functionalization of Iron Oxide Nanoparticles for High Gene Transfection. ACS Appl. Mater. Interfaces 2016, 8, 6320–6328. [Google Scholar] [CrossRef] [Scilit]
  43. Lojk, J.; Bregar, V.B.; Rajh, M.; Miš, K.; Kreft, M.E.; Pirkmajer, S.; Veranič, P.; Pavlin, M. Cell Type-Specific Response to High Intracellular Loading of Polyacrylic Acid-Coated Magnetic Nanoparticles. Int. J. Nanomed. 2015, 10, 1449–1462. [Google Scholar]
  44. Sivakumar, B.; Aswathy, R.G.; Nagaoka, Y.; Suzuki, M.; Fukuda, T.; Yoshida, Y.; Maekawa, T.; Sakthikumar, D.N. Multifunctional Carboxymethyl Cellulose-Based Magnetic Nanovector as a Theragnostic System for Folate Receptor Targeted Chemotherapy, Imaging, and Hyperthermia against Cancer. Langmuir 2013, 29, 3453–3466. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  45. Teng, Y.; Jiang, C.; Ruotolo, A.; Pong, P.W.T. Amine-Functionalized Fe2O3–SiO2 Core–Shell Nanoparticles with Tunable Sizes. IEEE Trans. Nanotechnol. 2018, 17, 69–77. [Google Scholar] [CrossRef] [Scilit]
  46. Rühle, B.; Datz, S.; Argyo, C.; Bein, T.; Zink, J.I. A Molecular Nanocap Activated by Superparamagnetic Heating for Externally Stimulated Cargo Release. Chem. Commun. 2016, 52, 1843–1846. [Google Scholar] [CrossRef] [Scilit]
  47. Lin, F.C.; Zink, J.I. Probing the Local Nanoscale Heating Mechanism of a Magnetic Core in Mesoporous Silica Drug-Delivery Nanoparticles Using Fluorescence Depolarization. J. Am. Chem. Soc. 2020, 142, 5212–5220. [Google Scholar] [CrossRef] [Scilit]
  48. Lin, F.C.; Xie, Y.; Deng, T.; Zink, J.I. Magnetism, Ultrasound, and Light-Stimulated Mesoporous Silica Nanocarriers for Theranostics and Beyond. J. Am. Chem. Soc. 2021, 143, 6025–6036. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  49. Nguyen, T.Q.; Wu, J.; Doan, V.; Schwartz, B.J.; Tolbert, S.H. Control of energy transfer in oriented conjugated polymer-mesoporous silica composites. Science 2000, 288, 652–656. [Google Scholar] [CrossRef] [Scilit]
  50. Deng, Y.H.; Wang, C.C.; Hu, J.H.; Yang, W.L.; Fu, S.K. Investigation of Formation of Silica-Coated Magnetite Nanoparticles via Sol–gel Approach. Colloids Surf. A Physicochem. Eng. Asp. 2005, 262, 87–93. [Google Scholar] [CrossRef] [Scilit]
  51. Xuan, S.; Wang, F.; Lai, J.M.Y.; Sham, K.W.Y.; Wang, Y.-X.J.; Lee, S.-F.; Yu, J.C.; Cheng, C.H.K.; Leung, K.C.-F. Synthesis of Biocompatible, Mesoporous Fe 3 O 4 Nano/Microspheres with Large Surface Area for Magnetic Resonance Imaging and Therapeutic Applications. ACS Appl. Mater. Interfaces 2011, 3, 237–244. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  52. Riva, R.E.; Pastoriza-Santos, I.; Lak, A.; Pellegrino, T.; Pérez-Juste, J.; Mattoli, V. Plasmonic/magnetic Nanocomposites: Gold Nanorods-Functionalized Silica Coated Magnetic Nanoparticles. J. Colloid Interface Sci. 2017, 502, 201–209. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  53. Lu, Y.; Yin, Y.; Mayers, B.T.; Xia, Y. Modifying the Surface Properties of Superparamagnetic Iron Oxide Nanoparticles through A Sol−Gel Approach. Nano Lett. 2002, 2, 183–186. [Google Scholar] [CrossRef] [Scilit]
  54. Morales, V.; McConnell, J.; Pérez-Garnes, M.; Almendro, N.; Sanz, R.; García-Muñoz, R.A. L-Dopa release from mesoporous silica nanoparticles engineered through the concept of drug-structure-directing agents for Parkinson’s disease. J. Mater. Chem. B 2021, 9, 4178–4189. [Google Scholar] [CrossRef] [Scilit]
  55. Guerrero-Martinez, A.; Perez-Juste, J.; Liz-Marzan, L.M. Recent Progress on Silica Coating of Nanoparticles and Related Nanomaterials. Adv. Mater. 2010, 22, 1182–1195. [Google Scholar] [CrossRef] [Scilit]
  56. Nel, A.E.; Mädler, L.; Velegol, D.; Xia, T.; Hoek, E.M.V.; Somasundaran, P.; Klaessig, F.; Castranova, V.; Thompson, M. Understanding biophysicochemical interactions at the nano-bio interface. Nat. Mater. 2009, 8, 543. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  57. Niu, Y.T.; Yu, M.H.; Hartono, S.B.; Yang, J.; Xu, H.Y.; Zhang, H.W.; Zhang, J.; Zou, J.; Dexter, A.; Gu, W.Y.; et al. Nanoparticles mimicking viral surface topography for enhanced cellular delivery. Adv. Mater. 2013, 25, 6233–6237. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  58. Song, H.; Nor, Y.A.; Yu, M.H.; Yang, Y.N.; Zhang, J.; Zhang, H.W.; Xu, C.; Mitter, N.; Yu, C.Z. Silica Nanopollens Enhance Adhesion for Long-Term Bacterial Inhibition. J. Am. Chem. Soc. 2016, 138, 6455–6462. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  59. Chithrani, B.D.; Chan, W.C. Elucidating the mechanism of cellular uptake and removal of proteincoated gold nanoparticles of different sizes and shapes. Nano Lett. 2007, 7, 1542–1550. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  60. Yue, Q.; Zhang, Y.; Jiang, Y.; Li, J.; Zhang, H.; Yu, C.; Elzatahry, A.A.; Alghamdi, A.; Deng, Y.; Zhao, D. Nanoengineering of Core-Shell Magnetic Mesoporous Microspheres with Tunable Surface Roughness. J. Am. Chem. Soc. 2017, 139, 4954–4961. [Google Scholar] [CrossRef] [Scilit]
  61. Morales, V.; Pérez-Garnes, M.; Balabasquer, M.; González-Casablanca, J.; García-Muñoz, R.A. Oil-in-water synthesis of hollow-shell mesoporous peapod-like silicates: Electron microscopy insights. Microporous Mesoporous Mater. 2018, 264, 43–54. [Google Scholar] [CrossRef] [Scilit]
  62. Pérez-Garnes, M.; Gutiérrez-Salmerón, M.; Morales, V.; Chocarro-Calvo, A.; Sanz, R.; García-Jiménez, C.; García-Muñoz, R.A. Engineering hollow mesoporous silica nanoparticles to increase cytotoxicity. Mater. Sci. Eng. C 2020, 12, 110935–110945. [Google Scholar] [CrossRef] [Scilit] [PubMed]
Nanomaterials 11 02455 g001

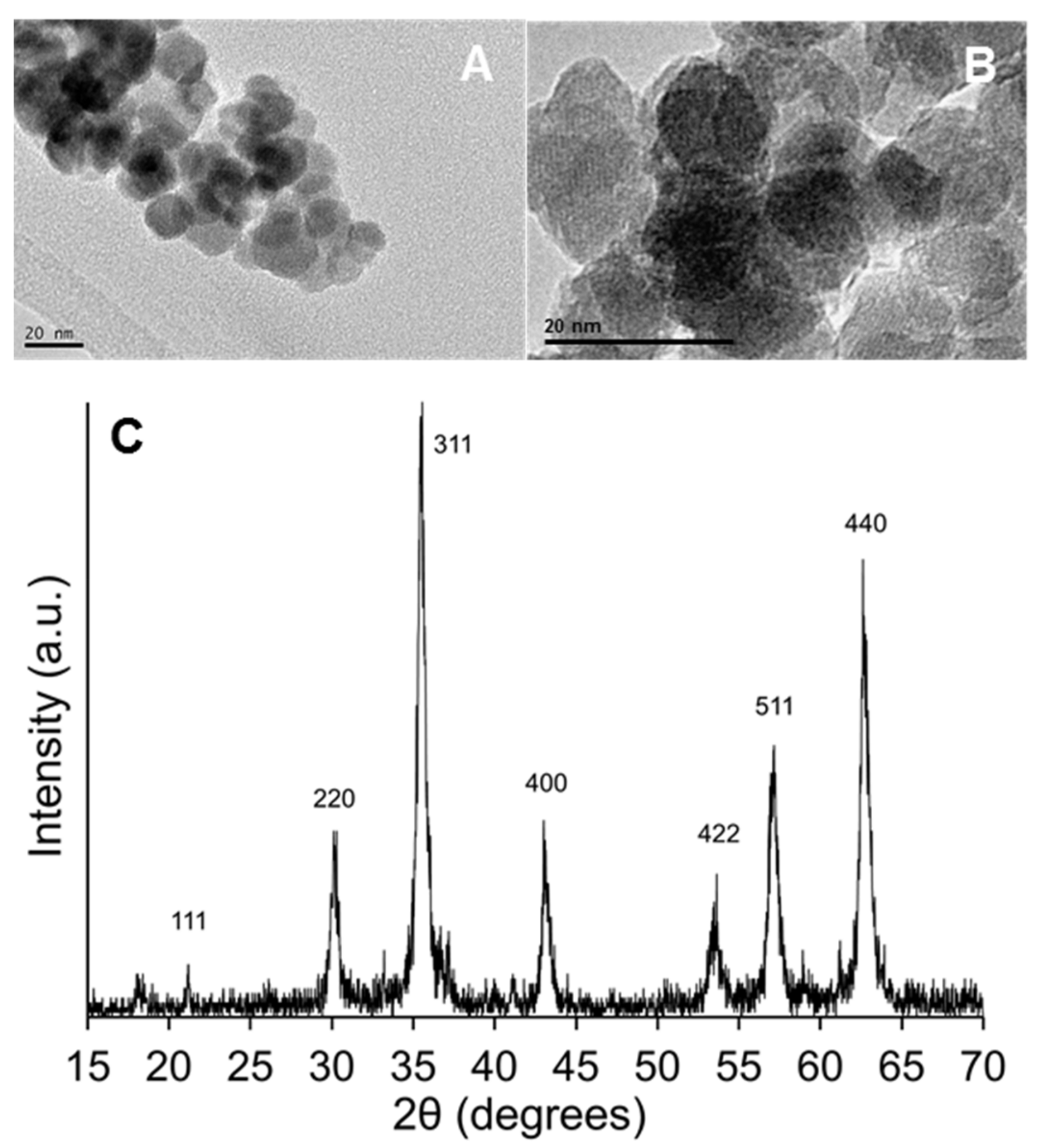

Figure 1. TEM images (A,B) and low-angle X-Ray diffraction pattern (C) of Fe3O4 NPs.
Figure 1. TEM images (A,B) and low-angle X-Ray diffraction pattern (C) of Fe3O4 NPs.
Nanomaterials 11 02455 g001
Nanomaterials 11 02455 g002

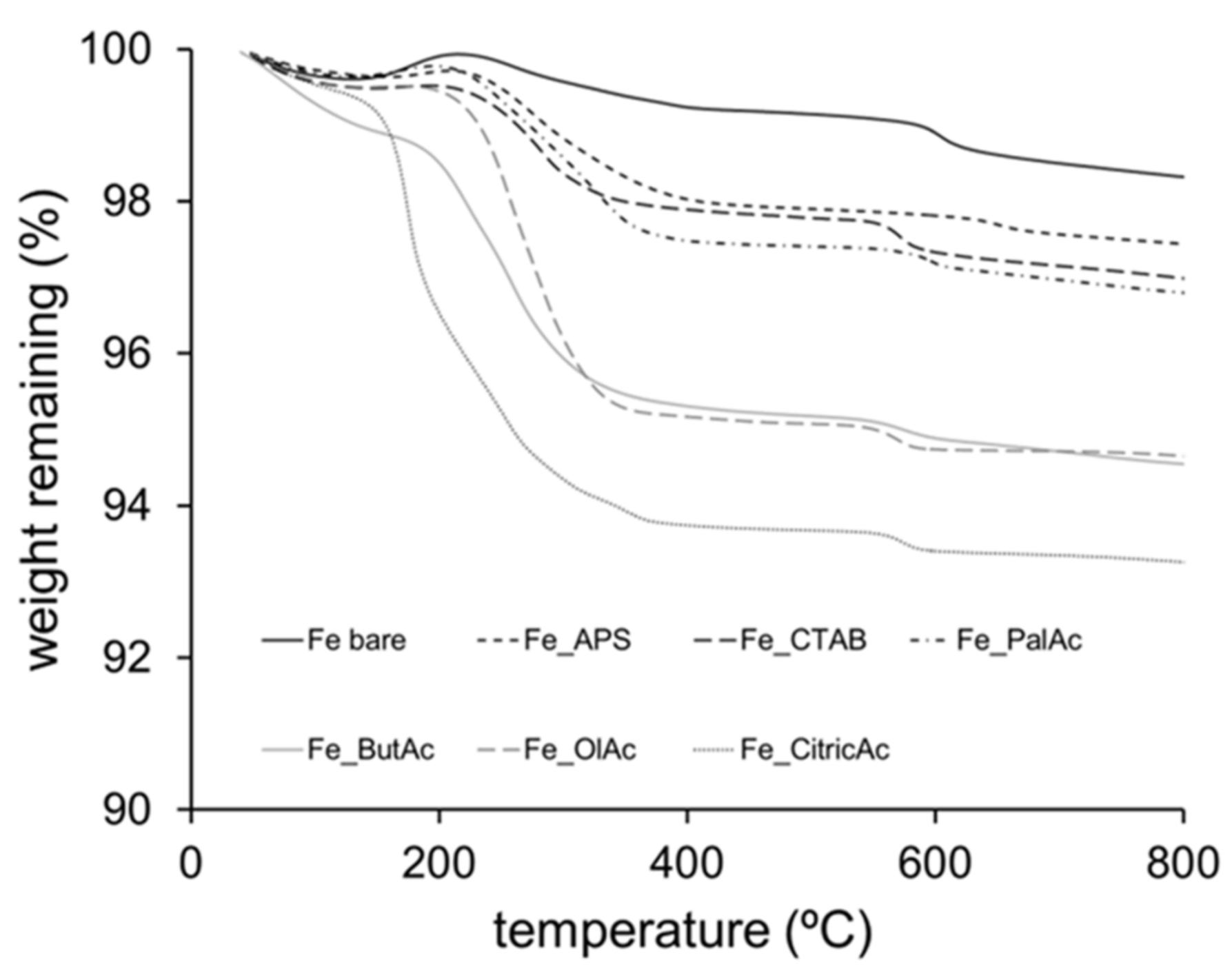

Figure 2. Thermal degradation of bare and functionalised Fe3O4 NPs with APS (Fe-APS), CTAB (Fe-CTAB), palmitic acid (Fe-PalAc), butyric acid (Fe-ButAc), oleic acid (Fe-OlAc), and citric acid (Fe-CitricAc).
Figure 2. Thermal degradation of bare and functionalised Fe3O4 NPs with APS (Fe-APS), CTAB (Fe-CTAB), palmitic acid (Fe-PalAc), butyric acid (Fe-ButAc), oleic acid (Fe-OlAc), and citric acid (Fe-CitricAc).
Nanomaterials 11 02455 g002
Nanomaterials 11 02455 g003

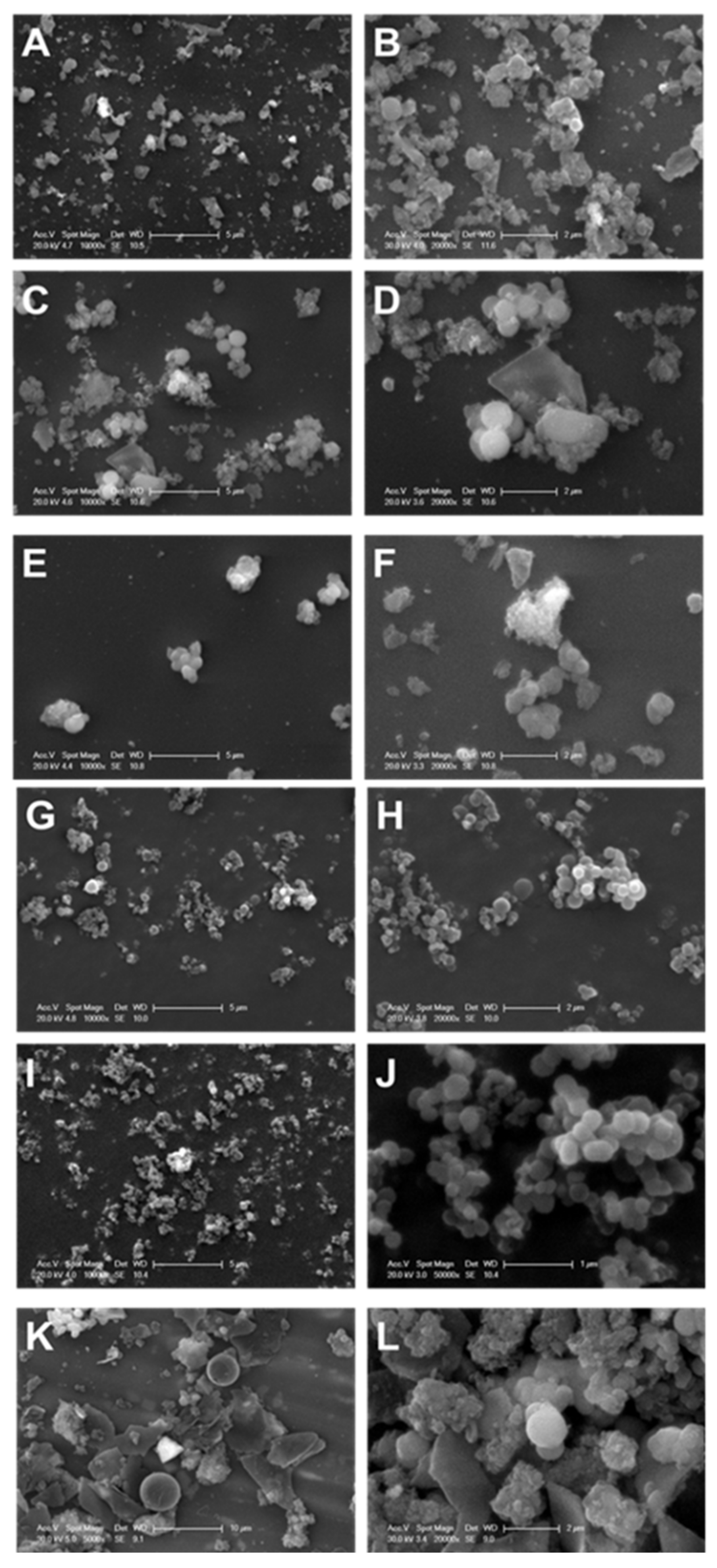

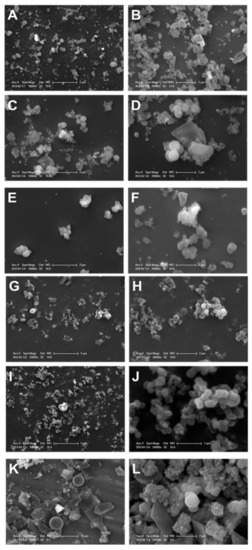

Figure 3. SEM images of the Fe3O4@MSN samples including FeNPs stabilised with oleic acid (A,B), palmitic acid (C,D), citric acid (E,F), butyric acid (G,H), CTAB (I,J), and APS (K,L).
Figure 3. SEM images of the Fe3O4@MSN samples including FeNPs stabilised with oleic acid (A,B), palmitic acid (C,D), citric acid (E,F), butyric acid (G,H), CTAB (I,J), and APS (K,L).
Nanomaterials 11 02455 g003
Nanomaterials 11 02455 g004

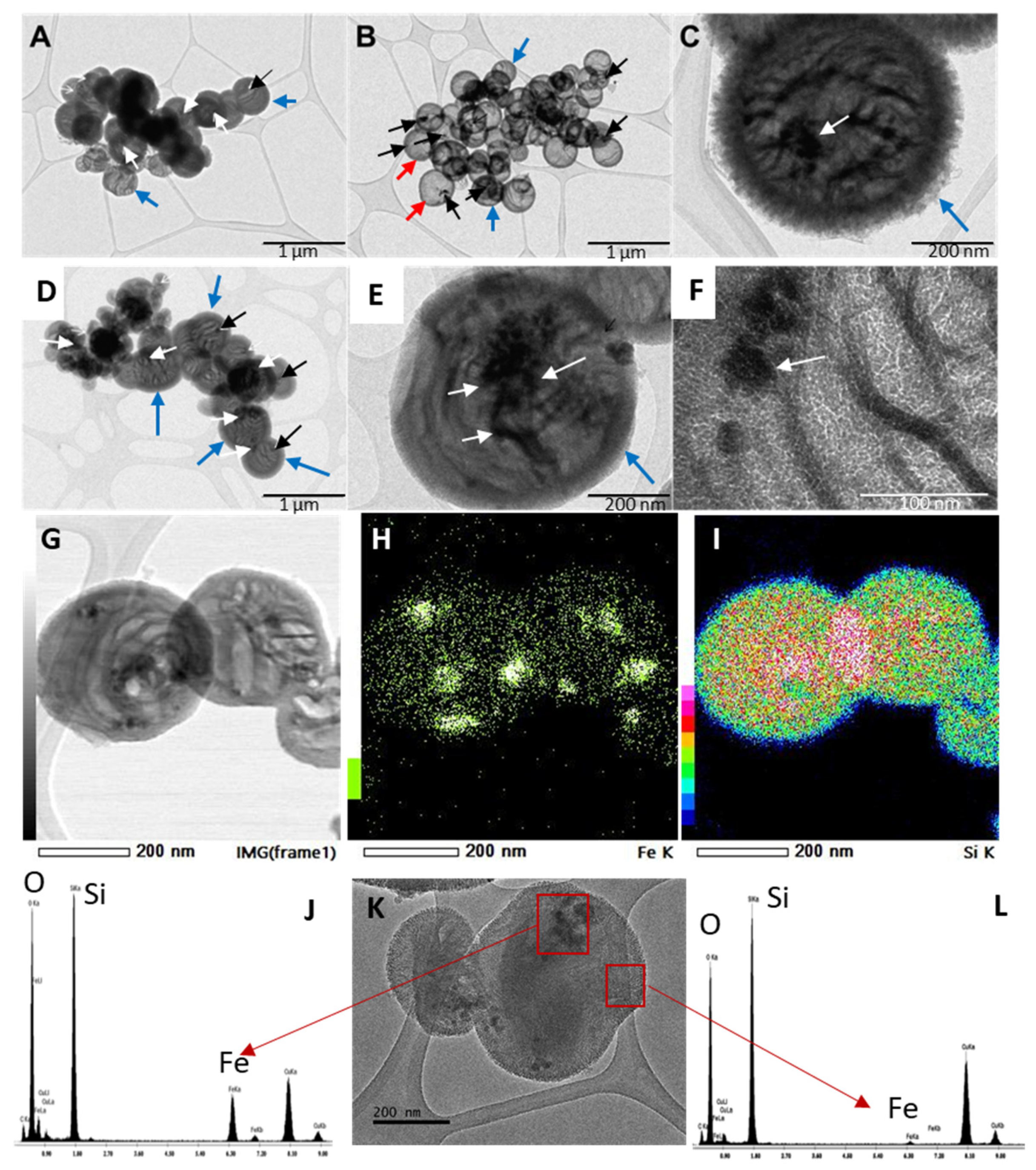

Figure 4. TEM images of the Fe3O4@MSN10-c (A–C) and Fe3O4@MSN10-b (D–F) samples. The black and white arrows correspond to magnetite nanoparticles. STEM image and elemental mapping of Fe and Si of the Fe3O4@MSN10-b (G–I). Elemental analysis in areas corresponding to small particles with dark contrast (J–K) and areas with no small particles and clear contrast (K–L).
Figure 4. TEM images of the Fe3O4@MSN10-c (A–C) and Fe3O4@MSN10-b (D–F) samples. The black and white arrows correspond to magnetite nanoparticles. STEM image and elemental mapping of Fe and Si of the Fe3O4@MSN10-b (G–I). Elemental analysis in areas corresponding to small particles with dark contrast (J–K) and areas with no small particles and clear contrast (K–L).
Nanomaterials 11 02455 g004
Nanomaterials 11 02455 g005

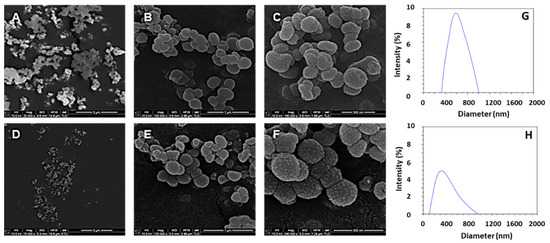

Figure 5. NanoSEM images of the surface of Fe3O4@MSNs samples: Fe3O4@MSN10-c (A–C), Fe3O4@MSN10-b (D–F). Particle size distributions: Fe3O4@MSN10-c (G), Fe3O4@MSN10-b (H).
Figure 5. NanoSEM images of the surface of Fe3O4@MSNs samples: Fe3O4@MSN10-c (A–C), Fe3O4@MSN10-b (D–F). Particle size distributions: Fe3O4@MSN10-c (G), Fe3O4@MSN10-b (H).
Nanomaterials 11 02455 g005
Nanomaterials 11 02455 g006

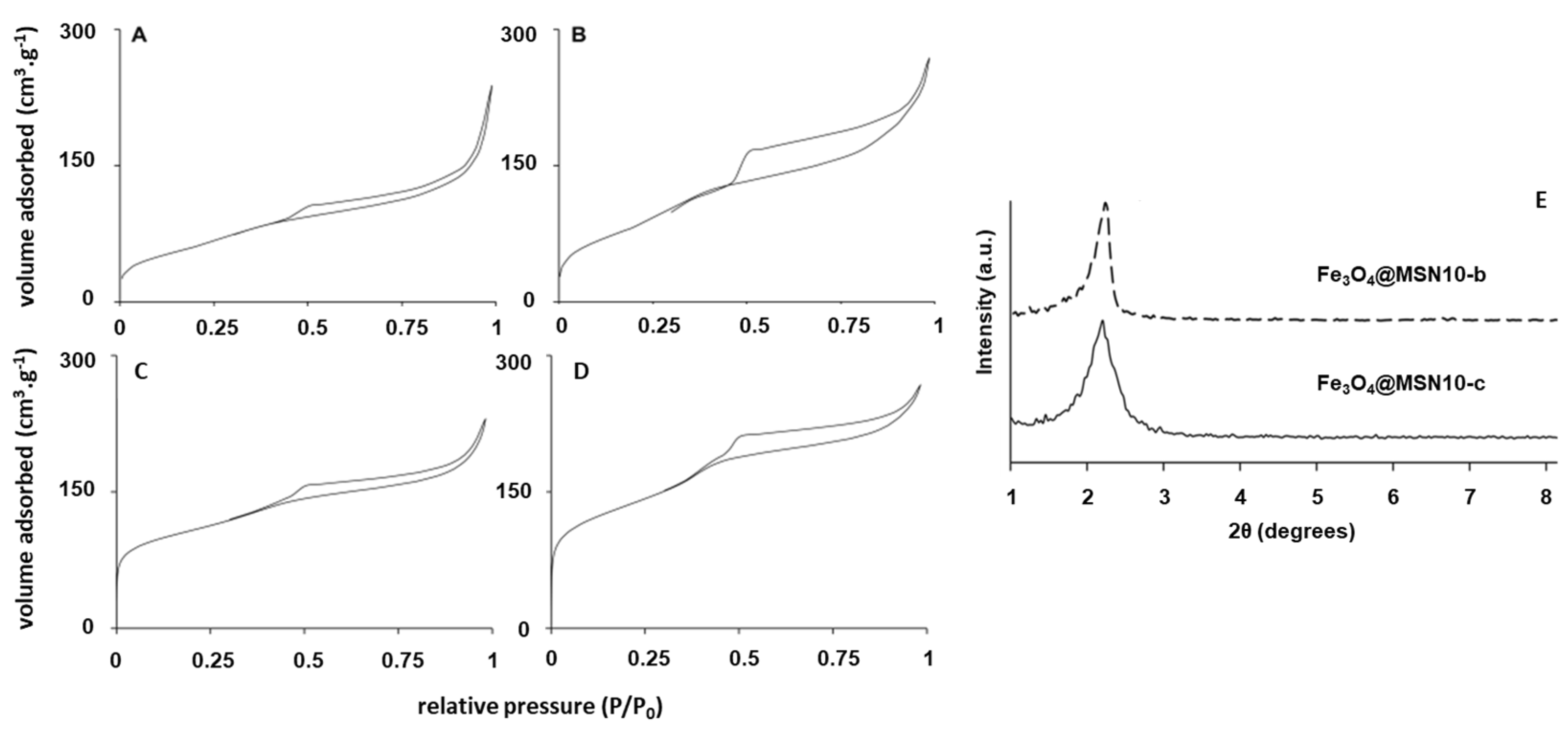

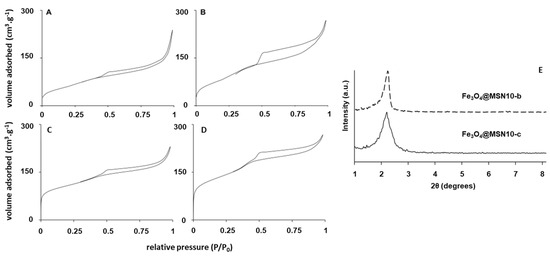

Figure 6. Nitrogen adsorption–desorption isotherms of extracted (A,B) and calcined (C,D) Fe3O4@MSNs samples: Fe3O4@MSN10-c (A,C), Fe3O4@MSN10-b (B,D). Low-angle X-ray diffraction patterns of the Fe3O4@MSNs samples (E).
Figure 6. Nitrogen adsorption–desorption isotherms of extracted (A,B) and calcined (C,D) Fe3O4@MSNs samples: Fe3O4@MSN10-c (A,C), Fe3O4@MSN10-b (B,D). Low-angle X-ray diffraction patterns of the Fe3O4@MSNs samples (E).
Nanomaterials 11 02455 g006
Nanomaterials 11 02455 g007

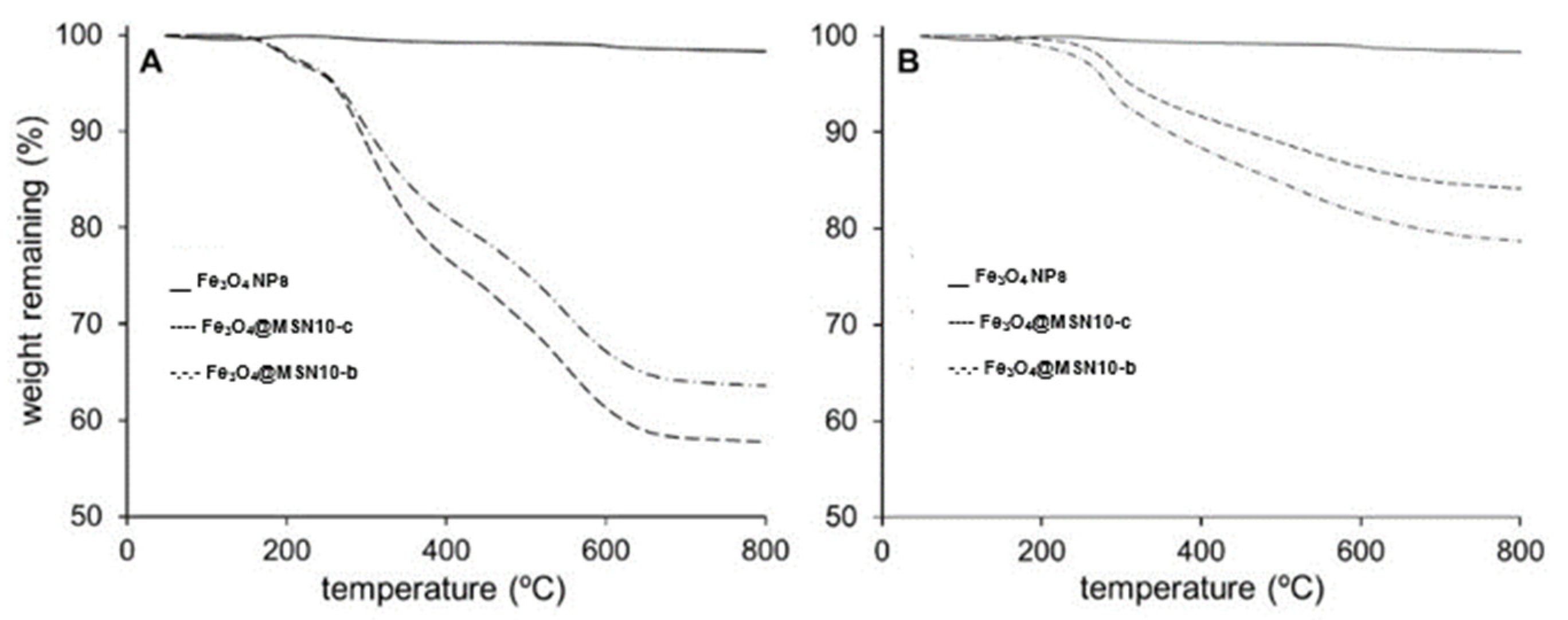

Figure 7. Thermal degradation of bare Fe3O4 NPs and Fe3O4@MSNs samples, as made (A) and after the extraction of DSDA and FeNPs (B).
Figure 7. Thermal degradation of bare Fe3O4 NPs and Fe3O4@MSNs samples, as made (A) and after the extraction of DSDA and FeNPs (B).
Nanomaterials 11 02455 g007
Nanomaterials 11 02455 g008

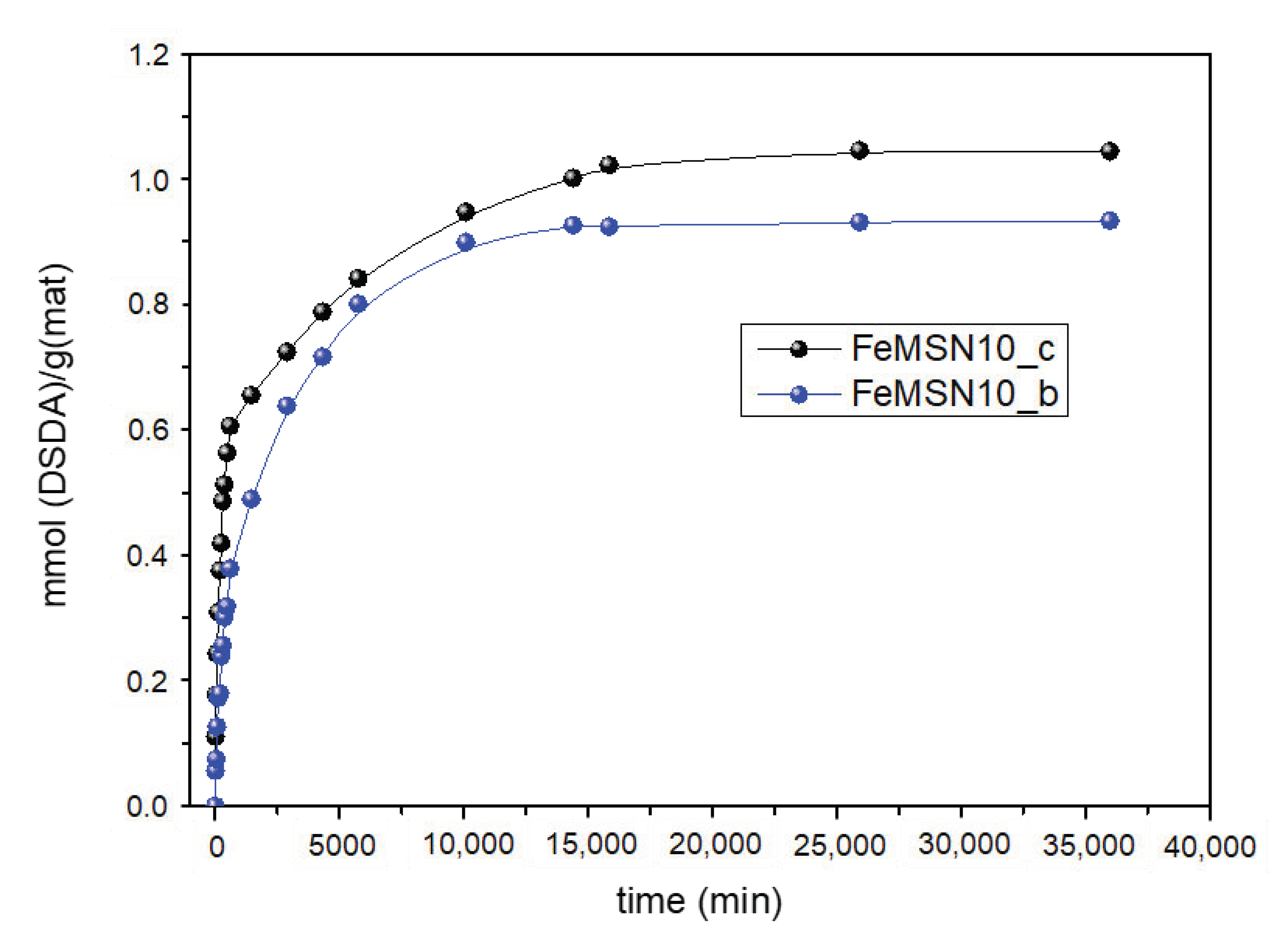

Figure 8. DSDA release as a function of time from the Fe3O4@MSNs synthesised.
Figure 8. DSDA release as a function of time from the Fe3O4@MSNs synthesised.
Nanomaterials 11 02455 g008
Nanomaterials 11 02455 g009

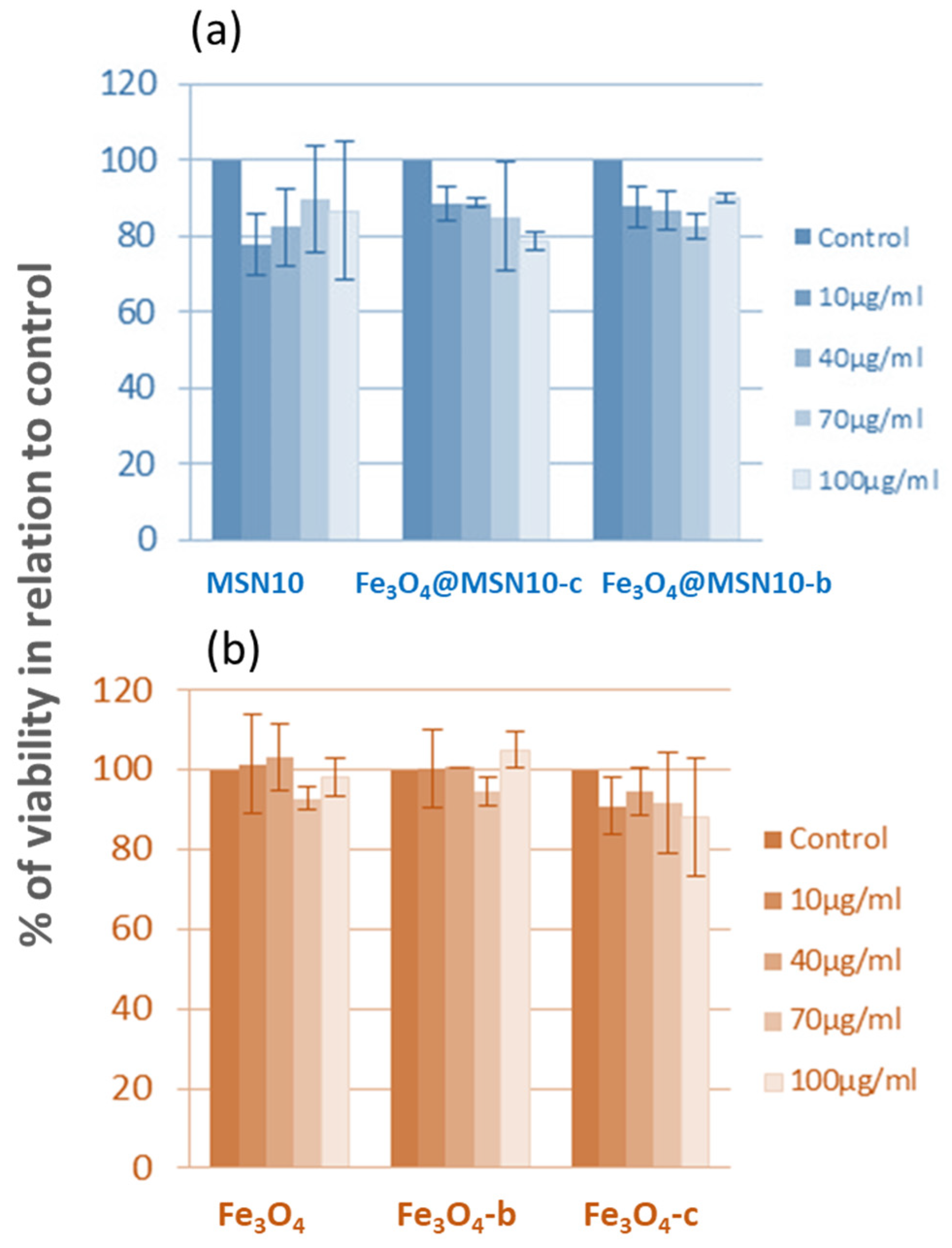

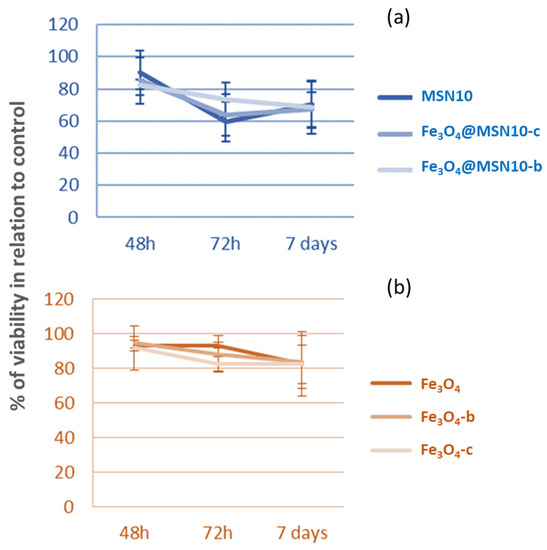

Figure 9. Influence of Fe3O4@MSNs (a) or Fe3O4 NPs (b) on cell viability in DLD1 human colon cancer cells. Cells were treated with increasing concentrations of six different nanoparticles over 48 h; cell viability was determined by MTT assay. Bars represent the mean values obtained from at least three independent experiments, each performed in triplicate.
Figure 9. Influence of Fe3O4@MSNs (a) or Fe3O4 NPs (b) on cell viability in DLD1 human colon cancer cells. Cells were treated with increasing concentrations of six different nanoparticles over 48 h; cell viability was determined by MTT assay. Bars represent the mean values obtained from at least three independent experiments, each performed in triplicate.
Nanomaterials 11 02455 g009
Nanomaterials 11 02455 g010
Figure 10. Influence of 70 µg/mL of Fe3O4@MSNs (a) or Fe3O4 NPs (b) on cell viability in DLD1 colon cancer cells at different times. Cells were treated with 70 µg/mL of the six nanoparticles and viability was measured by MTT assay at 48 h, 72 h, or 7 days.
Figure 10. Influence of 70 µg/mL of Fe3O4@MSNs (a) or Fe3O4 NPs (b) on cell viability in DLD1 colon cancer cells at different times. Cells were treated with 70 µg/mL of the six nanoparticles and viability was measured by MTT assay at 48 h, 72 h, or 7 days.
Nanomaterials 11 02455 g010
Table 1. Textural properties of the extracted and calcined Fe3O4@MSNs.
Table 1. Textural properties of the extracted and calcined Fe3O4@MSNs.
DSDA RemovalSampleVp
(cm3/g)		SBET
(m2/g)		PSD
(nm) *		FeICP (wt%)
Extracted in EtOH/HClFe3O4@MSN10-c0.232227.172.1–47.1 (2.9)
Fe3O4@MSN10-b0.266394.322.0–43.1 (2.9)
CalcinedFe3O4@MSN10-c0.389392.31.7–4.0 (3.0)2.5
Fe3O4@MSN10-b0.335507.961.2–3.9 (3.0)2.7
* Range of the pore diameter and the most frequent pore width (between brackets).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Pérez-Garnes, M.; Morales, V.; Sanz, R.; García-Muñoz, R.A. Cytostatic and Cytotoxic Effects of Hollow-Shell Mesoporous Silica Nanoparticles Containing Magnetic Iron Oxide. Nanomaterials 2021, 11, 2455. https://doi.org/10.3390/nano11092455

AMA Style

Pérez-Garnes M, Morales V, Sanz R, García-Muñoz RA. Cytostatic and Cytotoxic Effects of Hollow-Shell Mesoporous Silica Nanoparticles Containing Magnetic Iron Oxide. Nanomaterials. 2021; 11(9):2455. https://doi.org/10.3390/nano11092455

Chicago/Turabian Style

Pérez-Garnes, Manuel, Victoria Morales, Raul Sanz, and Rafael A. García-Muñoz. 2021. "Cytostatic and Cytotoxic Effects of Hollow-Shell Mesoporous Silica Nanoparticles Containing Magnetic Iron Oxide" Nanomaterials 11, no. 9: 2455. https://doi.org/10.3390/nano11092455

APA Style

Pérez-Garnes, M., Morales, V., Sanz, R., & García-Muñoz, R. A. (2021). Cytostatic and Cytotoxic Effects of Hollow-Shell Mesoporous Silica Nanoparticles Containing Magnetic Iron Oxide. Nanomaterials, 11(9), 2455. https://doi.org/10.3390/nano11092455

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
