Enhanced Thermoelectric Performance of n-Type Bi₂Se₃ Nanosheets through Sn Doping

Abstract

The cost-effective conversion of low-grade heat into electricity using thermoelectric devices requires developing alternative materials and material processing technologies able to reduce the currently high device manufacturing costs. In this direction, thermoelectric materials that do not rely on rare or toxic elements such as tellurium or lead need to be produced using high-throughput technologies not involving high temperatures and long processes. Bi₂Se₃ is an obvious possible Te-free alternative to Bi₂Te₃ for ambient temperature thermoelectric applications, but its performance is still low for practical applications, and additional efforts toward finding proper dopants are required. Here, we report a scalable method to produce Bi₂Se₃ nanosheets at low synthesis temperatures. We studied the influence of different dopants on the thermoelectric properties of this material. Among the elements tested, we demonstrated that Sn doping resulted in the best performance. Sn incorporation resulted in a significant improvement to the Bi₂Se₃ Seebeck coefficient and a reduction in the thermal conductivity in the direction of the hot-press axis, resulting in an overall 60% improvement in the thermoelectric figure of merit of Bi₂Se₃.

1. Introduction

Thermoelectric (TE) devices that directly and reversibly convert heat into electricity find unlimited applications [1,2,3,4,5,6], but their real implementation is hampered by their low cost-effectiveness. The efficiency of energy conversion of a TE device is in part determined by the transport properties of the TE material: Seebeck coefficient S, electrical conductivity σ, and thermal conductivity κ. These material properties are generally grouped into a dimensionless figure of merit, ZT = S²σT/κ, where T is the absolute temperature. Efficient TE materials are characterized by high power factors, S²σ, and low thermal conductivities, κ. However, the strong correlation between these parameters makes the optimization of the material performance extremely difficult. Several strategies have been developed to maximize ZT, including engineering the electronic band structure of the TE material through doping [7], the use of energy filtering interphases [8], and the reduction in lattice thermal conductivity through the introduction of abundant grain boundaries [9].

Commercial devices use large amounts of highly crystalline Bi₂Te₃-based alloys as the active TE material, which accounts for a significant part of the total cost of the device. To reduce the device cost, it is critical to develop low-cost materials not relying on scarce Te and low-cost processing strategies not based on high-temperature crystallization from high purity melts. Bi₂Se₃ presents the same structure and similar properties as Bi₂Te₃, and, thus, it is an obvious possible Te-free alternative to Bi₂Te₃. Numerous attempts to improve the TE figure of merit of this material have been reported, but with moderate success [10,11,12,13,14,15,16,17,18].

To maximize the TE performance of a material, one first critical point is to optimize its charge carrier concentration. Three main strategies can be used in this direction: tuning of the material stoichiometry, the introduction of atomic impurities, and/or the introduction of secondary phases able to inject the proper charge carriers to the host material [19,20,21,22,23,24,25,26,27,28]. Besides optimizing the charge carrier concentration, it is fundamental to minimize the thermal conductivity using multiscale phonon scattering centers. In this direction, the introduction of atomic impurities and abundant grain boundaries are highly effective. Besides, energy barriers at grain boundaries can also introduce energy- and charge sign-dependent charge carrier scattering, which could result in significant improvements to the Seebeck coefficient [29].

Here, we present a low temperature and high yield, solution-based strategy to prepare Bi₂Se₃ nanomaterials doped with different elements. The influence of different dopants on the TE properties of the material was tested. From the results obtained, we demonstrated Sn to have the highest potential to yield Bi₂Se₃-based materials with improved performance. Thus, we further analyzed the location and chemical state of this element within Bi₂Se₃ and its effect on the material transport properties.

2. Materials and Methods

2.1. Chemicals and Solvents

Polyvinylpyrrolidone (PVP, (C₆H₉NO)_n, AMW ~55,000), indium(III) acetate (InC₆H₉O₆, 99.99%), and bismuth(III) nitrate pentahydrate (Bi(NO₃)₃·5H₂O, ≥99.99%) were purchased from Sigma-Aldrich. Sodium selenite (Na₂SeO₃, ≥98%), copper (II) nitrate trihydrate (Cu(NO₃)₂·3H₂O, 99%), silver nitrate (AgNO₃, ≥99.9%), ethylene glycol (EG, HOCH₂CH₂OH, 99%), lead (II) acetate trihydrate (PbC₄H₆O₄·3H₂O), tin(II) chloride anhydrous (SnCl₂, 98%), and potassium hydroxide (KOH, ≥98%) were acquired from Fisher. Analytical grade ethanol and acetone were obtained from various sources.

2.2. Synthesis of Bi₂Se₃

Bi₂Se₃ particles were produced following the approach developed by Liu et al., with slight modifications [1]. Bi₂Se₃ (5 mmol), Bi(NO₃)₃·5H₂O (10 mmol, 4.851 g), Na₂SeO₃ (15 mmol, 2.594 g), KOH (50 mmol, 2.806 g), and PVP (0.5 g) were first dissolved in a three-neck flask containing EG (200 mL) under an Ar atmosphere at an ambient temperature for 0.5 h. The solution was then heated to 180 °C and kept at this temperature for 3 h. Immediately after the reaction was completed, the solution was allowed to cool naturally to room temperature by removing the heating mantle. The solution was divided into several centrifuge tubes and acetone was added to collect the solid product by centrifugation. In the next step, ethanol was introduced to re-disperse the particles, and acetone was added to precipitate them again. This step was repeated twice. Next, purified Bi₂Se₃ particles were dried under a vacuum overnight at room temperature and kept in the glovebox for posterior use. Around 3 g of particles were obtained per batch.

2.3. Synthesis of Bi_2−xM_xSe₃

The procedure used to produce Bi_2−xM_xSe₃ was the same used to produce Bi₂Se₃, but the proper amount of bismuth nitrate was replaced with the corresponding metal precursor, as listed in the chemical section above.

2.4. Nanomaterial Consolidation

Dried Bi₂Se₃ particles were first annealed for 1 h at 350 °C under an Ar flow in a tubular furnace. Then, the annealed material was introduced into a graphite die and consolidated into cylinders (Ø 10 mm × 10 mm) at 480 °C and 50 MPa of pressure for 4 min with a custom-made hot press. The relative densities of the compacted pellets were measured by Archimedes’ method. To measure transport properties in the two relevant directions, cylindrical pellets were cut into ca. 8 × 6 × 1 mm rectangular bars along the pressure axis, and 1 mm thick disks along the perpendicular to the pressure axis.

2.5. Structural and Chemical Characterization

The field emission scanning electron microscope (SEM) was used to determine the nanoparticle morphology on an Auriga Zeiss. An Oxford energy dispersive X-ray spectrometer (EDX) was used to measure the material composition at 20.0 kV. X-ray diffraction (XRD) was performed on a Bruker AXS D8 Advance diffractometer. The crystal structure of the samples was analyzed under the 200 keV Tecnai F20 field emission microscope equipped with a Gatan quantum image filter. X-ray photoelectron spectroscopy (XPS) was performed on a Specs system with the material inside the chamber at a pressure below 10⁻⁷ Pa. Data processing was carried out using the CasaXPS program.

2.6. Performance Characterization of Bulk Nanomaterial

Seebeck coefficients and resistivities were measured by the static direct current method and by the standard four-probe method, respectively, in an LSR-3 Linseis system under helium. All samples were tested for at least three heating and cooling cycles. Considering the system accuracy and measurement accuracy, the measurement error of the conductivity and Seebeck coefficient was estimated to be about 4%. Thermal diffusivity (λ), constant pressure heat capacity (C_p), and density of the material (ρ) were used to obtain the thermal conductivities (κ_total), where κ_total = λC_pρ. The thermal diffusivities of the samples were measured by a Xenon Flash Apparatus XFA600, which has an estimated error of ca. 5%. We used a constant as the heat capacity (C_p), which was estimated from empirical formulas by the Dulong–Petit limit (3R law). Under a magnetic field of 0.6 T, the Hall charge carrier concentrations and mobilities at room temperature were measured by the Van der Pauw method. The figures in this article do not have error bars in order to avoid cluttering the plots.

3. Results and Discussion

Following the above synthesis method, Bi₂Se₃ nanosheets grouped into flower-like particles were produced, as shown by the SEM micrographs (Figure 1a,b). Bi₂Se₃ shows a screw dislocation growth mechanism (Figure 1c). This layer-by-layer growth mechanism is usually due to the low supersaturation in the synthesis conditions, which inhibits dendritic growth. Axial screw dislocation is the self-sustaining spiral growth of nanosheets around the axis [15,23].

The XRD analysis showed that the crystal structure of the obtained nanosheets matched the rhombohedral Bi₂Se₃ phase (Figure 1d, JCPDS No. 00-033-0214). Figure 1e shows the layered rhombohedral crystal structure of Bi₂Se₃, which consists of five covalently bonded atomic planes of Se-Bi-Se-Bi-Se. Quintuple layers are weakly bonded by van der Waals. The HRTEM characterization showed that the material has good crystallinity and has a crystal phase consistent with the Bi₂Se₃ rhombohedral phase (space group = R3-MH) with a = b = 4.1340 Å and c = 28.6300 Å (Figure 1f,g).

Nanosheets were annealed at 350 °C, and the annealed powder was hot-pressed into cylindrical pellets with a diameter of 10 mm and a height of 10 mm in a glovebox filled with argon. Samples were hot-pressed for four minutes at 480 °C and 50 MPa, and then naturally cooled to an ambient temperature. The relative density of the cylinders produced by this process was about 93% of the theoretical value. From the consolidated cylinder, a rectangular bar of 8 × 6 × 1 mm was cut longitudinally, and a 1 mm thick pellet was cut transversely (Figure 2). These samples were used to measure the TE properties of materials parallel to the pressure axis (//) and perpendicular to the pressure axis (⊥).

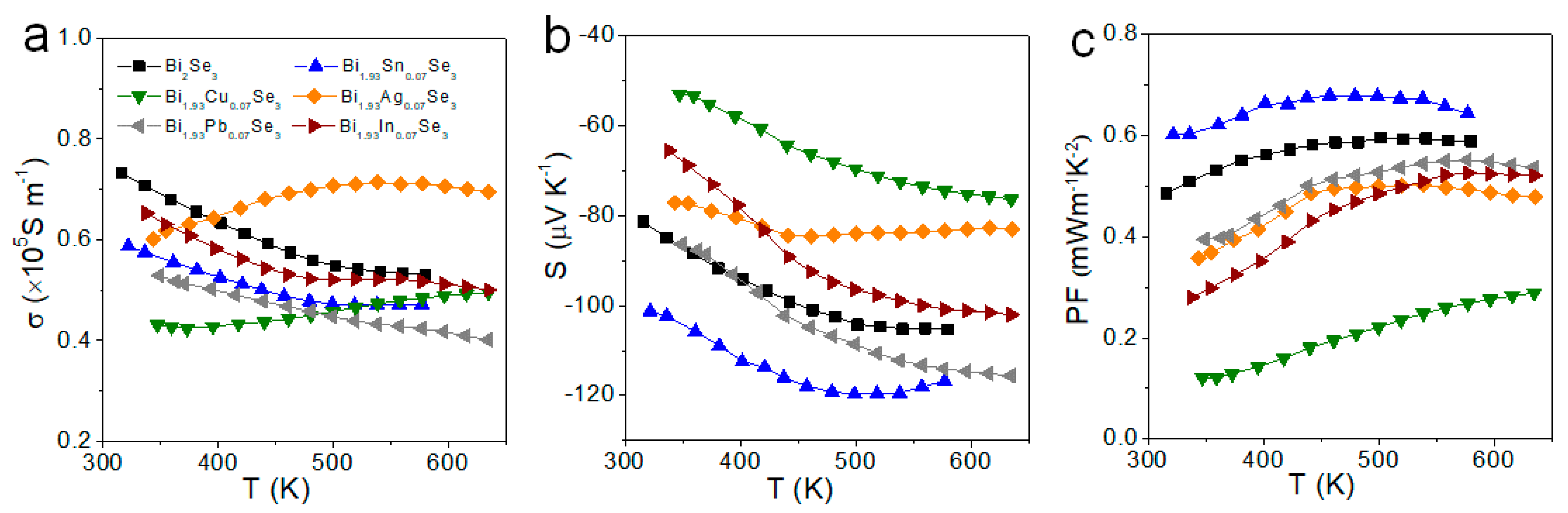

Figure 3 displays the electrical conductivity (σ), Seebeck coefficient (S), and power factor (PF = S²σ) of the Bi_2−xM_xSe₃ (M = Sn, Cu, Ag, Pb, In) pellets perpendicular to the press direction. The electrical conductivity of the undoped material decreased with temperature, which pointed to a degenerated semiconductor behavior. Compared to the undoped material, the electrical conductivity of all the doped samples was slightly lower, except for the Ag-doped samples. On the other hand, the samples doped with Sn and to a minor extent, Pb displayed an increase in the absolute value of the Seebeck coefficient. Overall, the highest power factors were obtained with the Sn doping. Thus, we decided to further study the effect of this element.

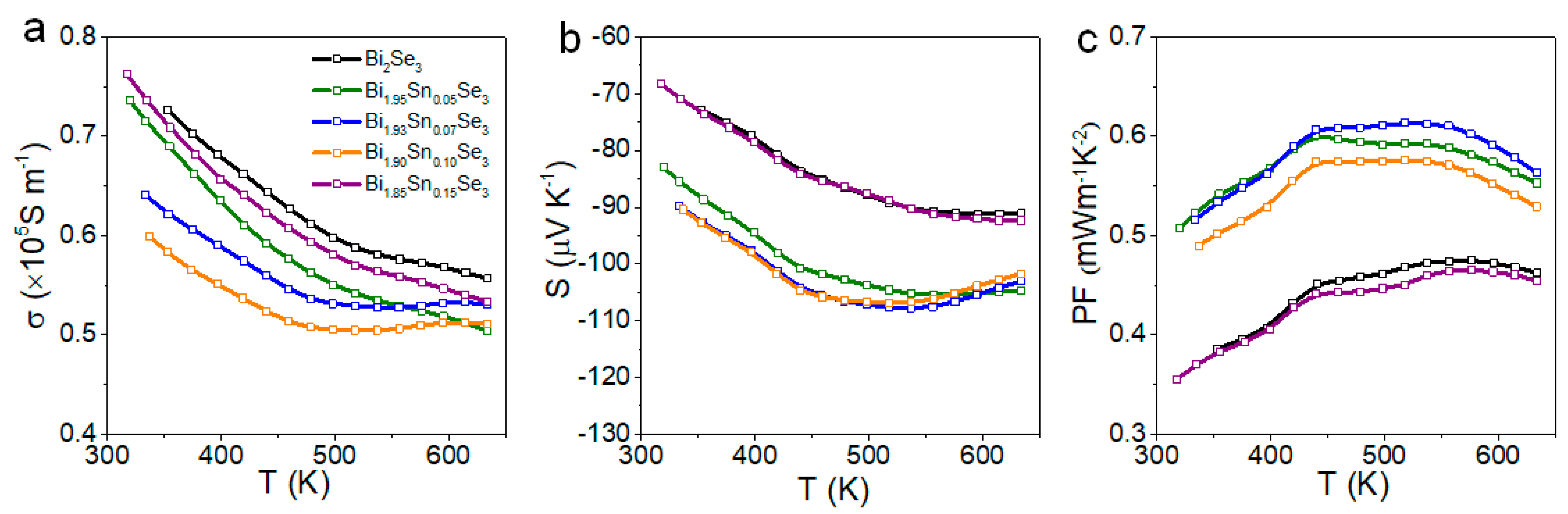

Figure 4 displays the electrical conductivity, Seebeck coefficient, and power factor of Bi_2-xSn_xSe₃ materials containing different amounts of Sn. We observed that the electrical conductivity decreased and the absolute value of the Seebeck coefficient increased with the amount of Sn up to a certain Sn concentration. The highest power factors were finally obtained for Bi_1.93Sn_0.07Se₃. The decrease in the electrical conductivity and increase in the absolute value of the Seebeck coefficient denoted a reduction in the charge carrier concentration, which points to the presence of Sn²⁺ ions instead of Sn⁴⁺ at Bi³⁺ sites.

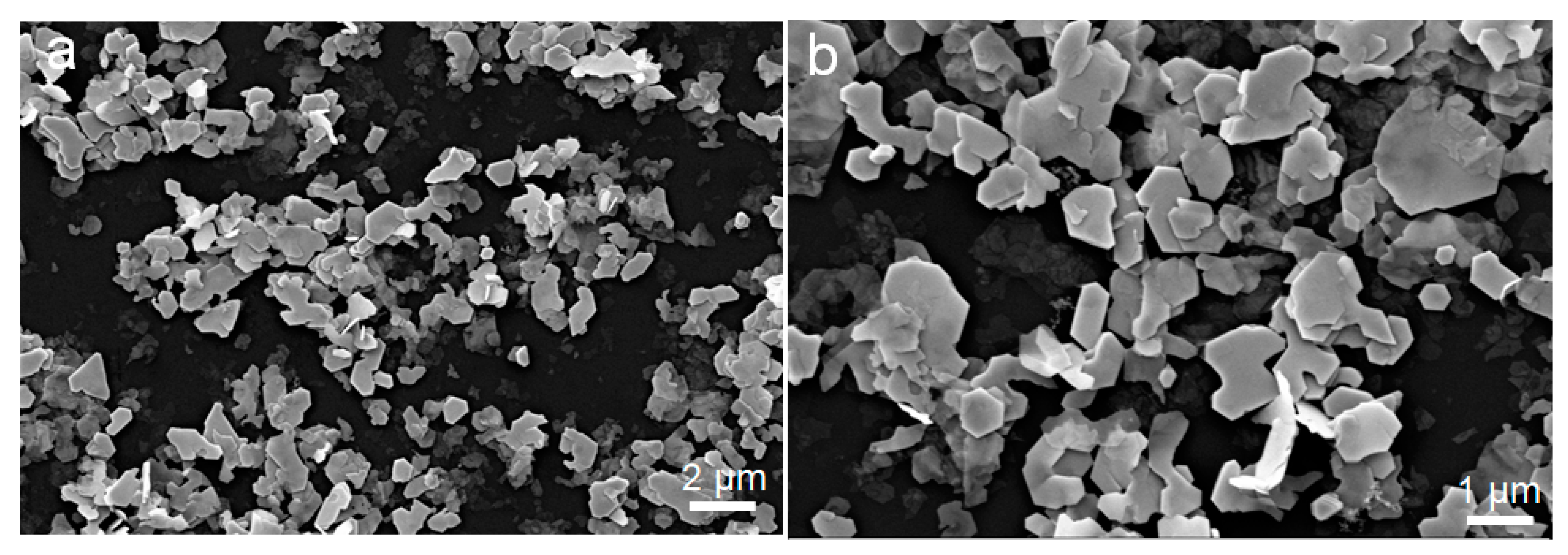

Figure 5 shows representative SEM micrographs of the Bi_1.93Sn_0.07Se₃ particles, which had similar sizes but did not display the flower-like morphology observed from Bi₂Se₃. As shown in Figure 6, the XRD characterization confirmed that the Bi_1.93Sn_0.07Se₃ particles maintained their rhombohedral structure. With the introduction of Sn, the XRD peaks shifted to lower 2θ angles, suggesting the incorporation of Sn within the Bi₂Se₃ lattice [5].

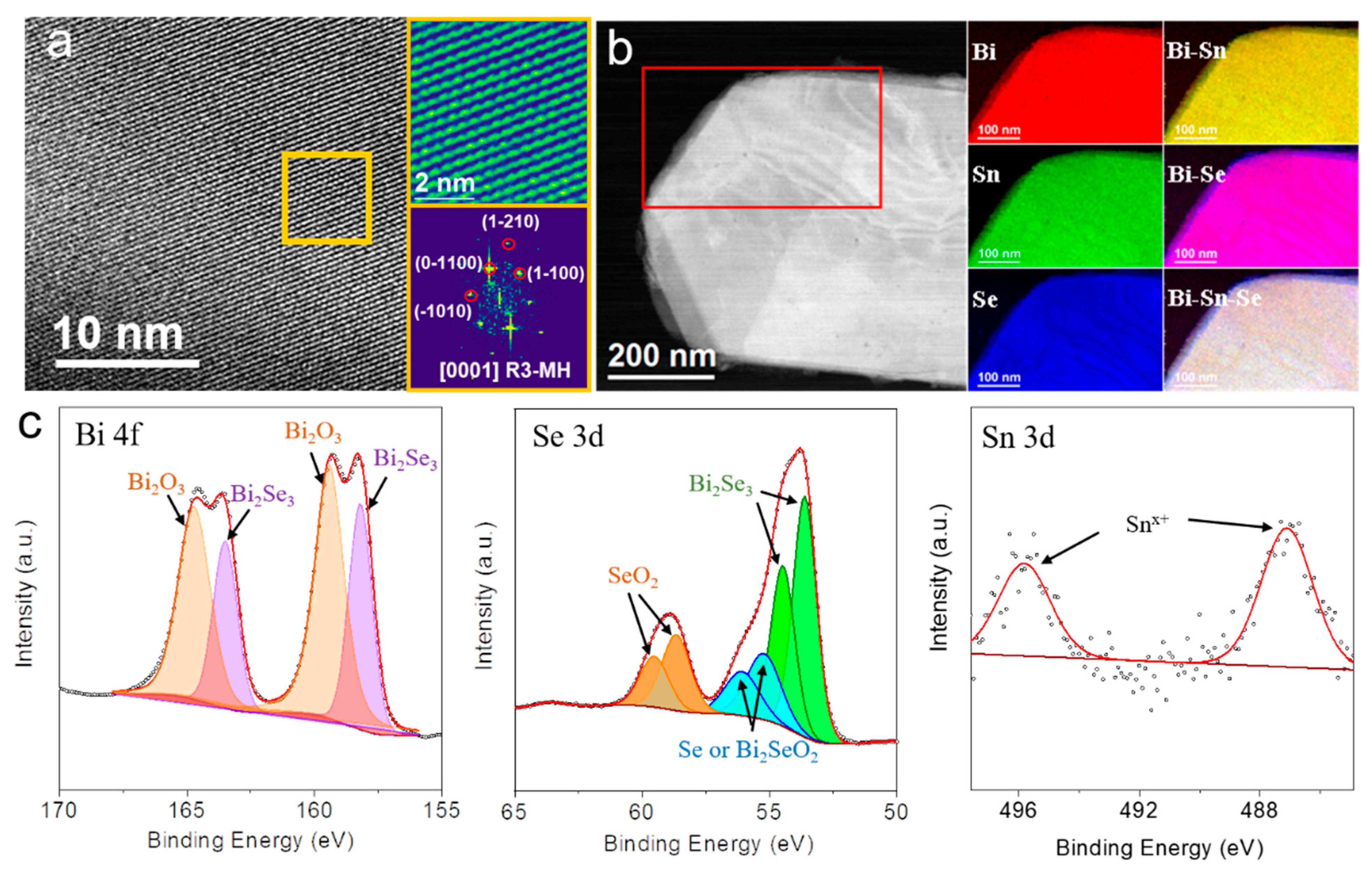

The HRTEM characterization confirmed the rhombohedral phase of the Bi_1.93Sn_0.07Se₃ particles (Figure 7a). EELS chemical composition maps obtained from the red squared region in the HAADF STEM micrograph shown in Figure 7b displayed a homogeneous distribution of Sn, Bi and Se within the Bi_1.93Sn_0.07Se₃ nanosheet.

Bi 4f, Se 3d and Sn 3d high-resolution XPS spectra of Bi_1.93Sn_0.07Se₃ particles are displayed in Figure 7c. The high-resolution Bi 4f spectrum was fitted with two doublets, associated with Bi³⁺ within a Bi₂Se₃ chemical environment (Bi 4f_7/2 at 158.2 eV) and Bi within a more electronegative environment, as it could be Bi₂O₃ or Bi₂SeO₂ (Bi 4f_7/2 at 159.4 eV) [30]. This oxidation of the particles surface is related to their transport and handling in the air [4]. The high-resolution Se 3d XPS spectrum was fitted with three doublets, corresponding to Se within the Bi₂Se₃ (Se 3d_5/2 at 53.6 eV), selenium in an elemental or Bi₂SeO₂ environment (Se 3d_5/2 at 55.2 eV), probably arising from the partial oxidation of the material surface, and Se in a SeO₂ chemical environment (Se 3d_5/2 at 58.6 eV) [30,31]. Finally, the high-resolution Sn 3d XPS spectrum was difficult to fit owing to the small amount of this element, but the broadness of the peaks pointed to the presence of at least two Sn chemical states that should be tentatively assigned to Sn^x+ within a SnSe and an oxidized environment [31]. According to the electrical properties measured at the introduction of Sn, we tentatively assigned the Sn^x+ component within SnSe to Sn²⁺.

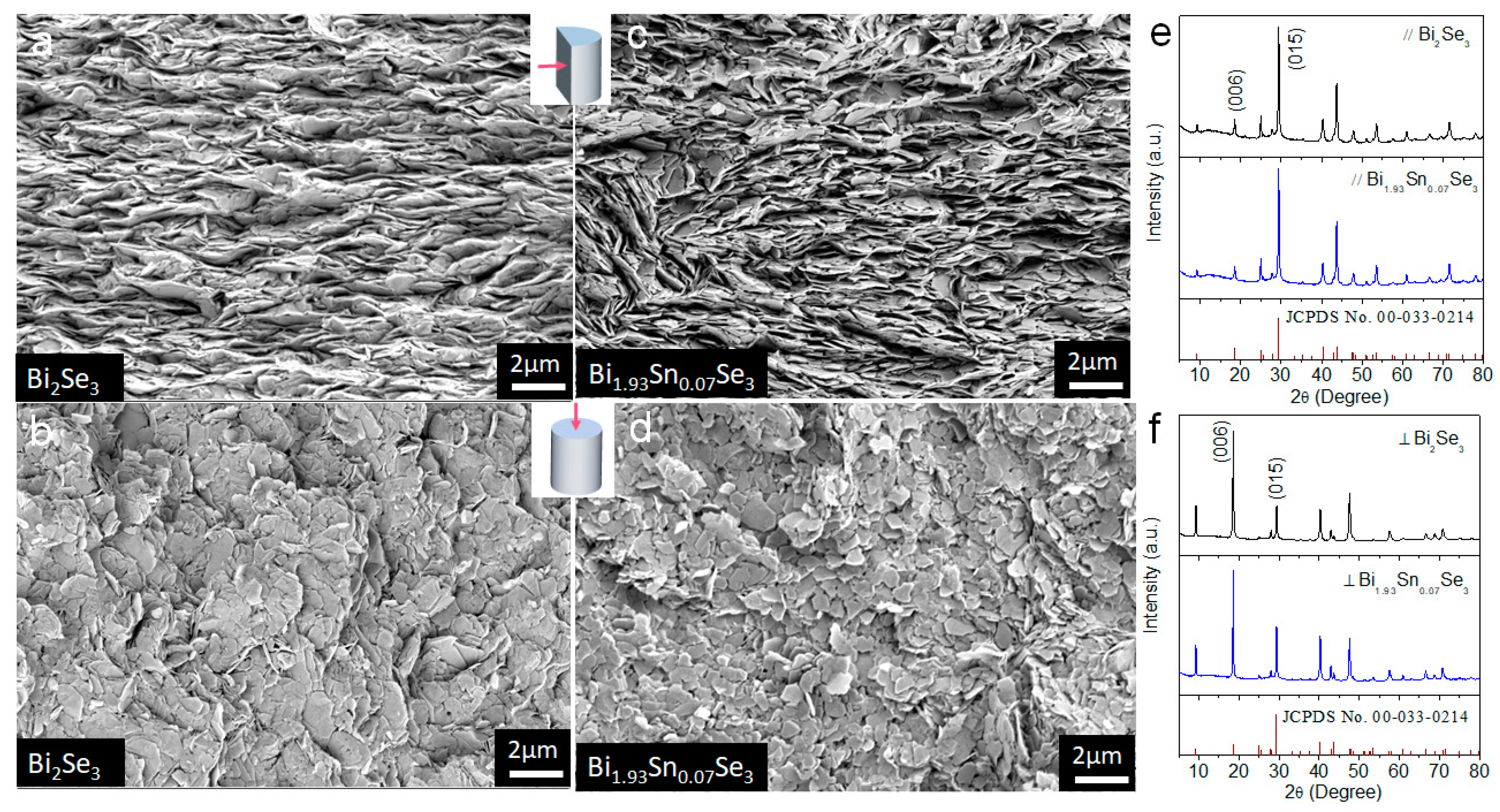

Top-view and cross-section SEM micrographs of Bi₂Se₃ and Bi_1.93Sn_0.07Se₃ (Figure 8) showed the final pellets presenting a laminar microstructure with an evident preferential orientation of the material layers. Bi₂Se₃ displayed larger and thinner layers than Bi_1.93Sn_0.07Se₃. When comparing the XRD patterns of the sample held in two normal directions, parallel and perpendicular to the pressure axis (Figure 8e,f), we observed that the relative XRD peak intensity clearly differed. This result confirmed the preferential crystallographic orientation of the hot-pressed materials, with the [001] crystallographic direction oriented parallel to the pressure axis.

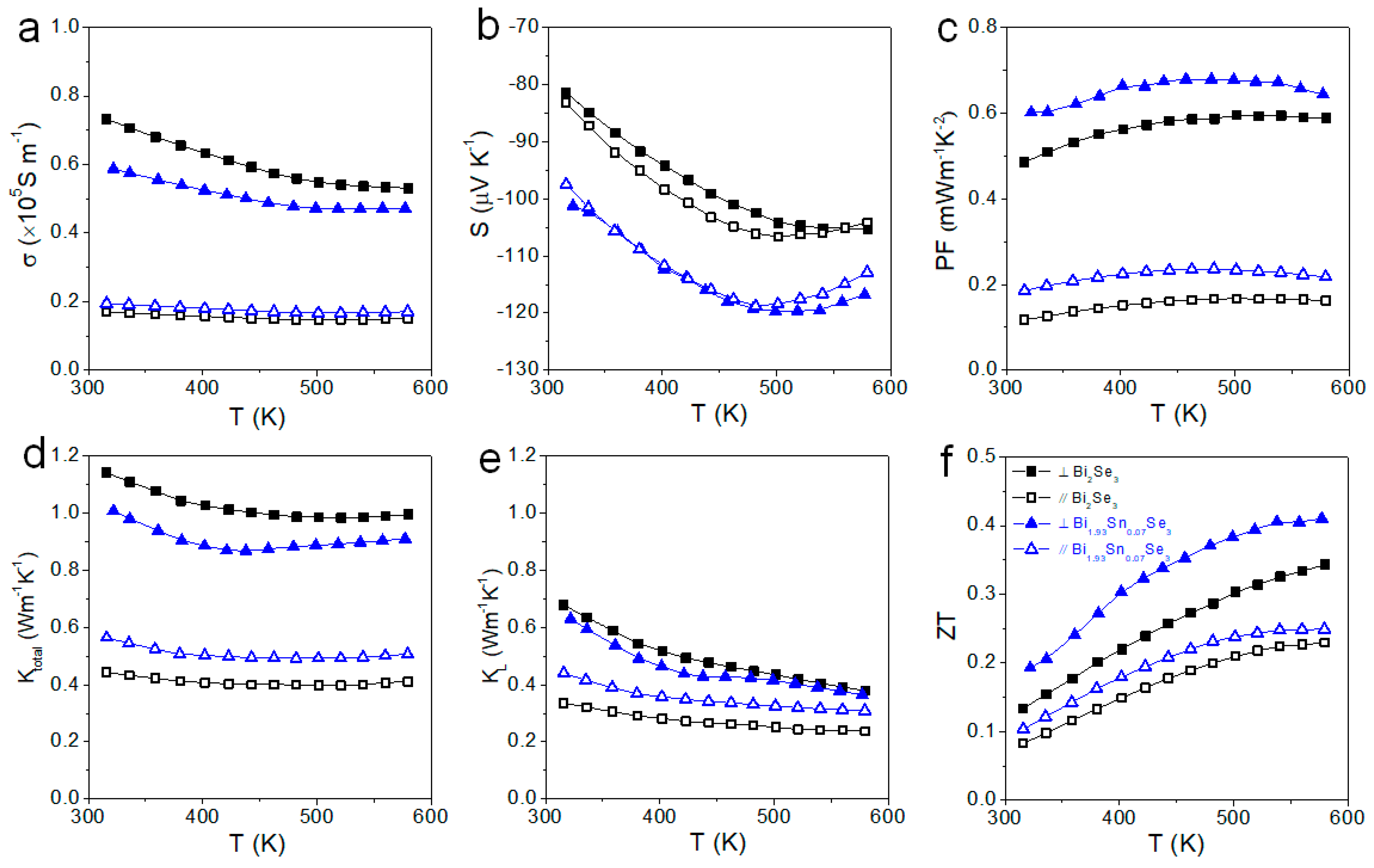

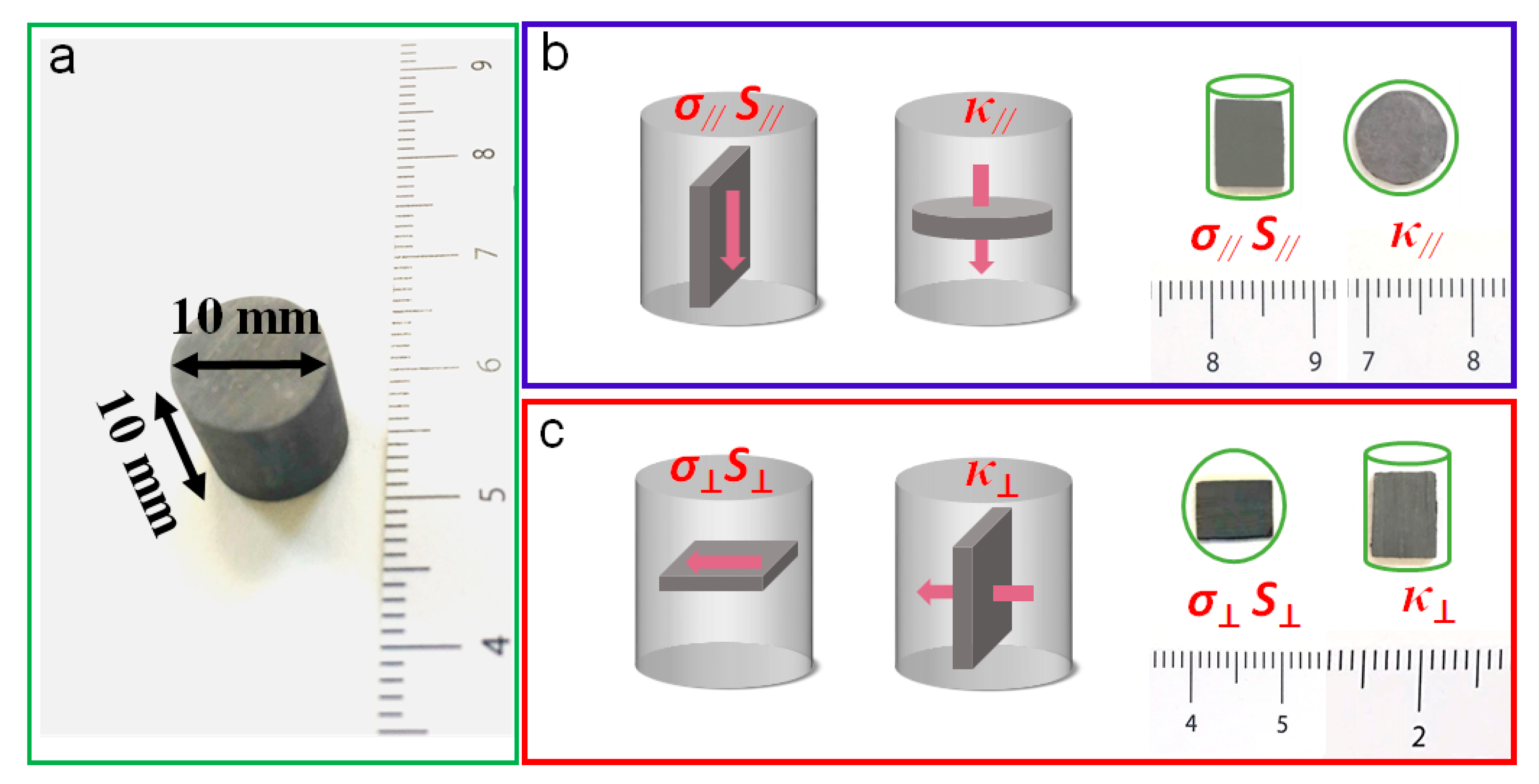

Figure 9 displays the TE properties of Bi₂Se₃ and Bi_1.93Sn_0.07Se₃ measured in the two directions. We observed σ_⊥ > σ_//, as expected from the higher charge carrier mobilities in the ab crystal plane compared with the c direction, and the extended size of the crystal domains in the direction normal to the pressure direction within the layered pellets. On the other hand, similar Seebeck coefficients were obtained in both directions, pointing out that this parameter has little relationship with grain boundary scattering in this material.

When comparing the TE properties of Bi₂Se₃ and Bi_1.93Sn_0.07Se₃, we observed σ_⊥ to slightly increase and σ_// to slightly decrease with the introduction of Sn, which could be in part related to the thinner and larger material layers observed within the layered Bi₂Se₃ pellets compared with Bi_1.93Sn_0.07Se₃. On the other hand, with the introduction of Sn, S increased in both directions, which resulted in a higher PF in both directions for the Bi_1.93Sn_0.07Se₃ sample.

Table 1. Room temperature transport properties and m* of the Bi₂Se₃ and Bi_1.93Se_0.07Se₃ pellets.

Materials	nH [1019 cm−3]	μH [cm2 V−1 S−1]	m*/m0
Bi2Se3	1.77	178.6	0.27
Bi1.93Sn0.07Se3	1.34	239.3	0.29

displays the Hall charge carrier concentration and mobility of Bi₂Se₃ and Bi_1.93Se_0.07Se₃ pellets at room temperature. As expected from the electrical conductivity and Seebeck coefficient measurements, we observed the Sn introduction to result in a decrease in the charge carrier concentration, from n_H = 1.8 × 10¹⁹ cm⁻³ for Bi₂Se₃ to n_H = 1.3 × 10¹⁹ cm⁻³ for Bi_1.93Se_0.07Se₃. This result is consistent with the presence of Sn²⁺ replacing Bi³⁺ ions, thus trapping a free electron. We believe this optimization of the charge carrier concentration to be at the origin of the higher PF obtained with the introduction of Sn. We further calculated the effective mass of the Bi₂Se₃ and Bi_1.93Sn_0.07Se₃ materials using a single parabolic band (SPB) model. For detailed calculations, the carrier transport property analysis included [32]:

The Seebeck coefficient,

$$S\left(\eta \right)=\frac{{\kappa }_B}{e}\left[\frac{\left(r+5/2\right)·F_{r+3/2}\left(\eta \right)}{\left(r+3/2\right)·F_{r+1/2}\left(\eta \right)}-\eta \right]$$

(1)

The Hall carrier concentration,

$$n_H=\frac{1}{e·R_H}=\frac{{\left(2m^{*}·{\kappa }_{B}T\right)}^{3/2}}{3{\pi }^2{\hslash }^3}·\frac{{\left(r+3/2\right)}^2·F_{r+1/2}^2\left(\eta \right)}{\left(2r+3/2\right)·F_{2r+1/2}\left(\eta \right)}$$

(2)

The Hall mobility,

$${\mathsf{\mu }}_H=\left[\frac{e\pi {\hslash }^4}{\sqrt{2}{\left({\kappa }_{B}T\right)}^{3/2}}\frac{C_l}{E_{def}{}^2{\left(m^{*}\right)}^{5/2}}\right]\frac{\left(2r+3/2\right)·F_{2r+1/2}\left(\eta \right)}{{\left(r+3/2\right)}^2·F_{r+1/2}\left(\eta \right)}$$

(3)

where $F_x\left(\eta \right)={{\displaystyle \int }}_0^{\infty }\frac{{\epsilon }^x}{1+e^{\left(\epsilon -\eta \right)}}d\epsilon$ is the Fermi integral.

In the above equations, S, μ_H, η, κ_B, e, r, R_H, ℏ, C_l, E_def, and m* are the Seebeck coefficient, the carrier mobility, the reduced Fermi level, the Boltzmann constant, the electron charge, the carrier scattering factor (r = −1/2 for acoustic phonon scattering), the Hall coefficient, the reduced plank constant, the elastic constant for longitudinal vibrations, the deformation potential coefficient, and the density of state effective mass, respectively. Using the experimental S, the reduced Fermi level η can be obtained by Equation (1). Substituting the estimated η and the measured “n_H” and “μ_H” into Equations (2) and (3), the effective mass “m*” can be calculated. The results show that m* increased slightly with the Sn doping (Table 1).

Consistent with the layered structure of the pellets and their crystallographic texture, the thermal conductivity of the materials measured in the direction normal to the pressure axis was much higher than in the pressure axis, κ_⊥ > κ_//. The introduction of Sn resulted in lower κ_⊥ but higher κ_// values, which is related to the different microstructure of the layers, with thicker and smaller Bi_1.93Se_0.07Se₃ plates compared to those within the Bi₂Se₃ pellet.

Overall, the Bi_1.93Sn_0.07Se₃ samples measured in the pellet plane displayed the highest PF and ZT values, 0.65 m Wm⁻¹ K⁻² and 0.41, respectively. These values are among the highest published for Bi₂Se₃-based materials, as displayed in

Table 2. A comprehensive summary of the thermoelectric performance of the previously reported Bi₂Se₃.

	ZT at Room Temperature				ZTmax
Materials	σ (104S/m)	S (μV/K)	κ (W/mK)	ZT	σ (104 S/m)	S (μV/K)	κ (W/mK)	ZT
K2.5Bi8.5Se14 [33]	0.4	−100	0.6	0.05	1.8	−160	0.38	1 (873 K)
Bi0.7Sb0.3Se [34]	4.5	−138	0.5	0.45	4.2	−160	0.7	0.8 (425 k)
Bi5.6Sb2.4Se7 [35]					4.8	−168.5	0.73	0.55 (300 K)
Bi2Se3 [28]	2	−120	0.5	0.17	1.95	−155	0.4	0.48 (427 K)
Bi2Se3 [21]	1.78	−90	0.42	0.1	3	−120.7	0.49	0.35 (400 K)
Bi2Se3 HA0.11DMSO0.06 [36]	14.8	−80	1.52	0.187
Bi2Se3 [12]	2.5	−60	0.55	0.05	2	−100	0.6	0.18 (480 K)
Cu0.1Bi2Se3 [37]					1.46	−84	0.32	0.1 (290 K)
Bi2Se3 [20]	0.212	−115	0.75	0.011	0.6755	−150	0.83	0.096 (523 K)
This work	5.87	−101	1	0.195	4.72	−116	0.91	0.41 (577 K)

.

4. Conclusions

We report here a large-scale method to synthesize n-type Bi₂Se₃ nanosheets with different dopants. Samples doped with Sn provided the highest TE performances. The composition was optimized at Bi_1.93Se_0.07Se₃. Upon Sn doping, we observed an increase in the Seebeck coefficient and the power factor compared to pure Bi₂Se₃. As a result, a power factor up to 0.65 m Wm⁻¹K⁻² and a ZT of 0.41 were obtained for the Bi_1.93Sn_0.07Se₃ pellet measured in the direction perpendicular to the pressure axis, which represents a 60% increase over pure Bi₂Se₃.
