Magnetism and ε-τ Phase Transformation in MnAl-Based Nanocomposite Magnets

1
National Institute for Materials Physics, P.O. Box MG-7, 077125 Magurele, Romania
2
R & D Consulting and Services S.R.L., 023761 Bucharest, Romania
*
Author to whom correspondence should be addressed.
Nanomaterials 2021, 11(4), 896; https://doi.org/10.3390/nano11040896
Received: 2 March 2021 / Revised: 18 March 2021 / Accepted: 23 March 2021 / Published: 31 March 2021

Abstract

:
Melt spun ribbons of Mn53Al45C2 and Mn52Al46C2 have been synthesized by rapid quenching of the melt with the purpose of monitoring the ε-τ phase transformation to show technologically feasible ways to increase magnetic parameters and to illustrate the viability of these alloys as the next generation of rare earth (RE)-free magnets. By differential scanning calorimetry (DSC), activation energies and temperatures of onset of the ε-τ phase transformation were obtained. Structural analysis was performed using X-ray diffraction (XRD) and the resulting XRD patterns were quantitatively assessed using full profile Rietveld-type analysis. Appropriate annealing was performed in order to enable the ε-τ phase transformation. While hcp ε-phase was found to be predominant in the as-cast samples, after appropriate annealing, the tetragonal τ-phase, the one that furnishes the relevant magnetic response, was found to be predominant with an abundance of about 90%. The data suggested a mechanism of hcp ε-phase decomposition controlled by the segregation towards the interfacial regions, having the rate of transformation governed by antiphase boundary diffusion processes. Magnetic measurements of annealed sample Mn53Al45C2, consisting of predominant tetragonal τ-phase, showed high values of magnetization and increased coercivity, consistent with an energy product of about 10 MGOe, similar with previously reported magnetization measurements, providing further insight into the realization of future class of RE-free low-cost permanent magnets.

1. Introduction

There is a globally known quest for developing novel materials which makes little, or not at all, use of critical raw materials, as is for instance described in the Raw Materials Initiative of the European Commission [1]. Among these critical raw materials, rare earth (RE) elements are among the most depleted ones and their replacement in the making of magnetic materials is painstakingly difficult since there are not many elements that possess magnetic moment and exhibit technologically exploitable intrinsic magnetization and high enough coercive field. In search for alternative permanent magnets, which do not contain RE, the binary Mn-Al system has recently attracted a growing interest. Mn is by itself an antiferromagnet; however, by alloying with other metals, it can produce noticeable ferromagnetic features. Some binary Mn-based systems may show ferromagnetism, such as the ones including Ga, Sb, As, or Ge; however, only Mn-Al and perhaps Mn-Bi alloys have some potential in developing good coercivity associated to large enough saturation magnetization. In certain conditions, Mn-Al may show good magneto-crystalline anisotropy, good resistance to corrosion, and it is resilient and easily machinable with good mechanical strength, making it one of the most promising candidates for RE-free magnets [2,3,4,5,6].
What makes Mn-Al a good magnet is in fact its tetragonal τ-phase, that is similar to the ordered L10 phases, as retrieved in FePt or CoPt magnets [7,8] with strong uniaxial magneto-crystalline anisotropy [9]. However, the formation of this phase and fine tuning of corresponding magnetic properties is a rather daunting task. The actual making of Mn-Al-based magnets proved to be difficult and showed quite low coercivity [10]. The reason is linked to the metastability of the τ-phase and that this phase forms only at quite narrow windows of composition in the binary phase diagram. τ-MnAl having tetragonal L10 symmetry arises from the parent hexagonal (hcp) ε-phase, which itself is non-magnetic, at a stoichiometry of around 51–58 at.% Mn [11,12], through annealing of binary alloys, rich in manganese, at temperature values above 500–650 °C. It is known that Mn2+ possesses a large magnetic moment of about 5 μB/atom, but due to the antiferromagnetic alignment, this good magnetic moment cannot be exploited for in technological applications. In the binary MnAl phase diagram, at equilibrium [13], the range of 51–58 at.% Mn correspond in fact to the mixture of two phases, γ2-Mn5Al8 and β-Mn with diluted Al atoms. In the τ-MnAl phase that forms at almost equiatomic composition, Mn and also Al atoms occupy randomly the (0,0,0) and (½,½,½) crystallographic positions. However, as the real structure is rarely equiatomic and almost never completely ordered, some of the excess Mn atoms will accommodate few of the Al (½,½,½) crystallographic positions and consequently will align their magnetic moments antiferromagnetically, thus diminishing the overall magnetization. In some of the earlier works [14], it was found that maximum saturation magnetization was at about 51 at.% Mn and starts to decrease with increasing the Mn content. It was also found that adding C furthermore increases the magnetization at the expenses of decreasing both the Curie temperature and the coercivity of the τ-phase.
It is worth noting that the formation of τ-phase in Mn-Al depends strongly upon stoichiometry, microstructural details, as well as thermodynamic considerations. As said above, the ferromagnetic τ-phase has a tetragonal superlattice structure that is similar to other L10 phases [15,16,17,18,19,20]. It has been reported [21,22] that τ-MnAl is synthesized either by the rapid quenching of ε-phase and subsequent annealing or by slowly cooling down the parent disordered ε-phase. There have been evidences that τ-MnAl may arise from hcp ε-MnAl precursor by annealing at around 500 °C, but it was reported that such method leads to certain structural instabilities of this phase [23]. In terms of phase diagram [13], L10 phase has a slight tendency indeed to decompose in a mixture of solid solutions of β-(Mn) and γ2 (Mn5Al8) phases, above 650 °C. There are, however, means of improving this stability and preserving the structural dominance of τ-phase in Mn-Al binary alloys. Adding carbon improves the overall stability, as reported in [2] for the L10 phase. Nevertheless, the majority of published results about phase transitions in MnAl leading to formation of magnetic phases with good stability were mostly theoretic until recently. Ab initio approaches have given reasons to consider that magnetic ground state of the τ-MnAl is ferromagnetic [24,25,26], having a magnetic moment of about 160 emu/g. Density functional theory approaches [27] showed that large magneto-crystalline anisotropies of about 1 MJ/m3 can be expected for MnAl and MnGa, together with a saturation magnetization value of about 0.8 MA/m. By means of Monte Carlo simulations, the Curie temperatures of Mn-rich off-stoichiometric compositions was found to be about 327 °C [27]. It has already been argued that the occurrence of τ-phase depends heavily on the chemical composition, Mn to Al ratio, processing routes, and subsequent annealing. It was inferred [28,29,30] that the phase transformation of Mn-Al from ε-to τ-phase is a process occurring in two steps. The first step, attributed to some thermal diffusion within the microstructure during annealing, the reorder of atoms in hcp ε-phase produces a quasi-layered ε′-phase of orthorhombic symmetry. The second step consists of the transformation of ε′-phase within a fast martensitic-type process, which provides incipiency of τ-phase formation [30]. For most of the cases irrespective of the synthesis method, a mixture of phases is obtained rather than one single phase in the Mn-Al-based alloys. In some cases [29,31,32], the microstructure was found to consist of a mixture of τ-phase and ε-phase; in other cases [33,34], an amalgam of the γ2, β, and τ phases was found, while in [35], another mix of structures was found: τ, β, and ε-phases. Non-equilibrium synthesis procedures such as melt spinning, rapid quenching from the melt, planetary ball milling, but also gas atomization are mostly efficient for synthesis of Mn-Al alloys [6,36]. Even if the magnetic properties of melt spun MnAl alloys [3,37] are quite similar, for ball milled samples [2], quite different properties are observed. It is considered that slight changes in the milling processing route helps obtain different grain microstructures produced by randomly induced structural defects. Only a few available works report almost single τ-phase alloys [31], this being obtained in ribbons synthesized by planar flow casting, furthermore annealed in carefully selected thermal conditions. Another way to stabilize the τ-phase formation is by careful compositional modulation, by adding for instance small amounts of carbon. It was reported [38] that τ-phase can be obtained from the melt spun alloys slowly cooled down to room temperature. Nevertheless, here the main stabilizing role was played by carbon addition rather than the cooling conditions. In a previous paper [29], the control of the cooling process at a proper rate was deemed important for acquiring a significant content of τ-phase. The need of the rapid cooling of hcp ε-phase to avoid decomposing into the equilibrium phases β-Mn and γ2 (Mn5Al8) [39] was also proven. Another way to obtain large amounts of τ-phase was reported [34] by using strip-cast; however, this was successfully achieved only for off-stoichiometric composition Mn54Al46 (at.%). Mitsui et al. [40] used annealing at 300 °C, under an applied magnetic field to investigate Mn-Al alloyed with Zn and also Mn-Al-C. It was found that magnetic field annealing was beneficial for the Zn-modified Mn-Al but detrimental for C-modified Mn-Al, in what concerns stabilization of τ-phase against ε-phase. Dehghan and Ebrahimi [41] have also studied influence of strain on magnetic behavior of Mn-Al-C samples, hot compressed, and they argued that higher strains lead to higher coercivity and remanence. K.P. Su et al. [42] studied Mn-Al based hard magnetic magnets with C addition, obtained as flakes by surfactant assisted ball milling. Texturing along [001] axes of τ -MnAl phase was observed, and the coercivity was found to be at around 2500 Oe even after 15 h milling. In a very recent publication, R. Kobayashi et al. [43] have shown that magnetic Mn–Al–C (τ-phase) may be produced by reactive sintering. They obtained maximal coercivities and magnetization for Mn55Al45C2 annealed at 1000 °C, a sample where the abundance of τ-phase was about 81%. Results have been interpreted in terms of phase stabilization by carbon addition during ε-τ transformation.
For a deeper understanding of the effects of carbon addition and of the dynamics of the ε-τ phase transitions in the MnAl-based systems, we have elaborated two alloys by means of melt spinning followed by rapid solidification of the melt, resulting in formation of thin ribbon shapes. Two different compositions have been obtained: Mn52Al46C2 and respectively Mn53Al45C2. Differential scanning calorimetry measurements have been employed to verify eventual exothermic effects during structural phase transformations as well as the corresponding activation energies. We perform structural studies by powder X-ray diffraction, a method which enables for the identification of the nature, the type, structural symmetry, and the morphology of the determined phases. The magnetic features were determined and correlated to the structural findings. These results enable us to monitor and to prove the evolution of crystalline phases in Mn52Al46C2 and respectively Mn53Al45C2 alloys.

2. Materials and Methods

The two alloys, Mn52Al46C2 and respectively Mn53Al45C2, have been synthesized as ribbons by rapid quenching of the melt, in a non-equilibrium synthesis process utilizing a melt spinner device from Buehler. Pre-alloys have been made starting with elemental powders of high purity, using an arc-melting technique in controlled Ar gas atmosphere of 10−1 Torr partial pressure, followed by re-melting 3 times for a better homogeneity of the primary alloys. In the next step, primary alloys of a total mass of 5 g were diced and then melted again in crucibles made of quartz, having 2.5 mm nozzles. The melt was purged using over-pressured Ar gas (40 kPa) on a copper wheel having 40 cm diameter. The wheel rotates at about 1600 rot/min, corresponding to a peripheral velocity of 33.5 m/s, producing long and homogeneous thin ribbons. The ribbons obtained were 2 mm wide, homogeneous, and with a thickness of about 40 μm. The elemental composition of the ribbons was measured using particle-induced X-ray emission spectroscopy (PIXE). PIXE is a nuclear experimental technique which provides accurate elemental analysis. While it is an unusual technique for solid state scientists, since it requires the use of highly energetic beam of charged particles produced in nuclear accelerators, it is quite efficient in quantitatively analyzing the stoichiometry of solid samples. In PIXE, the sample is exposed to heavy charged protons, with kinetic energy between 1 and 4 MeV, and it subsequently emits element-specific X-ray emission from the whole solid sample exposed. In comparison to the energy-dispersive X-ray (EDX) spectroscopy, PIXE has the advantage of low limits of 0.1–10 mg/kg (or 10−5–10−7) for elemental analysis, which was especially needed in our case for detecting the low Z element such as C. The elemental composition of the ribbons, as revealed by PIXE, was found to be quite close to nominal composition, within 0.5 at%. The two alloys compositions, determined from PIXE, are Mn52.2Al45.6C2.2 and respectively Mn53.2Al45.1C1.7. No contaminating oxides or oxi-hydrides were found in the samples. Calorimetry studies and thermal analysis was done with differential scanning calorimetry technique (DSC), employing the Setaram DSC 111 system, with 5 to 50 °C/min heating rates, and raising the temperature up to about 600 °C in a controlled Ar environment. The X-ray patterns were done using the Bruker D8 Advance diffractometer with Cu Kα radiation (λ = 0.154 nm). The classic θ–2θ transmission geometry was used for diffraction for angles between 20° and 90° (in 2θ). A full-profile pattern analysis was done on the obtained diffraction patterns using MAUD (Materials Analysis Using Diffraction) software. The magnetic measurements on the Mn52Al46C2 and respectively Mn53Al45C2 samples were done using a MPMS (Magnetic Properties Measurement System) from Quantum Design. Initial magnetization and hysteresis loops of samples were determined under an applied field of up to 80 kOe, which was parallel to the planar side of ribbons, at 27 °C.

3. Results

3.1. DSC Results

Regarding the phase transformation evolution with temperature in metallic alloys, one of the most promising techniques is the differential scanning calorimetry (DSC). In our alloys, DSC analysis was undertaken in order to notice and monitor thermal events or heat exchange with the environment, illustrated as exo- or endo-thermic peaks. Events that occur with temperature increase are related to intrinsic structural effects that employ change of the internal energy and are associated to structural phase transitions. The DSC scans have been performed on both the Mn-Al-C alloys. Measurements were taken from 100 °C up to 750 °C with a heating rate of 5 °C/min. The heat exchanged with the exterior environment, measured by comparison with a reference crucible heated to the same temperature, was recorded during the heating process and the data obtained for the 2 samples are presented in Figure 1 and Figure 2. Besides the constant heat flow increase with increasing temperature, few heat flow effects (exo- and endo-thermal) are noticed in both graphs. The effect attributed to the structural phase transformation leading to the formation of τ-MnAl phase was found at 504 °C for the sample Mn53Al45C2 (Figure 1). A similar peak was noticed also by Lu et al. [32] in Mn55Al45 at 492 °C and assigned to the occurrence of the τ-phase. An exothermic effect at 509 °C was recorded in another work [29] for Mn0.55Al0.45C0.02 and again assigned to the occurring of τ-phase. For the sample Mn52Al46C2, the exothermic effect recorded in the previous graph is postponed with about 100 °C to about 606 °C (Figure 2), this peak also being assigned to the ε-τ transformation. The delay in formation of the τ-MnAl phase is in this case most probably related to the higher activation energy induced by the increased Al content. It can be seen in the Mn-Al phase diagram [13] that the limit of formation of the τ-phase is exceeded when lowering the Mn content below 53 at.%; therefore, during the non-equilibrium heating process of the DSC study, a higher activation energy is required for triggering the formation of the τ-phase.
For more information about the ε-τ structural transformation, other relevant calorimetry parameters, such as the activation energy, may be derived from DSC thermograms, recorded for different heating rates. These parameters are important to be assessed since there is a delay of the ε-τ transformation, as seen from the different values of the transformation temperature. We infer that the retardation of the phase transition in the sample Mn52Al46C2 (Figure 2) with respect to that of sample Mn53Al45C2 (Figure 1) is due on one hand by the slight compositional changes and positioning relative to the limit of formation of τ-phase, and on the other hand is triggered by the differences in the phase structure, as revealed by the X-ray diffraction (XRD) results. We have calculated the activation energies from 5 different DSC scans recorded at various heating rates, and we obtain, for both samples, similar behavior in terms of the variation of activation energies, which increase linearly with the transformation fraction. For the estimation of activation energy, we have used the so-called model-free analysis. This analysis calculates some kinetic parameters: apparent activation energy as well as pre-exponential factor. It employs rate equation and Arrhenius law and considers that the reaction model is independent of both temperature and heating rate [44]. The average activation energies are 185 ± 7 kJ/mol for the sample Mn53Al45C2 and 306 ± 11 kJ/mol for the sample Mn52Al46C2. These average values of activation energies are comparable to the value of around 190 kJ/mol for Mn55Al45 alloys [31,32] and are also in agreement with the value reported in [37] of about 300 kJ/mol. It has been reported in many previous works [31,32,33,34,35,36,37] that the ε-τ transformation occurs gradually upon annealing. To maximize the abundance of the formed τ-phase, we have chosen an annealing temperature that is well beyond the observed DSC peaks, for permitting the system to complete the ε-τ transformation. Annealing procedures were undertaken at 700 °C for 1 h. The samples resulting after annealing have been fully characterized, structurally and magnetically, along with their as-cast counterparts.

3.2. XRD Results

The structural characterization of the as-cast and annealed alloys was done by X-ray diffraction at room temperature. XRD patterns have been recorded for both as-cast and annealed samples. Comparative XRD patterns are represented for Mn53Al45C2 and Mn52Al46C2 samples are shown in Figure 3 and Figure 4. For correct identification of the observed Bragg lines and to derive the needed lattice parameters for the crystalline phases occurring in the samples, a full-profile, Rietveld-type analysis was done with the MAUD software.
The Mn53Al45C2 as-cast sample exhibits polycrystalline behavior, having well-formed, sharp Bragg peaks, mostly assigned to hcp ε-phase. The full-profile analysis provided the lattice parameters of the hcp crystal structure: a = 2.684 Å and c = 4.336 Å. Based on the fitting parameters resulted from MAUD, peak angular positions and shape, full-width-at-half-maximum (FWHM), we estimated the grain size, understood here as being the volume weighted, crystallographically-coherent, domain size. We have thus obtained a mean grain size of around 185 ± 12 nm for the hcp ε-phase. Besides the formation of the ε-phase, which is predominant in the as-cast samples, we detected also the presence of γ2-rhombohedral and β cubic phases, in much smaller proportions. The Mn53Al45C2 sample annealed at 700 °C shows quite different features. The strong diminution, even disappearance of the Bragg peaks of ε-phase is observed, new diffraction lines of significant intensity appear, lines that are indexed as belonging to the τ-phase (space group P4/mmm, International Centre for Diffraction Data ICDD file 11-0520). Such lines have also been observed in [32] and indexed there also as belonging to the τ-phase. The relative proportion of the new τ-phase is very high, found to be around 88%. The remaining 12% abundance consists of rhombohedral γ2 phase and primitive cubic β-phase. Correlating this value with the disappearance of the Bragg lines of the hcp ε-phase, we can conclude that indeed, after the 700 °C annealing, the Mn53Al45C2 alloy undergo an almost full ε-τ structural phase transformation. For the whole picture of the phase composition after the 700 °C annealing, it have to be said that, besides the small remaining hcp ε-phase (space group P6/mmm ICDD file 00-048-1830), the full-profile fitting analysis allows identification of two other phases, i.e., rhombohedral γ2 phase (space group R3m (160) ICDD file 00-032-0021) and cubic β-phase (primitive cubic (space group P4132), all with a total amount of 12%. The lattice parameters of the τ structural phase were found to be a = 2.747 ± 0.011 Å, c = 3.576 ± 0.008 Å. For the rhombohedral γ2, the lattice parameters are a = 12.543 ± 0.0041 Å, c = 15.723 ± 0.0021 Å, while for the hcp ε-phase, these are a = 2.691 ± 0.0031 Å, c = 4.356 ± 0.0033 Å. The average crystal size value of around 225 ± 12 nm was estimated using Scherrer method for the τ-phase. In the same way, a mean grain size of around 185 ± 9 nm was calculated for the ε-phase.
An almost similar situation is encountered also for the Mn52Al46C2 alloy, as-cast and also annealed at 700 °C (Figure 4). Here, the as-cast state is also characterized by a predominance of the hcp ε-phase which transforms after annealing in a more complex phase structure. In this case, the ε-τ structural phase transformation is also almost full, with a formed τ-phase of about 91%, almost complete disappearance of cubic β-phase, and the remaining 9% abundance being made of rhombohedral γ2 phase and primitive cubic β-phase, with lattice parameters almost equal to the previous case, within the range of estimation errors. The crystallite average size, calculated from the full profile analysis fitting results, shows almost similar values: 232 ± 14 nm for the two most intense lines of the τ phase in the annealed sample, and respectively 198 ± 15 nm for the ε phase in the as-cast sample.
To improve the accuracy of the estimations for the average grain sizes, also taking into account other contributions to the Bragg peak broadening, such as microstrain, we have also employed the integral breadth method [45,46]. This method uses parameters resulting from MAUD fitting, such as lattice parameters, line widths, and mixing parameters of each Bragg reflection, and calculates the average crystallographic domain size associated with the average grain size and the root mean square lattice microstrain. In this case, the lattice microstrain is defined as the amount (either in size or volume) by which a crystal lattice deforms under stress/strain and it is given as a ratio of the experimental lattice size to the initial theoretical lattice size, being a non-dimensional parameter [45]. During the non-equilibrium synthesis, the cooling of the ribbons occurs differently for the two sides of the ribbons, the one in contact with the Cu wheel and the other one cooling in the controlled atmosphere. Therefore, structural stress is expected to be induced during casting of the ribbons and, consequently, the lattice microstrains between the atomic planes could be significant. Such a parameter can be estimated using the integral breadth method. The results of our calculations for the average grain size of the τ-phase, as well as for the lattice microstrain, using the integral breadth method, are given in Table 1. The values of the average grain size are 244 ± 18 and 268 ± 25 nm, for the two samples Mn53Al45C2 and Mn52Al46C2, respectively. It can be seen that for both annealed samples the average grain size is consistently higher than the values obtained by the Scherrer method, with as much as 15%. The reason is that within the integral breadth method, the peak broadening as well as the asymmetry of the line profile is taken into account, together with the instrumental broadening of the Bruker D8 diffractometer and the microstrain contributions. Lattice microstrain determined from the fitting shows quite significant values that justifies discrepancies in the estimation of the average grain size, as discussed above and are to be correlated with the preferential texturing, explained hereafter.
In general, formation of crystallites during the rapid solidification from the melt or during annealing occurs with preferential spatial orientation. There are few theories trying to explain this preferential growth. The minimization of the surface energy and synthesis parameters were considered to produce preferential growth of crystals [47]. It has been shown [47,48] that, in the early stages of crystallization, surface energy dominates the preferential growth and the tendency is for in-plane growth anisotropy. With an increase in ribbons thickness, strain energy predominates and the growth may be preferential in the out-of-plane directions. Using MAUD results of the full-profile analysis, it is possible to estimate the preferential orientation of crystals of the τ-phase by investigating the texture coefficient, which can be calculated using the following formula [48]:
T h k l = n I h k l I h k l 0 I h k l I h k l 0
Thkl being the texture coefficient of the corresponding Bragg reflection, Ihkl its integral intensity as determined by numerical fitting of XRD pattern, I0hkl corresponds to the bulk Bragg peak intensity (from the ICDD file), and n is the number of Bragg peaks observed. In Table 2, we present the texture coefficient results for the samples annealed at 700 °C for the three most prominent (hkl) reflections of the tetragonal τ-phase: (110), (111), and (200). It can be seen that while the texture coefficient of the main (111) peak of the tetragonal phase is slightly below 1, the two superlattice peaks (110) and (200) show both a texture coefficient which is larger than 1. This indicates a slight in-plane preferential orientation for the formation of the crystallites of the τ-phase.
We can conclude that in the case of ribbons in the as-cast state, the ε hexagonal phase predominates. Following the annealing at 700 °C, the ε phase has been almost completely transformed into the tetragonal τ phase which becomes predominant. The microstructure of the annealed samples is completed by rhombohedral γ2 and cubic β phases that coexist (small abundance) with the predominant τ phase.

3.3. Magnetic Properties

The initial magnetization as well as the hysteresis loops of the as-cast and annealed Mn53Al45C2 have been measured using SQUID magnetometry in a measurement setup having the magnetic field applied parallel to the ribbons plane. The field is applied up to 80 kOe and data are recorded at 27 °C. The initial magnetization curves for the as-cast and annealed Mn53Al45C2 samples are shown in Figure 5 and the hysteresis loops of the same samples are depicted in Figure 6. The as-cast sample, where it has been shown that the hcp ε-phase is predominant, exhibits a very low, linear, increase of magnetization, a behavior which is typical for antiferromagnetic materials. The annealed sample, where it has been shown that the tetragonal τ phase has become predominant, have completely different features, with a sharp increase of magnetization towards high values (up to about 106 emu/g) and a steady approach to saturation. The ferromagnetic character assigned to the tetragonal τ phase lacks soft magnetic features, taking into account that the saturation is not reached even at the highest applied magnetic field (80 kOe). This behavior is preserved also for the recorded hysteresis loops (Figure 6). The as-cast sample has quite linear dependence on the applied magnetic field with very small induced magnetization, of the order of 1 emu/g (right Y axis on the graph). The annealed sample shows, in agreement with the initial magnetization behavior, very large values of magnetization, in addition to a quite important increase of the coercive field, up to about 0.4 kOe. The large value of the observed coercivity, viewed together with the lack of saturation of the measured values of magnetization are considered as being the consequence of an arrangement of frustrated moments of the Mn ions in the tetragonal τ phase.
These values obtained for the Mn-Al-C alloy with predominant τ phase are in agreement with previous reported values [16,32]. It is to be noted that the hysteresis loop of Mn54Al46 depicted by Fang et al. [38] has a very similar aspect with lack of saturation of magnetization and observable non-zero coercivity, but in our case the C addition has allowed a higher coercivity as well as a higher magnetization that leads to further increase the maximum energy product (BH)max, the figure of merit of any magnetic material. We already explained that the magnetic behavior of the as-cast sample is quite different. Whereas the hysteresis loop shows no coercivity, the increase of magnetization is steady and linear, showing no approach to saturation for magnetization of the sample. This suggests a pure antiferromagnetic character of the sample, a behavior that is imposed by the phase composition of the as-cast sample, where a predominance of hcp ε-phase has been detected from structural analysis. Such a shape of the magnetization and hysteresis loop was reported also by Janotova et al. [31] for the as-quenched Mn55Al45 alloys.
The results obtained on the Mn53Al45C2 annealed at 700 °C, i.e., a high coercive field of about 0.4 kOe, maximum magnetization of about 106 emu/g, and taking into account also the theoretical density of the Mn53Al45C2 of about 5.13 g/cm3, the upper limits of (BH)max can be estimated at around 10.2 MGOe, in agreement with previous reported values [44].

4. Discussion

For many magnetic materials, there is a wide range of experimental evidence that different synthesis routes followed by appropriate annealing can give different and finely tuned intrinsic and extrinsic magnetic parameters [49,50,51,52,53,54,55,56,57,58]. It has been proven [59,60] that occurrence of magnetic hysteresis in Mn-Al alloys is most of the times associated with phenomena linked to domain wall pinning within stacking faults and also within antiphase boundaries. On the other hand, antiphase boundaries also have the role of imposing nucleation sites for the desired microstructure [61,62], and of creating distortions through local stress fields of dislocations [63]. Sometimes, the pinning mechanisms occurring at twin boundaries, found experimentally [64] and also theoretically [62], are deemed to impede both the coercivity and remanence.
Most of the times, Mn-Al and Mn-Al-based alloys fail to achieve high enough (BH)max. This is because the fraction of the obtained τ phase is low and because it is difficult to create a microstructure aligning the easy axis of this tetragonal phase. The τ phase usually forms from the hcp ε-phase; however, the typical approach of synthesis through ball milling leads to mixture of crystalline phases and an implicit decrease of the saturation magnetization [65,66,67,68,69]. In our case, the non-equilibrium synthesis procedure of fast solidification from the melt (at 1300 °C), combined with the compositional modulation induced by the presence of C atoms, have ensured a high enough fraction of τ phase. These gave rise to high saturation magnetization and large coercivities in our samples.

5. Conclusions

With the purpose of monitoring the ε-τ phase transformation and to maximize the effects of annealing in terms of increasing magnetic parameters, two melt spun alloys of compositions Mn53Al45C2 and Mn52Al46C2 have been synthesized through a non-equilibrium method, consisting of rapid quenching from high temperature of the molten state. It has been shown that the two samples exhibit different activation energies and different temperatures of onset of the ε-τ phase transformation. This difference is explained by the slight compositional changes that positioned one of the alloys closer to the limit of τ phase formation range, in the phase diagram, therefore requiring lesser activation energy for inception of the ε-τ transition. Structural analysis performed using XRD followed by full profile Rietveld-type analysis provided an appropriate image of the microstructure and phase composition of the alloys. Appropriate annealing was performed in order to refine the microstructure, enable the phase transformation, and realize suitable arrangements of magnetic regions capable of maximizing magnetic features. While hcp ε-phase was found to be predominant in the as-cast samples, after appropriate annealing, it was shown that conditions of annealing at 700 °C for 1 h are more than enough in order to achieve full ε-τ phase transformation. Thus, in the annealed samples, the tetragonal τ phase, responsible for the good magnetic properties, is found in overwhelming abundance of about 90%, the rest consisting a mixture of cubic β and rhombohedral γ2 structures. An image of hcp ε-phase that decomposes via atomic migrations at interphase and interfaces, having the transformation rate governed through boundary diffusion processes, may be constructed from our data. While for the as-cast sample Mn53Al45C2, consisting of predominant hcp ε-phase, antiferromagnetic behavior was proven, with very small values of magnetization and virtually no coercivity, the magnetic measurements of annealed sample Mn53Al45C2, consisting of predominant tetragonal τ-phase, provided high values of magnetization and increased coercivity, consistent with an energy product of about 10 MGOe, in agreement to values of magnetization reported in the literature and correlated to the structural characteristics and phases determined in Mn-Al-C alloys.

Author Contributions

Conceptualization, O.C.; methodology, A.D.C.; formal analysis, I.D.; investigation, A.L.; data curation, C.B.; writing—original draft preparation, A.D.C.; writing—review and editing, O.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded from EU Competitiveness Program through POC Project “Materiale Avansate Speciale pe Baza de Bor si de Pamanturi Rare-REBMAT” P_37_697, POC 28/2016, through the Romanian Ministry of European Funds.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data are not publicly available due to patenting reasons.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. European Commission Raw Materials Initiative. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX:52020DC0474 (accessed on 24 February 2021).
  2. Zeng, Q.; Baker, I.; Cui, J.B.; Yan, Z.C. Structural and magnetic properties of nanostructured Mn–Al–C magnetic materials. J. Magn. Magn. Mater. 2007, 308, 214–226. [Google Scholar] [CrossRef]
  3. Liu, Z.W.; Chen, C.; Zheng, Z.G.; Tan, B.H.; Ramanujan, R.V. Phase transitions and hard magnetic properties for rapidly solidified MnAl alloys doped with C, B, and rare earth elements. J. Mater. Sci. 2012, 47, 2333–2338. [Google Scholar] [CrossRef]
  4. Crisan, A.D. Compositional studies and thermal analysis in amorphous and nanocrystalline FePtNbB melt spun ribbons. J. Optoelectron. Adv. Mater. 2010, 12, 250–256. [Google Scholar]
  5. Crisan, A.D.; Vasiliu, F.; Mercioniu, I.; Crisan, O. Role of Ag addition in L10 ordering of FePt-based nanocomposite magnets. Philos. Mag. 2014, 94, 174–189. [Google Scholar] [CrossRef]
  6. Saravanan, P.; Vinod, V.T.P.; Černík, M.; Selvapriya, A.; Chakravarty, D.; Kamat, S.V. Processing of Mn–Al nanostructured magnets by spark plasma sintering and subsequent rapid thermal annealing. J. Magn. Magn. Mater. 2015, 374, 427–432. [Google Scholar] [CrossRef]
  7. Coey, J.M.D. Permanent magnets: Plugging the gap. Scr. Mater. 2012, 67, 524–529. [Google Scholar] [CrossRef]
  8. Coey, J.M.D. New permanent magnets; manganese compounds. J. Phys. Condens. Mater. 2014, 26, 064211. [Google Scholar] [CrossRef]
  9. Umetsu, R.Y.; Sakuma, A.; Fukamichi, K. Magnetic anisotropy energy of antiferromagnetic L10-type equiatomic Mn alloys. Appl. Phys. Lett. 2006, 89, 052504. [Google Scholar] [CrossRef]
  10. Ohtani, T.; Kato, N.; Kojima, S.; Kojima, K.; Sakamoto, Y.; Konno, I.; Tsukahara, M.; Kubo, T. Magnetic properties of Mn-Al-C permanent magnet alloys. IEEE Trans. Magn. 1977, 13, 1328–1330. [Google Scholar] [CrossRef]
  11. Kono, H. On the ferromagnetic phase in manganese-aluminum system. J. Phys. Soc. Jpn. 1958, 13, 1444–1451. [Google Scholar] [CrossRef]
  12. Koch, A.J.J.; Hokkeling, P.; Steeg, M.G.V.; de Vos, K.J. New material for permanent magnets on a base of Mn and Al. J. Appl. Phys. 1960, 31, S75–S77. [Google Scholar] [CrossRef]
  13. Shukla, A.; Pelton, A.D. Thermodynamic assessment of the Al-Mn and Mg-Al-Mn systems. J. Phase Equilibria Diffus. 2009, 30, 28–39. [Google Scholar] [CrossRef][Green Version]
  14. Pareti, L.; Bolzoni, F.; Leccabue, F.; Ermakov, A.E. Magnetic anisotropy of MnAl and MnAlC permanent magnet materials. J. Appl. Phys. 1986, 59, 3824–3828. [Google Scholar] [CrossRef]
  15. Crisan, O.; Crisan, A.D.; Mercioniu, I.; Nicula, R.; Vasiliu, F. Development and structural characterization of exchange-spring-like nanomagnets in (Fe,Co)-Pt bulk nanocrystalline alloys. J. Magn. Magn. Mater. 2016, 401, 711–715. [Google Scholar] [CrossRef]
  16. Cui, J.; Kramer, M.; Zhou, L.; Liu, F.; Gabay, A.; Hadjipanayis, G.; Balasubramanian, B.; Sellmyer, D. Current progress and future challenges in rare-earth-free permanent magnets. Acta Mater. 2018, 158, 118–137. [Google Scholar] [CrossRef]
  17. Crisan, O.; Crisan, A.D.; Mercioniu, I.; Pantelica, D.; Pantelica, A.; Vaucher, S.; Nicula, R.; Stir, M.; Vasiliu, F. Effect of Mn addition on the thermal stability and magnetic properties of rapidly-quenched L10 FePt alloys. Intermetallics 2015, 65, 81–87. [Google Scholar] [CrossRef]
  18. Nicula, R.; Crisan, O.; Crisan, A.D.; Mercioniu, I.; Stir, M.; Vasiliu, F. Thermal stability, thermal expansion and grain-growth in exchange-coupled Fe–Pt–Ag–B bulk nanocomposite magnets. J. Alloys Compd. 2015, 622, 865–870. [Google Scholar] [CrossRef]
  19. Crisan, A.D.; Bednarcik, J.; Michalik, Š.; Crisan, O. In situ monitoring of disorder–order A1–L10 FePt phase transformation in nanocomposite FePt-based alloys. J. Alloys Compd. 2014, 615 (Suppl. S1), S188–S191. [Google Scholar] [CrossRef]
  20. Crisan, A.D.; Vasiliu, F.; Nicula, R.; Bartha, C.; Mercioniu, I.; Crisan, O. Thermodynamic, structural and magnetic studies of phase transformations in MnAl nanocomposite alloys. Mater. Charact. 2018, 140, 1–8. [Google Scholar] [CrossRef]
  21. Müllner, P.; Bürgler, B.E.; Heinrich, H.; Sologubenko, A.S.; Kostorz, G. Observation of the shear mode of the ε → τ phase transformation in a Mn-Al-C single crystal. Philos. Mag. Lett. 2002, 82, 71–79. [Google Scholar] [CrossRef]
  22. Yanar, C.; Wiezorek, J.M.K.; Soffa, W.A.; Radmilovic, V. Massive transformation and the formation of the ferromagnetic L10 phase in manganese-aluminum-based alloys. Metall. Mater. Trans. A 2002, 33, 2413–2423. [Google Scholar] [CrossRef]
  23. Kurtulus, Y.; Dronskowski, R. Electronic structure, chemical bonding, and spin polarization in ferromagnetic MnAl. J. Solid State Chem. 2003, 176, 390–399. [Google Scholar] [CrossRef]
  24. Sakuma, A. Electronic structure and magnetocrystalline anisotropy energy of MnAl. J. Phys. Soc. Jpn. 1994, 63, 1422–1428. [Google Scholar] [CrossRef]
  25. Park, J.H.; Hong, Y.K.; Bae, S.; Lee, J.J.; Jalli, J.; Abo, G.S.; Neveu, N.; Kim, S.G.; Choi, C.J.; Lee, J.G. Saturation magnetization and crystalline anisotropy calculations for MnAl permanent magnet. J. Appl. Phys. 2010, 107, 09A731. [Google Scholar] [CrossRef]
  26. Manchanda, P.; Kashyap, A.; Shield, J.E.; Lewis, L.H.; Skomski, R. Magnetic properties of Fe-doped MnAl. J. Magn. Magn Mater. 2014, 365, 88–92. [Google Scholar] [CrossRef][Green Version]
  27. Edstrom, A.; Chico, J.; Adam, J.; Bergman, A.; Rusz, J. Electronic structure and magnetic properties of L10 binary alloys. Phys. Rev. B 2014, 90, 014402. [Google Scholar] [CrossRef][Green Version]
  28. Houseman, E.L.; Jakubovics, J.P. Domain structure and magnetization processes in MnAl and MnAlC alloys. J. Magn. Magn. Mater. 1983, 31–34, 1005–1006. [Google Scholar] [CrossRef]
  29. Fang, H.; Cedervall, J.; Casado, F.J.M.; Matej, Z.; Bednarcik, J.; Ångström, J.; Berastegui, P.; Sahlberg, M. Insights into formation and stability of τ-MnAlZx (Z = C and B). J. Alloys Compd. 2017, 692, 198–203. [Google Scholar] [CrossRef]
  30. Dreizler, W.; Menth, A. Transformation kinetics of the ferromagnetic alloy Mn-Al-C. IEEE Trans. Magn. 1980, 16, 534–536. [Google Scholar] [CrossRef]
  31. Janotova, I.; Sr, P.S.; Svec, P.; Mat’ko, I.; Janickovic, D.; Zigo, J.; Mihalkovic, M.; Marcin, J.; Skorvanek, I. Phase analysis and structure of rapidly quenched Al-Mn systems. J. Alloys Compd. 2017, 707, 137–141. [Google Scholar] [CrossRef]
  32. Lu, W.; Niu, J.; Wang, T.; Xia, K.; Xiang, Z.; Song, Y.; Mi, Z.; Zhang, W.; Tian, W.; Yan, Y. Phase transformation kinetics and microstructural evolution of MnAl permanent magnet alloys. J. Alloys Compd. 2016, 685, 992–996. [Google Scholar] [CrossRef]
  33. Mican, S.; Benea, D.; Hirian, R.; Gavrea, R.; Isnard, O.; Pop, V.; Coldea, M. Structural, electronic and magnetic properties of the Mn50Al46Ni4 alloy. J. Magn. Magn. Mater. 2016, 401, 841–847. [Google Scholar] [CrossRef]
  34. Shao, Z.; Zhao, H.; Zeng, J.; Zhang, Y.; Yang, W.; Lai, Y.; Guo, S.; Du, H.; Wang, C.; Yang, Y.; et al. One step preparation of pure 𝝉-MnAl phase with high magnetization using strip casting method. AIP Adv. 2017, 7, 056213. [Google Scholar] [CrossRef][Green Version]
  35. Jiménez-Villacorta, F.; Marion, J.L.; Oldham, J.T.; Daniil, M.; Willard, M.A.; Lewis, L.H. Magnetism-Structure Correlations during the ε→τ Transformation in Rapidly-Solidified MnAl Nanostructured Alloys. Metals 2014, 4, 8–19. [Google Scholar] [CrossRef]
  36. Obi, O.; Burns, L.; Chen, Y.; Fitchorov, T.; Kim, S.; Hsu, K.; Heiman, D.; Lewis, L.H.; Harris, V.G. Magnetic and structural properties of heat-treated high-moment mechanically alloyed MnAlC powders. J. Alloys Compd. 2014, 582, 598–602. [Google Scholar] [CrossRef]
  37. Fazakas, E.; Varga, L.K.; Mazaleyrat, F. Preparation of nanocrystalline Mn–Al–C magnets by melt spinning and subsequent heat treatments. J. Alloys Compd. 2007, 434–435, 611–613. [Google Scholar] [CrossRef]
  38. Fang, H.; Kontos, S.; Ångström, J.; Cedervall, J.; Svedlindh, P.; Gunnarsson, K.; Sahlberg, M. Directly obtained τ-phase MnAl, a high performance magnetic material for permanent magnets. J. Solid State Chem. 2016, 237, 300–306. [Google Scholar] [CrossRef]
  39. Du, Y.; Wang, J.; Zhao, J.R.; Schuster, J.C.; Weitzer, F.; Schmid-Fetzer, R.; Ohno, M.; Xu, H.; Liu, Z.K.; Shang, S.L.; et al. Reassessment of the Al–Mn system and a thermodynamic description of the Al–Mg–Mn system. Int. J. Mater. Res. 2007, 98, 855–871. [Google Scholar] [CrossRef]
  40. Mitsui, Y.; Kobayashi, R.; Takanaga, Y.; Takaki, A.; Umetsu, R.Y.; Takahashi, K.; Mizuguchi, M.; Koyama, K. Different Magnetic Field Effects on the ε−τ Phase Transformation Between (Mn,Zn)–Al and Mn–Al–C. IEEE Trans. Magn. 2019, 55, 2100704. [Google Scholar] [CrossRef]
  41. Dehghan, H.; Ebrahimi, S.A.S. Effect of hot deformation conditions on magnetic properties of rare earth free magnetic Mn-Al-C alloy. J. Magn. Magn. Mater. 2019, 477, 55–61. [Google Scholar] [CrossRef]
  42. Su, K.P.; Hu, S.L.; Wang, H.O.; Huang, S.; Chen, X.X.; Liu, J.J.; Huo, D.X.; Ma, L.; Liu, Z.W. Structural and magnetic properties of Mn50Al46Cu4C3 flakes obtained by surfactant-assisted ball milling. Mater. Res. Express 2019, 6, 106125. [Google Scholar] [CrossRef]
  43. Kobayashi, R.; Mitsui, Y.; Umetsu, R.Y.; Mizuguchi, M.; Koyama, K. Synthesis of Ferromagnetic τ-Mn–Al–C by Reactive Sintering. Mater. Trans. 2021, 62, 130–134. [Google Scholar] [CrossRef]
  44. Bohlmann, M.A.; Koo, J.C.; Wise, J.H. Mn-Al-C for permanent magnets. J. Appl. Phys. 1981, 53, 2542–2543. [Google Scholar] [CrossRef]
  45. Balzar, D.; Ledbetter, H. Voigt-function modeling in Fourier analysis of size- and strain-broadened X-ray diffraction peaks. J. Appl. Cryst. 1993, 26, 97–103. [Google Scholar] [CrossRef]
  46. Balzar, D. X-Ray Diffraction Line Broadening: Modeling and Applications to High-Tc Superconductors. J. Res. Natl. Inst. Stand. Technol. 1993, 98, 321–353. [Google Scholar] [CrossRef]
  47. Kajikawa, J. Texture development of non-epitaxial polycrystalline ZnO films. J. Cryst. Growth 2006, 289, 387. [Google Scholar] [CrossRef]
  48. Lee, D.N. Textures and structures of vapor deposits. J. Mater. Sci. 1999, 34, 2575–2582. [Google Scholar] [CrossRef]
  49. Crisan, A.D.; Nicula, R.; Crisan, O.; Burkel, E. Thermally and pressure activated phase evolution in Fe–Pt–Nb–B melt spun ribbons. Mater. Sci. Eng. C Biomim. Supramol. Syst. 2007, 27, 1280–1282. [Google Scholar] [CrossRef]
  50. Crisan, A.D.; Crisan, O.; Randrianantoandro, N.; Valeanu, M.; Morariu, M.; Burkel, E. Crystallization processes in Fe–Pt–Nb–B melt spun ribbons. Mater. Sci. Eng. C Biomim. Supramol. Syst. 2007, 27, 1283–1285. [Google Scholar] [CrossRef]
  51. von Haeften, K.; Binns, C.; Brewer, A.; Crisan, O.; Howes, P.B.; Lowe, M.P.; Sibbley-Allen, C.; Thornton, S.C. A novel approach towards the production of luminescent silicon nanoparticles: Sputtering, gas aggregation and co-deposition with H2O. Eur. Phys. J. 2009, D52, 11–14. [Google Scholar] [CrossRef]
  52. Crisan, A.D.; Crisan, O. Direct formation of L10 FePt in as-cast FePt-based magnetic nanocomposite ribbons without post-synthesis annealing. J. Phys. D-Appl. Phys. 2011, 44, 365002. [Google Scholar] [CrossRef]
  53. Crisan, O.; le Breton, J.M.; Jianu, A.; Crisan, O.; Le Breton, J.M.; Jianu, A.; Teillet, J.; Filoti, G. Structural properties of amorphous and nanocrystallized Fe-Cu-Nb-Si-B and Fe-Gd-Cu-Nb-Si-B ribbons. J. Alloys Compd. 1997, 262, 381–389. [Google Scholar] [CrossRef]
  54. Rosenberg, M.; Kuncser, V.; Crisan, O.; Hernando, A.; Navarro, E.; Filoti, G. A Mössbauer spectroscopy and magnetic study of FeRh. J. Magn. Magn. Mater. 1998, 177, 135–136. [Google Scholar] [CrossRef]
  55. Crisan, O.; Labaye, Y.; Berger, L.; Coey, J.M.D.; Greneche, J.M. Exchange coupling effects in nanocrystalline alloys studied by Monte Carlo simulation. J. Appl. Phys. 2002, 91, 8727–8729. [Google Scholar] [CrossRef]
  56. Crisan, O.; Crisan, A.D.; Randrianantoandro, N.; Nicula, R.; Burkel, E. Crystallization processes and phase evolution in amorphous Fe–Pt–Nb–B alloys. J. Alloys Compd. 2007, 440, L3–L7. [Google Scholar] [CrossRef]
  57. Crisan, O.; Angelakeris, M.; Flevaris, N.K.; Filoti, G. Magnetism and anisotropy in core-shell nanoparticles. J. Optoelectron. Adv. Mater. 2003, 5, 959–962. [Google Scholar]
  58. Crisan, O.; Greneche, J.M.; le Breton, J.M.; Crisan, A.D.; Labaye, Y.; Berger, L.; Filoti, G. Magnetism of nanocrystalline Finemet alloy: Experiment and simulation. Eur. Phys. J. B 2003, 34, 155–162. [Google Scholar] [CrossRef]
  59. McCurrie, R.; Rickman, J.; Dunk, P.; Hawkridge, D. Dependence of the permanent magnet properties of Mn55Al45 on particle size. IEEE Trans. Magn. 1978, 14, 682–684. [Google Scholar] [CrossRef]
  60. Zijlstra, H. Coercivity and wall motion. Coercivity and wall motion. IEEE Trans. Magn. 1970, 6, 179–181. [Google Scholar] [CrossRef]
  61. Jakubovics, J.P.; Jolly, T.W. The effect of crystal defects on the domain structure of Mn-Al alloys. Phys. B+C 1977, 86, 1357–1359. [Google Scholar] [CrossRef]
  62. Bance, S.; Bittner, F.; Woodcock, T.G.; Schultz, L.; Schrefl, T. Role of twin and anti-phase defects in MnAl permanent magnets. Acta Mater. 2017, 131, 48–56. [Google Scholar] [CrossRef][Green Version]
  63. Bittner, F.; Freudenberger, J.; Schultz, L.; Woodcock, T.G. The impact of dislocations on coercivity in L10-MnAl. J. Alloy. Comp. 2017, 704, 528–536. [Google Scholar] [CrossRef]
  64. Thielsch, J.; Bittner, F.; Woodcock, T.G. Magnetization reversal processes in hot-extruded τ-MnAl-C. J. Magn. Magn Mater. 2017, 46, 25–31. [Google Scholar] [CrossRef]
  65. Livingston, J.D. A review of coercivity mechanisms. J. Appl. Phys. 1981, 52, 2544–2548. [Google Scholar] [CrossRef]
  66. Lucis, M.J.; Prost, T.E.; Jiang, X.; Wang, M.; Shield, J.E. Phase transitions in mechanically milled Mn-Al-C permanent magnets. Metals 2014, 4, 130–140. [Google Scholar] [CrossRef][Green Version]
  67. Jian, H.; Skokov, K.P.; Gutfleisch, O. Microstructure and magnetic properties of Mn-Al-C alloy powders prepared by ball milling. J. Alloy. Comp. 2015, 622, 524–528. [Google Scholar] [CrossRef]
  68. Bittner, F.; Schultz, L.; Woodcock, T.G. The role of the interface distribution in the decomposition of metastable L10-Mn54Al46. J. Alloy. Comp. 2017, 727, 1095–1099. [Google Scholar] [CrossRef]
  69. Lee, J.; Wang, X.; Zhang, Z.-D.; Choi, C.J. Effect of mechanical milling and heat treatment on the structure and magnetic properties of gas atomized Mn-Al alloy powders. Thin Solid Films 2011, 519, 8312–8316. [Google Scholar] [CrossRef]

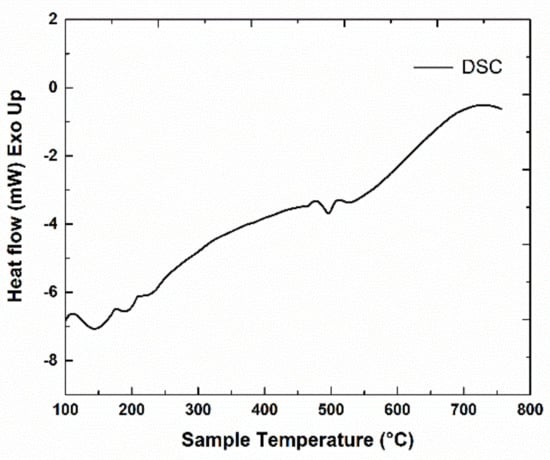

Figure 1. Differential scanning calorimetry (DSC) scan for Mn53Al45C2 sample.
Figure 1. Differential scanning calorimetry (DSC) scan for Mn53Al45C2 sample.
Nanomaterials 11 00896 g001

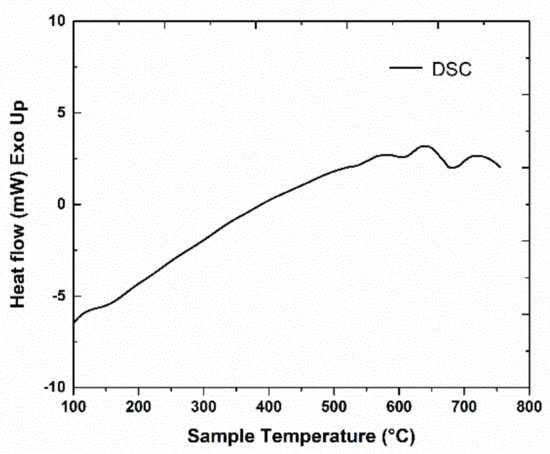

Figure 2. DSC scan for Mn52Al46C2 sample.
Figure 2. DSC scan for Mn52Al46C2 sample.
Nanomaterials 11 00896 g002
Figure 3. X-ray diffractograms for samples Mn53Al45C2 as-cast and annealed at 700 °C.
Figure 3. X-ray diffractograms for samples Mn53Al45C2 as-cast and annealed at 700 °C.
Nanomaterials 11 00896 g003
Figure 4. X-ray diffractograms for samples Mn52Al46C2 as cast and annealed at 700 °C.
Figure 4. X-ray diffractograms for samples Mn52Al46C2 as cast and annealed at 700 °C.
Nanomaterials 11 00896 g004

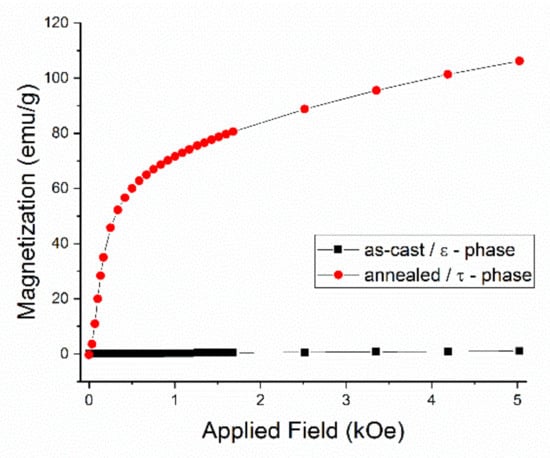

Figure 5. Initial magnetization for samples Mn53Al45C2 as-cast and annealed at 700 °C.
Figure 5. Initial magnetization for samples Mn53Al45C2 as-cast and annealed at 700 °C.
Nanomaterials 11 00896 g005

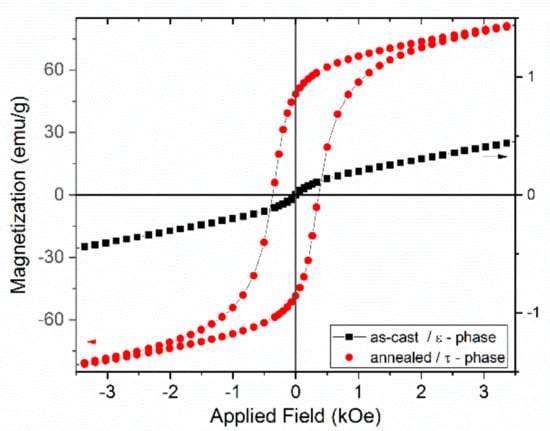

Figure 6. Hysteresis loops for samples Mn53Al45C2 as-cast and annealed at 700 °C.
Figure 6. Hysteresis loops for samples Mn53Al45C2 as-cast and annealed at 700 °C.
Nanomaterials 11 00896 g006
Table 1. Lattice parameters, average crystal size of the τ-phase, and microstrain for the samples annealed at 700 °C. Rwp and χ2 (goodness of fit) are also provided.
Table 1. Lattice parameters, average crystal size of the τ-phase, and microstrain for the samples annealed at 700 °C. Rwp and χ2 (goodness of fit) are also provided.
SampleLattice ParametersSizeStrainRwpχ2
a (Å)c (Å)V (nm3)(nm)(%)
Mn53Al45C22.747 ± 0.0113.576 ± 0.0080.0269244 ± 180.89 ± 0.082.111.41
Mn52Al46C22.744 ± 0.0133.572 ± 0.0090.0268268 ± 250.77 ± 0.092.051.24
Table 2. Texture coefficient results for the samples annealed at 700 °C.
Table 2. Texture coefficient results for the samples annealed at 700 °C.
SampleTexture Coefficient
(110)(111)(200)
Mn53Al45C21.040.831.08
Mn52Al46C21.110.791.03
