Capacitance Enhancement of Hydrothermally Reduced Graphene Oxide Nanofibers

by
Daniel Torres
*,
Sara Pérez-Rodríguez
,
David Sebastián
,
José Luis Pinilla
,
María Jesús Lázaro
and
Isabel Suelves
Instituto de Carboquímica, Consejo Superior de Investigaciones Científicas (CSIC), Miguel Luesma Castán 4, 50018 Zaragoza, Spain
*
Author to whom correspondence should be addressed.
Nanomaterials 2020, 10(6), 1056; https://doi.org/10.3390/nano10061056
Submission received: 27 April 2020 / Revised: 7 May 2020 / Accepted: 9 May 2020 / Published: 30 May 2020
(This article belongs to the Special Issue Properties and Applications of Graphene and Its Derivatives)
Browse Figures
Versions Notes

Abstract

:
Nanocarbon materials present sp2-carbon domains skilled for electrochemical energy conversion or storage applications. In this work, we investigate graphene oxide nanofibers (GONFs) as a recent interesting carbon material class. This material combines the filamentous morphology of the starting carbon nanofibers (CNFs) and the interlayer spacing of graphene oxide, and exhibits a domain arrangement accessible for fast transport of electrons and ions. Reduced GONFs (RGONFs) present the partial removal of basal functional groups, resulting in higher mesoporosity, turbostratic stacking, and surface chemistry less restrictive for transport phenomena. Besides, the filament morphology minimizes the severe layer restacking shown in the reduction of conventional graphene oxide sheets. The influence of the reduction temperature (140–220 °C) on the electrochemical behaviour in aqueous 0.5 M H2SO4 of RGONFs is reported. RGONFs present an improved capacitance up to 16 times higher than GONFs, ascribed to the unique structure of RGONFs containing accessible turbostratic domains and restored electronic conductivity. Hydrothermal reduction at 140 °C results in the highest capacitance as evidenced by cyclic voltammetry and electrochemical impedance spectroscopy measurements (up to 137 F·g−1). Higher temperatures lead to the removal of sulphur groups and slightly thicker graphite domains, and consequently a decrease of the capacitance.

1. Introduction

Carbon nanofibers (CNFs), composed entirely of graphite stacks of small lateral size in a 1D filament morphology, present a unique structure that combines properties such as electronic conduction, thermal and chemical resistance, low mass density and good specific surface area, which are essential for a wide range of potential applications. In this sense, CNFs have been used for many different applications, such as heterogeneous catalysis, conversion or storage of electrochemical energy, sensors, electronic devices, and structural and conductive composite materials [1,2,3,4,5,6,7]. In the case of electrochemical energy storage, the high electrical conductivity of CNFs in combination with their accessible porosity allows satisfactory charge accumulation but lower than that offered for graphene materials [8,9]. Graphene is the basic structural unit of the most conductive nanocarbon materials including graphite and carbon nanofibers and nanotubes since it exhibits a free movement of π-electrons along with the 2D network of conjugated sp2-carbon, allowing it to achieve ultrahigh electrical conductivities (105–106 S·m−1) [7,10]. Graphene has already been used in all possible electrochemical devices with remarkable results [11], whereas expanded graphite presented a large volumetric capacitance (177 F·cm−3) in aqueous acid media [12]. Likewise, graphite intercalation compounds have even offered conductivities higher than metallic copper, showing notable performance in batteries motivated by rapid diffusion of species between its stacks of distanced graphene layers [13].
In this direction, graphene oxide (GO) has been tentatively investigated for energy conversion and storage applications but oxygen interrupts the free electron movement compromising the electrical conductivity of the graphene layers [14,15]. On the other hand, functionalization enhances the hydrophilicity of nanocarbon materials, which leads to an improved electrochemical capacitance in aqueous electrolytes. GO is conventionally obtained from graphite by chemical oxidation routes, which involve the use of a strong oxidant in acid medium, such as the Hummers method [16], which besides to the creation of oxygen functionalities, including in-plane (hydroxyl and epoxide groups) and edge groups (carbonyl and carboxylic groups) [17,18], results in the generation of sulphur-containing groups [19,20]. As a result of the oxidation, lattice defects (vacancies, holes) are generated in the graphene network which may alter the interaction of the carbon surface with the electrolyte, and thus the electrochemical behaviour.
Graphene oxide nanofibers (GONFs) arise as a new alternative for catalytic and electrochemical applications offering a combination of the best characteristics of CNFs and GO materials: filamentous configuration, accessible microporosity, and tuneable functionalization. Promising approaches in the recent literature related to the combination of GO and CNFs in nanocomposites [21,22,23] or CNFs produced from GO precursors by electrospinning [24], by templating procedures [25], or by controlled assembly [26], with interesting synergies within phases, have been reported. Only a few recent works are found to report the oxidation and exfoliation of CNFs as a procedure to result in GONFs [27,28]. The innovative aspect of this article is that GONFs are a result of the chemical exfoliation of CNFs at the surface level, representing a novel approach to the best of our knowledge. The main advantage is that the controlled oxidation of CNFs allows keeping the filament morphology. An extended oxidation of CNFs causes its downsizing to few-layer graphene sheets and graphene quantum dots [29].
In the present work, the hydrothermal reduction of GONFs and the effect of the temperature on their physicochemical and electrochemical properties are studied. Stoller and co-workers reported an enhancement of the electrochemical behaviour of GO materials by removal of the large amounts of oxygen groups that diminish the electrical conductivity and hinder the access of species through its porosity [30]. However, oxygen removal gives place to the severe and irreversible restacking of individual graphene sheets (higher Lc and number of layers per stack), which decreases the specific capacitance of RGO (reduced GO) with respect to the expected theoretical values for graphene (550 F·g−1) [31]. In that sense, layer restacking causes that a large surface area of RGO becomes inaccessible for charge storage [32]. In case of processing reduced GONFs (RGONFs), the filamentous arrangement of GO stacks largely inhibits this restacking (stacks with a number of layers below 10), offering the possibility of obtaining carbon nanofibers with domains of turbostratic graphite, structure more accessible for fast transport of electrons and reactants than hexagonal graphite. Likewise, particles of nanofilaments simulate the inverse structure of a porous support preserving mesoporosity, which prevents any mass or electron transfer limitations [33]. Finally, the partial reduction of this material barely alters its hydrophilicity, so important for electrochemical applications in aqueous media [34]. The electrochemical capacitance and the electrode/electrolyte interface of the resultant RGONFs are analysed by cyclic voltammetry and impedance electrochemical spectroscopy in acid medium (0.5 M H2SO4). Herein, the electrochemical properties of RGONFs are studied for the first time and correlated to their physicochemical features.

2. Materials and Methods

2.1. Preparation of Fishbone GONFs and RGONFs

GONFs were obtained by chemical oxidation, using the modified Hummers method [16,35,36], and ultrasound-assisted exfoliation of fishbone CNFs according to our optimized method [29], where the synthesis method of the starting CNFs is also described. Briefly, 3.0 g of CNFs, 3.0 g of NaNO3 (99%), and 138 mL of H2SO4 (96%) were mixed in an ice bath. After that, 26 g of KMnO4 was very slowly added to the solution under vigorous stirring. The temperature was kept below 20 °C during mixing, then at 30 ± 5 °C for 2 h and at room temperature overnight, always under stirring. Then, 240 mL of deionized water was slowly added to prevent the temperature from rising above 70 °C. Subsequently, the solution was stirred for 60 min and diluted with 600 mL of deionized water. Then, 26 mL of H2O2 (33%) was added dropwise, turning the solution to yellowish-brown. This solution is finally sonicated in an ultrasounds bath for 60 min to achieve the exfoliation of the oxidized material. This GO suspension contains GONFs (40% of the initial weight of CNFs), completely exfoliated materials like few-layer graphene oxide flakes (FLGOs) and GO quantum dots (GOQDs) and other inorganic salts and thus, separation and posterior washing of phases were necessary. Product was washed by centrifugation at 9500 rpm with HCl (10%) first and deionized water until neutral pH. The clean precipitate was dispersed in deionized water and separated from the rest of the GO products (FLGOs and GOQDs) as the precipitate of its centrifugation at 4500 rpm. More details about the whole process by differential degressive centrifugation can be found elsewhere [29]. Finally, fractions were reduced in suspension by the hydrothermal reduction method [37] in a 40 mL autoclave placed in the oven at 140, 180 and 220 °C for 6 h. In this case, 1 g of GONFs (obtained after drying the GONF solution at 60 °C in a vacuum oven), was dispersed in 25 mL of deionized water. After reduction, products were dried at 60 °C in a vacuum oven overnight. Reduced materials will be indicated hereafter as RGONF-140, RGONF-180, and RGONF-220.

2.2. Physicochemical Characterization

Characterization of GONF and RGONF samples was carried out by X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), elemental analysis (EA), and N2 and CO2 physisorption at 77 K and 273 K, respectively. GONF dispersions were dried at 60 °C overnight for its characterization.
XRD patterns of GONFs and RGONFs were acquired in a Bruker D8 Advance Series 2 diffractometer (Bruker AXS, Karlsruhe, Deutschland). The angle range scanned was 3–55° using a counting step of 0.02° and a counting time per step of 4 s. XRD data were fitted using the structure analysis software TOPAS (Bruker AXS, Karlsruhe, Deutschland). The mean interlayer spacings (d-spacing) were evaluated from the position of the corresponding peak applying Bragg’s Law [38], while the mean crystallite sizes along c axis (Lc) were calculated using the Scherrer formula, with a value of K = 0.89 [38]. From these, the number of graphene layers (n) was calculated as (Lc/d002) + 1.
The bulk and surface chemistry was analysed by EA and XPS, respectively. The ESCAPlus OMICROM spectrometer (Omicron, Houston, TX, USA), equipped with a hemispherical electron energy analyser, was operated at 18.75 kV and 12 mA (225 W), using a monochromatic AlKα X-ray source (hv = 1486.7 eV) and under vacuum (<5 × 10−9 Torr). A survey scan between 1000 and 0 eV was acquired using steps of 0.5 eV and 200 ms of dwell, while C 1s region was acquired each 0.1 eV for 500 ms. Analyser pass energies of 50 and 20 eV were used for survey scans and 20 eV for C1s region, respectively. Elemental analysis of GONFs and RGONFs was performed in a CHNS-O Analyser Thermo FlashEA 1112 (Thermo Fisher Scientific, Waltham, MA, USA).
The textural properties were measured using a Micromeritics ASAP2020 apparatus for N2 and CO2 physisorption at 77 and 273 K, respectively. The specific surface area (SBET) was calculated by the BET method applied to the N2 adsorption isotherm. The total pore volume (Vt) was calculated from the N2 adsorbed volume at a relative pressure of p/p0 > 0.994. In addition, micropore surface area (Smic) and the total micropore volume (Vt_mic) were calculated by the Dubinin–Radushkevich equation and the adsorbed volume at p/p0 > 0.031 (pores < 0.8 nm), respectively, using the CO2 adsorption data.
The morphology of carbon nanofilaments was visualized by transmission electron microscopy (TEM; Tecnai F30, FEI company, Eindhoven, The Netherlands).

2.3. Electrochemical Characterization

Electrochemical measurements were carried out in a three-electrode electrochemical cell and an Autolab PGSTAT302 (Metrohm, Utrecht, Netherlands) potentiostat–galvanostat was used to record the data. A carbon rod and a reversible hydrogen electrode (RHE) were used as counter and reference electrodes, respectively. All potentials in the text are referred to the RHE. Working electrodes were prepared by depositing a layer of a carbon ink on glassy carbon (diameter = 7 mm), resulting in a mass loading of the active material of 1 mg·cm−2. Carbon inks were obtained by dispersing 2 mg of the corresponding material in a deionized water/isopropyl alcohol 50/50 (v/v) solution containing 15 wt. % Nafion® (Sigma Aldrich, 5 wt. %). The inks were sonicated for 30 min.
Working electrodes were introduced in the base electrolyte (0.5 M H2SO4) saturated with nitrogen. Cyclic voltammetries were performed from 0.2 to 0.8 V vs. RHE at several scan rates: 5, 10, 20, 50, 100, and 200 mV·s−1. Specific capacitances, C (F·g−1), were obtained by integration of the area enclosed in the cyclic voltammograms (CV), according to Equation (1) [39,40]:
C   [ F · g − 1 ] = ∮ I   d V 2   m   ν   ∆ V
where I is the current (A), V is the potential (V), ∆V is the potential window (V), ν is the scan rate (V·s−1), and m is the mass of the active material in the working electrode (g).
A frequency response analyser (FRA) was employed to record the electrochemical impedance spectroscopy (EIS) measurements. A frequency range from 100 kHz to 0.01 Hz was always used with a 10 mV r.m.s. AC amplitude around 0.5 V vs RHE.

3. Results and Discussion

3.1. Changes in the Physicochemical Properties of GONFs after Reduction

GONFs, characterized by preserving the filamentous structure of the CNFs used in the synthesis but with a higher degree of interlayer spacing (d > 0.75 nm), presented a higher electrochemical capacitance than the bare CNFs [28]. In this work, GONFs were used as the starting material to study the effect of the hydrothermal reduction temperature (140, 180, and 220 °C) on the physicochemical and electrochemical properties of RGONFs. The 1-D morphology of GONF and RGONFs was revealed by TEM as images in Figure 1 shown. These structures presented fishbone arrangement, inherited from the original CNFs, where the graphite/graphene stacks form an oblique angle to the longitudinal growth axis [41]. GONF (Figure 1a,b) showed disordered arrangements of graphene layers due to the intercalated basal oxygenated groups (hydroxyl and epoxide). In this case, a non-oxidized core preserves the main structure of the nanofilament. As a result of the hydrothermal reduction, RGONFs (Figure 1c–h) presented more compact structures and better definition of layers and edges. Regarding the effect of the temperature used in the hydrothermal reduction, the higher the temperature, the greater the restacking of the graphene layers. In Figure 1h, a height profile of graphene layers in a turbostratic stack of the RGONF-220 sample is shown, with a regular interlayer distance of 0.34 nm.
XRD patterns of GONF and RGONFs and their associated structural parameters such as d-spacings, Lc and the number of layers are depicted in Figure 2 and listed in Table 1, respectively. GONF showed the presence of two main diffraction peaks corresponding to the basal plane (002) of the graphite stacking at 25.9° (2θ) and the shifted (002) plane (labelled with *) at lower angles (around 10.9°), corresponding to d-spacings of 0.344 and 0.810 nm, respectively. A crystal arrangement of 0.81 nm corresponds to the distance between layers with oxygen intercalated graphite/graphene domains that conform to this fishbone-type nanofilament and is in line with typical values for GO materials [42]. The presence of (002) and (002)* planes is a consequence of the partial oxidation that takes place from the outside towards the inner axis of the starting CNF and is essential in GONF materials as they maintain their tubular structure [29]. After the reduction process, the (002) plane (25.6–25.8°) is recovered at the expense of the (002)* plane motivated by the graphene layers approaching after the removal of oxygenated groups [43]. Only RGONF-140 showed a residual broad band of (002)*. All RGONF samples presented a slightly higher interlayer spacing (about 0.345–0.347 nm) than that in theoretical graphite (0.3354 nm), as confirmed by XRD and in line with TEM images, as is consistent with a non-graphitic or turbostratic arrangement [44,45]. In fact, a deconvolution of this asymmetric peak permits differentiate between turbostratic and hexagonal graphite and to qualitatively calculate the graphitization degree achieved [43,45,46]. At 220 °C, the average number of graphene layers (Lc/d002 + 1) was increased from 7.0 in GONF (Lc = 2.1 nm) to 9.5 layers in RGONF-220 (Lc = 2.9 nm). These slightly thicker graphite domains are due to the light restacking of the graphene layers by strong π–π interactions and Van der Waals forces between graphene layers and intercalated water molecules [32,42,47,48].
The bulk and surface compositions of GONF and RGONFs were analysed by elemental analysis and XPS, respectively, as presented in Figure 3 and Table 2. XPS survey spectra of the samples (Figure 3a) showed an inverse behaviour in the trends of C and O which increased and decreased, respectively, as the reduction temperature increased. Surface O content decreased from 18.4 at. % in GONF to a minimum of 12.4 in RGONF-220 (or 32.5 and 17.8 wt. % for the bulk composition, respectively). C/O atomic ratios of RGONFs ranged from 5.3 and 5.4 for RGONF-140 and RGONF-180 to 7.0 for RGONF-220, and they were within typical values for reduced GO obtained by hydrothermal processes [49,50,51]. N and S contents are derived from the use of NaNO3 and H2SO4 during GONF synthesis. The evolution of the different oxygen-containing groups was followed by deconvolution of the C 1s high-resolution regions (Figure 3b and Table 2). Details about C 1s deconvolution can be found elsewhere [9,29]. C 1s was fitted to the components: sp2 (C=C) and sp3 hybridized carbon (C–C), C–O bonds in hydroxyls and epoxides (in-plane)s and C–S in sulfonic acid and organosulfates [9], C=O bonds in carbonyls and carboxyls (edge groups), and the π–π* shake-up satellite belonging to aromatic and unsaturated bonds. All samples showed both in-plane and edge oxygen functionalities disrupting the sp2 graphene network. Reduction removed both, although only RGONF-220 reached a significant variation for edge functional groups. More evident was the restoration of the saturation in RGONFs as incremented the contribution of π–π* transitions.
Although the hydrothermal reduction only causes the partial oxidation of the starting GONFs, it is enough to modify some physicochemical properties, such as layer restacking or texture.
Figure 4 shows the N2 and CO2 isotherms of GONF and RGONF samples. Likewise, textural parameters are listed in Table 3. Based on the results of N2 physisorption, GONF and RGONFs exhibited type IV isotherms (according to the IUPAC [52]), typical of mesoporous solids, with a H3 hysteresis loop closing at p/p0 = 0.45. This hysteresis type corresponds to non-rigid aggregates of plate-like particles, where condensation takes place between parallel plates or open slit-shaped capillaries [52]. The sharp step-down located in desorption branch at p/p0 = 0.43–0.53 is attributed to pore blocking in pore necks [52]. BET surface areas (SBET in Table 3) obtained using the adsorption branch of the N2 physisorption decreased from 21.7 m2·g−1 for GONF to 14.3 m2·g−1 after hydrothermal reduction at the lowest tested temperature (140 °C). Higher temperatures resulted in an increase of SBET (25.1 and 46.3 m2·g−1 for RGONF-180 and RGONF-220, respectively). Oxygen and sulphur functional groups contained in GONFs hinder the access for N2 to certain type of pores. After reduction, these groups are partially removed and the graphene layers are approached. Consequently, the development of porosity in RGONFs is mainly due to the mesopores generated in their more difficult compaction as Vt values indicated. RGONF structures, where the layer restacking occurred, are more rigid than GONFs. On the other hand, due to the importance of micropores in GO samples, which are ascribed to the cuneiform pores between the graphenes (slit type pores), CO2 adsorption measurements were also carried out in order to know the surface area of GONF and RGONFs including narrow micropores (from 0.4 nm). The micropore surface areas (Smic) offered the same evolution as observed for SBET but showing values much higher than those. In this case, the progressive removal of surface functional groups resulted in the clear recovery of the micropore surface area. An even higher development of micro- and mesoporosity could be hydrothermally obtained at more severe conditions [43].

3.2. Electrochemical Characterization of GONF and RGONFs

Cyclic voltammograms (CV) were recorded in deaerated 0.5 M H2SO4 at six different scan rates: 5, 10, 20, 50, 100, and 200 mV·s−1 for GONF and RGONFs. Figure 5 shows the current density-potential behavior for every carbon material at the different scan rates. As expected, the increase of scan rate is associated with an increase of the charge. A quasi rectangular shape is observed for all of them, accounting for the influence of double layer capacitance, together with a small redox contribution with peak current density at about 0.6 V vs. RHE in the positive-going scan and 0.4 V vs. RHE in the negative-going one.
Specific capacitances were obtained following the Equation (1). Figure 6a shows an example of the specific capacitance-potential curves obtained at 20 mV·s−1 for GONF and RGONFs, while the capacitance values as function of the scan rate are given in Figure 6b. In spite of the partial removal of polar oxygen groups upon hydrothermal reduction treatments (oxygen groups may enhance the hydrophilicity and thus the available electrochemical surface area), an important increase of the double-layer current (see Figure 6a) was observed for RGONFs with specific capacitances from 8- to 16-times higher than that obtained for GONF (~6 F·g−1). RGONFs exhibit a much higher capacitance than GONF, with a good capacitance retention (Figure 6b), despite the relatively low surface area of RGONFs, as evidenced by N2 and CO2 physisorption experiments. Although the morphology and structure of RGONFs are different to those reported in the literature regarding reduced graphene oxide, carbon nanofibers decorated with reduced graphene oxide or hybrid materials [53,54,55,56,57], other graphene-based materials have exhibited similar values of specific capacitances in the order of 100 F·g−1 with BET surface areas of same order of magnitude than RGONFs reported in this work [21,58].
The samples reduced at 140, 180, and 220 °C present capacitance values up to 104, 75, and 55 F·g−1, respectively. RGONFs present fishbone arrangement (from the original CNFs) with turbostratic stacks forming an oblique angle to the longitudinal growth axis (Figure 1). These highly crystalline structures consisting on few-atom-thick stacks with sp2-hybridized carbon and lateral dimensions less than 100 nm are expected to exhibit unique properties due to edge effects, quantum confinement and structural defects [58,59]. Consequently, these structures may confine energy band gaps and delocalized charge carriers, resulting in high specific capacitance. On the other hand, other authors have reported an enhanced capacitance of reduced graphene oxide in comparison to graphene oxide [60,61]. The latter can be related to: (i) an increase of the electrical conductivity upon hydrothermal reduction, which favours the electron mobility at RGONF electrodes [61,62,63], and/or (ii) the particular porous texture and turbostratic structure of RGONFs, which is less restrictive for ion/electrolyte transport. In this context, an important recovery of the π–π* shake-up satellite contribution was observed by XPS (Table 2) upon hydrothermal reduction, as well as a progressive removal of oxygenated species, which may lead to an improved carbon conductivity [7]. On the other hand, a significant decrease of the narrow microporosity was observed after reduction treatments (Table 3, CO2 physisorption). These narrow micropores may hinder the access of the ions to the surface of carbon electrodes. Additionally, reduction of GONFs is expected to reduce the band gap and to increase the electron-hole pairs, which leads to an enhancement of the quantum confinement [64].
Interestingly, as the reduction temperature decreases, a larger electrochemical capacitance was obtained. These results indicate that the material reduced at 140 °C presents balanced characteristics for charge storage. Higher temperatures resulted in the increase of narrow microporosity as well as some slight restacking of the graphene layers (as confirmed by XRD), which may result in a more restricted quantum confinement effect [32]. Whereas the bare GONF exhibits poor electrical conductivity hindering the electron mobility. Additionally, RGONF-140 presented the highest surface S content (XPS, Table 2) and the largest O concentration among RGONFs. Sulphur and oxygen species have also been reported to present a positive effect on the capacitance of carbon materials in both acid and alkaline electrochemical environments, as a result of Faradaic reactions (pseudocapacitive contribution) and/or a lower affinity to adsorb water by changes in the charge distribution on carbon atoms [34,65,66,67,68].
In order to gain further insights on the relative influence of pseudocapacitive contribution to the total specific capacitance, current density was deconvoluted in two components as in Equation (2), as reported in [69]:
I(ν) = k1ν + k2 ν1/2
where I is the current (A), k1 and k2 are scan rate independent constants and ν is the scan rate (V·s−1). The component associated to k1 (proportional to ν) encompasses electrochemical double layer charging (non faradaic), while k2 (proportional to ν1/2) is related to diffusion limited charge from the faradaic contribution of pseudocapacitance, as derived from the Randles–Sevcik equation [39,70,71]. By linearization of Equation (2), a simple linear regression can be applied to the representation of I/ν1/2 against ν1/2 as follows in Equation (3):
I(ν)/ν1/2 = k1ν1/2 + k2
Figure 7a depicts the variation of i/ν1/2 with the square root of ν for all the materials, including both positive- and negative-going values of current at 0.5 V vs. RHE, together with their linear regression. In RGONF materials, the intercept with the y-axis increases as reduction temperature decreases, indicating a larger pseudocapacitive contribution in the nanofibers treated at lower temperature. Double layer capacitances and pseudocapacitances were calculated from these linear regressions for all the samples, as represented in Figure 7b. The double layer contribution to the total specific capacitance accounts for 87–100% according to this methodology. The largest pseudocapacitance was observed for RGONF-140 (Figure 7b), which is related to the larger extent of O and S groups on the structure of the former material in comparison with the other two RGONFs. The relative contribution of redox processes to the total capacitance is depicted in the inset graph of Figure 7b as a function of the C/O ratio, determined by XPS. As expected, an increase of oxygen surface groups (decrease of C/O ratio) in the form of quinone/hydroquinone (C=O species, XPS, Table 3) results in an increase of the relative pseudocapacitive effect.
In order to study the overall resistance and the electrolyte ion transport, alternative current EIS measurements were carried out at 0.5 V vs. RHE with 10 mV amplitude (r.m.s.). Figure 8a shows the Nyquist plots, while the Bode-impedance and Bode-phase plots are given in Figure 8b,c, respectively, for all the materials. The Nyquist plots of RGONFs exhibit a sharp increase of the imaginary component of impedance (Z”) with the decrease of frequency, which is indicative of their almost ideal capacitive behaviour, together with a small semicircle at high frequencies [55]. Interestingly, RGONFs present a higher slope at low frequencies than GONF indicating faster ion movement [53,72]. Therefore, RGONF materials present a low charge-transfer resistance with high electrolyte diffusion. The intersection point with the real axis in the Nyquist plot corresponds to the equivalent cell series resistance (Rs), which is in the range 1.5–2.4 Ω·cm−2. The latter is also evident in the Bode-impedance plot at high frequencies (Figure 8b).

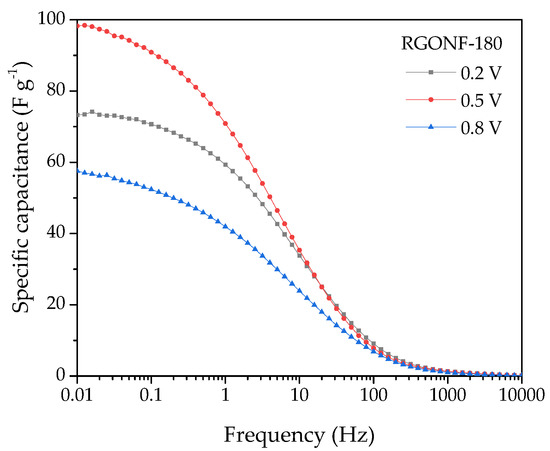

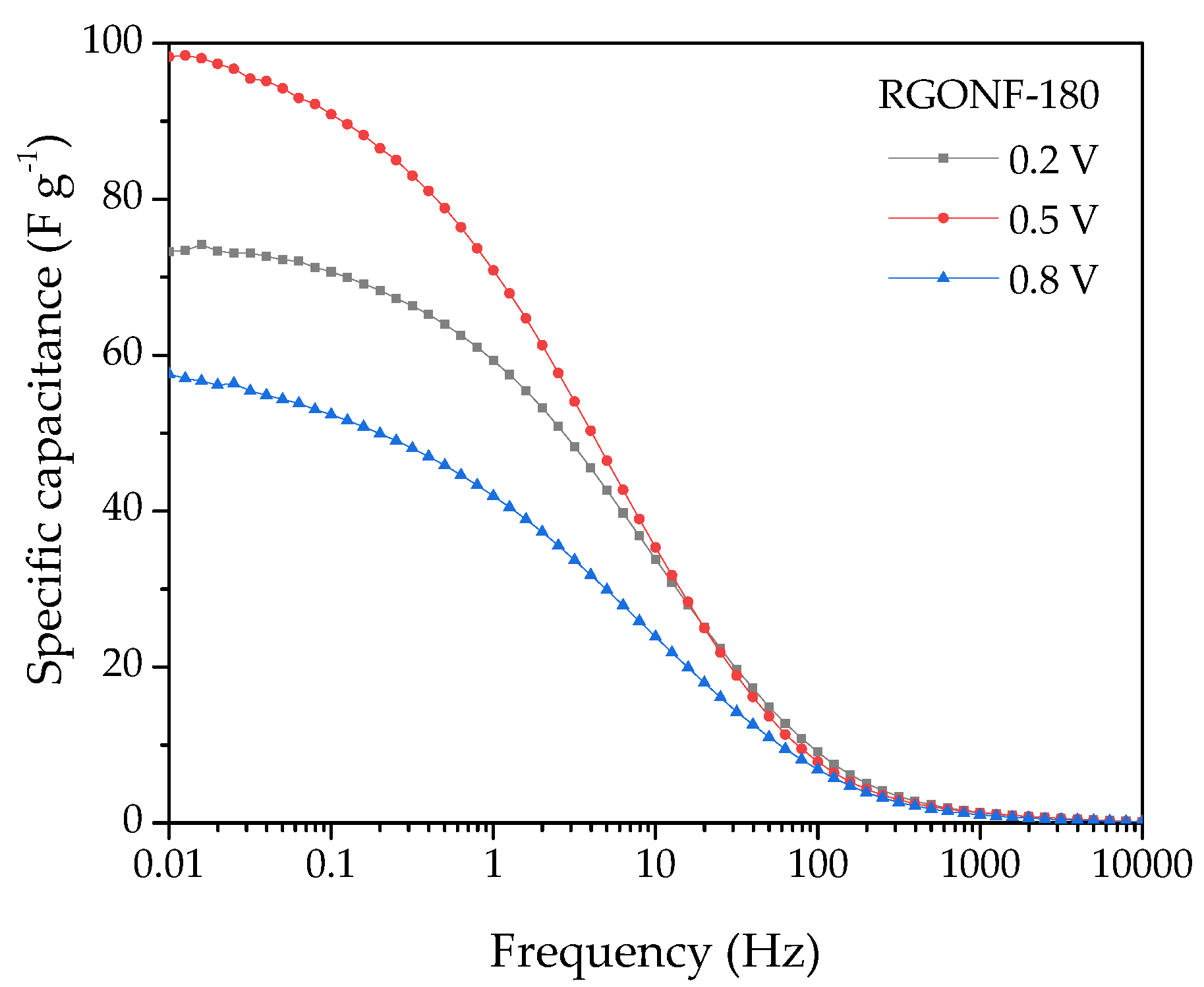

Figure 8d shows the dependence of the specific capacitance (F·g−1) with the frequency, where capacitance values were obtained by Equation (4):
C = − ( 1 2 π f Z ″ )
As expected, an increase of the capacitance as the frequency decreases is evident for all materials. At the lowest frequencies (0.01 Hz), the curves reach a plateau at the maximum capacitances. In line with the results obtained by CV, improved capacitances were obtained for RGONFs (76–137 F·g−1) in comparison to GONF (16 F·g−1). On the other hand, RGONF-140 presented the highest capacitive performance (137 F·g−1). As the severity of the reduction conditions increases, a lower capacitance was obtained for RGONF-180 (98 F·g−1) and RGONF-220 (76 F·g−1), following the same trend already observed by CV experiments. Although superior capacitance values were obtained by EIS measurements in comparison to those calculated by CV, comparable results were observed at 0.5 V vs. RHE (see Figure 8d and Figure 7b). On the other hand, a decrease of the capacitance determined by EIS measurements was evident at 0.2 and 0.8 V vs. RHE. For example, values of 72 and 58 F·g−1 were recorded at 0.2 and 0.8 V vs. RHE for the carbon RGONF-180 (Figure 9), whereas a higher capacitance (98 F·g−1) was observed at 0.5 V. This is ascribed to the contribution of the pseudocapacitive component observed in CV experiments at potentials close to 0.5 V vs. RHE, and related to reversible redox processes from oxygen surface groups, most probably quinone-hydroquinone redox pair.
This work reveals that hydrothermal reduction of GONF leads to an enhancement of the specific capacitance, with reduction temperature playing an important role in the morphology and structure of the RGONF materials and also on the electrochemical performance. These results are of interest to design electrodes with potential applications in electrochemical energy conversion and storage, such as supercapacitors, batteries or fuel cells. However, further electrochemical characterization would be necessary to achieve the requirements of commercial devices. For instance, optimization of the mass loading and thickness of the electrode and long-term stability studies.

4. Conclusions

In this work, the influence of hydrothermal reduction at different temperatures (140, 180, and 220 °C) of fishbone graphene oxide nanofibers was carried out, obtaining a novel material with enhanced electrochemical capacitance. After reduction, the resultant carbon presented the partial removal of basal functional groups on graphene/graphite domains, resulting in accessible turbostratic domains and restored electronic conductivity. In particular, RGONFs showed an improved double-layer current with capacitance values from 8- to 16-times higher than GONF, which is ascribed to the unique structure of RGONFs. Hydrothermal reduction at 140 °C led to the highest capacitance as evidenced by cyclic voltammetry and electrochemical impedance spectroscopy (up to 137 F·g−1). A rise in the hydrothermal reduction temperature resulted in a removal of S- and O-containing functional groups and an increase of microporosity, leading consequently to a lower specific capacitance. Additionally, XRD evidenced the presence of slightly thicker graphite domains for the materials treated at 180 and 220 °C, which might decrease the quantum confinement effect, reducing capacitance values.
The proposed approach represents a novel strategy for the production of reduced graphene oxide nanofibers with tuneable properties. The reduced materials exhibit a unique structure and morphology with an enhanced capacitance in comparison to GONFs.

Author Contributions

Conceptualization, D.T. and S.P.-R.; methodology, D.T., D.S. and S.P.-R.; validation, D.T., S.P.-R., D.S. and J.L.P.; investigation, D.T. and S.P.-R.; writing—original draft preparation, D.T. and S.P.-R.; writing—review and editing, D.T., S.P.-R., D.S., J.L.P., M.J.L. and I.S.; supervision, D.T., S.P.-R., D.S. and J.L.P.; project administration, D.T., S.P.-R., D.S., J.L.P., M.J.L. and I.S.; funding acquisition, D.S., J.L.P., M.J.L. and I.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by FEDER, the Spanish Ministry of Science, Innovation and Universities MICINN (ENE2017-83976-C2-1-R & ENE2017-83854-R) and by the Aragón Government to the Fuel Conversion Group (T06_17R). DS thanks MICINN for his Ramón y Cajal research contract (RyC-2016-20944).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. De Jong, K.P.; Geus, J.W. Carbon Nanofibers: Catalytic Synthesis and Applications. Catal. Rev. Sci. Eng. 2000, 42, 481–510. [Google Scholar] [CrossRef]
  2. Bessel, C.A.; Laubernds, K.; Rodriguez, N.M.; Baker, R.T.K. Graphite Nanofibers as an Electrode for Fuel Cell Applications. J. Phys. Chem. B 2001, 105, 1115–1118. [Google Scholar] [CrossRef]
  3. Serp, P.; Corrias, M.; Kalck, P. Carbon nanotubes and nanofibers in catalysis. Appl. Catal. A 2003, 253, 337–358. [Google Scholar] [CrossRef]
  4. Pandolfo, A.G.; Hollenkamp, A.F. Carbon properties and their role in supercapacitors. J. Power Sources 2006, 157, 11–27. [Google Scholar] [CrossRef]
  5. Huang, J.; Liu, Y.; You, T. Carbon nanofiber based electrochemical biosensors: A review. Anal. Methods 2010, 2, 202–211. [Google Scholar] [CrossRef]
  6. Pampal, E.S.; Stojanovska, E.; Simon, B.; Kilic, A. A review of nanofibrous structures in lithium ion batteries. J. Power Sources 2015, 300, 199–215. [Google Scholar] [CrossRef]
  7. Pérez-Rodríguez, S.; Torres, D.; Lázaro, M.J. Effect of oxygen and structural properties on the electrical conductivity of powders of nanostructured carbon materials. Powder Technol. 2018, 340, 380–388. [Google Scholar] [CrossRef]
  8. Ambrosi, A.; Chua, C.K.; Bonanni, A.; Pumera, M. Electrochemistry of Graphene and Related Materials. Chem. Rev. 2014, 114, 7150–7188. [Google Scholar] [CrossRef]
  9. Torres, D.; Sebastián, D.; Lázaro, M.J.; Pinilla, J.L.; Suelves, I.; Aricò, A.S.; Baglio, V. Performance and stability of counter electrodes based on reduced few-layer graphene oxide sheets and reduced graphene oxide quantum dots for dye-sensitized solar cells. Electrochim. Acta 2019, 306, 396–406. [Google Scholar] [CrossRef]
  10. Charlier, J.C.; Issi, J.P. Electrical conductivity of novel forms of carbon. J. Phys. Chem. Solids 1996, 57, 957–965. [Google Scholar] [CrossRef]
  11. Hou, C.; Zhang, M.; Halder, A.; Chi, Q. Graphene directed architecture of fine engineered nanostructures with electrochemical applications. Electrochim. Acta 2017, 242, 202–218. [Google Scholar] [CrossRef]
  12. Lobato, B.; Wendelbo, R.; Barranco, V.; Centeno, T.A. Graphite Oxide: An Interesting Candidate for Aqueous Supercapacitors. Electrochim. Acta 2014, 149, 245–251. [Google Scholar] [CrossRef] [Green Version]
  13. Inagaki, M. Applications of graphite intercalation compounds. J. Mater. Res. 2011, 4, 1560–1568. [Google Scholar] [CrossRef]
  14. Calvillo, L.; Lázaro, M.J.; Suelves, I.; Echegoyen, Y.; Bordejé, E.G.; Moliner, R. Study of the Surface Chemistry of Modified Carbon Nanofibers by Oxidation Treatments in Liquid Phase. J. Nanosci. Nanotechnol. 2009, 9, 4164–4169. [Google Scholar] [CrossRef] [PubMed]
  15. Sebastián, D.; Suelves, I.; Moliner, R.; Lázaro, M.J. The effect of the functionalization of carbon nanofibers on their electronic conductivity. Carbon 2010, 48, 4421–4431. [Google Scholar] [CrossRef]
  16. Hummers, W.S.; Offeman, R.E. Preparation of graphitic oxide. J. Am. Chem. Soc. 1958, 80, 1339. [Google Scholar] [CrossRef]
  17. Lerf, A.; He, H.; Forster, M.; Klinowski, J. Structure of Graphite Oxide Revisited. J. Phys. Chem. B 1998, 102, 4477–4482. [Google Scholar] [CrossRef]
  18. Szabó, T.; Berkesi, O.; Forgó, P.; Josepovits, K.; Sanakis, Y.; Petridis, D.; Dékány, I. Evolution of Surface Functional Groups in a Series of Progressively Oxidized Graphite Oxides. Chem. Mater. 2006, 18, 2740–2749. [Google Scholar] [CrossRef]
  19. Eigler, S.; Dotzer, C.; Hof, F.; Bauer, W.; Hirsch, A. Sulfur Species in Graphene Oxide. Chem. Eur. J. 2013, 19, 9490–9496. [Google Scholar] [CrossRef]
  20. Feicht, P.; Kunz, D.A.; Lerf, A.; Breu, J. Facile and scalable one-step production of organically modified graphene oxide by a two-phase extraction. Carbon 2014, 80, 229–234. [Google Scholar] [CrossRef]
  21. Zhang, K.; Zhang, L.L.; Zhao, X.S.; Wu, J. Graphene/Polyaniline Nanofiber Composites as Supercapacitor Electrodes. Chem. Mater. 2010, 22, 1392–1401. [Google Scholar] [CrossRef]
  22. Luo, G.; Wang, Y.; Gao, L.; Zhang, D.; Lin, T. Graphene bonded carbon nanofiber aerogels with high capacitive deionization capability. Electrochim. Acta 2018, 260, 656–663. [Google Scholar] [CrossRef]
  23. Zhang, Z.; Wang, G.; Lai, Y.; Li, J. A freestanding hollow carbon nanofiber/reduced graphene oxide interlayer for high-performance lithium–sulfur batteries. J. Alloys Compd. 2016, 663, 501–506. [Google Scholar] [CrossRef]
  24. Gil-Castell, O.; Galindo-Alfaro, D.; Sánchez-Ballester, S.; Teruel-Juanes, R.; Badia, J.D.; Ribes-Greus, A. Crosslinked Sulfonated Poly(vinyl alcohol)/Graphene Oxide Electrospun Nanofibers as Polyelectrolytes. Nanomaterials 2019, 9, 397. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Cui, C.; Qian, W.; Yu, Y.; Kong, C.; Yu, B.; Xiang, L.; Wei, F. Highly Electroconductive Mesoporous Graphene Nanofibers and Their Capacitance Performance at 4 V. J. Am. Chem. Soc. 2014, 136, 2256–2259. [Google Scholar] [CrossRef] [PubMed]
  26. Feng, Z.-Q.; Wang, T.; Zhao, B.; Li, J.; Jin, L. Soft Graphene Nanofibers Designed for the Acceleration of Nerve Growth and Development. Adv. Mater. 2015, 27, 6462–6468. [Google Scholar] [CrossRef]
  27. Zhang, C.; Chen, Q.; Zhan, H. Supercapacitors Based on Reduced Graphene Oxide Nanofibers Supported Ni(OH)2 Nanoplates with Enhanced Electrochemical Performance. ACS Appl. Mater. Interfaces 2016, 8, 22977–22987. [Google Scholar] [CrossRef]
  28. Torres, D.; Pérez-Rodríguez, S.; Sebastián, D.; Pinilla, J.L.; Lázaro, M.J.; Suelves, I. Graphene oxide nanofibers: A nanocarbon material with tuneable electrochemical properties. Appl. Surf. Sci. 2020, 509, 144774. [Google Scholar] [CrossRef]
  29. Torres, D.; Pinilla, J.L.; Galvez, E.M.; Suelves, I. Graphene quantum dots from fishbone carbon nanofibers. RSC Adv. 2016, 6, 48504–48514. [Google Scholar] [CrossRef]
  30. Stoller, M.D.; Park, S.; Zhu, Y.; An, J.; Ruoff, R.S. Graphene-Based Ultracapacitors. Nano Lett. 2008, 8, 3498–3502. [Google Scholar] [CrossRef]
  31. Xia, J.; Chen, F.; Li, J.; Tao, N. Measurement of the quantum capacitance of graphene. Nat. Nanotechnol. 2009, 4, 505–509. [Google Scholar] [CrossRef] [PubMed]
  32. Lee, J.H.; Park, N.; Kim, B.G.; Jung, D.S.; Im, K.; Hur, J.; Choi, J.W. Restacking-Inhibited 3D Reduced Graphene Oxide for High Performance Supercapacitor Electrodes. ACS Nano 2013, 7, 9366–9374. [Google Scholar] [CrossRef] [PubMed]
  33. Chinthaginjala, J.K.; Seshan, K.; Lefferts, L. Preparation and Application of Carbon-Nanofiber Based Microstructured Materials as Catalyst Supports. Ind. Eng. Chem. Res. 2007, 46, 3968–3978. [Google Scholar] [CrossRef]
  34. Kiciński, W.; Szala, M.; Bystrzejewski, M. Sulfur-doped porous carbons: Synthesis and applications. Carbon 2014, 68, 1–32. [Google Scholar] [CrossRef]
  35. Stankovich, S.; Piner, R.D.; Chen, X.; Wu, N.; Nguyen, S.T.; Ruoff, R.S. Stable aqueous dispersions of graphitic nanoplatelets via the reduction of exfoliated graphite oxide in the presence of poly(sodium 4-styrenesulfonate). J. Mater. Chem. 2006, 16, 155–158. [Google Scholar] [CrossRef]
  36. Park, S.; Ruoff, R.S. Chemical methods for the production of graphenes. Nat. Nanotechnol. 2009, 4, 217–224. [Google Scholar] [CrossRef]
  37. Zhou, Y.; Bao, Q.; Tang, L.A.L.; Zhong, Y.; Loh, K.P. Hydrothermal Dehydration for the “Green” Reduction of Exfoliated Graphene Oxide to Graphene and Demonstration of Tunable Optical Limiting Properties. Chem. Mater. 2009, 21, 2950–2956. [Google Scholar] [CrossRef]
  38. Biscoe, J. An x-ray study of carbon black. J. Appl. Phys. 1942, 13, 364–371. [Google Scholar] [CrossRef]
  39. Lee, Y.-H.; Chang, K.-H.; Hu, C.-C. Differentiate the pseudocapacitance and double-layer capacitance contributions for nitrogen-doped reduced graphene oxide in acidic and alkaline electrolytes. J. Power Sources 2013, 227, 300–308. [Google Scholar] [CrossRef]
  40. Hsiao, C.; Lee, C.; Tai, N. Biomass-derived three-dimensional carbon framework for a flexible fibrous supercapacitor and its application as a wearable smart textile. RSC Adv. 2020, 10, 6960–6972. [Google Scholar] [CrossRef] [Green Version]
  41. Martin-Gullon, I.; Vera, J.; Conesa, J.A.; González, J.L.; Merino, C. Differences between carbon nanofibers produced using Fe and Ni catalysts in a floating catalyst reactor. Carbon 2006, 44, 1572–1580. [Google Scholar] [CrossRef] [Green Version]
  42. Dreyer, D.R.; Park, S.; Bielawski, C.W.; Ruoff, R.S. The chemistry of graphene oxide. Chem. Soc. Rev. 2010, 39, 228–240. [Google Scholar] [CrossRef] [PubMed]
  43. Torres, D.; Arcelus-Arrillaga, P.; Millan, M.; Pinilla, J.; Suelves, I. Enhanced reduction of few-layer graphene oxide via supercritical water gasification of glycerol. Nanomaterials 2017, 7, 447. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Franklin, R. The structure of graphitic carbons. Acta Crystallogr. 1951, 4, 253–261. [Google Scholar] [CrossRef]
  45. Li, Z.Q.; Lu, C.J.; Xia, Z.P.; Zhou, Y.; Luo, Z. X-ray diffraction patterns of graphite and turbostratic carbon. Carbon 2007, 45, 1686–1695. [Google Scholar] [CrossRef]
  46. Feret, F.R. Determination of the crystallinity of calcined and graphitic cokes by X-ray diffraction. Analyst 1998, 123, 595–600. [Google Scholar] [CrossRef]
  47. Stankovich, S.; Dikin, D.A.; Piner, R.D.; Kohlhaas, K.A.; Kleinhammes, A.; Jia, Y.; Wu, Y.; Nguyen, S.T.; Ruoff, R.S. Synthesis of graphene-based nanosheets via chemical reduction of exfoliated graphite oxide. Carbon 2007, 45, 1558–1565. [Google Scholar] [CrossRef]
  48. Acik, M.; Mattevi, C.; Gong, C.; Lee, G.; Cho, K.; Chhowalla, M.; Chabal, Y.J. The Role of Intercalated Water in Multilayered Graphene Oxide. ACS Nano 2010, 4, 5861–5868. [Google Scholar] [CrossRef]
  49. Xu, Y.; Sheng, K.; Li, C.; Shi, G. Self-Assembled Graphene Hydrogel via a One-Step Hydrothermal Process. ACS Nano 2010, 4, 4324–4330. [Google Scholar] [CrossRef]
  50. Shi, J.L.; Du, W.C.; Yin, Y.X.; Guo, Y.G.; Wan, L.J. Hydrothermal reduction of three-dimensional graphene oxide for binder-free flexible supercapacitors. J. Mater. Chem. A 2014, 2, 10830–10834. [Google Scholar] [CrossRef]
  51. Diez, N.; Sliwak, A.; Gryglewicz, S.; Grzyb, B.; Gryglewicz, G. Enhanced reduction of graphene oxide by high-pressure hydrothermal treatment. RSC Adv. 2015, 5, 81831–81837. [Google Scholar] [CrossRef]
  52. Thommes, M.; Kaneko, K.; Neimark Alexander, V.; Olivier James, P.; Rodriguez-Reinoso, F.; Rouquerol, J.; Sing Kenneth, S.W. Physisorption of gases, with special reference to the evaluation of surface area and pore size distribution (IUPAC Technical Report). Pure Appl. Chem. 2015, 87, 1051–1069. [Google Scholar] [CrossRef] [Green Version]
  53. Bai, Y.; Rakhi, R.B.; Chen, W.; Alshareef, H.N. Effect of pH-induced chemical modification of hydrothermally reduced graphene oxide on supercapacitor performance. J. Power Sources 2013, 233, 313–319. [Google Scholar] [CrossRef]
  54. Le Fevre, L.W.; Cao, J.; Kinloch, I.A.; Forsyth, A.J.; Dryfe, R.A.W. Systematic Comparison of Graphene Materials for Supercapacitor Electrodes. ChemistryOpen 2019, 8, 418–428. [Google Scholar] [CrossRef] [Green Version]
  55. Jha, P.K.; Singh, S.K.; Kumar, V.; Rana, S.; Kurungot, S.; Ballav, N. High-Level Supercapacitive Performance of Chemically Reduced Graphene Oxide. Chem 2017, 3, 846–860. [Google Scholar] [CrossRef] [Green Version]
  56. Gao, Z.; Yang, W.; Wang, J.; Yan, H.; Yao, Y.; Ma, J.; Wang, B.; Zhang, M.; Liu, L. Electrochemical synthesis of layer-by-layer reduced graphene oxide sheets/polyaniline nanofibers composite and its electrochemical performance. Electrochim. Acta 2013, 91, 185–194. [Google Scholar] [CrossRef]
  57. Jin, Y.; Fang, M.; Jia, M. In situ one-pot synthesis of graphene–polyaniline nanofiber composite for high-performance electrochemical capacitors. Appl. Surf. Sci. 2014, 308, 333–340. [Google Scholar] [CrossRef]
  58. Zhang, S.; Sui, L.; Dong, H.; He, W.; Dong, L.; Yu, L. High-Performance Supercapacitor of Graphene Quantum Dots with Uniform Sizes. ACS Appl. Mater. Interfaces 2018, 10, 12983–12991. [Google Scholar] [CrossRef]
  59. Qing, Y.; Jiang, Y.; Lin, H.; Wang, L.; Liu, A.; Cao, Y.; Sheng, R.; Guo, Y.; Fan, C.; Zhang, S.; et al. Boosting the supercapacitor performance of activated carbon by constructing overall conductive networks using graphene quantum dots. J. Mater. Chem. A 2019, 7, 6021–6027. [Google Scholar] [CrossRef]
  60. Johra, F.T.; Jung, W.-G. Hydrothermally reduced graphene oxide as a supercapacitor. Appl. Surf. Sci. 2015, 357, 1911–1914. [Google Scholar] [CrossRef]
  61. Gong, Y.; Li, D.; Fu, Q.; Pan, C. Influence of graphene microstructures on electrochemical performance for supercapacitors. Prog. Nat. Sci. Mater. Int. 2015, 25, 379–385. [Google Scholar] [CrossRef] [Green Version]
  62. Hayes, W.I.; Joseph, P.; Mughal, M.Z.; Papakonstantinou, P. Production of reduced graphene oxide via hydrothermal reduction in an aqueous sulphuric acid suspension and its electrochemical behaviour. J. Solid State Electrochem. 2015, 19, 361–380. [Google Scholar] [CrossRef]
  63. Li, S.; Chen, Y.; He, X.; Mao, X.; Zhou, Y.; Xu, J.; Yang, Y. Modifying Reduced Graphene Oxide by Conducting Polymer Through a Hydrothermal Polymerization Method and its Application as Energy Storage Electrodes. Nanoscale Res. Lett. 2019, 14, 226. [Google Scholar] [CrossRef] [PubMed]
  64. Zhang, Y.; Yang, C.; Yang, D.; Shao, Z.; Hu, Y.; Chen, J.; Yuwen, L.; Weng, L.; Luo, Z.; Wang, L. Reduction of graphene oxide quantum dots to enhance the yield of reactive oxygen species for photodynamic therapy. Phys. Chem. Chem. Phys. 2018, 20, 17262–17267. [Google Scholar] [CrossRef]
  65. Seredych, M.; Bandosz, T.J. S-doped micro/mesoporous carbon–graphene composites as efficient supercapacitors in alkaline media. J. Mater. Chem. A 2013, 1, 11717–11727. [Google Scholar] [CrossRef]
  66. Seredych, M.; Idrobo, J.-C.; Bandosz, T.J. Effect of confined space reduction of graphite oxide followed by sulfur doping on oxygen reduction reaction in neutral electrolyte. J. Mater. Chem. A 2013, 1, 7059–7067. [Google Scholar] [CrossRef]
  67. Seredych, M.; Singh, K.; Bandosz, T.J. Insight into the Capacitive Performance of Sulfur-Doped Nanoporous CarbonS·modified by Addition of Graphene Phase. Electroanalysis 2014, 26, 109–120. [Google Scholar] [CrossRef]
  68. Zhao, X.; Zhang, Q.; Chen, C.-M.; Zhang, B.; Reiche, S.; Wang, A.; Zhang, T.; Schlögl, R.; Sheng Su, D. Aromatic sulfide, sulfoxide, and sulfone mediated mesoporous carbon monolith for use in supercapacitor. Nano Energy 2012, 1, 624–630. [Google Scholar] [CrossRef]
  69. Augustyn, V.; Simon, P.; Dunn, B. Pseudocapacitive oxide materials for high-rate electrochemical energy storage. Energy Environ. Sci. 2014, 7, 1597–1614. [Google Scholar] [CrossRef] [Green Version]
  70. Anjos, D.M.; McDonough, J.K.; Perre, E.; Brown, G.M.; Overbury, S.H.; Gogotsi, Y.; Presser, V. Pseudocapacitance and performance stability of quinone-coated carbon onions. Nano Energy 2013, 2, 702–712. [Google Scholar] [CrossRef]
  71. Lee, J.-S.M.; Briggs, M.E.; Hu, C.-C.; Cooper, A.I. Controlling electric double-layer capacitance and pseudocapacitance in heteroatom-doped carbons derived from hypercrosslinked microporous polymers. Nano Energy 2018, 46, 277–289. [Google Scholar] [CrossRef]
  72. Zhang, R.; Jing, X.; Chu, Y.; Wang, L.; Kang, W.; Wei, D.; Li, H.; Xiong, S. Nitrogen/oxygen co-doped monolithic carbon electrodes derived from melamine foam for high-performance supercapacitors. J. Mater. Chem. A 2018, 6, 17730–17739. [Google Scholar] [CrossRef]
Nanomaterials 10 01056 g001a 550Nanomaterials 10 01056 g001b 550
Figure 1. TEM images of: (a,b) graphene oxide nanofibers (GONF); and reduced GONFs (RGONFs) obtained at (c,d) 140, (e,f) 180, and (g,h) 220 °C. Height profile of graphene layers in a turbostratic stack is included in (h).
Figure 1. TEM images of: (a,b) graphene oxide nanofibers (GONF); and reduced GONFs (RGONFs) obtained at (c,d) 140, (e,f) 180, and (g,h) 220 °C. Height profile of graphene layers in a turbostratic stack is included in (h).
Nanomaterials 10 01056 g001aNanomaterials 10 01056 g001b
Nanomaterials 10 01056 g002 550

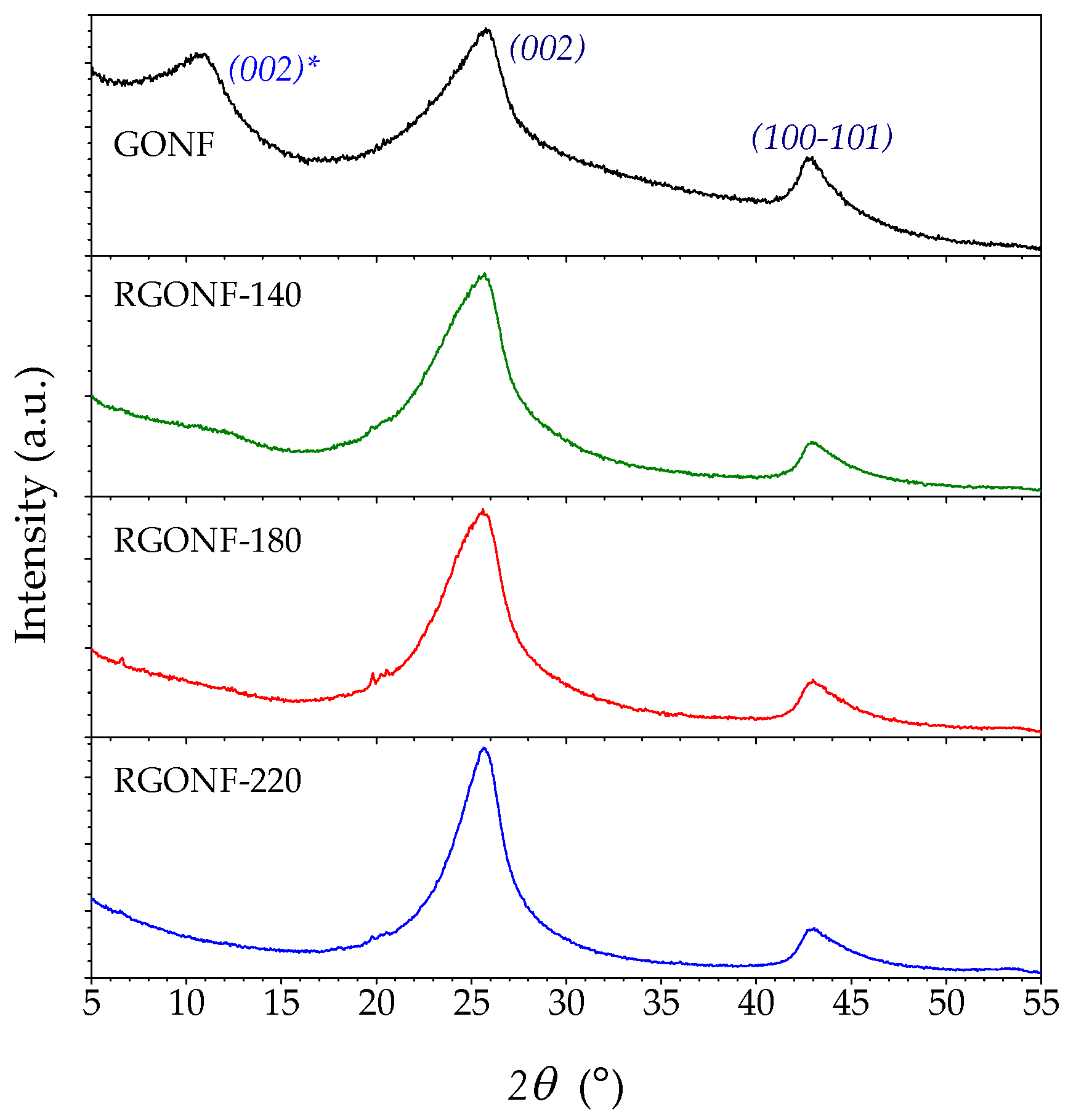

Figure 2. X-ray diffraction (XRD) patterns of GONF and RGONFs obtained at 140, 180, and 220 °C.
Figure 2. X-ray diffraction (XRD) patterns of GONF and RGONFs obtained at 140, 180, and 220 °C.
Nanomaterials 10 01056 g002
Nanomaterials 10 01056 g003 550

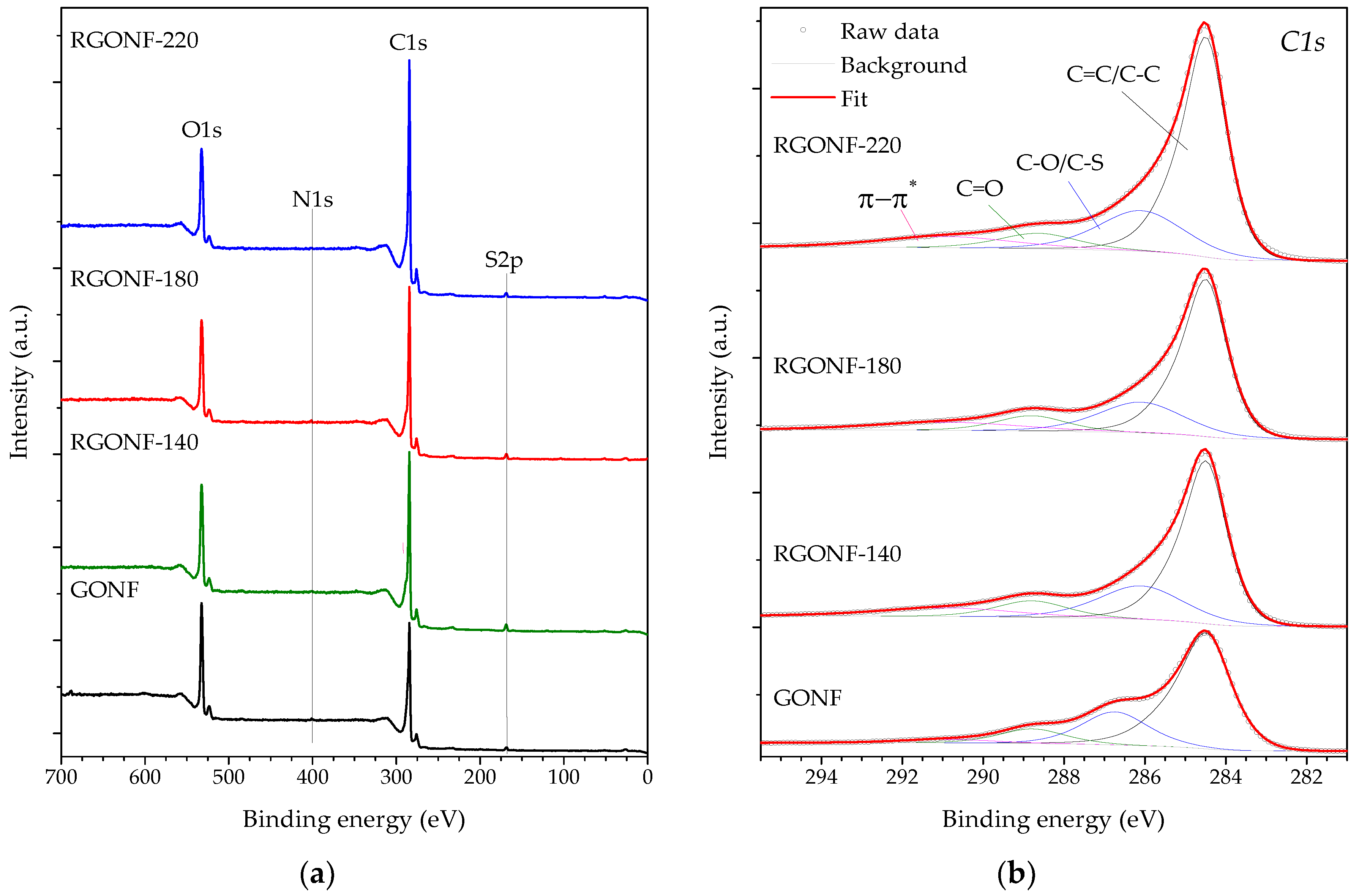

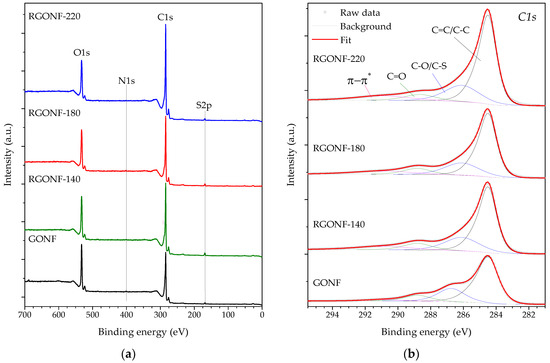

Figure 3. (a) X-ray photoelectron spectroscopy (XPS) Survey; and spectra of the (b) C1s region of GONF and RGONFs obtained at 140, 180, and 220 °C.
Figure 3. (a) X-ray photoelectron spectroscopy (XPS) Survey; and spectra of the (b) C1s region of GONF and RGONFs obtained at 140, 180, and 220 °C.
Nanomaterials 10 01056 g003
Nanomaterials 10 01056 g004 550

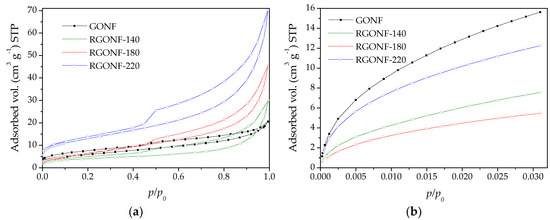

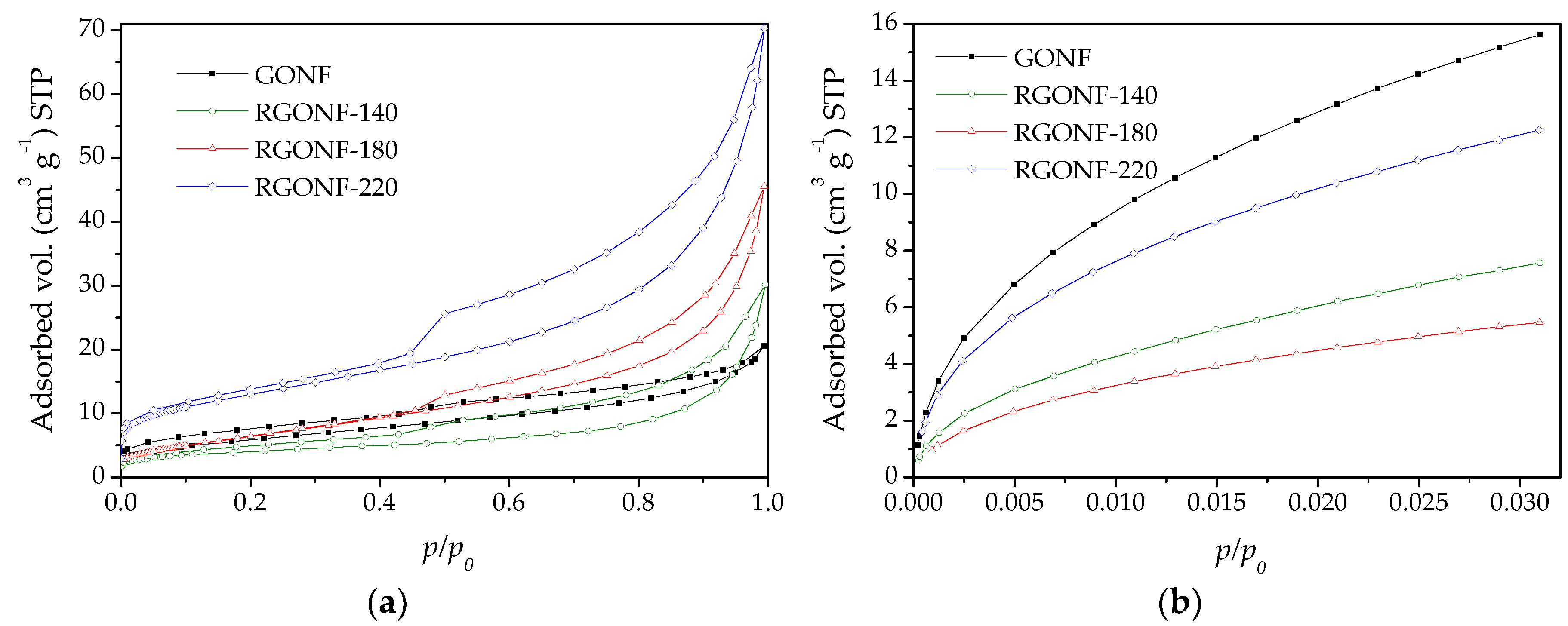

Figure 4. (a) Isotherms of N2 at 77 K and (b) CO2 at 273 K for GONF and RGONFs.
Figure 4. (a) Isotherms of N2 at 77 K and (b) CO2 at 273 K for GONF and RGONFs.
Nanomaterials 10 01056 g004
Nanomaterials 10 01056 g005 550

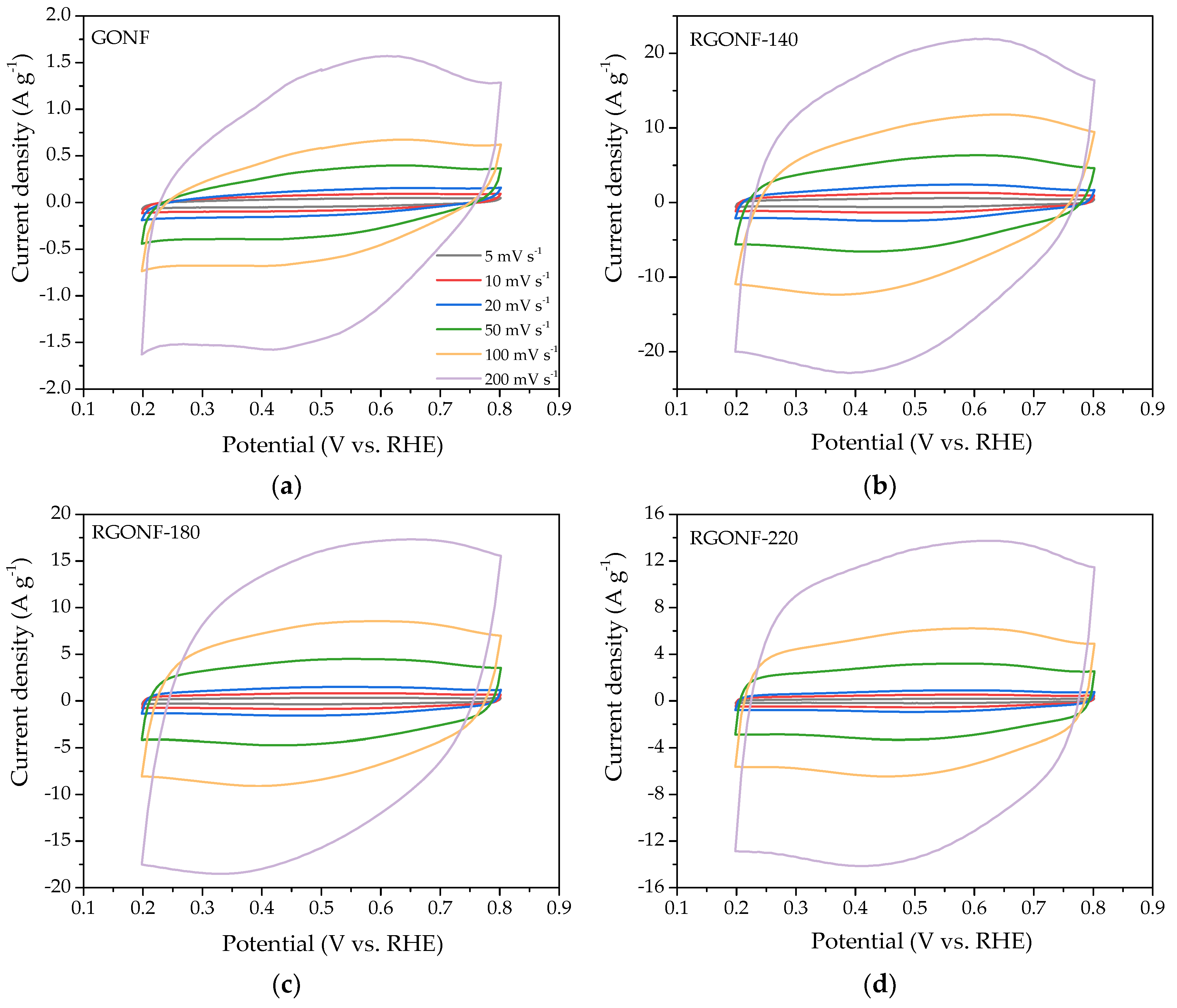

Figure 5. Cyclic voltammograms (CV) from 0.2 to 0.8 V vs. reversible hydrogen electrode (RHE) at several scan rates (5, 10, 20, 50, 100, and 200 mV·s−1) of (a) GONF; and RGONFs obtained at (b) 140; (c) 180; and (d) 220 °C. Aqueous electrolyte: 0.5 M H2SO4.
Figure 5. Cyclic voltammograms (CV) from 0.2 to 0.8 V vs. reversible hydrogen electrode (RHE) at several scan rates (5, 10, 20, 50, 100, and 200 mV·s−1) of (a) GONF; and RGONFs obtained at (b) 140; (c) 180; and (d) 220 °C. Aqueous electrolyte: 0.5 M H2SO4.
Nanomaterials 10 01056 g005
Nanomaterials 10 01056 g006 550

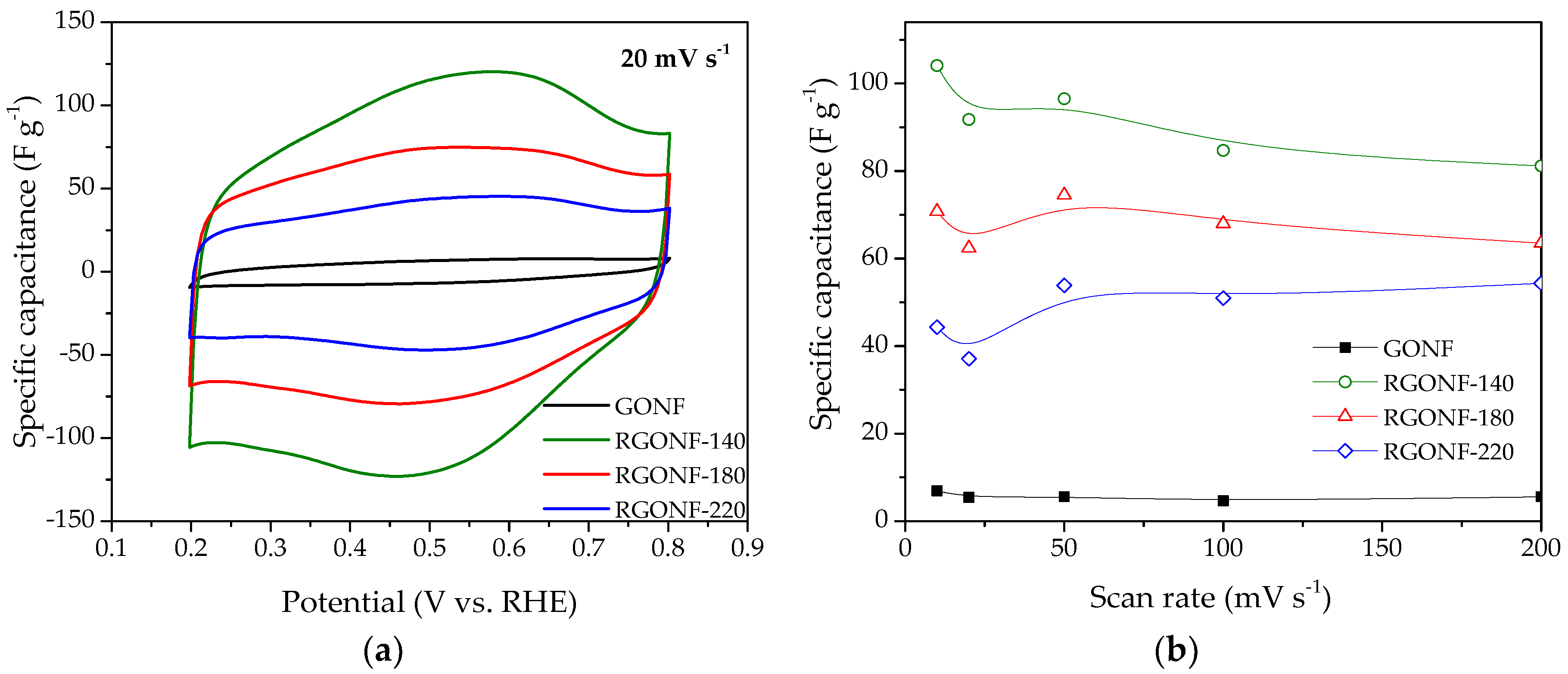

Figure 6. (a) Specific capacitance vs. potential curves at 20 mV·s−1 of GONF and RGONF samples. (b) Specific capacitance as a function of the scan rate. Aqueous electrolyte: 0.5 M H2SO4.
Figure 6. (a) Specific capacitance vs. potential curves at 20 mV·s−1 of GONF and RGONF samples. (b) Specific capacitance as a function of the scan rate. Aqueous electrolyte: 0.5 M H2SO4.
Nanomaterials 10 01056 g006
Nanomaterials 10 01056 g007 550

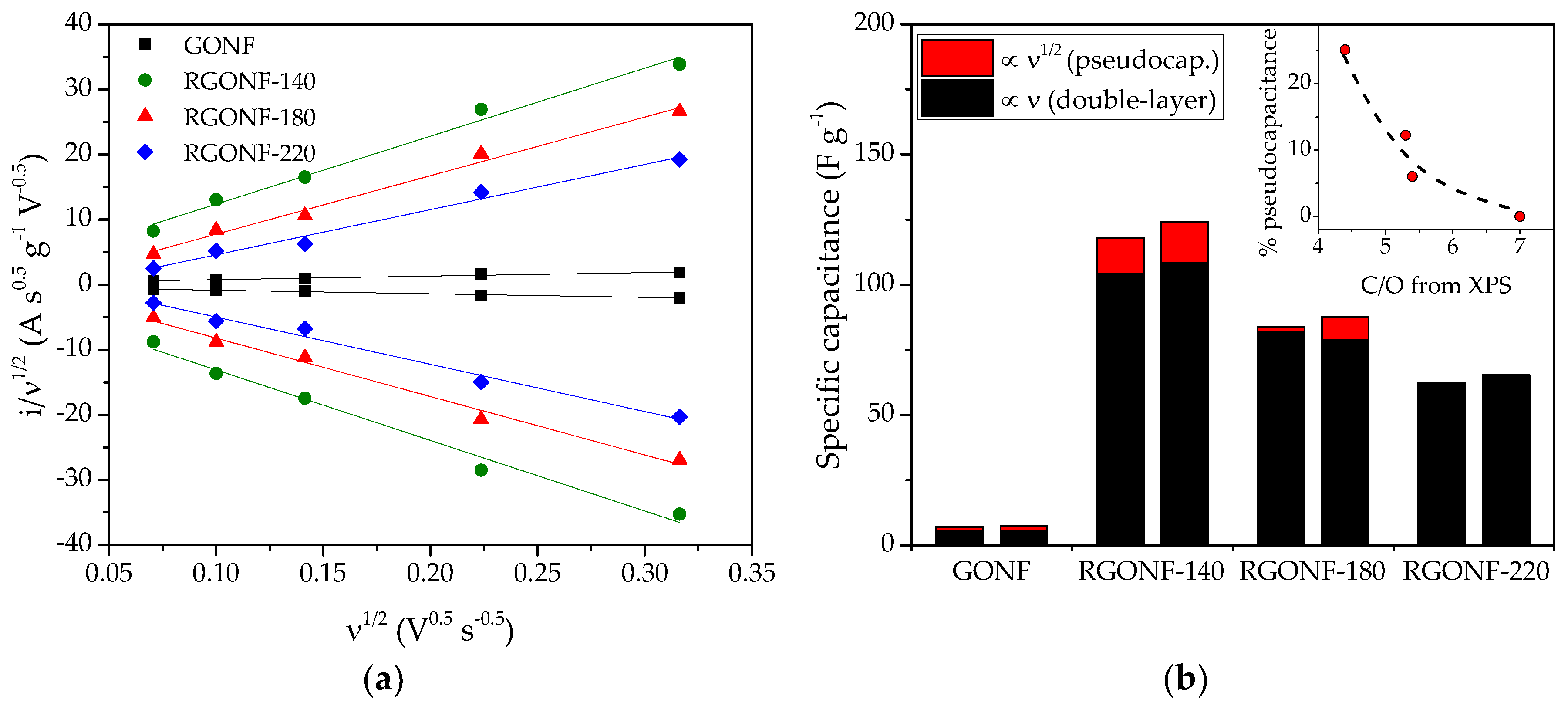

Figure 7. (a) Dependence of i/ν1/2 with ν1/2 for GONF and RGONFs at 0.5 V vs. RHE. (b) Specific capacitances determined from the deconvolution in Figure 7a separated in pseudocapacitance (red, ∝ ν1/2) and double layer capacitance (black, ∝ ν), for the positive- and negative-going scans being the left and right column, respectively, for each material; the inset represents the percentage of pseudocapacitance as a function of C/O ratio from XPS.
Figure 7. (a) Dependence of i/ν1/2 with ν1/2 for GONF and RGONFs at 0.5 V vs. RHE. (b) Specific capacitances determined from the deconvolution in Figure 7a separated in pseudocapacitance (red, ∝ ν1/2) and double layer capacitance (black, ∝ ν), for the positive- and negative-going scans being the left and right column, respectively, for each material; the inset represents the percentage of pseudocapacitance as a function of C/O ratio from XPS.
Nanomaterials 10 01056 g007
Nanomaterials 10 01056 g008 550

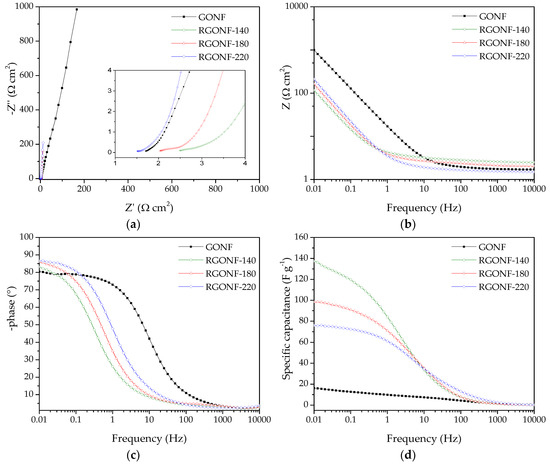

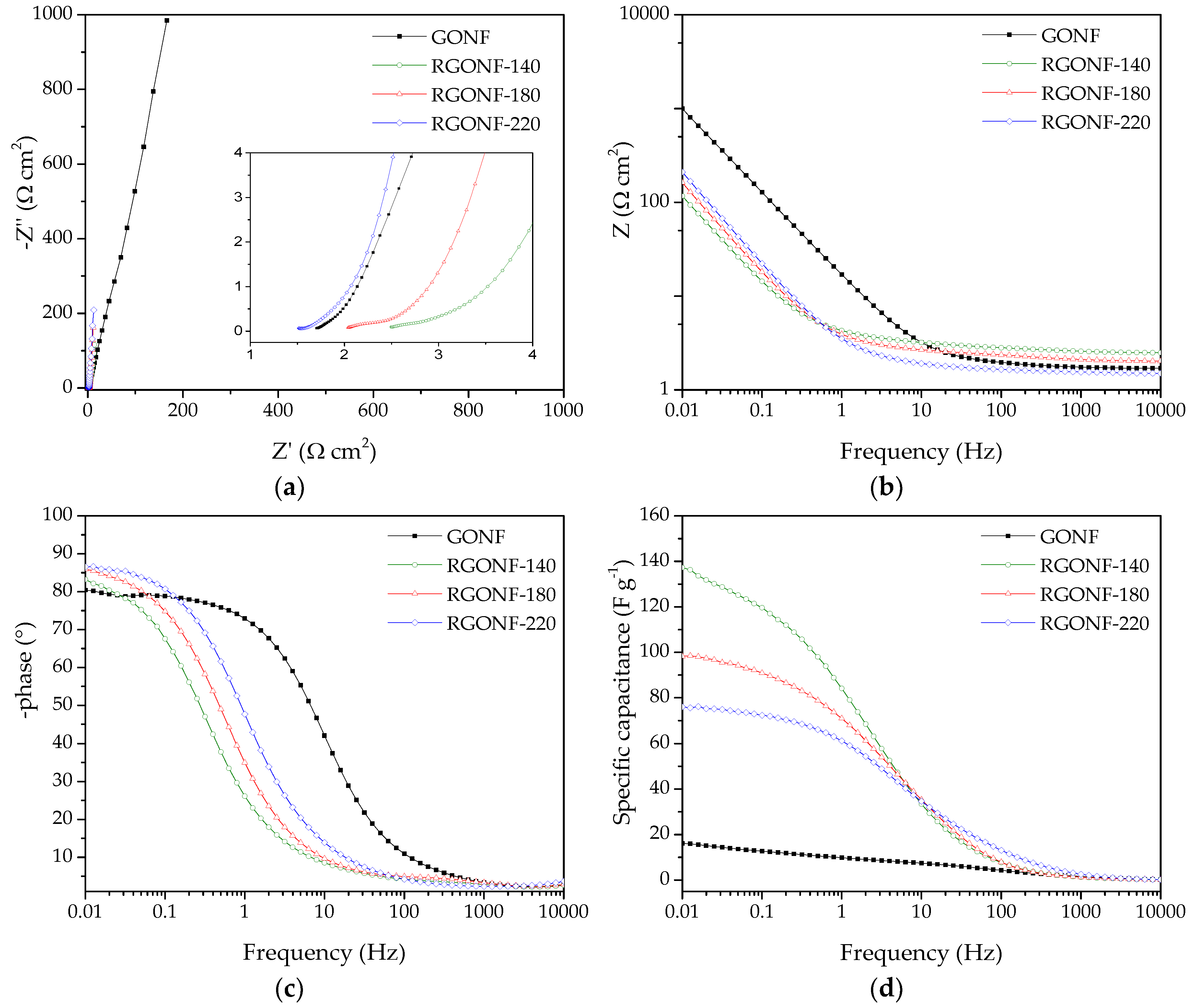

Figure 8. (a) Nyquist impedance plots with a 10 mV AC amplitude around 0.5 V of GONF and RGONFs. (b) Frequency-dependent impedance modulus Bode plots with a 10 mV AC amplitude around 0.5 V. (c) Frequency-dependent phase angle Bode plots with a 10 mV AC amplitude around 0.5 V. (d) Specific capacitance vs. frequency curves with a 10 mV AC amplitude around 0.5 V of GONF and RGONFs. Aqueous electrolyte: 0.5 M H2SO4.
Figure 8. (a) Nyquist impedance plots with a 10 mV AC amplitude around 0.5 V of GONF and RGONFs. (b) Frequency-dependent impedance modulus Bode plots with a 10 mV AC amplitude around 0.5 V. (c) Frequency-dependent phase angle Bode plots with a 10 mV AC amplitude around 0.5 V. (d) Specific capacitance vs. frequency curves with a 10 mV AC amplitude around 0.5 V of GONF and RGONFs. Aqueous electrolyte: 0.5 M H2SO4.
Nanomaterials 10 01056 g008
Nanomaterials 10 01056 g009 550
Figure 9. Specific capacitance vs. frequency curves with a 10 mV AC amplitude around 0.2, 0.5, and 0.8 V of RGONF-180. Aqueous electrolyte: 0.5 M H2SO4.
Figure 9. Specific capacitance vs. frequency curves with a 10 mV AC amplitude around 0.2, 0.5, and 0.8 V of RGONF-180. Aqueous electrolyte: 0.5 M H2SO4.
Nanomaterials 10 01056 g009
Table
Table 1. Structural parameters of GONF and RGONFs obtained at 140, 180, and 220 °C determined by XRD.
Table 1. Structural parameters of GONF and RGONFs obtained at 140, 180, and 220 °C determined by XRD.
Sampled (nm)Lc (nm)n
(002) *(002)(002) *(002)(002) *(002)
GONF0.8100.3441.52.12.97.0
RGONF-140-0.347-2.1-7.0
RGONF-180-0.345-2.3-7.6
RGONF-220-0.346-2.9-9.5
* For shifted (002) peak.
Table
Table 2. Bulk and surface composition measured by elemental analysis and XPS, respectively.
Table 2. Bulk and surface composition measured by elemental analysis and XPS, respectively.
SampleEA (wt. %)XPS—Survey (at. %)XPS—C 1s (%)
CONSHCONSC/OC sp2C–OC=Oπ–π*
GONF55.932.50.11.62.480.118.40.31.24.462.223.710.43.7
RGONF-14067.422.90.11.81.382.315.50.31.95.356.423.79.810.0
RGONF-18067.721.90.11.91.382.915.40.31.45.456.823.09.410.8
RGONF-22074.217.80.11.11.286.412.40.31.07.058.922.98.010.1
Table
Table 3. Textural parameters of GONF and RGONFs obtained at 140, 180, and 220 °C.
Table 3. Textural parameters of GONF and RGONFs obtained at 140, 180, and 220 °C.
SampleN2CO2
SBET
(m2·g−1)		Vta
(cm³·g−1)		Smicb
(m2·g−1)		Vt_micc
(cm³·g−1)
GONF21.70.032101.80.029
RGONF-14014.30.04743.60.014
RGONF-18025.10.07036.40.010
RGONF-22046.30.10979.50.022
a Total pore volume at p/p0 = 0.994 (maximum pore size of 495 nm); b Smic using the Dubinin–Radushkevich equation; c Total pore volume at p/p0 = 0.031 (maximum pore size of 0.8 nm).

Share and Cite

MDPI and ACS Style

Torres, D.; Pérez-Rodríguez, S.; Sebastián, D.; Pinilla, J.L.; Lázaro, M.J.; Suelves, I. Capacitance Enhancement of Hydrothermally Reduced Graphene Oxide Nanofibers. Nanomaterials 2020, 10, 1056. https://doi.org/10.3390/nano10061056

AMA Style

Torres D, Pérez-Rodríguez S, Sebastián D, Pinilla JL, Lázaro MJ, Suelves I. Capacitance Enhancement of Hydrothermally Reduced Graphene Oxide Nanofibers. Nanomaterials. 2020; 10(6):1056. https://doi.org/10.3390/nano10061056

Chicago/Turabian Style

Torres, Daniel, Sara Pérez-Rodríguez, David Sebastián, José Luis Pinilla, María Jesús Lázaro, and Isabel Suelves. 2020. "Capacitance Enhancement of Hydrothermally Reduced Graphene Oxide Nanofibers" Nanomaterials 10, no. 6: 1056. https://doi.org/10.3390/nano10061056

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
