Effect of Varying Amine Functionalities on CO2 Capture of Carboxylated Graphene Oxide-Based Cryogels

by
Alina I. Pruna
1,
Arturo Barjola
1,
Alfonso C. Cárcel
1,
Beatriz Alonso
2 and
Enrique Giménez
1,*
1
Instituto de Tecnología de Materiales, Universitat Politècnica de València (UPV), Camino de Vera s/n, 46022 Valencia, Spain
2
Graphenea S.A., Paseo Mikeletegi 83, 20009 San Sebastián, Spain
*
Author to whom correspondence should be addressed.
Nanomaterials 2020, 10(8), 1446; https://doi.org/10.3390/nano10081446
Submission received: 12 May 2020 / Revised: 9 July 2020 / Accepted: 21 July 2020 / Published: 24 July 2020
(This article belongs to the Special Issue Properties and Applications of Graphene and Its Derivatives)
Browse Figures
Versions Notes

Abstract

:
Graphene cryogels synthesis is reported by amine modification of carboxylated graphene oxide via aqueous carbodiimide chemistry. The effect of the amine type on the formation of the cryogels and their properties is presented. In this respect, ethylenediamine (EDA), diethylenetriamine (DETA), triethylenetetramine (TETA), were selected. The obtained cryogels were characterized by Fourier Transformed Infrared spectroscopy, thermogravimetric analysis, X-ray spectroscopy, and Scanning electron microscopy. The CO2 adsorption performance was evaluated as a function of amine modification. The results showed the best CO2 adsorption performance was exhibited by ethylenediamine modified aerogel, reaching 2 mmol g−1 at 1 bar and 298 K. While the total N content of the cryogels increased with increasing amine groups, the nitrogen configuration and contributions were determined to have more important influence on the adsorption properties. It is also revealed that the residual oxygen functionalities in the obtained cryogels represent another paramount factor to take into account for improving the CO2 capture properties of amine-modified graphene oxide (GO)-based cryogels.

1. Introduction

The developments in nanotechnology and innovations in graphene research indicated graphene cryogels as a novel class of three-dimensional (3D) architecture with prodigious potential in varying applications including CO2 capture, energy storage or pollutant adsorption. The myriad of applications arise from the outstanding properties of these cryogels such as their low density, high specific area, mechanical strength and electrical conductivity [1,2,3,4].
The most effective approach to integrate graphene into such bulk materials is the self-assembly of graphene oxide (GO) sheets [5,6,7]. In this respect, one of the most used and preferred methods is the hydrothermal one, due to its low cost and easy implementation. By applying the simultaneous reduction and self-assembly of GO in the presence of amines and a subsequent freeze-drying procedure, aerogels could be synthesized to tackle the urgent environmental matter of highly selective and efficient CO2 capture [8,9,10,11,12,13,14].
The practical implementation of amine bulk sorbent materials generally requires a high surface area, high pore volume, high amine content, amine stability, etc. [15,16,17]. However, there are large discrepancies in the most affecting parameters towards tailoring the CO2 capture properties. For example, while the specific surface area of a polyethyleneimine-modified GO was reportedly low, its CO2 adsorption capacity reached values as high as 1.9 mmol g−1 at 298 K and 1 bar [18].
The approaches to improve the structure and adsorption properties of these macroscopic materials mainly refer to adjusting the properties of GO and to the control of the functionalization degree. Concerning GO, approaches such as narrowing of GO size distribution [19] by employing different mesh size of the parent graphite for oxidation or the control of the oxidation degree were studied [20]. Our group has previously reported on the effect of simple hydrothermal synthesis conditions on the gelation and formation, as well as the effect of GO synthesis conditions on the CO2 capture properties of ethylenediamine (EDA)-impregnated GO-based 3D monoliths [8,9]. Other studies considered the impregnation with amines such as EDA for obtaining 3D monoliths with improved conductivity and mechanical properties [21].
Concerning the functionalization of GO, the incorporation of nitrogen atoms is commonly applied in order to generate various active sites. The nitrogen content was reported to be greatly influenced by the choice of solvent [16,17], which is usually an organic one. Various reports indicated the N configuration has marked effect on CO2 conversion and uptake, selectivity and activity of doped material [8,9,22,23,24,25,26,27]. The type of N configuration could be tailored by suitable synthesis conditions. On the other hand, the residual oxygen functional groups in the graphene aerogels were shown to participate, as well, to the interaction with CO2, influencing their adsorption capacity and selectivity [28,29].
The preferred approaches to modify the GO surface with amine molecules include impregnation or covalent functionalization [30]. Despite its simplicity, time and cost efficiency, the physical immobilization of amines achieved by the simple wet impregnation route mostly rely on weak interactions between the amine and GO which could compromise the stability and lifetime of the sorbent. This approach could also affect the level of amine loading, which is known to be directly linked to the CO2 adsorption capacity [31]. As amine leaching is an aspect that needs to be considered for long-term viability as a CO2 capture agent [19,32,33], the synthesis conditions and operating ones, such as high temperatures must be carefully selected. A proposed approach to improve the loading and amine stability is to exploit the reactivity of the oxygen groups on GO to covalently functionalize the GO surface, similarly to other sorbents [20,34,35,36].
Therefore, control of the GO functionalization results essential for the design of aerogels with improved CO2 adsorption properties. It should be noted that the different protocols employed for GO preparation were reported to induce inhomogeneity between the studied samples. As the GO is decorated with different oxygen groups, varying simultaneous derivatization reactions, including epoxy ring opening and the amidation of carboxylic acids of GO, may be induced [15] and, as such, the efficiency evaluation of such reactions is a difficult task. Under these aspects, the carboxylation of GO was suggested as a suitable approach to obtain a precursor material with a similar oxidation degree for the functionalization [37]. Moreover, the amine grafting ability of the oxygen groups on GO was shown to be higher for carboxyl ones [38].
On the other hand, a high nitrogen content and desired nitrogen configuration could be achieved by adjusting the chain length and the number of functionalities in the amine employed for functionalization [16]. These parameters were shown to affect the CO2 uptake performance also in terms of suitable space between the functionalized GO layers for the reaction with the gas [39]. For example, EDA resulted in better uptake reaching 1.46 mmol g−1 than its counterparts functionalized with butanediamine and hexanediamine [40]. The type of amine is another important aspect as well, with the secondary types being indicated as a compromise between primary and tertiary ones in terms of sorbent regeneration [20].
In this work, a systematic study on the amine modification of GO cryogels is presented to enhance the understanding on the effect of functional groups in amine-modified graphene cryogels on their CO2 capture performance, namely residual oxygen functionalities and nitrogen bonding configuration. In general, the literature reports GO covalent modification with amines in harsh conditions of temperature or by complicated processes. Due to this aspect, a more simple approach is highly desired. In this work, the amidation reaction was achieved by simple carbodiimide chemistry as non-toxic alternative and aqueous solvent medium was considered in order to avoid auxiliary procedures, high costs and generation of large chemical wastes. To this purpose, GO was subjected to a carboxylation process and further modified with varying amines, namely ethylenediamine (EDA), diethylenetriamine (DETA), and triethylentetraamine (TETA) in order to introduce varying nitrogen content and configuration into the cryogels. A variation of GO with increased oxidation degree was tested in order to confirm the results on the effect of residual oxygen groups. The results show that the CO2 capture performance is greatly influenced by the N configuration and residual oxygen functional groups.

2. Materials and Methods

2.1. Materials

Aqueous slurry of GO nanosheets (3.73 mg mL−1) was provided by Graphenea (Donostia, Spain). The improved oxidation degree GO dispersion (1.5 mg mL−1) was supplied as well by Graphenea. Further information on the characteristics of the dispersions is available on the provider website. Chloroacetic acid (ClCH2COOH, ≥99.7%), hydrocloric acid (HCl, 37%), sodium hydroxide (NaOH, ≥98%), ethylenediamine (EDA, 99%), diethylenetriamine (DETA, 99%), triethylenetetramine (TETA, ≥97%), 1-Ethyl-3-(3-dimethylaminopropyl) carbodiimide (EDC, ≥98%) and N-hydroxysulfosuccinimide (S-NHS, ≥98%) reagent grade were purchased from Sigma Aldrich (Valencia, Spain) and used as received.

2.2. Carboxylation of GO

Prior to use, the GO aqueous dispersions (2 mg mL−1) were prepared from the aqueous slurry by ultrasonic bath treatment for 1 h. Carboxylated GO nanosheets (named GO-COOH hereafter) were obtained through reaction with chloroacetic acid under strong basic conditions, to convert oxygen containing groups of GO to carboxylic groups [41]. Briefly, 10 g of chloroacetic acid and 12.8 g of NaOH were added in a 100 ml of a 2 mg mL−1 GO dispersion and ultrasonicated in a water bath for 3 h at room temperature. The resulting solution was neutralized with HCl and then purified by repeated rinsing with distilled water and filtration. The product obtained was finally dried in an oven at 50 °C. The improved oxidation degree GO was subjected to the same carboxylation process and employed for further use.

2.3. Functionalization of GO-COOH with Amines

The schematics of the synthesis of the cryogels can be found in Figure S3 in the Supplementary Materials. For the amine functionalization of GO-COOH by carbodiimide chemistry, the EDC was employed to activate the COOH groups and further form the succinimide ester by reacting with S-NHS. First, 40 mg of GO-COOH was suspended in 20 mL of deionized water and ultrasonicated in a bath for 1 h. Then 40 mg of EDC and 40 mg of S-NHS were added to the above suspension and mixed. Next, the amine modifier was incorporated under magnetic stirring in a 1:5 wt. GO-COOH/modifier ratio and was left overnight with continuous stirring in ice bath. Then suspension was heated in an oven at 85 °C for 4 h and hydrogel was obtained. The same preparation procedure was used to functionalize the GO-COOH with EDA, DETA and TETA amine modifiers. Finally, the hydrogel was rinsed thoroughly with distilled water and ethanol.

2.4. Methods

Three-dimensional porous cryogels were obtained from their respective hydrogels by freeze-drying at −80 °C under a high vacuum at 0.05 mbar in a LyoQuest freeze-drier (Telstar, Madrid, Spain) with three-directional cooling with a rate of about 12 degrees min−1 followed by sublimation at 20 °C for 48 h at 0.015 mbar.
The apparent density of the cryogels considered their weight and volume. The cryogel volume was measured with a calliper with an accuracy of 0.05 mm (measurement error ±10%.).
The FTIR spectra were acquired on a FT/IR-6200 (Jasco, Madrid, Spain) spectrometer in the spectral window of 4000–400 cm−1 in attenuated total reflectance ATR mode, using a resolution of 4 cm−1 and 32 scans.
Thermogravimetric analysis (TGA) was performed on a TGA Q50 thermogravimetric analyzer (TA Instruments, Cerdanyola del Valles, Spain). Samples (5−10 mg) were weighed in titanium crucibles and heated under nitrogen atmosphere from 50 to 800 °C at a heating rate of 10 °C min−1.
X-ray photoelectron spectroscopy (XPS) measurements were performed on the powder samples using a spectrometer (VG-Microtech Multilab 3000) equipped with a monochromatic Al X-ray source (1486.6 eV) (Thermo Fisher Scientific Inc., Waltham, MA, USA). The calibration for the surface charging of the binding energy was performed with reference to the C1s peak binding energy. Curve deconvolution for atomic composition was performed using CASAXPS 2.3.17 software (Casa Software Ltd. Wilmslow, Cheshire, UK) by applying a Shirley baseline subtraction and a Gaussian–Lorentzian (70%:30%) peak shape.
The nitrogen and CO2 adsorption/desorption isotherms were performed on ASAP 2420 analyzer (Micromeritics, Norcross, GA, USA). The samples were outgassed under vacuum at 80 °C for 24 h before adsorption measurement. The Brunauer–Emmett–Teller (BET) approach was employed to obtain the specific surface areas of modified cryogels from the nitrogen adsorption isotherms measured at 77 K. The CO2 adsorption isotherms of the modified cryogels were recorded up to 1 bar at varying operating temperatures.

3. Results and Discussion

3.1. Synthesis and Characterization of GO-COOH

A carboxylation procedure was applied to the parent GO nanomaterial. This approach was applied to normalize the content of oxygen in the GO subjected to amine modification. Moreover, this process was indicated to improve aqueous dispersion stability with respect to GO [42,43], which is highly desirable for the solvo-thermal synthesis of 3D GO-based aerogel structures. Figure 1A shows the TGA curves recorded for GO-COOH and GO nanomaterials. GO starts its decomposition at about 170 °C and continues up to about 300 °C. A second pronounced weight loss occurs around 500 °C. GO-COOH on the other hand starts its decomposition earlier at about 120 °C and loses around 20% of its mass up to 170 °C. Then, a slight but gradual weight loss appears. Both materials show an initial weight loss associated with some structural water evaporation and thermal decomposition of more labile oxygen-containing functional groups [44,45,46]. In the case of GO-COOH, this decomposition starts at a lower temperature due to the higher density of carboxylic acid functional groups attached to its surface. The slight gradual weight loss above 200 °C is attributed to the degradation of more stable oxygen functionalities. Furthermore, at about 500 °C a significant weight loss is observed [47,48].
Figure 1B shows FTIR spectra of GO and GO-COOH, in both spectra the characteristic peaks associated with graphene oxide can be seen. The peak for C=O stretching in carboxylic acid appears at 1728 cm−1 and the C=C stretching in aromatic rings occurs at 1618 cm−1. Peaks related with C–O–C from epoxy and C–OH from carboxylic groups at 1032 and 1357 cm−1 are also showed. Finally, at 3148 cm−1 and 2780 cm−1 it can be observed a broad band from the stretching vibrations of O–H and C–H bonds [49,50]. From Figure 1B, we can see how the peaks associated with the carboxyl groups at 1728 and 1357 cm−1 show a clear increase in intensity. Furthermore, the peak related to the aromatic domains of GO at 1618 cm−1 also increases its relative intensity with respect to the rest. The carboxylation process appears to result in the partial removal of some oxygen groups and most probably their transformation. However, the GO-COOH exhibited good dispersion stability, in agreement with other reports [42,43].
XPS analysis was further employed to determine the species modified by the carboxylation process. The evolution of the survey and C 1s spectra of GO with carboxylation are presented in Figure 2. The fitting curves employed for the deconvolution of the C 1s peak have a binding energy located at about 284.6, 286 and 288.6 eV and are assigned to C=C/C–C, C–OH/C–O–C and O=C–O, respectively [51]. As can be observed from the corresponding contributions of the deconvoluted C 1s peak, the carboxylic carbon contribution increased upon carboxylation of GO from 7.5 at% to 13.1 at% while some oxygen groups got lost, which resulted in about a 23% increase in C/O ratio, from 2.1 to 2.6 for the GO and GO-COOH, respectively. Thus, the conversion of oxygen groups into others is suggested.

3.2. Formation of Amine-Modified GO-COOH Cryogels

The effect of functionalization with amines of the GO-COOH was further studied on the volume and density of the modified cryogels and it is depicted in Figure 3. It can be seen that both the volume and the density increase with the molecular mass of the amine incorporated in the cryogel, showing the trend EDA < DETA < TETA for the two properties studied. Digital images of the obtained cryogels are available in Figure S4 in the Supplementary Materials.
To explain the obtained trend, two effects associated to the amines must be taken into account. On the one hand, there is the thermal and chemical reduction induced by the amine [14,52] that leads to GO-COOH stacking. On the other hand, there is the effect of the amine molecules introduced between the GO-COOH sheets, which prevent their stacking by acting like spacers [53,54,55]. In this sense, EDA offers the best reducing capacity and, at the same time, is the smallest molecule with the lowest weight.

3.3. Characterization of Amine-Modified GO-COOH Cryogels

The analysis of the effect of the molecular structure of the amines on the morphology of the modified cryogels is further depicted in Figure 4. The SEM measurements indicated that the homogeneity of the distributed sheets decreased, while their stacking increased with the amine functionalities of the modifier, which suggest an improved porosity in the EDA-modified GO-COOH cryogels, while the DETA and TETA-modified ones show enlarged, irregular pores.
Figure 5 shows the TGA curves of amine modified GO-COOH-based cryogels. It can be seen that the amine-functionalized GO-COOH displays a similar profile to that of pristine GO-COOH, while also displaying an improved thermal stability. The amine-functionalized cryogels show a shift towards higher temperatures in the main weight loss compared to pristine GO-COOH, starting decomposition at about 200 °C and going up to 400 °C. However, above 400 °C, only EDA-modified cryogel exhibits enhanced thermal stability, while DETA and TETA-modified GO-COOH show less stability than pristine GO-COOH. The weight loss around 200 °C can be attributed to the degradation of the less stable oxygenated functional groups, as well as to the amine bond [41,42]. Above this temperature, the weight loss is very small and it can be associated with the more stable functional oxygen group decomposition [47,48]. The cryogel functionalized with EDA presents a more improved stability than the rest, indicating a greater number of molecules linked by covalent bonding to the carboxyl groups, forming amide bonds [56]. It was shown that EDA acts as a more efficient reducer for the oxygen functionalities of GO-COOH [49,50]. DETA- and TETA-modified cryogels show a similar and lower thermal stability.
The XPS analysis of the modified GO-COOH-based cryogels confirmed the successful functionalization with the amines. Figure 6 depicts the C 1s and N 1s spectra for the GO-COOH upon modification with EDA, DETA and TETA, respectively. The results indicated higher atomic C content and lower O atomic content of the cryogels, thus resulting in increased C/O ratio, reaching the values 3.6, 3.8 and 5.1 for the cryogel modified with EDA, DETA and TETA, respectively. This could be explained by the partial reduction in GO-COOH upon modification with the amines [15] and the increased functionalization degree with the modifier, as the amine functional groups increase. The deconvolution of the C 1s peak presented in Figure 6A indicated that the carbon atoms are present in the form of aromatic rings, with the binding energy of the peak located at 284.6 eV, C–OH/C–O–C compared to the binding energy located at about 286 eV, which is also attributed to the C–N peak due to functionalization, C=O with a binding energy at 287.8 eV and O=C–O with a binding energy located at about 288.6 eV [51,57]. The carboxyl content in the amine-modified cryogels decreased with respect to the GO-COOH material, which is attributed to the functionalization with amines. The EDA-modified cryogel appears to exhibit a peak assigned to C=O which is absent in the other cryogels.
On the other hand, the degree of N-doping and nitrogen configuration were studied by XPS, as depicted in Figure 6B,C. The results showed that both total nitrogen content and configurations were strongly dependent on the modifier’s molecular structure. The total N content increased with molecular structure of the modifier, in agreement with the increase in amine functionalities. The N content evaluated by EDAX measurements showed a similar trend, namely it decreased in the order of EDA < DETA < TETA, namely 21.7 < 23.1 < 28.1 (spectra available in the Supplementary Materials).
Moreover, the C/(N+O) ratio increased to 2.5 < 2.7 < 2.9 for the GO-COOH cryogels modified with EDA<DETA<TETA, respectively. It is suggested that, simultaneously with the aqueous functionalization with the amines, the functionalities such as epoxides, hydroxyls and carbonyls on GO-COOH transform into carboxylic acids, which further suffer decarboxylation; thus, a partial reduction takes place in the applied temperature conditions [58].
The N 1s XPS peak was deconvoluted in varying bonding configurations, as shown in Figure 6B,C depicting the evolution of N configuration and their contributions with amine type. The deconvolution of N 1s peak generally exhibits 5 peaks, namely Na or pyridine-N (398.5 eV), Nb or nitrile (399.5 eV), Nc or pyrrolic–N (400.6 eV), Nd or graphitic–N (401.5 eV) and Ne or pyrridinic oxide–N (403 eV) [59,60,61,62,63,64,65,66].
The modification with EDA was observed to result in a dominant contribution from pyrrolic-N followed by the graphitic one, while the DETA and TETA-modified GO-COOH cryogels exhibited much lower contributions from such configurations. Except for the nitrile contribution, the other ones in the N configuration decreased in the order of pyrrolic–N > graphitic–N > N–oxide and in the order EDA > DETA > TETA in the modified GO-COOH cryogels. The lower pyrrolic and graphitic N contributions are most probably induced by the occurrence of N–H bonds, which are expected given the structure of the corresponding amines that have increased amine functionalities with respect to EDA [67,68].

3.4. CO2 Adsorption Properties of Amine Modified GO-COOH Cryogels

The cryogels modified with amines by aqueous carbodiimide chemistry were further employed for CO2 capture measurements. For exemplification, the effect of the molecular structure of the modifier on the CO2 uptake at 298 K is depicted in Figure 7A. As can be observed, the modified cryogel performs the best when its molecular structure contains less amine functionalities, that is, in the order of EDA > DETA > TETA, as in other reports [69]. Moreover, as Figure 7B shows, the modified cryogels exhibited an increase in the CO2 capture properties with operating temperature, from 273 K to 298 K. The increase in CO2 adsorption with the increase in operating temperature from 273 K to 298 K, irrespective of the amine type, could be attributed to enhanced gas molecule mobility, improved pore filling and the activation of active sites in the amine-modified cryogels with the temperature [9].
The CO2 uptake evolution with the amine functionalities could be attributed to various factors. On one hand, the homogeneity properties of the cryogel obtained a lower amine group content as a consequence of the improved dispersion and interaction with oxygen functional groups decorating the GO-COOH sheets, as indicated by SEM results. Many reports linked the active surface area to the improved the adsorption performance [70,71,72]. The surface area obtained from the nitrogen adsorption isotherms at 77 K by the BET theory are presented in Table 1. As can be seen, the surface area increased with the increase in amine functionalities. One may note that the apparent BET surface area values of the cryogels are low and they can be attributed to the low temperature degassing that is used in order to avoid a reduction in GO [73]. Therefore, the BET values could not be directly related to the adsorption properties. Instead, the surface area-normalized uptake (calculated from adsorbed amount at 1bar, 298K divided to BET surface) may be employed to describe the extent of CO2 uptake [9,74,75]. It is observed that the surface area utilization factor increases with lower amine functional group content in the modifier, reaching an eight-fold increase for EDA compared to TETA.
The N content is known to influence the adsorption properties, not only in terms of configuration type, but also as contribution values to the total N content [76]. In this respect, the pyrrolic or pyridinic-N configurations were identified as the most important in improving the CO2 adsorption, based on the increase in the basicity character of the aerogel surface due to their presence [77]. However, there are contradictory theories in this regard, pointing either to pyrrolic–N [78] or to pyridinic-N [65] as the most favorable configuration. Moreover, CO2 adsorption was attributed to take place not only by electrostatic interaction (due to pyrrolic–N and pyridinic–N) but also by dispersion interaction (due to graphitic–N) [79]. In our work, it is shown that the introduction of N atoms into the GO-COOH surface in terms of predominant pyrrolic and graphitic–N greatly enhances the CO2 adsorption, with the uptake increasing with their contribution, as indicated by XPS results, showing the evolution as pyrrolic–N > graphitic–N > N–oxide with the increase in amine functionalities in the molecular structure of the modifier, namely EDA > DETA > TETA. Moreover, the obtained results show that the CO2 capture performance decreased with the increase in the reduction degree of the modified cryogel expressed not only as C/O, but also as the C/(N+O) ratio, suggesting the marked influence not only of N content, but also of the residual oxygen functionalities on improving the adsorption properties, in line with other reports on the effect of the extent of the reduction degree on improving the adsorption properties [28,29].
In order to obtain more insight into the effect of oxygen functionalities in improving the adsorption properties, the oxidation conditions of GO were modified so as to introduce more oxygen functionalities. In this respect, the same graphite (previously expanded) was employed as it enhances the accessibility of the oxidizing agents. Table 2 indicates the C/O ratio decreased upon using an expanded graphite, as the oxygen content improved. Although the –COOH% of the higher oxidation degree GO is similar to the previous GO, there is a higher contribution from C–OH/C–O–C that could be successfully exploited to increase the –COOH content upon carboxylation of the new material. As a matter of fact, the carboxylation of the higher oxidation degree GO introduced a 2-fold –COOH contribution with respect to GO-COOH as well as a higher dispersion in the contributions of C–OH/C–O–C and C=O. However, –COOH contribution diminished by functionalization with EDA. A reduction took place, as previously shown, which resulted in a C/O ratio higher than its EDA-modified GO-COOH counterpart. This result could be attributed to the increased functionalization degree, as well as lability of the other oxygen functionalities that underwent transformation and decarboxylation.
Figure 8A depicts the evolution of C 1s spectra for the higher oxidation degree GO and its corresponding carboxylated derivative. The deconvoluted C 1s peak shows similar peaks with previous GO-derivatives, namely the C=C/C–C, the C–OH/C–O–C (286.3 eV, which incorporates contribution from C–N induced by functionalization), C=O (287.6 eV), O=C–O (288.5–288.8 eV) and the π-π * shake-up satellite peak (291.5 eV, due to the sp2-hybrized C atoms) [58,80,81]. The N 1s spectra of the EDA-modified cryogel obtained from the higher oxidation degree GO is further depicted in Figure 8B. The deconvolution of the N 1s peak indicates the domination of nitriles, as the number of amine groups increased due to enhanced functionalization degree. The occurrence of the nitrile configuration lowers the contributions from pyrrolic and graphitic N to the total N content in comparison to the corresponding counterpart, namely EDA-modified GO-COOH cryogel. The decrease in the pyrrolic and graphitic-N contributions is expected to result in lower CO2 capture.
The CO2 uptake at 298 K, 1 bar for the EDA-modified new cryogel was obtained as 0.8 mmol g−1, as depicted in Figure 9. The performance is lower with respect to the corresponding GO-COOH counterpart. The evolution of the CO2 adsorption could be attributed to the lower oxygen functionalities, and decreased contributions from pyrrolic and graphitic-N to the total N content.

4. Conclusions

Varying amine functionalization by aqueous carbodiimide chemistry was employed to modify and introduce N content into the structure of carboxylated GO cryogels in order to study the effect of N bonding configuration on the properties and CO2 capture performance. The FTIR, TGA and XPS results indicated an increased carboxylic functionality content in the GO-COOH, as the other oxygen groups suffered transformation and partial removal. The functionalization with varying modifiers containing an increased number of amine groups resulted in the further removal of oxygen groups, simultaneous with the introduction of increasing N total content. The XPS analysis revealed a marked influence of the residual oxygen groups and the pyrrolic and graphitic–N bonding configurations of the modified cryogels on their CO2 uptake—that is, the best performance was obtained by the cryogel with the lowest C/O and C/(N+O) ratios and highest contribution to total N content from the pyrrolic-N as the dominant configuration followed by graphitic-N, namely the EDA-modified GO-COOH based cryogel. The active surface utilization factor confirmed the decrease in CO2 uptake performance in the order of EDA > DETA > TETA. The results obtained in this work show promising alternatives in addressing the task of improving the CO2 capture performance of novel amine-modified graphene aerogel.

Supplementary Materials

Supplementary data are available online at https://www.mdpi.com/2079-4991/10/8/1446/s1.

Author Contributions

Conceptualization, A.C.C., A.I.P. and E.G.; methodology, A.C.C., A.I.P. and E.G.; investigation, A.C.C., A.I.P., A.B., B.A. and E.G.; writing—original draft preparation, A.I.P., A.B.; writing—review and editing, A.I.P., A.C.C. and E.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the European Commission through the contract no. H2020-LCE-24-2016-727619.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, J.; Li, J.; Meng, H.; Xie, S.; Zhang, B.; Li, L.; Ma, H.; Zhang, J.; Yu, M. Ultra-light, compressible and fire-resistant graphene aerogel as a highly efficient and recyclable absorbent for organic liquids. J. Mater. Chem. A 2014, 2, 2934–2941. [Google Scholar] [CrossRef]
  2. Nardecchia, S.; Carriazo, D.; Ferrer, M.L.; Gutiérrez, M.C.; Del Monte, F. Three dimensional macroporous architectures and aerogels built of carbon nanotubes and/or graphene: Synthesis and applications. Chem. Soc. Rev. 2013, 42, 794–830. [Google Scholar] [CrossRef] [PubMed]
  3. Cong, H.-P.; Ren, X.-C.; Wang, P.; Yu, S.-H. Macroscopic Multifunctional Graphene-Based Hydrogels and Aerogels by a Metal Ion Induced Self-Assembly Process. ACS Nano 2012, 6, 2693–2703. [Google Scholar] [CrossRef] [PubMed]
  4. Sui, Z.-Y.; Bao-Hang, H. Effect of surface chemistry and textural properties on carbon dioxide uptake in hydrothermally reduced graphene oxide. Carbon 2015, 82, 590–598. [Google Scholar] [CrossRef]
  5. Chen, W.; Yan, L. In situ self-assembly of mild chemical reduction graphene for three-dimensional architectures. Nanoscale 2011, 3, 3132–3137. [Google Scholar] [CrossRef]
  6. Ai, W.; Du, Z.-Z.; Liu, J.-Q.; Zhao, F.; Yi, M.-D.; Xie, L.-H.; Shi, N.-D.; Ma, Y.-W.; Qian, Y.; Fan, Q.-L.; et al. Formation of graphene oxide gel via the π-stacked supramolecular self-assembly. RSC Adv. 2012, 2, 12204. [Google Scholar] [CrossRef]
  7. Xeng, K.-X.; Xu, Y.-X.; Li, C.; Shi, G.-Q. High-performance self-assembled graphene hydrogels prepared by chemical reduction of graphene oxide. New Carbon Mater. 2011, 26, 9–15. [Google Scholar]
  8. Pruna, A.-I.; Cárcel, A.-C.; Benedito, A.; Giménez, E. The Effect of Solvothermal Conditions on the Properties of Three-Dimensional N-Doped Graphene Aerogels. Nanomaterials 2019, 9, 350. [Google Scholar] [CrossRef] [Green Version]
  9. Pruna, A.; Cárcel, A.C.; Benedito, A.; Giménez, E. Effect of synthesis conditions on CO2 capture of ethylenediamine-modified graphene aerogels. Appl. Surf. Sci. 2019, 487, 228–235. [Google Scholar] [CrossRef]
  10. Wang, L.; Park, Y.; Cui, P.; Bak, S.; Lee, H.; Lee, S.-M.; Lee, H. Facile preparation of an n-type reduced graphene oxide field effect transistor at room temperature. Chem. Commun. 2014, 50, 1224–1226. [Google Scholar] [CrossRef]
  11. Lee, J.-U.; Lee, W.; Yi, J.-W.; Yoon, S.-S.; Lee, S.-S.; Jung, B.-M.; Kim, B.-S.; Byun, J.-H. Preparation of highly stacked graphene papers via site-selective functionalization of graphene oxide. J. Mater. Chem. A 2013, 1, 12893. [Google Scholar] [CrossRef]
  12. Yu, D.-X.; Wang, A.-J.; He, L.-L.; Yuan, J.; Wu, L.; Chen, J.-R.; Feng, J.-J. Facile synthesis of uniform AuPd@Pd nanocrystals supported on three-dimensional porous N-doped reduced graphene oxide hydrogels as highly active catalyst for methanol oxidation reaction. Electrochim. Acta 2016, 213, 565–573. [Google Scholar] [CrossRef]
  13. Shu, D.; Feng, F.; Han, H.; Ma, Z. Prominent adsorption performance of amino-functionalized ultra-lightgraphene aerogel for methyl orange and amaranth. Chem. Eng. J. 2017, 324, 1–9. [Google Scholar] [CrossRef]
  14. Kim, N.H.; Kuila, T.; Lee, J.H. Simultaneous reduction, functionalization and stitching of graphene oxide with ethylenediamine for composites application. J. Mater. Chem. A 2013, 1, 1349–1358. [Google Scholar] [CrossRef]
  15. Yanga, A.; Li, J.; Zhang, C.; Zhanga, W.; Ma, N. One-step amine modification of graphene oxide to get a green trifunctional metal-free catalyst. Appl. Surf. Sci. 2015, 346, 443–450. [Google Scholar] [CrossRef]
  16. Dongil, A.B.; Bachiller-Baeza, B.; Rodríguez-Ramos, I.; Guerrero-Ruiz, A. Exploring the insertion of ethylenediamine and bis (3-aminopropyl)amine into graphite oxide. Nanosci. Methods 2014, 3, 28–39. [Google Scholar] [CrossRef] [Green Version]
  17. Herrera-Alonso, M.; Abdala, A.A.; McAllister, M.J.; Aksay, I.A.; Prud’homme, R.K. Intercalation and stitching of graphite oxide with diaminoalkanes. Langmuir 2007, 23, 10644–10649. [Google Scholar] [CrossRef] [Green Version]
  18. Shin, G.-J.; Rhee, K.-Y.; Park, S.-J. Improvement of CO2 capture by graphite oxide in presence of polyethylenimine. Int. J. Hydrog. Energy 2016, 41, 14351–14359. [Google Scholar] [CrossRef]
  19. Chen, J.; Li, Y.; Huang, L.; Jia, N.; Li, C.; Shi, G. Size fractionation of Graphene Oxide Sheets via Filtration through Track-Etched Membranes. Adv. Mater. 2015, 27, 1–7. [Google Scholar] [CrossRef]
  20. Wang, J.; Huang, L.; Yang, R.; Zhang, Z.; Wu, J.; Gao, Y.; Wang, Q.; O’Hare, D.; Zhong, Z. Recent advances in solid sorbents for CO2 capture and new development trends. Energy Environ. Sci. 2014, 7, 3478–3518. [Google Scholar] [CrossRef]
  21. Hu, H.; Zhao, Z.; Wan, W.; Gogotsi, Y.; Qiu, J. Ultralight and Highly Compressible Graphene Aerogels. Adv. Mater. 2013, 25, 2219–2223. [Google Scholar] [CrossRef] [PubMed]
  22. Chai, G.-L.; Guo, Z.-X. Highly effective sites and selectivity of nitrogen-doped graphene/CNT catalysts for CO2 electrochemical reduction. Chem. Sci. 2016, 7, 1268–1275. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Fiorentin, M.-R.; Gaspari, R.; Quaglio, M.; Massaglia, G.; Saracco, G. Nitrogen doping and CO2 adsorption on graphene: A thermodynamical study. Phys. Rev. B 2018, 97, 155428. [Google Scholar] [CrossRef]
  24. Xing, T.; Zheng, Y.; Li, L.-H.; Cowie, B.-C.-C.; Gunzelmann, D.; Qiao, S.-Z.; Huang, S.; Chen, Y. Observation of active sites for oxygen reduction reaction on nitrogen-doped multilayer graphene. ACS Nano 2014, 8, 6856–6862. [Google Scholar] [CrossRef] [PubMed]
  25. Su, P.; Xiao, H.; Zhao, J.; Yao, Y.; Shao, Z.; Li, C.; Yang, Q. Nitrogen-doped carbon nanotubes derived from Zn–Fe-ZIF nanospheres and their application as efficient oxygen reduction electrocatalysts with in situ generated iron species. Chem. Sci. 2013, 4, 2941. [Google Scholar] [CrossRef]
  26. Lee, J.-W.; Ko, J.-M.; Kim, J.-D. Hydrothermal preparation of nitrogen-doped graphene sheets via hexamethylenetetramine for application as supercapacitor electrodes. Electrochim. Acta 2012, 85, 459–466. [Google Scholar] [CrossRef]
  27. Wu, J.; Yadav, R.-M.; Liu, M.; Sharma, P.-P.; Tiwary, C.-S.; Ma, L.; Zou, X.; Zhou, X.-D.; Yakobson, B.-I.; Lou, J.; et al. Achieving highly efficient, selective, and stable CO2 reduction on nitrogen-doped carbon nanotubes. ACS Nano 2015, 9, 5364–53718. [Google Scholar] [CrossRef]
  28. Plaza, M.G.; Thurecht, K.J.; Pevida, C.; Rubiera, F.; Drage, T.C. Influence of oxidation upon the CO2 capture performance of a phenolic-resin-derived carbon. Fuel Process.Technol. 2013, 110, 53–60. [Google Scholar] [CrossRef] [Green Version]
  29. Liu, S.; Peng, W.; Sun, H.; Wang, S. Physical and chemical activation of reduced graphene oxide for enhanced adsorption and catalytic oxidation. Nanoscale 2014, 6, 766–771. [Google Scholar] [CrossRef]
  30. Li, L.; Song, S.; Maurer, L.; Lin, Z.; Lian, G.; Tuan, C.-C.; Moon, K.-S.; Wong, C.-P. Molecular engineering of aromatic amine spacers for high-performance graphene-based supercapacitors. Nano Energy 2016, 21, 276–294. [Google Scholar] [CrossRef]
  31. Sayari, A.; Heydari-Gorji, A.; Yang, Y. CO2 -induced degradation of amine-containing adsorbents: Reaction products and pathways. J. Am. Chem. Soc. 2012, 134, 13834–13842. [Google Scholar] [CrossRef] [PubMed]
  32. Wang, M.; Wang, Z.; Wang, J.; Zhu, Y.; Wang, S. An antioxidative composite membrane with the carboxylate group as a fixed carrier for CO2 separation from flue gas. Energy Environ. Sci. 2011, 4, 444. [Google Scholar] [CrossRef]
  33. Young, P.-D.; Notestein, J.-M. The Role of Amine Surface Density in Carbon Dioxide Adsorption on Functionalized Mixed Oxide Surfaces. ChemSusChem 2011, 4, 1671–1678. [Google Scholar] [CrossRef]
  34. Samanta, A.; Zhao, A.; Shimizu, G.-K.-H.; Sarkar, P.; Gupta, R. Post-combustion CO2 capture using solid sorbents: A review. Ind. Eng. Chem. Res. 2012, 51, 1438–1463. [Google Scholar] [CrossRef]
  35. Georgakilas, V.; Otyepka, M.; Bourlinos, A.-B.; Chandra, V.; Kim, M.; Kemp, C.; Hobza, P.; Zboril, R.; Kim, K.-S. Functionalization of graphene: Covalent and non-covalent approaches, derivatives and applications. Chem. Rev. 2012, 112, 6156–6214. [Google Scholar] [CrossRef] [PubMed]
  36. Ahmed, M.-S.; Kim, Y.-B. 3D graphene preparation via covalent amide functionalization for efficient metal-free electrocatalysis in oxygen reduction. Sci. Rep. 2017, 7, 43279. [Google Scholar] [CrossRef] [Green Version]
  37. Xie, B.; Chen, Y.; Yu, M.; Shen, X.; Lei, H.; Xie, T.; Zhang, Y.; Wu, Y. Carboxyl-Assisted Synthesis of Nitrogen-Doped Graphene Sheets for Supercapacitor Applications. Nanoscale Res. Lett. 2015, 10, 332. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Wen, Z.; Chen, W.; Li, Y.; Xu, J. A Theoretical Mechanism Study on the Ethylenediamine Grafting on Graphene Oxides for CO2 Capture. Arab. J. Sci. Eng. 2018, 43, 5949–5955. [Google Scholar] [CrossRef]
  39. Xu, J.; Xing, W.; Zhao, L.; Guo, F.; Wu, X.; Xu, W.; Yan, Z. The CO2 Storage Capacity of the Intercalated Diaminoalkane Graphene Oxides: A Combination of Experimental and Simulation Studies. Nanoscale Res. Lett. 2015, 10, 318. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Cai, J.; Chen, J.; Zeng, P.; Pang, Z.; Kong, X. Molecular Mechanisms of CO2 Adsorption in Diamine-Cross-Linked Graphene Oxide. Chem. Mater. 2019, 31, 3729–3735. [Google Scholar] [CrossRef]
  41. Ciobotaru, C.C.; Damian, C.M.; Matei, E.; Ionu, H. Covalent functionalization of graphene oxide with cisplatin. Mater. Plast. 2014, 51, 75–80. [Google Scholar]
  42. Imani, R.; Emami, S.-H.; Faghihi, S. Nano-graphene oxide carboxylation for efficient bioconjugation applications: A quantitative optimization approach. J. Nanopart Res. 2015, 17, 88. [Google Scholar] [CrossRef]
  43. Yuan, Y.; Gao, X.; Wei, Y.; Wang, X.; Wang, J.; Zhang, Y.; Gao, C. Enhanced desalination performance of carboxyl functionalized graphene oxide nanofiltration membranes. Desalination 2017, 405, 29–39. [Google Scholar] [CrossRef]
  44. Mallakpour, S.; Abdolmaleki, A.; Borandeh, S. Covalently functionalized graphene sheets with biocompatible natural aminoacids. Appl. Surf. Sci. 2014, 307, 533–542. [Google Scholar] [CrossRef]
  45. Fang, M.; Wang, K.G.; Lu, H.B.; Yang, Y.L.; Nutt, S. Covalent polymer functionalization of graphene nano-sheets and mechanical properties of composites. J. Mater. Chem. 2009, 19, 7098. [Google Scholar] [CrossRef]
  46. Fang, M.; Wang, K.G.; Lu, H.B.; Yang, Y.L.; Nutt, S. Single-layer graphene nano-sheets with controlled grafting of polymer chains. J. Mater. Chem. 2010, 20, 1982. [Google Scholar] [CrossRef]
  47. Shen, J.; Li, T.; Shi, M.; Li, N.; Ye, M. Polyelectrolyte-assisted one-step hydrothermal synthesis of Ag-reduced graphene oxide composite and its antibacterial properties. Mater. Sci. Eng. C 2012, 32, 2042–2047. [Google Scholar] [CrossRef]
  48. Shen, J.; Hu, Y.; Shi, M.; Lu, X.; Qin, C.; Li, C.; Ye, M. Fast and Facile Preparation of Graphene Oxide and Reduced Graphene Oxide Nanoplatelets. Chem. Mater. 2009, 21, 3514–3520. [Google Scholar] [CrossRef]
  49. Verma, S.; Dutta, R.K. A facile method of synthesizing ammonia modified graphene oxide for efficient removal of uranyl ions from aqueous medium. RSC Adv. 2015, 5, 77192–77203. [Google Scholar] [CrossRef]
  50. Song, B.; Li, L.; Lin, Z.; Wu, Z.K.; Moon, K.S.; Wong, C.P. Water-dispersible graphene/polyaniline composites for flexible micro-supercapacitors with high energy densities. Nano Energy 2015, 16, 470–478. [Google Scholar] [CrossRef]
  51. Shao, L.; Bai, Y.; Huang, X.; Gao, Z.; Meng, L.; Huang, Y.; Ma, J. Multi-walled carbon nanotubes (MWCNTs) functionalized with amino groups by reacting with supercritical ammonia fluids. J. Mater. Chem. Phys. 2009, 116, 323–326. [Google Scholar] [CrossRef]
  52. Vrettos, K.; Karouta, N.; Loginos, P.; Donthula, S.; Gournis, D.; Georgakilas, C. The role of diamines in the formation of graphene aerogels. Front. Mater. 2018, 5, 20. [Google Scholar] [CrossRef]
  53. Song, B.; Zhao, J.; Wang, M.; Mullavey, J.; Zhu, Y.; Geng, Z.; Chen, D.; Ding, Y.; Moon, K.S.; Liu, M.; et al. Systematic study on structural and electronic properties of diamine/triamine functionalized graphene networks for supercapacitor application. Nano Energy 2017, 31, 183–193. [Google Scholar] [CrossRef]
  54. Mungse, H.P.; Singh, R.; Sugimura, H.; Kumar, N.; Khatri, O.P. Molecular pillar supported graphene oxide framework: Conformational heterogeneity and tunable d-spacing. Phys. Chem. Chem. Phys. 2015, 17, 20822–20829. [Google Scholar] [CrossRef] [PubMed]
  55. Chen, P.; Yang, J.J.; Li, S.S.; Wang, Z.; Xiao, T.Y.; Qian, Y.H.; Yu, S.H. Hydrothermal synthesis of macroscopic nitrogen-doped graphene hydrogels for ultrafast supercapacitor. Nano Energy 2013, 2, 249–256. [Google Scholar] [CrossRef]
  56. Arrigo, R.; Haevecker, M.; Wrabetz, S.; Blume, R.; Lerch, M.; McGregor, J.; Parrott, E.P.J.; Zeitler, J.A.; Gladden, L.F.; Knop-Gericke, A.; et al. Tuning the acid/base properties of nanocarbons by functionalization via amination. J. Am. Chem. Soc. 2010, 132, 9616–9630. [Google Scholar] [CrossRef]
  57. Gautam, J.; Thanh, T.-D.; Maiti, K.; Kim, N.-H.; Lee, J.-H. Highly efficient electrocatalyst of N-doped graphene-encapsulated cobalt-iron carbides towards oxygen reduction reaction. Carbon 2018, 137, 358–367. [Google Scholar] [CrossRef]
  58. Hu, K.; Xie, X.; Szkopek, T.; Cerruti, M. Understanding Hydrothermally Reduced Graphene Oxide Hydrogels: From Reaction Products to Hydrogel Properties. Chem. Mater. 2016, 28, 1756–1768. [Google Scholar] [CrossRef]
  59. Chen, C.M.; Zhang, Q.; Zhao, X.C.; Zhang, B.; Kong, Q.Q.; Yang, M.G.; Yang, Q.H.; Wang, M.Z.; Yang, Y.G.; Schlogl, R.; et al. Hierarchically aminated graphene honeycombs for electrochemical capacitive energy storage. J. Mater. Chem. 2012, 22, 14076–14084. [Google Scholar] [CrossRef] [Green Version]
  60. Zhang, C.; Hao, R.; Liao, H.; Hou, Y. Synthesis of amino-functionalized graphene as metal-free catalyst and exploration of the roles of various nitrogen states in oxygen reduction reaction. Nano Energy 2013, 2, 88–97. [Google Scholar] [CrossRef]
  61. Jiang, Z.; Jiang, Z.J.; Tian, X.; Chen, W. Amine-functionalized holey graphene as a highly active metal-free catalyst for the oxygen reduction reaction. J. Mater. Chem. A 2014, 2, 441–450. [Google Scholar] [CrossRef]
  62. Wang, B.; Luo, B.; Liang, M.; Wang, A.; Wang, J.; Fang, Y.; Chang, Y.; Zhi, L. Chemical amination of graphene oxides and their extraordinary properties in the detection of lead ions. Nanoscale 2011, 3, 5059–5066. [Google Scholar] [CrossRef] [PubMed]
  63. Zhang, F.; Jiang, H.; Li, X.; Wu, X.; Li, H. Amine-Functionalized GO as an Active and Reusable Acid–Base Bifunctional Catalyst for One-Pot Cascade Reactions. ACS Catal. 2014, 4, 394–401. [Google Scholar] [CrossRef]
  64. Yuan, C.; Chen, W.; Yan, L. Amino-grafted graphene as a stable and metal-free solid basic catalyst. J. Mater. Chem. 2012, 22, 7456–7460. [Google Scholar] [CrossRef]
  65. Tetsuka, H.; Asahi, R.; Nagoya, A.; Okamoto, K.; Tajima, I.; Ohta, R.; Okamoto, A. Optically tunable amino-functionalized graphene quantum dots. Adv. Mater. 2012, 24, 5333–5338. [Google Scholar] [CrossRef] [PubMed]
  66. Kumar, G.S.; Roy, R.; Sen, D.; Ghorai, U.K.; Thapa, R.; Mazumder, N.; Saha, S.; Chattopadhyay, K.K. Amino-functionalized graphene quantum dots: Origin of tunable heterogeneous photoluminescence. Nanoscale 2014, 6, 3384–3391. [Google Scholar] [CrossRef]
  67. Navaee, A.; Salimi, A. Efficient amine functionalization of graphene oxide through the Bucherer reaction: An extraordinary metal-free electrocatalyst for the oxygen reduction reaction. RSC Adv. 2015, 5, 59874–59880. [Google Scholar] [CrossRef]
  68. Caliman, C.C.; Mesquita, A.F.; Cipriano, D.F.; Freitas, J.C.C.; Cotta, A.A.C.; Macedo, W.A.A.; Porto, A.O. One-pot synthesis of amine-functionalized graphene oxide by microwave-assisted reactions: An outstanding alternative for supporting materials in supercapacitors. RSC Adv. 2018, 8, 6136–6145. [Google Scholar] [CrossRef] [Green Version]
  69. Zhao, Y.; Dinga, H.; Zhong, Q. Preparation and characterization of aminated graphite oxide for CO2 capture. Appl. Surf. Sci. 2012, 258, 4301–4307. [Google Scholar] [CrossRef]
  70. Wang, J.; Chen, H.; Liu, X.; Qiao, W.; Long, D.; Ling, L. Carbon dioxide capture using polyethylenimine-loaded mesoporous carbons. J. Environ. Sci. 2013, 25, 124. [Google Scholar] [CrossRef]
  71. Chabot, V.; Higgins, D.; Yu, A.; Xiao, X.; Chen, Z.; Zhang, J. A review of graphene and graphene oxide sponge: Material synthesis and applications to energy and the environment. Energy Environ. Sci. 2014, 7, 1564–1596. [Google Scholar] [CrossRef]
  72. Furukawa, H.; Cordova, K.E.; O’Keeffe, M.; Yaghi, O.M. The Chemistry and Applications of Metal-Organic Frameworks. Science 2013, 341, 974. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Rouquerol, J.; Llewellyn, P.; Navarrete, R.; Rouquerol, F.; Denoyel, R. Assessing microporosity by immersion microcalorimetry into liquid nitrogen or liquid argon. Stud. Surf. Sci. Catal. 2002, 144, 171–176. [Google Scholar]
  74. Choi, S.; Drese, J.H.; Jones, C.W. Adsorbent materials for carbon dioxide capture from large anthropogenic point sources. ChemSusChem 2009, 2, 796–854. [Google Scholar] [CrossRef]
  75. Knöfel, C.; Martin, C.; Hornebecq, V.; Llewellyn, P.L. Study of Carbon Dioxide Adsorption on Mesoporous Aminopropylsilane-Functionalized Silica and Titania Combining Microcalorimetry and in Situ Infrared Spectroscopy. J. Phys. Chem. C 2009, 113, 21726–21734. [Google Scholar] [CrossRef]
  76. Bacsik, Z.; Atluri, R.; Garcia-Bennett, A.E.; Hedin, N. Temperature-Induced Uptake of CO2 and Formation of Carbamates in Mesocaged Silica Modified with n-Propylamines. Langmuir 2010, 26, 10013–10024. [Google Scholar] [CrossRef]
  77. Hao, G.-P.; Li, W.-C.; Qian, D.; Lu, A.-H. Rapid synthesis of nitrogen-doped porous carbon monolith for CO2 capture. Adv. Mater. 2010, 22, 853–857. [Google Scholar] [CrossRef]
  78. Sivadas, D.L.; Vijayan, S.; Rajeev, R.; Ninan, K.N.; Prabhakaran, K. Nitrogen-enriched microporous carbon derived from sucrose and urea with superior CO2 capture performance. Carbon 2016, 109, 7–18. [Google Scholar] [CrossRef]
  79. Sevilla, M.; Valle-Vigón, P.; Fuertes, A.B. N-doped polypyrrole-based porous carbons for CO2 capture. Adv. Funct. Mater. 2011, 21, 2781–2787. [Google Scholar] [CrossRef] [Green Version]
  80. Khanra, P.; Uddin, M.-D.; Kim, M.-h.; Kuila, T.; Lee, S.-H.; Lee, J.-H. Electrochemical performance of reduced graphene oxide surface-modified with 9-anthracene carboxylic acid. RSC Adv. 2015, 5, 6443–6451. [Google Scholar] [CrossRef]
  81. Araujo, M.-P.; Soares, O.-S.-G.-P.; Fernandes, A.-J.-S.; Pereira, M.-F.-R.; Freire, C. Tuning the surface chemistry of graphene flakes: New strategies for selective oxidation. RSC Adv. 2017, 7, 14290–14301. [Google Scholar] [CrossRef] [Green Version]
Nanomaterials 10 01446 g001 550

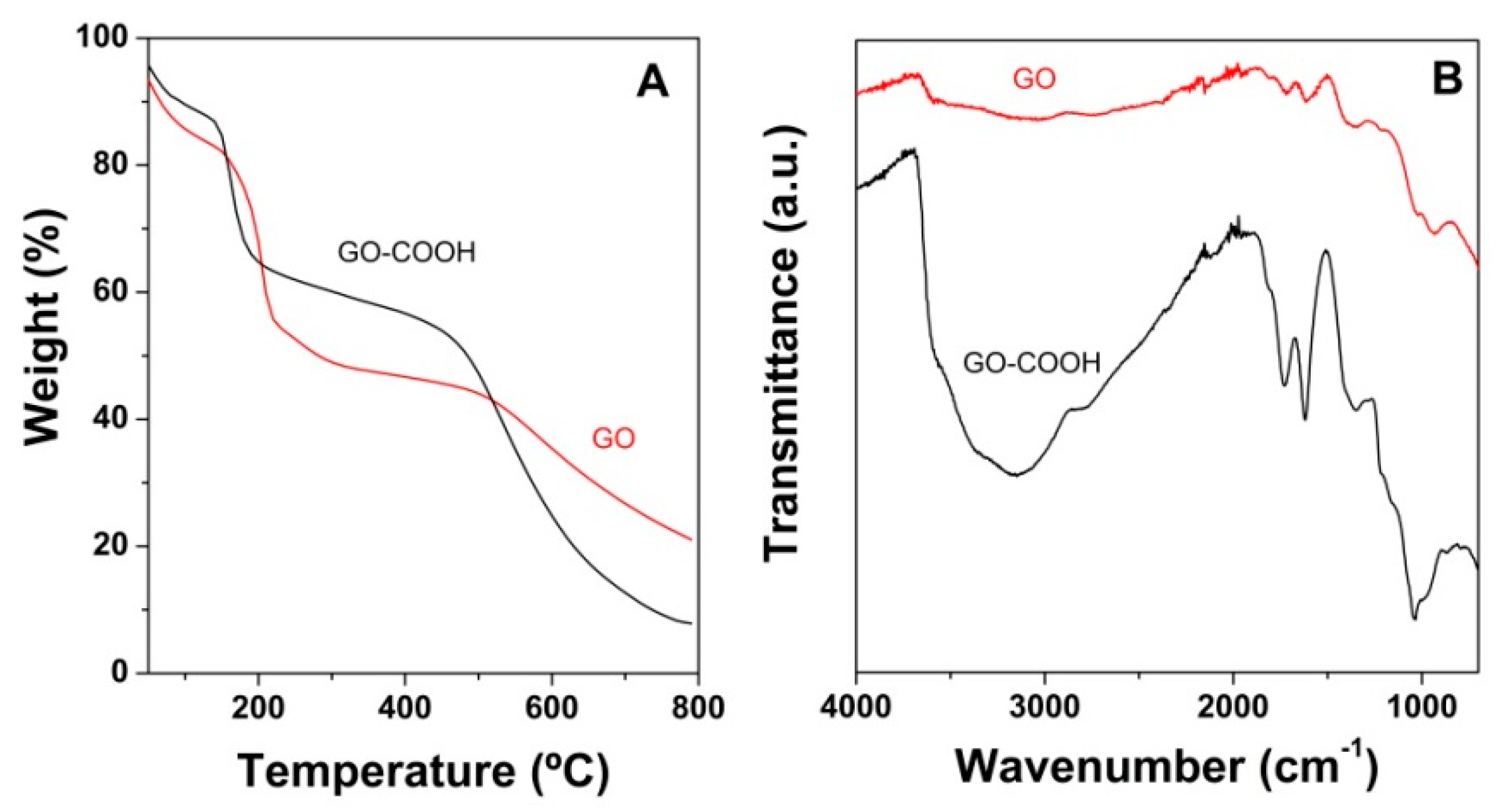

Figure 1. Thermogravimetric curves (A) and FTIR spectra (B) for graphene oxide (GO) and GO-COOH.
Figure 1. Thermogravimetric curves (A) and FTIR spectra (B) for graphene oxide (GO) and GO-COOH.
Nanomaterials 10 01446 g001
Nanomaterials 10 01446 g002 550

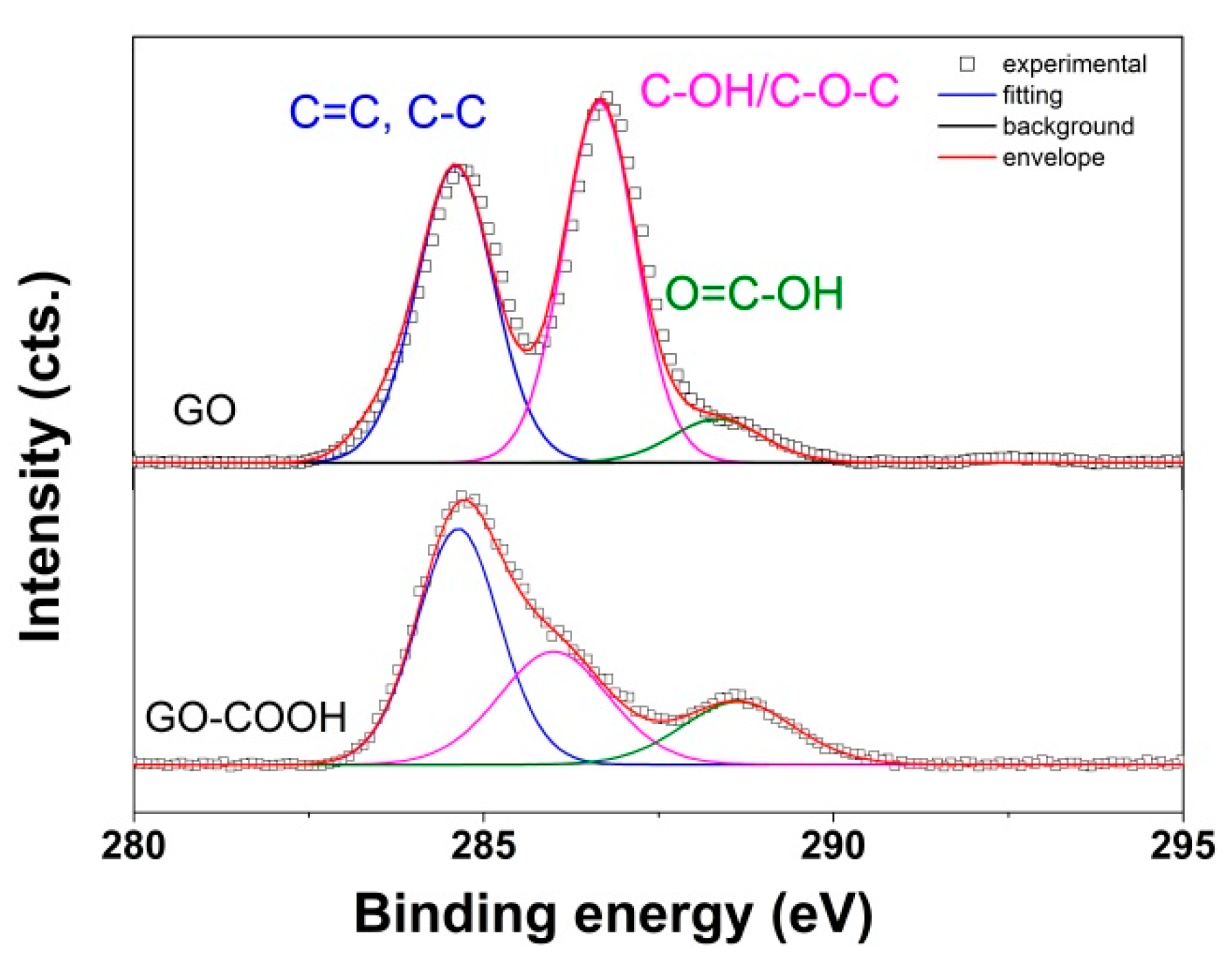

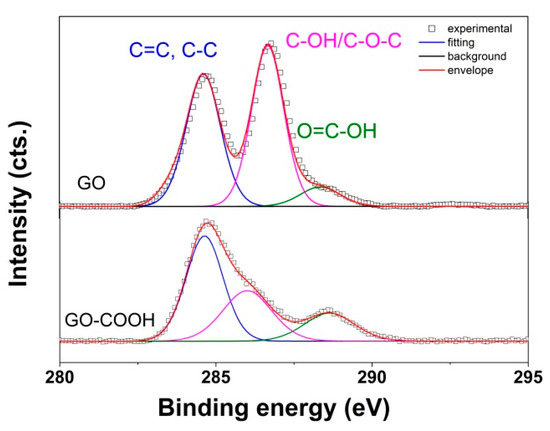

Figure 2. XPS C 1s spectra of GO and GO-COOH.
Figure 2. XPS C 1s spectra of GO and GO-COOH.
Nanomaterials 10 01446 g002
Nanomaterials 10 01446 g003 550

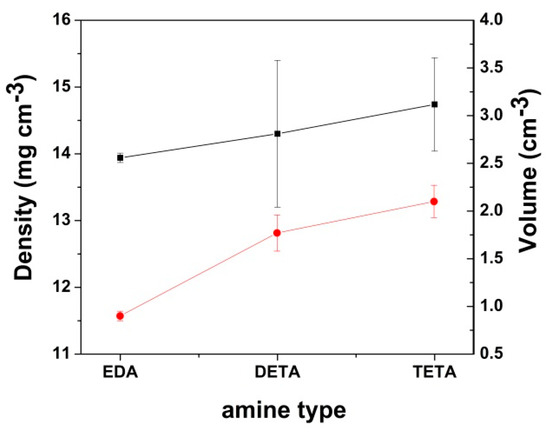

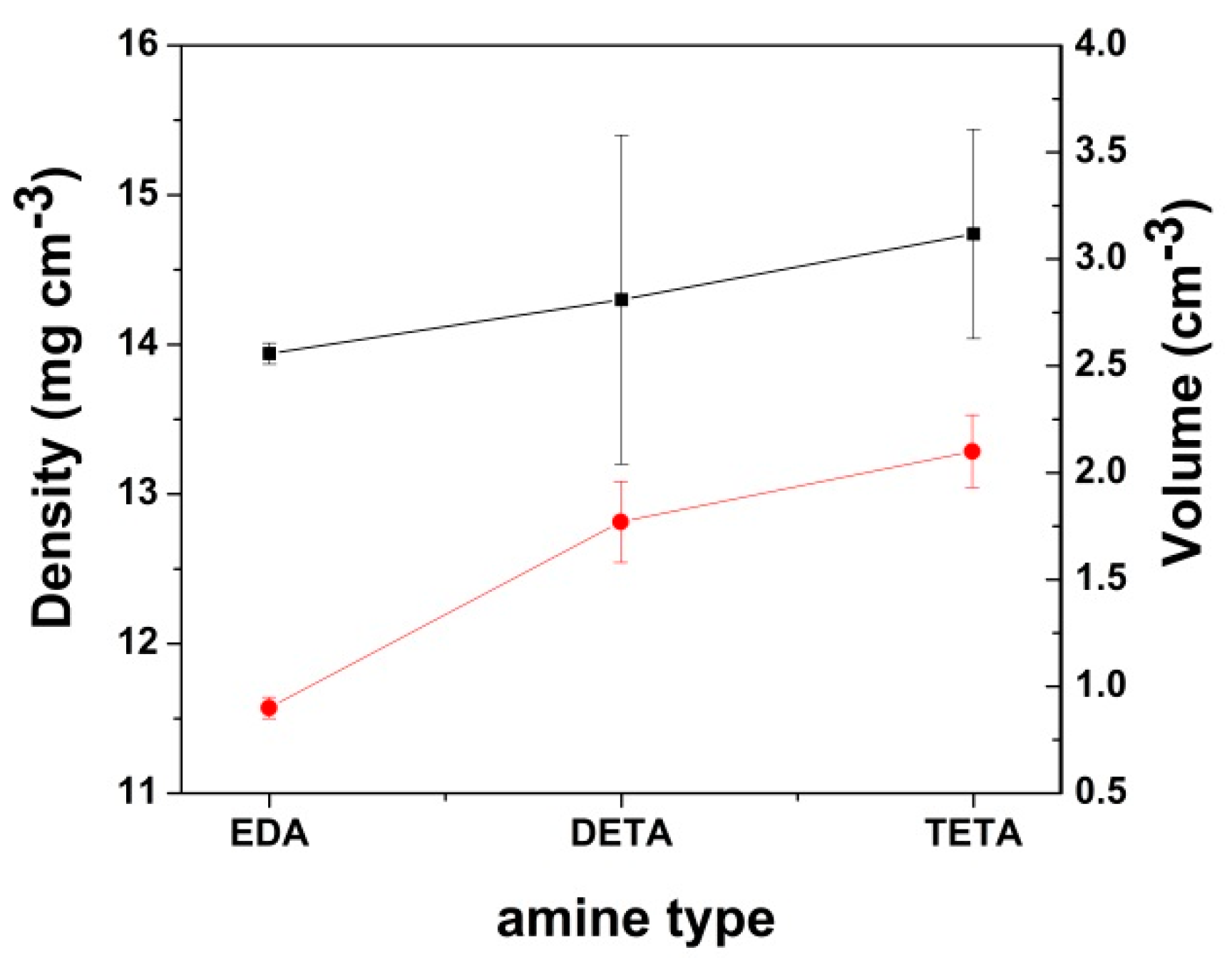

Figure 3. Modified cryogel volume and density with the amine functionalities.
Figure 3. Modified cryogel volume and density with the amine functionalities.
Nanomaterials 10 01446 g003
Nanomaterials 10 01446 g004 550

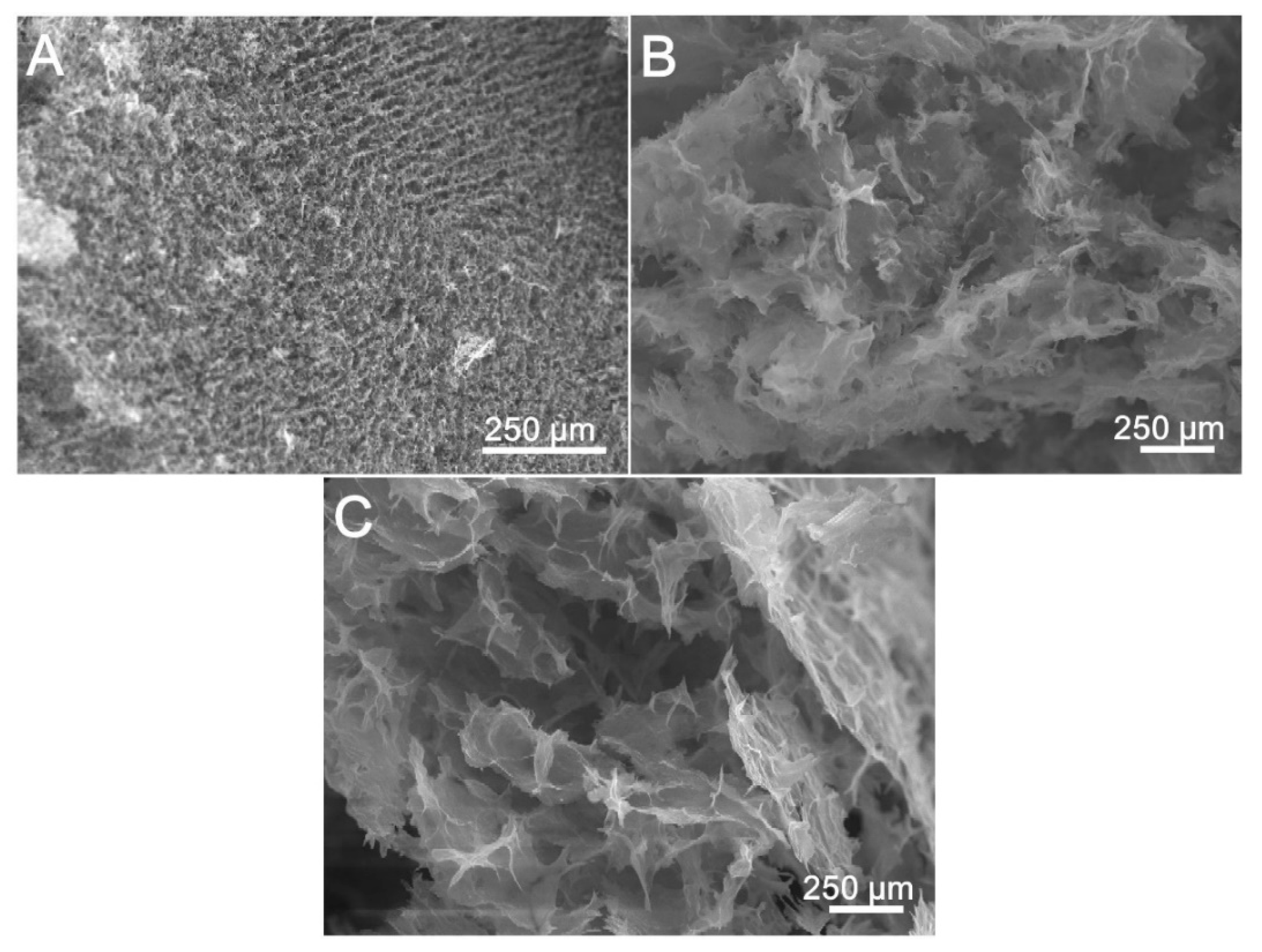

Figure 4. SEM images of GO-COOH cryogels modified with: (A) ethylenediamine (EDA) (B) diethylenetriamine (DETA) and (C) triethylenetetramine (TETA).
Figure 4. SEM images of GO-COOH cryogels modified with: (A) ethylenediamine (EDA) (B) diethylenetriamine (DETA) and (C) triethylenetetramine (TETA).
Nanomaterials 10 01446 g004
Nanomaterials 10 01446 g005 550

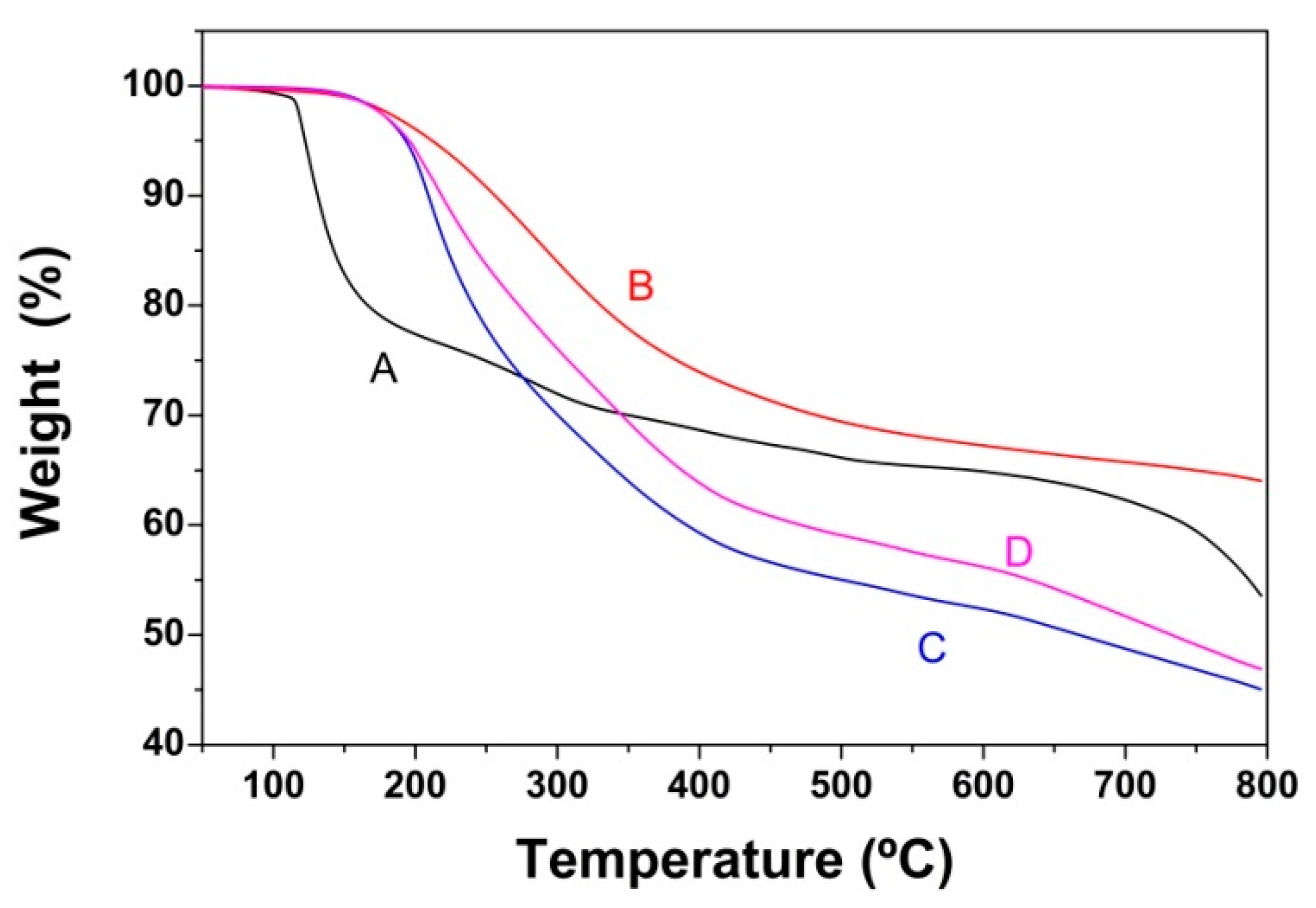

Figure 5. Thermogravimetric curves of GO-COOH before (A) and after functionalization with EDA (B), DETA (C) and TETA (D).
Figure 5. Thermogravimetric curves of GO-COOH before (A) and after functionalization with EDA (B), DETA (C) and TETA (D).
Nanomaterials 10 01446 g005
Nanomaterials 10 01446 g006 550

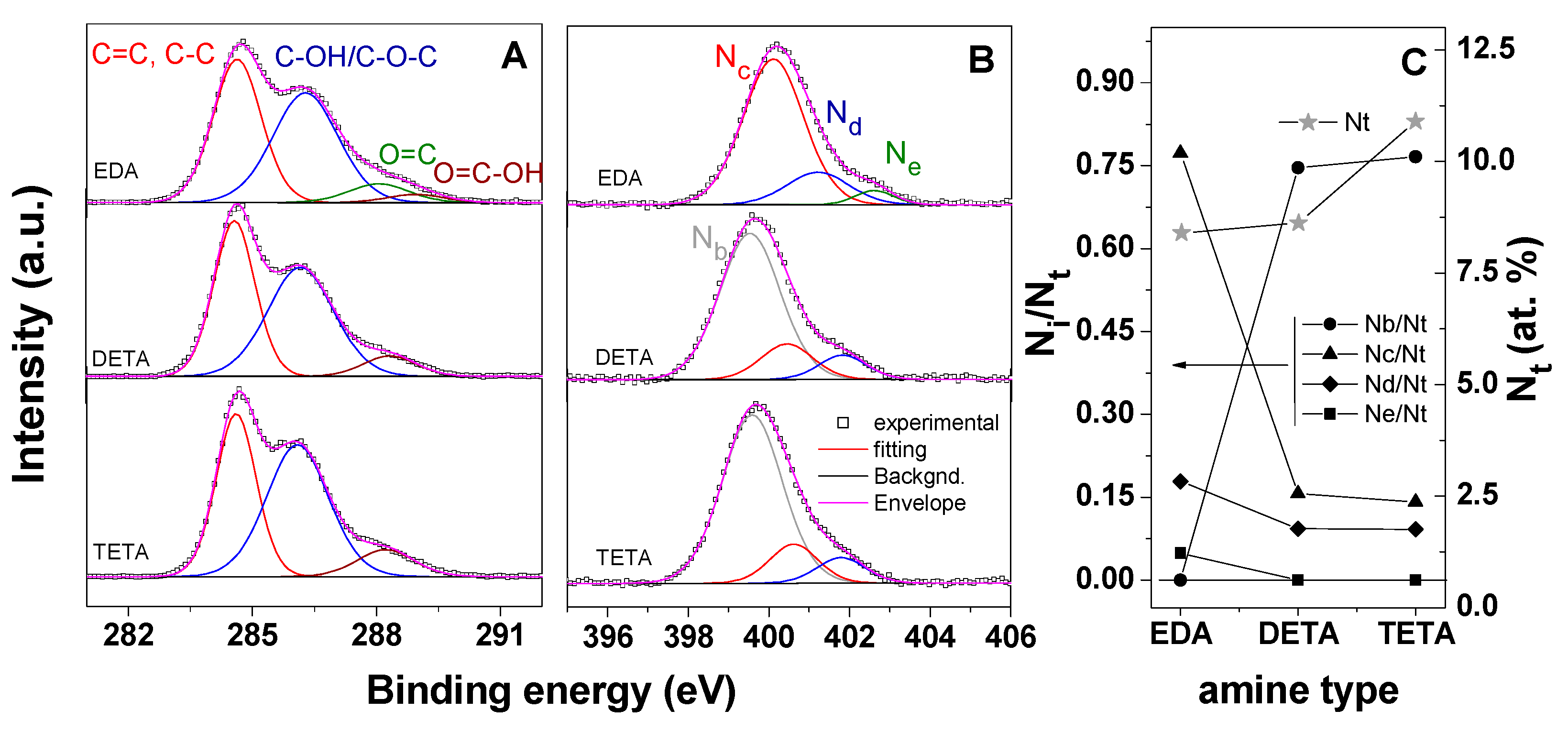

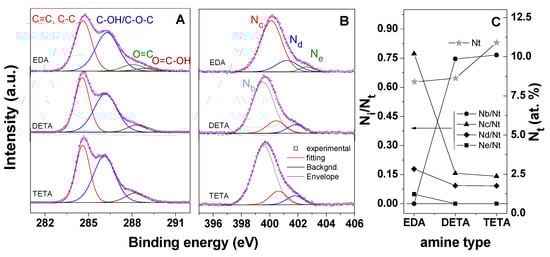

Figure 6. XPS C 1s spectra (A), N 1s (B) and N configuration contribution (Ni/Nt) and total N content (Nt, at%) for modified cryogels with amine type (C).
Figure 6. XPS C 1s spectra (A), N 1s (B) and N configuration contribution (Ni/Nt) and total N content (Nt, at%) for modified cryogels with amine type (C).
Nanomaterials 10 01446 g006
Nanomaterials 10 01446 g007 550

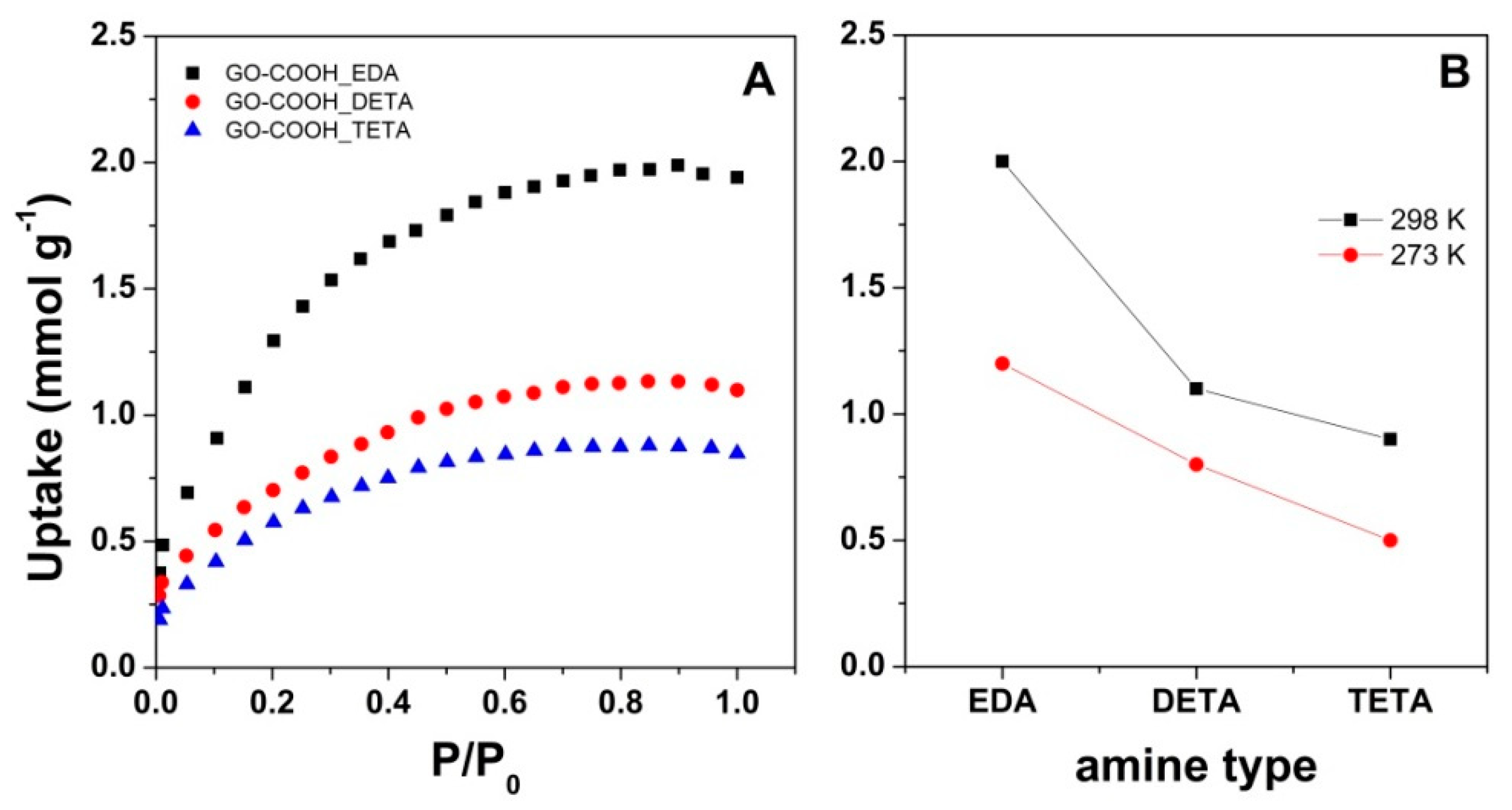

Figure 7. The CO2 adsorption isotherm at 298 K (A) and evolution of CO2 uptake with temperature (B) for the amine-modified cryogels.
Figure 7. The CO2 adsorption isotherm at 298 K (A) and evolution of CO2 uptake with temperature (B) for the amine-modified cryogels.
Nanomaterials 10 01446 g007
Nanomaterials 10 01446 g008 550

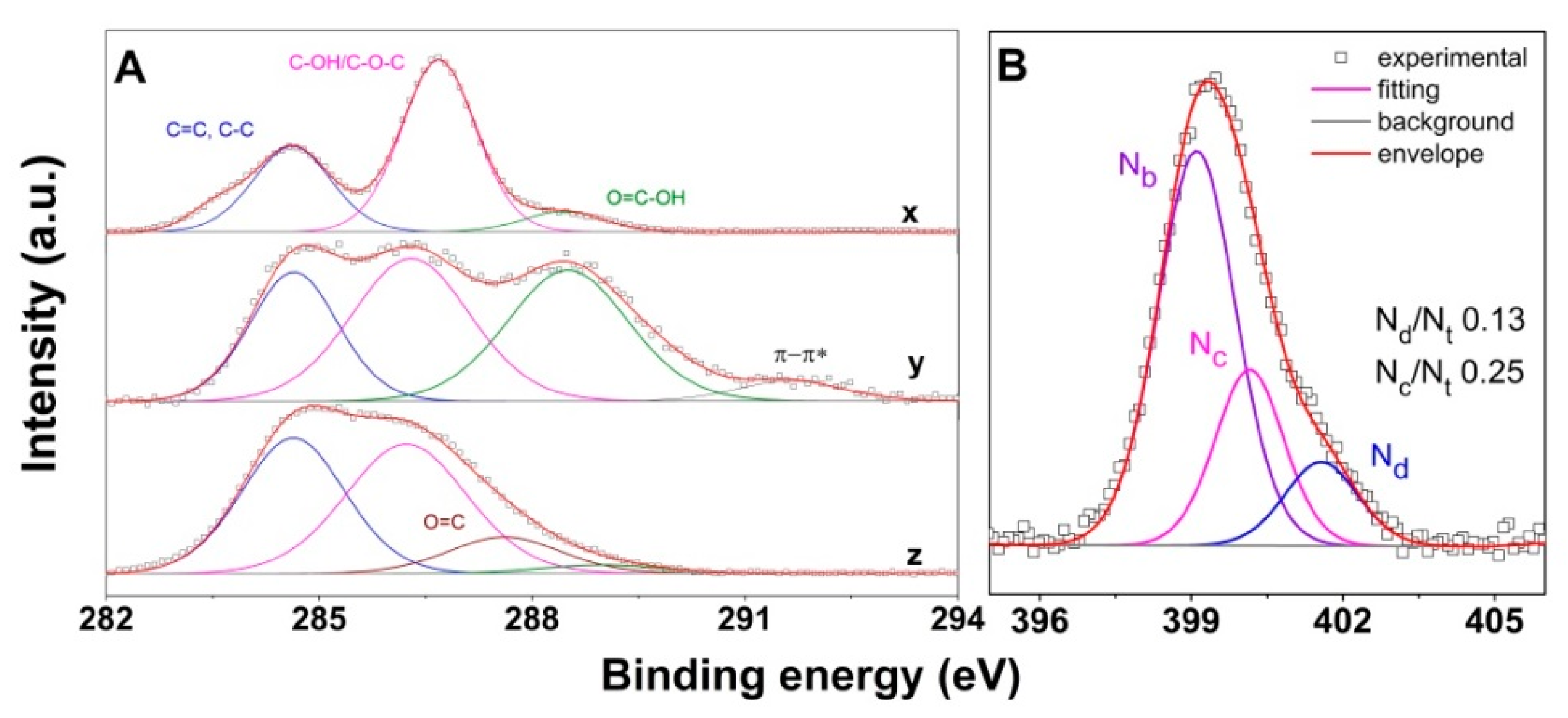

Figure 8. XPS C 1s spectra (A) for the higher oxidation degree GO before (x), and after carboxylation (y) and furthermore modification with EDA (z); N 1s spectra upon modification with EDA (B).
Figure 8. XPS C 1s spectra (A) for the higher oxidation degree GO before (x), and after carboxylation (y) and furthermore modification with EDA (z); N 1s spectra upon modification with EDA (B).
Nanomaterials 10 01446 g008
Nanomaterials 10 01446 g009 550

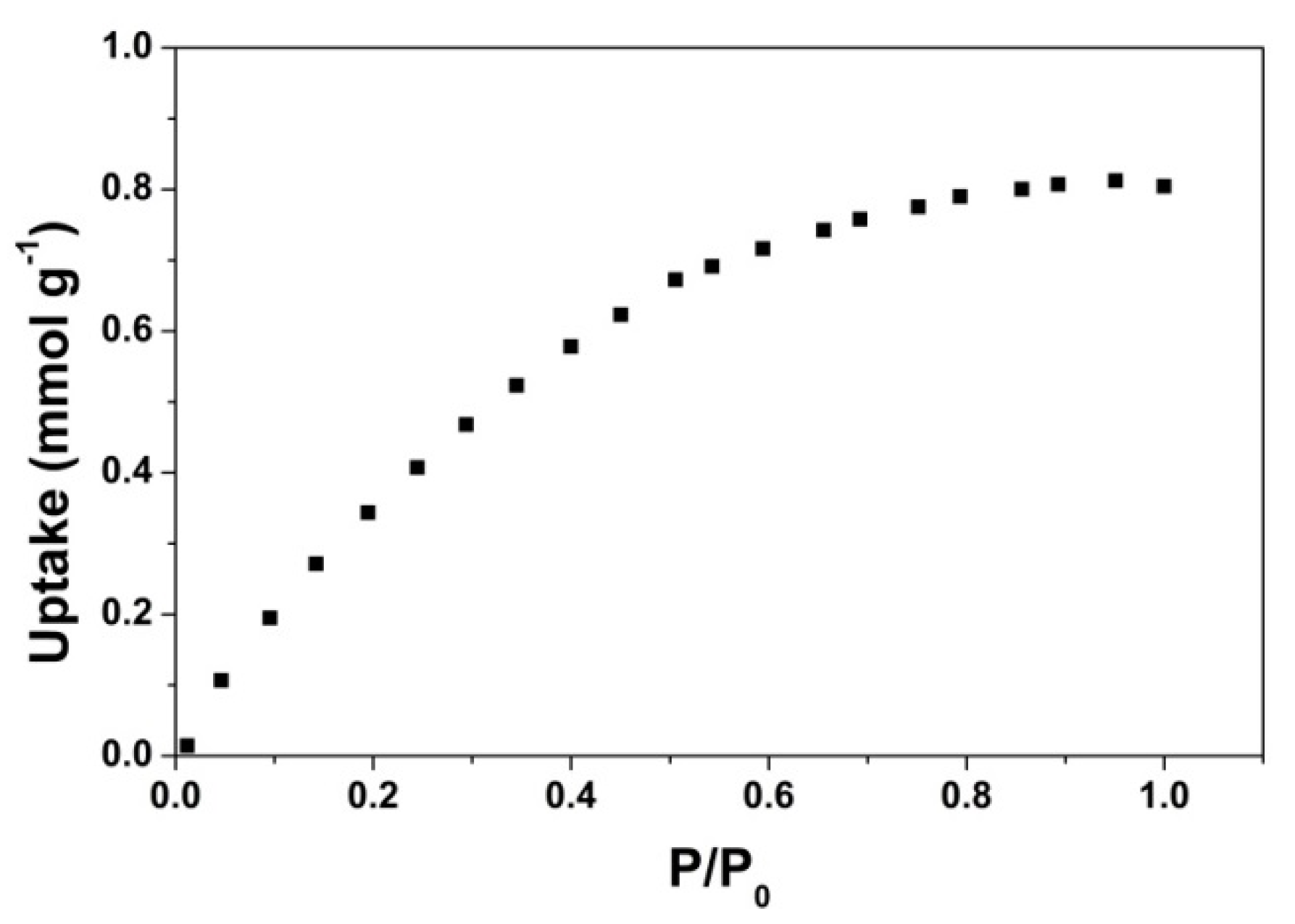

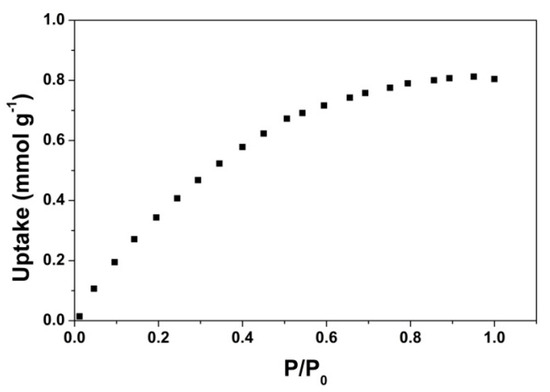

Figure 9. The CO2 adsorption isotherm of the cryogel obtained from carboxylation and further modification with EDA of the higher degree GO, at 298 K.
Figure 9. The CO2 adsorption isotherm of the cryogel obtained from carboxylation and further modification with EDA of the higher degree GO, at 298 K.
Nanomaterials 10 01446 g009
Table
Table 1. BET surface area and surface area utilization factor at 298 K, 1 bar of GO-COOH cryogels with amine modifier type.
Table 1. BET surface area and surface area utilization factor at 298 K, 1 bar of GO-COOH cryogels with amine modifier type.
ModifierBET Surface Area, m2 g−1Surface Area Utilization Factor, mmol CO2 m−2
TETA42.540.012
DETA25.780.029
EDA21.370.094
Table
Table 2. Evolution of C% and O% atomic composition, –COOH contribution and C/O ratio for higher oxidation degree GO before and upon carboxylation and further EDA modification (XPS based).
Table 2. Evolution of C% and O% atomic composition, –COOH contribution and C/O ratio for higher oxidation degree GO before and upon carboxylation and further EDA modification (XPS based).
SampleC%O%–COOH%C/O
Higher oxidation degree GO63.934.67.61.84
Upon carboxylation65.634.421.71.9
Upon modification with EDA75.617.12.14.44

Share and Cite

MDPI and ACS Style

Pruna, A.I.; Barjola, A.; Cárcel, A.C.; Alonso, B.; Giménez, E. Effect of Varying Amine Functionalities on CO2 Capture of Carboxylated Graphene Oxide-Based Cryogels. Nanomaterials 2020, 10, 1446. https://doi.org/10.3390/nano10081446

AMA Style

Pruna AI, Barjola A, Cárcel AC, Alonso B, Giménez E. Effect of Varying Amine Functionalities on CO2 Capture of Carboxylated Graphene Oxide-Based Cryogels. Nanomaterials. 2020; 10(8):1446. https://doi.org/10.3390/nano10081446

Chicago/Turabian Style

Pruna, Alina I., Arturo Barjola, Alfonso C. Cárcel, Beatriz Alonso, and Enrique Giménez. 2020. "Effect of Varying Amine Functionalities on CO2 Capture of Carboxylated Graphene Oxide-Based Cryogels" Nanomaterials 10, no. 8: 1446. https://doi.org/10.3390/nano10081446

APA Style

Pruna, A. I., Barjola, A., Cárcel, A. C., Alonso, B., & Giménez, E. (2020). Effect of Varying Amine Functionalities on CO2 Capture of Carboxylated Graphene Oxide-Based Cryogels. Nanomaterials, 10(8), 1446. https://doi.org/10.3390/nano10081446

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
