Article

MIL-88A Metal-Organic Framework as a Stable Sulfur-Host Cathode for Long-Cycle Li-S Batteries

by
Almudena Benítez
1,†,
Juan Amaro-Gahete
2,†,
Dolores Esquivel
2,
Francisco José Romero-Salguero
2,*,
Julián Morales
1 and
Álvaro Caballero
1,*
1
Departamento de Química Inorgánica e Ingeniería Química, Instituto Universitario de Investigación en Química Fina y Nanoquímica, Facultad de Ciencias, Universidad de Córdoba, 14071 Córdoba, Spain
2
Departamento de Química Orgánica, Instituto Universitario de Investigación en Química Fina y Nanoquímica, Facultad de Ciencias, Universidad de Córdoba, 14071 Córdoba, Spain
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Nanomaterials 2020, 10(3), 424; https://doi.org/10.3390/nano10030424
Submission received: 20 January 2020 / Revised: 20 February 2020 / Accepted: 24 February 2020 / Published: 28 February 2020
(This article belongs to the Special Issue Metal Organic Frameworks in Energy Storage)
Browse Figures
Versions Notes

Abstract

:
Lithium-sulfur (Li-S) batteries have received enormous interest as a promising energy storage system to compete against limited, non-renewable, energy sources due to their high energy density, sustainability, and low cost. Among the main challenges of this technology, researchers are concentrating on reducing the well-known “shuttle effect” that generates the loss and corrosion of the active material during cycling. To tackle this issue, metal-organic frameworks (MOF) are considered excellent sulfur host materials to be part of the cathode in Li-S batteries, showing efficient confinement of undesirable polysulfides. In this study, MIL-88A, based on iron fumarate, was synthesised by a simple and fast ultrasonic-assisted probe method. Techniques such as X-ray diffraction (XRD), Raman spectroscopy, Thermogravimetric Analysis (TGA), Scanning Electron Microscopy (SEM), and N2 adsorption/desorption isotherms were used to characterise structural, morphological, and textural properties. The synthesis process led to MIL-88A particles with a central prismatic portion and pyramidal terminal portions, which exhibited a dual micro-mesoporous MOF system. The composite MIL-88A@S was prepared, by a typical melt-diffusion method at 155 °C, as a cathodic material for Li-S cells. MIL-88A@S electrodes were tested under several rates, exhibiting stable specific capacity values above 400 mAh g−1 at 0.1 C (1C = 1675 mA g−1). This polyhedral and porous MIL-88A was found to be an effective cathode material for long cycling in Li-S cells, retaining a reversible capacity above 300 mAh g−1 at 0.5 C for more than 1000 cycles, and exhibiting excellent coulombic efficiency.

Graphical Abstract

1. Introduction

The current energy economy based on the demand for non-renewable sources, such as fossil fuels and oil, continues to be a high-risk social problem. The increase in CO2 emissions, global warming, and dramatic climate change, are some of the main problems that are taking place and seriously worrying the future of world society [1,2,3]. Therefore, it is vitally important to replace these energy generation systems with others based on cleaner and more environmentally sustainable sources of renewable energy [4,5]. In this area, batteries are currently considered a fundamental energy storage system due to their high efficiency and lifetime, and are being postulated as the key to future development of power system applications [6,7,8].
Lithium-sulfur (Li-S) and lithium-oxygen (Li-O2) batteries were proposed as promising high-energy rechargeable systems for emerging applications. Despite the various problems that still present, these two attractive systems exceed the initial expectations of them evolving rapidly, improving the efficiency and achieving high performances, which could lead to these devices to their possible implantation in the development of renewable energy sources, electric vehicles and modern electronics [9,10,11]. Specifically, Li-S batteries are at the forefront in the development of efficient and sustainable high energy systems receiving great interest in recent years [12]. These types of batteries consist of a sulfur cathode, a lithium metal anode, and a polymeric or liquid electrolyte, and are based on the following electrochemical reaction: 16 Li + S8 ⇄ 8 Li2S [13,14]. The most relevant feature of this type of energy storage system is the high theoretical specific capacity of 1675 mAh g−1, and a high theoretical specific energy of 2600 Wh kg−1, considering a total conversion which exceeds 5 times the theorical energy supplied by Li-ion based systems [15,16,17]. Apart from these outstanding characteristics, elemental sulfur is a very abundant element in nature, low cost, and environmentally sustainable, while lithium provides advantages such as its low standard potential and light weight [18,19].
The current challenge in these type of systems is mainly focussed on reaching the theoretical values of specific capacity, which is rather complicated because there are several problems derived from practical applications [20]. The dissolution of the lithium sulfur polysulfides (Li2Sx) inside the electrolyte generates the main problem of this type of battery, which is called the “shuttle” effect [21]. The soluble polysulfides formed in the cathode are directed towards the anode, reacting with the Li surface forming insoluble species Li2S and Li2S2, that are continuously deposited at the anode during the charge/discharge cycles [22]. This sequence of unwanted reactions leads to a short life cycle in Li-S batteries, poor efficiency, corrosion of the lithium anode, and a fading of the specific capacity of these systems. Based on this, most research is focussed on the search for various solutions by developing functional materials that make it possible to mitigate this negative effect [23].
In view of novel materials that are attracting enormous attention in recent years, metal-organic frameworks (MOFs) have become one of the most researched areas by the scientific community due to their excellent properties [24]. These types of ordered materials are mainly constructed by metallic ions (clusters) interconnected through multidentate organic ligands (linkers) in networks of one, two, or three dimensions. The high surface area, crystallinity, controllable pore size, flexibility, and functionalisation of the porous surface are some of the main characteristics which determine the versatility of MOFs [25]. Due to their exceptional properties, great interest has been shown in these materials in numerous research areas such as adsorption, catalysis, photocatalysis, luminescence, and electrochemistry [26,27,28,29]. Of fundamental interest in applying porous materials based on MOFs in Li-S batteries is their excellent performance as sulfur hosts, and the confining capacity of the polysulfides generated in the charge/discharge processes, so reducing the undesirable “shuttle” effect [30,31].
Various factors affect the performance of Li-S batteries using a certain MOF as a cathodic host material, such as pore structure, adequate particle size, functional organic linkers, and open metal sites in the metal-organic structure [32]. There have been several works reported where MOF materials are included as components that constitute Li-S batteries as a cathode [33,34], or as a separator [35,36,37]. In most cases, MOF derivatives are used, or the incorporation of additives into the pristine MOF is carried out to improve the conductivity of these energy systems. For example, ZIF-8 is a widely studied material in this technology, showing a different specific capacity depending on the preparation of the composite used as a positive electrode in a range between 400–900 mAh g−1 [38,39,40,41].
The application of pristine MOFs as a cathode in Li-S systems is a field of research currently under development, since most studies in recent years have been focussed on the preparation of composites by modifying the initial metal-organic framework with the objective of improving its properties. The main advantage of the use of pristine MOFs in energy storage systems is their high porosity and crystallinity, so that they can be excellent sulfur hosts and confiners of the polysulfides generated in electrochemical cycling without the need for any additional experimental treatment to modify the original characteristics of the network. Some widely known pristine MOFs, such as NH2-MIL-53 (Al), MIL-53 (Al), HKUST-1, or even ZIF-8, have been evaluated by Zhou et al., showing remarkable discharge capacities of 332, 347, 286, and 553 mA h g−1 after 300 cycles, respectively [42]. However, in most studies on MOF-based sulfur cathodes, less than 100 cycles are normally reported, as is the case with MIL-100/1(Cr) [43,44], MIL-100(V) [45], Ni-MOF-867 [46], and [(CH3)2NH2]2[Cd(L)]·5DMF [47].
Herein, MOF MIL-88A as a host material in Li-S batteries is reported for the first time. MIL-88A is a metal-organic framework based on Fe (III) trimers, octahedrally interconnected through the dicarboxylates of fumaric acid [48]. MIL88-A has been considered as an electronic semiconductor material showing this ability for electronic conduction in photocatalytic [49] or in microbial reduction processes [50]. Some investigations of this material have already been reported in the field of Li-ion batteries, showing highly promising performances and improvements in electrochemical activity due to its high porosity which allows greater contact surface between electrode-electrolyte and an increase in the number of active reaction sites [51,52,53,54]. Therefore, in this work, the synthesis of MOF MIL88-A has been carried out by means of a simple, sustainable, and short-time method, assisted by ultrasound. Taking advantage of its textural and morphological properties, this pristine MOF has been used effectively to confine sulfur by the melt-diffusion method. Based on this, the resulting composite is considered a promising candidate as a cathode in Li-S batteries, showing remarkable electrochemical performances, especially during long-cycle testing.

2. Materials and Methods

2.1. Materials

Sodium hydroxide, iron (III) chloride hexahydrate, fumaric acid, absolute ethanol (99.8%), and N,N-dimethylformamide (DMF, 99.8%) were obtained from PanReac AppliChem and used as-received. Sublimed sulfur powder (S, VWR Scientific, Hudson, NH, USA) was dried at 45 °C under vacuum overnight. Carbon black Super P (CB, Timcal, Thermo Fisher, Kandel, Germany) and polyvinylidene fluoride (PVDF, Sigma-Aldrich, Merck, Madrid, Spain) were stored at 60 °C. N-methyl-2-pyrrolidone (NMP, anhydrous, 99.5%) was supplied by Sigma-Aldrich. Lithium metal (Li, Gelon Lib, Qingdao, China, 15.6 mm diameter and 0.25 mm thick), 1,3-dioxolane (DOL, anhydrous, 99.8%, Sigma-Aldrich) and 1,2-dimethoxyethane (DME, anhydrous, 99.5%, Sigma-Aldrich) were also used as-received but stored under an Ar-atmosphere. Lithium bis(trifluoromethanesulfonyl)imide (LiTFSI, Sigma-Aldrich) and lithium nitrate (LiNO3, Sigma-Aldrich) were dried at 120 °C under vacuum for three days. Polyethylene membrane (PE, 25 µm thick, Celgard, Charlotte, NC, USA) was used as a separator and dried at 80 °C under vacuum for 3 h. Carbon cloth Gas Diffusion Layer (GDL, ELAT LT1400W, FuelCellStore, College Station, Texas, USA, 454 µm thick) was used as a substrate.

2.2. Synthesis of MIL-88A and MIL-88A@S Composite

The ultrasonic method is a facile and rapid process widely used for the synthesis of MOFs [55,56]. In this case, MIL-88A was prepared using a continuous ultrasonic probe (Branson Sonifier, Danbury, CT, USA, 150) since it has been verified in a previous study that a smaller particle size, and a greater aspect ratio, were obtained with this method compared to an ultrasonic bath [57].
The detailed process consisted in the preparation of a 1.25 M ethanolic solution of sodium hydroxide, which was used to dissolve FeCl3·6H2O (1 mmol) in approximately 10 mL of the DMF:ethanolic solution with a volume ratio of 4.5:1, while maintaining a constant molar ratio (NaOH/Fe = 0.8). In parallel, an equimolar ratio of fumaric acid (1 mmol) was dissolved in 5 mL of DMF. Afterwards, both solutions were mixed and sonicated with a probe for 10 min, using 20 W and 10 kHz in continuous wave mode. Then, the obtained precipitate was centrifuged at 9000 rpm for 10 min and washed in DMF and in ethanol several times. Finally, the sample was recovered and dried under vacuum at 85 °C, overnight, to obtain a porous iron fumarate MOF MIL-88A.
Sulfur can be effectively embedded into the MIL-88A structure by a classical melt diffusion method [58,59]. The as-prepared MIL-88A and elemental sulfur were dried under vacuum and then thoroughly mixed inside an argon-filled glovebox using a mass ratio of 1:1. Then, the mixture was thermally treated in an Ar atmosphere at 155 °C for 20 h. After cooling down, the sulfur solidifies and contracts forming sulfur crystals that bind closely to the host material, finally producing the MIL-88A@S composite.

2.3. Characterisation Techniques

X-ray diffraction patterns (XRD) were obtained in a Bruker D8 Discover X-ray diffractometer equipped with a monochromatic Cu Kα radiation (λ = 1.5406 Å). The patterns were recorded within the 5–80° (2θ) range, using a step size of 0.04° and 1.05 s per step. Raman spectroscopy was applied with a Renishaw Raman instrument (InVia Raman Microscope) furnished with a Leica microscope using a green laser light excitation source (532 nm). The N2 adsorption–desorption measurements were performed with an Autosorb iQ/ASiQwin (Quantachrome Instruments) and the samples were previously degassed. Sample morphology was investigated with a JEOL JSM-7800F scanning electron microscope (SEM). Also, to verify the sulfur content in the MIL-88A@S composite, thermogravimetric analysis (TGA) measurements were carried out using a Mettler Toledo-TGA/DSC under nitrogen atmosphere by heating the samples from 25 to 600 °C at 5 °C min−1.

2.4. Cathode Preparation and Electrochemical Characterisation

The positive electrodes were prepared by doctor blade casting of a slurry formed by the MIL-88A@S composite (70 wt.%), carbon black (20 wt.%) as a conducting agent, and PVDF (10 wt.%) as a binder in 0.8 mL of N-methyl-2-pyrrolidone on a GDL foil. GDL carbon cloth has proven to be an effective current collector in cathodes of Li-S cells [60,61]. The electrode was dried at 80 °C on a heating plate for 3 h and cut into discs of 13-mm diameter with a sulfur loading between 1.0–1.5 mg cm−2. Then, the working electrodes were dried under vacuum at 45 °C overnight.
CR2032-type coin cells were assembled inside a glove box (Ar-filled, M-Braun 150) with discs of Li as negative electrodes. The electrolyte was 1.0 M LiTFSI 1.0 M and 0.4 M LiNO3 0.4 M in DOL:DME (1:1 v/v) soaked in a porous polyethylene separator, cut into 16-mm diameter discs and dried at 80 °C under vacuum, overnight, prior to use. The addition of LiNO3 in the electrolyte causes the oxidation of the polysulfides which become favourable components for the solid electrolyte interphase (SEI), resulting in a decrease in the shuttle effect and preventing parasitic redox reactions between Li and the polysulfides [62].
The electrochemical measurements were carried out using an Arbin BT2143 potentiostat–galvanostat system. The working electrodes were galvanostatically cycled between 2.6–1.85 V vs. Li+/Li. Specific capacity values are referred to the mass of elemental sulfur in the electrodes. Cyclic voltammetry (CV) curves and electrochemical impedance spectroscopy (EIS) were recorded on an Autolab equipment. CV was performed at a scan rate of 0.1 mV s−1 within the 1.7–2.6 V range. Impedance spectra were recorded at the open circuit voltage (OCV) condition and after the 3rd CV cycle, by applying an alternative voltage signal of 10 mV amplitude within the 500 kHz to 0.1 Hz frequency range.

3. Results and Discussion

3.1. Textural, Morphological and Structural Properties

The continuous probe ultrasound-assisted synthesis of the MOF MIL-88A was successfully performed in a short time. The N2 adsorption-desorption isotherm and pore size distribution (obtained by the Density Functional Theory, DFT method) are shown in Figure 1. The textural properties obtained are characteristic for this type of material, showing a high specific surface area (SBET) of 313 m2 g−1, pore volume of 0.22 cm3 g−1, and an average pore width of 9.8 Å, sufficient to serve as a host of the sulfur and polysulfides generated in the charging and discharging in the Li-S systems. These surface area and pore volume values are higher than those reported for the MIL-88A MOF obtained by hydrothermal synthesis [63]. The adsorption-desorption curves for the MIL-88A were a combination of type IV isotherm, with a slight hysteresis loop at relative pressures P/P0 between 0.5–0.8, revealing the presence of mesopores, and type I isotherms, with adsorption values in the filling range of micropores at low relative pressures. The analysis by the DFT model showed a wide distribution of pore sizes, comprising a similar proportion of micropores and mesopores. The micropore volume calculated by the t-method (0.08 cm3 g−1) represents 36% of the total pore volume, confirming the dual meso-microporous character for this material. This interconnected micro-/mesopore system is an ideal candidate to host sulfur, be used as a cathode, and favour the entrapment of lithium polysulfides in Li-S batteries [64].
SEM images of MIL-88A MOF are shown in Figure 2. Its morphology consisted of particles with a well-defined central prismatic portion and pyramidal terminations. It has been reported that ultrasonic assisted synthesis allows for smaller particle size growth of MIL-88A than in conventional solvothermal methods [57]. In this case, the crystal sizes of this MOF were approximately between 900–950 nm long and 200–250 nm wide. This particle shape and size is very suitable and promising to facilitate dispersion and optimal sulfur hosting. The morphology of the sub-micrometric elongated rod-like crystals presented in this MOF obtained by ultrasonic synthesis, is similar to that reported for MIL-88A prepared by different solvo/hydrothermal synthetic methods [56].
Raman spectra shown in Figure 3 confirm the presence of the organic fumarate ligand in MIL-88A and sulfur in the MIL-88A@S composite. In Figure 3a, the double bond of the fumaric acid molecule in MIL-88A and MIL-88A@S was evidenced by the appearance of a band at 3071 cm−1, corresponding to the stretching sp2 C-H vibrations, and a strong peak at 1687 cm−1 associated to the symmetric vibration modes C=C [65]. The bands located at 1580 and 1430 cm−1, in the case of fumaric acid, MIL-88A, and MIL-88A@S materials are attributed to the anti-symmetric and symmetric vibrations, respectively, of the carboxylate groups [66,67,68]. The C-O bond was observed as an intense peak centred at 1297 cm−1. Additionally, the bending vibrations outside the plane of the bond =C-H were placed at Raman shifts of 970, 953, and 910 cm−1. The Raman spectra of MIL-88A and MIL-88A@S show a peak below 3000 cm−1 that is attributed to sp3 C-H bond vibrations of solvent molecules remaining coordinated to these materials, despite the drying treatment after the synthesis. As shown in Figure 3b, the sulfur contribution in the MIL-88A@S composite was corroborated by the presence of the characteristic S-S peaks in the orthorhombic octahedron α-S8 at 471, 217, and 151 cm−1 [69,70,71].
In Figure 4a, the crystallinity of MIL-88A and MIL-88A@S composite is studied by X-ray diffraction (XRD). The inserted image shows the main peaks of the pristine MIL-88A sample, and it can be verified that the position of all of them is in accordance with the structure of this MOF as observed in previous studies [63,72]. On the other hand, the MIL-88A@S composite exhibits well-defined peaks corresponding to the orthorhombic sulfur (PDF # 85-0799), and also the characteristic peaks of the lattice structure of this iron MOF. These results are attributed to the fact that the incorporation of sulfur does not alter the structural properties of the host material. It should be noted that the presence of the signals due to S would be justified when a slight excess of sulfur in the composite is demonstrated. This fact indicates that not all sulfur is confined in the porosity of the matrix but that part of this sulfur is deposited on the surface [73]. Moreover, Figure 4b depicts the thermogravimetric stability of the prepared MOF tested at a temperature range of 30–600 °C using an N2 flow. There are mainly three regions in the decomposition pattern. In the first step, the weight loss around 100 °C was due to the loss of adsorbed water and the remaining solvent molecules. In addition, the organic ligand was progressively decomposed in a couple of stages, leading to the entire collapse of the organic structure at 420 °C. Hence, the TGA curve of MIL-88A reinforces that the removal of residual solvent molecules from the pores results in a high surface and large pore volume [74]. Furthermore, the amount of sulfur fixed to the MOF structure could be quantified using the TGA curve of the sample MIL-88A@S in an inert atmosphere. In particular, the evaporation of sulfur occurs between 160–400 °C, and finally, the percentage of sulfur assimilated by the host material was 40% by weight.

3.2. Electrochemical Properties

The study of the electrochemical performance of the Li-S battery using the MIL-88A@S composite was carried out by cyclic voltammetry (CV), electrochemical impedance spectroscopy (EIS), and galvanostatic measurements (GCD), and was conducted to investigate the redox process of the active material. The cyclic voltammograms of the Li/LiTFSI-LiNO3-DOL:DME/MIL-88A@S cell containing lithium metal anodes, liquid electrolyte, and composites cathodes of MOF and sulfur, are shown in Figure 5a. During the first scan, two cathodic peaks are observed at 2.32 V and 1.95 V respectively, and an anodic peak at 2.49 V. In this first discharge, the broad reduction peak could be due to the fact that the electrochemical reaction needs to overcome the absorbing energy between S and the conductive matrix, as well as the low dissolution capacity of the polysulfide in the liquid electrolyte [75]. During successive scans, the peaks appear displaced; in the discharge process at 2.33 V and 1.99 V, and during the oxidation process at lower values, around 2.44 V. After the shift of the potentials between the first CV curve and the remaining ones, a smaller potential gap between the anodic and cathodic peak takes place, resulting in a lower polarisation and resistance within the cell. This fact is corroborated with the EIS measurements of the positive electrode, consisting of a mixture of sulfur and an MOF based material. Figure 5b shows the Nyquist plots of the impedance spectroscopy test performed before and after the CV cycles. In both cases, the equivalent circuit of the cell would be Re(R1Q1)(R2Q2)Q3, where the electrolyte resistance (Re) is similar in OCV and after the CV cycles, with values of 7.28 Ω and 7.22 Ω, respectively; the medium-high frequency semicircles (RiQi) are related to the electrode/electrolyte interface, and consequently, to the formation of the SEI; and the low-frequency pseudo-capacitance (Q3) represents the semi-infinite Li+ diffusion or capacitive behaviour of the cell [76]. In addition, a marked decrease in global resistance values can be observed from 57.23 Ω, at the OCV, to values of 23.15 Ω after the cyclic voltammetry tests. This process, that entails a decrease in the resistance of the cell, indicates that electrode activation cycles would be necessary, and even, in some cases, the voltage window used for galvanostatic cycling at high rates should be modified [77].
The galvanostatic measurements of the Li/LiTFSI-LiNO3-DOL:DME/MIL-88A@S cells were carried out by cycling at various currents as well as at a constant C-rate of 0.5 C. The rate capability test (Figure 6a,b) for the MIL-88A@S composite provided an initial capacity of 600 mAh g−1 that was stabilized over the first five cycles, displaying an average discharge capacity of 482 mAh g−1 at 0.1 C. This maximum capacity value gradually decreased to about 395, 374, 333, 274, 152, and 55 mAh g−1, at 0.125 C, 0.2 C, 0.33 C, 0.5 C, 1 C, and 2 C, respectively, as demonstrated by the cycling trends of Figure 6a. When the current rate was restored to 0.1 C, the electrode recovered a capacity value of about 375 mAh g−1. In addition, the coulombic efficiency of the cell is represented on the right axis and at low current densities (0.1 and 0.125 C), values thereof close to 95% can be observed, while for the remaining cycling rates, these values are close to 100%. This phenomenon is seen more clearly in Figure 6b, where the charge and discharge profiles during the first cycles are not well defined. Additionally, charge profiles of the 1st and 2nd cycles showed a high polarisation at the beginning of cycling as previously indicated in the first cycle of the CV, which could be caused by the greater resistance that the cell presents until the SEI is formed, as previously observed for MOFs as sulfur hosts in Li–S batteries [78].
In order to avoid these harmful effects, the Li/LiTFSI-LiNO3-DOL:DME/MIL-88A@S cell has been studied by a long-term cycling at a moderate constant current of 0.5 C (Figure 7), after two activation cycles performed at 0.1 C. As can be seen, two plateaus at 2.35 V and 2.0 V are clearly observed during the discharge process at 0.5 C, which correspond to the formation of long chain lithium polysulfides (Li2Sx, 4 ≤ x ≤ 8), and short-chain lithium polysulfides (such as Li2S2 and Li2S), respectively, and which correspond to the potential values of the cathode peaks obtained in the cyclic voltammetry measurements (Figure 5a). Such a discharge profile is typical for sulfur cathodes [79]. From the third cycle, the cell delivers an initial discharge capacity of about 400 mAh g−1, and 200 mAh g−1 after 1000 cycles, revealing a slow decay of 0.05% per cycle, possibly attributed to the progressive loss of active material caused by the irreversible formation of short-chain lithium polysulfides [80]. More strikingly, after more than 1000 cycles at 0.5 C, the Li/LiTFSI-LiNO3-DOL:DME/MIL-88A@S cell is still working, providing 100% coulombic efficiency after activation cycles and exhibiting remarkable cycling stability.
Few previous studies have reported the long-term cyclability for simple MOF@S cathodes in Li-S batteries. Zhou et al. [42] demonstrated that Li-S cells, based on MOFs such as ZIF-8, MIL-53 (Al), NH2-MIL-53 (Al), and HKUST-1, reach capacities of 550, 345, 330, and 285 mAh g−1 respectively, after 300 cycles at 0.5 C rate. However, although the composites contained 50 wt.% sulfur, the electrodes had to be prepared with 30 wt.% conductive agent (CB), reducing the active composite content in the cathode. To the best of our knowledge, only Bai et al. [33] have reported MOF-based cathodes with ultra-high cyclability. Sulfur composites based on ZIF-8, ZIF-67, and HKUST-1, have delivered specific capacities of 170, 150, and 250 mAh g−1 respectively, after 1000 cycles at 0.2 C rate. Two disadvantages are found compared to the MIL-88A@S presented in our work: the need to previously synthesise sulfur nanoparticles, and the lower active sulfur content in composites (below 30 wt.% S). Therefore, the MIL-88A MOF is presented for the first time as an effective sulfur host for Li-S cells, with an appropriate sulfur content in the cathode and remarkable stability in long-term cyclability.

4. Conclusions

In summary, an iron metal organic framework (MIL-88A) has been prepared by fast ultrasound-assisted synthesis. XRD and textural analyses have confirmed that the MIL-88A material exhibited a high crystallinity, specific area and pore volume, suitable to be used as a matrix to host sulfur in Li-S batteries. Sulfur was incorporated by the melt-diffusion method at 155 °C because the conventional composites preparation methods for carbonaceous matrices were unsuccessful. In fact, the main problems initially observed in the synthesis of composites were the loss of the morphology by the use of ball milling, or the deterioration of the MOF due to the use of certain solvents. Next, the positive electrode was directly prepared using the primitive MOF, without calcining and without adding any additional additives to those commonly used for the manufacture of electrodes (CB and PVDF). MIL-88A@S composite demonstrated good storage capacity at high current densities and a brilliant electrochemical response during prolonged cycling to 1000 cycles, supplying an average specific capacity of 300 mAh g−1 at a sizeable rate of 0.5 C. The results thus suggest that this composite material could be a promising component for lithium-sulfur batteries. Besides, the appealing property of these cathodes is the excellent long-term cycling stability, considering that it works directly with the primitive MOF.

Author Contributions

Conceptualisation, Á.C. and F.J.R.-S.; investigation, A.B. and J.A.-G.; writing—original draft preparation, A.B. and J.A.-G.; writing—review and editing, Á.C., D.E. and F.J.R.-S.; supervision, J.M. All authors have read and agreed to the published version of the manuscript.

Funding

The research was supported by Ramon Areces Foundation, Spanish Ministry of Economy and Competitiveness (RTI2018-101611-B-I00, MAT2017-87541-R), Spanish Ministry of Science, Innovation and Universities for an FPU teaching and research fellowship (FPU17/03981), Andalusian Regional Government (FQM-346 and FQM-175 groups) and Feder Funds.

Acknowledgments

The authors wish to acknowledge the technical staff from the Instituto Universitario de Nanoquímica (IUNAN) and Servicio Central de Apoyo a la Investigación (SCAI) of the Cordoba University.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Luo, X.; Wang, J.; Dooner, M.; Clarke, J. Overview of current development in electrical energy storage technologies and the application potential in power system operation. Appl. Energy 2015, 137, 511–536. [Google Scholar] [CrossRef] [Green Version]
  2. Alva, G.; Lin, Y.; Fang, G. An overview of thermal energy storage systems. Energy 2018, 144, 341–378. [Google Scholar] [CrossRef]
  3. Omer, A.M. Energy, environment and sustainable development. Renew. Sustain. Energy Rev. 2008, 12, 2265–2300. [Google Scholar] [CrossRef]
  4. Hadjipaschalis, I.; Poullikkas, A.; Efthimiou, V. Overview of current and future energy storage technologies for electric power applications. Renew. Sustain. Energy Rev. 2009, 13, 1513–1522. [Google Scholar] [CrossRef]
  5. Aneke, M.; Wang, M. Energy storage technologies and real life applications—A state of the art review. Appl. Energy 2016, 179, 350–377. [Google Scholar] [CrossRef] [Green Version]
  6. Divya, K.C.; Østergaard, J. Battery energy storage technology for power systems—An overview. Electr. Power Syst. Res. 2009, 79, 511–520. [Google Scholar] [CrossRef]
  7. Scrosati, B.; Garche, J. Lithium batteries: Status, prospects and future. J. Power Sources 2010, 195, 2419–2430. [Google Scholar] [CrossRef]
  8. Etacheri, V.; Marom, R.; Elazari, R.; Salitra, G.; Aurbach, D. Challenges in the development of advanced Li-ion batteries: A review. Energy Environ. Sci. 2011, 4, 3243–3262. [Google Scholar] [CrossRef]
  9. Minguzzi, A.; Longoni, G.; Cappelletti, G.; Pargoletti, E.; Di Bari, C.; Locatelli, C.; Marelli, M.; Rondinini, S.; Vertova, A. The Influence of Carbonaceous Matrices and Electrocatalytic MnO2 Nanopowders on Lithium-Air Battery Performances. Nanomaterials 2016, 6, 10. [Google Scholar] [CrossRef] [Green Version]
  10. Liu, J.; Li, D.; Wang, Y.; Zhang, S.; Kang, Z.; Xie, H.; Sun, L. MoO2 nanoparticles/carbon textiles cathode for high performance flexible Li-O2 battery. J. Energy Chem. 2020, 47, 66–71. [Google Scholar] [CrossRef]
  11. Benítez, A.; Caballero, A.; Morales, J.; Hassoun, J.; Rodríguez-Castellón, E.; Canales-Vázquez, J. Physical activation of graphene: An effective, simple and clean procedure for obtaining microporous graphene for high-performance Li/S batteries. Nano Res. 2019, 12, 759–766. [Google Scholar] [CrossRef]
  12. Barghamadi, M.; Kapoor, A.; Wen, C. A Review on Li-S Batteries as a High Efficiency Rechargeable Lithium Battery. J. Electrochem. Soc. 2013, 160, A1256–A1263. [Google Scholar] [CrossRef]
  13. Wild, M.; O’Neill, L.; Zhang, T.; Purkayastha, R.; Minton, G.; Marinescu, M.; Offer, G.J. Lithium sulfur batteries, a mechanistic review. Energy Environ. Sci. 2015, 8, 3477–3494. [Google Scholar] [CrossRef]
  14. Dirlam, P.T.; Glass, R.S.; Char, K.; Pyun, J. The use of polymers in Li-S batteries: A review. J. Polym. Sci. Part A Polym. Chem. 2017, 55, 1635–1668. [Google Scholar] [CrossRef] [Green Version]
  15. Zhang, S.S. Liquid electrolyte lithium/sulfur battery: Fundamental chemistry, problems, and solutions. J. Power Sources 2013, 231, 153–162. [Google Scholar] [CrossRef]
  16. Urbonaite, S.; Poux, T.; Novák, P. Progress Towards Commercially Viable Li-S Battery Cells. Adv. Energy Mater. 2015, 5, 1500118. [Google Scholar] [CrossRef]
  17. Benítez, A.; Di Lecce, D.; Caballero, Á.; Morales, J.; Rodríguez-Castellón, E.; Hassoun, J. Lithium sulfur battery exploiting material design and electrolyte chemistry: 3D graphene framework and diglyme solution. J. Power Sources 2018, 397, 102–112. [Google Scholar] [CrossRef]
  18. Li, N.; Zheng, M.; Lu, H.; Hu, Z.; Shen, C.; Chang, X.; Ji, G.; Cao, J.; Shi, Y. High-rate lithium–sulfur batteries promoted by reduced graphene oxide coating. Chem. Commun. 2012, 48, 4106–4108. [Google Scholar] [CrossRef]
  19. Evers, S.; Nazar, L.F. New Approaches for High Energy Density Lithium–Sulfur Battery Cathodes. Acc. Chem. Res. 2013, 46, 1135–1143. [Google Scholar] [CrossRef]
  20. Yin, Y.-X.; Xin, S.; Guo, Y.-G.; Wan, L.-J. Lithium-Sulfur Batteries: Electrochemistry, Materials, and Prospects. Angew. Chemie Int. Ed. 2013, 52, 13186–13200. [Google Scholar] [CrossRef]
  21. Hofmann, A.F.; Fronczek, D.N.; Bessler, W.G. Mechanistic modeling of polysulfide shuttle and capacity loss in lithium–sulfur batteries. J. Power Sources 2014, 259, 300–310. [Google Scholar] [CrossRef] [Green Version]
  22. Benítez, A.; Di Lecce, D.; Elia, G.A.; Caballero, Á.; Morales, J.; Hassoun, J. A Lithium-Ion Battery using a 3 D-Array Nanostructured Graphene–Sulfur Cathode and a Silicon Oxide-Based Anode. ChemSusChem 2018, 11, 1512–1520. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Wang, Q.; Jin, J.; Wu, X.; Ma, G.; Yang, J.; Wen, Z. A shuttle effect free lithium sulfur battery based on a hybrid electrolyte. Phys. Chem. Chem. Phys. 2014, 16, 21225–21229. [Google Scholar] [CrossRef] [PubMed]
  24. James, S.L. Metal-organic frameworks. Chem. Soc. Rev. 2003, 32, 276–288. [Google Scholar] [CrossRef]
  25. Furukawa, H.; Ko, N.; Go, Y.B.; Aratani, N.; Choi, S.B.; Choi, E.; Yazaydin, A.O.; Snurr, R.Q.; O’Keeffe, M.; Kim, J.; et al. Ultrahigh Porosity in Metal-Organic Frameworks. Science 2010, 329, 424–428. [Google Scholar] [CrossRef] [Green Version]
  26. Rowsell, J.L.C. Gas Adsorption Sites in a Large-Pore Metal-Organic Framework. Science 2005, 309, 1350–1354. [Google Scholar] [CrossRef] [Green Version]
  27. Fateeva, A.; Chater, P.A.; Ireland, C.P.; Tahir, A.A.; Khimyak, Y.Z.; Wiper, P.V.; Darwent, J.R.; Rosseinsky, M.J. A Water-Stable Porphyrin-Based Metal-Organic Framework Active for Visible-Light Photocatalysis. Angew. Chemie Int. Ed. 2012, 51, 7440–7444. [Google Scholar] [CrossRef]
  28. Gascon, J.; Corma, A.; Kapteijn, F.; Llabrés i Xamena, F.X. Metal Organic Framework Catalysis: Quo vadis? ACS Catal. 2014, 4, 361–378. [Google Scholar] [CrossRef]
  29. Zhou, J.; Wang, B. Emerging crystalline porous materials as a multifunctional platform for electrochemical energy storage. Chem. Soc. Rev. 2017, 46, 6927–6945. [Google Scholar] [CrossRef]
  30. Mao, Y.; Li, G.; Guo, Y.; Li, Z.; Liang, C.; Peng, X.; Lin, Z. Foldable interpenetrated metal-organic frameworks/carbon nanotubes thin film for lithium–sulfur batteries. Nat. Commun. 2017, 8, 14628. [Google Scholar] [CrossRef] [Green Version]
  31. Zheng, Y.; Zheng, S.; Xue, H.; Pang, H. Metal–organic frameworks for lithium–sulfur batteries. J. Mater. Chem. A 2019, 7, 3469–3491. [Google Scholar] [CrossRef]
  32. Liang, Z.; Qu, C.; Guo, W.; Zou, R.; Xu, Q. Pristine Metal-Organic Frameworks and their Composites for Energy Storage and Conversion. Adv. Mater. 2018, 30, 1702891. [Google Scholar] [CrossRef] [PubMed]
  33. Bai, L.; Chao, D.; Xing, P.; Tou, L.J.; Chen, Z.; Jana, A.; Shen, Z.X.; Zhao, Y. Refined Sulfur Nanoparticles Immobilized in Metal–Organic Polyhedron as Stable Cathodes for Li–S Battery. ACS Appl. Mater. Interfaces 2016, 8, 14328–14333. [Google Scholar] [CrossRef] [PubMed]
  34. Zhang, Z.; An, Y.; Feng, J.; Ci, L.; Duan, B.; Huang, W.; Dong, C.; Xiong, S. Carbon coated copper sulfides nanosheets synthesized via directly sulfurizing Metal-Organic Frameworks for lithium batteries. Mater. Lett. 2016, 181, 340–344. [Google Scholar] [CrossRef]
  35. Bai, S.; Liu, X.; Zhu, K.; Wu, S.; Zhou, H. Metal–organic framework-based separator for lithium–sulfur batteries. Nat. Energy 2016, 1, 16094. [Google Scholar] [CrossRef]
  36. Li, M.; Wan, Y.; Huang, J.-K.; Assen, A.H.; Hsiung, C.-E.; Jiang, H.; Han, Y.; Eddaoudi, M.; Lai, Z.; Ming, J.; et al. Metal–Organic Framework-Based Separators for Enhancing Li–S Battery Stability: Mechanism of Mitigating Polysulfide Diffusion. ACS Energy Lett. 2017, 2, 2362–2367. [Google Scholar] [CrossRef]
  37. Zhou, Z.; Li, Y.; Fang, T.; Zhao, Y.; Wang, Q.; Zhang, J.; Zhou, Z. MOF-Derived Co3O4 Polyhedrons as Efficient Polysulfides Barrier on Polyimide Separators for High Temperature Lithium–sulfur Batteries. Nanomaterials 2019, 9, 1574. [Google Scholar] [CrossRef] [Green Version]
  38. Yue, Y.; Guo, B.; Qiao, Z.-A.; Fulvio, P.F.; Chen, J.; Binder, A.J.; Tian, C.; Dai, S. Multi-wall carbon nanotube@zeolite imidazolate framework composite from a nanoscale zinc oxide precursor. Microporous Mesoporous Mater. 2014, 198, 139–143. [Google Scholar] [CrossRef] [Green Version]
  39. Jiang, Y.; Liu, H.; Tan, X.; Guo, L.; Zhang, J.; Liu, S.; Guo, Y.; Zhang, J.; Wang, H.; Chu, W. Monoclinic ZIF-8 Nanosheet-Derived 2D Carbon Nanosheets as Sulfur Immobilizer for High-Performance Lithium Sulfur Batteries. ACS Appl. Mater. Interfaces 2017, 9, 25239–25249. [Google Scholar] [CrossRef]
  40. Wu, H.B.; Wei, S.; Zhang, L.; Xu, R.; Hng, H.H.; Lou, X.W.D. Embedding Sulfur in MOF-Derived Microporous Carbon Polyhedrons for Lithium-Sulfur Batteries. Chem. A Eur. J. 2013, 19, 10804–10808. [Google Scholar] [CrossRef]
  41. Tan, Y.; Jia, Z.; Lou, P.; Cui, Z.; Guo, X. Self-assembly sandwiches of reduced graphene oxide layers with zeolitic-imidazolate-frameworks-derived mesoporous carbons as polysulfides reservoirs for lithium-sulfur batteries. J. Power Sources 2017, 341, 68–74. [Google Scholar] [CrossRef]
  42. Zhou, J.; Li, R.; Fan, X.; Chen, Y.; Han, R.; Li, W.; Zheng, J.; Wang, B.; Li, X. Rational design of a metal–organic framework host for sulfur storage in fast, long-cycle Li–S batteries. Energy Environ. Sci. 2014, 7, 2715–2724. [Google Scholar] [CrossRef]
  43. Demir-Cakan, R.; Morcrette, M.; Nouar, F.; Davoisne, C.; Devic, T.; Gonbeau, D.; Dominko, R.; Serre, C.; Férey, G.; Tarascon, J.-M. Cathode Composites for Li–S Batteries via the Use of Oxygenated Porous Architectures. J. Am. Chem. Soc. 2011, 133, 16154–16160. [Google Scholar] [CrossRef]
  44. Bao, W.; Zhang, Z.; Qu, Y.; Zhou, C.; Wang, X.; Li, J. Confine sulfur in mesoporous metal–organic framework @ reduced graphene oxide for lithium sulfur battery. J. Alloys Compd. 2014, 582, 334–340. [Google Scholar] [CrossRef]
  45. Hou, Y.; Mao, H.; Xu, L. MIL-100(V) and MIL-100(V)/rGO with various valence states of vanadium ions as sulfur cathode hosts for lithium-sulfur batteries. Nano Res. 2017, 10, 344–353. [Google Scholar] [CrossRef]
  46. Zheng, J.; Tian, J.; Wu, D.; Gu, M.; Xu, W.; Wang, C.; Gao, F.; Engelhard, M.H.; Zhang, J.-G.; Liu, J.; et al. Lewis Acid–Base Interactions between Polysulfides and Metal Organic Framework in Lithium Sulfur Batteries. Nano Lett. 2014, 14, 2345–2352. [Google Scholar] [CrossRef]
  47. Li, M.-T.; Sun, Y.; Zhao, K.-S.; Wang, Z.; Wang, X.-L.; Su, Z.-M.; Xie, H.-M. Metal–Organic Framework with Aromatic Rings Tentacles: High Sulfur Storage in Li–S Batteries and Efficient Benzene Homologues Distinction. ACS Appl. Mater. Interfaces 2016, 8, 33183–33188. [Google Scholar] [CrossRef]
  48. Mellot-Draznieks, C.; Serre, C.; Surblé, S.; Audebrand, N.; Férey, G. Very Large Swelling in Hybrid Frameworks: A Combined Computational and Powder Diffraction Study. J. Am. Chem. Soc. 2005, 127, 16273–16278. [Google Scholar] [CrossRef]
  49. Xu, W.-T.; Ma, L.; Ke, F.; Peng, F.-M.; Xu, G.-S.; Shen, Y.-H.; Zhu, J.-F.; Qiu, L.-G.; Yuan, Y.-P. Metal–organic frameworks MIL-88A hexagonal microrods as a new photocatalyst for efficient decolorization of methylene blue dye. Dalt. Trans. 2014, 43, 3792–3798. [Google Scholar] [CrossRef]
  50. Springthorpe, S.K.; Dundas, C.M.; Keitz, B.K. Microbial reduction of metal-organic frameworks enables synergistic chromium removal. Nat. Commun. 2019, 10, 5212. [Google Scholar] [CrossRef] [Green Version]
  51. Wang, Y.; Guo, X.; Wang, Z.; Lü, M.; Wu, B.; Wang, Y.; Yan, C.; Yuan, A.; Yang, H. Controlled pyrolysis of MIL-88A to Fe 2 O 3 @C nanocomposites with varied morphologies and phases for advanced lithium storage. J. Mater. Chem. A 2017, 5, 25562–25573. [Google Scholar] [CrossRef]
  52. Wang, Z.; Zhang, Z.; Xia, J.; Wang, W.; Sun, S.; Liu, L.; Yang, H. Fe2O3@C core@shell nanotubes: Porous Fe2O3 nanotubes derived from MIL-88A as cores and carbon as shells for high power lithium ion batteries. J. Alloys Compd. 2018, 769, 969–976. [Google Scholar] [CrossRef]
  53. Ma, Q.; Song, H.; Zhuang, Q.; Liu, J.; Zhang, Z.; Mao, C.; Peng, H.; Li, G.; Chen, K. Iron-nitrogen-carbon species boosting fast conversion kinetics of Fe1-xS@C nanorods as high rate anodes for lithium ion batteries. Chem. Eng. J. 2018, 338, 726–733. [Google Scholar] [CrossRef]
  54. Wu, X.; Zhao, H.; Xu, J.; Zhang, Z.; Sheng, W.; Dai, S.; Xu, T.; Zhang, S.; Wang, X.; Wang, Y.; et al. Facile synthesis of MOFs derived Fe7S8/C composites for high capacity and long-life rechargeable lithium/sodium batteries. Appl. Surf. Sci. 2019, 492, 504–512. [Google Scholar] [CrossRef]
  55. Qiu, L.-G.; Li, Z.-Q.; Wu, Y.; Wang, W.; Xu, T.; Jiang, X. Facile synthesis of nanocrystals of a microporous metal–organic framework by an ultrasonic method and selective sensing of organoamines. Chem. Commun. 2008, 3642–3644. [Google Scholar] [CrossRef] [PubMed]
  56. Chalati, T.; Horcajada, P.; Gref, R.; Couvreur, P.; Serre, C. Optimisation of the synthesis of MOF nanoparticles made of flexible porous iron fumarate MIL-88A. J. Mater. Chem. 2011, 21, 2220–2227. [Google Scholar] [CrossRef]
  57. Amaro-Gahete, J.; Klee, R.; Esquivel, D.; Ruiz, J.R.; Jiménez-Sanchidrián, C.; Romero-Salguero, F.J. Fast ultrasound-assisted synthesis of highly crystalline MIL-88A particles and their application as ethylene adsorbents. Ultrason. Sonochem. 2019, 50, 59–66. [Google Scholar] [CrossRef]
  58. Zhou, K.; Fan, X.; Wei, X.; Liu, J. The strategies of advanced cathode composites for lithium-sulfur batteries. Sci. China Technol. Sci. 2017, 60, 175–185. [Google Scholar] [CrossRef]
  59. Feng, Y.; Zhang, Y.; Du, G.; Zhang, J.; Liu, M.; Qu, X. Li 2 S–Embedded copper metal–organic framework cathode with superior electrochemical performance for Li–S batteries. New J. Chem. 2018, 42, 13775–13783. [Google Scholar] [CrossRef]
  60. Song, J.-Y.; Lee, H.-H.; Hong, W.; Huh, Y.; Lee, Y.; Kim, H.; Jun, Y.-S. A Polysulfide-Infiltrated Carbon Cloth Cathode for High-Performance Flexible Lithium–Sulfur Batteries. Nanomaterials 2018, 8, 90. [Google Scholar] [CrossRef] [Green Version]
  61. Benítez, A.; Caballero, Á.; Rodríguez-Castellón, E.; Morales, J.; Hassoun, J. The Role of Current Collector in Enabling the High Performance of Li/S Battery. ChemistrySelect 2018, 3, 10371–10377. [Google Scholar] [CrossRef]
  62. Chien, Y.-C.; Pan, R.; Lee, M.-T.; Nyholm, L.; Brandell, D.; Lacey, M.J. Cellulose Separators With Integrated Carbon Nanotube Interlayers for Lithium-Sulfur Batteries: An Investigation into the Complex Interplay between Cell Components. J. Electrochem. Soc. 2019, 166, A3235–A3241. [Google Scholar] [CrossRef]
  63. Liu, N.; Huang, W.; Zhang, X.; Tang, L.; Wang, L.; Wang, Y.; Wu, M. Ultrathin graphene oxide encapsulated in uniform MIL-88A(Fe) for enhanced visible light-driven photodegradation of RhB. Appl. Catal. B Environ. 2018, 221, 119–128. [Google Scholar] [CrossRef]
  64. Hernández-Rentero, C.; Córdoba, R.; Moreno, N.; Caballero, A.; Morales, J.; Olivares-Marín, M.; Gómez-Serrano, V. Low-cost disordered carbons for Li/S batteries: A high-performance carbon with dual porosity derived from cherry pits. Nano Res. 2018, 11, 89–100. [Google Scholar] [CrossRef]
  65. Wang, J.; Wan, J.; Ma, Y.; Wang, Y.; Pu, M.; Guan, Z. Metal–organic frameworks MIL-88A with suitable synthesis conditions and optimal dosage for effective catalytic degradation of Orange G through persulfate activation. RSC Adv. 2016, 6, 112502–112511. [Google Scholar] [CrossRef]
  66. Ionashiro, E.Y.; Caires, F.J.; Siqueira, A.B.; Lima, L.S.; Carvalho, C.T. Thermal behaviour of fumaric acid, sodium fumarate and its compounds with light trivalent lanthanides in air atmosphere. J. Therm. Anal. Calorim. 2012, 108, 1183–1188. [Google Scholar] [CrossRef]
  67. Gholizadeh Khasevani, S.; Gholami, M.R. Novel MIL-88A/g-C3N4 nanocomposites: Fabrication, characterization and application as a photocatalyst. Inorg. Chem. Commun. 2019, 102, 221–228. [Google Scholar] [CrossRef]
  68. Zhang, Z.; Li, X.; Liu, B.; Zhao, Q.; Chen, G. Hexagonal microspindle of NH 2 -MIL-101(Fe) metal–organic frameworks with visible-light-induced photocatalytic activity for the degradation of toluene. RSC Adv. 2016, 6, 4289–4295. [Google Scholar] [CrossRef]
  69. Xu, J.; Su, D.; Zhang, W.; Bao, W.; Wang, G. A nitrogen–sulfur co-doped porous graphene matrix as a sulfur immobilizer for high performance lithium–sulfur batteries. J. Mater. Chem. A 2016, 4, 17381–17393. [Google Scholar] [CrossRef] [Green Version]
  70. Lu, Y.; Li, X.; Liang, J.; Hu, L.; Zhu, Y.; Qian, Y. A simple melting-diffusing-reacting strategy to fabricate S/NiS 2 –C for lithium–sulfur batteries. Nanoscale 2016, 8, 17616–17622. [Google Scholar] [CrossRef]
  71. Ray Zeng, Q.; Wang, D.-W.; Wu, K.-H.; Li, Y.; Condi de Godoi, F.; Gentle, I.R. Synergy of nanoconfinement and surface oxygen in recrystallization of sulfur melt in carbon nanocapsules and the related Li–S cathode properties. J. Mater. Chem. A 2014, 2, 6439–6447. [Google Scholar]
  72. Liu, Y.; Huang, Y.; Xiao, A.; Qiu, H.; Liu, L. Preparation of Magnetic Fe3O4/MIL-88A Nanocomposite and Its Adsorption Properties for Bromophenol Blue Dye in Aqueous Solution. Nanomaterials 2019, 9, 51. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Zheng, G.; Zhang, Q.; Cha, J.J.; Yang, Y.; Li, W.; Seh, Z.W.; Cui, Y. Amphiphilic Surface Modification of Hollow Carbon Nanofibers for Improved Cycle Life of Lithium Sulfur Batteries. Nano Lett. 2013, 13, 1265–1270. [Google Scholar] [CrossRef] [PubMed]
  74. Yang, Y.; Shukla, P.; Wang, S.; Rudolph, V.; Chen, X.-M.; Zhu, Z. Significant improvement of surface area and CO2 adsorption of Cu–BTC via solvent exchange activation. RSC Adv. 2013, 3, 17065–17072. [Google Scholar] [CrossRef]
  75. Jin, J.; Wen, Z.; Liang, X.; Cui, Y.; Wu, X. Gel polymer electrolyte with ionic liquid for high performance lithium sulfur battery. Solid State Ionics 2012, 225, 604–607. [Google Scholar] [CrossRef]
  76. Di Lecce, D.; Verrelli, R.; Campanella, D.; Marangon, V.; Hassoun, J. A New CuO-Fe2O3-Mesocarbon Microbeads Conversion Anode in a High-Performance Lithium-Ion Battery with a Li1.35Ni0.48Fe0.1Mn1.72O4 Spinel Cathode. ChemSusChem 2017, 10, 1607–1615. [Google Scholar]
  77. Carbone, L.; Coneglian, T.; Gobet, M.; Munoz, S.; Devany, M.; Greenbaum, S.; Hassoun, J. A simple approach for making a viable, safe, and high-performances lithium-sulfur battery. J. Power Sources 2018, 377, 26–35. [Google Scholar] [CrossRef]
  78. Cai, D.; Lu, M.; Li, L.; Cao, J.; Chen, D.; Tu, H.; Li, J.; Han, W. A Highly Conductive MOF of Graphene Analogue Ni 3 (HITP) 2 as a Sulfur Host for High-Performance Lithium–Sulfur Batteries. Small 2019, 15, 1902605. [Google Scholar] [CrossRef]
  79. Moreno, N.; Caballero, A.; Hernán, L.; Morales, J.; Canales-Vázquez, J. Ordered mesoporous carbons obtained by a simple soft template method as sulfur immobilizers for lithium–sulfur cells. Phys. Chem. Chem. Phys. 2014, 16, 17332–17340. [Google Scholar] [CrossRef]
  80. Manthiram, A.; Fu, Y.; Chung, S.-H.; Zu, C.; Su, Y.-S. Rechargeable Lithium–Sulfur Batteries. Chem. Rev. 2014, 114, 11751–11787. [Google Scholar]
Nanomaterials 10 00424 g001 550

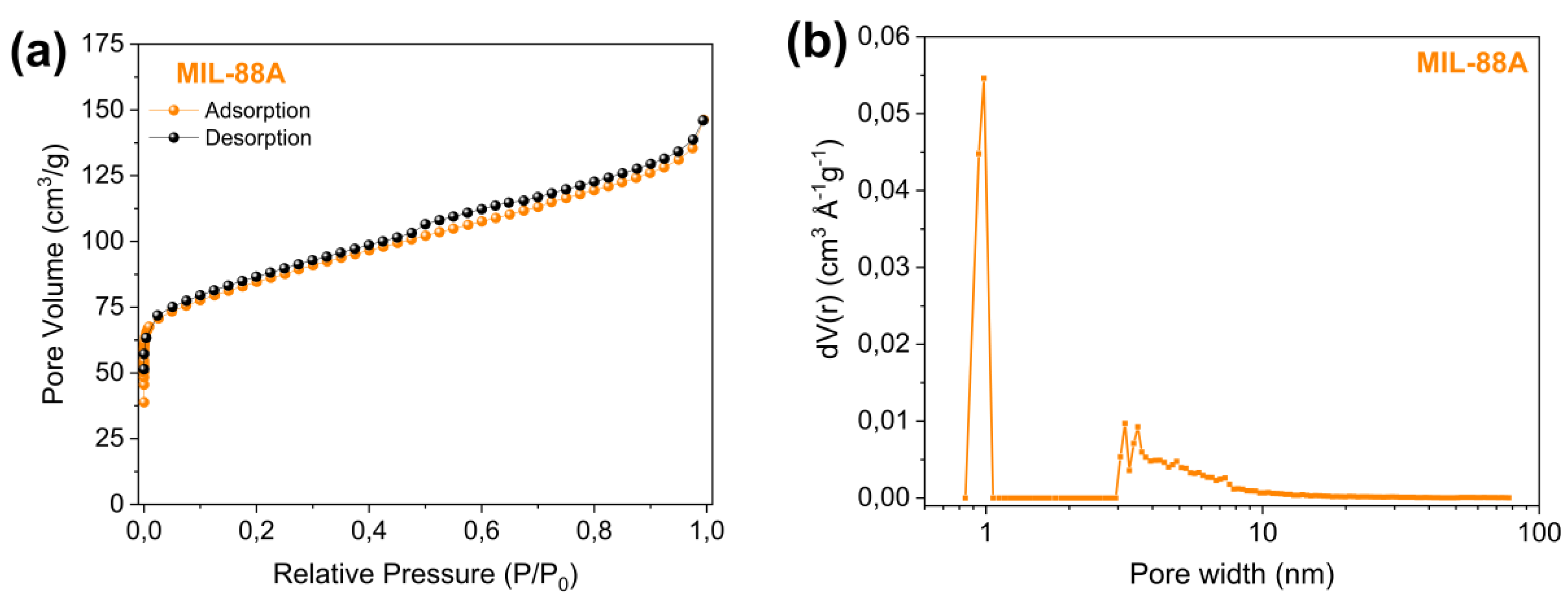

Figure 1. (a) N2 adsorption-desorption isotherm and (b) pore size distribution of MIL-88A.
Figure 1. (a) N2 adsorption-desorption isotherm and (b) pore size distribution of MIL-88A.
Nanomaterials 10 00424 g001
Nanomaterials 10 00424 g002 550

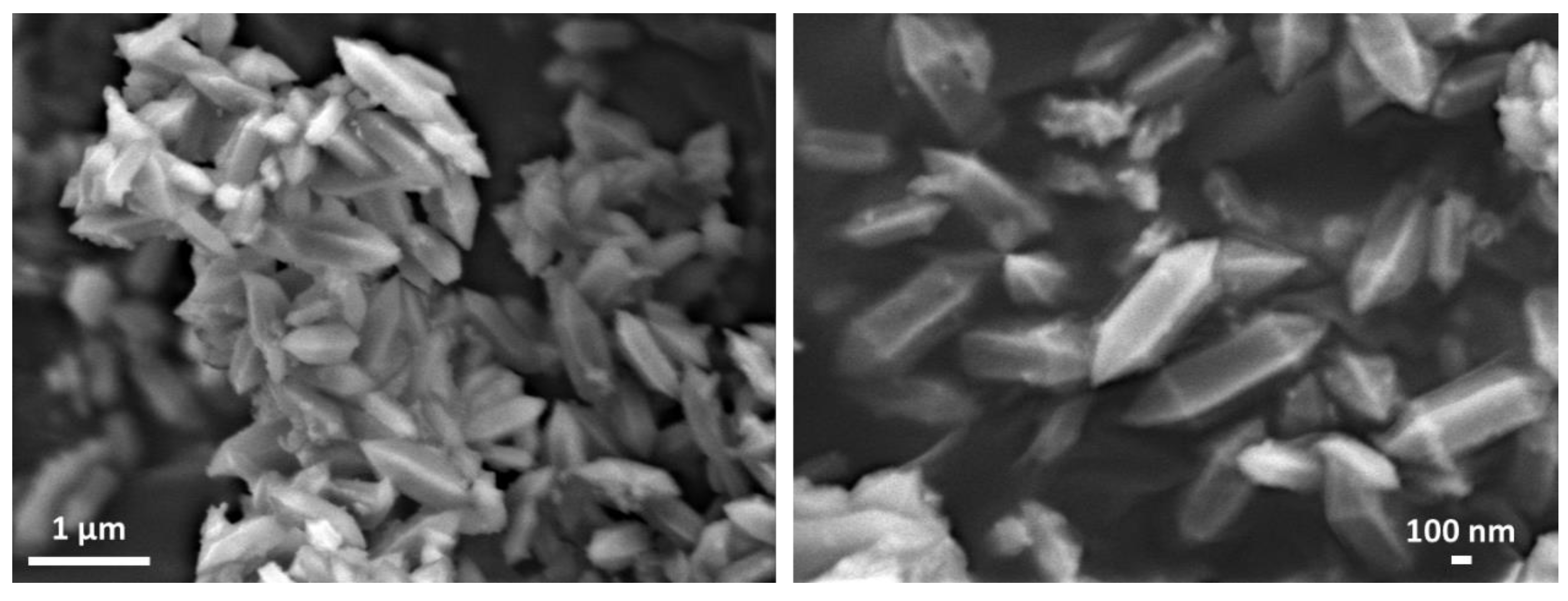

Figure 2. SEM images at different magnifications for MIL-88A MOF.
Figure 2. SEM images at different magnifications for MIL-88A MOF.
Nanomaterials 10 00424 g002
Nanomaterials 10 00424 g003 550

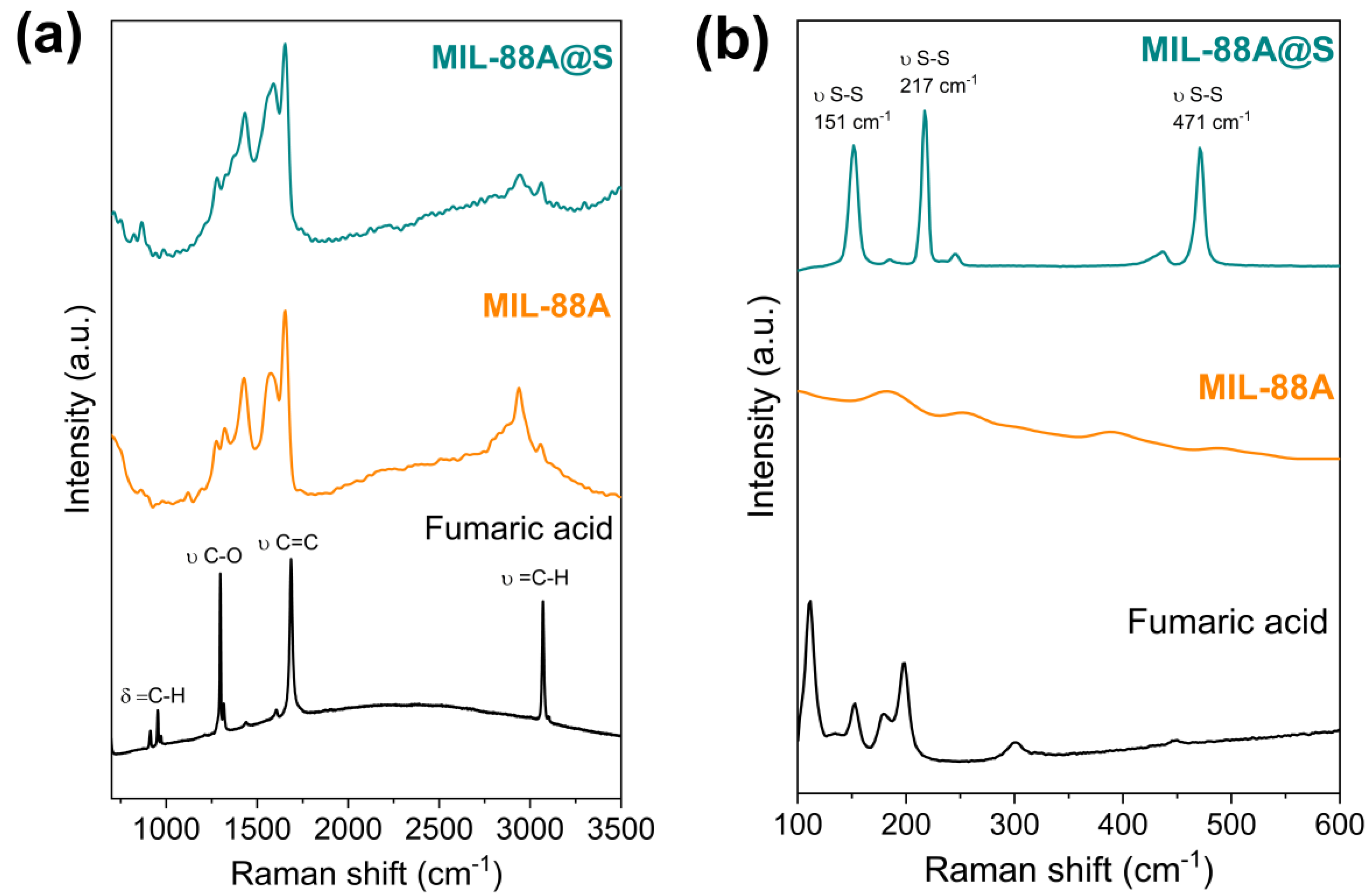

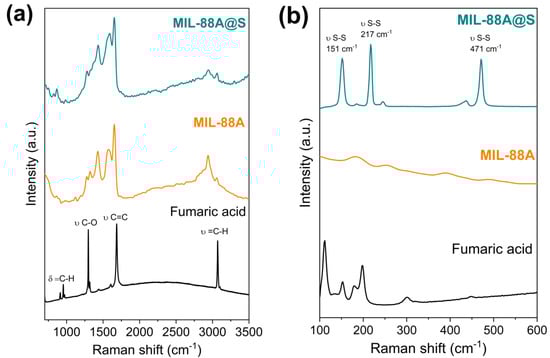

Figure 3. Raman spectra for commercial fumaric acid, MIL-88A and MIL-88A@S registered in shift ranges of 700-3500 (a) and 100–600 cm−1 (b).
Figure 3. Raman spectra for commercial fumaric acid, MIL-88A and MIL-88A@S registered in shift ranges of 700-3500 (a) and 100–600 cm−1 (b).
Nanomaterials 10 00424 g003
Nanomaterials 10 00424 g004 550

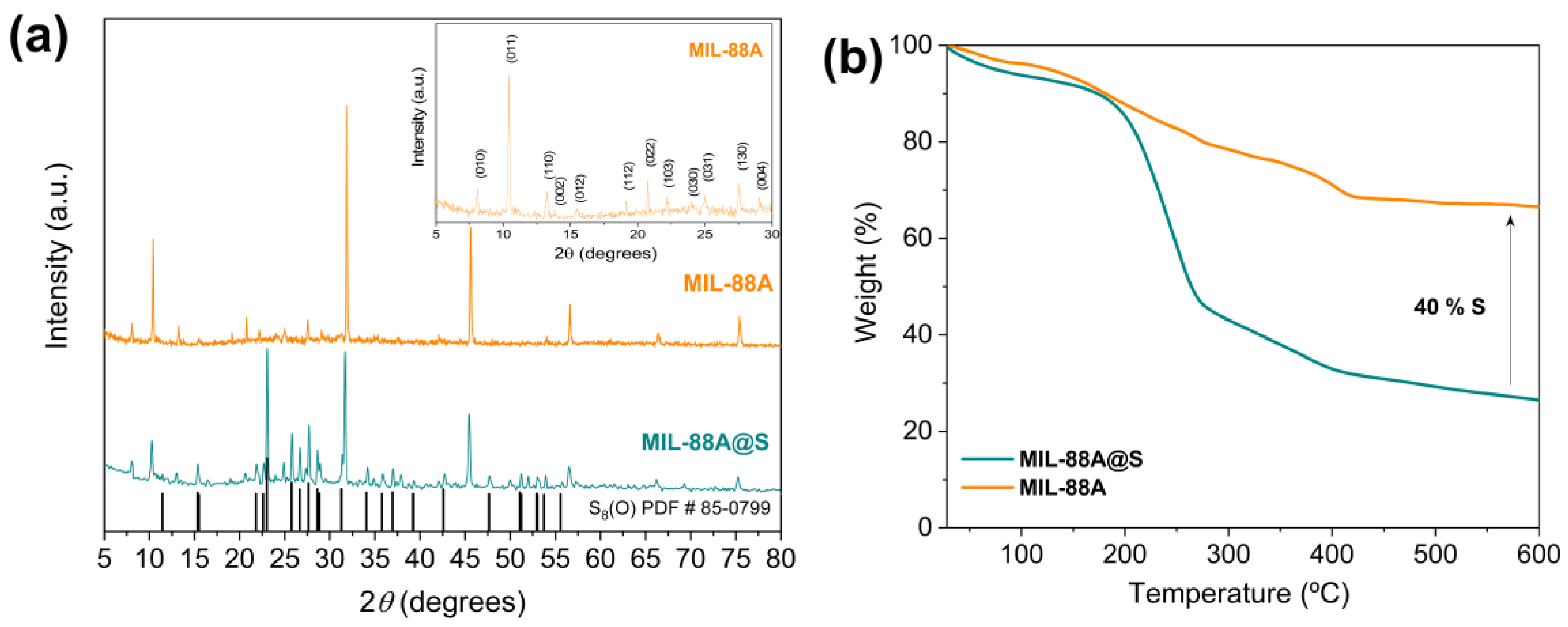

Figure 4. (a) XRD patterns of MIL-88A (orange), MIL-88A@S composite (green), and reference data for S8 (PDF# 85-0799, black). Inset: XRD patterns of MIL-88A recorded from 5° to 30° (2θ); and (b) TGA curves of both synthesised samples.
Figure 4. (a) XRD patterns of MIL-88A (orange), MIL-88A@S composite (green), and reference data for S8 (PDF# 85-0799, black). Inset: XRD patterns of MIL-88A recorded from 5° to 30° (2θ); and (b) TGA curves of both synthesised samples.
Nanomaterials 10 00424 g004
Nanomaterials 10 00424 g005 550

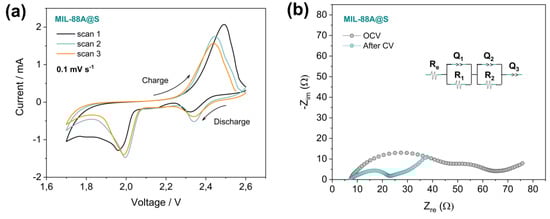

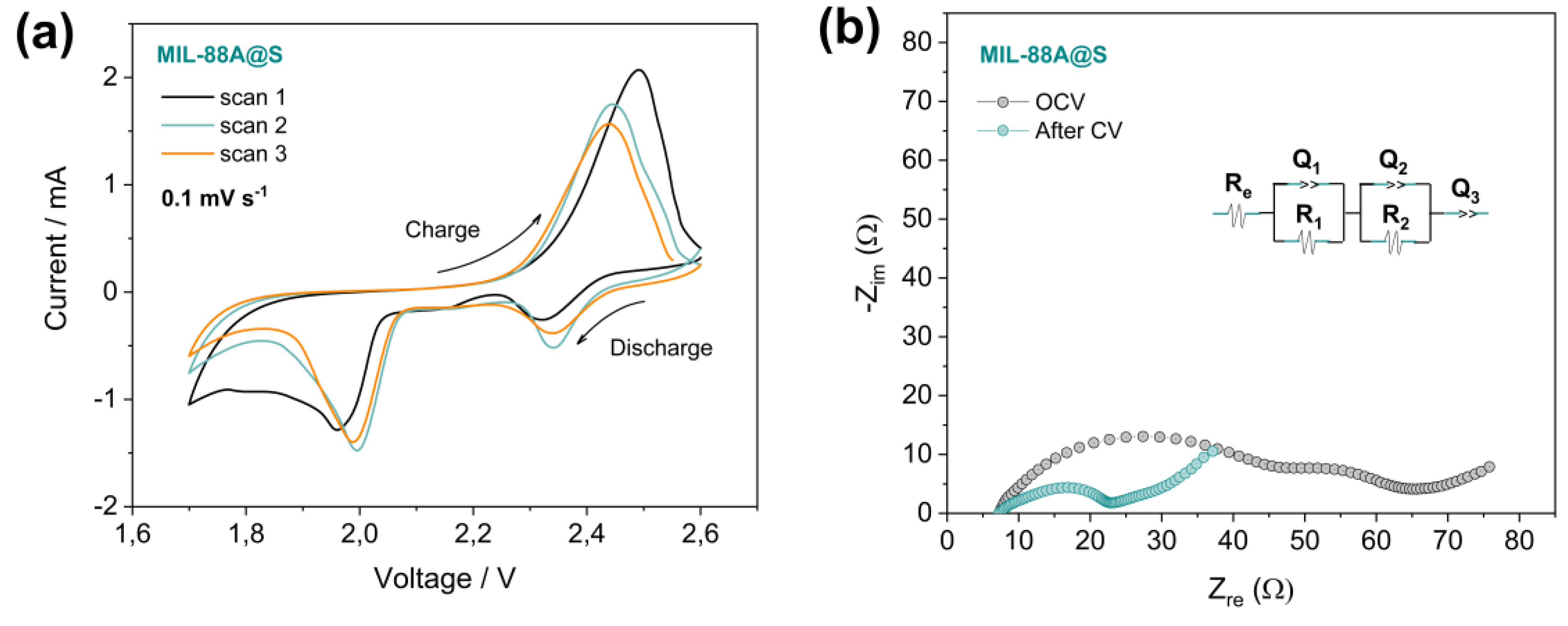

Figure 5. (a) CV profiles of Li/LiTFSI-LiNO3-DOL:DME/MIL-88A@S battery at room temperature. Scan rate: 0.1 mV s−1, voltage range: 1.7–2.6 V; and its corresponding (b) EIS measurements in open circuit voltage (OCV) and after the third CV cycle.
Figure 5. (a) CV profiles of Li/LiTFSI-LiNO3-DOL:DME/MIL-88A@S battery at room temperature. Scan rate: 0.1 mV s−1, voltage range: 1.7–2.6 V; and its corresponding (b) EIS measurements in open circuit voltage (OCV) and after the third CV cycle.
Nanomaterials 10 00424 g005
Nanomaterials 10 00424 g006 550

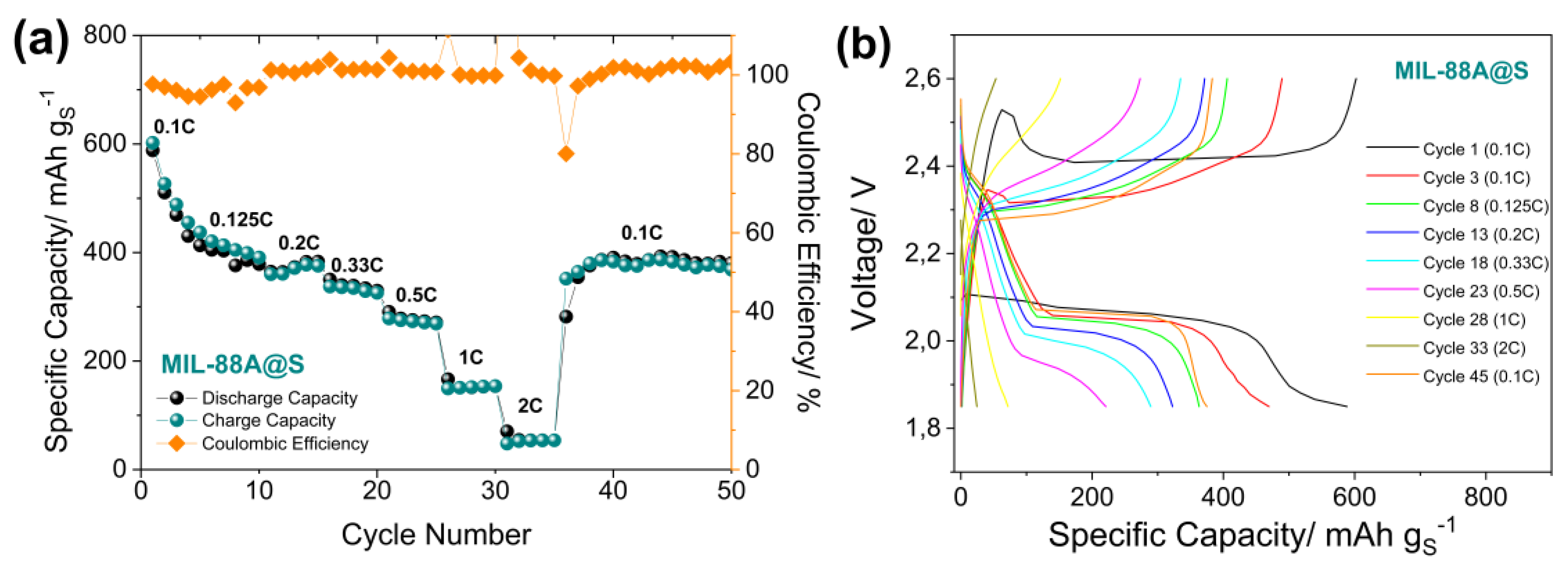

Figure 6. (a) Rate capability cycling behaviour performed at C/10, C/8, C/5, C/3, C/2, 1 C, and 2 C (1C = 1675 mA g−1) at room temperature, and (b) corresponding voltage profiles of a Li/S cell using the LiTFSI-LiNO3-DOL:DME electrolyte and MIL-88A@S electrode. Voltage limits 1.85 V–2.6 V.
Figure 6. (a) Rate capability cycling behaviour performed at C/10, C/8, C/5, C/3, C/2, 1 C, and 2 C (1C = 1675 mA g−1) at room temperature, and (b) corresponding voltage profiles of a Li/S cell using the LiTFSI-LiNO3-DOL:DME electrolyte and MIL-88A@S electrode. Voltage limits 1.85 V–2.6 V.
Nanomaterials 10 00424 g006
Nanomaterials 10 00424 g007 550

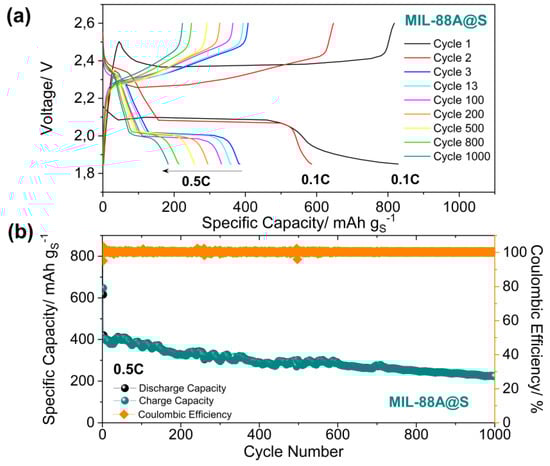

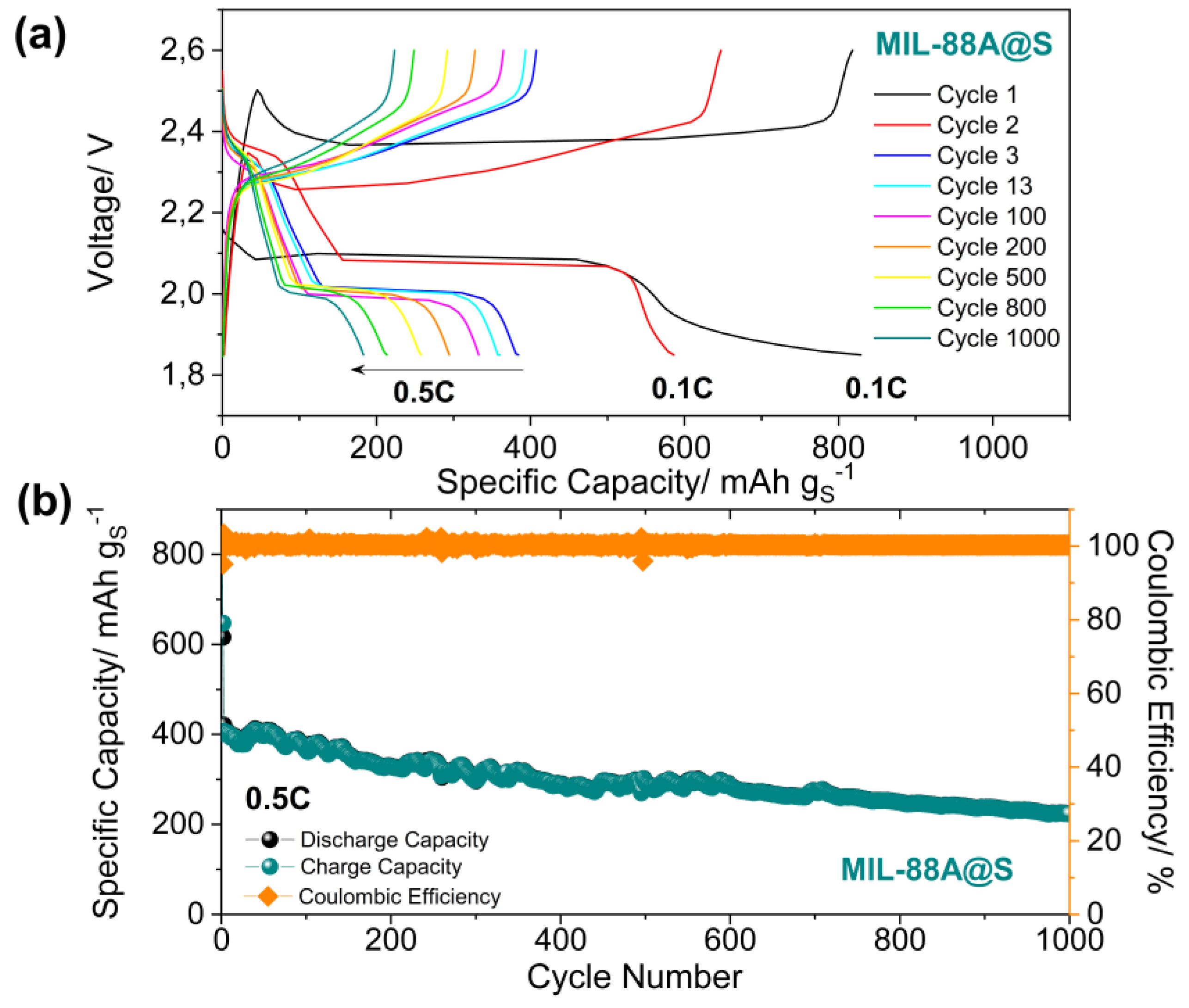

Figure 7. (a) The discharge and charge profiles of a Li-S cell using a constant rate of 0.5 C (1 C = 1675 mA g−1) within a potential range of 1.85-2.6 V vs. Li+/Li, and (b) the delivered capacity from the discharge and charge and coulombic efficiency vs. the cycle number.
Figure 7. (a) The discharge and charge profiles of a Li-S cell using a constant rate of 0.5 C (1 C = 1675 mA g−1) within a potential range of 1.85-2.6 V vs. Li+/Li, and (b) the delivered capacity from the discharge and charge and coulombic efficiency vs. the cycle number.
Nanomaterials 10 00424 g007

Share and Cite

MDPI and ACS Style

Benítez, A.; Amaro-Gahete, J.; Esquivel, D.; Romero-Salguero, F.J.; Morales, J.; Caballero, Á. MIL-88A Metal-Organic Framework as a Stable Sulfur-Host Cathode for Long-Cycle Li-S Batteries. Nanomaterials 2020, 10, 424. https://doi.org/10.3390/nano10030424

AMA Style

Benítez A, Amaro-Gahete J, Esquivel D, Romero-Salguero FJ, Morales J, Caballero Á. MIL-88A Metal-Organic Framework as a Stable Sulfur-Host Cathode for Long-Cycle Li-S Batteries. Nanomaterials. 2020; 10(3):424. https://doi.org/10.3390/nano10030424

Chicago/Turabian Style

Benítez, Almudena, Juan Amaro-Gahete, Dolores Esquivel, Francisco José Romero-Salguero, Julián Morales, and Álvaro Caballero. 2020. "MIL-88A Metal-Organic Framework as a Stable Sulfur-Host Cathode for Long-Cycle Li-S Batteries" Nanomaterials 10, no. 3: 424. https://doi.org/10.3390/nano10030424

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
