The Thermoelectric Properties of Monolayer MAs₂ (M = Ni, Pd and Pt) from First-Principles Calculations

Abstract

The thermoelectric property of the monolayer MAs₂ (M = Ni, Pd and Pt) is predicted based on first principles calculations, while combining with the Boltzmann transport theory to confirm the influence of phonon and electricity transport property on the thermoelectric performance. More specifically, on the basis of stable geometry structure, the lower lattice thermal conductivity of the monolayer NiAs₂, PdAs₂ and PtAs₂ is obtained corresponding to 5.9, 2.9 and 3.6 W/mK. Furthermore, the results indicate that the monolayer MAs₂ have moderate direct bang-gap, in which the monolayer PdAs₂ can reach 0.8 eV. The Seebeck coefficient, power factor and thermoelectric figure of merit (ZT) were calculated at 300, 500 and 700 K by performing the Boltzmann transport equation and the relaxation time approximation. Among them, we can affirm that the monolayer PdAs₂ possesses the maximum ZT of about 2.1, which is derived from a very large power factor of 3.9 × 10¹¹ W/K²ms and lower thermal conductivity of 1.4 W/mK at 700 K. The monolayer MAs₂ can be a promising candidate for application at thermoelectric materials.

1. Introduction

The energy crisis has always been a problem that plagues the world, so countries around the world are committed to developing new and advanced renewable energy conversion technologies. As an effective energy conversion technology, thermoelectric (TE) power generation has attracted extensive attention from researchers [1,2]. The conversion efficiency between heat and electricity is usually determined by the thermoelectric figure of merit (ZT),

ZT = S²σT/(κ_l + κ_e)

(1)

ZT depends on the Seebeck coefficient (S), absolute temperature (T), electrical conductivity (σ), thermal conductivity (κ_l), and electrical conductivity (κ_e) [3,4]. Generally, a good TE material should have both low thermal conductivity and high Seebeck coefficient. However, the existence of strong coupling effect between each transport parameter within TE materials makes it is not feasible for increasing the ZT value by lifting a certain transport parameter. Several commonly used methods to improve ZT are mainly to optimize the electrical transport performance through belt structure engineering [5,6], and/or to suppress the thermal conductivity of materials through low-dimensional technology [7,8].

It is well known that the successful peeling of graphene greatly promotes the exploration of two-dimensional (2D) layered materials. The special physical, chemical, electronic and optical properties exhibited by the two-dimensional materials make it have good application prospects in the fields of electrodes [9,10], nano devices [11] and TE technology [12]. Hicks and Dresselhaus proposed that ZT value would be improved if 2D structural materials were used instead of three-dimensional ones [13,14]. Because the restriction of carriers in the low-dimensional quantum well leads to the change of energy state density distribution, under certain conditions of Fermi energy, it is beneficial to increase the number of carriers and improve the conductivity and ZT value [15]. At present, the theoretical prediction of new two-dimensional thermoelectric materials with attractive properties such as narrow a band gap and high fluidity is still a very active research field. For example, 2D structures such as silicones [16,17], phosphorene [18,19] and group-IV monochalcogenides (MX, M = Ge, Sn; X = S, Se) [20,21] have a suitable band gap, which effectively promotes them in the field of TE materials applications.

Discovering the application potential of new two-dimensional structural materials in various fields from experiments and theories has always been a research hotspot. The 2D materials currently reported are mostly square or hexagonal lattices. However, the recently discovered pentagonal 2D materials [22,23,24,25] exhibit some interesting properties and have attracted widespread attention. Qian et al. [26] reported theoretically that the 2D binary MX₂ (M = Ni, Pd, Pt; X = P and As) exhibited a beautiful pentagonal ring network with a narrow direct band gap of about 0.3–0.8 eV and ultra-high mobility for holes and electrons. Based on these intrinsic features, they may have good TE performance. In this paper, we systematically study the TE properties of the monolayer MAs₂ (M = Ni, Pd, Pt) using the first-principles and Boltzmann transport methods. We find that single-layer NiAs₂, PdAs₂ and PtAs₂ have extremely low lattice thermal conductivities, which are 5.9 W/mK, 2.9 W/mK and 3.6 W/mK, respectively. Meanwhile, the single-layer PdAs₂ exhibits excellent n-type thermoelectric material characteristics, and the ZT value can reach 2.1 at 700 K. Our research results provide a strong theoretical basis for the experimental exploration of the thermoelectric properties of 2D MAs₂, and help to promote further experimental verification.

2. Computational Methods

The first principles calculations of the monolayer MAs₂ (M = Ni, Pd, Pt) are presented by density functional theory (DFT) as performed in the Vienna Ab-initio Simulation Package (VASP 5.4.4, Hafner Group at the University of Vienna, Vienna, Austria) [27]. The projector augmented wave (PAW) pseudopotentials are employed to represent the ion-electron interaction [28,29]. The generalized gradient approximation of Perdew-Burke-Ernzerhof (PBE) [30] to the exchange-correlation functional are used. In addition, the cutoff energy and the convergence criteria are set to 500 and 10⁻⁵ eV, respectively. To obtain a more accurate band gap, the Heyd-Scuseria-Ernzerhof (HSE06) [31] screened hybrid functional was employed. The electricity transport properties are described by Boltzmann transport theory and the relaxation time approximation within the BoltzTraP code [32]. A dense k-mesh of 35 × 35 × 1 is chosen to carry out the calculation.

The Boltzmann transport equation is employed for calculating the lattice thermal conductivity, and we use the harmonic second-order interaction force constants (2nd IFCs) and the anharmonic third-order IFCs (3rd IFCs) to be input as performed in ShengBTE code [33] with a dense 50 × 50 × 1 k-mesh. Among them, the 3 × 3 × 1 supercell and 3 × 3 × 1 k-mesh are adopted to calculate the 2nd IFCs as implemented in PHONOPY code [34], and the thirderdor.py is used to compute the 3rd IFCs with the 3 × 3 × 1 supercell, while the 6th nearest neighbors are considered. The effective masses are derived from the band structure [35]. The carrier mobility is calculated by the deformation potential (DP) theory [36]. The constant scattering time approximation is used to calculate the constant relaxation time [37].

3. Results and Discussions

3.1. Crystal and Electronic Structures

The new 2D monolayer materials MAs₂ (M = Ni, Pd, Pt), which was obtained by mechanical stripping method, that exhibited good kinetic and thermal stability [26]. The optimal geometry structures of the monolayer MAs₂ (M = Ni, Pd, Pt) are obtained as showed in Figure 1. From the top view as shown in Figure 1a, it is clear that the monolayer MAs₂ has a tetragonal structure (space group Pa3No.) and each M atom adopts a planar tetra-ligand with four As atoms. A unit-cell is constituted by two M and four As atoms, while all M atoms are always in one plane with As atoms, as shown in Figure 1b. Three As atoms and two M atoms form a pentagonal ring network, marked with a black ellipse, as shown in Figure 1a. The optimized lattice structure parameters are shown in

Table 1. Lattice constants (LC) of 2D MAs₂ (M = Ni, Pd, Pt) sheets and the degrees of α, β and γ angles.

	LC (Å)	α (deg)	β (deg)	γ (deg)
NiAs2	5.89	132.64	90	113.68
PdAs2	6.19	129.39	90	115.30
PtAs2	6.16	129.78	90	115.11

. The calculation results of the lattice constant (LC) of MAs₂ and the degrees of the α, β and γ angles of the pentagonal unit are consistent with the calculation results of Qian et al. [26].

The band structure and projected density of states (PDOS) are computed by using HSE06 as plotted in Figure 2. The presence of direct bang-gap at the S point is clearly visible, which signifies that the monolayer MAs₂ is the semiconductor, and the corresponding band gaps are 0.59, 0.80 and 0.34 eV for the monolayer NiAs₂, PdAs₂ and PtAs₂, respectively. The band gaps of MAs₂ materials is within the ideal band gap range for good thermoelectric materials (0.3–1.0 eV) [6]. Among them, the result of PdAs₂ is very consistent with band gap 0.80 eV by Yuan et al. [38] and 0.78 eV by Pan et al. [39]. It can be seen that the monolayer MAs₂ possess the great band degeneracy that appears in the valence band (VB) along the X-S direction and primarily originates from the M-orbitals. This kind of band degeneracy means that is MAs₂ characterized by excellent thermoelectric performance. At present, the band degeneracy has been enhanced by band engineering with the aim of increasing the flatness of the density of states (DOS) to improve the power factor (PF). From the PDOS, a high density of states near the Fermi level are mainly contributed by the M-orbitals, whereas the As have only a small contribution. Besides, there are spikes near the Fermi energy level that can be observed, which effectively promotes the sharp increasing of Seebeck coefficient.

3.2. Electrical Transport Properties

The electronic properties can be characterized on the basis of carrier mobility for monolayer MAs₂, along the conveyor directions. We calculate them using the deformation potential (DP) theory proposed by Bardeen and Shockley [36]. The formula of carrier mobility in 2D systems can be written as follows [35,40]:

$${\mu }_{2D}=\frac{e{ħ}^3{C}^{2D}}{{\kappa }_{B}T{m}^{*}{m}_d{E}_l^2}$$

(2)

where k_B is the Boltzmann constant, T represents the temperature that is taken as 300 K, m* is the effective mass for the conveyor direction, m_d is the average effective mass defined by $m_d=\sqrt{m_x{m}_y}$, E_l is the deformation potential constant, and C^2D is the effective 2D elastic constants, respectively. The calculated effective mass, carrier mobility and relaxation time (τ = μm*/e) are shown in

Table 2. Deformation potential (DP) constant E_l, 2D elastic constants C^2D, effective mass m*, carrier mobility μ, and scattering time τ for electron (e) and hole (h) along conveyor directions in the 2D monolayer MAs₂ sheet at 300 K.

	Carriers Type	El (eV)	C2D (J/m2)	m*/m0	μ (104 cm2/Vs)	τ (ps)
NiAs2	electorn	2.2	100	0.14	1.47	1.17
	hole	1.68	100	0.16	1.93	1.76
PdAs2	electorn	1.52	93	0.21	1.27	1.51
	hole	0.69	93	0.09	34.27	1.75
PtAs2	electorn	1.41	117	0.07	17.07	6.79
	hole	2.33	117	0.08	4.80	2.18

. After calculation, it was concluded that the electrical transport properties of MAs₂ are isotropic, which results from its perfect lattice symmetry, m_d is equal to m*. Noticeably, it shows a high hole mobility (34.27 cm²/Vs) of PdAs₂ at room temperature, which is much higher than that of NiAs₂ (~1.93 cm²/Vs) and PtAs₂ (~4.80 cm²/Vs). The high mobility in monolayer PdAs₂ is associated with the ideal band gap, which is beneficial to its electrical transport, while the mobilities of the holes are PtAs₂ and showed a high hole mobility (~17.07 cm²/Vs) at room temperature, which is much higher than that of NiAs₂ (~1.93 cm²/Vs) and PtAs₂ (~4.80 cm²/Vs).

Based on the Boltzmann transport equation and rigid band approximation, the electricity transport properties under the relaxation time approximation are calculated. After calculation, it was found that the electrical transport properties of MAs₂ are isotropic, which results from their perfect lattice symmetry. As shown in Figure 3, we can find that the Seebeck coefficient (S), electrical conductively (σ/τ), electron thermal conductively (κ_e/τ) and power factor (S²σ/τ) as the function of chemical potential (μ) at 300, 500 and 700 K are obtained, whereas the positive and negative μ correspond to n-type and p-type of monolayer MAs₂. The electricity transport properties can be obtained by

$${\sigma }_{\alpha \beta }\left(T,\mu \right)=\frac{1}{V}{\displaystyle \int }{{\displaystyle \sum }}_{\alpha \beta }\left(\epsilon \right)\left[-\frac{\partial f_{\mu }\left(T,\epsilon \right)}{\partial \epsilon }\right]d\epsilon ,$$

(3)

$$S_{\alpha \beta }\left(T,\mu \right)=\frac{1}{eTV{\sigma }_{\alpha \beta }\left(T,\mu \right)}{\displaystyle \int }{{\displaystyle \sum }}_{\alpha \beta }\left(\epsilon \right)\left(\epsilon -\mu \right)\left[-\frac{\partial f_{\mu }\left(T,\epsilon \right)}{\partial \epsilon }\right]d\epsilon ,$$

(4)

$${{\displaystyle \sum }}_{\alpha \beta }\left(\epsilon \right)=\frac{e^2}{N_0}{{\displaystyle \sum }}_{i,k}\tau {\upsilon }_{\alpha }\left(i,k\right){\nu }_{\beta }\left(i,k\right)\frac{\delta \left(\epsilon -{\epsilon }_{i,k}\right)}{d\epsilon },$$

(5)

where α and β are cartesian indices, V is the volume of the primitive cell and $\sum _{\alpha \beta }\left(\epsilon \right)$ is the transport distribution function. The S is inversely proportional to temperature, which is proven in Figure 3a–c. We can clearly find that the absolute value of S of monolayer MAs₂ decreases with the increase in temperature. The p-type and n-type doping of monolayer PdAs₂ surprisingly possess a very large absolute value of S up to 440 and 460 μV/K at 300 K, which is significant to improve power factor. Meanwhile, the absolute value of p-type S of monolayer NiAs₂ and PtAs₂ are also observed about 140 and 135 μV/K, respectively. The calculated large S of monolayer MAs₂ can be benefited from the PDOS.

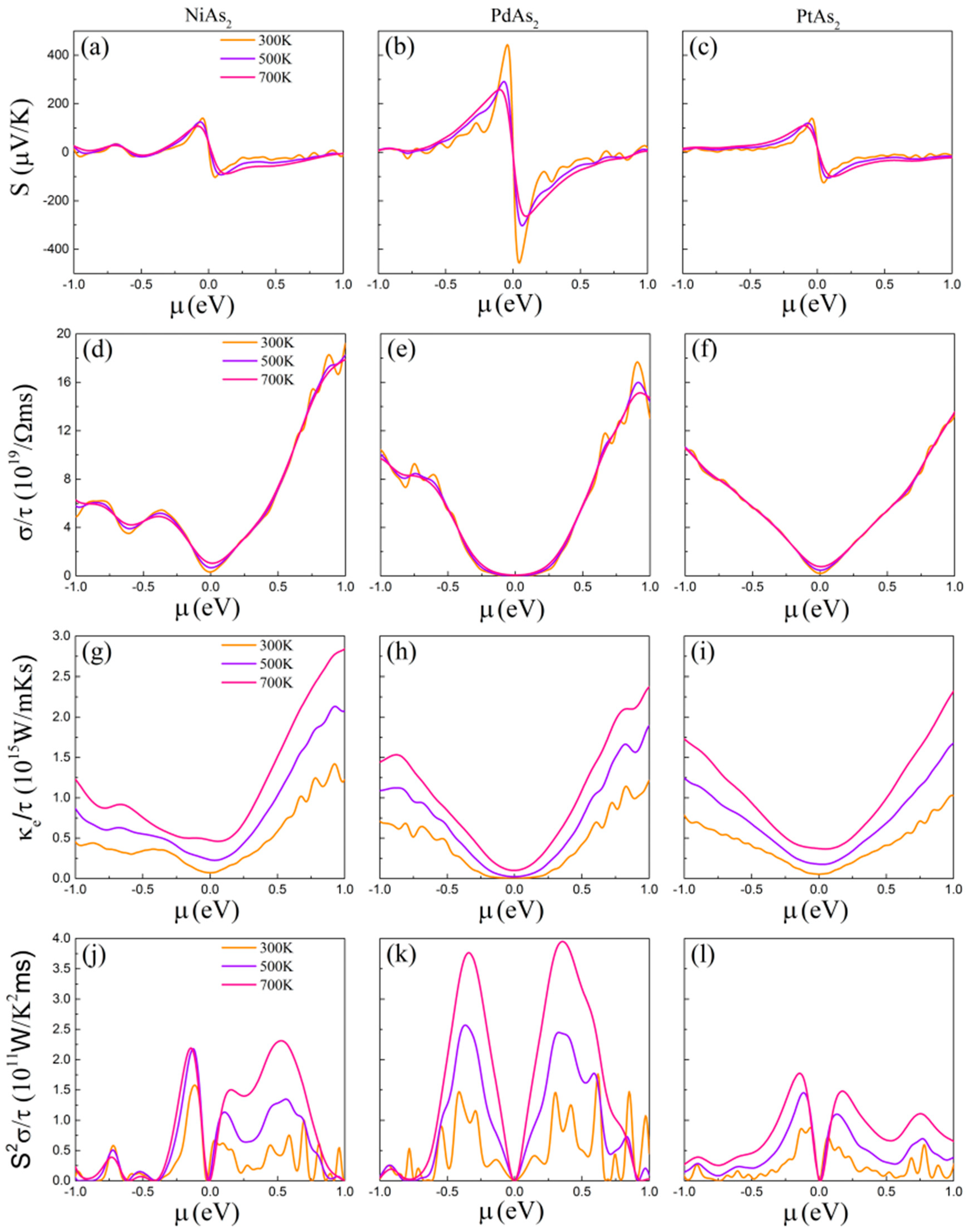

The electrical conductively (σ) is one of the important parameters for analyzing thermoelectric properties. As Figure 3d–f presents, the pretty high σ can be observed, which is very beneficial for optimizing PF and thus improving thermoelectric performance. In addition, we can find that the change in σ is independent of the change in temperature, which is different from the trend of S. Then, further decomposition suggests that the σ of monolayer PdAs₂ is less than that of monolayer NiAs₂ and PtAs₂, while the σ of n-type doping is always superior to that of p-type doping.

The electronic thermal conductivity (κ_e) can be calculated by the Wiedemann-Franz law:

κ_e = LσT

(6)

where L = π²κ_B²/3e² is the Lorenz number. From Figure 3g–i, we can clearly find that the function curve of κ_e is similar to that of the σ, which is contributed by the proportional relationship between them.

According to Equation (1), the PF can be evaluated and illustrated in Figure 3j–l, which is obtained by combining S with σ. The maximum value of PF is n-type monolayer PdAs₂ up to 3.9 × 10¹¹ W/K²ms, which is much higher than n-type monolayer NiAs₂ and p-type monolayer PtAs₂ corresponding to 2.3 × 10¹¹ W/K²ms and 1.7 × 10¹¹ W/K²ms, respectively. This phenomenon is mainly caused by the dominant advantage of S. The calculated results suggest that monolayer MAs₂ possess the great merits to be a promising thermoelectric material.

3.3. Thermal Transport Properties

In order to accurately analyze the effect of phonon transport properties on TE performance, we computed the phonon spectrum of monolayer MAs₂ and corresponding phonon DOS (PhDOS) as plotted in Figure 4. The lack of virtual frequency in the phonon spectrum indicates that monolayer MAs₂ is dynamically stable, which is consistent with the previous theoretical date. There are two M and four As atoms, corresponding to eighteen curves which include three phonon–phonon and fifteen optical–phonon curves. Additionally, the phonon spectrum consisting of two parts that correspond to the two parts of PhDOS can be clearly observed. Among them, the phenomenon is that the low-frequency phonon–phonon curves are mainly controlled by the vibration of M atoms, while the vibrations of M and As atoms jointly contribute to the optical-phonon curves.

The lattice thermal conductivity (κ_l) is one of important factors for evaluating TE properties, which can be proved from Equation (2). Based on the Boltzmann transport theory with implementing in ShengBTE mode, the κ_l of monolayer NiAs₂, PdAs₂ and PtAs₂ can be computed by

$${\kappa }_l=\frac{1}{V}{\displaystyle \sum }_{\lambda }{C}_{\lambda }{\nu }_{\lambda }^2{\tau }_{\lambda }$$

(7)

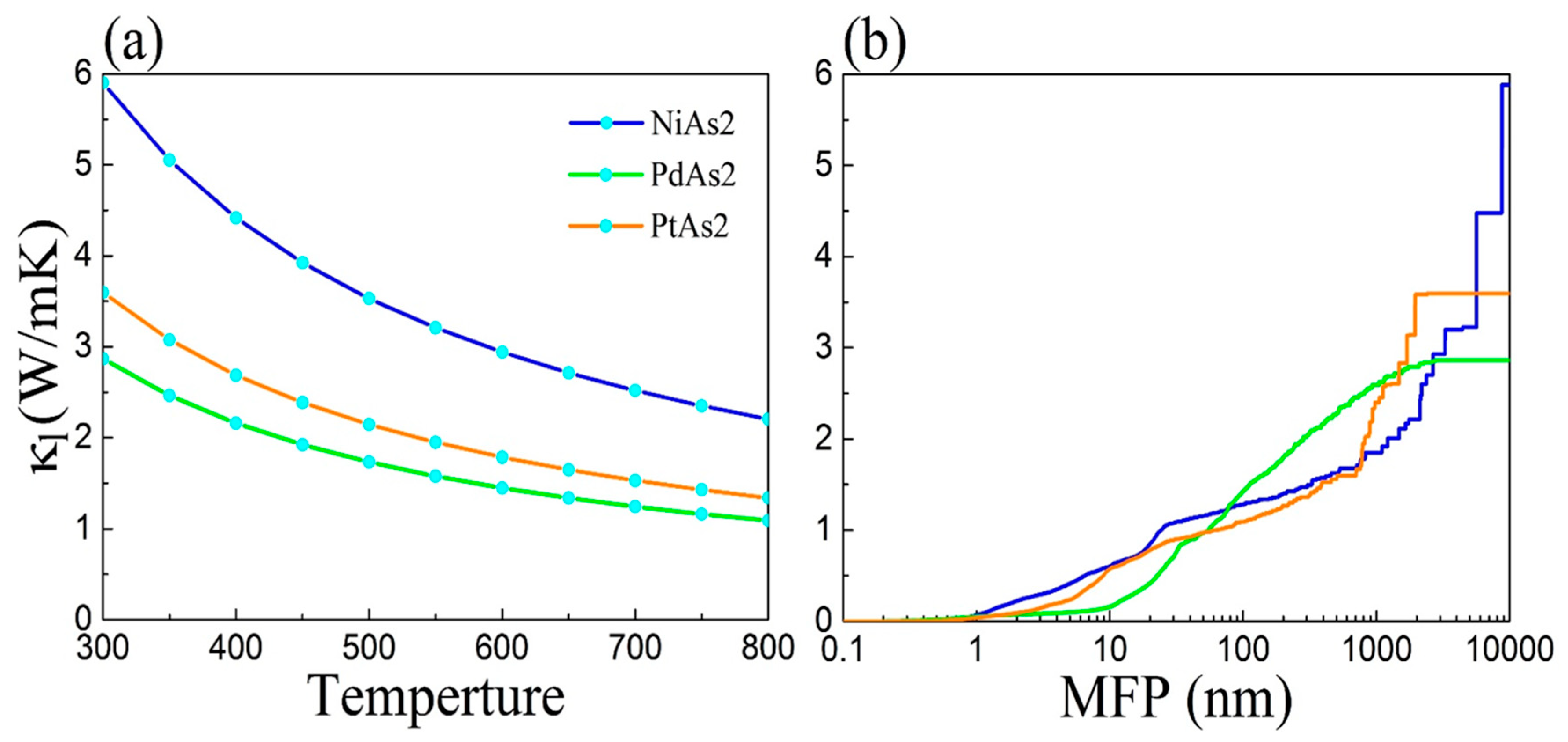

where C_λ, v_λ and τ_λ are the mode heat capacity, phonon group velocity and relaxation time, respectively. The κ_l as a function of temperature is presented in Figure 5a. We can find that the κ_l of monolayer MAs₂ gradually reduce with the increase in temperature following the inverse relation, which is mainly caused by increasing phonon scattering with the elevating temperature. At 300 K, The κ_l of monolayer NiAs₂, PdAs₂ and PtAs₂ are 5.9, 2.9 and 3.6 W/mK, respectively.

The notion that nanostructures can effectively reduce thermal conductivity and thus improve thermoelectric performance has been proved, because nanostructures can hinder phonon transport and reduce the lattice thermal conductivity while having little impact on the electronic thermal conductivity, which greatly reduces the interaction between transport parameters. Consequently, the influence of size effect on κ_l is considered and calculated. As Figure 5b demonstrates, the phonon mean free path (MFP) as a function of accumulated κ_l of monolayer MAs₂ at 300 K exhibits that the value is optical within the range of 1 nm, due to the accumulated κ_l having no change with transforming size. Surprisingly, a positive phenomenon we can observe is that the slope curves of monolayer PdAs₂ is very small, which can actively promote the application in TE materials.

In order to analyze the influence of lattice thermal conductivity on TE performance in detail, we calculated the phonon group velocity (v), relaxation time (τ), Grüneisen parameters (γ) and the three-phonon scattering phase space (P₃) as presented in Figure 6.

An important factor (v) affecting the evaluation of thermal transport ability is determined by employing the phonon dispersion, which can be calculated by

$${\nu }_{\lambda q}=\frac{\partial {\omega }_{\lambda q}}{\partial q}$$

(8)

where ω_λ,q is the phonon frequency. In Figure 6a, we can clearly find that the v of monolayer MAs₂ of low-frequency acoustic breaches are much higher than that of high-frequency optical breaches, which indicates that acoustic breaches make a contribution to the κ_l. The value of v in the low-frequency region at 300 K can be obtained of 7.6, 5.2 and 6 Km/s for NiAs₂, PdAs₂ and PtAs₂, respectively. The order of magnitude is NiAs₂ > PtAs₂ > PdAs₂, which suggests that the magnitude relationship of the κ_l in Figure 5a is consistent. As Figure 6b shows, another key parameter phonon relaxation time (τ) is evaluated according to Equation (5). We can find that the τ of monolayer PtAs₂ is smaller than that of monolayer NiAs₂ and PdAs₂, which is useful for receiving desired κ_l.

Usually, the anharmonic interactions are used to determine the intensity of interactions and described by γ; thus, the greater anharmonic interaction can promote the generation of a much stronger phonon-phonon interaction as well as a smaller lattice thermal conductivity. Figure 6c displays the Grüneisen parameters (γ) of monolayer MAs₂ with respect to frequency at 300 K, which can be calculated by

$$\gamma \left(q\right)=-\frac{V}{\omega \left(q\right)} \frac{\partial \omega \left(q\right)}{\partial V}$$

(9)

where V is the volume. We can find that monolayer MAs₂ possess a very high value for γ at a low frequency, corresponding to 10, 32 and 13 of NiAs₂, PdAs₂ and PtAs₂, respectively. Obviously, the value of γ of monolayer PdAs₂ is much higher than that of NiAs₂ and PtAs₂ sheet, indicating that monolayer PdAs₂ has a large anharmonic interaction, which causes the smallest κ_l in three arsenic compounds.

The three-phonon scattering phase space (P₃) is used to describe the τ, and a larger value of P₃ shows that more space is adopted to the three-phonon scattering, while a shorter τ can be reaped. As shown as Figure 6d, the P₃ of monolayer MAs₂ as function of phonon frequency is obtained. We can clearly find that monolayer MAs₂ possess a large scattering phase space at a low frequency, indicating that they can promote little τ for acoustic phonon breaches.

3.4. Thermoelectric Figure of Merit (ZT)

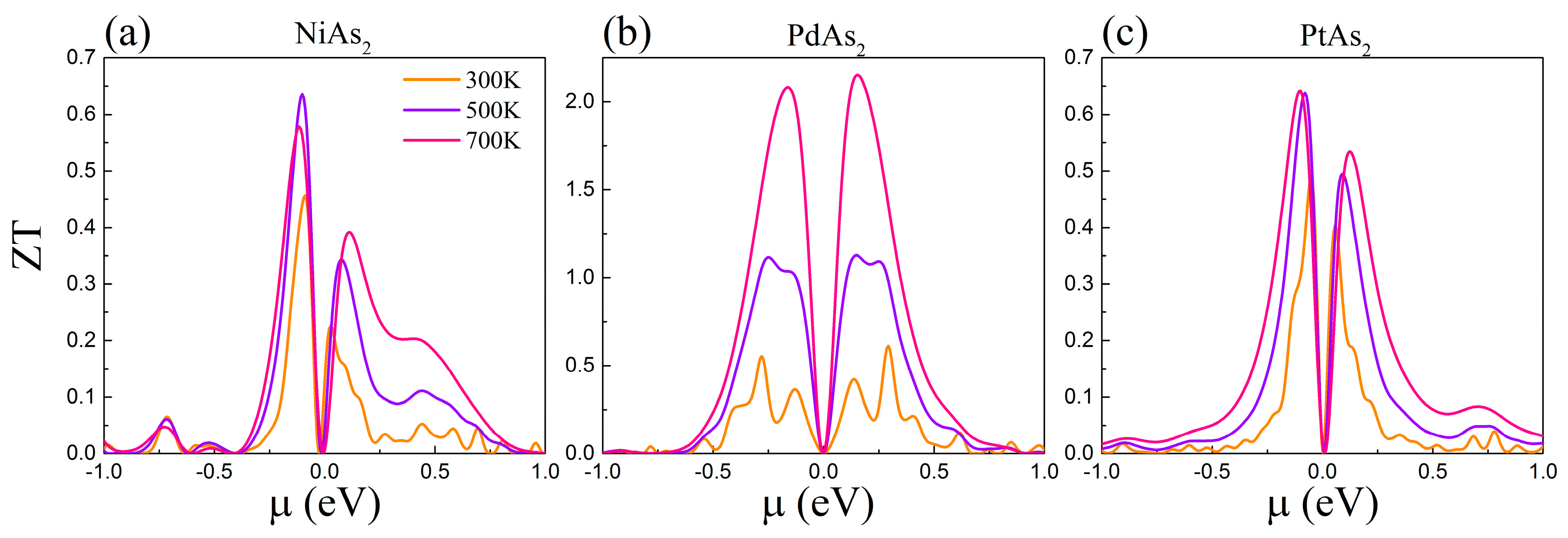

The large power factor (PF) and very low thermal conductivity of monolayer MAs₂ are obtained through the calculation of electronic and phonon transport properties, i.e., a high thermoelectric figure of merit (ZT) is generated. By combining the phonon and electron transport coefficients, we calculate the ZT of monolayer MAs₂.The electronic scattering time τ is obtained by the DP theory, as shown in Table 2. The ZT values of monolayer NiAs₂, PdAs₂ and PtAs₂ as functions of chemical potential at 300, 500 and 700 K are plotted in Figure 7 corresponding to (a), (b) and (c), respectively. We can clearly note that the p-type doping ZT value of NiAs₂ and PtAs₂ sheet are greater than n-type doping, while the ZT value of sing-layer PdAs₂ is contrary to them and belongs to n-type doping, which is consistent with the type of PF. The maximum ZT value of monolayer NiAs₂ (p-type), PdAs₂ (n-type) and PtAs₂ (p-type) are 0.58, 2.1 and 0.64 at 700 K, respectively. The predicted ZT value of PdAs₂ is larger than those of the commercial TE material p-type penta-PdX₂ (X = S, Se) [41] and some other arsenic compound [42].

Besides, the ZT value of PdAs₂ was three to four times higher than that of the other two arsenic compounds, mainly due to the combination of larger Seebeck coefficient and lower lattice thermal conductivity. The monolayer PdAs₂ can be expected for application in thermoelectric material.

4. Conclusions

In summary, based on the first-principles calculations and combined with the Boltzmann transport theory, the TE properties of sing-layer NiAs₂, PdAs₂ and PtAs₂ are confirmed. We verified that the crystal structure of monolayer MAs₂ is dynamically stable. Subsequently, the phonon spectrum was analyzed in detail, including the lattice thermal conductivity, phonon group velocity, relaxation time, Grüneisen parameters, the three-phonon scattering phase space and the size effect. The calculated results indicate that the small group speed of 5.2 km/s and large Grüneisen parameters of 32 for PdAs₂ promote the generation of a minimum lattice thermal conductivity of about 2.9 W/mK in three arsenic compounds. In addition, the calculated electron transport properties show that the Seebeck coefficients at 300 K of NiAs₂ (p-type) and PtAs₂ (p-type) are 140 and 135 μV/K, while n-type doping PdAs₂ is 460 μV/K, which determines the types of power factor. According to Formula 1 and the combination of these data with the calculated results, the ZT values of monolayer NiAs₂, PdAs₂ and PtAs₂ were calculated of the values 0.58 (p-type), 2.1 (n-type) and 0.64 (p-type) at 700 K, respectively, which suggests that MAs₂ might become a promising thermoelectric material.
