Biological and pharmaceutical compounds can encompass peptides, proteins, antigens, antibodies, nucleic acids, lipids, vitamins and minerals, phytochemicals, and other nutraceuticals (e.g., coenzyme Q10
, glucosamine) as well as cell therapies [1
]. Delivery to target tissues can include oral, pulmonary, subcutaneous, intravenous, transdermal, and nasal routes. Pharmaceutical agents can be administered via numerous routes and each has advantages and disadvantages [4
The oral route of administration has often been reported to be an important method of administering pharmaceutical or other agents for a systemic effect [5
]. The parenteral route has not routinely been used for self-administration of medications or non-pharmaceutical compounds such as nutraceuticals [6
]. However, the conventional oral method of administration that is often employed for small molecules presents a difficult barrier for biological compounds. The intestine–liver axis first-pass metabolism can significantly influence drug or nutraceutical metabolism [7
]. Additional gastrointestinal limitations also can significantly influence the metabolism and efficacy of a compound. Such limitations include reduced absorption due to the large molecular sizes of biological compounds, a high degree of enzymatic degradation (i.e., by proteolytic enzymes present in the intestinal epithelia and lumen), or a high degree of chemical instability due to the luminal low-pH environment [7
It is widely recognized that the implementation of nanomaterials in biotechnology merges the fields of material science and biology. Nanoparticles provide a particularly useful platform, demonstrating unique properties with potentially wide-ranging therapeutic applications [9
]. The advantages of nanotechnology drugs compared to conventional counterparts lie on the basis of particle size. Pharmaceutical/drug products with nano dimensions can be used at a lower concentration and can lead to early onset of bioactivity [10
]. Nano drug delivery systems (nano-pharmaceuticals) can be but not limited to variations in applications that include nanocapsules, nanospheres, nanosponges, nanoemulsions, solid lipid nanoparticles, nanovesicular systems (e.g., niosomes, liposomes—the latter exhibiting evidence of toxicity), molecular systems (inclusion complexes), and nanocrystals. Therefore, nano-pharmaceuticals provide enormous potential in drug delivery as carriers for spatial and temporal delivery of bioactive molecules.
Recent developments in conjunction with nanomedicine for the co-administration of drugs with lipid compounds have been reported to enhance lymphatic transport [11
] an example that employs functional biomaterials to enhance drug delivery. Interestingly, in a postprandial state, lipid–drug conjugates, and lipid-based nanoparticles have been widely studied for the delivery of lipophilic drugs via the lymphatic pathway; these are the frameworks advanced for the liposomal delivery of pharmaceutical [12
] and non-pharmaceutical compounds [13
], utilising functional biomaterials such as fatty acids to form a micelle. Nanotechonology that encapsulates the idea of manipulating matter at the nanometre range has also been limited by the availability of safety data [14
] and drawbacks especially with regard to liposomes [15
]. Notwithstanding though, nanoparticles such as polymeric micelles, liposomes, and conjugated nanoparticles have inspired the drug development industry [17
The aim of this clinical study with healthy subjects was to compare the absorption profiles over a 6-h period of five different vitamin B12
formulations administered via the oral-intestinal tract (e.g., B12
tablets), oral mucosa (e.g., liposome B12
), and oro-buccal site (e.g., nanoparticle B12
). Currently, there are no such studies that have investigated the absorptive characteristics of a water-soluble compound such as vitamin B12
that in humans has a complex process for the gastrointestinal absorption of dietary vitamin B12
. Briefly, vitamin B12
when it is released from food protein is first bound to haptocorrin (salivary vitamin B12
-binding protein) in the stomach. Proteolysis of haptocorrin–vitamin B12
complex by pancreatic proteases follows in the duodenum. The released vitamin B12
then goes on to bind to intrinsic factor (IF, gastric vitamin B12
-binding protein) in the proximal ileum. The IF–vitamin B12
complex can enter mucosal cells in the distal ileum by receptor-mediated endocytosis. Bioavailability of dietary vitamin B12
is significantly dependent on this gastrointestinal absorption [18
] and disease processes can disturb the proper uptake of the vitamin [19
]. Moreover, in addition to individuals preferring to avoid intramuscular injections of vitamin B12
reports strongly suggest that switching from intramuscular injections to orally delivered formulations of B12
significantly lowers costs and benefits the health care system [20
]. Therefore, as such this study purports to advance a nanoparticle biomaterial micelle platform complex with a focus of delivering an active ingredient; where the primary focus can be applied to any water soluble or insoluble (e.g., atorvastatin, vitamin D3
) physiologically active compounds for specific clinical targets.
Healthy males (n
= 9) and females (n
= 7) in a ratio of approximately 1:1 volunteered to participate in a comparative absorption study of five vitamin B12
formulations. Study duration was six months. Demographic variables remained constant throughout the study (Table 1
Participants provided a total 314 serum samples for B12

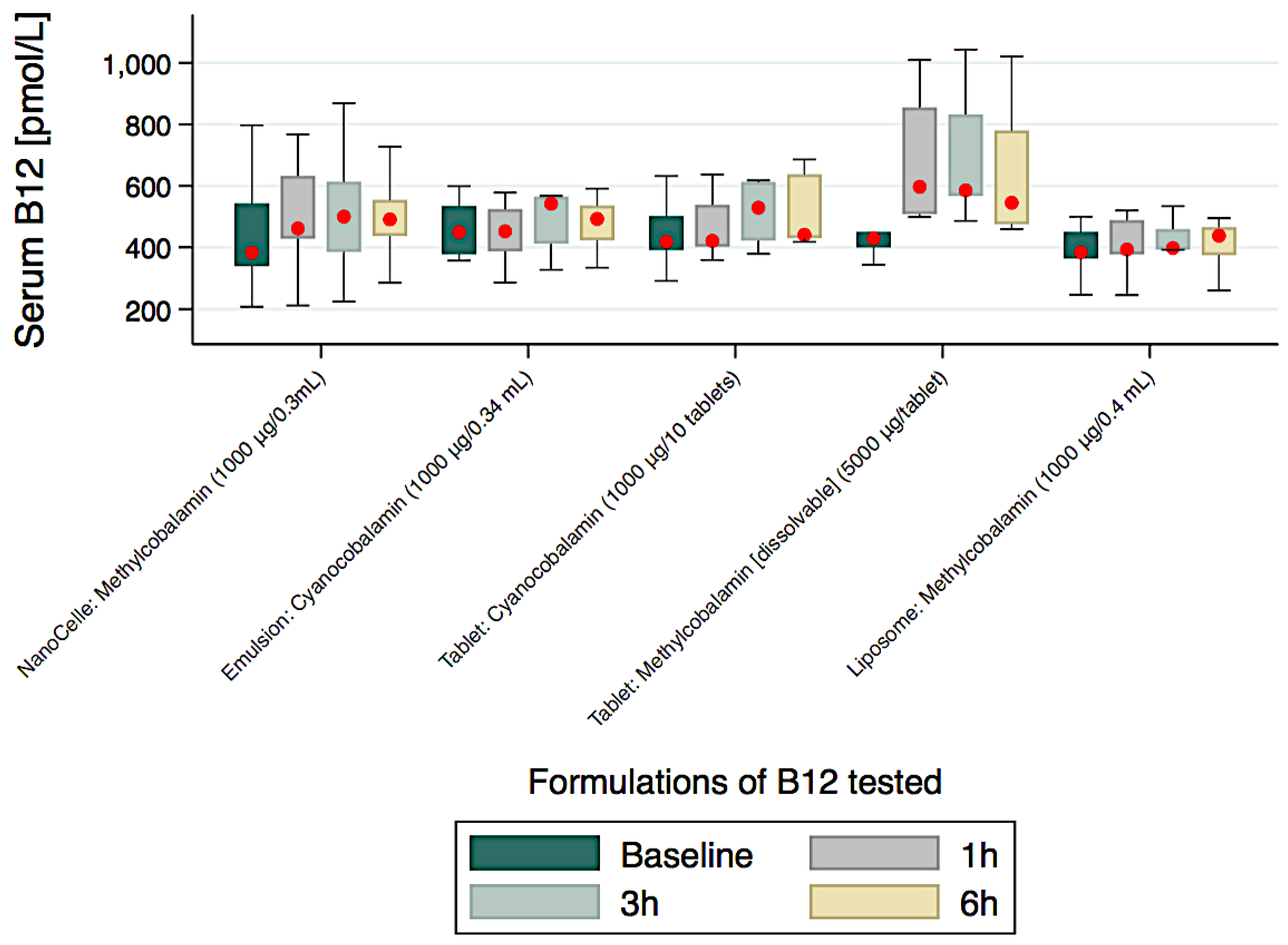

assays over the course of the clinical study and the comparisons of levels achieved over a 6-h study period are graphically presented in Figure 3
and numerically with significant trends (medians (IQR)) in Table 2
With the exception of the high vitamin B12
concentrated (5000 µg/tablet) chewable-dissolvable tablet, the nanoparticle formulation showed the most rapid increase and sustained blood serum concentrations of vitamin B12
over the time course of the clinical study. Furthermore, there was a significantly increased serum levels of vitamin B12
from baseline to 1 and 3 h for only the nanoparticle delivered platform when compared to all other by equivalent dose formulations administered irrespective of mode of delivery (i.e., emulsion, tablet or liposome) (Table 2
). At the 6-h time point, the serum level of B12
began to decrease for all formulations. The serum level of the nanoparticle B12
formulation showed a 28% increase from baseline at 6-h. The liposome and emulsion formulations showed very low serum levels of B12
achieved over the 6-h study period. The liposome formulation was associated with the poorest absorption profile over the study time. The nanoparticle B12
formulation was observed to be bioequivalent to a tablet containing five-times higher the B12
dose over the 6 h of study (Table 2
No adverse events were reported to any of the formulations tested.
The clinical study compared the absorption of vitamin B12 by investigating five different delivered formulations and showed that on an equivalent dose basis (1000 µg dose) a nanoparticle (NanoCelle) platform was significantly better at delivering vitamin B12 as methylcobalamin than was a tablet, emulsion, or liposome formulation of either methylcobalamin or cyanocobalamin. Furthermore, the nanoparticle B12 formulation (1000 µg/dose in 0.3 mL volume) demonstrated bioequivalence with a dissolvable/chewable concentrated per tablet containing five times the dose of B12 (i.e., 5000 µg). The innovation of the NanoCelle is in the application of a delivery system that is posited to deliver a nutraceutical or a pharmaceutical directly into the facial lymphatics and hence into the systemic circulation via the oro-buccal mucosa. As such, bypassing intestinal enzymic degradation processes and first pass metabolism of the liver could enhance target tissue delivery of an active compound.
Oral mucosa formulations for the delivery of supplements such as vitamins, minerals, and active pharmaceutical ingredients include tablets, capsules (hard and soft shelled), lozenges, powders, emulsions, and liquids. In order to benefit from such formulations and ensure optimum absorption of the supplements or active pharmaceutical ingredients, the subject must have a well-functioning gastrointestinal system that ensures adequate absorption via the gastrointestinal tract. It is generally accepted that the dissolution rate of drugs in the intestinal tract affects the absorption rate and the degree to which drugs are absorbed [23
Disease processes can significantly influence the absorption of water-soluble vitamins in the intestines [24
]. It is hence biologically plausible to investigate alternative routes of administration of water-soluble compounds such as vitamin B12
by employing and exploring the efficacy of nanoparticle technology in oral mucosal delivery systems.
Research with nanoparticles, and especially liposomes, has been ongoing for more than three decades. However, the development of methods and standard protocols for safety, tolerability, and efficacy testing is still in a developmental phase. This is particularly relevant to liposomes, as this study has shown that liposome delivery of vitamin B12 was significantly less efficient than any of the other formulations on dose equivalency. Moreover, of concern was the observation that the serum level of the liposome vitamin B12 formulation remained almost constant over the 6-h study period, indicating very low release of the active ingredient and perhaps the systemic and cellular accumulation of the liposomes.
Accumulation of potentially noxious byproducts promotes the toxicity argument, principally due to the small nanoparticle sizes (or stealth-like characteristics) and the potential for peripheral tissue cellular retention and subsequent toxicity [25
]. This potential is detrimental in establishing half-life models for the nanomedicine and a mechanistic understanding of the potential for late stage side effects. It should be appreciated that over the past decade, nanotechnology as nanomedicine has evolved, with a number of pharmaceutical and biotechnology companies undertaking both pharmacokinetic and pharmacodynamic research in efforts to establish toxicology and safety profiles. To this end, we have seen validated research in a handful of drugs, notably liposomal chemotherapeutic agents (e.g., Doxil) where toxicology from the liposomal delivery mechanism was less of an issue due to the presence of the active pharmaceutical ingredient (API).
Of note however, is the scarcity of publications that show liposomal delivery systems associated with various APIs and the reported adverse events that continue to fuel a ‘real’ concern as to their overall efficacy, safety, and toxicity profiles. In this regard, factors of significant concern include [26
] liposome preparations that have been described to activate complement component C310; polyethelene glycol that is used in liposomes that play a role in diverse complement activation pathways; liposomes that may trigger the innate immune system response; and liposomes that may also induce immunogenicity [26
It is scientifically implausible to assume that the safety demonstrated through research on one API can be surrogated and translated to other preparations. In reviewing the literature, and the Australian and New Zealand Clinical Trials Register, there is a lack of registrations for liposomal clinical trials on nutraceuticals. It is therefore important to query the safety and efficacy of the use of the liposomal delivery system with any API.
However, this comparative study has demonstrated that nanoparticle formulations can successfully and safely deliver an API, bypassing the gastrointestinal tract when administered via the oro-bucal site accessing the facial lymphatics, and then passing into the systemic circulation.
Non-traditional routes of API administration offer an enhanced level of convenience to the patient. These include transportability, reduced cross-contamination issues, and better absorption of the API. Therefore, these therapeutic opportunities offer faster transit times to the circulation and target tissues. Furthermore, because of greater API recovery in serum, less of the API is required for clinical efficacy as compared to standard delivery platforms, which may suffer from loss to first-pass metabolism (e.g., tablets).
Whilst historically nano-delivery systems have had reported safety concerns, improvements in the technology of delivery platforms are putting nanoparticle platforms back into the forefront of clinical practice. Whilst further investigations are warranted, endpoints from this vitamin B12 comparative study demonstrated real-world, safe use of a nanoparticle formulation that allowed for fast and safe delivery as evidenced by no adverse events reported.
