# Research on High-Frequency Information-Transmission Method of Smart Grid Based on CNN-LSTM Model

^{1}

^{2}

## Abstract

**:**

## 1. Introduction

## 2. CNN-LSTM Model

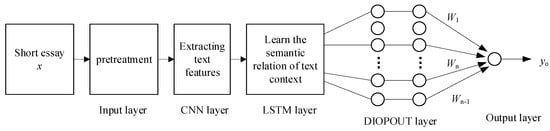

## 3. Smart Grid High-Frequency Information-Transmission Method

#### 3.1. Smart Grid Platform Buffer Division

#### 3.2. Optimizing Control System Using Neural Network Control Module

#### 3.3. Packing Method of Data-Transmission Information

## 4. Simulation

#### 4.1. Parameter Setting

#### 4.2. Experimental Setup

#### 4.3. Unicast vs. Multiplex Rate Comparison

## 5. Discussion

## 6. Conclusions

- (1)
- When the CNN-LSTM model algorithm transmits high-frequency information without adding any other artificial features, the total transmission efficiency is 89%, which not only effectively improves the security of data information but also obviously improves the processing speed. The classification effect of CNN-LSTM model algorithm is better than that of traditional algorithms.
- (2)
- According to CNN-LSTM model, it can ensure the real-time data transmission and the stability of system operations, and contribute to the promotion of the smart grid.
- (3)
- In the next step, we will study how to select a reasonable convolution kernel size in CNN layer for gray images with different sizes, so as to reduce the calculation amount of the algorithm.

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Liu, F.; Li, G.; Yan, W.; He, G.; Yang, S.; Lin, L. A Fusion Method in Frequency Domain for Multi-Wavelength Transmission Image. IEEE Access
**2019**, 7, 168371–168381. [Google Scholar] [CrossRef] - Zhang, C.; Wang, G.; Yu, B.; Xie, Y.; Pan, K. Proximity-aware heterogeneous information network embedding. Knowl. Based Syst.
**2020**, 193, 105468. [Google Scholar] [CrossRef] - Karelin, S.Y.; Krasovitsky, V.B.; Magda, I.I.; Mukhin, V.S.; Sinitsin, V.G. Radio Frequency Oscillations in Gyrotropic Nonlinear Transmission Lines. Plasma
**2019**, 2, 258–271. [Google Scholar] [CrossRef] [Green Version] - Toyoda, M.; Wu, Y. Mayer-Type Optimal Control of Probabilistic Boolean Control Network with Uncertain Selection Probabilities. IEEE Trans. Cybern.
**2019**, 51, 3079–3092. [Google Scholar] [CrossRef] - Wu, Y.; Guo, Y.; Toyoda, M. Policy Iteration Approach to the Infinite Horizon Average Optimal Control of Probabilistic Boolean Networks. IEEE Trans. Neural Netw. Learn. Syst.
**2020**, 32, 2910–2924. [Google Scholar] [CrossRef] - Zhang, Y.; Qian, T.; Tang, W. Buildings-to-distribution-network integration considering power transformer loading capability and distribution network reconfiguration. Energy
**2022**, 244, 123104. [Google Scholar] [CrossRef] - Ren, H.-P.; Gao, Y.; Huo, L.; Song, J.-H.; Grebogi, C. Frequency stability in modern power network from complex network viewpoint. Phys. A Stat. Mech. Appl.
**2020**, 545, 123558. [Google Scholar] [CrossRef] - Li, H.; Deng, J.; Yuan, S.; Feng, P.; Arachchige, D.D. Monitoring and Identifying Wind Turbine Generator Bearing Faults using Deep Belief Network and EWMA Control Charts. Front. Energy Res.
**2021**, 9, 799039. [Google Scholar] [CrossRef] - Anderson, S.; Challapalle, N.; Sampson, J.; Narayanan, V. Adaptive Neural Network Architectures for Power Aware Inference. IEEE Des. Test
**2020**, 37, 66–75. [Google Scholar] [CrossRef] - Zhao, Z.; Duan, H.; Min, G.; Wu, Y.; Huang, Z.; Xi, H.; Fu, M. A lighten CNN-LSTM model for speaker verification on embedded devices. Futur. Gener. Comput. Syst.
**2019**, 100, 751–758. [Google Scholar] [CrossRef] - Li, B.; Pi, D.; Lin, Y.; Khan, I.A.; Cui, L. Multi-source information fusion based heterogeneous network embedding. Inf. Sci.
**2020**, 534, 53–71. [Google Scholar] [CrossRef] - Rehman, A.U.; Malik, A.K.; Raza, B.; Ali, W. A Hybrid CNN-LSTM Model for Improving Accuracy of Movie Reviews Sentiment Analysis. Multimed. Tools Appl.
**2019**, 78, 26597–26613. [Google Scholar] [CrossRef] - Gong, P.; Li, H.; Gao, X.; Wu, D.O.; Xiao, X. Relay Power Allocation for NAF Cooperation Assisted NOMA Network. IEEE Wirel. Commun. Lett.
**2020**, 9, 1169–1172. [Google Scholar] [CrossRef] - Zhang, L.; Luo, M.; Boncella, R.J. Product information diffusion in a social network. Electron. Commer. Res.
**2020**, 20, 3–19. [Google Scholar] [CrossRef] - Shimer, R.; Werning, I. Efficiency and information transmission in bilateral trading. Rev. Econ. Dyn.
**2019**, 33, 154–176. [Google Scholar] [CrossRef] [Green Version] - Seol, K.E.; Kang, K.; Jeon, J.H.; Koh, J. RCS Prediction at high frequency using Cauchy method. Microw. Opt. Technol. Lett.
**2019**, 60, 1826–1831. [Google Scholar] - Zuo, X.; Chen, Z.; Dong, L.; Chang, J.; Hou, B. Power information network intrusion detection based on data mining algorithm. J. Supercomput.
**2020**, 76, 5521–5539. [Google Scholar] [CrossRef] - Monfils, M.H.; Agee, L.A. Insights from social transmission of information in rodents. Genes Brain Behav.
**2019**, 18, e12534. [Google Scholar] [CrossRef] [Green Version] - Gelfand, A.A.; Pavitt, S.; Greene, K.; Szperka, C.L.; Irwin, S.; Grimes, B.; Allen, I.E. High School Start Time and Migraine Frequency in High School Students. Headache
**2019**, 59, 1024–1031. [Google Scholar] [CrossRef] - Malceniece, L.; Malcenieks, K.; Putniņš, T.J. High frequency trading and comovement in financial markets. J. Financ. Econ.
**2019**, 134, 381–399. [Google Scholar] [CrossRef] [Green Version] - Ally, M.; Magesa, P.; Luzzatto, L. High frequency of acquired aplastic anemia in Tanzania. Am. J. Hematol.
**2019**, 94, E86–E88. [Google Scholar] [CrossRef] [Green Version] - Augusto, A.; Augusto, O.; Taquibo, A.; Nhachigule, C.; Siyawadya, N.; Gudo, E.S. High frequency of HBV in HIV-infected prisoners in Mozambique. Int. J. Prison. Health
**2019**, 15, 58–65. [Google Scholar] [CrossRef] - Canavan, S.; Barron, A.; Cohen, J.; Graham, D.; Anderson, R.J. Best Practices in Operating High Frequency Metro Services. Transp. Res. Rec.
**2019**, 2673, 491–501. [Google Scholar] [CrossRef] - Arabi, M.; Federspiel, X.; Cacho, F.; Rafik, M.; Nguyen, A.-P.; Garros, X.; Ghibaudo, G. Temperature dependence of TDDB at high frequency in 28FDSOI. Microelectron. Reliab.
**2019**, 100–101, 113422. [Google Scholar] [CrossRef] - Le, S.; Wu, Y.; Guo, Y.; Del Vecchio, C. Game Theoretic Approach for a service function chain routing in NFV with coupled constraints. IEEE Trans. Circuits Syst. II Express Br.
**2021**, 68, 3557–3561. [Google Scholar] [CrossRef] - Zhao, M.J.; Hang, L.V.; Yang, G.; Li, L. Network transmission reliability improvement scheme of intelligent substation based on flow control. Power Syst. Prot. Control
**2019**, 147–152. [Google Scholar] - Chen, B.; Li, Y.; Liu, L. Safe transmission of power dispatching data network based on power communication network. Commun. Power Technol.
**2020**, 197–198. [Google Scholar] - Zhang, T. Wireless power and information transmission system based on secondary chopper circuit. Commun. Power Technol.
**2019**, 110–112. [Google Scholar] - Wang, Y. An automatic verification method for user information transmission security in open public networks. Autom. Instrum.
**2019**, 114–117. [Google Scholar] - Chen, C.; Lan, Y. Application Analysis of OTN technology in power communication transmission network. China N. Commun.
**2019**, 25, 96–97. [Google Scholar]

**Figure 2.**Comparison of different paths for transmission. (

**a**) Overall efficiency of single-channel transmission; (

**b**) average received bit rate of single-channel transmission; (

**c**) overall efficiency of multiplexing; (

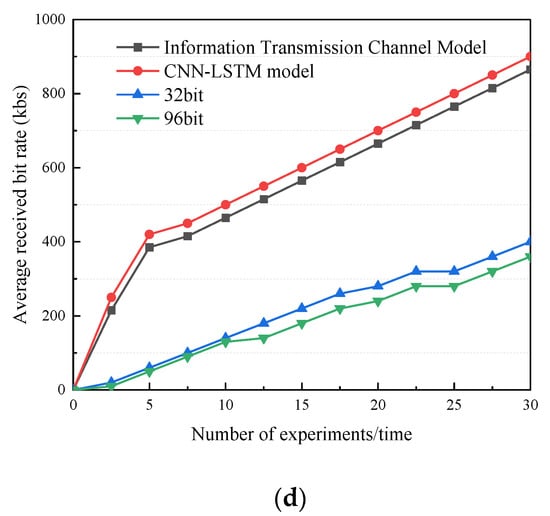

**d**) average received bit rate of multiplex transmission.
