1. Introduction
The technological developments over the last half-century have revolutionised the world that we live in. One of the main driving factors for such swift advancement is the globalisation of the world. Commercial shipping has contributed the globalisation by providing the most efficient means of transportation of bulk materials. With the ever-increasing world population, the volume of commercial shipping has been experiencing an increasing trend over the last five decades. Unfortunately, this has also resulted in the elevation of emissions produced by the maritime industry [
1].
One of the most adverse by-products of commercial shipping has been underwater radiated noise (URN) emission [
2]. The extraordinary expansion of the world fleet has resulted in increased levels of ambient noise in the world’s seas, especially in the low-frequency domain [
3]. Unfortunately, this domain is also utilised by marine mammals for their various fundamental living activities. Thus, exposing them to such an abrupt change in ambient noise levels may disorient them or disrupt their communication signals, leading to behavioural changes of these mammals and hence local extinction [
4,
5].
Within the framework described above, the recently conducted PressurePoresTM Technology development project (Patent Application Number PCT/GB2016/051129) aimed to explore the merits of implementing pressure-relieving holes (PressurePores) on marine propellers to mitigate the cavitation induced noise for a more silent propeller. This paper presents a review and results of the experimental and computational study conducted to develop this technology.
Before the pressure-relieving holes implementation, different methods in the literature were reviewed for the mitigation of cavitation and resulting noise. Firstly, the studies of blade geometry modification were investigated. According to [
6], the main source of the noise, the pressure fluctuations, can be reduced with propeller geometry modifications. For example, larger skew angles can affect the cavitation dynamics reducing pressure fluctuations, noise and vibration [
7,
8,
9]. Another solution for cavitating noise reduction is by increasing the number of blades which can also reduce the unsteady force on each propeller blade [
10]. By improving the finishing of the blade surfaces, modifying the trailing edge [
11], changing the blade area, or optimisation of blade pitch distribution might also be further solutions for the mitigation of cavitation noise.
In this study, a literature review was conducted for the pressure-relieving holes method as a solution to cavitating noise mitigation. This review revealed that in the late 1990s, the Indian Institute of Technology in Bombay conducted research involving cavitation noise on marine propellers [
12]. In their research study, Sharma et al [
12] tried to delay the onset of the tip vortex cavitation and to reduce noise emissions without influencing the propeller performance adversely. They achieved a noise reduction by modifying model propellers by drilling 300 holes of 0.3 mm diameter in each blade. The holes were drilled at the tip and the leading edge areas of the blades. Sharma et al.’s tests indicated that the dominant cavitation type at inception was the tip vortex cavitation under any testing conditions. The modifications did not demonstrate any measurable influence on the performance characteristics of any of the propellers tested, but it had a great influence on the development of the Tip Vortex Cavitation (TVC).
The resulting acoustic benefit obtained in the Sharma et al. study [

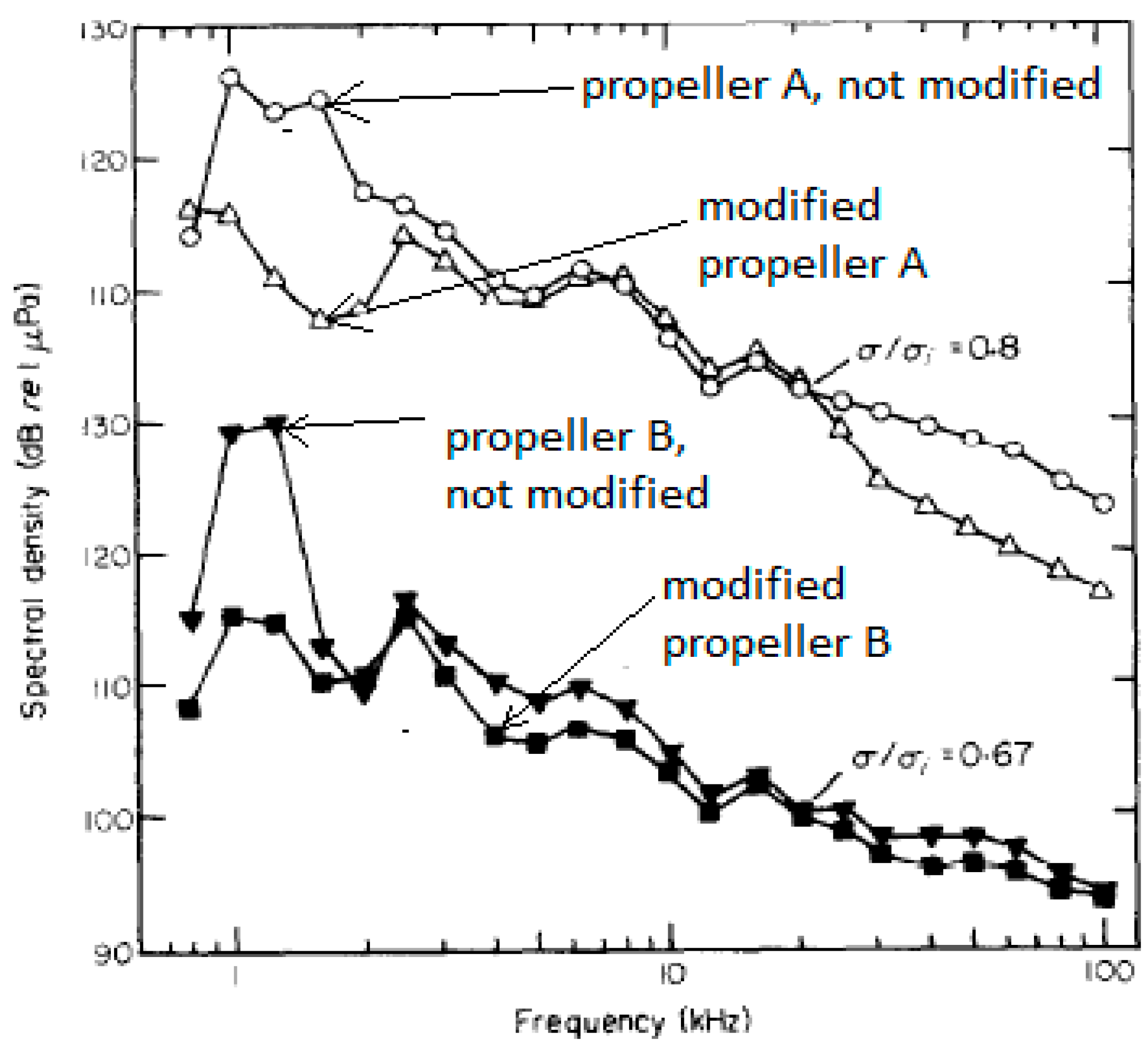

12] was a great improvement by a substantial attenuation of the low-frequency spectral peaks, as shown in
Figure 1. While the test results with the original (not modified) propellers showed a consistent rise of spectrum levels throughout the frequency range, as the advance coefficients were reduced, this was not the case for the modified propellers with reduced spectral peaks. Also, the advance coefficients had a weak effect on the noise levels which was attributed to the consequences of the modification where the tips were unloaded. Furthermore, the suction peak in the leading edge was also minimised while the TVC strength was decreased due to the increase in the angle of incidence.
Figure 1, which was taken from [
12], also presents a comparison of the noise characteristics for the original and the two modified propellers, A and B, at the advance coefficient of J = 0.38. In such a low J value, the improvement was more significant. Particularly for low frequencies, between 1 and 2 kHz, a reduction of about 15 dB was observed in the noise levels of both propellers. Sharma et al. concluded that “the modifications carried out had no measurable influence on the performance characteristics of the basic propellers”. However, they achieved a delay in the onset of the cavitation and significant noise reductions. One interesting point to note in Sharma et al.’s work was that all the propellers were tested in uniform flow conditions. This inherently disregarded the effect of the ship hull (wake) on the propeller flow, which is one of the most significant contributors to cavitation dynamics and hence induced radiated noise.
To explore the merits of the pressure relief holes, a pilot experimental study was conducted in The Emerson Cavitation Tunnel (ECT) of Newcastle University as part of an MSc thesis by Xydis [
13]. The model scale propeller used for this study (

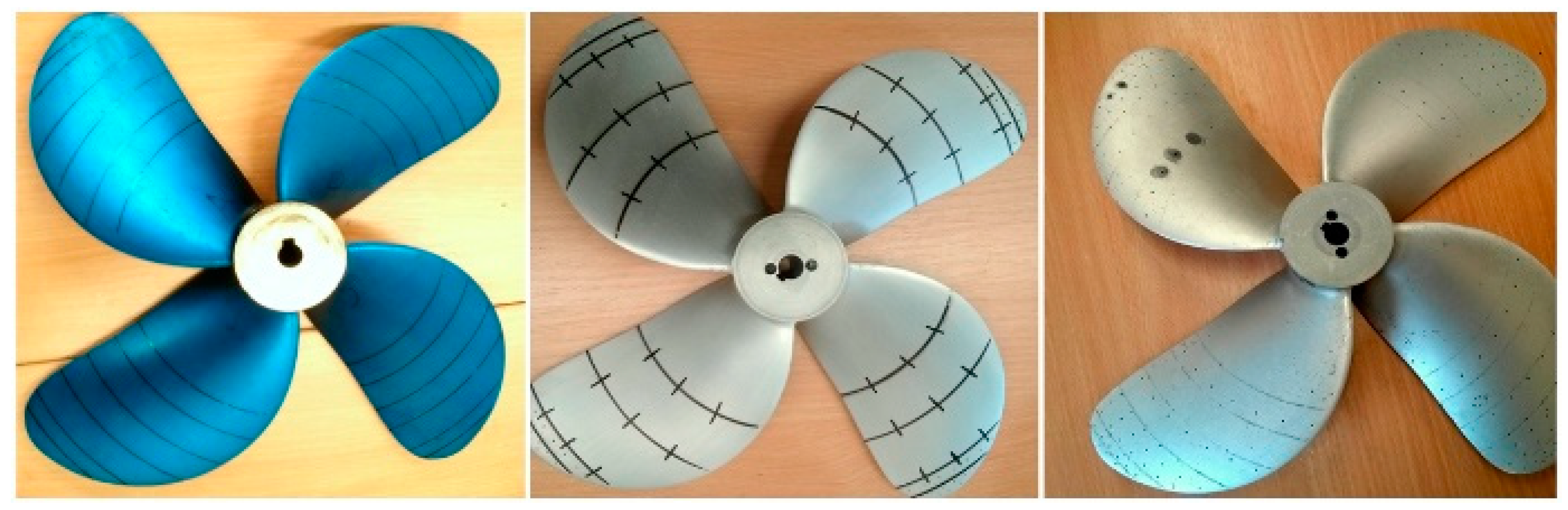

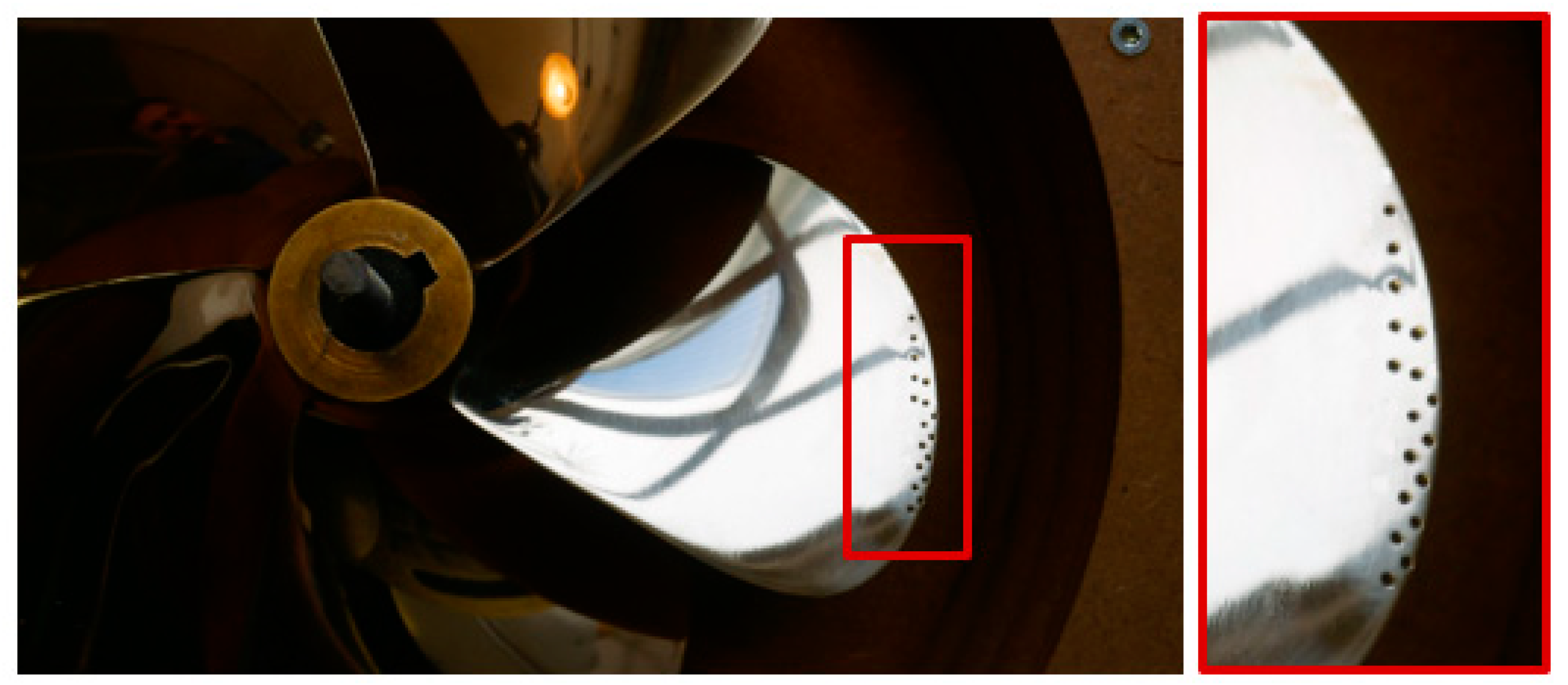

Figure 2) was an existing propeller model with a diameter of 0.35 m, which was based on the as-fitted propeller of a 95,000 tonnes tanker with four blades and an expanded blade area ratio (BAR) of 0.524. There were two further replicas of this model propeller, which had previously been used for coating research; all were made of aluminium. In the pilot study, the blue coloured, anodized model (without drilled holes) was used to establish a base line (or reference) performance measurement. The other two models were modified with pressure-relieving holes on their blades and tested for comparison with the reference propeller. To see the effect of the holes on the two observed types of cavitation (sheet and tip vortex), the 2nd model was modified with a number of small holes drilled near the blade tip region above 90% of the propeller radius, while the 3rd model propeller had tip holes and mid-span holes above 60% of the blade radius, respectively. The three models used are shown in
Figure 2 and called “Base”, “Tip modified” and “Sheet modified” related to the intact propeller (no holes), their intended effect on the tip vortex and sheet cavitation, respectively. To simulate more realistic operational conditions, these propellers were tested behind a wake using 2D wake screen.

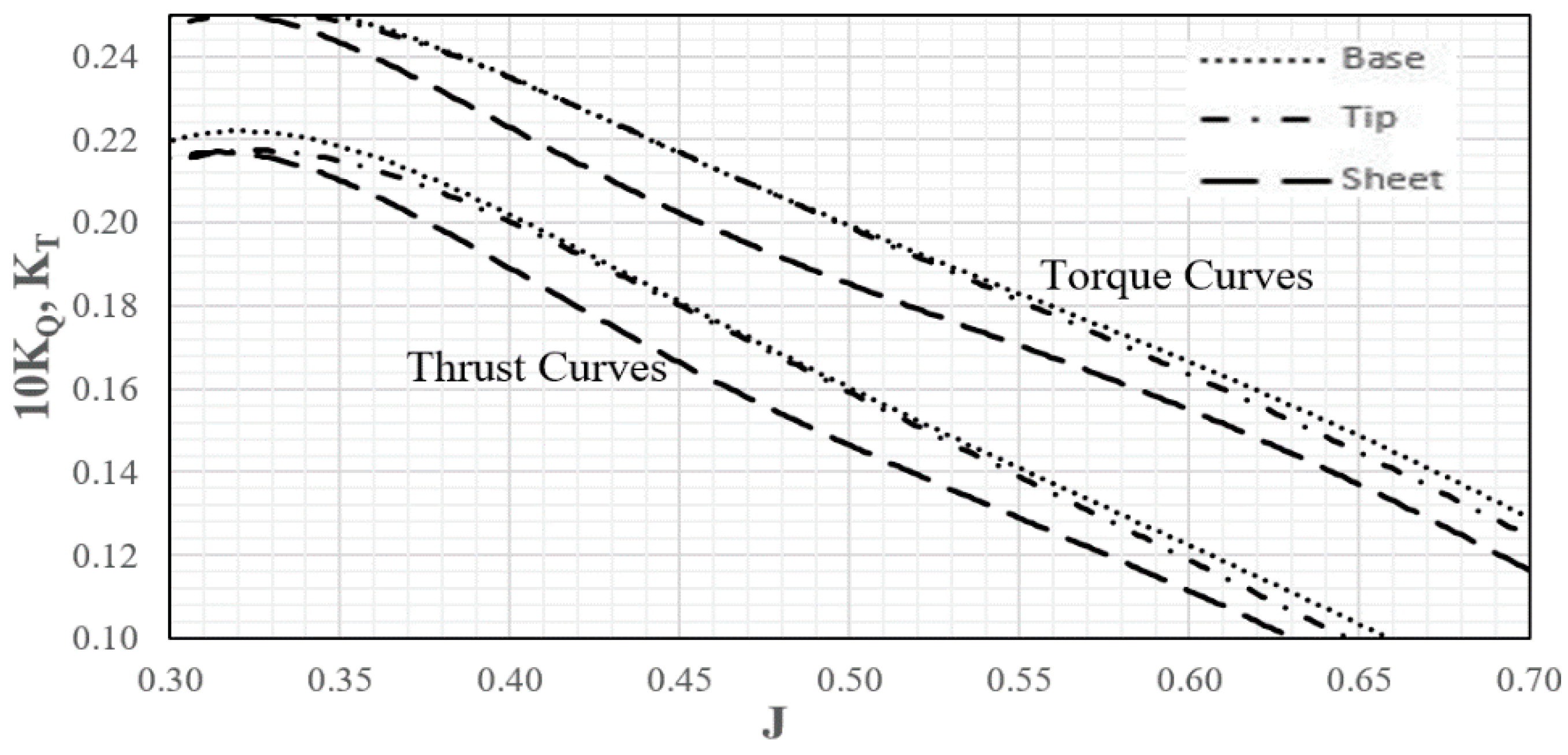

A summary of the comparative propeller performance measurements in terms of the thrust and torque curves of the three model propellers is shown in
Figure 3. A large number of holes spread over the mid and tip region of the “Sheet” propeller blades gave a significant reduction in the thrust, torque and efficiency. The more conservative number of pressure relief holes concentrated around the tip region for the “Tip” modified propeller did not produce such a significant impact on the thrust and torque compared to the “base” propeller as also shown in
Figure 3. These experimental results, moreover, are in very close agreement with the established CFD models (omitted to shorten the length of the paper) which shows up to 13.8% cavitation volume reduction and 0.5% loss of efficiency.

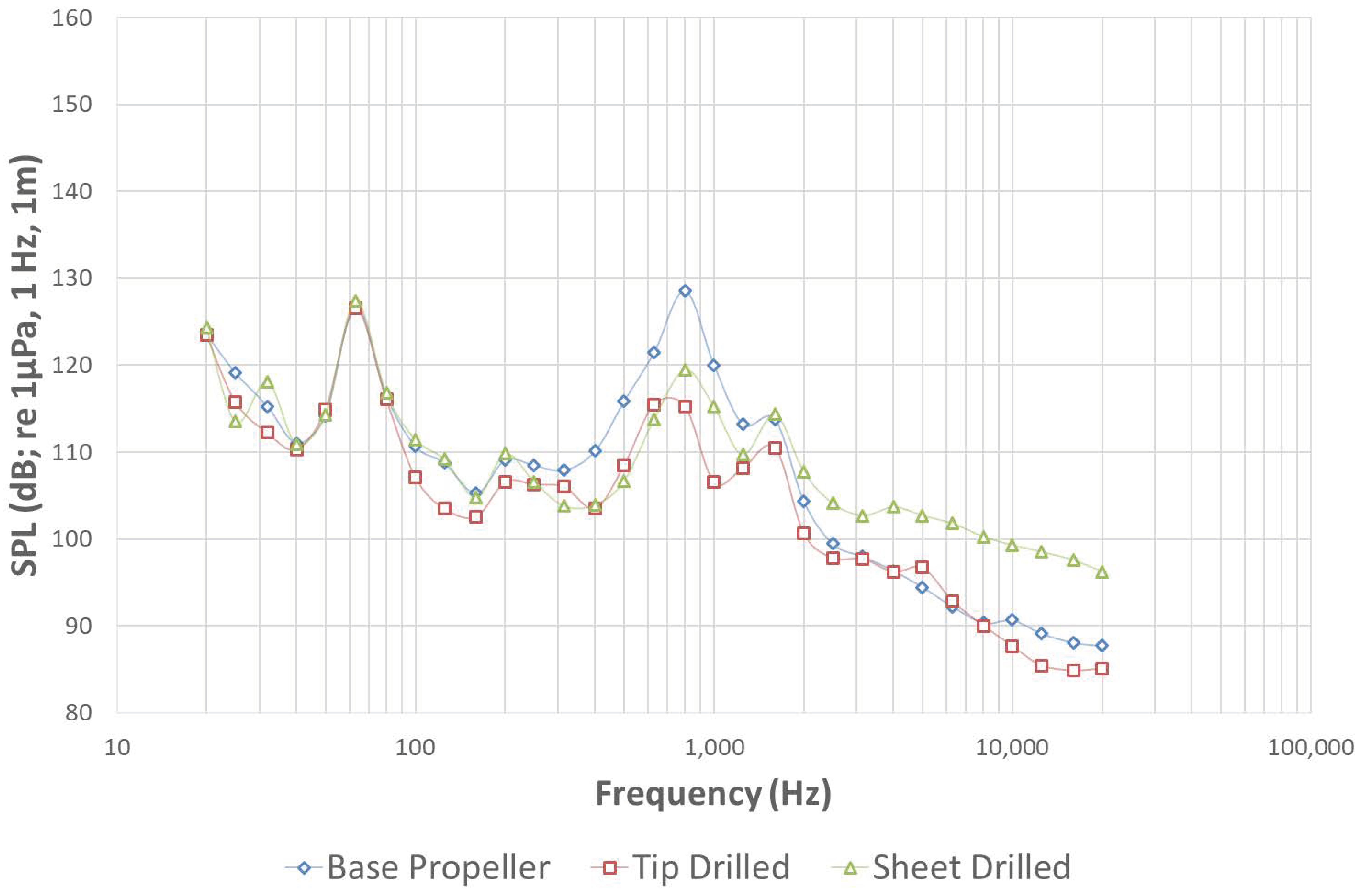

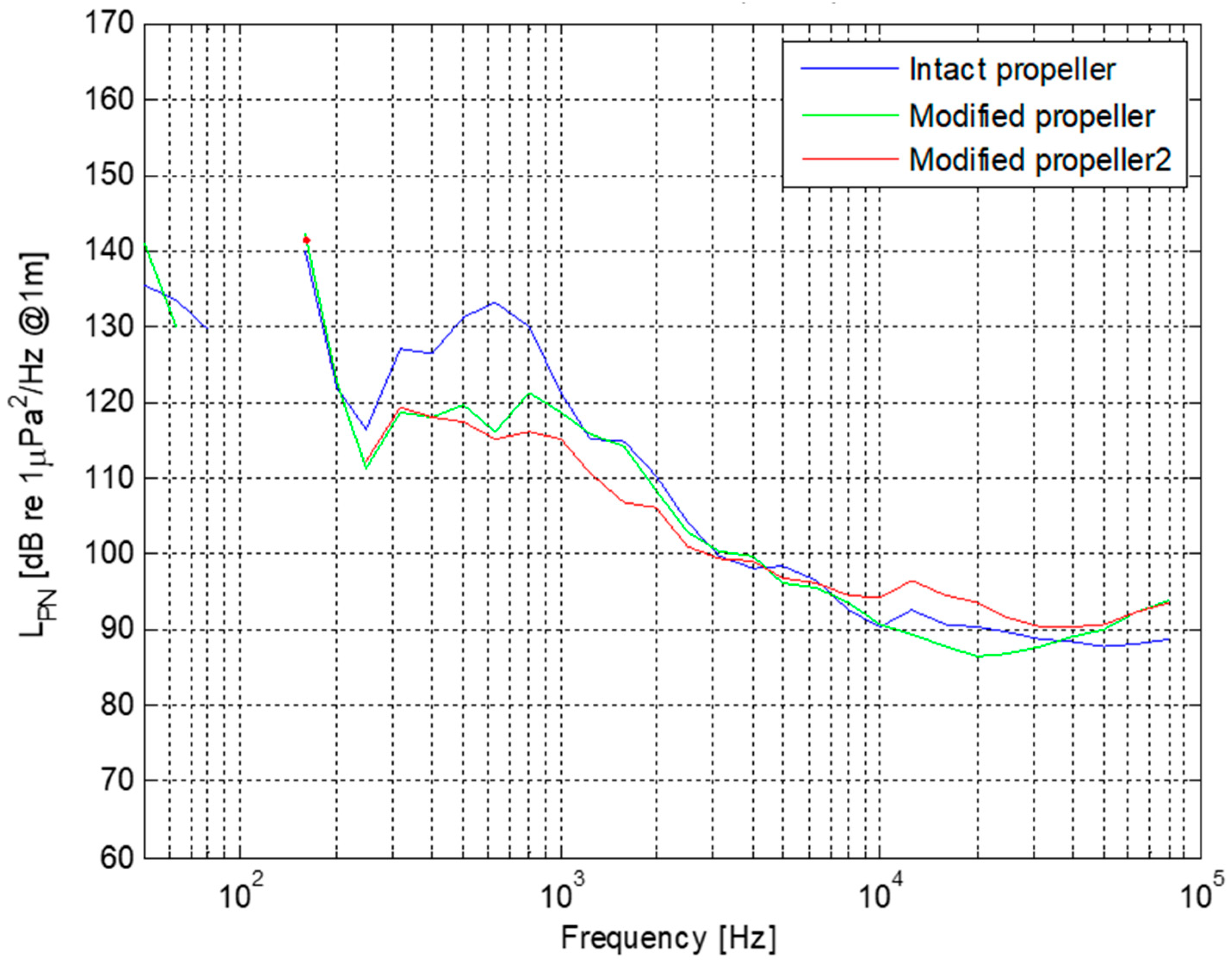

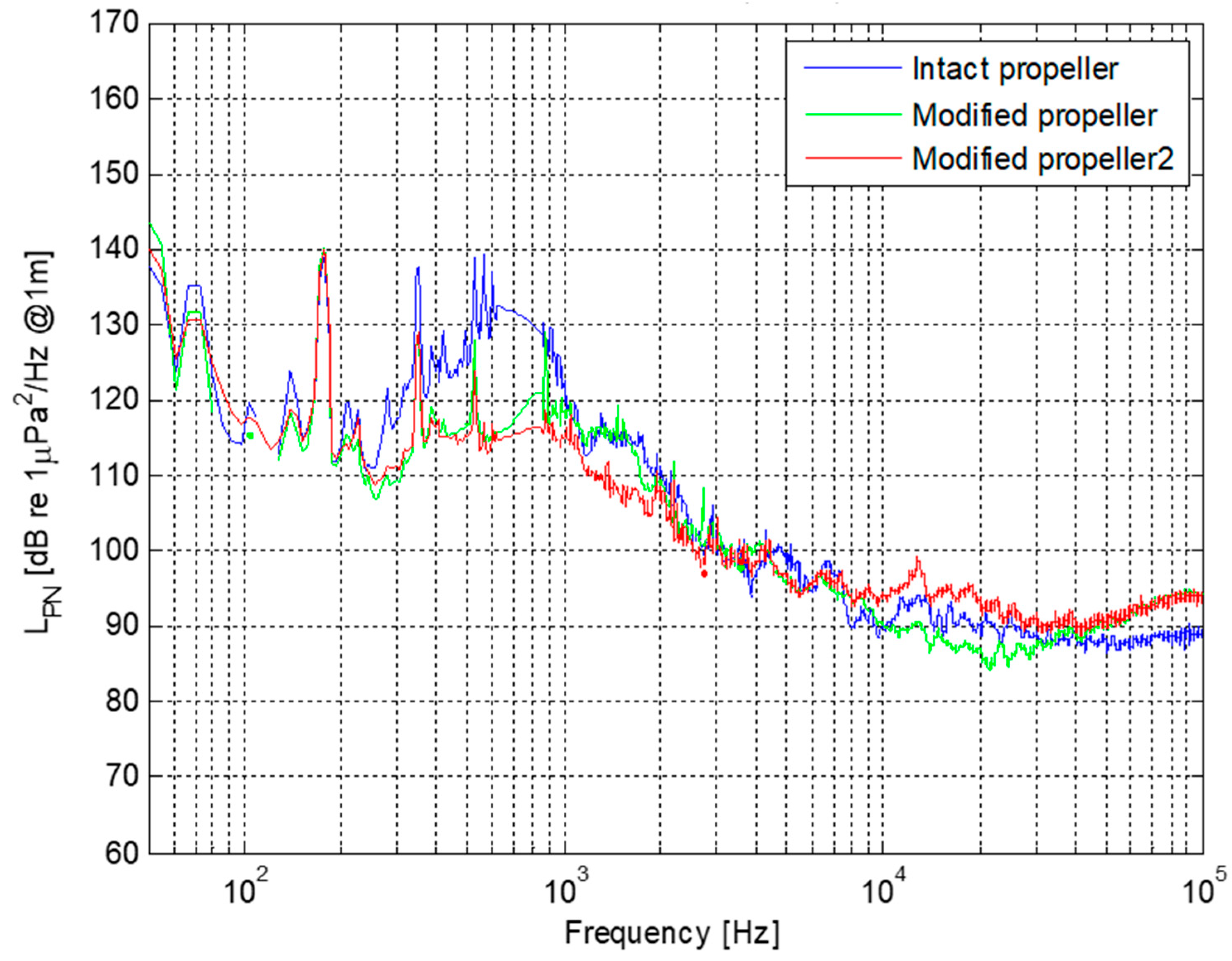

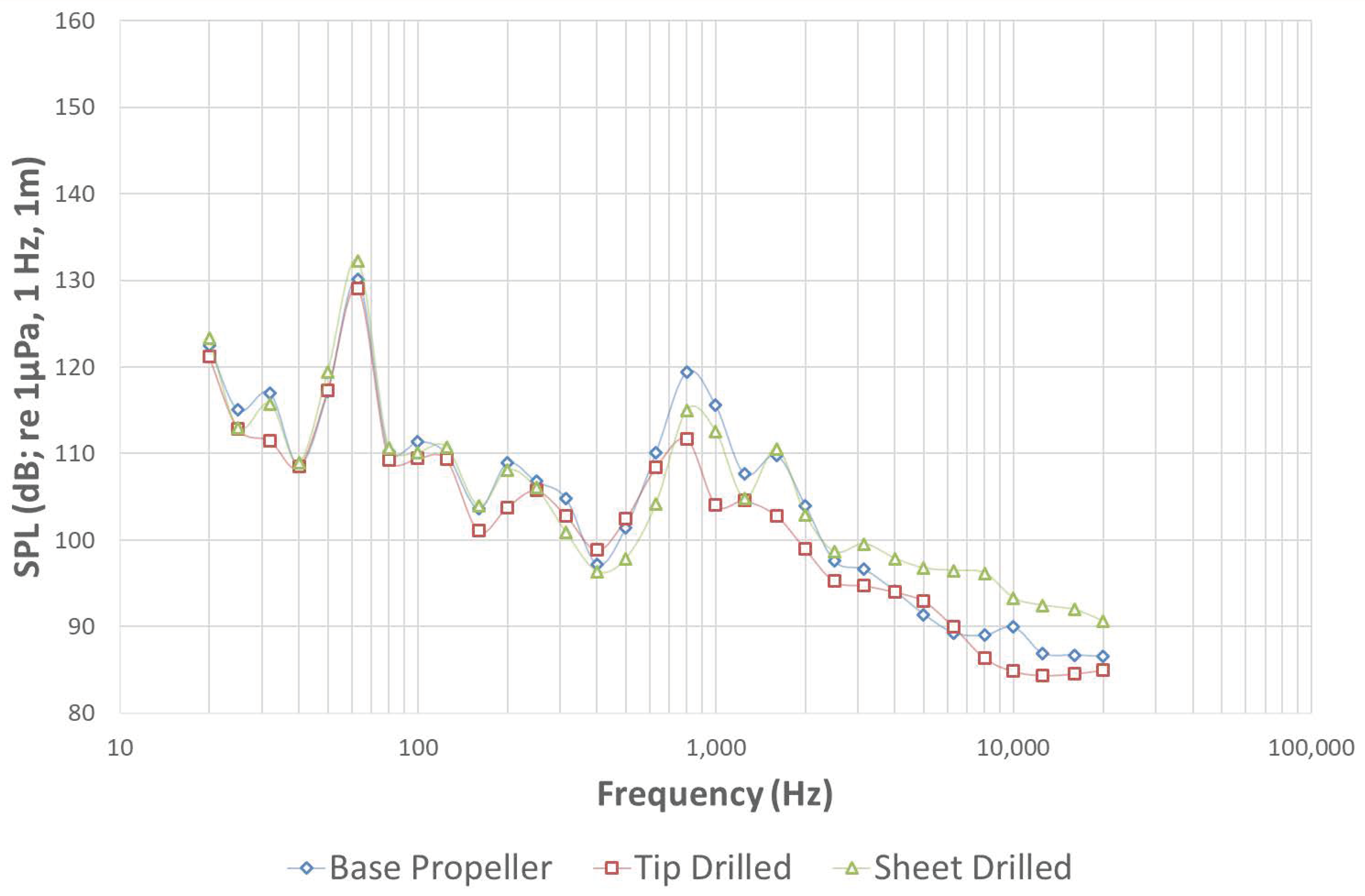

The noise measurements shown in
Figure 4 and
Figure 5 correspond to typical operating conditions of this vessel. They reveal up to a 10 dB reduction in the sound pressure levels (SPL) for the mid-frequency region (300 Hz to 2 kHz) as well as in the high-frequency region (10 to 20 kHz) for the tip modified propeller and for advance coefficients of J = 0.55 and J = 0.5, respectively.
While the study demonstrated some encouraging signs of the radiated noise reduction, the level of the reduction in cavitation extent to support this mitigation technique needed more sophisticated and detailed observations. Inspired by this MSc study, and based on the model propellers tested in the same study [
13], a comprehensive Computational Fluid Dynamics (CFD) investigation was conducted by Aktas et al. [
14] to demonstrate the effectiveness of this mitigation method using the propeller of Newcastle University’s Research Vessel,
The Princess Royal. This mitigation method was later patented as the PressurePores
TM Technology by the sponsoring company. Based on the results of this CFD investigation, the best performing cases with the strategically selected PressurePores
TM were applied on the Princess Royal’s propeller model to be tested at a towing tank for efficiency measurements. Cavitation tunnel tests were performed for the cavitation characteristics and noise measurements and to compare with the CFD investigations.
The details and results of the above mentioned computational and experimental investigations on the PressurePores
TM technology are presented in the remaining sections of this paper. Therefore,

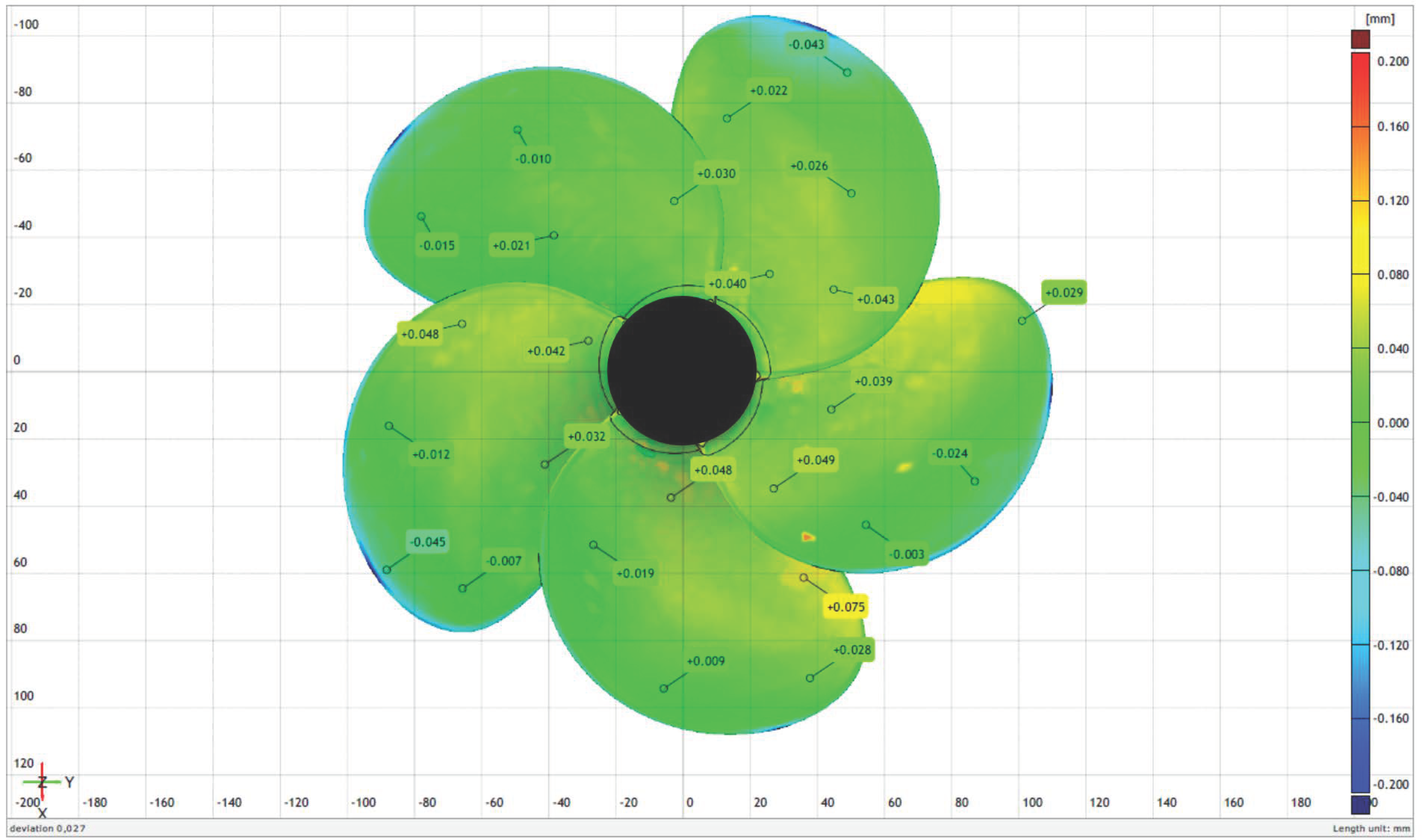

Section 2 describes the model propeller of research vessel

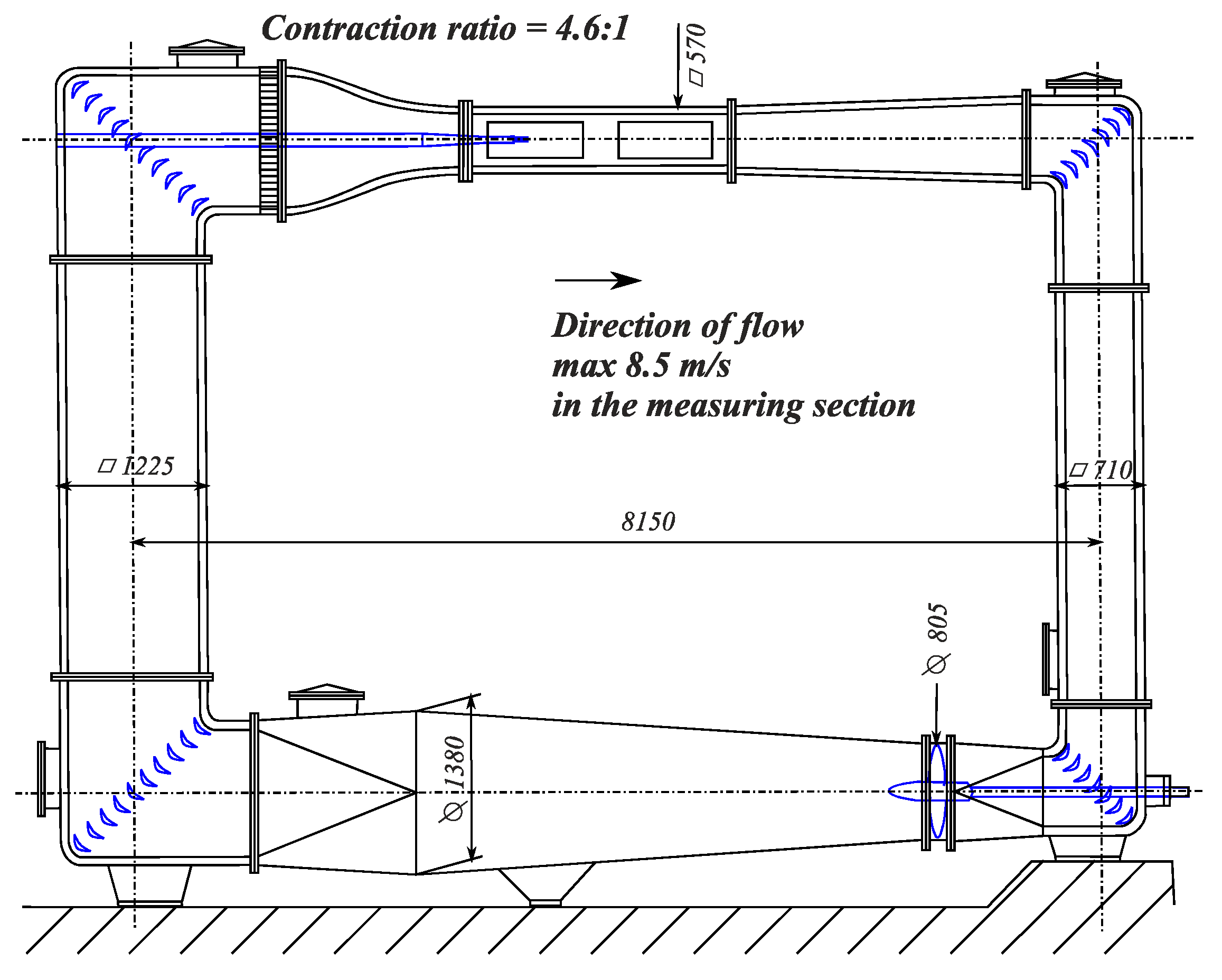

The Princess Royal together with the experimental set-up and test conditions for both the CFD simulations and the cavitation tunnel tests which were conducted in the University of Genova Cavitation Tunnel (UNIGE).

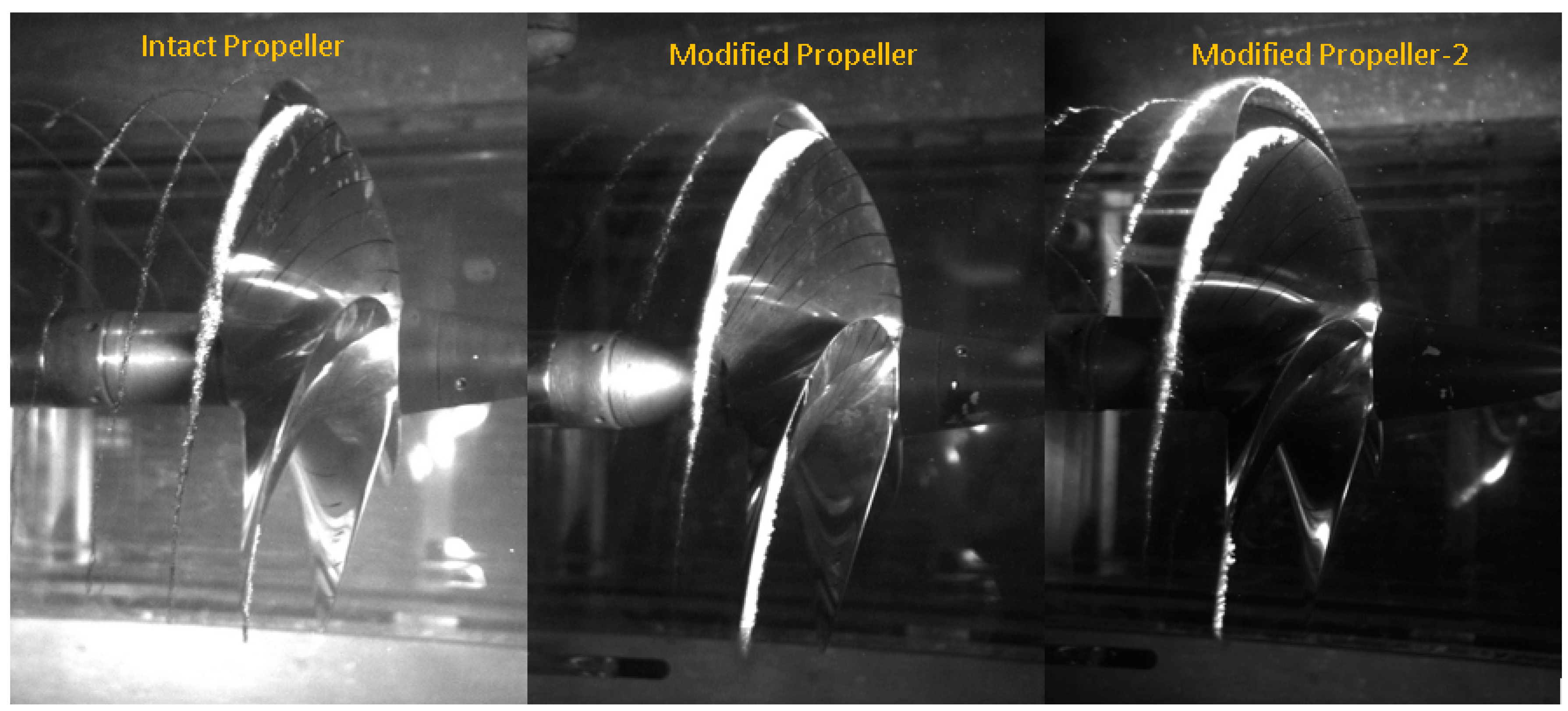

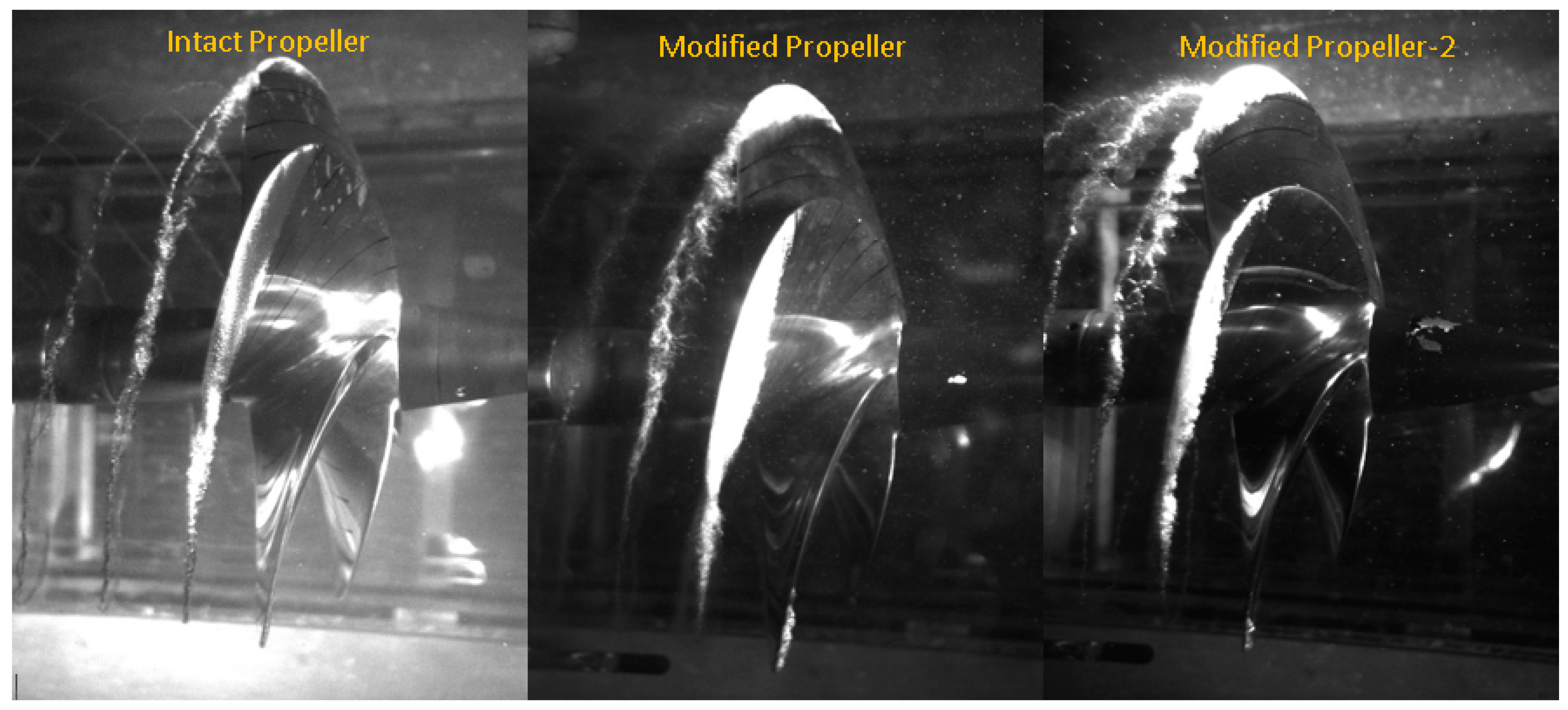

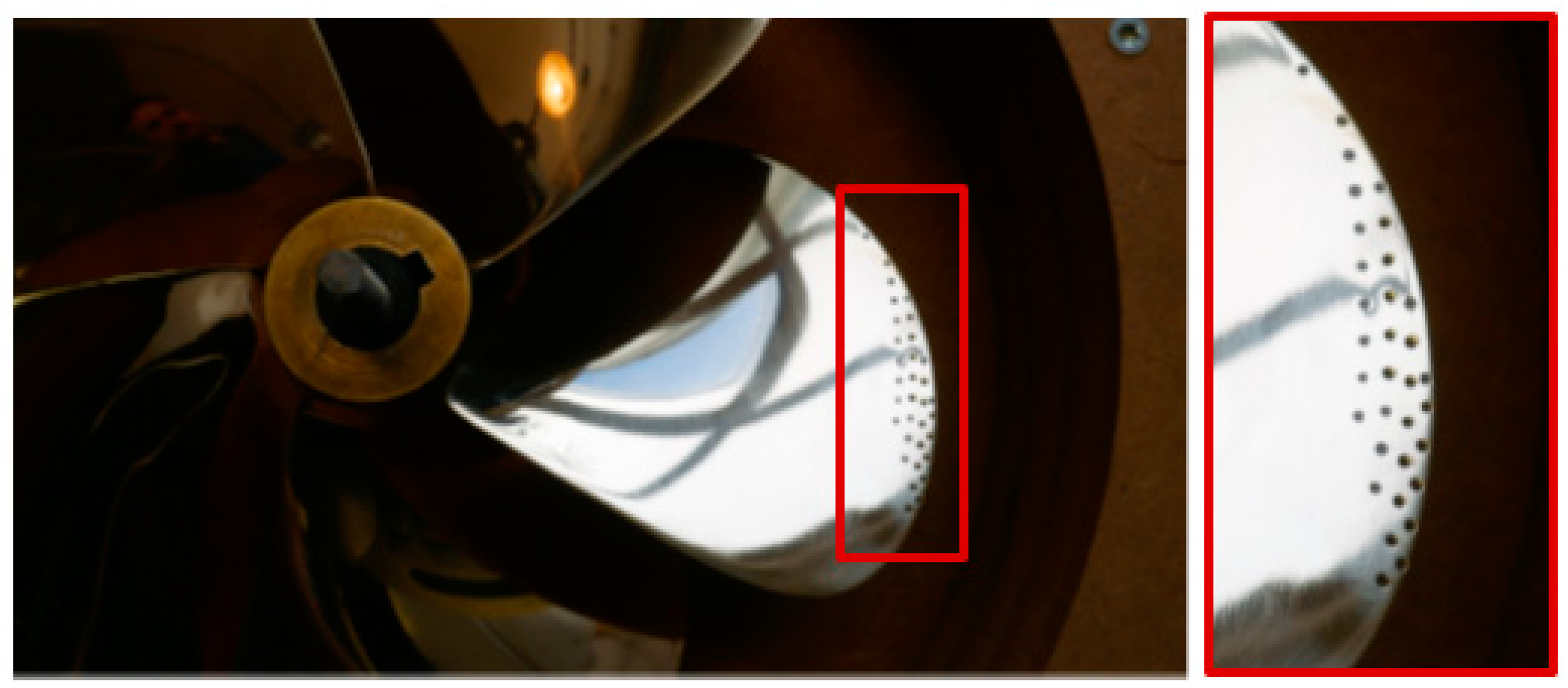

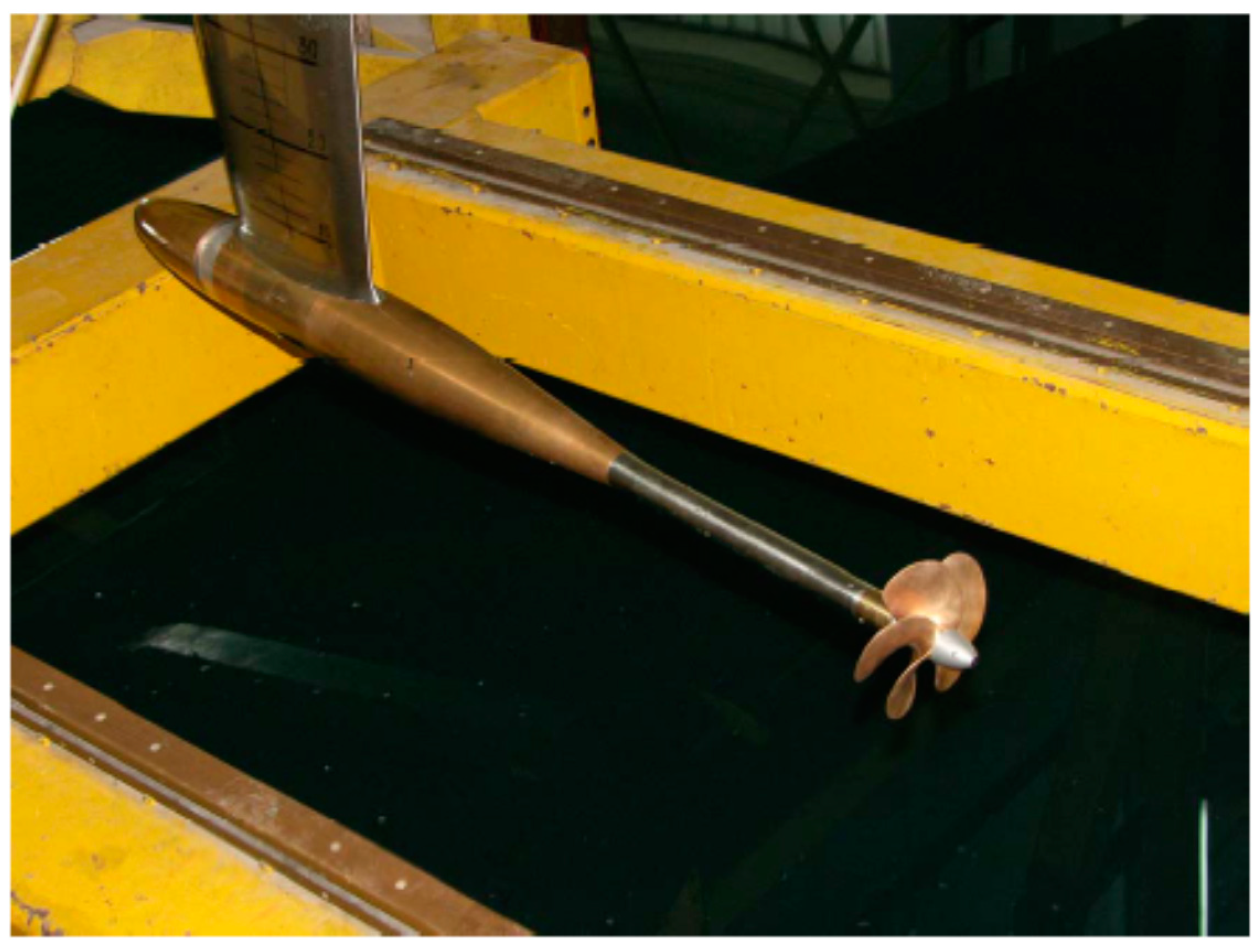

Section 3 presents the prototype testing including cavitation tunnel test observations in UNIGE and radiated noise measurements together with propeller performance tests conducted in the CTO towing tank of Gdansk. In

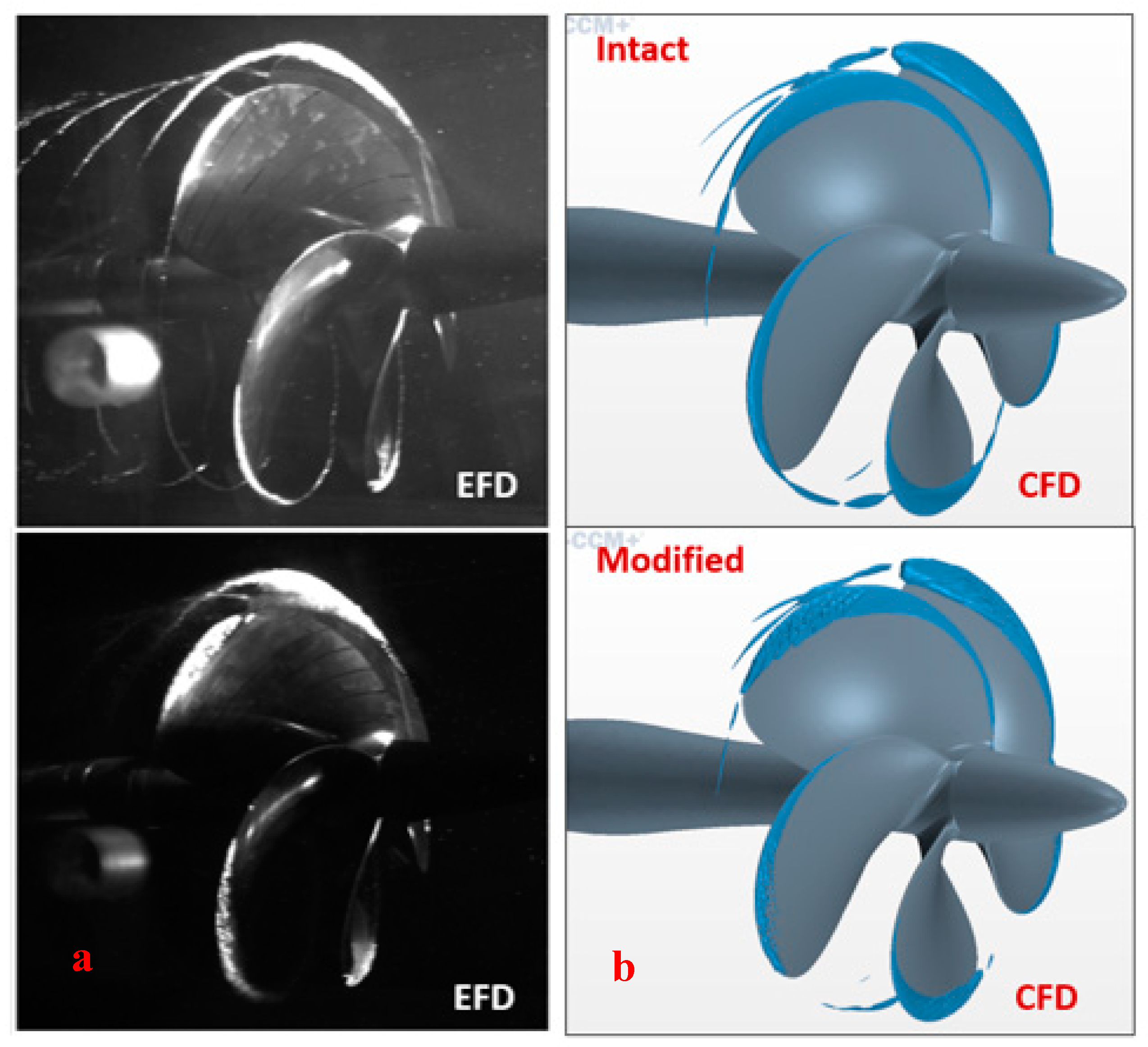

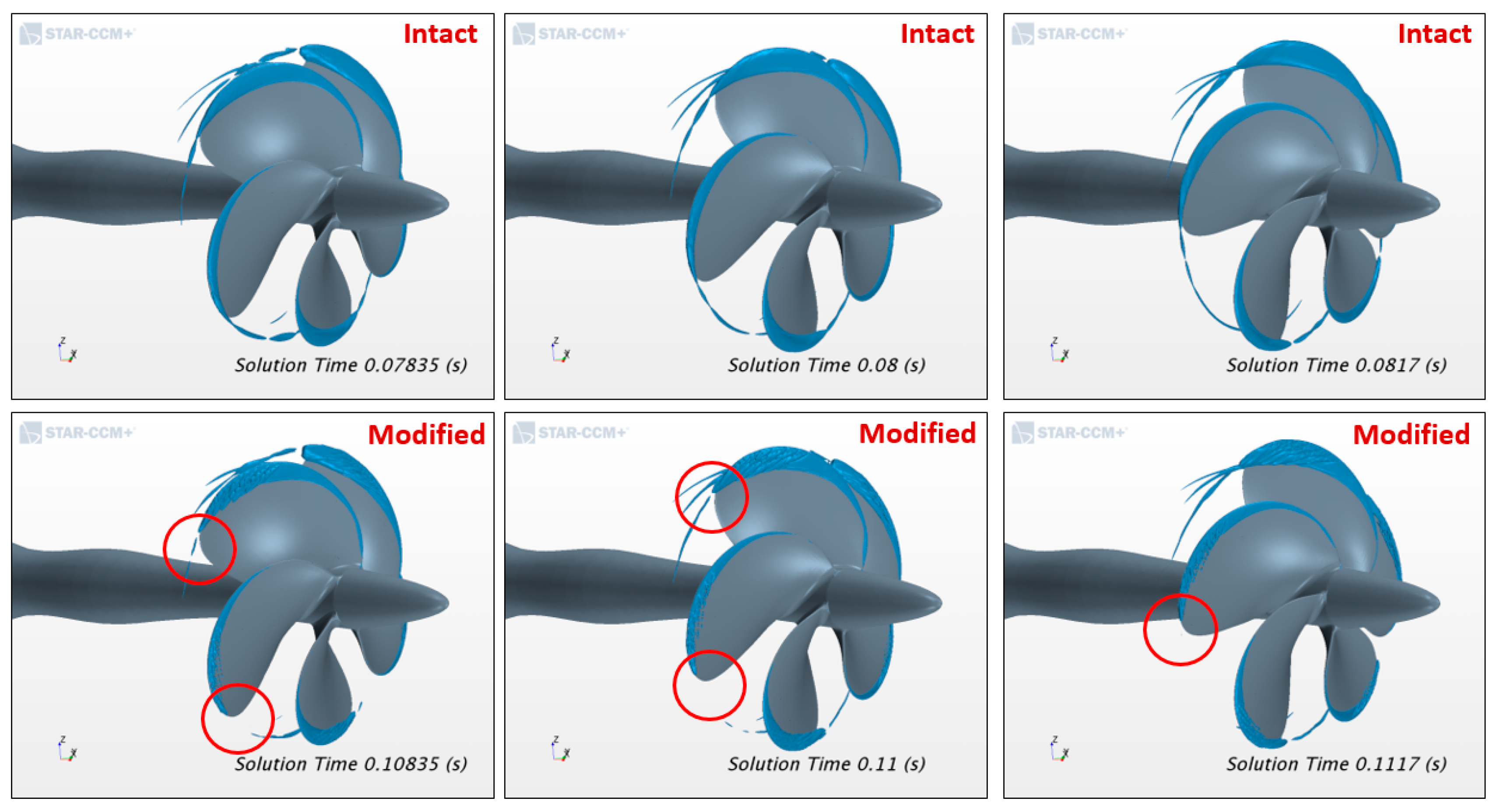

Section 4, the details and results of the CFD model of the cavitating propeller are presented. Finally,
Section 5 presents the main conclusions obtained from the oveall study.
5. Conclusions
A complementary combination of experimental and numerical investigations was conducted to develop and explore the benefits of the PressurePoresTM concept to mitigate the URN levels of a cavitating marine propeller. Following a pilot study in a cavitation tunnel, which showed promising results, the extensive CFD simulations were conducted for further development of this mitigation technique and establish its strategic application.

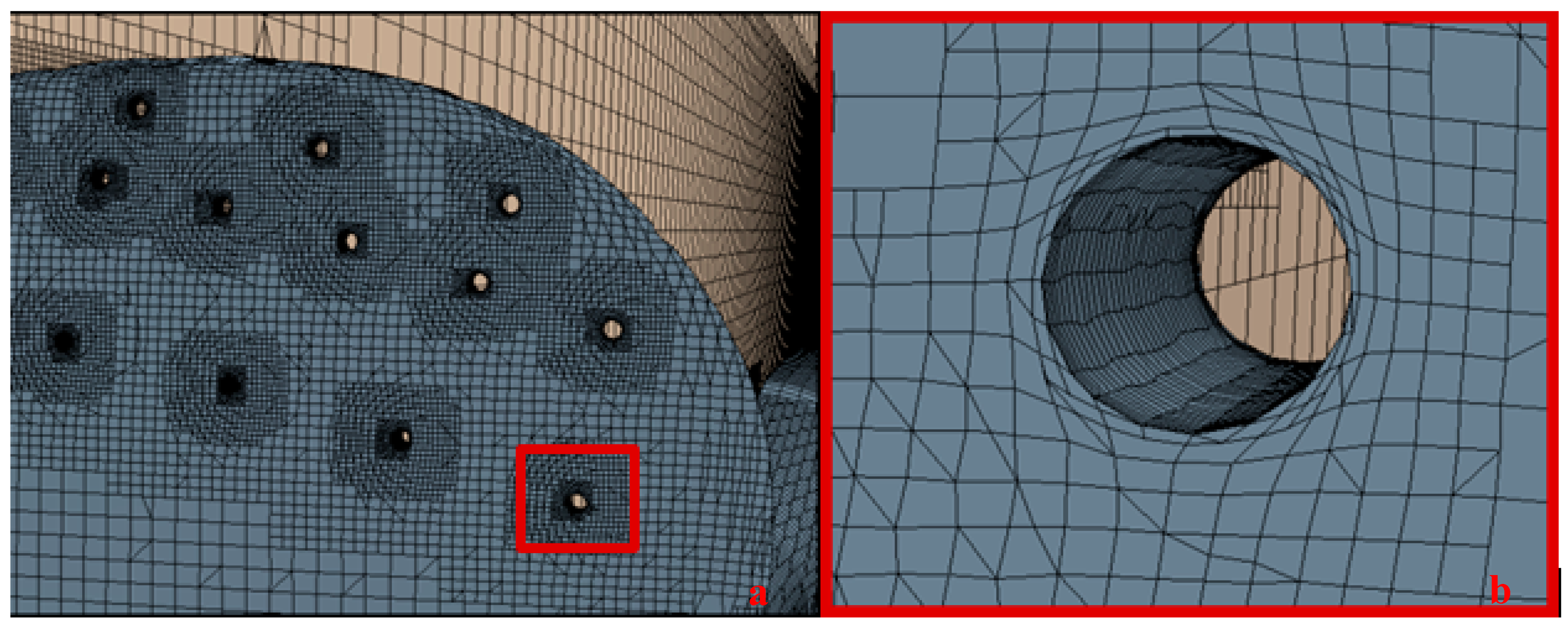

To accurately simulate the effects of PressurePoresTM on the TVC of a propeller, a recently developed advanced adaptive meshing technique (MARCS) was coupled with a commercial CFD code to capture cavitating propeller flow properties. With the understanding achieved through the CFD simulations, the PressurePoresTM technology was applied on a prototype propeller and then validated by using model tests conducted in the University of Genoa cavitation tunnel and the CTO towing tank for the cavitation characteristics, noise and efficiency.
The test results conducted with the model propeller of a research vessel and two different combinations of the PressurePoresTM technology revealed that significant reductions in the measured propeller noise levels can be achieved.

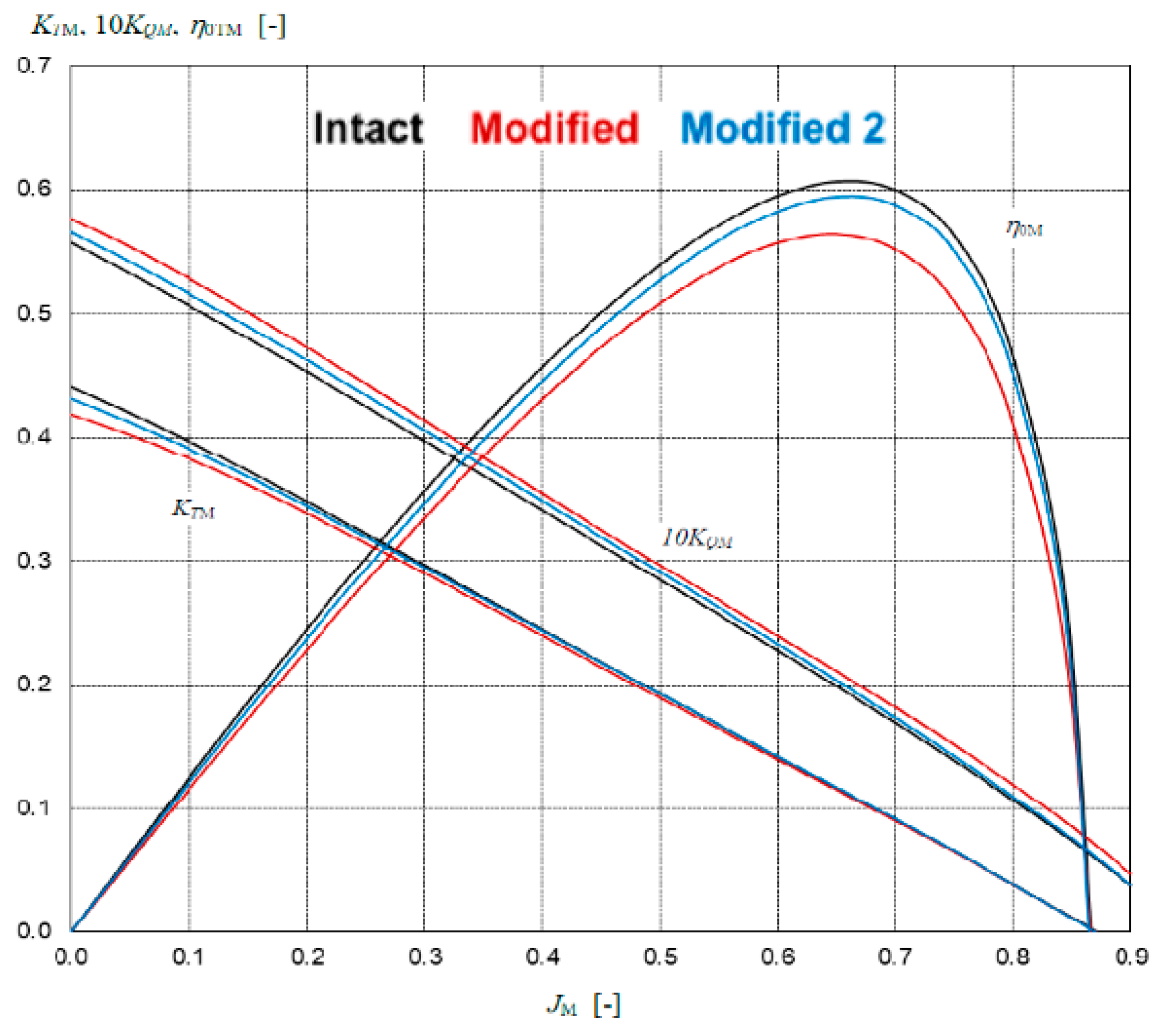

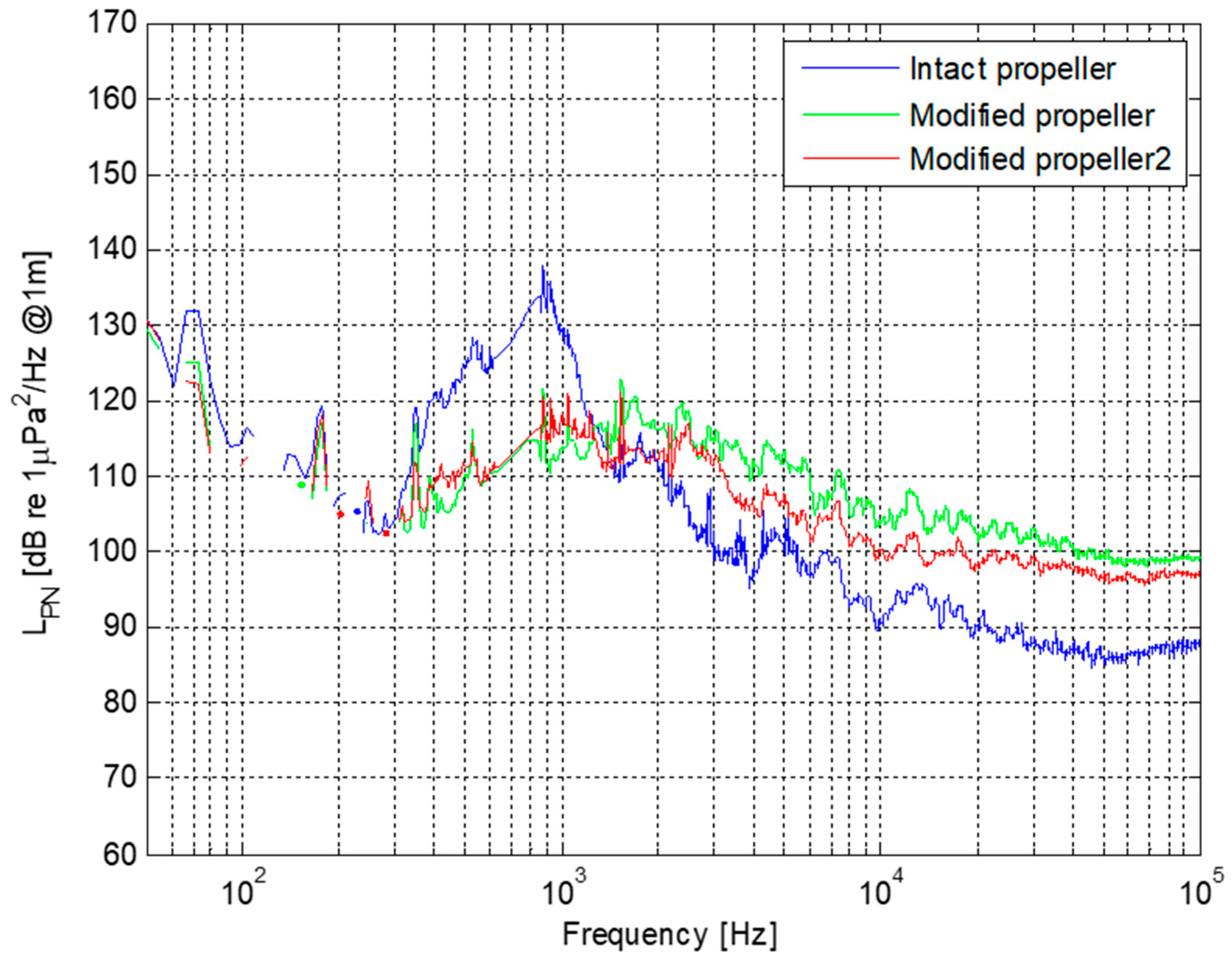

Comparative test results for the “Modified Propeller-2” test case indicated a noise reduction as high as 17 dB compared to the unmodified propeller. This was achieved particularly in the frequency region which is of utmost importance for some marine mammals. For this configuration, towing tank results showed about a 2% loss in the propeller efficiency.
The test results for the first “Modified Propeller” showed further superior underwater noise reduction in the same high-frequency range but with a higher loss (of about 5.7%) in propeller efficiency.
The study shows that a recently developed advanced CFD modelling application can simulate sheet and tip vortex cavitation characteristics for intact blades and this with pressure relief holes. The CFD studies showed up to 13.8% cavitation volume reduction for the pressure pores applied on the earlier mentioned commercial tanker propeller used in [
13], while the corresponding cavitation tunnel tests showed significant noise emission reductions (up to 10 dB) with only 0.5% loss of efficiency. This suggests that PressurePores
TM technology may be a useful and attractive noise mitigation technique for the retrofit of noisy marine propulsors within the framework of increasing scrutiny on the marine noise pollution from commercial shipping.
