Nutrients Leaching from Tillage Soil Amended with Wheat Straw Biochar Influenced by Fertiliser Type

by
Cheng Huang
1,2,3,
Xiuyun Sun
2,
Lianjun Wang
2,
Paul Storer
4,
Kadambot H. M. Siddique
1 and
Zakaria M. Solaiman
1,*
1
The UWA Institute of Agriculture, and UWA School of Agriculture and Environment, The University of Western Australia, Perth, WA 6009, Australia
2
Jiangsu Key Laboratory of Chemical Pollution Control and Resources Reuse, School of Environmental and Biological Engineering, Nanjing University of Science and Technology, Nanjing 210094, China
3
School of Environmental and Chemical Engineering, Jiangsu University of Science and Technology, Zhenjiang 212100, China
4
Troforte Innovations Pty Ltd., Wangara, WA 6065, Australia
*
Author to whom correspondence should be addressed.
Agriculture 2021, 11(11), 1132; https://doi.org/10.3390/agriculture11111132
Submission received: 25 September 2021 / Revised: 7 November 2021 / Accepted: 8 November 2021 / Published: 11 November 2021
(This article belongs to the Special Issue Effects of Biochar and Compost Amendments on Soil Fertility)
Browse Figures
Versions Notes

Abstract

:
The co-application of biochar and fertiliser has emerged as a strategy for improving soil quality and crop growth; however, the impact of the type of fertiliser added with biochar to the soil on leaching and retention of nutrients is not well studied. In this study, a leaching experiment was undertaken using a series of column lysimeters incorporating a wheat straw biochar (WSB) and two fertiliser types—chemical fertiliser (CF), or rock mineral fertiliser (MF). The results showed that CF and MF leached a similar amount of NH4+ with or without WSB, but the NO3– leaching occurred from CF-treated soil which was decreased by CF + WSB application. In contrast, NO3– leaching was not affected by WSB in MF-treated soil. Both CF and MF with or without WSB increased the cumulative leaching of P and K. Nevertheless, WSB application increased soil P and K contents after leaching, which was attributed to intrinsic nutrient release from biochar. Shoot growth and P and K uptake also increased with biochar amendment, whereas root growth and N uptake did not change. Therefore, the results highlight that biochar addition can improve nutrient retention and plant growth by reducing nutrient leaching, mainly dependent on biochar and fertiliser type combination used. It suggests that the adsorption properties of biochar for nutrient retention and subsequent release need to know before their broad application to soils as amendments.

1. Introduction

With the rapid population growth, cultivated land scarcity and increasingly rigorous food safety regulations, crop production needs to be improved to mitigate the food crisis. Fertiliser is commonly incorporated into soil to provide necessary macronutrients, such as nitrogen (N), phosphorus (P) and potassium (K), for plant growth [1]. However, excessive long-term fertilisation can cause soil deterioration [2], groundwater pollution [3,4] and eutrophication [5]. Moreover, fertiliser use efficiency is relatively low due to the loss of nutrients through leaching, running off and evaporation. Thus, an efficient and environmentally benign fertilisation strategy is needed.
Application of biochar has been proposed as amendment practice to improve soil fertility and quality as it is a carbon-rich material derived from waste materials such as animal manure [6,7], crop residues [8] and sewage sludge [9,10]. Biochar increases soil carbon (C) sequestration, soil water holding capacity (WHC) and reduces the mobility of toxic heavy metals, pesticides and other organic pollutants, as is well reported [11]. Several studies have presented the positive effect of biochar on soil microbial and mycorrhizal activity, which influences nutrient availability to plants [12,13]. Furthermore, biochar can adsorb nutrients into its large surface area, potentially contributing to retention and recycling. Consequently, the application of biochar combined with fertilisers could simultaneously improve crop yield and fertiliser use efficiency [14]. Ding et al. [15] reported that wood-derived biochar adsorbed ammonium ions predominantly by cation exchange and reduced nitrate and organic C leaching in tillage soils amended with pig manure. Similar observations have been observed with other biochars in fertilised soils [16,17,18].
The effects of biochar amendment on enhancing nutrient retention have been well-studied, but the impact on nutrient leaching is inconsistent. Iqbal et al. [19] reported that co-composted biochar application did not significantly reduce NO3–, P or organic C leaching, relative to the compost only treatment. Madiba et al. [20] revealed that biochar improved P uptake and leaching, indicating that biochar application was not a mitigation strategy for decreasing P leaching in sandy soils. These contradictory results suggest that the nutrient retention capability of biochar from fertiliser varies depending on the type of fertiliser used and the characteristics of biochar and amended soil properties. Hence, a better understanding of the influence of biochar addition on nutrient leaching and the physical and chemical properties of amended soils is needed.
Only a few experiments have examined the effect of biochar on nutrient leaching in fertilised soils, particularly comparing different types of fertiliser. For example, Schulz and Glaser [21] demonstrated that the addition of biochar combined with organic fertiliser had synergistic effects on soil fertility, relative to biochar combined with NPK fertiliser. Zheng et al. [22] reported a significant reduction in NH4+-N leaching from the soil with the addition of biochar combined with NO3–-N fertiliser, but not with NH4+-N fertiliser. The research gap, however, remains for the interactions and the mechanisms that affect soil nutrients when biochar is used as a soil amendment with different types of fertiliser. There is no legislation of the biochar agricultural use in Australia, but there is a draft user guideline published by ANZ Biochar Initiative.
In this study, we hypothesised that biochar application to fertilised soils decreases nutrient leaching and increases nutrient retention, which mostly depends on the types of fertiliser used. This study aimed to comprehensively evaluate the potential of biochar application combined with types of fertiliser on nutrient leaching and retention and investigate their effects on plant growth and nutrient uptake after the leaching events.

2. Materials and Methods

2.1. Biochar, Soil and Fertilisers

The biochar used in this experiment were produced from wheat straw at 550 °C (Pacific Pyrolysis Pty Ltd., Somersby, Australia) using Slow Pyrolysis Technology (C4H4). Basic characteristics of biochars are presented in Table 1. The pH and EC of biochar were measured in water at 1:5 (w/v) ratios. A subsample of biochar was finely ground before analyses of total carbon and total nitrogen concentrations with dry combustion using an elemental analyser (vario MACRO CNS; Elementar, Germany). Other biochar properties (CEC, EC-; P%; K%) were measured using standard methods [23]. A representative soil from the Western Australian wheatbelt (0–10 cm surface layer) was collected from Hayden, Western Australia. The basic characteristics and nutrient concentrations of the soil were analysed using standard methods, as presented in Table 1. The chemical fertiliser (CF) was procured from Summit Fertilizers, Kwinana Beach, Western Australia, and the rock mineral fertiliser (MF) from Troforte Innovations Pty Ltd, Wangara, Western Australia. The MF consisted of a proprietary combination of various fine mineral ores, including micas, alkali feldspars, soft rock phosphate, gypsum, dolomite, basalt, granite and crystalline silica, which are blended with sulphate of ammonia and sulphate of potash, manganese sulphate, copper sulphate and zinc sulphate (Table 1).

2.2. Lysimeter Experiment

An experiment using lysimeter was carried out to investigate the effect of biochar on nutrient leaching from fertilised soil according to a modified method of Madiba et al. (2016). The lysimeters were constructed from polyvinyl chloride (PVC) tubes with dimensions of 10.5 cm diameter and 30 cm depth. Each lysimeter was fitted with a plastic tube at the bottom for collecting leachate. The soil was sieved through a 2 mm mesh and subjected to one of six fertiliser and/or biochar treatments prior to filling the lysimeters: (i) control (nil application), (ii) water-soluble chemical fertiliser (CF) at 10 kg N/ha (equivalent to 1.2 g/pot), (iii) slow-release rock mineral fertiliser (MF) at 10 kg N/ha (equal to 1.2 g/pot), (iv) wheat straw biochar (WSB) applied at a rate equivalent to 2% (64 g biochar/lysimeter), (v) chemical fertiliser mixed with biochar (CF + WSB), and (vi) rock mineral fertiliser mixed with biochar (MF + WSB). The experiment comprised 24 lysimeters with four replication per treatment. Each lysimeter was filled with 3.2 kg of respective soil.
Before commencing the lysimeter experiment, approximately 250 mL of deionised water were added to the soil in each lysimeter to adjust the moisture content to 80% WHC. The loss of water through evaporation was compensated for maintaining 80% WHC by adding deionised (DI) water every second day by weighing. Each lysimeter was slowly leached with 500 mL DI water weekly during the leaching period. The leachate from each column was then collected from the outlet at the bottom of the lysimeter, and the total volume of leachate was measured immediately. After the experiment ended, soil samples were taken from each column for subsequent assay.

2.3. Pot Experiment

A pot experiment under laboratory conditions was conducted to assess the after-leaching residual effect of biochar application on nutrient uptake and plant growth. After the lysimeter experiment ended, each lysimeter was deconstructed, and 2.2 kg of the soil mixture was added to a plastic pot. Wheat (Triticum aestivum L.) crop was selected as it is the main crop grown in Western Australia. Six seeds of wheat were sown into each pot and thinned to three seedlings after emergence. The pots were DI watered daily to 80% WHC and harvested at anthesis stage of growth. Shoots and roots were oven-dried at 60 °C for at least 72 h and weighed. Oven-dried shoots were ground finely and digested with HNO3/HClO4 to measure nutrient concentrations. The total N, P and K in the digest were measured with an elemental analyser (Vario MACRO CNS; Elementar, Germany) for N and inductively coupled plasma-atomic emission spectrometry (ICP-AES) for P and K. Nutrient uptake was calculated by multiplying individual nutrient concentration by shoot dry weight.

2.4. Leachate and Soil Analysis of the Lysimeter Experiment

Ammonium (NH4+) and nitrate (NO3–) concentration in the leachates were measured by extracting with 0.5 M K2SO4 and analysing the extract in a spectrophotometer for NH4+ [24] and NO3– [25]. Phosphorus in leachate was determined using the molybdenum blue method [26]. The K content was analysed with a flame photometer.
Soil samples were taken from each lysimeter at the end of leaching period and extracted by shaking with 0.5 M K2SO4 for 2 h to determine the NH4+ and NO3– concentrations according to the methods above. Total C and N content of the soil was measured using an elemental analyser (Vario MACRO CNS; Elementar, Germany). The soil samples were digested with HNO3/HCl, and then total P and K contents were measured by ICP-AES (Table 2 and Table 3).

2.5. Statistical Analysis

Statistical analysis was performed using GENSTAT 18th Edition with significant differences assessed by two-way analysis of variance (ANOVA) and means compared using Tukey’s test. All of the results were expressed as a mean ± standard errors, and p ≤ 0.05 was considered statistically significant.

3. Results

3.1. pH in Leachates

The temporal changes of pH in the leachate of soil columns under different treatments are shown in Figure 1. The leachate pH in control was relatively steady over the leaching period, ranging from 5.79 to 6.85. MF addition had no significant influence on leachate pH, but it markedly decreased with CF. At last, the CF treatment had lowered the leachate pH by 0.27 units on average, relative to the control (Table 2; p < 0.05). Furthermore, the leachate pH increased significantly under WSB alone and combined with fertiliser (p < 0.05) by 0.31, 0.30 and 0.32 for sole WSB, CF + WSB and MF + WSB, respectively.

3.2. Volume of Leachates

The average volume of leachate from the control and fertiliser-treated soils differed from the application of biochar alone and in combination with fertiliser (Figure 2). Addition of CF or MF alone had no significant effect on leachate volume, despite a limited increase over the control (p > 0.05). In the biochar treatments, the average leachate volume declined to 367.5, 361.6 and 361.1 mL in the WSB alone, CF + WSB and MF + WSB treatments, respectively, relative to the control (396.9 mL) (Table 2).

3.3. Nutrients in Leachates

The amount of leachate nutrients (NH4+, NO3–, P and K) differed in the biochar and fertiliser-treated soils, relative to the unamended control. Figure 3a shows the changes in cumulative NH4+ losses from the soil column. Compared with unamended soil, the application of CF or MF increased the cumulative NH4+ content in leachate, whereas biochar alone (WSB) had no significant effect on NH4+ leaching. Biochar combined with CF (CF + WSB) markedly increased NH4+ leaching, whereas biochar with MF (MF + WSB) decreased NH4+ leaching (by 9.4% relative to biochar alone).
Figure 3b shows the changes in cumulative NO3− losses from the soil column. The CF and MF treatments increased NO3– leaching, more so in the CF-treated soil than the MF-treated soil. Addition of biochar alone reduced NO3–-N leaching in the first six weeks of growth, but no difference was observed from weeks 7 to 10 compared with the control. Biochar significantly reduced the cumulative NO3–-N leaching from the CF-treated soil (58.4 mg or 49.2%, relative to the CF treatment), but not the MF-treated soil.
Figure 3c shows the amount of cumulative K in the leachate under the different treatments having interaction of biochar x fertiliser (Table 2). The total cumulative amount of K in the CF and MF treatments was relatively low and did not exceed 150 mg. However, the cumulative K released from WSB-, CF + WSB- and MF + WSB-treated soils increased sharply during the experiment, to almost 33 times more than the control. Therefore, it was not surprising that K leaching increased in the CF + WSB and MF + WSB treatments.
The biochar effect on the leaching of P from fertilised soil was significant (Figure 3d). When biochar was combined with either CF or MF, P leaching increased by about 30.6% and 28.9%, relative to the sole CF or MF treatments, respectively.

3.4. Retention of Nutrients in the Soils after Leaching Events

Table 3 lists the concentration of nutrients retained in each treatment after leaching events in the lysimeter experiment. For N, irrespective of biochar, application of CF or MF only had a significant effect on NH4+-N concentration, relative to the control (Table 2 and Table 3). In contrast, the presence of biochar significantly increased NH4+-N, NO3–-N and total N concentrations in soil. In the CF + WSB treatment, more NH4+-N was retained in soil relative to the control. This is also true for the MF + WSB treatment where the NH4+-N concentration increased than all other treatments (Table 3). The NO3-N concentration in soil was increased in WSB alone compared with other treatments.
The concentration of available P in the soil increased with the sole application of CF or MF relative to the control, although the total P concentration remained similar (Table 3). The WSB significantly increased both available and total P in soil when applied alone or combined with CF + WSB and MF + WSB. The increase in the total P concentration was 26.4% and 57.2% in the CF + WSB- and MF + WSB-treated soil, respectively.
Similarly, total K retained in the soil increased slightly with CF or MF application. In the CF + WSB treatment, the amount of total K increased significantly, relative to the CF treatment, from 270.4 mg/kg to 279.5 mg/kg, with a similar response observed in the MF + WSB treatment relative to the MF treatment. Similar trends were observed for total P and K in the combined biochar/fertiliser treatments: the CF + WSB and MF + WSB treatments retained more nutrients, but more than the control treatment.

3.5. Nutrient Uptake and Plant Growth

Shoot nutrient uptake was evaluated by measuring nutrient concentration in shoots at harvest (Table 4). The MF treatment reduced shoot N uptake relative to control but not differed with CF, whereas sole biochar addition significantly increased shoot N uptake than control or fertiliser alone. The combined application of biochar and fertiliser increased shoot N uptake over control or fertiliser alone but did not differ with biochar alone. Sole fertiliser (CF or MF) application did not affect shoot P and K uptakes, apart from the CF treatment where shoot P uptake increased 2.4-fold, relative to the control. Biochar significantly increased shoot P and K uptakes, relative to the control, more when combining with CF or MF. For instance, the CF + WSB treatment increased plant K uptake by 53.2%, relative to the CF treatment.
Dry weights of shoot and root are presented in Figure 4. Application of CF or MF alone did not alter shoot or root biomass, relative to the control. However, the CF + WSB treatment produced more shoot dry weight (0.517 g/pot) than the CF alone treatment (0.377 g/pot). Similarly, the MF + WSB treatment increased shoot biomass by 65.7% compared with the MF alone treatment. None of the treatment significantly increased root weight, except for the CF + WSB treatment that significantly increased root biomass (1.65 g/pot) relative to the control (0.440 g/pot).

4. Discussion

4.1. Effect of Fertiliser and Biochar Amendment on pH and Volume of Leachate

The fertiliser and biochar treatments significantly differed in terms of pH and volume of leachate. The CF treatment significantly reduced the pH in leachate, which agrees with the findings of Hati et al. [27] who reported a decline in soil pH with the application of ammonium fertiliser and could be due to the fast release of NH4+. Similar results have been reported by Heinze et al. [28] and Liu et al. [29] indicating a decrease in pH due to the application of chemical fertiliser than organic fertiliser. When chemical fertiliser is applied to the soil, oxidation of the released NH4+ could produce H+ ions and thus reduce soil pH and leachate pH [30]. The MF treatment had little or no influence on leachate pH, which could be attributed to the slow release of nutrients from MF.
Biochar amendment can be used with NH4+ fertiliser to minimise the soil pH decrease. The mechanism behind this that biochars are alkaline has a buffering capacity to neutralise soil acidity [31,32]. In this study, biochar application significantly increased (p < 0.05) leachate pH, relative to the control and fertiliser only treatments (Figure 1). For the WSB-treated soils, more mineral ions, such as Ca2+, K+, and Mg2+, were dissolved and leached in water, which was supported by the higher electrical conductivity in the leachate of those treatments (data not shown).
The CF and MF treatments did not affect leachate volume (p > 0.05). However, the biochar treatments significantly reduced the average volume, which implies that biochar increased soil WHC. A study has have shown that soil water retention is generally dependent on soil bulk density, surface area, pore-size distribution and aggregation [33]. An increase in organic matter content could also retain more moisture in the soil [33,34]. Increases in soil WHC could enhance nutrient availability (e.g., N, P, and K) and reduce irrigation requirements and nutrient leaching, especially in sandy soils [35].

4.2. Effect of Fertiliser and Biochar Amendment on Nutrient Leaching

The effect of biochar on nutrient leaching was highly variable and depended on the fertiliser and biochar application (Figure 3). The wheat straw biochar amendment did not affect NH4+ leaching in the MF-treated soil and even increased the cumulative NH4+ concentration in the CF + WSB treatment, which indicates that WSB has negligible ability to absorb NH4+. Williams and Reed [36] and Singh et al. [37] reported that biochar prepared at low-temperature (<600 °C) could not remove ammonium, as we found with biochar produced at 550 °C. The lack of effect of WSB on NH4+ leaching could also be related to the contribution of its intrinsic N.
It was expected that NH4+ ions would bind with acid functional groups or cationic species on the surface of the biochar via cation exchange [38,39], and that NH4+ absorption capacity would be limited and depend on feedstocks and the pyrolysis technology [40]. Thus, the NH4+-N content in the CF-treated soil was readily released, and the amount is more than the maximum adsorption capacity of WSB, resulting in a substantial amount of NH4+ leaching.
Biochar soil amendment to CF-treated soil (CF + WSB) reduced the amount of NO3–-N leached from the soil by 49.2%, relative to the CF treatment. However, the MF + WSB treatment had no significant effect on NO3–-N leaching, relative to the MF treatment (Figure 3b). The results show that NO3–-N leaching varied greatly with fertiliser type. Multiple mechanisms could be responsible for NO3–-N leaching in the biochar-amended soil, including (i) nitrate adsorption ability of the biochar, (ii) rate of N nitrification and denitrification, (iii) enhanced microbial respiration and mineralisation of organic N affected by biochar and (iv) increased soil water-holding capacity [32,41,42]. Further studies are needed to reveal the governing mechanisms under different biochar and soil types as well as fertiliser management.
For K content in the leachate, biochar addition significantly increased K leaching from the fertilised soils throughout the experiment, indicating a substantial fraction of initial K in the biochar was mobile and easily leached. The results are consistent with those of Laird et al. [42], where biochar addition increased the amount of Ca, Mg and K in weekly leachate. It should be noted that enhanced K leaching occurred in both the WSB alone and WSB combined with fertiliser treatments, despite lower levels of K leaching in the control and fertiliser only treatments (Figure 3c). The mechanisms responsible for this synergistic effect could be due to improved physical properties of soils, resulting in nutrient availability and consequently leaching, especially cations such as K+, Na+ and Ca2+ [21]. Agegnehu et al. [43] reported an increase in available K, Mg and Al contents in soils with biochar and compost amendment, and they attributed this positive effect to the enhanced CEC and intrinsic elemental nutrients of biochar. Schulz and Glaser [21] reported that biochar increased plant-available K but had no effect on other cations, and attributed this effect to the change in pH, which affected nutrient availability. This is consistent with our findings on leachate pH, which increased with WSB addition (Figure 1).
The WSB combined with fertiliser treatments had higher total P concentrations in leachate than the other treatments. This is consistent with the findings of Yao et al. [44], who reported that biochar had various effects on nutrient leaching. The varied effect of WSB biochar on P leaching could be due to: (i) the WSB had high water-extractable P content—Troy et al. [17] reported that pig manure biochar increased P leaching due to dissolved reactive P content—and (ii) the WSB had a low phosphate adsorption capacity. Several studies have demonstrated that feedstocks and intrinsic metal elements (e.g., Mg, Al and Fe) play an important role in phosphate recovery [45,46]. Yao et al. [47] found that biochar prepared from Mg-enriched tomato tissues had a remarkable phosphate sorption capacity, as did biochar impregnated with lanthanum [48]. In our study, we did not measure Mg in the biochar. Further investigations are needed to reveal the underlying mechanisms of nutrient retention and leaching in biochar-amended soils.

4.3. Effect of Fertiliser and Biochar Amendment on Nutrient Retention in Soils

For total N, the CF and MF treatments did not significantly differ from at the end of the leaching experiment, relative to the control, indicating that rapid N leaching losses occurred in the fertilised sandy soil. In contrast, WSB combined with fertiliser treatments enhanced total N retention after ten weeks of leaching events, relative to their respective fertiliser only treatment (Table 4). Other studies have reported similar findings of biochar enhancing fertiliser N retention [14,16,22].
Interestingly, biochar effects on the retention of NH4+ in soil were not consistent, having interaction between biochar x fertiliser (Table 3). Biochar increased NH4+-N concentrations in CF- and MF-treated soils, but had little or no effect on NO3– concentrations, except for those increased with WSB alone (Table 3). Similarly, Zheng et al. [22] found that biochar addition led to more NH4+-N and less NO3--N retained in NH4+-N-fertilised soil, whereas an opposite occurred in NO3–-N-fertilised soil. Biochar application to soil may manipulate the N cycle, which is responsible for N distribution [39,49]. Thus, it can be concluded that biochar application possibly enhanced nitrification.
Wheat straw biochar application increased total K and P concentrations in the soil, relative to fertiliser application alone. However, as noted above, the increased accumulation of P and K in the leachate with biochar addition reduced P leaching. Contradictory results obtained in this experiment may be due to the high input of P and K derived from biochar. Several studies have indicated that biochar could be used as a P and K fertiliser due to its high concentrations [14,50,51]. The total amount of K and P in the soil increased significantly with biochar alone, relative to the control soil, indicating a net release of K and P from WSB. Finally, the results obtained from this investigation suggest that the addition of biochar either alone or with fertiliser to soils could increase the capacity of soils to retain nutrients and thereby improve nutrient use efficiency. The long-term interactions of biochar and fertiliser in amended soils should be investigated further.

4.4. Effect of Fertiliser and Biochar Amendment on Shoot Nutrient Uptake and Plant Growth

In this study, all fertiliser amendments had no significant effect on plant N uptake over control, despite higher N uptake in the biochar alone or biochar combined with fertiliser treatments, which was supported by Solaiman et al. [13]. However, these data were not reported by Sun et al. [52], where N uptake of the cultivated crop with either 50% or 100% fertiliser did not change with the addition of biochar. Nitrogen availability is generally the main factor for N uptake by plants. Therefore, based on results of our study, it is possible that biochar application enhances N supply to the plants.
Similar to plant N uptake, WSB also increased wheat P and K uptakes over control where P uptake was influenced by biochar x fertiliser interaction (Table 4). The mechanisms responsible for the positive effect of biochar on nutrient uptake have been proposed as the direct nutrient supply by biochar and improvements in soil physical properties, such as pH, exchangeable cations and WHC, resulting in benefits for nutrient retention [33,53]. Solaiman et al. [13] suggested that biochar has a beneficial effect on mycorrhizal colonisation by increasing the surface area for microorganisms, thereby enhancing N and P uptake. The biochar used in our study contained high levels of plant-available nutrients, especially P and K (Table 4), which may have improved nutrient uptake in all fertiliser treatments with biochar. This would explain the enhanced wheat growth in biochar-amended soils.
We found no statistically significant effects of CF or MF on wheat growth, which may be the result of the high rates of nutrient loss observed in the leaching experiment, which depleted soil fertility in fertiliser-amended soils. In contrast, biochar increased wheat growth, mainly shoot DW, which was attributed to higher nutrient supply from WSB. In general, crop residue-derived biochar has higher ash and nutrient contents than biochar prepared from woody material [54,55]. Alburquerque et al. [56] reported that biochar with a higher percentage of ash, including wheat straw biochar, increased sunflower growth more than other biochar, such as pine woodchip biochar.

5. Conclusions

The results of our study indicate that wheat straw biochar (WSB) enhances both nutrient leaching and retention in soils amended with CF or MF fertilisers. Application of WSB decreased NH4+ in MF-treated soil and NO3– in CF-treated soil, whereas K and P leaching increased due to intrinsic nutrients released from WSB. The analysis of residual nutrients at the end of the leaching experiment showed that biochar amendment with fertiliser increased N, P and K retention relative to fertiliser alone. Pot experiments demonstrated that biochar enhanced N, P and K uptake in wheat shoots as well as shoot growth when combined with fertilisers, which may be due to direct nutrient supply by biochar and its higher nutrient availability. However, none of the treatments affected root growth. Therefore, for future studies the properties of biochar and fertiliser should be considered before amending soil.

Author Contributions

Conceptualisation, C.H. and Z.M.S.; methodology, C.H. and Z.M.S.; investigation, C.H.; data analysis, C.H.; resources, Z.M.S.; writing—original draft preparation, C.H.; writing—review and editing, Z.M.S.; K.H.M.S.; X.S.; L.W.; P.S.; supervision, Z.M.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not Applicable.

Informed Consent Statement

Not Applicable.

Data Availability Statement

Not Applicable.

Acknowledgments

The Science and Technology Department of Jiangsu Province, China (BK20161497) supported for Cheng Huang’s visit to The University of Western Australia.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Stewart, W.M.; Dibb, D.W.; Johnston, A.E.; Smyth, T.J. The contribution of commercial fertilizer nutrients to food production. Agron. J. 2005, 97, 1–6. [Google Scholar] [CrossRef] [Green Version]
  2. Ju, X.; Kou, C.; Christie, P.; Dou, Z.; Zhang, F. Changes in the soil environment from excessive application of fertilizers and manures to two contrasting intensive cropping systems on the North China Plain. Environ. Pollut. 2007, 145, 497–506. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Sebilo, M.; Mayer, B.; Nicolardot, B.; Pinay, G.; Mariotti, A. Long-term fate of nitrate fertilizer in agricultural soils. Proc. Natl. Acad. Sci. USA 2013, 110, 18185–18189. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Mahvi, A.H.; Nouri, J.; Babaei, A.A.; Nabizadeh, R. Agricultural activities impact on groundwater nitrate pollution. Int. J. Environ. Sci. Technol. 2005, 2, 41–47. [Google Scholar] [CrossRef] [Green Version]
  5. Bennett, E.M.; Carpenter, S.R.; Caraco, N.F. Human impact on erodable phosphorus and eutrophication: A global perspective increasing accumulation of phosphorus in soil threatens rivers, lakes, and coastal oceans with eutrophication. BioScience 2001, 51, 227–234. [Google Scholar] [CrossRef]
  6. Hass, A.; Gonzalez, J.M.; Lima, I.M.; Godwin, H.W.; Halvorson, J.J.; Boyer, D.G. Chicken manure biochar as liming and nutrient source for acid appalachian soil. J. Environ. Qual. 2012, 41, 1096–1106. [Google Scholar] [CrossRef] [PubMed]
  7. Uzoma, K.C.; Inoue, M.; Andry, H.; Fujimaki, H.; Zahoor, A.; Nishihara, E. Effect of cow manure biochar on maize productivity under sandy soil condition. Soil Use Manag. 2011, 27, 205–212. [Google Scholar] [CrossRef]
  8. Jiang, T.-Y.; Jiang, J.; Xu, R.-K.; Li, Z. Adsorption of Pb(II) on variable charge soils amended with rice-straw derived biochar. Chemosphere 2012, 89, 249–256. [Google Scholar] [CrossRef] [PubMed]
  9. Hossain, M.K.; Strezov, V.; McCormick, L.; Nelson, P.F. Wastewater sludge and sludge biochar addition to soils for biomass production from Hyparrhenia hirta. Ecol. Eng. 2015, 82, 345–348. [Google Scholar] [CrossRef]
  10. Méndez, A.; Gómez, A.; Paz-Ferreiro, J.; Gascó, G. Effects of sewage sludge biochar on plant metal availability after application to a Mediterranean soil. Chemosphere 2012, 89, 1354–1359. [Google Scholar] [CrossRef] [PubMed]
  11. Qambrani, N.A.; Rahman, M.; Won, S.; Shim, S.; Ra, C. Biochar properties and eco-friendly applications for climate change mitigation, waste management, and wastewater treatment: A review. Renew. Sustain. Energy Rev. 2017, 79, 255–273. [Google Scholar] [CrossRef]
  12. Blackwell, P.; Joseph, S.; Munroe, P.; Anawar, H.M.; Storer, P.; Gilkes, R.; Solaiman, Z.M. Influences of biochar and biochar-mineral complex on mycorrhizal colonisation and nutrition of wheat and sorghum. Pedosphere 2015, 25, 686–695. [Google Scholar] [CrossRef]
  13. Solaiman, Z.M.; Blackwell, P.; Abbott, L.; Storer, P. Direct and residual effect of biochar application on mycorrhizal root colonisation, growth and nutrition of wheat. Soil Res. 2010, 48, 546–554. [Google Scholar] [CrossRef]
  14. Lehmann, J.; da Silva, J.P.; Steiner, C.; Nehls, T.; Zech, W.; Glaser, B. Nutrient availability and leaching in an archaeological Anthrosol and a Ferralsol of the Central Amazon basin: Fertilizer, manure and charcoal amendments. Plant Soil 2003, 249, 343–357. [Google Scholar] [CrossRef]
  15. Ding, Y.; Liu, Y.-X.; Wu, W.-X.; Shi, D.-Z.; Yang, M.; Zhong, Z.-K. Evaluation of biochar effects on nitrogen retention and leaching in multi-layered soil columns. Water Air Soil Pollut. 2010, 213, 47–55. [Google Scholar] [CrossRef]
  16. Zhao, X.; Yan, X.; Wang, S.; Xing, G.; Zhou, Y. Effects of the addition of rice-straw-based biochar on leaching and retention of fertilizer N in highly fertilized cropland soils. Soil Sci. Plant Nutr. 2013, 59, 771–782. [Google Scholar] [CrossRef]
  17. Troy, S.M.; Lawlor, P.G.; Flynn, C.J.O.; Healy, M.G. The impact of biochar addition on nutrient leaching and soil properties from tillage soil amended with pig manure. Water Air Soil Pollut. 2014, 225, 1–15. [Google Scholar] [CrossRef] [Green Version]
  18. Faloye, O.; Alatise, M.; Ajayi, A.; Ewulo, B. Synergistic effects of biochar and inorganic fertiliser on maize (zea mays) yield in an alfisol under drip irrigation. Soil Tillage Res. 2017, 174, 214–220. [Google Scholar] [CrossRef]
  19. Iqbal, H.; Garcia-Perez, M.; Flury, M. Effect of biochar on leaching of organic carbon, nitrogen, and phosphorus from compost in bioretention systems. Sci. Total Environ. 2015, 521, 37–45. [Google Scholar] [CrossRef]
  20. Madiba, O.F.; Solaiman, Z.M.; Carson, J.K.; Murphy, D.V. Biochar increases availability and uptake of phosphorus to wheat under leaching conditions. Biol. Fertil. Soils 2016, 52, 439–446. [Google Scholar] [CrossRef]
  21. Schulz, H.; Glaser, B. Effects of biochar compared to organic and inorganic fertilizers on soil quality and plant growth in a greenhouse experiment. J. Plant Nutr. Soil Sci. 2012, 175, 410–422. [Google Scholar] [CrossRef]
  22. Zheng, H.; Wang, Z.; Deng, X.; Herbert, S.; Xing, B. Impacts of adding biochar on nitrogen retention and bioavailability in agricultural soil. Geoderma 2013, 206, 32–39. [Google Scholar] [CrossRef]
  23. Solaiman, Z.M.; Murphy, D.; Abbott, L. Biochars influence seed germination and early growth of seedlings. Plant Soil 2012, 353, 273–287. [Google Scholar] [CrossRef]
  24. Krom, M.D. Spectrophotometric determination of ammonia: A study of a modified Berthelot reaction using salicylate and dichloroisocyanurate. Analyst 1980, 105, 305–316. [Google Scholar] [CrossRef]
  25. Kamphake, L.; Hannah, S.; Cohen, J. Automated analysis for nitrate by hydrazine reduction. Water Res. 1967, 1, 205–216. [Google Scholar] [CrossRef]
  26. Murphy, J.; Riley, J.P. A modified single solution method for the determination of phosphate in natural waters. Anal. Chim. Acta 1962, 27, 31–36. [Google Scholar] [CrossRef]
  27. Hati, K.M.; Swarup, A.; Mishra, B.; Manna, M.; Wanjari, R.; Mandal, K.; Misra, A. Impact of long-term application of fertilizer, manure and lime under intensive cropping on physical properties and organic carbon content of an Alfisol. Geoderma 2008, 148, 173–179. [Google Scholar] [CrossRef]
  28. Heinze, S.; Raupp, J.; Joergensen, R.G. Effects of fertilizer and spatial heterogeneity in soil pH on microbial biomass indices in a long-term field trial of organic agriculture. Plant Soil 2010, 328, 203–215. [Google Scholar] [CrossRef]
  29. Liu, E.; Yan, C.; Mei, X.; He, W.; Bing, S.H.; Ding, L.; Liu, Q.; Liu, S.; Fan, T. Long-term effect of chemical fertilizer, straw, and manure on soil chemical and biological properties in northwest China. Geoderma 2010, 158, 173–180. [Google Scholar] [CrossRef]
  30. Magdoff, F.; Lanyon, L.; Liebhardt, B. Nutrient cycling, transformations, and flows: Implications for a more sustainable agriculture. In Advances in Agronomy; Elsevier: Amsterdam, The Netherlands, 1997; pp. 1–73. [Google Scholar]
  31. Xu, N.; Tan, G.; Wang, H.; Gai, X. Effect of biochar additions to soil on nitrogen leaching, microbial biomass and bacterial community structure. Eur. J. Soil Biol. 2016, 74, 1–8. [Google Scholar] [CrossRef]
  32. Sun, H.; Lu, H.; Chu, L.; Shao, H.; Shi, W. Biochar applied with appropriate rates can reduce N leaching, keep N retention and not increase NH3 volatilization in a coastal saline soil. Sci. Total Environ. 2017, 575, 820–825. [Google Scholar] [CrossRef] [PubMed]
  33. Atkinson, C.J.; Fitzgerald, J.D.; Hipps, N.A. Potential mechanisms for achieving agricultural benefits from biochar application to temperate soils: A review. Plant. Soil 2010, 337, 1–18. [Google Scholar] [CrossRef]
  34. Madsen, H.B.; Platou, S.W. Land use planning in Denmark. Hydrol. Res. 1983, 14, 267–276. [Google Scholar] [CrossRef]
  35. Major, J.; Steiner, C.; Downie, A.; Lehmann, J. Biochar Effects on Nutrient Leaching. Biochar for Environmental Management. Sci. Technol. 2009, 271–282. Available online: https://www.researchgate.net/publication/221899780_Biochar_effects_on_nutrient_leaching (accessed on 7 November 2021).
  36. Williams, P.; Reed, A. Development of activated carbon pore structure via physical and chemical activation of biomass fibre waste. Biomass Bioenergy 2006, 30, 144–152. [Google Scholar] [CrossRef]
  37. Singh, B.P.; Hatton, B.J.; Singh, B.; Cowie, A.L.; Kathuria, A. Influence of biochars on nitrous oxide emission and nitrogen leaching from two contrasting soils. J. Environ. Qual. 2010, 39, 1224–1235. [Google Scholar] [CrossRef] [PubMed]
  38. Mukherjee, A.; Zimmerman, A. Organic carbon and nutrient release from a range of laboratory-produced biochars and biochar–soil mixtures. Geoderma 2013, 193, 122–130. [Google Scholar] [CrossRef]
  39. Clough, T.J.; Condron, L.M. Biochar and the nitrogen cycle: Introduction. J. Environ. Qual. 2010, 39, 1218–1223. [Google Scholar] [CrossRef] [PubMed]
  40. Taghizadeh-Toosi, A.; Clough, T.J.; Sherlock, R.R.; Condron, L.M. Biochar adsorbed ammonia is bioavailable. Plant Soil 2012, 350, 57–69. [Google Scholar] [CrossRef]
  41. Pratiwi, E.P.A.; Hillary, A.K.; Fukuda, T.; Shinogi, Y. The effects of rice husk char on ammonium, nitrate and phosphate retention and leaching in loamy soil. Geoderma 2016, 277, 61–68. [Google Scholar] [CrossRef]
  42. Laird, D.; Fleming, P.; Wang, B.; Horton, R.; Karlen, D. Biochar impact on nutrient leaching from a Midwestern agricultural soil. Geoderma 2010, 158, 436–442. [Google Scholar] [CrossRef] [Green Version]
  43. Agegnehu, G.; Bass, A.; Nelson, P.; Muirhead, B.; Wright, G.; Bird, M. Biochar and biochar-compost as soil amendments: Effects on peanut yield, soil properties and greenhouse gas emissions in tropical North Queensland, Australia. Agric. Ecosyst. Environ. 2015, 213, 72–85. [Google Scholar] [CrossRef]
  44. Yao, Y.; Gao, B.; Zhang, M.; Inyang, M.; Zimmerman, A. Effect of biochar amendment on sorption and leaching of nitrate, ammonium, and phosphate in a sandy soil. Chemosphere 2012, 89, 1467–1471. [Google Scholar] [CrossRef]
  45. Chintala, R.; Schumacher, T.E.; McDonald, L.M.; Clay, D.E.; Malo, D.D.; Papiernik, S.K.; Clay, S.A.; Julson, J.L. Phosphorus sorption and availability from biochars and soil/biochar mixtures. CLEAN Soil Air Water 2014, 42, 626–634. [Google Scholar] [CrossRef]
  46. Li, R.; Wang, J.J.; Zhou, B.; Awasthi, M.K.; Ali, A.; Zhang, Z.; Lahori, A.H.; Mahar, A. Recovery of phosphate from aqueous solution by magnesium oxide decorated magnetic biochar and its potential as phosphate-based fertilizer substitute. Bioresour. Technol. 2016, 215, 209–214. [Google Scholar] [CrossRef] [Green Version]
  47. Yao, Y.; Gao, B.; Chen, J.; Yang, L. Engineered biochar reclaiming phosphate from aqueous solutions: Mechanisms and potential application as a slow-release fertilizer. Environ. Sci. Technol. 2013, 47, 8700–8708. [Google Scholar] [CrossRef]
  48. Wang, Z.; Shen, D.; Shen, F.; Li, T. Phosphate adsorption on lanthanum loaded biochar. Chemosphere 2016, 150, 1–7. [Google Scholar] [CrossRef]
  49. Clough, T.J.; Condron, L.M.; Kammann, C.; Muller, C.W. A review of biochar and soil nitrogen dynamics. Agronomy 2013, 3, 275–293. [Google Scholar] [CrossRef] [Green Version]
  50. Wang, T.; Camps-Arbestain, M.; Hedley, M. The fate of phosphorus of ash-rich biochars in a soil-plant system. Plant Soil 2014, 375, 61–74. [Google Scholar] [CrossRef]
  51. Altland, J.E.; Locke, J.C. Effect of biochar type on macronutrient retention and release from soilless substrate. HortScience 2013, 48, 1397–1402. [Google Scholar] [CrossRef] [Green Version]
  52. Sun, Z.; Sänger, A.; Rebensburg, P.; Lentzsch, P.; Wirth, S.; Kaupenjohann, M.; Meyer-Aurich, A. Contrasting effects of biochar on N2O emission and N uptake at different N fertilizer levels on a temperate sandy loam. Sci. Total Environ. 2017, 578, 557–565. [Google Scholar] [CrossRef] [Green Version]
  53. Walter, R.; Rao, B.K.R. Biochars influence sweet-potato yield and nutrient uptake in tropical Papua New Guinea. J. Plant. Nutr. Soil Sci. 2015, 178, 393–400. [Google Scholar] [CrossRef]
  54. Ahmed, M.B.; Zhou, J.L.; Ngo, H.H.; Guo, W. Insight into biochar properties and its cost analysis. Biomass Bioenergy 2016, 84, 76–86. [Google Scholar] [CrossRef]
  55. Ding, Y.; Liu, Y.; Liu, S.; Li, Z.; Tan, X.; Huang, X.; Zeng, G.; Zhou, L.; Zheng, B. Biochar to improve soil fertility. A review. Agron. Sustain. Dev. 2016, 36, 36. [Google Scholar] [CrossRef] [Green Version]
  56. Alburquerque, J.A.; Calero, J.M.; Barrón, V.; Torrent, J.; Del Campillo, M.C.; Gallardo, A.; Villar, R. Effects of biochars produced from different feedstocks on soil properties and sunflower growth. J. Plant Nutr. Soil Sci. 2014, 177, 16–25. [Google Scholar] [CrossRef]
Agriculture 11 01132 g001 550

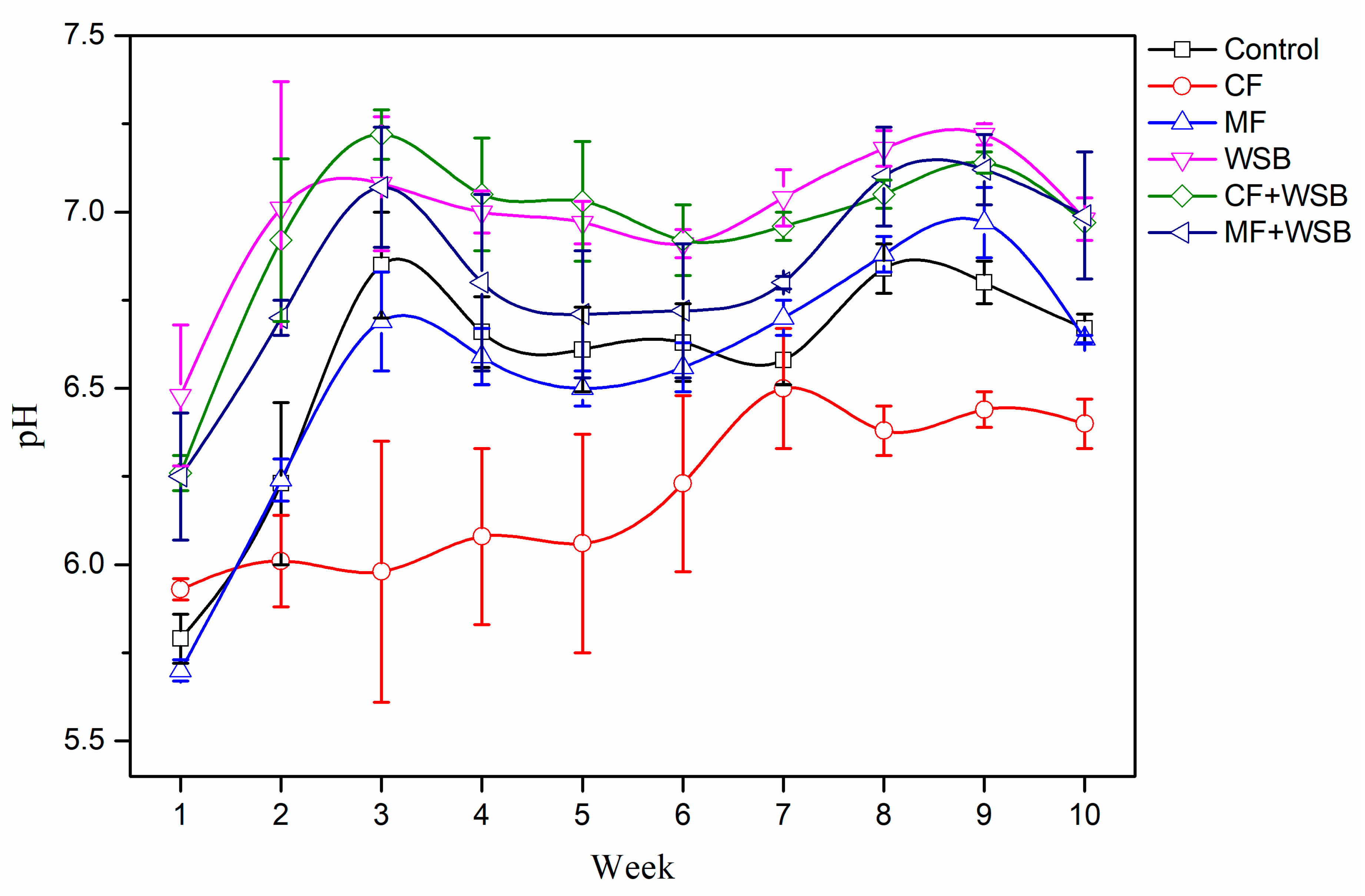

Figure 1. Temporal changes of pH in the leachate of lysimeters. Data are average values and standard deviations. CF = chemical fertiliser; MF = mineral fertiliser; WSB = wheat straw biochar.
Figure 1. Temporal changes of pH in the leachate of lysimeters. Data are average values and standard deviations. CF = chemical fertiliser; MF = mineral fertiliser; WSB = wheat straw biochar.
Agriculture 11 01132 g001
Agriculture 11 01132 g002 550

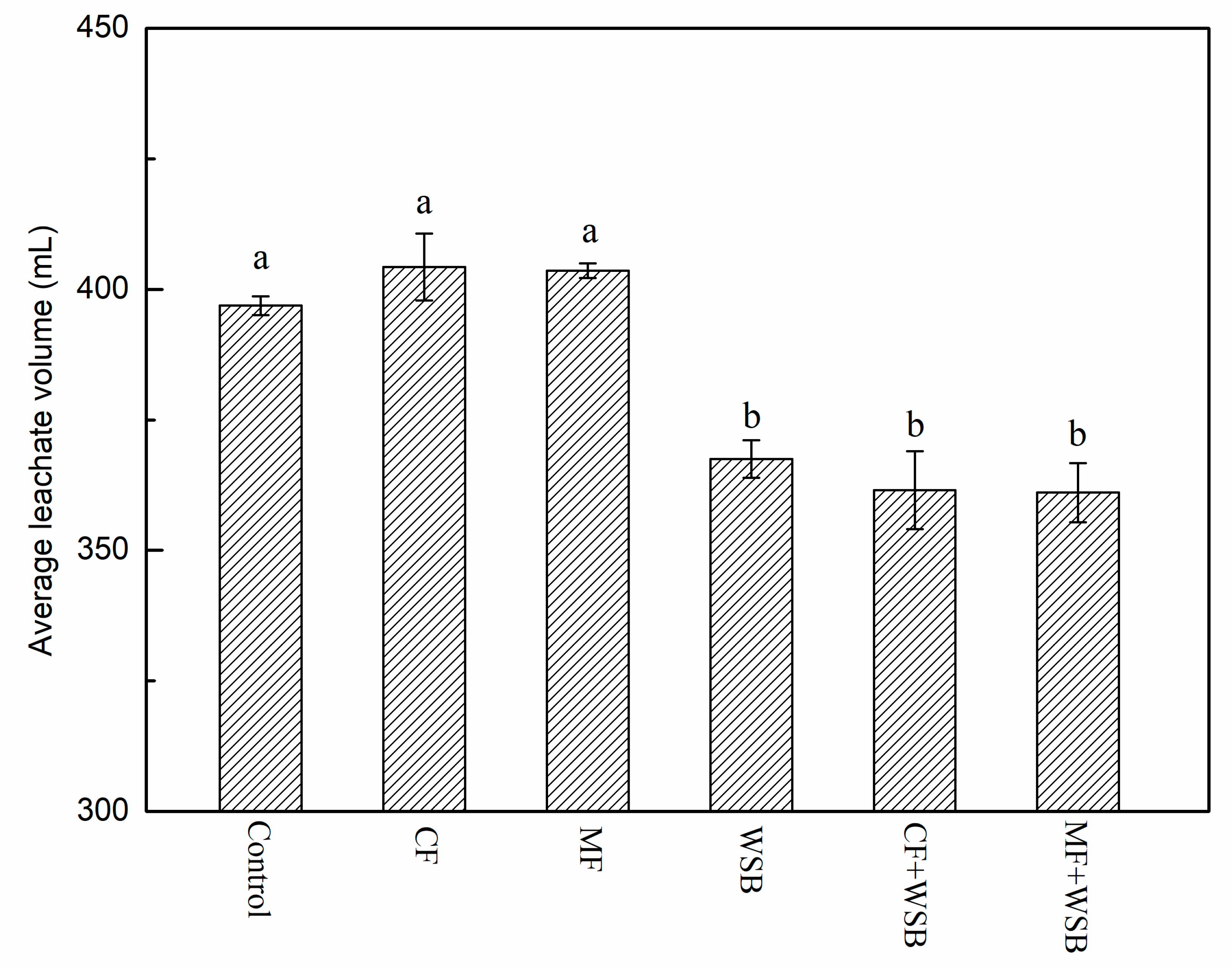

Figure 2. Average volume of leachate per lysimeter. CF = chemical fertiliser; MF = mineral fertiliser; WSB = wheat straw biochar. Different letter (s) indicate significant differences between treatments (p < 0.05).
Figure 2. Average volume of leachate per lysimeter. CF = chemical fertiliser; MF = mineral fertiliser; WSB = wheat straw biochar. Different letter (s) indicate significant differences between treatments (p < 0.05).
Agriculture 11 01132 g002
Agriculture 11 01132 g003 550

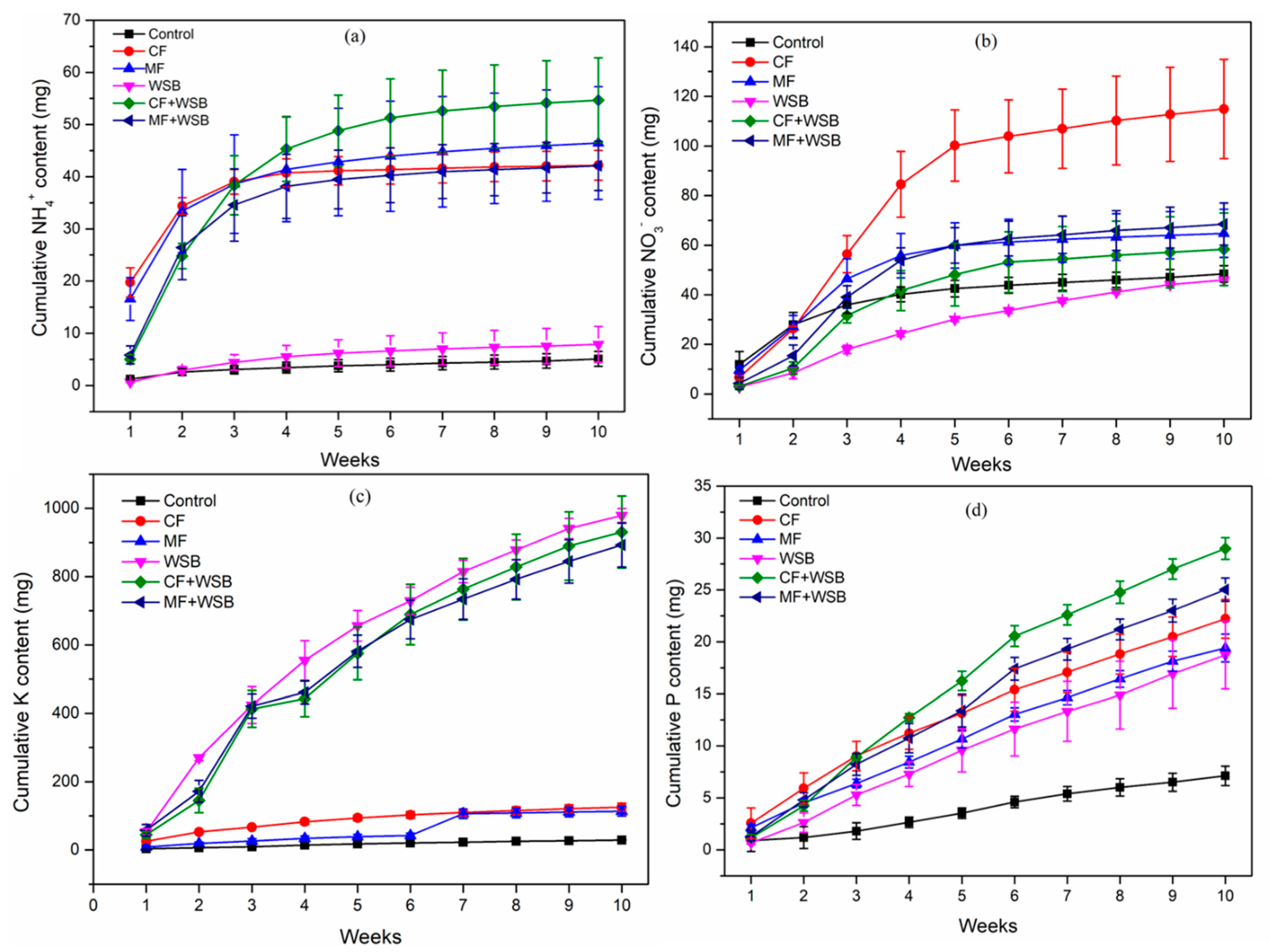

Figure 3. Cumulative amounts of ammonium (a), nitrate (b), potassium (c) and phosphate (d) in the leachates from biochar and fertiliser amended soil and the control soil. CF = chemical fertiliser; MF = mineral fertiliser; WSB = wheat straw biochar.
Figure 3. Cumulative amounts of ammonium (a), nitrate (b), potassium (c) and phosphate (d) in the leachates from biochar and fertiliser amended soil and the control soil. CF = chemical fertiliser; MF = mineral fertiliser; WSB = wheat straw biochar.
Agriculture 11 01132 g003
Agriculture 11 01132 g004 550

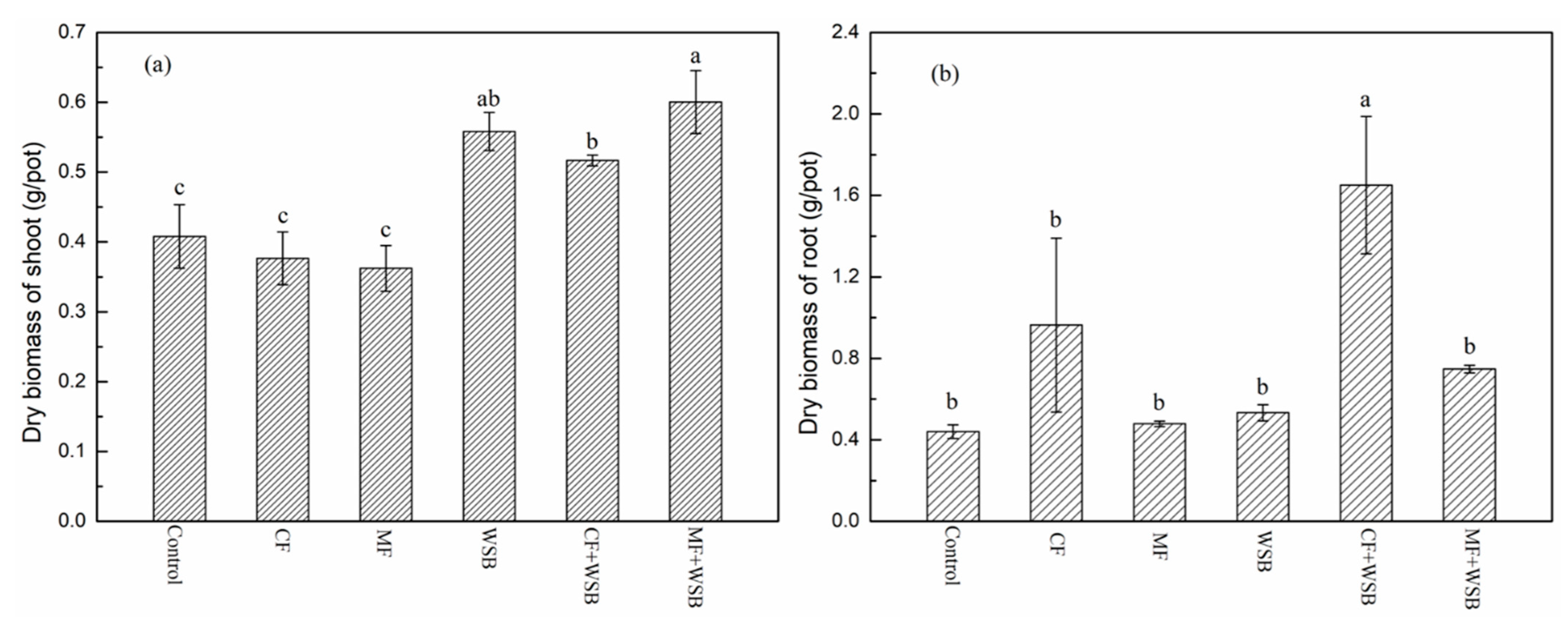

Figure 4. Shoot (a) and root (b) biomass of wheat affected by fertiliser and biochar nutrients retained in the soil at the end of the leaching experiment. CF = chemical fertiliser; MF = mineral fertiliser; WSB = wheat straw biochar. Different letter (s) indicate significant differences between treatments (p < 0.05).
Figure 4. Shoot (a) and root (b) biomass of wheat affected by fertiliser and biochar nutrients retained in the soil at the end of the leaching experiment. CF = chemical fertiliser; MF = mineral fertiliser; WSB = wheat straw biochar. Different letter (s) indicate significant differences between treatments (p < 0.05).
Agriculture 11 01132 g004
Table
Table 1. Physical and chemical properties of soil and amendments used in this experiment. CF = chemical fertiliser; MF = mineral fertiliser; WSB = wheat straw biochar.
Table 1. Physical and chemical properties of soil and amendments used in this experiment. CF = chemical fertiliser; MF = mineral fertiliser; WSB = wheat straw biochar.
CharacteristicsSoilCharacteristicsSoilCharacteristicsCFMFCharacteristicsWSB
Bulk density (g/cm3)1.4NH4-N (mg/kg)5.9N (%)10.210.0pH (H20)9.0
Clay (%)5.0NO3-N (mg/kg)27.9P (%)13.17.5C (%)56.6
Silt (%)2.6Colwell P (mg/kg)73.8K (%)12.04.5CEC (me/100 gC)30.4
Sand (%)92.3Colwell K (mg/kg)58.9S (%)7.25.0EC (mS/cm)7.7
pH (H2O)5.4 Cu (%)0.070.04Pore volume (m2/g)190.1
EC (mS/m)207.2 Zn (%)0.130.04N (%)0.8
C (%)1.15 P (%)3.4
N (%)0.08 K (%)17.8
Table
Table 2. Two-way ANOVA results of nutrients, pH, EC and volume of leachate. * and *** are significant at. p < 0.05 and p < 0.001, respectively; ns = not significant.
Table 2. Two-way ANOVA results of nutrients, pH, EC and volume of leachate. * and *** are significant at. p < 0.05 and p < 0.001, respectively; ns = not significant.
Main and Interaction EffectsNH4NO3PKpHECLeachate Volume
Biochar0.050 *0.004 ***<0.001 ***<0.001 ***<0.001 ***<0.001 ***<0.001 ***
Fertiliser<0.001 ***<0.001 ***<0.001 ***0.004 ***0.013 ***0.850 ns0.685 ns
Biochar × Fertiliser0.154 ns0.064 ns0.245 ns<0.001 ***0.098 ns<0.001 ***0.353 ns
Table
Table 3. Nutrient concentrations (mg/kg) retained in soils after leaching events for the fertilisers and biochar and their interactions. Values are shown as the mean ± standard errors. Different letters indicate significant differences between treatments (p < 0.05).
Table 3. Nutrient concentrations (mg/kg) retained in soils after leaching events for the fertilisers and biochar and their interactions. Values are shown as the mean ± standard errors. Different letters indicate significant differences between treatments (p < 0.05).
TreatmentNH4+NO3–Total NAvailable PTotal PTotal K
Control4.31 ± 0.97 c3.71 ± 0.91 b609 ± 35 b0.89 ± 0.12 d157.0 ± 0.4 c246.3 ± 17.8 b
CF10.45 ± 1.70 b3.76 ± 0.80 b580 ± 13 b2.76 ± 0.62 bc199.6 ± 9.1 bc270.4± 4.6 b
MF11.69 ± 0.29 b3.40 ± 0.45 b550 ± 32 b2.20 ± 0.22 c179.3 ± 15.7 c282.4 ± 38.0 b
WSB12.01 ± 1.59 b4.56 ± 1.63 a1060 ± 39 a3.79 ± 0.56 b271.2 ± 2.6 a639.6 ± 23.0 a
CF + WSB11.27 ± 1.05 b3.30 ± 0.34 b950 ± 83 a7.73 ± 0.57 a252.2 ± 16.3 ab549.9± 7.8 a
MF + WSB17.92 ± 1.61 a3.36 ± 1.02 b1020 ± 45 a6.44 ± 0.65 a281.9 ± 33.7 a621.5 ± 33.5 a
Biochar<0.0010.021<0.001<0.001<0.001<0.001
Fertiliser<0.0010.678 ns0.059 ns<0.0010.154 ns0.048
Biochar × Fertiliser<0.0010.879 ns0.149 ns<0.0010.225 ns0.078 ns
Table
Table 4. Shoot nutrients (N, P, K) uptake of wheat for the fertiliser, biochar and their interactions. Values of parameters are shown as means ± standard errors. Different letters indicate significant differences between treatments (p < 0.05).
Table 4. Shoot nutrients (N, P, K) uptake of wheat for the fertiliser, biochar and their interactions. Values of parameters are shown as means ± standard errors. Different letters indicate significant differences between treatments (p < 0.05).
TreatmentN
(mg pot−1)		P
(mg pot−1)		K
(mg pot−1)
Control9.97 ± 0.79 b0.72 ± 0.14 d12.77 ± 1.71 d
CF8.26 ± 1.69 bc2.46 ± 0.15 b18.19 ± 2.93 cd
MF6.97 ± 0.51 c1.13 ± 0.17 cd11.93 ± 0.22 d
WSB12.37± 0.16 a2.60 ± 0.26 ab26.07 ± 1.76 ab
CF + WSB11.41 ± 0.13 a3.24 ± 0.49 a27.87 ± 2.20 a
MF + WSB12.02 ± 1.08 a2.94 ± 0.31 ab25.74 ± 0.99 ab
Biochar<0.001<0.001<0.001
Fertiliser0.038<0.0010.006
Biochar × Fertiliser0.0610.0160.566
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Huang, C.; Sun, X.; Wang, L.; Storer, P.; Siddique, K.H.M.; Solaiman, Z.M. Nutrients Leaching from Tillage Soil Amended with Wheat Straw Biochar Influenced by Fertiliser Type. Agriculture 2021, 11, 1132. https://doi.org/10.3390/agriculture11111132

AMA Style

Huang C, Sun X, Wang L, Storer P, Siddique KHM, Solaiman ZM. Nutrients Leaching from Tillage Soil Amended with Wheat Straw Biochar Influenced by Fertiliser Type. Agriculture. 2021; 11(11):1132. https://doi.org/10.3390/agriculture11111132

Chicago/Turabian Style

Huang, Cheng, Xiuyun Sun, Lianjun Wang, Paul Storer, Kadambot H. M. Siddique, and Zakaria M. Solaiman. 2021. "Nutrients Leaching from Tillage Soil Amended with Wheat Straw Biochar Influenced by Fertiliser Type" Agriculture 11, no. 11: 1132. https://doi.org/10.3390/agriculture11111132

APA Style

Huang, C., Sun, X., Wang, L., Storer, P., Siddique, K. H. M., & Solaiman, Z. M. (2021). Nutrients Leaching from Tillage Soil Amended with Wheat Straw Biochar Influenced by Fertiliser Type. Agriculture, 11(11), 1132. https://doi.org/10.3390/agriculture11111132

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
