Predictive Value of a Radiomics-Derived Risk Score for Local Progression in T3 Laryngeal Cancer: A 10-Year Single-Center Retrospective Cohort Study
Abstract
1. Introduction
2. Materials and Methods
2.1. Ethical Consideration

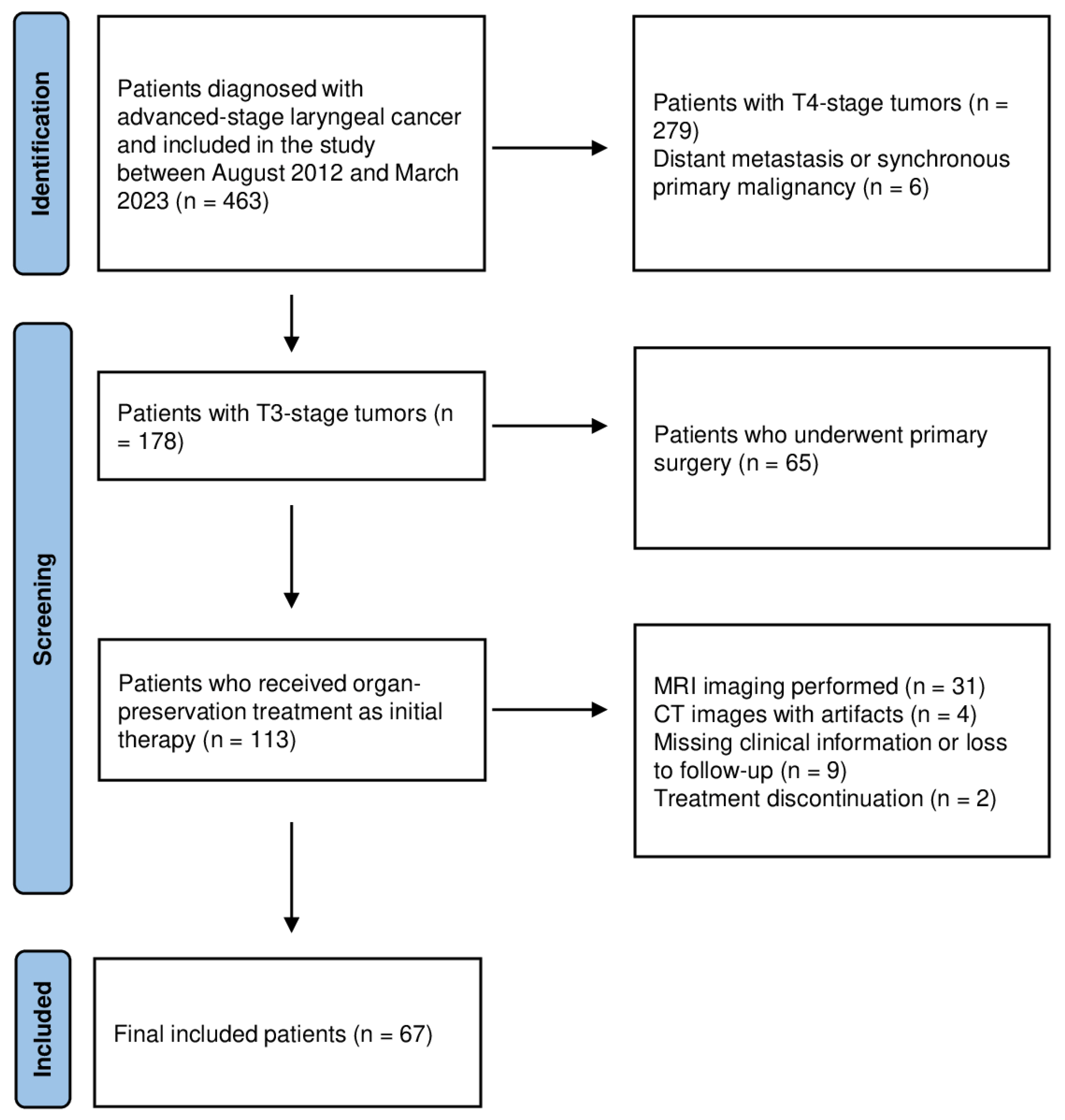

2.2. Sample Size Determination and Patient Cohort
- Newly diagnosed, pathologically confirmed T3-stage laryngeal squamous cell carcinoma without evidence of distant metastasis.
- Treatment with a non-surgical organ-preservation protocol.
- Availability of contrast-enhanced CT imaging performed both prior to treatment and 3 months after completion of therapy.
- Receipt of concurrent CRT, with cisplatin as the sole concurrent chemotherapy agent (cumulative dose 200 mg/m2). The radiotherapy dose, expressed as the equivalent dose in 2-Gy fractions (EQD2), was ≥66.0 Gy, delivered to the primary laryngeal site within 70 days. Patients who received induction chemotherapy were excluded.
- No evidence of synchronous primary malignancies.
2.3. Treatment Protocol
2.4. Imaging and Radiomics Protocol
2.5. Radiomics Score
2.6. Statistical Analysis
3. Results
4. Discussion
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Abbreviations
| LC | Laryngeal cancer |
| LPFS | Local progression-free survival |
| AJCC | American Joint Committee on Cancer |
| HNC | Head and neck cancer |
| CRT | Chemoradiotherapy |
| EQD2 | Equivalent dose in 2-Gy fractions |
| ROI | Region of interest |
| ROC | Receiver operating characteristic |
| AUC | Area under curve |
| GLCM | Gray level co-occurrence matrix |
| GLDM | Gray level dependence matrix |
| NGTDM | Neighboring gray tone difference matrix |
| HR | Hazard ratio |
| CI | Confidence interval |
| SD | Standard deviation |
References
- Steuer, C.E.; El-Deiry, M.; Parks, J.R.; Higgins, K.A.; Saba, N.F. An update on larynx cancer. CA Cancer J. Clin. 2017, 67, 31–50. [Google Scholar] [CrossRef]
- International Agency for Research on Cancer (IARC). Cancer Today—Larynx Fact Sheet (GLOBOCAN 2022); IARC: Lyon, France, 2022. [Google Scholar]
- Bray, F.; Laversanne, M.; Sung, H.; Ferlay, J.; Siegel, R.L.; Soerjomataram, I.; Jemal, A. Global cancer statistics 2022: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA Cancer J. Clin. 2024, 74, 229–263. [Google Scholar] [CrossRef]
- Forastiere, A.A.; Ismaila, N.; Wolf, G.T. Use of Larynx-Preservation Strategies in the Treatment of Laryngeal Cancer: American Society of Clinical Oncology Clinical Practice Guideline Update Summary. J. Oncol. Pract. 2018, 14, 123–128. [Google Scholar] [CrossRef]
- Ravanelli, M.; Rondi, P.; Di Meo, N.; Farina, D. The added value of radiomics in determining patient responsiveness to laryngeal preservation strategies. Curr. Opin. Otolaryngol. Head. Neck Surg. 2024, 32, 134–137. [Google Scholar] [CrossRef] [PubMed]
- Department of Veterans Affairs Laryngeal Cancer Study Group; Wolf, G.T.; Fisher, S.G.; Hong, W.K.; Hillman, R.; Spaulding, M.; Laramore, G.E.; Endicott, J.W.; McClatchey, K.; Henderson, W.G. Induction chemotherapy plus radiation compared with surgery plus radiation in patients with advanced laryngeal cancer. N. Engl. J. Med. 1991, 324, 1685–1690. [Google Scholar]
- Forastiere, A.A.; Goepfert, H.; Maor, M.; Pajak, T.F.; Weber, R.; Morrison, W.; Glisson, B.; Trotti, A.; Ridge, J.A.; Chao, C.; et al. Concurrent chemotherapy and radiotherapy for organ preservation in advanced laryngeal cancer. N. Engl. J. Med. 2003, 349, 2091–2098. [Google Scholar] [CrossRef]
- Hoffman, H.T.; Porter, K.; Karnell, L.H.; Cooper, J.S.; Weber, R.S.; Langer, C.J.; Ang, K.; Gay, G.; Stewart, A.; Robinson, R.A. Laryngeal cancer in the United States: Changes in demographics, patterns of care, and survival. Laryngoscope 2006, 116, 1–13. [Google Scholar] [CrossRef]
- Prades, J.M.; Lallemant, B.; Garrel, R.; Reyt, E.; Righini, C.; Schmitt, T.; Remini, N.; Saban-Roche, L.; Timoshenko, A.P. Randomized phase III trial comparing induction chemotherapy followed by radiotherapy to concomitant chemoradiotherapy for laryngeal preservation in T3M0 pyriform sinus carcinoma. Acta Otolaryngol. 2010, 130, 150–155. [Google Scholar] [CrossRef] [PubMed]
- Lee, N.Y.; O’Meara, W.; Chan, K.; Della-Bianca, C.; Mechalakos, J.G.; Zhung, J.; Wolden, S.L.; Narayana, A.; Kraus, D.; Shah, J.P.; et al. Concurrent chemotherapy and intensity-modulated radiotherapy for locoregionally advanced laryngeal and hypopharyngeal cancers. Int. J. Radiat. Oncol. Biol. Phys. 2007, 69, 459–468. [Google Scholar] [CrossRef]
- Juloori, A.; Koyfman, S.A.; Geiger, J.L.; Joshi, N.P.; Woody, N.M.; Burkey, B.B.; Scharpf, J.; Lamarre, E.L.; Prendes, B.; Adelstein, D.J.; et al. Definitive Chemoradiation in Locally Advanced Squamous Cell Carcinoma of the Hypopharynx: Long-term Outcomes and Toxicity. Anticancer Res. 2018, 38, 3543–3549. [Google Scholar] [CrossRef]
- Megwalu, U.C.; Sikora, A.G. Survival outcomes in advanced laryngeal cancer. JAMA Otolaryngol. Head Neck Surg. 2014, 140, 855–860. [Google Scholar] [CrossRef]
- Amin, M.B.; Greene, F.L.; Edge, S.B.; Compton, C.C.; Gershenwald, J.E.; Brookland, R.K.; Meyer, L.; Gress, D.M.; Byrd, D.R.; Winchester, D.P. The Eighth Edition AJCC Cancer Staging Manual: Continuing to build a bridge from a population-based to a more “personalized” approach to cancer staging. CA Cancer J. Clin. 2017, 67, 93–99. [Google Scholar] [CrossRef]
- Dziegielewski, P.T.; O’Connell, D.A.; Klein, M.; Fung, C.; Singh, P.; Mlynarek, M.A.; Fung, D.; Harris, J.R.; Seikaly, H. Primary total laryngectomy versus organ preservation for T3/T4a laryngeal cancer: A population-based analysis of survival. J. Otolaryngol. Head Neck Surg. 2012, 41, S56–S64. [Google Scholar]
- Broggi, G.; Maniaci, A.; Lentini, M.; Palicelli, A.; Zanelli, M.; Zizzo, M.; Koufopoulos, N.; Salzano, S.; Mazzucchelli, M.; Caltabiano, R. Artificial Intelligence in Head and Neck Cancer Diagnosis: A Comprehensive Review with Emphasis on Radiomics, Histopathological, and Molecular Applications. Cancers 2024, 16, 3623. [Google Scholar] [CrossRef]
- Glastonbury, C.M.; Parker, E.E.; Hoang, J.K. The postradiation neck: Evaluating response to treatment and recognizing complications. AJR Am. J. Roentgenol. 2010, 195, W164–W171. [Google Scholar] [CrossRef] [PubMed]
- Mortensen, L.S.; Johansen, J.; Kallehauge, J.; Primdahl, H.; Busk, M.; Lassen, P.; Alsner, J.; Sørensen, B.S.; Toustrup, K.; Jakobsen, S.; et al. FAZA PET/CT hypoxia imaging in patients with squamous cell carcinoma of the head and neck treated with radiotherapy: Results from the DAHANCA 24 trial. Radiother. Oncol. 2012, 105, 14–20. [Google Scholar] [CrossRef] [PubMed]
- Bahig, H.; Lapointe, A.; Bedwani, S.; de Guise, J.; Lambert, L.; Filion, E.; Roberge, D.; Létourneau-Guillon, L.; Blais, D.; Ng, S.P.; et al. Dual-energy computed tomography for prediction of loco-regional recurrence after radiotherapy in larynx and hypopharynx squamous cell carcinoma. Eur. J. Radiol. 2019, 110, 1–6. [Google Scholar] [CrossRef] [PubMed]
- van Timmeren, J.E.; Cester, D.; Tanadini-Lang, S.; Alkadhi, H.; Baessler, B. Radiomics in medical imaging-“how-to” guide and critical reflection. Insights Imaging 2020, 11, 91. [Google Scholar] [CrossRef]
- Chiesa-Estomba, C.M.; Echaniz, O.; Larruscain, E.; Gonzalez-Garcia, J.A.; Sistiaga-Suarez, J.A.; Graña, M. Radiomics and Texture Analysis in Laryngeal Cancer. Looking for New Frontiers in Precision Medicine through Imaging Analysis. Cancers 2019, 11, 1409. [Google Scholar] [CrossRef]
- van Griethuysen, J.J.M.; Fedorov, A.; Parmar, C.; Hosny, A.; Aucoin, N.; Narayan, V.; Beets-Tan, R.G.H.; Fillion-Robin, J.-C.; Pieper, S.; Aerts, H.J.W.L. Computational Radiomics System to Decode the Radiographic Phenotype. Cancer Res. 2017, 77, e104–e107. [Google Scholar] [CrossRef]
- Camp, R.L.; Dolled-Filhart, M.; Rimm, D.L. X-tile: A new bio-informatics tool for biomarker assessment and outcome-based cut-point optimization. Clin. Cancer Res. 2004, 10, 7252–7259. [Google Scholar] [CrossRef]
- Forghani, R.; Chatterjee, A.; Reinhold, C.; Pérez-Lara, A.; Romero-Sanchez, G.; Ueno, Y.; Bayat, M.; Alexander, J.W.M.; Kadi, L.; Chankowsky, J.; et al. Head and neck squamous cell carcinoma: Prediction of cervical lymph node metastasis by dual-energy CT texture analysis with machine learning. Eur. Radiol. 2019, 29, 6172–6181. [Google Scholar] [CrossRef]
- Rajgor, A.D.; Patel, S.; McCulloch, D.; Obara, B.; Bacardit, J.; McQueen, A.; Aboagye, E.; Ali, T.; O’hara, J.; Hamilton, D.W. The application of radiomics in laryngeal cancer. Br. J. Radiol. 2021, 94, 20210499. [Google Scholar] [CrossRef]
- Bogowicz, M.; Riesterer, O.; Ikenberg, K.; Stieb, S.; Moch, H.; Studer, G.; Guckenberger, M.; Tanadini-Lang, S. Computed Tomography Radiomics Predicts HPV Status and Local Tumor Control After Definitive Radiochemotherapy in Head and Neck Squamous Cell Carcinoma. Int. J. Radiat. Oncol. Biol. Phys. 2017, 99, 921–928. [Google Scholar] [CrossRef]
- Nakajo, M.; Nagano, H.; Jinguji, M.; Kamimura, Y.; Masuda, K.; Takumi, K.; Tani, A.; Hirahara, D.; Kariya, K.; Yamashita, M.; et al. The usefulness of machine-learning-based evaluation of clinical and pretreatment 18F-FDG-PET/CT radiomic features for predicting prognosis in patients with laryngeal cancer. Br. J. Radiol. 2023, 96, 20220772. [Google Scholar] [CrossRef]
- Rajgor, A.D.; Kui, C.; McQueen, A.; Cowley, J.; Gillespie, C.; Mill, A.; Rushton, S.; Obara, B.; Bigirumurame, T.; Kallas, K.; et al. Computed tomography-based radiomic markers are independent prognosticators of survival in advanced laryngeal cancer: A pilot study. J. Laryngol. Otol. 2024, 138, 685–691. [Google Scholar] [CrossRef]
- Zhai, T.T.; Langendijk, J.A.; van Dijk, L.V.; Halmos, G.B.; Witjes, M.J.; Oosting, S.F.; Noordzij, W.; Sijtsema, N.M.; Steenbakkers, R.J. The prognostic value of CT-based image-biomarkers for head and neck cancer patients treated with definitive (chemo-) radiation. Oral Oncol. 2019, 95, 178–186. [Google Scholar] [CrossRef] [PubMed]
- Agarwal, J.P.; Sinha, S.; Goda, J.S.; Joshi, K.; Mhatre, R.; Kannan, S.; Laskar, S.G.; Gupta, T.; Murthy, V.; Budrukkar, A.; et al. Tumor radiomic features complement clinico-radiological factors in predicting long-term local control and laryngectomy free survival in locally advanced laryngo-pharyngeal cancers. Br. J. Radiol. 2020, 93, 20190857. [Google Scholar] [CrossRef] [PubMed]
- Lin, C.H.; Yan, J.L.; Yap, W.K.; Kang, C.-J.; Chang, Y.-C.; Tsai, T.-Y.; Chang, K.-P.; Liao, C.-T.; Hsu, C.-L.; Chou, W.-C.; et al. Prognostic value of interim CT-based peritumoral and intratumoral radiomics in laryngeal and hypopharyngeal cancer patients undergoing definitive radiotherapy. Radiother. Oncol. 2023, 189, 109938. [Google Scholar] [CrossRef] [PubMed]
- Rana, L.; Sharma, S.; Sood, S.; Singh, B.; Gupta, M.K.; Minhas, R.; Jhobta, A.; Bhatia, V.; Venkat, B. Volumetric CT perfusion assessment of treatment response in head and neck squamous cell carcinoma: Comparison of CT perfusion parameters before and after chemoradiation therapy. Eur. J. Radiol. Open 2015, 2, 46–54. [Google Scholar] [CrossRef][Green Version]
- Agra, I.M.; Ferlito, A.; Takes, R.P.; Silver, C.E.; Olsen, K.D.; Stoeckli, S.J.; Strojan, P.; Rodrigo, J.P.; Filho, J.G.; Genden, E.M.; et al. Diagnosis and treatment of recurrent laryngeal cancer following initial nonsurgical therapy. Head Neck 2012, 34, 727–735. [Google Scholar] [CrossRef] [PubMed]
- Hermans, R. Post-treatment imaging of head and neck cancer. Cancer Imaging 2004, 4, S6–S15. [Google Scholar] [CrossRef] [PubMed]
- Purohit, B.S.; Ailianou, A.; Dulguerov, N.; Becker, C.D.; Ratib, O.; Becker, M. FDG-PET/CT pitfalls in oncological head and neck imaging. Insights Imaging 2014, 5, 585–602. [Google Scholar] [CrossRef] [PubMed]
- Dejanovic, D.; Specht, L.; Czyzewska, D.; Kiil Berthelsen, A.; Loft, A. Response Evaluation Following Radiation Therapy With 18F-FDG PET/CT: Common Variants of Radiation-Induced Changes and Potential Pitfalls. Semin. Nucl. Med. 2022, 52, 681–706. [Google Scholar] [CrossRef]




| AUC (95% CI) | p | Optimal Cut-Off | Sensitivity | Specificity | |
|---|---|---|---|---|---|
| Original Shape Maximum 2D Diameter Row | 0.700 (0.575–0.825) | 0.002 | ≥30.04 | 84.00 | 54.76 |
| Original First Order 10th Percentile | 0.729 (0.606–0.851) | <0.001 | ≥1.19 | 92.00 | 52.38 |
| Original First Order Median | 0.729 (0.606–0.851) | <0.001 | ≥1.23 | 92.00 | 50.00 |
| Original Gray Level Co-occurrence Matrix Correlation | 0.680 (0.552–0.808) | 0.006 | ≥0.41 | 92.00 | 50.00 |
| Original Neighboring Gray Tone Difference Matrix Strength | 0.636 (0.501–0.772) | 0.049 | ≤9.85 | 92.00 | 42.86 |
| Original Gray Level Dependence Matrix Dependence Non-Uniformity | 0.650 (0.509–0.790) | 0.037 | ≥315.61 | 76.00 | 57.14 |
| Local Progression Mean ± S.D. or n (%) | ||||
|---|---|---|---|---|
| Variables | No (n: 42) | Yes (n: 25) | p | |
| Age | 61.4 ± 9.3 | 56.6 ± 9.1 | 0.045 | |
| Sex | Male | 36 (85.7) | 25 (100.0) | 0.124 |
| Female | 6 (14.3) | 0 (0.0) | ||
| Smoking Status | No | 7 (16.7) | 2 (8.0) | 0.525 |
| Yes | 35 (83.3) | 23 (92.0) | ||
| Alcohol Use | No | 29 (69.0) | 13 (52.0) | 0.257 |
| Yes | 13 (31.0) | 12 (48.0) | ||
| Primary Tumor Subsite | Glottis | 29 (69.0) | 14 (56.0) | 0.416 |
| Supraglottis | 13 (31.0) | 11 (44.0) | ||
| Multiregional Invasion | No | 34 (81.0) | 16 (64.0) | 0.211 |
| Yes | 8 (19.0) | 9 (36.0) | ||
| Vocal Cord Fixation | No | 14 (33.3) | 8 (32.0) | 1.000 |
| Yes | 28 (66.7) | 17 (68.0) | ||
| Suspicion of Cartilage Invasion | No | 38 (90.5) | 17 (68.0) | 0.046 |
| Yes | 4 (9.5) | 8 (32.0) | ||

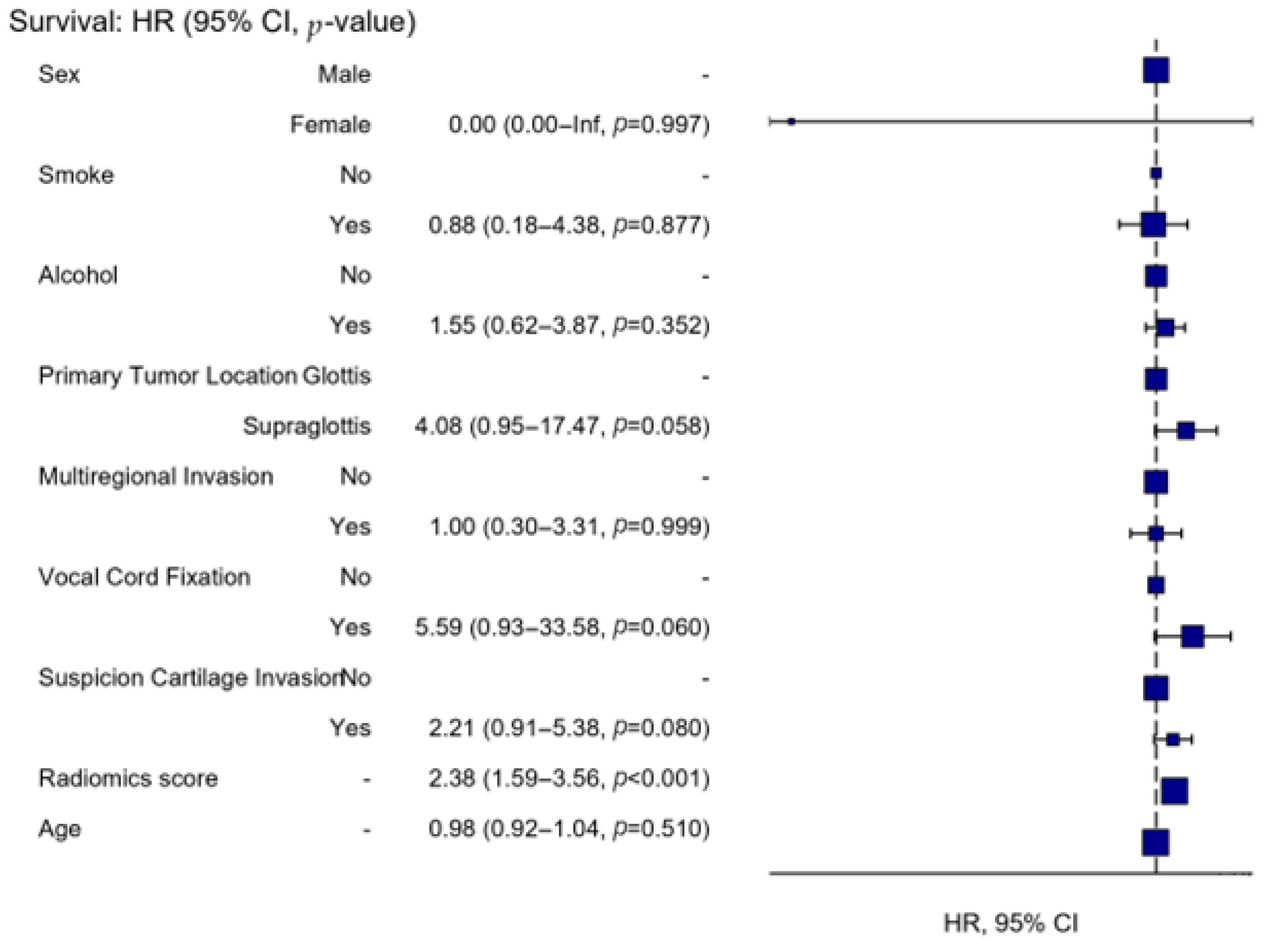

| Independent Variables | All | HR (C.I.) (Univariable) | HR (C.I.) (Multivariable) | |
|---|---|---|---|---|
| Sex | Male | 61 (91.0) | - | - |
| Female | 6 (9.0) | 0.00 (0.00-Inf, p = 0.998) | 0.00 (0.00-Inf, p = 0.997) | |
| Smoking Status | No | 9 (13.4) | - | - |
| Yes | 58 (86.6) | 1.99 (0.47–8.47, p = 0.351) | 0.88 (0.18–4.38, p = 0.877) | |
| Alcohol Use | No | 42 (62.7) | - | - |
| Yes | 25 (37.3) | 1.95 (0.89–4.29, p = 0.096) | 1.55 (0.62–3.87, p = 0.352) | |
| Primary Tumor Subsite | Glottis | 43 (64.2) | - | - |
| Supraglottis | 24 (35.8) | 1.84 (0.83–4.10, p = 0.134) | 4.08(0.95–17.47, p = 0.058) | |
| Multiregional Invasion | No | 50 (74.6) | - | - |
| Yes | 17 (25.4) | 2.16 (0.93–4.98, p = 0.072) | 1.00 (0.30–3.31, p = 0.999) | |
| Vocal Cord Fixation | No | 22 (32.8) | - | - |
| Yes | 45 (67.2) | 0.83 (0.36–1.94, p = 0.666) | 5.59 (0.93–33.58, p = 0.060) | |
| Suspicion of Cartilage Invasion | No | 55 (82.1) | - | - |
| Yes | 12 (17.9) | 2.94 (1.25–6.93, p = 0.014) | 2.21 (0.91–5.38, p = 0.080) | |
| Radiomics Score | Mean (SD) | 3.8 (1.9) | 2.29 (1.60–3.29, p < 0.001) | 2.38 (1.59–3.56, p < 0.001) |
| Age | Mean (SD) | 59.6 (9.4) | 0.95 (0.91–1.00, p = 0.050) | 0.98 (0.92–1.04, p = 0.510) |
| Radiomics Score | Records | Local Progression (n) | Mean (Month) | S.D. | All | HR (C.I.) (Univariable) |
|---|---|---|---|---|---|---|
| >3 | 33 | 21 | 41.7 | 9.99 | 33 (49.3) | - |
| ≤3 | 34 | 4 | 122.6 | 7.29 | 34 (50.7) | 0.12 (0.04–0.35, p < 0.001) |
| 95% C.I. | ||||||
|---|---|---|---|---|---|---|

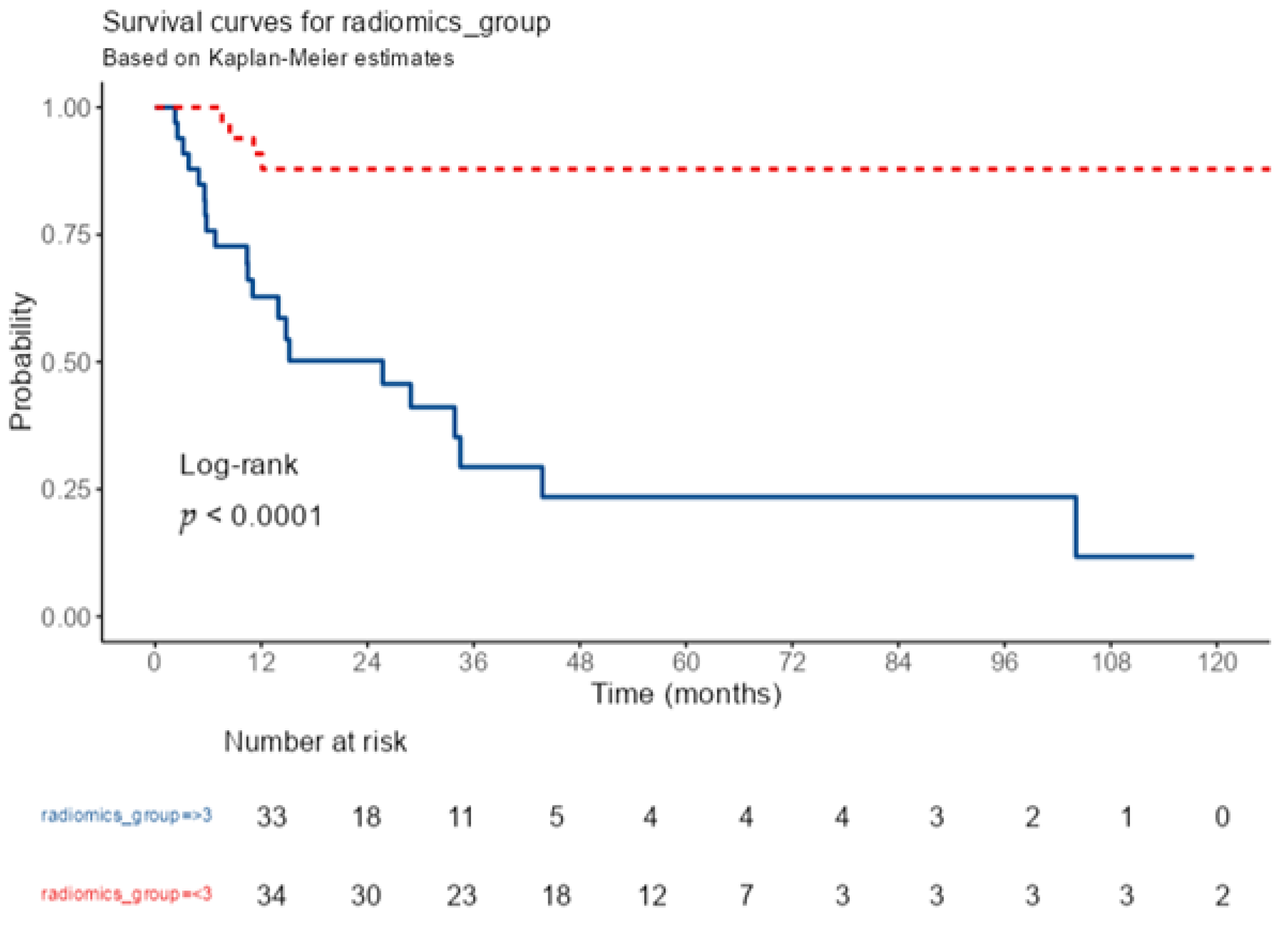

| Radiomics Score | Time (Year) | Number at Risk | Number of Events | LPFS (%) | Lower | Upper |
| >3 | 1 | 18 | 12 | 62.8 | 48.1 | 82.0 |
| >3 | 3 | 5 | 7 | 29.4 | 15.2 | 56.7 |
| >3 | 5 | 4 | 1 | 23.5 | 10.7 | 51.8 |
| ≤3 | 1 | 30 | 3 | 90.9 | 81.6 | 100.0 |
| ≤3 | 3 | 18 | 1 | 87.9 | 77.4 | 99.8 |
| ≤3 | 5 | 7 | 0 | 87.9 | 77.4 | 99.8 |
