Vacuum-Assisted Percutaneous Management of Cardiac Implantable Electronic Device Lead Endocarditis
Abstract
1. Introduction
2. Case Presentation
3. Discussion
3.1. Treatment Options
3.2. Complications
3.3. Case Comparison
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Abbreviations
| ICD | Implantable Cardioverter-Defibrillator |
| CIED | Cardiac Implantable Electronic Device |
| ESC | European Society of Cardiology |
| CKD | Chronic Kidney Disease |
| Euro SCORE II | European System for Cardiac Operative Risk Evaluation II |
| MI | Myocardial Infarction |
| CABG | Coronary Artery Bypass Grafting |
| PCI | Percutaneous Coronary Intervention |
| CRP | C-Reactive Protein |
| WBC | White Blood Count |
| MRSA | Methicillin-resistant Staphylococcus aureus |
| eGFR | Estimated Glomerular Filtration Rate |
| CT | Computed Tomography |
| TTE | Transthoracic Echocardiography |
| TEE | Transesophageal Echocardiography |
| PMA | Percutaneous Mechanical Aspiration |
| TV | Tricuspid Valve |
| S. epidermidis | Staphylococcus epidermidis |
References
- Delgado, V.; Ajmone Marsan, N.; de Waha, S.; Bonaros, N.; Brida, M.; Burri, H.; Caselli, S.; Doenst, T.; Ederhy, S.; Erba, P.A.; et al. 2023 ESC Guidelines for the management of endocarditis. Eur. Heart J. 2023, 44, 3948–4042. [Google Scholar] [CrossRef] [PubMed]
- Dayer, M.J.; Jones, S.; Prendergast, B.; Baddour, L.M.; Lockhart, P.B.; Thornhill, M.H. Incidence of infective endocarditis in England, 2000–2013: A secular trend, interrupted time-series analysis. Lancet 2015, 385, 1219–1228. [Google Scholar] [CrossRef]
- Erba, P.A.; Pizzi, M.N.; Roque, A.; Salaun, E.; Lancellotti, P.; Tornos, P.; Habib, G. Multimodality Imaging in Infective Endocarditis: An Imaging Team Within the Endocarditis Team. Circulation 2019, 140, 1753–1765. [Google Scholar] [CrossRef]
- Cahill, T.J.; Prendergast, B.D. Infective endocarditis. Lancet 2016, 387, 882–893. [Google Scholar] [CrossRef]
- Murdoch, D.R.; Corey, G.R.; Hoen, B.; Miró, J.M.; Fowler, V.G., Jr.; Bayer, A.S.; Karchmer, A.W.; Olaison, L.; Pappas, P.A.; Moreillon, P.; et al. Clinical presentation, etiology, and outcome of infective endocarditis in the 21st century: The International Collaboration on Endocarditis–Prospective Cohort Study. Arch. Intern. Med. 2009, 169, 463–473. [Google Scholar] [CrossRef]
- Hubert, S.; Thuny, F.; Resseguier, N.; Giorgi, R.; Tribouilloy, C.; Casalta, J.P.; Riberi, A.; Chevalier, F.; Rusinaru, D.; Malaquin, D.; et al. Prediction of symptomatic embolism in infective endocarditis: Construction and validation of a risk calculator in a multicentre cohort. Eur. Heart J. 2013, 62, 15. [Google Scholar] [CrossRef]
- Baddour, L.M.; Epstein, A.E.; Erickson, C.C.; Knight, B.P.; Levison, M.E.; Lockhart, P.B.; Masoudi, F.A.; Okum, E.J.; Wilson, W.R.; Beerman, L.B.; et al. Update on cardiovascular implantable electronic device infections and their management: A scientific statement from the American Heart Association. Circulation 2010, 121, 458–477. [Google Scholar] [CrossRef]
- Durante-Mangoni, E.; Bradley, S.; Selton-Suty, C.; Tripodi, M.F.; Barsic, B.; Bouza, E.; Cabell, C.H.; Ramos, A.I.; Fowler, V., Jr.; Hoen, B.; et al. Current features of infective endocarditis in elderly patients: Results of the International Collaboration on Endocarditis Prospective Cohort Study. Arch. Intern. Med. 2008, 168, 2095–2103. [Google Scholar] [CrossRef]
- Yang, X.; Chen, H.; Zhang, D.; Shen, L.; An, G.; Zhao, S. Global magnitude and temporal trend of infective endocarditis, 1990–2019: Results from the Global Burden of Disease Study. Eur. J. Prev. Cardiol. 2022, 29, 1277–1286. [Google Scholar] [CrossRef]
- Baddour, L.M.; Wilson, W.R.; Bayer, A.S.; Fowler, V.G.; Tleyjeh, I.M.; Rybak, M.J.; Barsic, B.; Lockhart, P.B.; Gewitz, M.H.; Levison, M.E.; et al. Infective endocarditis in adults: Diagnosis, antimicrobial therapy, and management of complications: A scientific statement for healthcare professionals from the American Heart Association. Circulation 2015, 132, 1435–1486. [Google Scholar] [CrossRef] [PubMed]
- Abdelgawad, H.; Azab, S.; Abdel-Hay, M.A.; Almaghraby, A. Clinical features and outcomes of infective endocarditis: A single-centre experience. Cardiovasc. J. Afr. 2023, 34, 82–88. [Google Scholar] [CrossRef]
- Li, M.; Kim, J.B.; Sastry, B.K.S.; Chen, M. Infective endocarditis. Lancet 2024, 404, 377–392. [Google Scholar] [CrossRef] [PubMed]
- Iaccarino, A.; Barbone, A.; Basciu, A.; Cuko, E.; Droandi, G.; Galbiati, D.; Romano, G.; Citterio, E.; Fumero, A.; Scarfò, I.; et al. Surgical challenges in infective endocarditis: State of the art. J. Clin. Med. 2023, 12, 5891. [Google Scholar] [CrossRef] [PubMed]
- Wang, A.; Gaca, J.G.; Chu, V.H. Management considerations in infective endocarditis: A review. JAMA 2018, 320, 72–83. [Google Scholar] [CrossRef] [PubMed]
- El Sabbagh, A.; Yucel, E.; Zlotnick, D.; Moriarty, J.M.; Younes, S.; Hamid, N.; Akhtar, Y.; Baddour, L.M.; O’Gara, P.; Starck, C.; et al. Percutaneous mechanical aspiration in infective endocarditis: Applications, technical considerations, and future directions. J. Soc. Cardiovasc. Angiogr. Interv. 2024, 3, 101269. [Google Scholar] [CrossRef]
- Hernández-Meneses, M.; Llopis, J.; Sandoval, E.; Ninot, S.; Almela, M.; Falces, C.; Pericàs, J.M.; Vidal, B.; Perissinotti, A.; Marco, F.; et al. Forty-year trends in cardiac implantable electronic device infective endocarditis. Open Forum Infect. Dis. 2022, 9, ofac547. [Google Scholar] [CrossRef] [PubMed]
- Tarzia, V.; Ponzoni, M.; Evangelista, G.; Tessari, C.; Bertaglia, E.; De Lazzari, M.; Zanella, F.; Pittarello, D.; Migliore, F.; Gerosa, G. Vacuum-implemented removal of lead vegetations in cardiac device-related infective endocarditis. J. Clin. Med. 2022, 11, 4600. [Google Scholar] [CrossRef]
- Wang, W.; Itagaki, S.; Egorova, N. Minimally invasive procedures for right side infective endocarditis: A targeted literature review. Catheter. Cardiovasc. Interv. 2024, 103, 1050–1061. [Google Scholar] [CrossRef]
- Döring, M.; Richter, S.; Hindricks, G. The diagnosis and treatment of pacemaker-associated infection. Dtsch. Arztebl. Int. 2018, 115, 445–452. [Google Scholar] [CrossRef] [PubMed]
- Amraoui, S.; Tlili, G.; Sohal, M.; Berte, B.; Hindié, E.; Ritter, P.; Ploux, S.; Denis, A.; Derval, N.; Rinaldi, C.A.; et al. Contribution of PET imaging to the diagnosis of septic embolism in patients with pacing lead endocarditis. JACC Cardiovasc. Imaging 2016, 9, 283–290. [Google Scholar] [CrossRef] [PubMed]
- Ahmed, F.Z.; James, J.; Cunnington, C.; Motwani, M.; Fullwood, C.; Hooper, J.; Burns, P.; Qamruddin, A.; Al-Bahrani, G.; Armstrong, I.; et al. Early diagnosis of cardiac implantable electronic device generator pocket infection using 18F-FDG-PET/CT. Eur. Heart J. Cardiovasc. Imaging 2015, 16, 521–530. [Google Scholar] [CrossRef] [PubMed]
- Lennerz, C.; Vrazic, H.; Haller, B.; Braun, S.; Petzold, T.; Ott, I.; Lennerz, A.; Michel, J.; Blažek, P.; Deisenhofer, I.; et al. Biomarker-based diagnosis of pacemaker and implantable cardioverter defibrillator pocket infections: A prospective, multicentre, case-control evaluation. PLoS ONE 2017, 12, e0172384. [Google Scholar] [CrossRef] [PubMed]
- Kusumoto, F.M.; Schoenfeld, M.H.; Wilkoff, B.L.; Berul, C.I.; Birgersdotter-Green, U.M.; Carrillo, R.; Cha, Y.M.; Clancy, J.; Deharo, J.C.; Ellenbogen, K.A.; et al. 2017 HRS expert consensus statement on cardiovascular implantable electronic device lead management and extraction. Heart Rhythm 2017, 14, e503–e551. [Google Scholar] [CrossRef] [PubMed]
- Silver, M.J.; Giri, J.; Duffy, A.; Jaber, W.A.; Khandhar, S.; Ouriel, K.; Toma, C.; Tu, T.; Horowitz, J.M. Incidence of mortality and complications in high-risk pulmonary embolism: A systematic review and meta-analysis. J. Soc. Cardiovasc. Angiogr. Interv. 2023, 2, 100548. [Google Scholar] [CrossRef] [PubMed]
- Cioci, A.L.; Hutton, A.; Yi, S.; Khoriaty, G.; Gottlieb, G.; Cartledge, R.; Rubenstein, M. Percutaneous aspiration of aortic valve vegetation in a patient with aortic valve endocarditis. Clin. Case Rep. 2024, 12, e8724. [Google Scholar] [CrossRef] [PubMed]
- Khan, Z.; Gul, A.; Mlawa, G. Severe tricuspid regurgitation in a patient with previous tricuspid valve surgery for infective endocarditis secondary to intravenous drug use: A case report. Cureus 2023, 15, e40497. [Google Scholar] [CrossRef]
- Carozza, A.; Renzulli, A.; De Feo, M.; Ismeno, G.; Della Corte, A.; Dialetto, G.; Cotrufo, M. Tricuspid repair for infective endocarditis: Clinical and echocardiographic results. Tex. Heart Inst. J. 2001, 28, 96–101. [Google Scholar] [PubMed]
- Ohshima, T.; Miyachi, S. Experimental evaluation of the risk of distal embolization during endovascular clot retrieval using various techniques. Asian J. Neurosurg. 2021, 16, 84–88. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
- Jakobek, W.; Gravino, G.; Nayak, S.; Yang, Y.; Ranjbar, J.; Roffe, C. The effect of distal aspiration catheter position on collateral flow in mechanical thrombectomy: An in vitro study. Interv. Neuroradiol. 2023. [Google Scholar] [CrossRef]
- Daniel, E.; Sajja, K.; El-Nayir, M.; Swadia, T. Transcatheter mechanical aspiration of a large right ventricle lead vegetation. JACC Case Rep. 2025, 30, 103695. [Google Scholar] [CrossRef]
- Dudzinski, D.M.; Giri, J.; Rosenfield, K. Interventional treatment of pulmonary embolism. Circ. Cardiovasc. Interv. 2017, 10, e004345. [Google Scholar] [CrossRef] [PubMed]
- Ibrahim, F.; Murr, N.I. Embolic stroke. In StatPearls [Internet]; StatPearls Publishing: Treasure Island, FL, USA, 2022. Available online: https://www.ncbi.nlm.nih.gov/books/NBK564351/ (accessed on 16 November 2025).
- Gianni, C.; Elchouemi, M.; Helmy, R.; Spinetta, L.; La Fazia, V.M.; Pierucci, N.; Asfour, I.; Della Rocca, D.G.; Mohanty, S.; Bassiouny, M.A.; et al. Safety and feasibility of same-day discharge following uncomplicated transvenous lead extraction. J. Cardiovasc. Electrophysiol. 2024, 35, 278–287. [Google Scholar] [CrossRef]




| Parameter | Reference Range | November 2023 (1) | November 2023 (2) | January 2024 (3) | 7 February 2024 (4) | 8–13 February 2024 (5) | 20 February 2024 (8) | 23 February 2024 (6) | 19 April 2024 (7) | 5 February 2025 (9) |
|---|---|---|---|---|---|---|---|---|---|---|
| Inflammatory markers | ||||||||||
| CRP (mg/L) | <5 | 88.1 | 74.3 | 79.9 | 5.0 | 10.0 | 93.2 | 5.0 | 5.0 | 5.0 |
| WBC (×109/L) | 3.6–10.2 | 8.8 | 8.2 | 11.6 | — | 6.3 | 6.1 | — | 8.9 | 9.2 |
| Neutrophils, NE (%) | 43.5–73.5 | 66.5 | 65.2 | 63.0 | — | 49.3 | 63.3 | — | 69.6 | 71.7 |
| Procalcitonin (μg/L) | <0.1 | — | — | 2.79 | — | 0.60 | 1.88 | — | — | — |
| Hematology | ||||||||||
| Hemoglobin (g/L) | 135–175 | 131 | 137 | 134 | — | 129 | 120 | — | 158 | 147 |
| Platelets (×109/L) | 152–348 | 193 | 227 | — | — | — | 183 | — | 221 | 233 |
| Renal function | ||||||||||
| Creatinine (μmol/L) | 59–104 | 96 | — | 155 | 122 | 126 | 127 | 146 | 164 | 123 |
| eGFR (mL/min/1.73 m2) | ≥60 | 72.3 | — | 40.6 | 54.1 | 52.1 | 51.6 | 43.6 | 37.9 | 53.3 |
| Microbiology | ||||||||||
| Blood culture | Negative | Pos. † | — | — | — | — | — | — | — | — |
| ICD lead culture | Negative | — | — | — | — | — | — | Pos. ‡ | — | — |
| Date | Clinical Course and Management |
|---|---|
| February 2023 | Knee arthroplasty. Right total knee arthroplasty performed for advanced gonarthrotic. |
| November 2023 | Septic arthritis. Hospitalized with left elbow septic arthritis (S. epidermidis); treated with oxacillin with temporary improvement. |
| January 2024 | Recurrent infection. Readmission with fever up to 39 °C, elevated CRP (93 mg/L), and leukocytosis. Blood cultures confirmed S. epidermidis (oxacillin-sensitive); targeted therapy initiated. |

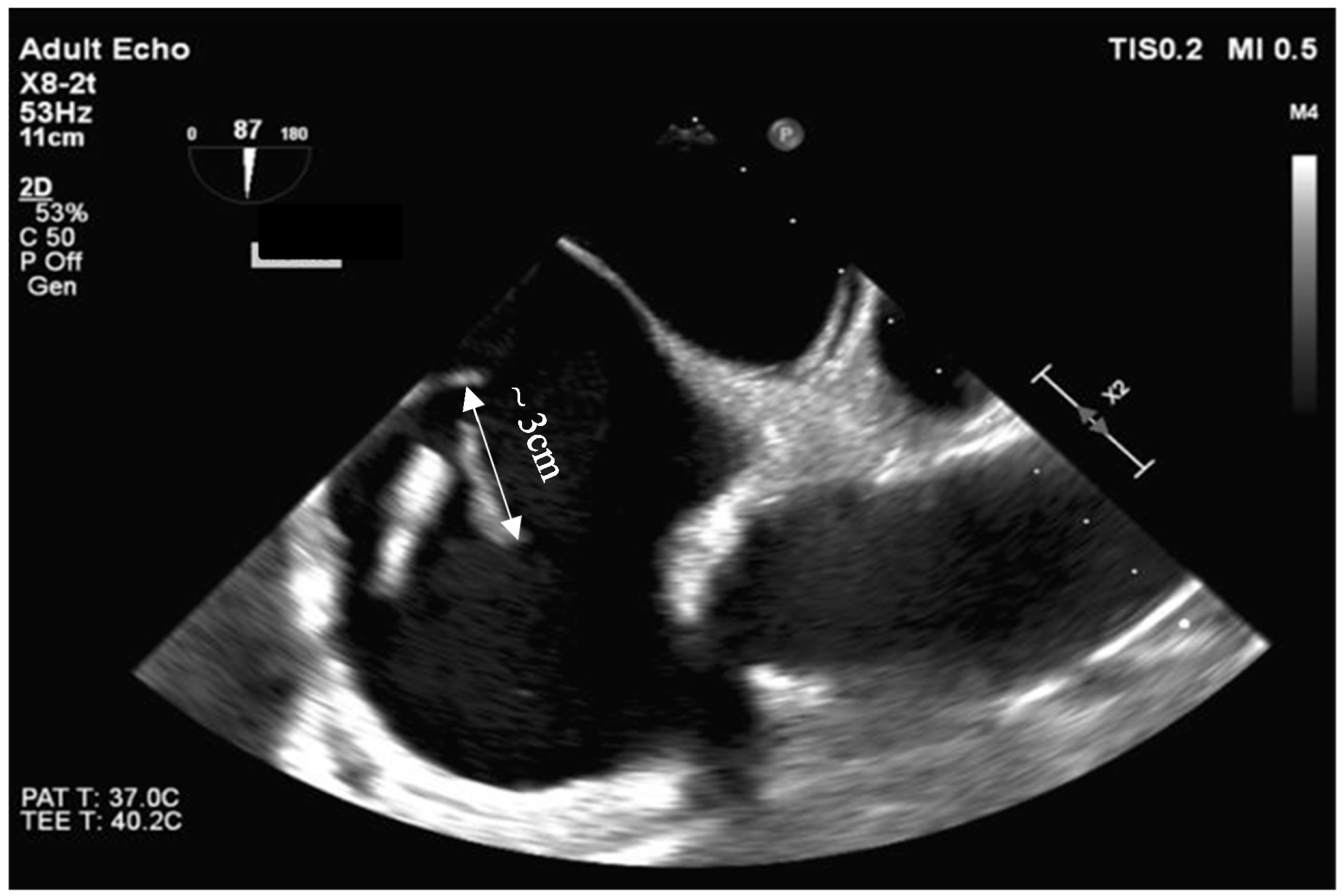

| Late January 2024 | Echocardiography. TTE identified a large mobile ICD lead vegetation; TEE confirmed ~3 cm vegetation with high embolic risk. Heart Team recommended percutaneous aspiration as bridging strategy. |
| 7 February 2024 | Penumbra aspiration. Vacuum-assisted thrombectomy (Penumbra Indigo System, 12F) performed under fluoroscopic guidance; partial vegetation debulking achieved without complications. |
| 8–13 February 2024 | Post-aspiration. TEE confirmed no residual vegetation. CRP declined progressively (79 → 5 mg/L); oxacillin continued. |
| 20 February 2024 | Fever recurrence. Recurrent fever and CRP rise to 93.2 mg/L: blood cultures negative. Decision made to proceed with complete device extraction per ESC 2023 guidelines. |
| 23 February 2024 | ICD lead extraction. Complete ICD system removed under general anesthesia. S. epidermidis isolated from lead scrapings; oxacillin continued for six weeks. Wound healed by primary intention. |
| 25 April 2024 | ICD reimplantation. After full infection resolution and CRP normalization, new ICD successfully reimplanted without complications. |
| September 2024–February 2025 | Follow-up. Ambulatory reviews confirmed stable device function, normal inflammatory markers, and no infection recurrence. |
| Treatment Option | Advantages | Disadvantages/Limitations |
|---|---|---|
| Empiric intravenous antibiotic therapy | Immediate treatment; broad pathogen coverage; reduces risk of progression and embolization | Potential overtreatment; nephrotoxicity; may affect microbiological yield |
| Targeted intravenous antibiotic therapy | Pathogen-specific efficacy; narrower antimicrobial spectrum | Requires prolonged treatment and toxicity monitoring |
| Vancomycin-based regimens | Effective against MRSA and resistant Gram-positive pathogens | Nephrotoxicity: therapeutic monitoring required |
| Beta-lactam therapy | Excellent bactericidal activity; preferred for susceptible MSSA | Allergy risk; resistance concerns |
| Combination antibiotic therapy | Synergistic bactericidal effect in selected cases | Nephrotoxicity and ototoxicity risk |
| Outpatient parenteral antimicrobial therapy (OPAT) | Reduced hospitalization; improved patient comfort | Catheter-related complications; close follow-up required |
| Oral step-down antibiotic therapy | Improved convenience; lower healthcare burden | Limited evidence; strict patient selection necessary |
| Surgical valve repair/replacement | Removes infected tissue; improves outcomes in selected patients | Major operative risk; prosthetic complications |
| CIED extraction | Essential for eradication of device-related infection | Procedural complications may occur |
| Supportive therapy | Hemodynamic stabilization and complication management | Does not eradicate infection |
| Characteristic | Our Case | Gianni et al. [33] (Same-Day Discharge After Uncomplicated TLE) | Similar PMA/Penumbra Reports |
|---|---|---|---|
| Clinical setting | Definite CIED-related infective endocarditis | Uncomplicated transvenous lead extraction | High-risk CIED-IE/right-sided endocarditis |
| Infection status | Active S. epidermidis sepsis | Clinically stable; no active systemic infection | Active infection common |
| Vegetation size | ~3 cm mobile ICD lead vegetation | Large vegetations not typical (majority < 10–15 mm) | Usually, >20 mm |
| Procedural approach | Penumbra aspiration for debulking → staged complete ICD lead extraction | Direct transvenous lead extraction in a single procedure | Aspiration/debulking (PMA/AngioVac) before lead extraction |
| Indication for aspiration | High embolic risk due to large vegetation; prohibitive surgical risk | Not applicable | Reduce vegetation burden and embolization risk in high-risk patients |
| Surgical risk profile | High (Euro SCORE II 10.9%) | Selected low/intermediate-risk patients | Frequently high surgical risk |
| Hospitalization strategy | Prolonged inpatient, staged management | Same-day discharge | Typically inpatient, staged care |
| Definitive management | Complete device extraction + prolonged targeted antibiotics | Complete extraction during index procedure | Complete extraction after debulking |
| Guideline alignment | Consistent with ESC 2023 recommendations for definite CIED-IE | Applicable to uncomplicated cases without active infection | Consistent with ESC guidelines as adjunctive/bridge strategy |
| Outcome | Infection resolved; inflammatory markers normalized; successful ICD reimplantation | Safe same-day discharge; low complication rate | Favorable infection control and clinical improvement reported |
| Key takeaway | Aspiration useful as a bridge in high-risk CIED-IE but not a substitute for complete extraction | Same-day discharge feasible in carefully selected uncomplicated TLE patients | Aspiration reduces vegetation burden and procedural risk but requires definitive device extraction |
